37 - Hexagonal Head Flanged Screw, M8 X 70 1
Part Number : 19M7803
Remarks : M8 X 70
38 - Hexagonal Flange Nut, M8 1 Part Number : 14M7298
Remarks : M8
39 - Label 1 Part Number : T387380X00
40 - Single Band Hose Clamp 2 Part Number : T303090
Remarks : USE WITH AT459024
40 - Hose Band Clamp 2
Part Number : AT353137
Remarks : USE WITH AT375285

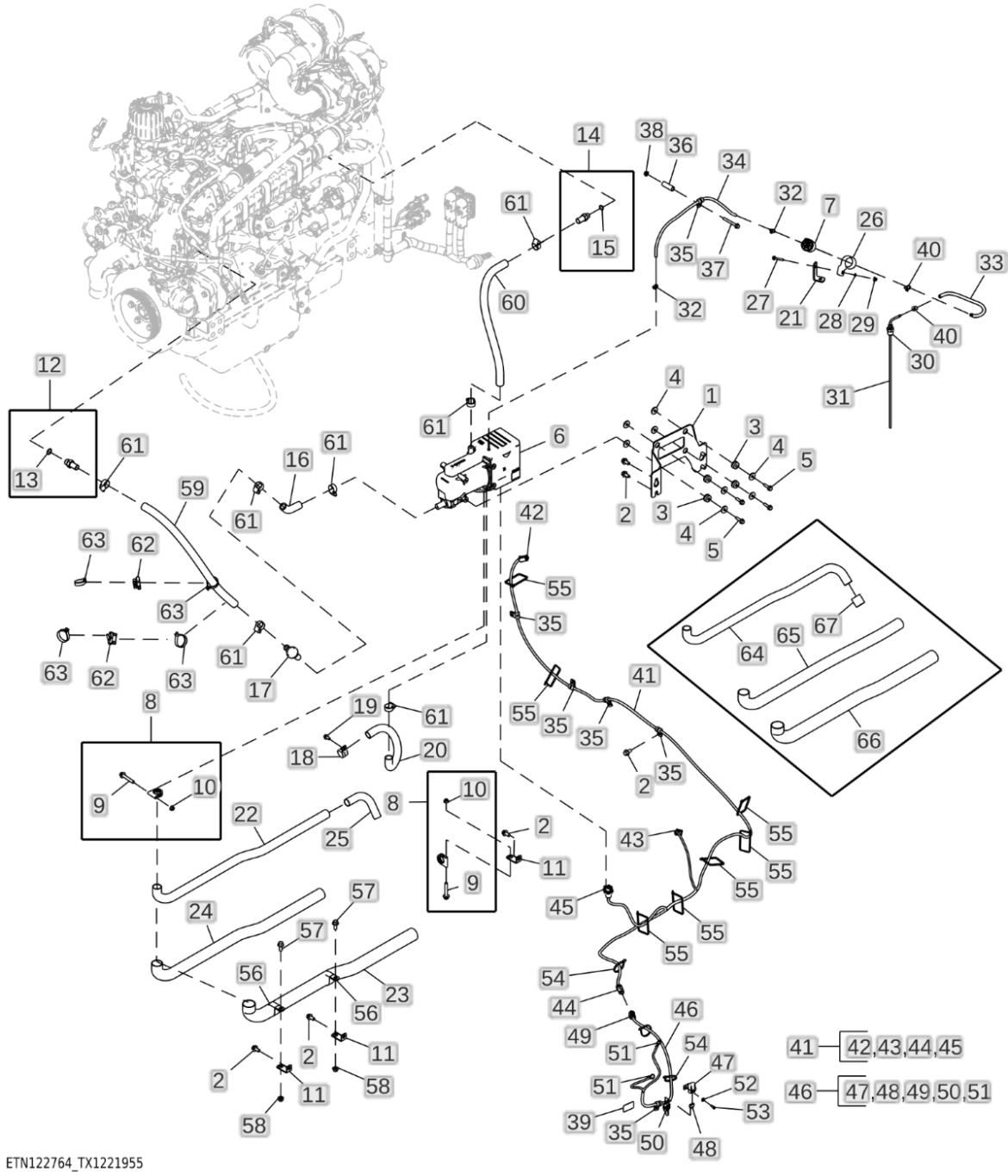

41 - Diesel Fired Coolant Heater Wiring Harness 1 Part Number : AT473952
Remarks : Diesel Fired Coolant Heater Harness
42 - Black Internal Electrical Connector Assembly, 4 Cavities 1 Part Number : 57M8015
42 - Electrical Connector Terminal 4 Part Number : R78065
43 - Black Electrical Connector Housing, 2 Cavities 1 Part Number : 57M10118
Remarks : Coolant Heater Fuel Pump
43 - Elec. Connector Terminal 4 Part Number : 57M10120
43 - Electrical Connector Terminal 4 Part Number : 57M7399
44 - Gray Electrical Connector Housing, 2 Cavities 1 Part Number : 57M9731
44 - Electrical Connector Terminal 4

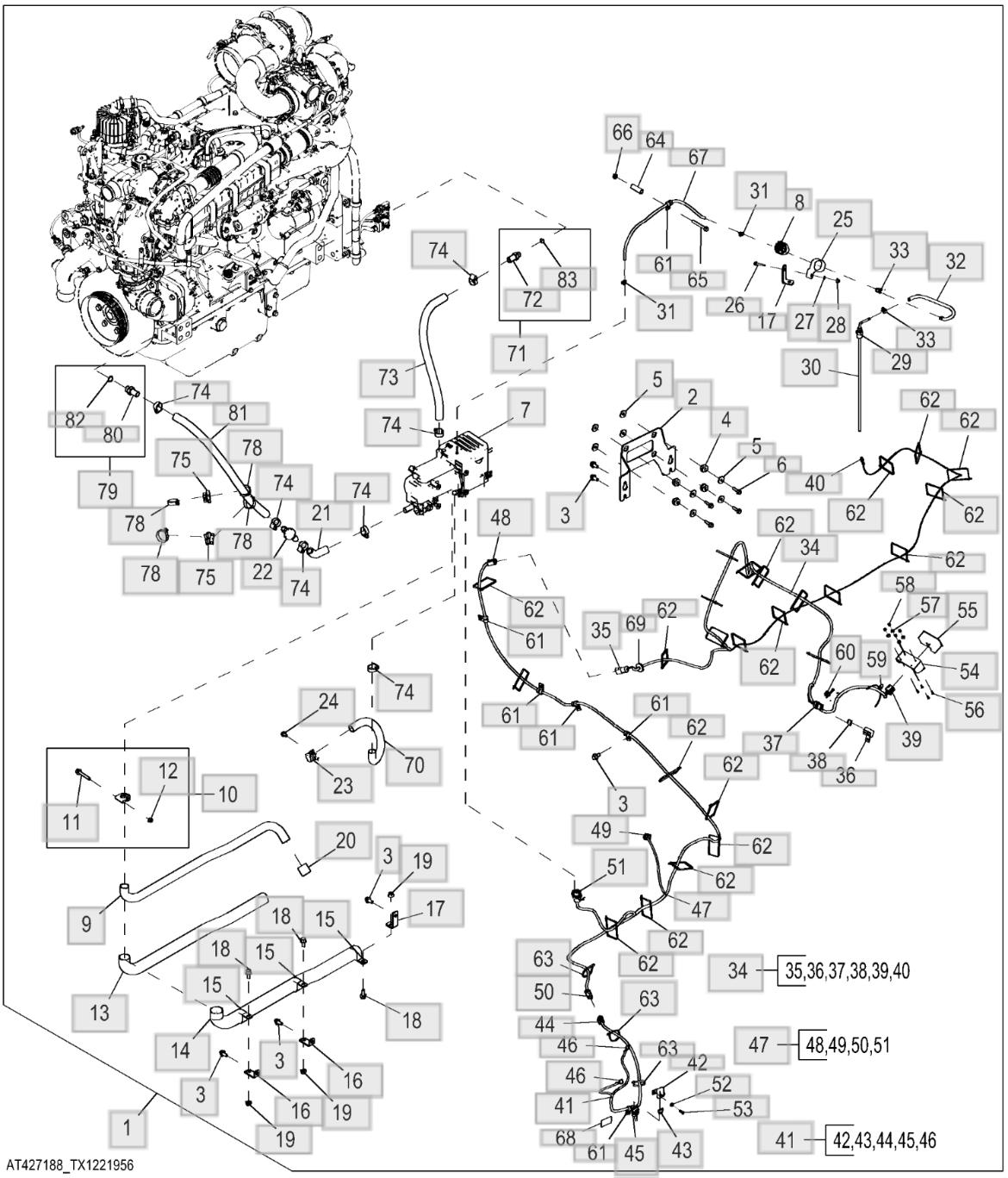

1 - Coolant Heater 1
Part Number : AT427188
Remarks : Whole Goods
2 - Bracket 1 Part Number : T377916
3 - Hexagonal Head Screw, M10 X 20 8 Part Number : 19M7784
Remarks : M10 X 20
4 - ECU Mount Isolator 4 Part Number : AT116162
5 - Round Hole Washer 8
Part Number : 24M7024
Remarks : 9 X 28 X 3 mm
6 - Hexagonal Head Flanged Screw, M8 X 30 4
Part Number : 19M7868
Remarks : M8 X 30
7 - Diesel Fired Coolant Heater 1 Part Number : AT380985
Remarks : Components on Separate Page
8 - Fuel Pump, 24 Volts 1 Part Number : AT328573
9 - Exhaust Pipe 1 Part Number : T348293
10 - Muffler Clamp 1 Part Number : AT325248
11 - Hexagonal Head Flanged Screw, M10 X 60 1 Part Number : 19M7807
Remarks : M10 X 60
12 - Hexagonal Flange Nut, M8 1 Part Number : 14M7298
Remarks : M8

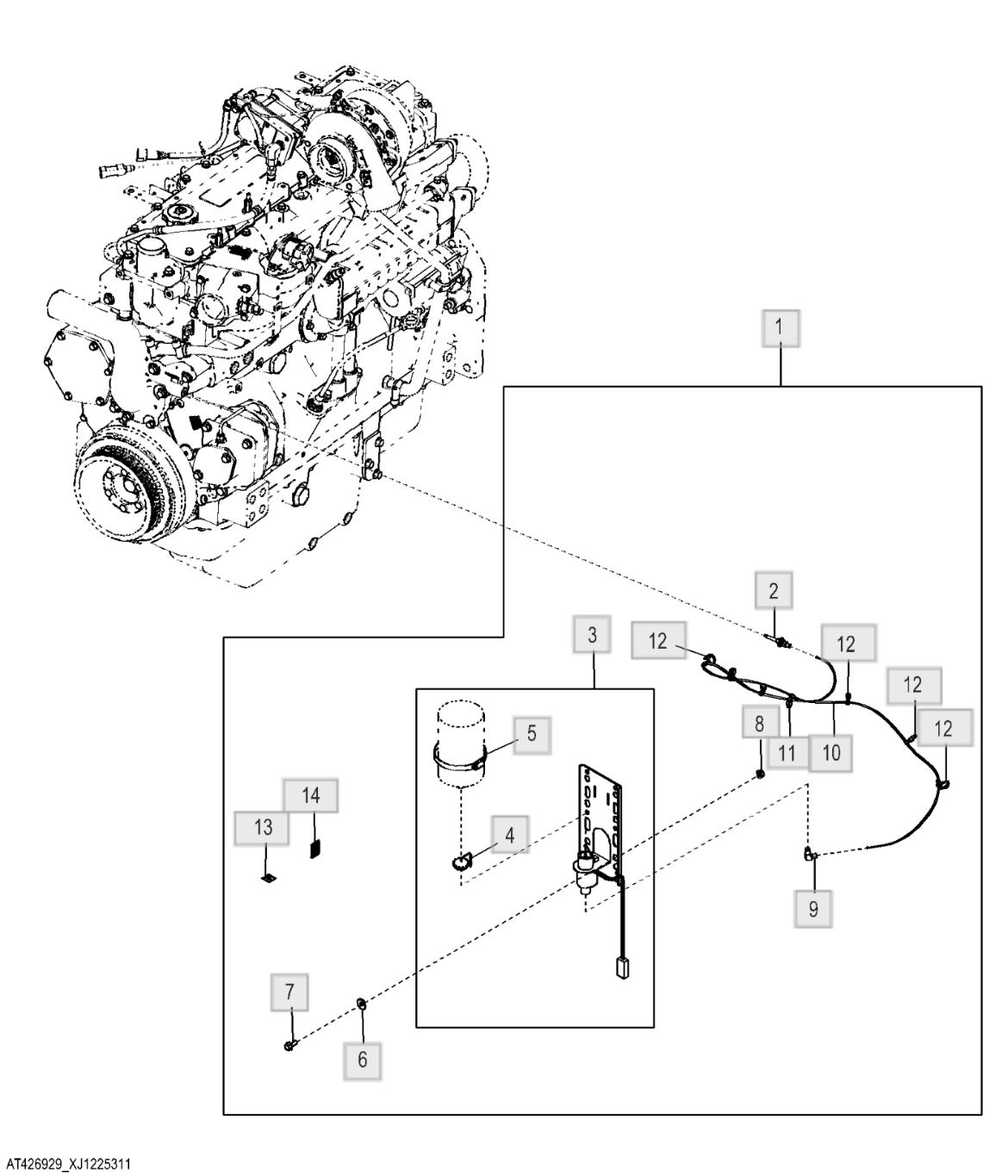

1 - Starting Aid
Part Number : AT426929
2 - Cold Weather Starting Aid Nozzle
Number : AT183222
3 - Starting Aid
Part Number : AT358073 Remarks : Ether Valve
4 - Cap 1 Part Number : AT171539
5 - Hose Clamp 1 Part Number : AR21842
6 - Round Hole Washer
Part Number : 24M7298
Remarks : 8.400 X 25 X 2 mm
7 - Hexagonal Head Flanged Screw, M8 X 20
Part Number : 19M7866
Remarks : M8 X 20
8 - Hexagonal Flange Nut, M8
Part Number : 14M7298 Remarks : M8 9 - Elbow Fitting
Number : AT376258 10 - Bulk Hose
Number : Remarks : MAKE FROM T78593, CTL 142 cm (4.66 ft) 11 - Tie-Band with Clip
Number : AT457641 12 - Tie-Band with Clip
Number : AT457641 13 - Important Book Label
Number : M160851

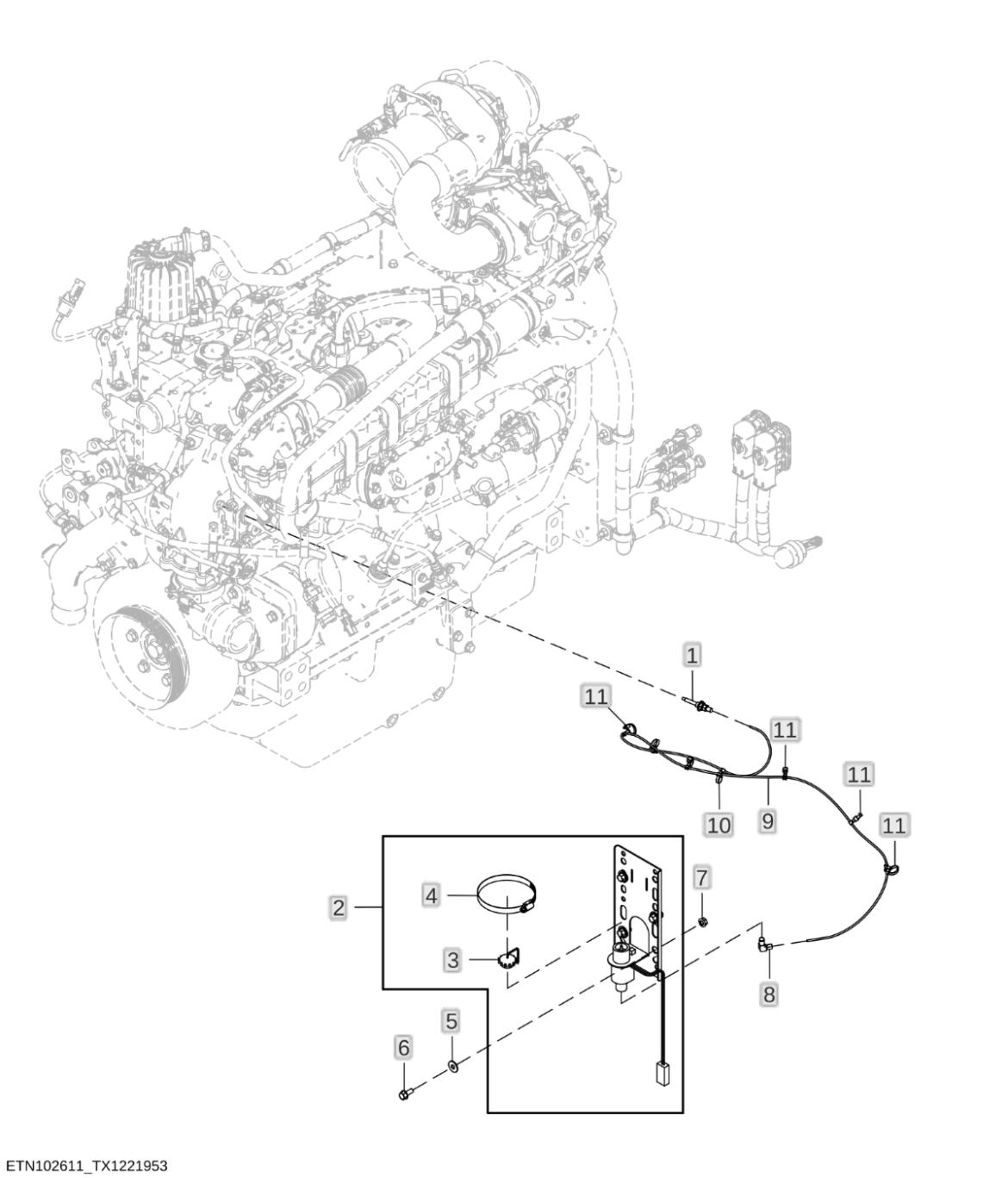

1 - Cold Weather Starting Aid Nozzle 1
Number : AT183222 2 - Starting Aid
Number : AT358073 Remarks : Ether Valve
- Cap
Number : AT171539
- Hose Clamp 1
Number : AR21842 5 - Round Hole Washer 4 Part Number : 24M7298 Remarks : 8.400 X 25 X 2 mm 6 - Hexagonal Head Flanged Screw, M8 X 20
Part Number : 19M7866
Remarks : M8 X 20 7 - Hexagonal Flange Nut, M8
Number : 14M7298 Remarks : M8 8 - Elbow Fitting
Number : AT376258
- Bulk Hose
Number : .......
: MAKE FROM T78593, CTL 1420.37 mm (4.66 ft)
- Tie-Band with Clip 1
Number : AT457641 11 - Tie-Band with Clip
Number : AT457641
