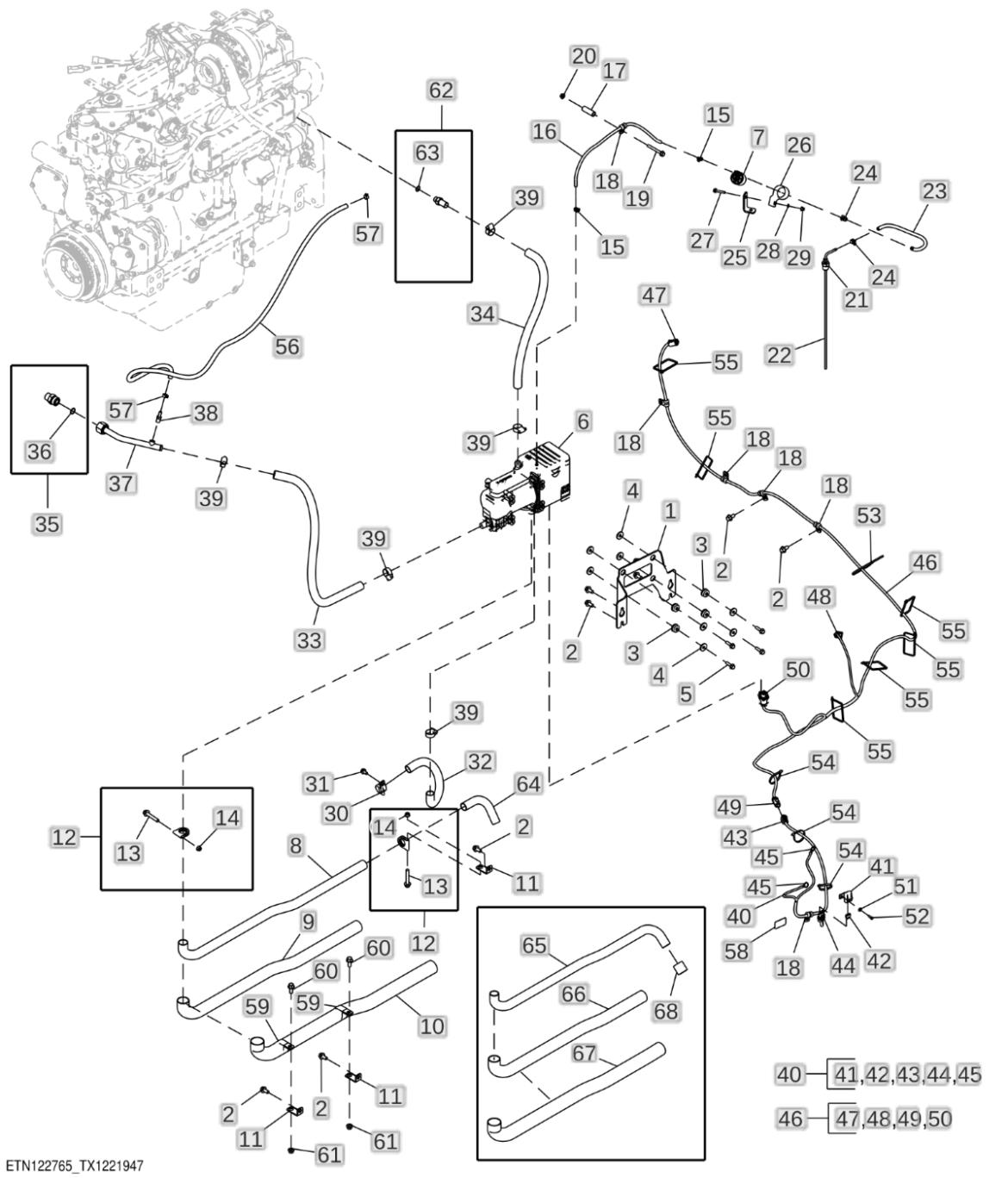

1 - Starting Aid 1 Part Number : AT358073
2 - Cap 1
Number : AT171539
3 - Worm Gear Hose Clamp 1 Part Number : TY22474
Remarks : SUB FOR AR21842
4 - Round Hole Washer 4 Part Number : 24M7298
Remarks : 8.400 X 25 X 2 mm
5 - Hexagonal Head Flanged Screw, M8 X 20 4 Part Number : 19M7866
Remarks : M8 X 20
6 - Hexagonal Flange Nut, M8
Part Number : 14M7298
Remarks : M8
7 - Elbow Fitting
Number : AT376258 8 - Bulk Hose 1
Number : ....... Remarks : MAKE FROM TY22330, CTL 139 cm (4.56 ft)
9 - Bushing 1 Part Number : 15H511 Remarks : 1/8" 10 - Nozzle 1
Number : AT359344
- Tie-Band with Clip
Number : AT457641
- Instructional Label
Number : T42170 Remarks : Instructional
1 - Starting Aid
Part Number : AT426929
2 - Cold Weather Starting Aid Nozzle
Number : AT183222
3 - Starting Aid
Part Number : AT358073 Remarks : Ether Valve
4 - Cap 1 Part Number : AT171539
5 - Hose Clamp 1 Part Number : AR21842
6 - Round Hole Washer
Part Number : 24M7298
Remarks : 8.400 X 25 X 2 mm
7 - Hexagonal Head Flanged Screw, M8 X 20
Part Number : 19M7866
Remarks : M8 X 20
8 - Hexagonal Flange Nut, M8
Part Number : 14M7298 Remarks : M8 9 - Elbow Fitting
Number : AT376258 10 - Bulk Hose
Number : Remarks : MAKE FROM T78593, CTL 142 cm (4.66 ft) 11 - Tie-Band with Clip
Number : AT457641 12 - Tie-Band with Clip
Number : AT457641 13 - Important Book Label
Number : M160851
Number : T368708
- Plain Spacer
Number : 28H3402 Remarks : 0.493" X 0.675" X 2" 18 - Clamp
Part Number : T78974
19 - Hexagonal Head Flanged Screw, M8 X 70
Part Number : 19M7803
Remarks : M8 X 70 20 - Hexagonal Flange Nut, M8
Number : T366512 23 - Hose
Number : AT459024 Remarks : ORDER AT375285 23 - Hose
Number : AT375285 24 - Single Band Hose Clamp
Number : T303090
Remarks : USE WITH AT459024 24 - Hose Band Clamp
1 - Power Cord 1
Part Number : AT442071
Remarks : 220 V
2 - Coolant Heater, 240 Volts 1
Part Number : RE505888
Remarks : 240 V
3 - Heating Element 1 Part Number : RE42141
4 - Washer 1 Part Number : R206883
5 - Adapter Fitting 1 Part Number : R54123
6 - Round Cross Section O-Ring 1 Part Number : U13639
7 - Electrical Connector Cavity Plug 1
Part Number : AT418919
8 - Hexagonal Head Screw, M4 X 16 4
Part Number : 19M8078
Remarks : M4 X 16
9 - Round Hole Washer 4 Part Number : 24H1283
Remarks : 7/32" X 1/2" X 0.049"
10 - Hexagonal Nut, M4 4 Part Number : 14M7100
Remarks : M4
11 - Block Heater Label 1
Part Number : T304887
Remarks : Block Heater
12 - 8 inch Black Tie-Band
Part Number : R44302
