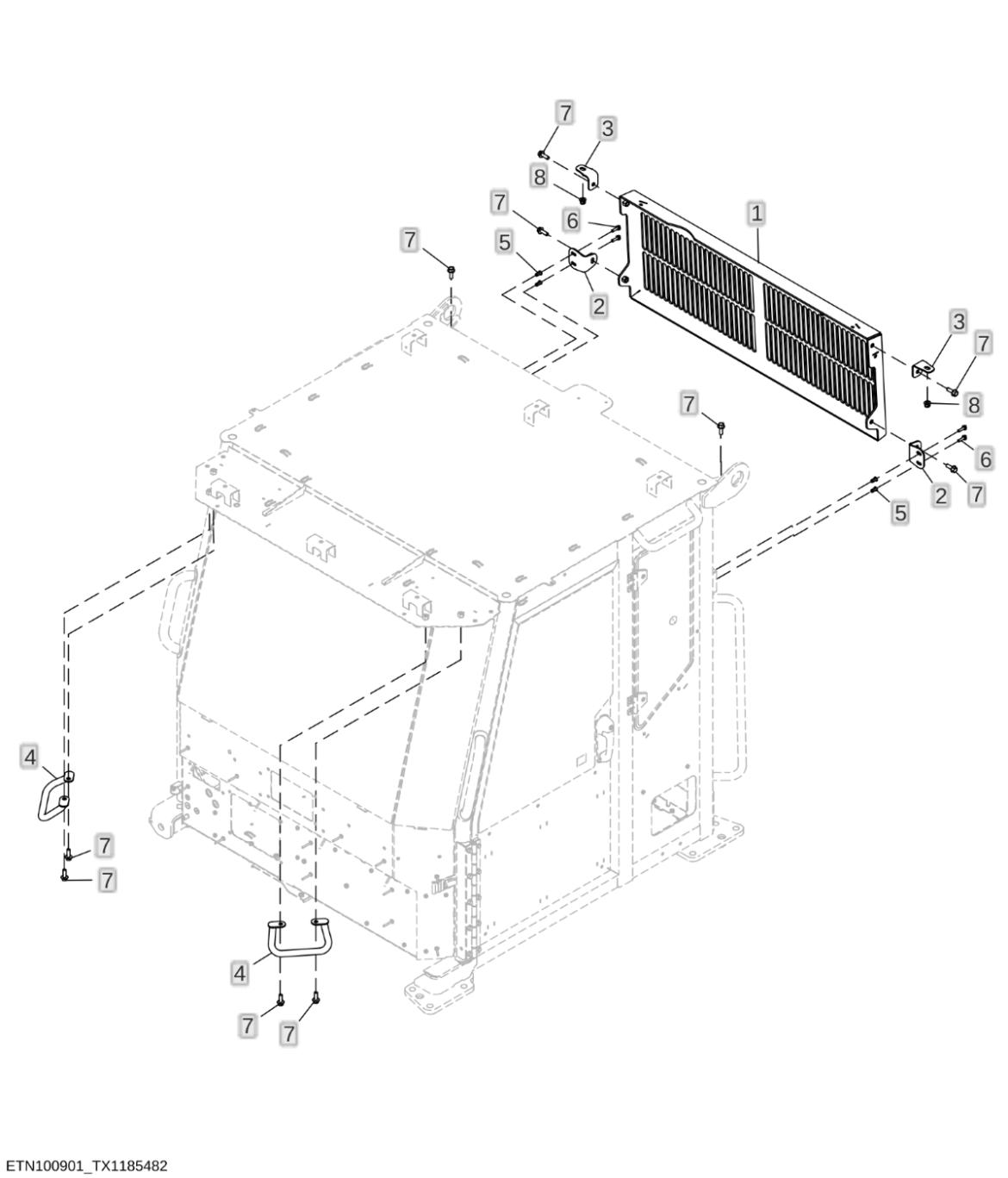

1 - Rear Guard 1
Part Number : AT501105
Remarks : Rear, SUB FOR AT431835
2 - Plate 2 Part Number : T341443
3 - Bracket 2 Part Number : T360477
4 - Front Handrail 2
Part Number : AT451432
Remarks : Front
5 - Nut 4
Part Number : T301124
6 - Hexagonal Head Flanged Screw, M8 X 30 4
Part Number : 19M9838
Remarks : M8 X 30
7 - Hexagonal Head Flanged Screw, M12 X 35 10
Part Number : 19M9984
Remarks : M12 X 35
8 - Hexagonal Lock Nut, M12 2
Part Number : 14M7644
Remarks : M12
Part Number : AT437515 Remarks : Air Conditioner Freeze Control Sensor 16 - Cylindrical Head Screw, M5 X 38
Number : PT11778 17 - 2-Diameter Block Clamp
Number : T337732
: SUB FOR T343825 18 - Bolt
Number : T343822 19 - Bracket 1
Number : T363285 20 - Self-Tapping Pan Head Screw
Number : T341580
Number : T341743
- Hexagonal Rivet Nut, M8
Number : T196080
- Nut
Number : T301124
- Hexagonal Head Flanged Screw, M8 X 25
Number : 19M7867
Number : R183409
Remarks : Not Illustrated
