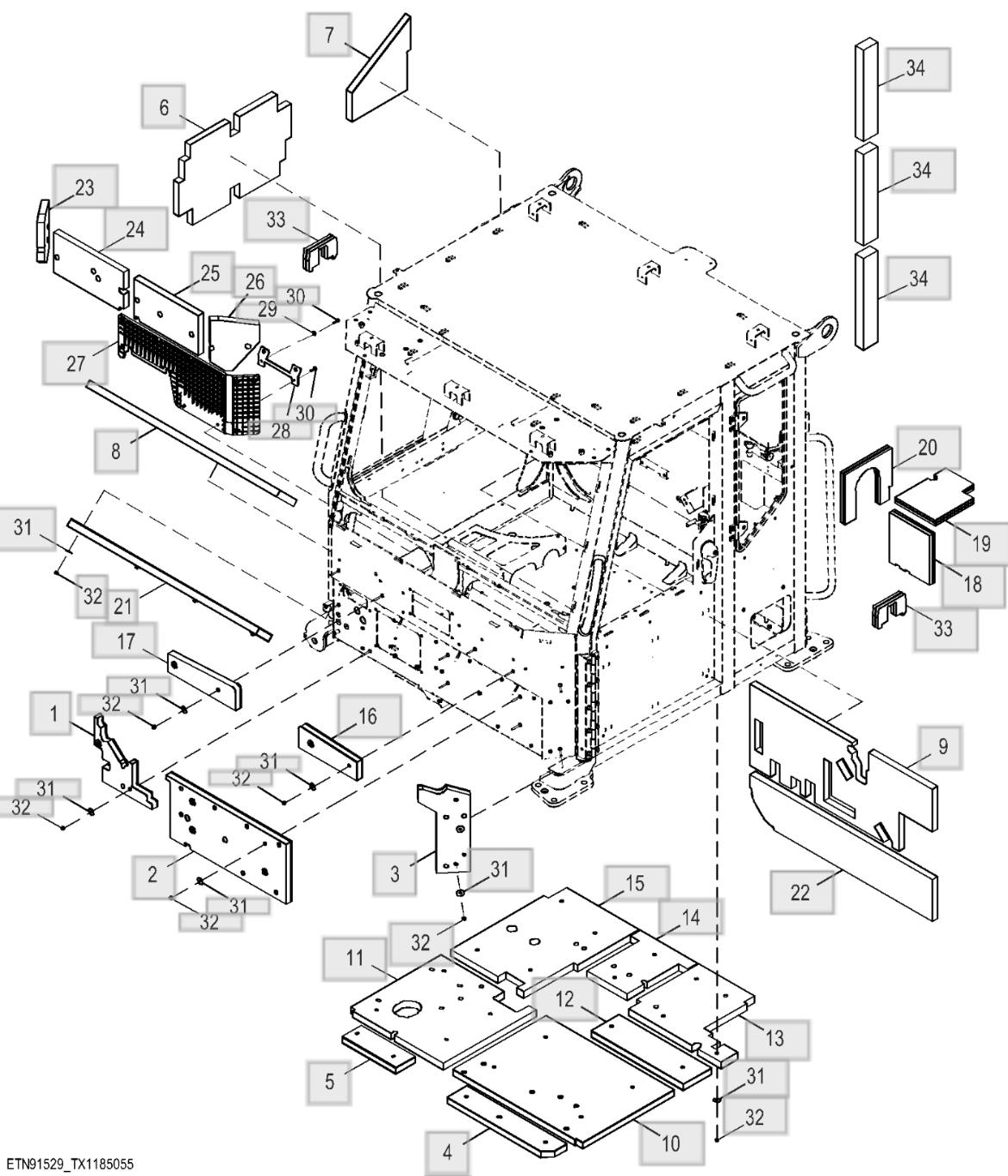

1 - Cab 1
Part Number : AT415041
1 - Hexagonal Rivet Nut, M8 25 Part Number : T196080
1 - Hexagonal Rivet Nut, M10 6 Part Number : H173411
1 - Nut 31
Part Number : T301124
1 - Label 1 Part Number : T390067X19
Remarks : Rops Fops Certification
1 - Hexagonal Rivet Nut, M6 19 Part Number : T196077
1 - Hexagonal Rivet Nut, M6 9 Part Number : T196078
2 - Cab Center Windshield 1
Part Number : T337319
Remarks : Center
3 - Right Side Windshield 1 Part Number : T337321
Remarks : RH
4 - Left Side Windshield 1 Part Number : T337320
Remarks : LH
5 - Rear Window 1 Part Number : T337326
Remarks : Rear
6 - Bulb Seal, LH 1 Part Number : T347536
7 - Left Side Cab Window 1 Part Number : T347285
1 - Insulator 1
Part Number : T364397
Remarks : Firewall, Front RH
2 - Insulator 1
Part Number : T336549
Remarks : Firewall, Front LH
3 - Insulator 1
Part Number : T337678
Remarks : Firewall, Side LH
4 - Insulator 1
Part Number : T334425
Remarks : Firewall, Bottom LH
5 - Insulator 1
Part Number : T334426
Remarks : Firewall, Bottom RH
6 - Insulator 1
Part Number : T334427
Remarks : Interior Door
7 - Insulator 1
Part Number : T334428
Remarks : Interior, LH
8 - Insulator 1
Part Number : T334429
Remarks : Interior, Dash Angle
9 - Insulator 1
Part Number : T334430
Remarks : Interior, Rear RH
10 - Insulator 1
Part Number : T334431
Remarks : Floor Front Lefthand
11 - Insulator 1
Part Number : T360960
Part Quantity Required
Part Number : T346141
Remarks : Interior Rear Lower
23 - Insulator 1
Part Number : T345338
Remarks : Interior Firewall, RH
24 - Insulator 1
Part Number : T345337
Remarks : Interior Firewall, RH
25 - Insulator 1
Part Number : T345336
Remarks : Interior Firewall, RH
26 - Insulator 1
Part Number : T345335
Remarks : Interior Firewall, RH
27 - Mat 1
Part Number : T334661
Remarks : Floormat
28 - Bracket 1
Part Number : T343847
Remarks : Bracket, Firewall Material Tie Down
29 - Round Hole Washer 8
Part Number : 24H1821
Remarks : 9/32" X 47/64" X 1/16"
30 - Cylindrical Head Screw, M6 X 25 10
Part Number : 21M7513
Remarks : M6 X 25
31 - Washer 40
Part Number : T145936
32 - Hexagonal Lock Nut, M6
Part Number : 14M7592
Remarks : M6
33 - Insulator
