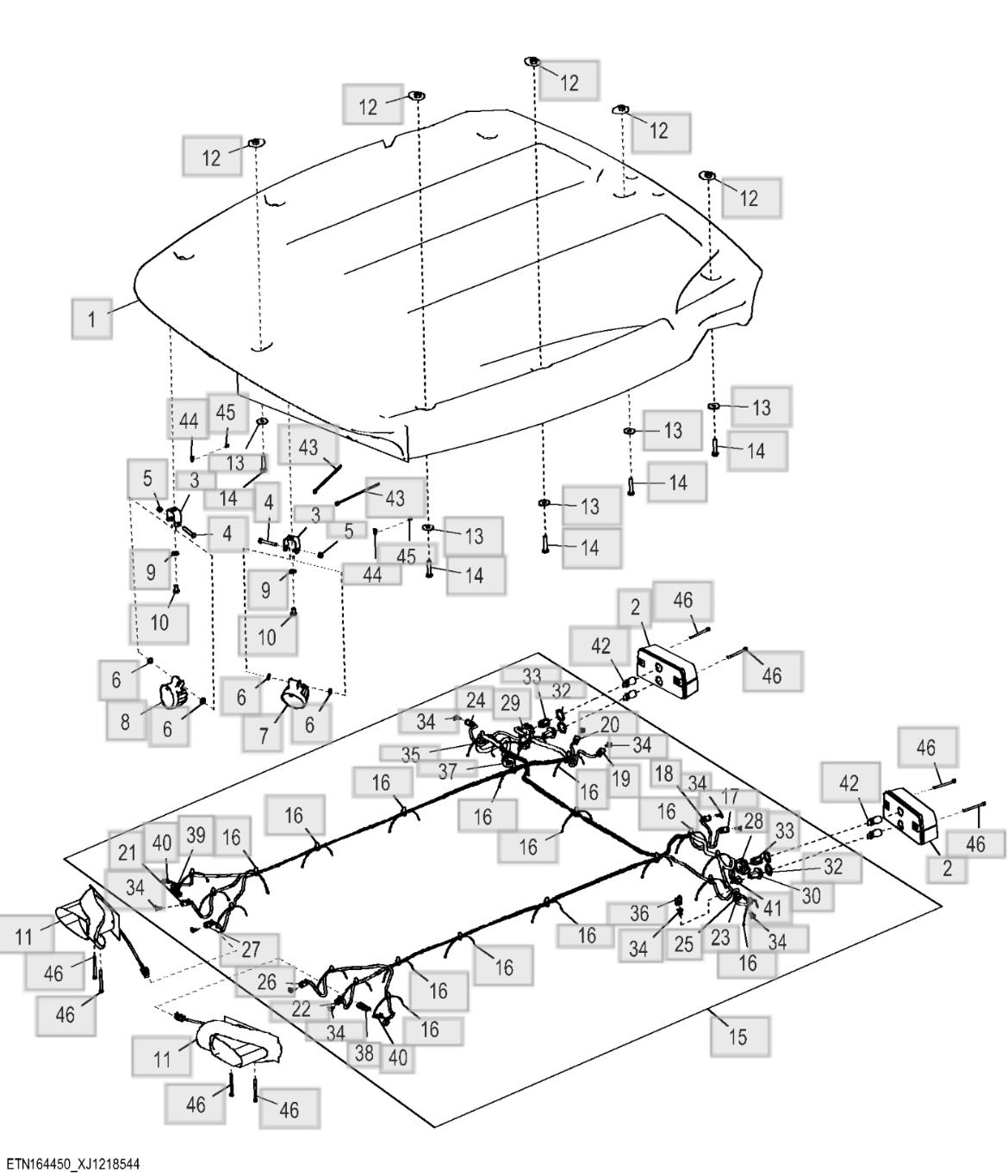

1 - Gasket 1
Part Number : T185782
Remarks : Top Face
2 - Gasket 1
Part Number : T303663
Remarks : LH
3 - Isolator 1
Part Number : T333599
Remarks : RH, Upper
4 - Isolator 1
Part Number : T340849
Remarks : RH, Bottom
1 - Deluxe Plastic Roof 1
Part Number : T277993
Remarks : Deluxe Plastic Roof
2 - Roof Light Stop Light 2 Part Number : AT324938
Remarks : Turn and Stop
3 - Work Light Mounting Bracket 10 Part Number : T216731
4 - Hexagonal Head Screw, M8 X 55 10 Part Number : 19M7165
Remarks : M8 X 55
5 - Hexagonal Lock Nut, M8 10 Part Number : 14M7426
Remarks : M8
6 - Washer
Part Number : T354108
7 - LED Flood Light, 24 Volts
Part Number : AT443223
Remarks : Work Lamp LED Near Flood Inner
8 - Round LED Work Light, 24 Volt 2 Part Number : AT443224
Remarks : Work Lamp LED Far Flood Outer
9 - Round Hole Washer 10 Part Number : 24M7239
Remarks : 10.700 X 21 X 2.500 mm
10 - Hexagonal Head Screw, M10 X 16 10 Part Number : 19M8324
Remarks : M10 X 16
11 - Amber LED Warning Light
Part Number : RE217551
Remarks : Amber Warning RH Front and LH Rear, INCLUDES AD2062R
Part Number : AD2062R
12 - Sealing Washer
Number : AT456940 13 - Round Hole Washer
Part Number : 24M7101
Remarks : 11 X 34 X 3 mm
14 - Hexagonal Head Cap Screw
Part Number : T369329
15 - Roof Wiring Harness
Part Number : AT489813
Remarks : Roof Wiring Harness, SUB FOR AT397346
16 - Snap-In Clamp
Part Number : T209627
17 - Black Internal Electrical Connector Assembly, 2 Cavities
Part Number : 57M8021
Remarks : Left Rear Work Light (If Equipped), E02
17 - Electrical Connector Terminal
Part Number : R78065 18 - Black Internal Electrical Connector Assembly, 2 Cavities
Part Number : 57M8021 Remarks : Left Rear Work Light, E01
18 - Electrical Connector Terminal
Part Number : R78065 19 - Black Internal Electrical Connector Assembly, 2 Cavities
Part Number : 57M8021
Remarks : Right Rear Work Light, E04
19 - Electrical Connector Terminal
Part Number : R78065 20 - Black Internal Electrical Connector Assembly, 2 Cavities
Part Number : 57M8021
Remarks : Right Rear Work Light ( If Equipped), E03
20 - Electrical Connector Terminal 2
Part Number : R78065
21 - Black Internal Electrical Connector Assembly, 2 Cavities 1 Part Number : 57M8021
Remarks : Right Front Work Light ( If Equipped), E06
21 - Electrical Connector Terminal 2 Part Number : R78065
22 - Black Internal Electrical Connector Assembly, 2 Cavities 1 Part Number : 57M8021
Remarks : Left Front Work Light ( If Equipped), E05
22 - Electrical Connector Terminal 2 Part Number : R78065
23 - Black Internal Electrical Connector Assembly, 2 Cavities 1 Part Number : 57M8021
Remarks : Left Docking Light, E15
23 - Electrical Connector Terminal 2 Part Number : R78065
24 - Black Internal Electrical Connector Assembly, 2 Cavities 1 Part Number : 57M8021
Remarks : Right Docking Light, E16
24 - Electrical Connector Terminal 2 Part Number : R78065
25 - Black Internal Electrical Connector Assembly, 2 Cavities 1 Part Number : 57M8021
Remarks : Beacon Lamp ( Tieband Cap Back to Harness), E17
25 - Electrical Connector Terminal 2 Part Number : R78065
26 - Black Internal Electrical Connector Assembly, 2 Cavities 1 Part Number : 57M8021
Remarks : Left Front Drive Light, E07
26 - Electrical Connector Terminal 2
Part Number : R78065
27 - Black Internal Electrical Connector Assembly, 2 Cavities 1 Part Number : 57M8021
Remarks : Right Front Drive Light, E08
27 - Electrical Connector Terminal 2 Part Number : R78065
28 - Gray External Electrical Connector Housing, 2 Cavities 1 Part Number : 57M10126
Remarks : Left Rear Turn Lamp, E11
28 - Electrical Connector Terminal 2 Part Number : 57M10127
29 - Gray External Electrical Connector Housing, 2 Cavities 1 Part Number : 57M10126
Remarks : Right Rear Turn Lamp, E13
29 - Electrical Connector Terminal 2 Part Number : 57M10127
30 - Electrical Lamp Socket 1 Part Number : 57M8864
Remarks : Left Brake/ Tail Lights, E09
30 - External Electrical Connector Terminal 3 Part Number : 57M7519
30 - Electrical Connector Terminal 1 Part Number : 57M8316
31 - Electrical Lamp Socket 1 Part Number : 57M8864
Remarks : Right Brake/ Tail Lights, E10
31 - External Electrical Connector Terminal 3 Part Number : 57M7519
31 - Electrical Connector Terminal 1 Part Number : 57M8316
32 - Black Electrical Connector Cable Seal 4
Part Number : 57M10427
33 - Light Gray Electrical Connect Locking Device 2 Part Number : 57M10428
34 - Electrical Connect Locking Device 11 Part Number : 57M8022
35 - Elec. Connector Terminal 1 Part Number : 57M10374
Remarks : Roof Ground Eyelet, W3-1, SUB FOR APPL 57M9944
36 - Black Electrical Connector 1 Part Number : 57M11230
37 - Gray Electrical Connector Terminal, 9 Cavities 1 Part Number : N282065
Remarks : Cab/ Canopy Harness to Roof Harness Connector, X26
37 - Electrical Connector Terminal 4 Part Number : R78065
37 - Electrical Connector Terminal 5 Part Number : 57M7542
38 - Black Internal Electrical Connector Housing, 2 Cavities 1 Part Number : 57M7256
Remarks : Left Front Turn Lamp, E12
38 - Red Electrical Connector Cable Seal
Part Number : 57M9883
39 - Black Internal Electrical Connector Housing, 2 Cavities
Part Number : 57M7256
Remarks : Right Front Turn Lamp, E14
39 - Red Electrical Connector Cable Seal
Number : 57M9883
40 - Blue Electrical Connector Accessory
Part Number : 57M9712
41 - Light Gray Electrical Connect Locking Device
Part Number : 57M9211
42 - S8 Bulb, 3CP, 14 Volts, 26.88 Watts 4
Part Number : RE49778
Remarks : 12.8 V, Turn and Stop
43 - 8 inch Black Tie-Band 15
Part Number : R44302
44 - Anchor 5
Part Number : T187394
45 - Screw 5
Part Number : T185769
46 - Cylindrical Head Screw, M6 X 75 8
Part Number : 19M8706
Remarks : M6 X 75
