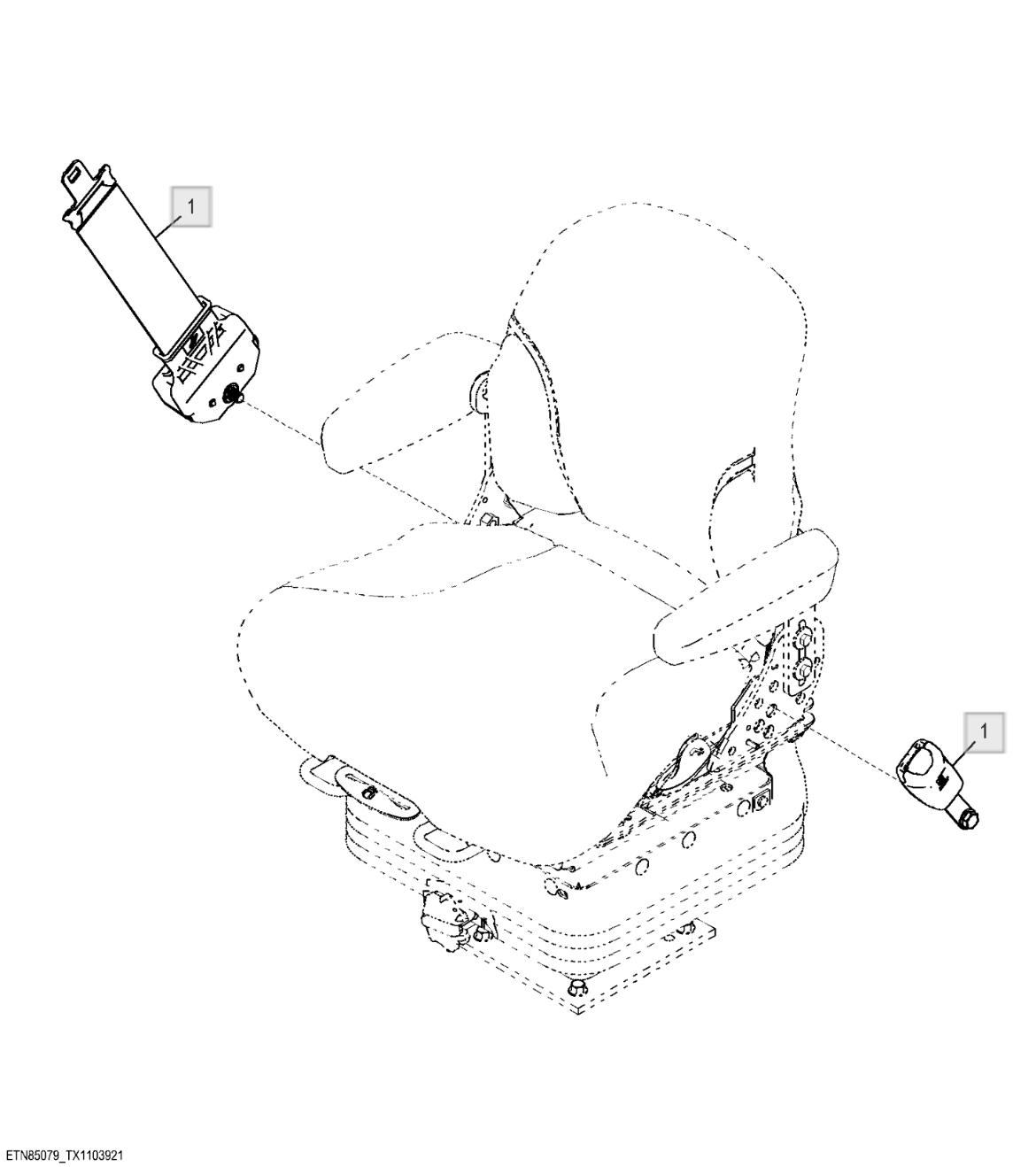

1 - Seat Belt 1
Part Number : AT421611
Remarks : 76.20 mm (3.00 in), NLA, ORDER AT438045 OR AT460649
This part has been substituted.
1 - Black Seat Belt 1
Part Number : AT438045
Remarks : 76.20 mm (3.00 in), Black, SUB FOR AT421611, AT400513, OR AT460649
1 - Seat Belt 1
Part Number : AT460649
Remarks : 76.20 mm (3.00 in), Orange, SUB FOR AT421611, AT400513, OR AT460649

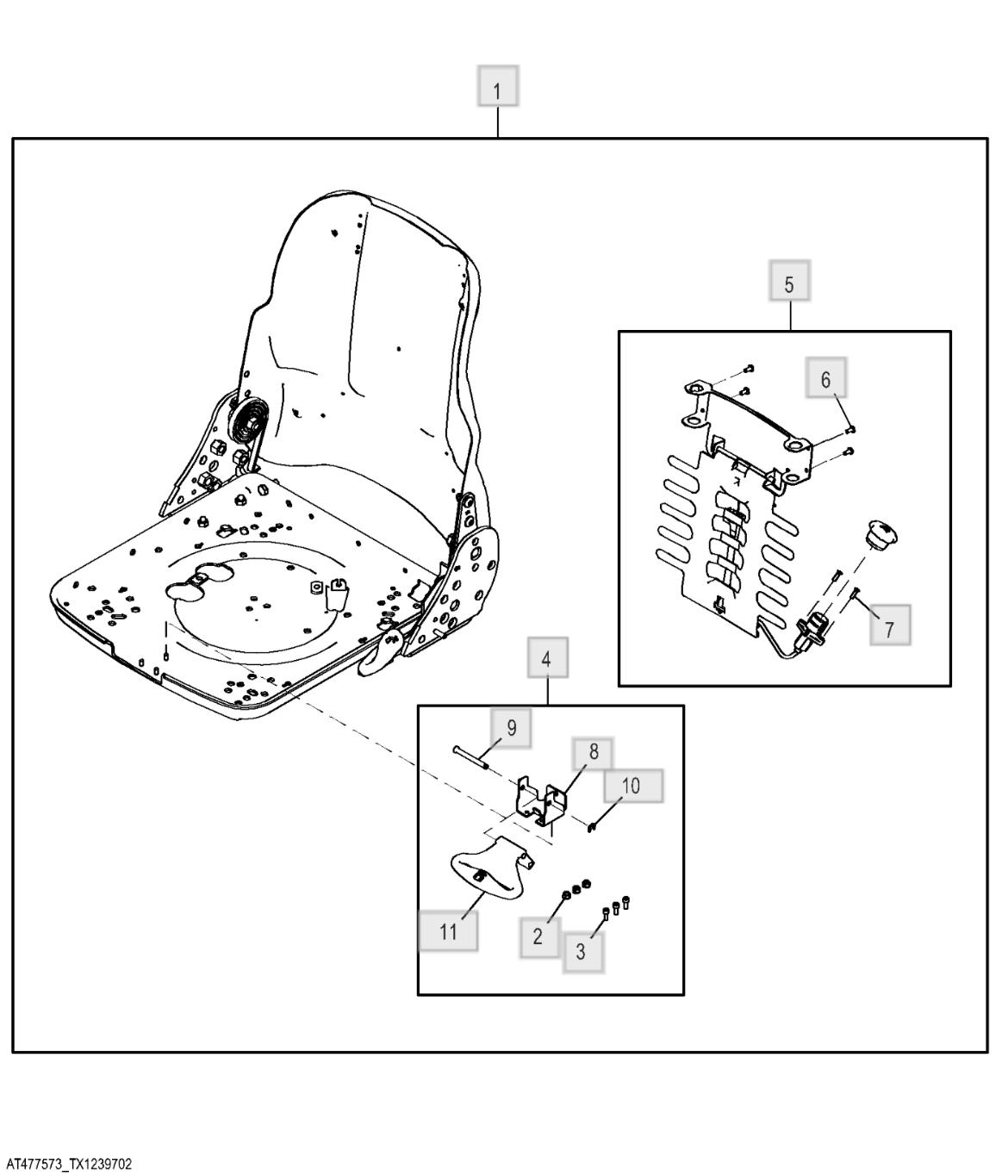

1 - Seat Pan Kit 1
Part Number : AT477573
Remarks : Requires Seat Pan and Back Components On Separate Page, AT471526 AND AT475534
2 - Nut 3
Part Number : Remarks : NLA, ORDER AT475535
3 - Bolt 3
Part Number : Remarks : NLA, ORDER AT475535
4 - Handle Kit 1
Part Number : AT475535
Remarks : Components On Separate Page, USE WITH AT471526 AND AT477573
5 - Seat Kit 1
Part Number : AT388667
Remarks : Lumbar Service Kit
6 - Bolt 7
Part Number : Remarks : NLA, ORDER AT388667
7 - Bolt 2 Part Number : ....... Remarks : NLA, ORDER AT388667
8 - Bracket 1 Part Number : ....... Remarks : NLA, ORDER AT475535
9 - Pin 1
Part Number : Remarks : NLA, ORDER AT475535
10 - Clip 1
Part Number : .......
Remarks : NLA, ORDER AT475535
- Handle 1
Part Number :
Remarks : NLA, ORDER AT475535
