Part Number :

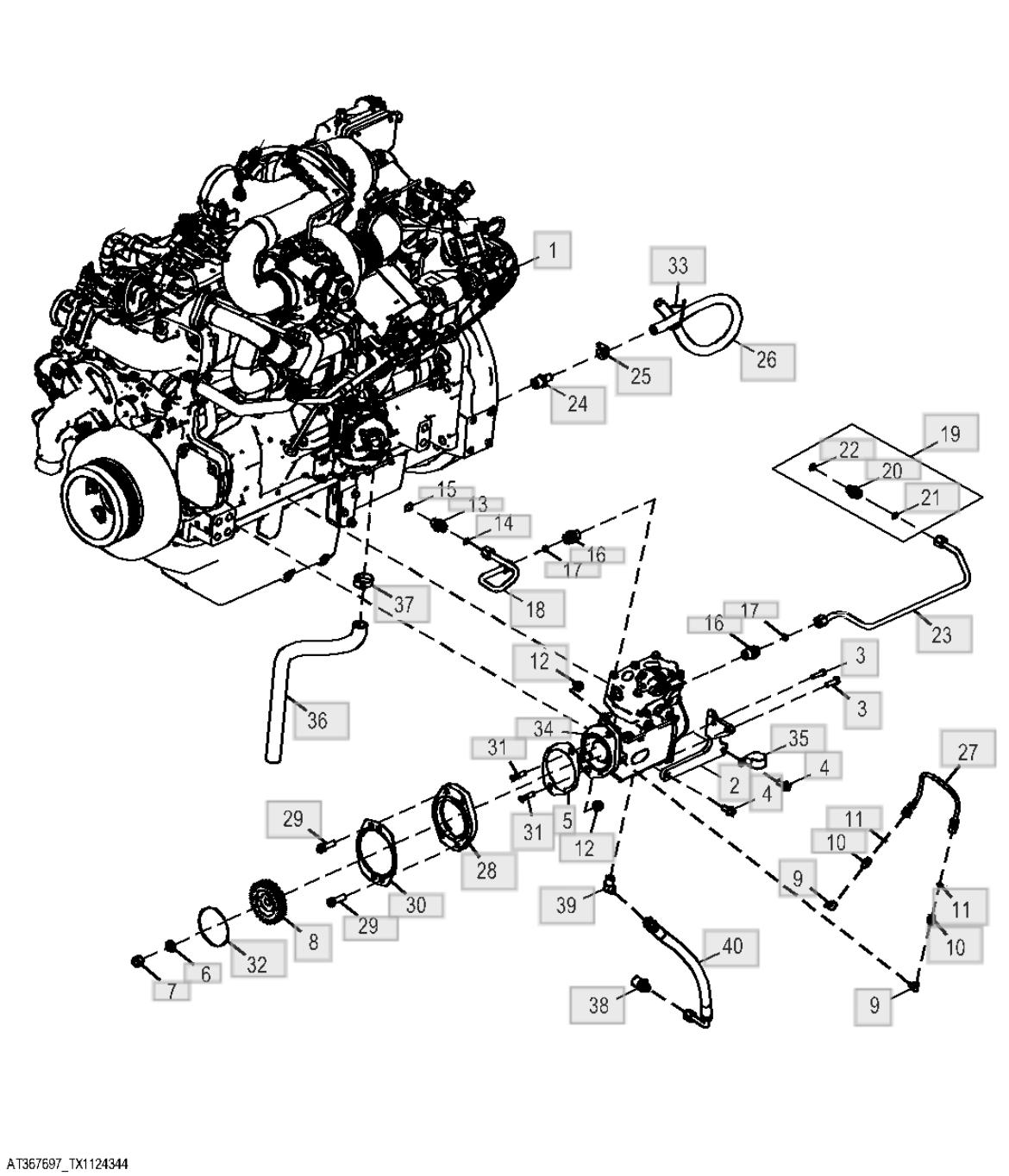

1 - Diesel Engine, 9 Liter, IT4 1 Part Number : RG38732
2 - Bracket 1 Part Number : R131754
3 - Hexagonal Head Screw, 3/8" X 1 1/4", 3/8" X 1-1/4" 2 Part Number : 19H3239
Remarks : 3/8" X 1-1/4"
4 - Hexagonal Head Flanged Screw, M10 X 25
Part Number : 19M7785
Remarks : M10 X 25
5 - Gasket
Part Number : R125670
6 - Round Hole Washer 1 Part Number : R70268
7 - Hexagonal Nut, 5/8" 1 Part Number : 14H1083 Remarks : 5/8"
8 - Air Compressor Left Side Auxiliary Drive Gear 1 Part Number : R116024
9 - Elbow Fitting
Part Number : T12938 10 - Adapter Fitting
Part Number : T80937 11 - O-Ring
Part Number : T11899
12 - Hexagonal Flange Nut, M12
Part Number : 14M7299 Remarks : M12 13 - Straight Adapter Fitting
Number : 38H5076
- O-Ring
Part Number : T77857
15 - Round Cross Section O-Ring 1
Number : 51M7045
: 19.300 X 2.200 mm 16 - Adapter Fitting
Number : M87683 17 - O-Ring 1
Number : T77857 18 - Air Compressor Tube 2
Number : AT372680 19 - Adapter Fitting 1
Number : 61M5003
Number : 51M7043
: 15.300 X 2.200 mm
- Tube
Number : AT421267
- Fitting
Number : R41071 25 - Worm Gear Hose Clamp
: CTL 914 mm, MF T60811 27 - Hose
Number : RE530677
28 - Auxiliary Drive Spacer 1
Part Number : DZ10606
Remarks : SUB FOR R527702
29 - Cylindrical Head Screw, M12 X 40 2
Part Number : 19M8395
Remarks : M12 X 40
30 - Engine Auxiliary Drive Gasket 1
Part Number : R536291
Remarks : SUB FOR R530921
31 - Stud, M12 X 45 2
Part Number : 42M7069
32 - O-Ring 1
Part Number : E66413
33 - Tie-Band 1
Part Number : H77698
34 - Air Compressor 1
Part Number : AT416236
34 - Intake Manifold 1
Part Number : AT374146
Remarks : Not Illustrated
34 - Cover 1 Part Number : R85145
Remarks : Not Illustrated
34 - Side Outlet Discharge Compressor Kit 1
Part Number : RE64609
Remarks : Not Illustrated
34 - Auxiliary Drive Housing Gasket 1
Part Number : R96935
Remarks : Not Illustrated
35 - Insulated Clip Assembly 1 Part Number : AH77714 36 - Bulk Hose
Part Number :
37 - Worm Gear Hose Clamp 1 Part Number : AR21839
38 - Fitting 1 Part Number : R52775
39 - Elbow Fitting 1 Part Number : N35135
40 - Hydraulic Hose 1 Part Number : AT416443

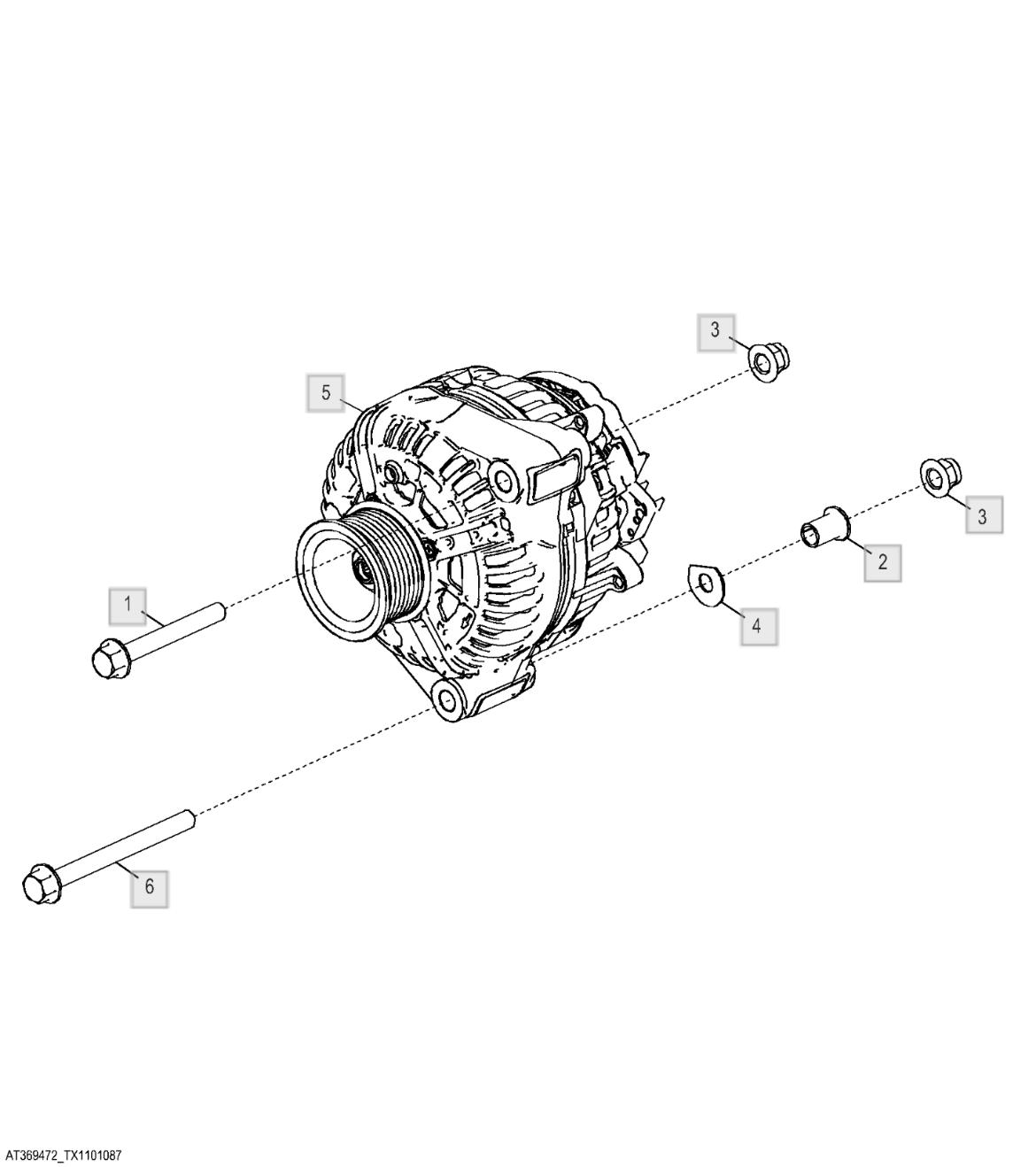

1 - Hexagonal Head Flanged Screw, M10 X 80 1
Part Number : 19M7810
Remarks : M10 X 80
2 - Flanged Bushing 1
Part Number : R100377
3 - Hexagonal Flange Self-Locking Nut, M10 2
Part Number : 14M7518
Remarks : M10, This Application Only, SUB FOR 14m7400
4 - Trim Washer 1
Part Number : T299410
5 - Alternator, 28 Volt, 100 Amp 1
Part Number : RE558676
5 - Pulley 1
Part Number : R529748
6 - Hexagonal Head Flanged Screw, M10 X 110 1
Part Number : 19M7836
Remarks : M10 X 110
