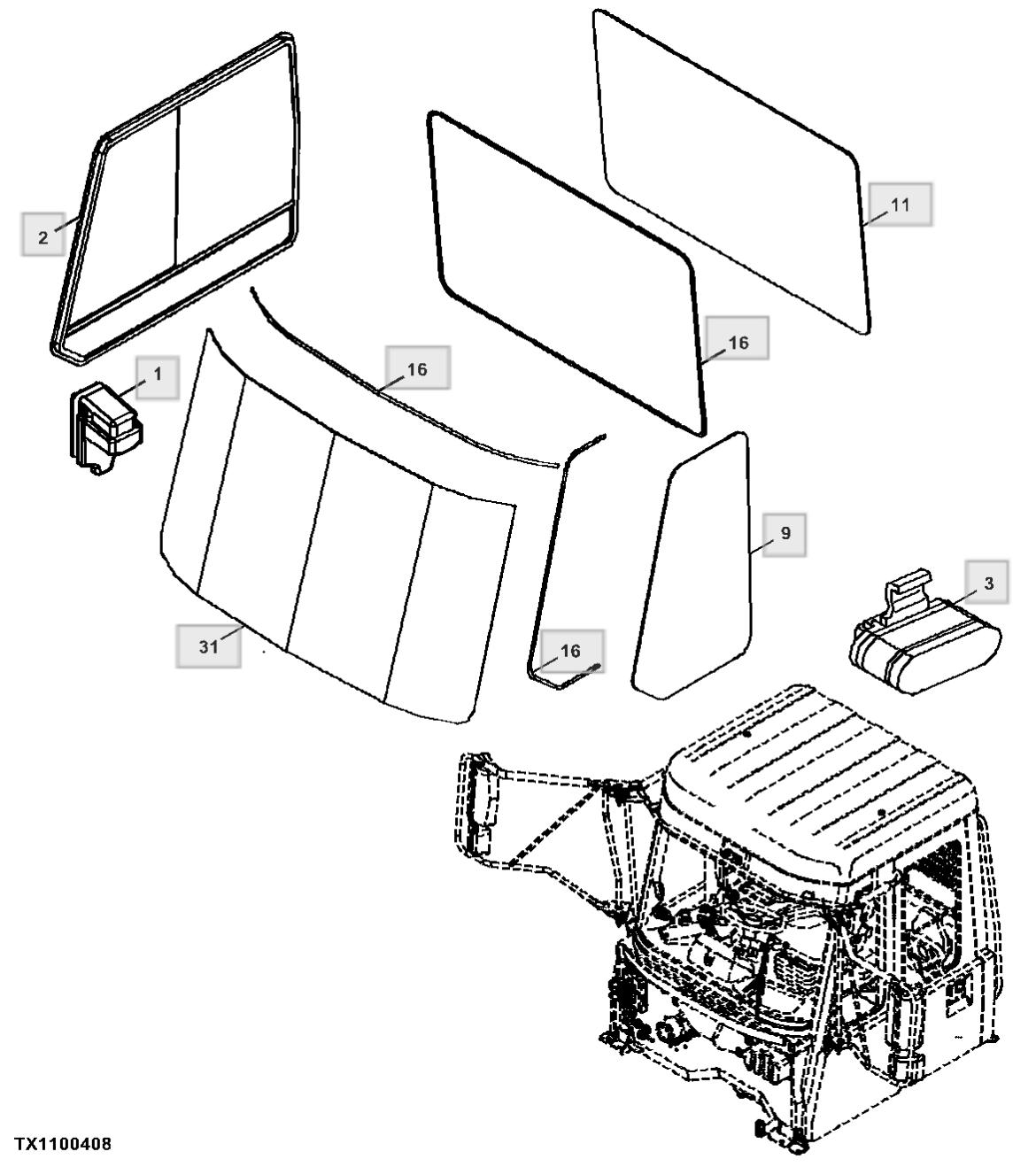

1 - Latch 1
Part Number : TT227255
Remarks : Door Sliding Window, ORDER AT458753
2 - Right Side Cab Window 1
Part Number : AT458753
Remarks : INCLUDES TT227255, SUB FOR TTBN000137 AND AT442717
3 - Cab Window Latch 1
Part Number : TT221629
Remarks : Window
9 - Left Side Cab Windowpane 1
Part Number : TT217555
11 - Rear Window 1
Part Number : TT217151
16 - Cab Door Gasket 1
Part Number :
Remarks : MF TT208103
31 - Front Curved Windshield Windowpane 1
Part Number : TT206418

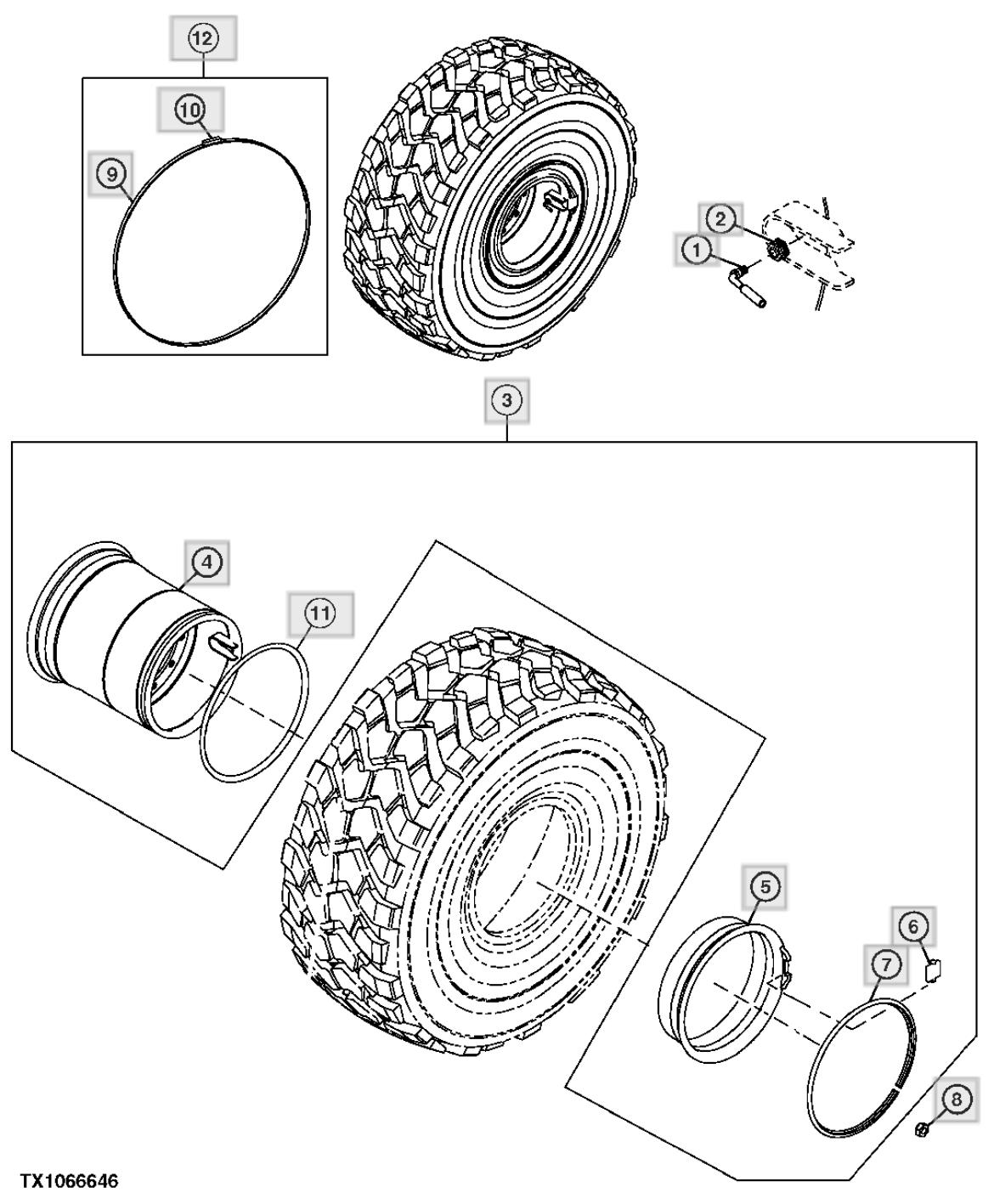

1 - Lock Wheel Ring
Part Number : TT226117
2 - Locking Collar
Part Number : TT202043 This part has been substituted. 3 - Wheel Ring
Part Number : TT226118
4 - Tubeless Spud Nut 1 Part Number : AT252510
5 - Tire Valve Stem 1 Part Number : AT252509
6 - Nut
Part Number : AT258526
7 - O-Ring Packing
Part Number : R29480
8 - Rim And Wheel Center
Number : .......
Remarks : ORDER <service-part>TT190903</service-part>
9 - Rim
Part Number : TT190903
10 - T-Bolt Hose Clamp 1 Part Number : T254240
Remarks : With Tire Pressure Monitoring System, (SUB FOR AT337879)
11 - Transmitter 1
Part Number : AT337867
Remarks : With Tire Pressure Monitoring System
1 - Adapter Fitting 1
Part Number : TT120926
2 - Inflator Kit 1
Part Number : TT262867
Remarks : Tire Inflation
This part has been substituted.
1 - Tire Valve Stem 1
Part Number : AT252509
2 - Tubeless Spud Nut 1 Part Number : AT252510
3 - Rim and Wheel Center, 19.5 X 25 1 Part Number : TT190904
4 - Rim 1 Part Number : Remarks : (ORDER TT190904)
5 - Wheel Ring 1 Part Number : TT226118
6 - Locking Collar 1
Part Number : TT202043 This part has been substituted.
7 - Lock Wheel Ring 1
Part Number : TT226117
8 - Nut 12
Part Number : AT258526
9 - Transmitter 1
Part Number : ..
Remarks : With Tire Pressure Monitoring System
10 - T-Bolt Hose Clamp 1 Part Number : T254240
Remarks : With Tire Pressure Monitoring System
11 - O-Ring Packing 1 Part Number : R29480
12 - Field Installation Kit 1 Part Number : .......
Remarks : Order Components, NLA
