John Deere

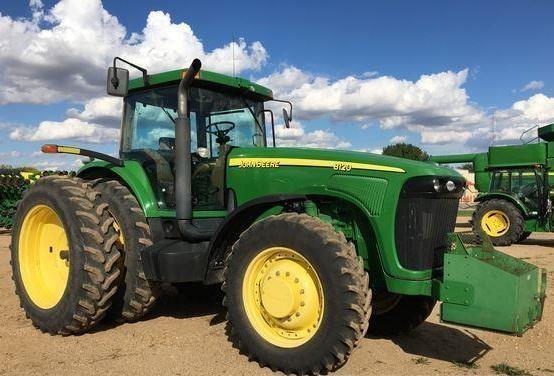

Tractor - TM1970 Service Repair Manual
INSTANT DOWNLOAD LINK
This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
Covered models: 8120 8220 8320 8420 8520
Contents:
Foreword
Dealer Predelivery Information Form
General Information
Safety
General Information
Engine
Component Removal and Installation
Engine Repair
Fuel and Cooling Systems
Diesel Fuel System
Air Intake System
Engine Cooling System
Coolers and Air Conditioning Condenser
Electrical
Connectors
Wiring Harness Routings
Charging Circuit
Starting Circuit
Relays, Fuses, Solenoids, and Switches
Monitoring Systems and Sensors
Armrest Control
Implement and Accessory Connectors
Convenience and Accessory Components
Power Shift Transmission
Component Removal and Installation
Miscellaneous Repair
Transmission
Drive Systems
Component Removal and Installation
Rear Differential and Input Quill
Final Drives
Rear PTO
Hydraulic Pump Drive
MFWD Clutch
Drivelines
MFWD Axles
Component Removal and Installation
Final Drives
Axle Housing
Differential
Input Gear Train
Oscillation
Secondary Brake
INDEPENDENT LINK SUSPENSION™ Axle
Component Removal and Installation Controls
Final Drives
Drive Shafts
Brakes
Differential
Steering
Suspension
Steering and Brakes
Steering Column
Steering Control Assembly
Steering Cylinders
Brake Valve
Brake Components
Trailer Brakes
Hydraulics
Component Removal and Installation
Hydraulic System Repair and Cleanup
Tandem Hydraulic Pump (Steering-Brakes-Charge)
Secondary Hydraulic Pump (Hitch-SCV)
Filter Bypass
Hitch Valve, Selective Control Valves, and Couplers
Hitch
Miscellaneous
Hood
Front Axle (Two-Wheel Drive)
Wagon and Pick-Up Hitch
Operator Station
Component Removal and Installation
Heating, Ventilating, and Air Conditioning (HVAC)
Air Conditioning System
Air Suspension Seat
ACTIVE SEAT™
Armrest
Cab Door and Windshield
Dealer Fabricated Tools
Fabricated Tools
Pages: 1381
Format: English
Language: English
Support: 24X7
Delivery: Instant Download After payment
Compatible: All Versions Of Windows and Mac
