540G-3, 548G-3, 640G-3, 648G-3, 748G-3
John

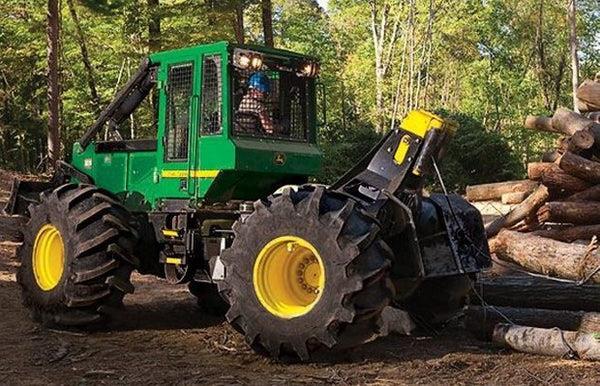

Deere Skidder, Timberjack 360D, 460D, 560D - TM2111 Service Repair
Technical Manual
INSTANT DOWNLOAD LINK
This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.
Covered models:
540G-III (SN 586337-630435)
548G-III (SN 586337-630435)
640G-III (SN 586337-604613)
648G-III (SN 586337-604613)
748G-III (SN 586337-)
Timberjack 360D (SN 586337-630435)
Timberjack 460D (SN 586337-604613)
Timberjack 560D (SN 586337-)
Contents:
Foreword
Technical Information Feedback Form
General Information
Safety Information
Torque Values
Wheels
Powered Wheels and Fastenings
Axles and Suspension System
Removal and Installation
Input Drive Shafts and U-Joints
Hydraulic System
Transmission
Removal and Installation
Controls
Input Drive Shafts and U-Joints
Gears, Shafts and Power Shift Clutches
Hydraulic System
Engine
Removal and Installation
Engine Auxiliary Systems
Cold Weather Starting Aids
Cooling Systems
Intake System
External Exhaust System
External Fuel Supply System
Torque Converter
Removal and Installation
Torque Converter Housing
Converter Turbine, Gears, and Shaft
Damper Drive
Elements
Steering System
Secondary Steering
Hydraulic System
Service Brakes
Active Elements
Controls Linkage
Hydraulic System
Park Brake
Active Elements
Hydraulic System
Frame, Chassis, or Supporting Structures
Frame Installation
Frame Bottom Guards
Operator's Station
Removal and Installation
Operator Enclosure
Seat and Seat Belt
Heating and Air Conditioning
Sheet Metal and Styling
Hood or Engine Enclosure
Grille and Grille Housing
Safety, Convenience and Miscellaneous
Pressurized Water System
Horn and Warning Devices
Main Hydraulic System
Hydraulic System
Winch
Removal and Installation
Controls Linkage
Input Drive Shafts and U-Joints
Drive and Clutch
Bulldozers (Stacking & Trailbuilding Blades)
Blades
Controls Linkage
Hydraulic System
Arch or Boom
Frames
Grapple
Grapple Mechanism
Controls Linkage
Frames
Hydraulic System
Dealer Fabricated Tools
Dealer Fabricated Tools
Language: English
Format: PDF
Pages: 867
Delivery: Instant Download
Support 24X7 Online
