5105 5205 John Deere USATractor -
TM1792 Diagnostic, Operation and Service Technical Manual
INSTANT DOWNLOAD LINK

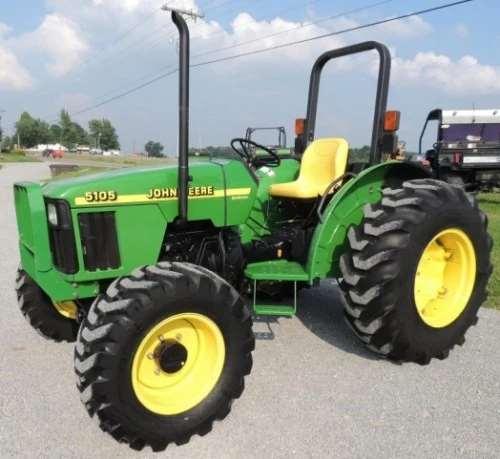

Illustrated Factory All Inclusive Technical Manual for John Deere USA Tractors 5105 and 5205 series
This manual contains high quality images, circuit diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
Covered models: 5105 5205
Contents: Foreword
General Information
Safety
General Specifications
Fuel and Lubricants
Serial Number Locations
Features and Accessories
Engine Repair
Engine
Cooling System
Fuel and Air Repair
Fuel System
Air Intake System
Speed Control Linkage
Electrical Repair
Battery, Starter and Alternator
Electrical System Components
Wiring Harness
Power Train Repair
Clutch Housing
Clutch Assembly
Transmission
Rear PTO
Differential
Final Drives
Mechanical Front Wheel Drive
Steering and Brake Repair
Steering Repair
Brake Repair
Hydraulic Repair
Hydraulic Pump and Filter
Rockshaft
Selective Control Valve (SCV)
Hydraulic Mid Mount Coupler
Miscellaneous Repair
Front Axle-2WD
Wheels
3-Point Hitch
Operator Station Repair
Seat and Support
ROLL-GARD™
Operator Platform
Fenders
Operational Checkout Procedures
Operational Checkout Procedures
Engine Operation, Tests and Adjustments
Component Location
Theory of Operation
Diagnosis, Tests and Adjustments
Fuel/Air Operation, Tests and Adjustments
Component Location
Theory of Operation
Diagnosis, Tests and Adjustments
Electrical System Operation, Tests & Adjust
Component Location
Theory of Operation
Diagnosis, Test and Adjust
Wiring Schematics
Power Train Operation, Tests & Adjustments
Component Location-Power Train
Theory of Operation-Transmission
Diagnosis, Tests and Adjustments-Power Train
Steering and Brake Operation, Test & Adjust
Component Location
Theory of Operation
Diagnosis, Tests and Adjustments
Hydraulic System Operation, Test & Adjust
Component Location
Theory of Operation
Diagnosis
Hydraulic Tests-Without SCV
Hydraulic Tests-With SCV
Hydraulic Tests-With Mid Mount Control Valve
Hydraulic Tests-All Adjustments
Hydraulic Schematics
Dealer Fabricated Tools
Dealer Fabricated Tools
Pages: 1329
Format: PDF
Language: English
Support: 24X7
Delivery: Instant Download After payment
Compatible: All Versions Of Windows and Mac
