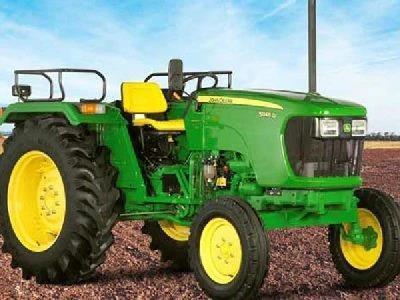

5204 John Deere Tractor - TM900019
Technical Service Repair Manual
INSTANT DOWNLOAD LINK
This manual contains high quality images, circuit diagrams, and instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
Covered models: USA, Mexico, Australia Tractors: 5103
5203 5303 5403
5045D, 5045E
5055D, 5055E
5065E
5075E
Australia Tractors: 5103 5203 5303 5403
Latin America Tractors: 5303 5403
Mexico Tractors
5204 5303
Contents: Foreword
General Information
Safety
General Specifications
Fuel and Lubricants
Serial Number Locations
Features and Accessories
Engine Repair
Engine
Cylinder Head and Valves
Cyl. Block, Liners, Pistons & Rods
Crankshaft, Main Bearings and Flywheel
Camshaft and Timing Gear Train
Lubrication System
Cooling System
Fuel and Air Repair
Fuel System
Air Intake and Exhaust System
Speed Control Linkage
Electrical Repair
Battery, Starter and Alternator
Electrical System Components
Wiring Harness
Power Train Repair
Clutch Housing
Clutch Assembly
'S' Transmission
'AA' Transmission
Rear PTO ('S' Transmission)
Rear PTO ('AA' Transmission)
Differential
Final Drives
Mechanical Front Wheel Drive
Steering and Brake Repair
Steering Repair
Brake Repair ('S' Transmission)
Brake Repair ('AA' Transmission)
Hydraulic Repair
Hydraulic Pump and Filter
MITA Rockshaft
JD Rockshaft
MITA Selective Control Valve (SCV)
EATON Selective Control Valve (SCV)
Mid Mount Selective Control Valve (SCV)
Miscellaneous Repair
Front Axle - 2WD
Wheels
3-Point Hitch
Hood
Operator Station Repair
Seat and Support
Center Console
Roll-Gard™
Operator Platform
Fenders
Canopy (If Equipped)
Operational Checkout Procedures
Operational Checkout Procedures
Engine Operation, Tests and Adjustments
Component Location
Theory of Operation
Diagnosis, Tests and Adjustments
Fuel/Air Operation, Test and Adjustments
Component Location
Theory of Operation
Diagnosis, Tests and Adjustments
Electrical System Operation, Tests & Adjust
Component Location
Theory of Operation Latin America, Mexico, USA and Australia (5103, 5203, 5303, 5403) Tractors
Theory of Operation USA and Australia Tractors
Diagnosis, Test and Adjust Latin America, Mexico (5303), USA and Australia (5103, 5203, 5303, 5403) Tractors
Diagnosis, Test and Adjust USA and Australia Tractors
Diagnosis, Test and Adjust (Mexico 5204 Tractors)
Wiring Schematics Latin America, Mexico (5303), USA and Australia (5103, 5203, 5303, 5403) Tractors
Wiring Schematics For USA and Australia Tractors
Wiring Schematics (Mexico 5204 Tractors)
Component Information Connectors(For USA and Australia Tractors)
Power Train Operation, Tests and Adjustments
Component Location Transmission
Theory of Operation Transmission
Diagnosis, Tests, and Adjustments-Transmission
Steering and Brake Operation, Test & Adjustments
Component Location
Theory of Operation
Diagnosis, Tests and Adjustments
Hydraulic System Operation, Test and Adjustments
Component Location
Theory of Operation
Diagnosis
Hydraulic Tests - Without SCV
Hydraulic Tests With SCV
Hydraulic Tests With Mid Mount Control Valve
Hydraulic Tests - All Adjustments
Hydraulic Schematics
Pages: 2365
Format: English
Language: English
Support: 24X7
Delivery: Instant Download After payment
Compatible: All Versions Of Windows and Mac
