Masimo Patient Monitors

MASIMO EMMA CAPNOGRAPH

• Small, portable, & lightweight • Measures EtCO2 and RR • Rugged, water-resistant design for reliable operation • Easy to maintain - no routine calibration required • Clear, continuous capnography of carbon dioxide values • Simple, easy-to-use interface for quick setup & one-touch programming • Audible & visual alarm system for no adapter, clogged adapter, no breath, apnea, low battery, and adjustable high & low EtCO2 alarm • No warm-up time

627-9083 Masimo EMMA Capnograph Accessories page 70-72

MASIMO RAD-G VETERINARY PULSE OXIMETER

The Rad-G is a rugged, portable, handheld pulse oximetry device with a rechargeable battery lasting up to 24 hours and an LCD, touchscreen display, perfect for both continuous and spot-check monitoring.

Developed with support from the Gates Foundation, Rad-G uses clinically proven Masimo SET® Measure-through Motion and Low Perfusion™ pulse oximetry (SpO2) technology, which delivers reliable measurements to quickly assess patients and make informed care decisions, even in low-resource settings.

In addition, the Rad-G can monitor respiration rate from the pleth, pulse rate, perfusion index for blood flow, and pleth variability index for fluid responsiveness, all on the same sensor used for SpO2 readings.

With technology trusted by veterinarians, researchers, and technicians around the world, the Rad-G with Masimo SET is the ideal monitor to get vital oxygen readings on even the most challenging animals in an operative and post-operative setting.

627-99025 Masimo Rad-G

Accessories page 70-72

MASIMO RAD-57 VETERINARY PULSE OXIMETER

The Masimo Rad-57 Pulse Oximeter provides the most reliable oxygen saturation (SpO2)and pulse rate (PR) measurements under any type of challenging clinical conditions taking into consideration patient motion and low peripheral perfusion. The Masimo Rainbow Technology analyzes various wavelengths of light to measure SET measurements, carboxyhemoglobin (SpCO) total hemoglobin (SpHb), oxygen content (SpOC) and methemoglobin (SpMet). The Pleth Variability Index (PVI) - an advanced measurement that has helped clinicians non-invasively assess the fluid status of patients without interruption - is also available. The Masimo SET pulse oximetry is known for its proven accuracy and quality performance that allows for better clinical decision-making which, in turn, leads to better patient care.

627-9924 Masimo Rad-57 w/ Red Boot (Blue boot available) Accessories page 70-72

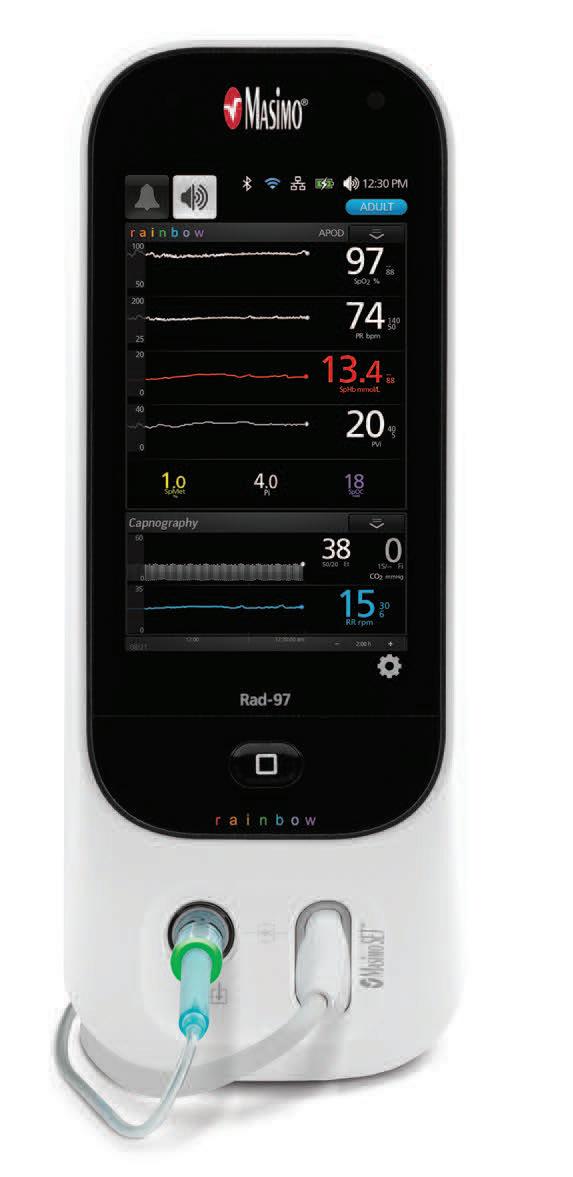

MASIMO RAD-97 VETERINARY PULSE CO-OXIMETER with NOMOLINE CAPNOGRAPHY

The Rad-97 Pulse CO-Oximeter is a standalone bedside patient monitor with advanced connectivity technologies that provides noninvasive and continuous monitoring in a compact, portable, and highly configurable device. With Integrated ISA Capnography, the Rad-97 offers continuous SpO2, etCO2, and respiration rate in a compact, standalone device that provides a complete picture of a patient’s respiratory status.

The integrated capnography module takes 10 seconds to reach full accuracy, auto-calibrates on start-up, requires only a 50 ml/min sampling rate that can be used on smaller patients, and has a light indicator that illuminates in different colors to provide visual confirmation of etCO2 monitoring status.

The Rad-97 utilizes Nomoline etCO2 airway adapters, which contain their own bacterial filter, moisture wick and Star Lumen design. This allows for continued sampling with kinked lines, reduces in-line contamination and eliminates the need for a water trap.

627-9928 Masimo Rad-97 Pulse CO-Oximeter with Nomoline Capnography Accessories page 70-72

MASIMO RAD-97 VETERINARY PULSE CO-OXIMETER

Combining the portability of Masimo’s Rad-87 with the Radical-7’s easy-to-use navigation, the Rad-97 Pulse CO-Oximeter is Masimo’s newest standalone bedside patient monitor with advanced connectivity technologies, providing noninvasive and continuous monitoring in a compact, customizable, and highly configurable device.

The Rad-97 offers a bright LCD display with a rechargeable battery and configurable profiles for multiple patient populations. The touchscreen display also allows users to quickly configure alarm parameters with visual indicators while also allowing them to adjust the range of trend time displayed and quickly look back for data.

The Rad-97 also offers a wide variety of communication options to download parameter data for storage and integrate future wearable devices for tether-less monitoring.

627-9926 Masimo Rad-97 Pulse CO-Oximeter

Accessories page 70-72

ROOT DOCKING STATION

The Masimo Root is an innovative and powerful new patient monitor and connectivity platform. It has an easy-to-interpret display, multiple network/connectivity options, and unites multiple streams of data while making patient care work-flows simpler. The Masimo Root allows caregivers to make swift patient assessments, better clinical decisions, and take action quicker, if necessary.

The Masimo Root brings patient monitoring and care to the next level with its SedLine Brain Function Monitoring. The SedLine Monitoring is designed to better the care given to patients under sedation or anesthesia.

The state-of-the-art EEG-based Brain Function Monitor uses four cooperating EEG channels and is available with the ISA CO2 module for sidestream monitoring. The ISA has virtually no warm-up time and features Nomoline to reduce costs through extended monitoring and use of non-proprietary cannulas.

Root also allows for other companies to expand the platform with their own measurements through MOC-9 because it is designed for third-party measurement expansion.

627-9515 Root Docking Station

Pictured with Rad-7

*touchscreen feature
