Vetland Patient Monitors

Next Article
Mounting Options

Mounting Options

VETERINARY CRITICAL CARE PATIENT MONITORS

THE INDUSTRY’S BEST NIBP & SpO2 TECHNOLOGY

The V1400-Series Monitors feature Sun Tech NIBP and Masimo SpO2 technology - the recognized leaders in their respective fields.

Veterinary Critical Care Monitors V1400 Series

V1400-Series Standard Features

• Veterinary specific algorithms • Color touchscreen display • Parameters Measured:

ECG, SpO2, NIBP, Resp, 2-Temp, 2-IBP • ECG-3 lead with 5 filtering modes & 4 sweep rates • 13 arrhythmia analysis • 7 days tabular & graphic trend data storage • AC or long li-ion battery operation • LAN & wireless LAN connection to central station • AAHA compliant data importability to any practice management software via SD card or network connection

What Makes the V1400-Series Monitors Great?

• Portable, compact design • Intuitive 7”, 10”, or 12” high resolution display with maximum 10 waveforms • Validated industry’s best NIBP technology and SpO2 technology from Sun Tech and Masimo • Optional EtCO2 module from Respironics • Easy software upgradability • Optional remote viewing from anywhere in the world via Smart Care System • Optional PhaseIn’s multi-gas mainstream (IRMA AX+), sidestream (ISA AX+, OR+)

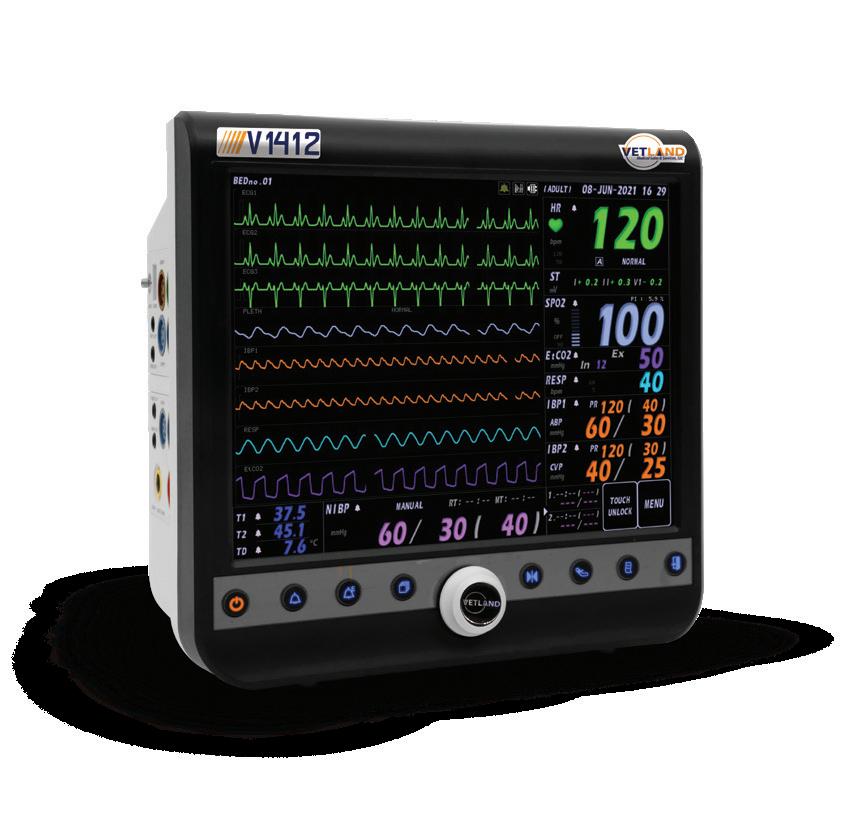

The Vetland V1407, V1410, & V1412 Multi-Parameter Veterinary Patient Monitors for Critical Care are the most intuitive, versatile, and accurate monitors on the veterinary market today.

The compact design and high resolution display make them easy to use and understand. ECG, SpO2, NIBP, Resp, 2-Temp, and 2IBP configurations come standard with these monitors, while remote viewing is possible from anywhere in the world via Smart Care System. Data can be transferred into your practice management software via SD card or network connection.

V1400 Series

Veterinary Critical Care Monitors

V1407 OPTIONS:

V1407-BASE Vetland V1407 [includes ECG, SpO2, NIBP, Temp, & RR] V-OPT-CO2S Sidestream V-OPT-CO2M Mainstream V-OPT-PRIN Printer V-OPT-CARTA Rolling Stand Mount V-OPT-WALL Wall Mount V1407-OPT-IBP Invasive Blood Pressure Monitoring V-OPT-VGA VGA Output V1407-ESRT Vetland V1407 STD-2 [ECG, SPO2, RR, & Temp only] V1407-SNT Vetland V1407 STD-3 [SpO2, NIBP, & Temp only] V1407-SN Vetland V1407 STD-4 [SpO2 & NIBP only] V1407-C Vetland V1407-E [CO2 only] V1407-OPT-MAN Operator’s Manual

Accessories & Mounting Options see pages 70-73

SCAN TO LEARN MORE

V1410 OPTIONS:

V1410-BASE Vetland V1410 [includes ECG, SpO2, NIBP, 2Temp, 2IBP, & RR] V-OPT-CO2S Sidestream V-CO2M Mainstream

V-OPT-PRIN Printer V-OPT-CARTA Rolling Stand Mount V-OPT-WALL Wall Mount V-OPT-VGA VGA Output VA-9900-9000-00 Battery for V1410/V1412 V1410/12-OPT-MAN Operator’s Manual

V1412 OPTIONS

V1412-BASE Vetland V1412 [includes ECG, SpO2, NIBP, RR, 2Temp & 2IBP] V-OPT-CO2S Sidestream V-OPT-CO2M Mainstream V-OPT-PRIN Printer V-OPT-CARTA Rolling Stand Mount V-OPT-WALL Wall Mount V-OPT-VGA VGA Output VA-9900-9000-00 Battery for V1410/V1412 V-OPT-MGAS Multigas Option V1410/12-OPT-MAN Operator’s Manual

Veterinary Handheld CO2 Monitor

NT1D-V FEATURES

• Compact, lightweight, handheld design • High-definition, bright color screen • Measures EtCO2, respiration rate, SpO2 (optional), and pulse rate • Choose between Mainstream or Sidestream CO2 • Diagnostic CO2/SpO2 waveforms • Audible/visual physiological and technical alarms • User adjustable alarm limits • Pre-set alarm limits for cats, dogs, and horses • Three hour graphical trend review • Up to 99 patient IDs • Operates on four AA NiMH 2400mAh - 2500mAh rechargeable batteries (>4.5 hours) or AC power • Power charger/cradle included • Readings from ear, vulva, Achilles tendon, toe webbing, and tongues of animals with adequate tongue mass

VLNT1D-LFS Vetland Handheld LoFlo Sidestream CO2 & SpO2 Monitor

SpO2 Optional

Large Font Display Dual Waveform Display Historical Trend Display Trend Display

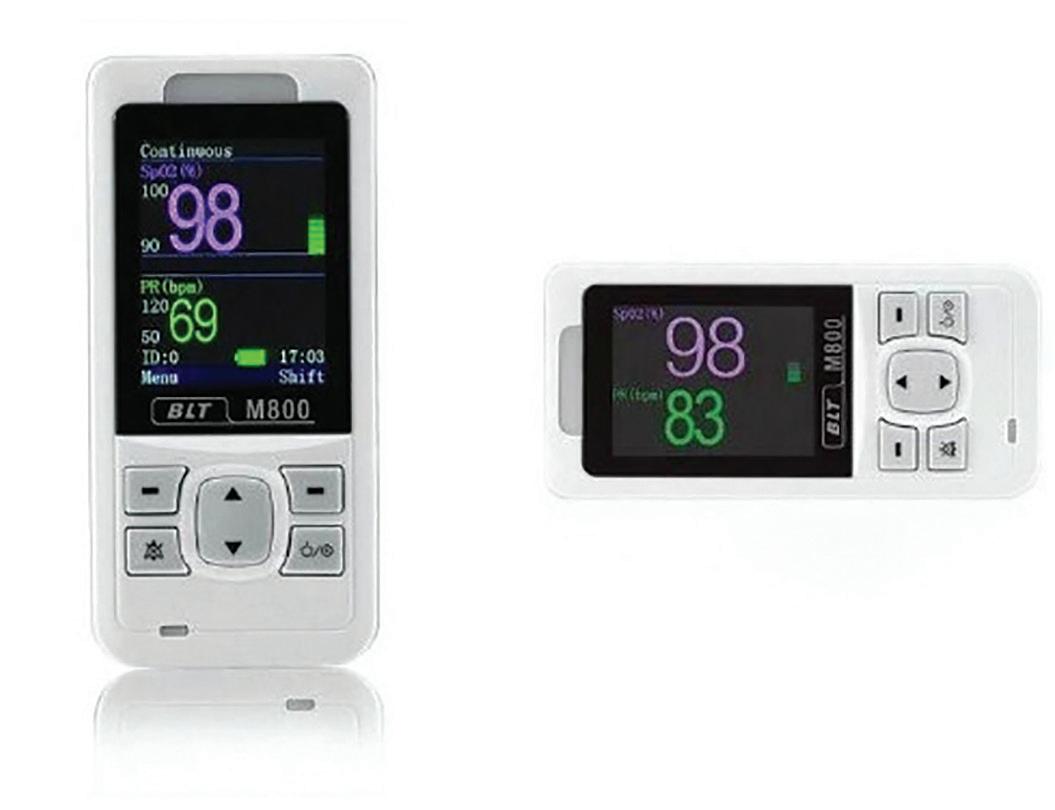

Veterinary Handheld Pulse Oximeter

V1102 FEATURES

• Handheld design - Compact & light for carrying & handling • 2.4” LED display, high resolution: 320 x 240 pixels • Visual & audible alarms • IPX1 Degree of protection against ingress of liquid • Convenient AA size alkaline or rechargeable lithium batteries • 3 AA batteries provide 16 hours of continuous operation • Max 60000 groups short trend data can be stored & reviewed • Infrared communications with computer • 1-99 data storage points/ up to 6,000 groups • Tabular trends up to 30 minutes • Optional ECG function or Nellcor Technology • Readings from ear, vulva, Achilles tendon, toe webbing, and tongues of animals with adequate tongue mass

V1102 Vetland V1102 Small Frame Color Handheld SpO2 Monitor V1102-RB Rechargeable Base Option for V1102 V1102-SPO2 Replacement SpO2 Sensor for V1102

Gravity sensor automatically changes the direction of display
