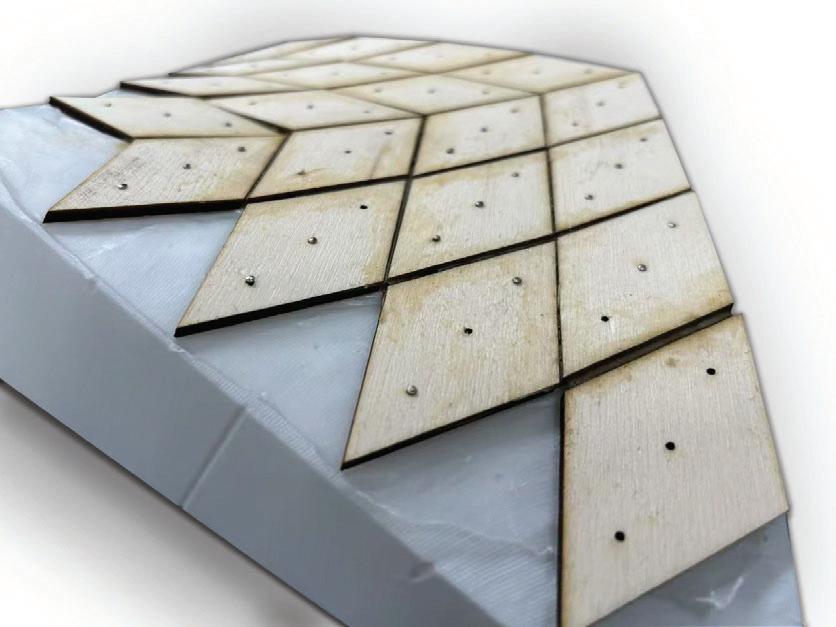

| Tiled Minimal Surfaces

58

08

2024

| Internship Works

60

5

HARMONIC FLOW

Designing an Acoustic Building that Seamlessly Integrates Music and Multisensory Experiences This project envisions an innovative acoustic building where music harmonizes with diverse activities, creating a dynamic and immersive environment. Located in Manhattan, New York City, the design weaves together spaces for music performances, yoga, and social gatherings, fostering a community-centered atmosphere.

At the core of the building are multiple music booths, serving as the origin of rich, vibrant soundscapes. Through a network of carefully designed acoustic channels, sound flows into adjacent spaces—yoga rooms, corridors, courtyards, and market areas—enhancing each activity with tailored auditory experiences. The system of directional pipes and sound-leak INFO

Place: Manhatten, New York City Year: 2023, Design Studio 302 Partner: John Wang Professor: Leonard Leung

Music Boths Diagram

6

01

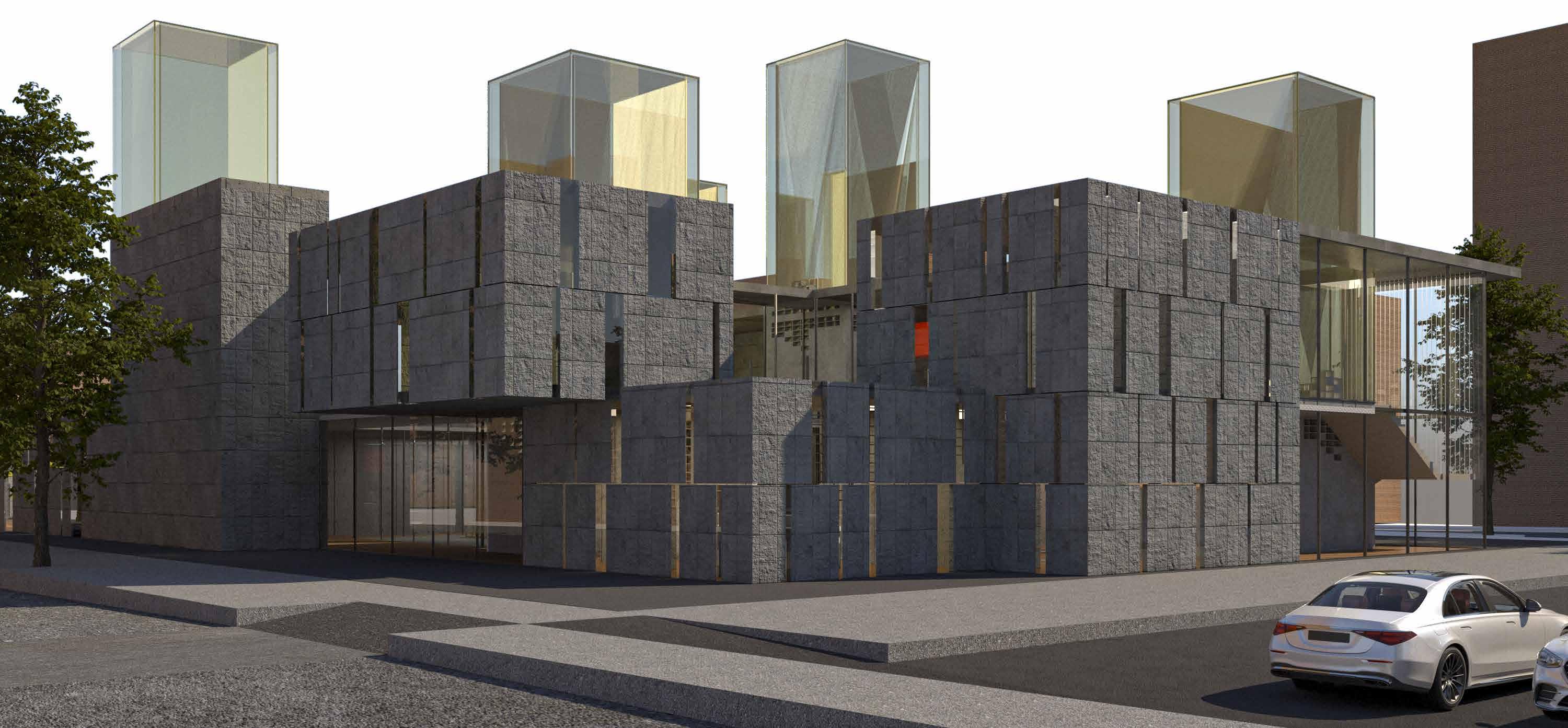

Render from street view

7

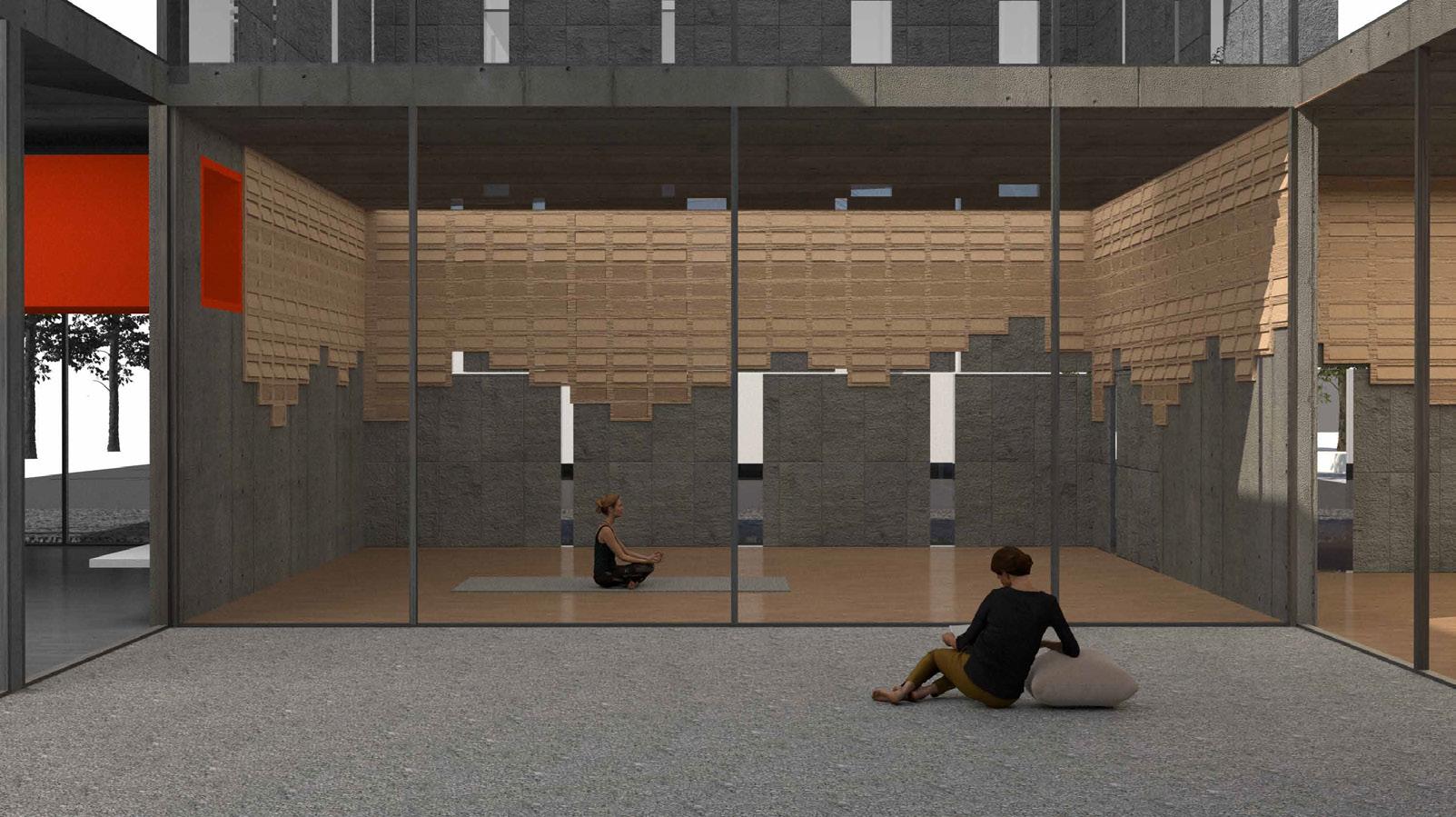

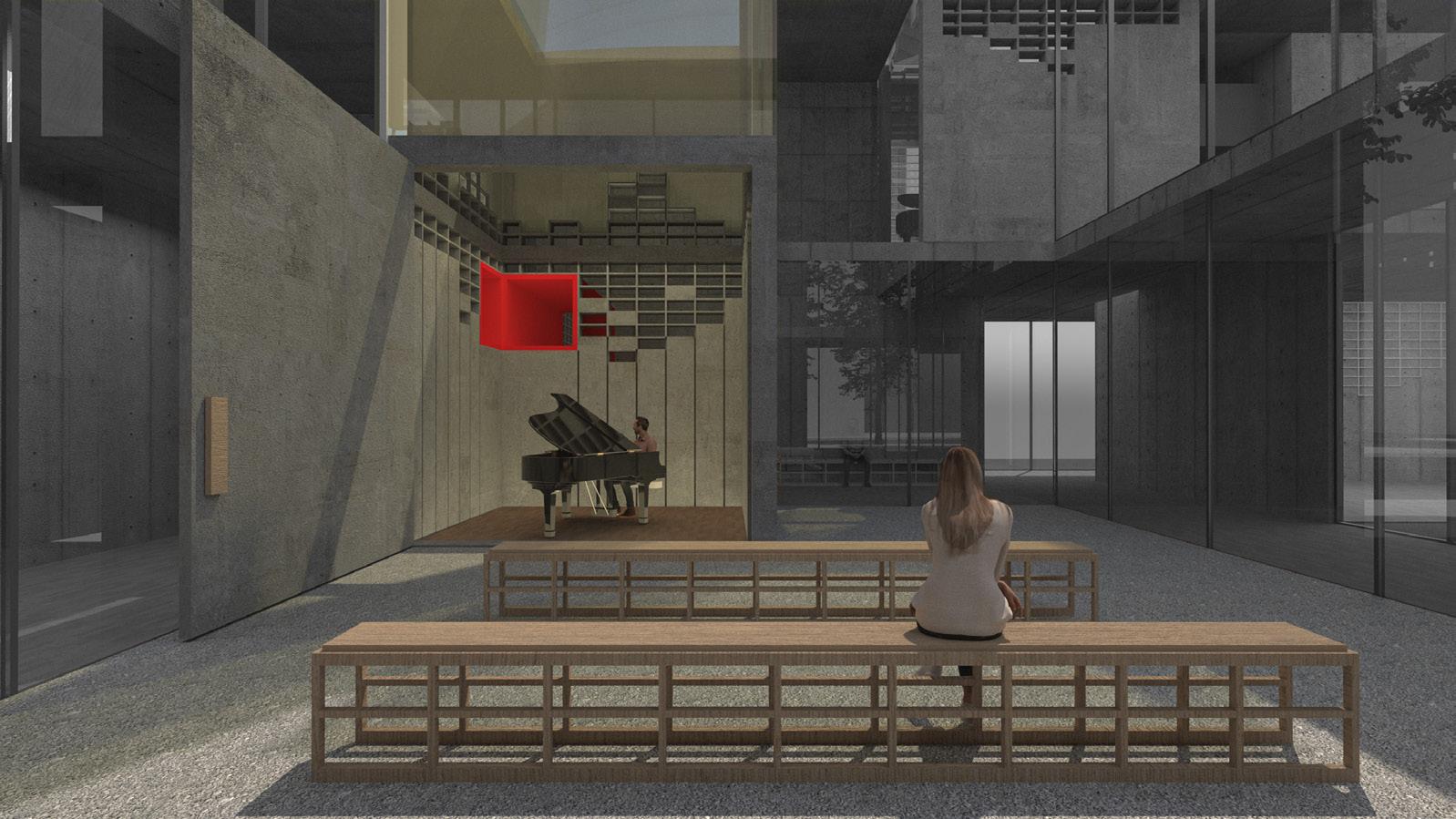

view from courtyard

view from courtyard to yoga room

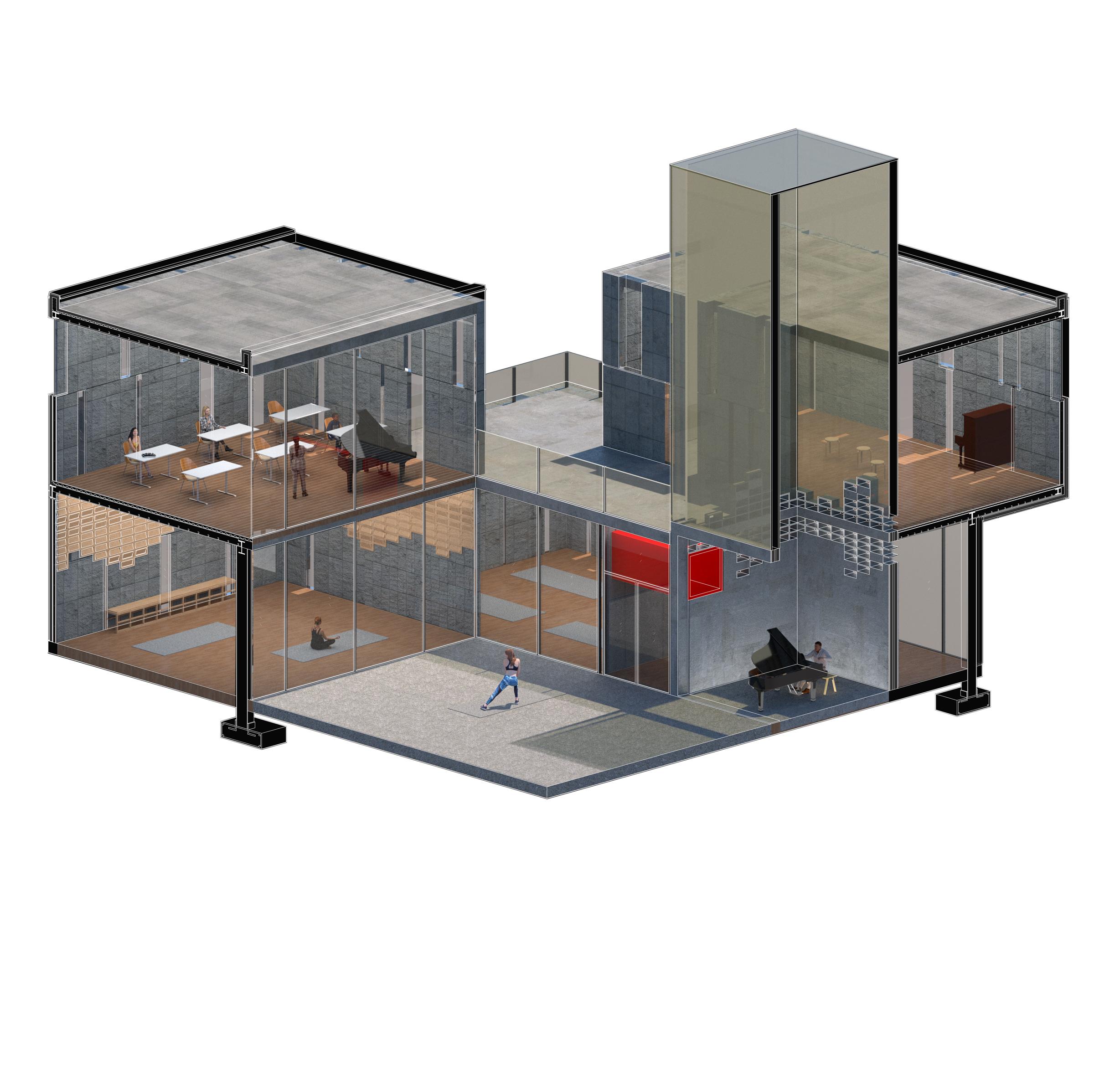

Isometr

8

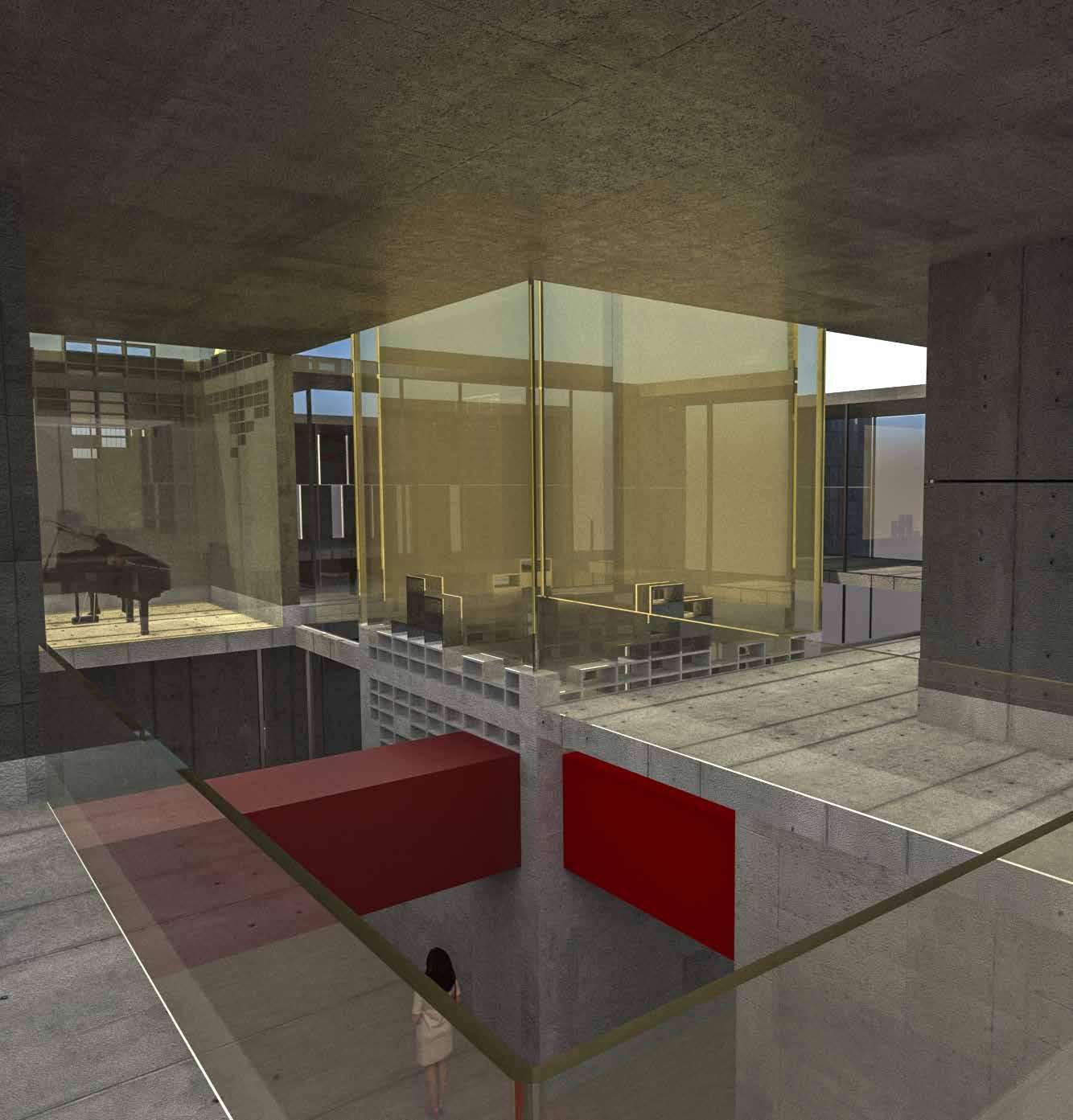

view from second floor to music booth Visitors can visually observe musicians performing inside a booth, yet hear music transmitted from a different booth, creating a unique and unexpected interplay between sight and sound.

ric Section

9

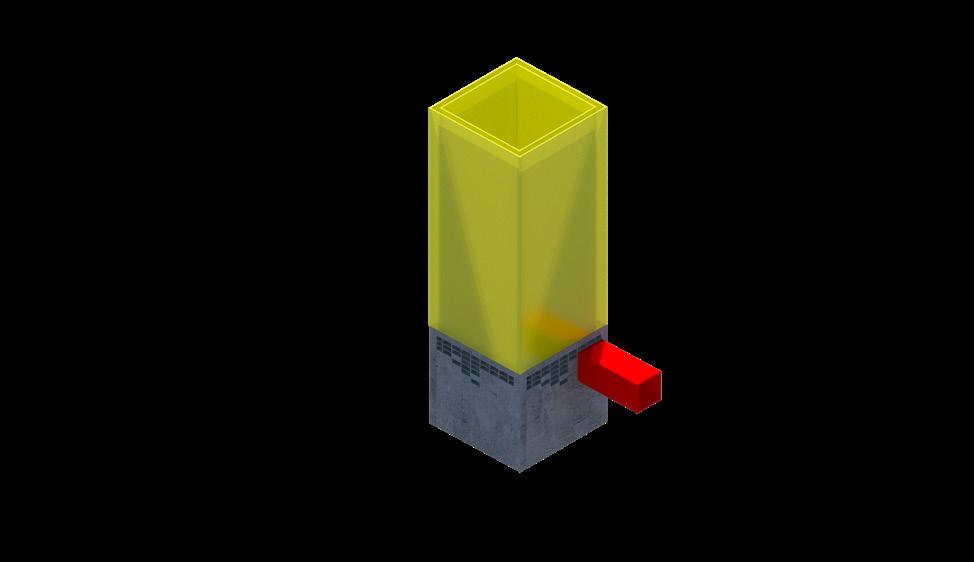

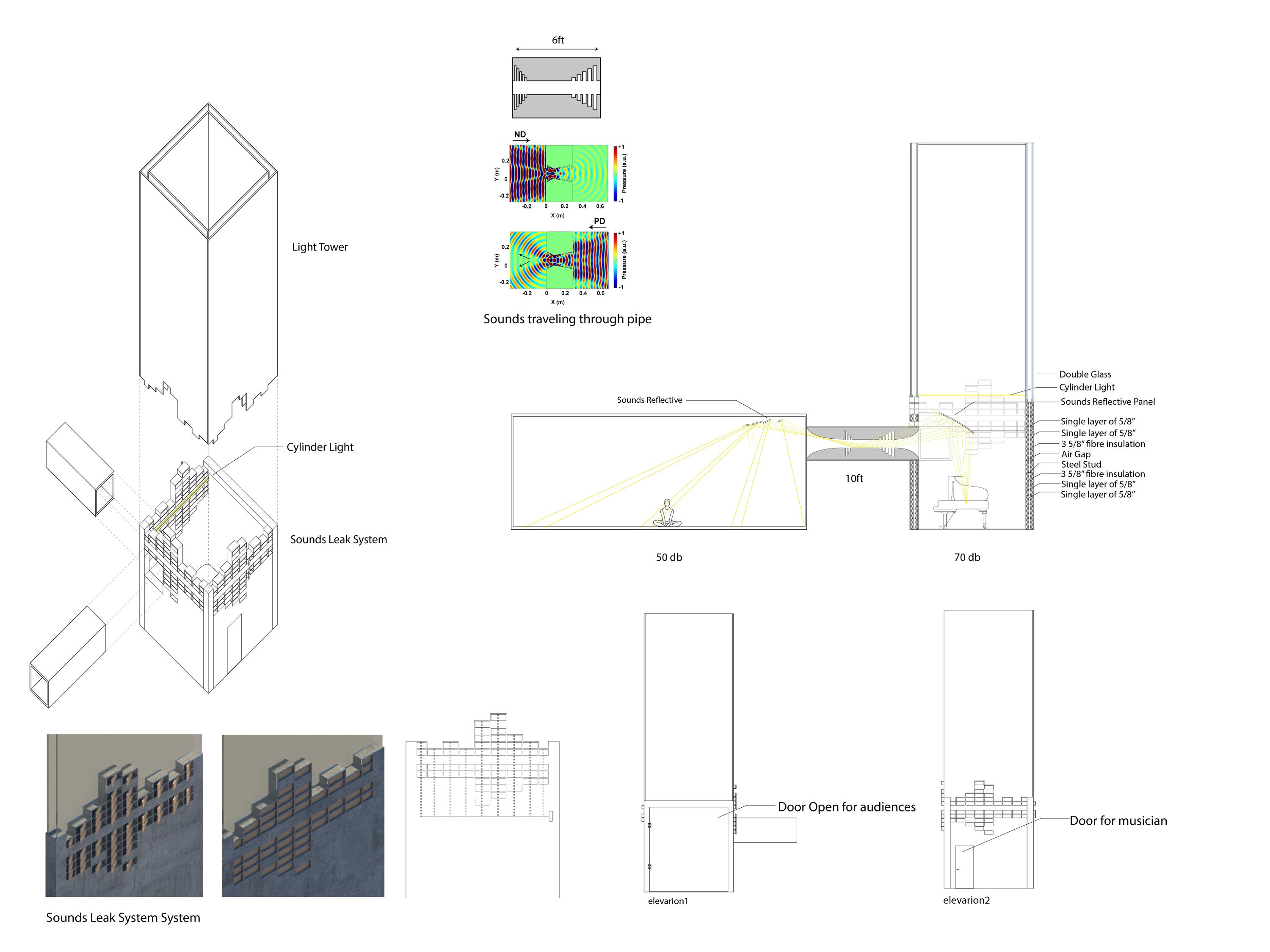

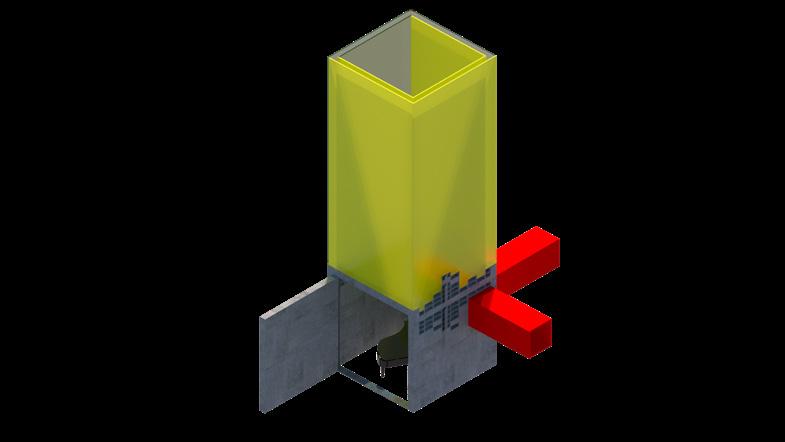

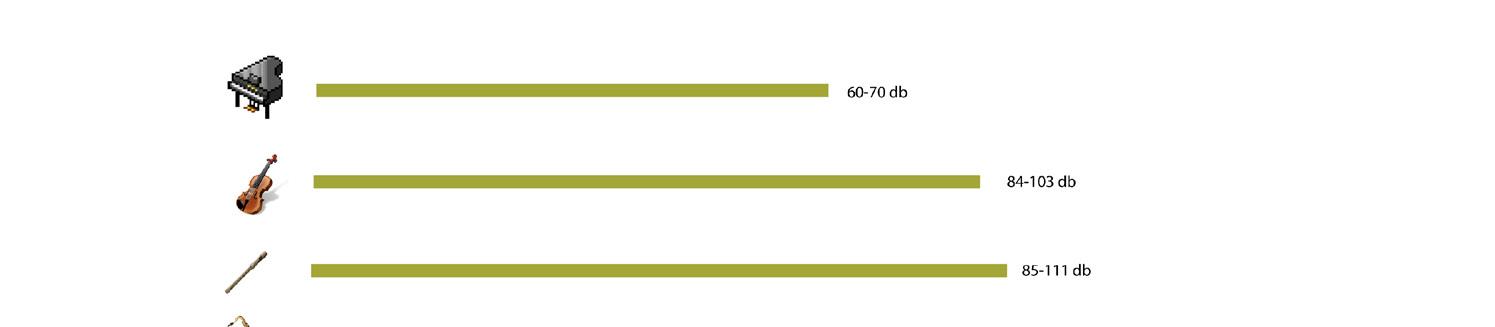

Music Booth Diagram

Sound is transmitted through pipes

10

Drawing shows the inside of music booth

11

12

6

4

UP

UP

9 1

UP

8

3

10

UP

7

11 5

UP

2

1. LOBBY 2. DINING 3. MENS BATH & CHANGING 4. WOMENS BATH & CHANGING 5. KITCHEN 6. MEDITATION ROOM

12

7. COURTYARD 8. OUTDOOR YOGA 9. YOGA 10. YOGA 11. YOGA 12. MARKET

Plan 1/8’’=1’-0’’

Plan 2

Plan 1

Section 1/8’’=1’-0’’ Scale: 1/8”=1’-0’

13

Plan 2

Plan 1

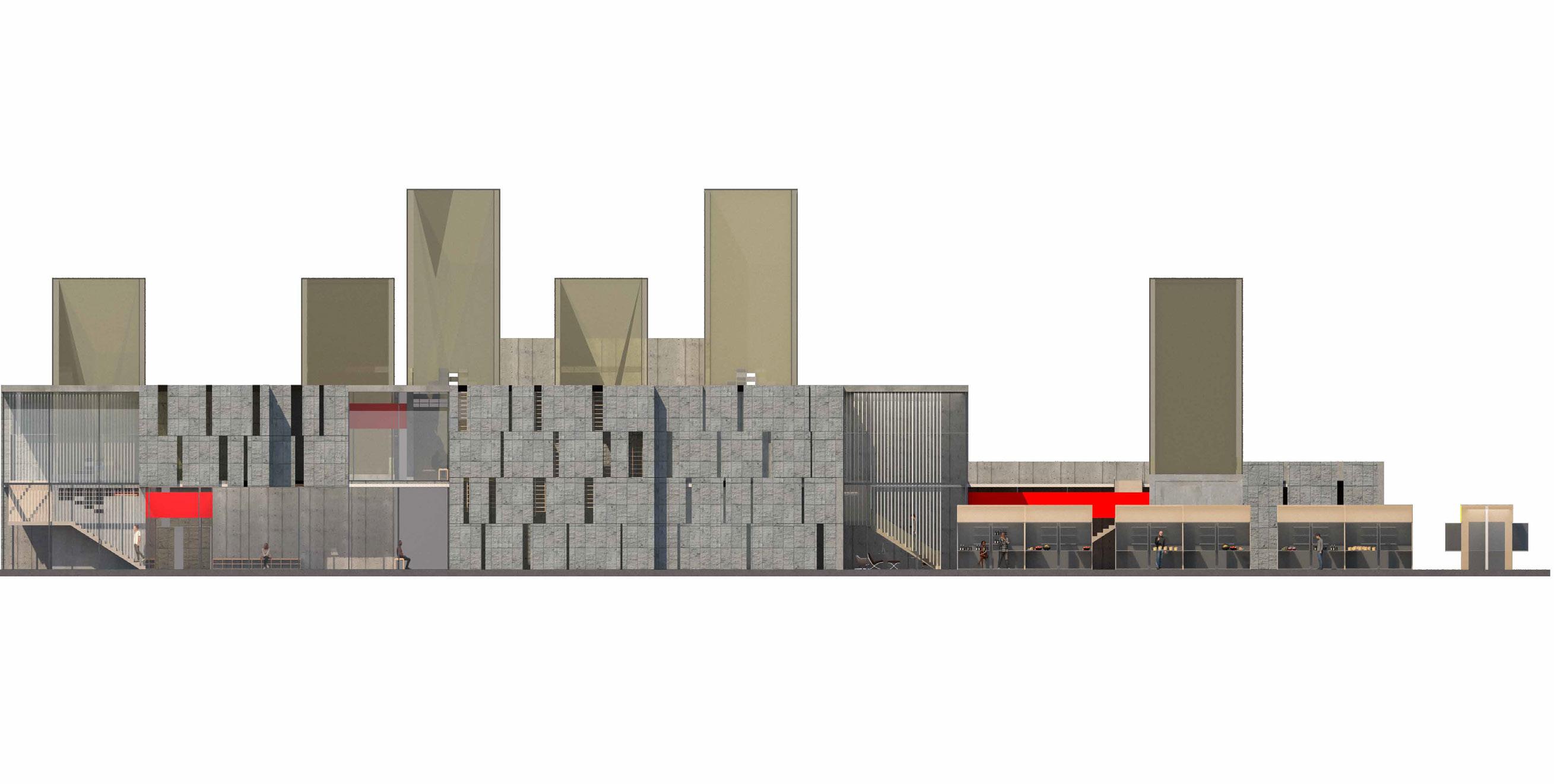

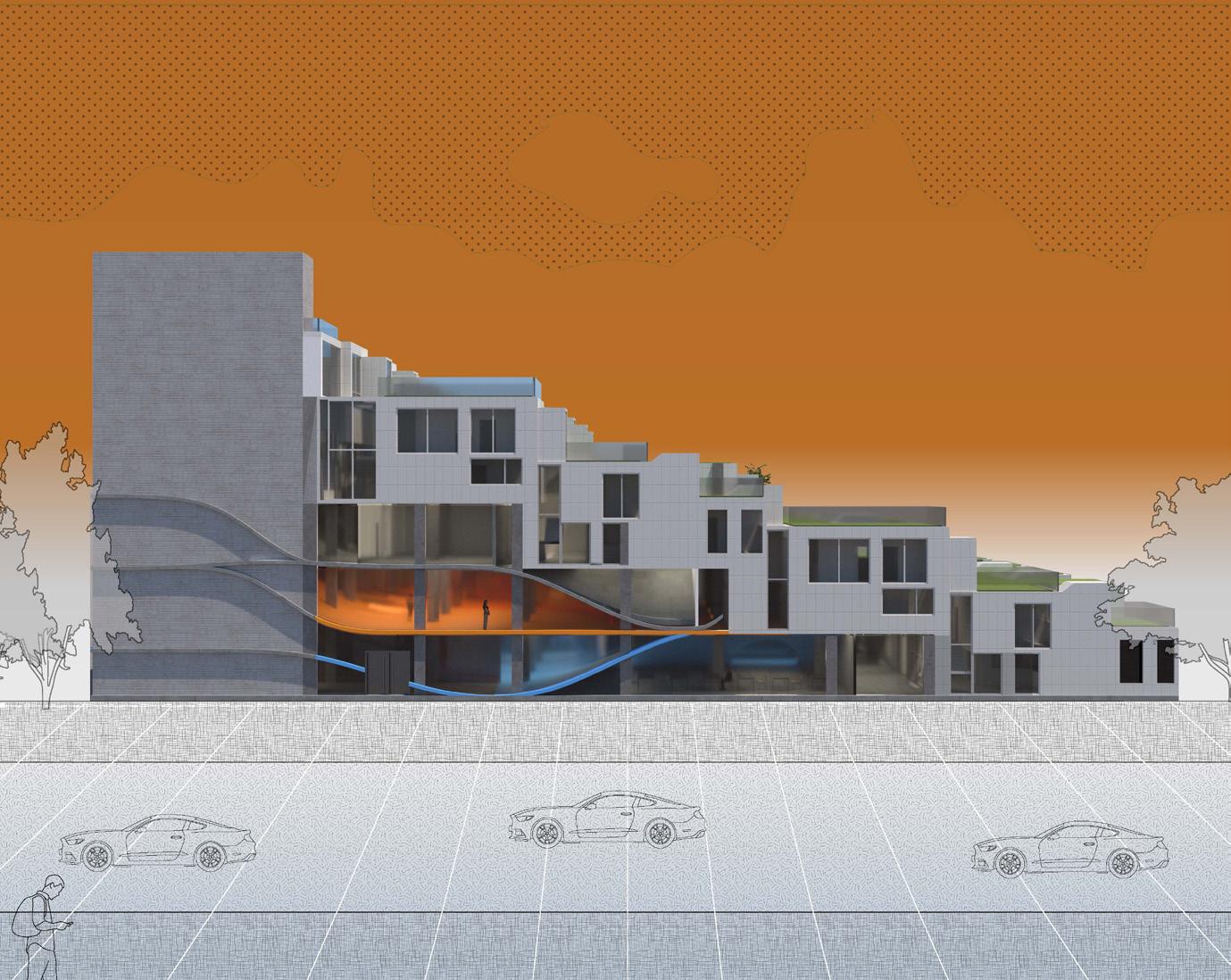

Elevation 1/8’’=1’-0’’

Scale: 1/8”=1’-0’

Elevation 1/8’’=1’-0’’

14

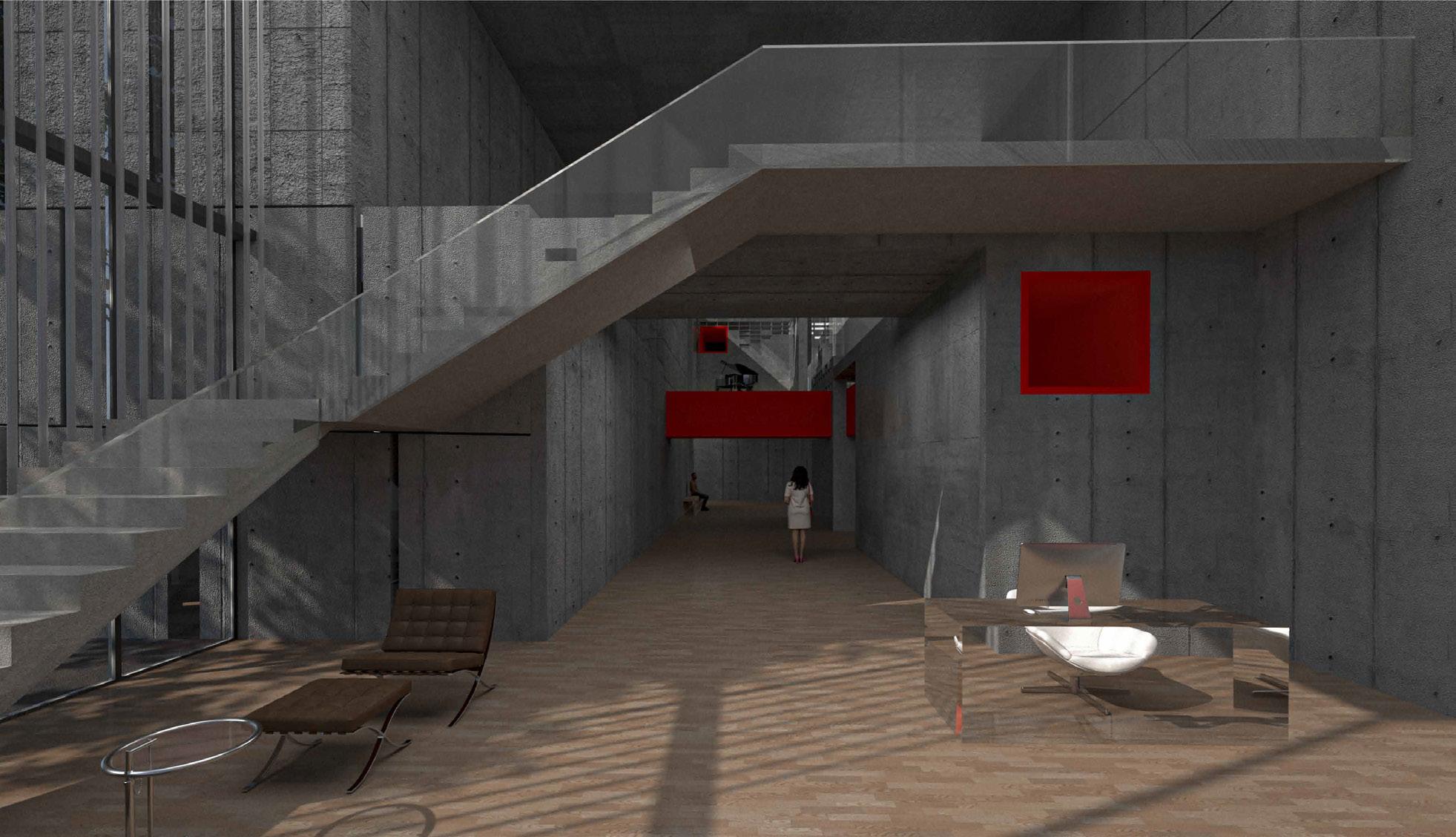

view from lobby

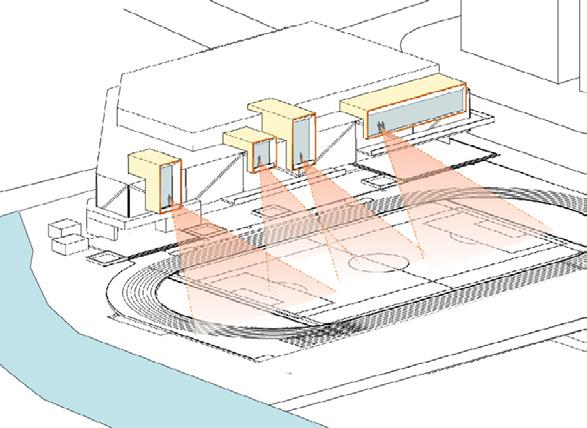

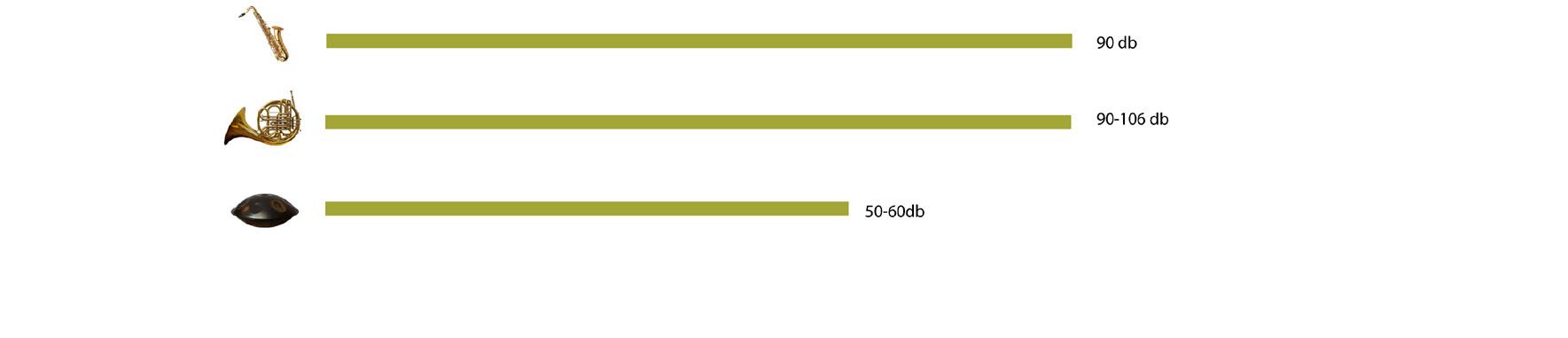

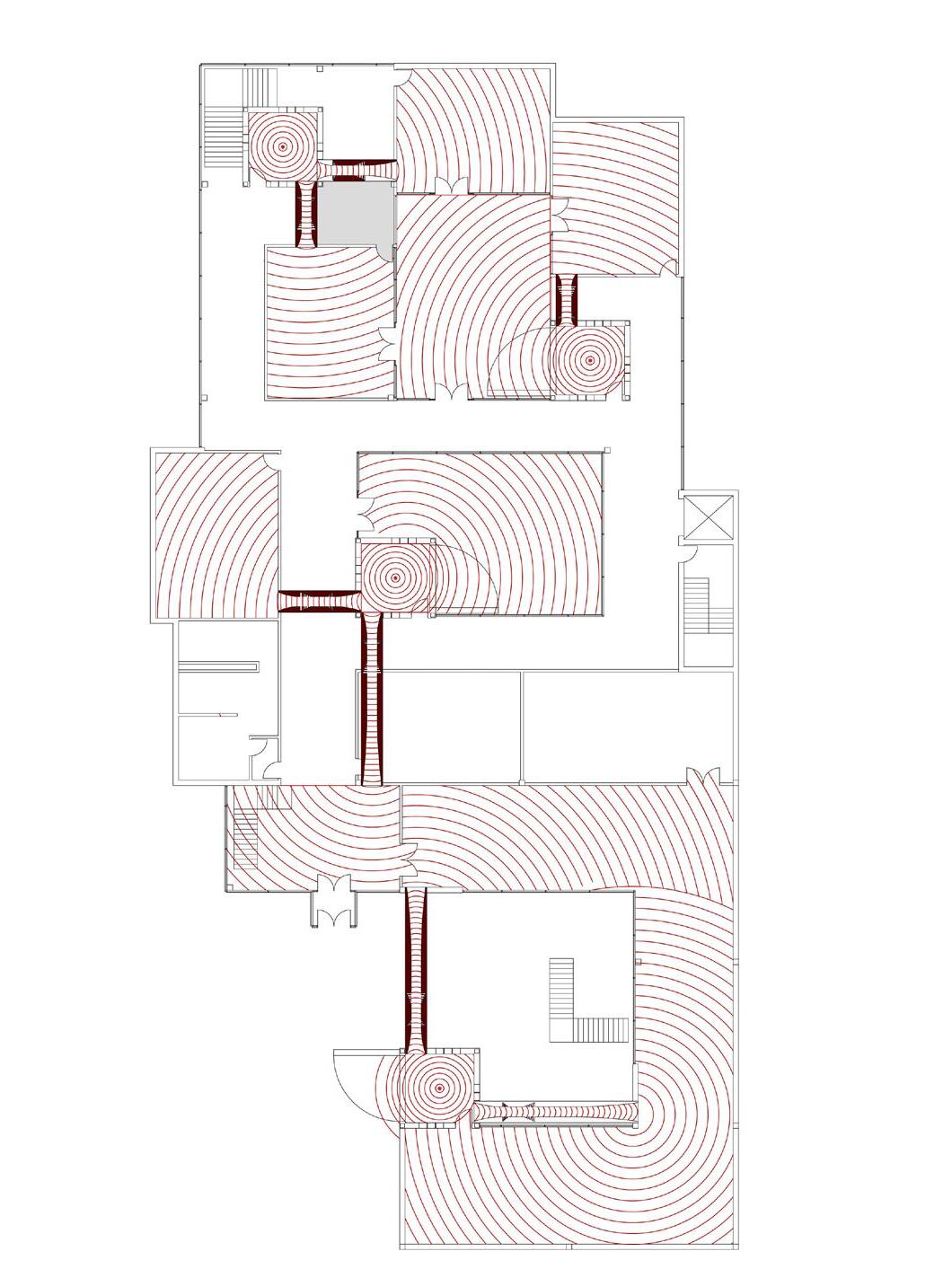

sound propagation diagram

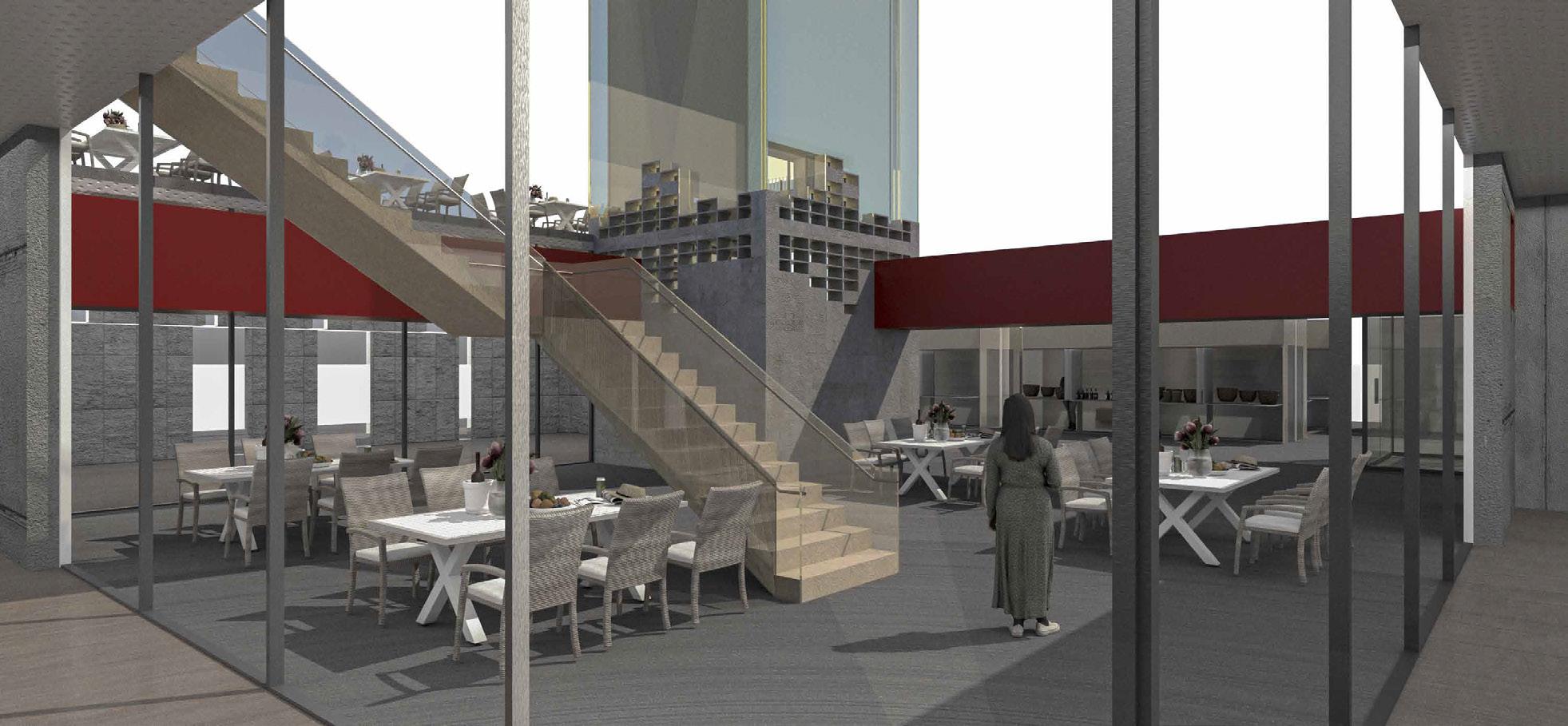

view from restaurant courtyard

15

16

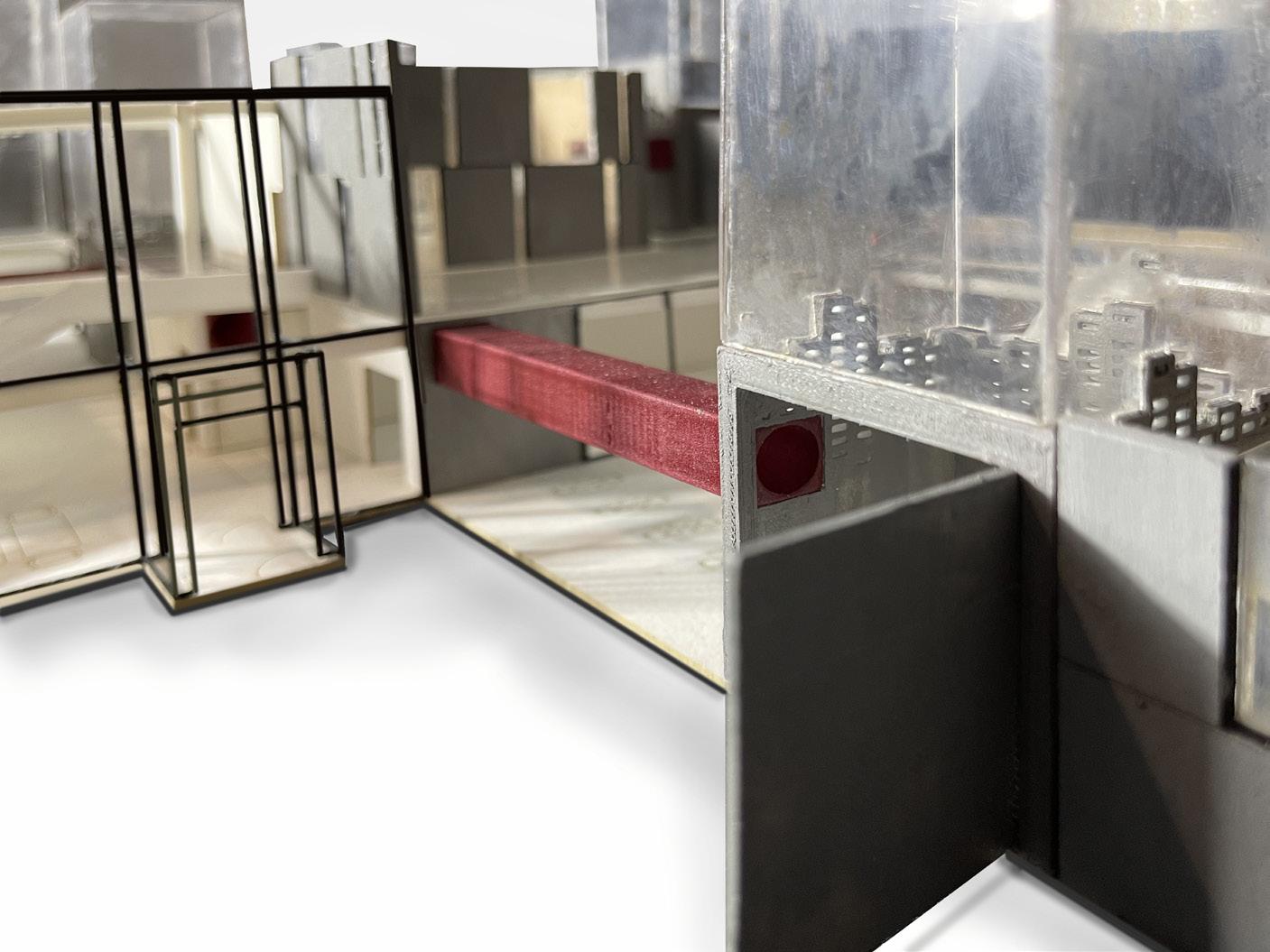

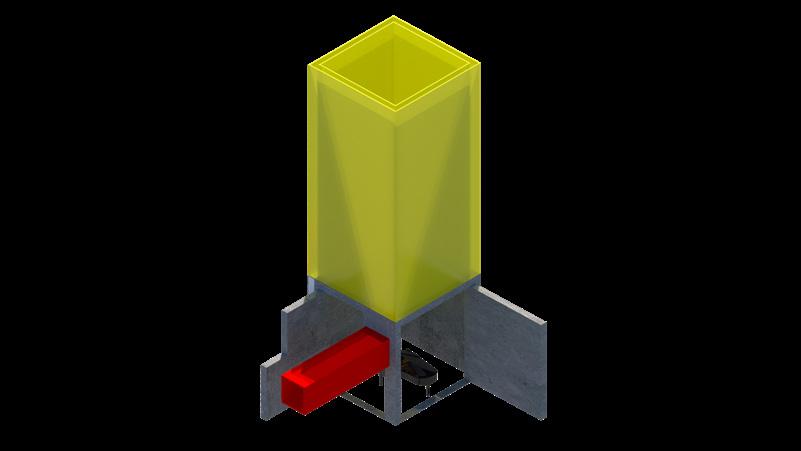

Music Booth and Pipe

Physical Model Photo

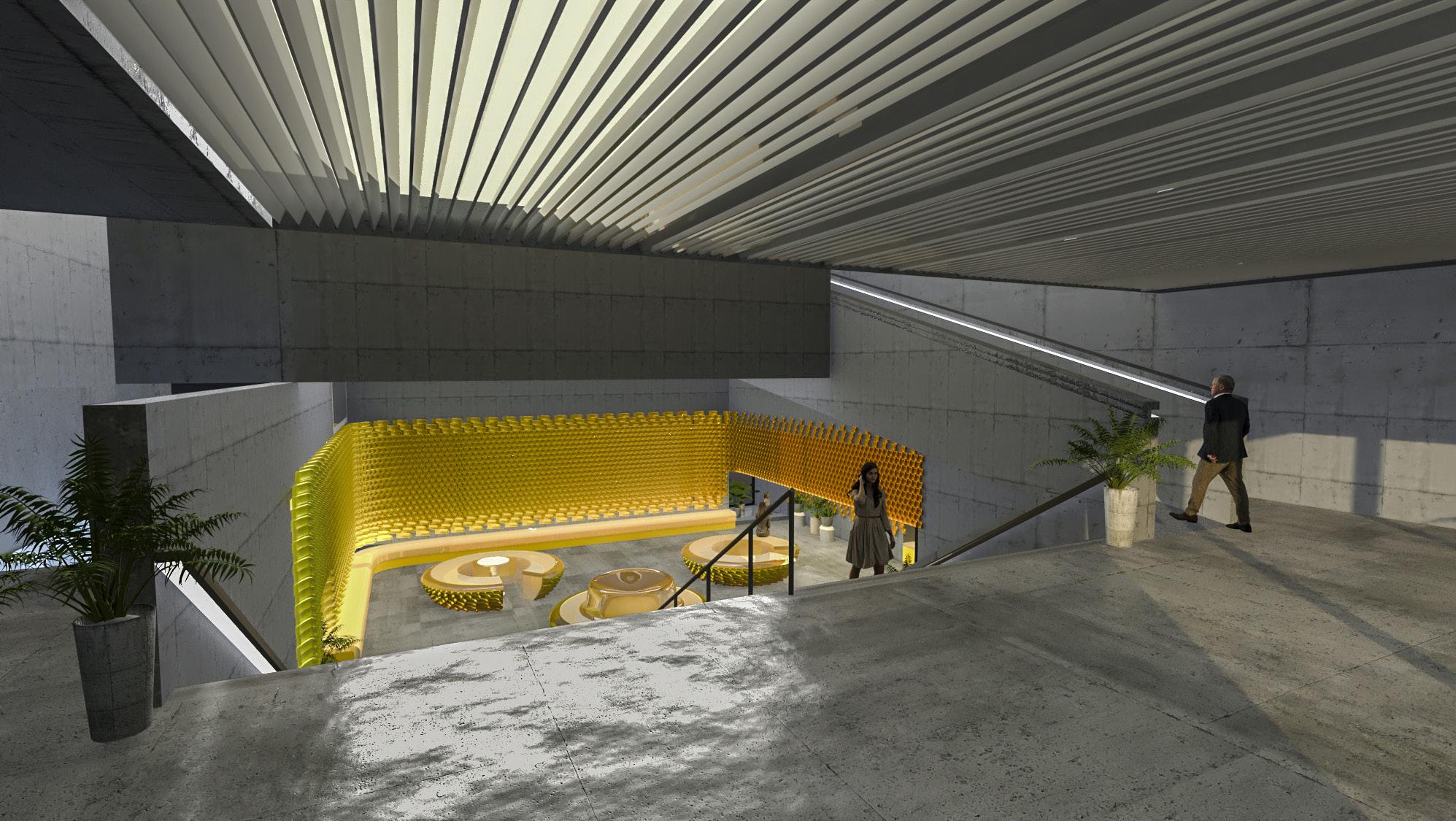

Entrance to the lobby

17

Urban Puzzles: The Renovation of Gotham Park Future Public Space

This project focuses on the renovation of Gotham Park, located in the Lower East Side of Manhattan, New York City. Situated beneath the Brooklyn Bridge, Gotham Park is surrounded by a diverse and complex urban landscape, including civic buildings, commercial areas, schools, and residential neighborhoods. Spanning approximately nine acres, the park’s renovation aims to create a dynamic and inclusive public space that serves the Lower East Side community and welcomes people from all walks of life.

The design is driven by the community’s daily activities and needs, incorporating features such as a skate park, children’s playground, community garden, sports courts, an indoor market, and open plazas for temporary events or gatherings. These elements are carefully arranged along landscape pathways that serve as boundaries, organizing the space while promoting seamless integration. Inspired by a puzzle-like approach, the design allows each program to fit together cohesively, enabling multiple activities to take place simultaneously without disruption.

INFO

Site: Gotham Park, Manhattan, NYC Partner: John Wang Year: 2024, Design Studio 403 Professor: Eunjeong Seong

02 18

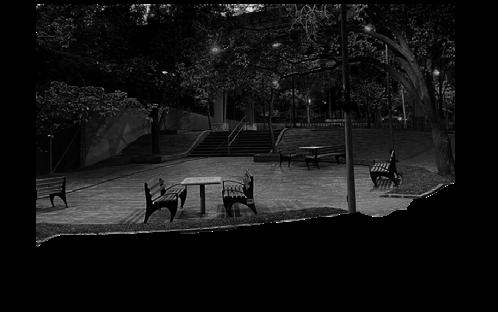

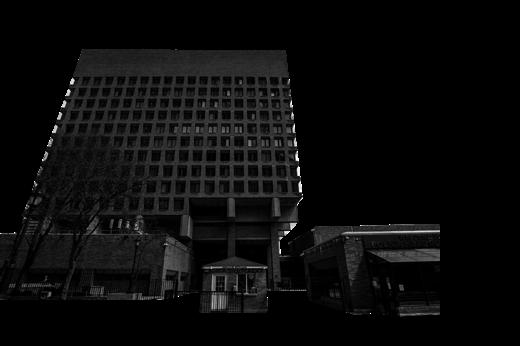

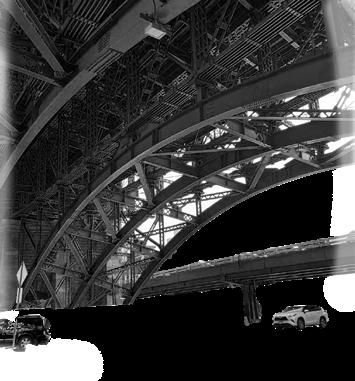

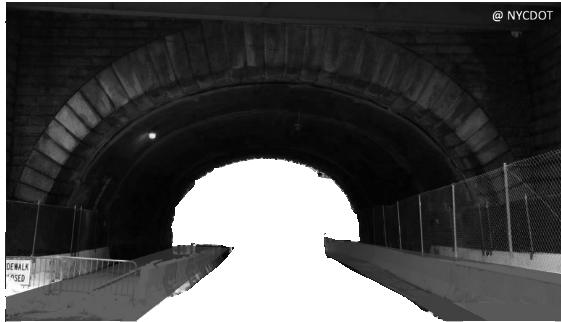

Site Study: Site Section

Site Plan

­

­

­

­

19

section 1

a

a: Indoor market b: Hot food bar c: Gym d: Library e: Theater

20

s2

s3

s4

b

s5

s6

c

s7

d

s8

s9

s10

e

Plan 1/32’’=1’-0’’

section 1

s7 s2

s8 s3

s4

s5

s9

s10

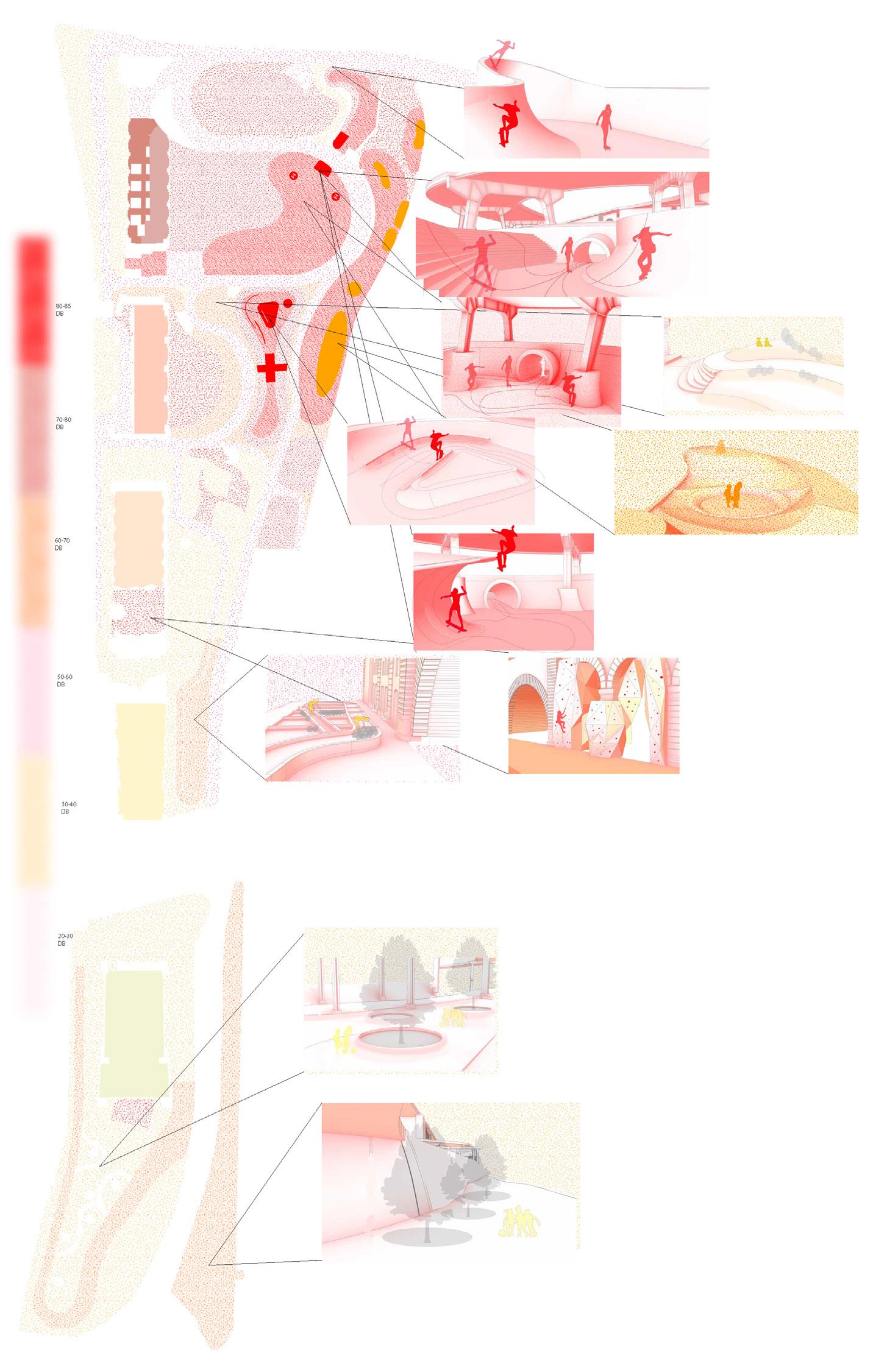

Cut multiple sections through the site to reveal various activities occurring simultaneously, without disrupting one another. s6

21

Children Playground Mountain Climb

Plaza b.

Plaza a.

Green Space

Community Garden Skateboard Court

22

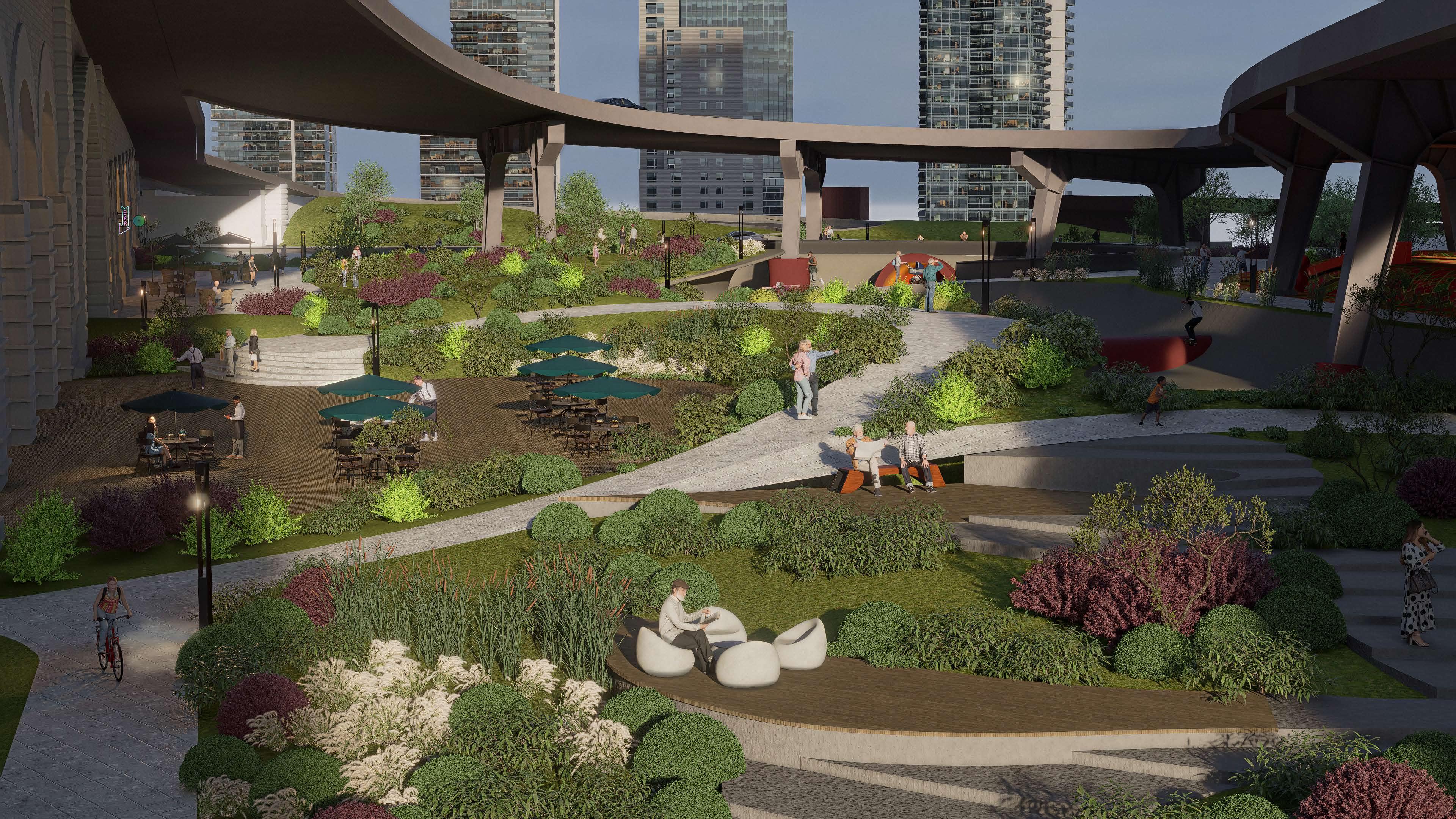

Render view: outdoor dinning

Site Section 1/20’’=1’-0’’

23

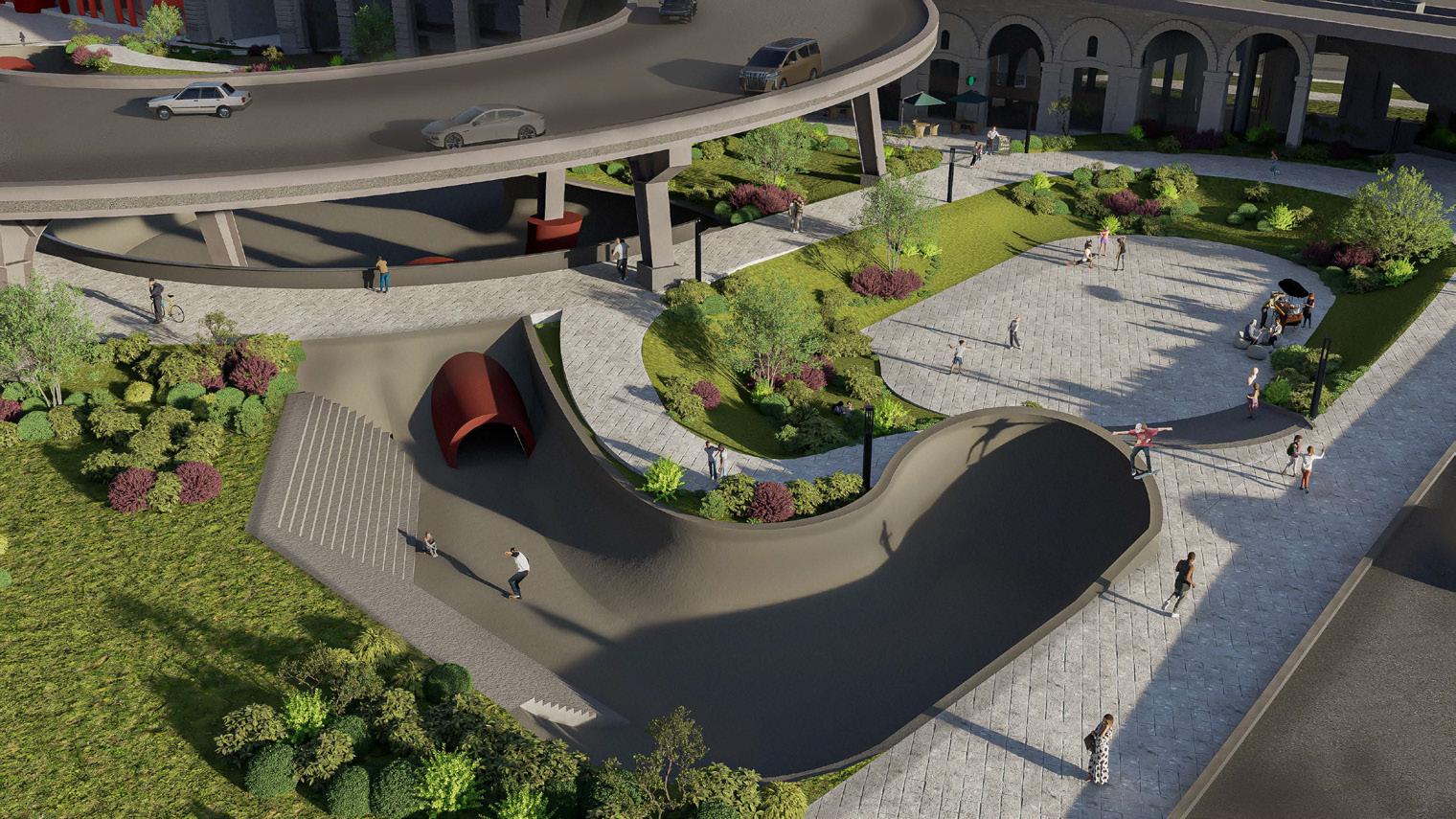

Render view& Physical image: Plaza& Skate Park

24

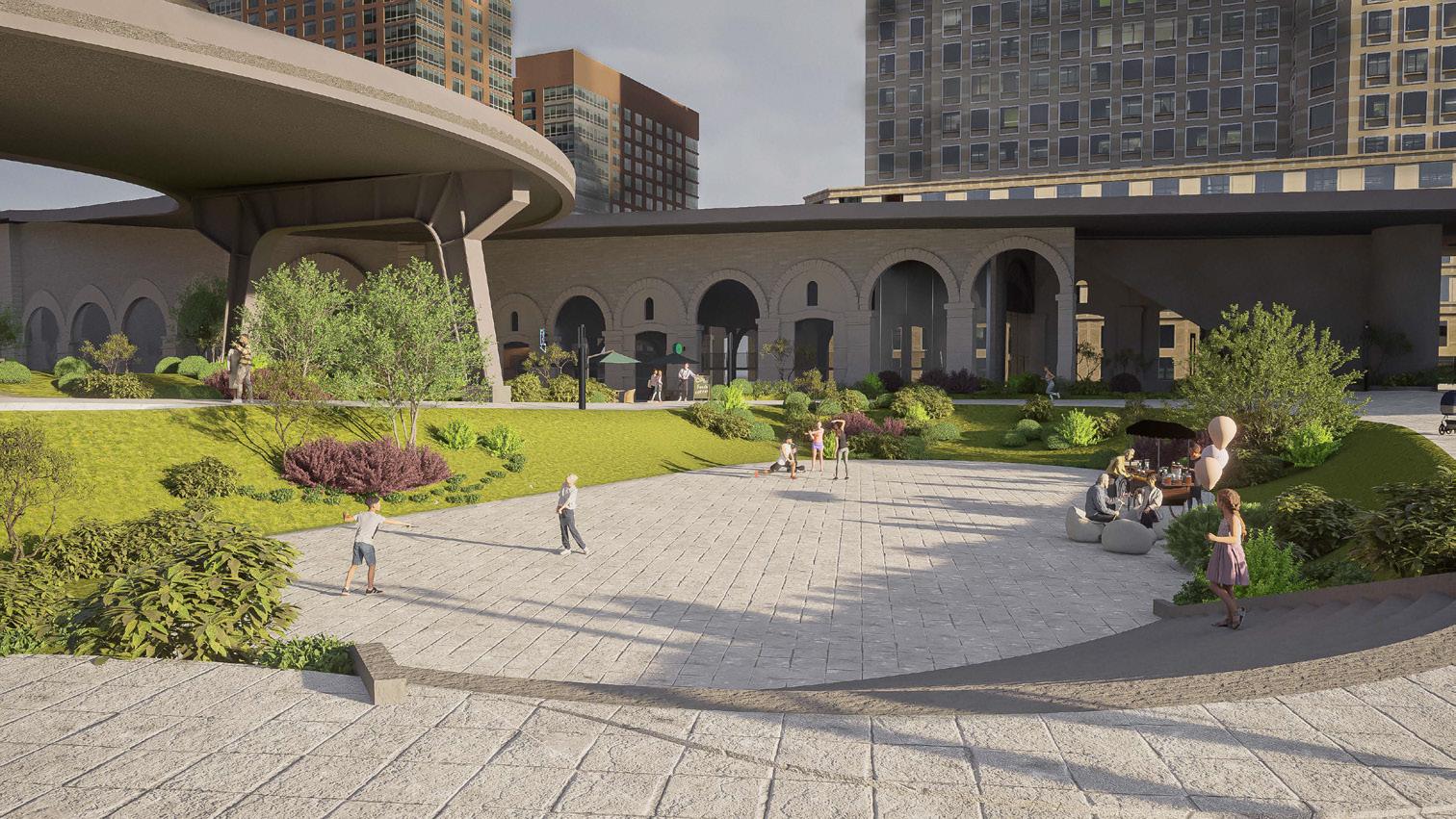

Physical image& Render view: Open Plaza

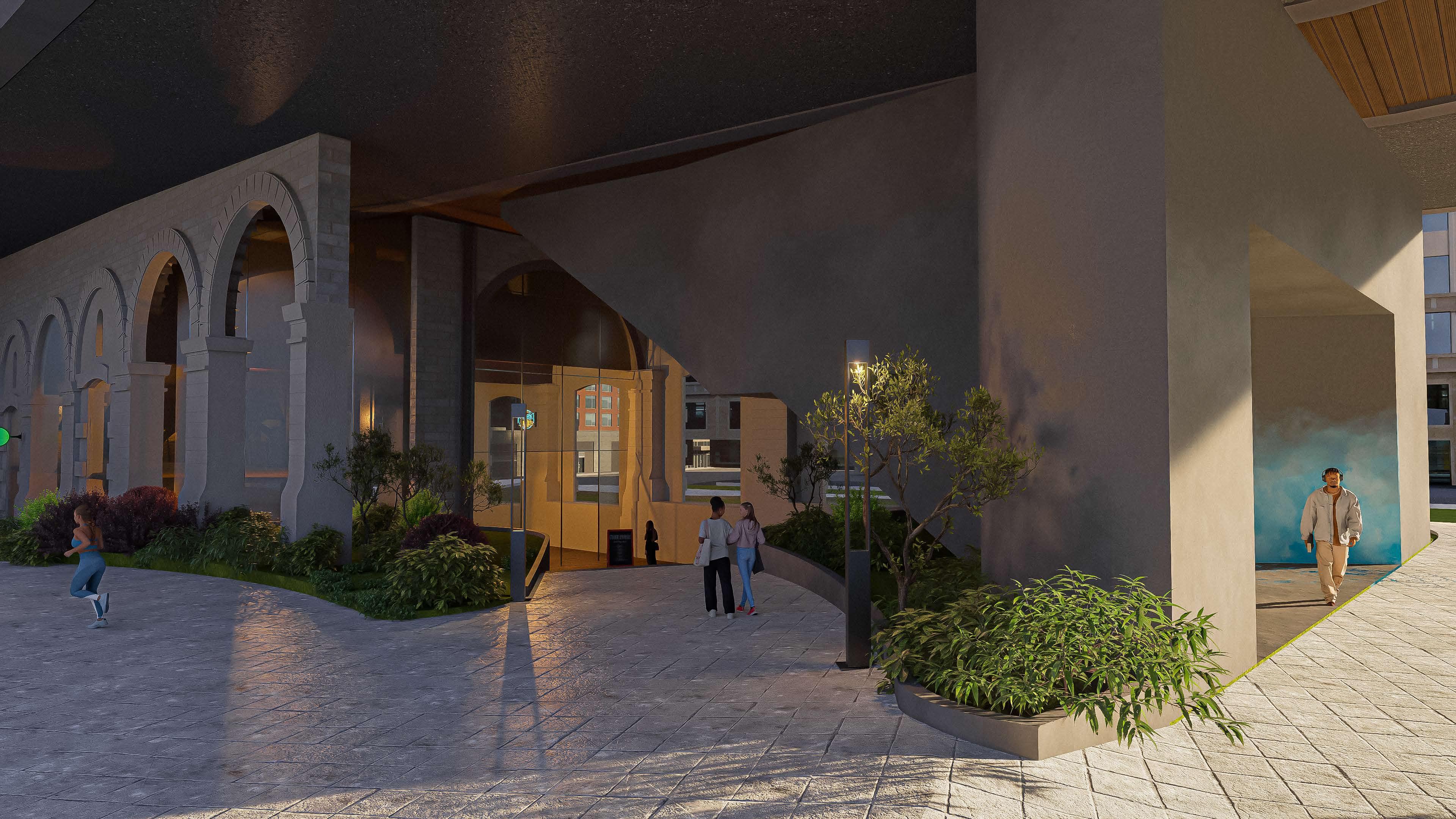

Render View: Market Entrance and Bridge Stairway

25

Theater

Green Saoce

26

Library

Community Garden

Gym

Open Plaza

Hot Food Cafe

Open Plaza

Indoor Market

Children Playground

Skate Park

Open Plaza

27

VERTICALIZATION OF TIBER Eco-system as Echo-System

This building is located along the Tiber River in Rome, Italy. The design explores the verticalization of Rome’s urban fabric by reimagining the traditional piazza. Different prototypes of piazzas are stacked vertically, creating a unique spatial arrangement that accommodates a variety of uses, including performance spaces, theaters, performing Institute and Pilgrim Caravanserai.

This architectural project is located adjacent to the historic San Michele building, which has previously served as an orphanage, women’s prison, and hospice for the infirm. Drawing inspiration from the plan of San Michele, we analyzed its solid and void relationships and applied these principles to the elevation of our design.

In reimagining the site’s historical functions, we transformed the old programs of San Michele into new ones.This adaptive reuse breathes new life into San Michele, reactivating the space while respecting its historical essence.

INFO

Site: Tiber River, Rome, Itatly Partner: Julia Liu Year: 2024, Design Studio 402 Professor: Federica Vannuchi

03 28

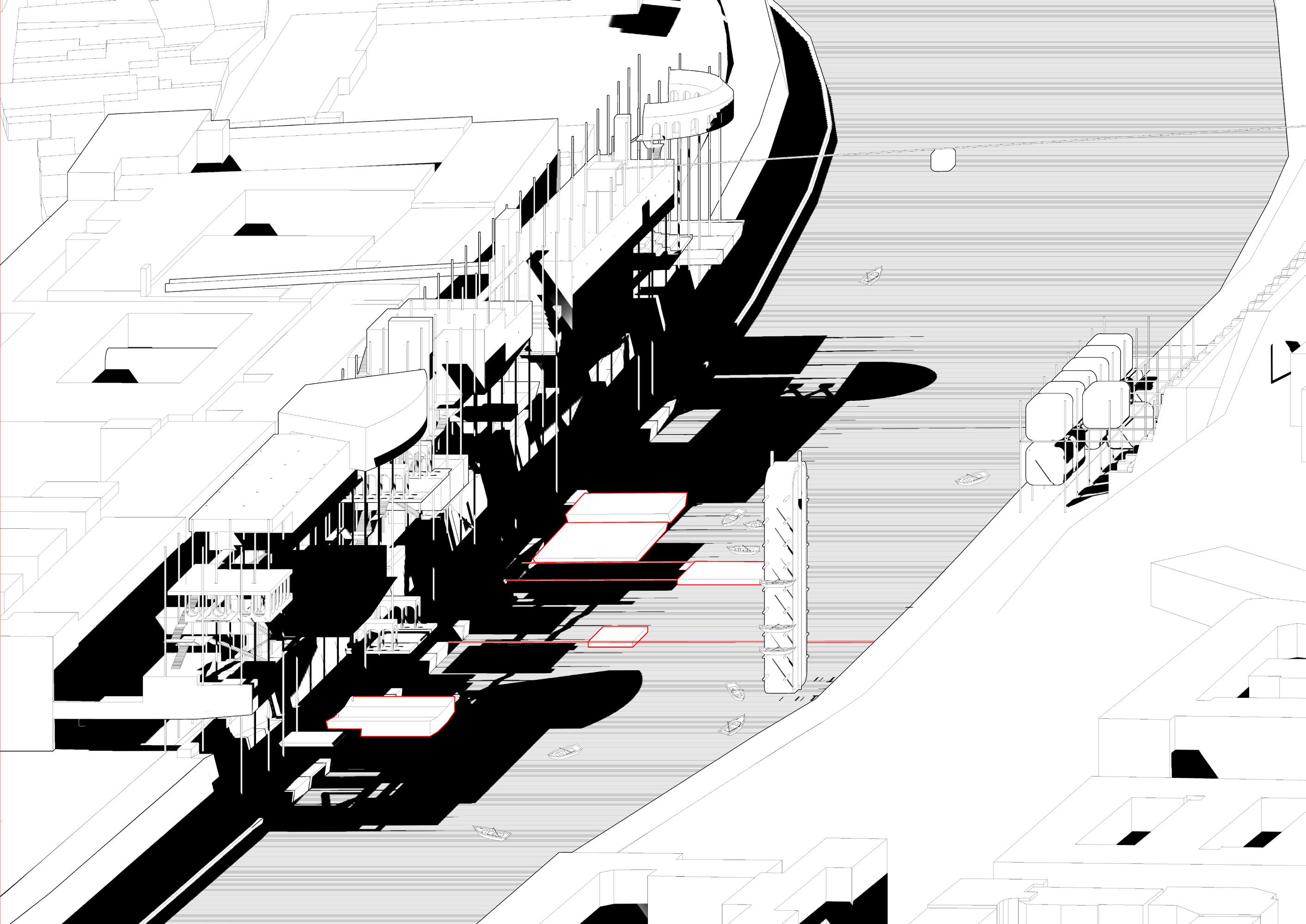

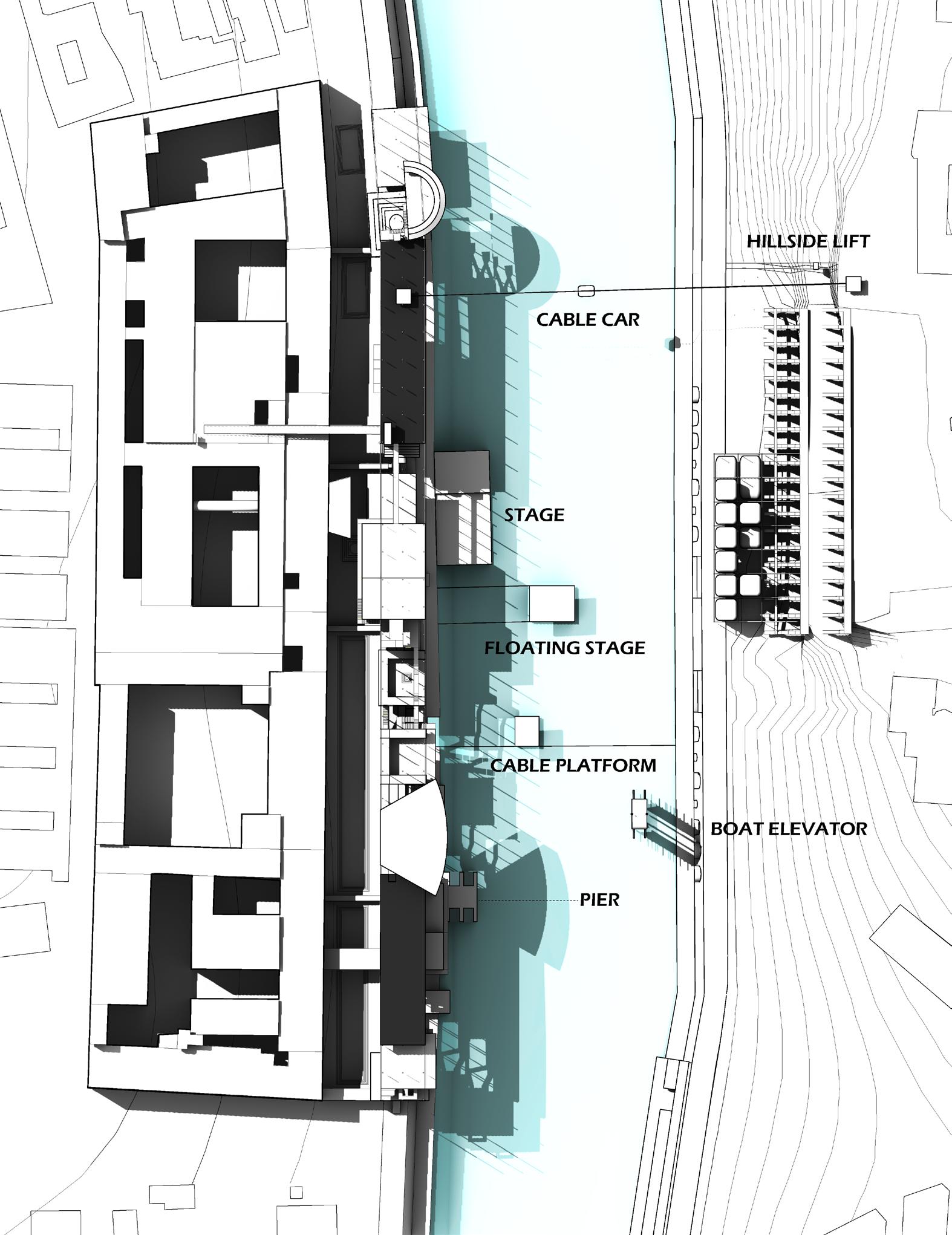

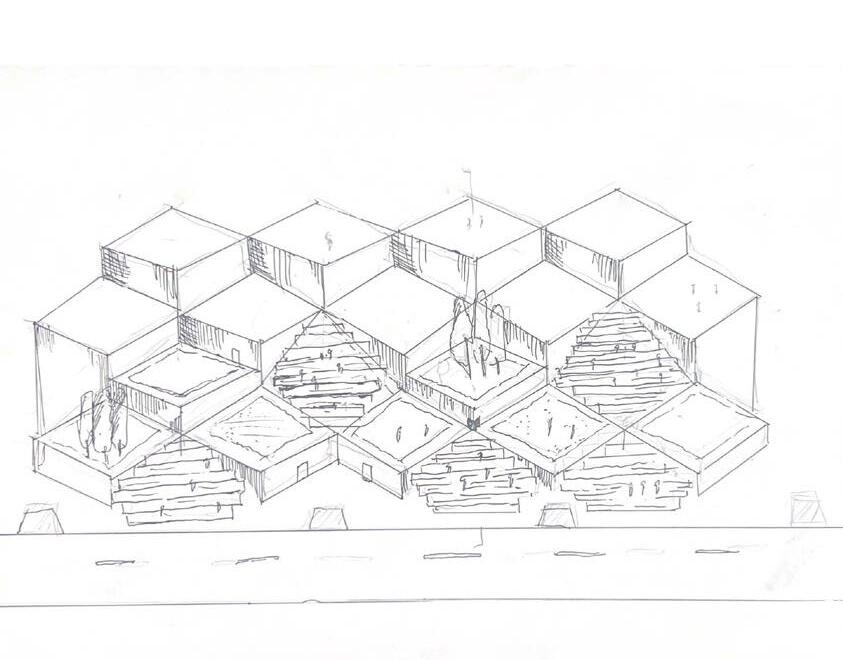

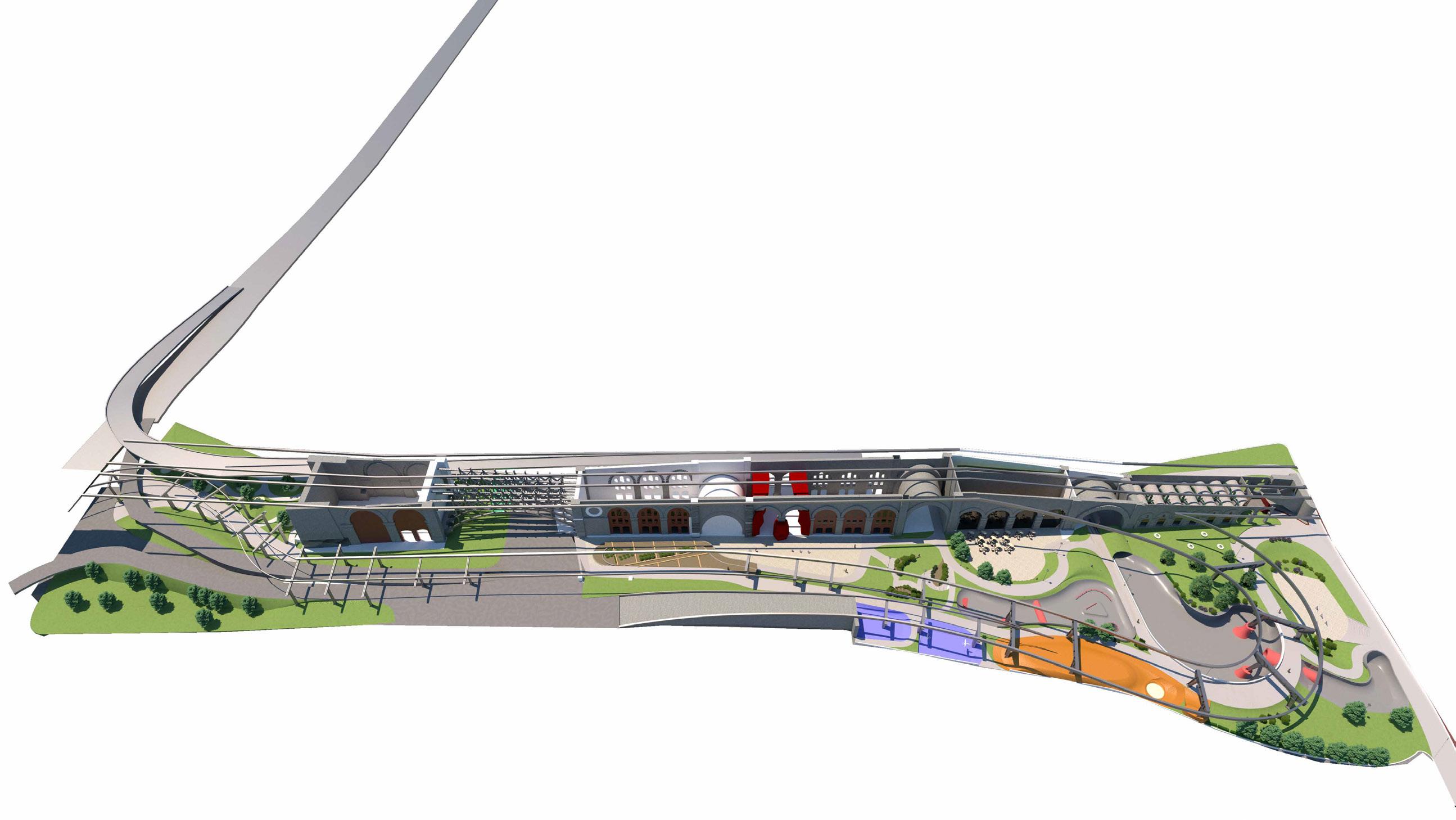

Isometric Aerial Drawing

29

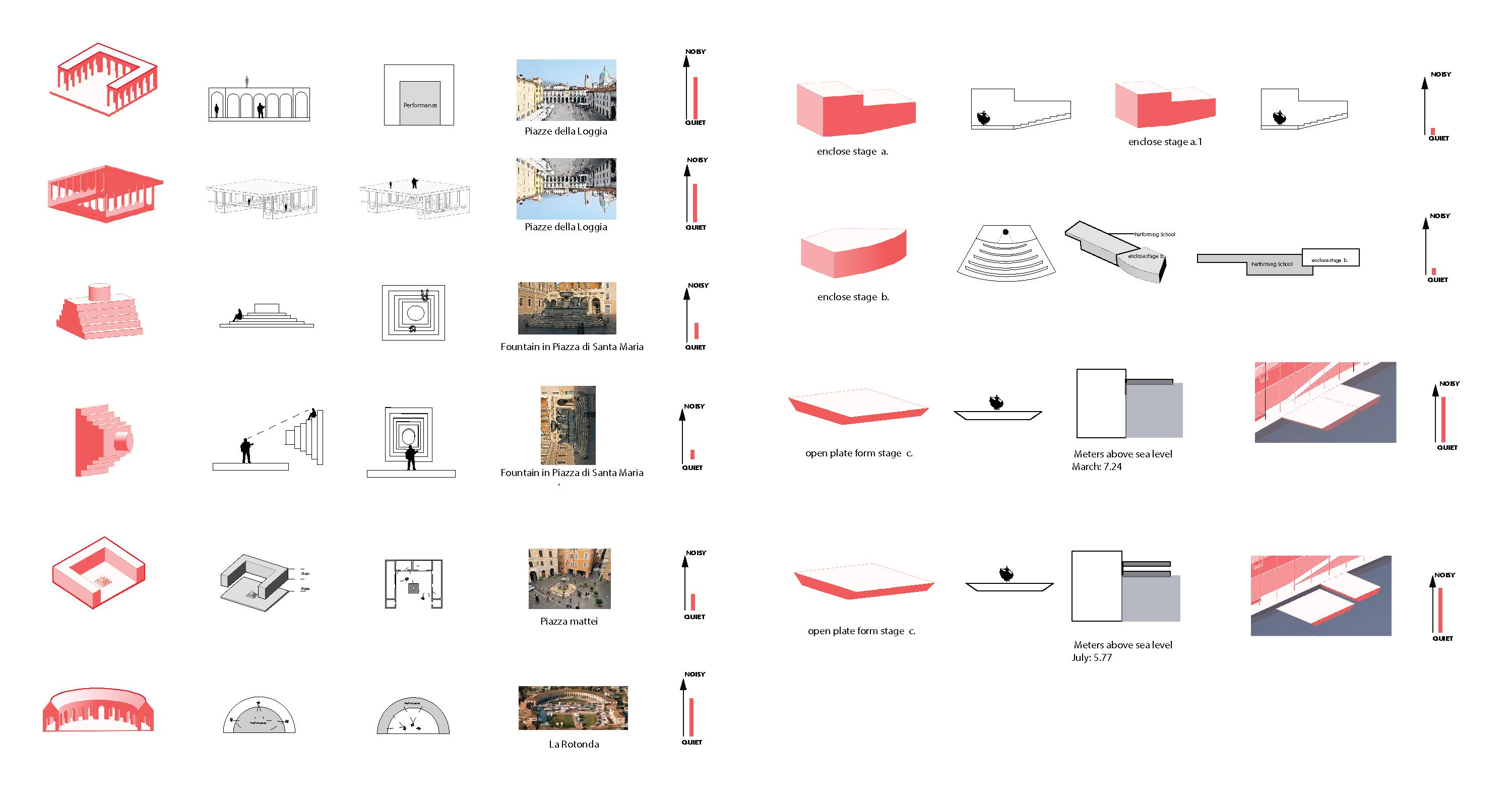

Typology Piazza

30

Typology Stage

Short Section a

Short Section b

31

Musuem/Gallery

San Michele

Stage

Floating Stage Pier

32

Pier

Cable Car

Floating Stage

Modular Student Apartment

Aventino Hill

Urban Section 1/72’’=1’-0’’

33

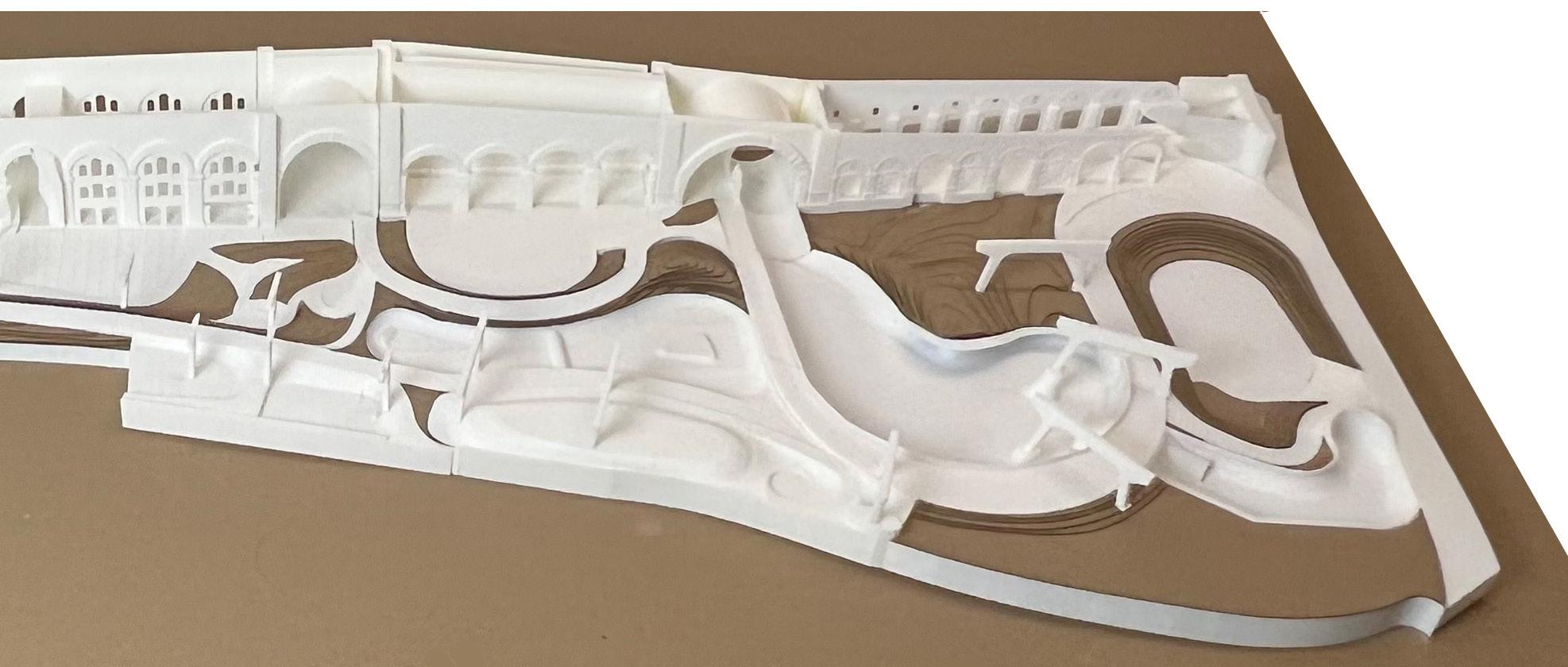

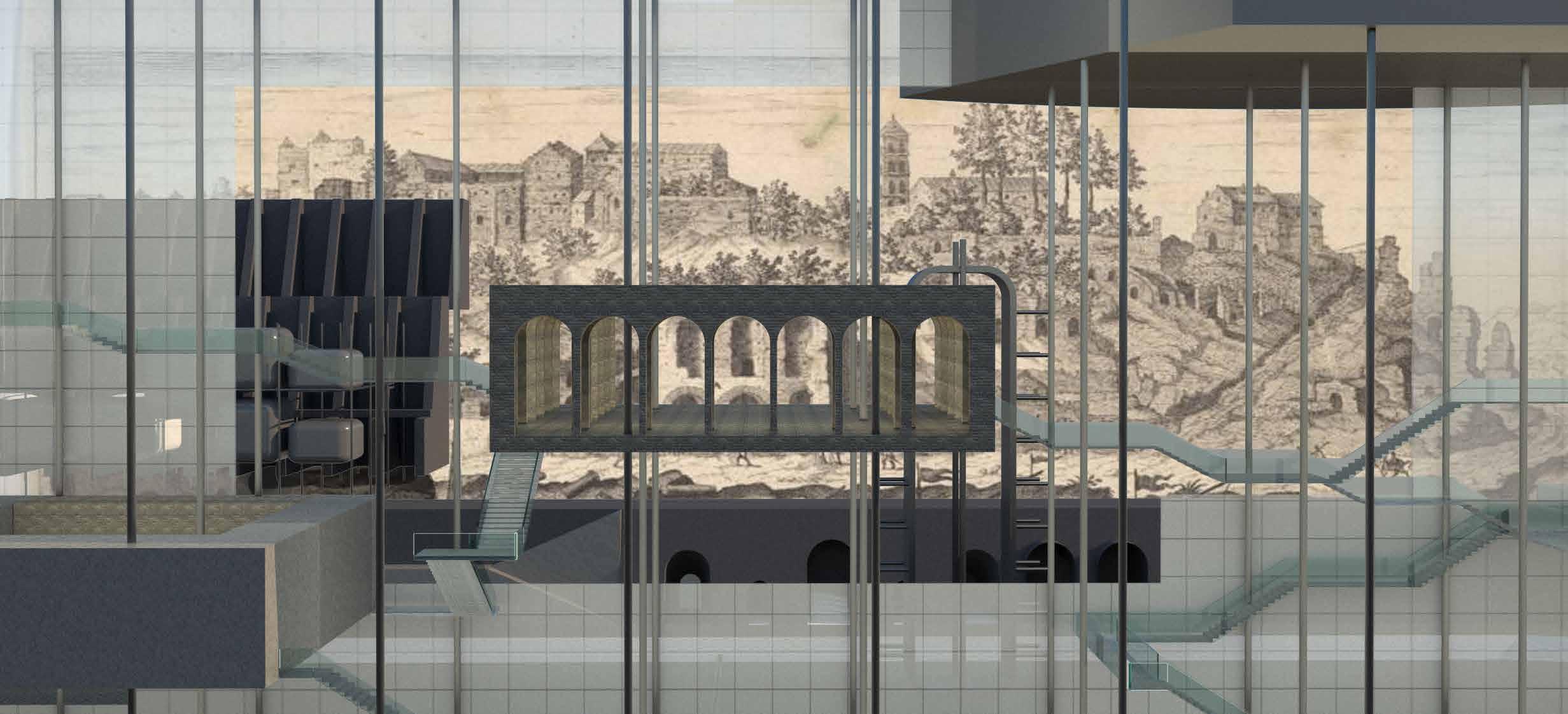

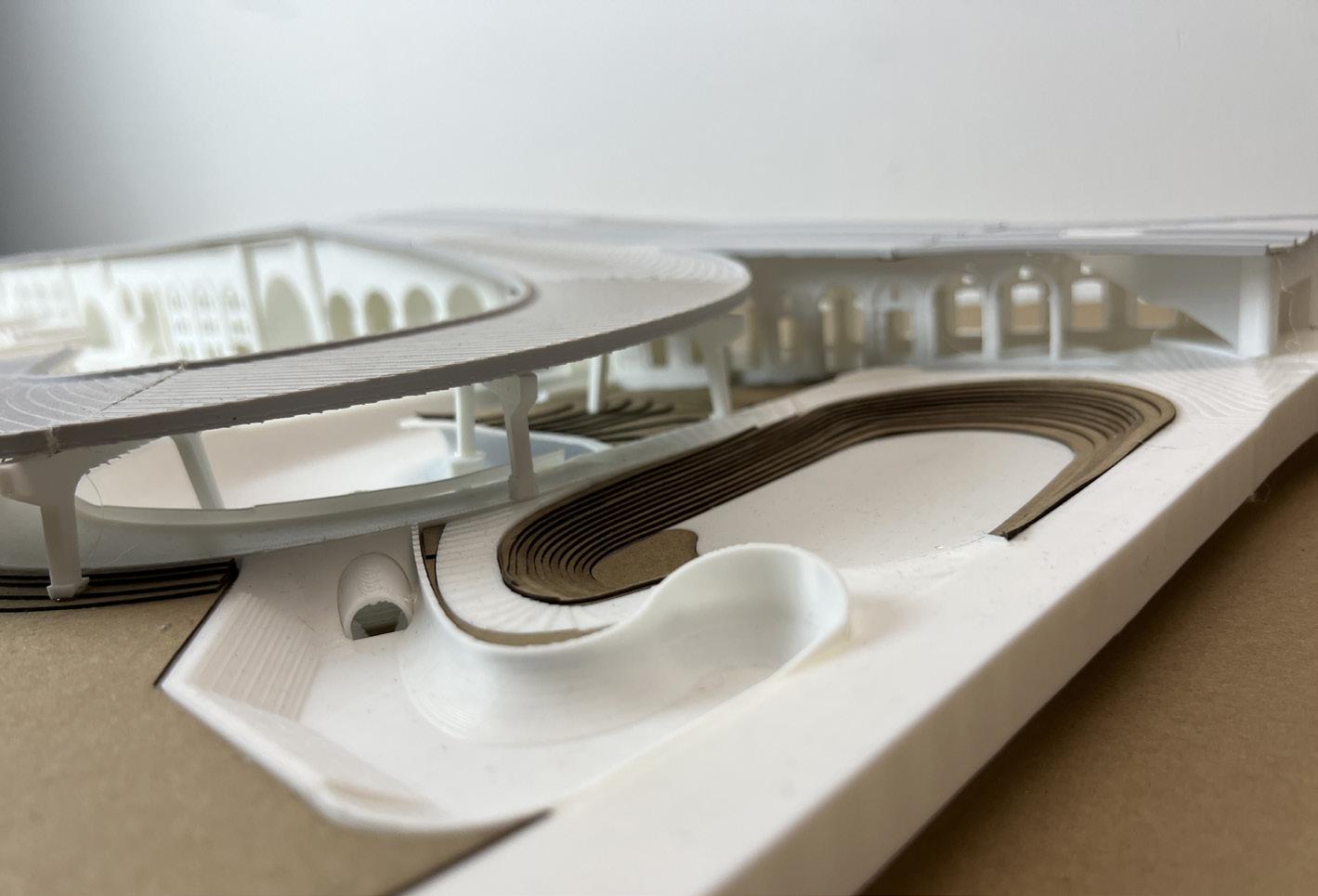

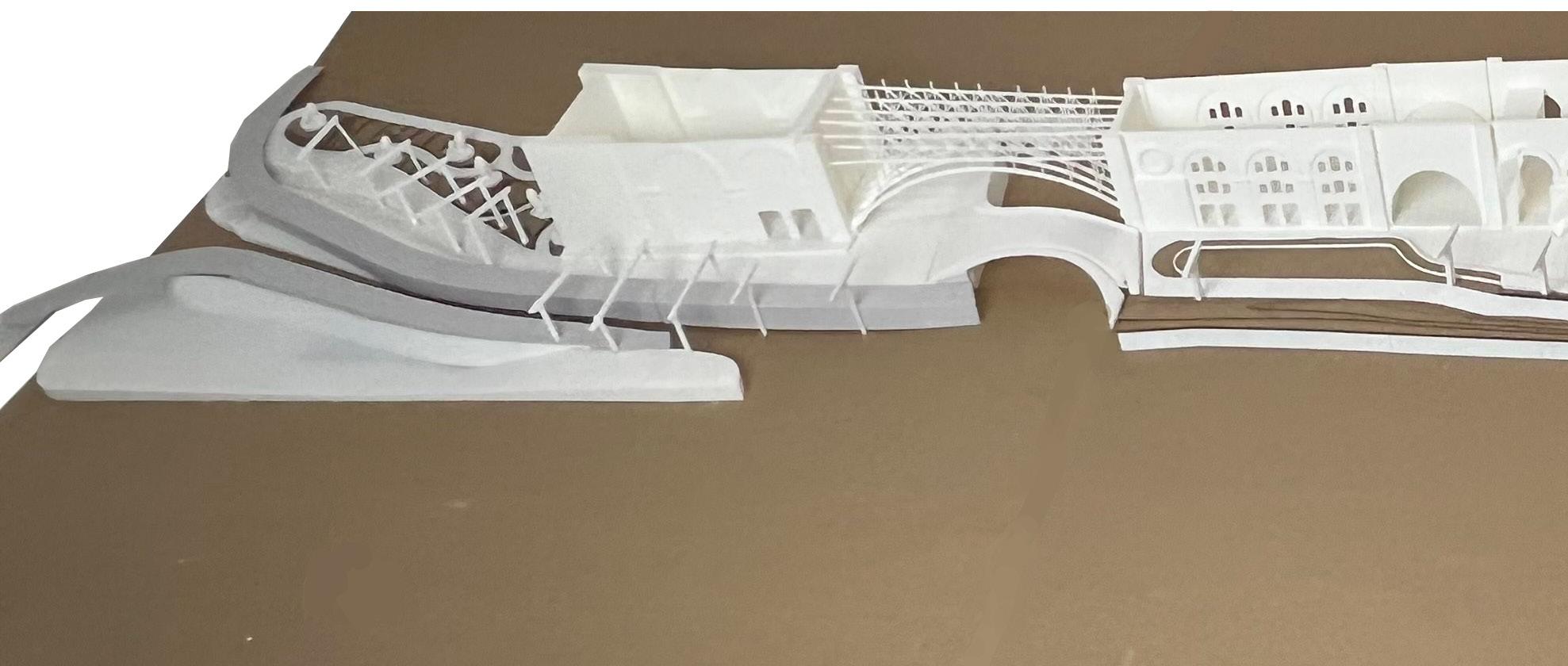

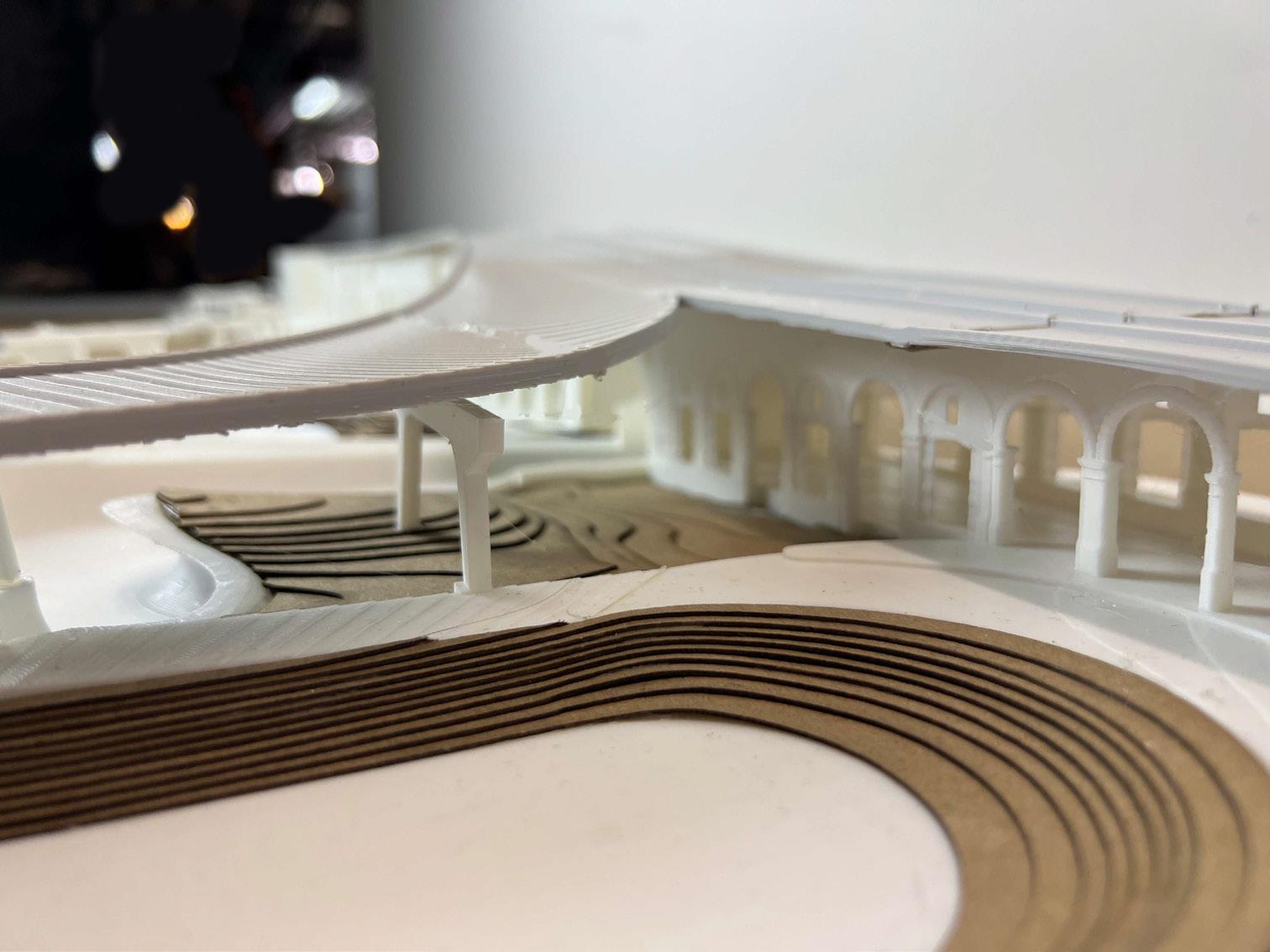

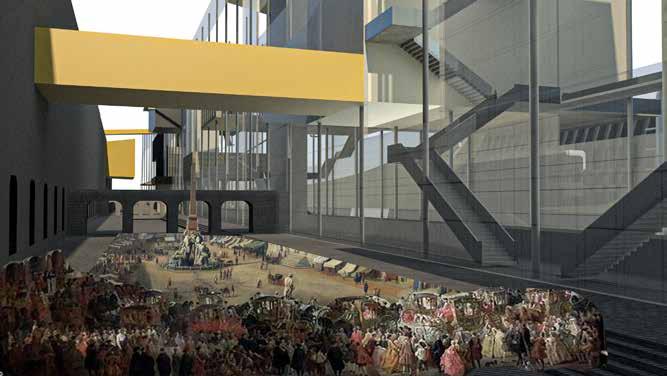

Model Render& Collage We envision the piazza as a stage—a space where people gather, encounter one another, perform rituals, and celebrate. Inspired

by Antonio Joli’s View of the Flooded Piazza Navona, we draw parallels between the theatricality of the painting and the design of our own space. Like the painting, the piazza we create becomes a dynamic platform for public life, inviting occupation, transformation, and reinterpretation.

34

Model Render& Collage Collage the drawing of Aventine Hill with the model render, experience the hill become the backdrop for the piazza stage.

Plan 1/72’’=1’-0’’

35

36

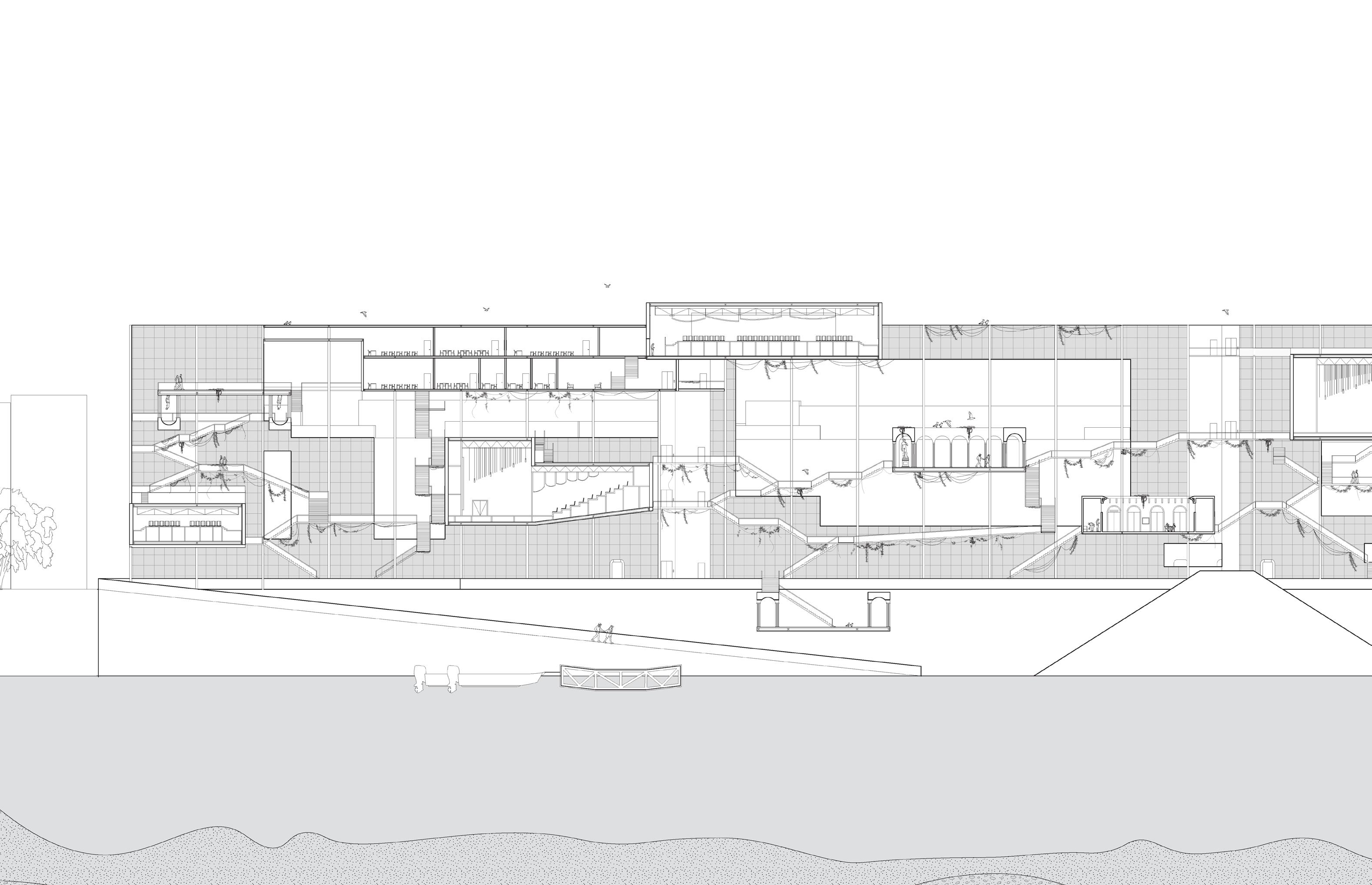

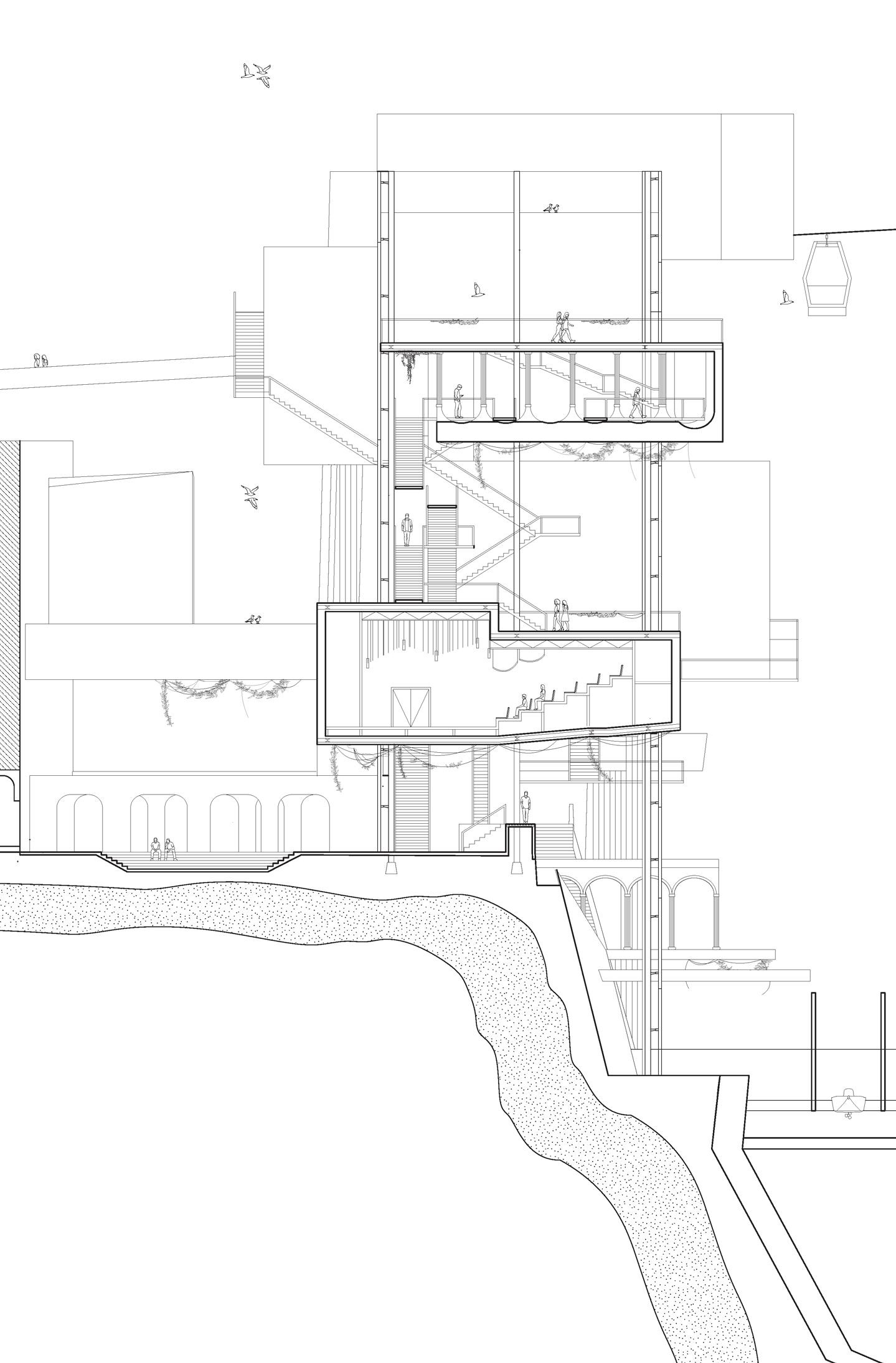

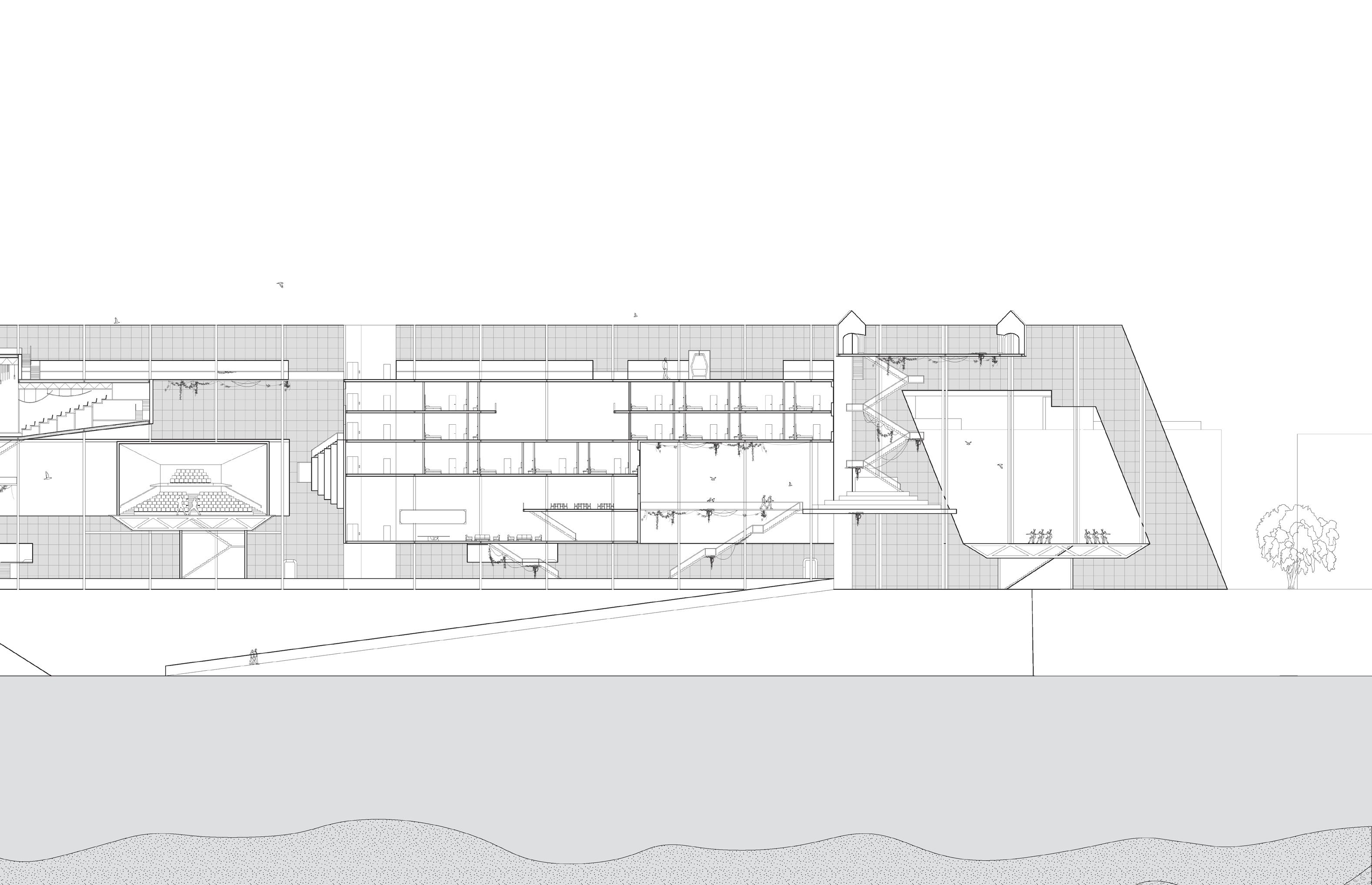

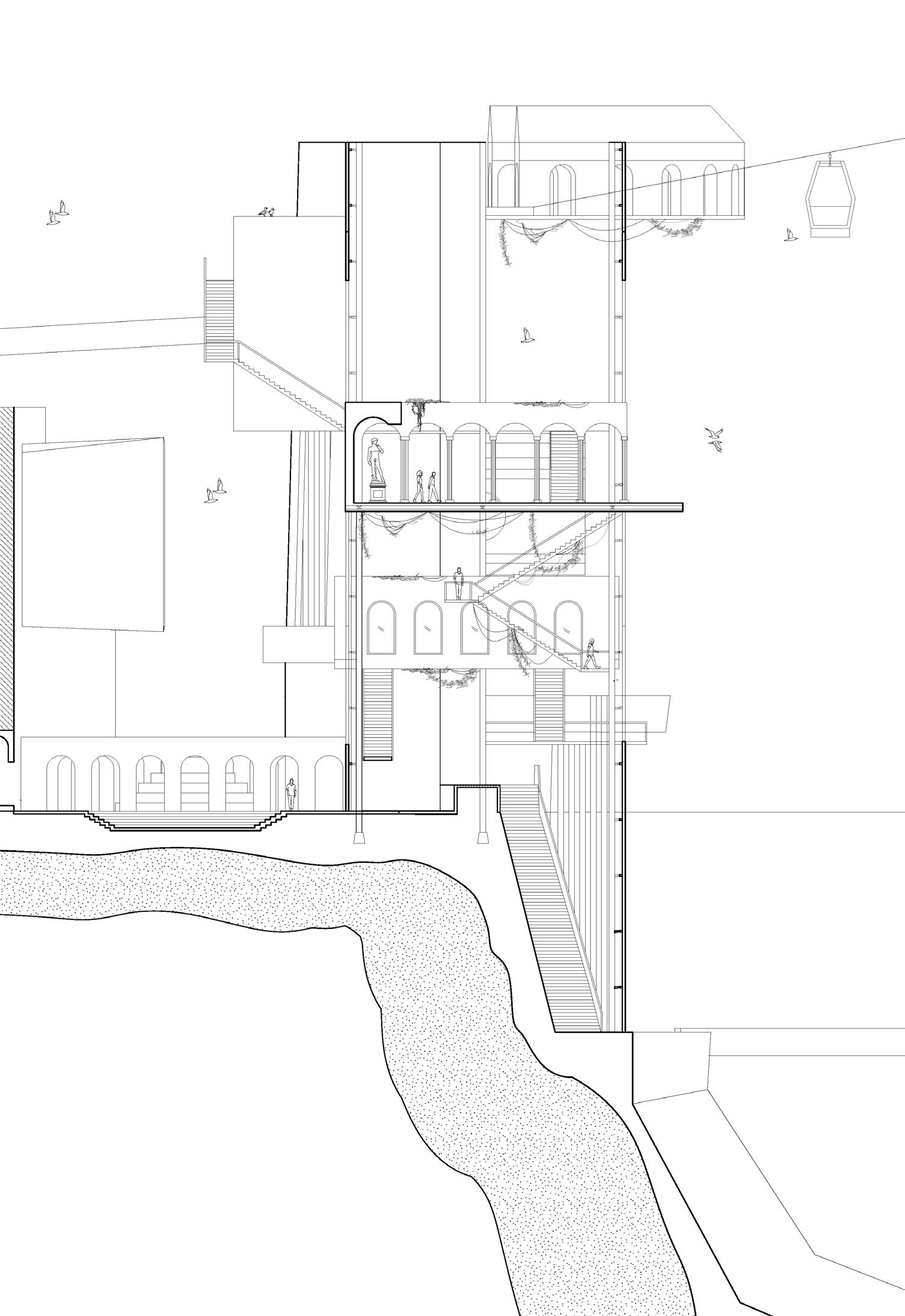

Long Section 1/72’’=1’-0’’

37

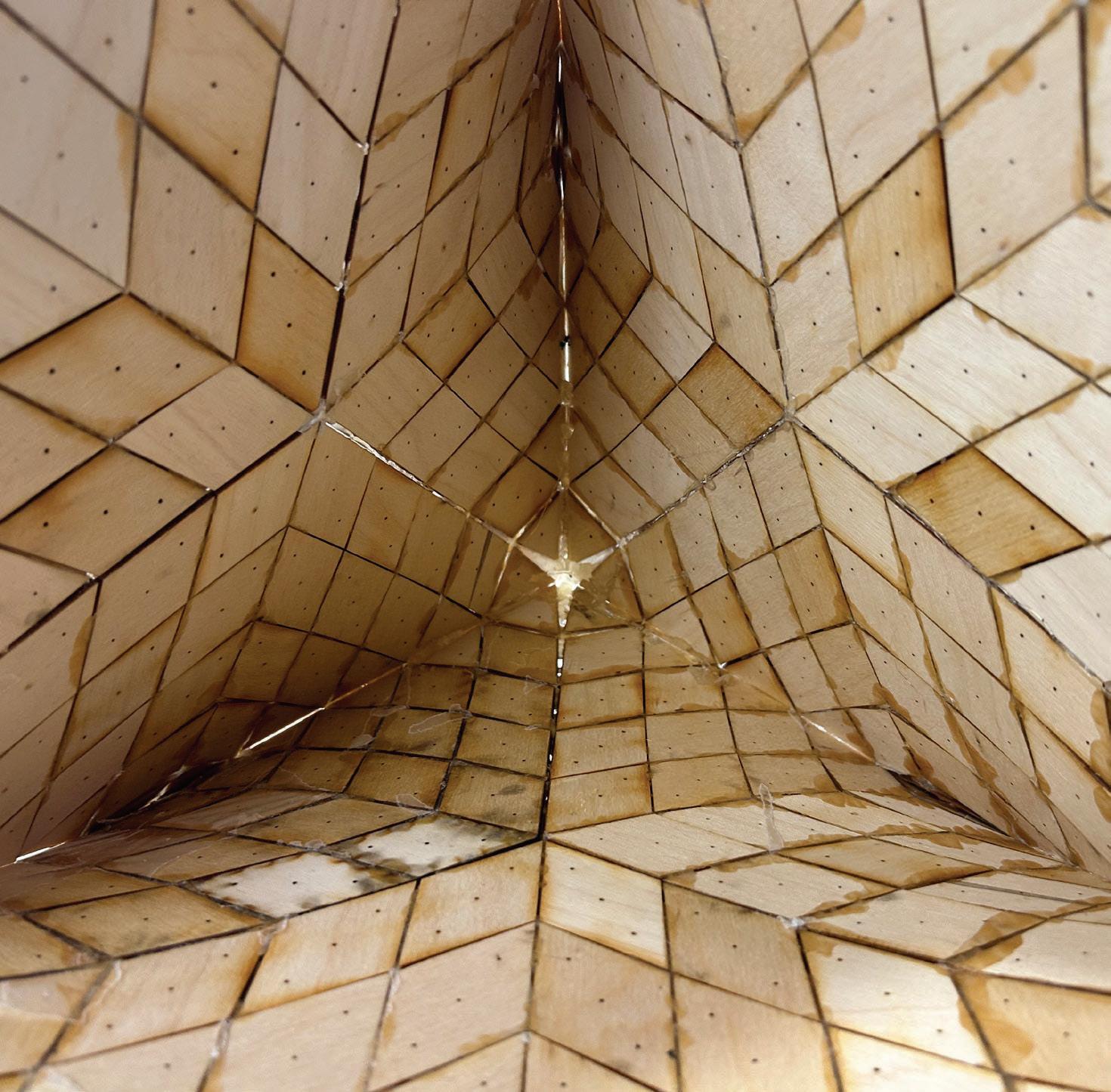

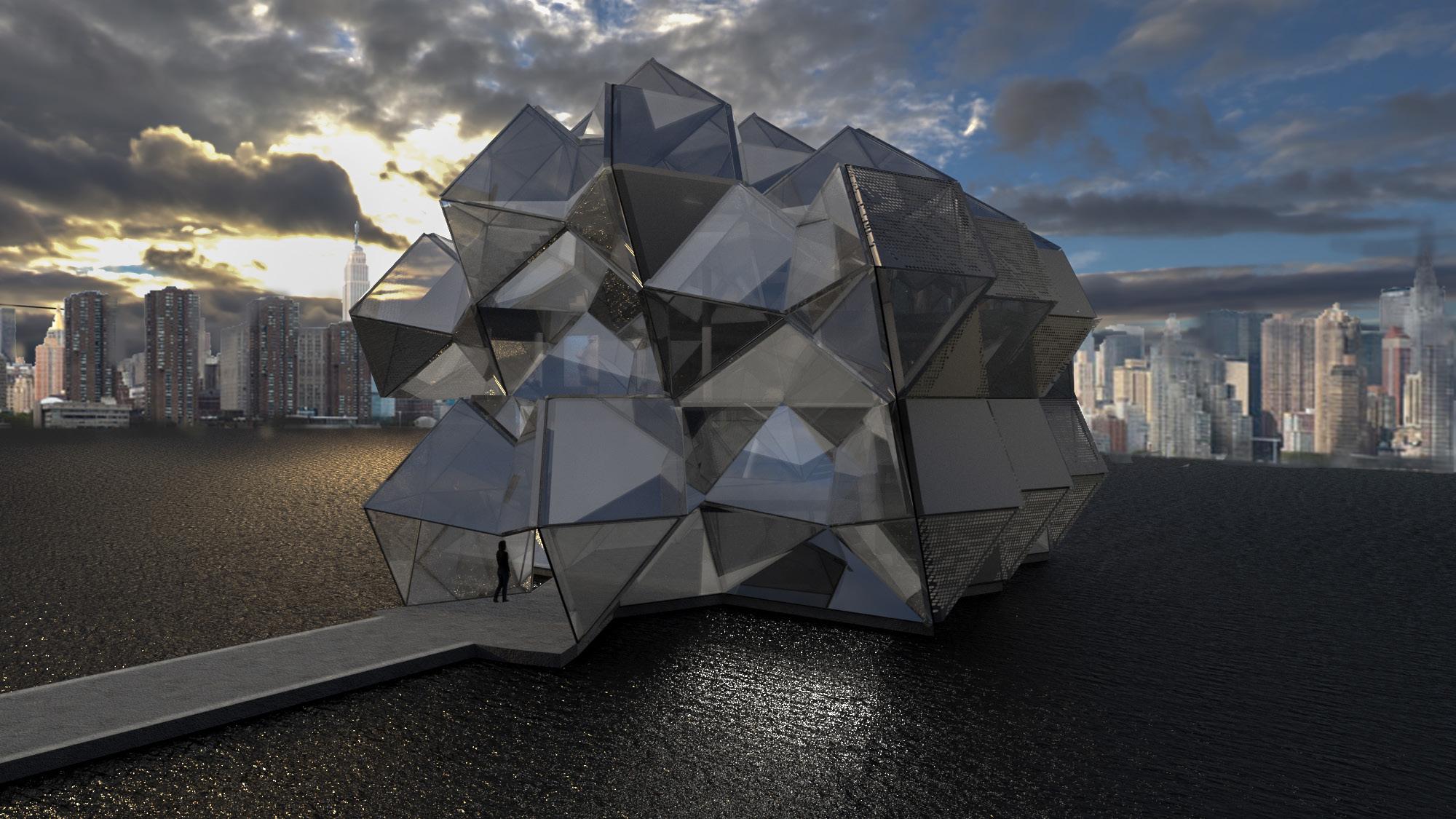

INFINITY MUSEUM

Design for a Museum Showcasing Rinko Kawauchi’s Photography The design of this museum is dedicated to exhibiting the photography works of Rinko Kawauchi. Inspired by the delicate, poetic nature of her images, the architectural concept seeks to reflect the quiet intimacy and fleeting beauty captured in her photographs.

The building, situated at the center of the East River as an extension of Transmitter Park, uses light, reflection, and spatial irregularity to evoke a sense of infinity and immersion. Aggregated bisymmetric hendecahedrons shape the structure, creating irregular walls and a dynamic roofline. These geometric forms, known for their asymmetrical yet balanced qualities, generate shifting perspectives and fragmented reflections, mirroring the soft, ethereal atmosphere present in Kawauchi’s work. Mirrors and glass surfaces amplify the spatial experience, allowing visitors to engage with photography from multiple angles, as if enveloped by infinite layers of imagery. The interplay between light and reflection reimagines the boundaries between art and viewer, making the act of observation part of the artistic encounter.

INFO

Place: Transmitter Park, Brooklyn, New York City Year: 2023, Design Studio 401 Professor: Adam Elstein

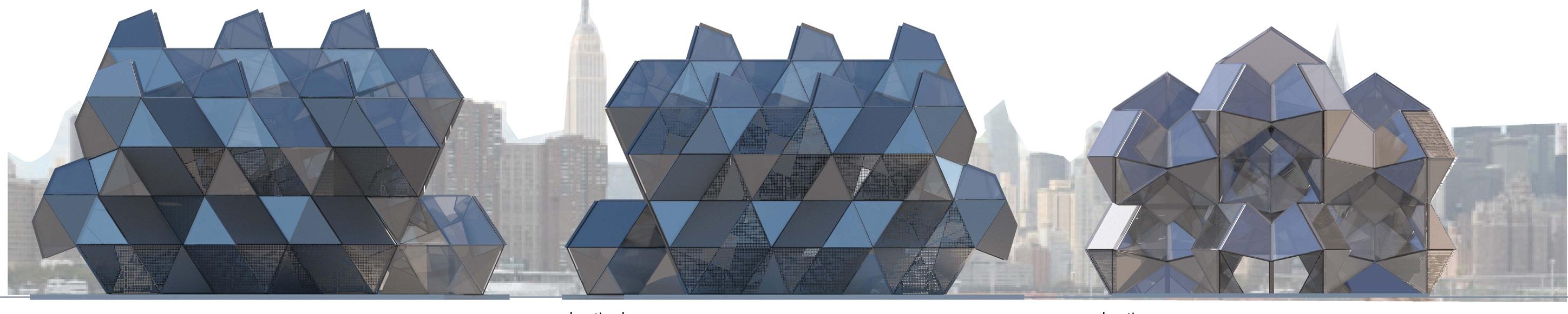

bisymmetric hendecahedron 38

04

39

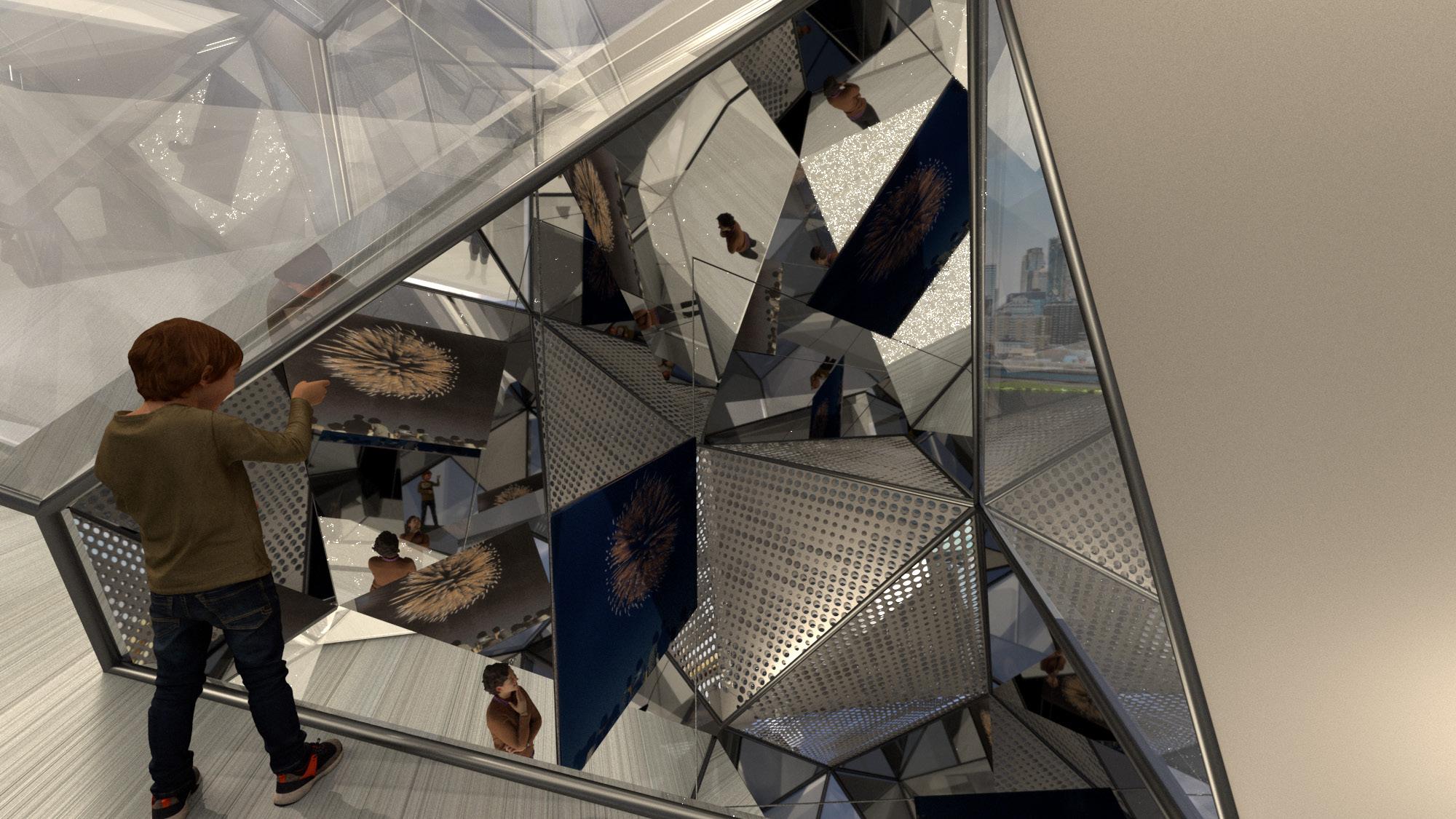

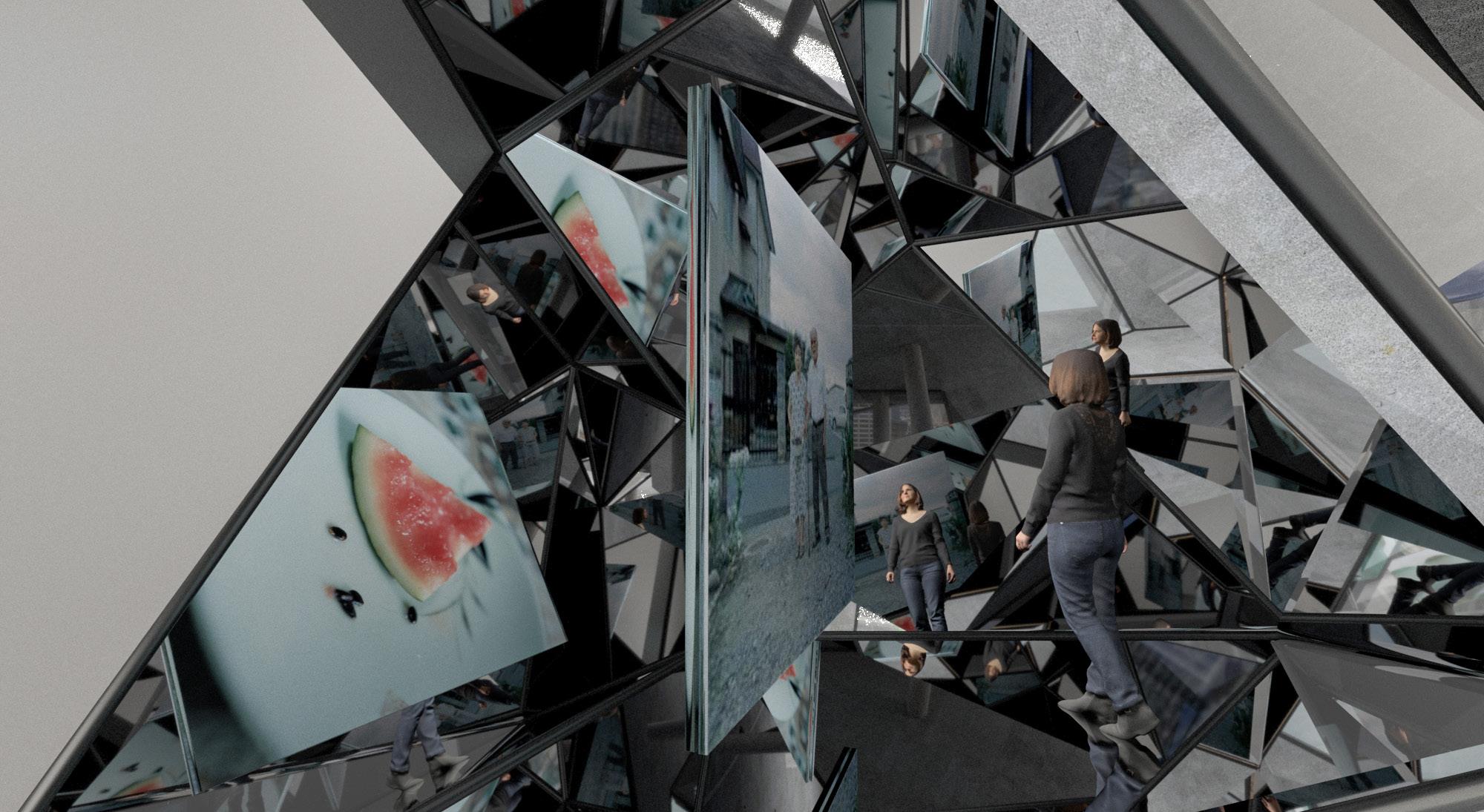

Render: view inside the reflection room

40

2nd Floor Plan

3rd Floor Plan

Offices

4th Floor Plan

5th Floor Plan

41

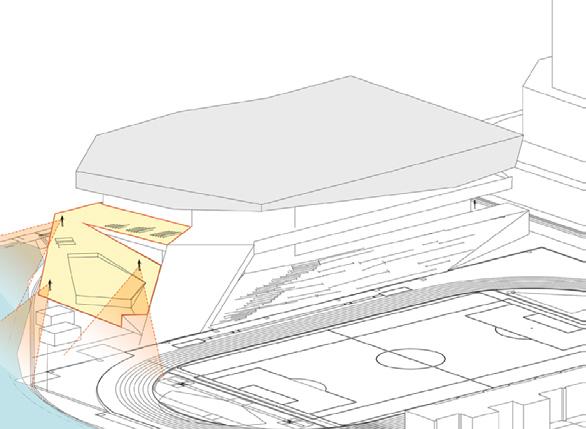

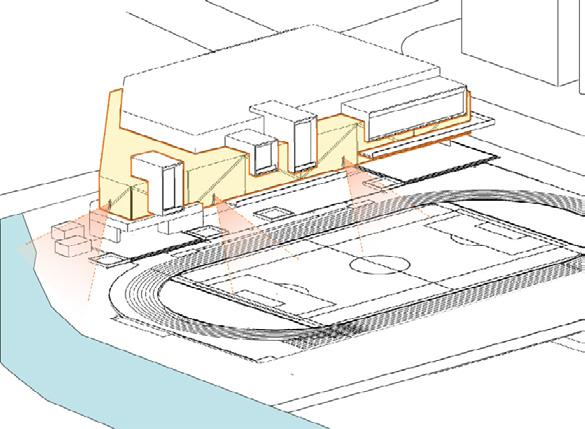

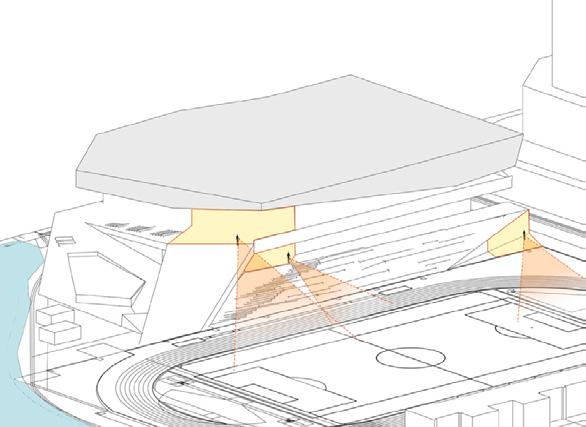

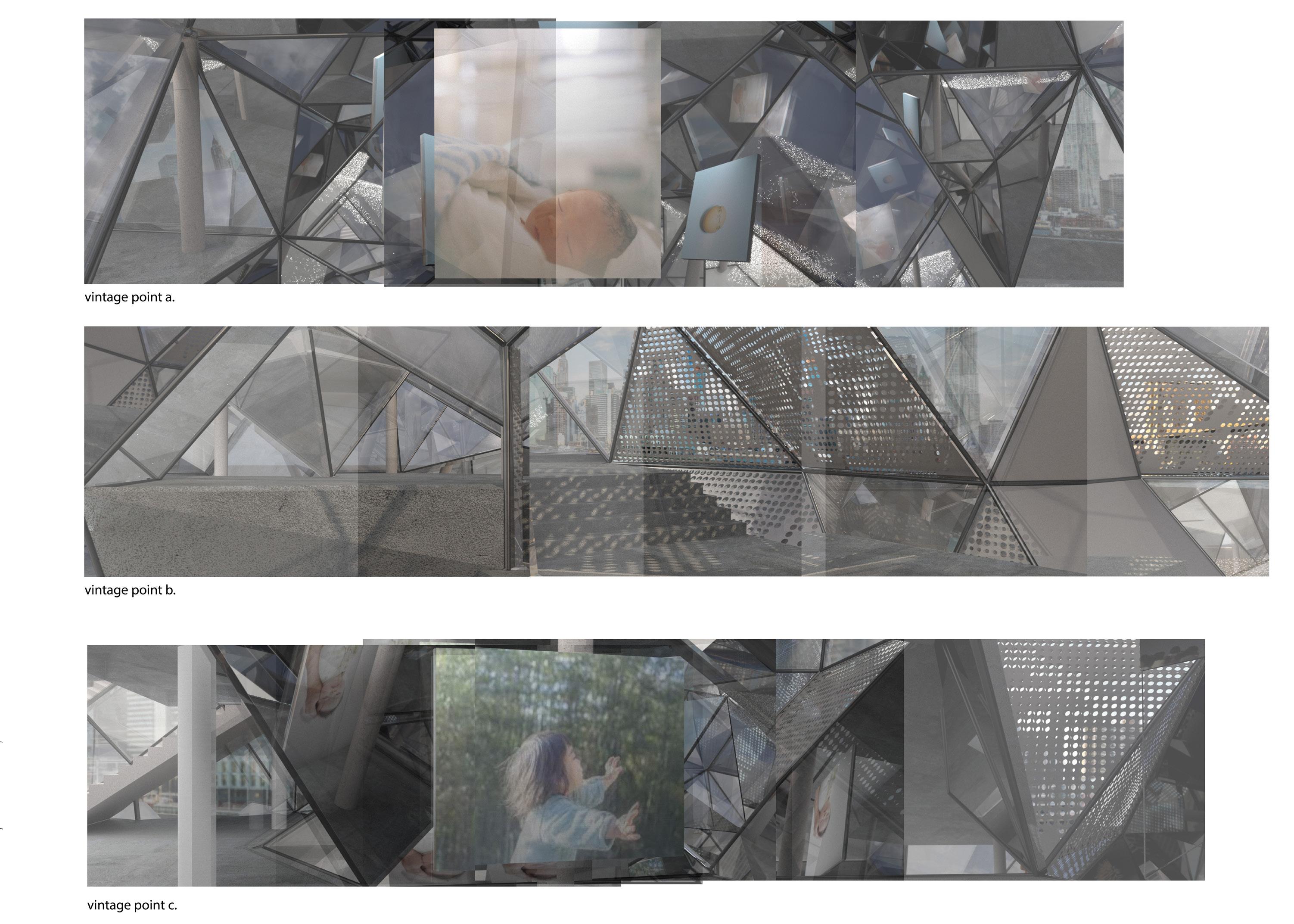

New Sight Range

Originla Sight Range Reflection Area

42

43

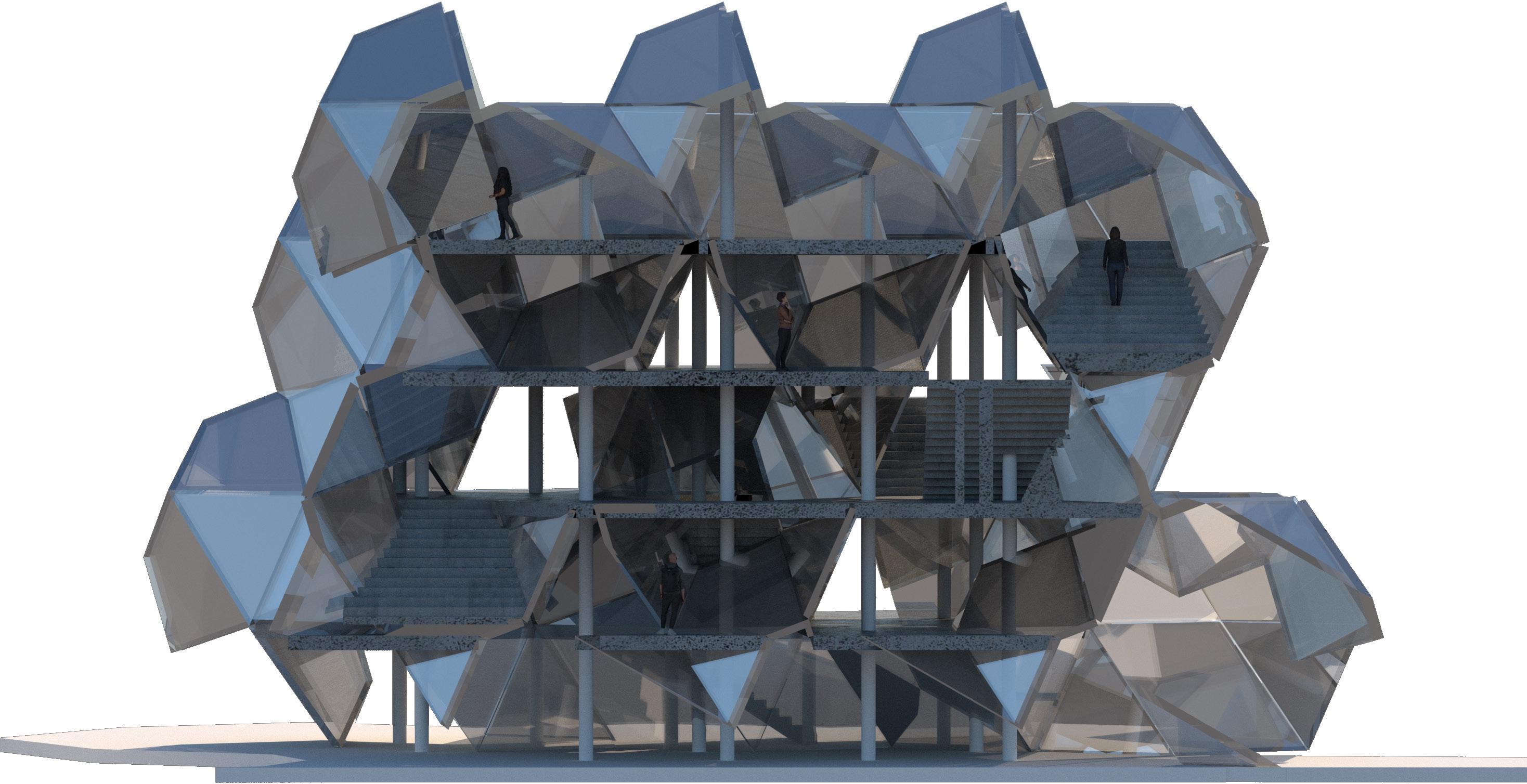

Section 1/16’’=1’-0’’

44

Render: view inside the reflection room

45

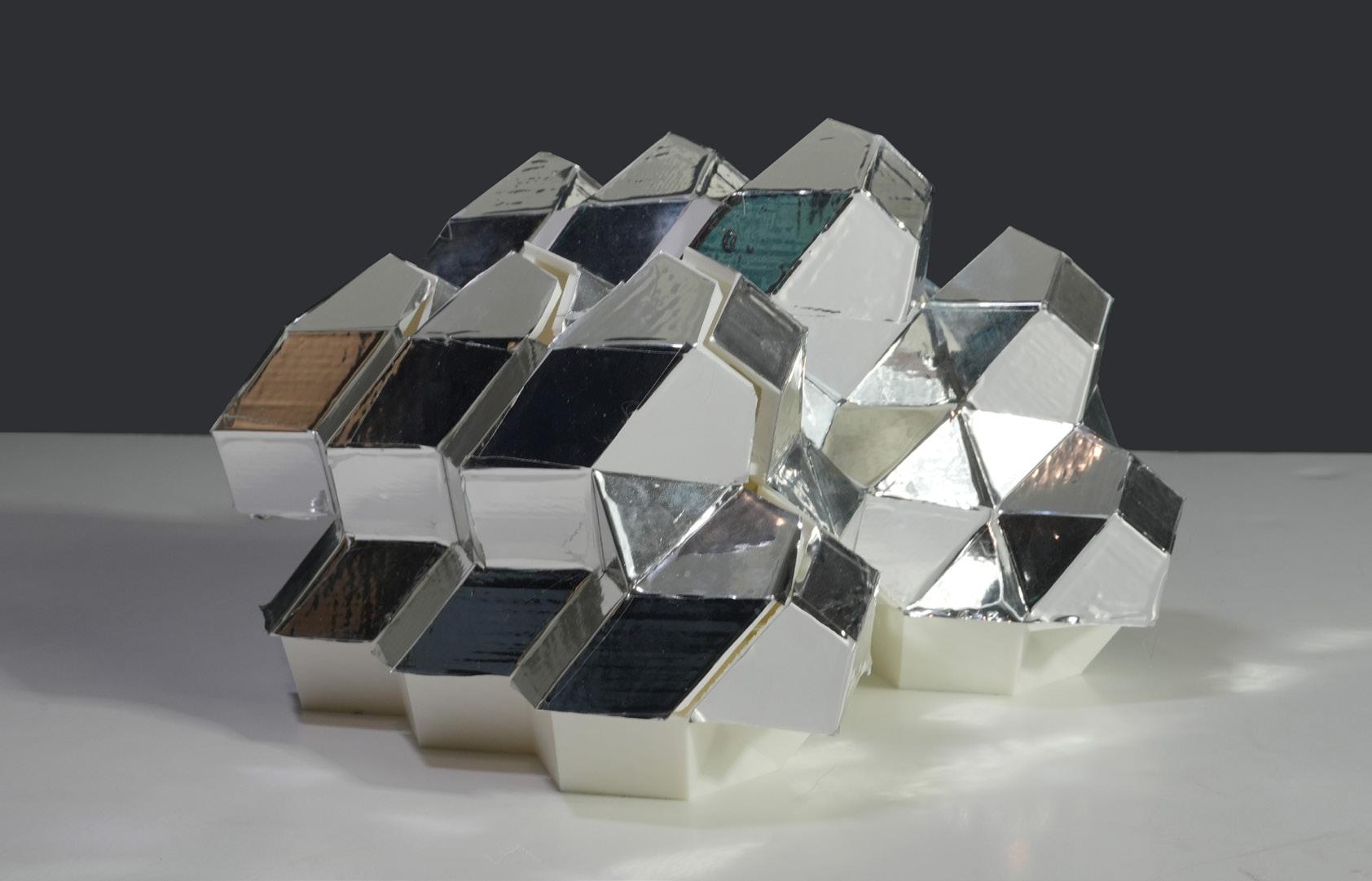

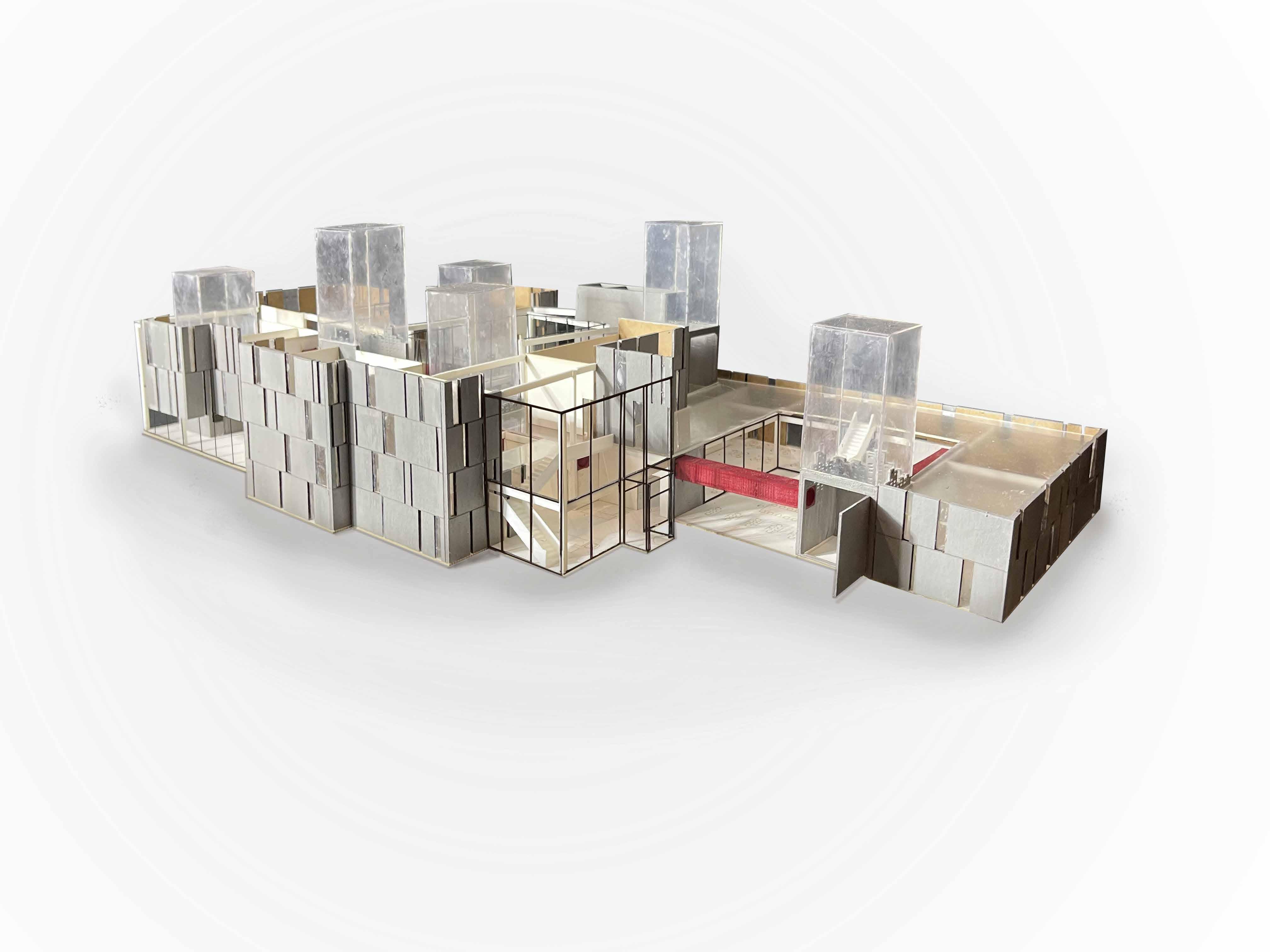

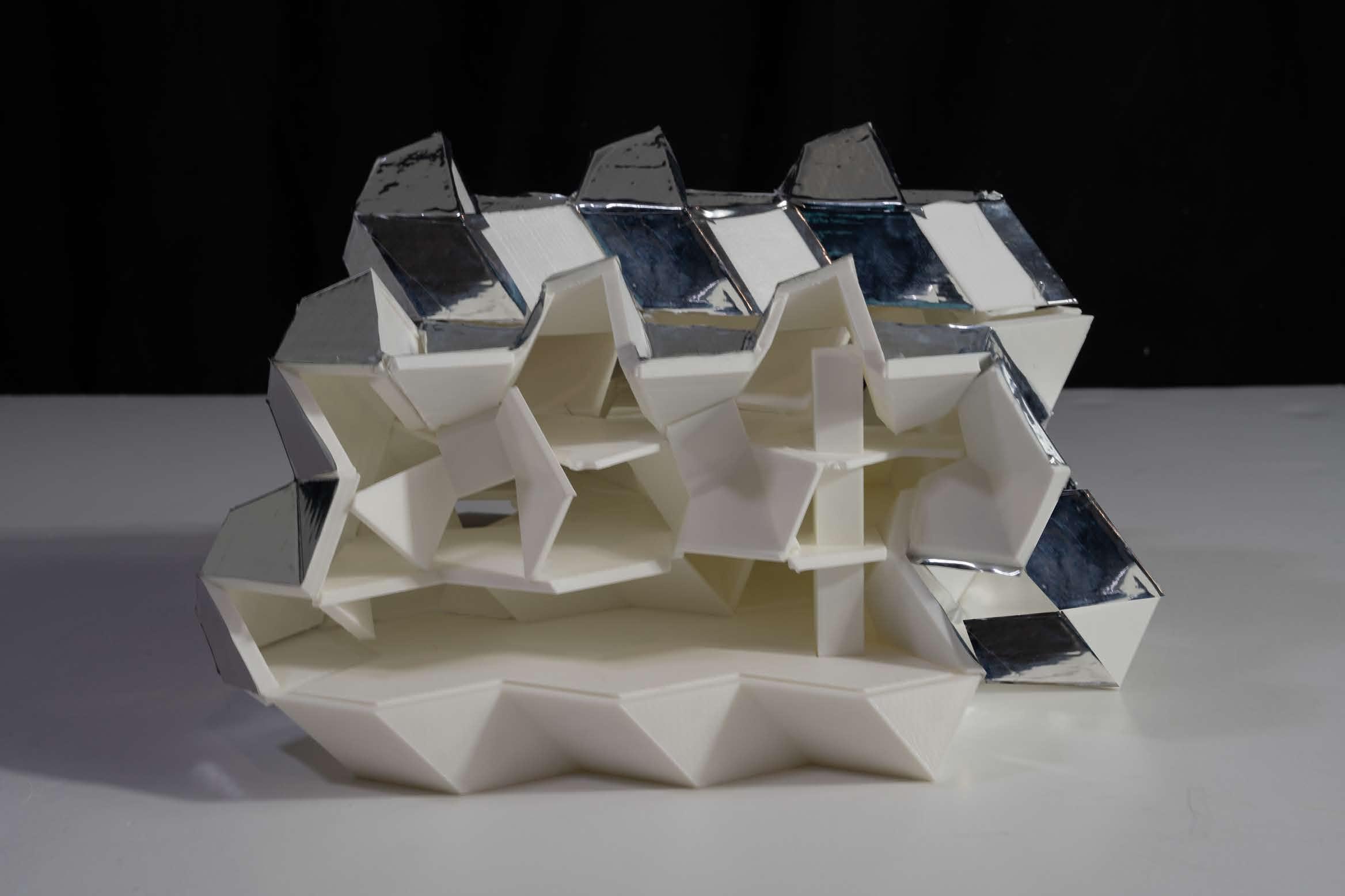

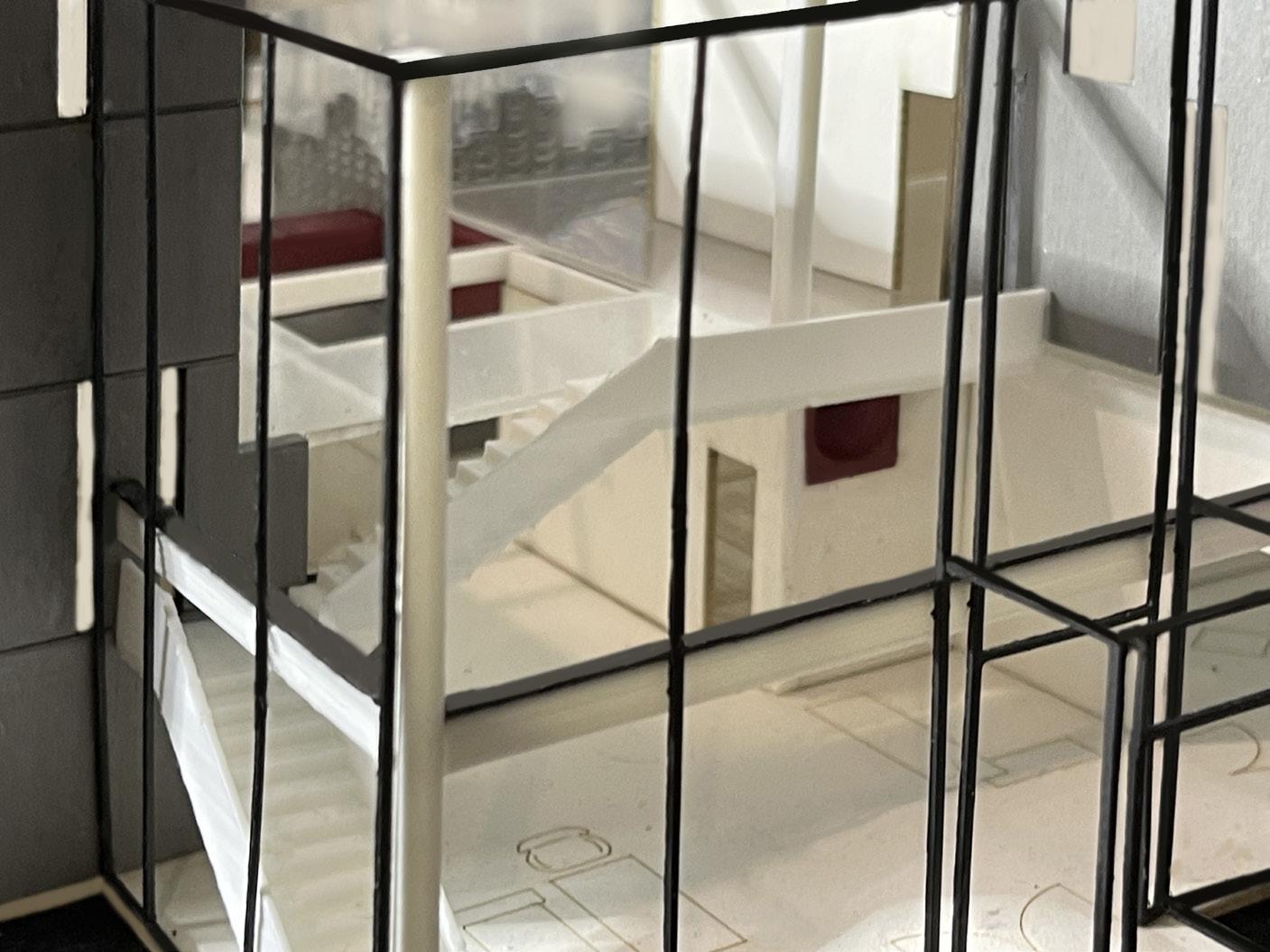

physical model photo

46

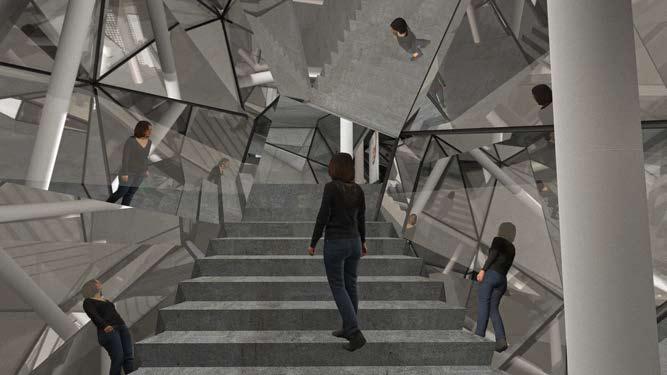

Render: view on the stairway

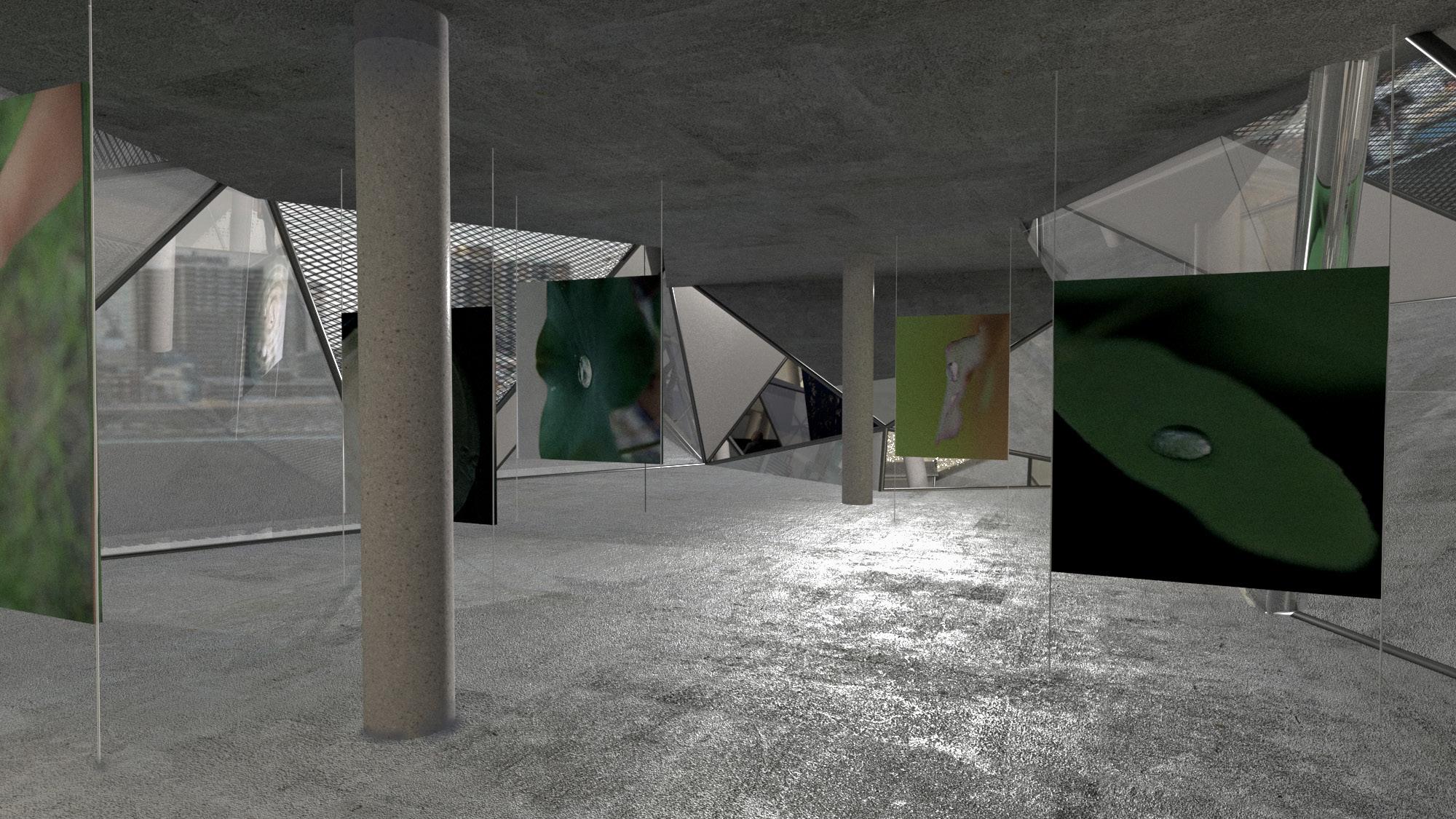

Render: view to the gallery

47

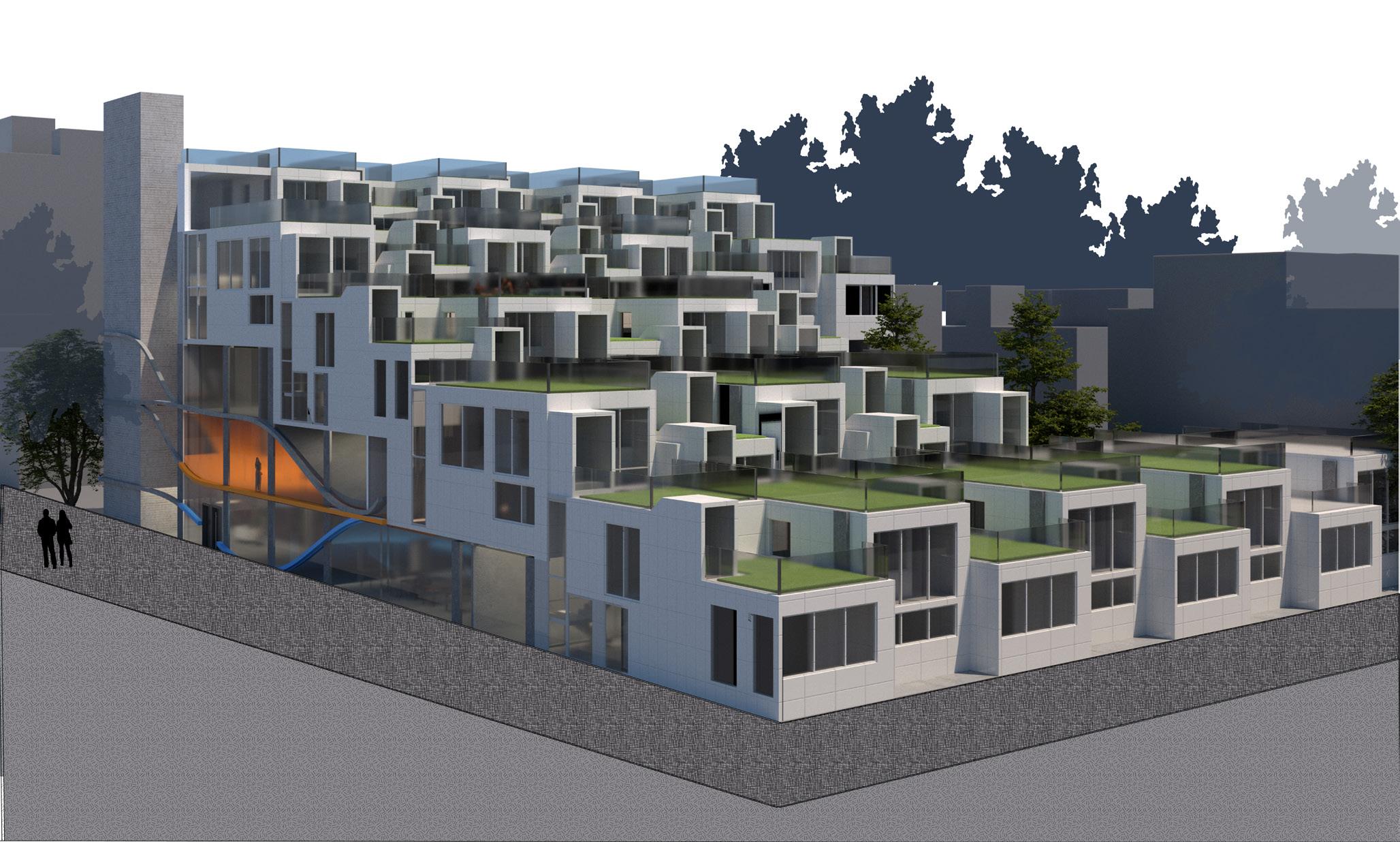

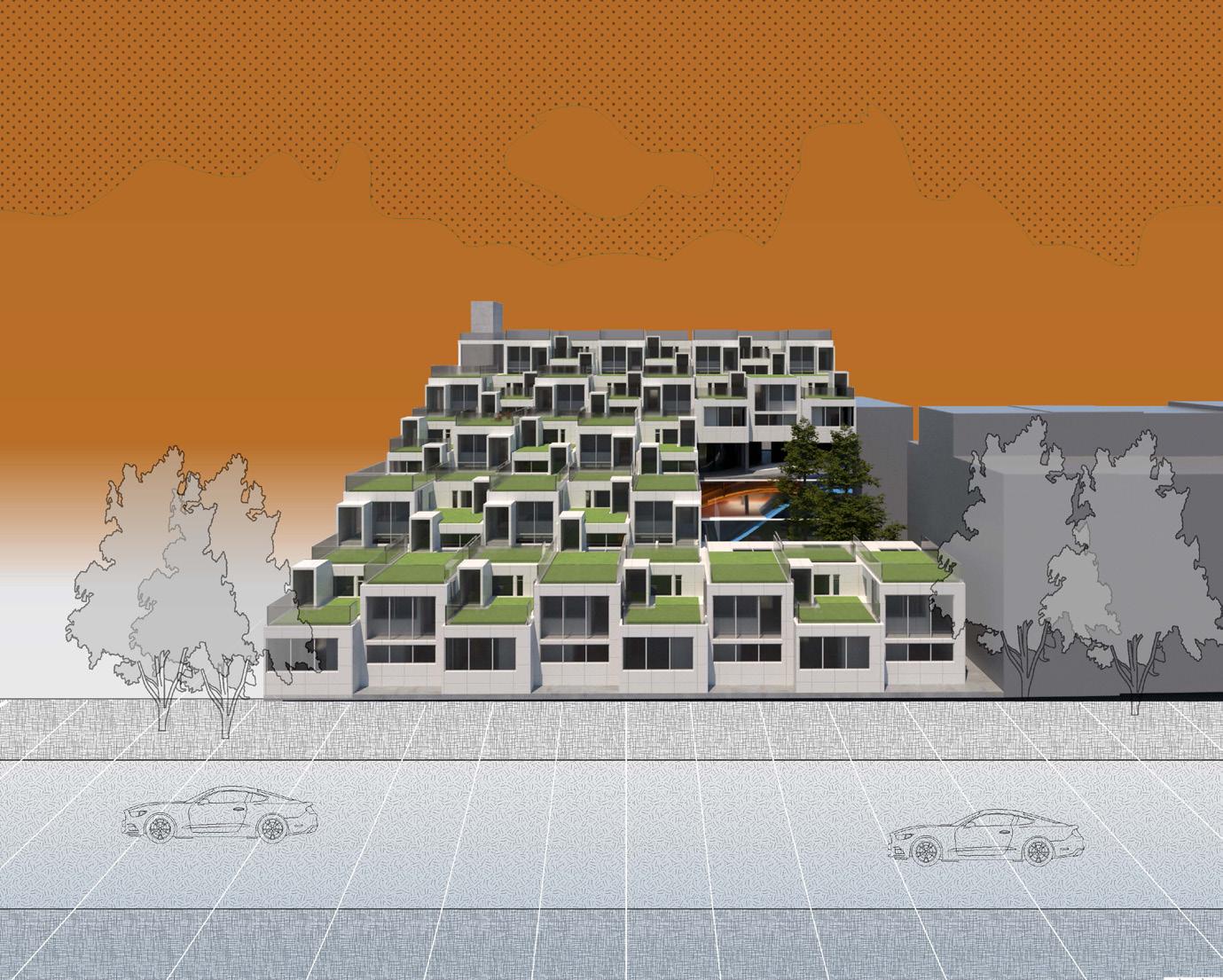

ZERO PROGRAM Designing a Community Apartment for New Refugees in New York City The project envisions a community apartment complex aimed at providing private, adaptable, and inclusive housing for new refugees in New York City. The design focuses on fostering a sense of belonging and support by integrating diverse living spaces, shared communal areas, and opportunities for social interaction. Apartments vary in size and layout to accommodate individuals and families, with features like private gardens and flexible interiors to suit different needs. The building’s lower levels serve as layered public landscapes, offering spaces for gathering, recreation, and quiet reflection—creating a seamless blend of privacy and community. This design not only addresses the immediate need for shelter but also cultivates a supportive environment for new beginnings.

INFO

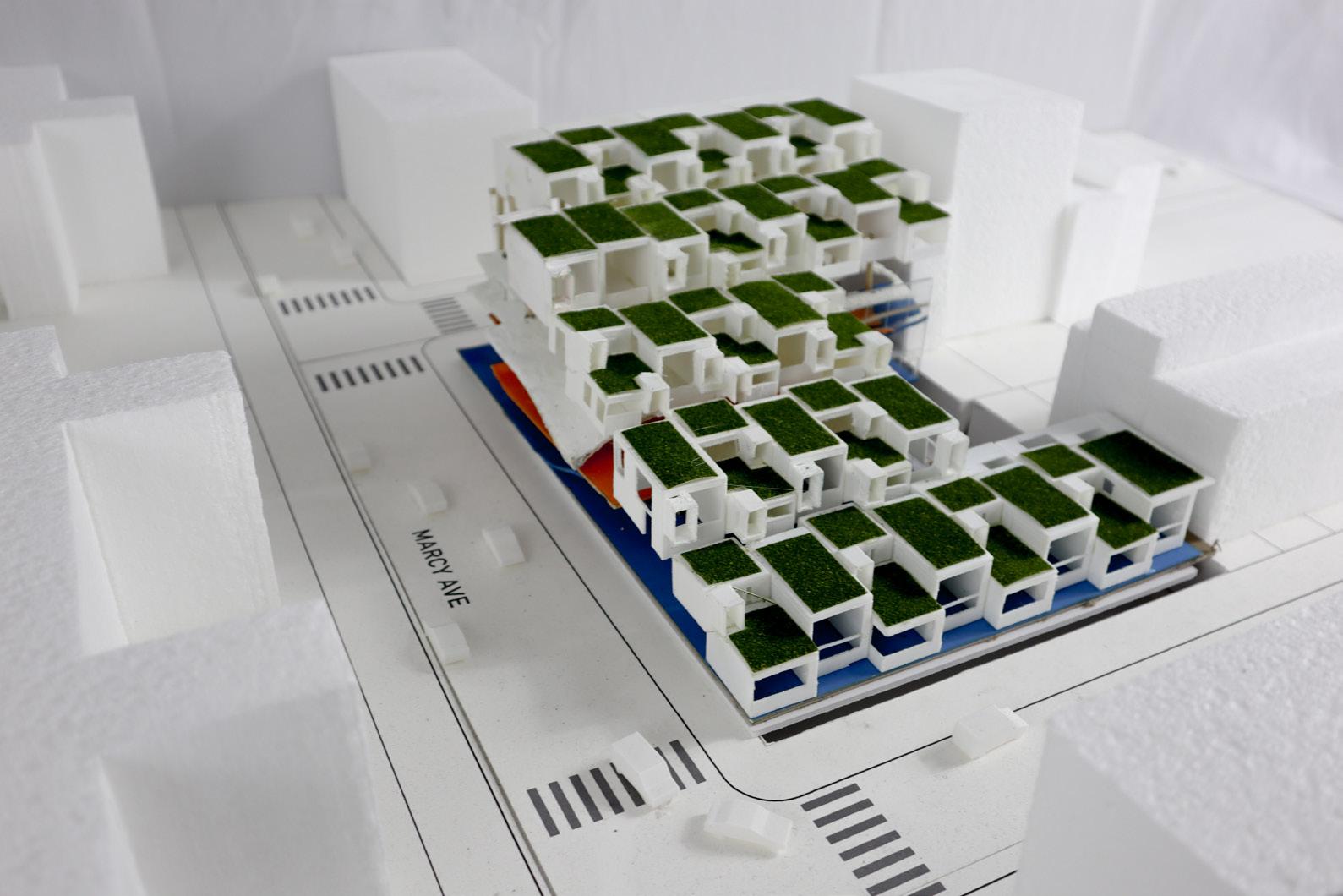

Place: Marcy Ave, Brooklyn, New York City Year: 2022, Design Studio 302 Partner: Sharon Wang Professor: Salvatore Tranchina

05 48

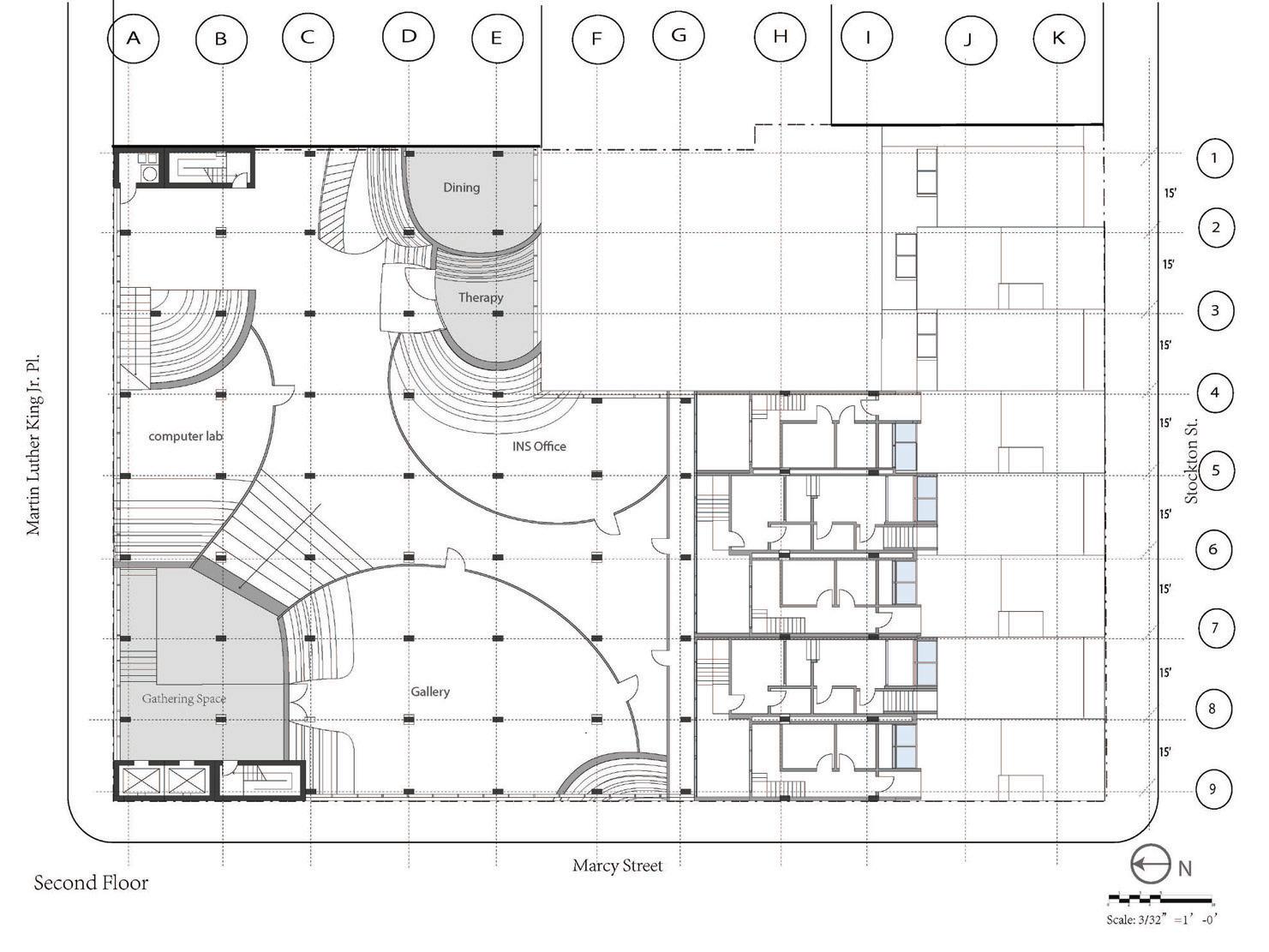

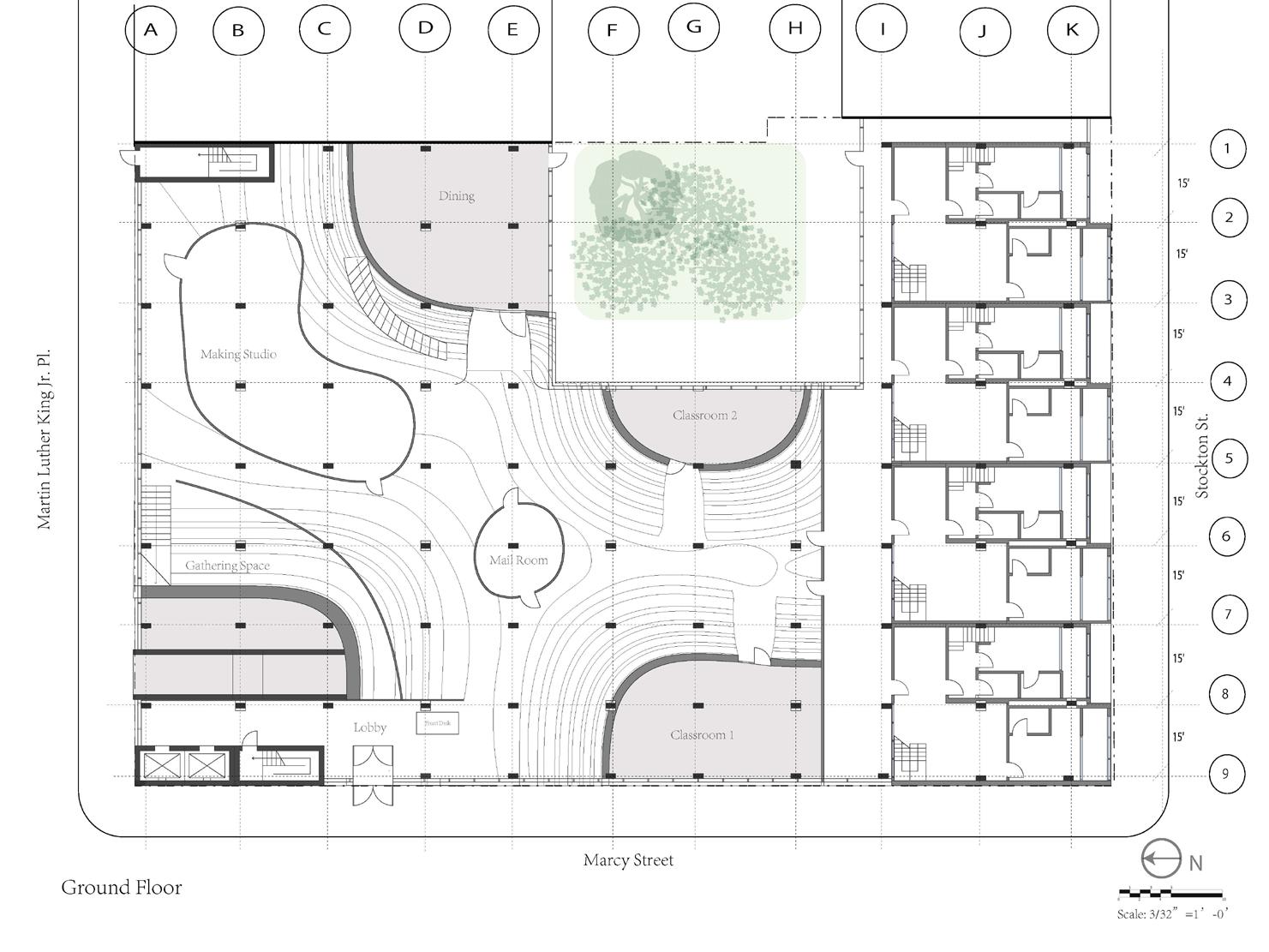

Ground Floor Plan 3/32’’=1’-0’’

Second Floor Plan 3/32’’=1’-0’’

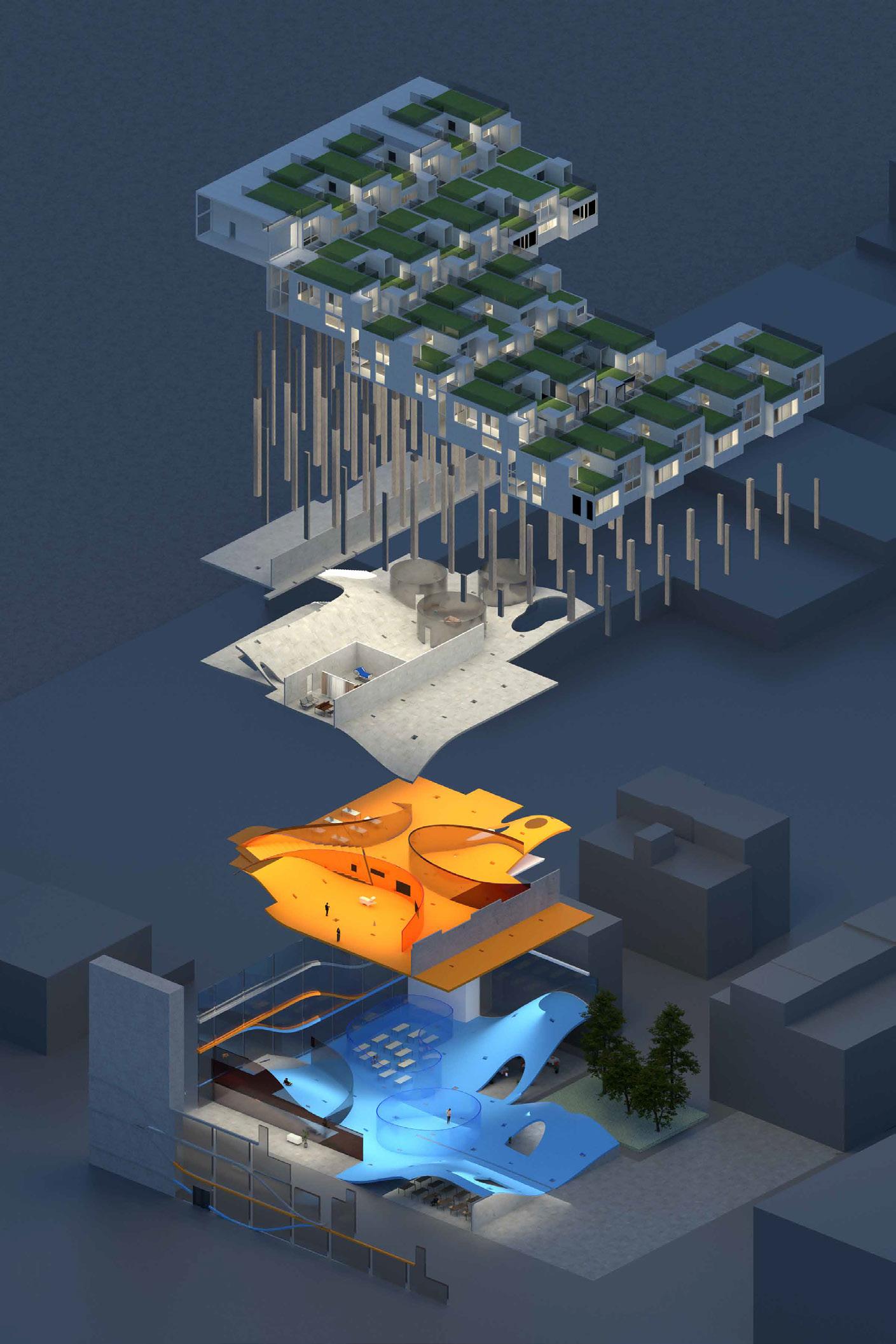

Exploded axonometric

49

50

Program Revision #:2

FURRING WALLS

ONE SIDE

STRUCTURE

STRUCTURE

6"

CONTINUOUS DEFLECTION TRACK ANCHORED TO STRUCTURE ABOVE FINISH CEILING WHERE REQUIRED, SEE SCHEDULE

FINISH CEILING WHERE REQUIRED, SEE SCHEDULE

PLAN

METAL FURRING CHANNEL SHIM AS REQUIRED

PLAN

BASE

BASE

FLOOR AND BASE AS SCHEDULED

BASE

1

0B

0C

0D

1A

7/8" METAL FURRING CHANNEL 1 LAYER 5/8" GYP. BD. ONE SIDE NO RATING 7/8" METAL FURRING CHANNEL 1 LAYER 5/8" TILE BACKER BD. ONE SIDE NO RATING 7/8" METAL FURRING CHANNEL 1 LAYER 5/8" WATER RESISTANT GYP. BD. ONE SIDE NO RATING 7/8" METAL FURRING CHANNEL 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. ONE SIDE

1B

1C

1D

NO RATING

2A

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE NO RATING

2B

2-1/2" METAL STUDS 1 LAYER 5/8" TILE BACKER BD. ONE SIDE NO RATING 2-1/2" METAL STUDS 1 LAYER 5/8" WATER RESISTANT GYP. BD. ONE SIDE NO RATING 2-1/2" METAL STUDS 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. ONE SIDE

2C

2D

2E

2F

TWO SIDED - ONE LAYER STRUCTURE

Typical Wall Type

TWO SIDED - 2 LAYERS 1 SIDE STRUCTURE

STRUCTURE

1 1/2" = 1'-0"

CONTINUOUS SEALANT

CONTINUOUS SEALANT

CONTINUOUS SEALANT METAL TRIM WHERE STRUCTURE ABOVE IS FINISHED CEILING CONTINUOUS DEFLECTION TRACK ANCHORED TO STRUCTURE ABOVE

METAL TRIM WHERE STRUCTURE ABOVE IS FINISHED CEILING CONTINUOUS DEFLECTION TRACK ANCHORED TO STRUCTURE ABOVE

FINISH CEILING WHERE REQUIRED, SEE SCHEDULE

FINISH CEILING WHERE REQUIRED, SEE SCHEDULE

HEAD

LATERAL BRACING AT 6'-0" VERTICAL SPACING, MAX. BACK TO STRUCTURE

PLAN

STEEL STUDS

HEAD

PLAN

STEEL STUDS

GYPSUM WALLBOARD BOTH SIDES

GYPSUM WALLBOARD

1 HR - UL DESIGN NO. U419 NOTE: FOR FIRE RATED PARTITIONS, USE TYPE X GYP. BD. OR TYPE X TILE BACKER BD.

4” Rigid Insulation, Kooltherm K8 Cavity 3A Board, Kingspan Insulation LLC

1 HOUR RATING

BASE

FLOOR AND BASE AS SCHEDULED

CONTINUOUS SEALANT

BASE

FLOOR AND BASE AS SCHEDULED

2B

DE 2C

BD. ONE SIDE 2D

BD. ONE SIDE 2E

2F

2G

3B

NO RATING 2-1/2" METAL STUDS 1 LAYER 5/8" WATER RESISTANT GYP. BD. EACH SIDE 3C

2-1/2" METAL STUDS 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. EACH SIDE NO RATING 2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" TILE BACKER BD. @ BATH/KITCHEN SIDE

3D

ZEROTH Program

3C

NO RATING

7

1/2” Gympsum Board, United States Gypsum Company

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" TILE BACKER BD. @ BATH/KITCHEN SIDE NO RATING

8

3D

9

1/2” Fiber Cement Siding, Urban Concrete Revision #:2

10 11

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" GYP BD. & 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. (BASE LAYER) @ OCCUPIED SIDE

CD SET Scale: Date: Project No: Drawn by: Checked by:

KSC Premium Window Sills, Koffler Sales Company 3/4” Hardwood Flooring, Elmwood Reclaimed Timber

16

8” Precast Concrete Slab, Sakrete

17

1/2” Gypsum Board, United States Gypsum Company

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" GYP BD. & 1 LAYER 5/8" TILE BACKER BD. ONE SIDE (FACE LAYER) @ BATH/KITCHEN SIDE

1 HOUR RATING

Date: March 21 2023

1/2” Wood Joists, Georgia-Pacific Wood Products

1 HOUR RATING

2-1/2" METAL STUDS

KSC Premium Window Sills, Koffler Sales Address: 657 Park Ave, Brooklyn, NY 11205 Company Aluminum Windows-Single Hung Tilt, Thermal Windows inc.

15

2-1/2" METAL STUDS 2 LAYERS 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" GYP BD. OTHER SIDE

1 HOUR RATING

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. OTHER SIDE

3/4” Plywood, Plytanium

1 HOUR RATING

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" GYP BD. & 1 LAYER 5/8" TILE BACKER BD. ONE SIDE (FACE LAYER) @ BATH/KITCHEN SIDE

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" WATER RESISTANT GYP. BD. @ BATH/KITCHEN SIDE NO RATING

14

FLOOR AND BASE AS SCHEDULED

10

1 HOUR RATING

5/8" GYP. BD. ONE SIDE ASTM Reinforcing Bar, Concrete Reinforcing11 LAYER LAYER 5/8" GYP BD. & 1 LAYER 5/8" WATER RESISTANT GYP. BD. ONE SIDE (FACE LAYER) @ BATH/KITCHEN SIDE Steel Institute

3/4” Plywood, Plytanium

NOTE: FOR FIRE RATED PARTITIONS, USE TYPE X GYP. BD. OR TYPE X TILE BACKER BD.

NO RATING

6

9

2-1/2" METAL STUDS 2 LAYERS 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" GYP BD. OTHER SIDE

2-1/2" METAL STUDS 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. EACH SIDE

13

SEE PARTITION DESCRIPTIONS BELOW

3A

6” Precast concrete, Sakrete

STEEL STUDS

NOTE: FOR FIRE RATED PARTITIONS, USE TYPE X GYP. BD. OR TYPE X TILE BACKER BD.

2-1/2" METAL STUDS 1 LAYER 5/8" TILE BACKER BD. EACH SIDE

NO RATING

CONTINUOUS SEALANT

NO RATING

ARCANA Pavers, Unlock Pavers and Walls

12

1 HR - UL DESIGN NO. U419

NO RATING

5

2-1/2" METAL STUDS 1 LAYER 5/8" WATER RESISTANT GYP. BD. EACH SIDE

FINISH CEILING WHERE REQUIRED, SEE SCHEDULE

1 HR - UL DESIGN NO. U419

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. EACH SIDE

NO RATING

3B

CONTINUOUS DEFLECTION TRACK ANCHORED TO STRUCTURE ABOVE

CONTINUOUS STEEL RUNNER CHANNEL ANCHORED TO FLOOR

SEE PARTITION DESCRIPTIONS BELOW

2A

4

METAL TRIM WHERE STRUCTURE ABOVE IS FINISHED CEILING

BATT/BLANKET INSULATION

CONTINUOUS STEEL RUNNER CHANNEL ANCHORED TO FLOOR CONTINUOUS SEALANT

CONTINUOUS STEEL RUNNER CHANNEL ANCHORED TO FLOOR

3

2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. EACH SIDE

GYPSUM WALLBOARD BOTH SIDES

BATT/BLANKET INSULATION

BATT/BLANKET INSULATION

2G

ES-1 Spring Tite Coping, Chicago Metal Supply and fabrication inc.

2-1/2" METAL STUDS 1 LAYER 5/8" TILE BACKER BD. EACH SIDE

8

SEE PARTITION DESCRIPTIONS BELOW

Weeped Starter Track, Clark

NO RATING

7

CONTINUOUS STEEL RUNNER CHANNEL ANCHORED TO FLOOR CONTINUOUS SEALANT

1 HR - UL DESIGN NO. U419

NO RATING

6

FLOOR AND BASE AS SCHEDULED

NOTE: FOR FIRE RATED PARTITIONS, USE TYPE X GYP. BD. OR TYPE X TILE BACKER BD.

2

NO RATING

GYPSUM WALLBOARD BOTH SIDES

5

BATT/BLANKET INSULATION

SEE PARTITION DESCRIPTIONS BELOW

VARIES, SEE PLANS

0A

STEEL STUDS

CONTINUOUS STEEL RUNNER CHANNEL ANCHORED TO FLOOR CONTINUOUS SEALANT

CONTINUOUS SEALANT

4

FINISH CEILING WHERE REQUIRED, SEE SCHEDULE

20

BASE

FLOOR AND BASE AS SCHEDULED

CONTINUOUS STEEL RUNNER CHANNEL ANCHORED TO FLOOR

3

CONTINUOUS DEFLECTION TRACK ANCHORED TO STRUCTURE ABOVE

21

BATT/BLANKET INSULATION

BATT/BLANKET INSULATION

FLOOR AND BASE AS SCHEDULED

19 PLAN

GYPSUM WALLBOARD BOTH SIDES

GYPSUM WALLBOARD GYPSUM WALLBOARD

18

STEEL STUDS

STEEL STUDS

2

METAL TRIM WHERE STRUCTURE ABOVE IS FINISHED CEILING

HEAD

FINISH CEILING WHERE REQUIRED, SEE SCHEDULE

LATERAL BRACING AT 6'-0" VERTICAL SPACING, MAX. BACK TO STRUCTURE

PLAN

1

CONTINUOUS SEALANT

METAL TRIM WHERE STRUCTURE ABOVE IS FINISHED CEILING CONTINUOUS DEFLECTION TRACK ANCHORED TO STRUCTURE ABOVE

HEAD

Date: March 21 2023

Address: 657 Park Ave, Brooklyn, NY 11205

STRUCTURE

CONTINUOUS SEALANT

METAL TRIM WHERE STRUCTURE ABOVE IS FINISHED CEILING

HEAD

TWO SIDED - 2 LAYERS 1 SIDE

STRUCTURE

CONTINUOUS SEALANT

METAL TRIM WHERE STRUCTURE ABOVE IS FINISHED CEILING

HEAD

TWO SIDED - ONE LAYER

18

4” Naturcycle Extensive Media, Naturcycle

19

Non Woven Geotextile, Naturcycle

20

Naturcycle Drainage Aggregate, Naturcycle

21

Root Barrier, Naturcycle

22

Durable aluminum BASEBOARD BI, Profilitec

1 HOUR RATING 2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" GYP BD. & 1 LAYER 5/8" WATER RESISTANT GYP. BD. ONE SIDE (FACE LAYER) @ BATH/KITCHEN SIDE

1 1/2" = 1'-0" 12/06/22 2023.CD.SP Ronan Chen Karen Bausman

Drawing Title: Typical Wall Type

Drawing Number:

A-600 11

12

22

13 14 15 16 17

1 HOUR RATING 2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" GYP BD. & 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. (BASE LAYER) @ OCCUPIED SIDE

NO RATING 2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" WATER RESISTANT GYP. BD. @ BATH/KITCHEN SIDE NO RATING 2-1/2" METAL STUDS 1 LAYER 5/8" GYP. BD. ONE SIDE 1 LAYER 5/8" IMPACT RESISTANT GYP. BD. OTHER SIDE

CD SET

Wall Types

Scale: Date: Project No: Drawn by: Checked by:

1 1/2" = 1'-0" 12/06/22 2023.CD.SP Ronan Chen Karen Bausman

Drawing Title: Typical Wall Type

Wall Section 3/4’’=1’-0’’

51

ZEROTH Program

B 1' - 6 7/16"

7' - 6 7/16"

1' - 9 5/8"

Revision #:

6' - 0 5/16" 2' - 4 19/32"

Date:3/28/2023

6' - 11 9/16"

2' - 3 15/16"

1' - 2 3/4"

KOHLER Light Fixed TONE

4

5

Bathroom Plan Callout 1 1/2" = 1'-0"

6

10' - 0"

KOHLER Mirror essential

KOHLER Bettelo Comfort Height

KOHLER VENZA KOHLER Bettelo Comfort Height

MOISTURE RESISTANCE GWB W PAINT FINISH

B

2' - 9 11/16"

A-502 3

7' - 5 23/32"

PT1

9' - 0 7/8"

2

KOHLER Awaken K

1' - 11"

1

2' - 0 1/2"

2' - 0 21/32"

PT1

3' - 0"

7' - 6 3/8"

1' - 4 5/16"

Address: 657 Park Ave, Brooklyn, NY 11206

B

Bathroom Plan RCP 1/2" = 1'-0" 2

KOHLER Iron Works K

Bathroom Elevation A 1/2" = 1'-0"

B 6' - 0 5/16" 1' - 6"

7' - 6 3/8"

6' - 0 5/16"

2' - 3 15/16"

1' - 2 3/4"

6' - 9 1/2"

10' - 0"

M4T

CD SET

KOHLER Iron Works K

Scale: Date: Project No: Drawn by: Checked by:

2' - 7 3/4"

9' - 9 3/4"

9' - 0"

PT1

2' - 0 1/2"

3' - 7 7/16"

PT1

7' - 4"

6' - 6 25/32"

5' - 9 11/16"

2' - 8"

1' - 2 3/4"

1/2" = 1'-0" 02/01/23 Project Number Ronan Karen Bausmen

Drawing Title:

ZEROTH Program Bathroom elevations

Bathroom Elevation B 1/2" = 1'-0"

1

4

Bathroom Elevation D 1/2" = 1'-0"

3

Bathroom Elevation C 1/2" = 1'-0"

Revit Drawing: Bathroom Plans & Elevations

Drawing Number:

A-502 Revision #:

1.

2.

3.

1.

2.

Date:3/28/2023

3.

Address: 657 Park Ave, Brooklyn, NY 11206

29' - 9 19/32" 29' - 9 19/32" 14' - 4 3/4"

M4T

13' - 6 7/8"

15' - 9 3/32"

1

3

D3

6' - 2 13/16"

A

D7

Restroom

Hall

Bedroom

D4

D5

D8

PT1

MOSAIC TILE FLOORING

1 A102

2 A102 PT1

B

Bedroom

8' - 6 3/16"

M4T

2' - 8 3/4"

D6

1

ACOUSTI C TILE CEILING

OAK FLOO RING

Typical Modular Unit Plan 1/4’’ Typical Modular Unit Plan 1/4" = 1'-0"

B

7' - 9 3/8"

7' - 9 3/8"

33' - 9 9/32"

33' - 6 15/32"

6

MOISTURE RESISTANCE GWB W PAINT FINISH

10' - 3 21/32"

A-502 3 4

10' - 3 21/32"

A

Bedroom

1

52

M4T

4

2

44' - 5 9/16"

10' - 5 15/32"

PT1

Den

M4T

1

13' - 6 7/8"

M4T

A-501 2

44' - 5 9/16"

10' - 5 15/32"

11' - 2 23/32"

4

M4T

2

RCP 1/4’’

RCP 1/4" = 1'-0"

CD SET Scale: Date: Project No: Drawn by: Checked by:

1/4" = 1'-0" 02/01/23 Project Number Ronan Chen Karen Bausma

Drawing Title: Typical Modular Uint Plan and RCP

Drawing Number:

A-500

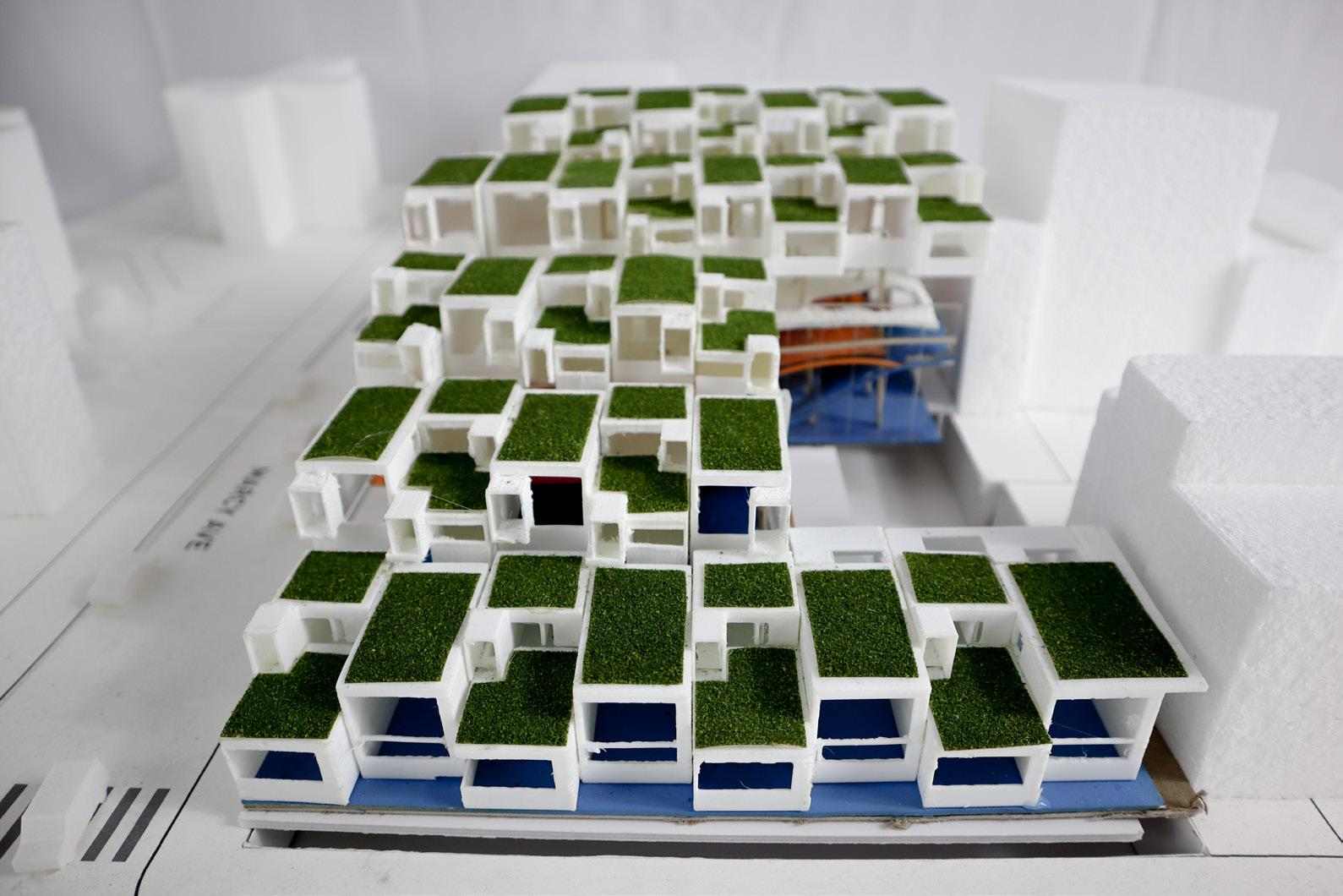

Phyiscal Model Image

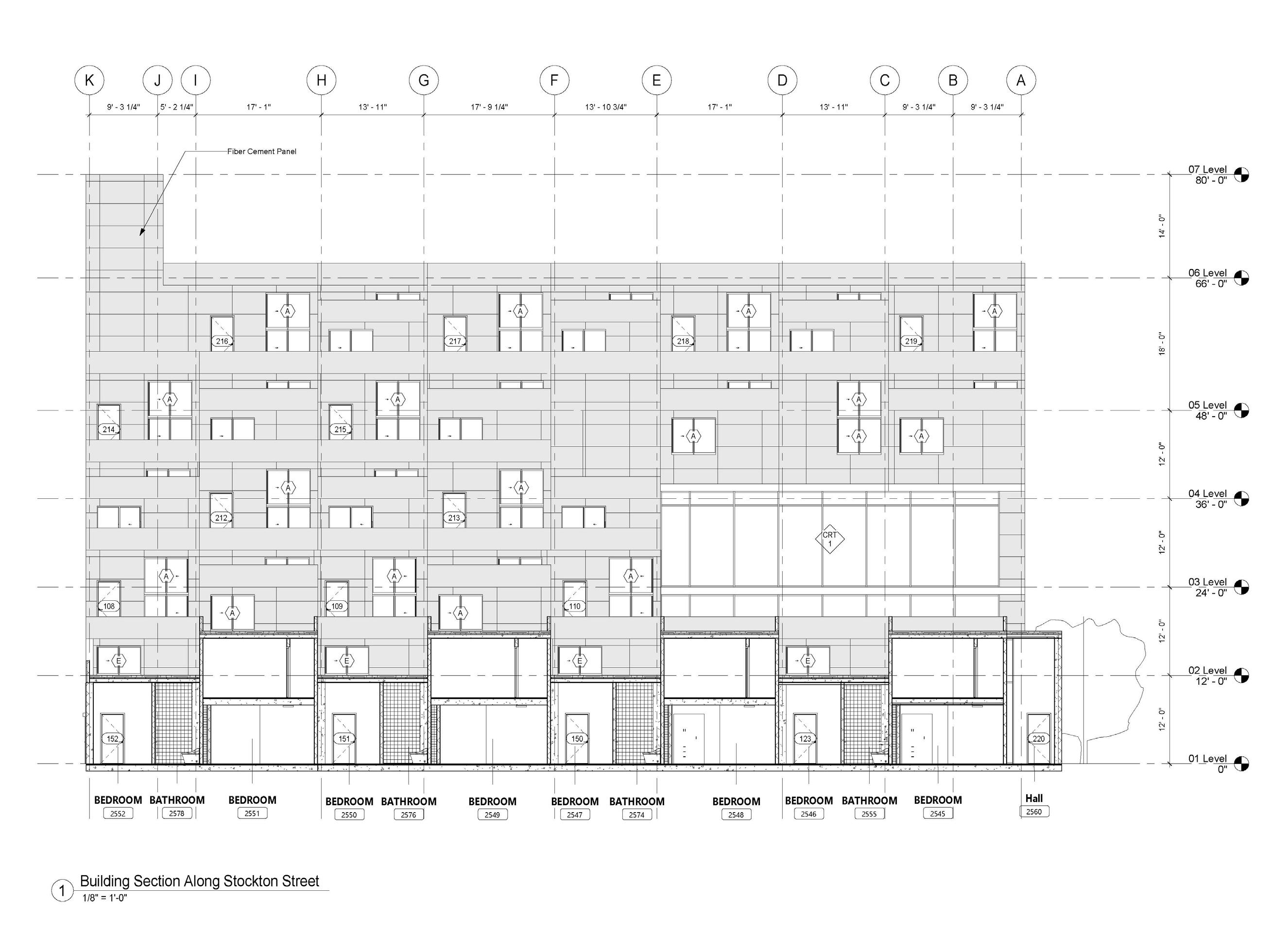

Elavations

53

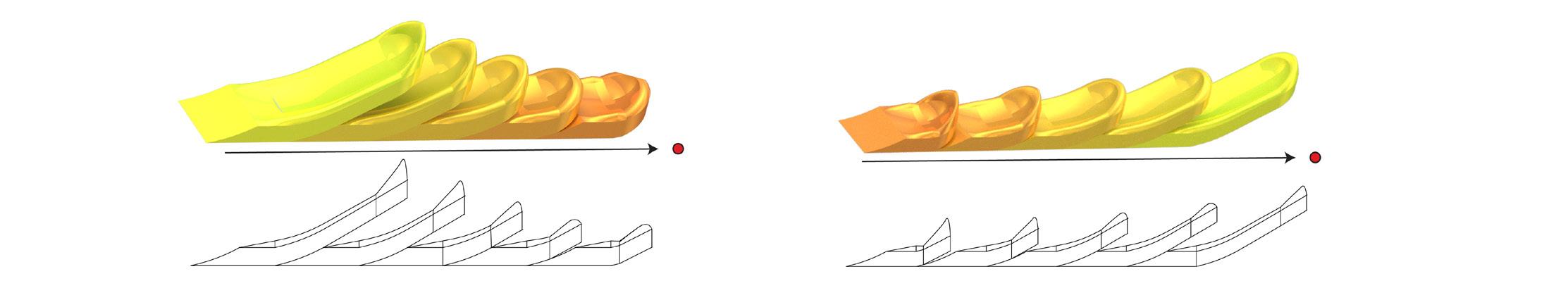

Brush Strokes Parametric Wall A parametric wall designed in Grasshopper, inspired by the brushstrokes in Van Gogh’s The Starry Night.

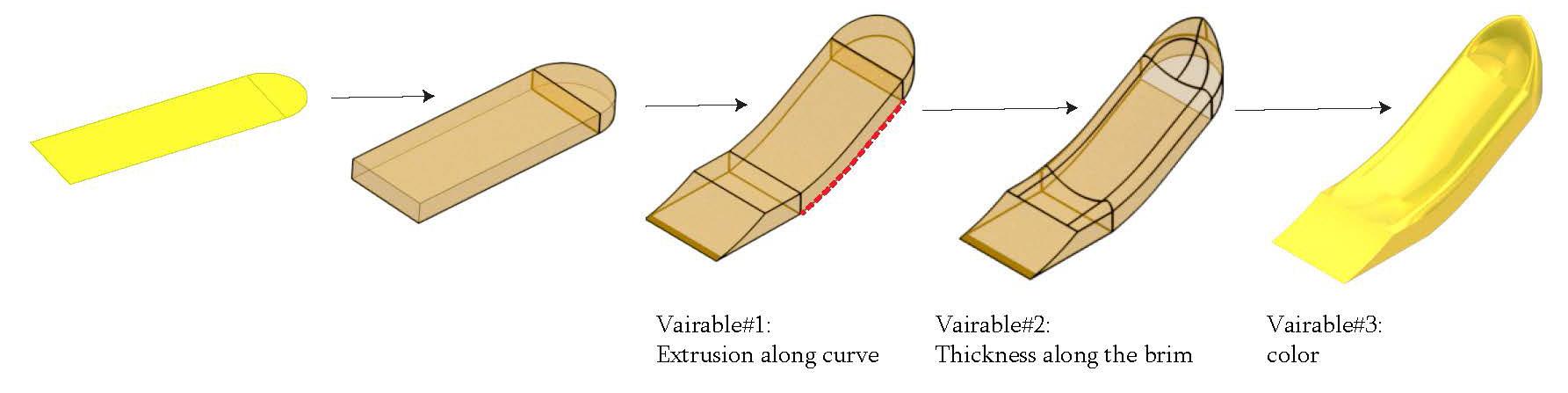

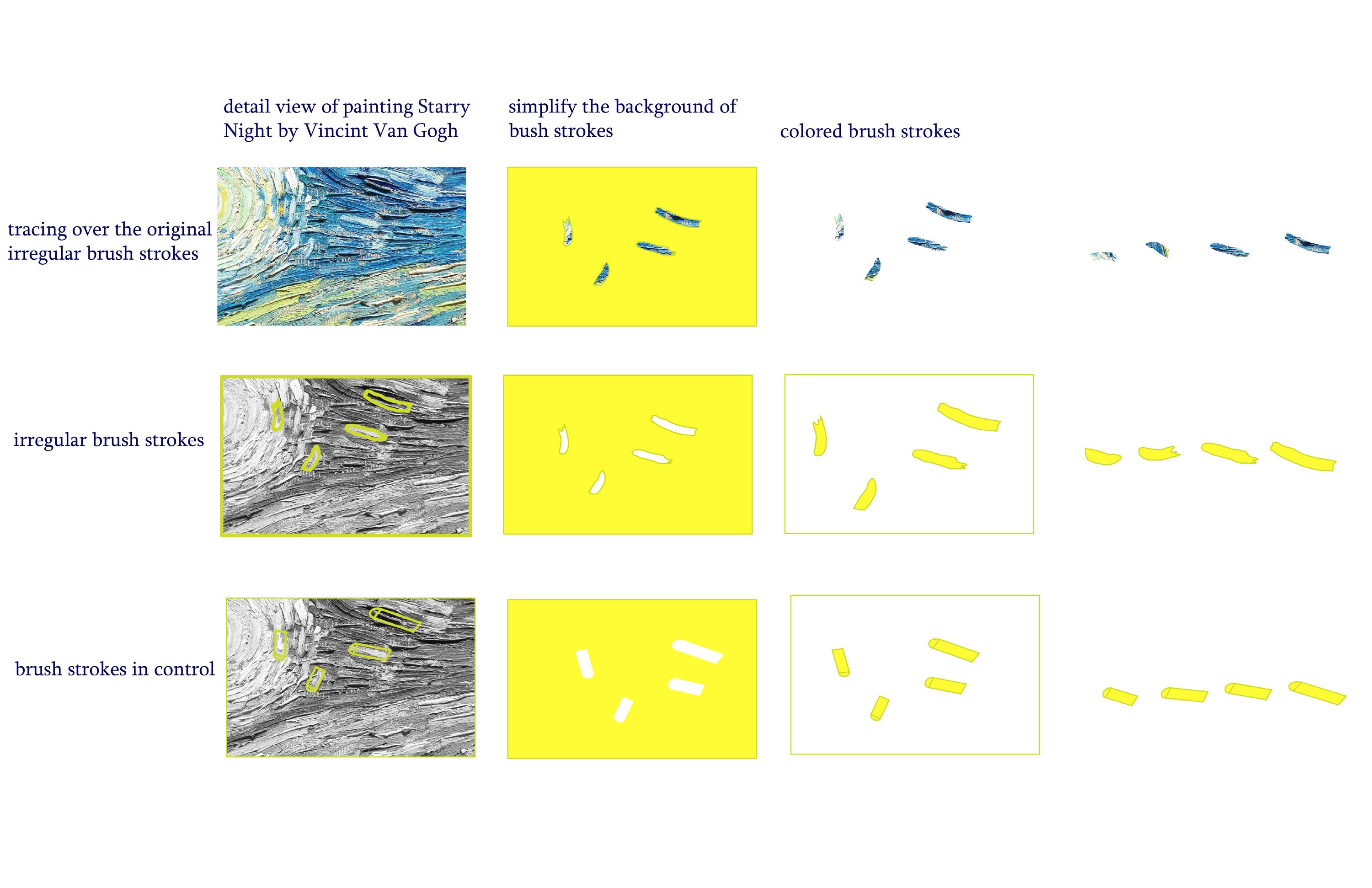

By extracting the brush strokes from the Painting Starry Night by Van Gogh and imitating them in Grasshopper to create a Parametric wall. The Parametric wall is composed by the different brush stroke modules from left to right and the module is changing based on three different changing variables to create a tiling look.

INFO

Place: Lobby of ‘Henri Dutilleux’ Conser vatoire of Music, Dance and Dramatic Arts, Belfort, France Year: 2022, Representation 3 Professor: Sebastian Misiurek

06 54

55

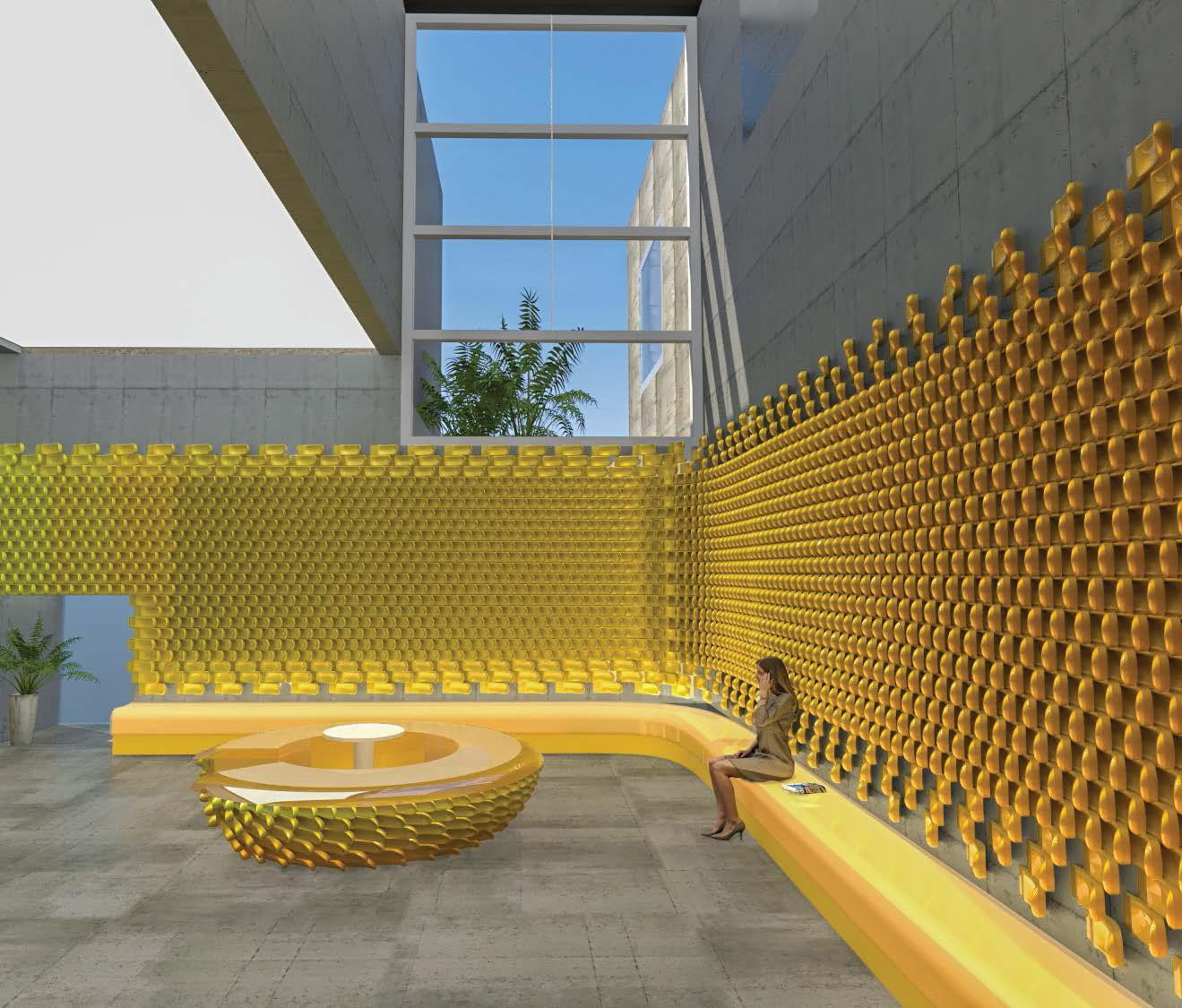

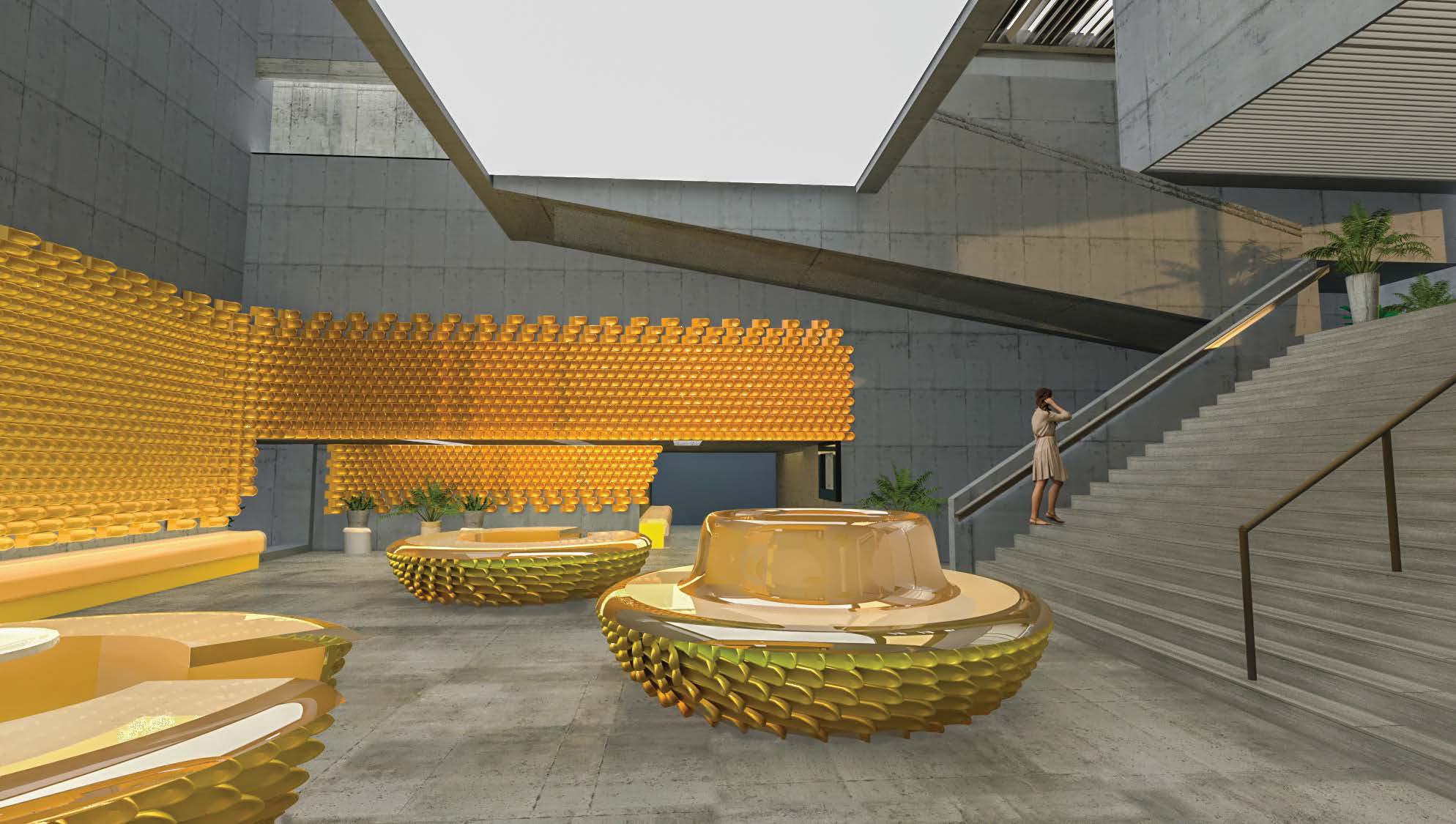

Lobby View

56

Lobby from Entrance

57

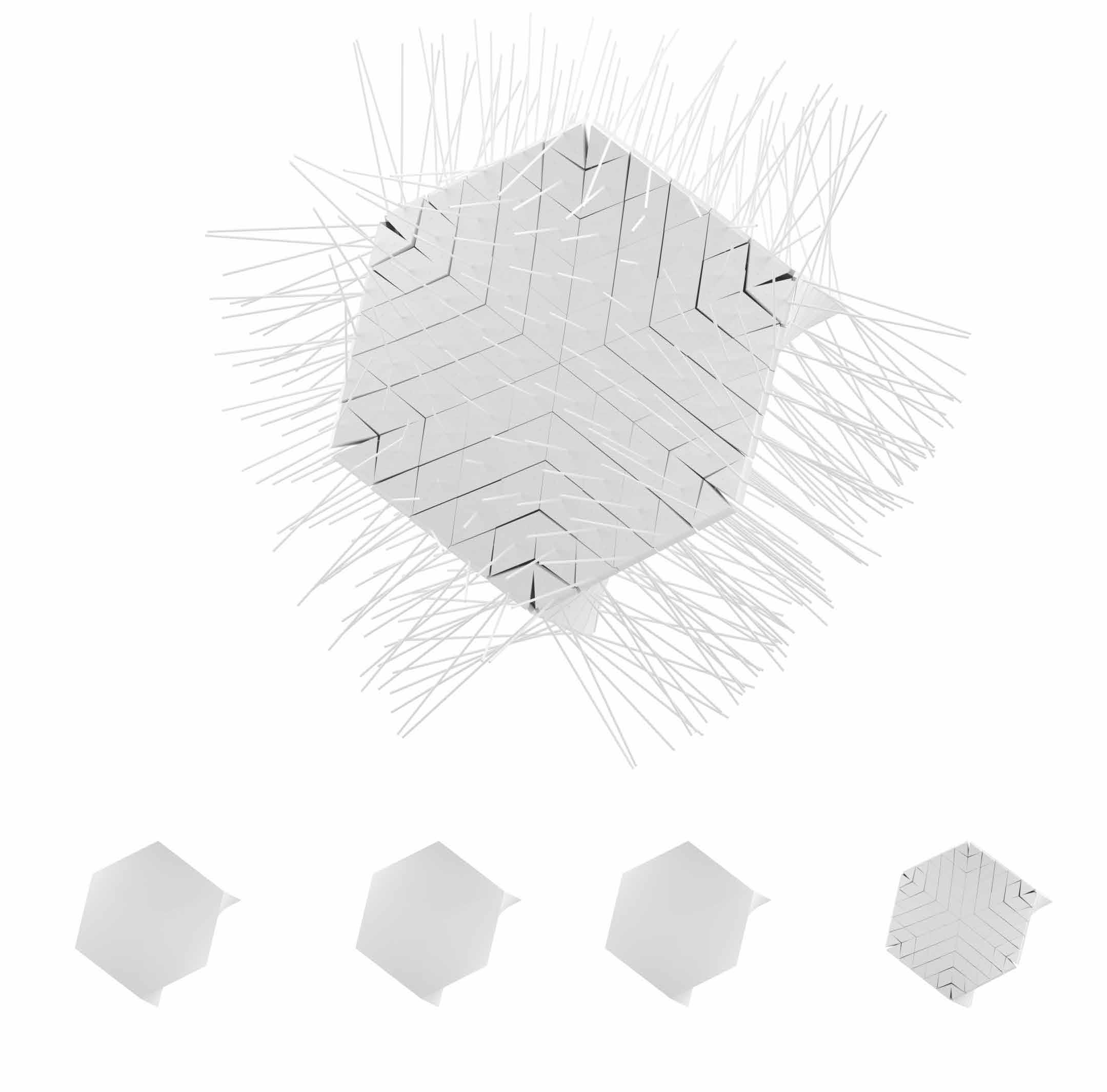

Tiled Minimal Surface

Pins

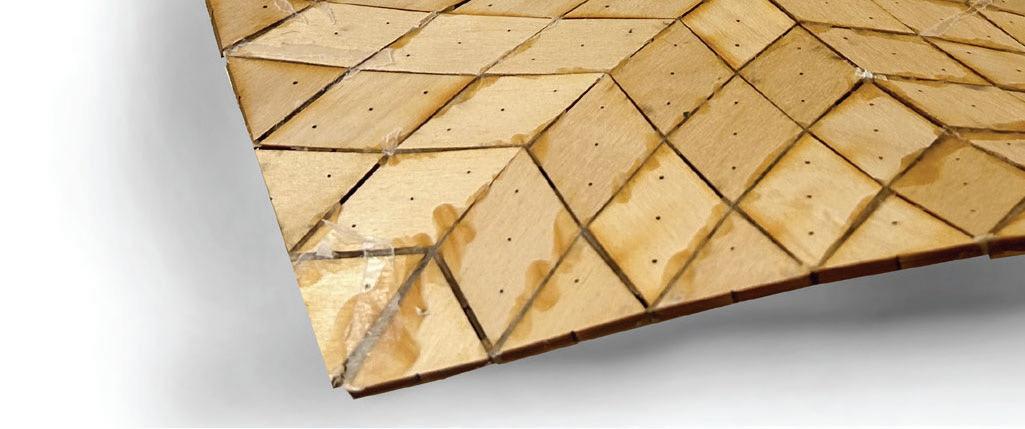

Geometry Diamond Lattice This studio focuses on exploring the representation of form and space through minimal surface geometries, with this semester’s emphasis on the Diamond Lattice structure. Our goal is to replicate the smooth, continuous surfaces designed in Grasshopper and Rhino using uniformly sized, tiled wooden panels.

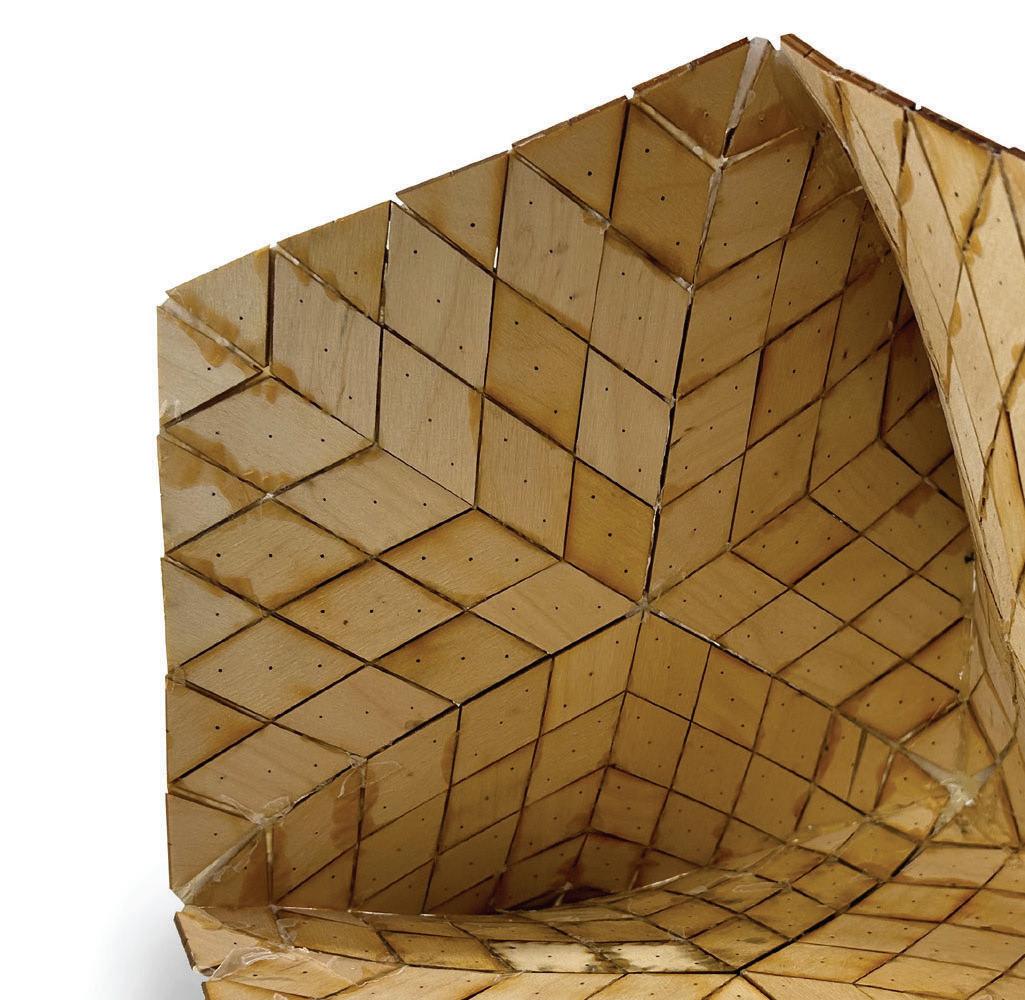

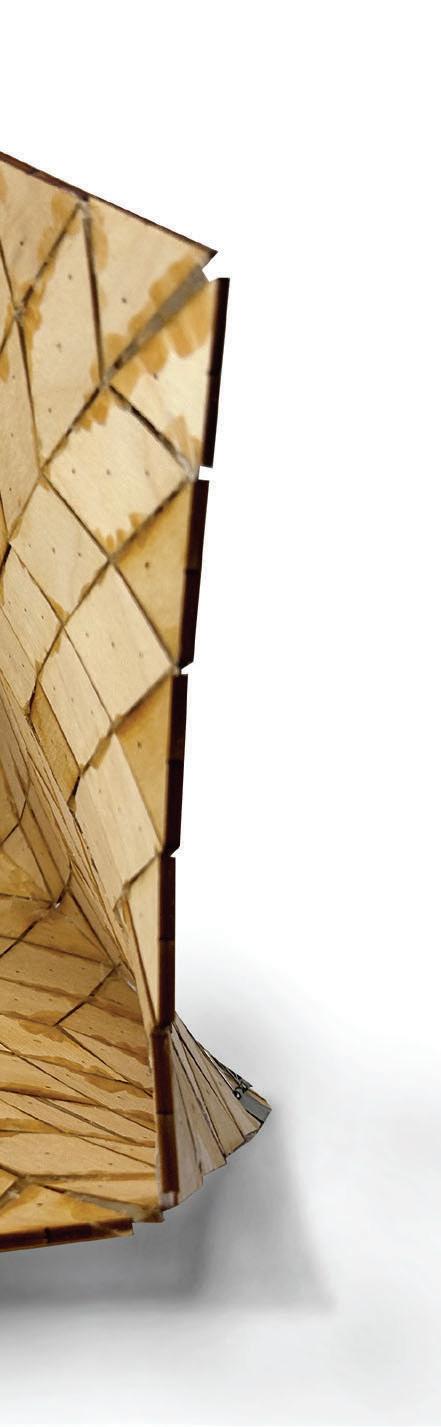

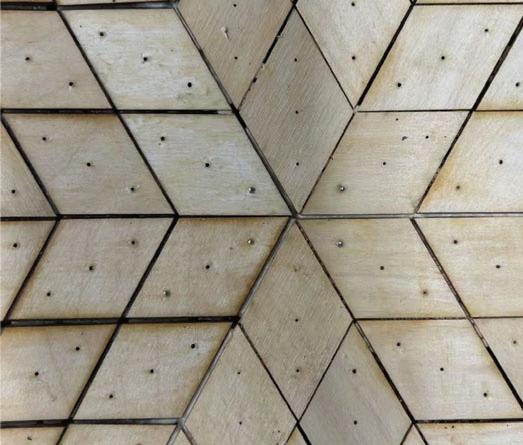

To achieve precise alignment, we incorporated three holes in each panel that match the dimensions of the pins used for positioning. We 3D-printed molds with corresponding holes for the pins, ensuring accurate placement of every tile. Additionally, laser-cut holes in the wooden tiles further guide the assembly process, minimizing errors and enhancing precision. A layer of wax paper is placed between the molds and the wooden panels. This layer allows pins to easily pass through while ensuring the panels can be easily removed from the mold after gluing. The molds are reusable, making the process efficient and sustainable.

This initial testing with small-scale panels provides valuable insights and allows us to envision larger, more ambitious structures. The prospect of constructing these forms at a human scale is particularly exciting and opens up new possibilities for spatial and architectural exploration.

INFO

58

Year: 2024-Present, Morphology Concentration Partner: Weihang Wang Professor: Haresh Lalvini

07

Woode Pannel

Wax Paper

Mold

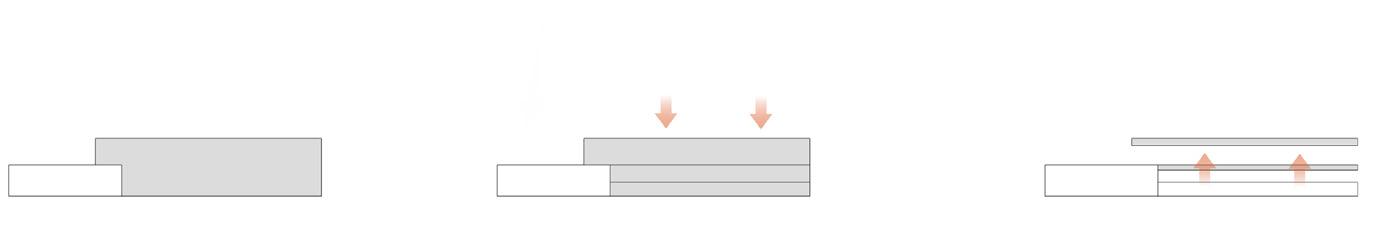

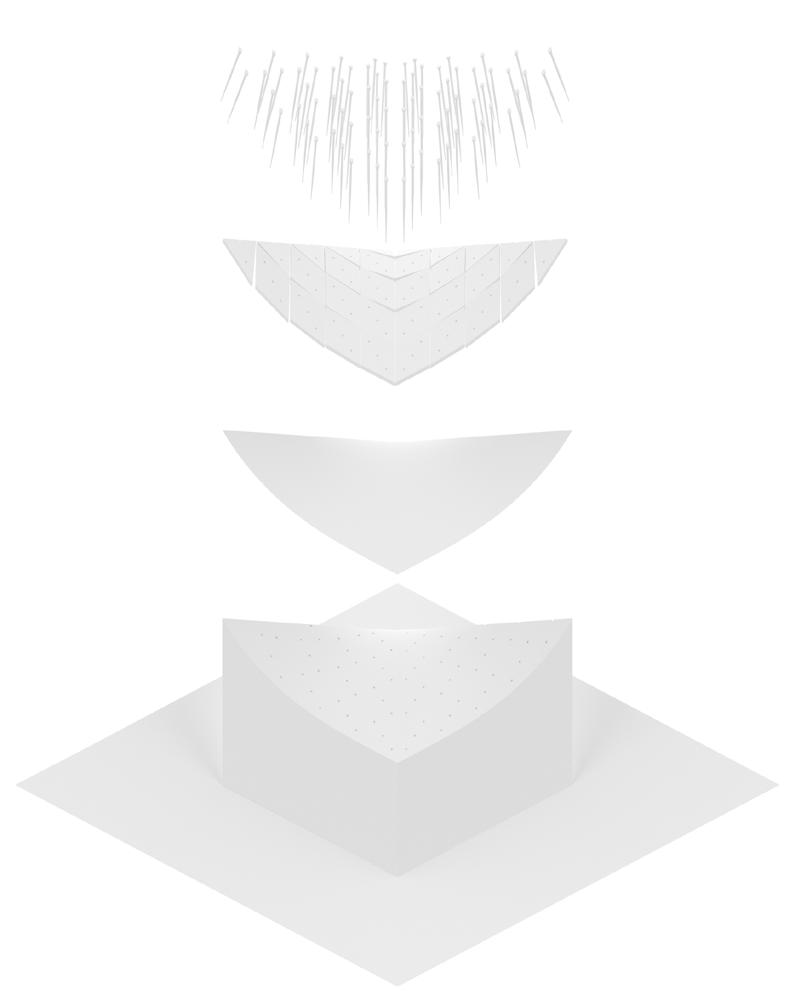

Exploded Axon of molding procedure

1.77mm 1.12mm 0.85mm 0.4mm

0.17mm

0.17mm 0.17mm 0.35mm 0.85mm 4.7inn

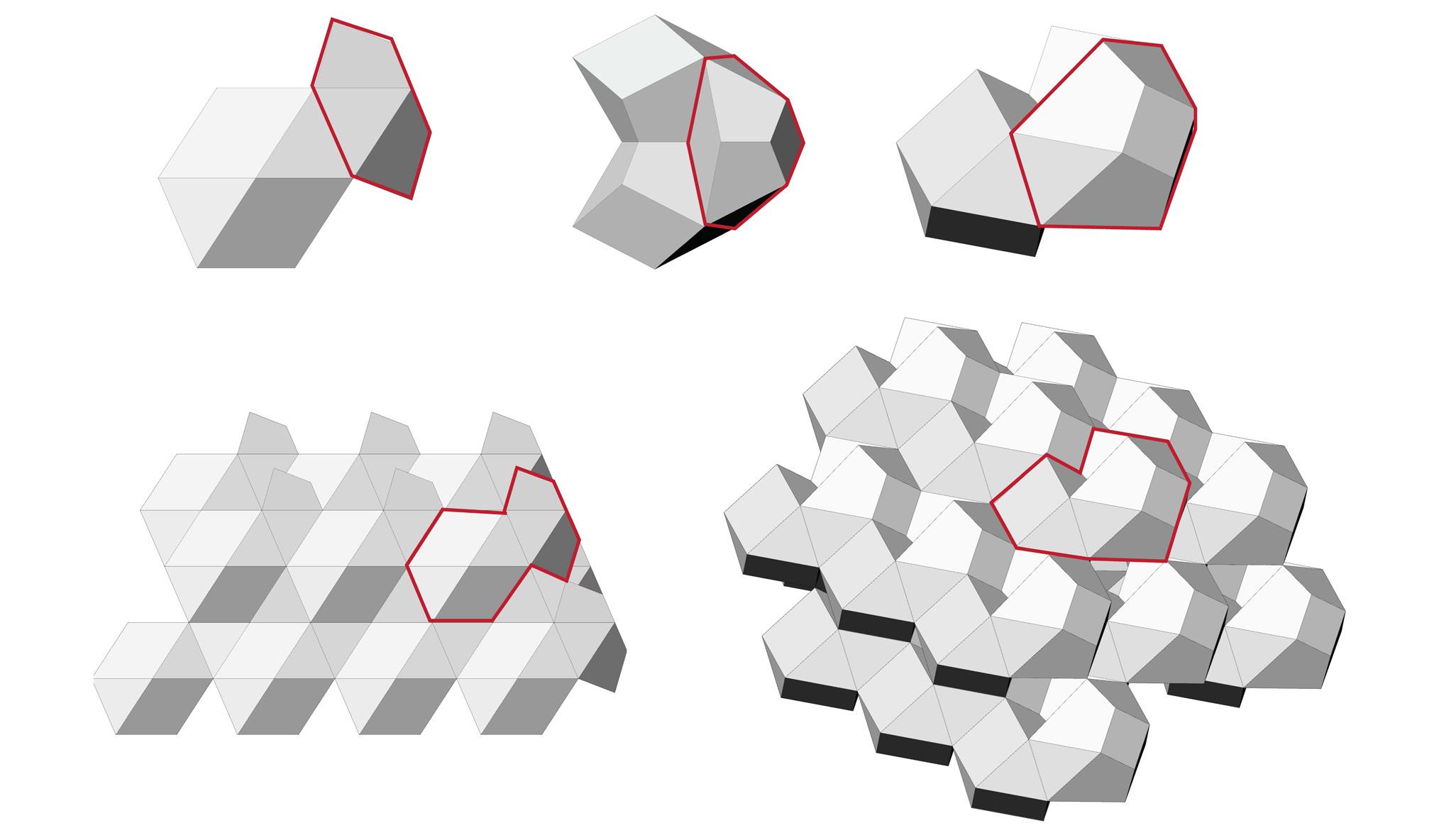

Geometry of Diamond Lattice

Diamond Lattice

Ideal Grid of Diamond Lattice

Realistic Flat Tiled Grid of Diamond Lattice

Space inside Diamond Lattice

59

体块生成分析

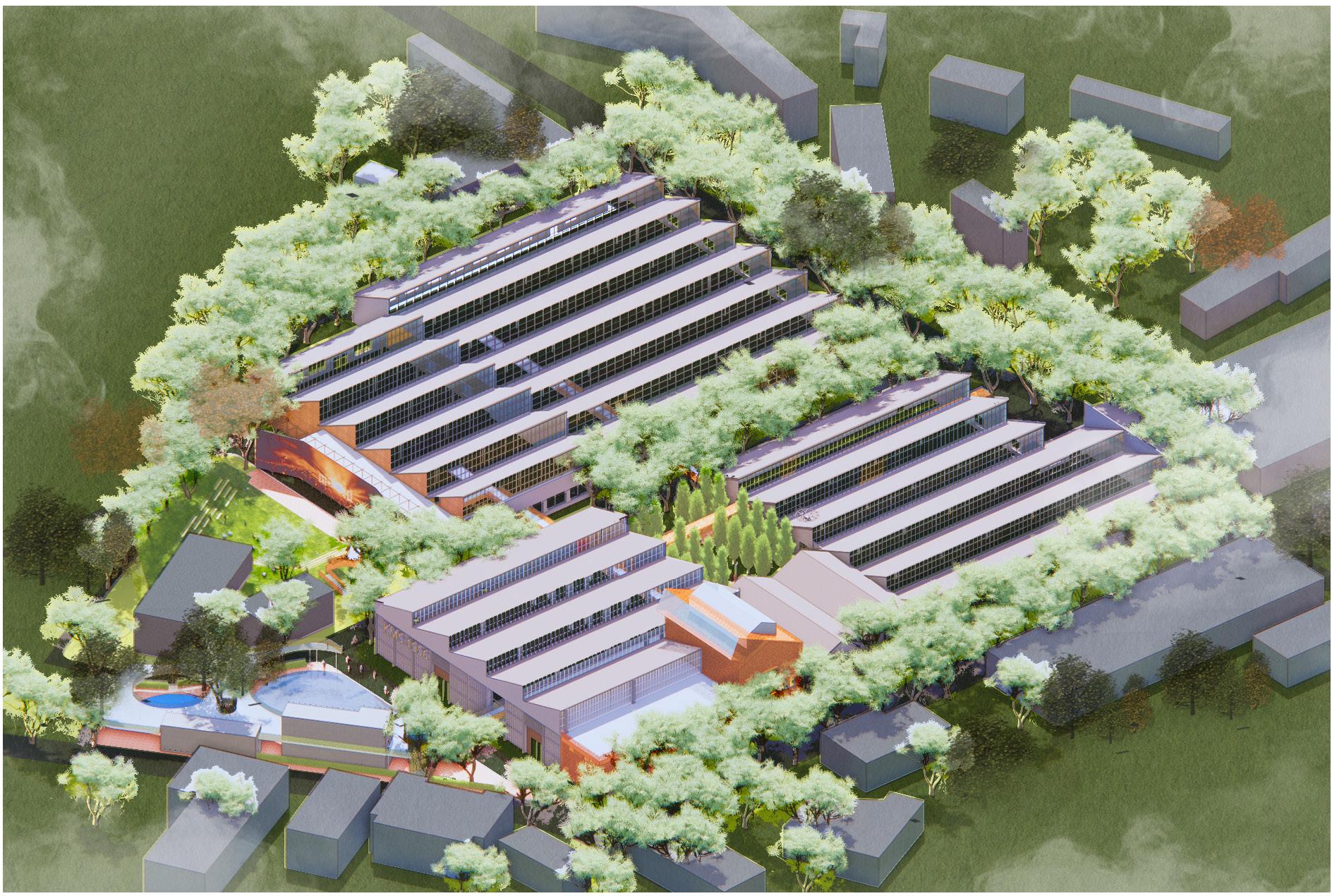

Internship works: WenZhou Kean College Sports Stadium Company: Chiasmus Partners Duration: June 2024-Aug 2024 Location: Beijing, China Position: Intern Arhitect

This project is located in Wenzhou and is designed for Kean College as a multi-functional gymnasium to 视线分析 accommodate students’ sports activities and school events. The gymnasium is situated in the southeastern corner of the campus, adjacent to the school’s sports field.

In our design, we aim to emphasize both indoor and outdoor spaces, transforming the exterior of the 设计手稿 gymnasium into a circulatory viewing platform for students. This extended platform allows students to pause, gather, and enjoy views of the sports field and surrounding mountains.

For this project, I was primarily involved in the early design phase, contributing through hand-drawn massing 效果图 设计手稿 西立面 studies, SketchUp modeling, and Enscape rendering.

1. 体块生成后，其大体块首 先被细分为三个层面。

2. 这些体块逐渐变薄，形成 了空间的结构。

1. 体块生成后，其大体块首 先被细分为三个层面。

2. 这些体块逐渐变薄，形成 了空间的结构。

3. 房顶进一步被分层设计， 以增强其复杂度和功能性。

4. 设计加入了观景平台和绿 色建筑元素，以提升建筑的 可持续性和使用价值。

3. 房顶进一步被分层设计， 以增强其复杂度和功能性。

4. 设计加入了观景平台和绿 色建筑元素，以提升建筑的 可持续性和使用价值。

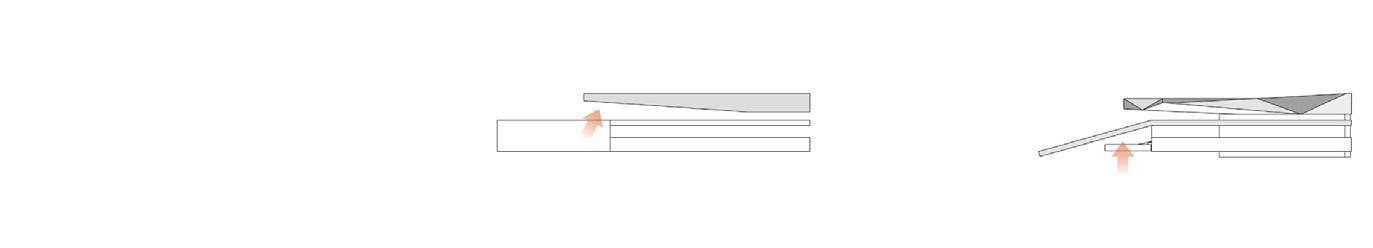

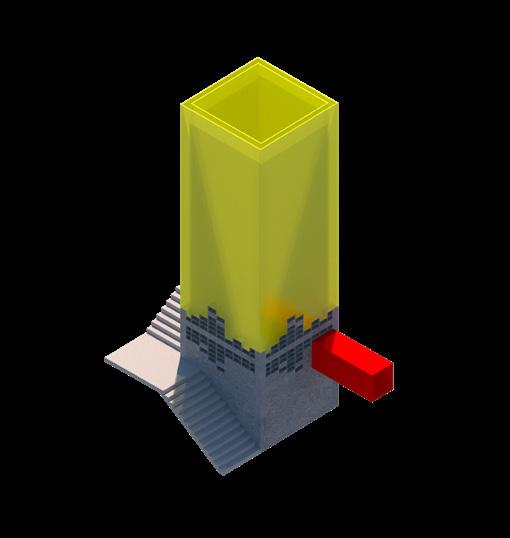

Massing Diagram

Chiasmus Partners, Inc

Chiasmus Partners, Inc

室外草坪视野

地面入口视野

连接平台视野

室外平台视野

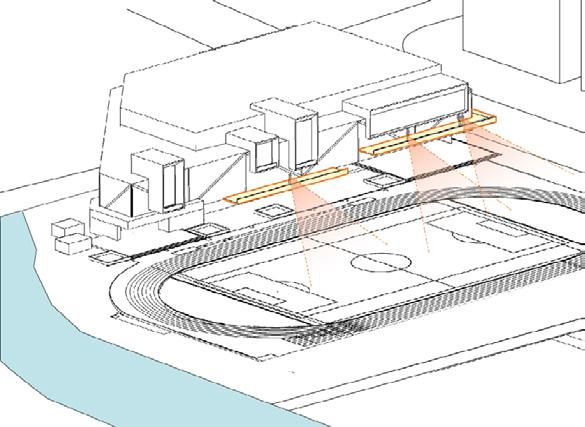

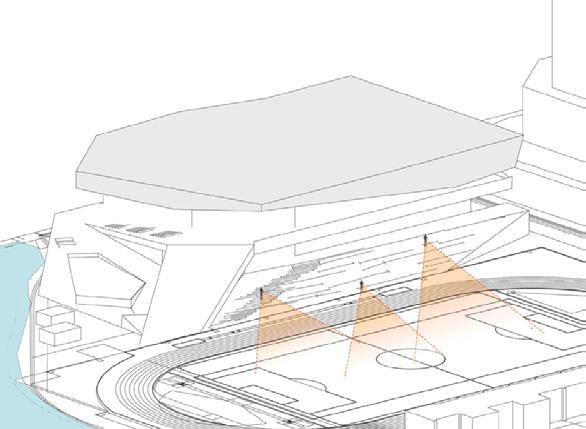

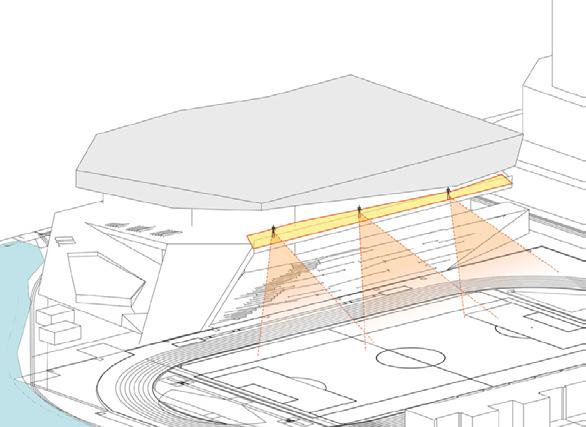

Visual Connection Diagram Chiasmus Partners, Inc

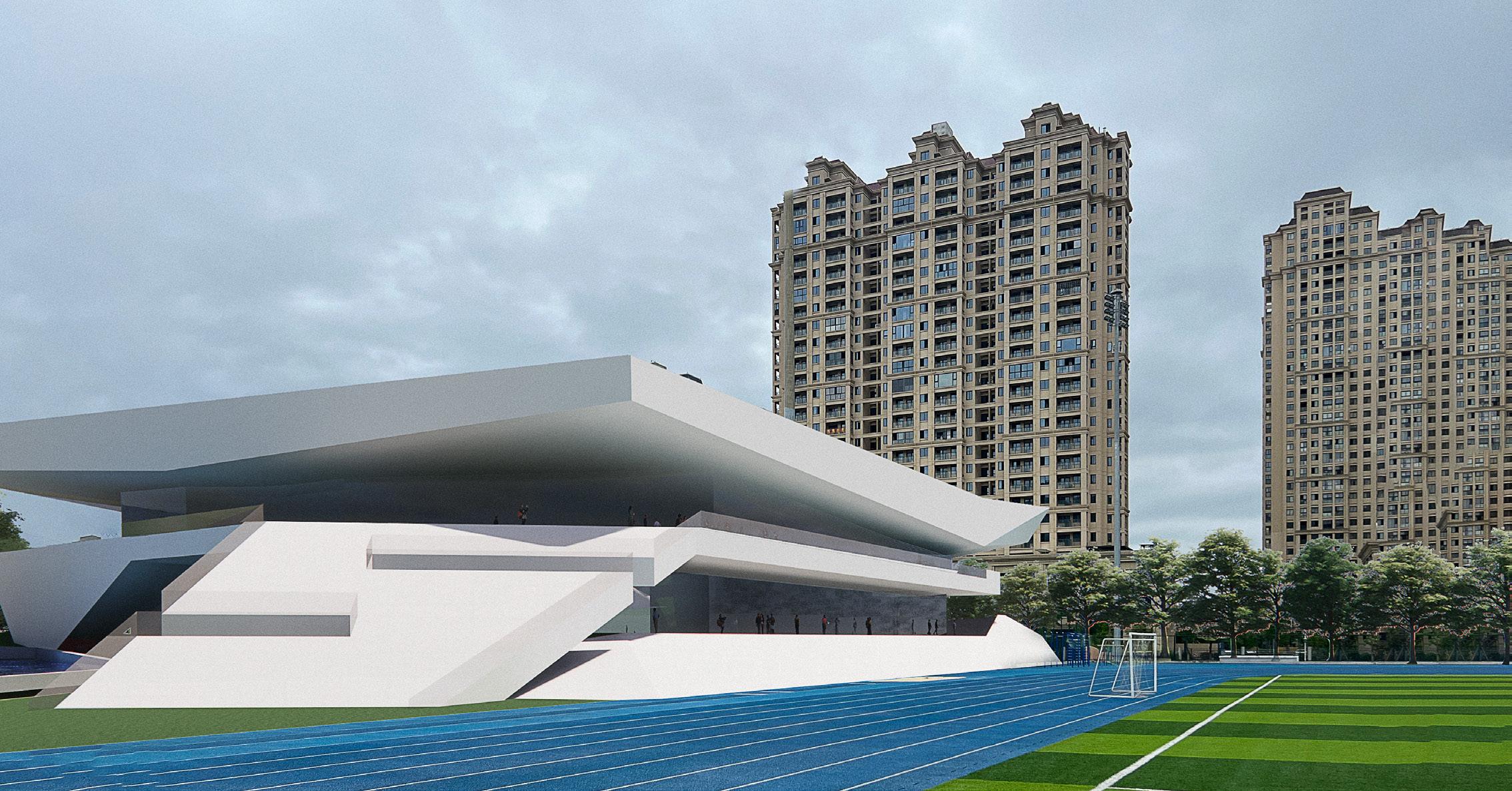

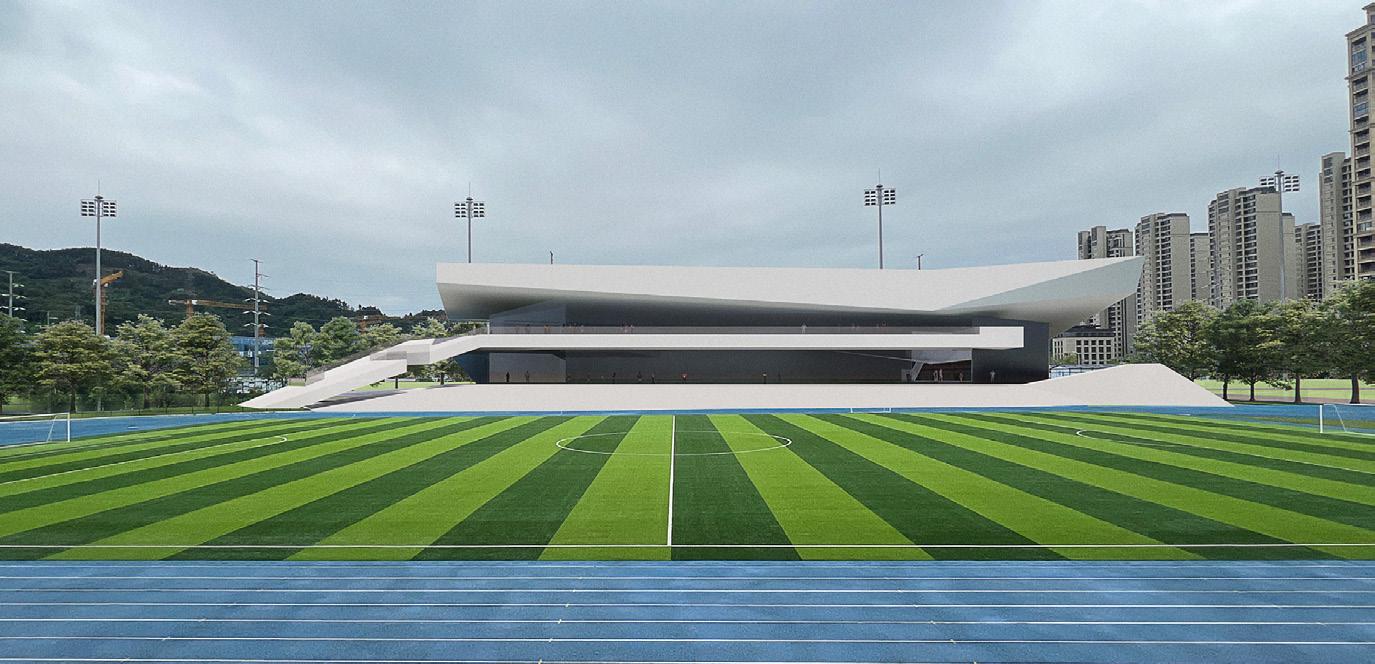

Render: From Sports Field Chiasmus Partners, Inc

60

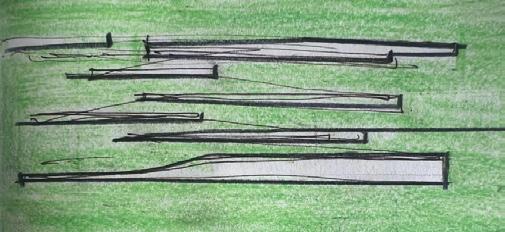

Chiasmus Partners, Inc Massing Sketches

效果图 西北向

效果图 东南向（临街入口广场）

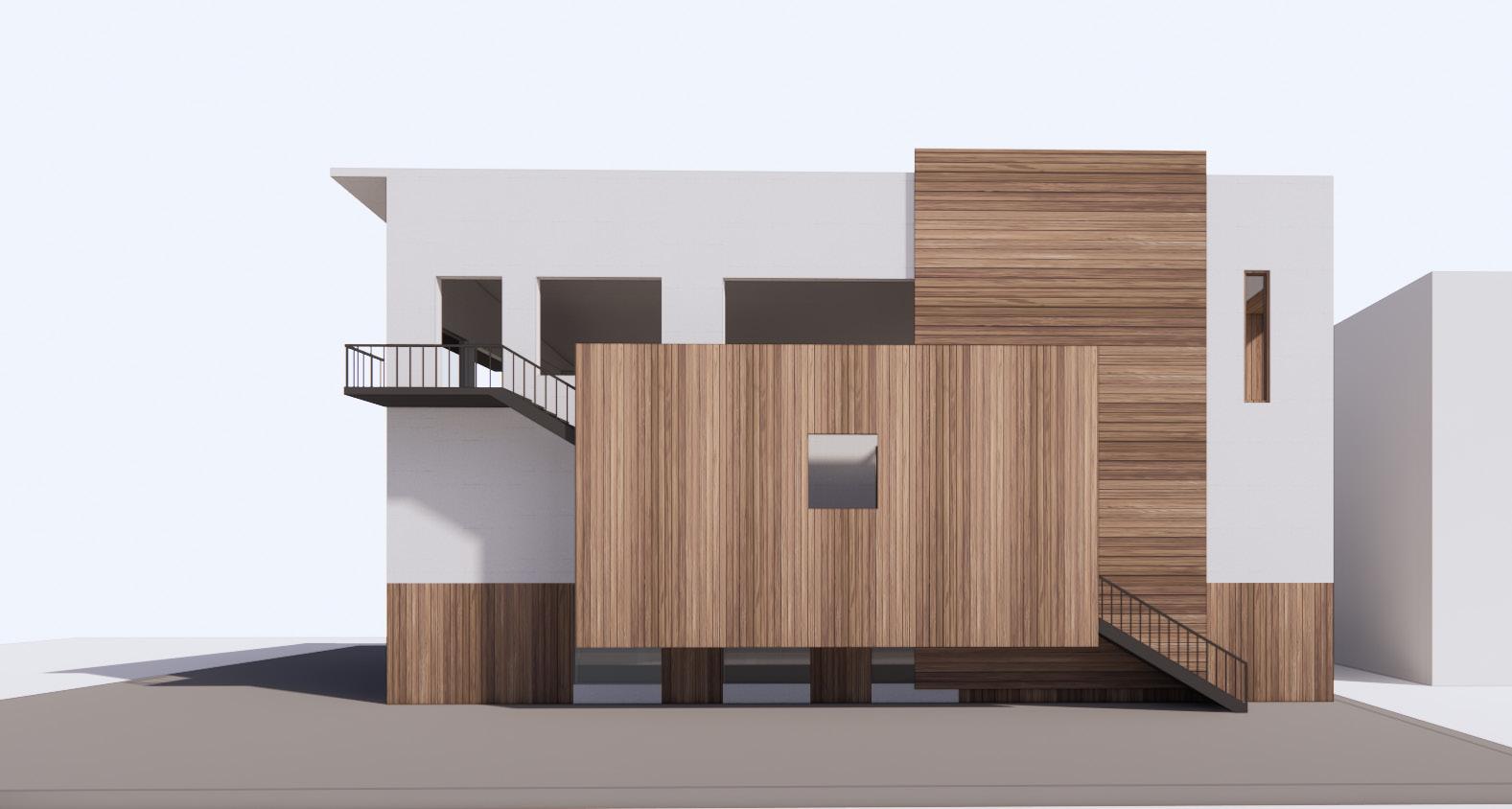

Render: Platform

设计手稿

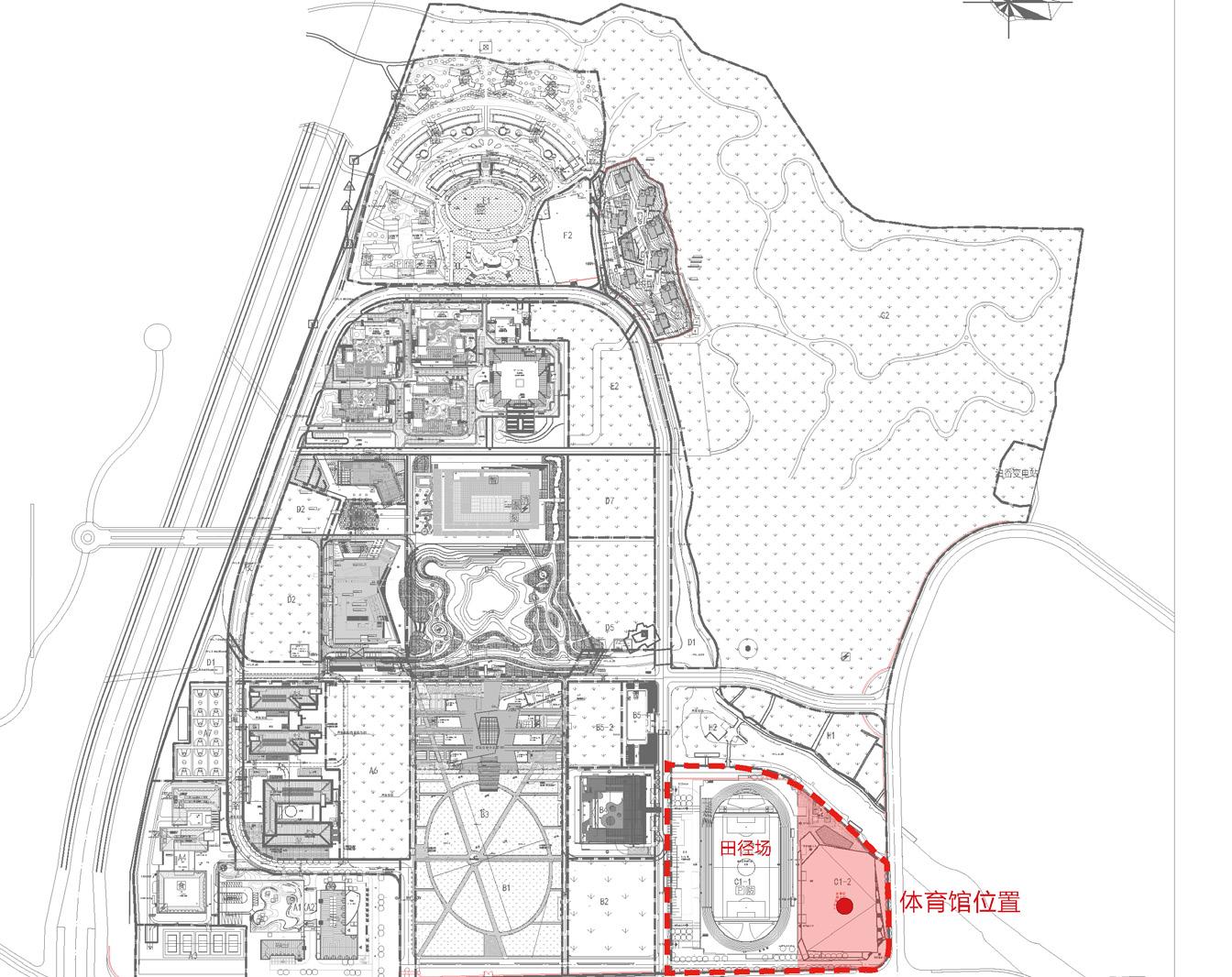

Site Plan

Chiasmus Partners, Inc

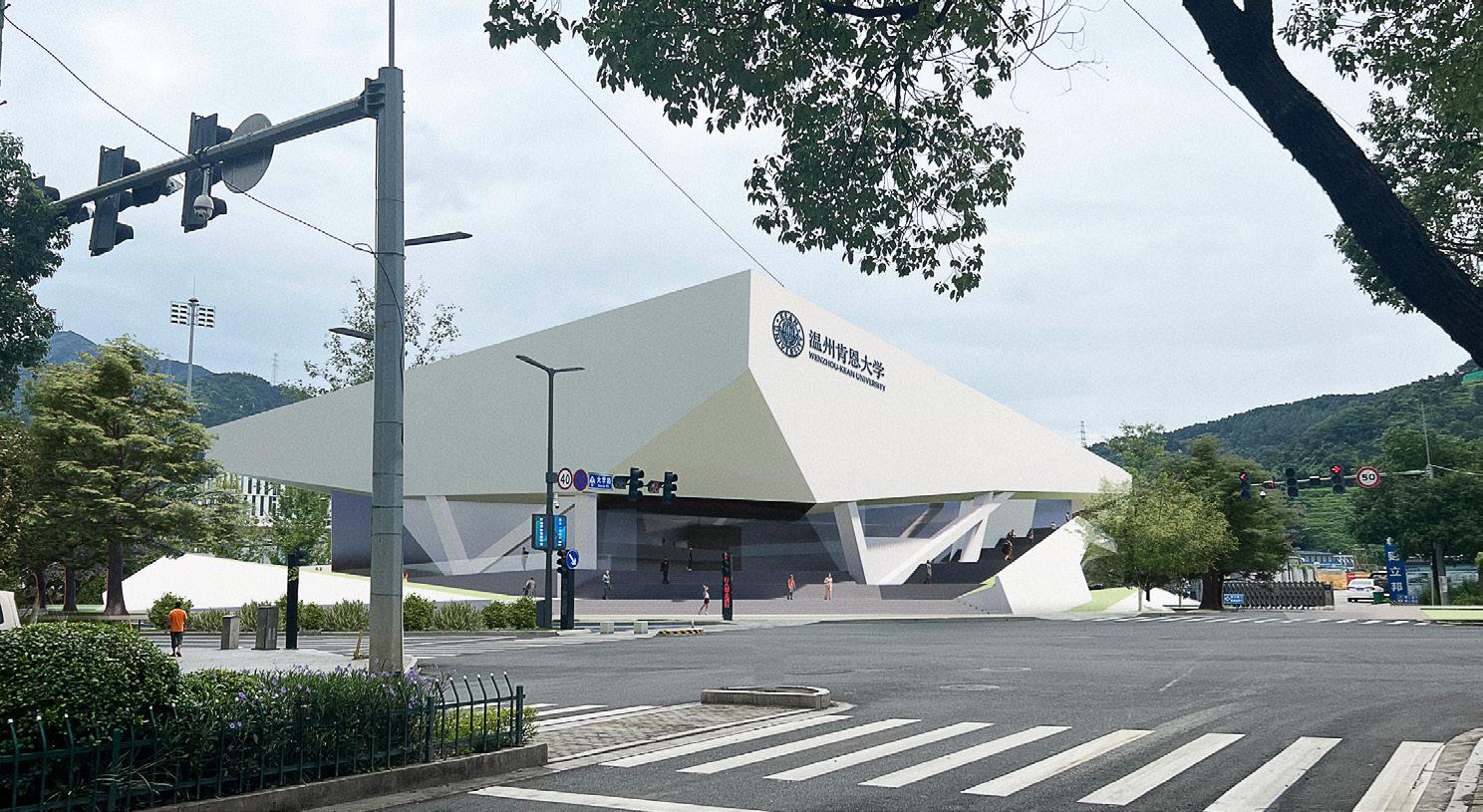

Render: Street View

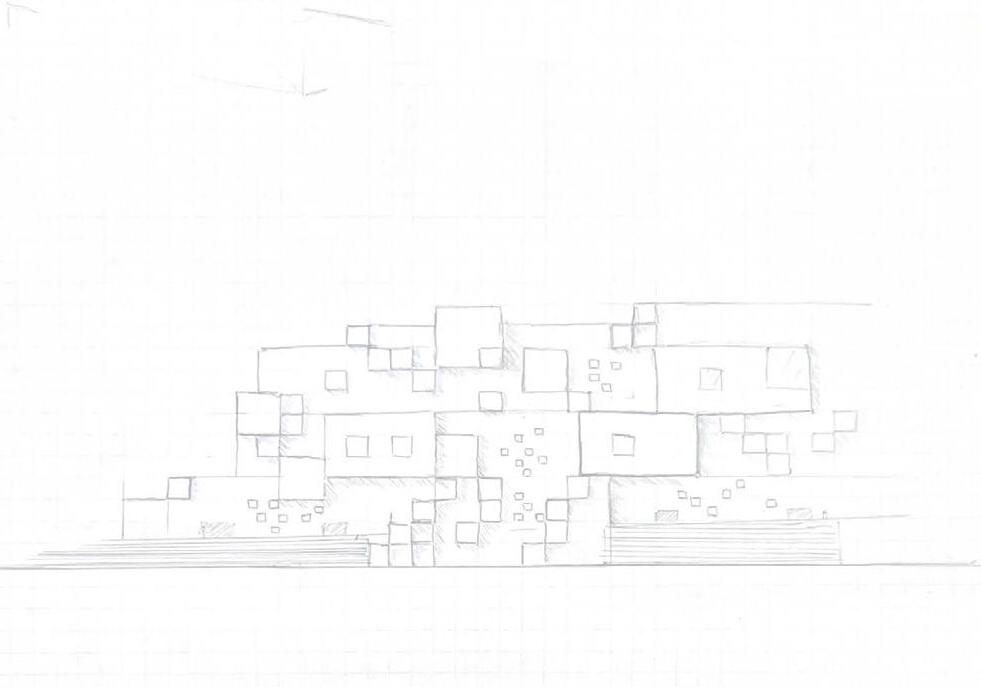

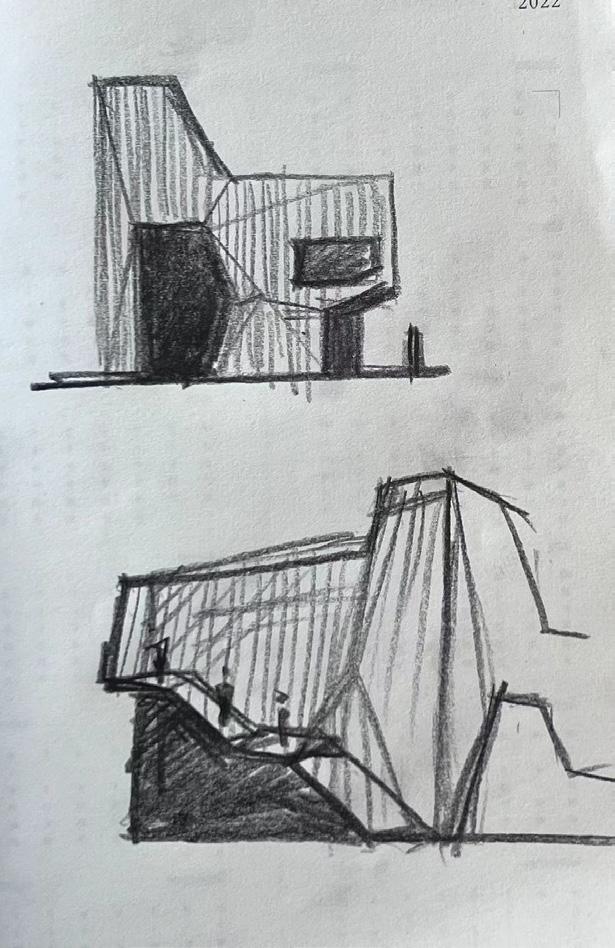

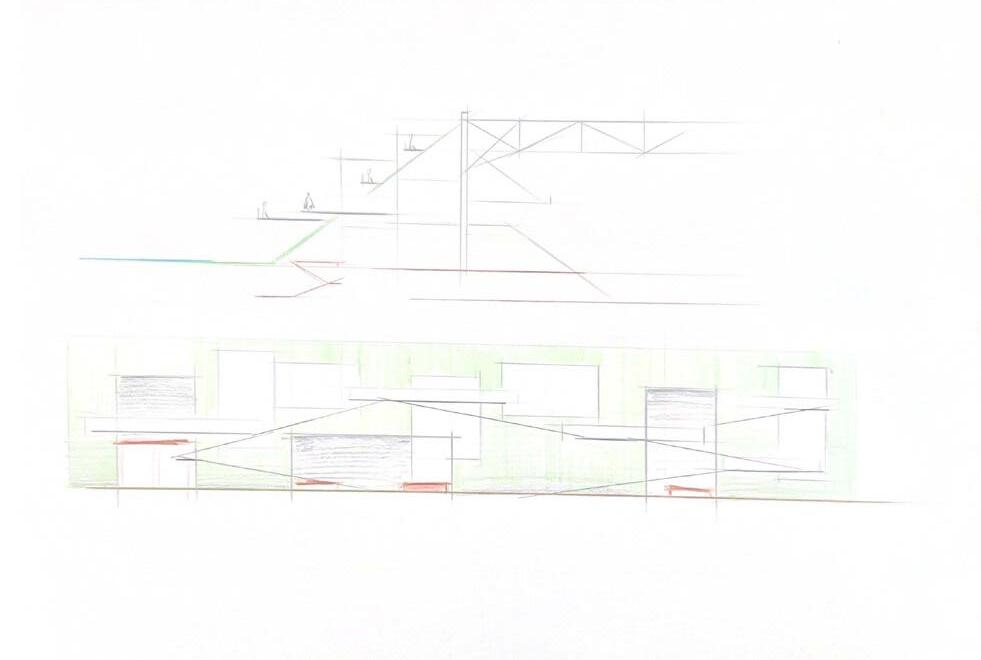

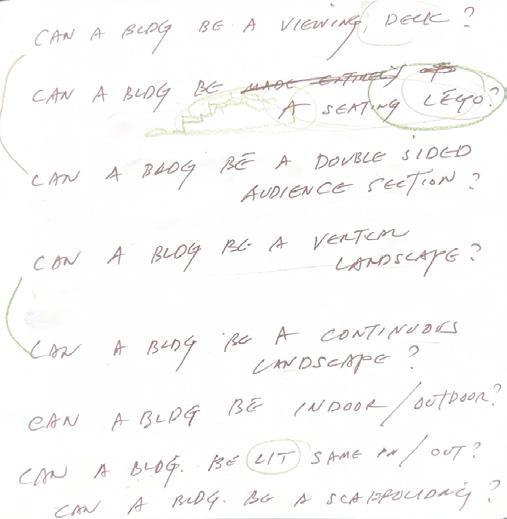

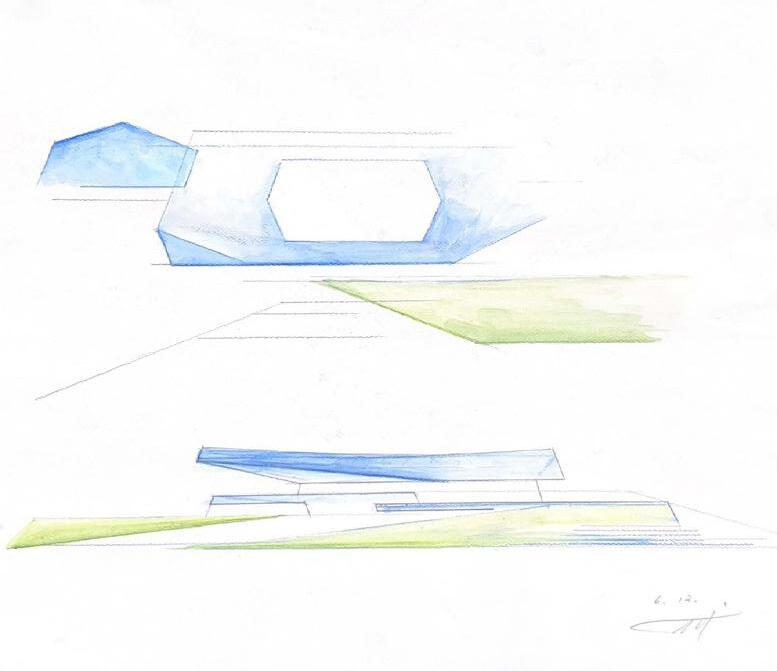

Concept Sketches

Chiasmus Partners, Inc

Chiasmus Partners, Inc

61

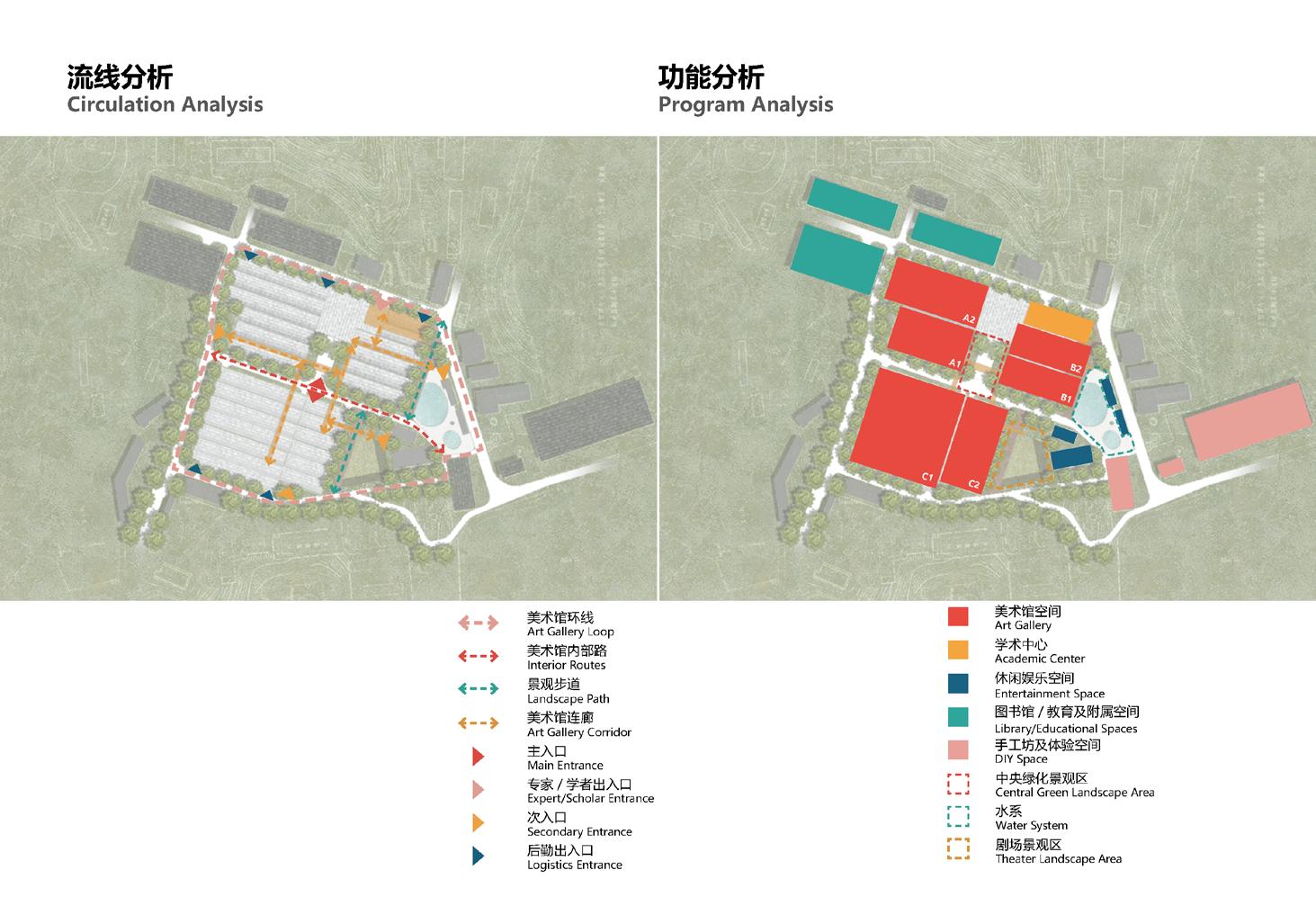

Internship works: Yuan Art Musuem Company: Chiasmus Partners Duration: June 2024-Aug 2024 Location: Beijing, China Position: Intern Arhitect

62

Main Responsibilities: Enscape rendering, diagram creation.

Internship works: LinX Office Building Facade Company: Chiasmus Partners Duration: June 2024-Aug 2024 Location: Beijing, China Position: Intern Arhitect

Main Responsibilities: Main Responsibilities: Proposing design concepts, Enscape rendering, and producing presentation drawings

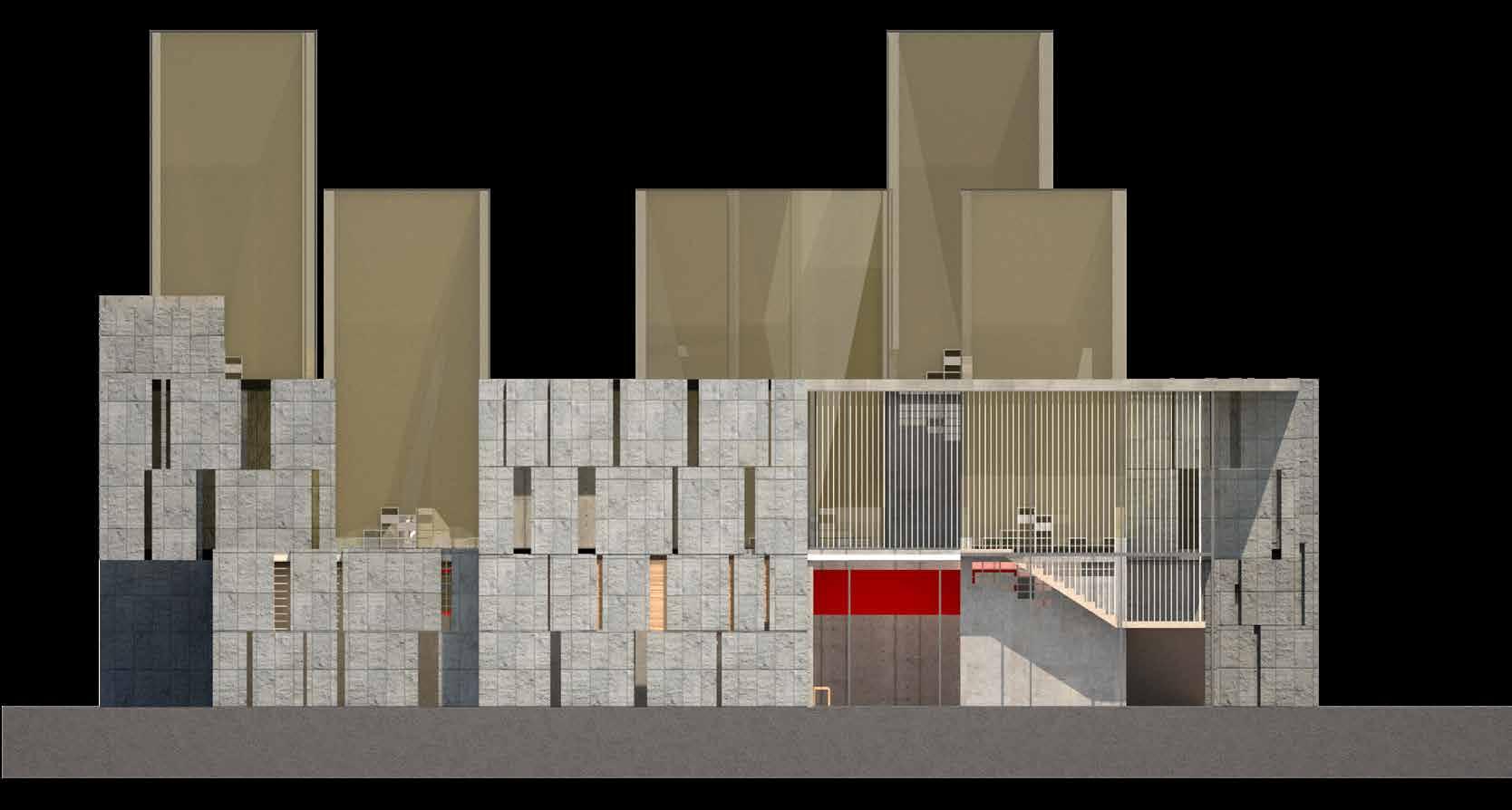

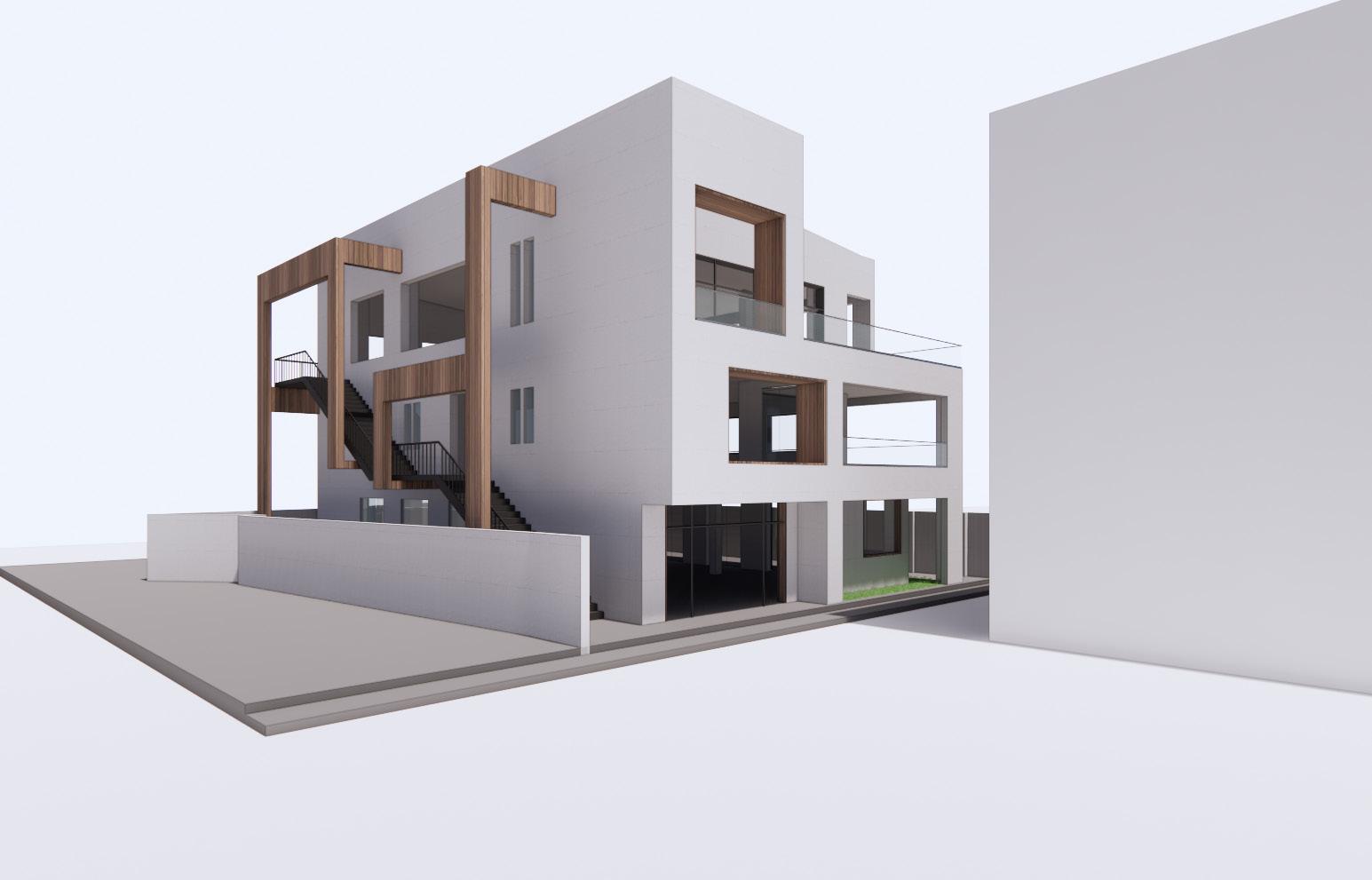

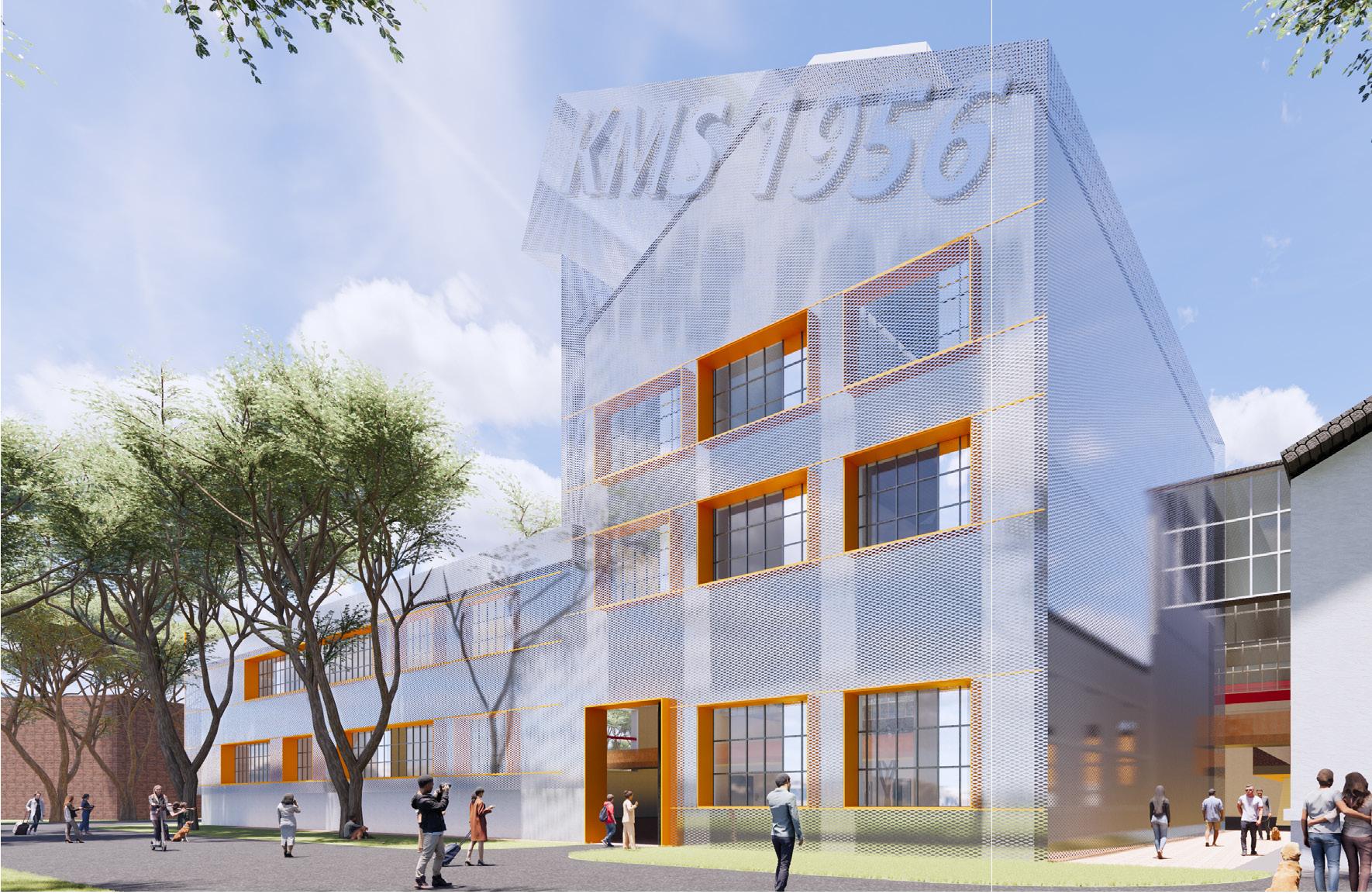

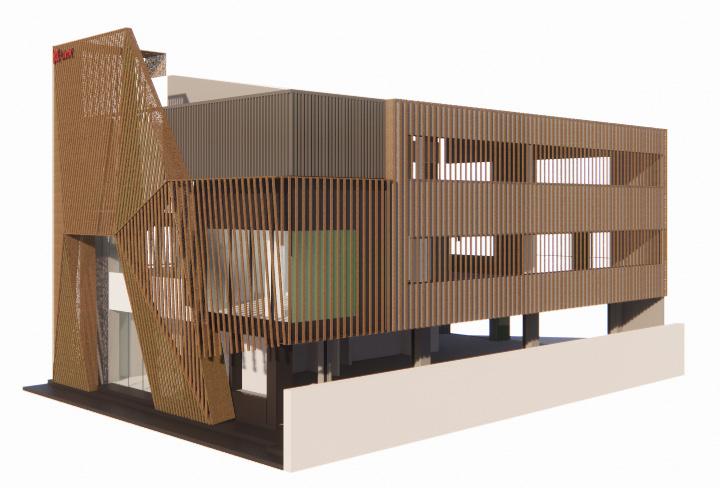

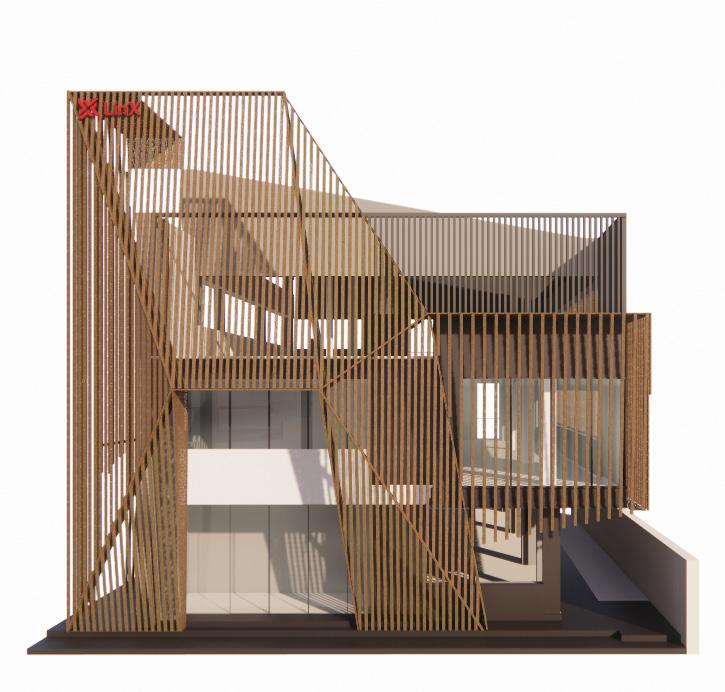

Facade Design Proposal 1

Facade Design Proposal 2

63

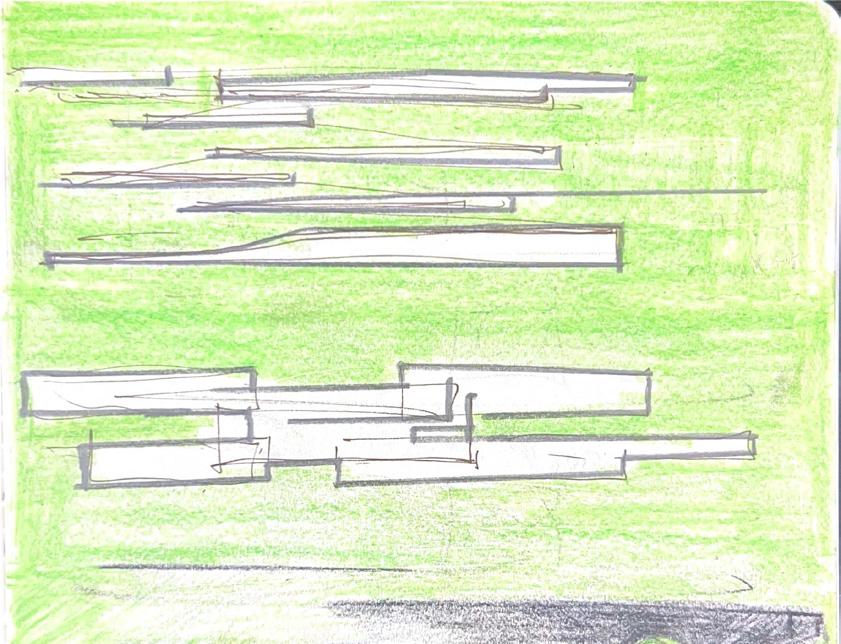

Freehand Drawing/Painting 2019-2024

64

65
