Passionate and skilled architecture student with 1year of experience planning, developing, and implementing exceptional designs. Committed to high-quality details and achieving client specifications within a lower estimated budget.

“ONE OF THE GREAT BEAUTIES OF ARCHITECTURE IS THAT EACH TIME IT IS LIKE LIFE STARTING ALL OVER AGAIN.”

CURRICULUM

CURRICULUM VITAE HARSH AGRAWAL 05-19-1999

VITAE

PIANO

-RENZO

agrawalharsh2504@gmail.com JERSEY CITY, NEW JERSEY +1 732-522-8850

ACADEMIC QUALIFICATION:

State Level in Kabbadi

Running Competition at school level Internship

1999 2002

2014 2016

Job for 1 Years

Completing Master Degree in May

2021 2022 2023

SSC Board

Birth Date Junior KG HSC Board

Gurukul Vidyapith V.T. Choksi English Medium School

Bachelor of Architecture Master for Urban and Regional Design

ARCHITECTURAL TOUR: CO - CURRICULUR:

R.S.P. 1 Mandu, Madhya Pradesh

R.S.P. 2 Orchha, Madhya Pradesh

R.S.P. 3 Pudducherry

Case Studies

Residence - Surat, Gujarat ( Brick House) Institute - Ahemdabad, Gujarat (N.I.F.T) Sports Complex - Surat, Gujarat

SOFTWARE PROFICIENCY:

2017Hitkarni College of Architecture, Jabalpur, Madhya Pradesh.

2018 Maliba College of Architecture, Bardoli, Gujarat.

Attended Kala Ghoda Art Fest 2017 MS

HANDWORK:

Hobbies:

Sketchup Photoshop Lumion

Painting Model Making Photography Music Movies Volleyball Reading Sketching Sketch Book Corel Draw V-Ray Illustrator InDesign Grasshopper Rhino 7 Revit Qgis

Office AutoCAD

Drafting

U R B A N S T U D I O 1 3 2 H O U S I N G I N T E R P R E T A T I O N C E N T E R TABLE

TABLE OF CONTENTS

OF CONTENTS

620 33835 1982 700 985 A C D E A C D E F G 1 2 4 6 7 9 10 1 2 B F B 5 00 MM 1000 MM 8000 MM 11200 MM 15300 MM 19850 MM 00 MM 1000 MM 8000 MM 11200 MM 15300 MM 19850 MM 00 MM 5500 MM 10150 MM 13430 MM 15420 MM 20650 MM 25650 MM 30420 MM 00 MM 5500 MM 10150 MM 13430 MM 15420 MM 20650 MM 25650 MM 30420 MM 23200 MM 8 3 7150 MM 7150 MM 22045 MM 22045 MM 4550 230 4420 4550 4930 4650 28000 300 450 50 1300 1500 3200 1200 1430 1200 230 129 1300 7450 7450 587 285 450 2285 737 2600 2450 1200 1500 600 4539 4769 55 300 72 300 72 300 63 300 72 300 69 84 1986 450 400 20 450 230 1730 1140 1050 2750 1350 1525 2500 2450 2270 3195 2050 1000 850 1300 1000 350 350 350 350 350 350 350 1350 800 800 800 800 800 800 700 2730 1125 25 1300 2422 5178 2422 7600 7850 300 2350 1700 450 2650 2150 2500 2950 7750 23200 2500 2620 1300 1000 FOYER 5000*4800 PASSAGE UP DN DOWN DOWN UP APARTMENT SEA CA CABIN 4770*4700 TOILET 1950*2400 WAITING AREA 4720*3200 COURTYARD 5000*3950 GUEST ROOM 4770*5070 DRESSING ROOM 4770*2380 FORMAL LIVING ROOM 6200*7300 CONFERENCE ROOM 4750*3200 DINNING ROOM 4550*7150 KITCHEN 6550*7000 STORE ROOM 1770*2500 COMMON TOILET 1420*2500 DECK AREA 4420*5570 UTILITY AREA 6920*2000 OFFICE ROOM 4620*6250 LVL +1200mm LVL +1200mm LVL +1050mm LVL +1200mm LVL +1200mm LVL +1200mm LVL +1200mm LVL +1200mm LVL +1500mm LVL +1050mm LVL +1200mm LVL +1050mm INFORMAL LIVING ROOM 4100*8050 1000 450 450 450 450 450 450 150570 230 3470 300 300 970 230 5000 450 900 1300 25 1125 1200 230 450 230 720 450 4430 5270 5450 3350 1430 230 220 5270 5230 5000 6756 5790 390 230 600 430 2600 1000 350 450 350 450 350 450 350 450 350 450 350 450 350 150 2050 1305 420 3700 1640 4460 670 5805 450 2190 4460 670 1300 1300 350 500 800 500 800 500 800 500 420 200 200 200 200 7500 3000 2000 2500 1500 6050 3950 1800 1500 2000 1500 1000 485 500 500 1518 1230 115 2700 1950 1000 1400 4720 780 2000 600 850 2350 1577 1300 986 1300 1415 505 510 1193 498 400 1000 400 850 1510 1510 1980 776 3535 1350 720 1000 1408 5350 2500 1000 1120 2450 1200 450 3392 1500 178 1620 1000 2150 362 748 390 280 4770 600 200 300 200 200 600 5000 3950 1500 600 400 3150 TREAD 300 RISER 150 D3 D3 D3 D4 SFD2 SFD1 SD3 V2 FW2 FW2 FW2 V1 1770 1770 270 1000 2200 975 600 300 300 A B' A A' C' C B 2 4 5 6 7 8 9 10 11 14 13 16 15 18 17 20 19 22 12 23 UP LVL +1800mm 24 25 FW3 FW3 REFRENCE POINT 1 300 GARDEN

I N T E R I O R

4 6 5

R E S I D E N T I A L

WR O R K I N G D R A W I N G

Resilence and Recreational

Sustainable Ecology Mobility

Raising the surface of the structure on slilts for inlet of water during floods without damaging the superstructure

Addressing the issues related to transportation and making more of accessibility

Using recycling and renewable souirces of energy for greater lifespan

Hypothesis

From the learnings of the analysis done on the Western Edge of the Lower Manhattan Neighbourhood, more potential scope of development was observed in consideration for the floodline and the evolving of the New York City.

Engaging more public oriented activities and improving ont he shoreline was a key factor to be taken into account. The wide scope of introducing more engagements and following the community code of the surrounding, prototypes of a Floating Island is a an innovation to be added considerating the climate adaptive and resilent to the domains.

The vision is to make the edge more active and making the the paths to accessibility more enhanced. The activating factors to the intervention would be piers, associates and the land surrounding to them.

The catalyst would act as a subordinate to the experience created notions for the focus area.

Research Topics

The goal is to plan and build a city that promotes care for the environment, in an economically viable way,prioritizing the benefits of society and without compromising future calamities procuring in the New York City.

URBAN STUDIO URBAN STUDIO Page- 1

Creating more of Landscape inducing more Greenscapes More community based activities in the neighbourhood for better interaction Creating a universal accessible design for better public realm

Concept

Creating a Hexagon as a floating island typology to sustain the decrease of water intake and to make the floor more efficient in terms of design and typology

Inserting green spaces and pocket interactions in the devies to incorporate more accuracy of defination of services

Cascading the levels of the device to make it more efficent in typology and to creating puncture in the language. Creating lower buffer cordinates and making services in the space.

MSAURD- Sem 1 Page- 2

Site Plan

Pilot Plan

URBAN STUDIO Page- 3

MSAURD- Sem 1 Page- 4 3D View

URBAN STUDIO Page- 5

MSAURD- Sem 1 Page- 6

URBAN STUDIO Page- 7

3D VIEW

MSAURD- Sem 1 Page- 8

About Project

The Gujarat Tourism policy aimed at Socio-economic development of the State by developing world class tourist facilities by ensuring optimum utilization of available resources & developing specific tourist destinations for national & international tourists.

2020 Budget speech in the Parliament on February 1, 2020, Finance Minister Nirmala Sitharaman announced that five archaeological sites across India will be developed into “iconic” sites. Further, on-site museums will also be constructed at these locations.

INTERPRETATION CENTER INTERPRETATION

Page- 9

CENTER

Site Plan

Concept

I interpreted the Dholavira city using the characteristics of the archeological site (Dholavira city). Through this, visitors can experience the surroundings and the journey as if they were in the original location of Dholavira city.

Many aspects of Dholavira living, including art, culture, and economy, depend on natural resources and natural activities.

-Geometrical shapes

-Types of gate

-Cross wall fortification

-Water reservoir

-Under ground channel

-Round Colum

-Street pattern

-Steps of planning

-Stones, wood ,bricks

-Proper ratio of planning

B.ARCH- Sem 10 Page- 10

Page- 11

Floor Plan INTERPRETATION CENTER

Ground

Page- 12 B.ARCH- Sem 10

Page- 13 3D View

Section 1

INTERPRETATION CENTER

Section 2

Page- 14 3D View B.ARCH- Sem 10

Page- 15 INTERPRETATION CENTER

Page- 16 B.ARCH- Sem 10

Page- 17

3D Sectional View

Library

Miniature Town Gallery Artifacts Gallery Dholavira History Gallery Market Area

INTERPRETATION CENTER

Parking Area

Page- 18

Cemetry, Port Guest Room

B.ARCH- Sem 10

Research Area

The main opportunity on site is lake view which is on west side. So, we try to have maximum activity on this face or more no. of units will be here for enjoying the view. Apart from this site having

The house is designed for the khambat-famous kite-making community, therefore the entire site is set out so that people can sell kites, create kites, celebrate kite festival, and enjoy green open areas for socializing. Also, this site’s long face has a river vista, thus the home plan is designed to provide residents the best possible view, and all of the dining is placed up on that long face.

Each unit is designed so that the floors with greater open space are alternated. Each building’s layout is designed to maximize wind gusts using a combination of negative and positive concepts. In addition to this, playing in large groups can assist create more open spaces at higher elevations by generating wind on every floor.

The alternate floor’s green color denotes open areas, while the alternate level’s lavender color indicates which alternate floor receives these advantages. In addition, the unit is stacked so that each room has better ventilation and retains its original qualities.

HOUSING

Page- 19

HOUSING

Existing River Existing Temple

Concept

B.ARCH- Sem 8 Page- 20

View Layout Analysis

Page- 21 HOUSING Ground Floor Plan

Page- 22 B.ARCH- Sem 8

Unit 1 Plan

Sectional Elevation 1

Sectional Elevation 2

Page- 23

HOUSING

Page- 24 Unit 2 Plan B.ARCH- Sem 8

Page- 25 HOUSING

Page- 26 B.ARCH- Sem 8

Visual Connectivity Concept

About Site:

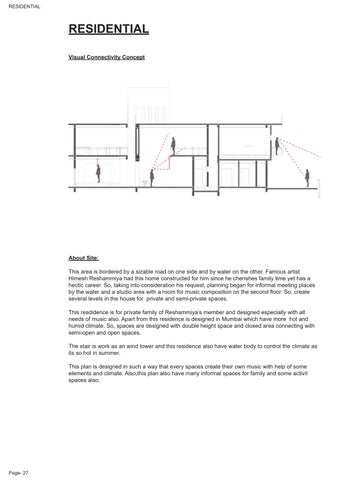

This area is bordered by a sizable road on one side and by water on the other. Famous artist Himesh Reshammiya had this home constructed for him since he cherishes family time yet has a hectic career. So, taking into consideration his request, planning began for informal meeting places by the water and a studio area with a room for music composition on the second floor. So, create several levels in the house for private and semi-private spaces.

This resdidence is for private family of Reshammiya’s member and designed especially with all needs of music also. Apart from this residence is designed in Mumbai which have more hot and humid climate. So, spaces are designed with double height space and closed area connecting with semi-open and open spaces.

The stair is work as an wind tower and this residence also have water body to control the climate as its so hot in summer.

This plan is designed in such a way that every spaces create their own music with help of some elements and climate. Also,this plan also have many informal spaces for family and some activit spaces also.

RESIDENTIAL RESIDENTIAL Page- 27

The plannar form is obtained by transforming simple music nodes into geometrical form, and the adding this form, the node size flactuates and we obtained plan form.
