2025 Architecture Portfolio

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Hanbyul Oh (Han) EDUCATION

Syracuse University, School of Architecture Syracuse, NY GPA: 3.35/4.0 | Bachelor of Architecture 25’ | Art History Minor | Ewha-Syracuse Joint Workshop, Fall 2023 | Syracuse Architecture London Center, Spring 2023

WORK

Undergraduate Program Assistant, Syracuse University SOA Assisting Professor McNamara by leading recitation classes, hosting office hours, and providing support for project assignments and course exams for a structures class Aug. 2023 - Dec. 2023, Syracuse, NY Architectural Intern, JLP International Working in planning a large-scale hotel project by researching foreign case studies and creating slides for presentations and the final masterplan for a hotel in Jeju, Korea May 2023 - Jul. 2023, Seoul, South Korea Lead Instructor, Galileo Learning Teaching craft curriculum to rotations of groups of up to 28 campers and supervising Team Leaders to provide leadership for a summer camp.

Jun. 2022 - Aug. 2022, Fremont, CA

SKILLS

Proficient: Revit, Rhino, Adobe Illustrator, Photoshop, Indesign, Acrobat, Microsoft Suite, QGIS, Figma Intermediate: Grasshopper, AutoCad, V-Ray, Lumion, Climate Studio, Adobe Aero, Premier Pro Craft: Lasercut, CNC Milling, 3D Printing, Woodwork, Painting Native or bilingual proficiency: English / Korean

AWARDS

Recipient Syracuse University SOA Deans List, 2021-2023 Recipient Architecture Portfolio Award, Jul. 2020 Finalist Olive Hyde Guild Scholarship, May 2020 Special Recognition, Congressional Art Competition, 17th District of CA, May. 2019

CONTACT

Phone: +1 (510) 468-8316 Email: hanbyuloh147@gmail.com | hoh101@syr.edu Linkedin.com/in/hanbyul-oh

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

SELECTED WORKS 01

MASS HOUSING IN THE FUTURE Fall 2023 | Ewha-Syracuse Joint Workshop, VC Studio Instructor: Daewon Park and Da-Un Yoo

02

SHAPE OF SLANT AND SLOPE Spring 2024 | Comprehensive Design Studio Instructor: Emily C.S. Pelicano

03

ESF GATEWAY CENTER ANALYSIS AND DOCUMENTATION Fall 2023 | Advanced Building Systems Instructor: Hannibal Newsom

04

SPIRIT OF OLD BILLINGSGATE Spring 2023 | Syracuse Architecture London Studio Instructor: Amber Bartosh and Vanessa Lastrucci

05

PENNSVILLE MEDICAL CENTER Fall 2022 | Third-year Design Studio Instructor: Lori Brown

YEOUIDO CAPSULE MASS HOUSING

100 YEARS IN THE FUTURE CONJUNCTION WITH PUBLIC TRANSPORTATION

Yeouido, Seoul, South Korea. Fall, 2023. In Collaboration with Andrew Pucey

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Inspired by the Garden City, we envision future collective housing in the future to be a decentralized but closely interrelated network of cities. A network of satellite communities separated with green belts that radiate out from the central city.

Alongside this future, to accommodate this lifestyle, we envision a transportation system that moves around pods of living space where you can do productive things or sleep in transit without the chore of driving as you could set a destination and not worry about it.

Our central city, the hive of pods, is an arrangement of space on an infrastructural landscape. Hive of individual pods which are slotted into a tower of artificial landscape. As it is a garden city, it allows us to counteract high-density housing by adding natural space.

“The city is a living thing, and we have to be part of it.”

-Le Corbusier

01

Rhino - Illustrator - Photoshop

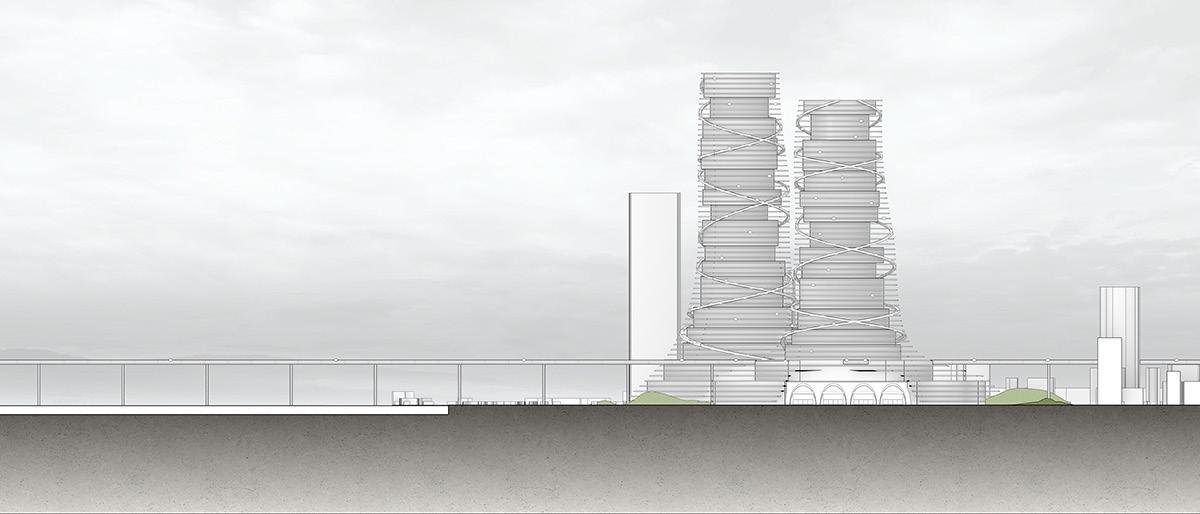

Section of the transportation rail system

MASS HOUSING

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Axon of a pod of the transportation rail system

01

Rhino - Illustrator

Floor plan of a general residential area of the tower

MASS HOUSING

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Floor plan showing the entry sequence into the tower

01

Rhino - Illustrator - Photoshop

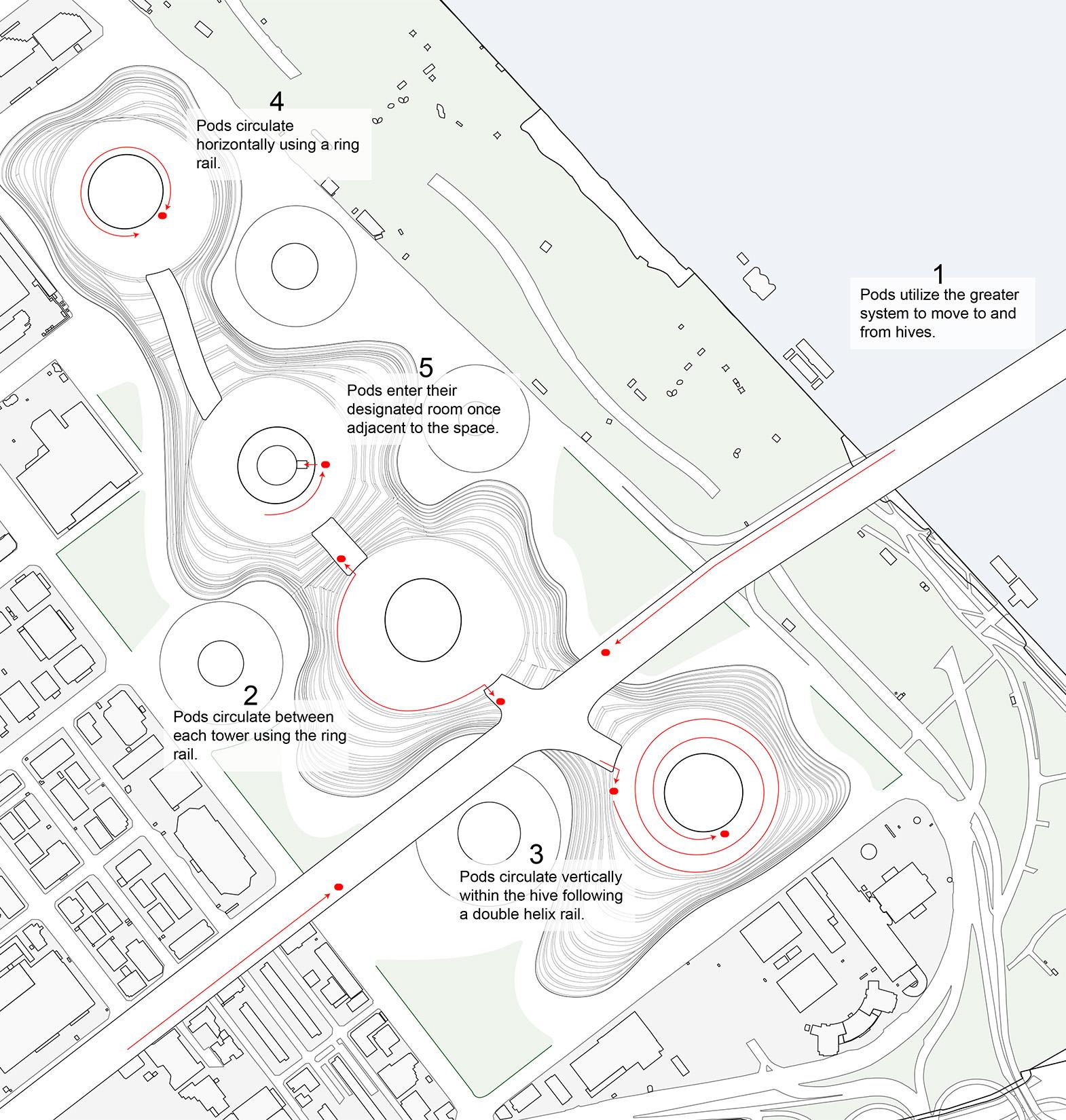

Top: Plans of different types of circulation within the site Bottom: Sections of the buildings

MASS HOUSING

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

01

CLT POLYHEDRA RESIDENTAL APARTMENT ON TOP OF ROOSEVELT HOTEL IN SHAPE OF SLANT AND SLOPE

Manhattan, NY, USA. Fall, 2024. In Collaboration with Terry Luo

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

As part of the ACSA 2024 Timber in the City competition, we were lead to create a residential timber structure on top of the Roosevelt hotel in Manhattan NY. The process started with massing and programming using variations of self-filling polyhedra structures.

While exploring various shapes and structures, we settled on using a trapezo rhombic dodecahedron structure framed with Glulam beams and CLT panels.

Design wise, the architecture consists of three apartments connected in the ground floor surrounded by a veil. The apartments themselves are stacked structures of the polyhedra arranged in a sloped position.

These elements combine to allow the users to experience the uniques spaces created by the nature of the structure.

TIMBER IN THE CITY 5: Urban Habitats Competition -ASCA

02

Rhino - V-ray - Photoshop

Interior Perspectives

SHAPE OF SLANT AND SLOPE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Top: Exterior Perspective from neigboring building Bottom: Exterior Perspectives from the street

02

Rhino - Illustrator

First Floor Plan

SHAPE OF SLANT AND SLOPE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Top: Cross Section Bottom: Long Section

02

Rhino - Illustrator - Photoshop

Building envelope/Environmental control Diagram

SHAPE OF SLANT AND SLOPE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

02

Rhino - Illustrator

Facade detail

SHAPE OF SLANT AND SLOPE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

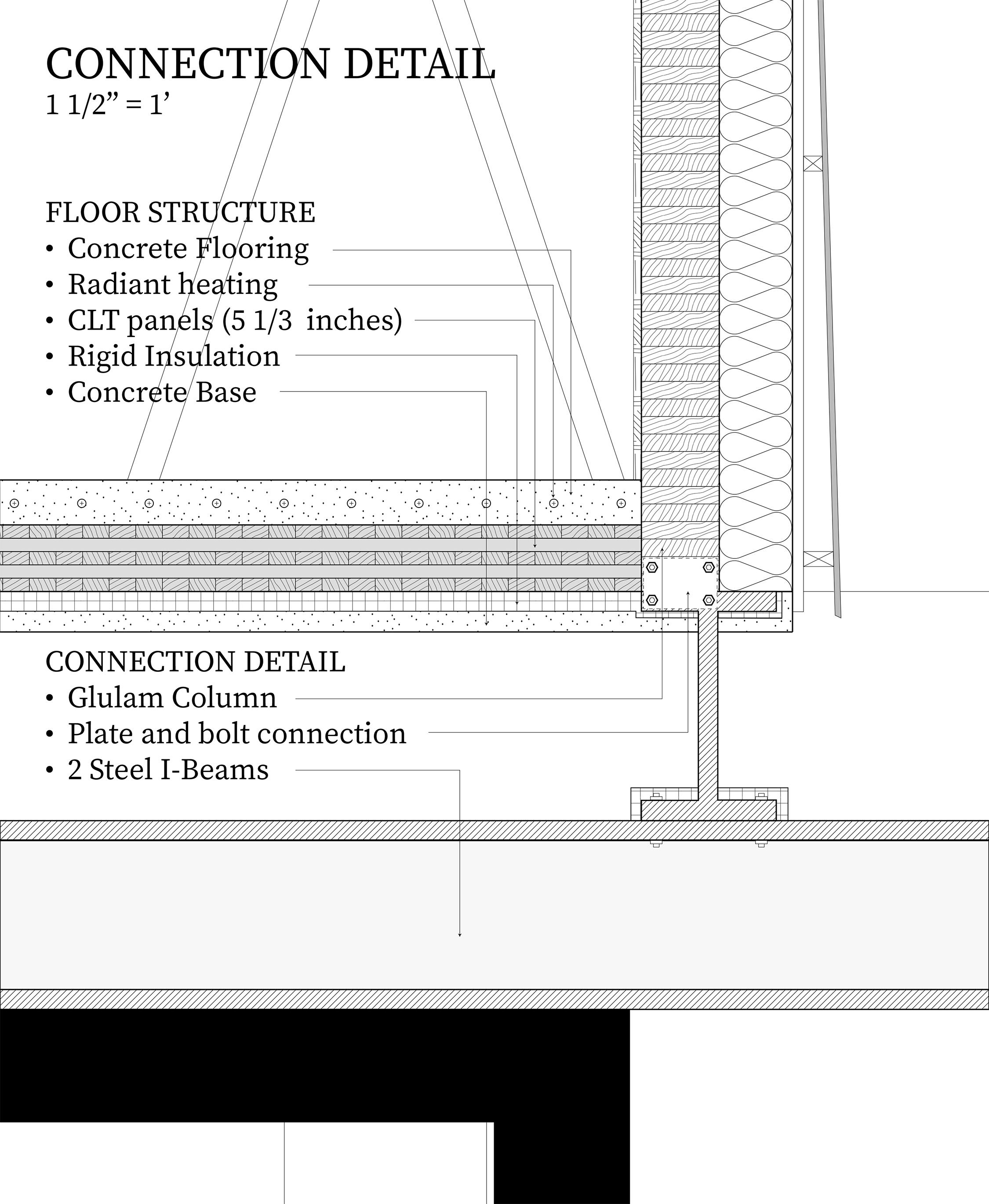

Detail of the connection to the existing building

02

Rhino - Grasshopper - Illustrator

Daylight and Energy Analysis Diagrams

SHAPE OF SLANT AND SLOPE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

02

ESF GATEWAY CENTER BUILDING SYSTEMS ANALYSIS AND DOCUMENTATION FROM INTENTIONS TO FORMAL STRATEGIES

Syracuse, NY, USA. Fall, 2023. In Collaboration with Tony Dai, Corrine Soo

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

In the Advanced Building Systems class, we participated in a semester long project to analyze, illustrate, and document the buildings systems of selected buildings.

We chose to analyze the formal strategies, the structural system, the exterior envelope system, and the mechanical / electric / plumbing systems of the ESF Gateway Center in the main campus of Syracuse University.

The ESF Gateway Center is a testament to sustainable architecture. Serving as a hub for innovation, it integrates advanced green technologies and design principles. The facility emphasizes ecological responsibility while providing a space for collaboration and learning. Its design reflects a blend of environmental stewardship with contemporary aesthetics and functionality.

03

Rhino - Illustrator

SOLAR HOT WATER PANELS

ELEVATOR OVERRUN

SHAFT VENT

JOINT IN CORNICE FLASHING

EXPOSED GLULAM BEAMS INSULATED SPANDEL PANELS

CURTAIN WALL SITEWALL

SITE STAIR AND R Elevation of the north facade, 1/8” = 1’-0”

ESF GATEWAY CENTER

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

N CHIMNEY STACK

E PREFINISHED ALUMINUM ROOF EDGE ASSEMBLY EXTERIOR UPLIGHT FIXTURE

STRUCTURAL COLLONADE

STEEL AND GLASS WINDSCREEN STAINLESS STEEL ESF SIGN CONCRETE SITE WALL

GRANITE BASE

RAILING

03

Rhino - Illustrator

INSULATED SPANDREL PANEL FLUSH WITH EXT. FACE OF MULLIONS, TYPICAL. TRIPLE-GLAZED PANELS. TYP Triple glazed windows increases comfort by maintaining the low-temperature difference between the walls and window glass interior surface, reducing outside noise, and blocking up to 95% of ultraviolet rays.

INSULATED SPANDREL PANEL FLUSH WITH EXT. FACE OF MULLIONS Spandrel panels are are commonly used to infill areas of glazing curtain walls or storefronts. They take the place of thick glass units, covering spaces between windows or doors, concealing unsightly structural elements and building systems.

Elevational detail of CW-N1 triple glazed curtainwall, 3/16” = 1’-0”

ESF GATEWAY CENTER

CONCEAL AND SEAL A CONDUIT AT CURTAIN

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

L-EXT-2 EXTERIOR UPLIGHT

ALL NWALL

Uplighting is the placement of individual light sources at points of interest to draw attention to detail, highlight, and create shadow or depth.

6 A-9.22

3 A-9.22

1 A-9.23

1 A-5.21

HC DOOR ACTUATOR, CENTER ON PANEL An actuator is an electronic device/motor that is fitted to doors to allow them to open automatically.

03

Rhino - Illustrator

SEALED PANELS 1/4" VERTICAL JOINT INSULATED SPANDREL PANEL GLAZED IN CW SYSTEM

PREFINISHED ALUM FLASHING "PAN" WITH DRIP EDGE SEALANT & BACKER ROD CONT. AT PERIMETER OF PLATE PTD GALV STRUCTURAL STEEL PLATE AND PLATE ASSEMBLY FOR EXTERIOR STRUTS SUPPORT TRIPLE-GLAZED PTD ALUMINUM CURTAINWALL SYSTEM

Elevational detail of CW / structural connection, 1 1/2” = 1’-0”

ESF GATEWAY CENTER

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

UPPER ROOF SLOPED TO DRAINS

PREFINISHED 18 GAUGE ALUMINUM COPING AND FASCIA

PREFINISHED ALUMINUM FLAT-LOCK PANEL SYSTEM CURTAINWALL TYPE CW-W5

GREEN ROOF CURTAINWALL TYPE CW-W6

METAL FACED COMPOSITE PANEL SILL WITH DOUBLE SLOPE

Isometric axon detail of the flipper wall shading system

03

EPHEMERAL PATHWAY OF OLD BILLINGSGATE CONSERVING THE MEMORY THROUGH RELICS AND ARCHES

Old Billingsgate, London, UK. Spring, 2023. In Collaboration with Gray Warren, Allison Schwartz

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

We wish to conserve Billingsgate as a place where memory is captured in both objects and experiences. In this proposal, Billingsgate is reintroduced in the 21st century as a market plaza that depends on the memory of Billingsgate.

What we propose interrogates what we know today to be ‘Old Billingsgate’. In our proposal The building has been destroyed and the ground has been returned to the stone surface that facilitated commerce and cultural exchange in the past. We tasked ourselves with making a memory.

We memorialize the arches that appeared throughout history in order to reinforce the public place we have proposed along the Thames.

04

Rhino - Illustrator - Photoshop

Perspective from the streets

OLD BILLINGSGATE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

04

Rhino - Illustrator - Photoshop

Perspective from the River Thames walkway

OLD BILLINGSGATE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

04

Rhino - Illustrator

Left: Axon of the arches Right: Section of the arches

OLD BILLINGSGATE

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

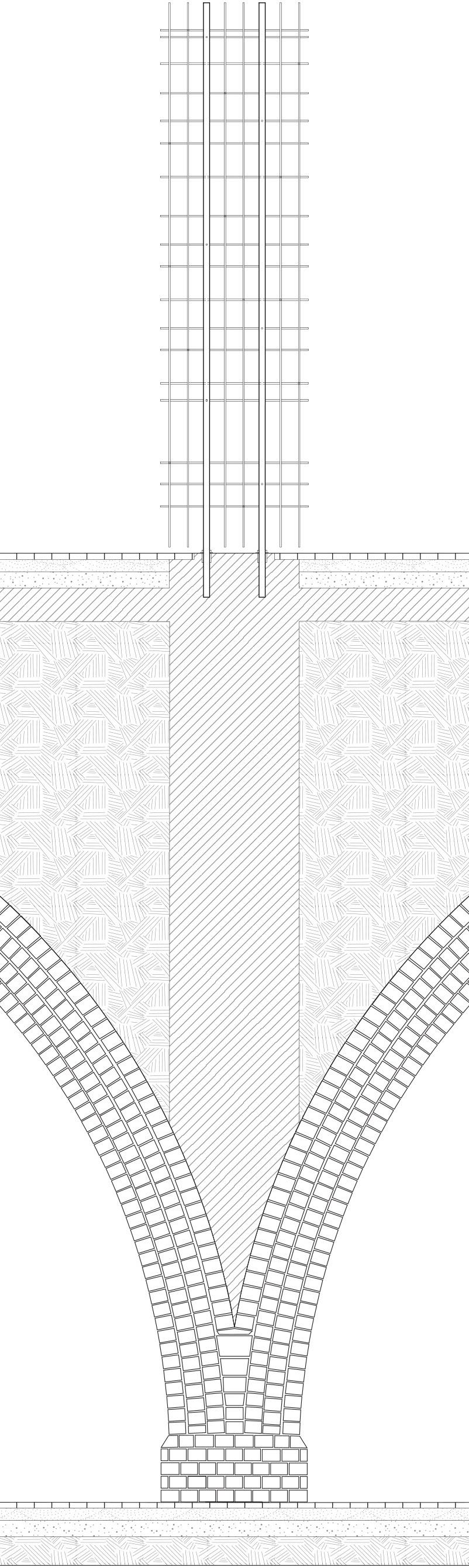

Detail Section of the arches

04

PENNSVILLE MEDICAL CENTER

STRATEGICALLY LOCATED BY SYSTEMICAL MAPPING OF DEMAND AND INFRASTRUCTURE

Pennsville, NJ, USA. Fall, 2022. In Collaboration with Botond Horvath

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

The Pennsville Center is a medical center research project that considers incoming traffic into New Jersey in Post-Roe America.

The center is strategically located by the bridge on the lowest part of the river near public transportation options. The site is placed hidden within the woods for natural barrier and views. The building itself is layed out to protect the surgical core and the recovery rooms from outside invaders.

In order to provide maximum comfort the building has been designed for daylighting while the recovery rooms are placed at the most ideal spot. Outside of the building, there are pavilions and walk paths to interact with the surrounding environment.

Pennsville Center is a single location among a system of clinics strategically placed locations along the NJ border.

04

Rhino - Illustrator

Lobby Waititing Area for Visitors

Front Desk Bathroom

Security Booth Bathroom Consulting Office Office Operating Rooms

Counseling

Consulting Storage

Break Room

Nurse Station

Recuperation Rooms

Top: Floor plan showing the layered protective plan Bottom: Section

PENNSVILLE MEDICAL CENTER

Bathroom

Recuperation Rooms

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Top: Site plan showing the center in context to the surrounding landscape Bottom: Section

05

Rhino - Lumion - Photoshop - Illustrator

Top: Perspective of the building lobby Bottom: Perspectives of the 3 types of pavilions and an interior view from the recovery room

PENNSVILLE MEDICAL CENTER

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Top: Mini site plan showing location of the pavilions and a daylighting plan Bottom: Daylighting detail section

05

QGis - Illustrator

Map showing the new distribution of clinics

PENNSVILLE MEDICAL CENTER

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Map showing clusters of the new distribution of clinics along with traffic prediction

05

QGis - Illustrator - Photoshop

Top: Map of Deepwater and surroundings Bottom: Site selection map of Deepwater

PENNSVILLE MEDICAL CENTER

hanbyuloh147@gmail.com | Issuu.com/hanbyuloh147

Map predicting the inflow of new patients and determining where they come from

05
