01 The Green Grid Academy 01 Komma- Reborn

Academic Project Year: Mater’s Thesis, 2023-2024 Individual Project Supervised by: Prof. Dr. Andreas Hammer Location: Leipzig, Germany Built-up Area: 86,000 sqf Structure: Reinforced Concreat structure

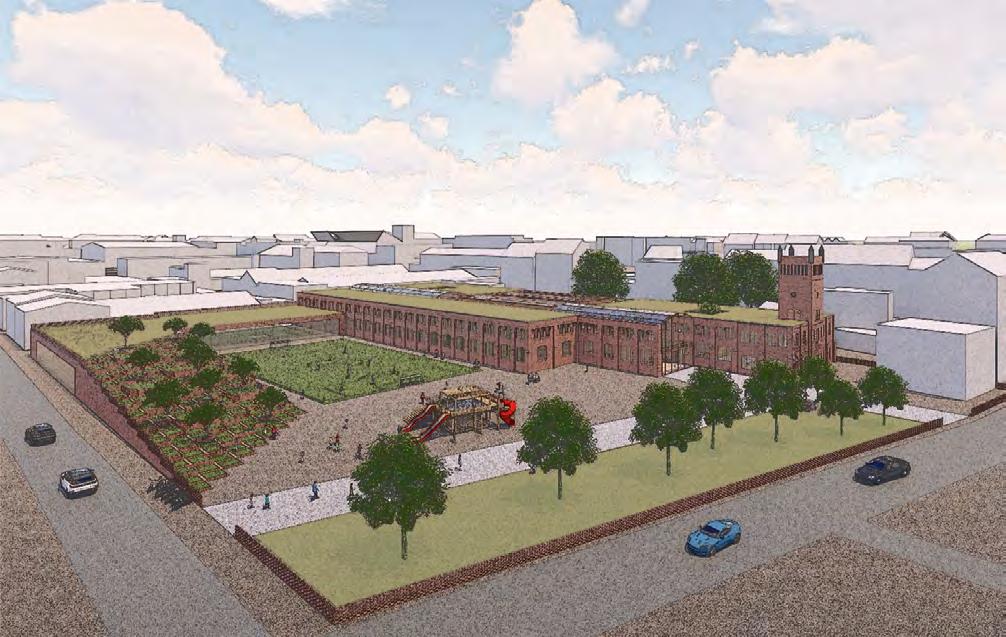

My thesis reimagines an 18th-century factory in Leipzig as a vibrant primary school, seamlessly blending its industrial heritage with modern educational needs. The greatest challenge was preserving the building’s historic integrity, as it is listed under strict heritage protection, while transforming it into a lively, functional space for learning.

By carefully introducing natural light and greenery, I revitalized the building’s atmosphere, creating a dynamic environment that fosters creativity, collaboration, and individuality. A new sports building was added with careful consideration to complement the existing structure, embracing the existing brickwork and providing a safe boundary through landscaped outdoor spaces and seating areas. At the heart of the design, the central library features innovative hanging plant boxes, bringing the essence of outdoor gathering spaces indoors to encourage interaction and inspiration.

3

Conceptual Approach Diagram A)Addressing existing challenges

1. Existing Condition,

3. Light and Greenery,

The building shows significant wear with deteriorated roofs, cracked columns, and damaged floors.

•

Penetrated the building mass to allow natural sunlight and greenery, enhancing atmospheric dynamism and stimulating children's creativity.

Drew inspiration from the existing building's grid to design engaging landscaping that steps up to the gym roof, which is also covered with greenery.

•

B) Meeting the needs of future students and adapting to evolving pedagogical approaches (

'

&

% $

Classes Gym

Existing

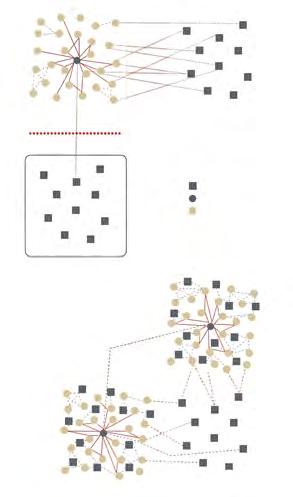

Evolving Spaces: From Conventional to Optimized Traditional Schools

Administration After School

Junction

Proposed

Meeting point Library Colaborations

Libraries, Fablab common areas

Classes Classes

Information Teachers Students

Teachers’ Room

2. Enhancements, • • • •

4

Added volume for an indoor gym.

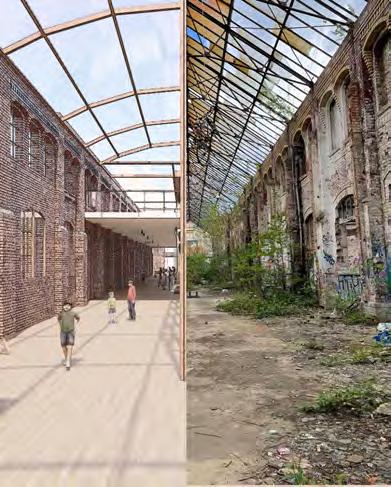

Created an outdoor amphitheater seating area and a stepped playground, providing a safe barrier to the outside Replaced the glass hall roof with a curved design inspired by the existing brickwork.

Highlighted the main entry with a glass wall.

Contemporary school needs

Organizing classrooms into grade-specific clusters and strategically positioning main departments to enhance the efficiency of student and teacher interactions, as well as the circulation and accessibility of learning materials, fostering a more dynamic and effective educational environment.

Classes

Classes

Libraries, Fablab common areas

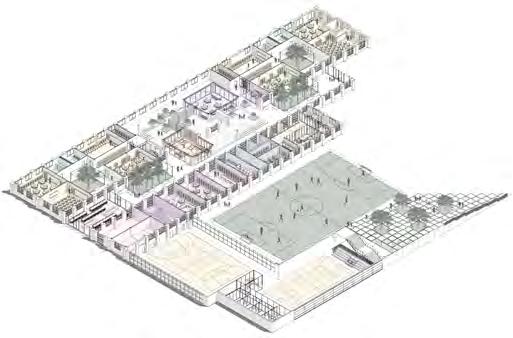

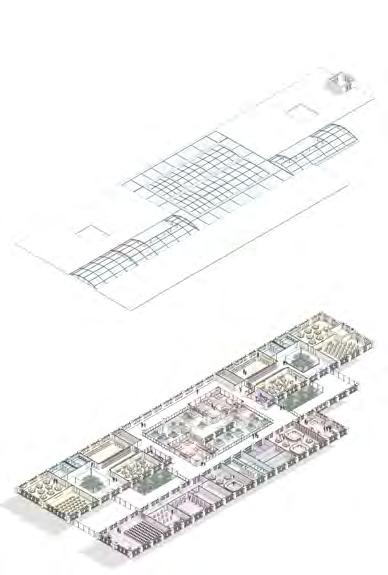

Exploded Axonometric Diagram Roof

First Floor Classes Toilettes After school rooms Afterschool Admin.

Workshop Art Classes Concert Hall

Interior Design Approach The hanging plant boxes, inspired by the geometric rhythm of outdoor cubic landscaping, transform the central library into a living, architectural statement. The interplay of greenery and structure creates a dynamic, almost ethereal atmosphere that blurs the line between built and natural environments, inviting users into a space where creativity and imagination thrive.

Implementation •

Ground Floor

Classes Toilettes After school rooms Administration Workshop Fablab Multi purpopse room Kitchen Cafeteria Glasshall

• •

•

Growing Media: Lightweight options like perlite, vermiculite, or hydroponic systems reduce box weight by up to 90% (7-22 lbs for hydroponics vs.

33-66 lbs for soil).

Hydroponic System: Recirculates nutrient-rich water, minimizing weight and water usage.

Suspension: Stainless steel wires or synthetic fibers securely hang the boxes from the concrete roof frame, ensuring stability and a sleek design.

Structural Load: Load is evenly distributed across the frame to maintain structural integrity.

Underground Floor

Indoor Sporthall

5

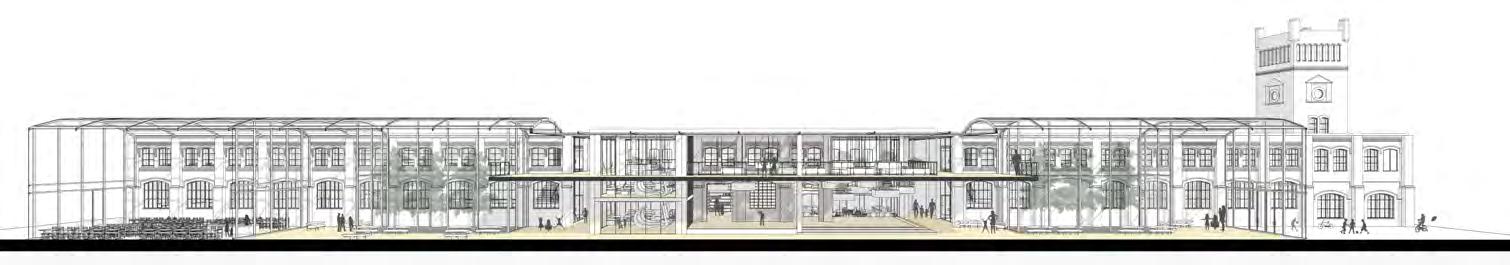

Longitudinal Section

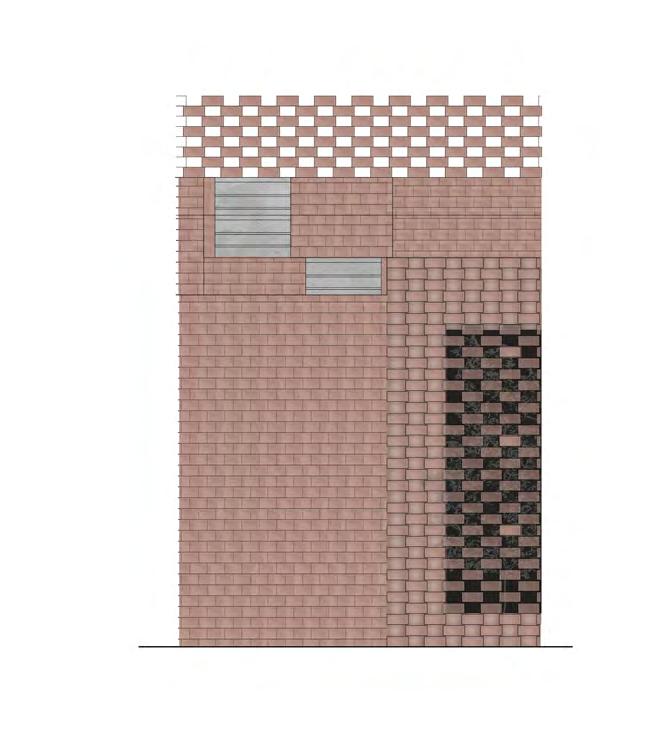

Gym Facade Vertical Section +4.85

1

2 3

4

Interior Vision for the Sports Hall

6 5 +-0.00

-

1.

2.

3.

4.

5.

6.

7.

8

8.

7

-4.50

Intensive Green Roof: 17.7 inches Intensive Substrate, Filter sheet VLF-200, Drainage board DiaDrain-40H, Geotextile protection layer, PE Separation and protection layer, Bitumen vapor barrier with FLL anti-root certification. 7.87 inches Thermal Insulation, 7.87 inches reinforced-concrete deck, 42.5 x 13.8 inches reinforced-concrete downstand beam, pre-tensioned 4.92 x 13.4 inches solid oak frame 8.98 x 4.25 x 2.13 inches water-struck coal-stoked brick lattice soundproof glazing in oak frame: Two layers of 0.24 inches laminated safety glass + 0.55-inch cavity + two layers of 0.16 inches laminated safety glass 8.98 x 4.25 x 2.13 inches water-struck coal-stoked brick in Flemish bond, 0.98-inch back ventilation, stainless steel anchor sealant layer, 5.5 inches mineral wool thermal insulation, 7.87 inches reinforced concrete, 2.36 inches air space, 3.35 inches thermal insulation, and two layers of 0.49-inch gypsum board 3.15 x 1.18 inches Brick pavers 15.7 inches Reinforced Concrete Base Plate, 1.97 inches Magrebeton, PE-Foil, Geotextile, 19.7 inches Misapor foamed glass insulation, Geotextile, 5.9 inches Gravel Layer 0.31-inch Hardwood panel, 0.79-inch Shock Absorption Layer, Load Distribution Layer, PE-Foil, 0.39-inch rubber granulate mat, Geotextile

The indoor sports hall, located on the south side of the school complex, seamlessly extends the design language of the exterior seating area while reinterpreting the existing brickwork in a contemporary manner. Featuring a water-struck coal-stoked brick lattice, the façade filters sunlight to reduce glare while maintaining efficient natural lighting inside. The column-free, cubic modular roofing system spans the hall’s wide interior, reflecting the project’s emphasis on modularity and material harmony. The thoughtful integration of wood and brick highlights a balanced blend of tradition and modernity, creating an inviting and functional space for sports and recreation.

6

02 Komma- Reborn 01 Komma- Reborn

Academic Project Year: Modul 7, 2023-2024 Individual Project Supervised by: Prof. Dr. Andreas Hammer L

: Esslingen, Germany

Built-up Area: 32000 sq f Structure: 19th century Timber Framing reinforced with concrete columns, Reinforced Concreat structure and IPE-27 steel columns for the new add ons

Komma, originally a 19th-century factory in Esslinegn, Germany, has been repurposed as a youth center, yet faces challenges in adap ng its aged infrastructure to modern needs. In my master's 7th Module, I tackle the task of revitalizing Komma.

My design approach aims to seamlessly blend heritage with func onality, ensuring that it serves the diverse requirements of today's youth.

Understanding the importance of providing spaces that foster both enjoyment and enrichment, I have envisioned areas like the cre vity zone, featuring custom-designed furniture.

Add onally, I emphasize the site's historical significance by showcasing the func oning 14th-century water wheel located on the south side of Komma.

7

Concept Diagram 3. Adding two volumes in order to connect the existing buildings, as well as creating more space for the youth center

4. Deduction for increase of natural light and greenery

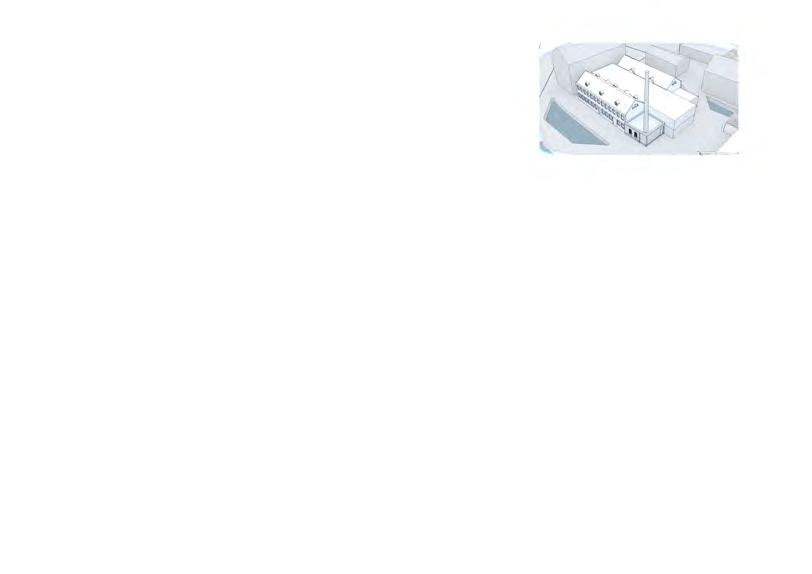

1.Komma’s current condition

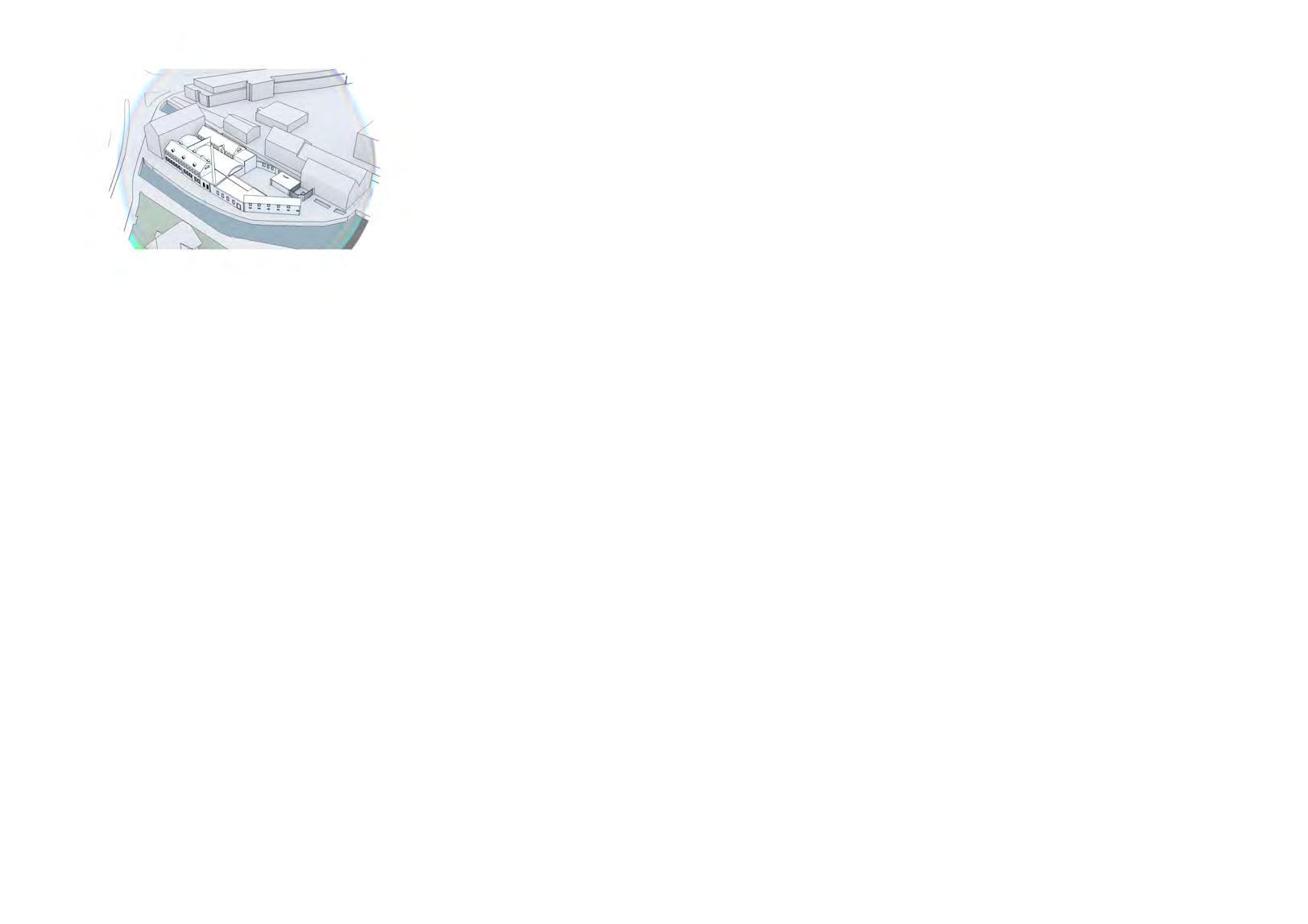

2. Demolition of the insufficient parts, and Connecting Komma to the other side of the canal for better accessibility to the main Entry

5. a) Adding two volumes in order to connect the existing building to the Ecoin Hotel for the Water wheel Museum as well as a exhibiting the functioning water wheel b) Adding a glass extention to the existing building for Museum’s required areas

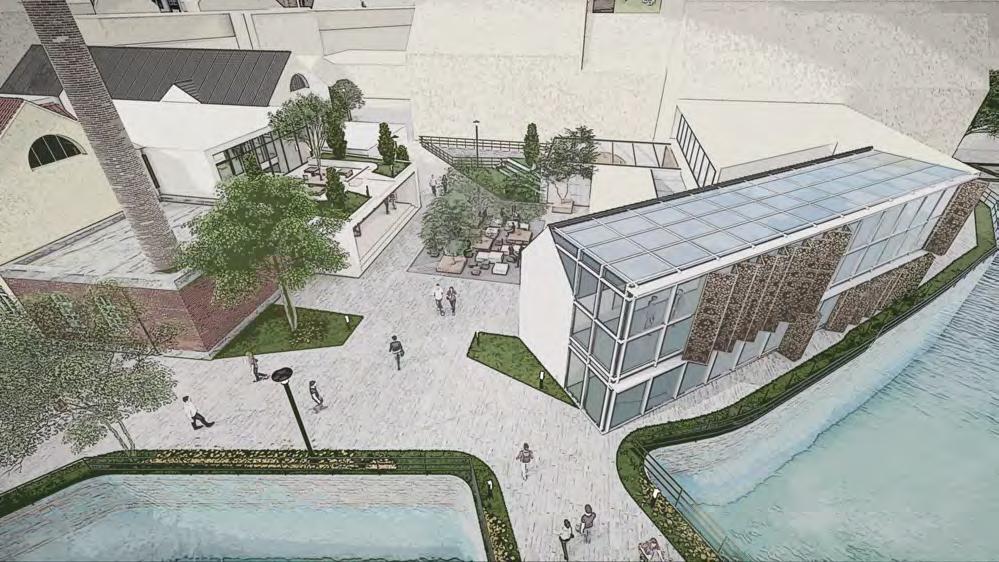

6. The final Design

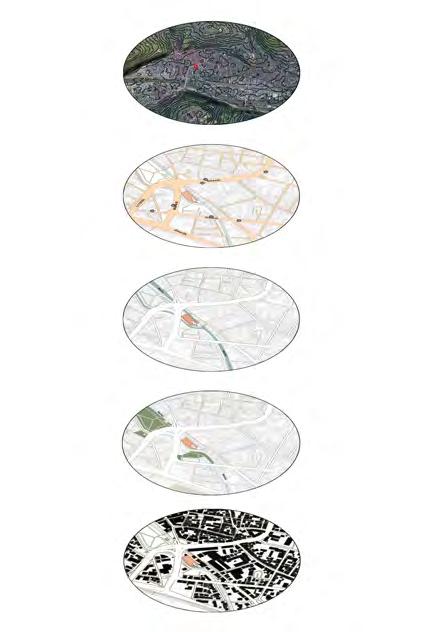

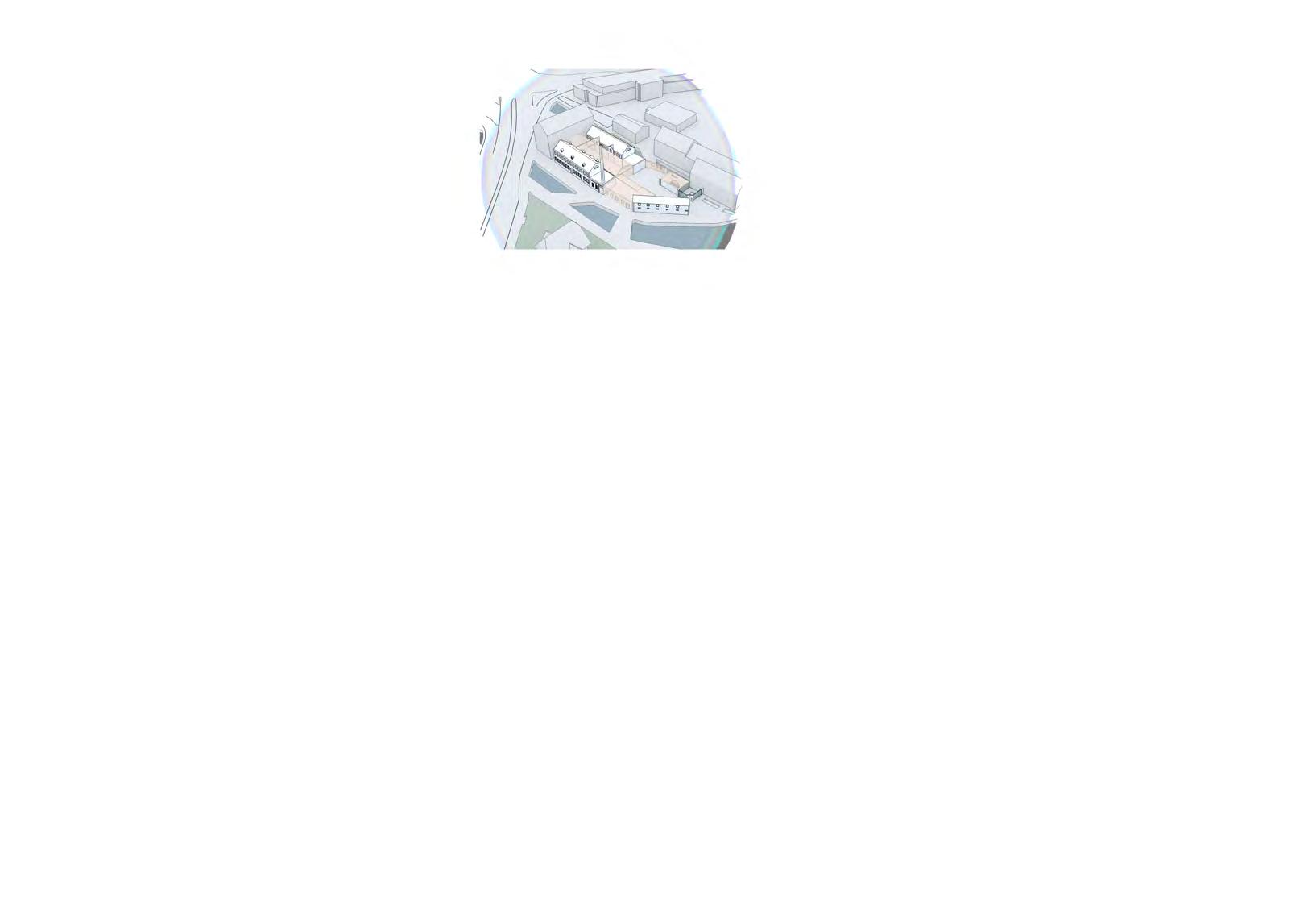

City Topography

ZOOM IN

Tranpostation Main Streets Bus Stations

Water Body Neckar Canal

Vegetation

N

Green Areas Public Parks

S

E

W

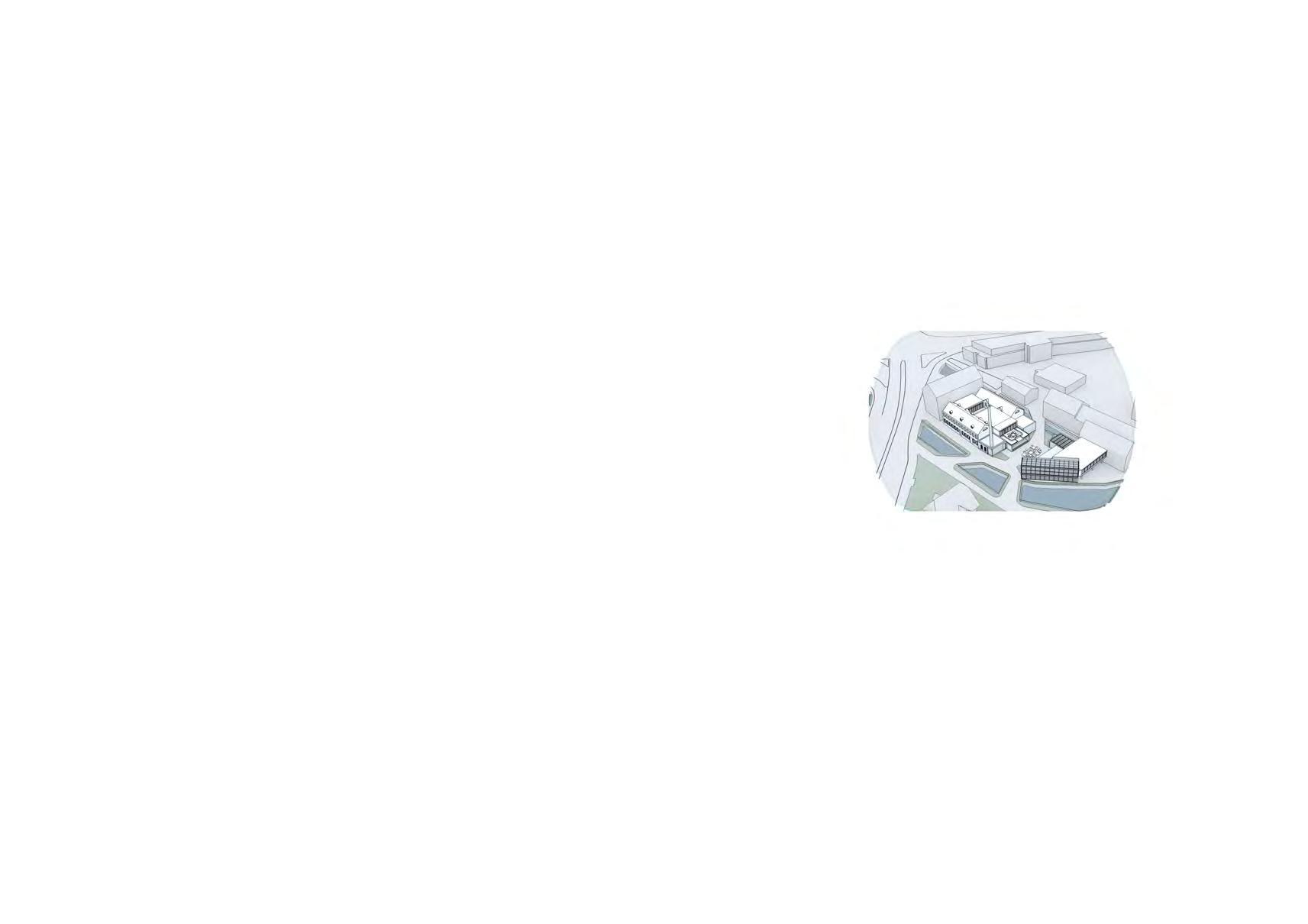

Site Overview

84

Site Analysis

Mass Space

3

7

8

11

6 5

2

2

1

10 9

4

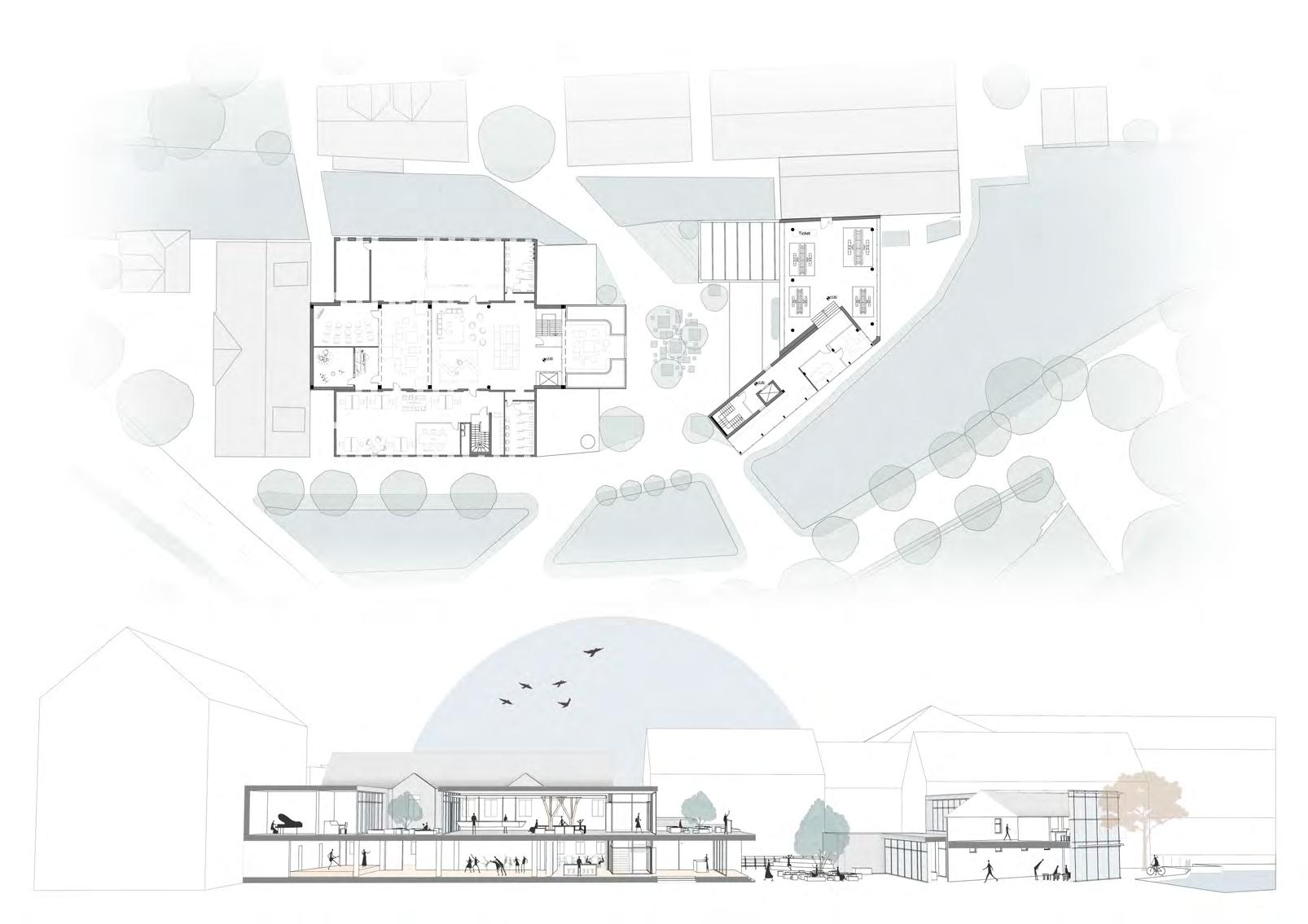

First Floor Plan

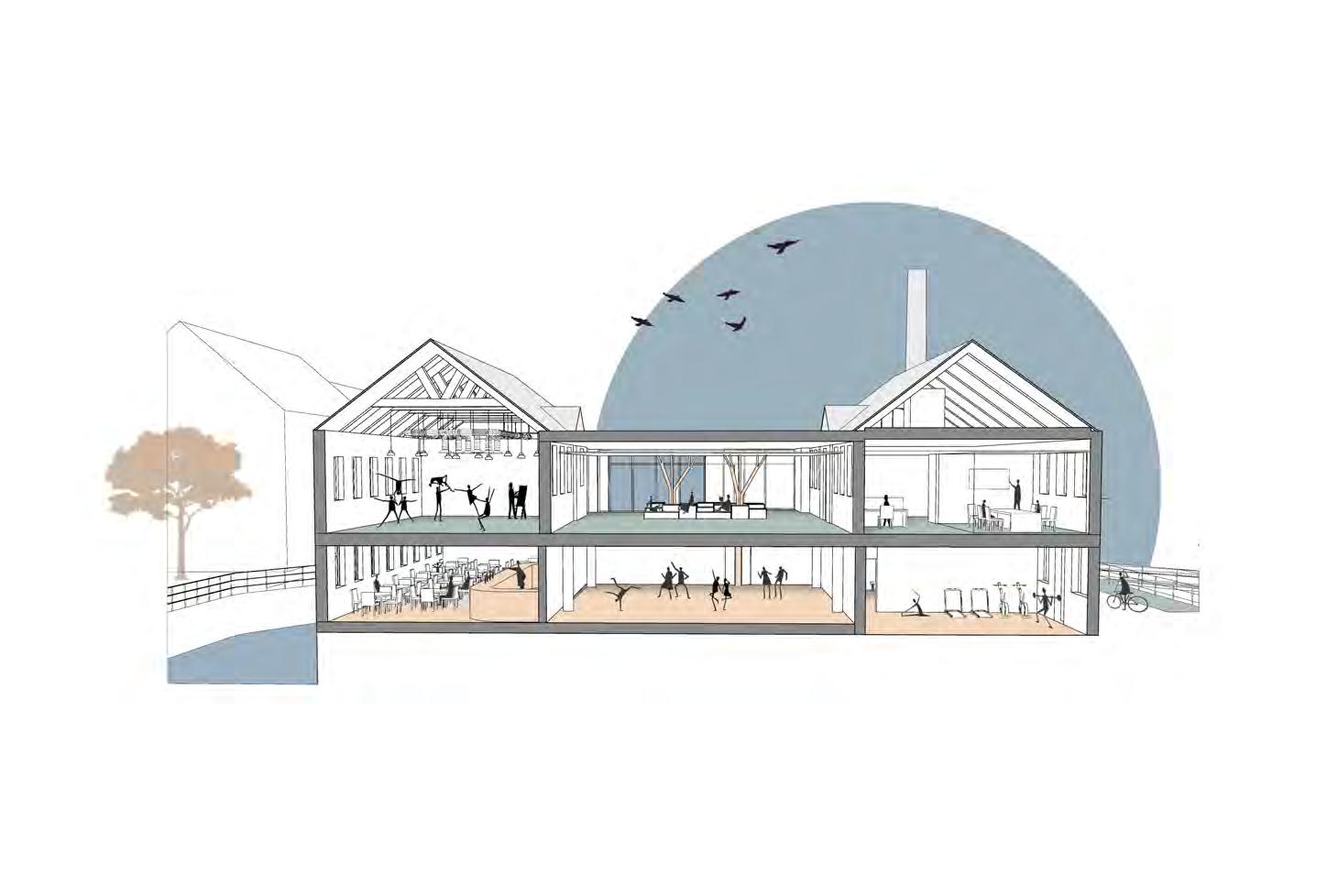

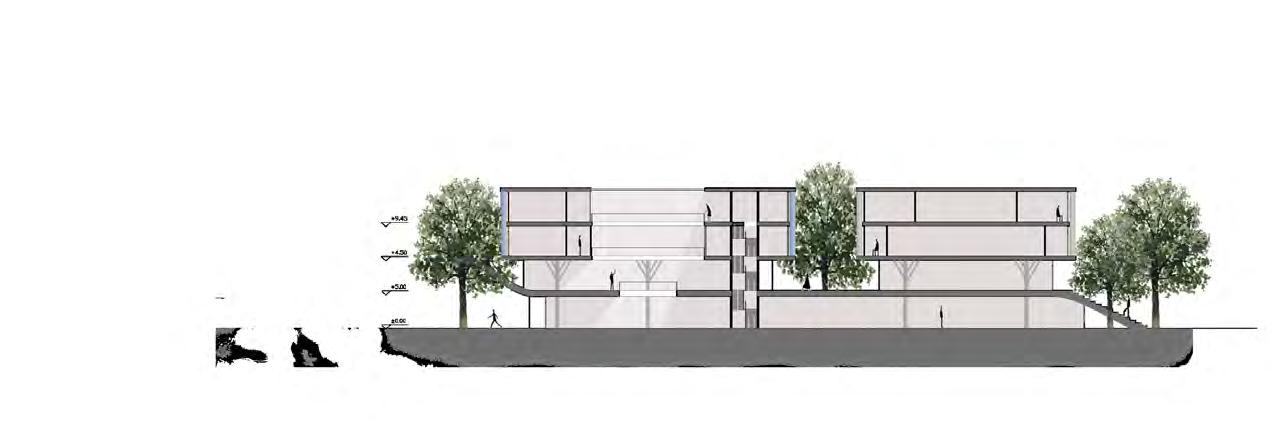

Section A-A 9

3

1. Creativity Zone 2. Green Terrace 3. Restroom 4. Coworking space 5. Recording Studio 6. Music Class 7. Dance/ Art Rehearsal Room 8. Storage 9. Gift Shop 10. Museum’s Office 11. Water Wheel Museum

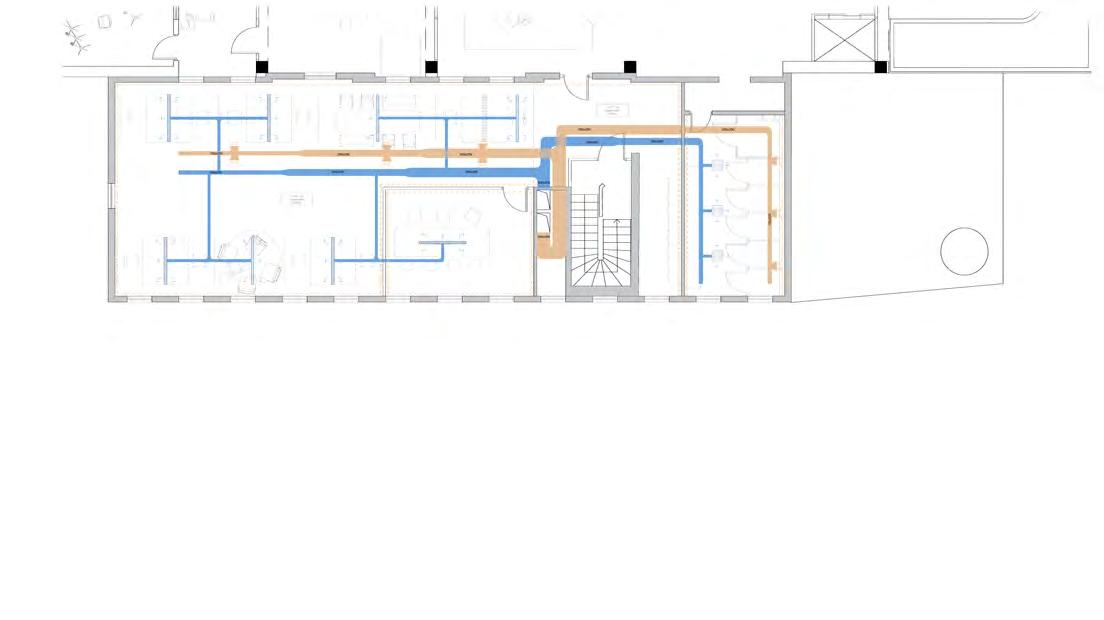

Co-working area HVAC Plan

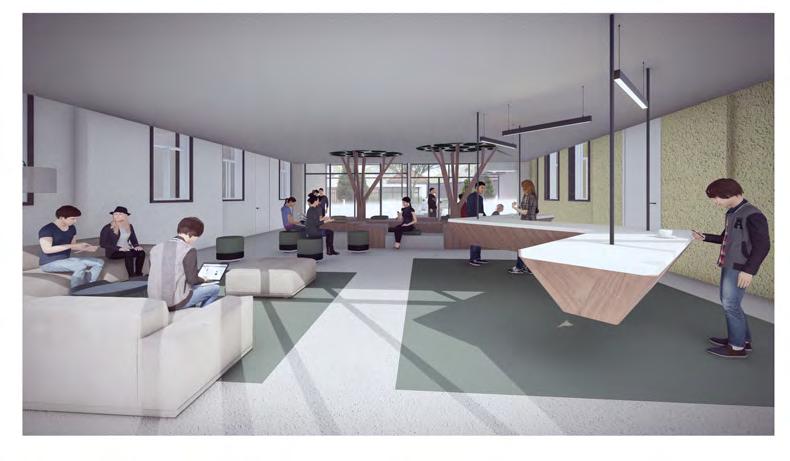

Creativity Zone Interior Design

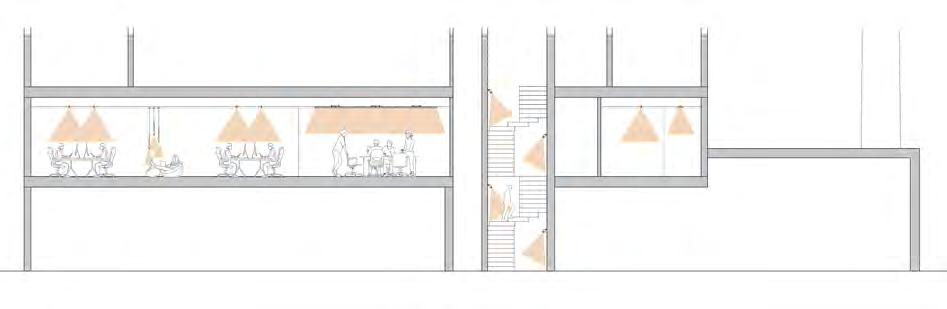

Co-working area Lighting Section

Energy and Re-use Concept In meeting the challenge of insulating a historic building under stringent facade modification constraints, our approach emphasizes energy efficiency and sustainability. Utilizing calcium silicate insulation, we insulated existing sections and seamlessly integrated insulation into new additions. This method respects the architectural integrity of the building while maximizing energy conservation and sustainability.

10

Section B-B

Section B

Section A

1

1. Schüco FWS-35 Transom-Facade system with face widths of 35 mm and triple glazing glass and self-supporting 90° all-glass outer corner, with 1% sloped roof

2

2. Steel Canteliver 3

4

6

7

3. Schüco FWS-35 Transom-Facade system with 60 mm transom integrated with interior sun shading system

4

4. Griesser motorized sliding bi-fold screen with 3mm perforated cooper sheets, ground floor: 24 screens, 255 x 90 cm first floor: 24 screens, 95 x 90 cm

5

8

5. IPE-27 Steel columns integrated with concrete 6. Schüco FWS-35 Transom-Facade system base point with composite thermal insulation system 7. Ground floor cover, Adler Oak wood parquete 20 x 130 mm 8. Misapor under the base plate foamed glass insulation with v 500 mm depth A

9. Raised floor with Industrial carpet tiles and steel channel beam and sound insulation 10. Allco Allenspach AG - Floor convector cold, water convector for heating and cooling 11. Suspended ceiling with 2 layer Gypsum board integrated with Knauf Mineral wool for sound isolation Section C 4

+310 B

1 9

+310

10

2 3 C

11

1 71

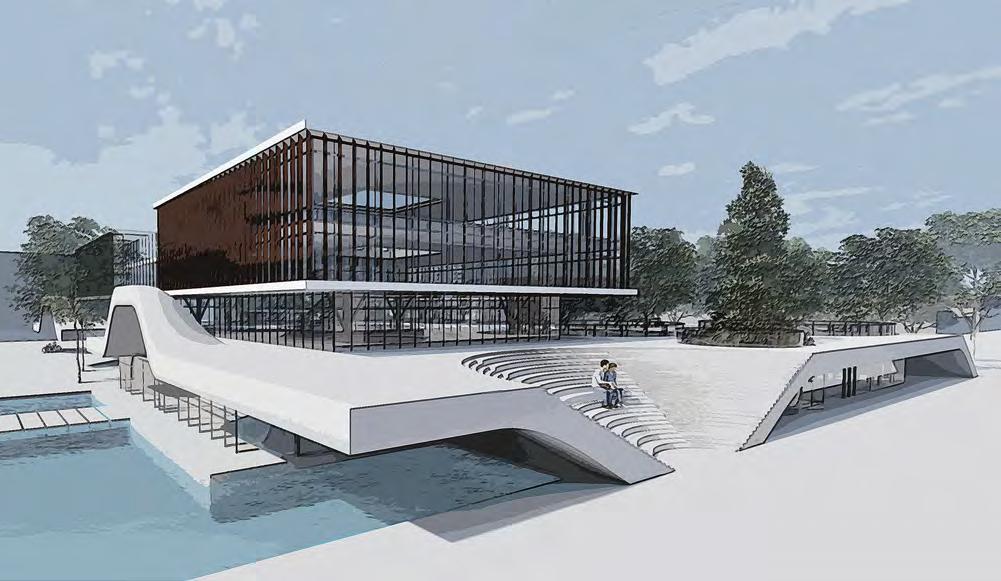

03 KIT Nord Science Center 01 Komma- Reborn

Academic Project Year: Modul 3, 2023 Individual Project Supervised by: Prof. Dr. Andreas Hammer L

: Karlsruhe, Germany

Built-up Area: 193000 sq f Structure: Tree-like structure: tubular steel column with 500 mm diameter for the main structure and 250 mm for the substructures, Canopy: Reinforced Dammbetone with 800mm width

The KIT Nord Science Center proposes a pioneering architectural idea—a hub where emerging scien sts and scholars come together to collaborate and innovate, y forming a bustling marketplace essen of ideas, fostering a culture of collabora on, empowering the next genera on to push the boundaries of knowledge.

Confronted with the challenge of preserving mature trees on the site, we seized this opportunity to seamlessly blend nature into our design philosophy, recognizing its profound influence on human cre vity and intellect, aiming to merge these maje c trees with our architectural vision, leading to the cre on of a vers e canopy-like structure, carefully cra ed to adapt to the changing needs of KIT Nord's aspiring minds.

12 8

Concept Diagram

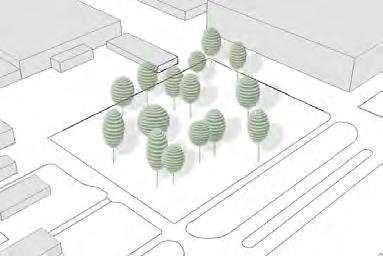

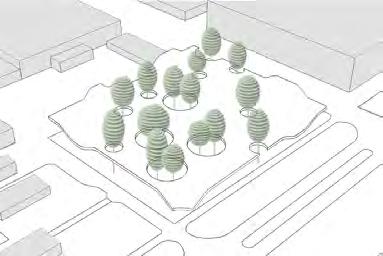

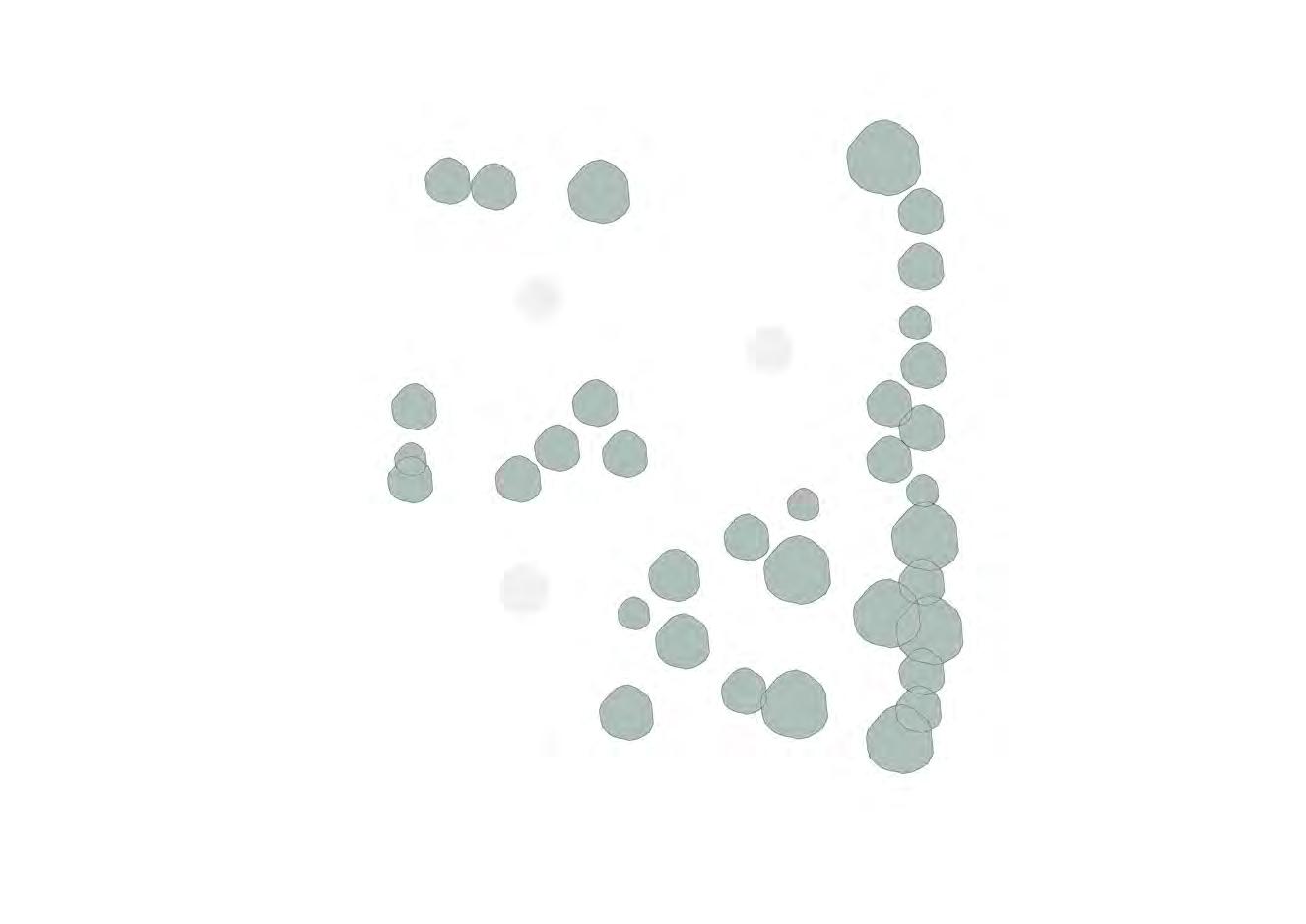

1.The current well-grown trees

site,

with

numerous

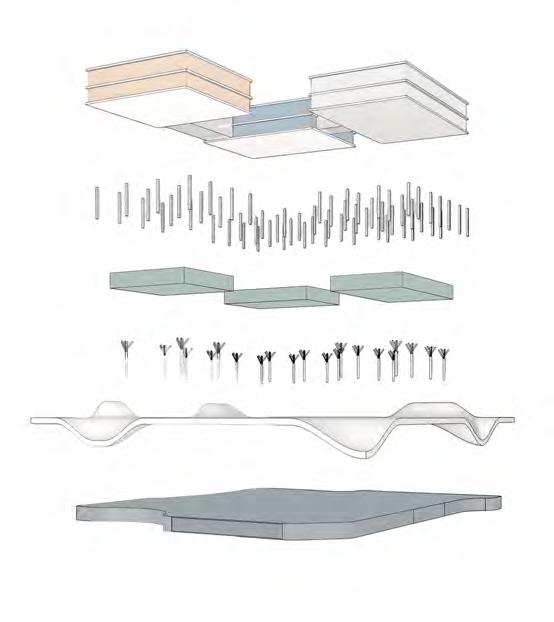

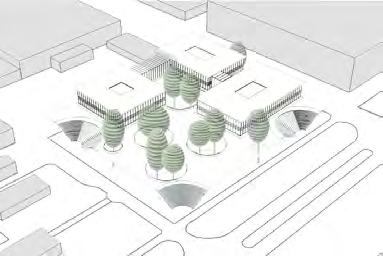

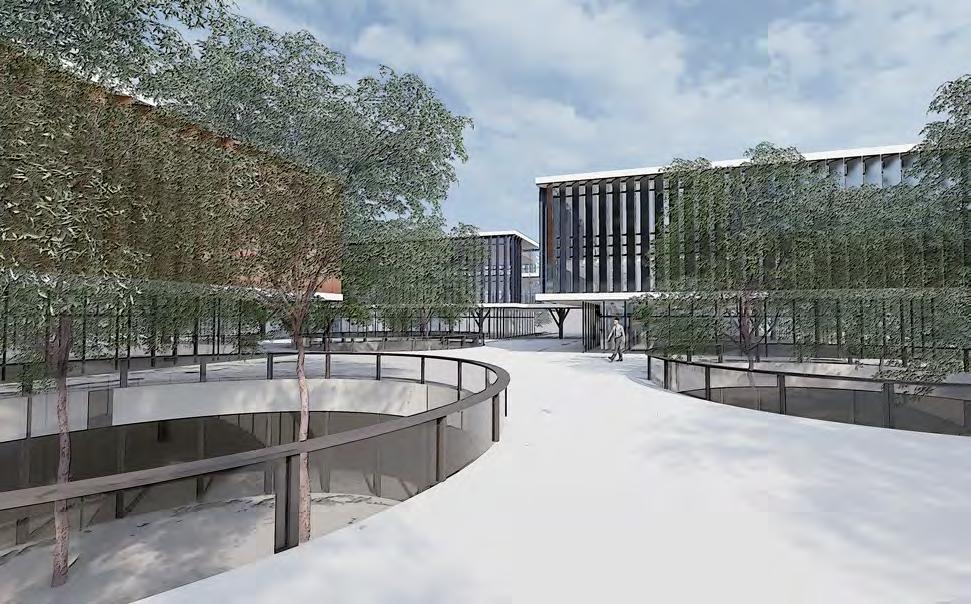

2. Designing a flexible structure that gently curves down to blend with the landscape at entrances, while complementing neighboring buildings with an upward curve. Strategically including openings to preserve trees and minimize environmental disruption.

3.Concluding by integrating three cubic volumes to accommodate the university's diverse departments, laboratories, and research facilities.

Physics and Mathematics Chemistry and Environment

Technology and IT

m ual Roo Individ Room Project Room Individual om Project Ro

Workshop

Exhibition

Room Individual om Project Ro

3rd

Events

Lectu r

es

2nd

1st

Café/ Bar

13 9

Restaurant

Gameroom

Functions Diagram

ing

storm

Brain

E

A

3

5

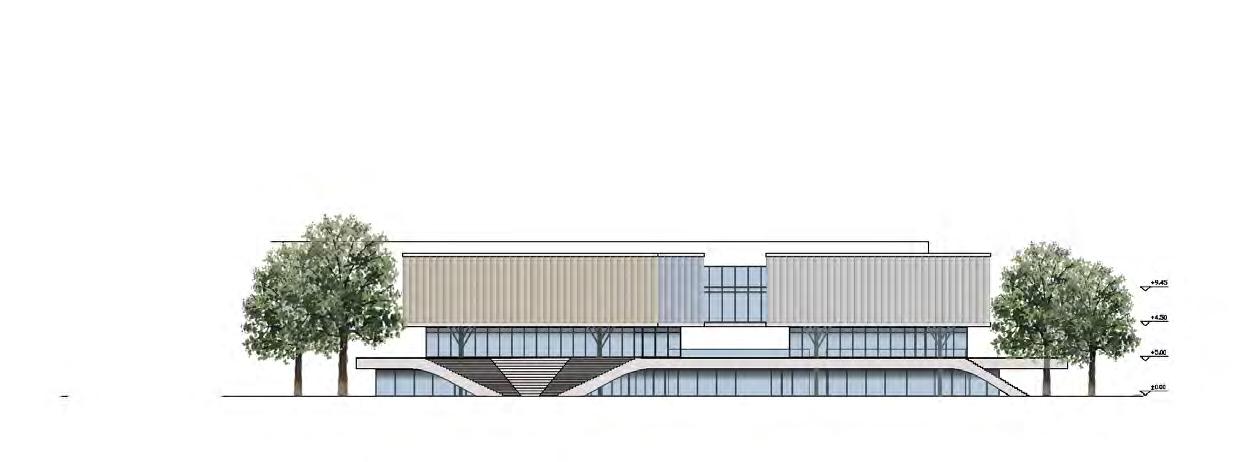

South Elevation

1 4

3

Rotating Cooper Louvre

Rotating Blue Still Louvre

PV Panels on the back side of every Louvre

Rotating Still Louvre

1

6

1

1.

2.

3.

4.

5.

6.

7.

8.

9.

8

5

7

1

4 2

4

1

2

Entry Brainstorming Capsules Café/ Bar Restroom Mobility workshop Mobility Parking area Restaurant Buffet Gift Shop

2

A

A

1

1.

2.

3.

4.

5.

First Floor Plan

Entry Workshop Event room Debating area Exhibition

3

1

2

Ground Floor Plan 14

A

1

Section A-A

Facade Details +19.45

+19.45

+9.95

+14.45

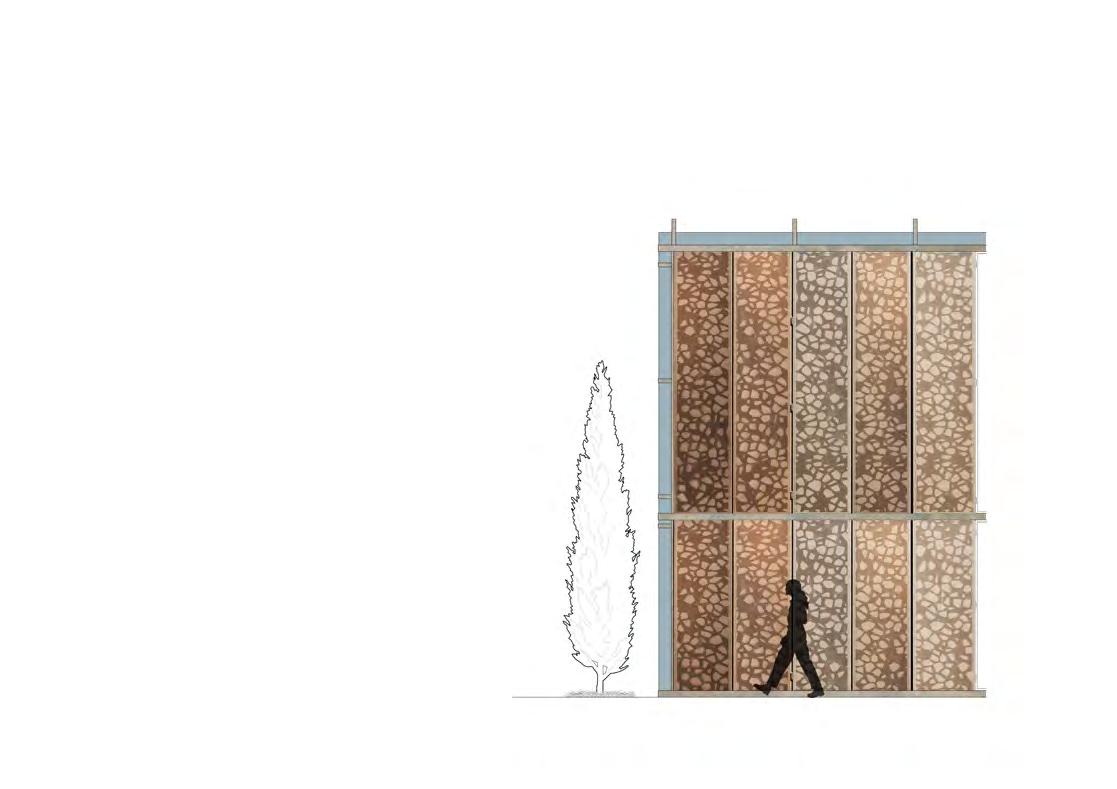

ELERO Systems - Picolo 0 Vertical Rotating shading facade system Track option: concealed within the raised floor with wall mounted control switch Cladding finish: Perforated, aged sheetmetal (Aluminium/ Cooper/ and Solar Panels

Optigrün roof greening - Nature Roof 1. Perinnial plants and/or Seed Mix EKR/EGR and Sedum Cuttings 2. Extensive Substrate E (60-200mm) mounds required 3. Ecorain iMat (Irrigation Mat)subsurface irrigation system installed 10-30cm below surface.

4. Filter fleece FIL 105 5. Drainage and Storage Board FKD 40 (40mm) 6. Protection and Storage Fleece RMS 300 7. Waterproofing membrane (root resistant according to FLL) 8. 150-200mm Insulation layer with a minimum fall of 1:40 towards outlets / drainage pipes.

+9.95

+5.45

Tree-like Structure Main Trunk, Tubular Steel with 500 mm Diameter and Branches 250 mm

Canopy Structure Dammbeton , 0.8 m width

11 15

+0.45

A total of 380 glass/glass photovoltaic Modules each 8 m high and 0.8 wide installed on the facade louvres, rotating 260 degrees with Automechanic Elero active facade system, and Picolo 0 Linear Actuator.

Raised floor

Transome Mullion facade system

Industrial carpet tiles Chipboard Steel channel beam Steel props Screed layer d.p.c Sound insulation Reinforced Concrete slab

Double glazed surfaces with aluminium frames. With openings at the top and bottom on each second panel for natural ventialtion.

04 Haus A

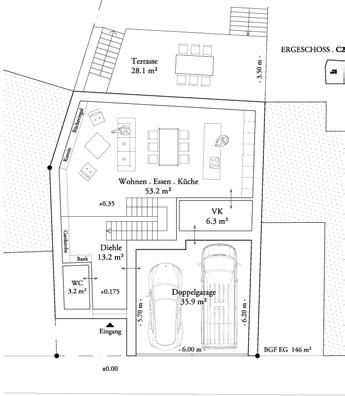

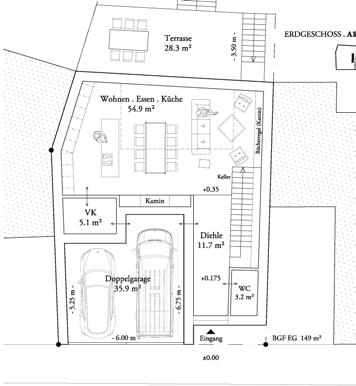

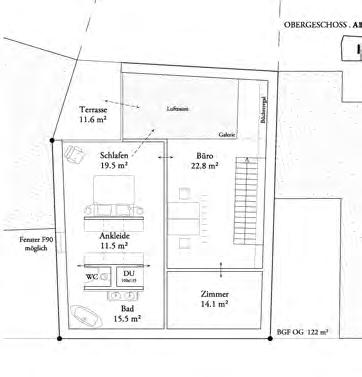

In my role as a werkstudent alongside Dipl. Ing. Marcin Grala, I was tasked with cre ng in sketches and developing various plan altern ves for project layouts, circu ons, and room designs. My focus extended to cra ng tailored to fit the spaces with dis nct quali lifestyle and needs of our clients, u ely providing them with a wide array of choices to select from.

01 Komma- Reborn

Professional Project Year: 2023 Team: Atelier of Architecture (Dipl. Ing. Marcin Grala), Mahsima Rostamian L

: Germany

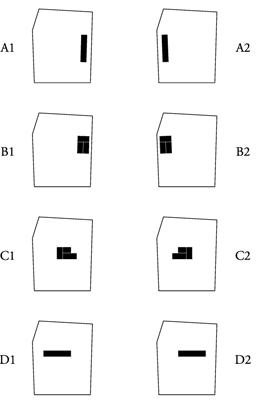

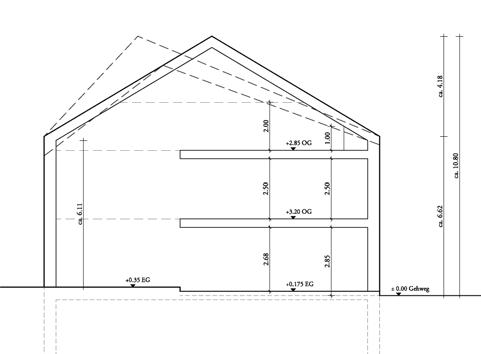

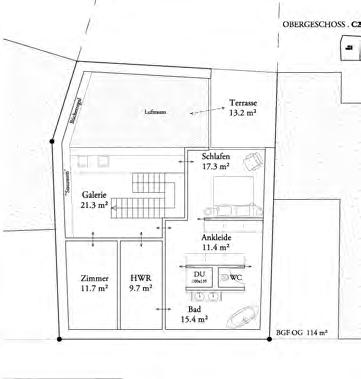

Plan Variants

Variant A1

16 12

Sec on Roof Altern

ves

Variant C2

04 Büro W 01 Komma- Reborn

Professional Project Year: 2023 Team: Atelier of Architecture (Dipl. Ing. Marcin Grala), Mahsima Rostamian Location: Germany

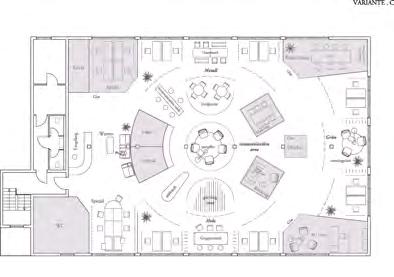

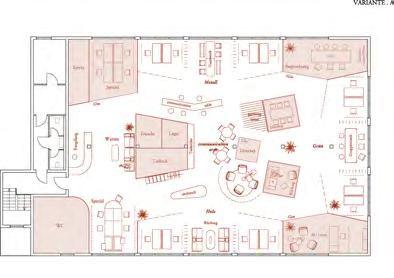

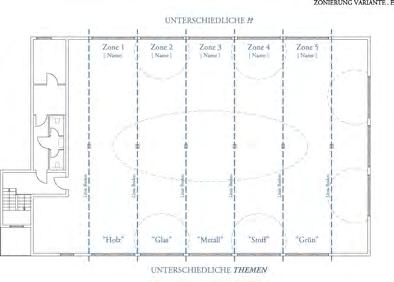

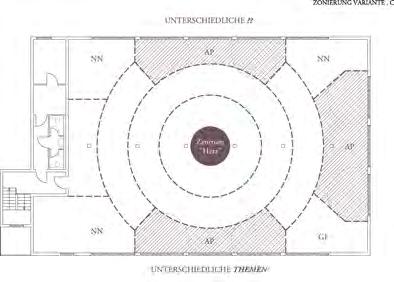

Variant A

17 13

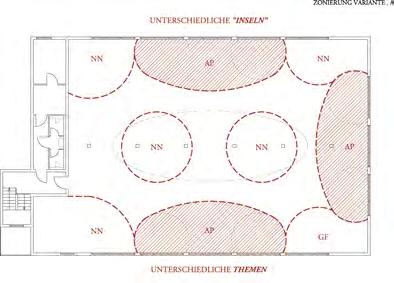

For Project Büro W, we were entrusted with transforming a generous office area accommodating approximately 35 workers. Our mission was to create an office environment that surpassed expectations, fostering enhanced coworking dynamics and collaboration quality while ensuring a homely atmosphere. Our design aimed to provide privacy and comfort as required. To kickstart the project, we developed three initial plan layouts, each offering unique possibilities and qualities.

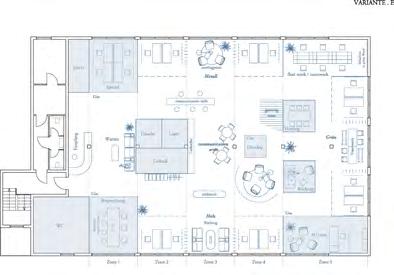

Variant B
