TURN OF NUT Wrenches
GWY is proud to be the largest distributor of TONE products not only in North America, but also worldwide. Tools are not a sideline for us, they’re our only focus. We offer same-day shipping worldwide, as well as same day repair service - that is why we maintain the largest inventory of TONE tools and parts in North America. Phone: 888-838-6500 Email: sales@gwyinc.com For additional information, including dimensioned drawings visitContactwww.gwyinc.comustomatch the right tool for the bolts on your job Installing Hex-Head Bolts has never been easier or more efficient. Our TN wrenches have time-saving features that minimize error and maximize on-the-job productivity. When you work with GWY, we’ll make sure you get it done right the first time. • Maximize productivity with automatic angle control The best way to install with Turn-of-Nut or DTI’s. • Reduce the risk of injury from arm fatigue The tool’s reaction arm absorbs the torque, not the installer. • Easily move around the jobsite The electric, lightweight design means no heavy hoses or compressors to drag around the site. • Absolute Accuracy Rotation control in 1° increments.
3 TURN OF NUT WRENCHES SELECTION CHART Tool models may be used for larger type 1 black bolts- wax or other lubricant required* A325 A490 A325 A490 A325 A490 A325 A490 A325 A490 A325 A490 1 TNC-24EZATN-20EZTN-22EZTN-30EZTN-24EZA STANDARDMINIMALCLEARANCE A325 A490 A325 A490 2 GPTN-331EGPTN-391EGPTN-301EGPTN-241ETN-33EZTN-39EZ NEW * ” ” ” ” ” ” ””
4 TURN OF NUT WRENCHES TN-24EZA Max.SPECSTorque 921 ft-lb (1,250 N•m) Max. Power 1,100 W Max. Current 13.5 A Voltage 110-120 V RPM 9 rpm Accessories · X-Holder Extension 100 mm · Digital Torque Meter DTM 12 · Reverse Kit Installation · Bar Sockets TN-30EZ Max.SPECSTorque 1,444 ft-lb (1,958 N•m) Max. Power 1,300 W Max. Current 15 A Voltage 110-120 V RPM 6 rpm Accessories · X-Holder Extension 100 mm & 200 mm · Digital Torque Meter DTM 21 · Reverse Kit Installation · Bar Sockets TN-22EZ Max.SPECSTorque 542 ft-lb (735 N•m) Max. Power 1,100 W Max. Current 13.5 A Voltage 110-120 V RPM 17 rpm Accessories · X-Holder Extension 100 mm · Digital Torque Meter DTM 8 · Bar Sockets TN-20EZ Max.SPECSTorque 398 ft-lb (540 N•m) Max. Power 1,100 W Max. Current 13.5 A Voltage 110-120 V RPM 22 rpm Accessories · X-Holder Extension 100 mm · Digital Torque Meter DTM 5 · Bar Sockets TN SERIES The TN Series features bar sockets with reaction arm that stops automatically when preset angle is reached, setting dial with controllable angle range between 90~240°, ± 10% repeated accuracy, and reverse kit installation available for select models.
5 TURN OF NUT WRENCHES TN-39EZ Max.SPECSTorque 3,700 ft-lb (5,017 N•m) Max. Power 1,350 W Max. Current 12 A Voltage 110-120 V RPM 2 rpm Accessories · Reverse Kit Installation · Bar Sockets TN-33EZ Max.SPECSTorque 2,200 ft-lb (2,983 N•m) Max. Power 1,100 W Max. Current 13.5 A Voltage 110-120 V RPM 3.5 rpm Accessories · X-Holder Extension 100 mm & 200 mm · Reverse Kit Installation · Bar Sockets TNC-24EZA Max.SPECSTorque 920 ft-lb (1,250 N•m) Max. Power 1,650 W Max. Current 14.5 A Voltage 110-120 V RPM 11 rpm Accessories Bar Sockets CLEARANCEMINIMAL Coming Soon Cordless Turn-of-Nut Wrenches
6 TURN OF NUT WRENCHES GPTN-331E Max.SPECSTorque 2,200 ft-lb (2,983 N•m) Max. Power 1,750 W Max. Current 15.5 A Voltage 110-120 V RPM 5 rpm Accessories · X-Holder Extension 100 mm & 200 mm · Bar Sockets GPTN-391E Max.SPECSTorque 3,700 ft-lb (5,017 N•m) Max. Power 1,600 W Max. Current 14 A Voltage 110-120 V RPM 2.5 rpm Accessories · Bar Sockets GPTN-241E Max.SPECSTorque 900 ft-lb (1,220 N•m) Max. Power 1,900 W Max. Current 18 A Voltage 110-120 V RPM 16 rpm Accessories · X-Holder Extension 100 mm · Digital Torque Meter DTM 12 · Bar Sockets GPTN-301E Max.SPECSTorque 1,444 ft-lb (1,958 N•m) Max. Power 1,900 W Max. Current 17 A Voltage 110-120 V RPM 8 rpm Accessories · X-Holder Extension 100 mm & 200 mm · Digital Torque Meter DTM 21 · Bar Sockets GPTN SERIES The GPTN Series is a new line of Turn-of-Nut Wrenches featuring overload protection, bar sockets with reaction arm that stops automatically when preset angle is reached, setting dial with controllable angle range between 90~240°, ± 10% repeated accuracy, and integrated reverse kit.
TURN OF NUT WRENCHES 7 Digital Torque Meters (DTM) provide an easy-to-read torque display and a flash memory card that stores the date, time, and torque measurement for each bolt tightened. This information can be downloaded for reporting and quality assurance. • & Torque measurements • ± 3% Repeatable accuracy • 10,000 readings powered by four (4) AAA batteries • Perfect for Rotational Capacity Testing (ROCAP) DTM 5 DTM 8 DTM 12 DTM 21 Torque Readout 80-400 ft-lb (100-550 N•m) 190-620 ft-lb (250-850 N•m) 410-920 (550-1,250ft-lbN•m) 620-1,590 ft-lb (840-2,160 N•m) For Use With: TN-20EZ TN-22EZ TN-24EZA TN-30EZ GPTN-241E GPTN-301E DIGITAL TORQUE METER X-HOLDER EXTENSIONTNSeries TN-20EZ TN-22EZ TN-24EZA TN-30EZ TN-33EZ 100 MM 200 MM GPTN Series GPTN-241E GPTN-301E GPTN-331E 100 MM 200 MM ACCESSORIES
8 TURN OF NUT WRENCHES CORDLESS IMPACT WRENCHES 2758-22CT MaxMILWAUKEETorque 210 ft-lb (285 N•m) Voltage DC 18 V RPM 1,750 rpm Kit Includes • One (1) M18 FUEL™ 3/8″ Compact Impact Wrench with ONE-KEY™ & Friction Ring (Tool Only- 2758-20) • Two (2) M18™ REDLITHIUM™ CP2.0 Batteries (48-11-1820) • One (1) M18™ & M12™ Multi-Voltage Battery Charger (48-59-1812) • One (1) Carrying Case • One (1) Belt Clip 2759-22 MaxMILWAUKEETorque 220 ft–lb (298 N•m) Voltage DC 18 V RPM 2,500 rpm Kit Includes • One (1) M18 FUEL™ 1/2″ Compact Impact Wrench with ONE-KEY™ & Pin Detent (Tool Only- 2759-20) • Two (2) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Packs (48-11•1850)One (1) M18™ & M12™ Multi-Voltage Battery Charger (48-59-1812) • One (1) Carrying Case • One (1) Belt Clip • The M18 FUEL™ Compact Impact Wrench Series provides users with a cordless solution that eliminates the need for corded impact wrenches. • Featuring a POWERSTATE™ Brushless Motor that delivers nut-busting and fastening torque with constant power output under heavy load enables completion of the most demanding applications. • REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. • REDLITHIUM™ Batteries deliver more work per charge and more work over the life of the pack than competitive batteries on the market. • Selective compatibility with ONE-KEY™, this is the industry’s first Impact Wrench that wirelessly connects to a smart phone to customize, track, and manage a tool’s performance and location. • Friction Ring eliminates the need to use a pneumatic tool for those stubborn and rusted bolts. Milwaukee Impact Wrench Kits
9 TURN OF NUT WRENCHES 2864-22 MaxMILWAUKEETorque 1,200 ft–lb (1,626 N•m) Voltage DC 18 V RPM 1,800 rpm Kit Includes • One (1) M18 FUEL™ 3/4″ High Torque Impact Wrench with ONE-KEY™ & Friction Ring (Tool Only- 2864-20) • Two (2) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Packs •(48-11-1850)One(1)M18™ & M12™ Multi-Voltage Battery Charger (48-59-1812) • One (1) Carrying Case • One (1) Belt Clip 2867-22 MaxMILWAUKEETorque 1,500 ft–lb (2,030 N•m) Voltage DC 18 V RPM 2,900 rpm Kit Includes • One (1) M18 FUEL™ 1″ High Torque Impact Wrench with ONE-KEY™ (Tool Only- 2867-20) • Two (2) M18™ REDLITHIUM HIGH OUTPUT™ XC8.0 Batteries (48-11-1880) • One (1) M18™ & M12™ Rapid Battery Charger (48-59-1808) • One (1) Tool-Free Adjustable Handle • One (1) Lanyard Loop • One (1) Carrying Bag • One (1) Belt Clip 2767-22 MaxMILWAUKEETorque 1,000 ft-lb (1,355 N•m) Voltage DC 18 V RPM 1,750 rpm Kit Includes • One (1) M18 FUEL™ 1/2″ High Torque Impact Wrench with Friction Ring (Tool •Only-2767-20)Two(2)M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Packs •(48-11-1850)One(1)M18™ & M12™ Multi-Voltage Battery Charger (48-59-1812) • One (1) Carrying Case • One (1) Belt Clip CIW61100 Max.TONETorque 1,328 ft-lb (1,800 N•m) Voltage DC 36 V RPM 2,900 rpm Kit Includes • One (1) CIW61100 Impact Wrench • Two (2) Metabo 36V/18V Lithium Ion 4.0Ah Batteries • One (1) Matabo Battery Charger • One (1) Carrying Case Accessories · 3/4″ (19 mm) Square-Drive Sockets
TURN OF NUT WRENCHES 10 REBAR TYING TOOLS RB-441T RebarSPECSSize #3 X #3 - #7 X #7 Wire Gauge 19 ga Ties Per Charge 4,000 Ties Per Coil 145 - 265 Voltage DC 14.4 V Kit Includes • One (1) RB441T Rebar Tying Tool • One (1) 14.4 V Lithium Ion 4.0Ah •BatteryOne(1) Battery Charger • One (1) Plastic Carrying Case RB-611T RebarSPECSSize #5 X #5 - #9 X #10* * Varies by rebar manufacturer Wire Gauge 19 ga Ties Per Charge 4,000 Ties Per Coil 115 - 205 Voltage DC 14.4 V Kit Includes • One (1) RB611T Rebar Tying Tool • One (1) 14.4 V Lithium Ion 4.0Ah •BatteryOne(1) Battery Charger • One (1) Plastic Carrying Case • TWINTIER® technology allows the RB441T and RB611T the ability to tie 4,000 ties per full charge (65 minutes). • TwinTier’s Dual Wire Feeding Mechanism doubles the tying speed and increases productivity by completing a tie in approximately ½ second. • Compared to conventional rebar tying solutions the TwinTier’s Wire Pull Back Mechanism dispenses the precise amount of wire needed to form a tie, reducing wire usage and cutting production cost. • TwinTier’s “Wire Bending Mechanism” (Patent Pending) produces a shorter tie height which requires less concrete to cover a wire tie. • An enclosed magazine protects tie wire and internal mechanisms from debris, providing greater durability. • Twintier’s Quick Load Magazine allows operators to quickly load tie wire. • Tool’s slim arm fits easily into tight spaces. Increase Productivity with Rebar Tying Kits MAX USA
TURN OF NUT WRENCHES 11 FEATURES & BENEFITS • Fit on all standard API flange applications • 1/2 turn of screw releases all torsion • No more hammering off knocker wrenches • Custom configuration available PARTS NUMBER HEX SIZE BOLT DIAMETER BK-106 1 1/16” 5/8” BK-143 1 7/16” 7/8” BK-162 1 5/8” 1” BK-181 1 13/16” 1 1/8” BK-200 2” 1 1/4” BK-218 2 3/16” 1 3/8” BK-237 2 3/8” 1 1/2” SIZE THICKNESS MAX. TORQUE 1 7/16” thru 2 3/8” 3/4” 1,400 ft-lb 2 9/16” thru 3 1/8” 1” 3,200 ft-lb 3 1/2” thru 4 5/8” 1 1/2” 10,800 ft-lb 5” thru 6 1/8” 2” 25,000 ft-lb UNI-BACK norwolf

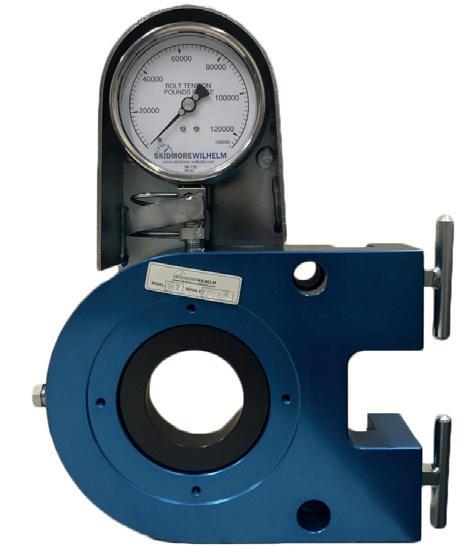

TURN OF NUT WRENCHES 12 BOLT TENSION CALIBRATORS SKIDMORE WILHELM - BOLT TENSION CALIBRATOR FEATURES & BENEFITS Skidmore has been used as the industry standard since the technology was invented in the 1950’s. • Fasteners meet minimum bolt tension specifications • Tension-control fasteners shear off at the correct tension • Direct Tension Indicating (DTI) washers are indicating at proper tension DiameterBolt BoltRegularLength BoltShortLength DiameterBolt BoltRegularLength BoltShortLength DiameterBolt BoltRegularLength 1/2” 2” 1 1/4” 1” 3” 2 1/4” 1 1/4” 5 1/2” 5/8” 2 1/4” 1 1/2” 1 1/8” 3 1/4” 2 1/2” 1 3/8” 6” 3/4” 2 1/2” 1 3/4” 1 1/4” 3 1/2” 2 3/4” 1 1/2” 6 1/2” 7/8” 2 3/4” 2” 1 3/8” 3 3/4” 3 1/4” 1 3/4” 8” 1” 3” 2 1/4” 1 1/2” 4” 3 3/4” 2” 8” 1 1/8” 3 1/4” 2 1/2” 2 1/4” 9” 1 1/4” 3 1/2” 2 3/4” 2 1/2” 9 1/4” SKIDMOREMODELMZ SKIDMOREMODELHS SKIDMOREMODELK Capacity: 126,000 lbs. of Bolt Tension Capacity: 170,000 lbs. of Bolt Tension Capacity: 225,000 lbs. of Bolt Tension Upgradable to 450,000 lbs.

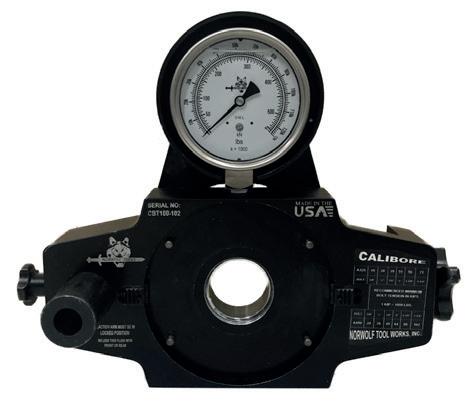

TURN OF NUT WRENCHES 13 Bolt Diamter Bolt Length 5/8” 1 5/8” 3/4” 1 3/4” 7/8” 1 7/8” 1” 3” 1 1/8” 3 1/8” 1 1/4” 3 1/4” FEATURES & BENEFITS Calibore bolt tension calibrators are the lightest, most compact and versatile in the industry. • “Snap-In” front plate & hex bushing • Built in adjustable reaction bar • Gauge reads in both pounds (lb) and kilonewtons (kN) • Solid, heavy duty gauge protector • Solid milled clamp that secures at points for beam mounting • Drilled holes provided for base and table mounting • Label identifying recommended minimum bolt tension • Fitted, wheeled carrying case NORWOLF CALIBORE - BOLT TENSION CALIBRATORCALIBORE Bolt Diamter Bolt Length 5/8” 1 5/8” 3/4” 1 3/4” 7/8” 1 7/8” 1” 2” 1 1/8” 3 1/8” CALIBORE Bolt Diamter Bolt Length 1 3/8” 3 1/8” 1 1/2” 3 1/4” 1 5/8” 3 3/8” 1 3/4” 3 1/2” 1 7/8” 4 3/8” CALIBORE Bolt Diamter Bolt Length 1 3/8” 3 3/4” 1 1/2” 3 7/8” 1 5/8” 4” 1 3/4” 4 1/8” 1 7/8” 4 3/8” 2” 4 1/2” CALIBORE MODEL 100 MODEL 125 MODEL 250MODEL 200 Capacity: 200,000 lbs. of Bolt Tension Capacity: 100,000 lbs. of Bolt Tension Capacity: 125,000 lbs. of Bolt Tension Capacity: 250,000 lbs. of Bolt Tension BOLT TENSION CALIBRATORS
High-strength bungee material enables you to attach lighter tools to the waist or anchor heavier tools to structures. This shock-absorbing tether reduces impact force.
No tools or heat needed to install this cold-shrink system, just pull and wrap! Full loop style to prevent installation errors. Works on tools with and without abrupt ends.
Protects the battery from dropping upon accidental release. Easy installation and removal for quick battery changes. Features two convenient sizes, a small side pocket for storing bits, ballistic nylon, and window for viewing battery life.
14 TURN OF NUT WRENCHES
TOOL POUCH
Perfect for tools with or without straight shapes, like pry bars, alignment bars, and others. Rotates 360 degrees around hexagonal, round, and other shape shafts. Prevents tools from dropping through grating.
SAFETY LANYARD DRILL BOOT BAR CLAMP COLD SELF-CLOSINGSHRINK
Prevent the spill with a self-closing pouch. Features internal self-closing, won’t grab your glove, prevents items from being dropped if upside down, and zipper top for a secondary closure system.
Designed for hands-free tool transferring and reduces the risk of drops by maintaining control of multiple tools at one time without entanglement.
QUICK SWITCH
safety
Since 1975, we have proudly served clients as the global leader in sales, rental, calibration, and repair of installation tools for structural bolts - and we bring our four-plus decades’ worth of knowledge and experience to your bolting project. We are part of your project team – a trusted, reliable and expert partner dedicated to helping you build quickly, efficiently and safely. You can count on GWY to provide high quality tools, technical support and service on every job, every time.
for torque wrenches and bolt tension calibrators at least once a year to ensure that they are operating accurately and reliably. We make the process quick and seamless by offering in-house calibration services performed by a veteran team of expert technicians. Your tools will be skillfully calibrated and returned to you in record time, so you can get back to work as soon as possible. We provide calibration services for most brands and models of torque wrenches and bolt tension calibrators — even if you didn’t buy them from GWY. We also offer fast turnaround time within 1 to 3 days.
Our large inventory of parts and over four decades of industry experience in servicing all makes and models of wrenches enable our technicians to provide you with same-day service for your repair.
15 TURN OF NUT WRENCHES services
SAME-DAY SHIPPING TO ANYWHERE IN THE WORLD
We offer calibration services for all the torque tools in our product line and for bolt tension calibrators including Skidmore and Calibore. Our calibration system’s 10,000 ft-lb capacity will help you tackle your biggest projects with absolute Calibrationaccuracy.isnecessary
Note: turn-of-nut wrenches do not need calibration. CUSTOMIZED APPLICATION GWY is known for adapting stock tools for custom applications. From custom-length extension sockets to tools for unique or proprietary fasteners, we’ve done it. We even stock custom inner sockets for galvanized TC bolts.
CALIBRATION
SERVICE & REPAIR
2FT EXTENSION SOCKET FOR GS-111EZ CUSTOM SOCKETS FOR RAILCAR TRUCK BOLTS
GWY, LLC 217 Forest Road Greenfield, NH 03047, USA Phone: 888-838-6500 Email: sales@gwyinc.com www.gwyinc.com
