SELECTEDWORKS ARCHITECTURE PORTFOLIO

CHUN YUAN WANG

TFOLIO

Portfolio Contents.

Studying Period

04.

08.

24.

Shared Datum 38.

Working Period

Landscape Node 44. Taipei Music Center & Library

Creative Action Base 50. House L 58.

Kinmen Museum & Library

Resume

connects the second floor of the neighboring house takes kitchen Island as the core, not only because it locates in the center of the space, but also because of the different ground heights to create other places to use it in different ways.

SHARED DATUM

island, keeping it away from the noise and interference of things below and creating the room's privacy. Compared with the public platform, when people want to walk from the private room to the platform below, the corridor provides a visual dislocation.

notice before entering the space to reduce the sense of conflict of intervention. These details together determine the transition interface of the areas.

It is an extended case that an elderly couple wants to live with their son's family. The shape of the site and the existing house are perpendicular to each other, separated by a driveway.

Multi-functional Platform

The platform connecting the neighboring house’s second floor centers around the kitchen island, not only due to its central location but also because varying floor heights define distinct functional areas. The floating volume, like an island, is elevated to separate it from noise and distractions below, ensuring privacy.

Contrasting with the public platform, the corridor creates visual dislocation when transitioning from the private room. The transparent staircase offers a preview of the space before entry, reducing any sense of conflict or intrusion. These design details shape the transitional interface between areas.

Iso Diagram

Existing House

Blending Of Two Family Lives

Coliving Platform

Above, the private space hovers like a cloud.

Atrium

Transportataion Node

LANDSCAPE NODE

In the context of the existing trafﬁc system, I take the junction of railways, elevated expressways, and roads as a construction site and divide the scope of human events from cars, short-distance buses, long-distance buses, trains, and MRT through different elevations. Therefore, each mobility

Transportation as a Catalyst

The site is strategically positioned at a key transportation hub where railways, expressways, and elevated roads intersect. However, due to past urban planning issues, pedestrian circulation and the living environment remain inefficient and disconnected."

The design aims to address these challenges by reimagining traffic flow through varying elevations and integrating essential urban functions.

system can integrate. When the existing traffic line cuts off the development of urban activities, re-energizing the urban edges and stitch cracks becomes the second step after optimizing the infrastructure. In addition to appropriate functions, it also pays attention to the difference in the use time. It analyzes the density of the

population used in the area and then further uses this information to superimpose. Because of the difference in use time, different functions can regard as the same image from space. A functional plan like acupuncture can reverse the original role to become the starting point of the city events.

It reconnects the city by bridging the spaces between the front and rear stations. This strategy not only revitalizes the area but also fosters sustainable urban development, culminating in a significant enhancement of residents' quality of life.

Thick Living Edge

Hsinchu Park

4 CAFE & CLUB & SHOP

Hsinchu Girls'

Girls' High School

Railway Art Village

PERFORMANCE STAGE 5 MUSEUM & GALLERY

Landscape As Linking Path

Staircase

CREATIVE ACTION BASE

This intelligent, green building solution is designed to create sustainable spaces that meet the life, work, and entrepreneurial needs of urban youth. Participating in the 2018 Solar Decathlon Middle East Competition, the project provides a platform for young students from diverse backgrounds to engage in discussion, work, and entrepreneurship.

Permeable Corridor

In urban planning, the growth characteristics resemble the traditional Islamic building typology, which is independent, enclosed, and centered around a courtyard.

Building on this model, we aim to connect various public spaces by opening the walls, widening the gaps between buildings, and creating a continuous street system. This approach fosters a harmonious atmosphere for visitors, local users, and residents alike.

Dubai Old Town Site

Co - Live & Work

Conncects Rooftop

We propose several upgrades to the city's infrastructure and urban functions, along with a vision for a new generation of urban living. This approach plays a crucial role in driving youth housing and urban development.

Market

Gym

Reataurant

Performance Square

Lecture Room

Gallery

Section B

Section A

Section D

Section C

Derivative Street

Roof Details

01 Aluminum Case 150*80mm t=2 mm

02 Heat Radiation Tube O.D.=16mm

03 Wooden Beam 72*150 mm

04 Plywood t=18 mm R=0.12

05 Vacuum Insulation Panel t=18 mm R=9.0

05 Vacuum Insulation Panel t=18 mm R=9.0 0

06 Efoam t=111 mm R=2.914

07 Plywood t=18 mm R=0.12

08 Plywood t=12 mm R=0.08

09 Glassfoam t=65mm R=0.914

08 Plywood t=12 mm R=0.08 09 Glassfoam t=65mm R=0.914 10 Slab 65*18 mm 11 Plywood t=12 mm R=0.08

12 Waterproof Felt t=1 mm

02 Heat Radiation Tube O.D.=16mm 03 Wooden Beam 72*150 mm 04 Plywood t=18 mm R=0.12 05 Vacuum Insulation Panel t=18 mm R=9.0 0 06 Efoam t=111 mm R=2.914 07 Plywood t=18 mm R=0.12 08 Plywood t=12 mm R=0.08 09 Glassfoam t=65mm R=0.914 10 Slab 65*18 mm 11 Plywood t=12 mm R=0.08 12 Waterproof Felt t=1 mm 13 Wooden Bar 35*30 mm

13 Wooden Bar 35*30 mm

10 Slab 65*18 mm 11 Plywood t=12 mm R=0.08 12 Waterproof Felt t=1 mm 13 Wooden Bar 35*30 mm 14 WoodPLastic Composites t=25 mm R=0.115

WoodPLastic Composites t=25 mm R=0.115

14 WoodPLastic Composites t=25 mm R=0.115

Floor Details

01 Wooden Beam t=100 mm

02 Steel H-Beam 150*150*6*10 mm

01 Wooden Beam t=100 mm 02 Steel H-Beam 150*150*6*10 mm 03 Wooden Beam t=100 mm

02 Steel H-Beam 150*150*6*10 mm

03 Wooden Beam t=100 mm

Plywood t=18 mm R=0.12

04 Plywood t=18 mm R=0.12

05 Efoam t=129 mm R=3.41

06 Waterproof Felt t=1 mm

07 Plywood t=12 mm R=0.08

Efoam t=129 mm R=3.41 06 Waterproof Felt t=1 mm 07 Plywood t=12 mm R=0.08 08 Glassfoam t=65 mm R=0.914

08 Glassfoam t=65 mm R=0.914

03 Wooden Beam t=100 mm 04 Plywood t=18 mm R=0.12 05 Efoam t=129 mm R=3.41 06 Waterproof Felt t=1 mm 07 Plywood t=12 mm R=0.08 08 Glassfoam t=65 mm R=0.914

09 Slab 65*18 mm

10 Plywood t=12 mm R=0.08

11 Plywood t=12 mm R=0.08

10 Plywood t=12 mm R=0.08 11 Plywood t=12 mm R=0.08

12 Vacuum Insulation Panel t=18 mm R=9.00

13 Aluminum Floding plate t=2 mm

14 Heat Radiation tube O.D.=16mm

Plywood T=18 mm R=0.12

15 Plywood T=18 mm R=0.12

16 Laminated Wooden Floor t=8 mm R=0.036

Wooden Bar 50*30 mm

17 Wooden Bar 50*30 mm

14 Heat Radiation tube O.D.=16mm 15 Plywood T=18 mm R=0.12 16 Laminated Wooden Floor t=8 mm R=0.036 17 Wooden Bar 50*30 mm

Kinmen Museum & Library

As a World War II battlefield site, Kinmen remains underdeveloped in many areas, preserving its excellent environmental landscape. The site is located near peaks and canyons. To blend with the terrain, we strategically buried the gallery, which does not require much natural light, into the ground. The library is elevated to meet the lighting needs for reading while creating numerous corners for overlooking the landscape and enjoying outdoor reading. Proper covering and shading of the ground floor extend the open space and help create an atmosphere conducive to activities."

2F圖書館階梯閱覽區

B2文創賣店

B2美術館展廳

B1教室通廊

B2F plan

B1F plan

Taipei Music Center & Library

Recently, culture is no longer the privilege of elites. This field should embody the characteristics of "openness," "convenience," and "universality."

The building acts as a "catalyst" for the city. It connect with the community’s environment and context, becoming a part of citizens’ daily lives. The design includes spaces such as a living room, study room, audio-visual room, garden, areas for rest and work, exploration and learning, and communal spaces for sharing.

The spatial composition resembles the pores of a sponge—finely divided yet interconnected. The scattered platforms and circulation paths provide the utmost accessibility. Through this design, multiculturalism is nurtured, blossoming, and bearing fruit.

Three Theaters

The linear mass layout allows for an efficient connection of the backfield space.

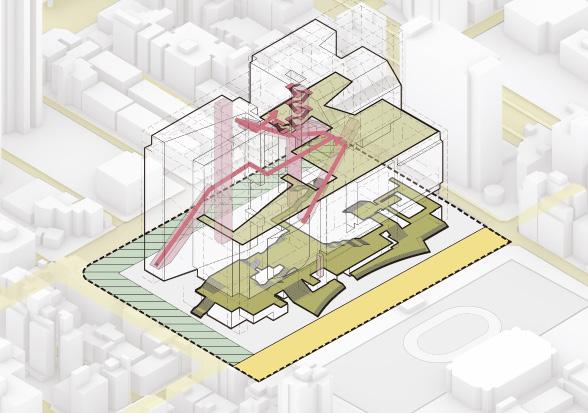

Circulation

Establish public pathways and create interactive nodes.

Accessibility

The circulation pattern aligns with the site's context, creating clear direction.

Open Space

Integrate the campus playground into a shared public space.

View From Campus

Circulation

Open Space

Sunken Plaza

The vineyard style creates a strong sense of intimacy with the musicians, where seats in all directions offer the same acoustic experience. The design concept of this concert hall incorporates whirlpools, asymmetry, cascades, and a dynamic sense of space.

Cncert Hall

臺北市政府工務局水利工程處臺北市音樂與圖書中心新建工程委託設計工作

後場

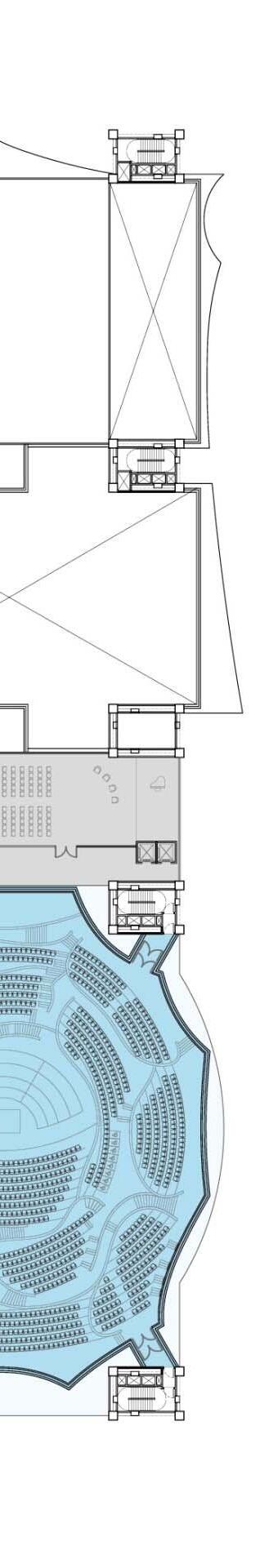

7F Plan 1.Lobby

臺北市政府工務局水利工程處臺北市音樂與圖書中心新建工程委託設計工作

Acoustic Design

The concert hall is a space with high functional requirements. The acoustics are optimized through adjustable reflectors and sound-absorbing walls, including a 25 cm reinforced concrete (RC) wall and 20 cm calcium silicate board for sound insulation, which respond to the reverberation time created by different types of sound frequencies.

To isolate the space from external noise, the panel composite is used, and the airconditioning system is designed to reduce airflow velocity through the air chamber before it enters the hall, ensuring effective noise control. Additionally, the design is continuously reviewed and refined using software simulations to achieve the optimal acoustic performance.

Concert Hall Long Section(Sightline Review)

席位:1503位

ODEN

模擬殘響時間:2secs

可變殘響牆面面積:550m

隔音層

氣室

室內容積

可升降設備

視線分析

Acoustic Simulation Seat:1053

Reverberation:2 sec Adjustable wall:550 m2

表演廳與聲學設計

Concert Hall Wall Detail

臺北市政府工務局水利工程處臺北市音樂與圖書中心新建工程委託設計工作

Concert Hall Short Section (Sightline Review)

臺北市政府工務局水利工程處臺北市音樂與圖書中心新建工程委託設計工作

席位:1503位

可變殘響牆面面積:550m

視線分析

House L

The owner’s consists of a couple and two children. They wish to have a 15-meter-long swimming pool on the sloping terrain. The design concept is inspired by the surrounding landscape and water, aiming to create an inner courtyard with layered views. The house openings are strategically placed around the pool, while the circulation is designed as a journey, allowing people to fully experience the living spaces.

Furthermore, to adapt to the sites natural contours, the program begins with a garage at the starting point of the split-level layout. The elevation changes are utilized to place the equipment room beneath the pool, minimizing excavation and optimizing space efficiency.
