IDES302_GRIMES_CASSIE_CONSTRUCTION DOCUMENTS

CLIENT: MARY OLIVER

DESIGNER: CASSIE GRIMES

ABBREVIATIONS

CEILING

CEILING HEIGHT COLUMN

CURTAIN WALL

DETAIL

PROJECT NARRATIVE

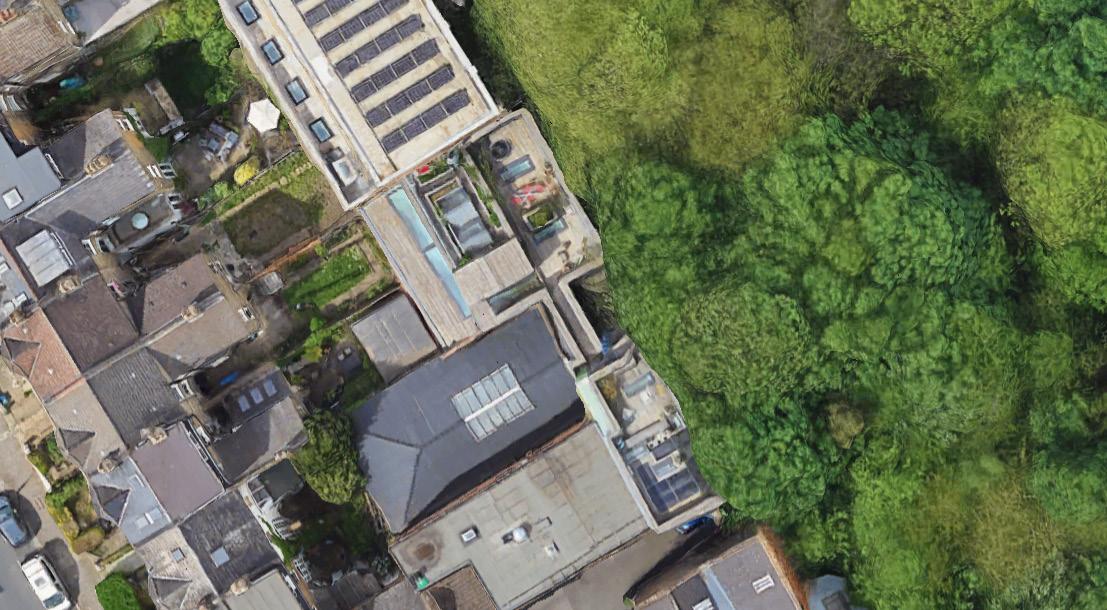

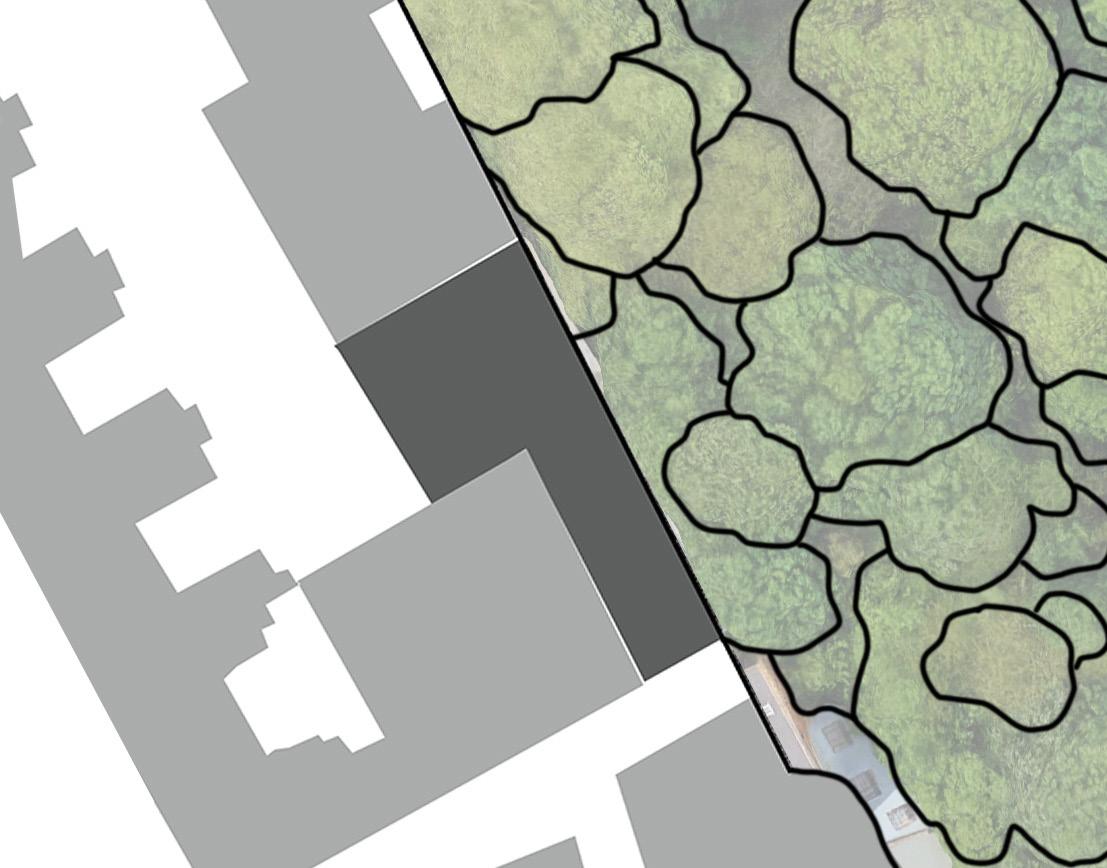

74 BOUVERIE MEWS IS LOCATED IN STOKE NEWINGTON, LONDON, UK AND SITS IN BETWEEN BRICK ROW HOUSES AND THE LUSH ABNEY PARK TRUST CEMETERY. THE NORTH AND WEST SIDES ARE NEIGHBORING BUILDINGS AND A GARDEN WALL. THE EAST HAS A BRICK WALL SEPARATING THE SITE FROM THE CEMETERY.

THIS PROJECT INVOLVES DESIGNING THE RESIDENCE TO FIT THE ARTIST’S NEEDS THROUGH AN INCLUSION OF A GALLERY, KITCHEN AND DINING, A GARDEN, STUDIO, LIBRARY, LIVING ROOM, BEDROOM, AND BATHS.

A CONNECTION WITH NATURE IS AT THE FOREFRONT OF THE DESIGN WITH KEY DECISIONS DRAWN FROM THE SURROUNDING LANDSCAPE AND THE ARTISTS WORK.

EXG BUILDING EXG BUILDING

EXG BUILDING EXG BUILDINGS

EXG 8’ TALL CEMETERY WALL

COURTYARD

GALLERY

KITCHEN GARDEN

RBG WRAPPED MSC COL.

GLASS GUARD RAIL AND BRUSHED BRINZE RAILING

WHITE PAINTED WOOD SLATS

BLACK CERAMIC TILE

CONNECTING SINK

GALLERY

NOTE VARIED DIMENSIONS SHOWN WITH *

SECOND FLOOR COLUMNS

BUILT IN BENCH

2’ 6”

6”

GLASS GUARD RAIL

RECW SPRINGERS

GLASS GUARD RAIL EXTENDS TO SECOND FLOOR RAILING

3/4” NOSING

SPRINGERS BOLTED TO FLOOR SLAB

FIRST SEVEN STAIRS ARE MSC THAN BECOME RECW

CANT. ACRYLIC SHELVES

GLASS RECESSED INTO WOOD SPRINGERS

CANT. 1/2” ACRYLIC SHELF ATTACHED INSIDE RECW WOOD BLOCKS ATTACHED WITH SCREWS FOR SUPPORT

TEXTURED GLASS

BRUSHED BRONZE HANDLE

TOP PIVOT HARDWARE

BOTTOM PIVOT HARDWARE

GLASS DOOR WITH BRUSHED BRONZE STRIP WHERE HARDWARE IS LOCATED

BRUSHED BRONZE PANEL WITH GLASS PANEL IN CENTER

LIGHT FIXTURE SCHEDULE

DESCRIPTION

2X2 SQUARE RECESSED WALL WASHER

WIRE EXPOSED BULB PENDANT LIGHT

RECESSED DOWNLIGHT

LED STRIP COVE LIGHT

WIRE PENDANT LIGHT

DOUBLE EXPOSED BULB PENDANT LIGHT

OUTDOOR UPWARDS RECESSED LIGHT

DOWNLIGHT SPOTLIGHT

2

LF1 ‘S RECESSED IN WALL 1’ FROM FLOOR

3D RENDERING - GALLERY

3D RENDERING - STUDIO

3D RENDERING - KITCHEN

3D RENDERING - W/D

3D RENDERINGS

3D RENDERING - LIBRARY

3D RENDERING - 2ND STAIRCASE

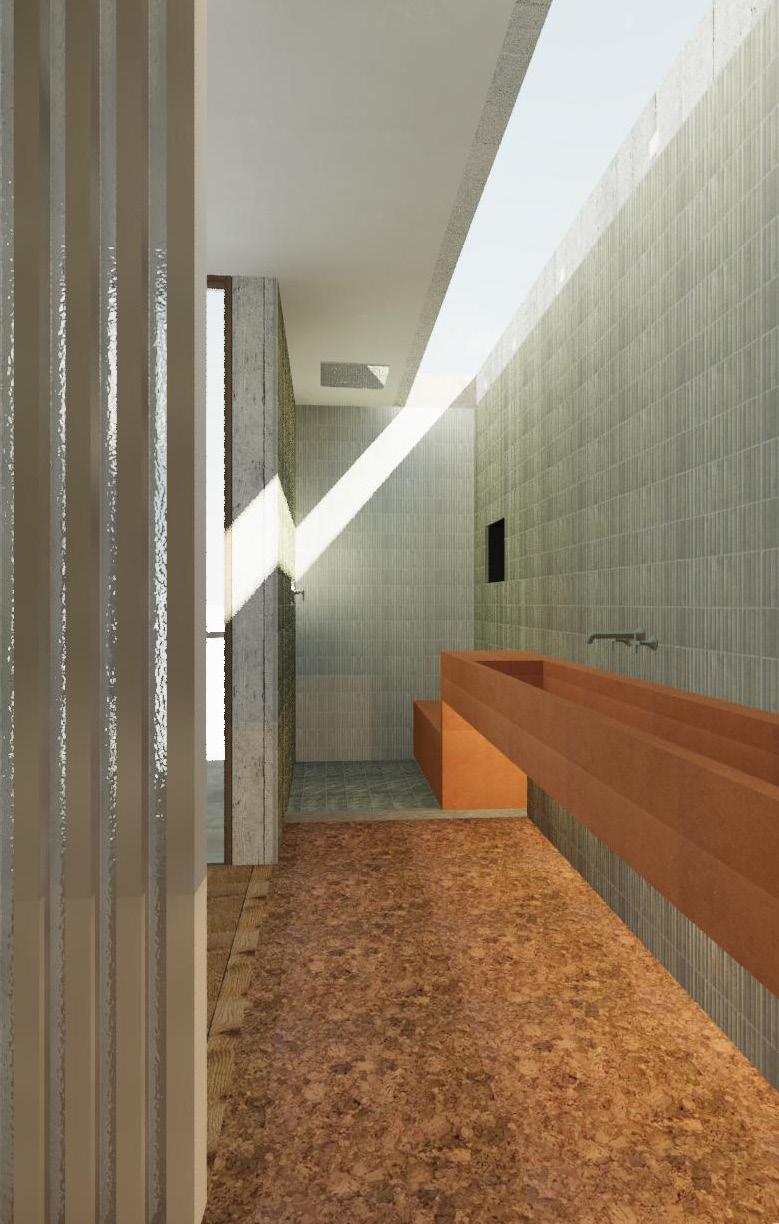

3D RENDERING - MAIN BATH

3D RENDERINGS
