Phantom limb syndrome is a chronic condition effecting 8 out of 10 amputees where they experience sensations, whether painful or otherwise, in a limb that does not exist
The problem occurs when the somatosensory cortex in the brain sends signals through the nervous system around the body, however, when it does not receive hap tic feedback from a missing area, it automatically responds as pain.
Mirror therapy tricks the somatosensory cortex of the brain to believe a reflected body part is on the other side, using touch senses of the true side to trick the missing, calming the pain signals it sends out

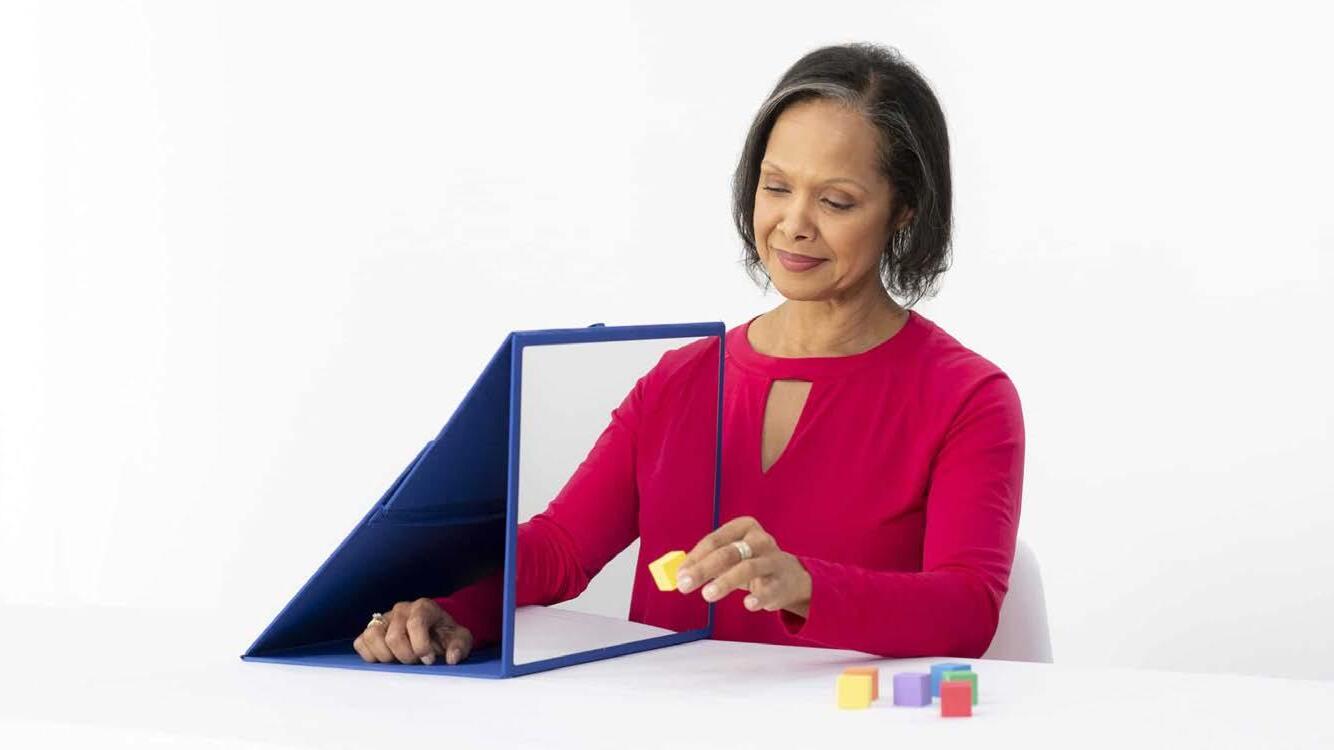

The only existing commercial option is a box mirror which is small and portable yet not always effective
• Expensive for what it is
• Effective for only upper extremities
• Not allways the easiest to set up

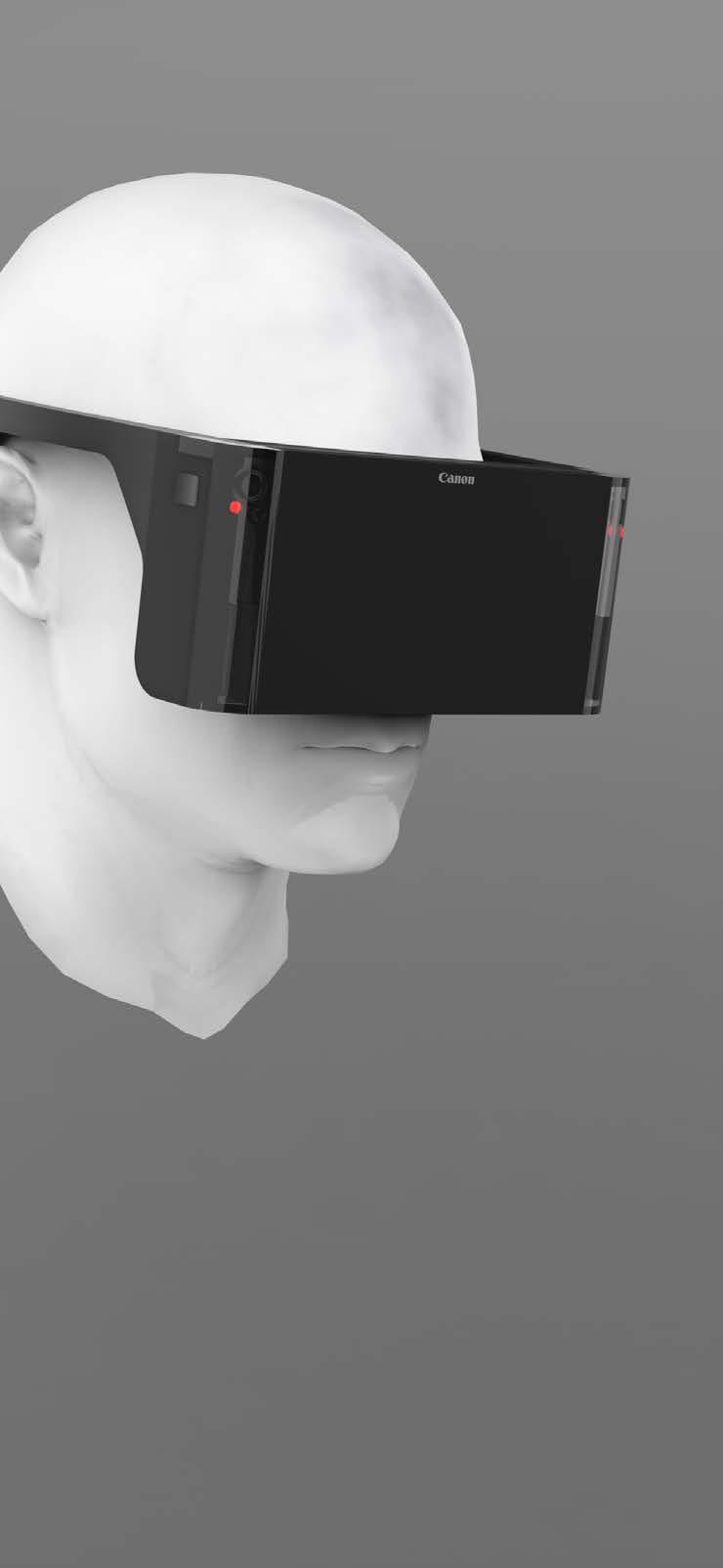

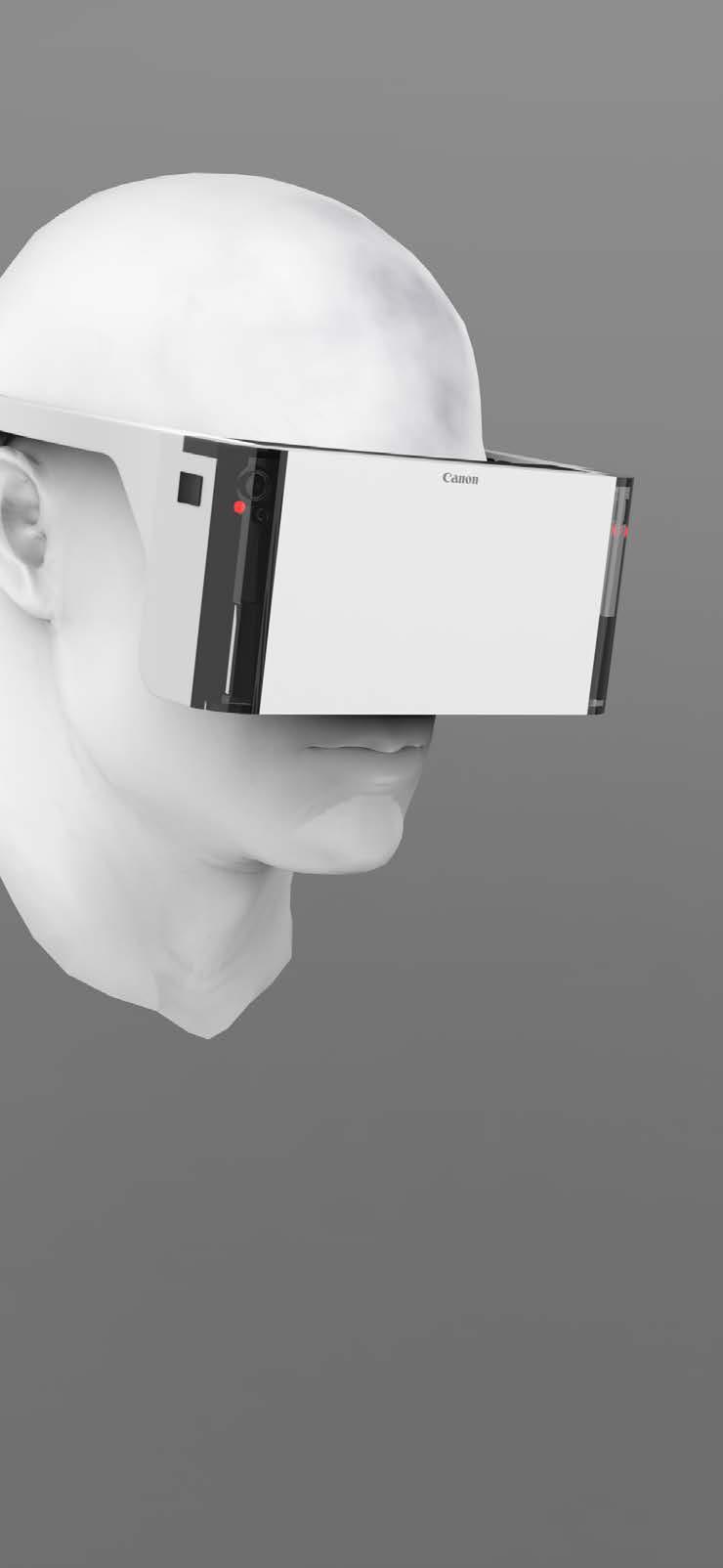

A camera on either side of the lenses projects a live feed to the other, reflecting the image to the other, coming in right or left sided pairs

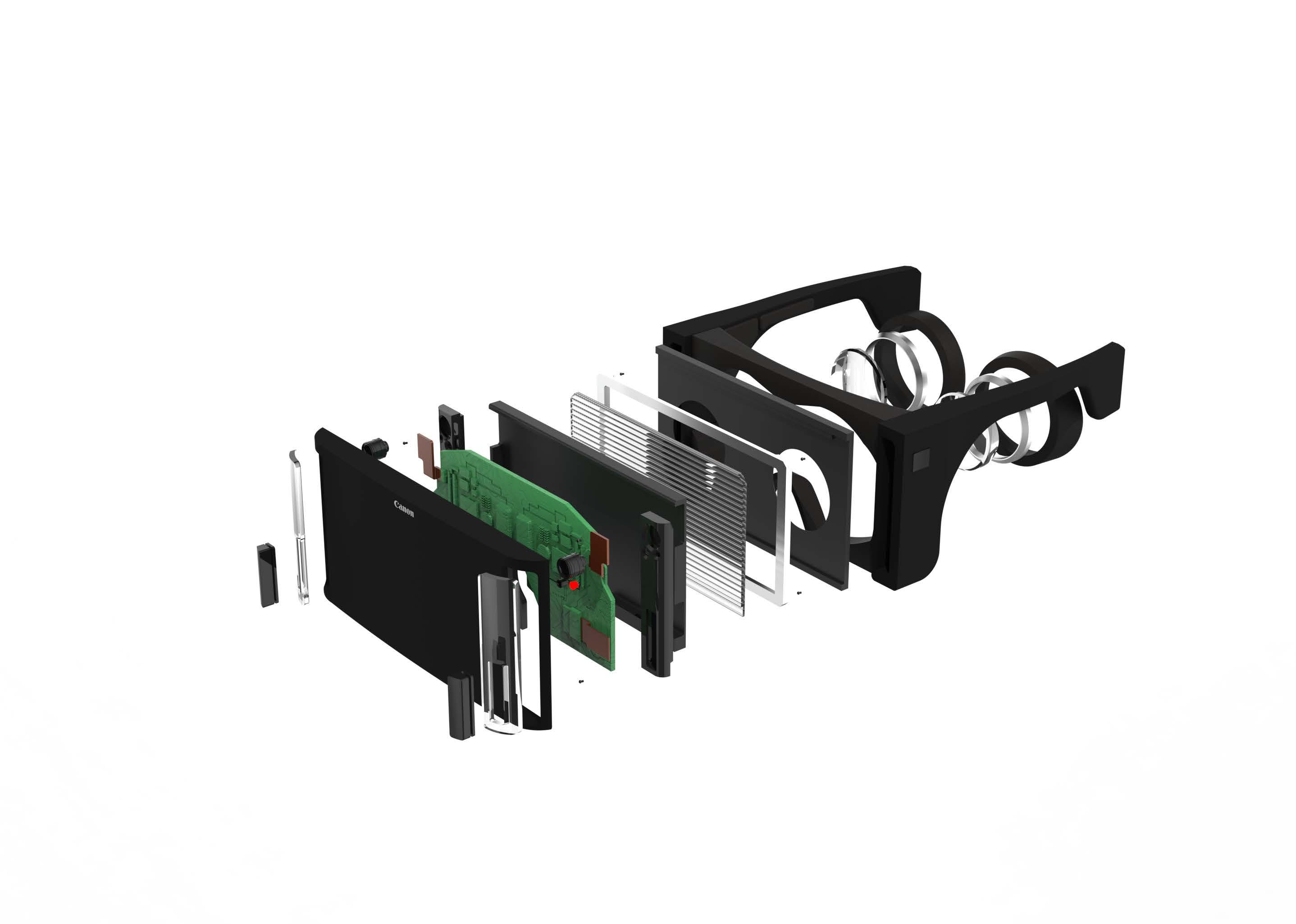

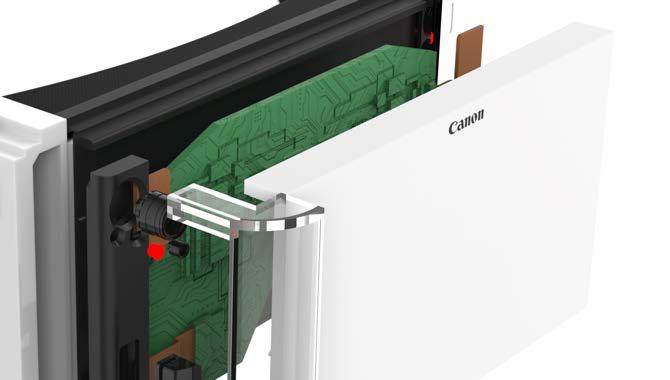

Exploded view
Screen mount
Board Cover
Face padding
Moulded arms

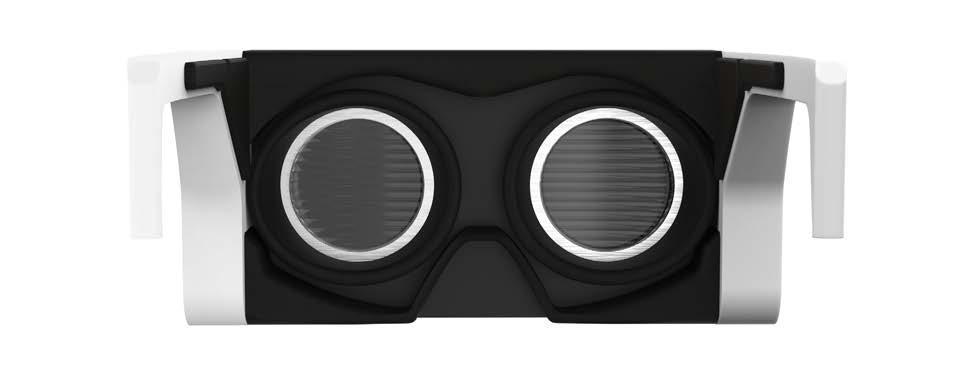

Magnify lenses
Lens Mounts
TOF Camera
Glass viewports
Eye covers
Depth sensor
View controls
Back cover
Charging port
LCD screen
TOF camera mounts
Motherboard
ABS Housing

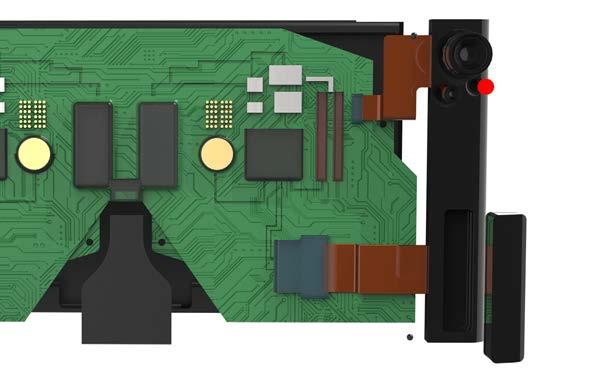

Reduced internals
Compared to other VR/AR headsets, the MTGs contain simplified electronics, serving the primary function, making them far cheaper
Two cameras are required to capture and project two separate images to then have one mirrored to the opposite view port

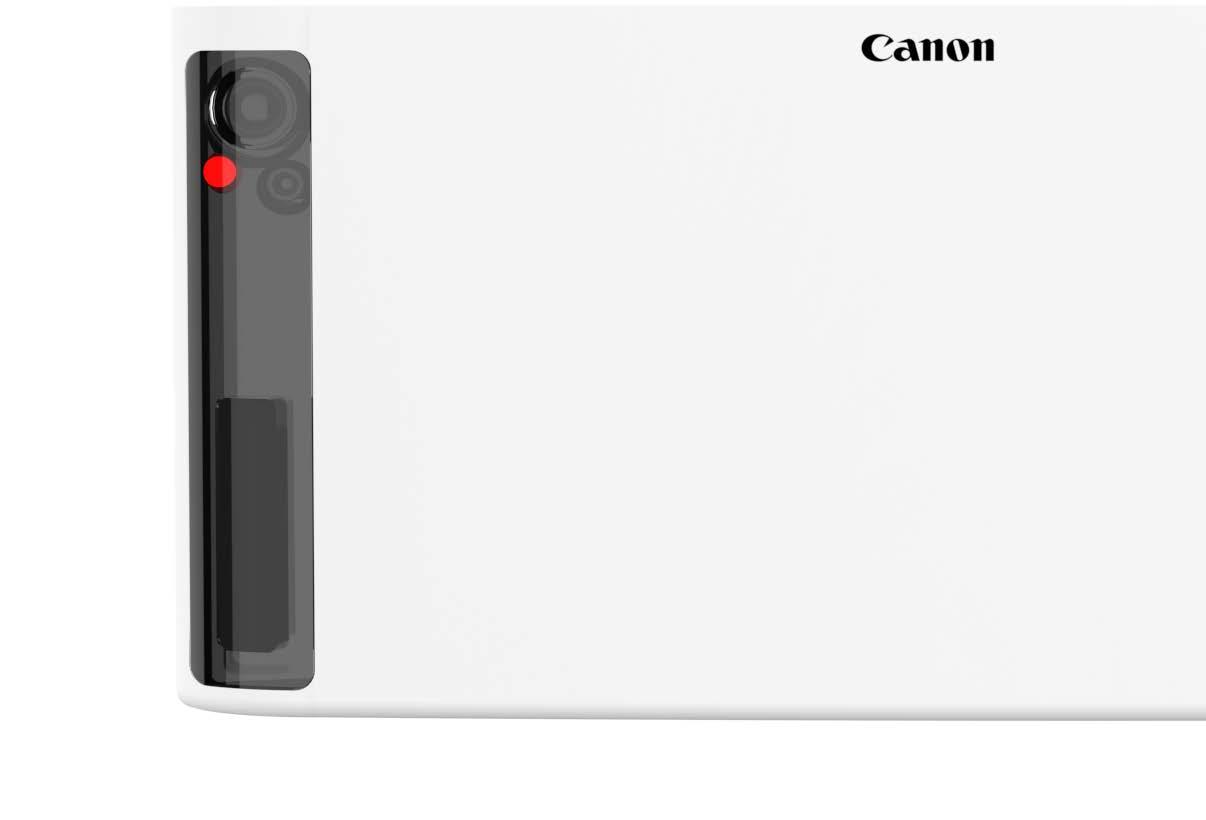

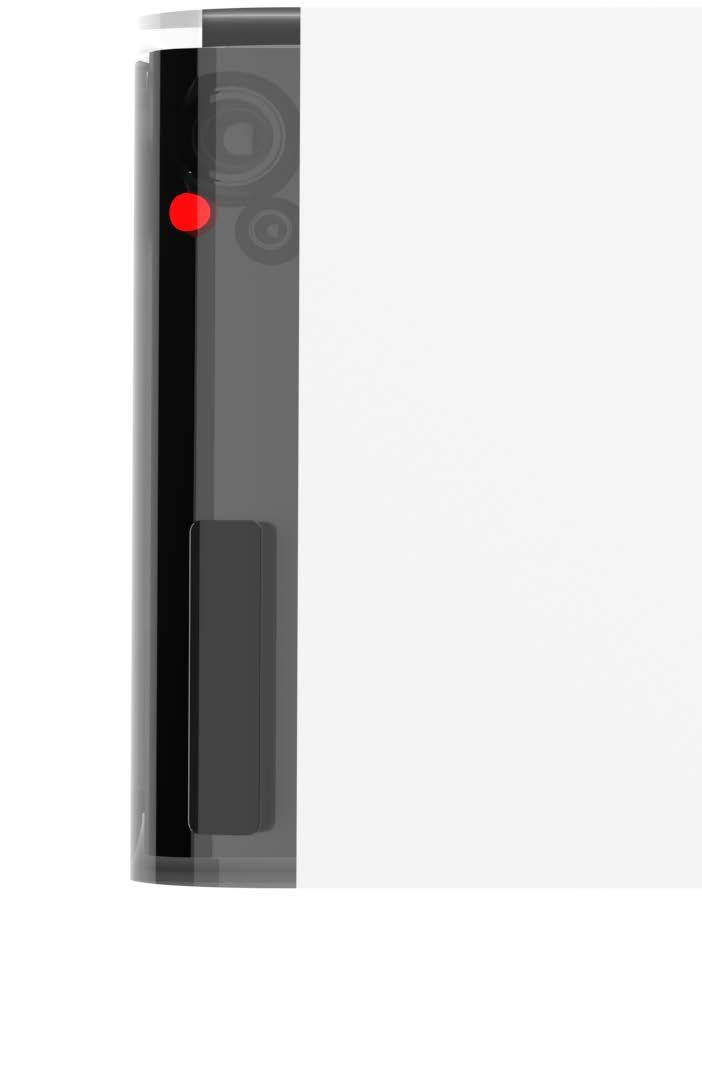

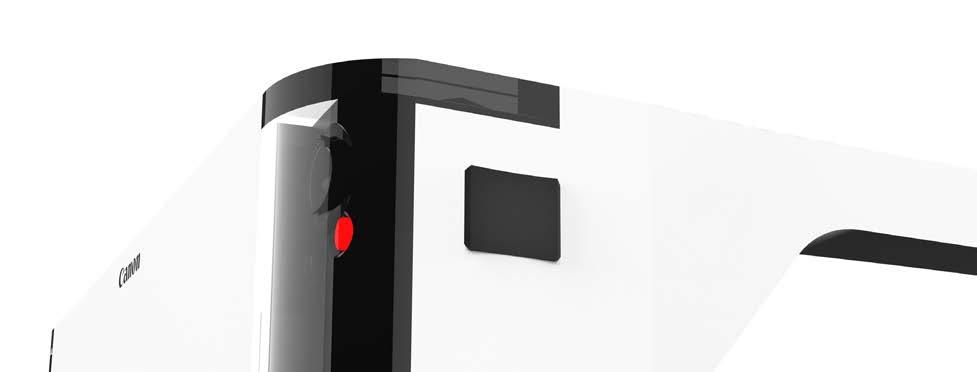

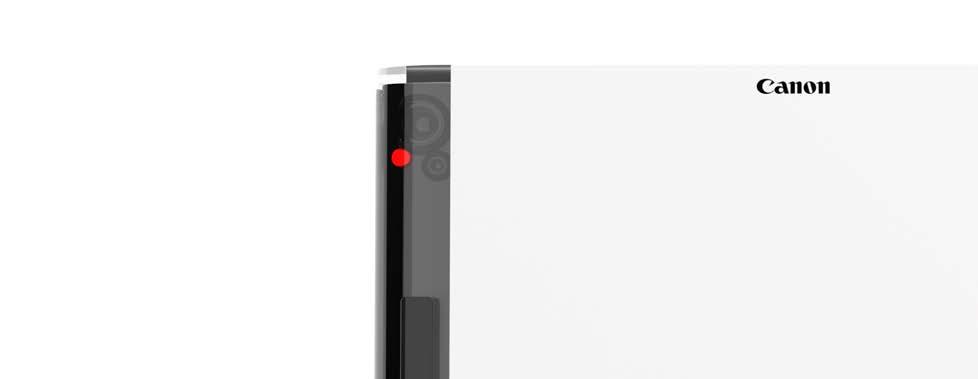

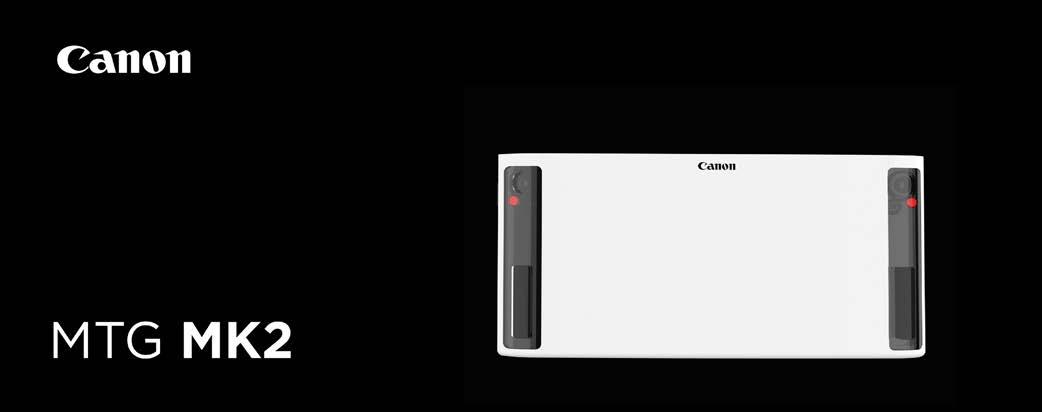

Side view port buttons
Function and power is determined by which view port to transfer from with right and left sided controls

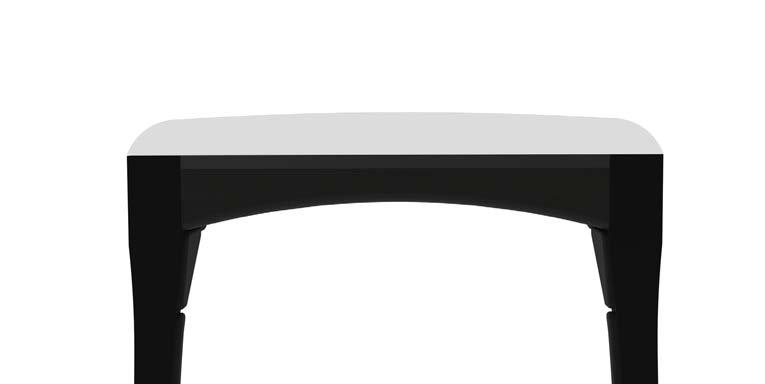

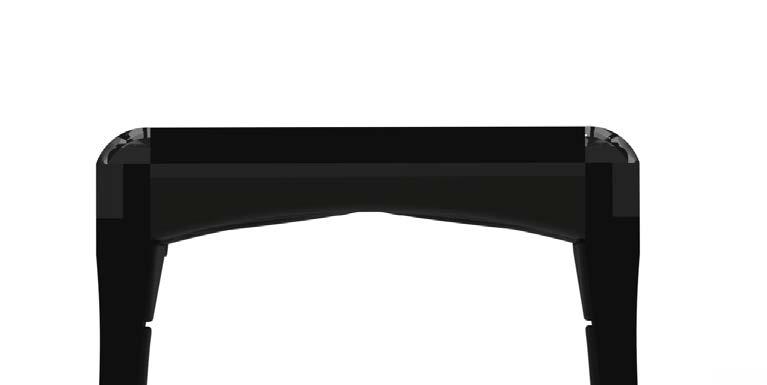

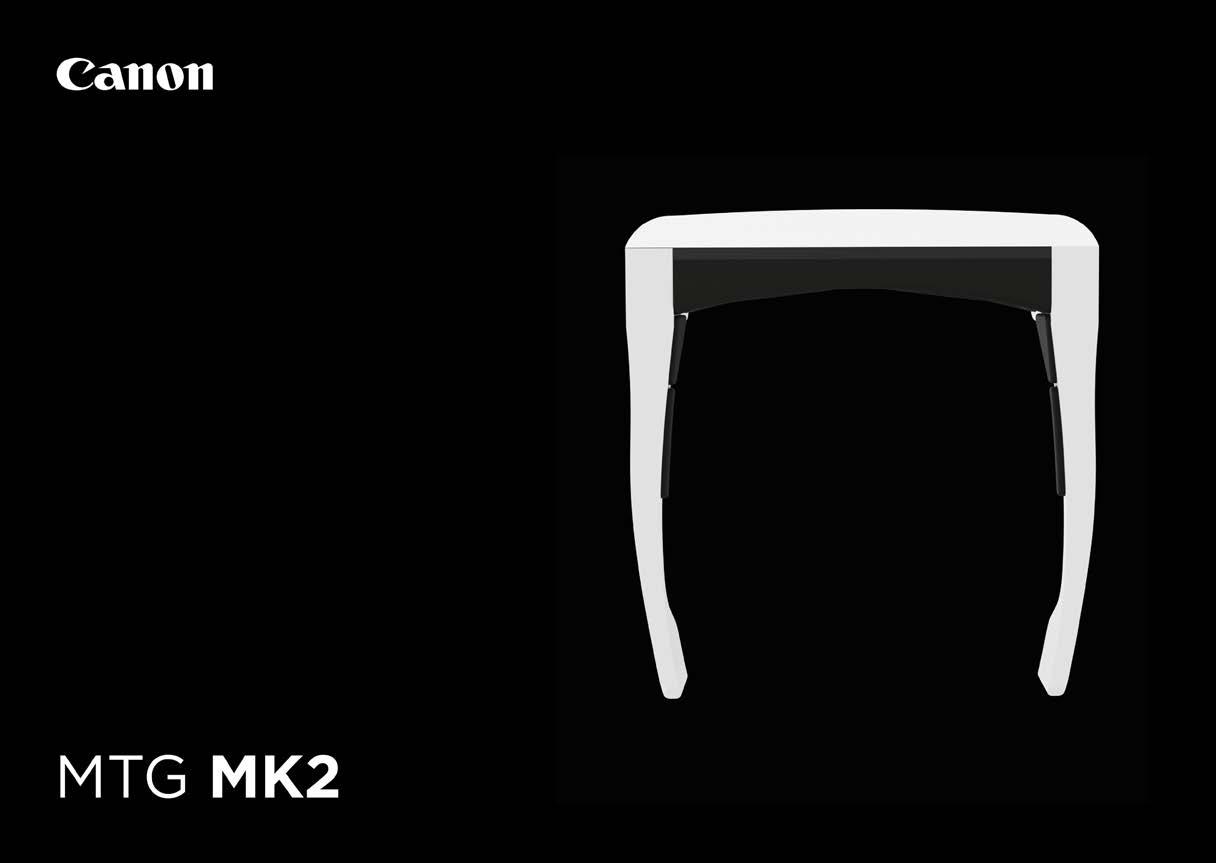

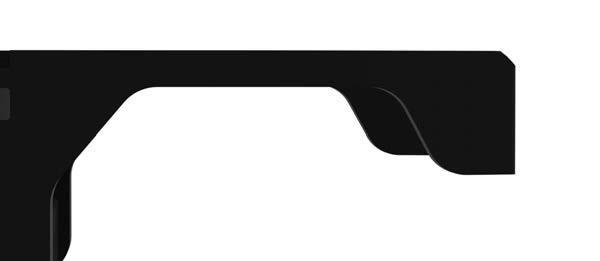

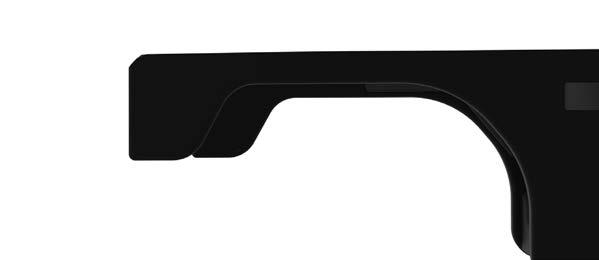

Semi ridged rubber arms
Meeting the users needs, choice of semi ridged arms means ease of use for amputees of upper extremities

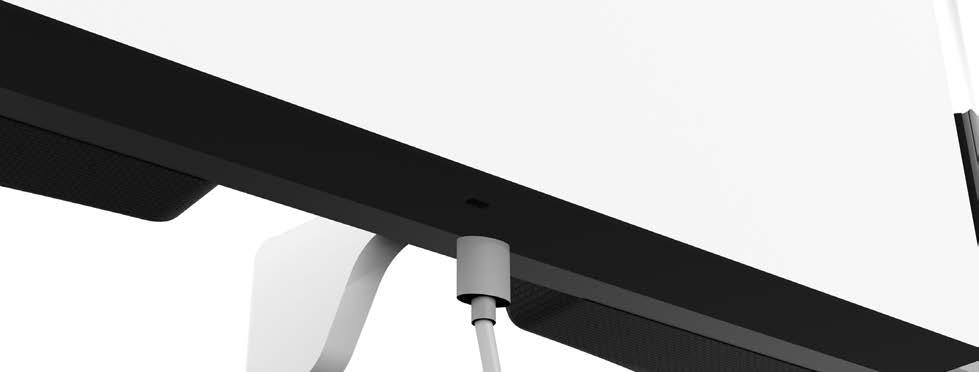

USBC Charger port
Simple charging utilising a lithium ion battery allows the MTGs potability with a battery life of up to 8 hours

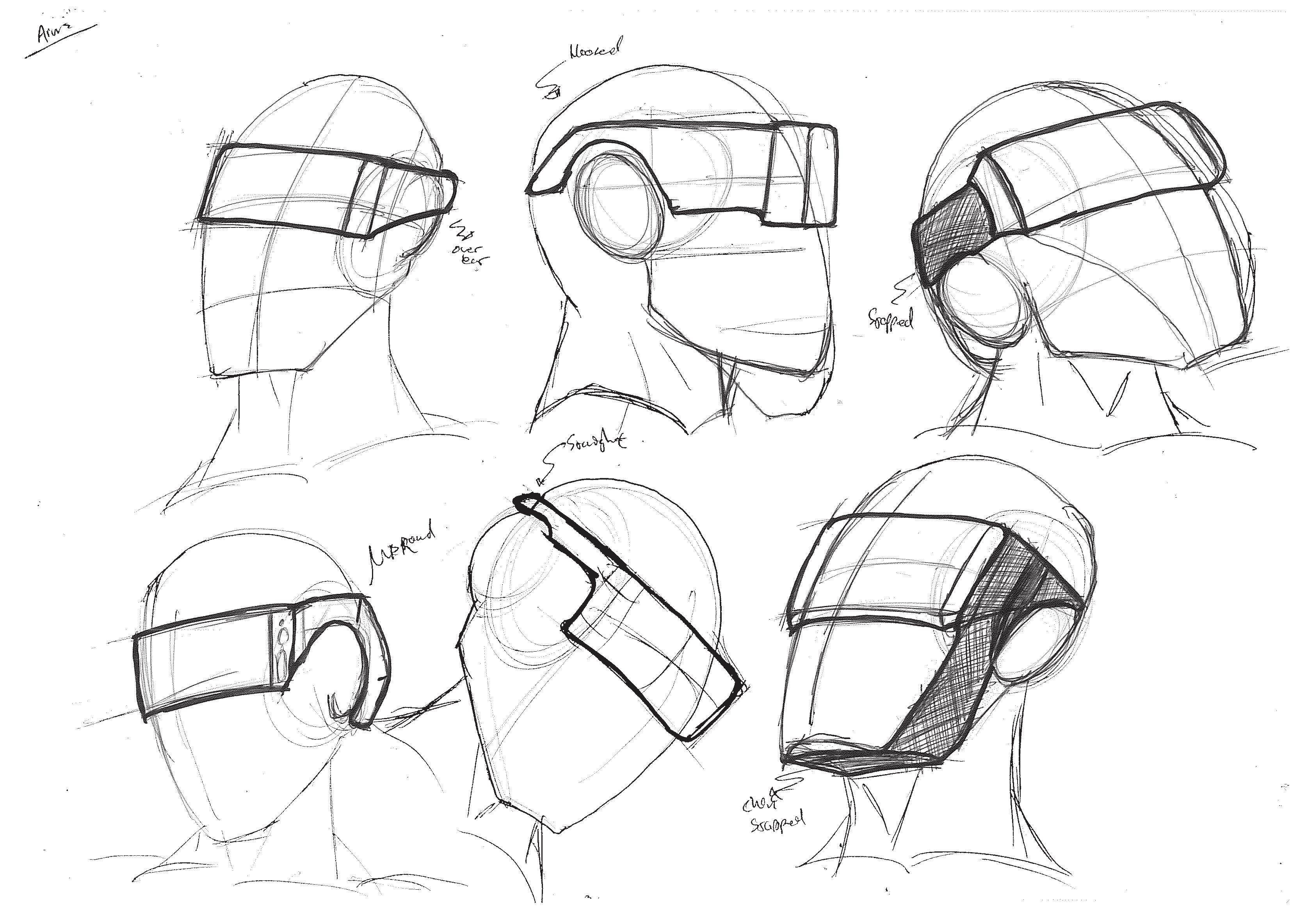

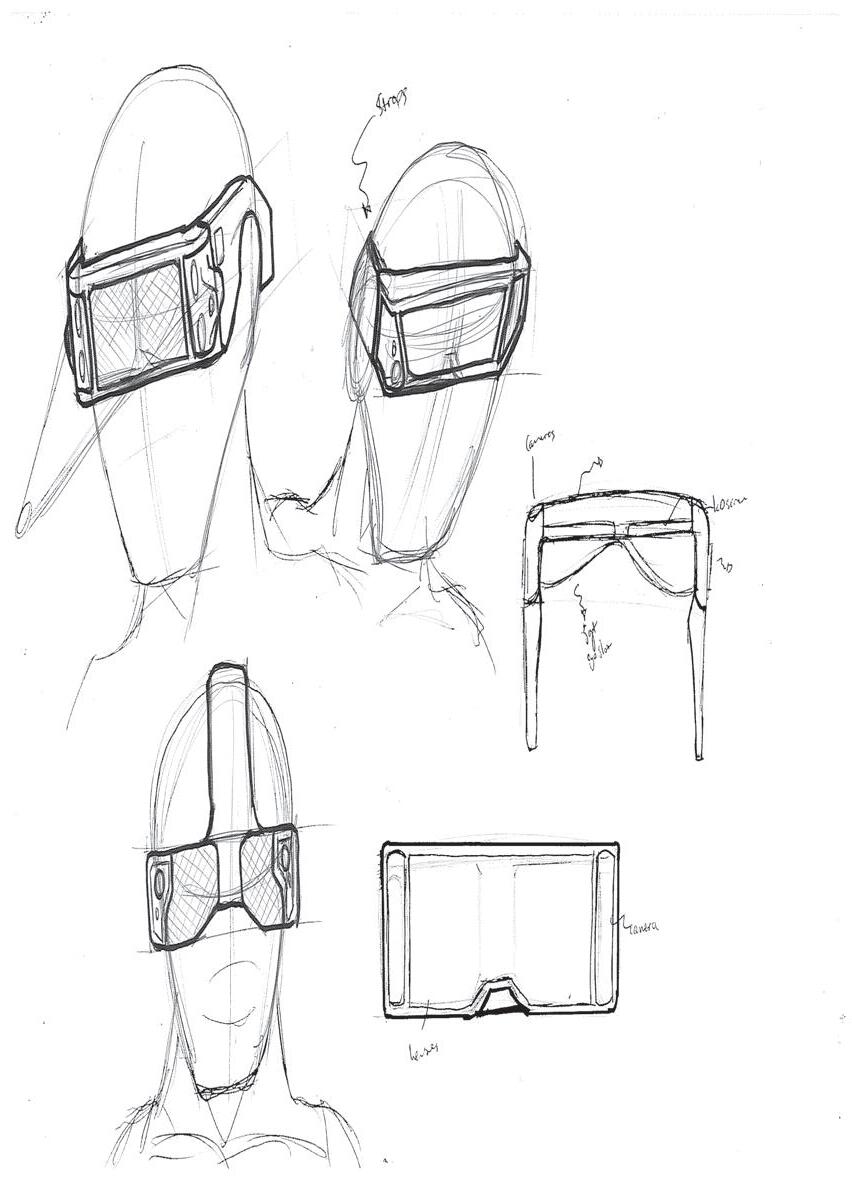

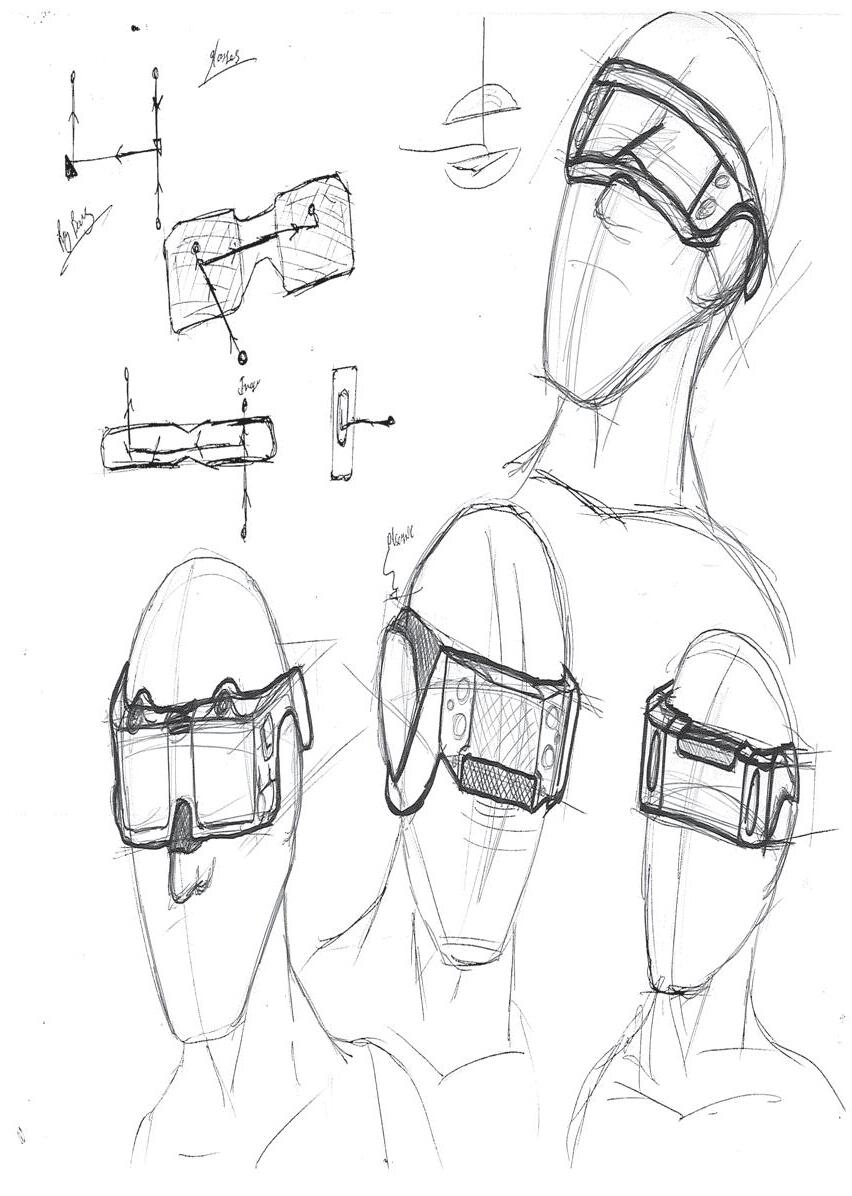

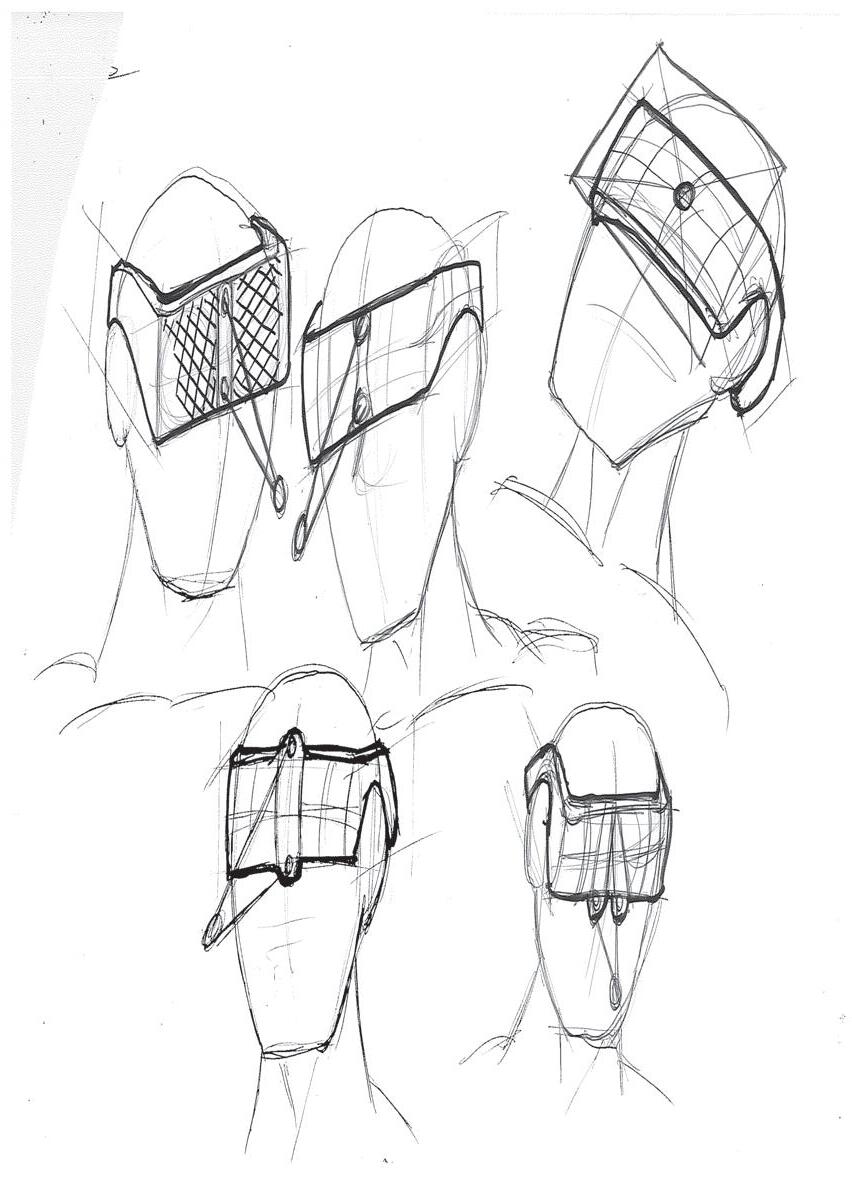

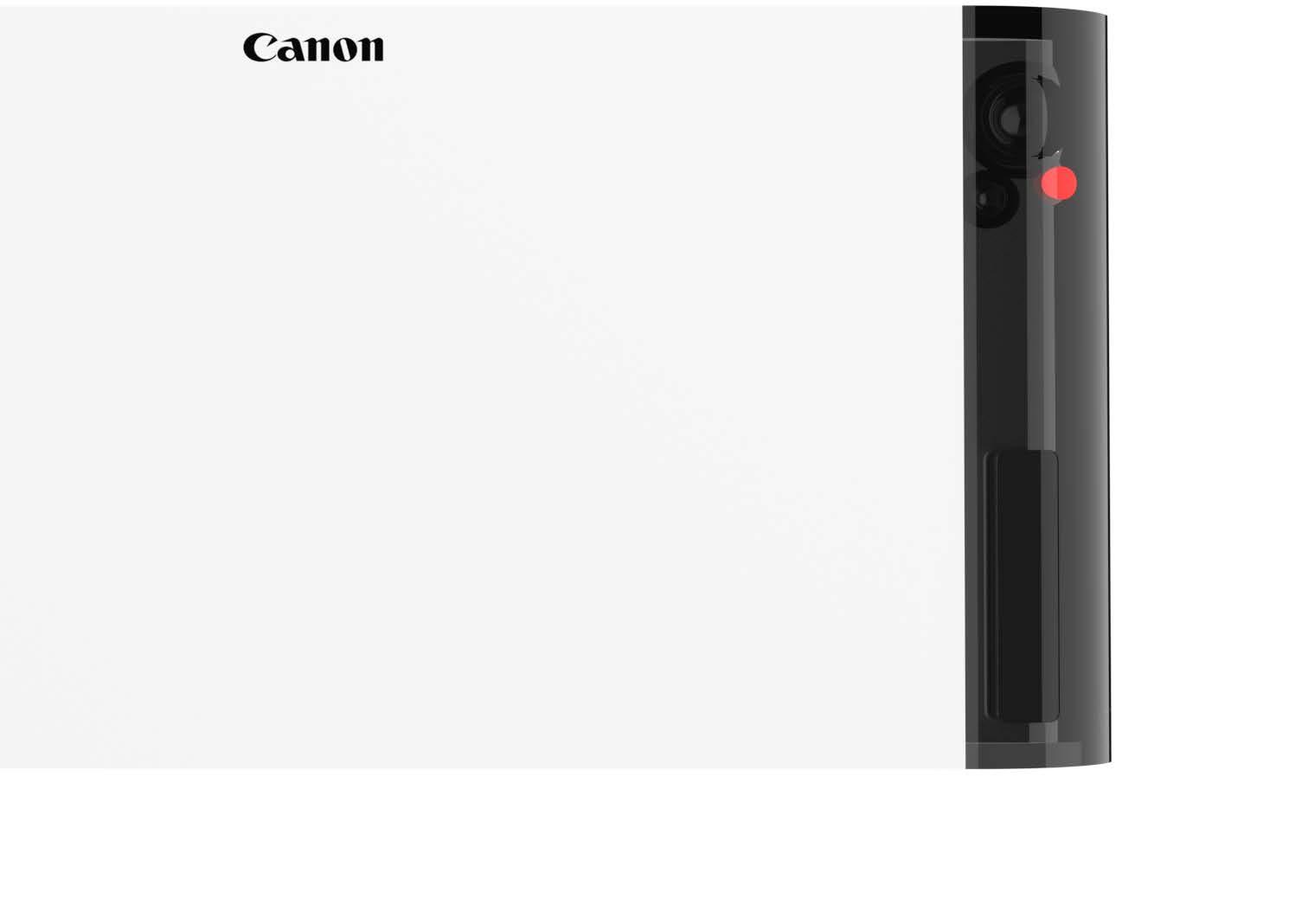

Simplifying form

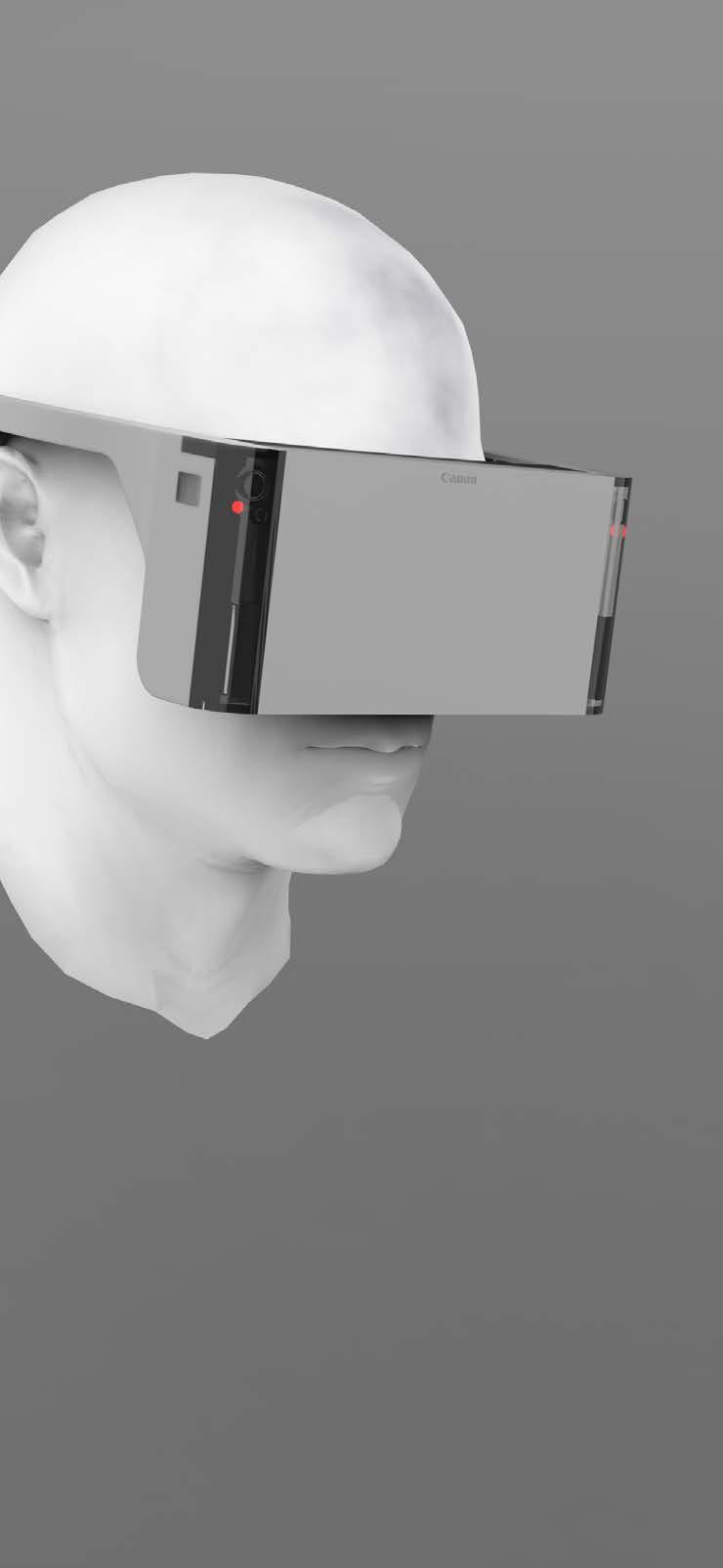

Sides

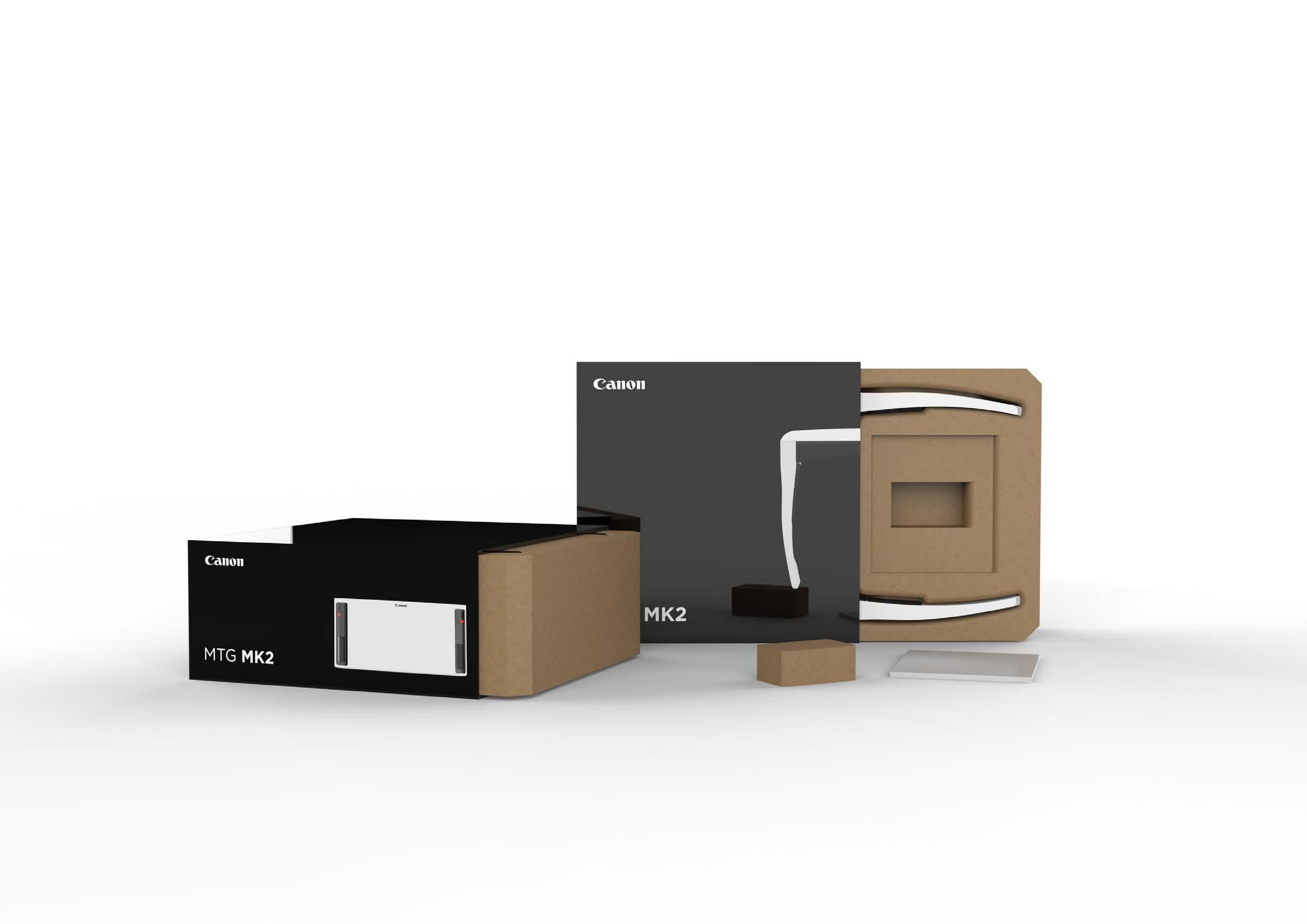

Packaging maintains the primary colour regardless of product colour scheme
Recycled cardboard insert
Glossed printed exterior
Charger cable
Information booklet
