JAMES GOODEVE

Architectural Portfolio | Selected Works

RESUME

SKILLS

Adobe Suite

Microsoft Office Suite

Autodesk AutoCAD

V-Ray

Rhinocoreos 3D

EXPERIENCE

Enscape Sketchup 2022

Autodesk Revit

Lumion

Architectural Assistant | Taylor Smyth Architects

August 2021 - September 2023

Executed design and construction documents for various mixed-use projects.

Attended site visits to coordinate and document the various phases of multiple projects

Freelance Architectural Designer | Low-rise Residential Project

April 2020 - September 2020

Collaborated with client and engineers to develop a design which fulfilled the economic and programmatic goals of the project.

Completed construction documents and technical drawings for the design.

Planning and Development Intern | Greenwin Corp.

Executed 3D models and renderings of a variety of interior spaces such as suites, corridors, lobby, and lounge areas within a high rise residential project to provide realistic visualizations of the interior finishes and design intent.

EDUCATION

2018 - Present

May 2019 - May 2021 References

Researched and provided documents regarding specifications and processes of construction involving shipping containers as a building material. Assisted on the creation of a mid-rise residential project concept implementing the researched construction methods.

Attended design development meetings for mixed use high-rise residential projects and assisted in the preparation of the design documentation package for site plan approval.

Toronto Metropolitan University | Bachelor & Masters of Architecture

AWARDS & RECOGNITION

Participated in design meetings with clients to develop concepts for residential and commercial projects that were in-line with the aesthetic and economical desires of the client. TMU

TMU

325

EXTRACURRICULARS & COMPETITIONS

Architectural Modelling TMU

Ethiopia

SIMBANDI CHILDREN’S HOUSE

| COMPETITION ENTRY / 2022

The Simbandi Children’s House nestles into the Senegalese landscape, providing interactive spaces and programming to promote food security and wellness for the local children. The design carefully establishes a relationship with the site, visually reflecting the palette of natural features and materials that define the environment around it.

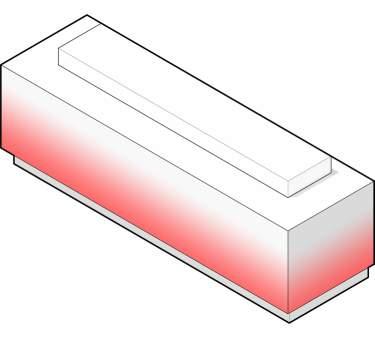

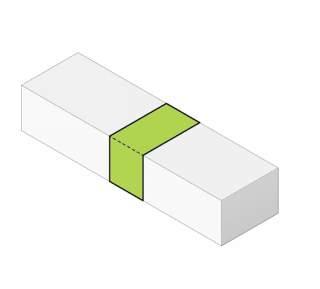

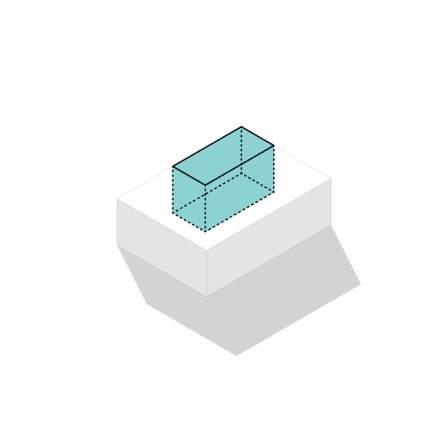

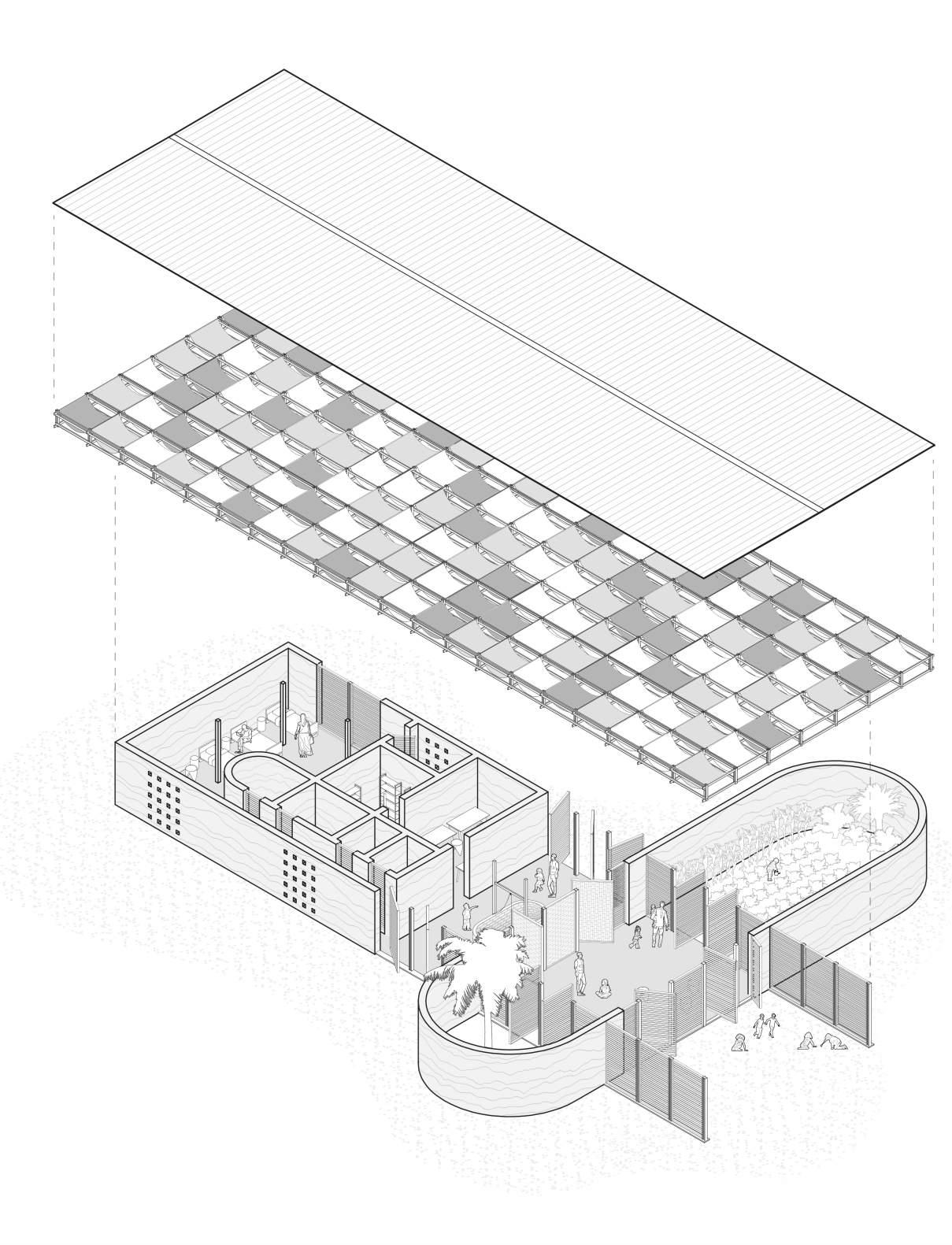

DISJOIN.

A rectangular massing is disjoined at the centre to create two distinct programmatic areas.

BISECT.

Courtyard walls bisect the educational programming spaces to create flexible outdoor areas.

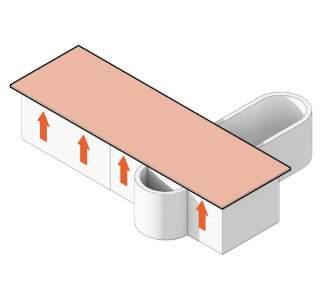

ELEVATE.

The roof plane is elevated above the main walls, creating a ventilated indoor climate.

1. Central Foyer + Well

2. Flexible Education Space

3. Outdoor Education Space 4. Courtyard 5.

A monolithic form of laterite earth rests upon the ground, with intermittent wooden screens which invite users into the space within. The central entrance opens to a foyer with a well which acts to benefit the entire community, and welcomes all members of the area to participate in the function of this building . The foyer acts as a threshold between programming, dividing the private family spaces from the more public interactive learning spaces.

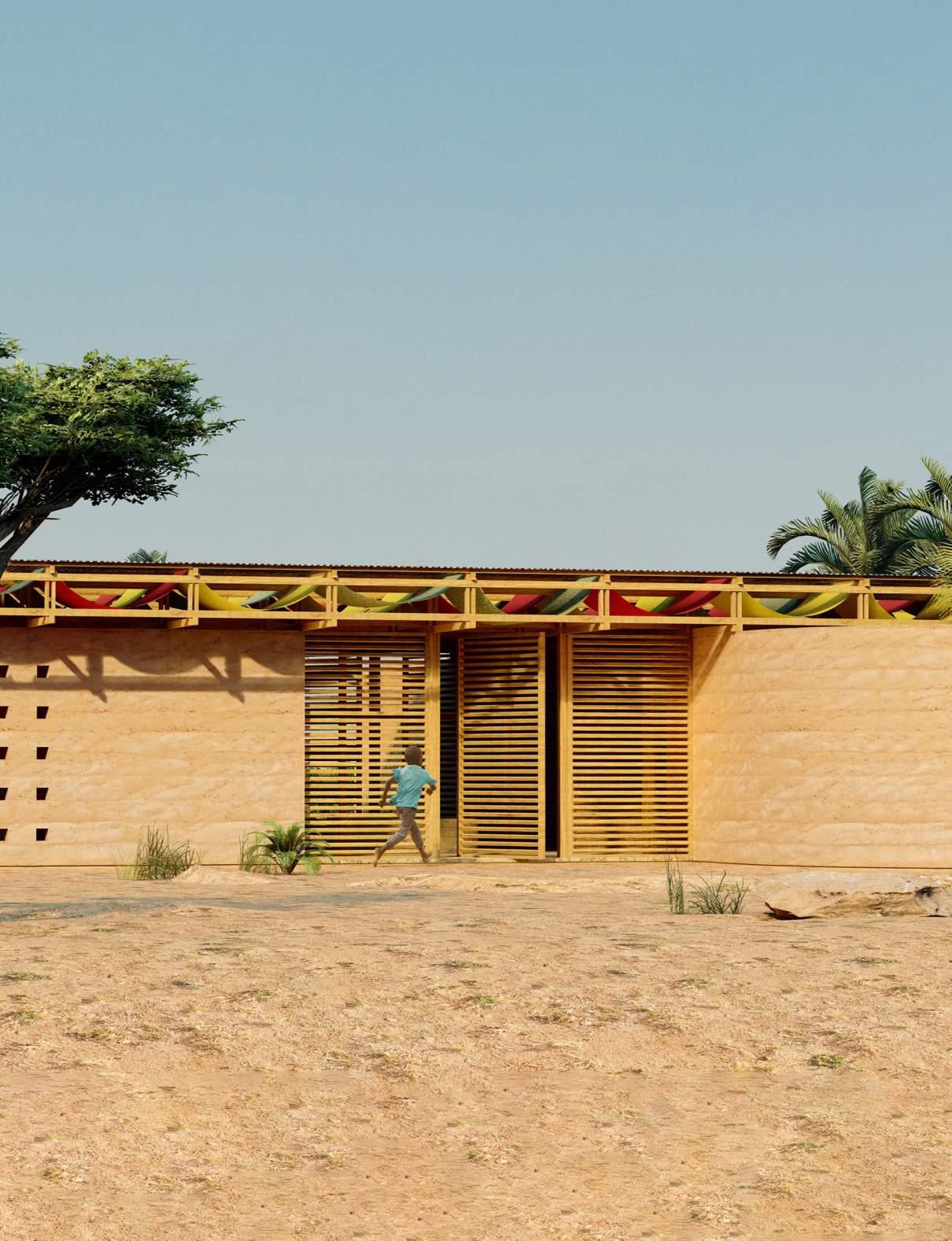

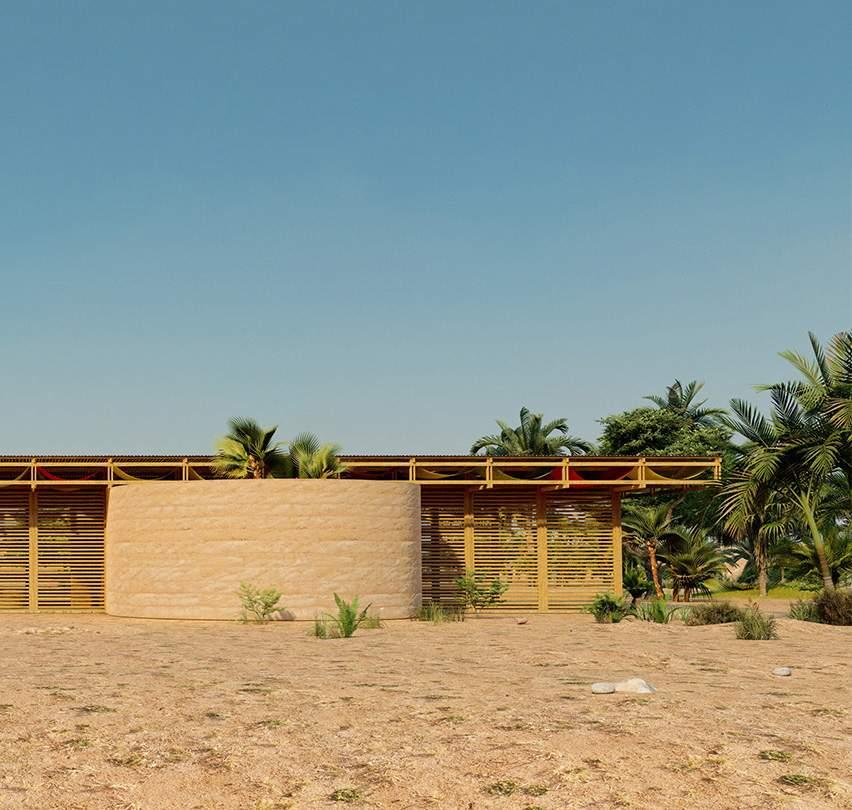

above | Front Elevation

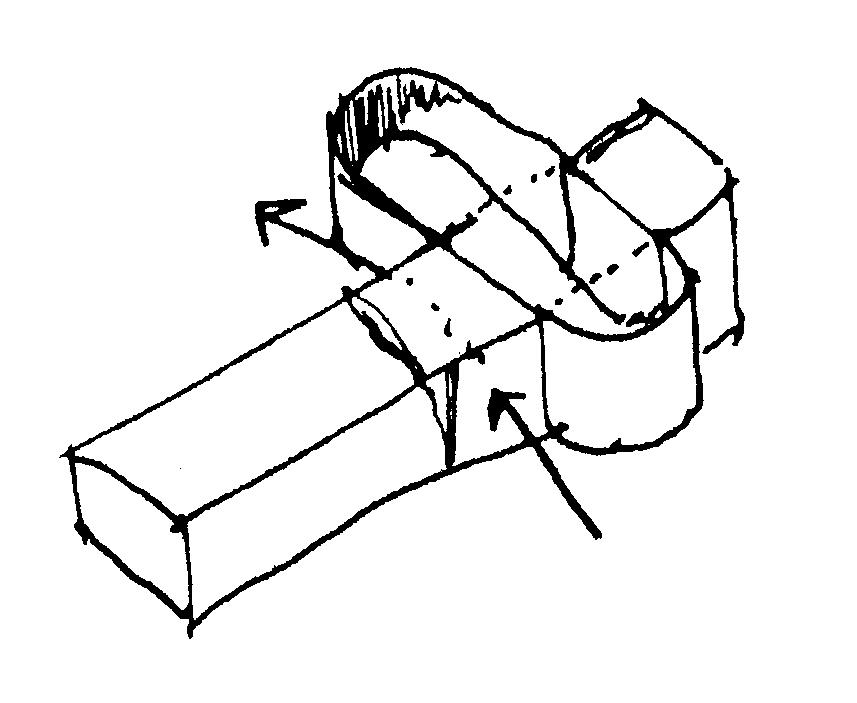

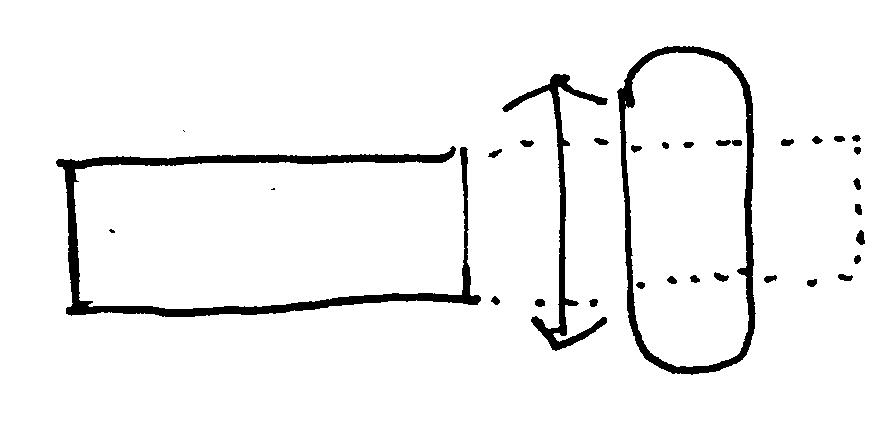

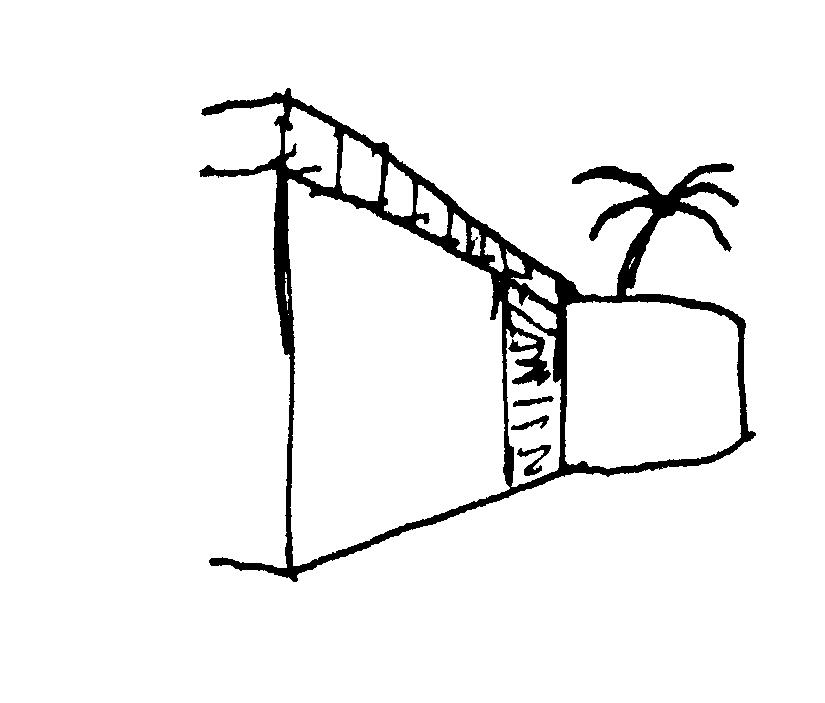

above | Process Sketches

below | Courtyard Perspective

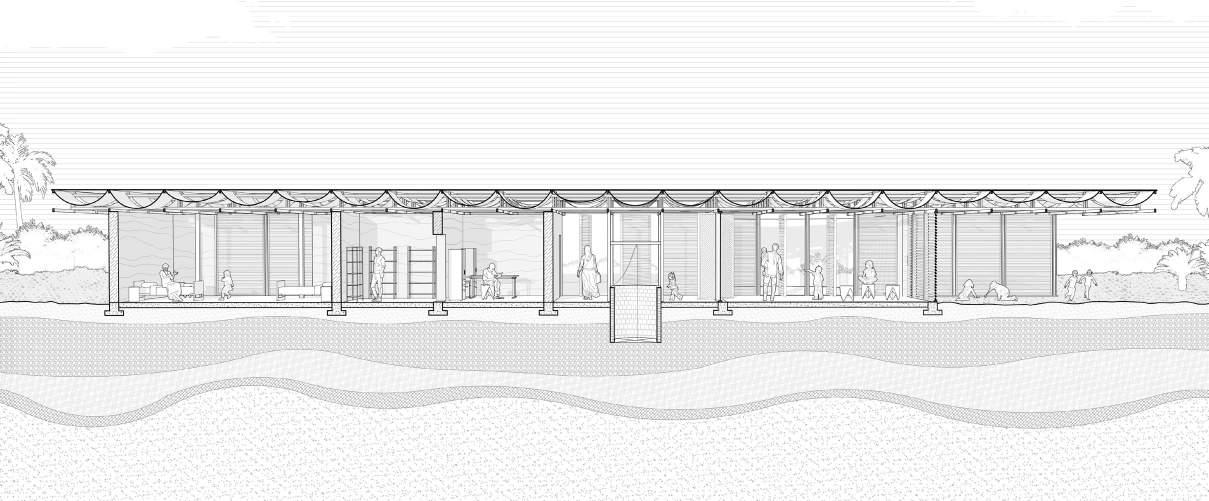

above | Rear Entry Perspective below | Building Section

The private spaces are tucked away from public view, with only small and controlled openings for light. On the opposite side of the foyer lies the interactive education space. This space is intersected with gently curved walls which provide protected outdoor courtyards . These courtyards act as gardens which are utilized as interactive agricultural education spaces. These spaces provide a practical and safe environment for children of all ages to learn and experience local agricultural practices first hand. Pivoting doors provide seamless integration to the outdoor education space, providing flexibility in the use of the surrounding site.

above | Front Perpsective

below | Process Sketches

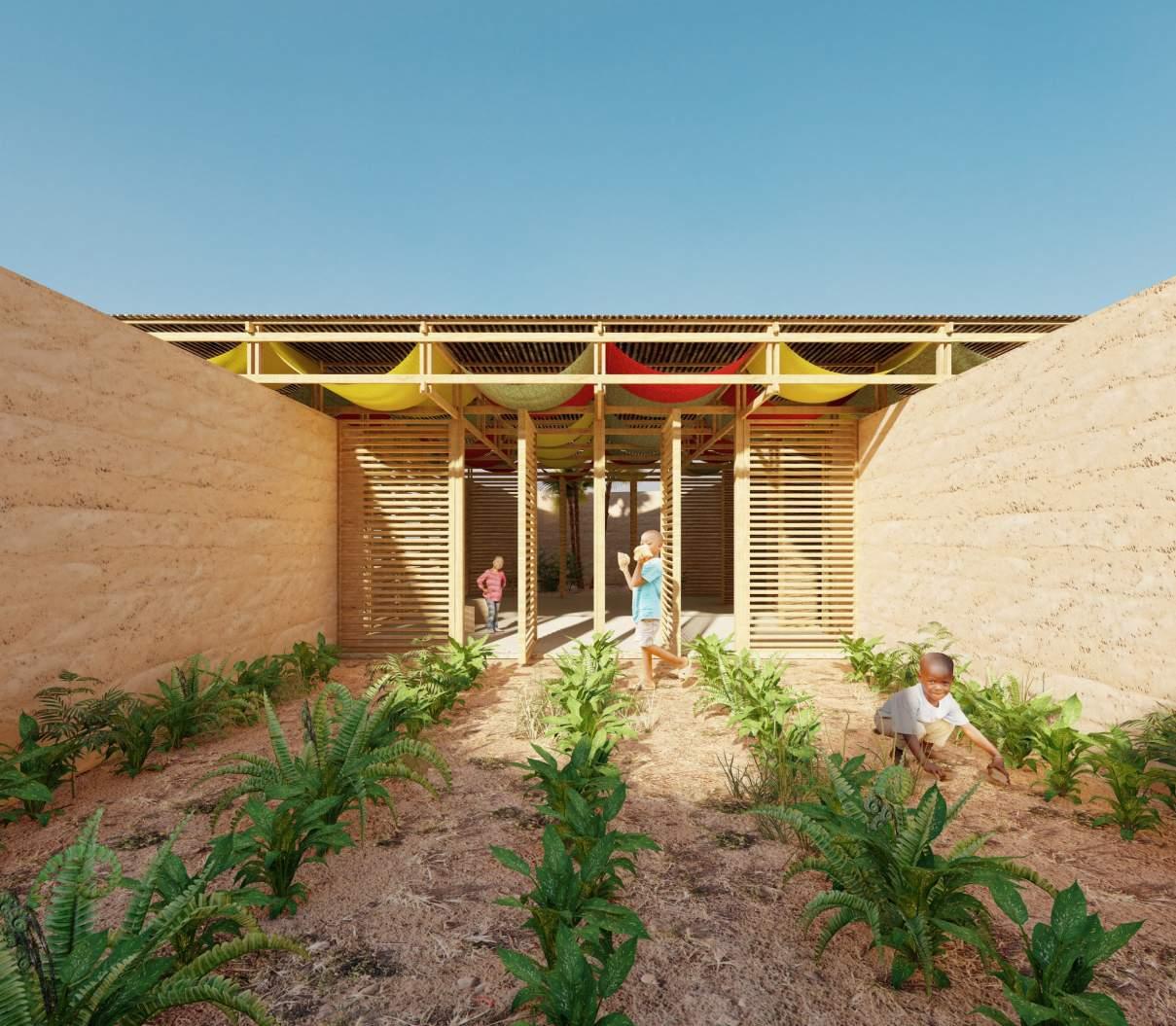

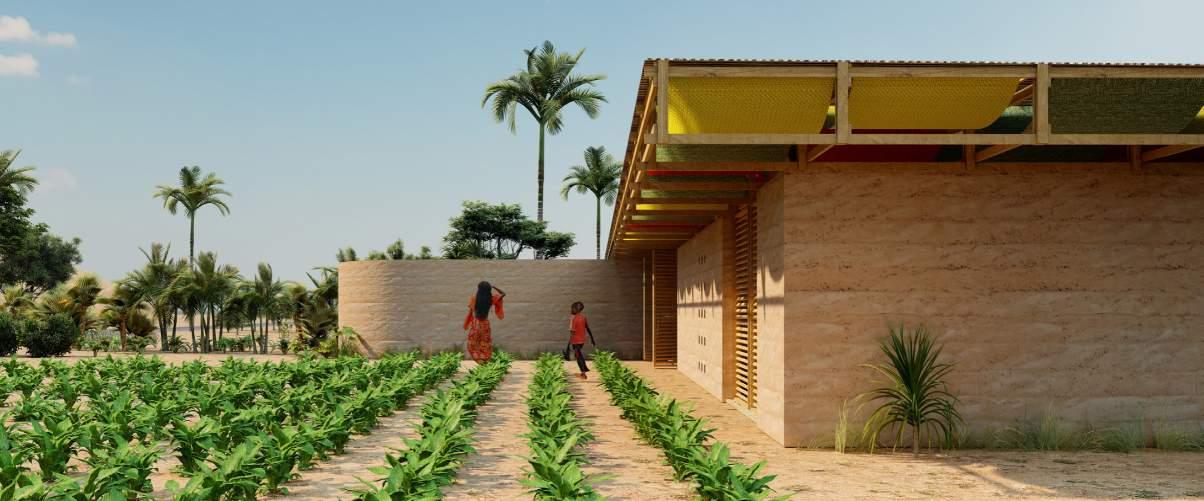

The interjecting courtyard walls create a pocket of defined exterior space which is utilized for agriculture. This acts as an additional source of food for the children who use this space. The function of the entire building is to harmoniously organize the programming into a form which enhances the potential to educate and provide food security to the youth of Simbandi and the surrounding area.

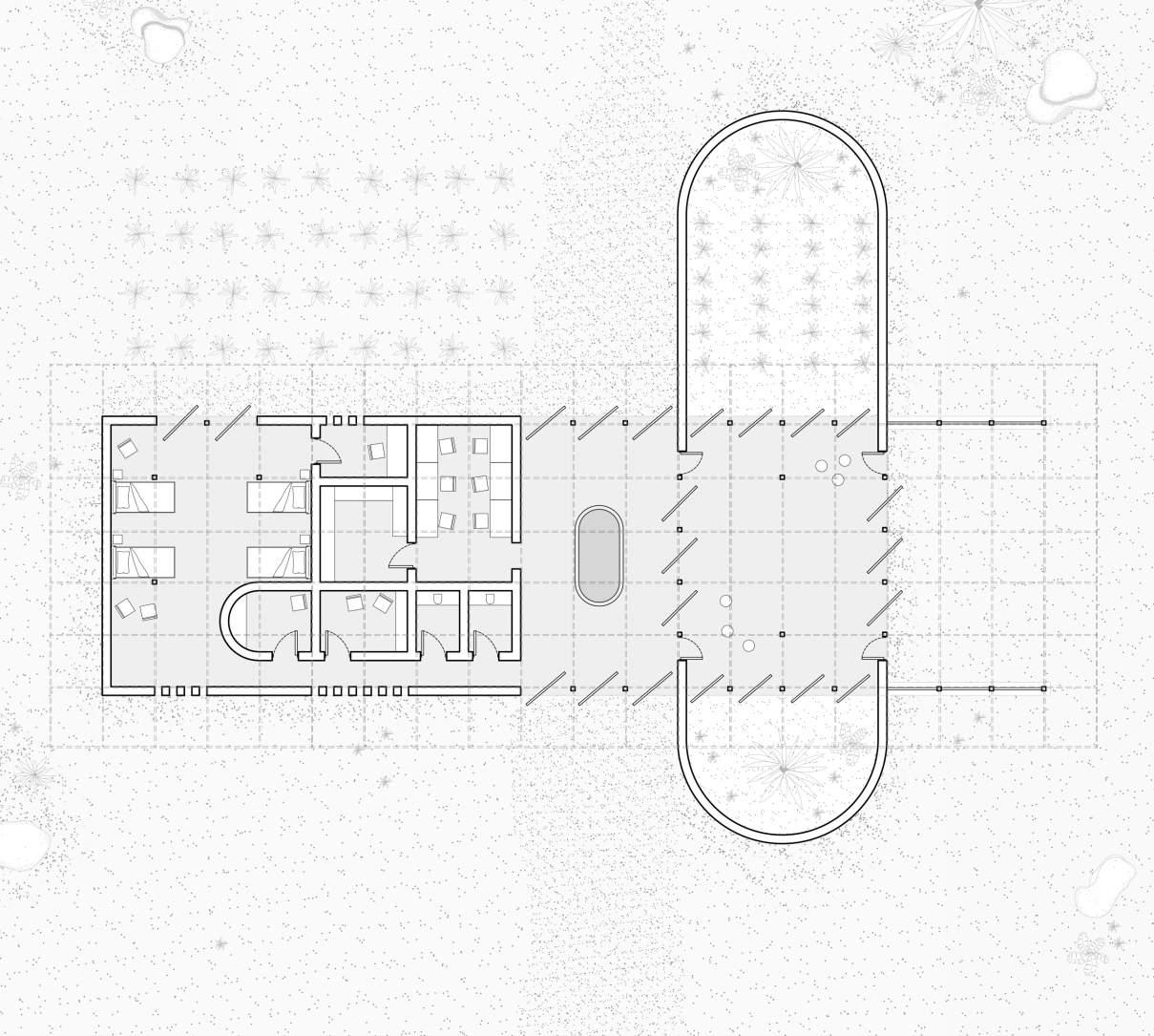

1. Central Foyer + Well

2. Flexible Education Space

3. Outdoor Education Space 4. Courtyard 5. Administration Office

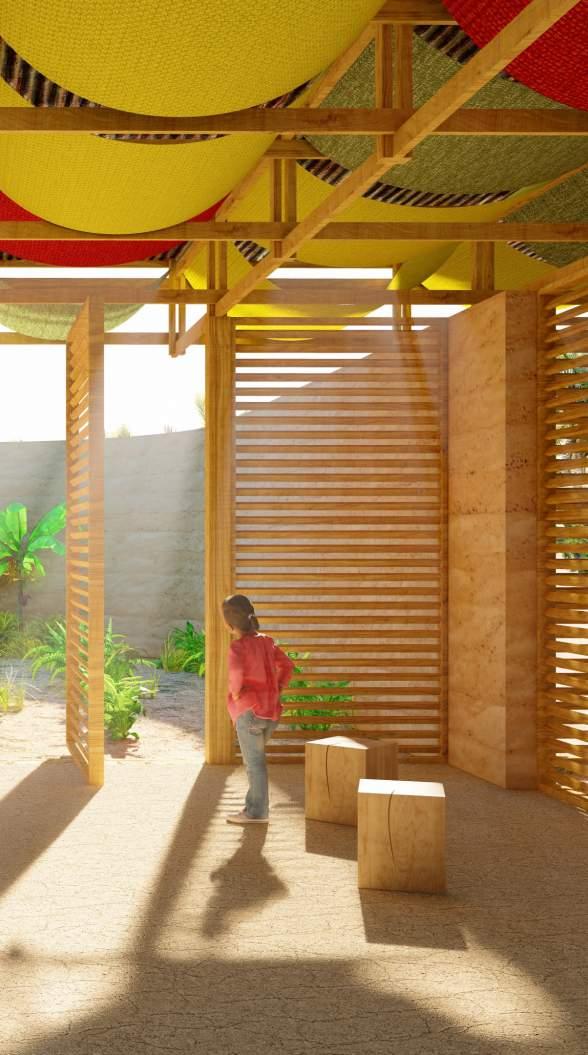

above | Interior Perspective

above | Wall Section

below | Rear Garden Perspective

1. Concrete Foundation

2. Concrete Floor Finish

3. Rammed Earth Wall

4. Wood Roof Structure

5. Woven Sun Drape

6. Corrugated Tin Roof

7. Embedded Wood Column

FLAMINGO VISITOR CENTRE

| COMPETITION ENTRY / 2020

The Flamingo Visitor Centre in Abu Dhabi’s Al Wathba Wetland Reserve focuses on bringing visitors closer to nature. The centre integrates a central courtyard with an animal rehabilitation area to provide an up close and personal view.

Abu Dhabi

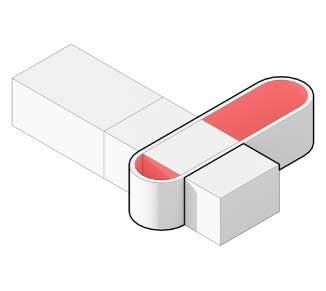

LINK.

Rooftop viewing platform connects existing paths.

INTEGRATE.

A central courtyard gives visitors a closer look at the wildlife.

PERCEIVE.

The south facade provides views over the wetland.

above | Isometric View below | North Facade

Vertical louvers made of woven palm leaves are angled in order to allow the natural breeze to permeate and cool the interior space. It also blocks the harsh direct sun that is present on the reserve to mitigate solar heat gain within. The louvers are secured in front of the mullions, and the operable windows swing to match the angle of the louvers, allowing the air to flow uninterrupted

The visitor centre creates a lookout platform on the roof to provide panoramic views of the wetland surrounding it. The inention behind the two primary access stairs is to link the platform to the existing pedestrian path, allowing for the centre to serve as a key moment along the path and not just a space marking the start or end.

The central courtyard can be viewed from both inside the centre and from the viewing platform above, creating a level of interaction between the two areas.

above | Louver System

above | Courtyard Perspective

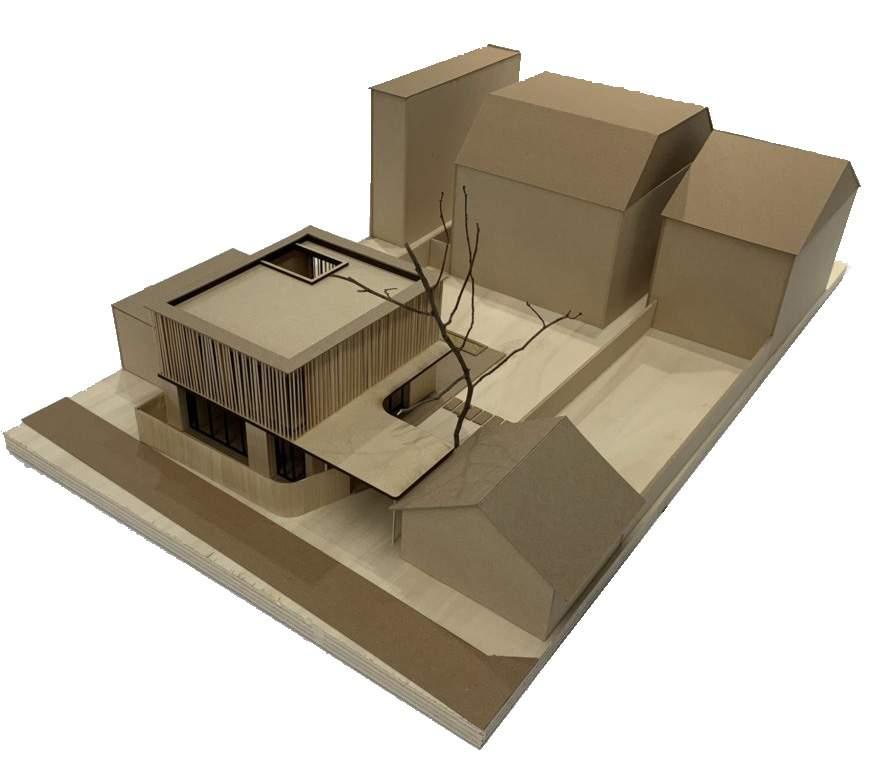

BERESFORD LANEWAY SUITE

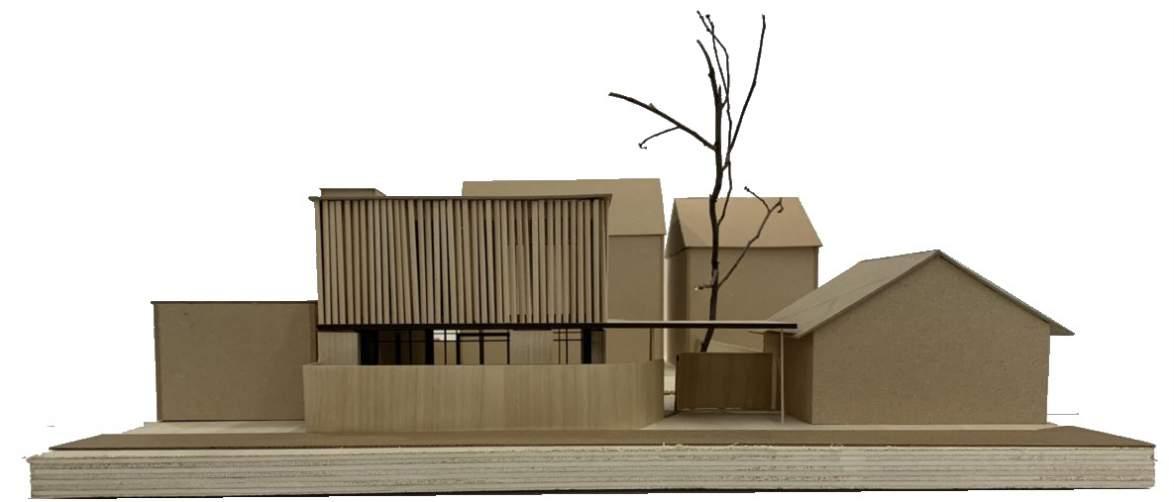

The extensive system of laneways that wind through Toronto is an underutilized, and untapped source that can be used for gently densifying existing neighbourhoods. The Beresford laneway suite creates a family home that addresses the intricacies and dynamics of living in a laneway. Solutions that address privacy, circulation, light, and landscaping are implemented to create an oasis with a distinct environment- both connected and independent to the laneway.

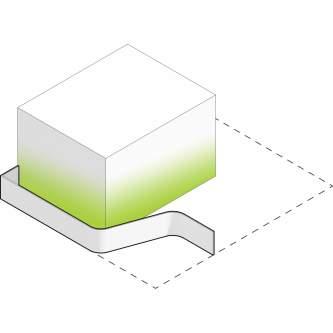

SHIFT.

Shifting the form to the edge of the site creates a flexible space adjacent to the ground floor.

DIVIDE.

A dividing wall creates privacy between the house and lane, and defines areas for parking and landscaping.

PERMEATE.

The second floor facade allows for light to permeate while maintaining privacy.

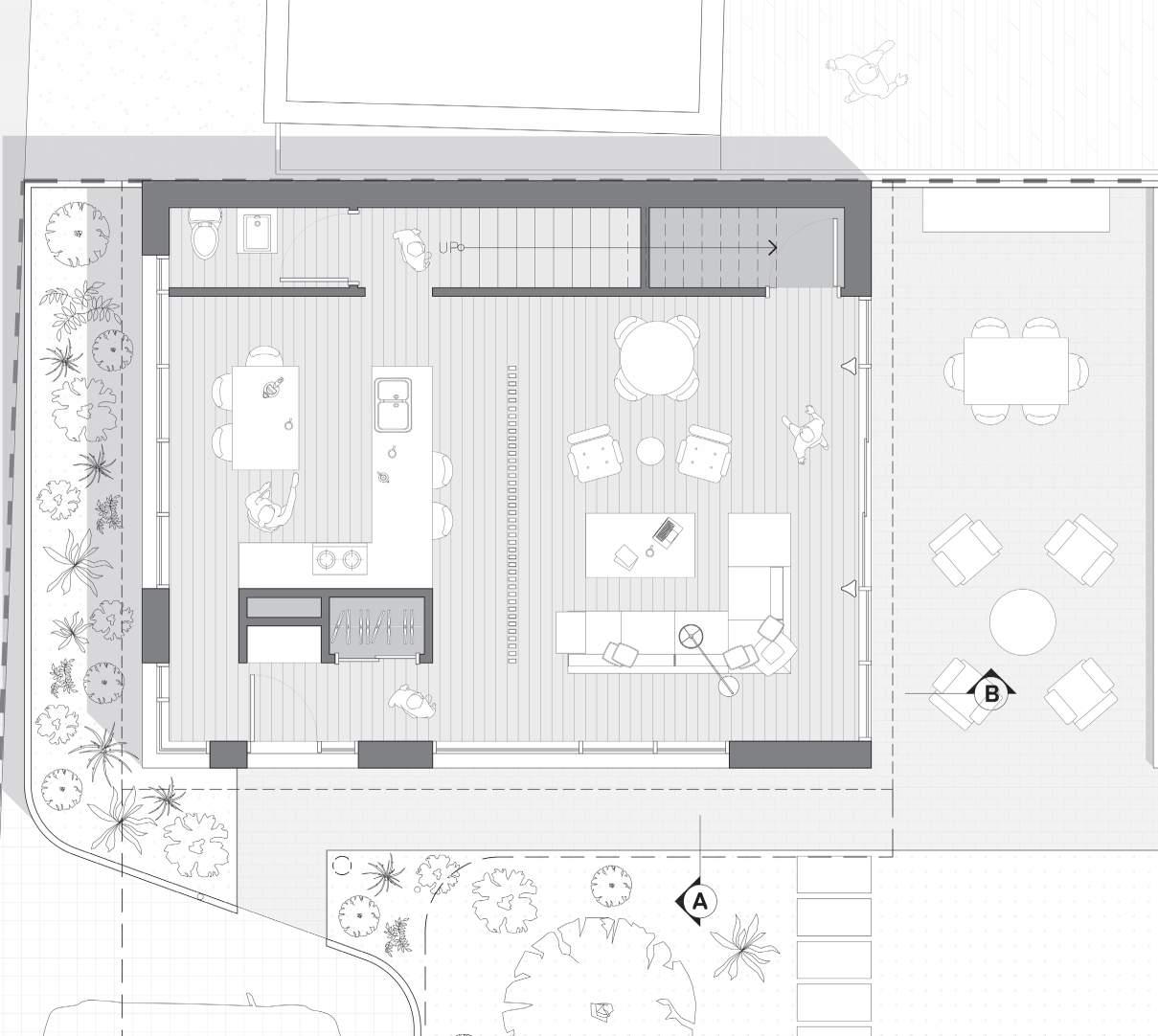

1. Entry Hall

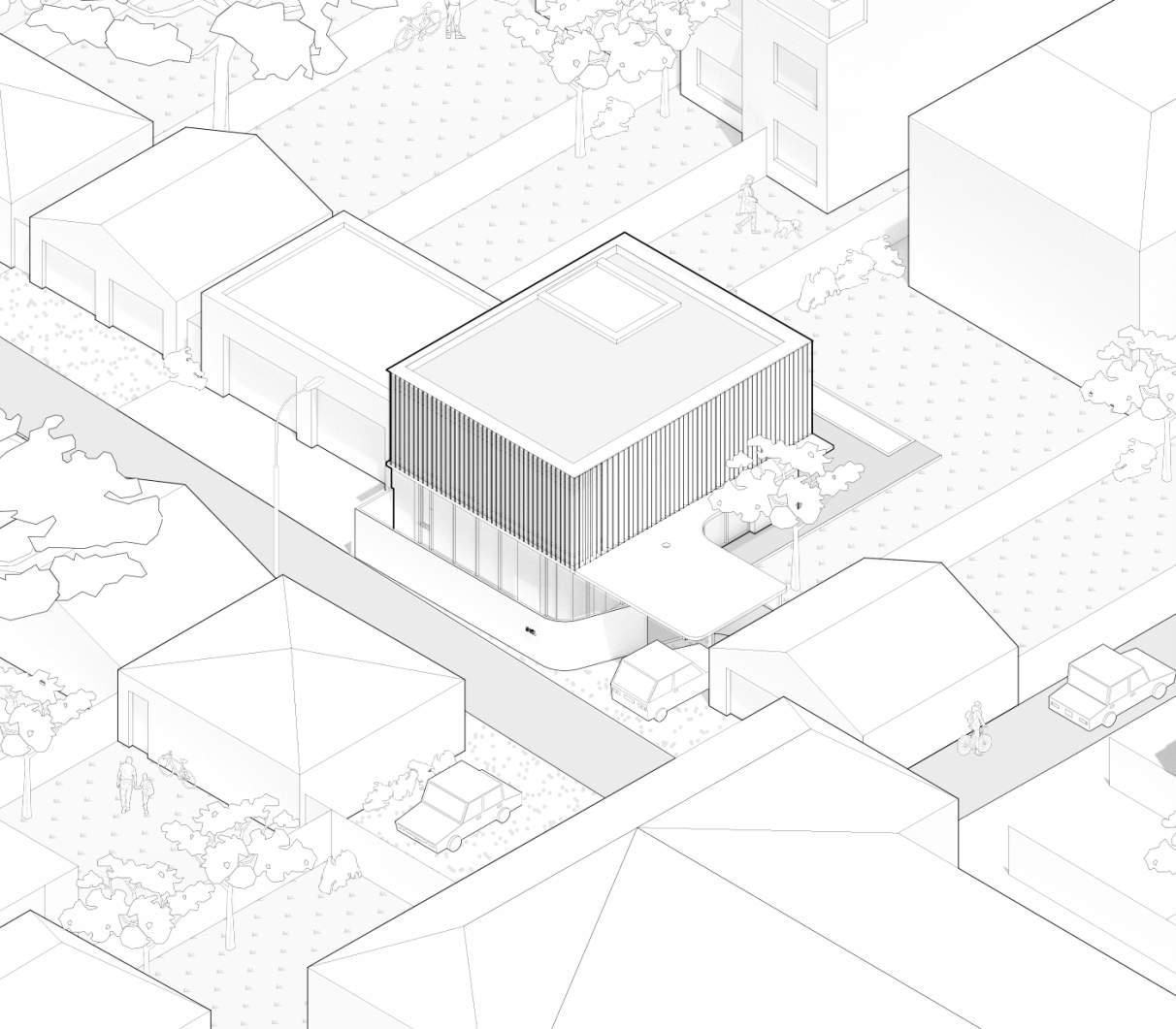

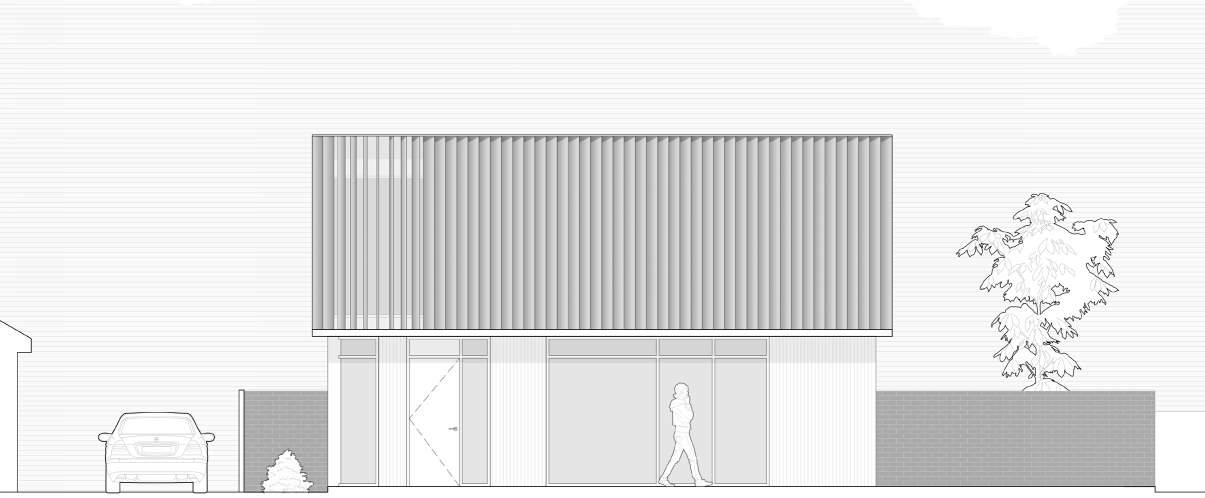

below | Isometric View above | Elevation

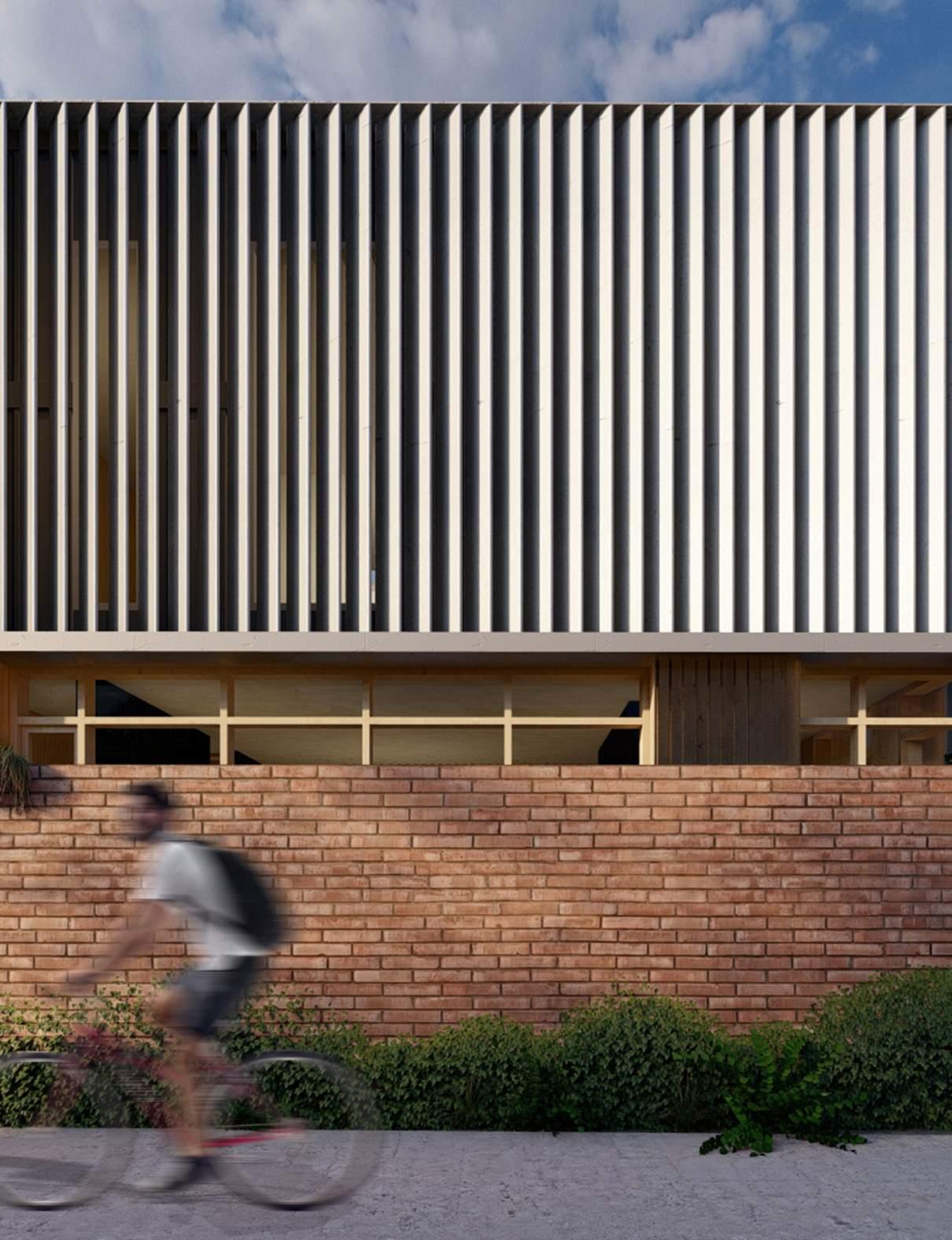

The vertical louvers are angled to ensure the interior spaces receive an appropriate level of light and privacy, depending on their programmatic function. The sight lines which are created minimize the view to and from the laneway, while maximizing the visual connection to the private rear yard. The sublte shifts in louver direction are completed in 10 degree increments.

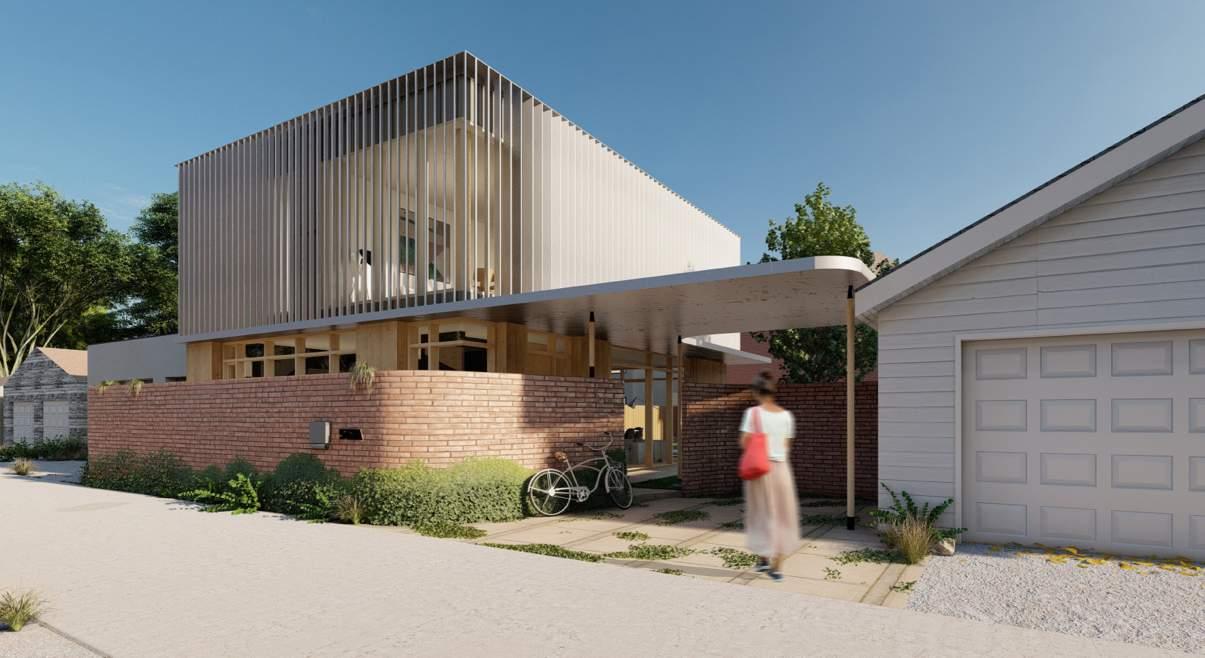

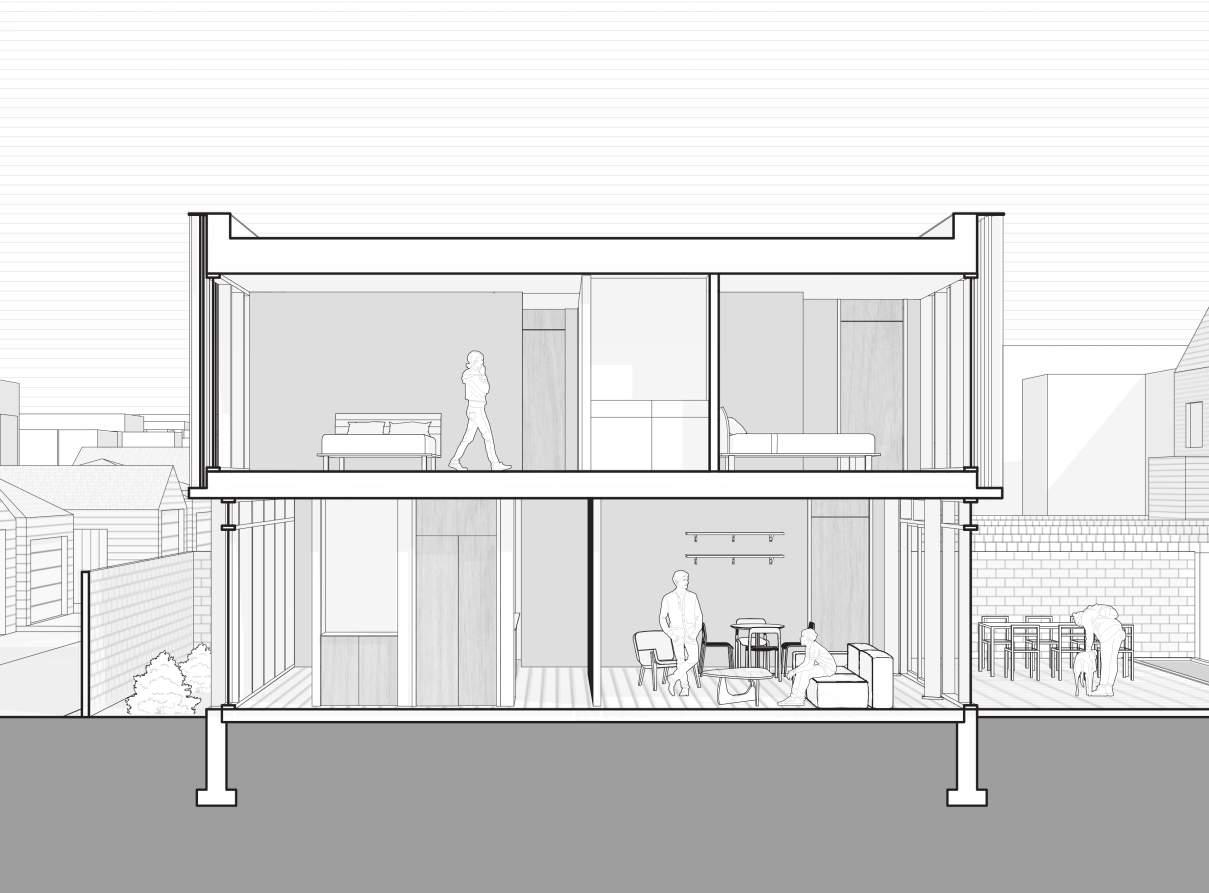

below | Section above | Exterior Perspective

below | Parapet Detail above | Exterior Perspective

1. Extruded aluminum louver

2. 100mm rigid insulation

3. Alum. siding on strapping

4. Air/vapour barrier

5. Plywood on 2x6 wood stud parapet w/ batt insulation

6. Cant strip

7. Wood window trim

8. Alum. drip edge flashing

GOAHTI REIMAGINED

| COMPETITION ENTRY / 2021

The goal of this remote hotel is to seamlessly integrate the form into the rugged landscape, while respecting and utilising traditional materials and design ideaologies. The built form enhances the natural landscape, while still respecting the existing conditions. The slope of the hill is integrated into the structure, and a continuous path flows uninterrupted through the site of the hotel. The roof of the building acts as a observation deck, providing panoramic views of the surrounding sky and topography. The natural landscape and building work together to create a functional and fluid user experience.

INTEGRATE.

Integrate a continuous path through the built form.

EXTEND.

Extend the hill in key areas to allow for panoramic views of the sky.

OBSERVE.

Create roof portals that allow visitors to view the northern lights.

1. Hotel Rooms

2. Spa Programming

3. Excursions Desk

4. Aurora Borealis Exhibition

Observatory

Goahti

Borealis Portal

1. Hotel Rooms

2. Restaurant

3. Lobby + Reception

4. Staff Room and House Keeping

5. Library + Flexible Event Space

6. Aurora Borealis Exhibition

7. Observation Deck

8. Continuous Outdoor Pathway

9. Pool + Outdoor Lounge

Below | Perspective Section

below | Facade Perspective

below | Interior Perspective

above | Exterior Path Perspective

above | Exterior Perspective

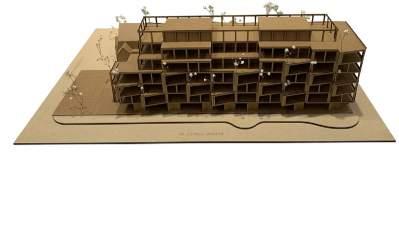

BLOOR ST. WEST MIDRISE

| ACADEMIC PROJECT / 2022

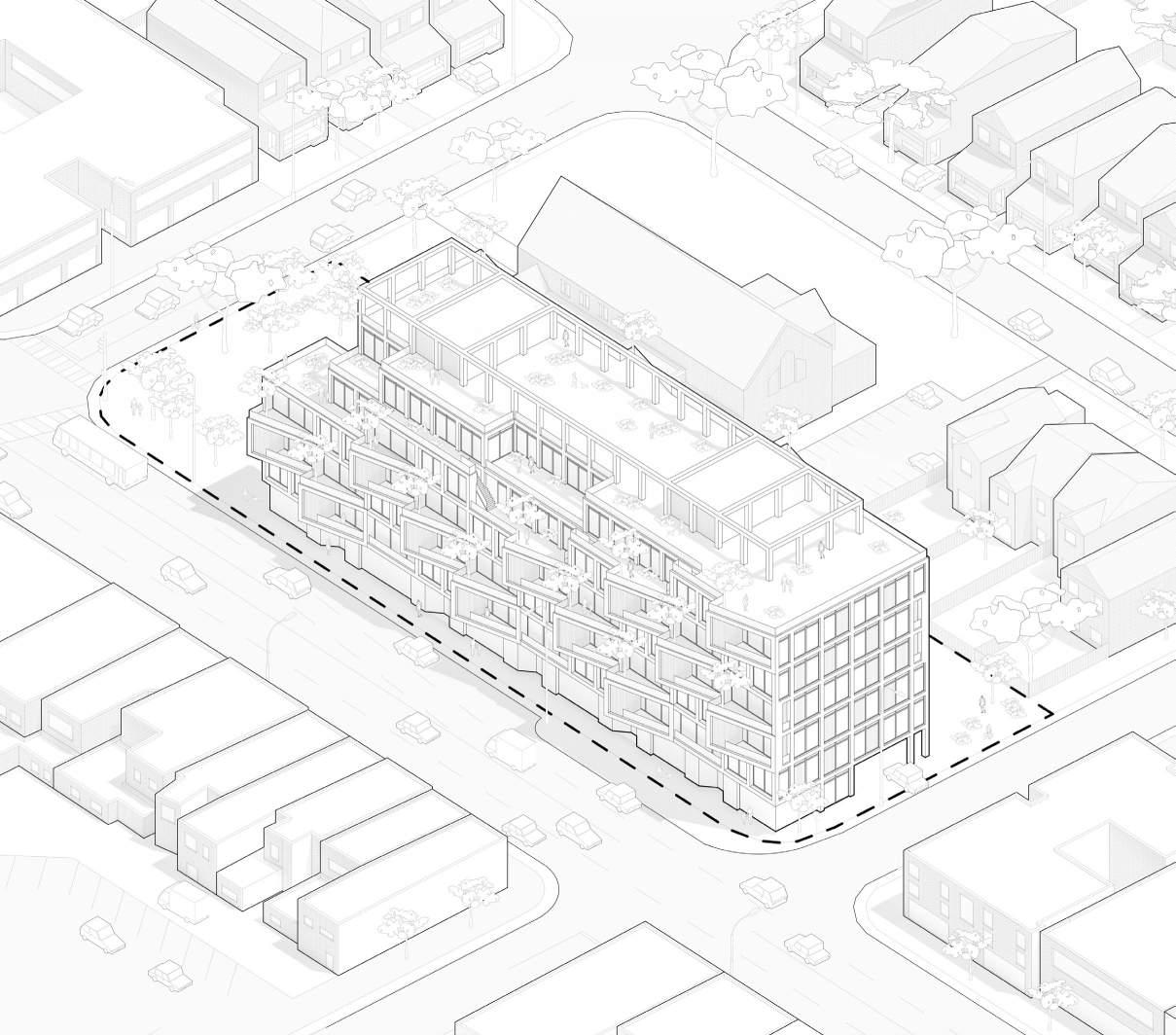

This midrise building situated in Bloor West Village strives to maintain the existing character of the neighbourhood through a reinterpretation of the existing built context within a midrise form factor.

DENSIFY.

Densify the block according to city guidelines.

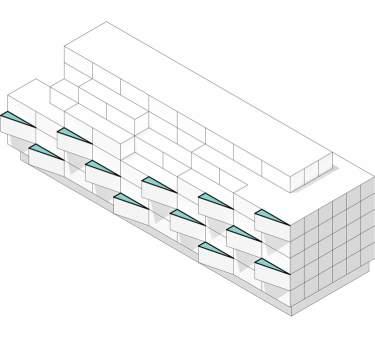

PIXELATE.

Pixelate upper floors to create green spaces above grade.

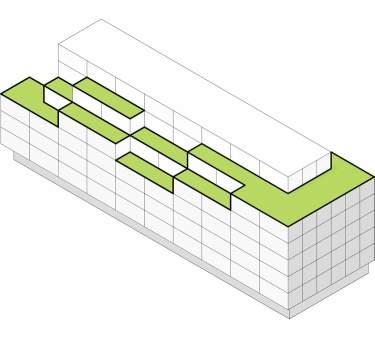

VEGETATE.

Extend units to allow for more significant vegetation above.

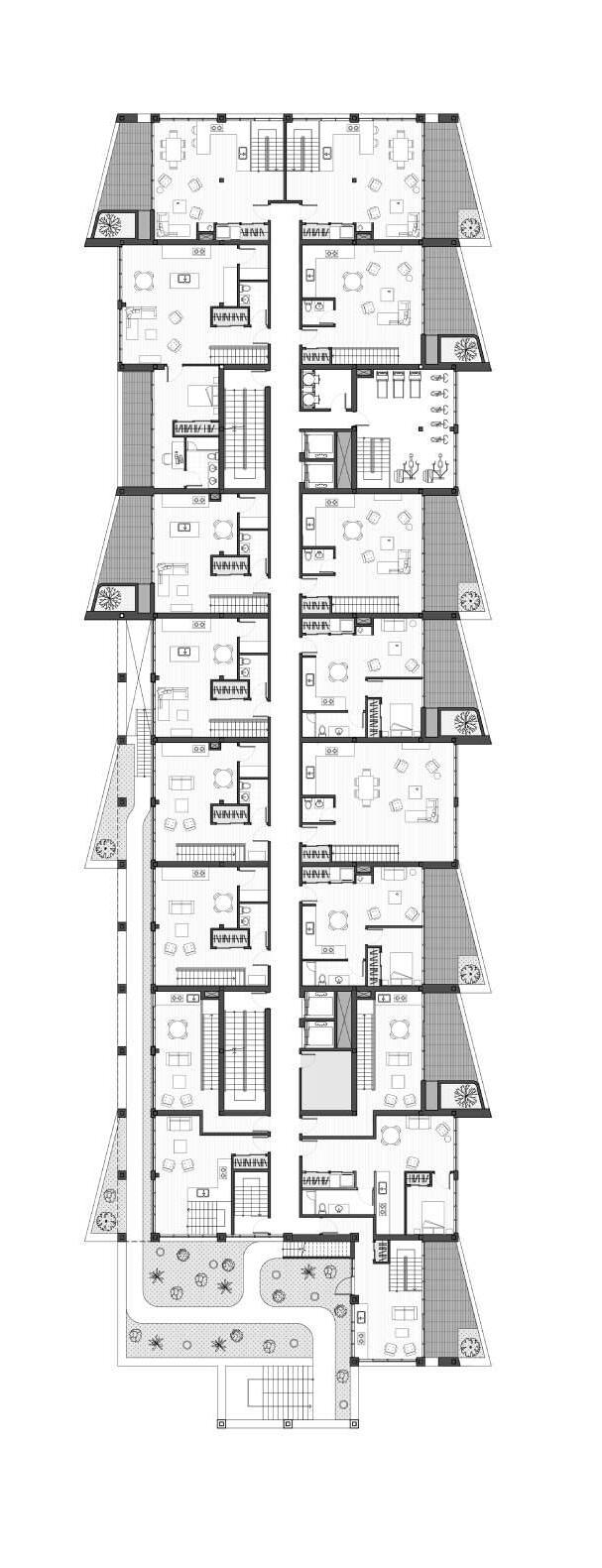

1. Public Park

2. Rooftop Park Extension

3. Green Terrace + Public Path to Peak

4. Typical Tree Planter Integration with Balcony

5. Rear Green Corridor + Community Garden

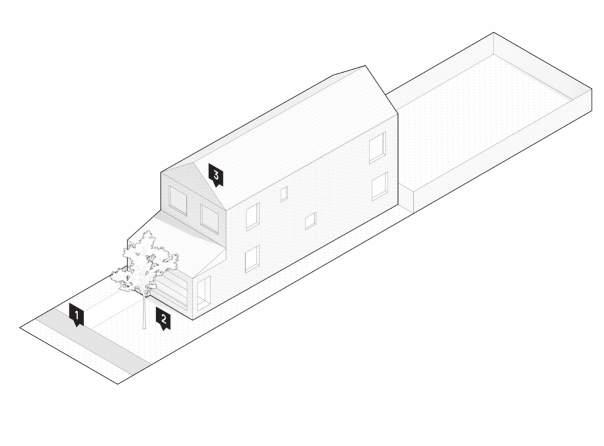

EXISTING TYPOLOGY

1. Sidewalk creates a level of interaction with the public realm

2. Front yard creates a greenspace

3. Community demographics demand family housing

REINTERPRETATION

1. Two-storey familty units dominate the building

2. Elevated ‘front yards’ with trees are provided to each unit.

3. A public ‘sidewalk’ is integrated.

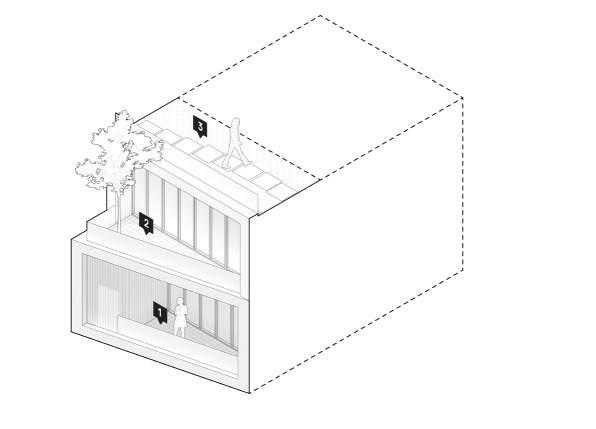

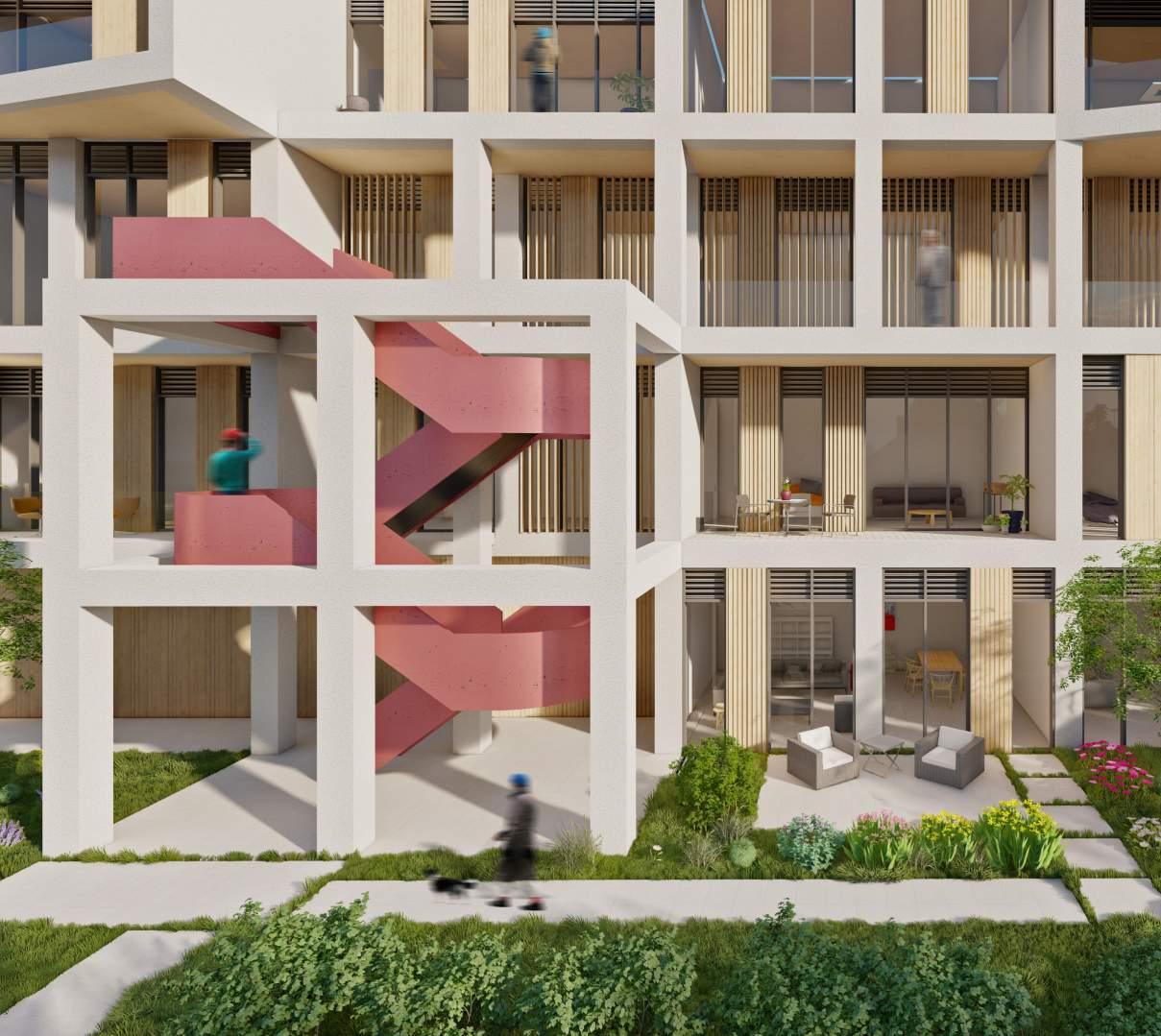

1. Stair access from park at grade

2. Exterior public path to rooftop park

3. Typical balcony with integrated tree planter

4. Typical Terrace with tree

5. Skip-stop corridor layout

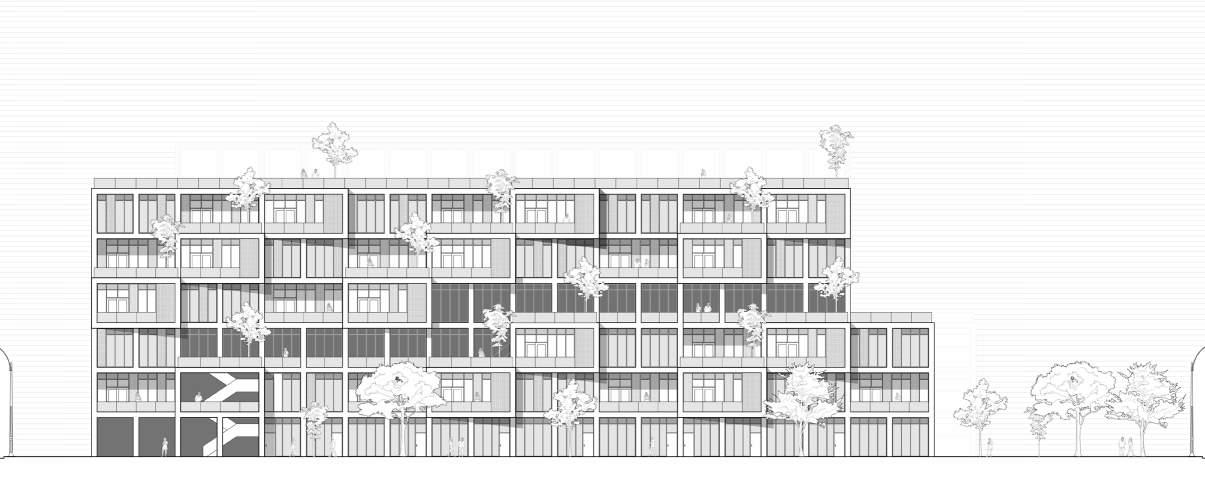

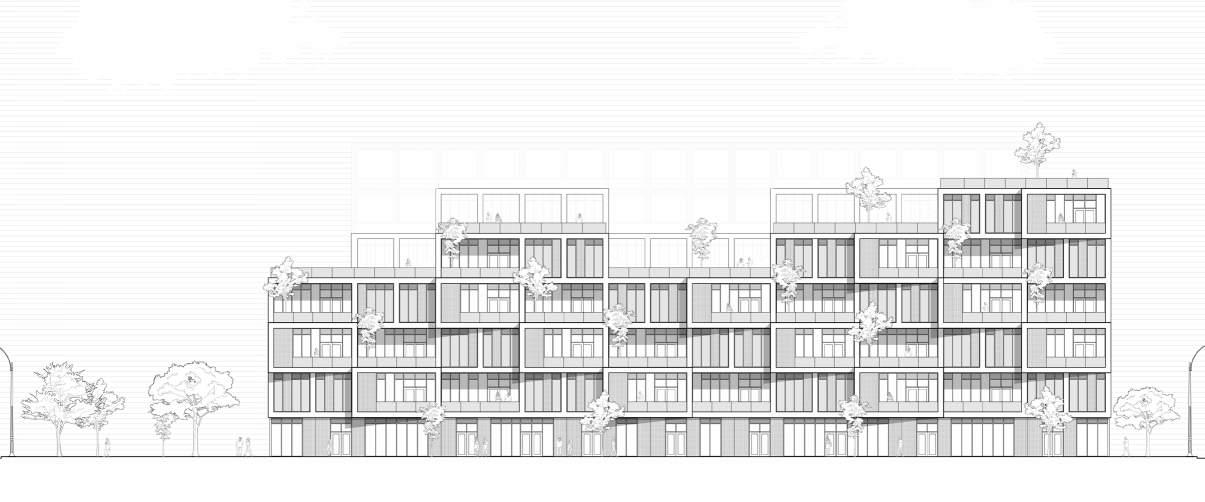

above | South Elevation

above | North Elevation

NIA ARTS CENTRE

| ACADEMIC PROJECT / 2021

The NIA Centre for the Arts aims to embody the cultural and artistic values of Toronto’s Little Jamaica Neighbourhood. Carefully organized outdoor spaces allow for the integration and expansion of the pedestrian streetscape. A dynamic, expressive facade is inspired by local artists and creates a beacon of personality within the community.

Toronto, Ontario

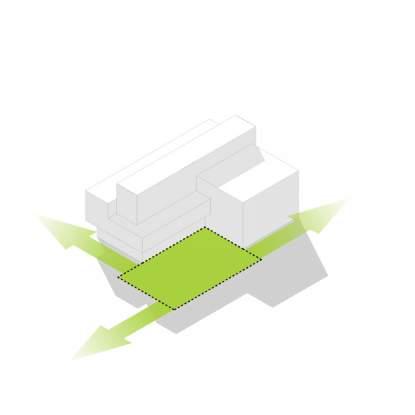

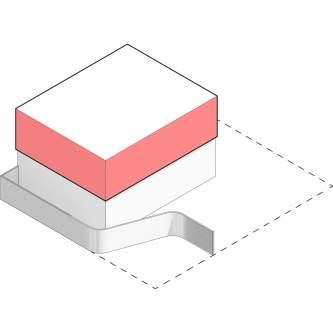

EXTRACT.

Extract a portion of the building to make way for a public space.

CIRCULATE.

Locate main circulatory elements in a central form.

UNITE.

Unite the public space with significant surrounding areas.

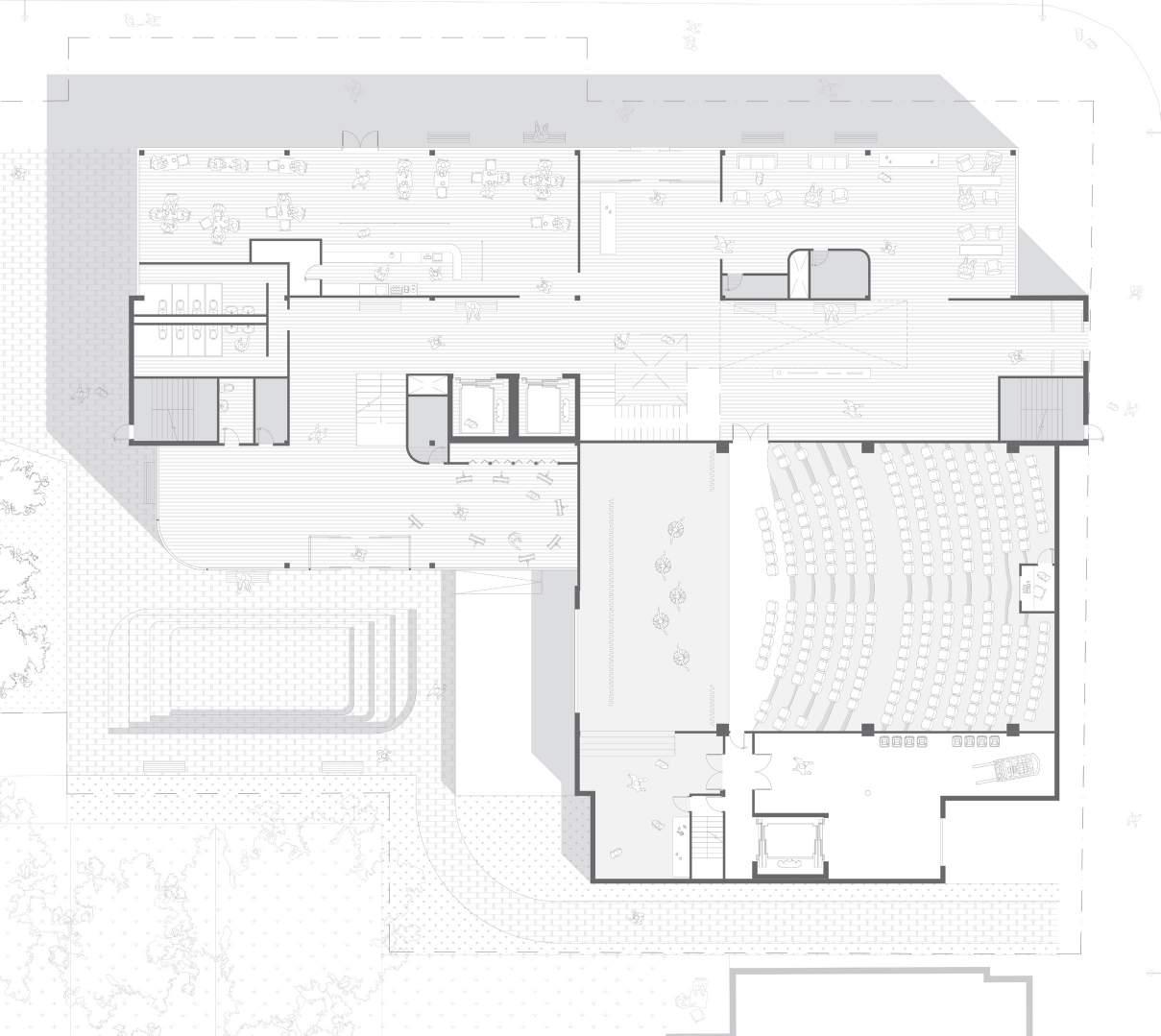

1. Reception area

2. Pre-event Lounge

3. Theatre

4. Back Stage

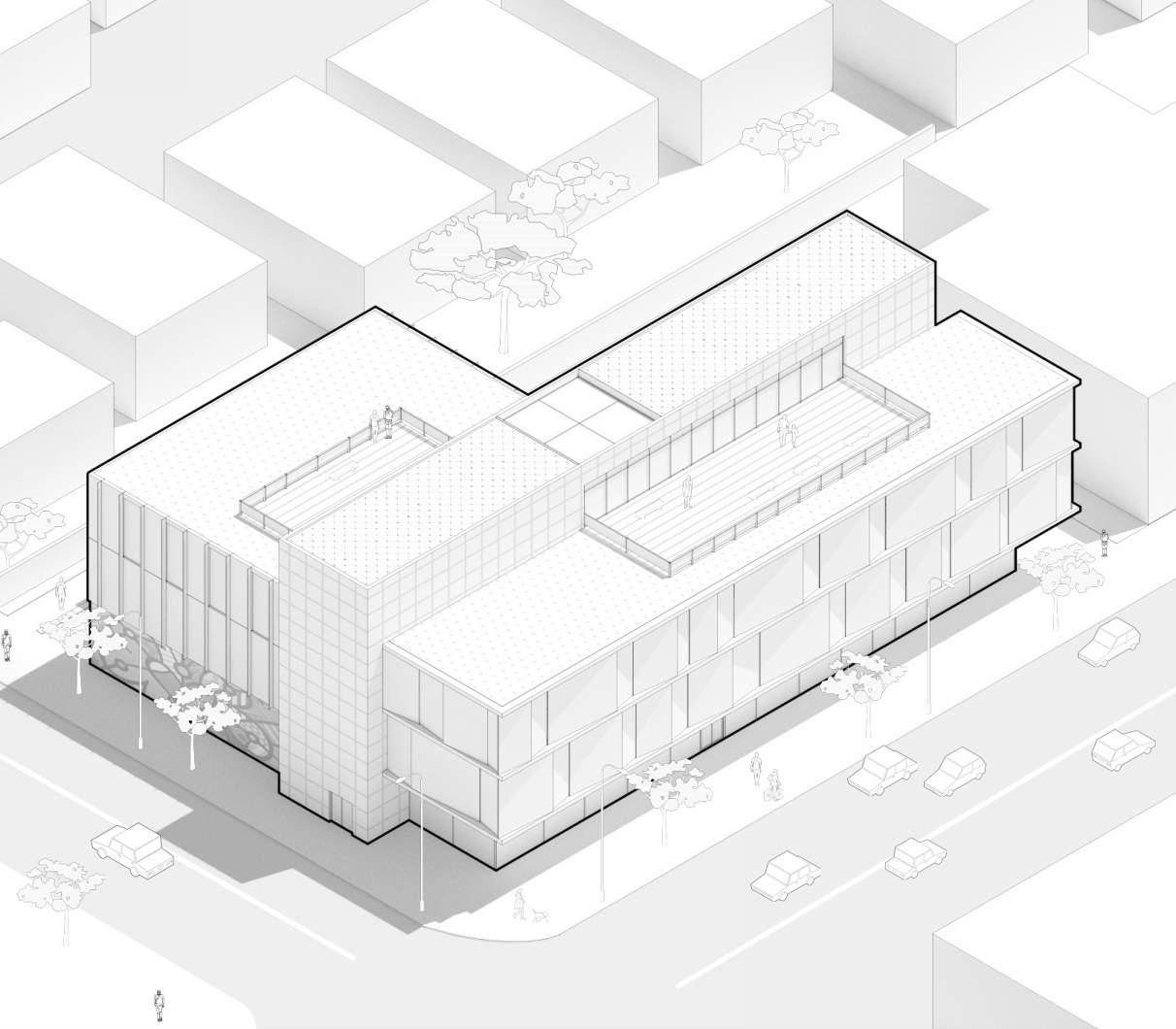

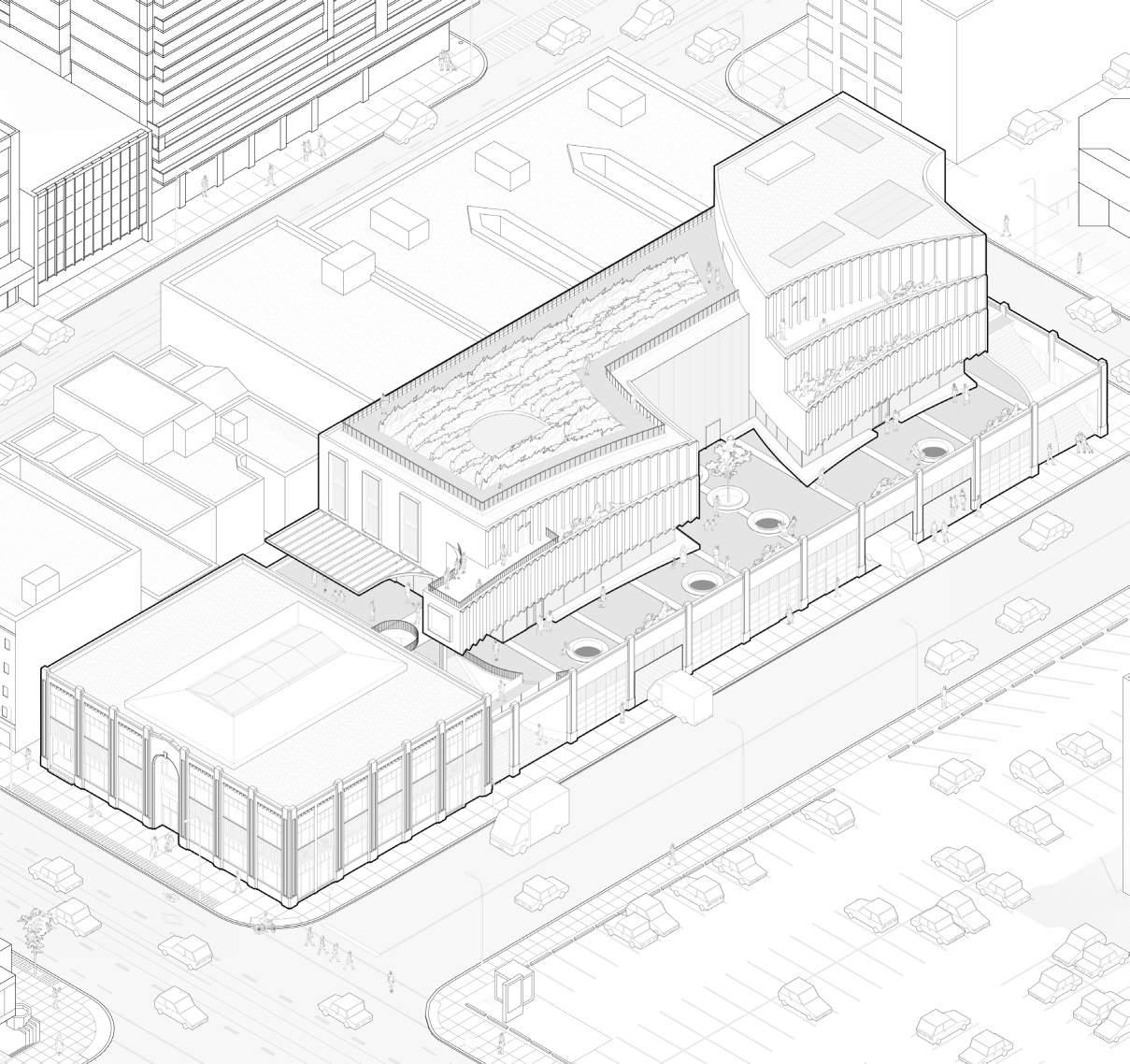

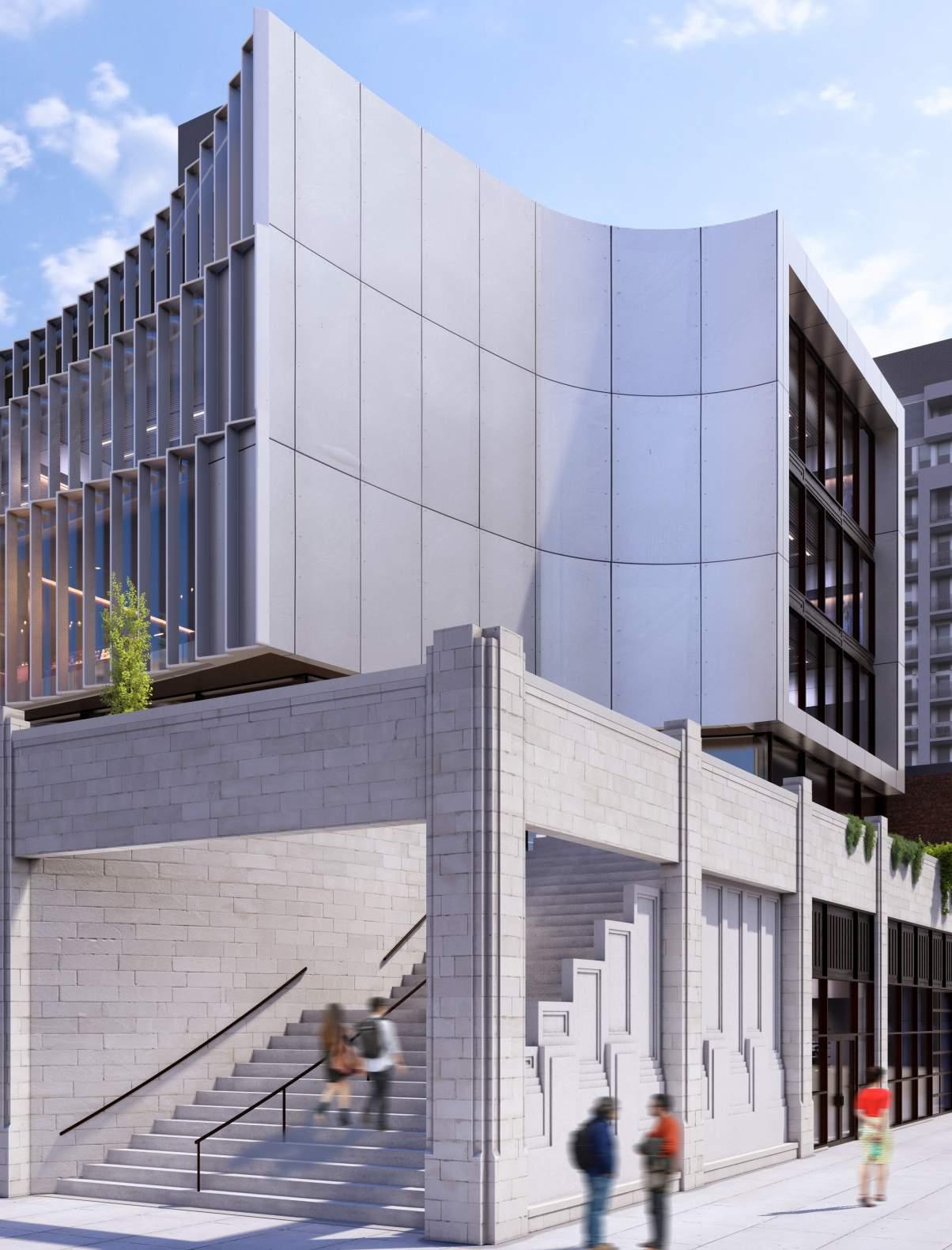

below | Isometric View above | Exterior Perspective

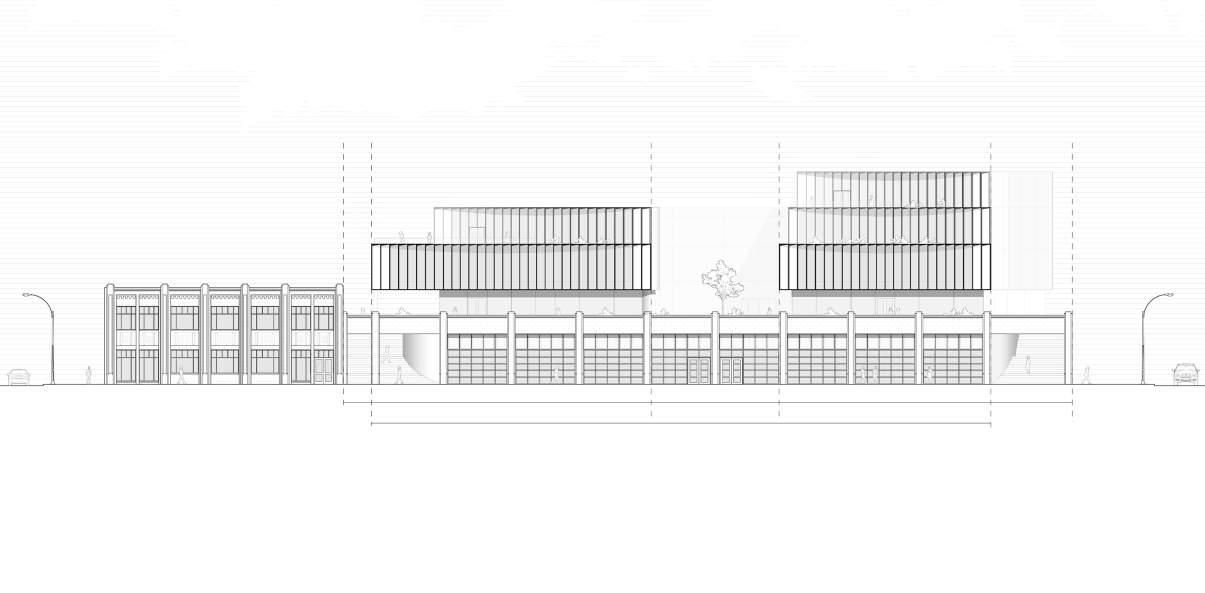

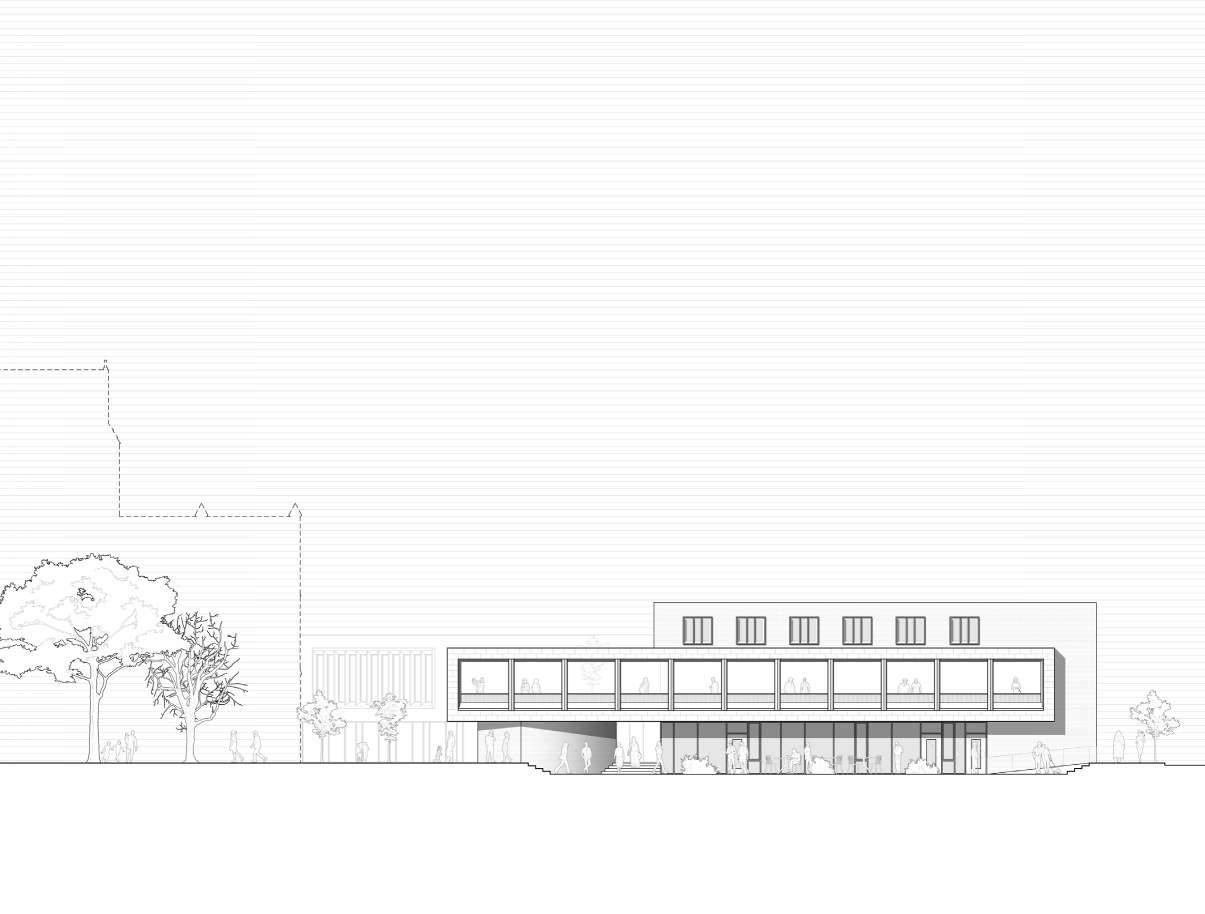

above | Elevation

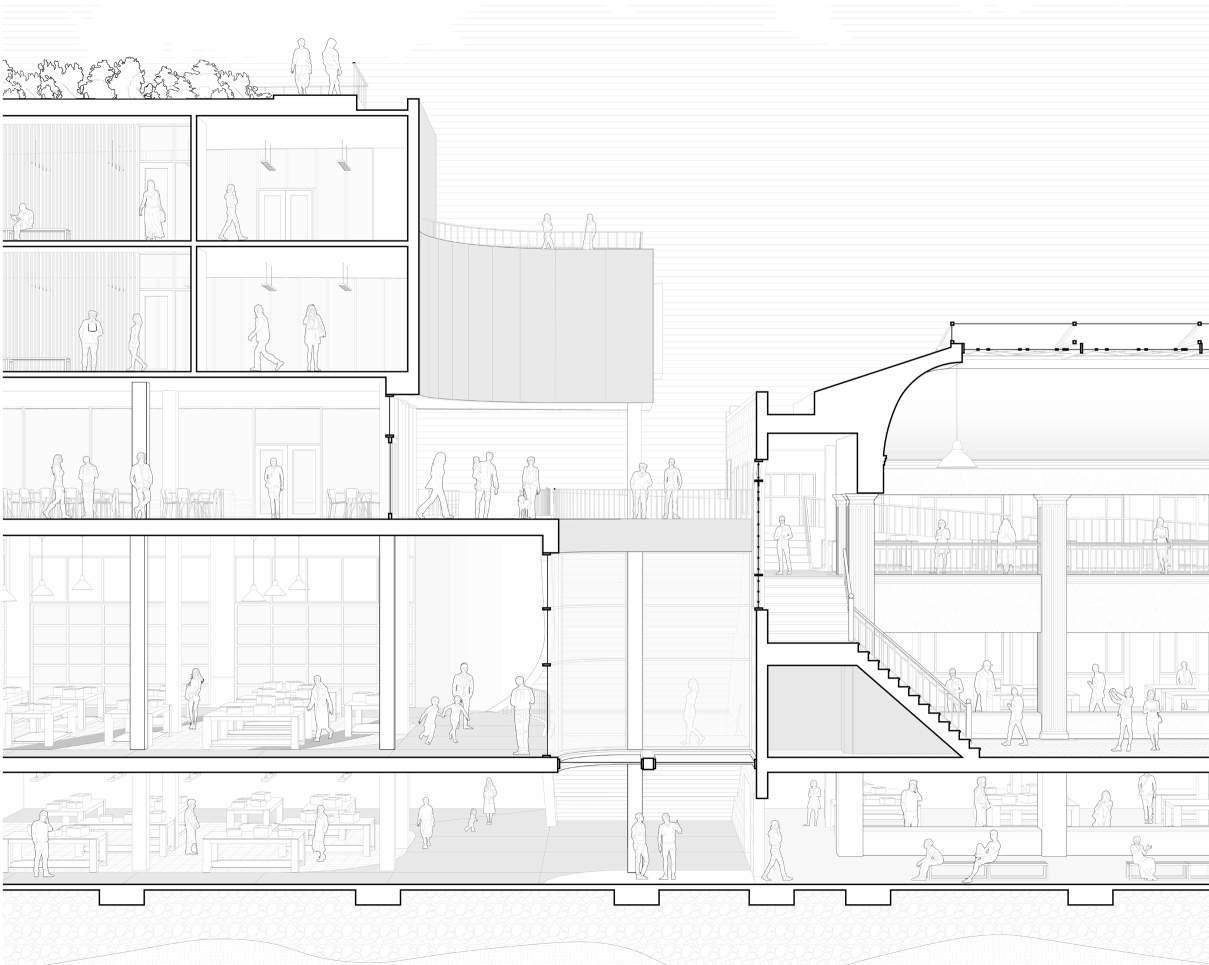

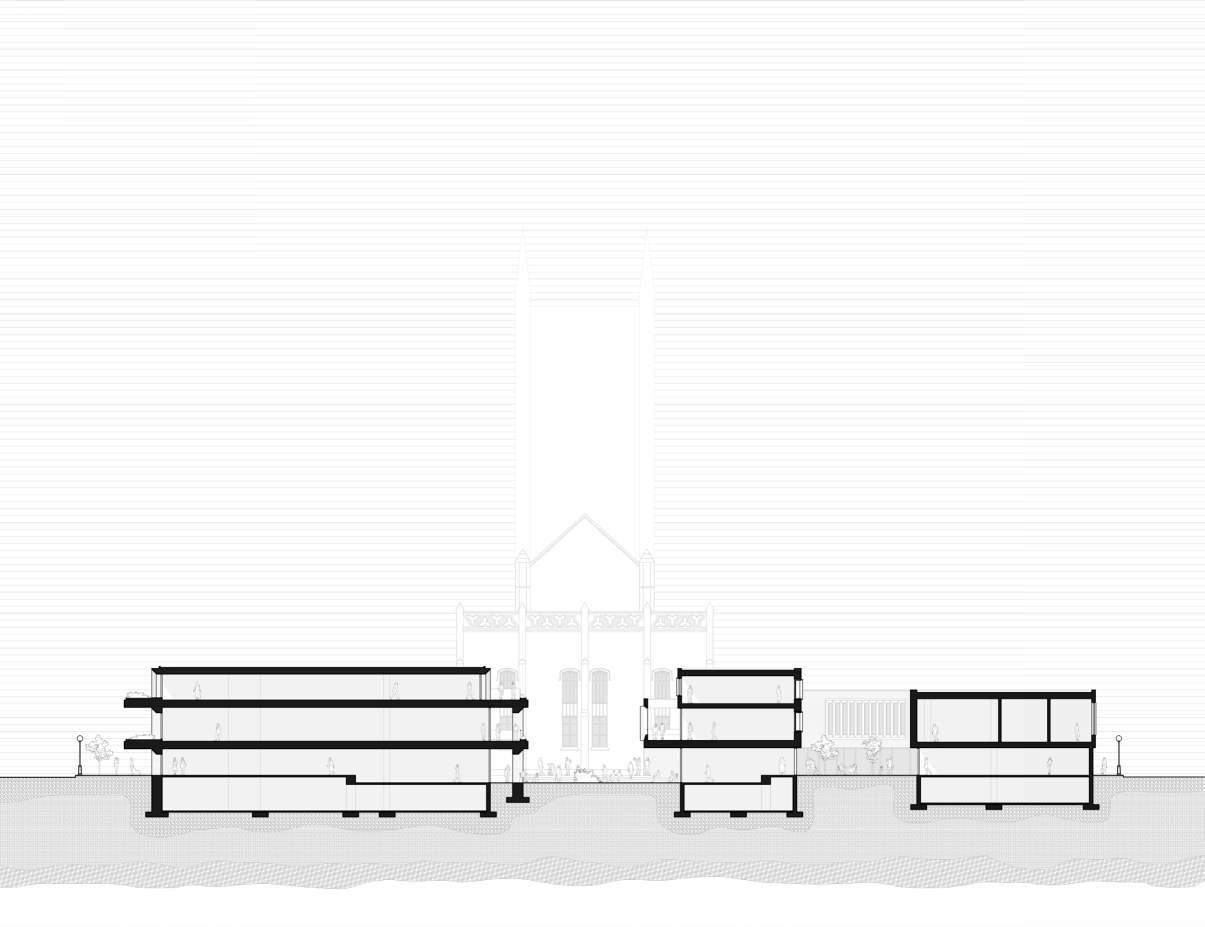

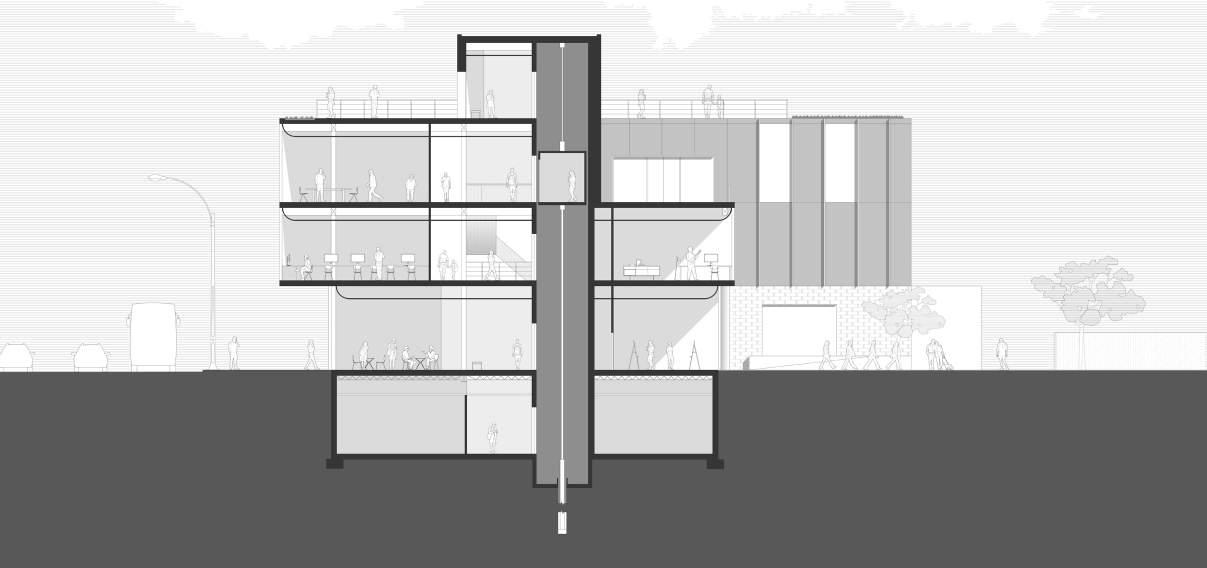

below | Section

above | Interior Perspective

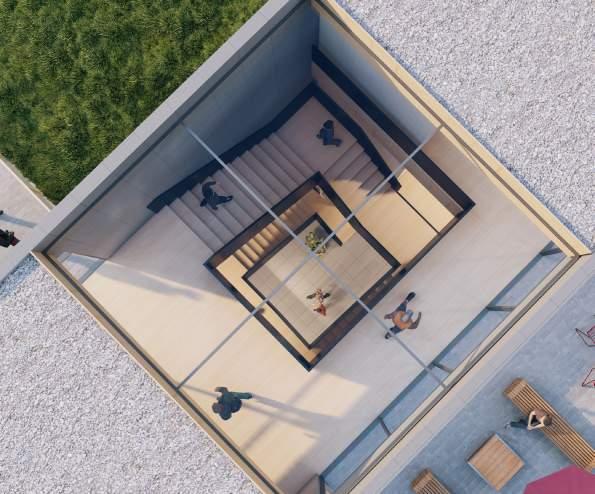

above | Skylight Perspective

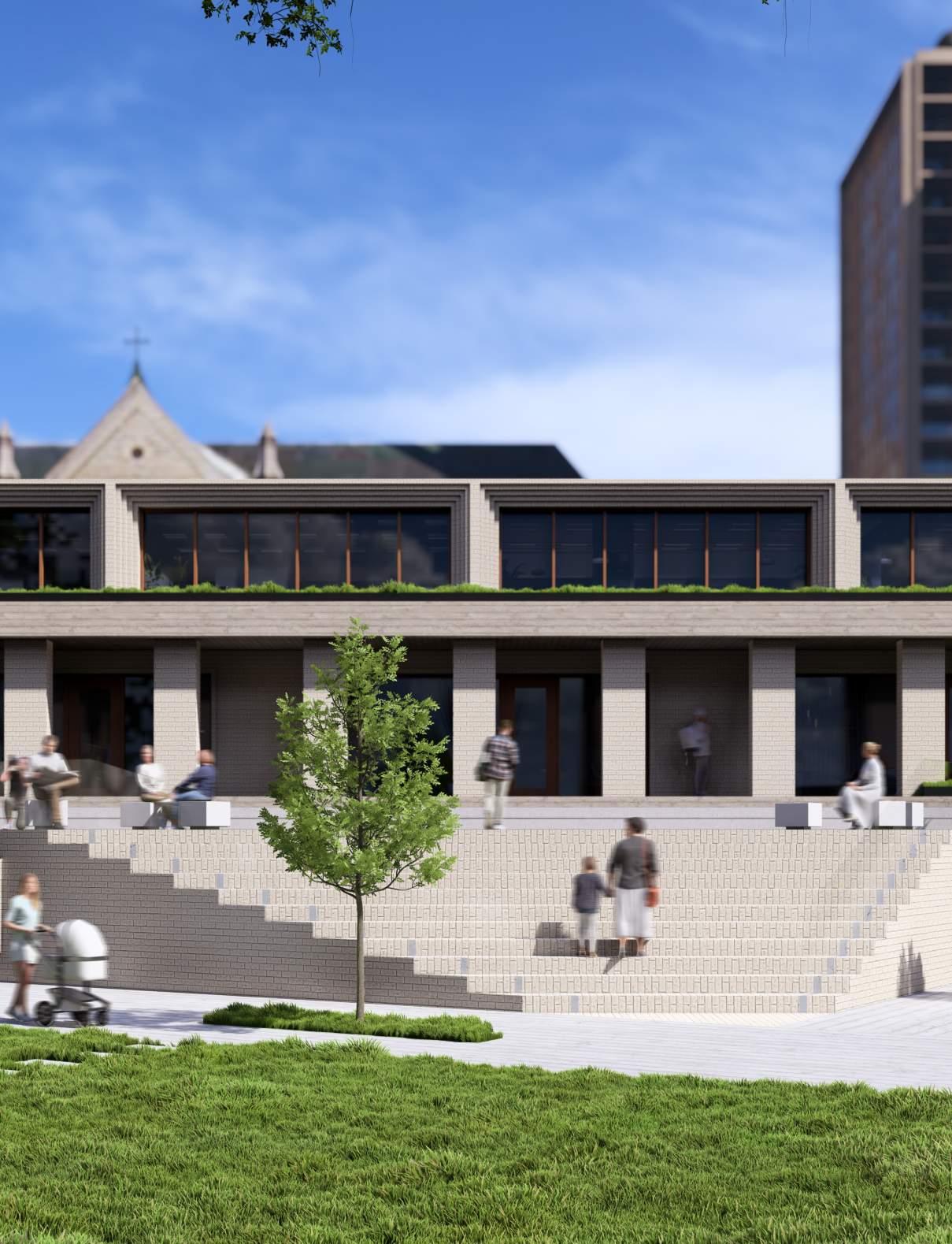

1. Informal performance space + integrated seating

2. Outdoor stage with access to back stage programming

3. Connection to art gallery promotes interaction

4. Mural integrated on the facade

5. Access to surrounding streets

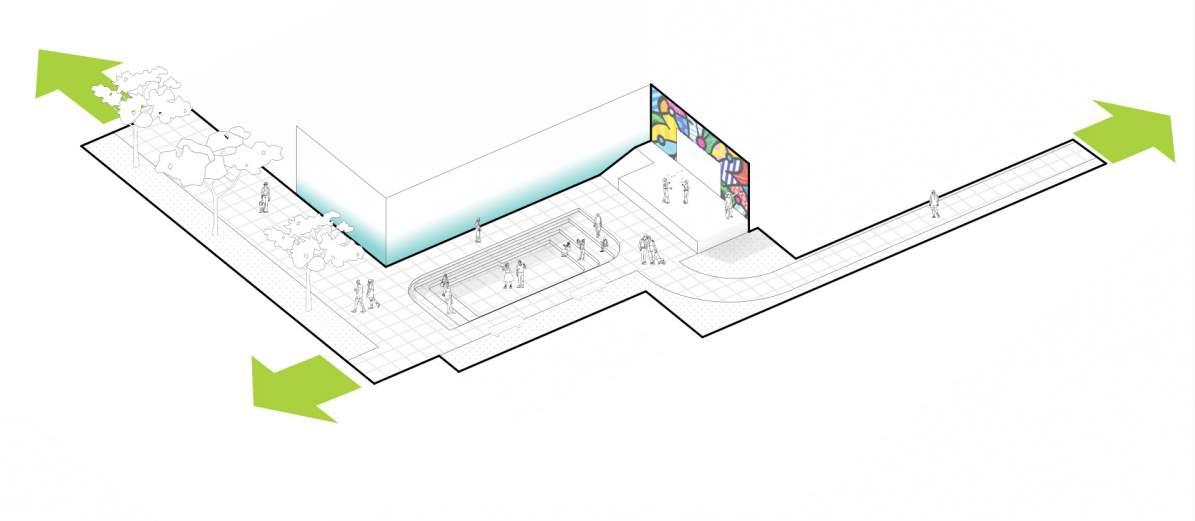

below | Public Space Functionality

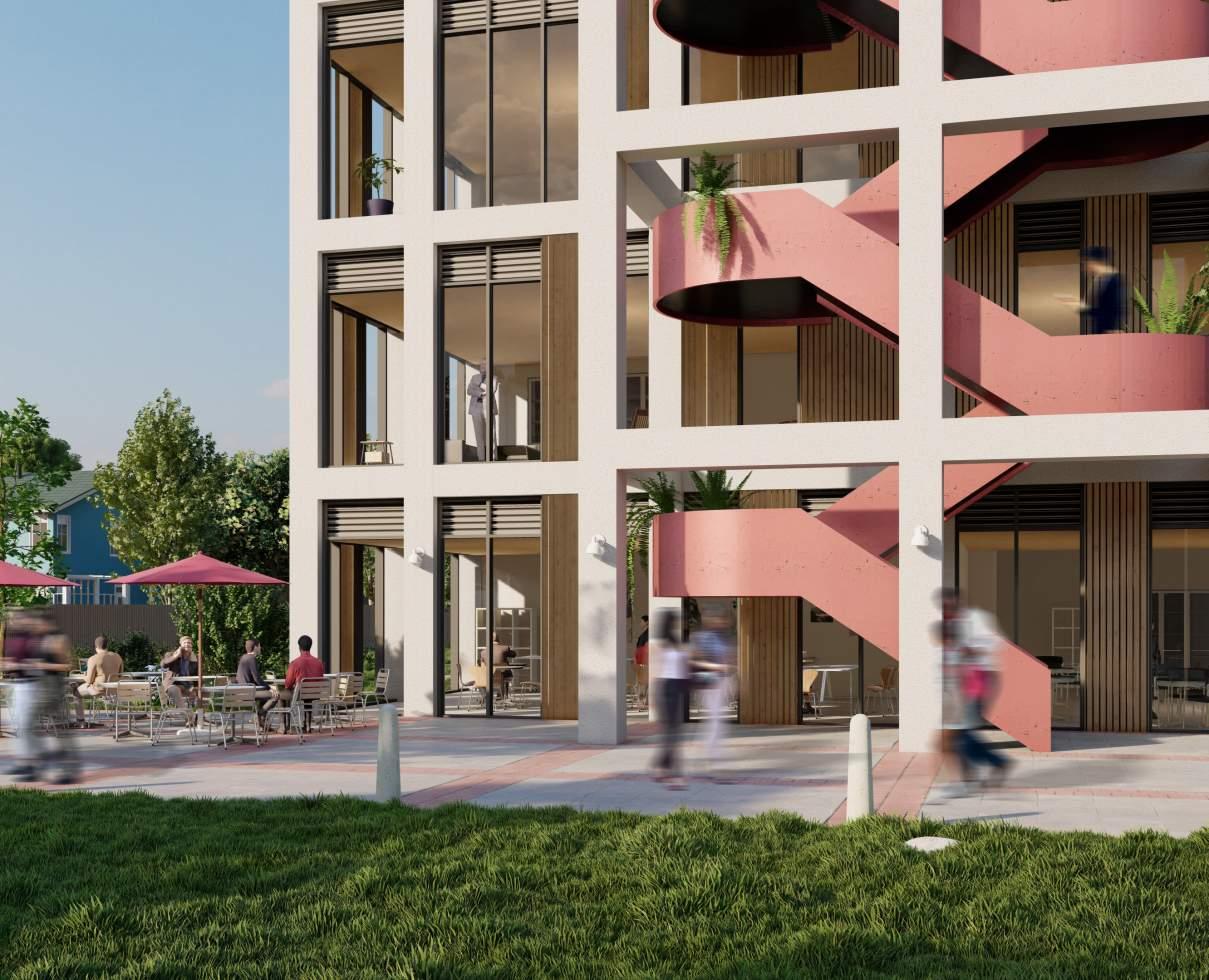

above | Exterior Perspective

below | Public Lounge Perspective

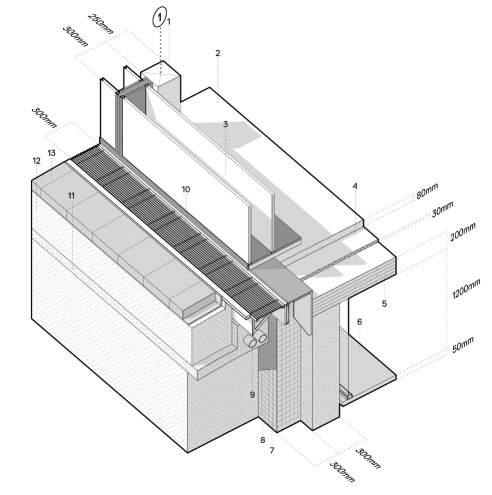

LEGEND

1. Glulam Beam, 250mm x 250mm

2. Double Glazing

3. Wood Mullion, 22mm thick

4. Frame Mullion, Wood, 50mm thick

5. Cast-in-Place Concrete Floor, Polished, 80mm thick

6. Sound Insulation, 30mm thick

7. CLT Floor, 200mm thick

8. Cast-in-Place Concrete Foundation Wall, 300mm thick

9. Suspension Cable & Frame

10. Drop Ceiling, Wood Slats, 50mm x 30mm

11. Aluminum Cover Mullion

12. Steel Grate Cover, 311mm x 30mm

13. Steel Grate Support

14. Aluminum Flashing

15. Wall Assembly Support Plate, Steel

16. Gravel Soakaway

17. Damp Proofing Drainage Layer

18. XPS Thermal Insulation, 131mm

19. Vapour Barrier

LEGEND

1. Folding Door with Aluminum Frame

2. Glulam Column, 250mm x 250mm

3. Wood Flooring, 22mm thick

4. Plywood Subflooring, 15mm thick

5. Pedestal

6. Cast-in-Place Concrete Frame

7. Sound Insulation, 30mm thick

8. CLT Floor, 200mm thick

9. Glulam Beam, 400mm x 250mm

10. Suspension Cable & Frame

11. Drop Ceiling, Wood Slats, 50mm x 30mm

12. Steel Grate, 61mm x 24mm

13. Precast Concrete Tile Paver, 438mm x 50mm

14. Self Levelling Pedestal

15. Gravel

16. Bitumen Built-up Roofing

17. Rigid Foam Insulation, 100mm thick

18. Sound Insulation, 30mm thick

19. Vapour Barrier

LEGEND

1. Parapet Cover, Steel

2. Rigid Foam Insulation, 100mm thick

3. Rainscreen, Steel

4. Gravel

5. Aluminum Edging

6. Engineer Soil, 80mm thick

7. Mineral Wool, 45mm thick

8. Drain Mat with Filter Fabric, 35mm thick

9. Root Barrier

10. Bitumen Built-up Roofing

11. Rigid Foam Insulation, 100mm thick

12. Sound Insulation, 30mm thick

13. Vapour Barrier

14. Cast-in-Place Concrete, at 20 degrees slope

15. CLT Floor, 200mm thick

16. LED Lighting

17. Suspension Cable & Frame

18. Ceiling Tile, 50mm thick

19. Aluminum Flashing

20. CLT Panel, 200mm thick

21. Translucent Concrete Blocks, 222mm thick
