Registration on “Registration” website and calculation of second-level password (Service Menu

Registration on “Registration” website and calculation of secondlevel password (Service Menu)

Settings

ENTER Password 0000

ENTER

Service

ENTER

Password 2°level In order to obtain the second-level password needed to access the inverter's service menu, it is necessary to go through the following stages:

Stage 1 - Collection of information relating to the inverter.

Collect the following information relating to each inverter for which you wish to have a password: - S/N - Serial number of the inverter. This information can be found on the label giving the identity details of the inverter or on the display by accessing the “INFORMATION" menu"→Serial No.” The serial number consists of 6 digits (the last 6 in models with a label giving a 10-digit S/N) - WK - Production week. This information can be found on the label giving the identity details of the inverter or on the display by accessing the “INFORMATION" menu→Serial No.” The production week consists of 4 figures, indicating the week (first 2 digits) and the year of production (last 2 digits) - Update Version - This information is available only for some inverter models and can be found on the display by accessing the menu “INFORMATION→Firmware”.

Stage 2 - Registration on https://registration.abbsolarinverters.com

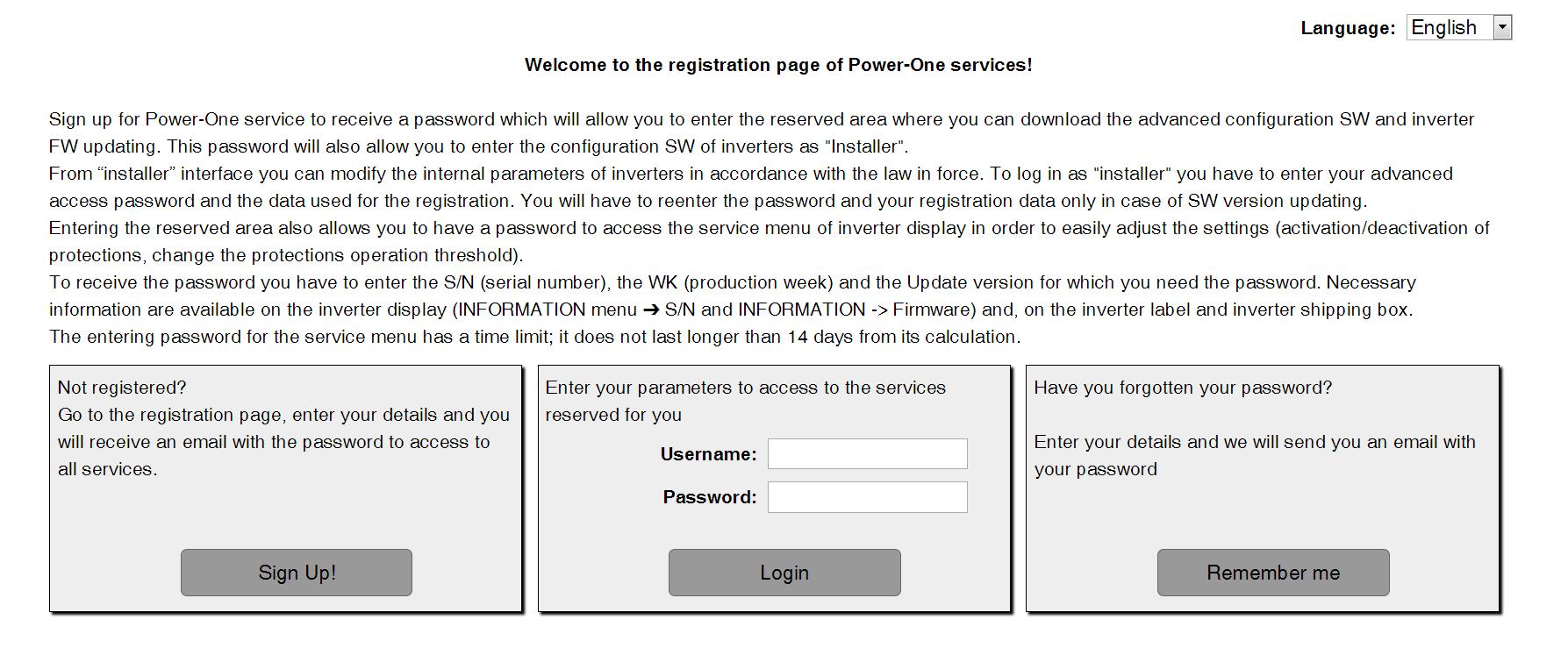

- Go online and access https://registration.abbsolarinverters.com - Set the desired language and click on the specific icon to start registration

- Insert the personal data requested and end the registration stage - An email will be sent to the email address used with a link to complete the registration process. - Once the registration process is over, a further email will be sent with the password to access the website.

The password obtained enables access also to the advanced “Installer” mode present on the configuration software for inverters. The configuration software can be downloaded in a specific section of the website https://registration.abbsolarinverters.com

Stage 3 - Request for second level password

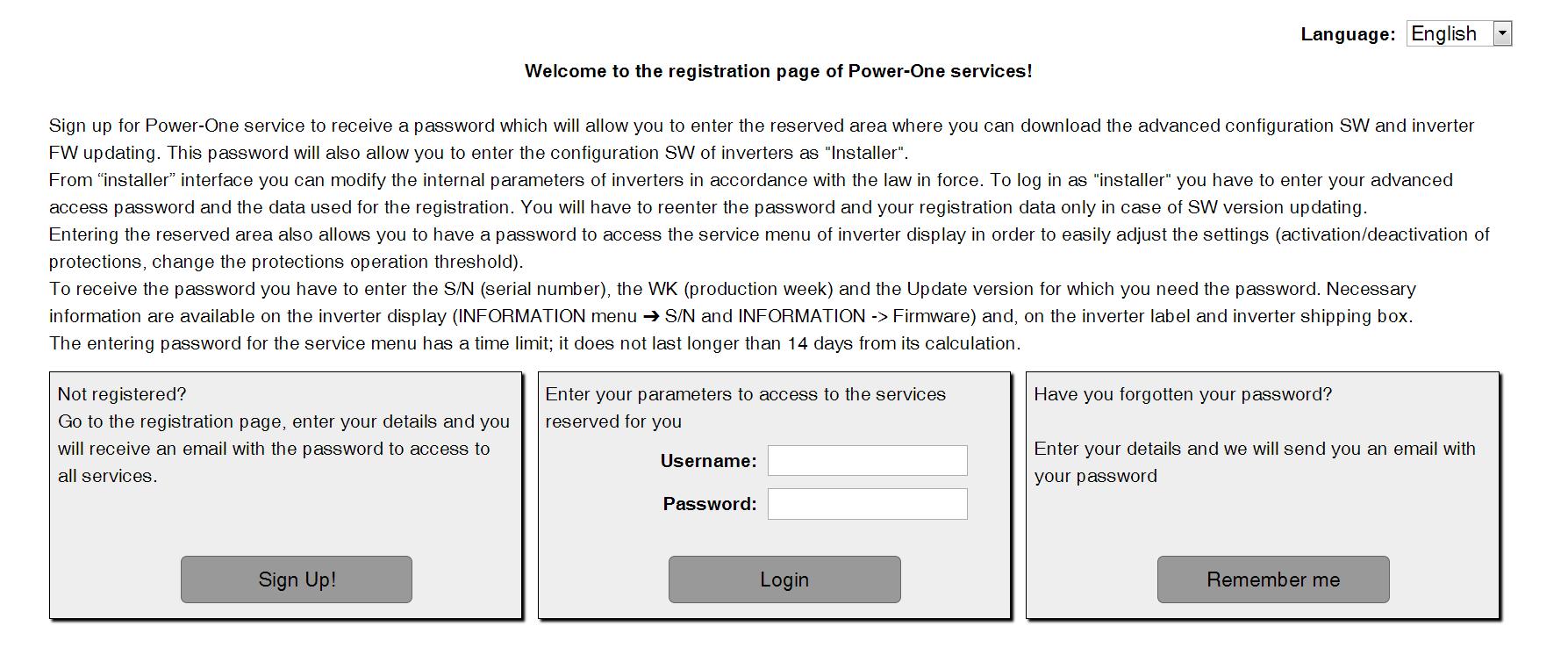

- Go online and access https://registration.abbsolarinverters.com - Insert the Username (corresponding to the email used during registration) and the Password obtained at the end of Stage 2

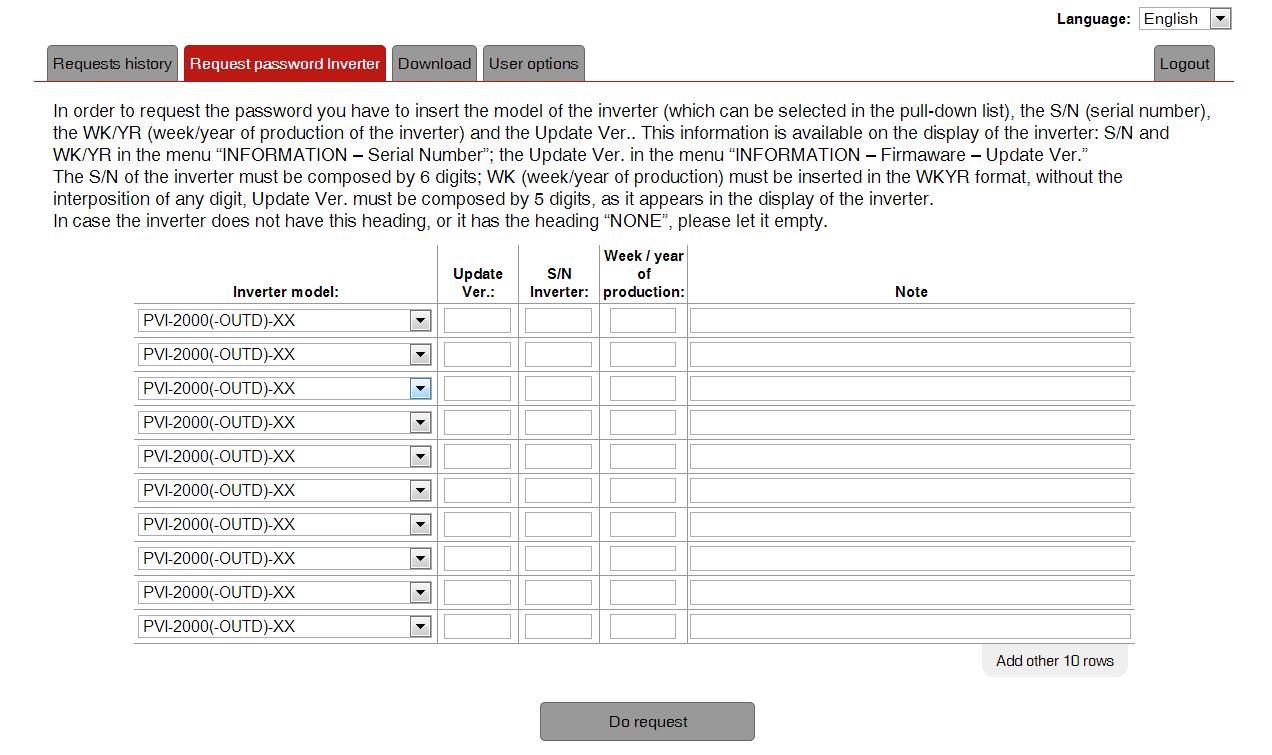

- Access the section dedicated to requesting the second-level password

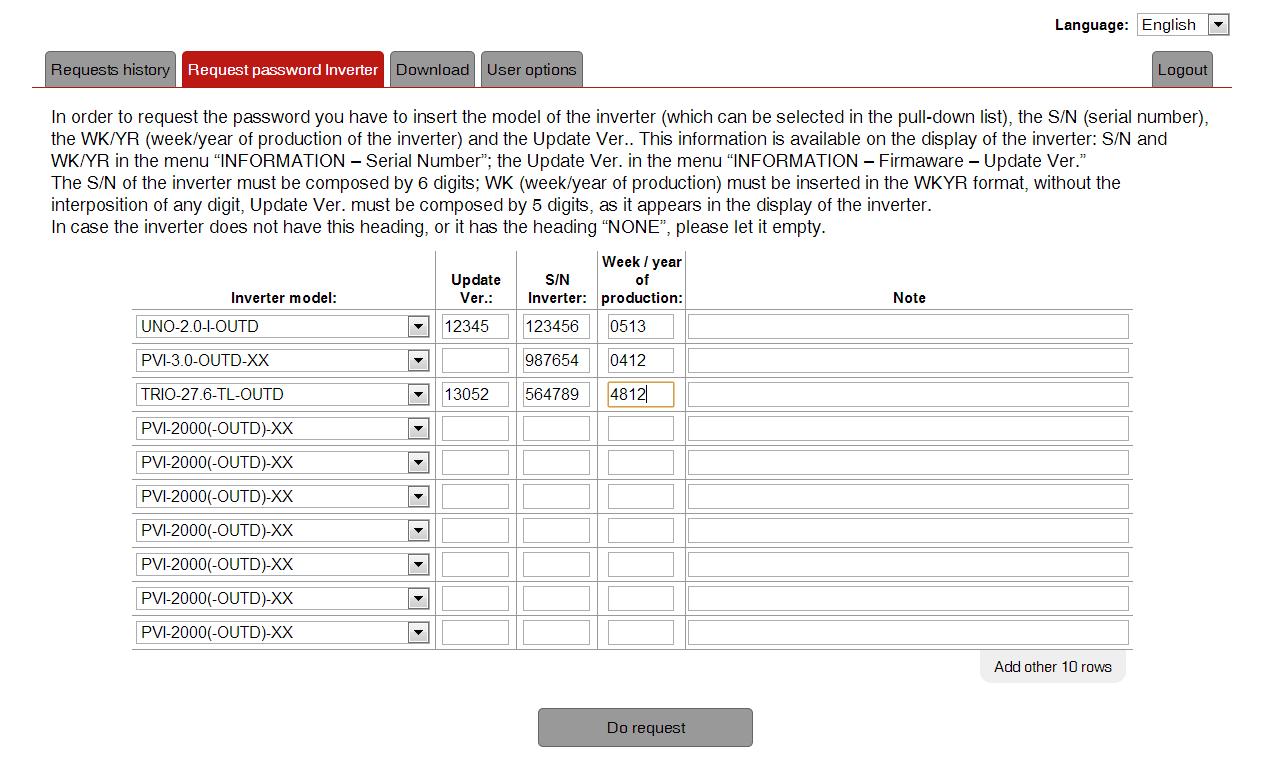

- Choose the inverter model from the drop-down list and insert Update Ver., Serial Number and Week of Production of the inverter which were obtained previously (Stage 1)

- Click on icon to request password.

Should there be an error in inputting data, the fields containing the error will be highlighted in red. If, on the other hand, the data are correct, the passwords will be shown in a new window and at the same time sent to the email address used for registration.

The second-level password enables access to the service menu which allows the inverter's sensitive parameters to be changed. Proceed to changing the aforementioned parameters only when requested by the grid operator or by customer assistance.
