Marine Equipment for Rental

GMC MARINE PARTNER AS EQUIPMENT RENTAL CATALOGUE

GMC Marine Partner offer a wide range of rental equipment and operational personnel from Stavanger and other sites in Western Norway.

The equipment shown on next pages is offered to customers for rental and sale. The catalogue presents most of our rental equipment, in addition GMC can offer a large range of other equipment for offshore & marine operations. Please contact us for requests of equipment other than what is presented in the catalogue.

All equipment are organized in our ERP system which keep track of equipment and have all information needed of the objects including condition, certification status and location. This makes us able to offer short response time and prepare the requested equipment on time according to our customers needs.

GMC Marine Partner AS Division office:

Jåttåflaten 11, Jåttåvågen Hinna 4020 Stavanger, Norway Products Division

Telephone: +47 51 84 80 00 24 hours tel.: +47 90067549

sales@gmc.no www.gmc.no

A-FRAMES

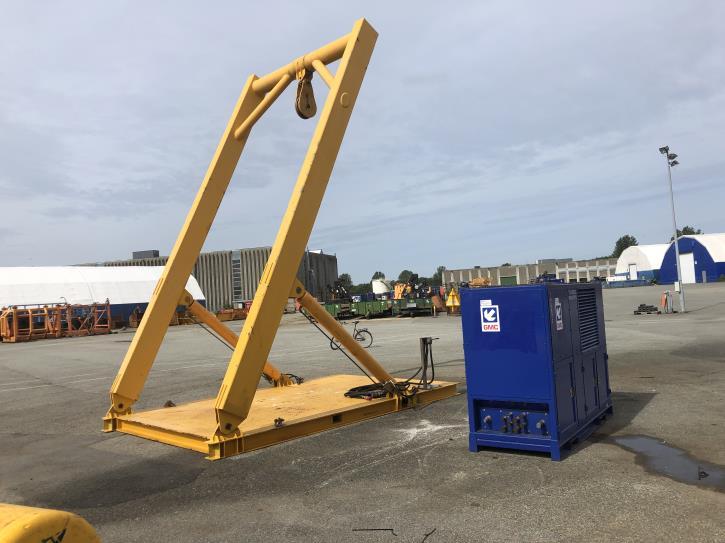

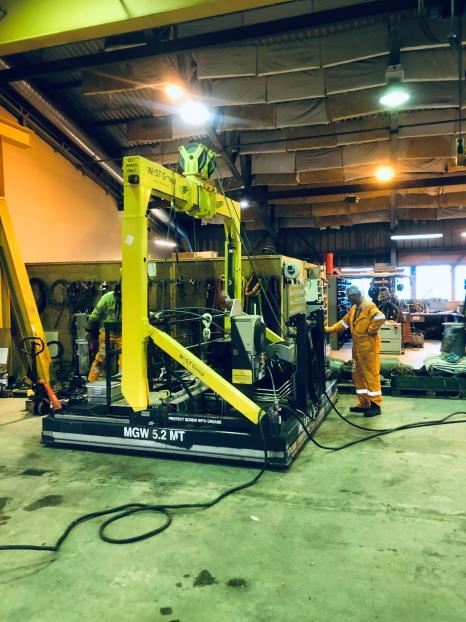

A-frames with capacity from 1 ton up to 250 ton for deck installation or temporary lifting operations.

1, 5, 8 and 10 Ton A-frames

10 Ton telescopic A-frame with winches & wheels

250 Ton A-frame 19 x 15 m

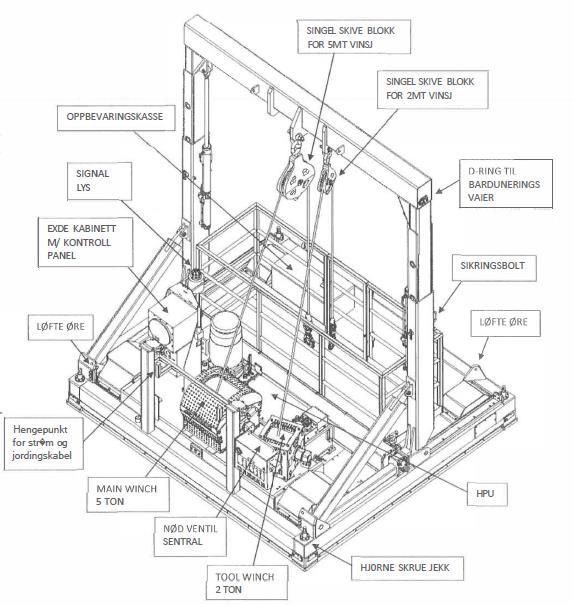

10 Ton Telescopic and hinged A-Frame

Top beam with 10 Ton and 4 Ton wiresheave

5 Ton and 2 Ton winch, each with 15m wire and hook

4 motorized wheels on frame (2 fixed and 2 with rotation)

Radio control for all movements

For 690 volt, 60 hz, 32 amp – 11 kW electric motor

Electric equipment: Atex zone 1

Operating temperature: from -10 to +45 degrees C

Bottom frame: Width 3m x Length 4m

Height closed/extended at 0 degrees position: 3240/4190mm

According to Norsok R-002 and EU Machine directive.

With Norsok Z-015 documentation.

Transport dimensions: Width 299 cm x Length 400 cm x Height 200 cm, Weight 5500 kg

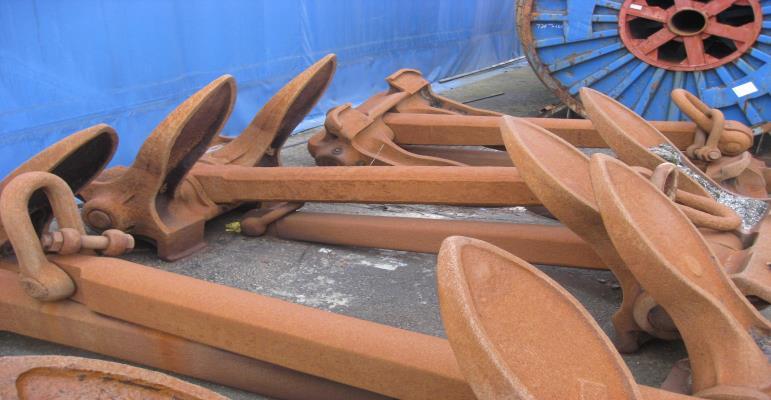

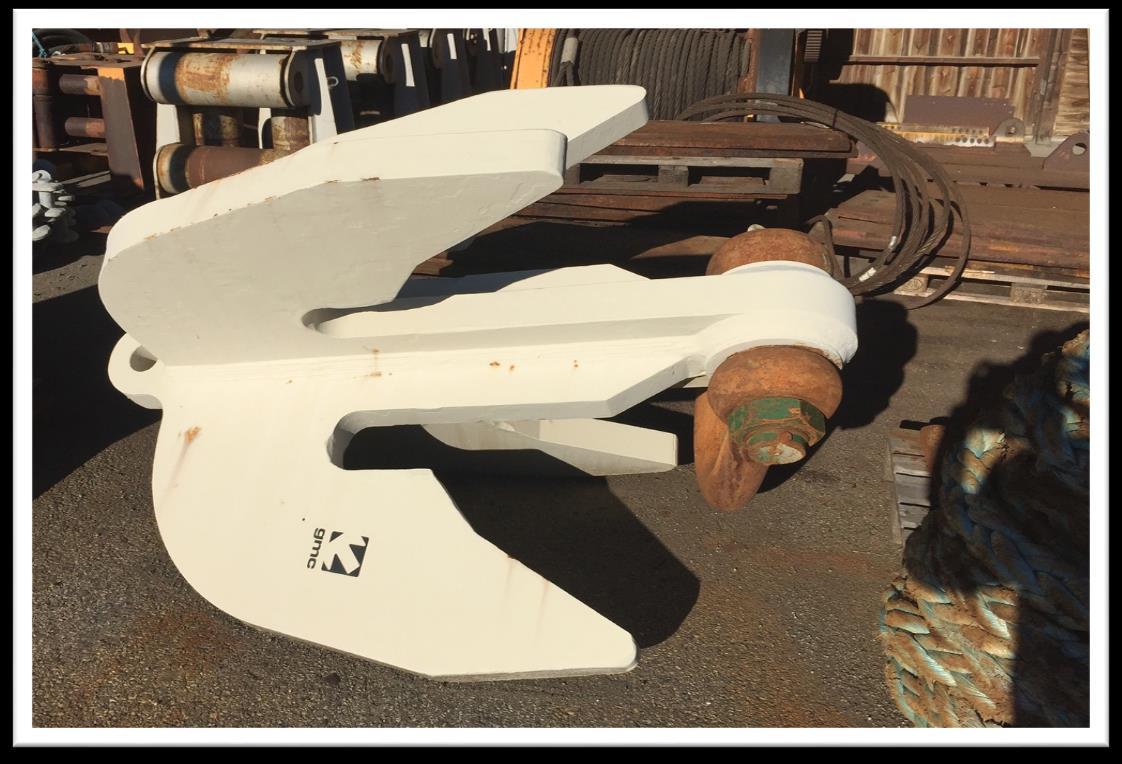

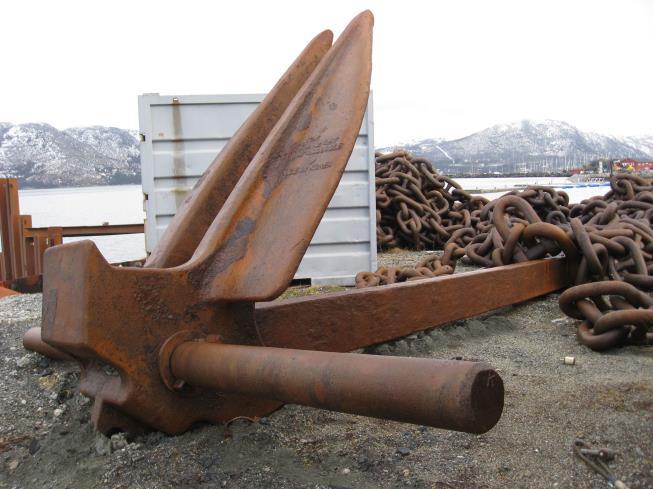

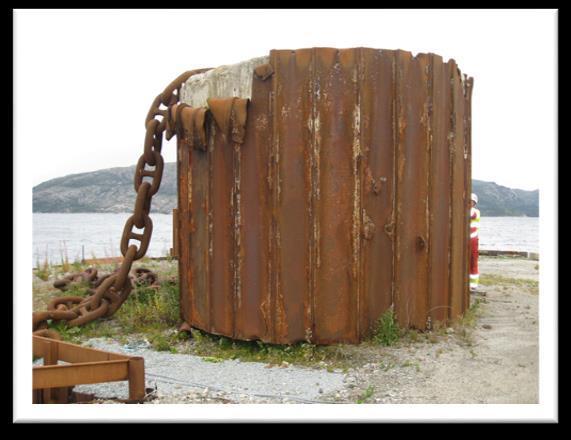

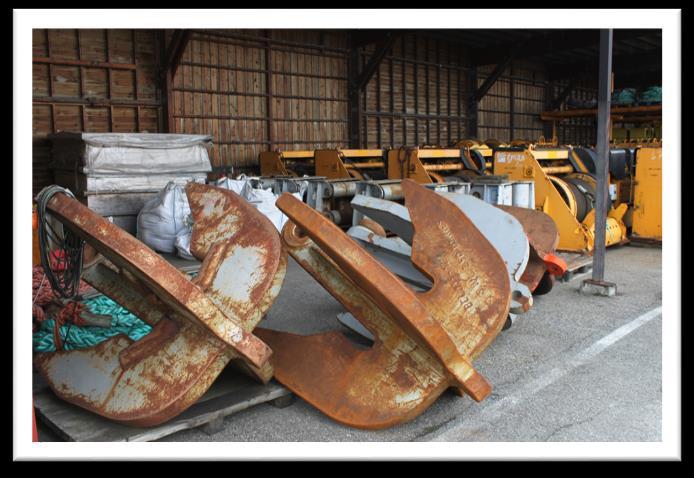

ANCHORS

A range of anchors up to 51 T0n weight with holding capacity up to 50 times own weight.

Baldt anchor 13.6 ton

Union stockless 5 ton

Vryhof Stevpris 51 ton

23 ton Union stockless anchors

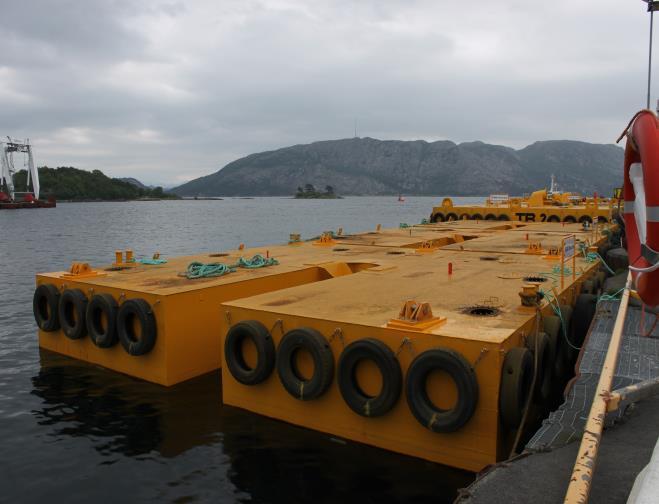

BARGES

14 barges are in our rental fleet.

Two sizes: Tension Barges = 14,5 x 20 x 3 meter and Anchor Pontoons = 12 x 12 x 2 meter.

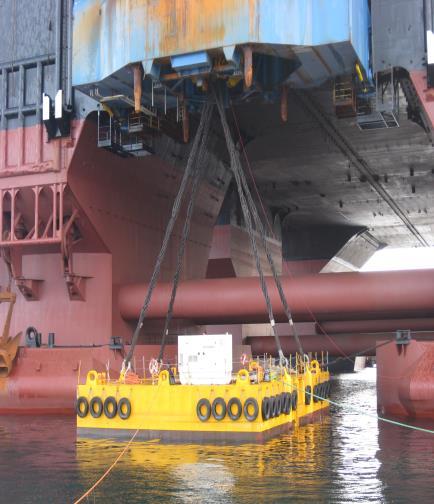

One TB barge comes with lifting point and can be ballasted as test weight from 150 to 900 ton.

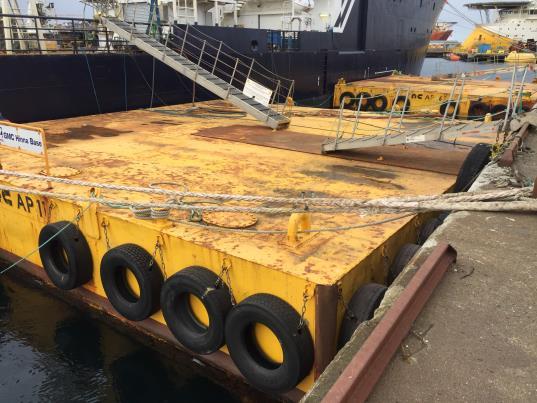

AP barge12 x 12 x 2 meter.

TB barge14,5 x 20 x 3 meter.

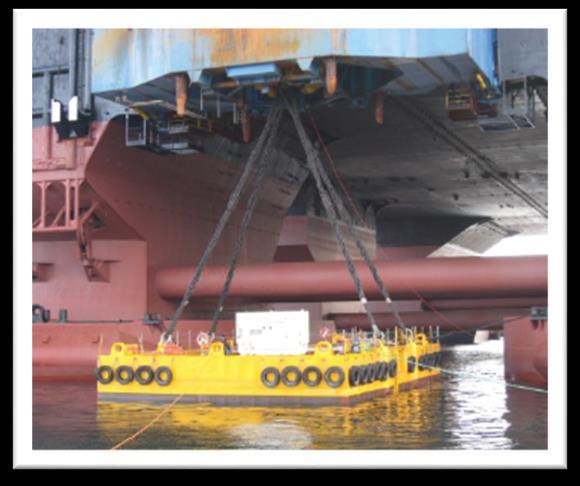

TB-1 barge for up to 900 Ton load test

120 mm anchor chain stopper on TB barge.

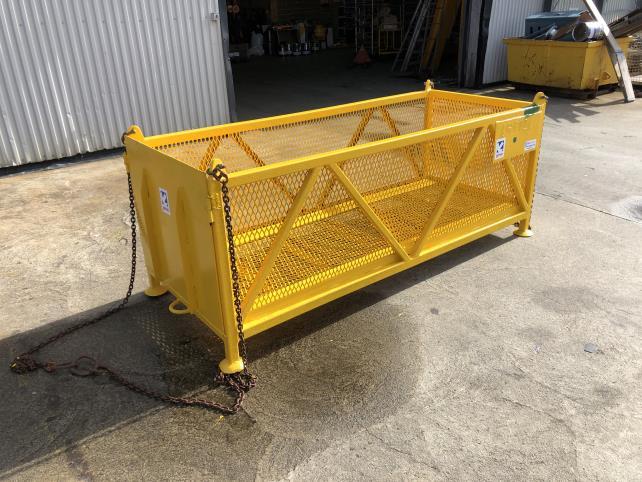

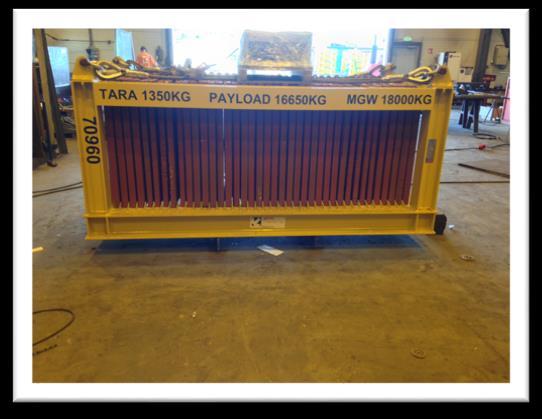

BASKETS

A wide range of baskets for many purposes:

Subsea baskets - Equipment baskets - Personnel baskets - Garbage baskets

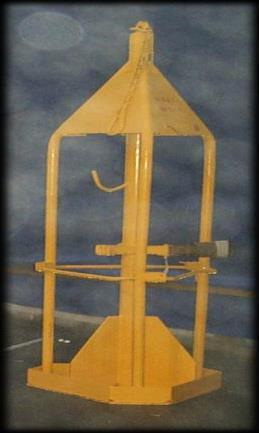

Personnel baskets

Subsea baskets 11,5 x 4,1 x 3 m (LxWxH). Payload 36 ton

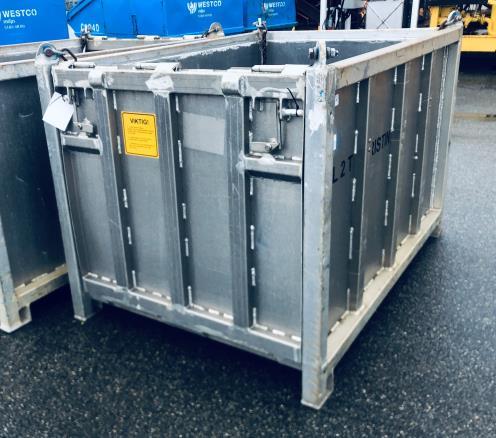

Aluminum / Stainless Drop front baskets

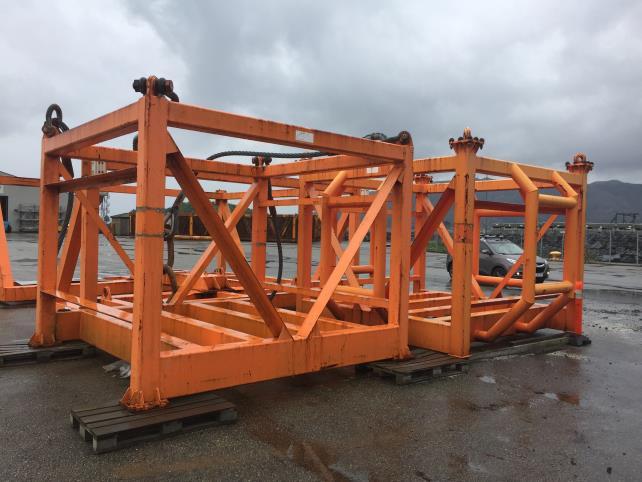

Subsea baskets

Subsea baskets 3,6 x 3,7 x 3 m (LxWxH). Payload 175 ton

Gas bottle baskets

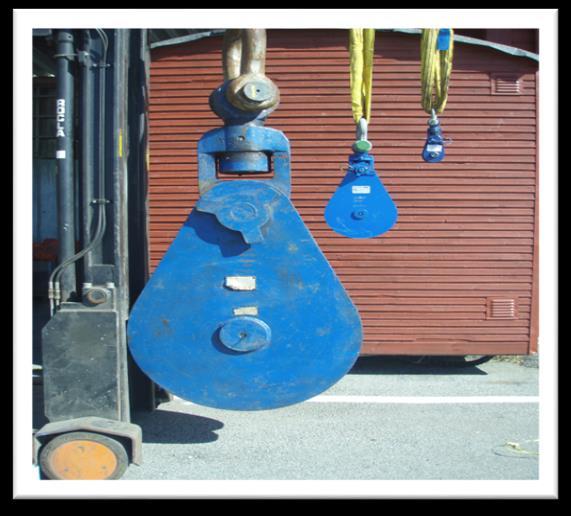

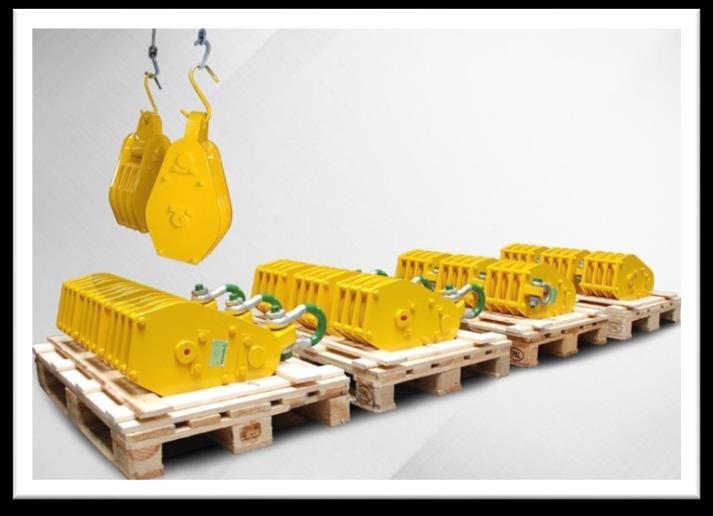

BLOCKS

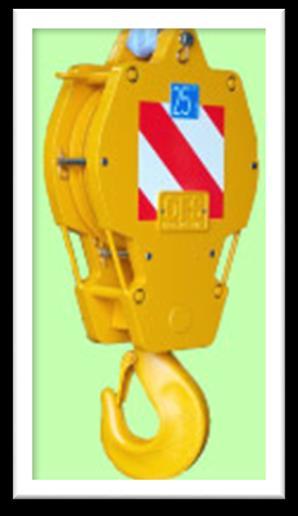

Snatch blocks, Fixed blocks, Hook blocks with capacity up to 200 ton

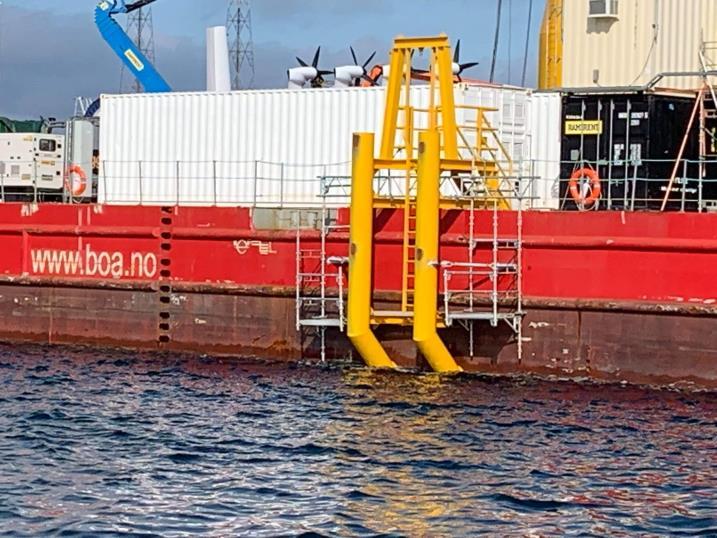

BOAT LANDING PLATTFORM

For installation on barge, ship or other vessels

BOLLARDS

Double bollards 98 Ton MBL for deck installation.

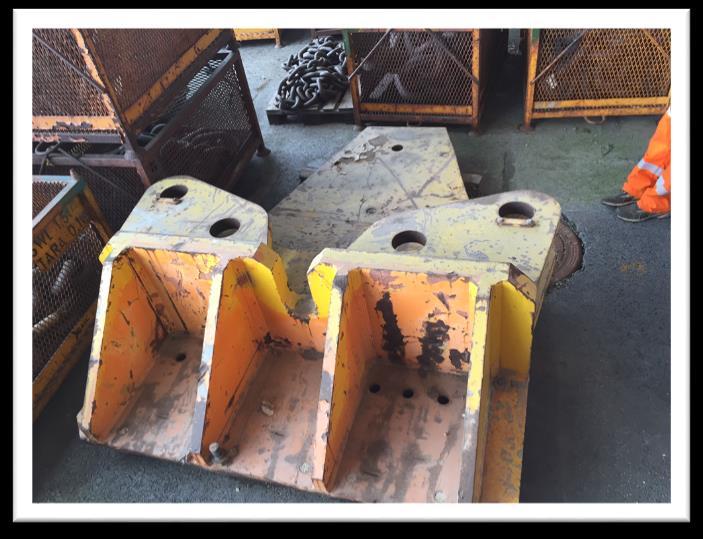

BRACKETS

50 and 100 Ton towing brackets

BUOYS

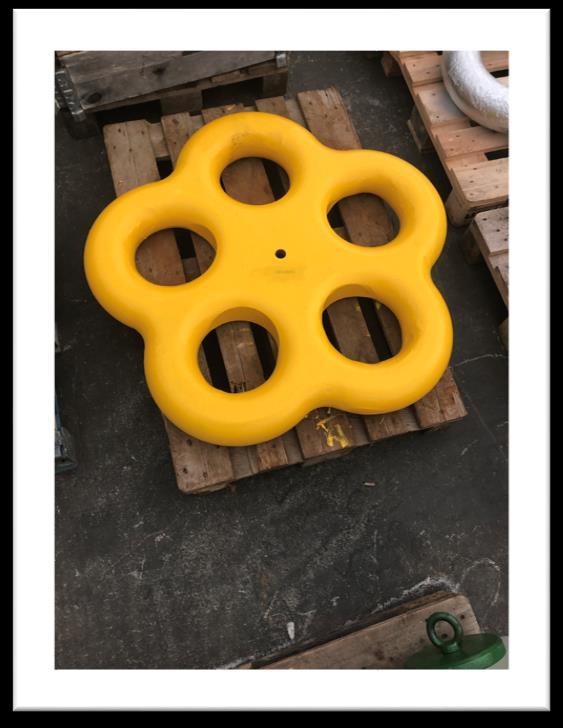

A wide range of surface and subsea buoyancy modules:

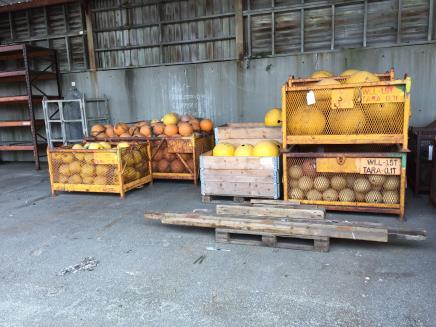

• 13 kg to 25 kg spherical subsea buoys

• 120 and 250 kg buoyancy modules.

• 1200, 2400 and 3500 kg buoyancy modules.

• 14000 kg surface buoys

• Subsea Support Buoys SSB200, SSB400 and SSB850 from 90 kg up to 1000 kg @ 500 MWS

• Subsea buoys up to 10 ton @ 500 MWS.

We also make special arrangements to join different buoys to get the required net buoyancy.

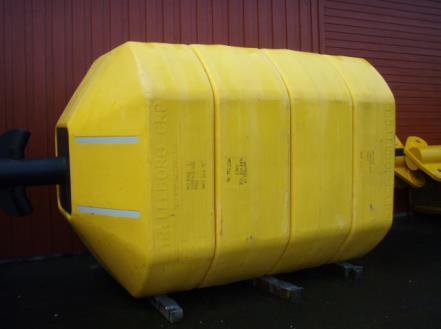

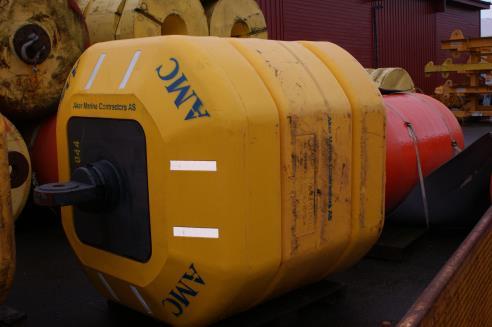

14000kg surface buoy

Spherical buoys, 500 & 1000msw

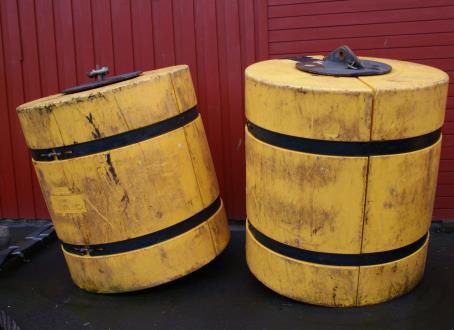

3500kg modular buoys, 66msw

1200kg modular buoys, 320msw

250kg modular buoys, 1500msw

2400kg deep sea buoy, 335msw

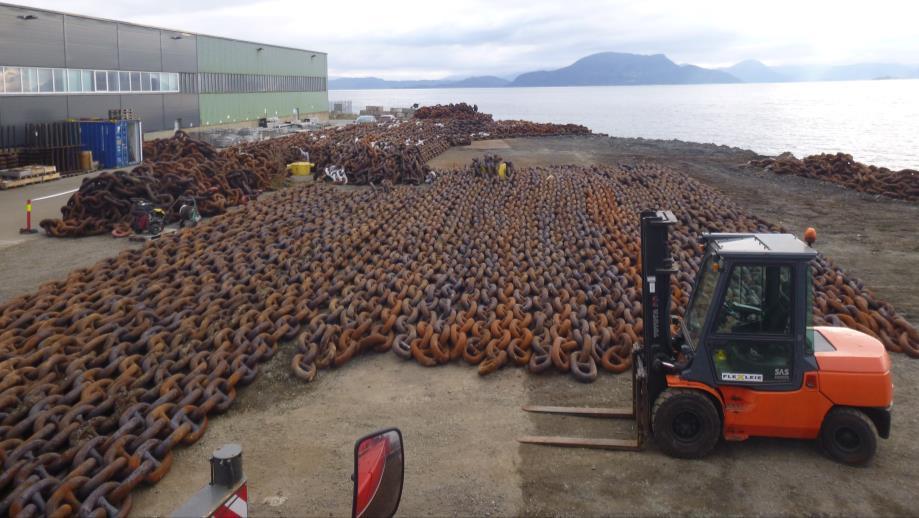

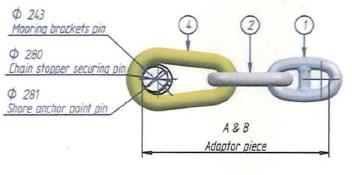

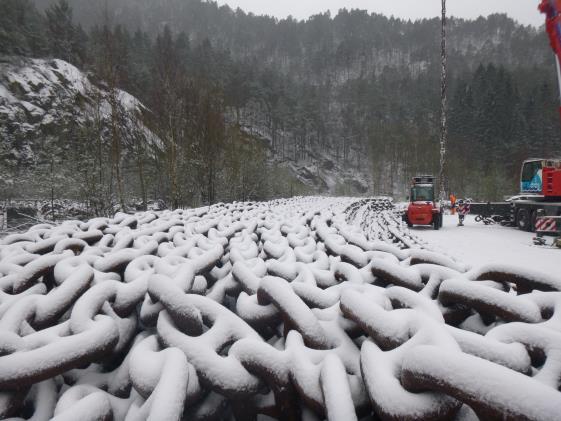

CHAIN FOR MOORING

20.000 meter offshore quality K4 / R4 anchor chain and components, 73, 82 and 120 mm diameter.

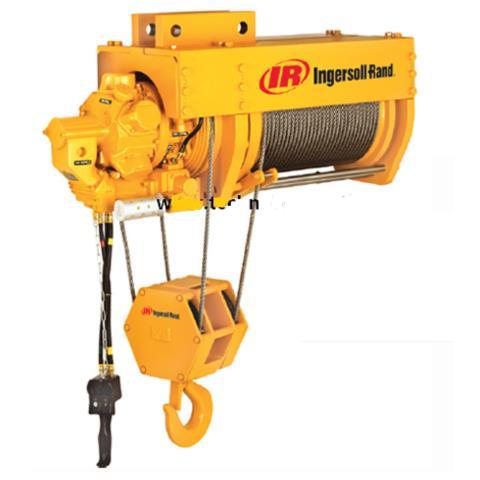

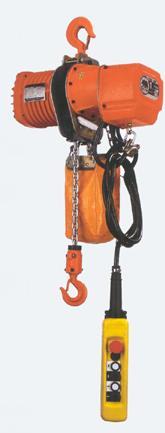

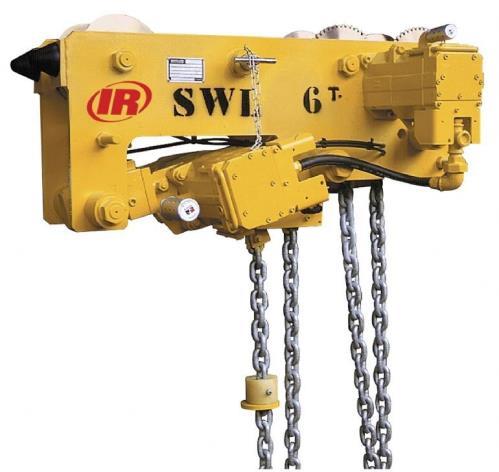

CHAIN HOISTS AND TROLLEYS

Airdriven, Electric, Hydraulic and Manual hoists and trolleys, capacity 0,5 – 100 T. Standard and lowhead room.

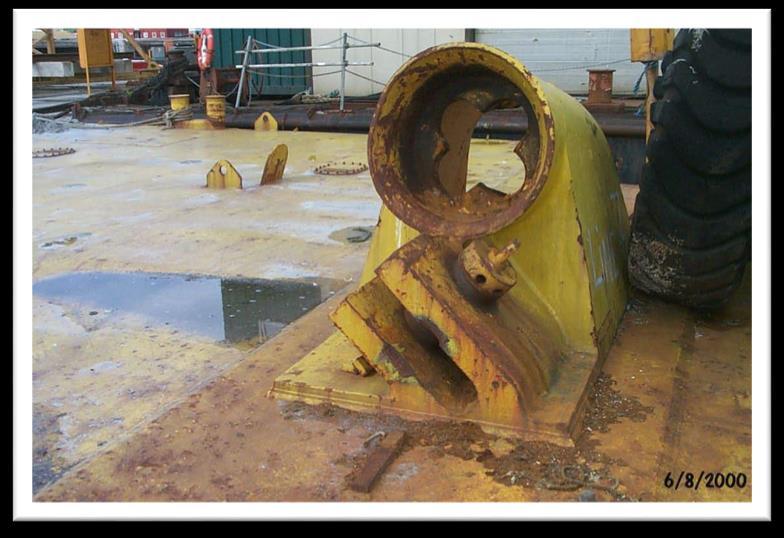

CHAIN STOPPERS

Ratchet and fixed anchor chain stoppers for 76 to 120 mm

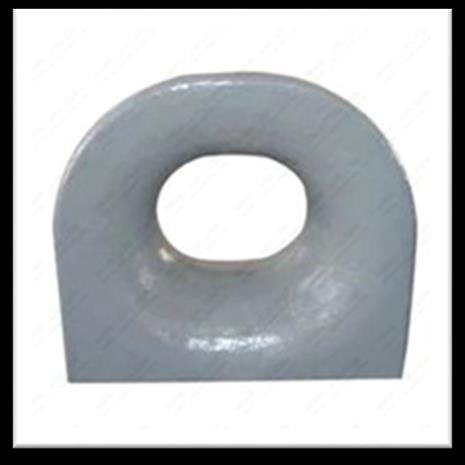

CHOCKS

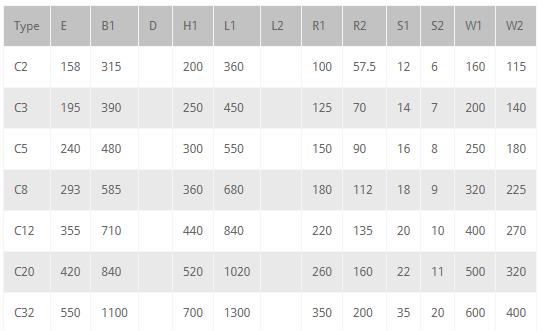

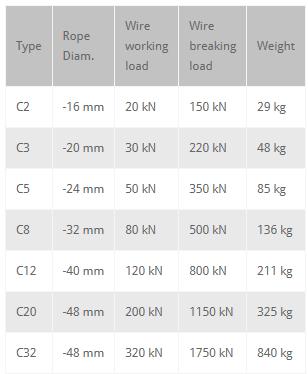

Panama chocks for deck mountingAccording to DIN 81915

C20 and C32 on stock, other types and sizes on request

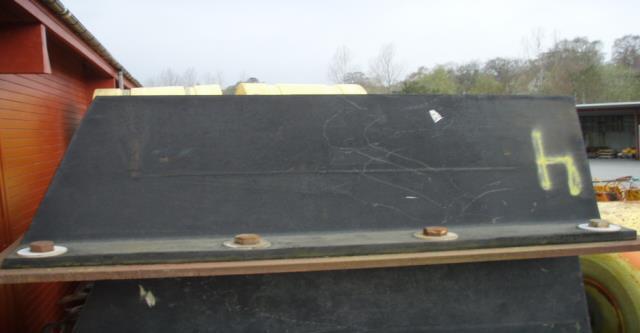

CHUTES

Chutes for guiding of wire, rope or umbilical from vessel to sea

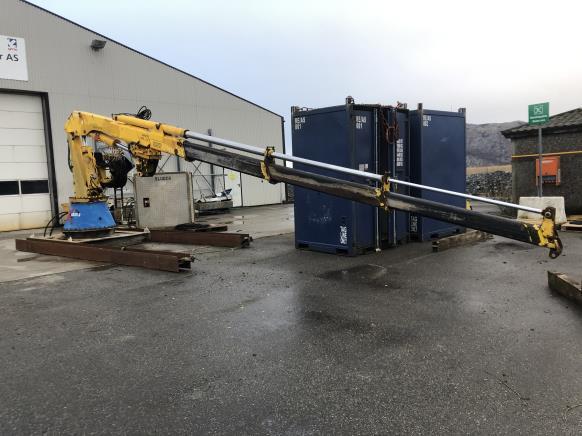

CRANES FOR DECK INSTALLATION

Various cranes for installation on vessels or quay

Offshore deck crane 5 T @ 20 mtrs

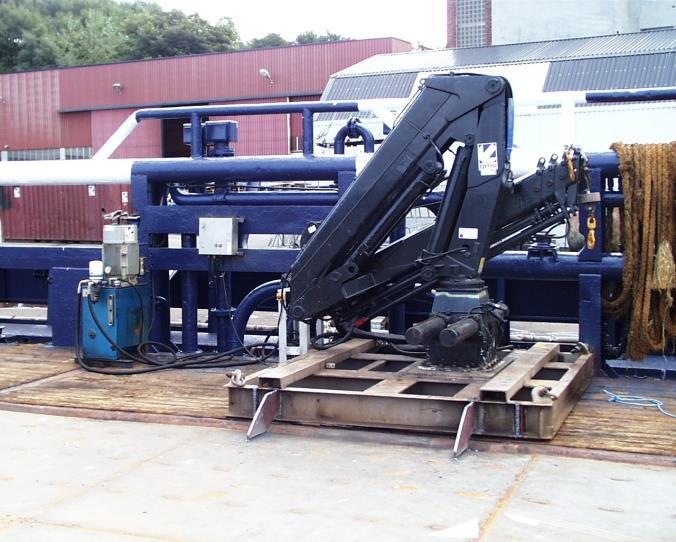

Hiab Folding crane 1,5 ton @ 8.2 mtrs

Heila Folding crane 2.1 ton @ 10.87 mtrs

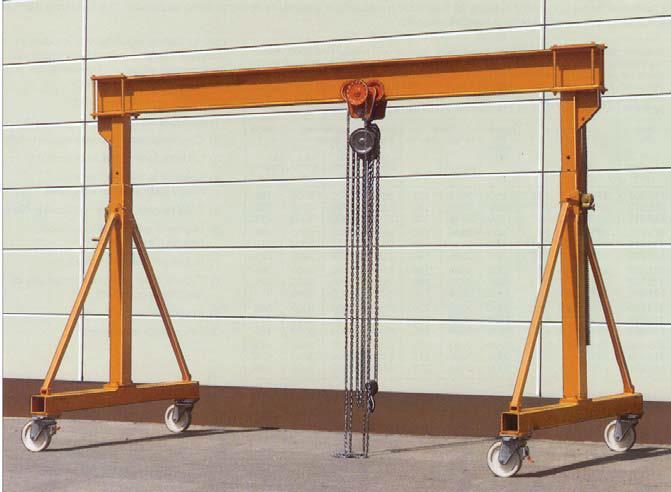

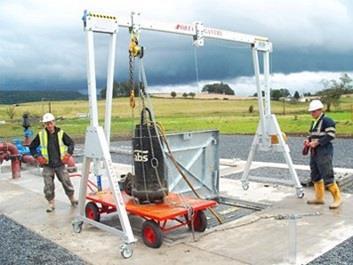

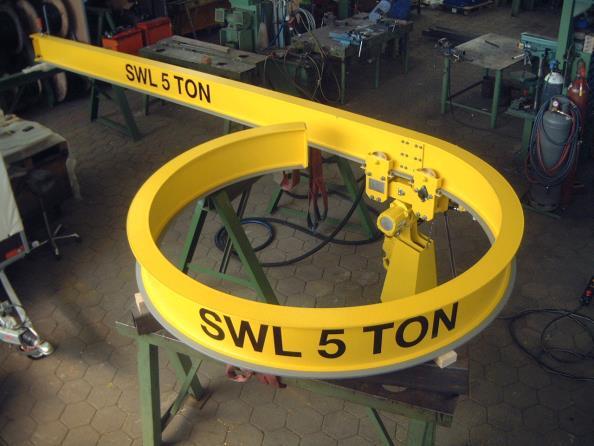

Aluminum gantry cranes 1 to 5 Ton

Davit cranes from 25 to 1500 kg

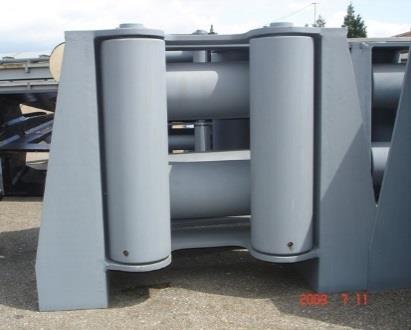

FAIRLEADS

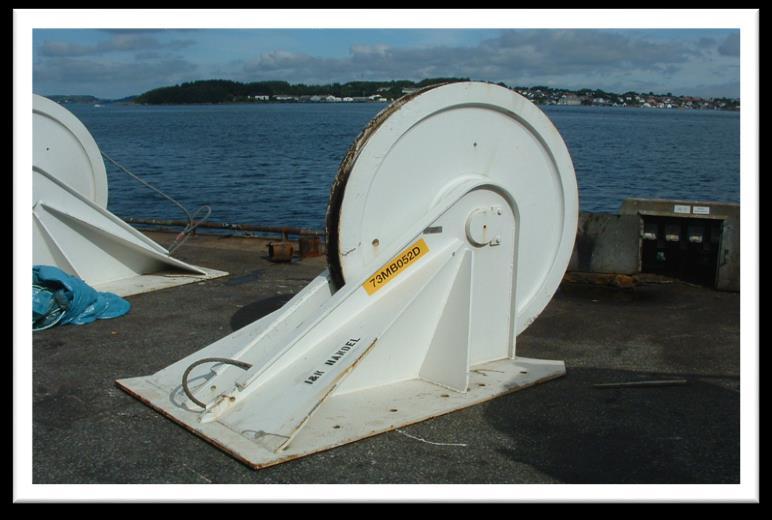

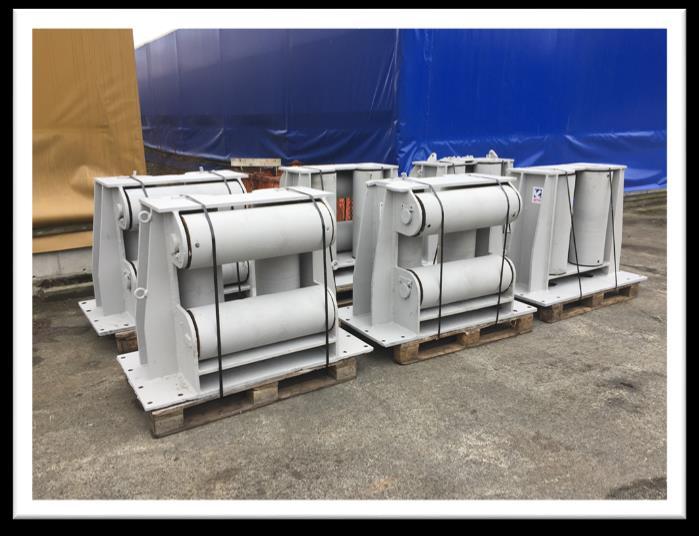

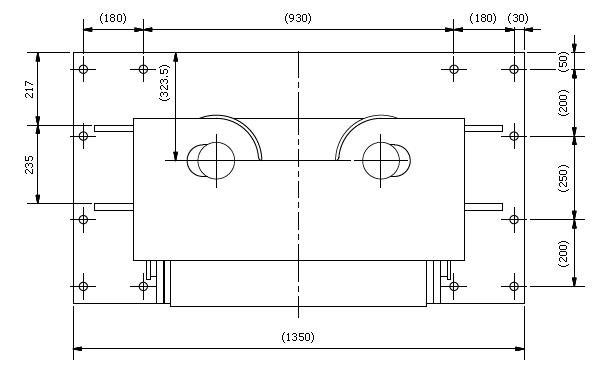

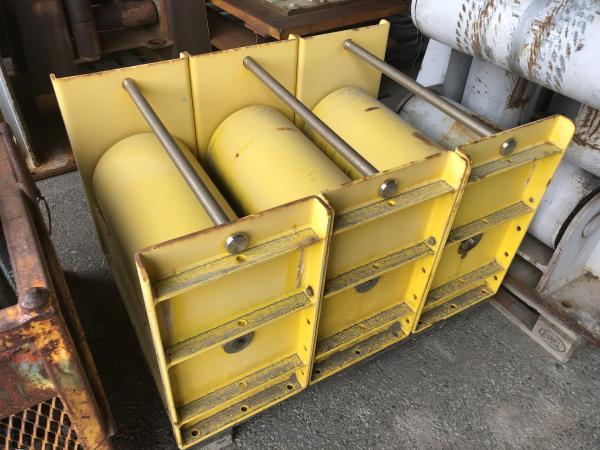

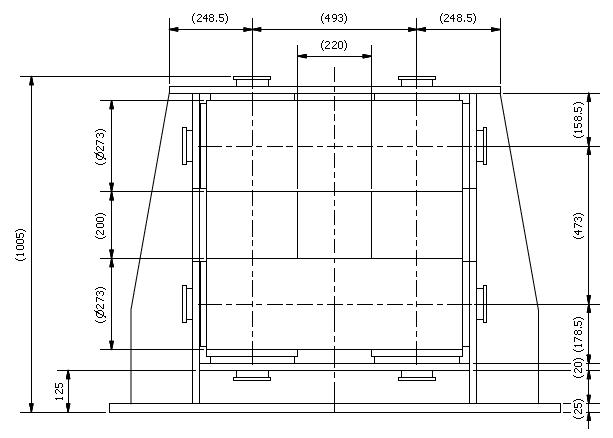

Fairleads for deck installation to guide wire, rope, cable or umbillical

FENDERS

Rubber Fenders for several purposes with different characteristics and dimensions, air- and foam filled.

Some of our fenders listed below:

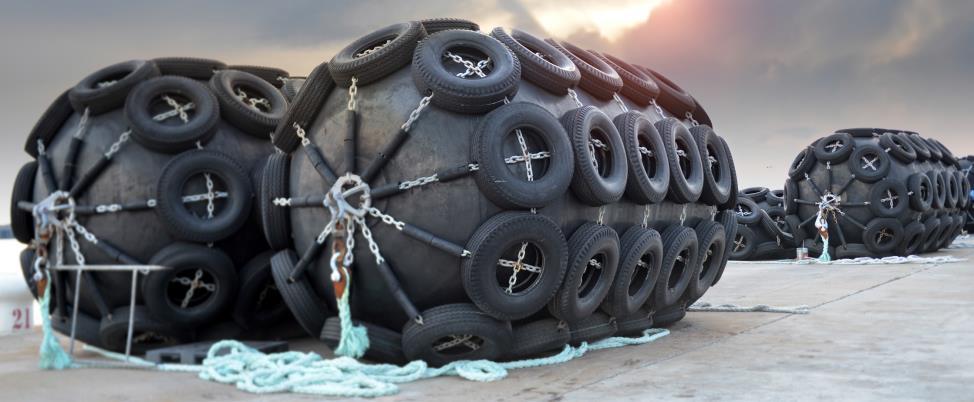

Yokohama type Air fenders

Yokohama type Air fenders

Yokohama type Air fenders

Yokohama type Air fenders

Length 2.0m ø1.4m, weight 300 kg inclusive tyre net

Length 4.0m ø2.5m, weight 1000 kg inclusive tyre net

Length 4.5m ø2.5m, weight 1200 kg inclusive tyre net

Length 5.0m ø2.9m, weight 1400kg inclusive tyre net

Yokohama air fender in vertical position

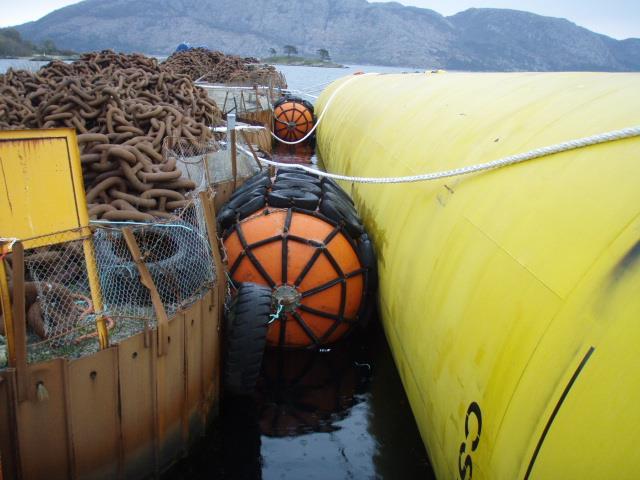

Fenders in use

Fenders ready for use

Yokohama fenders shipped to customer

Rubber protectors for quay

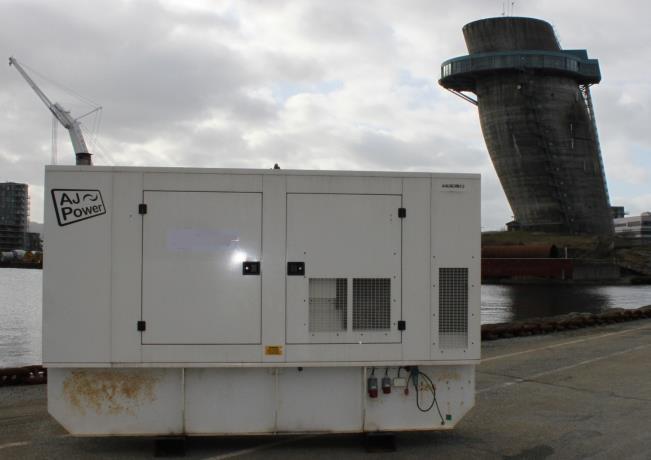

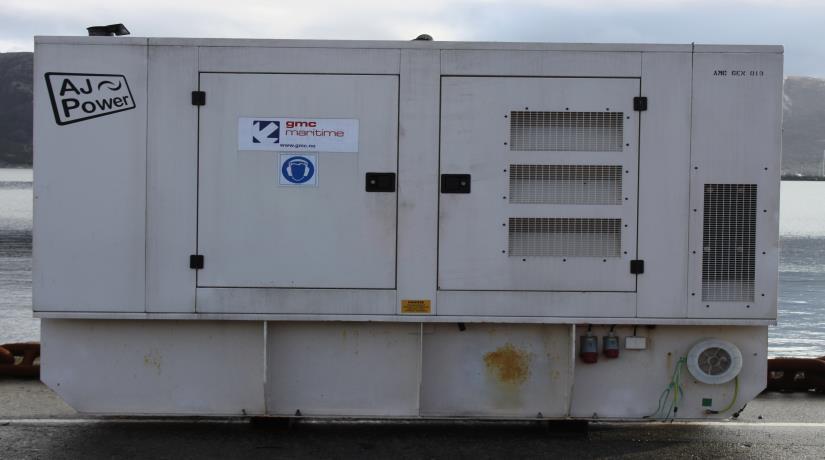

GENERATOR SETS

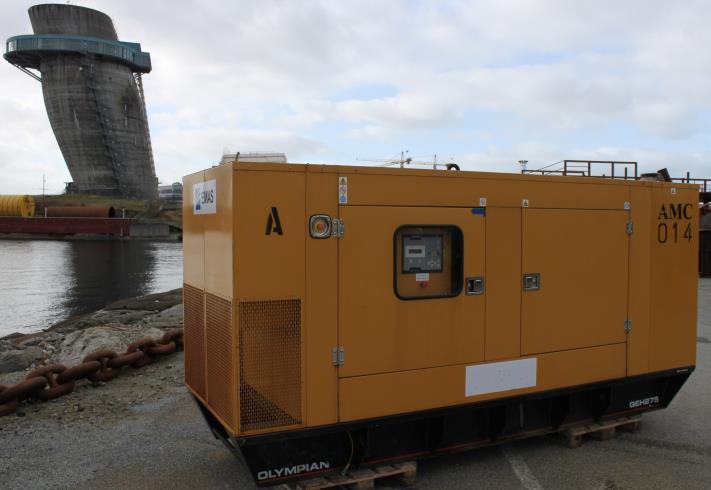

A wide range of diesel-driven generator sets for supply of electric power.

200 KVA generator 380 – 480 Volt 50/60 hz

250 KVA generator 380 – 480 Volt 50/60 hz

190 KVA generator 400 – 440 Volt 50/60 hz

GRAPNELS

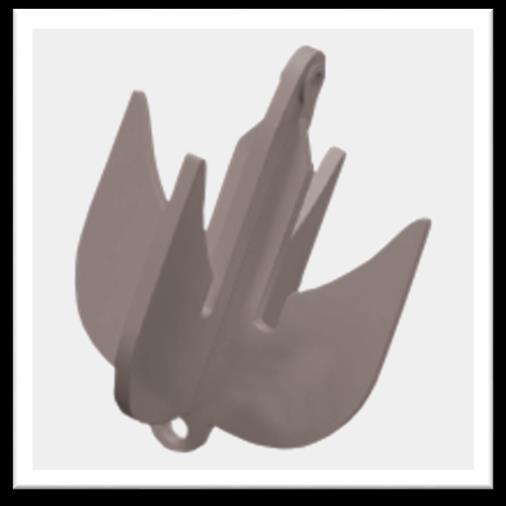

Grapnels for “fishing” chain, wire, cable, rope or umbillical

BEL 139 Grapnel, capacity 250 Ton, tested to 350 Ton

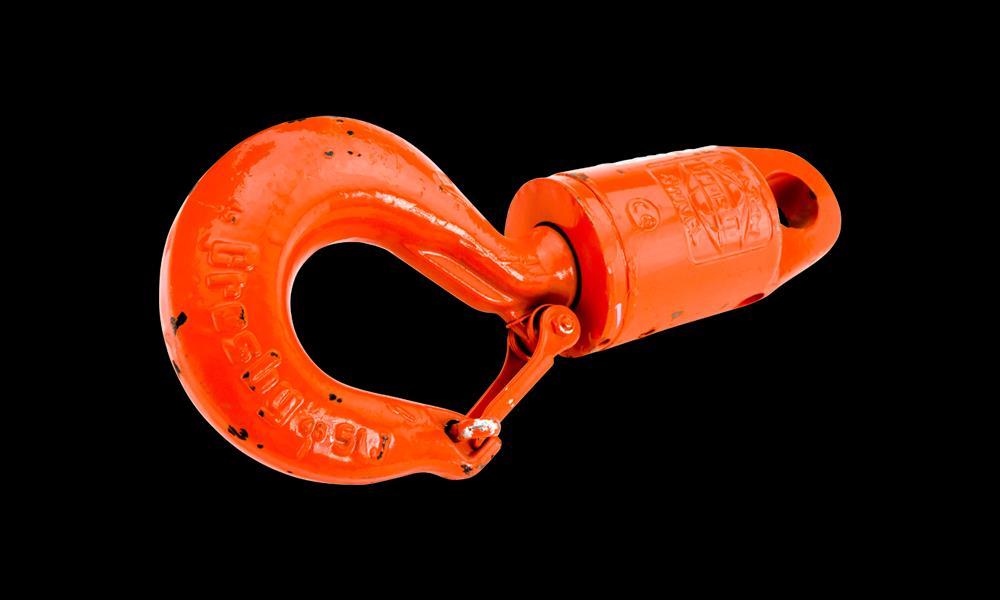

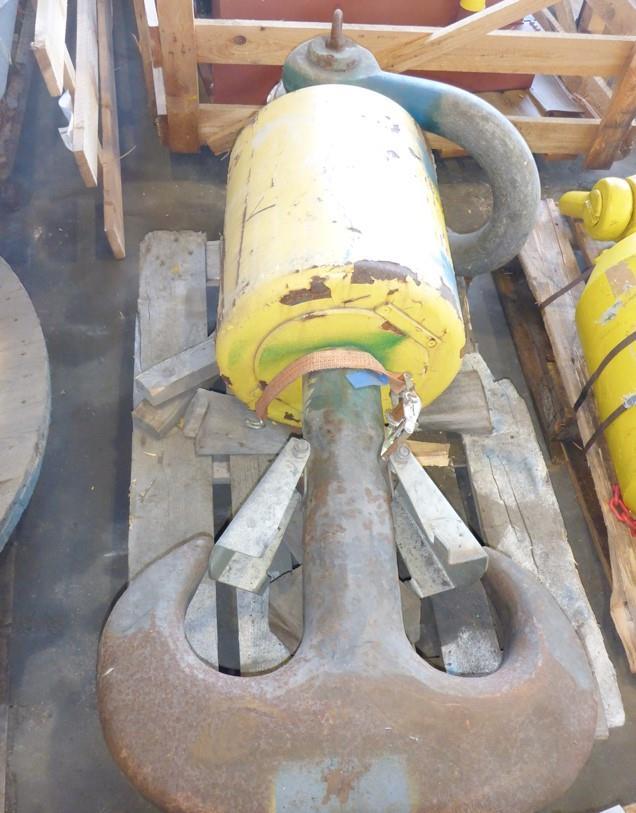

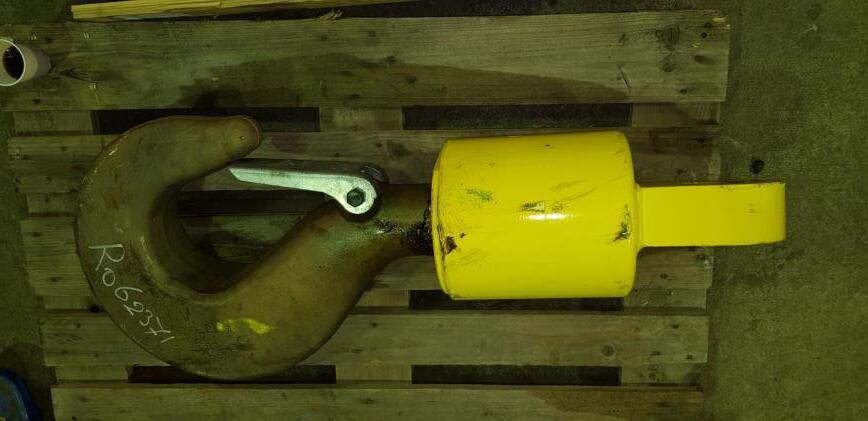

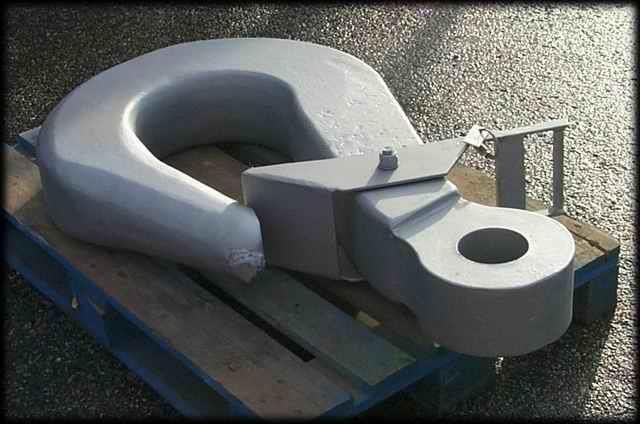

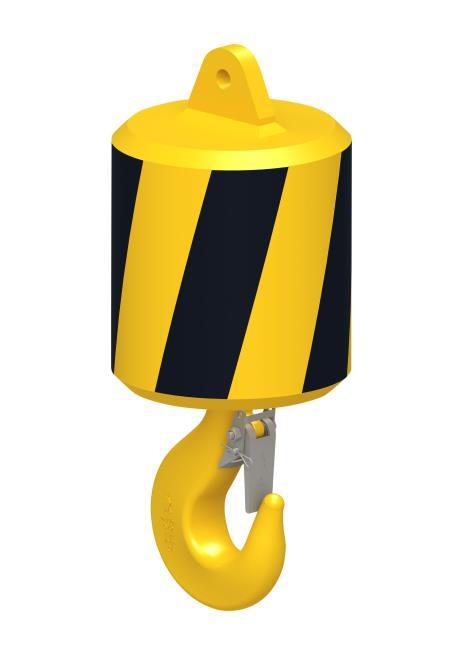

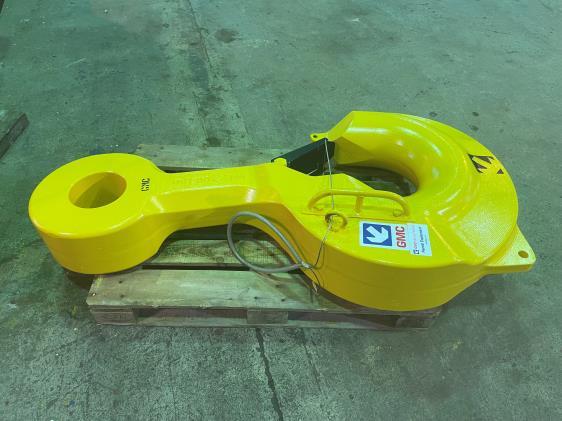

HOOKS

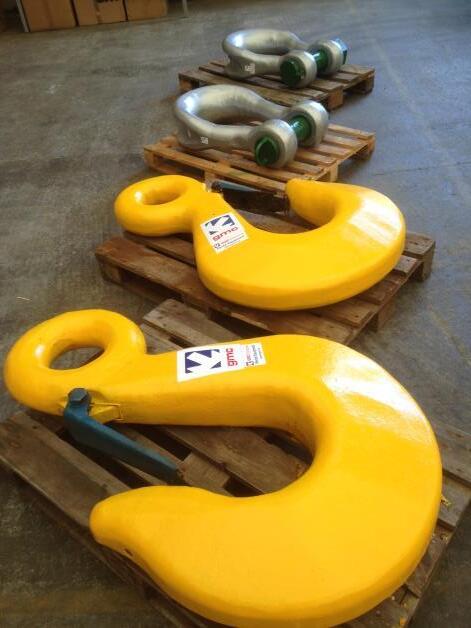

Hooks with capacity 1 – 400 Ton for cranes, winches, hoists, ROV operations, etc.

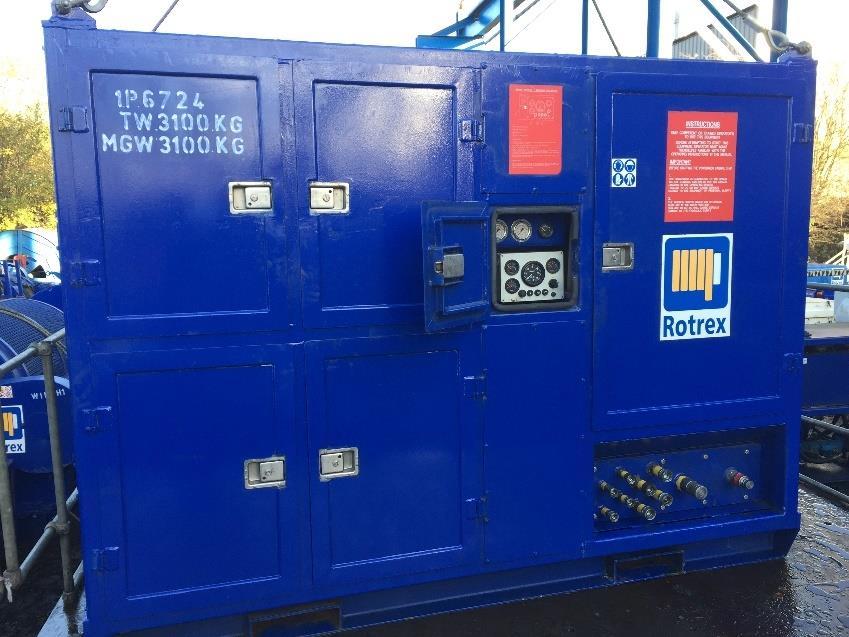

HYDRAULIC POWER PACKS

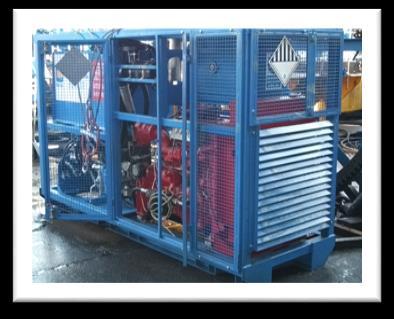

Electric and diesel driven hydraulic power packs for operation of winches, pumps, etc.

*This is only some of our HPU’s

LANTERNS

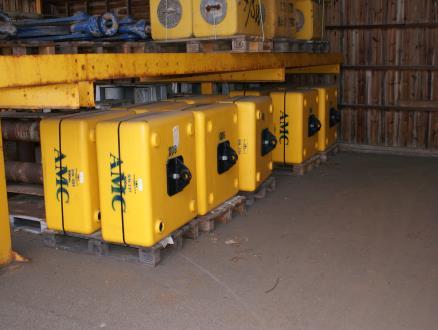

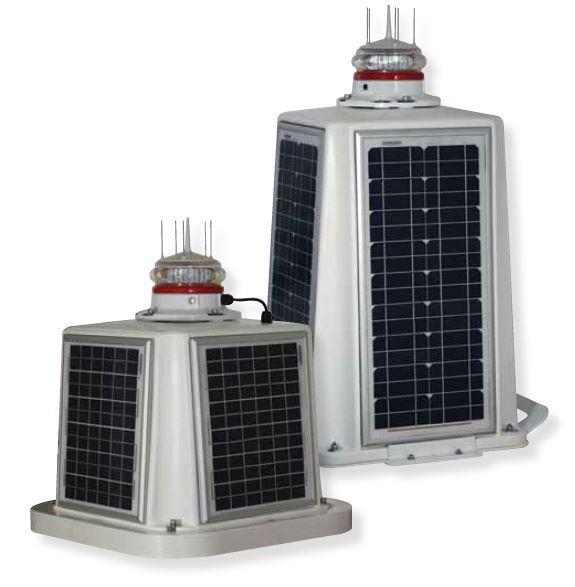

Solar powered self contained LED marine lanterns.

Self-contained LED lanterns with 5-12NM or 6–12NM visible range are designed for a range of lowmaintenance applications.

The light boasts a large internal battery compartment, a SL-155 light-head and 4 premium-grade 10 or 20 watt solar modules mounted to collect sunlight at all angles.

These lanterns is moulded from UV-stabilised, virgin polyethylene, providing enormous impact and weather resistance, in addition to high visibility IALA colours.

The user-friendly, 2-piece design allows the lantern to be opened for convenient battery inspection or replacement whilst the base remains fixed to the supporting structure.

SL-C500 model 5-12NM

SL-C600 model 6–12NM

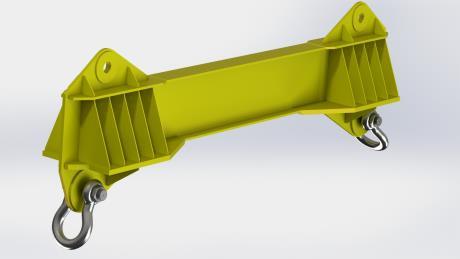

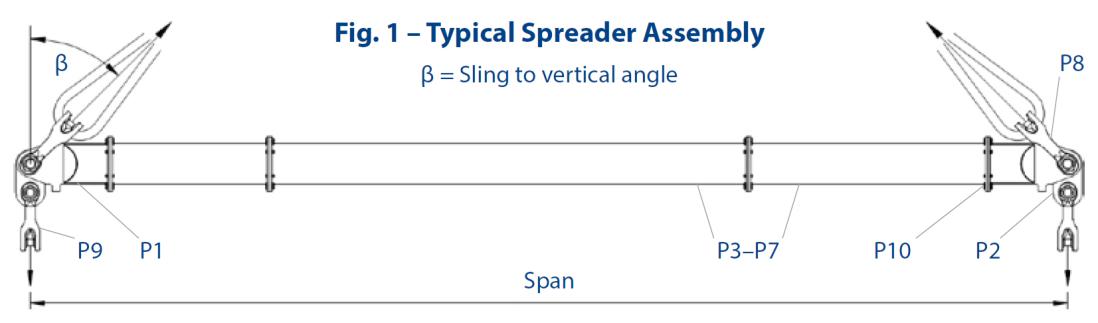

SPREADER BEAMS

GMC has different sizes of spreader beams for all your lifting operations. Can come single or rigged with shackles, wires and master links. Standard capacity up to 600 T, specials up to 2000 T.

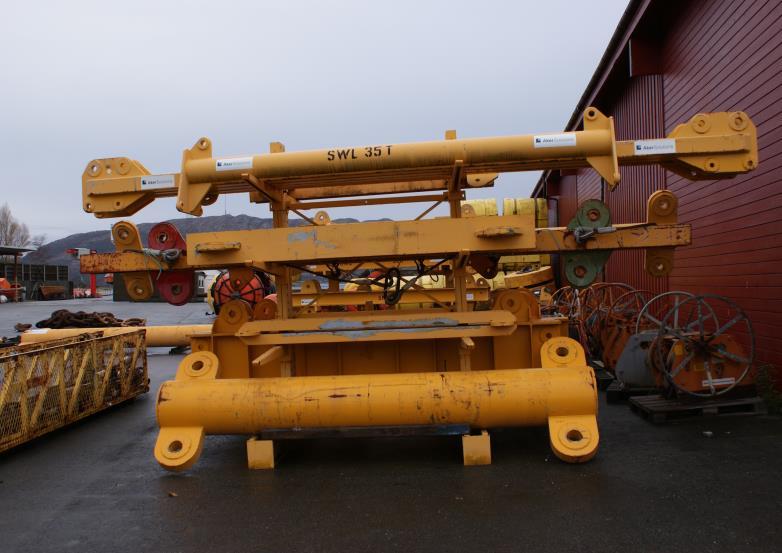

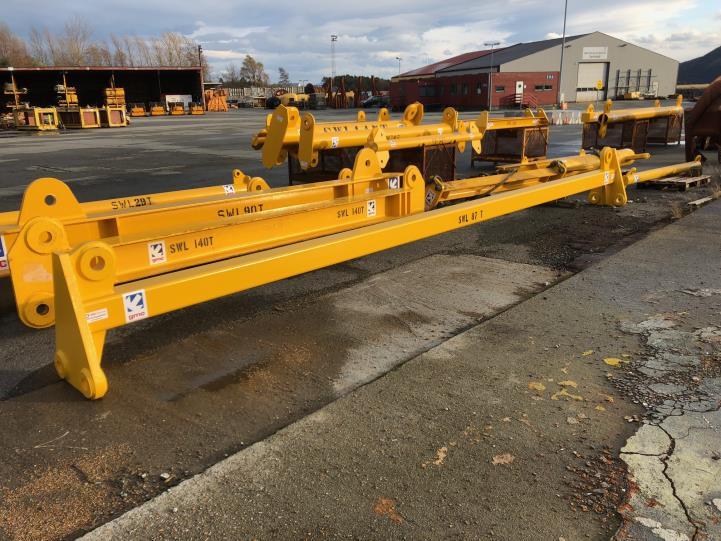

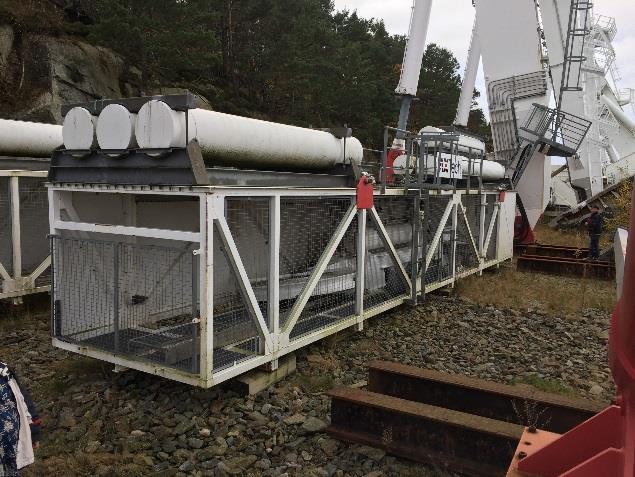

Racks with various spreader beams

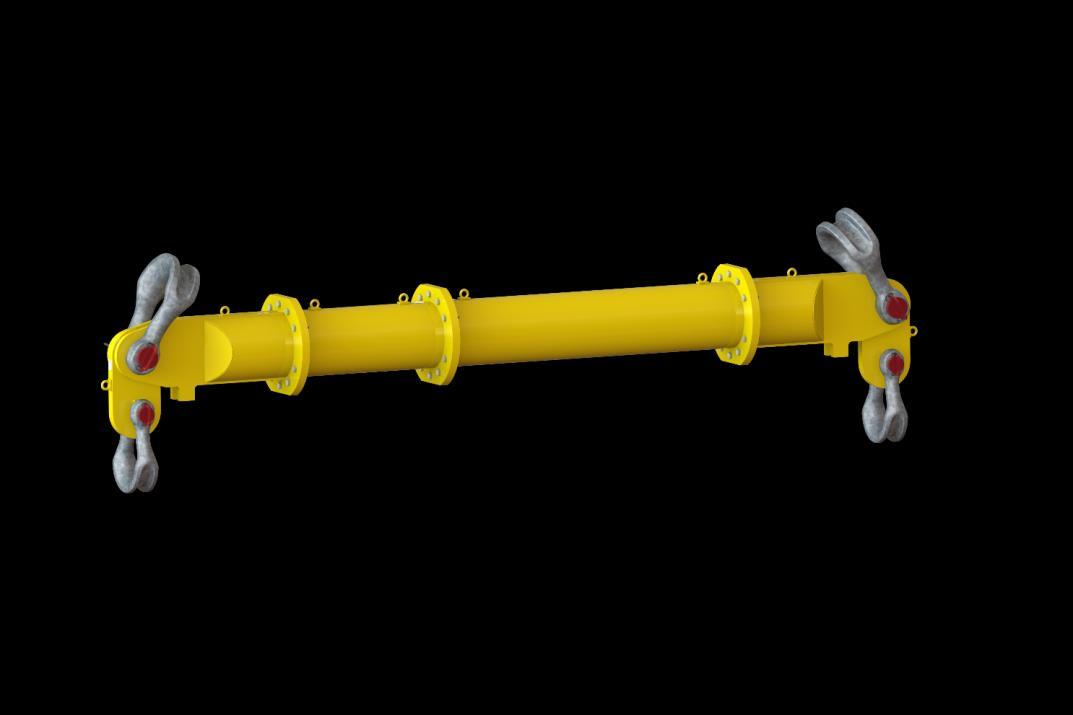

Adjustable spreader beams - WLL from 25 up to 400 Ton

Span from 1 meter up to 25 meter (0.5 meter steps

c/c padeyes: From ~ 1 meter to ~ 25.5 meter

2 x top padeyes for standard or widebody shackles

2 x bottom padeyes for standard or widebody shackles

Comes with certificate and user instructions.

DNV GL type approved

Slings and shackles can be supplied with spreader beam.

Adjustable span from 2 meter to 25 meter (0.5 m steps)

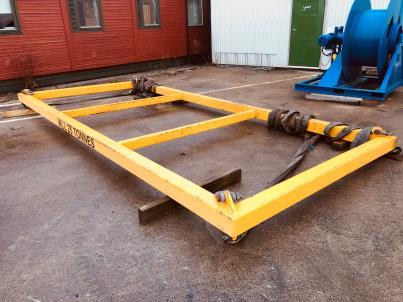

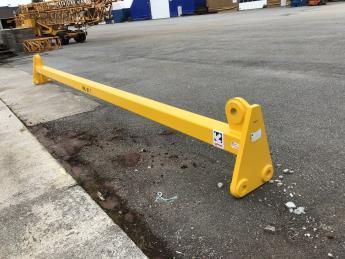

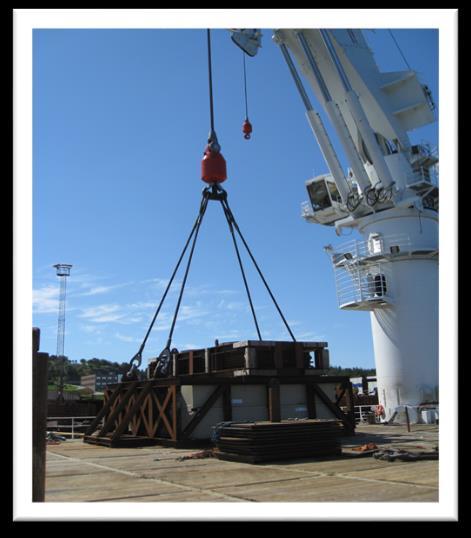

SPREADER / LIFTING BEAMS

Below spreader beams are some of our beams available for rental. Minimum rental is 3 days.

Special spreaders / lifting beams up to 2000 Ton capacity on request.

Comes with control card / certificate, beams can be equipped with wires and shackles according to your requirement.

Lifting beams up to 2000 Ton on request

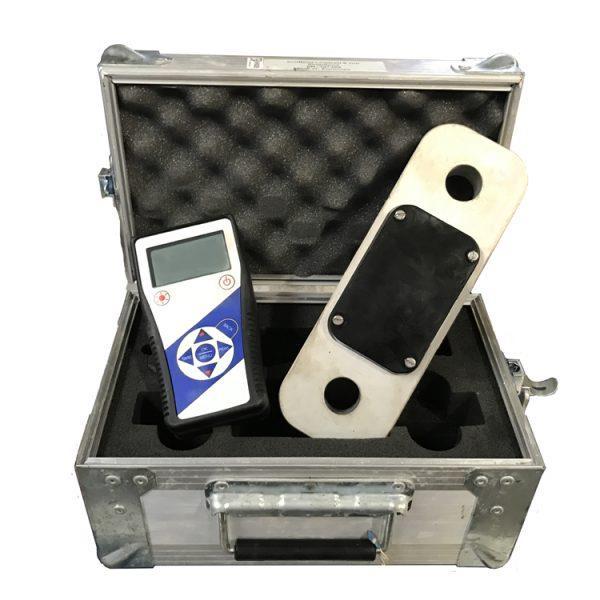

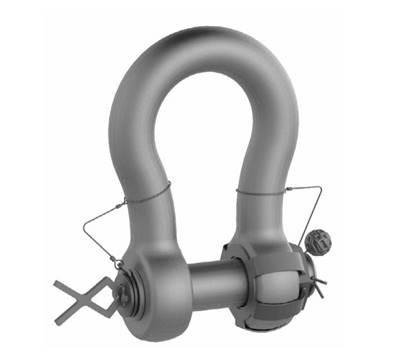

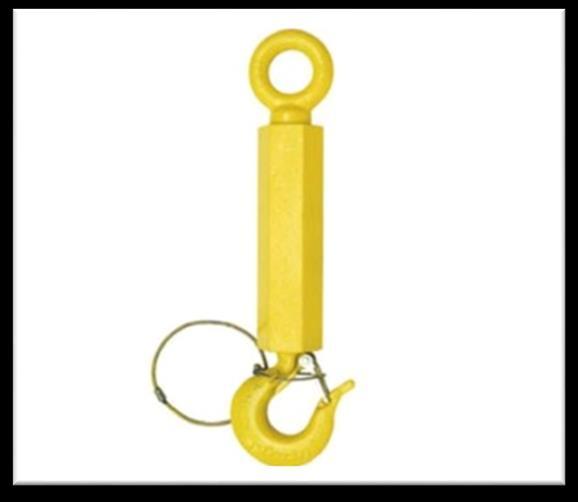

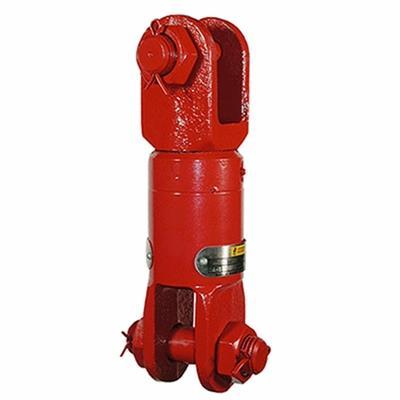

LOAD CELLS, LOAD SHACKLES AND RUNNING LINE MONITORS

Capacity from 2 Ton up to 1250 Ton. Comes with calibration certificate.

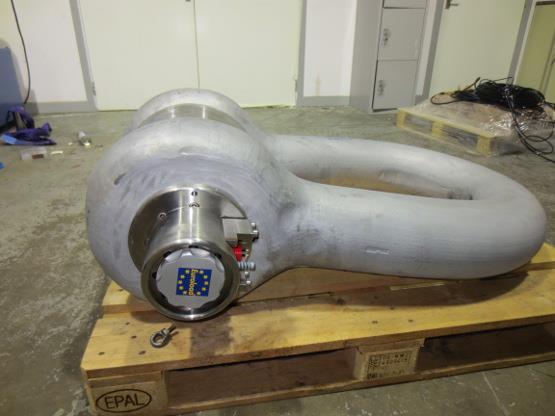

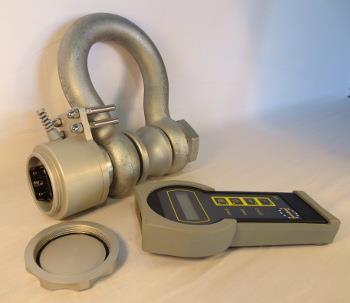

Load shackles radio or cable controlled

Load links radio or cable controlled

Running line monitors radio or cable controlled

Subsea load shackles cable & telemetry controlled

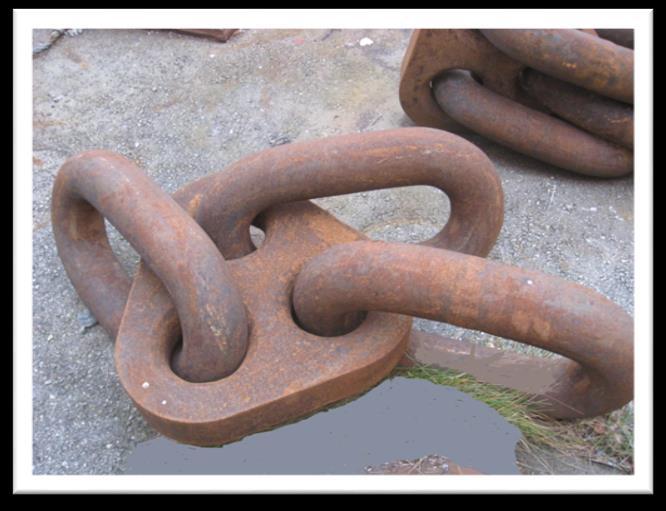

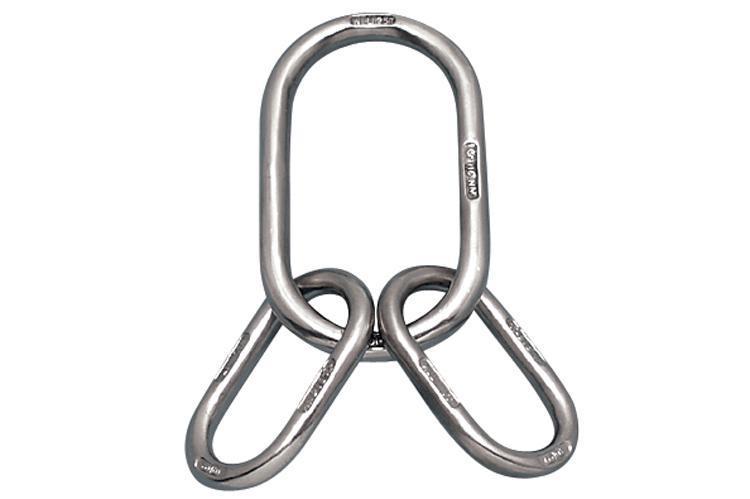

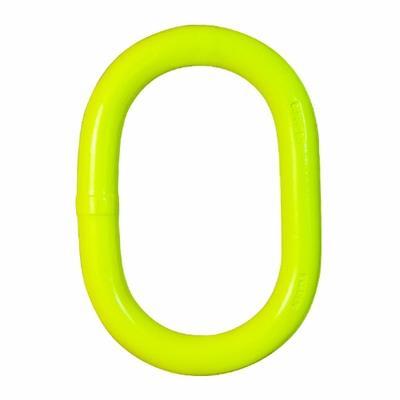

MASTERLINKS

A wide range of Masterlinks with SWL up to 400 Ton.

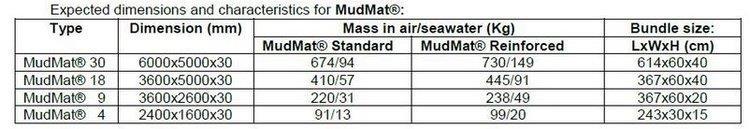

MUDMAT 18 Reinforced

MudMat is a heavy-duty polyurethane (PU) Subsea Protection & Support Mat developed for use offshore and onshore. The mat can be utilised as subsea support, landing and positioning device or as seabed, pipeline and cable protection. Design is based on offshore experience and the requirement for a multi- purpose flexible mat. Certified lifting slings have been integrated in the MudMat® during fabrication resulting in the production of a mat that is robust and easy to handle. MudMat® is available in several standard sizes and weights. The MudMat® is bundled for easy storage and transport. MudMat® Reinforced has been developed for special purposes and is equipped with moulded-in steel reinforcement which ensures increased stiffness, weight and robustness. It will also provide increased stability of the product during subsea operations.

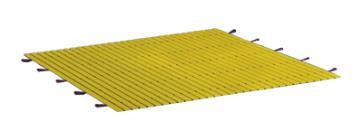

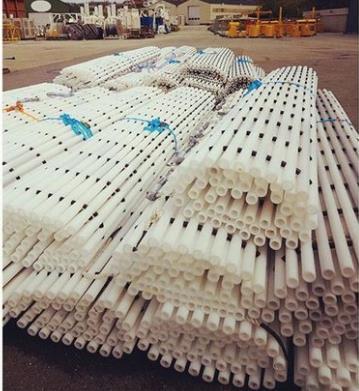

PIPEMAT

PipeMat is made of High Density Polyethylene pipes, and is a low-cost alternative to the MudMat.

PipeMat may be used as subsea support, landing and positioning device or seabed/ pipeline/cable protection for light loads.

The PipeMat is without sharp edges and rigid parts and is therefore a safe alternative to similar installation and protection products.

PipeMat can easily be rolled up for transport and storage.

Dimensions: 4 meter width x 4 meter length

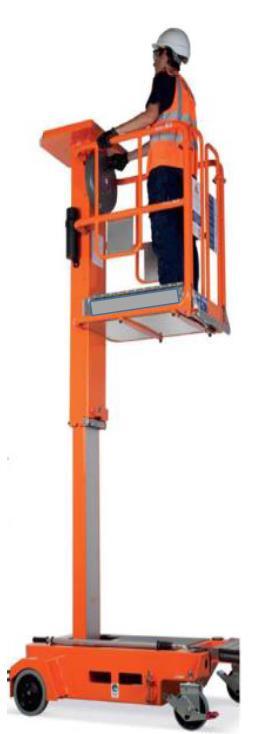

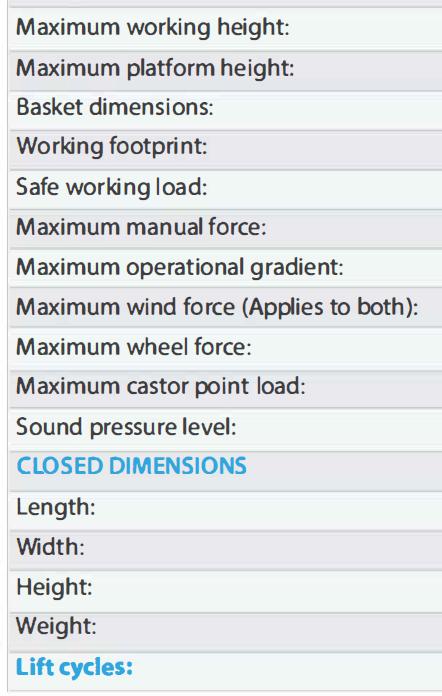

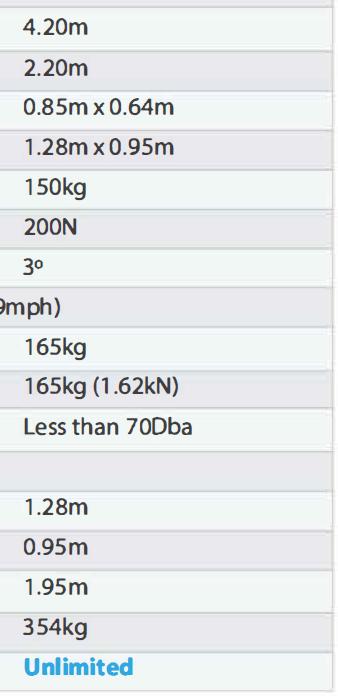

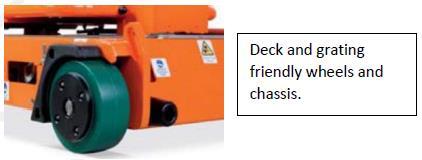

MANUAL PERSONNEL LIFT PLATFORM

Simply turn the wheel to lift up or lower down

Features:

- Atex compliant for zone 1 - No scaffolding required

- Easy to operate

- Battery and power free

Wind resistant up to 3 degrees (maximum wind force 12.5m/s)

Professional training can be provided.

Personell lift model JLG 860SJ

• Working Height 28.21 m

• Working Outreach 23.51 m

• Swing (Continuous) 360°

• Platform Capacity – Unrestricted 230 kg

• Platform Rotator (Hydraulic) 180°

• Jib – Overall Length 1.83 m

• Jib - Range of articulation 130° (+70°/-60°)

• Platform Size 0.91 m x 2.44 m

• Overall Width 2.49 m

• Tailswing (working condition) 1.42 m

• Stowed Height 3.05 m

• Stowed Length 12.19 m

• Wheelbase 3.05 m

• Ground Clearance 0.30 m

• Machine weight 1/2 17,200 kg

• Max Ground Bearing Pressure 2 6.5 kg/cm2

• Drive Speed 4WD 5.6 km/h

• Gradeability 4WD 45%

• Axle Oscillation 0.20 m

• Turning Radius – Inside 3.81 m

• Turning Radius – Outside 6.02 m

• With padeyes for lifting or tie down

• 0.91 m x 2.44 m low mount platform

• Selectable creep speed on drive / lift and swing functions

• 1.83 m articulating jib

• 180 degree powered platform rotator

• Four wheel drive

• Weight 17.200 kg

• Tyres 18 – 625 Foam filled

PILE LIFTING TOOL

50 Ton capacity lifting tool for pulling of piles, with ROV operated locking.

Pumps – Electric and Airdriven

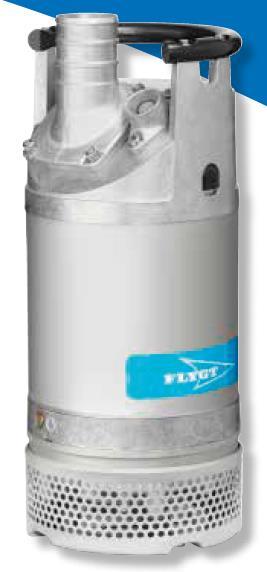

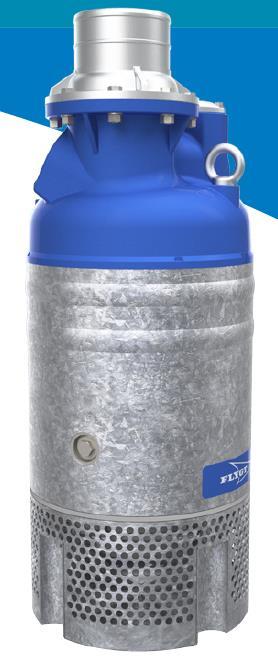

Flygt Xylem electric seawater pumps

Model 2660.181

Max flow 115 m3/hour

Max lifting height 55 meter

440 – 690 Volt 50 hz, 5.6 kW

Weight 78 kg

Flygt Xylem electric seawater pumps

Model 2201.012

Max flow 234 m3/hour

Max lifting height 90 meter

440 – 690 Volt 50 hz, 37 kW

Weight 240 kg

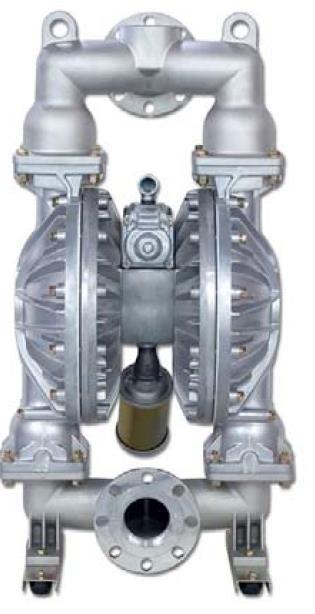

Yamada airdriven pumps

Max flow 600 liter/min

Max lifting height 60 meter

Air pressure from 1.4 to 7 bar

Air consumption 4 m3/min @ 5 Bar

Weight 70 kg

ROV operated suction pumps

Capacity: 48 m3/hour @ 150 m.v.s (15 bar)

Motor: Volvo F12-40

Speed: 3600 rpm

Hydraulic required: 148 l/min @ 202 bar

Inlet: DN100

Outlet: DN100

Material: AISI 316

Shaft seal: Mechanical Burgman Sic/Sic

Weight: 75 kg

Base: AISI316

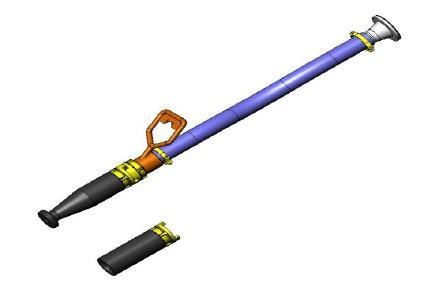

Suction / jetting hose assembly Pump with float elements

Capacity from 25 to 500 T

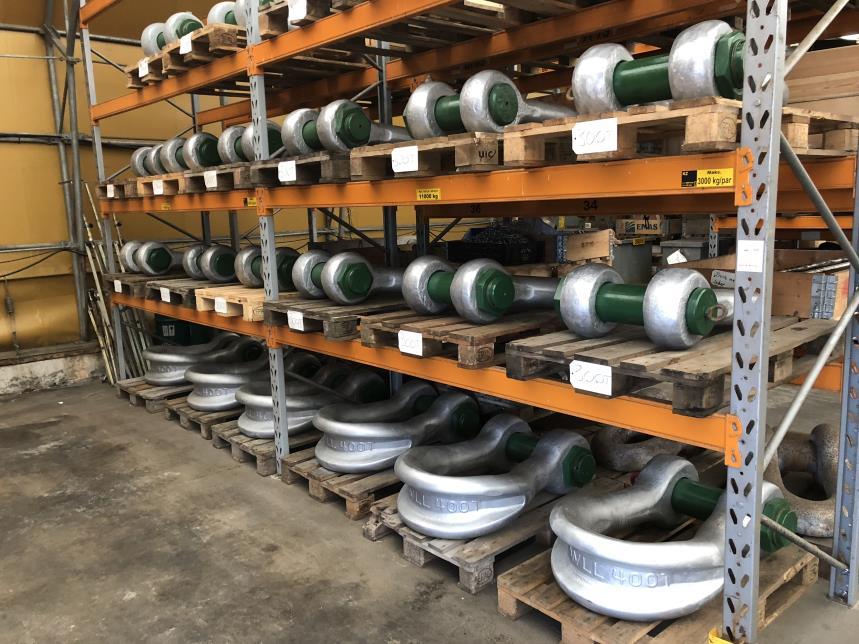

SHACKLES

Standard shackles, Wide Body, Super shackles, D-type and specials with capacity up to 2000 T

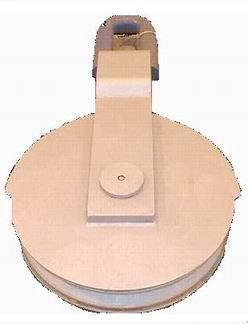

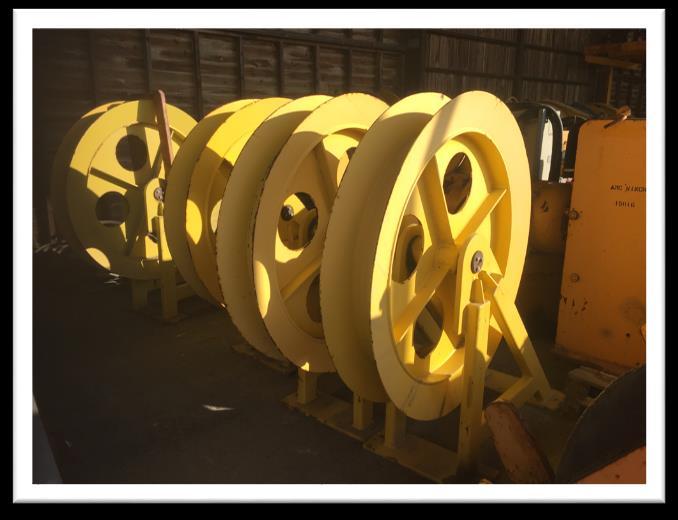

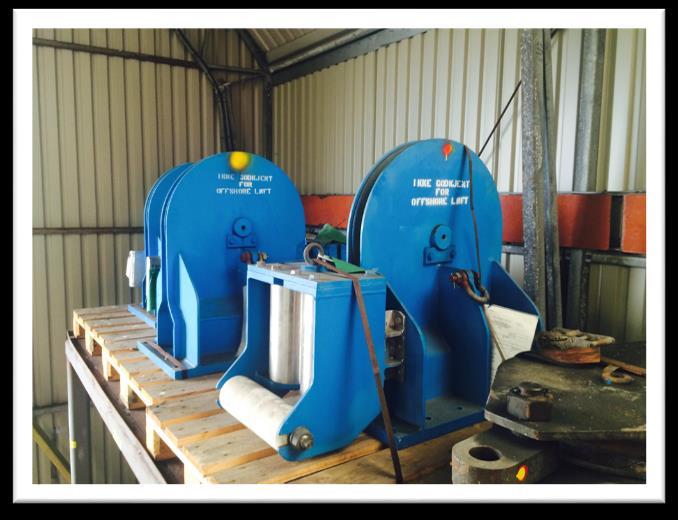

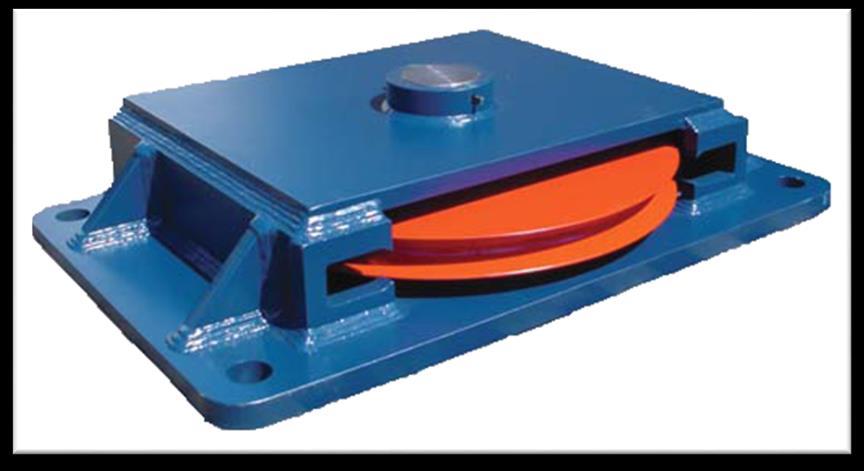

SHEAVES

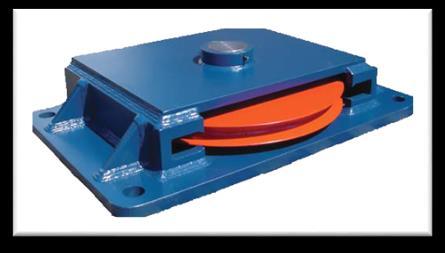

Standard sheaves and deck sheaves with capacity up to 250 T

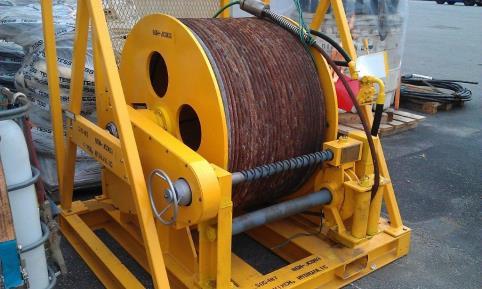

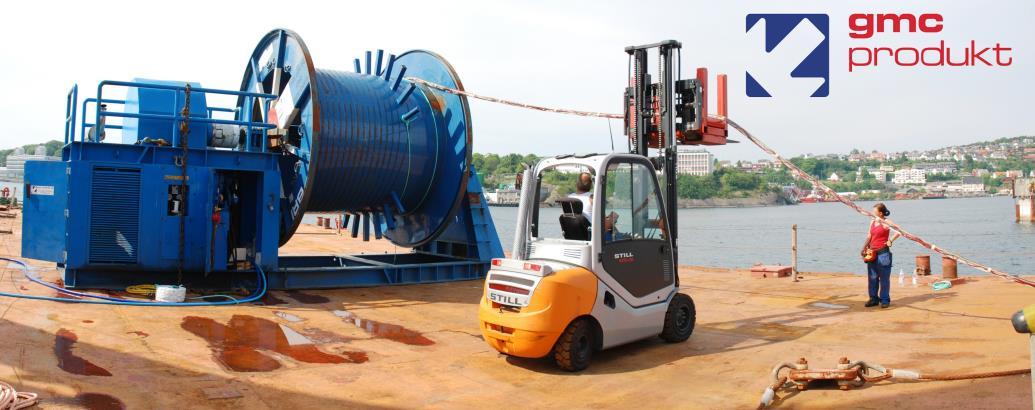

SPOOLING SERVICES

GMC provide comprehensive spooling services of wire-rope, cable, fiber rope or similar. Spooling machines in different sizes combined with trained and experienced personnel can handle wire rope and umbilical up to 250 ton drum weight.

GMC`s controlled spooling services deliver accurate and efficient spooling results, up to a maximum of 30 ton back tension, reducing the likelihood of problems with incorrectly spooled wire-rope on winches.

Our equipment fits onto lorry, and can be set up at your preferred location worldwide, or at one of our bases in Norway.

Also available: Atex approved machines for use in Atex zone 2.

Remote operated spooling machine, with separate wire guide for spooling onto cable drums. Powered by diesel HPU, installed in separate 20’ container. The spooling machine’s operating speed is max 5 rotation /min. when spooling in and max 10 rotations/min when spooling out.

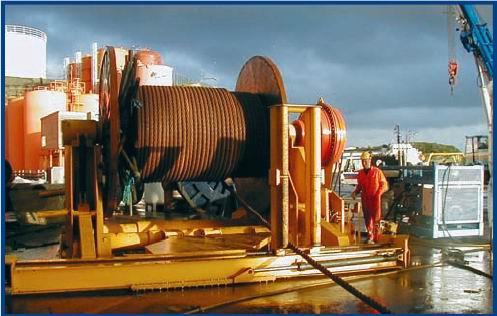

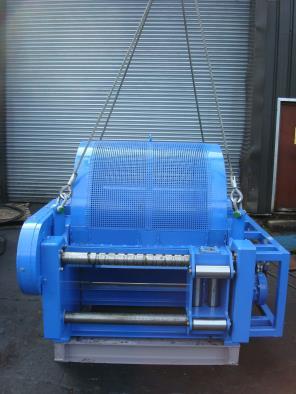

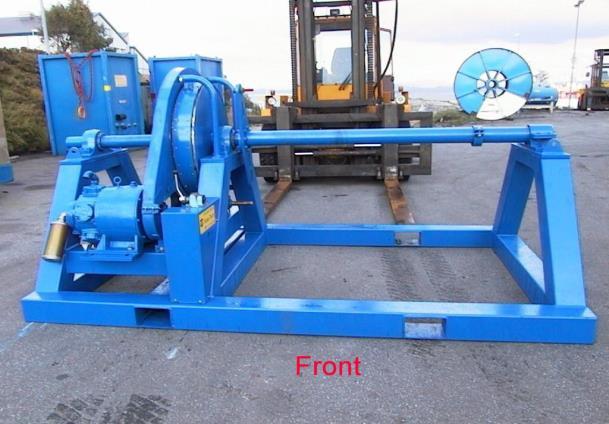

SPOOLING MACHINES

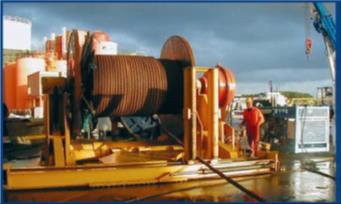

Change of anchor wire, drum weight 150 Ton, 25 Ton back tension

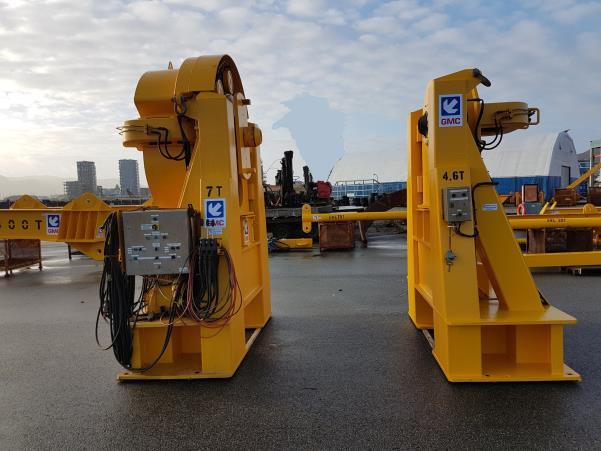

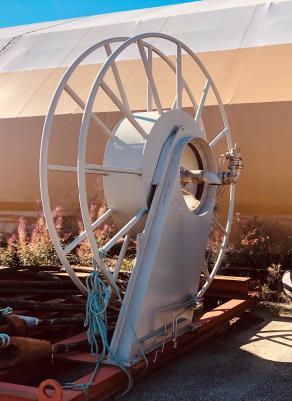

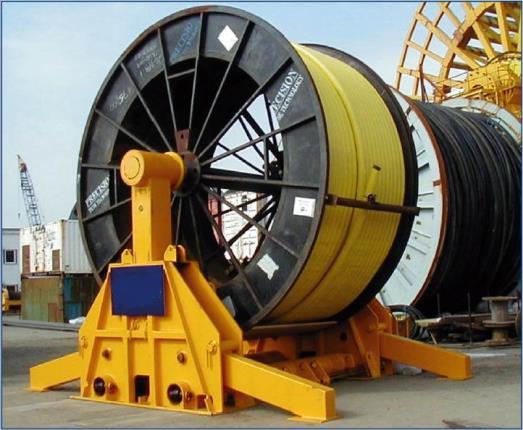

SPOOLING MACHINE / REEL DRIVE SYSTEM (RDS)

• RDS is designed to handle wirerope, fibre rope or umbilical on transport reels. The system pay out / spool in on drums weighing up to 150 Tons. The system can be used with wire grippers (page 56) or linear winch to ensure controlled handling of the material.

• RDS consist of two separate units; motor side and free side each to be mounted on deck with grillage/frame/beams depending on use.

• RDS can handle reels with sizes typically up to 6 meters in diameter and 6 meters width; but can also accommodate bigger reels with special designed grillage.

• The RDS is perfect for installing mooring lines on vessels and barges.

• Technical Info:

• Max weight of reel: 150 Tons

• Supply 380 Volt, 50 hz, 7.5 kW, IP56

• Max diameter/width of reel: Any dimension depending on grillage

• Weight/dims (LxWxH) motor side: 6.0 T / 250x142x317 cm

• Weight/dims (LxWxH) free side: 4.5 T / 250x110x306 cm

• Drive force pull: approx. 5 Ton

• Transport dimensions (LxWxH): 290x295x320 cm

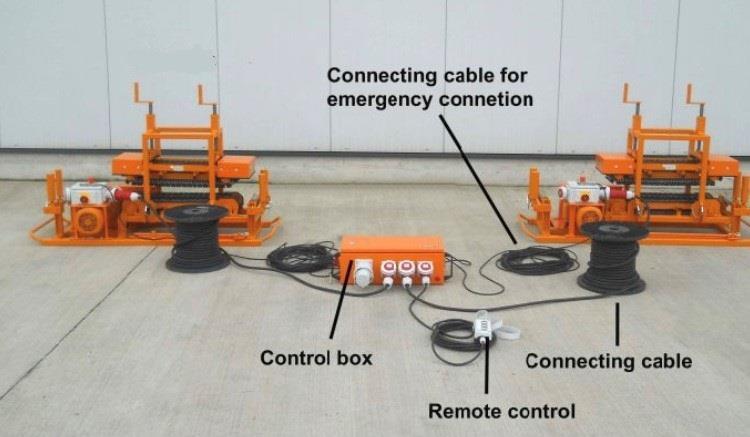

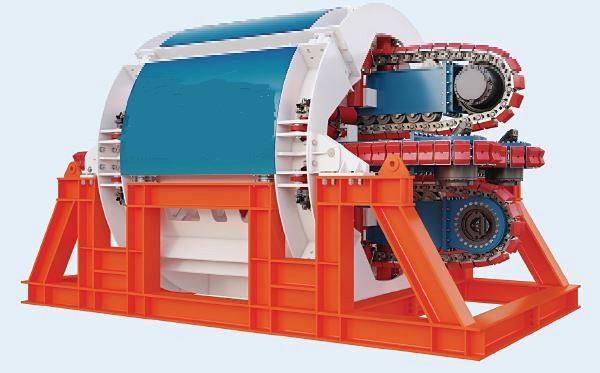

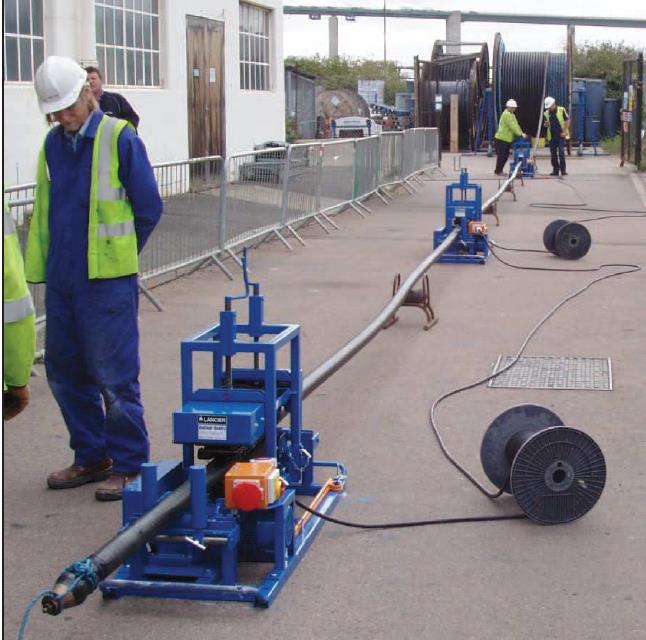

PULL / PUSH SYSTEM FOR CABLES

• This cable push / pull system provide supplementary force when laying heavy cables.

• Usable in serial combination with oneman operation or as stand alone unit.

• Optimum and gentle transmission of power to the cable.

• Suitable for narrow trenches.

• Cable winch not neccessary.

• Transport chains are equipped with wear resistant plastic studs.

✓ Electric driven

✓ Drive power: 1,5 kW

✓ Pushing force: approx 700 kg

✓ Pushing speed: 0 – 10 m/min

✓ Cable diameter: 30 – 150 mm

✓ Weight each: 185 kg

✓ L 1700mm x W 550mm x H 9830mm

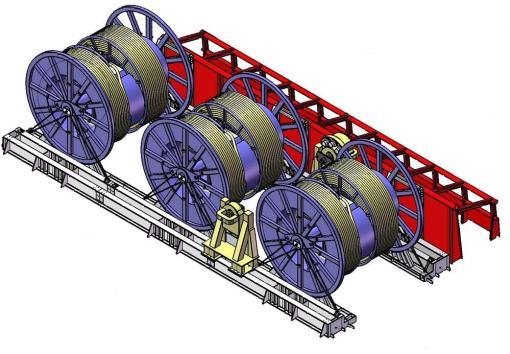

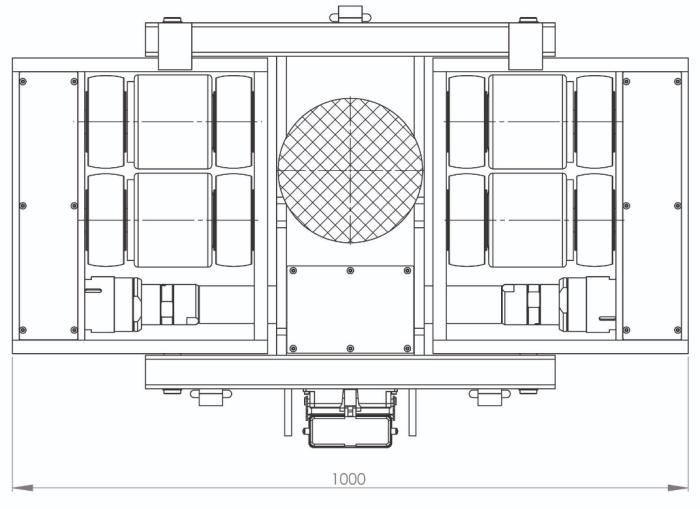

REEL DRIVE SYSTEM / UNDER-ROLLERS

• Four-wheel drive Under Rollers are designed for ease of handling and maneuvering reels up to 350Te capacity. suitable for reels up to 11.2m diameter and variable width.

• Under Rollers are supplied with diesel or electric hydraulic power packs and can be manually or digitally controlled.

• Also self-loading versions available complete with cradles to avoid the need for a crane to load/unload reel.

Crane loaded under roller description:

Consist of four powered rollers in carriage which rest on two sets of bed beams. Bed beams are lifted into position with forklift and spacer tubes are bolted between beds. Reel is lifted onto rollers with crane.

Loading is possible both directions, Powered wheels comes with hydraulic and mechanical brakes for both directions.

Data for 350 Ton capacity crane loaded under roller: Drive force at rim per powered roller

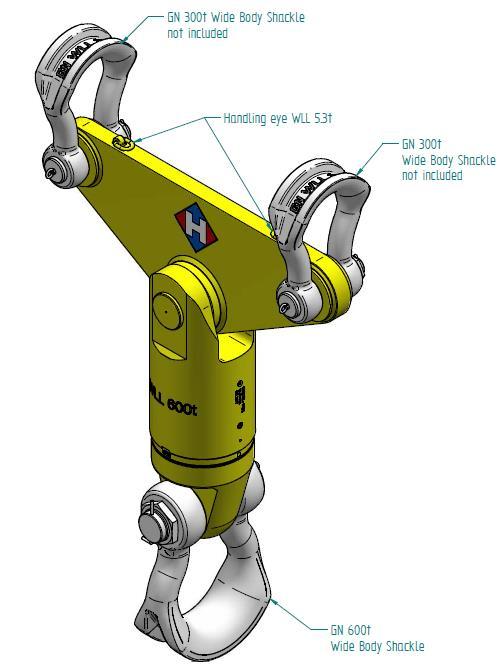

SWIVELS

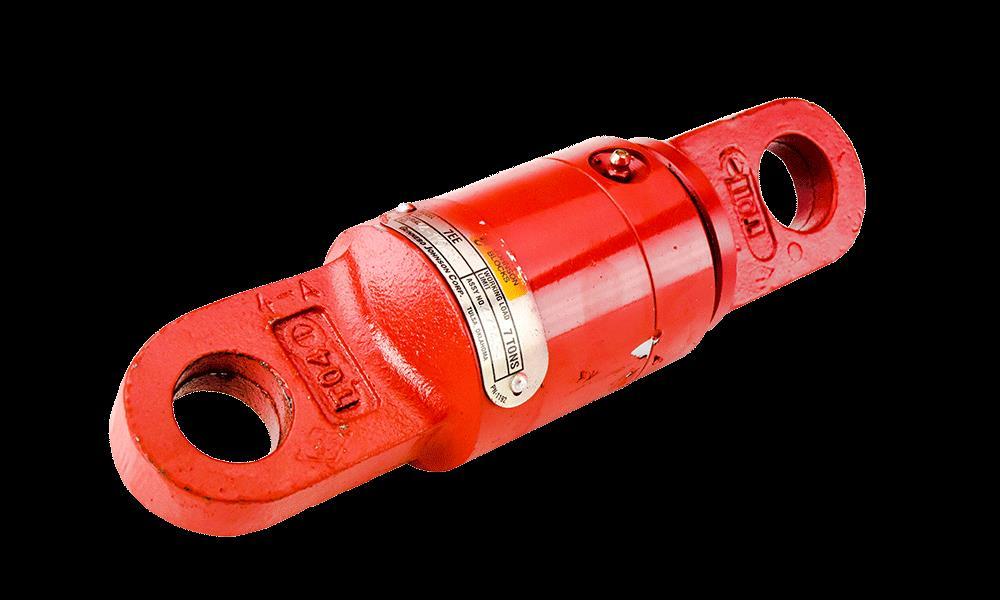

Swivels Suitable for frequent rotation under load, capacity up to 250 ton

TRAILERS

Transport trailers for heavy load, airdriven or manual, capacity up to 50 ton

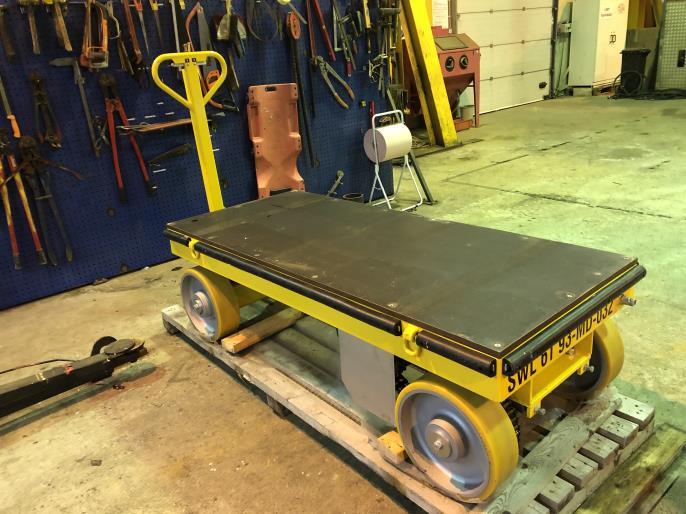

6 Ton air trailer 4-wheel slewing

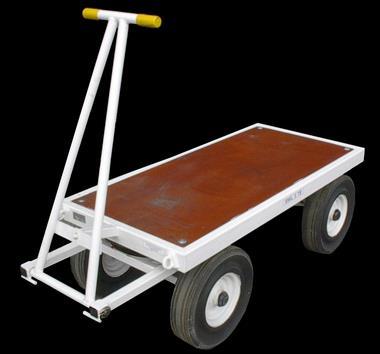

1-10 Ton manual trailers

6 Ton air trailer 2-wheel front slewing

2 Ton air trailer 2-wheel front steering

Transport air film systems for heavy load, airdriven or manual, capacity up to 50 ton

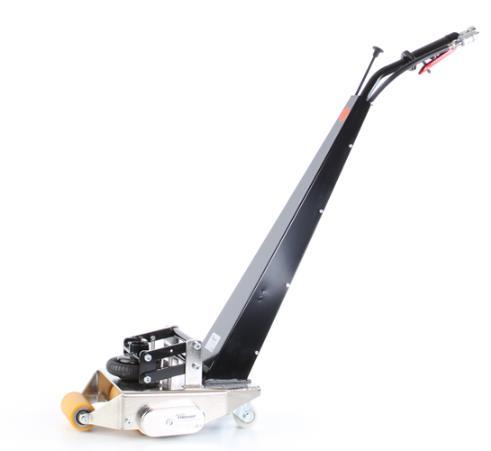

Air film transporters, capacity up to 100 ton. Can come with Easy Mover airdriven push / pull machines

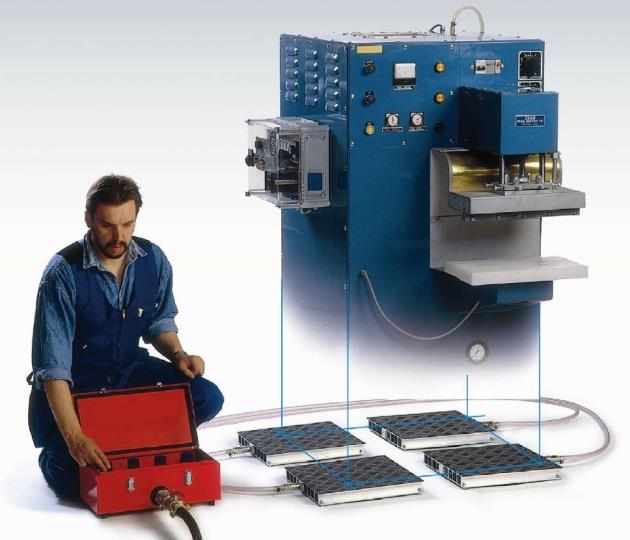

Air cushion systems, capacity up to 360 ton

Transport trailers, capacity 16 ton

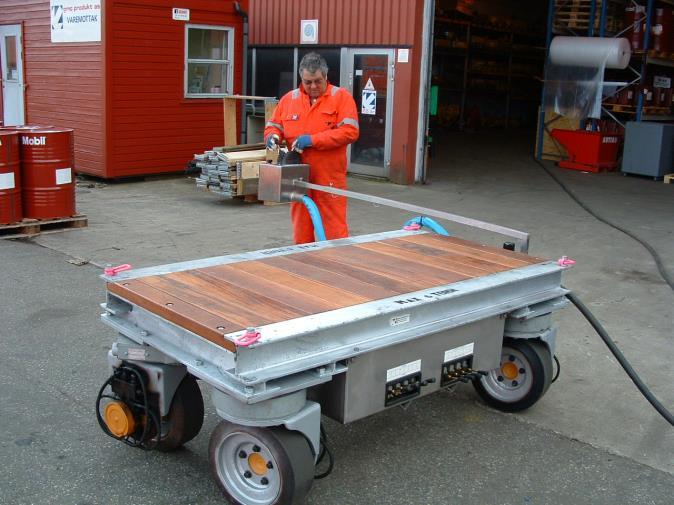

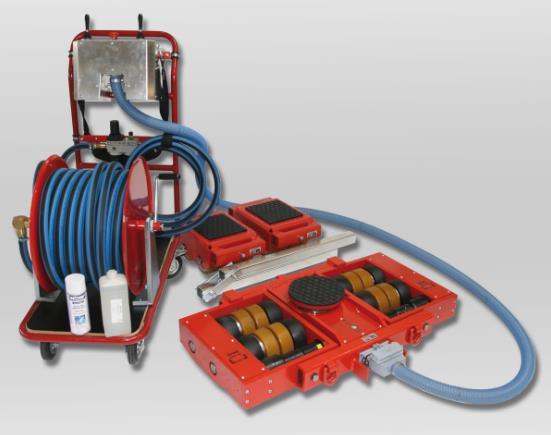

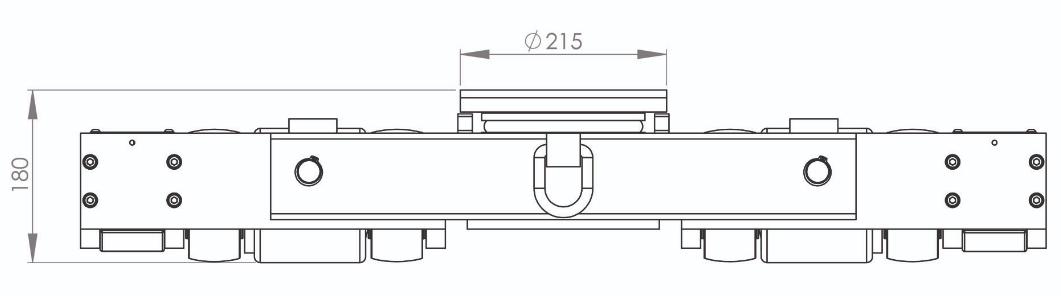

30 Ton airdriven transport trolley set

Total load capacity: 30 ton

Pulling capacity: 30 ton

Height: 180 mm

Air pressure: 8 bar

Air volume: 1.5 m3/min

One set includes:

1 x air-powered transport trolley load capacity 15 Ton

2 x transport trolleys JFB 15 G load capacity 7.5 Ton each

One control unit with E-stop for 15 Ton air trolly

One hose cart with 30 meter 19 mm air hose on reel

TRIPLATES

Triangle plates for towing or load distribution, capacity up to 700 ton

35 and 55 Ton capacity Tri-plates

35 to 300 Ton capacity Tri-plates

335 Ton capacity roundel plate

300 Ton capacity Tri-plate with links

TURNBUCKLES

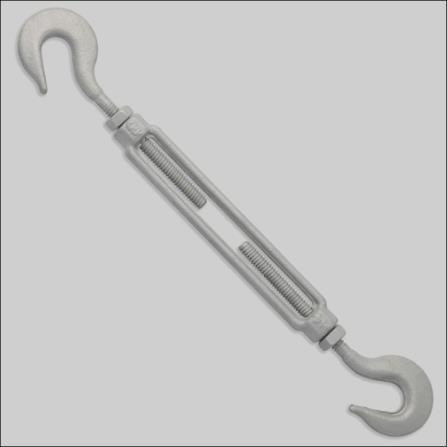

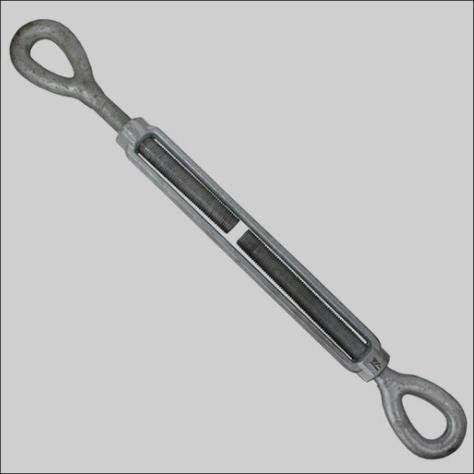

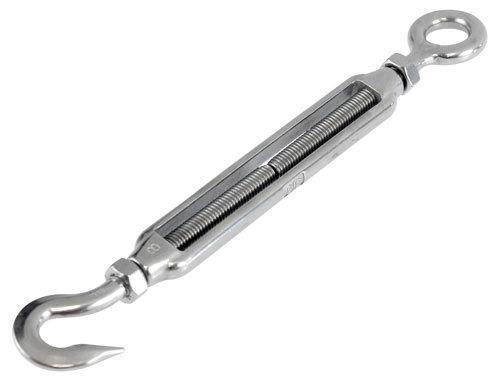

Turnbuckles used to shorten or expand wirerope or chain assemblies

TURNPOINTS

Turnpoints for subsea use to redirect pipes, cables and similar

3.45 Ton turnpoint H2500 mm ø1524 mm

WATER BAGS

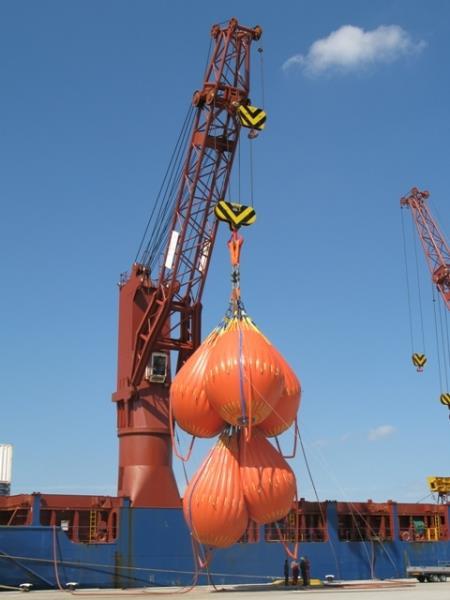

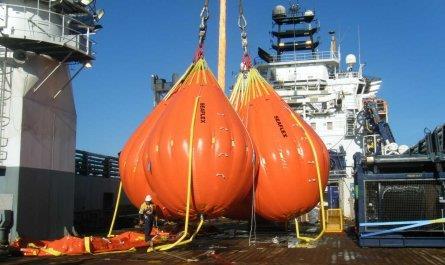

A wide range of water bags with single units up to 100 Tonne. The water weights have a space saving design and are used for testing of cranes, winches or other equipment. Shackles, master link and fluid transfer fittings comes with each waterbag. Loadcells can also be supplied to check the actual weight. Water bags are foldable for easy storage and transportation.

Capacity: 2, 5, 10, 20, 35, 50 and 100 Ton single waterbags

WATER BAGS FOR LIFEBOAT TESTING

GMC life boat testing kits can be used to apply an evenly distributed load to a lifeboat or any other object that has to be proof loaded.

Depending upon the required proof load, a number of water bags have to be spread evenly in the life boat and connected to the manifold.

The bags have to be filled to their maximum capacity, this way you can be sure of the total weight, as the manufacturer guarantees a filled weight of 375 kg with a tolerance of 1%.

These specially designed Life boat testing bags of 375kg each are part of a complete life boat testing set. A remote system with a manifold and filling hoses, allows proof load testing to be conducted safely, without entering the craft in the ‘dangerous’ overload situation.

The GMC life boat proof load testing set can also be used for load testing of gangways and small bridges.

WEIGHTS FOR LOAD TESTING – STEEL

/ CONCRETE

GMC has a wide range of clump weights up to 900 Tonne per unit. The weights have a space saving design and are used for testing of cranes, winches or other equipment or as a fixed point on sea bed.

Basket with 30 kg steel weights

Large test beds from 50 to 450 T

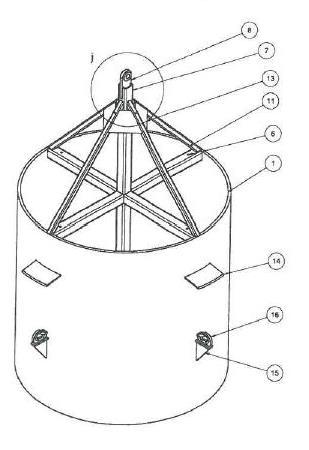

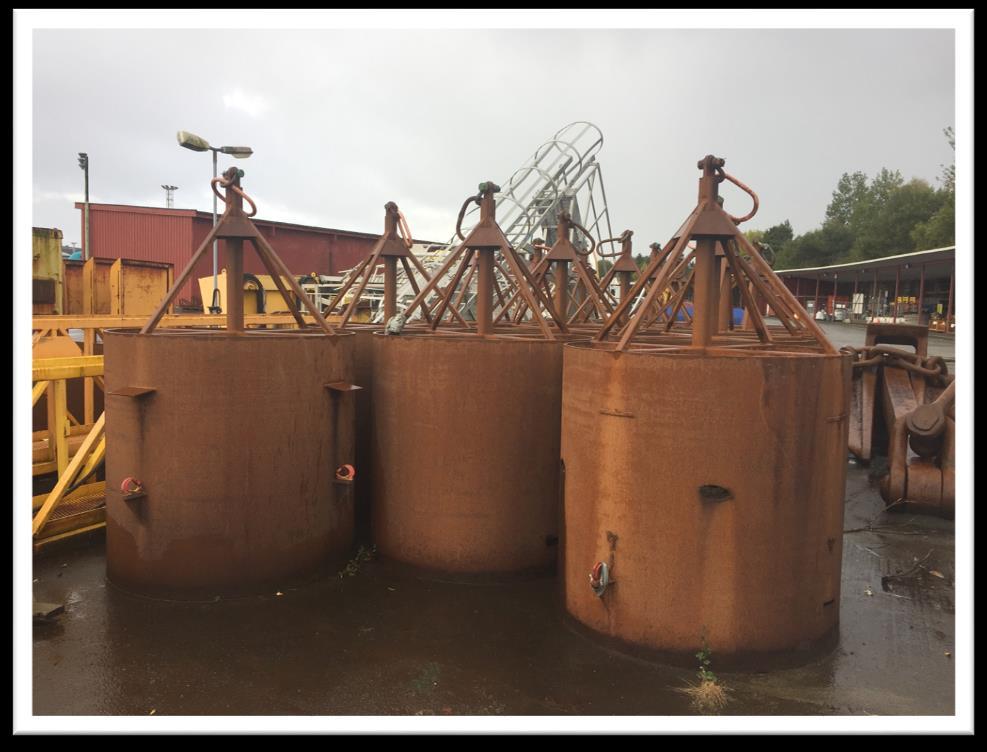

Testbaskets with steel weights from 1 to 250 T

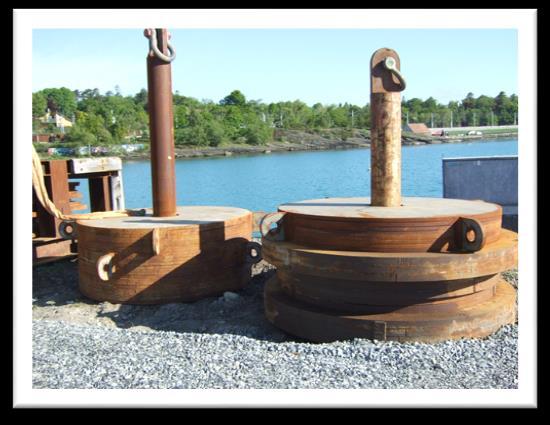

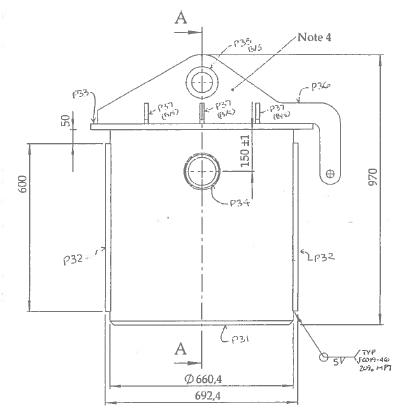

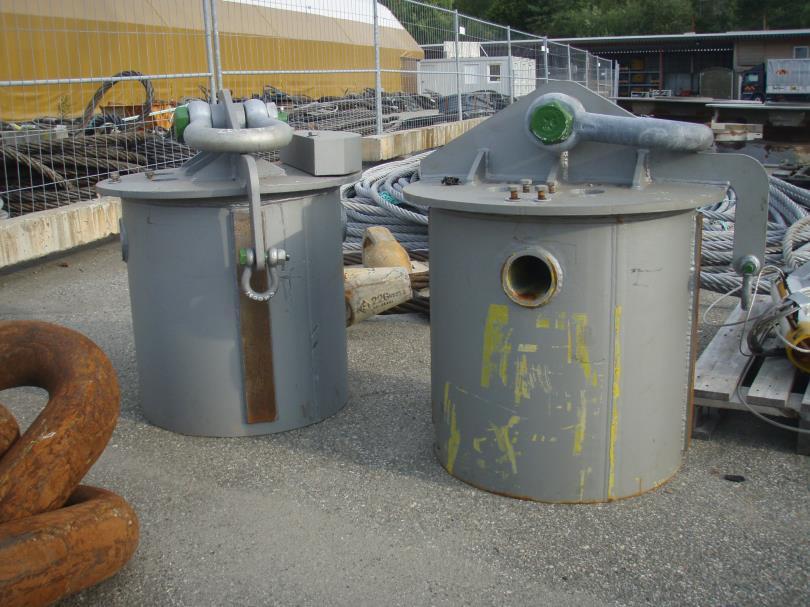

Clump weights from 5 to 100 T

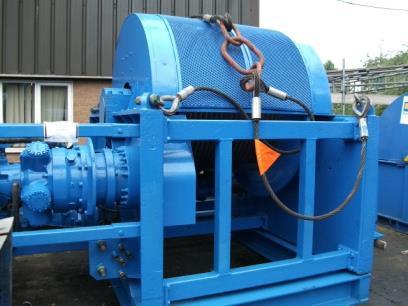

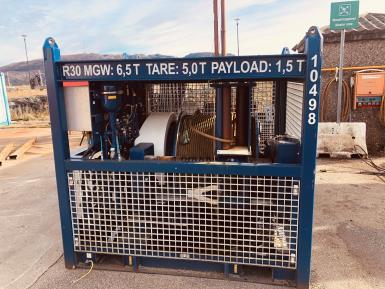

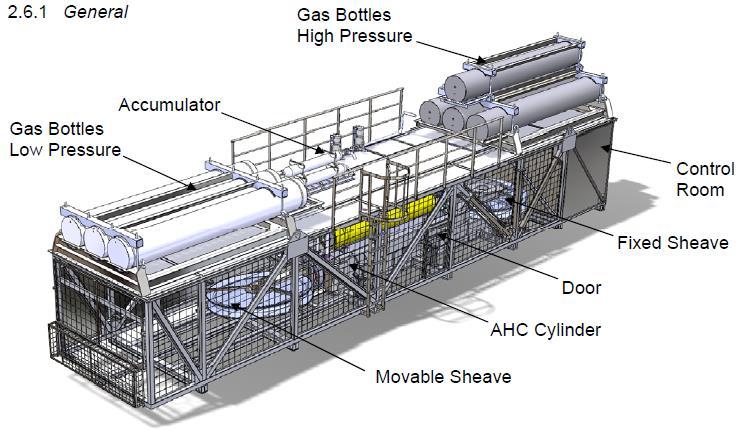

WINCHES & EQUIPMENT

Manual, airdriven or electric lifting and pulling winches including associated equipment for rental.

Capacity from 500 kg to 200 ton, see below a selection of our equipment.

For more winch details, contact us for our winch rental catalouge.

5 Ton hydraulic winch

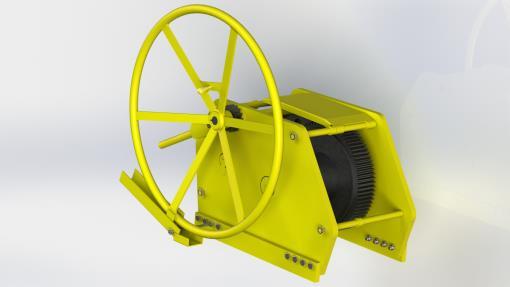

5 Ton manual winch 50 T holding

- 60 Ton pulling trailer winches

15 Ton lifting winch

Ton pulling winch 100 Ton brake

5 Ton lifting winch with CT

- 20 Ton pulling winches on tracks

Hose or rope storage winch

WINCHES & EQUIPMENT

Manual, airdriven or electric lifting and pulling winches including associated equipment for rental.

Capacity from 500 kg to 200 ton, see below a selection of our equipment.

For more winch details, contact us for our winch rental catalouge.

20 Ton lifting winch

90 Ton lifting winch

200 Ton lifting winch Diesel and electric Power packs

Fairleads, Sheaves and Blocks Running line monitors and load cells

40 Ton lifting winch

75 Ton lifting winch

WINCHES & EQUIPMENT

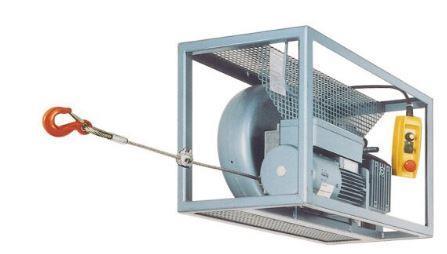

Tirak winch machine with automatic rope winder

For assembly on construction sites

To carry out work on constructions & buildings

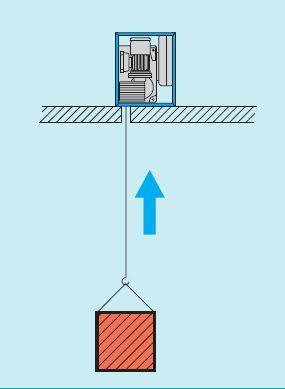

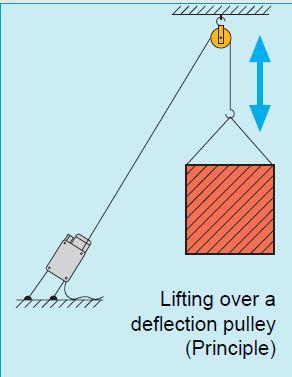

To tow, pull or lift equipment

Closed drum storage of the rope ensure a long service life.

Electric input with 100% duty cycle guarantees a reliable continuous operation.

Model: X 520 P

Capacity: 500 kg

Speed 1. rope layer: 9 m/min.

Electric motor:

One machine 220 Volt 3 phase

One machine 440 Volt 3 phase

Rope diameter: 9 mm

Rope length max.: 60 meter

Dimension B ca.: 500 mm

Dimension H ca.: 550 mm

Dimension L ca.: 800 mm

Weight: 130 kg

Comes with:

Load test certificate, Certificate of Conformity and User manual

WINCHES & EQUIPMENT

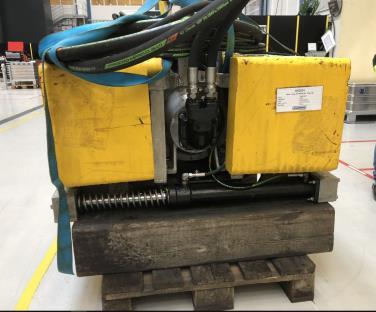

5 Ton subsea pull in winch

Description Capacity

Horizontal pulling force @ 210 bar 5 Ton

Speed @ 15 liter / min @ 140 bar 60 m/min

Operation hydraulic oil Tellus 32

Max water depth 2000 meter

Rope capacity (11 mm Dynex Dux 75 or similar) 20 Meter Total

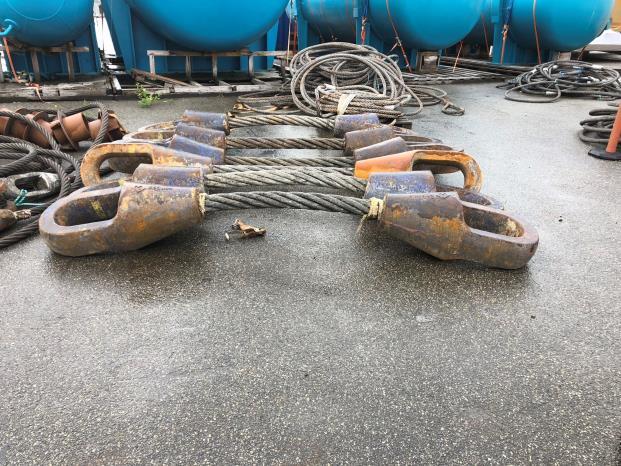

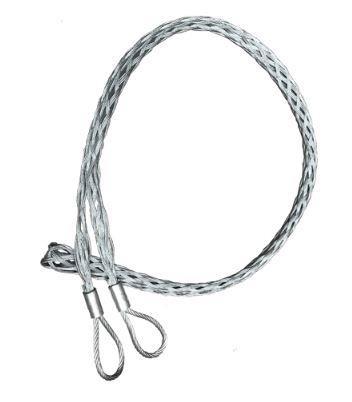

Wiresling, pennants, china fingers, grommets and fibre rope in different sizes.

205 mm fiber rope, 44 meter length, soft eyes, MBL 1240 Ton

120 mm grommets

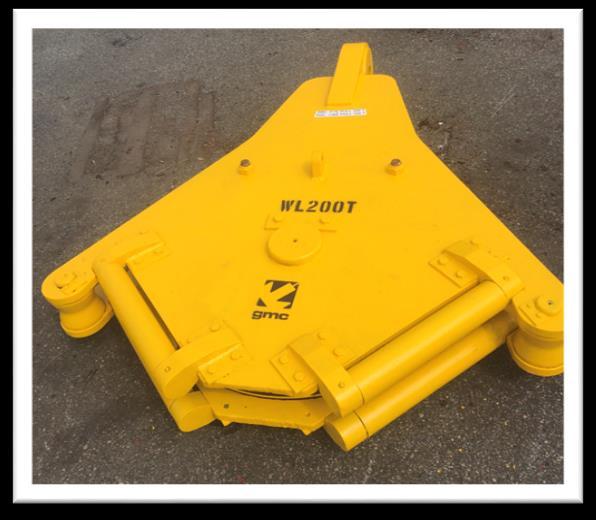

WIRE GRIPPERS

This gripper machine are special designed to hold wire or sheathed spiral strand up to 167 mm diameter. The length and shape of the interchangeable inserts are calculated and designed to limit the radial pressure to 25 N/mm2 (3550 psi). The inserts have a smooth surface and a large radius. Wire or cable can be removed by the top (by opening the gripper) with easy handling, but cable socket will not be able to pass through the gripper. The machine will act as a linear winch in conjunction with deck winch.

Characteristics:

TENSION MACHINES FOR CABLE / WIRE / ROPE

• Cable drum tensioner provide up to 15 Ton back tension also with constant tension function.

Specifications 15 T drum tensioner:

• Back tension 1 – 15 Ton

• Max line speed 10 m/min

• Drum diameter 3 meter

• Dimensions WxLxH 2.2m x 3.7m x 3.95m

• Weight 12 Ton

• Track tensioners provide up to 150 Ton back tension for installation or recovery of flexibles cables, umbilicals and steel pipe products.

• Tracks fitted with ‘V’ shaped pads operate by gripping the product between the opposing track carriages with failsafe hydraulic cylinders.

Specifications 150 T track tensioner:

• Back tension 15 – 150 Ton

• Max line speed 0-500 m/hr

• Track contact length 5.5 meter

• Nominal squeeze/m 1500 Ton (4 x 375 Ton)

• Dimensions WxLxH 4.5m x 8.5m x 5.1m

• Weight

98 Ton

15 Ton drum tensioner

150 Ton 4-track tensioner

SUMMARY OF EQUIPMENT AVAILABLE FOR RENTAL

Mooring equipment

Chain Wire Anchors Chasers

Grapnels Barges Gangways Towing gear

Shackles Wiregripper Subsea Buoys Buoyance modules

Marine equipment

Fenders Fairleads Panama chocks Bollards

Project equipment

HPU’s Generators Pumps Compressors

Lifting equipment

Winches Cranes A-Frames Spooling machines

Reel Drive System Power Packs Loadcells Load Shackles

Shackles Test weights Waterbags ROV shackles & hooks

ROV pumps Masterlinks Snatch blocks Sheaves

Wireslings Wiregrommets Softslings Personell Baskets

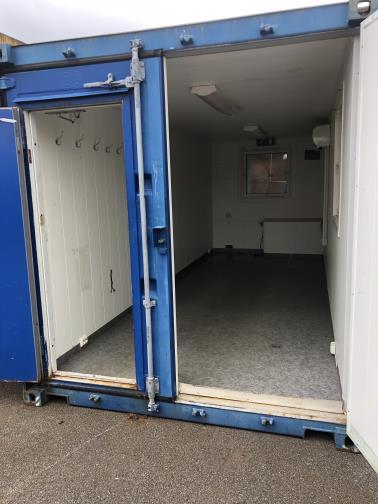

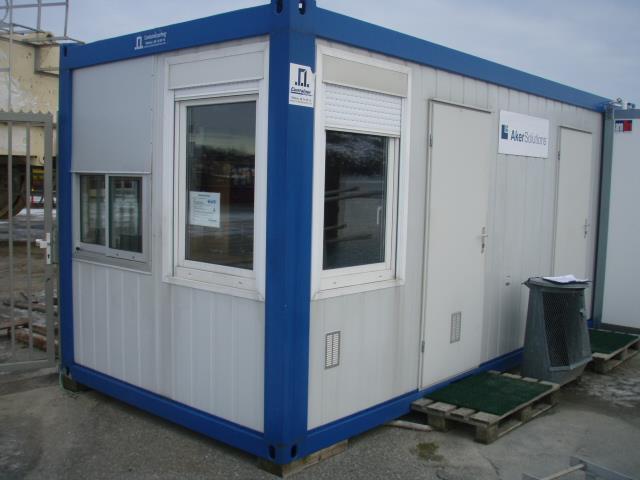

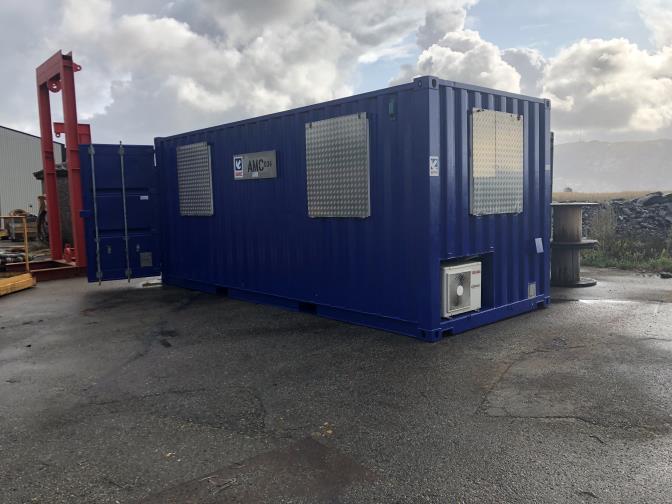

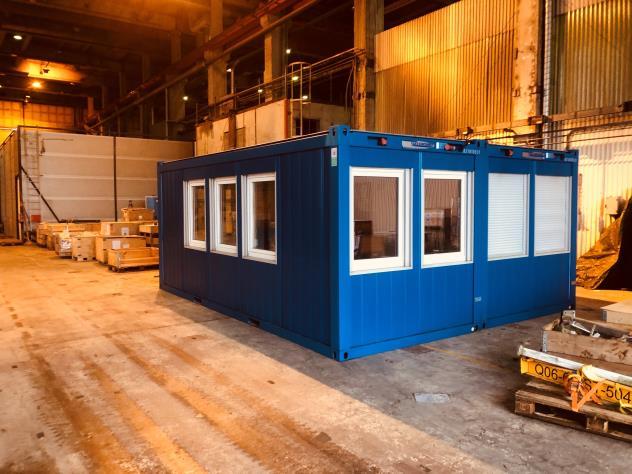

Equipment baskets Subsea Baskets Containers Workshop containers

Eirik Mikalsen / +47 900 67 549 / eirik.mikalsen@gmc.no Rune Christensen / +47 908 48 050 / rc@gmc.no Please

Contact persons:
