Stick Around, in the JAM, can’t be Jammed!
Inspired by Korean Pop Culture
Concept Statement
Jam, a homograph as “fun” in Korean slang, improvising of musicians, sweet food made from fruit and sugar, will be a restaurant cafe lounge inspired from K pop culture mainly selling baked goods. It aims to be an entertaining space for people to stop by in Union Station who are jam packed with their busy lives to provide a sense of community.

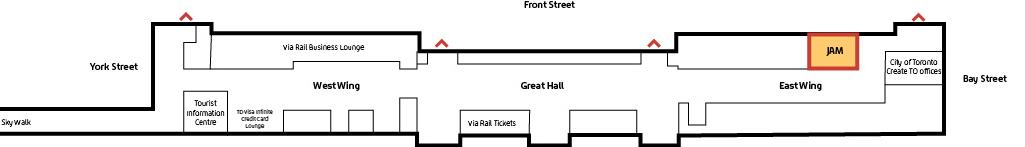

Key Plan NTS

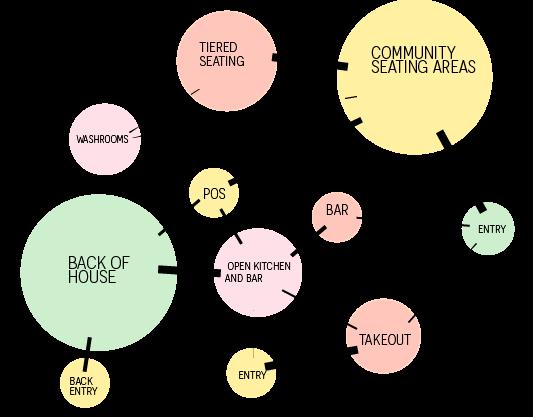

Bubble Diagram
Plan NTS Host Table Take-out Area Waiting Area Dessert Tasting Course Bar BOH Prep Room Office BOH Washroom Dishpit Kitchen Stage Pantry / Staff entrance FOH Washroom Tiered Seating Lounge Seating Hangul Table Deck Oven Freezer POS Ice Machine Display Case B Floor Plan Scale: 1/8”=1’-0”

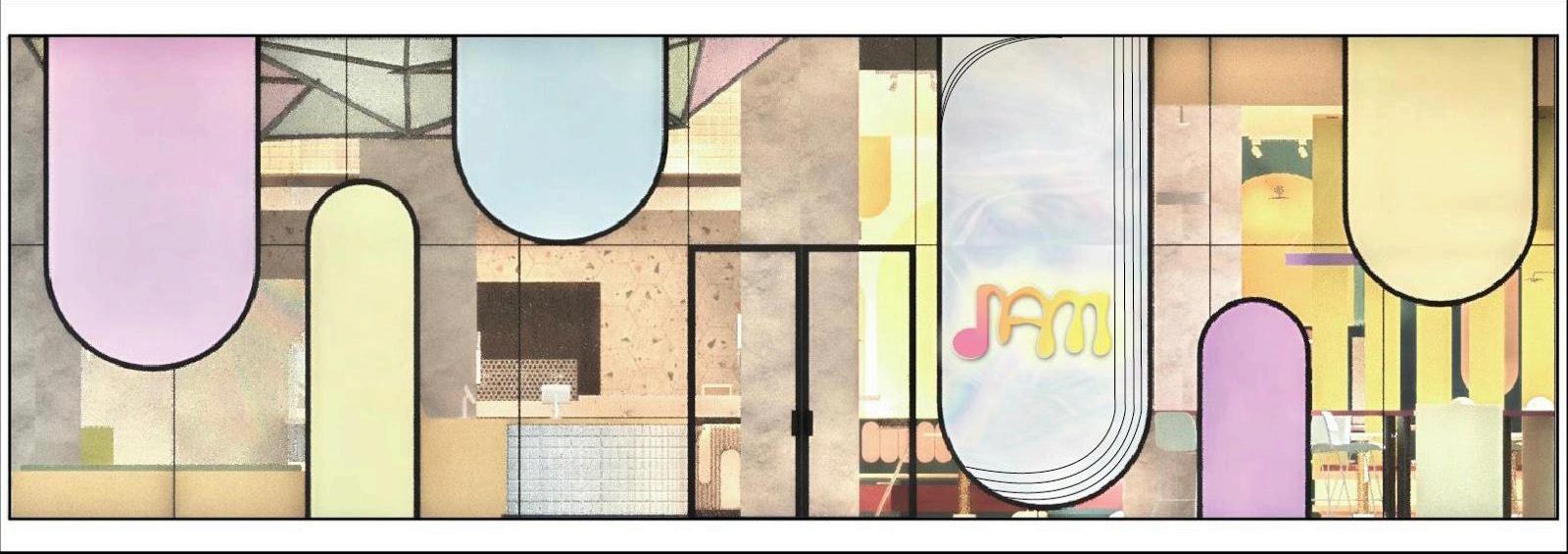

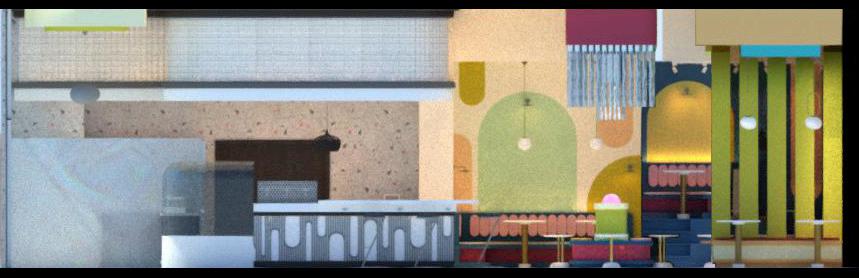

Code for Menu View From Entrance 1 5 4 3 2 1 A Fridge Convection Oven Exterior Elevation Scale: 1/8”=1’-0” C

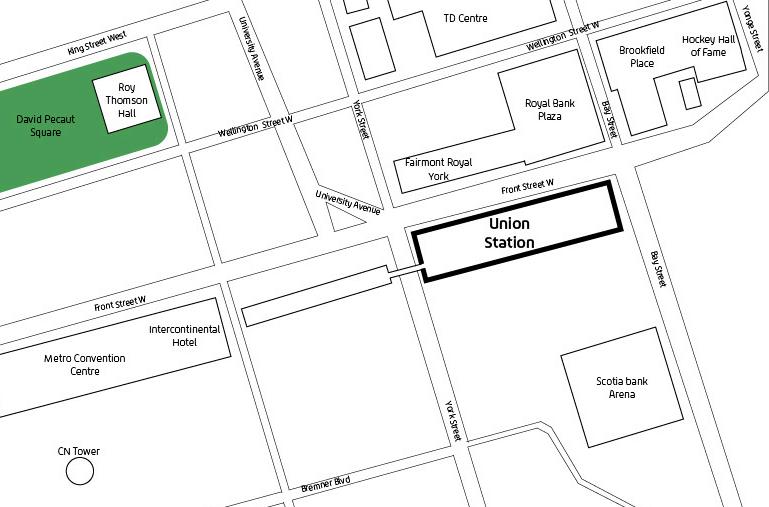

Site
QR
POS Geleen Navarro #101350052 Jung Won Lee #101093385

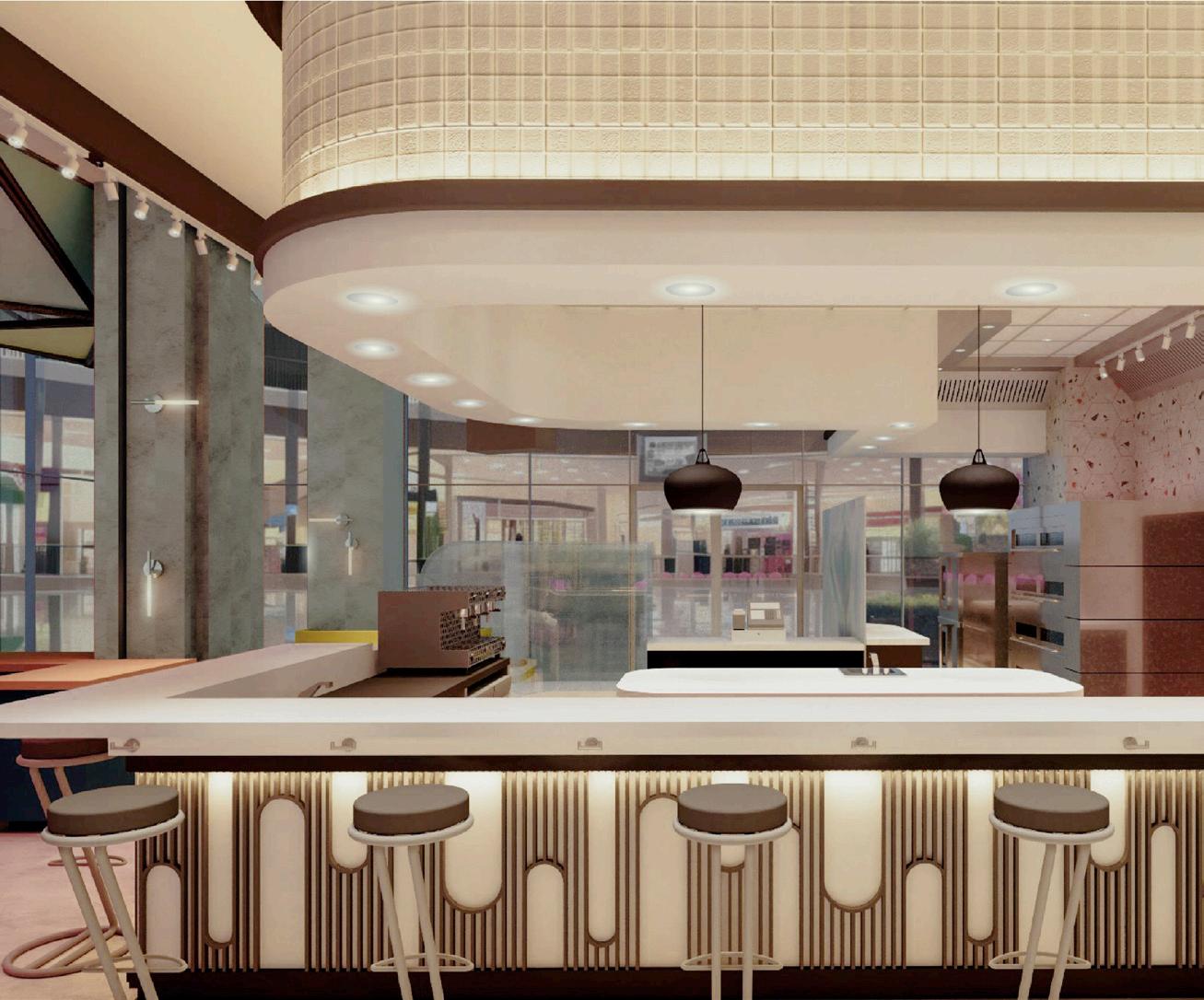

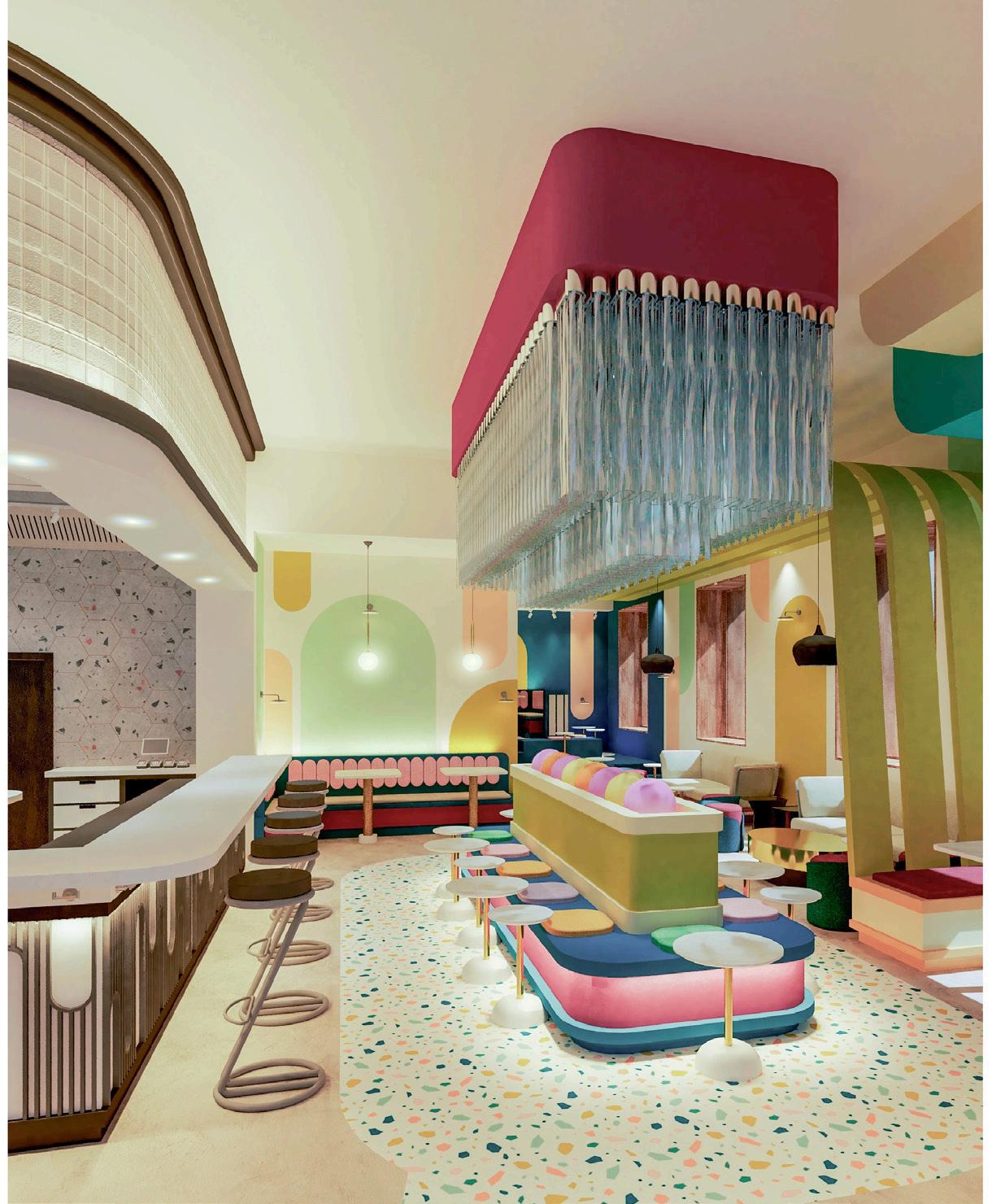

Interior Views
Furniture
3 2

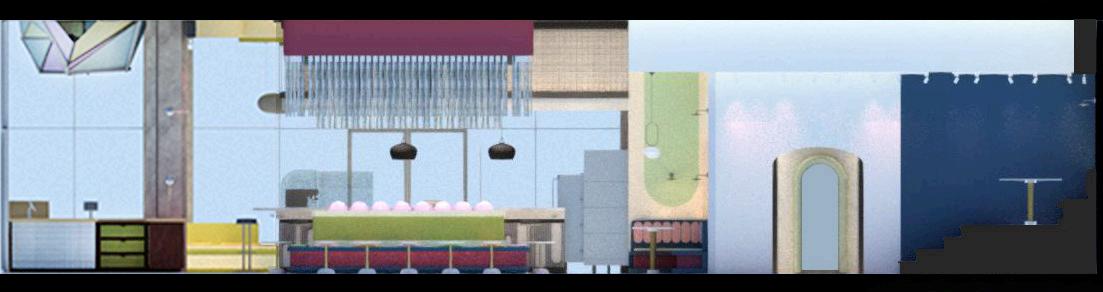

Section B Scale: 1/8”=1’-0”
Section C Scale: 1/8”=1’-0”
Tiered
Inspired
2

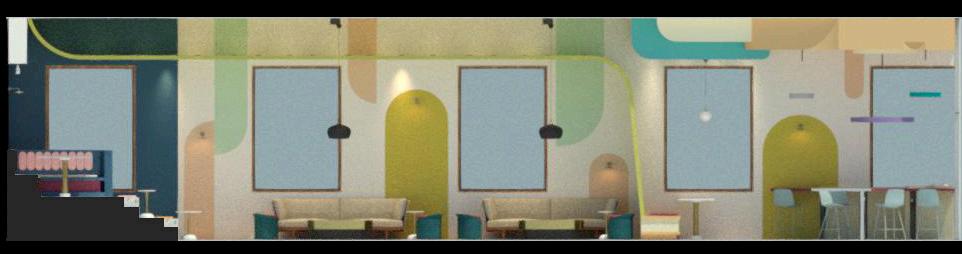

Section A Scale: 1/8”=1’-0”
Seating

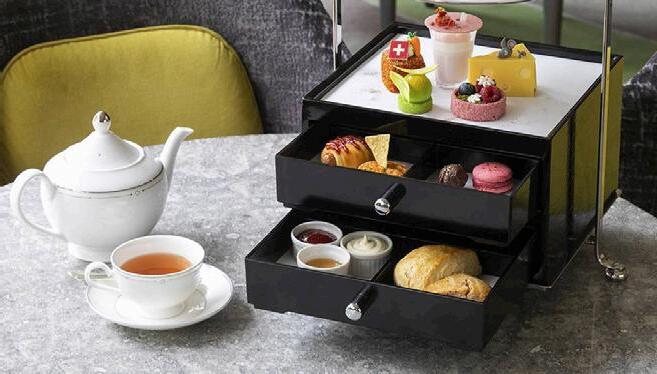

from Tiered Afternoon Tea Set
Tasting Course Bar Inspired from Musical Notes

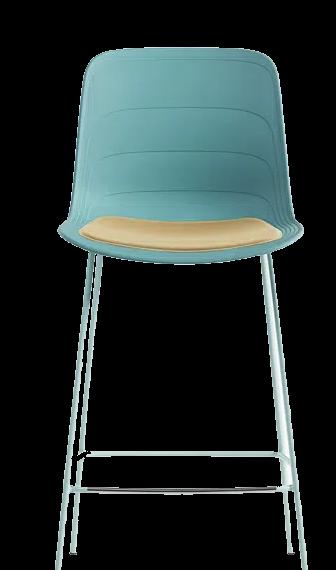

Grade 4.2 Stool for Hangul Table

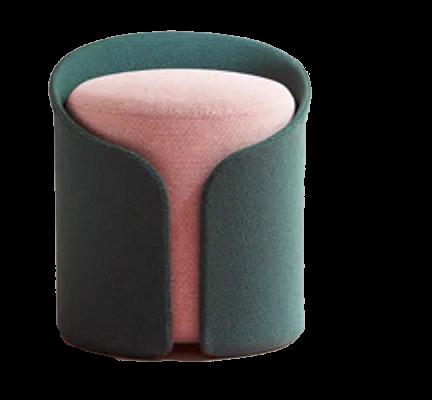

Cardigan Pouf Footstool for Lounge Area

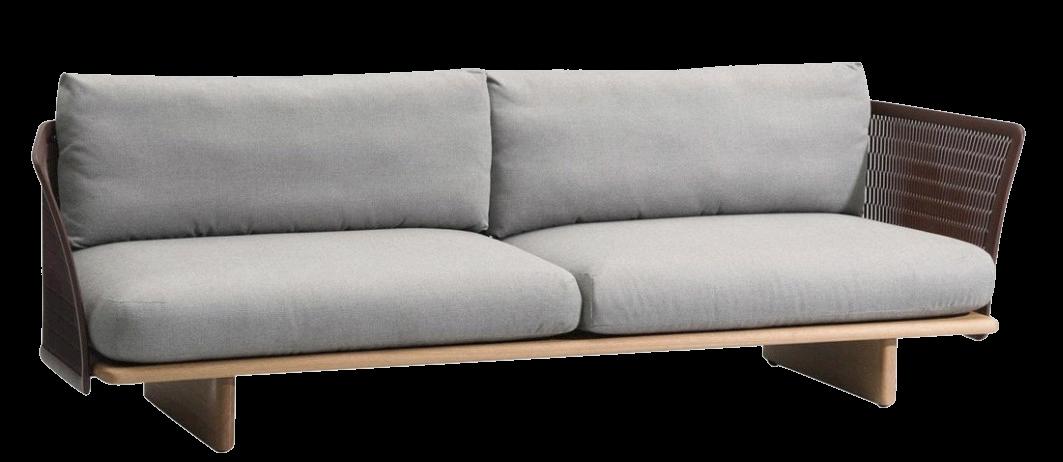

Mesh Sofa for Lounge Area

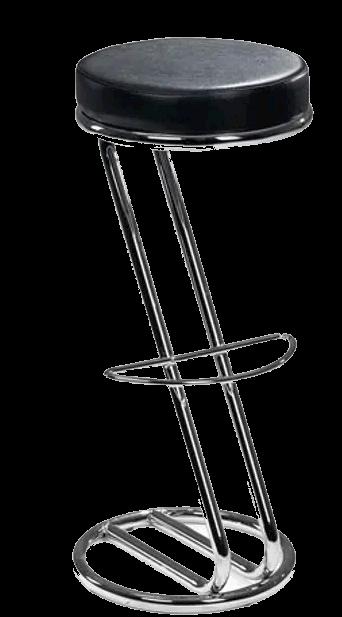

Baltimore Stool for Tasting Course Bar
Souffle Mirror for Washroom Entrance Area

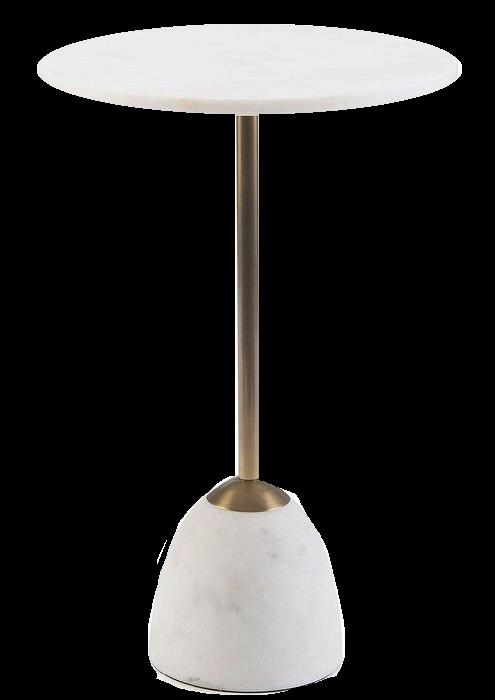

Brass & Marble Side Table for Tiered Seating
3
Pedestal Coffee Table for Lounge Area

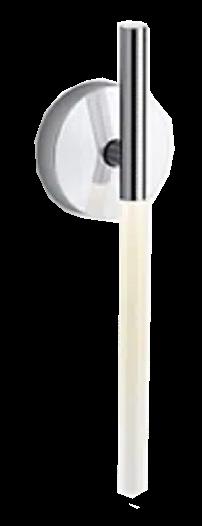

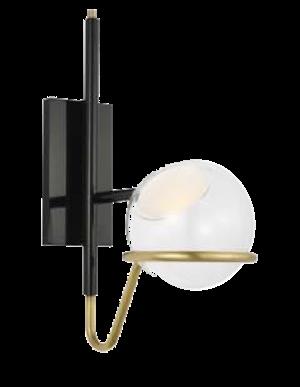

FOH wall Sconce
Washroom Pendant light
Washroom wall Sconce
Adjustable Spotlight

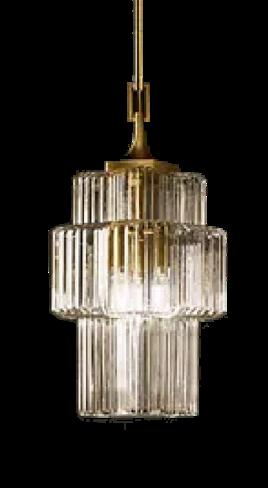

Washroom entry Pendant light

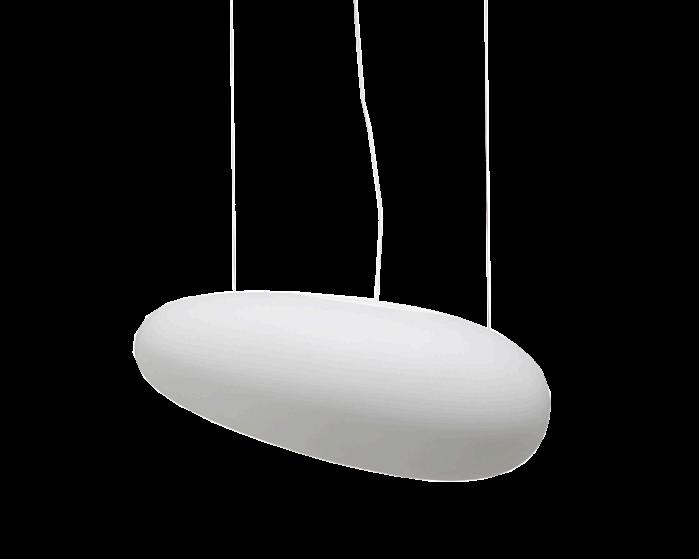

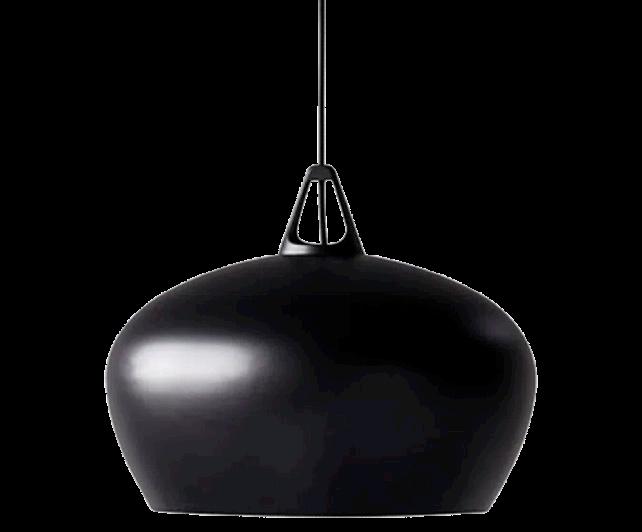

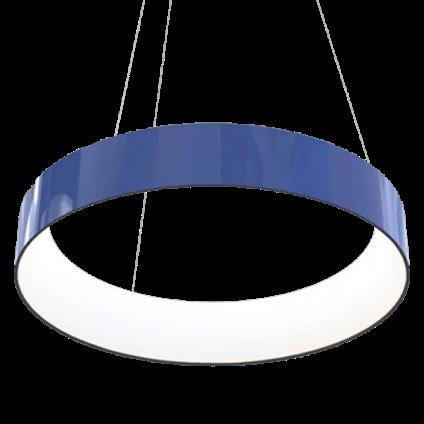

Lounge Pendant light
Banquette pendant light
Hangul Table Pendant light
Column wall Sconce

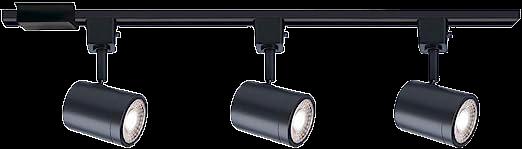

Track lightiing
Lighting inside Crystal
Mounted Downlight
Take-out area Pendant light

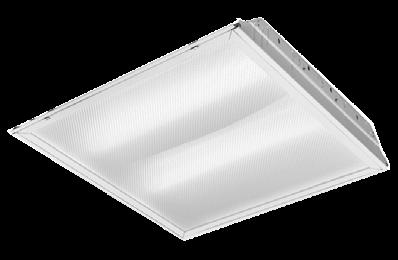

BOH Troffer light
L1 L9 L2 L3 L4 L5 L6 L7 L9 L10 L11 L12 L13 L14 L10 L2 L3 L5 L7 L4 L6 L2 L8 L9 L10 L11 L14 L1 L4 L7 L4 L6 L10 L13 L12 L4 L1 Lighting Legend L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14

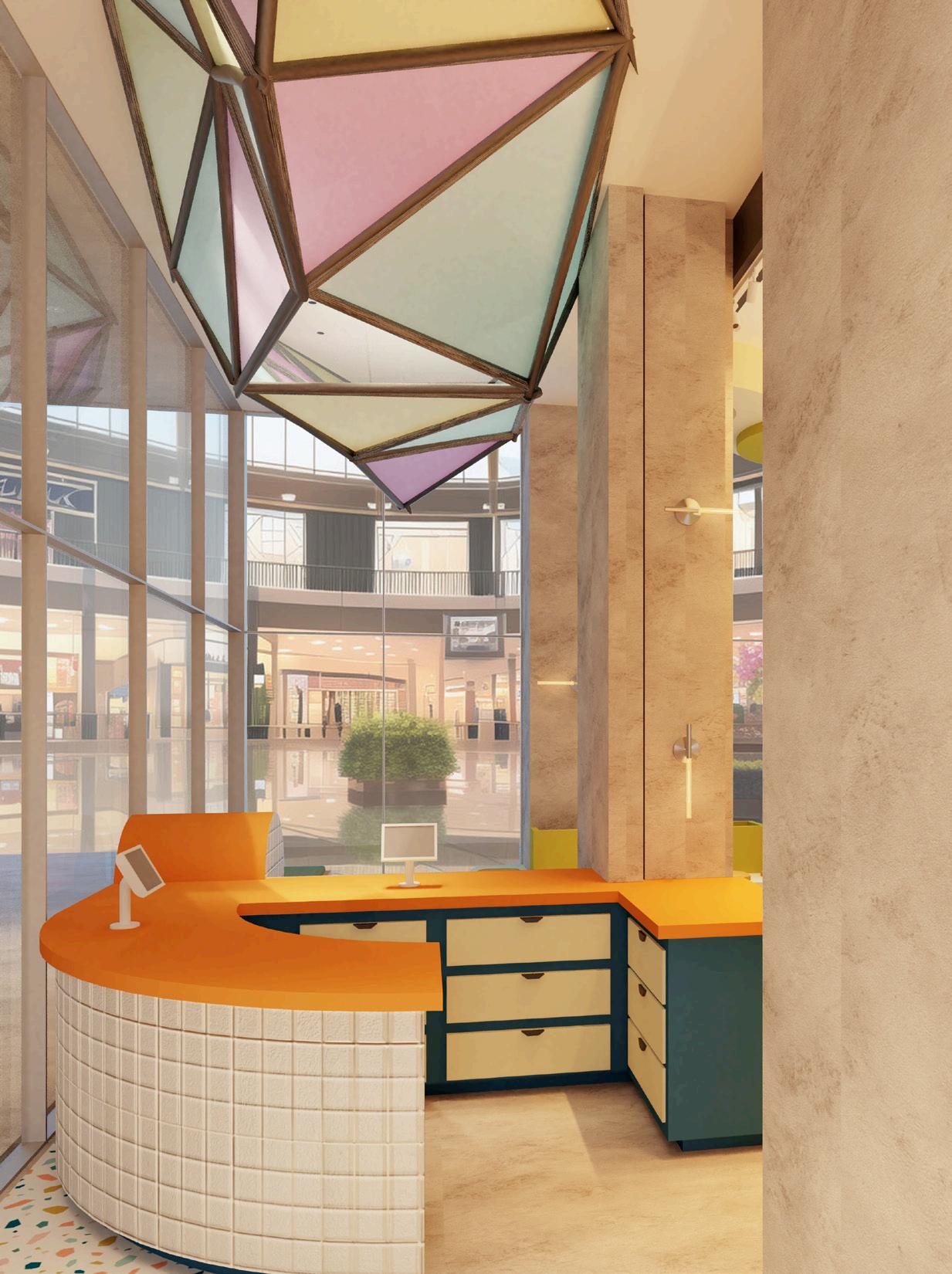

Tag Symbol Description Crystal Ceiling Above Host Table 6 6 A.F.F. 14’ A.F.F. 12’ A.F.F. 12’ A.F.F. 12’
