THE CLOUD.

The Cloud is designed to respond to Calgary’s housing demand as the tech industry in the city continues to grow. The Cloud will offer temporary and permanent housing for tech workers and location-independent consultants to provide access to a local community of like-minded people.

To create a great sense of community, amenities in the Cloud will include an innovation hub, rooftop gardens, fitness center, communal kitchen, media lounge, and parkade with electric vehicle charging stations. The Cloud will be one of the most hyper-sustainable multiunit residence in Calgary by including green roof and glass awning with building integrated photovoltaics that will generate majority of the building’s energy needs.

4

Software used: Rhino, Grasshopper, Blender Site: Mayland Heights, Calgary, AB Project type: Mixed-use

STUDIO IIWINTER 2023

6 A space for relaxation and innovation

ONE BEDROOM

UNIT TYPE | ONE BEDROOM 500 sq. ft. | 6 units

UNIT TYPE | TWO BEDROOM 900 sq. ft. | 3 units

UNIT TYPE | THREE BEDROOM 1,100 sq. ft. | 3 units

TWO BEDROOM 900 sq.ft - Living room

Bedroom (2) - Dining room - Kitchen

Office

Bath (2)

THREE BEDROOM 900 sq.ft - Living room - Bedroom (3) - Dining room - Kitchen - Office - Bath (2) - Rooftop garden

7 INNOVATION HUB 3 BEDROOM 2 BEDROOM 1 BEDROOM STUDIO FIRST LEVEL 1:250 0 1 5 10 A A’ B B’ First level

-

STUDIO 280 sq.ft

UNIT TYPE

Living room - Bedroom - Dining room - Kitchen - Office

Bath UNIT SPACES HOUSEHOLD SIZE UNIT TYPE | STUDIO 280 sq. ft. | 6 units

500 sq.ft

-

STUDIO IIWINTER 2023 THE CLOUD

Computational design that responses to the cues in the environment and the functional program of the project. A design that focuses on people’s emotional and behavioural responses to curvilinear and rectilinear forms.

8

FLOOR PLATES

CLOUD SOLAR PANEL CANOPIES

RESIDENTIAL AND NON-RESIDENTIAL COLUMNS

STEEL FRAME

CLOUD PARK RESIDENTIAL EV CHARGING STATION CENTURY

BARLOW PARK & GO CLOUD PARK RESIDENTIAL EV CHARGING STATION TOWER ELEVATION LEFT 1:250 0 1m 5m 10m EXPLODED AXONOMETRIC DRAWING NTS

RISE PARKING

STEEL FRAME

STUDIO IIWINTER 2023 THE CLOUD

Model making process

10

11 STUDIO IIWINTER 2023 THE CLOUD

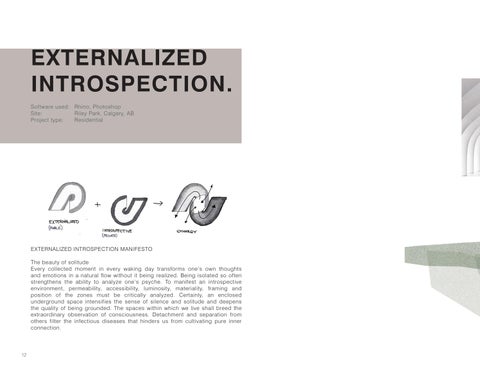

EXTERNALIZED INTROSPECTION.

Software used: Rhino, Photoshop

Site: Riley Park, Calgary, AB

Project type: Residential

EXTERNALIZED INTROSPECTION MANIFESTO

The beauty of solitude

Every collected moment in every waking day transforms one’s own thoughts and emotions in a natural flow without it being realized. Being isolated so often strengthens the ability to analyze one’s psyche. To manifest an introspective environment, permeability, accessibility, luminosity, materiality, framing and position of the zones must be critically analyzed. Certainly, an enclosed underground space intensifies the sense of silence and solitude and deepens the quality of being grounded. The spaces within which we live shall breed the extraordinary observation of consciousness. Detachment and separation from others filter the infectious diseases that hinders us from cultivating pure inner connection.

12

13 STUDIO IFALL 2022

14

Introverted Zone

Ambiverted Zone

Extroverted Zone

Depending on where a person is situated, the level of attention to small details within the park shifts to a larger image beyond the park. The invisible topographical layer created by the shifts in the level of attention, mainly influenced by our multisensory experience, agitates the physical flatness of the park.

15

Private Semi-private Public First level STUDIO IFALL 2022 EXTERNALIZED INTROSPECTION

EXTROVERTED ZONE

The transitionary space where you go from introspective to extroverted space requires expansive windows that extends horizontally and to the sky. This space must also be elevated from the ground plane to evoke the sense of weightlessness.

16

EXPLORATION

The natural illumination of the introspective zone comes from the ceiling, a vertical extension towards the sky to prevent visual distractions from the horizontal spatial extension towards busy reality of the exterior.

EXPLORATION

Introverted Zone

17

STUDIO IFALL 2022 EXTERNALIZED INTROSPECTION

STAR APARTMENTS.

MICHAEL MALTZAN ARCHITECTURE

The first phase of the project required production of a high-quality 3D NURBS model of the Star Apartments, a series of orthographic architectural drawings, a collection of renders using Illustrator, Photoshop, and Blender.

The second phase of the project was to develop a Grasshopper script for the Star Apartments that captures its key architectural ideas and produce different variations from the original form.

18 STAR APARTMENTS MICHAEL MALTZAN ARCHITECTURE EAST ELEVATION 1:200 GEN HAVERIA B B’ A’ MICHAEL MALTZAN ARCHITECTURE

EAST ELEVATION INDIVIDUAL STAR APARTMENTS MICHAEL MALTZAN ARCHITECTURE INTERIOR | CYCLES GEN HAVERIA STAR APARTMENTS MICHAEL MALTZAN EXTERIOR CYCLES GEN HAVERIA

ITERATIONS PRODUCED BY GRASSHOPPER SCRIPT

19

SCRIPT OVERVIEW GROUP

Number of Apartments Dimension of Podium Level

Windows Ground

Exterior Walls

GRAPHICS IIWINTER 2023

Nyle Edlund, Genesizareth Haveria, Colleen Ogilvie Grasshopper script development | Architectural drawings | Modelling | Animation

Ground Floor

Floor

Ground Floor Corner Face

The following project was developed by analyzing and manipulating floor plans and sections of assigned house precedents. The goal of the project is to utilize various boolean operations in Rhino to generate multiple iterations of characters. The final phase involved studying and applying different materials onto the model through Photoshop, and building the physical models.

INSIDE ≠ THE OUTSIDE | GENESIZARETH HAVERIA

20 A2.3_THE INSIDE ≠ THE OUTSIDE | GENESIZARETH HAVERIA AXONOMETRIC ELEVATION - FRONT PLAN 01 ELEVATION - RIGHT PLAN 02 ELEVATION - BACK SECTION A ELEVATION - LEFT SECTION B A B A B 1 2 1 2 B C - G G A x C D A x G C A x G C A / E C A + E E B - A A B x E A B x E G D x C C F x E C E x F E A x B B A x E F C x E E F x C A C x G A G - C D B - E C E / F GENESIZARETH HAVERIA CHARACTER STUDY A B C D E F G E B - A A B x E A B x E G D x C C F x E C E x F E A x B B A x E B A x E F C x E E F x C A C x G A G - C D B - E C E / F EB - A

AXONOMETRIC ELEVATION - FRONT PLAN 01 ELEVATION - RIGHT PLAN 02 ELEVATION - BACK SECTION A ELEVATION - LEFT SECTION B A B A B 1 2 1 2 A2.3_THE INSIDE ≠ THE OUTSIDE | GENESIZARETH HAVERIA AXONOMETRIC ELEVATION - FRONT PLAN 01 ELEVATION - RIGHT PLAN 02 ELEVATION - BACK SECTION A ELEVATION - LEFT SECTION B A B A B 1 2 1 2 B C - G G A x C D A x G C A x G C A / E C A + E E B - A A B x E A B x E G D x C C F x E C E x F E A x B B A x E B A x E F C x E E F x C A C x A GD BC E / F GENESIZARETH HAVERIA A2.2 CHARACTER STUDY B C - G G A x C D A x G C A x G C A / E C A + E E B - A A B x E A B x E G D x C C F x E C E x F E A x B B A x E B A x E F C x E E F x C D C E / F GENESIZARETH HAVERIA A2.2 CHARACTER STUDY

CHARACTER STUDY. A2.3_THE

21 ITERATION 8 GRAPHICS IFALL 2022

THE Y-HOUSE.

MICHAEL MALTZAN ARCHITECTURE

Site: Catskill, NY, USA

Group Project

Maria Bindiu, Elline Canaynay, Gen Haveria

Construction drawing | Model-making

Phase 1 Research and Documentation

Phase 2 Mock-up Model

Phase 3 Ground and Foundation

Phase 4 Armature

Phase 5 Envelope

The purpose of this project is to analyze different components of the building envelope of the Y-House and to build a series of study models that depict the parts of the system.
