Portfolio by Taylor Hill

PO RTF O LI O

INTERIOR DESIGN /ARCHITECTURE

TAYLOR HILL

“Creativity is allowing yourself to make mistakes. Design is knowing which ones to keep.”

– Scott Adams

TAYLOR HILL

I’m passionate about creating spaces that are as functional as they are beautiful. I believe great design goes beyond aesthetics. it should support the way people live, work, and feel every day. With a strong focus on thoughtful layouts, material selection, and purposeful details, I strive to design environments that are efficient, inspiring, and tailored to each client’s unique needs.

ABOUT ME

EDUCATION

University Of NorthTexas | Interior Design

SOFTWARES

EXPERIENCES

PROJECTCOORDINATOR | Humphreys and Partners | 2022 – 2025

>Maintained organized project documentation

>Contributed to design development and brainstorming

>Supported full project delivery and client communication

>Coordinated with city agencies and permit portals

>Led meetings and tracked action items

>Managed tasks and ensured timely deliverables

>Resolved issues and monitored schedules

INTERIOR DESIGNER | IdGroup | 2021 – 2022

>Collaborated with architects and contractors

>Developed design concepts, renderings, and 3D models

>Conducted site visits and client meetings

STRENGTHS

>Attention to detail

>Collaboration

>Problem solving

>Client focused communication

INTERIORS

pg. 6 - 14

TO DD PHASE

pg. 16 - 26

pg. 28 - 33

pg. 35 - 75

pg. 77 - 80

CD PHASE

TENANT IMPROVEMENT

RENOVATION

TENANT IMPROVEMENTS

By Taylor Garonzik

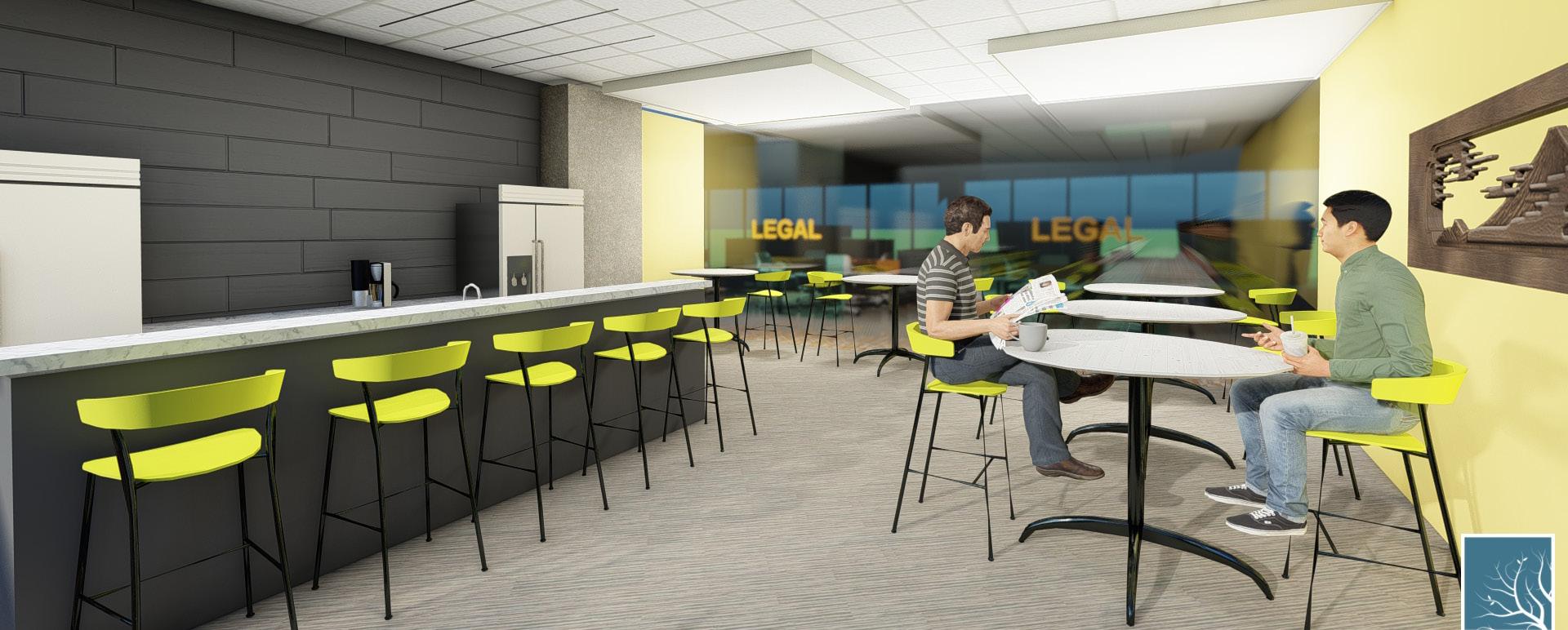

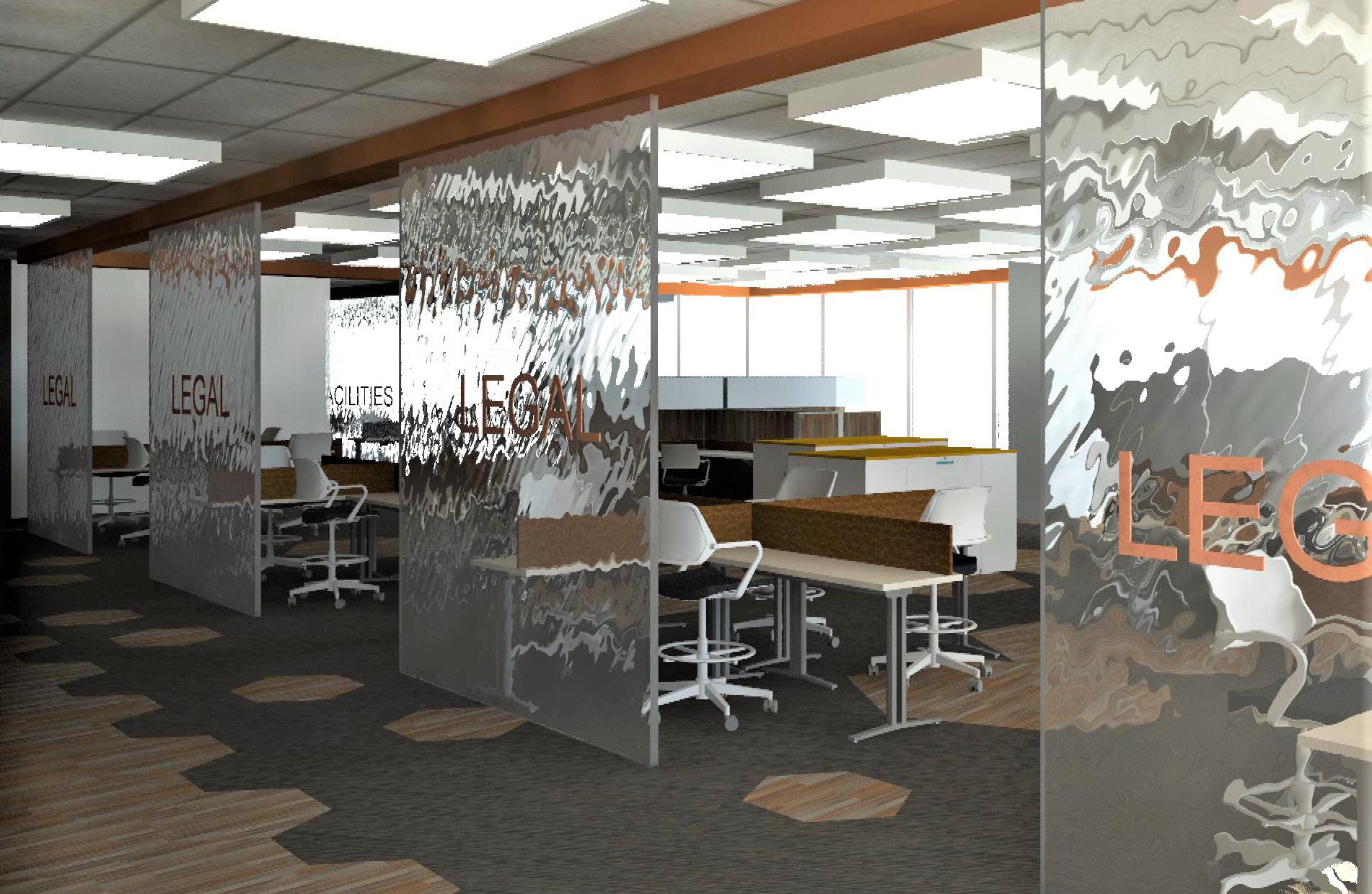

NEXT HUB

PROJECT: STEELCASE

DATE: FALL 2019

DURATION: 4 weeks

MEDIUM: REVIT AND LUMION

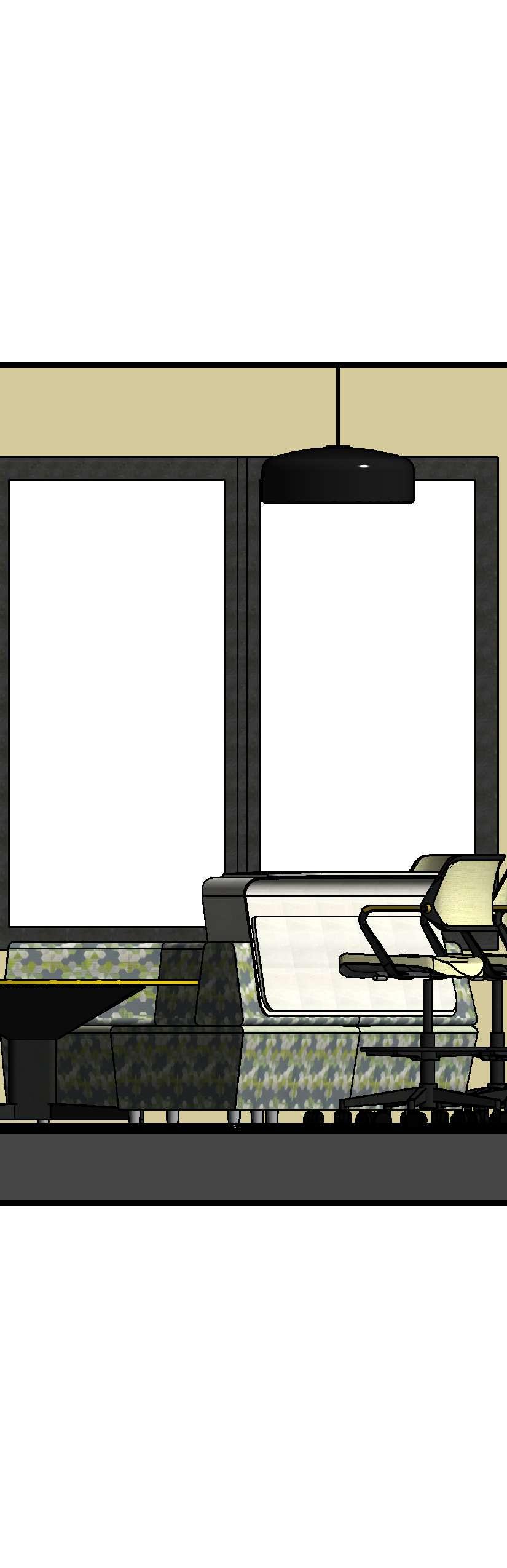

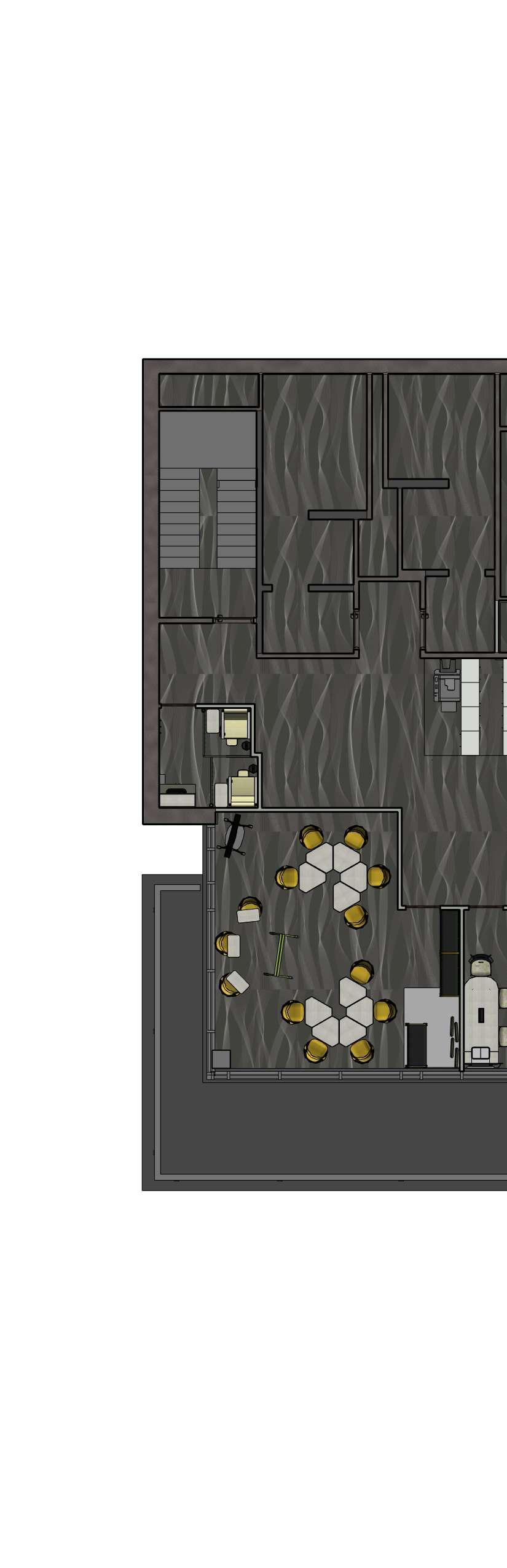

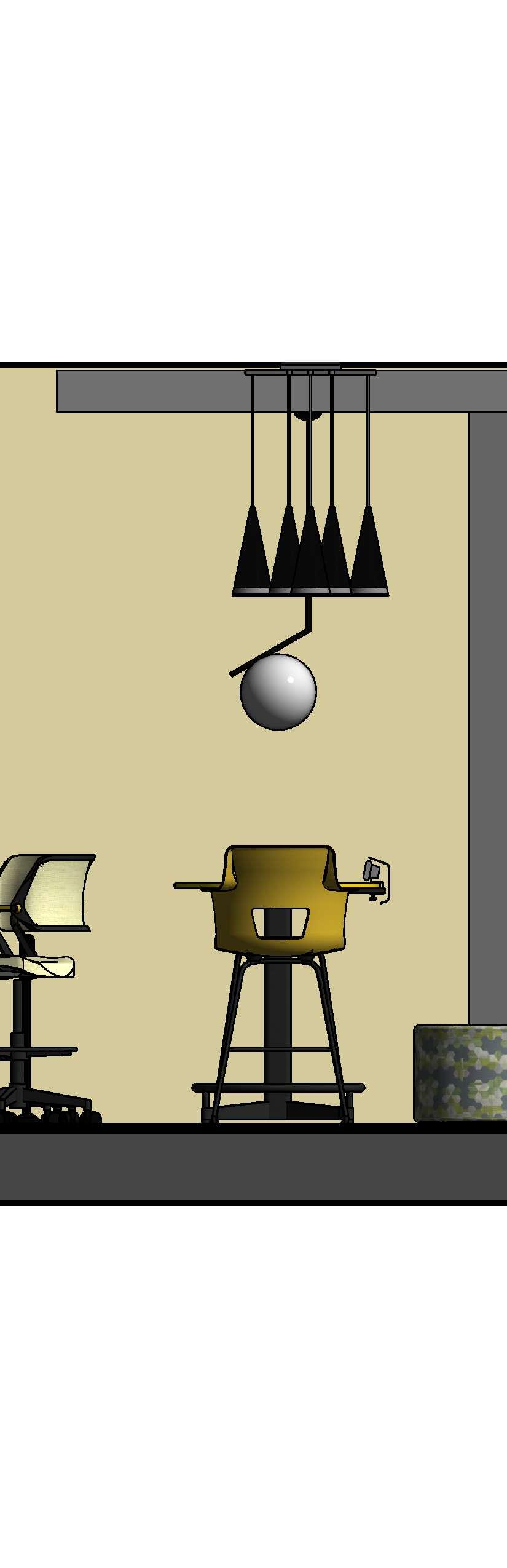

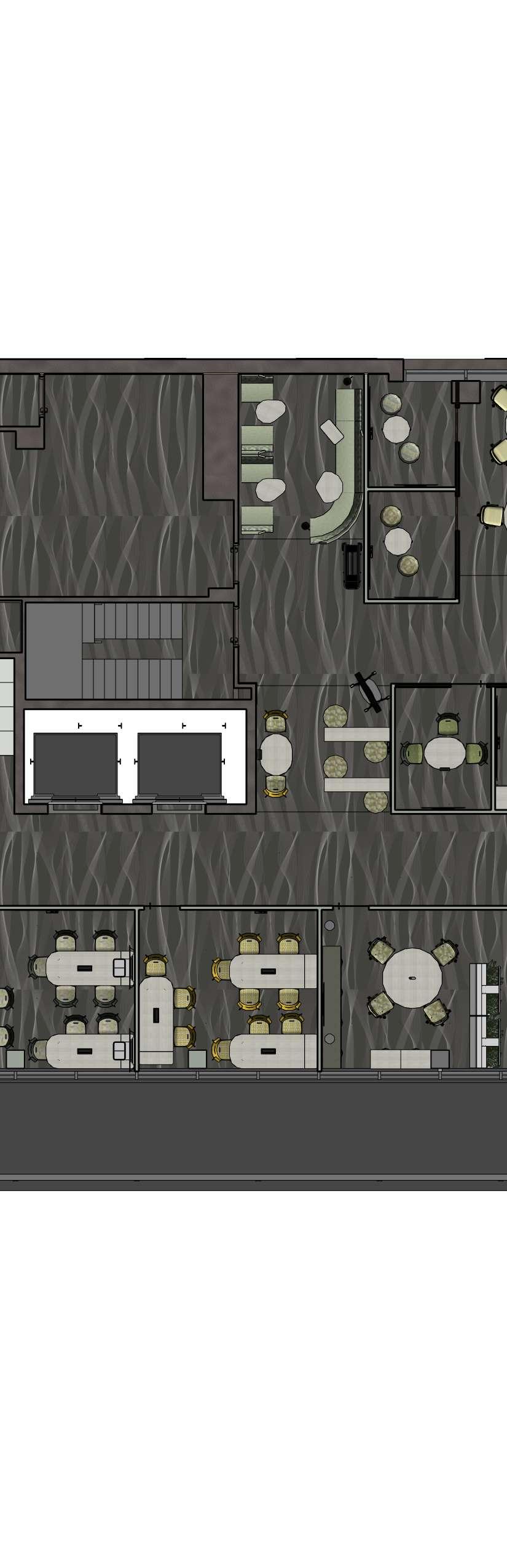

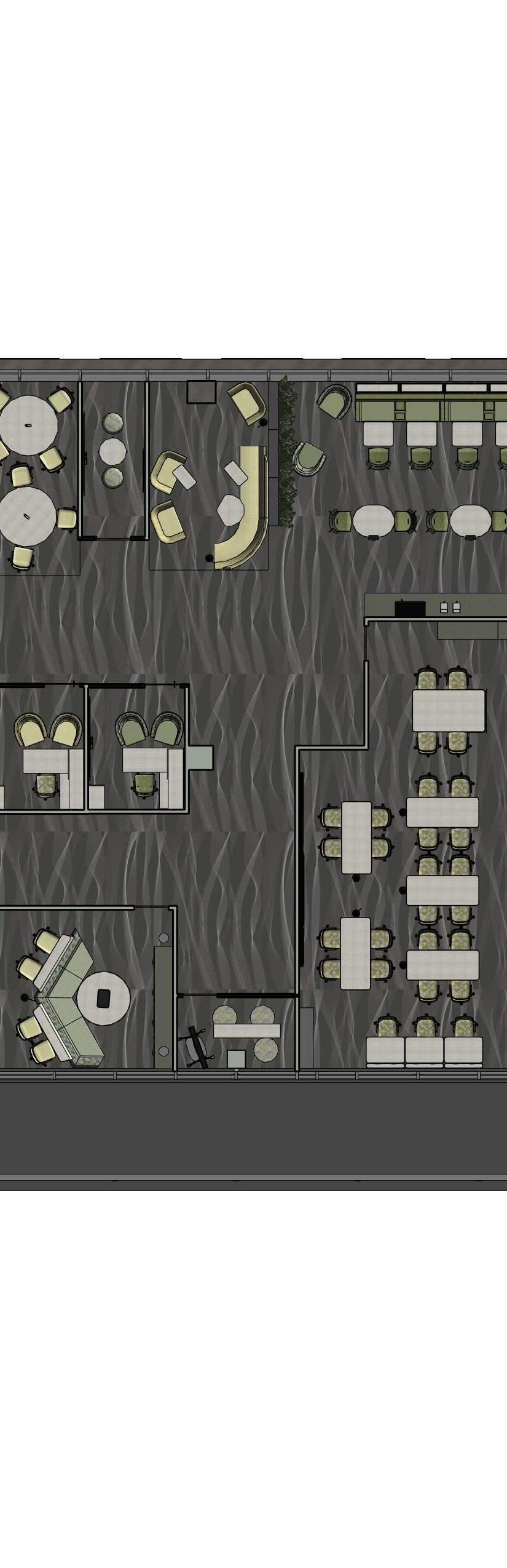

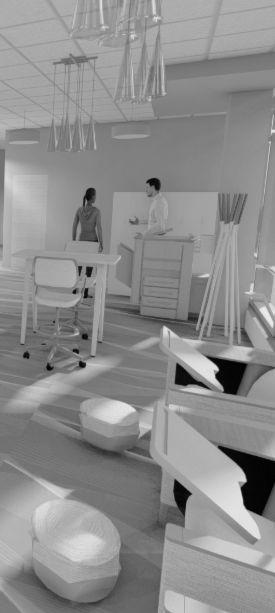

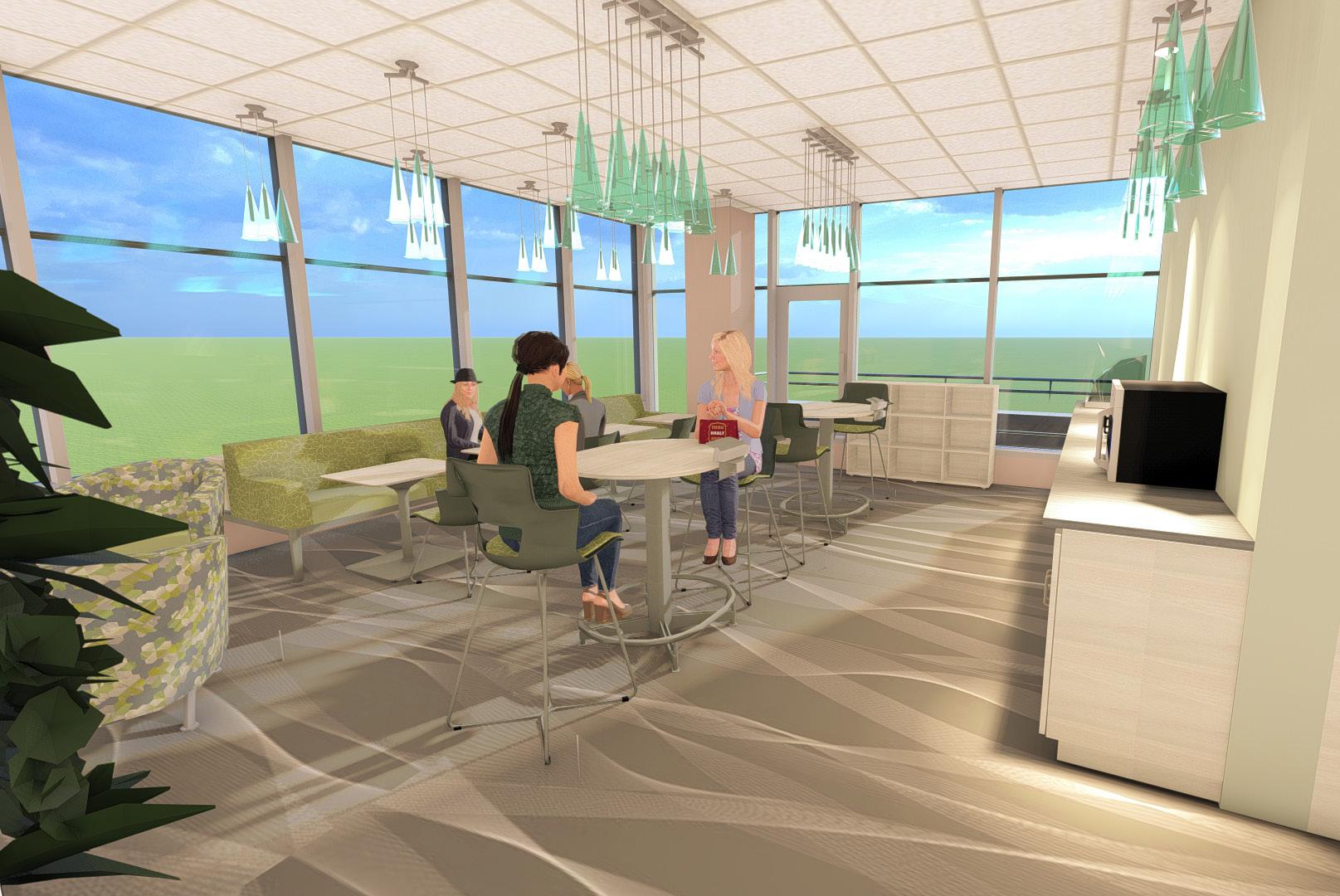

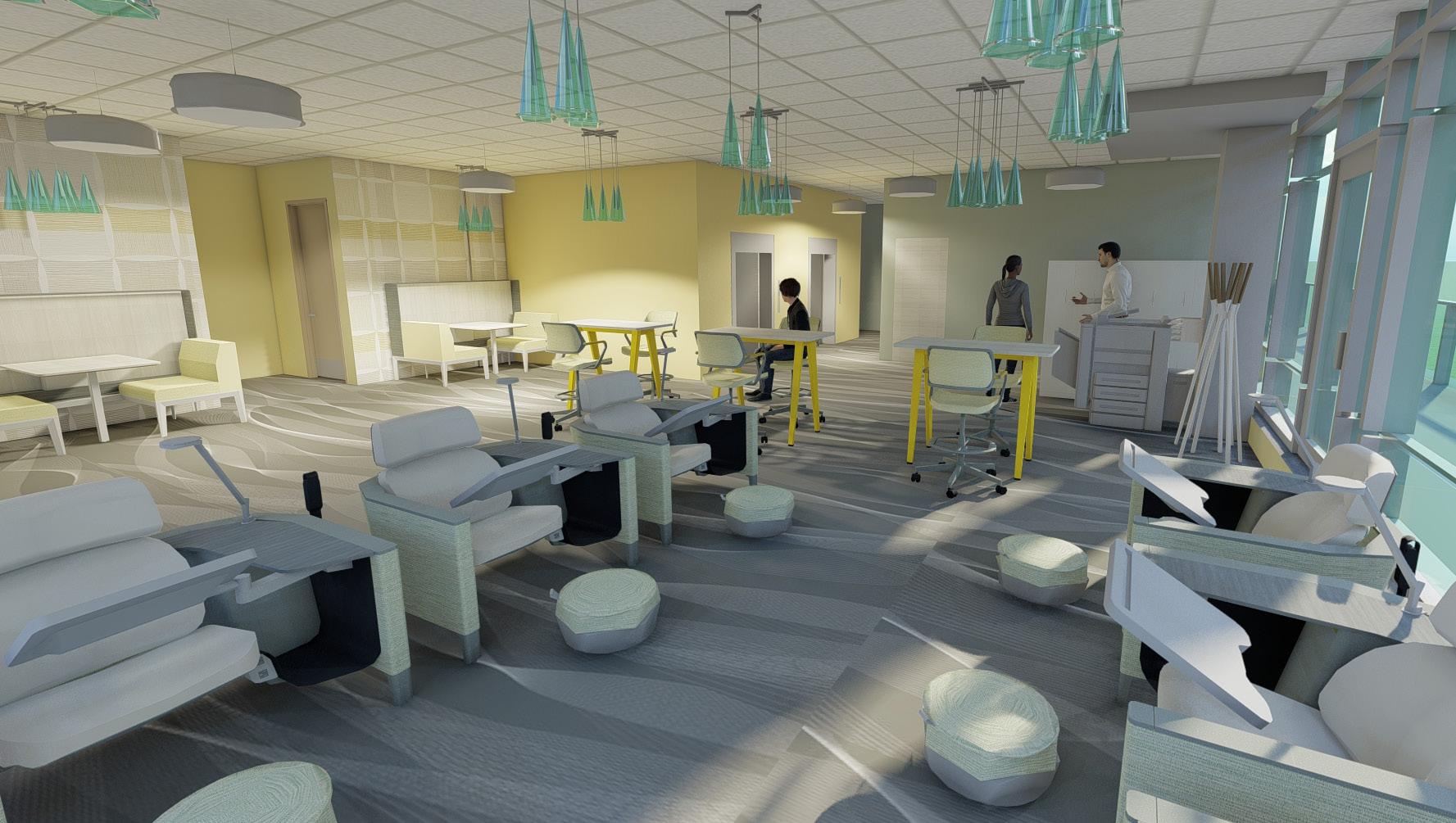

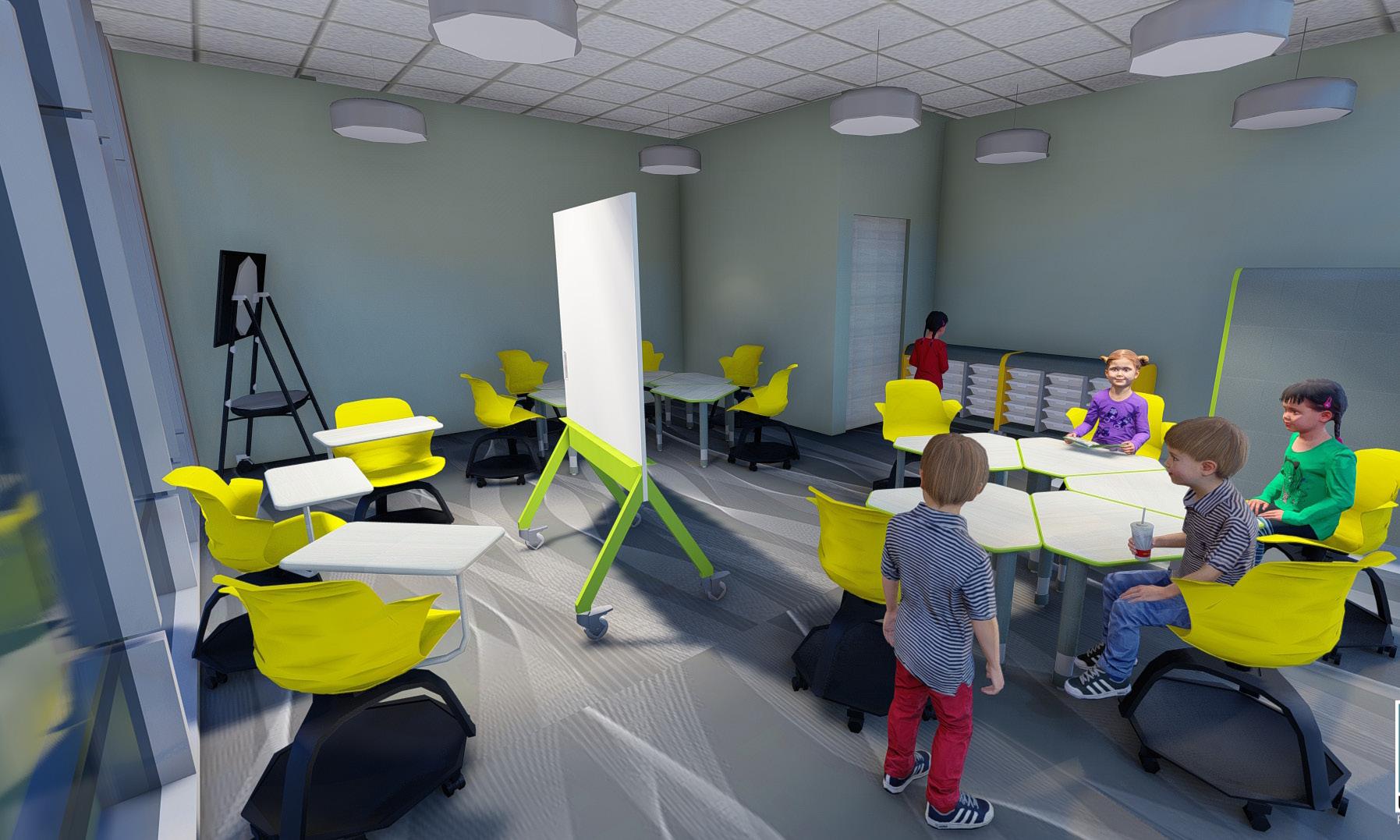

Next Hub is strategically situated at the top of two levels of a boutique building. Next Hub will fulfill various needs of those in higher education while juggling busy lives, such as a place for students who are enrolled in online coursework to gather and engage with others. The space is to be flexible, technologically advanced and allow for both focus and collaboration.

NEXT HUB

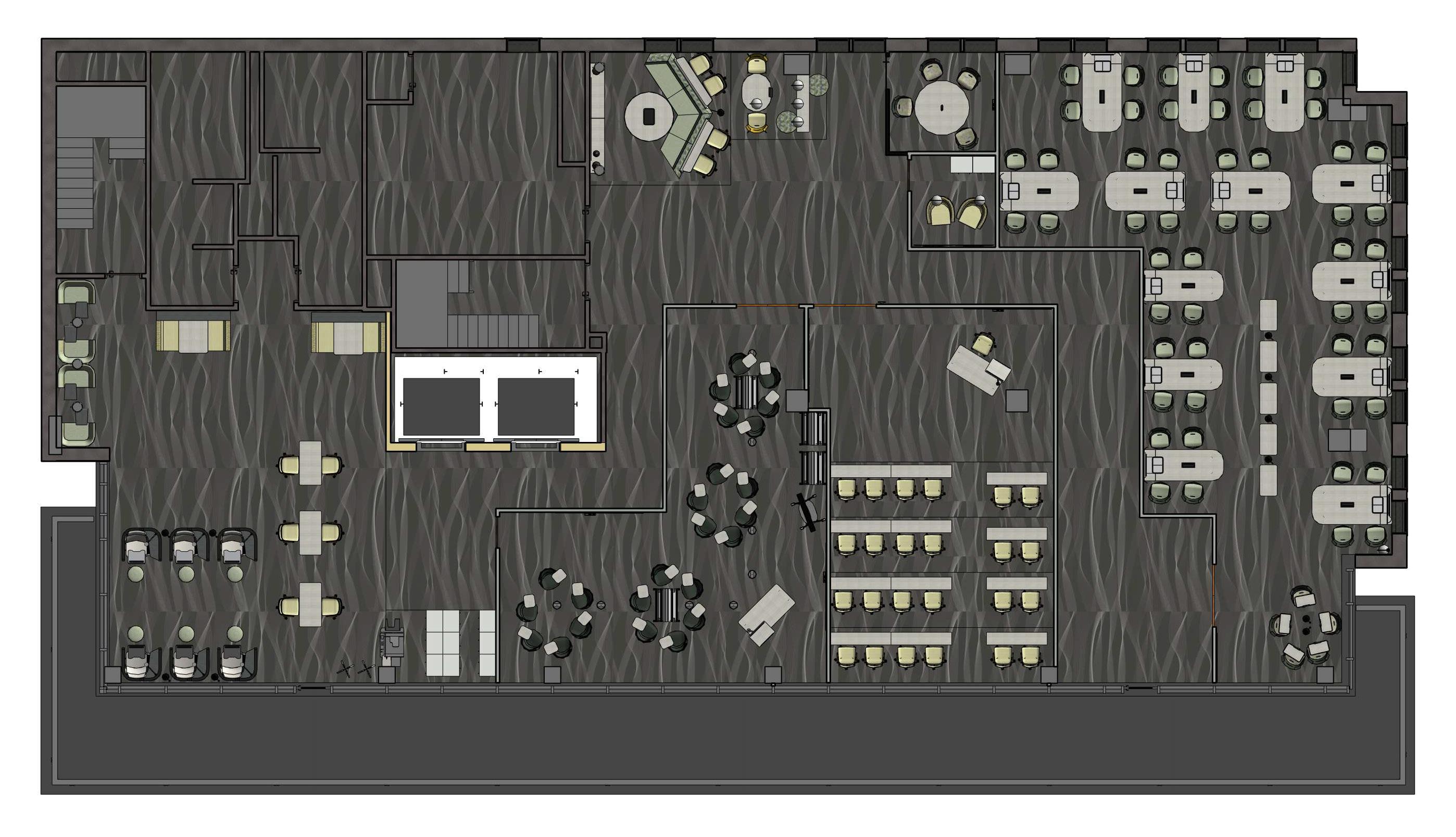

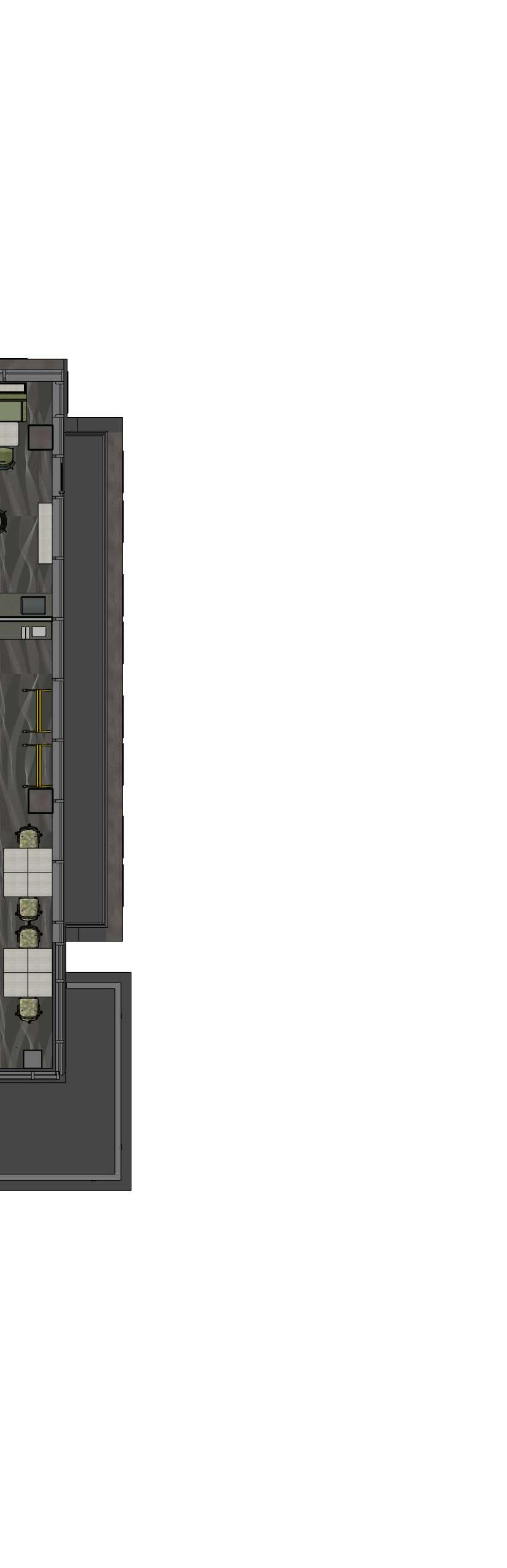

12TH FLOOR

11TH FLOOR

By Taylor Garonzik

NEXT HUB

By Taylor Garonzik

PROJECT: Pizza Hut

DATE: FALL 2019

DURATION: 6 weeks

MEDIUM: Revit

02

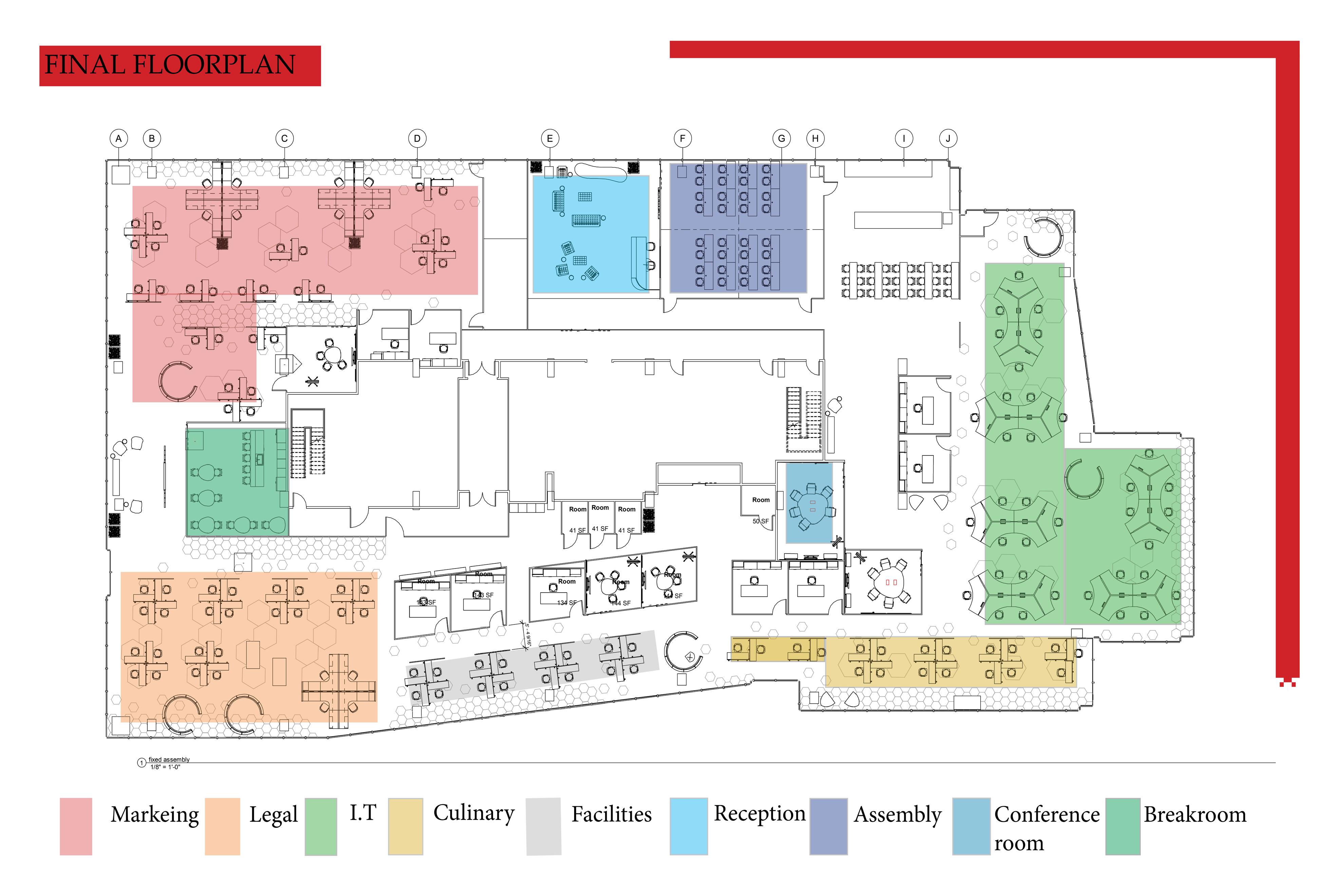

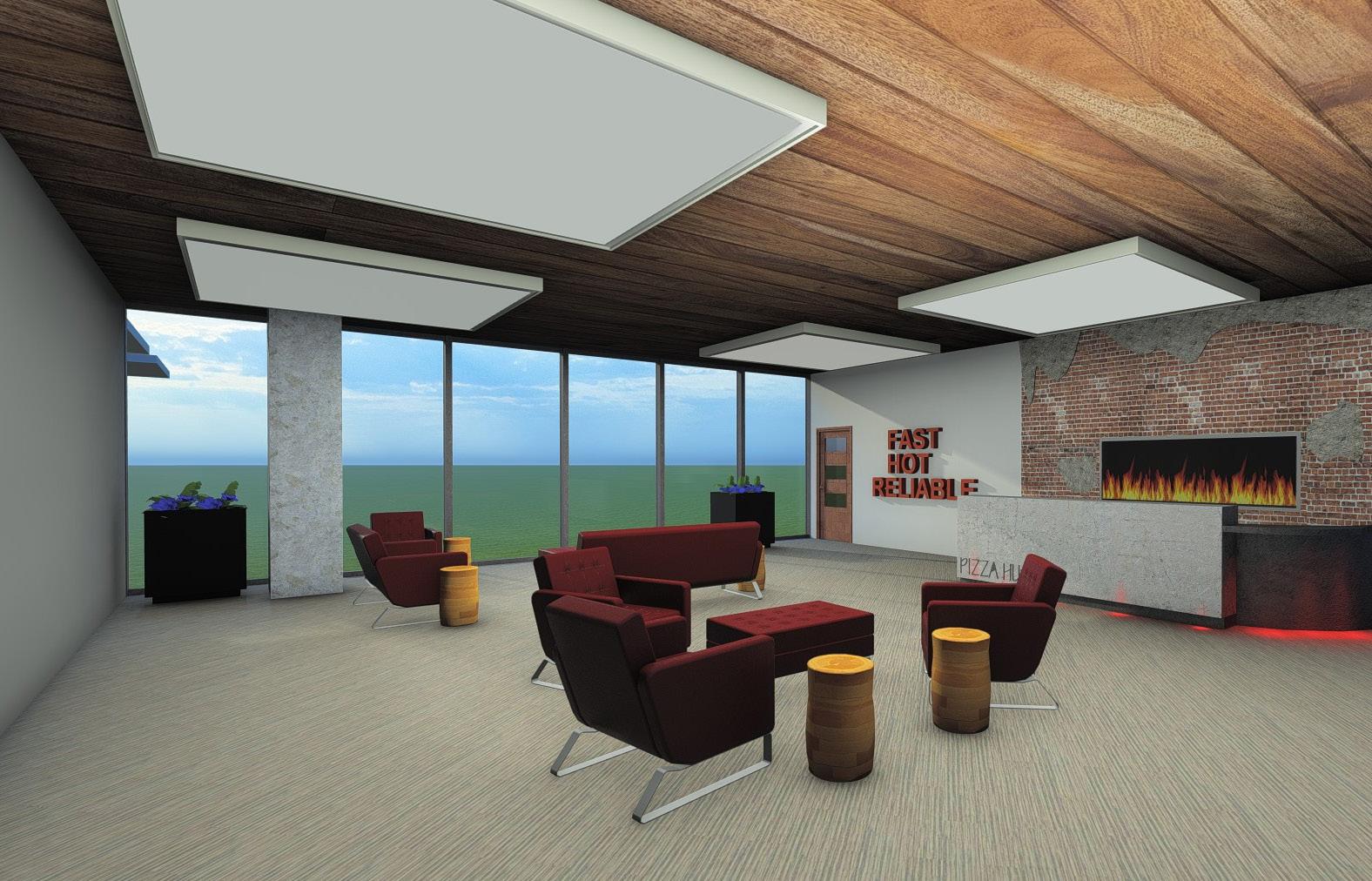

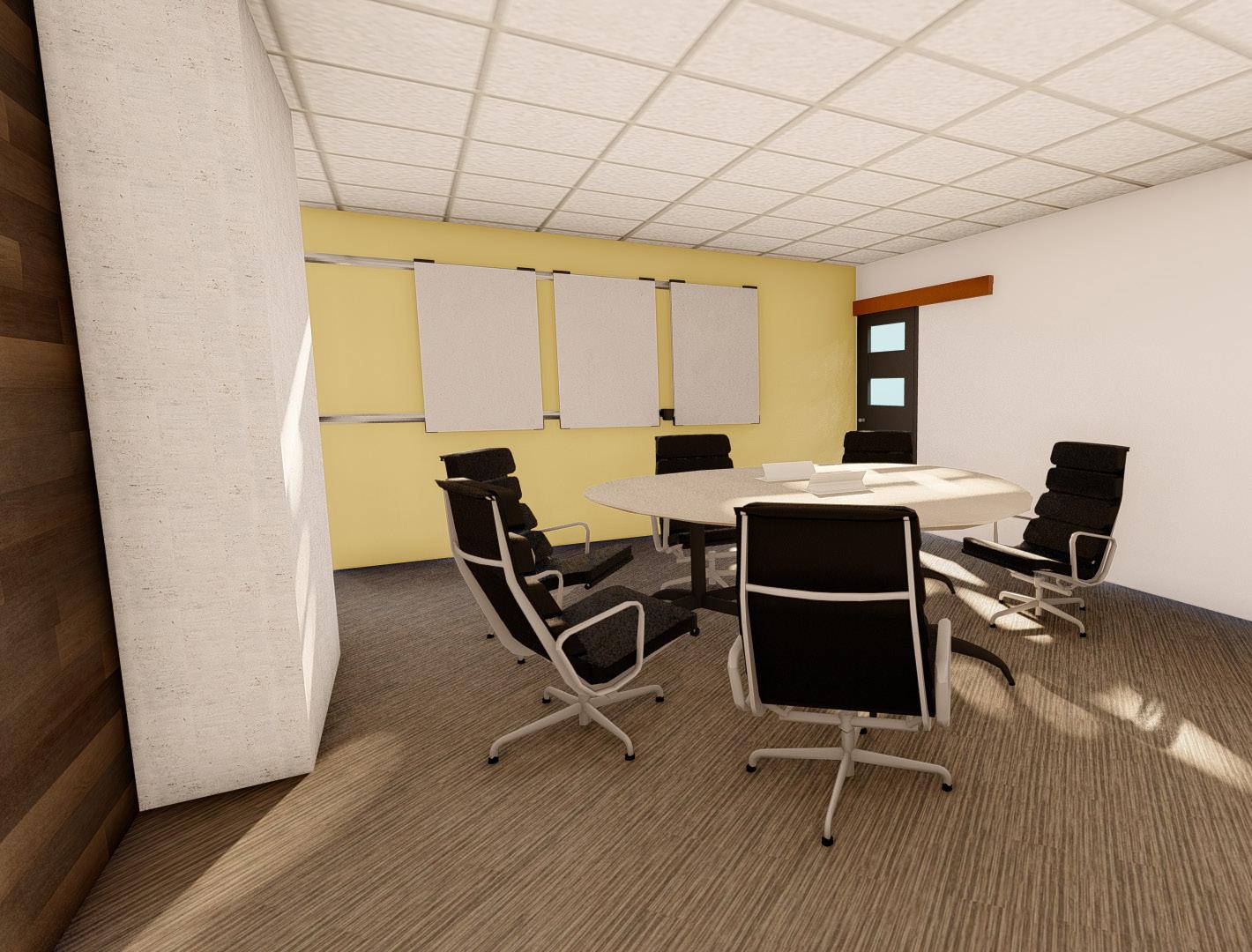

Pizza Hut has been in the search for a new corporate office space. The client found a beautiful 30,000 sqf. space located in the heart of Dallas. The space will occupy one of the floors of the PWC building. The goal of the new space was to provide space to bring in new employees for the growing company as well as have the space divided to fit the different needs of each of the departments. The design was stylized around the classic “Brick pizza oven.” throughout the space.

PIZZA HUT

By Taylor Garonzik

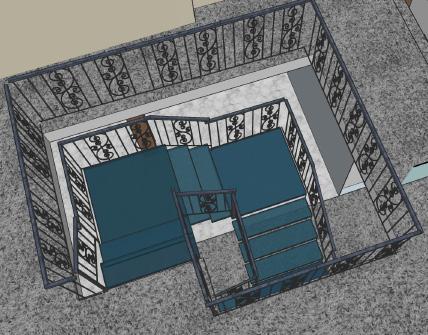

BARNDOMINIUM

PROJECT: Two-Story Bardomium

DATE: FALL 2018

DURATION: 5 weeks

MEDIUM: Sketch Up

03

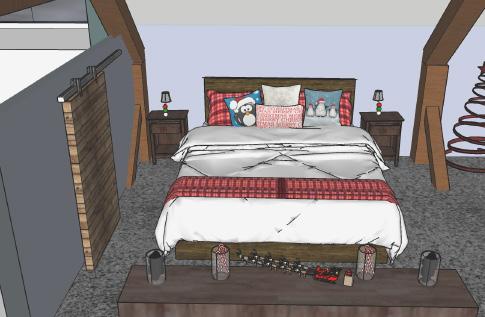

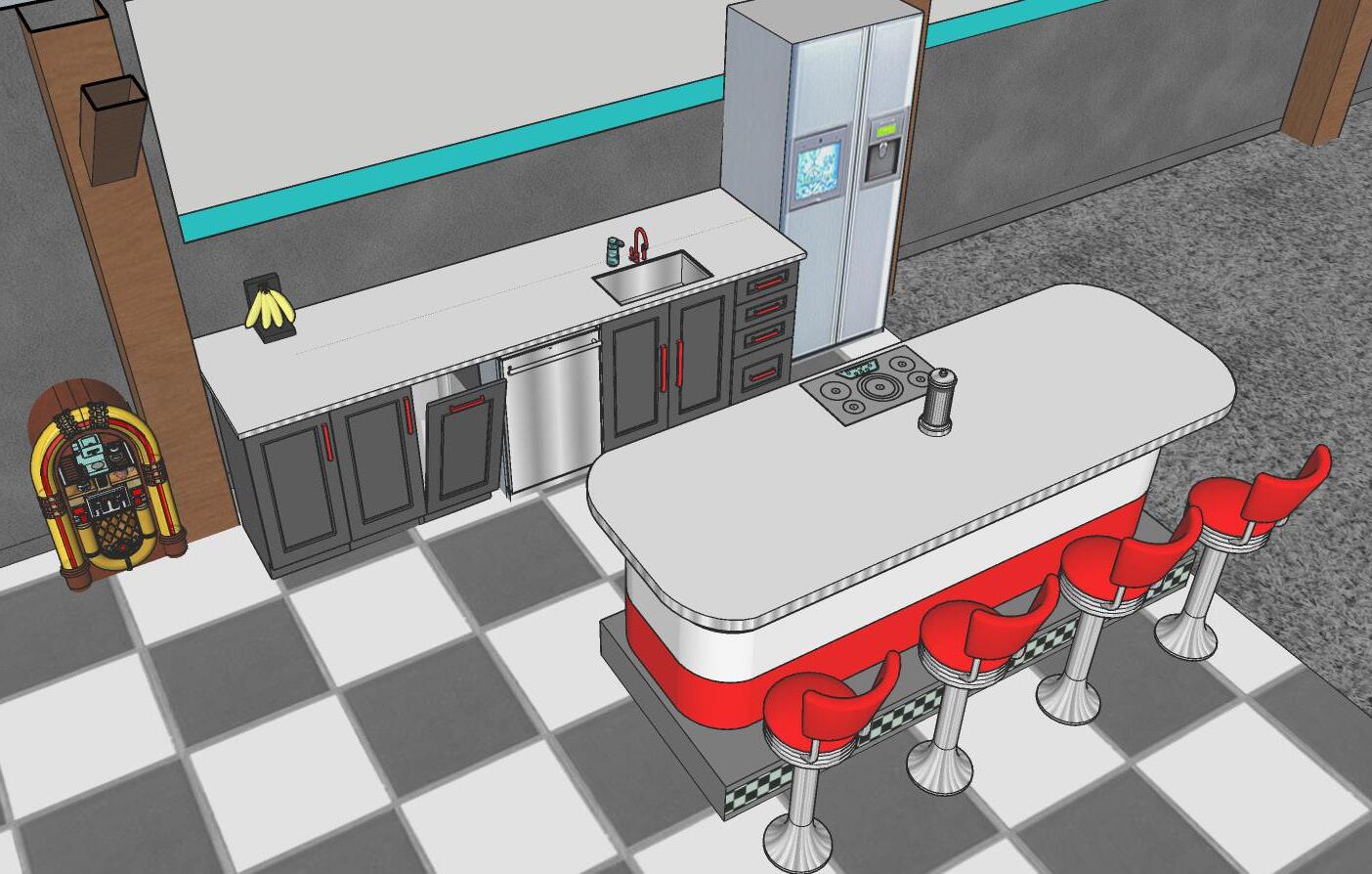

Inspired by the 1950`s, Garonzik Farm is filled with eccentric pop art collected over the years. The client is building a new home designed around their personal taste. The client is 32 years old and married with two young children. This home is the next step of life and to bring her parents closer. The client wishes to incorporate her taste for retro design and favorite art pieces into her new home. The home must meet the needs of her parents with an ADA bathroom and maintain an overall open floor plan.

The scope of the project included an adaptive reuse of a barn, in which one of the key exercises was creating a staircase

BARNDOMINIUM

Built and rendered in Sketchup, inspired by Haroshi`s ‘Screaming hands’

By Taylor Garonzik

EVERS HISOTRICAL HOME

PROJECT: HISTORICAL HOME

DATE: FALL 2018

DURATION: 2 weeks

MEDIUM: Sketch Up

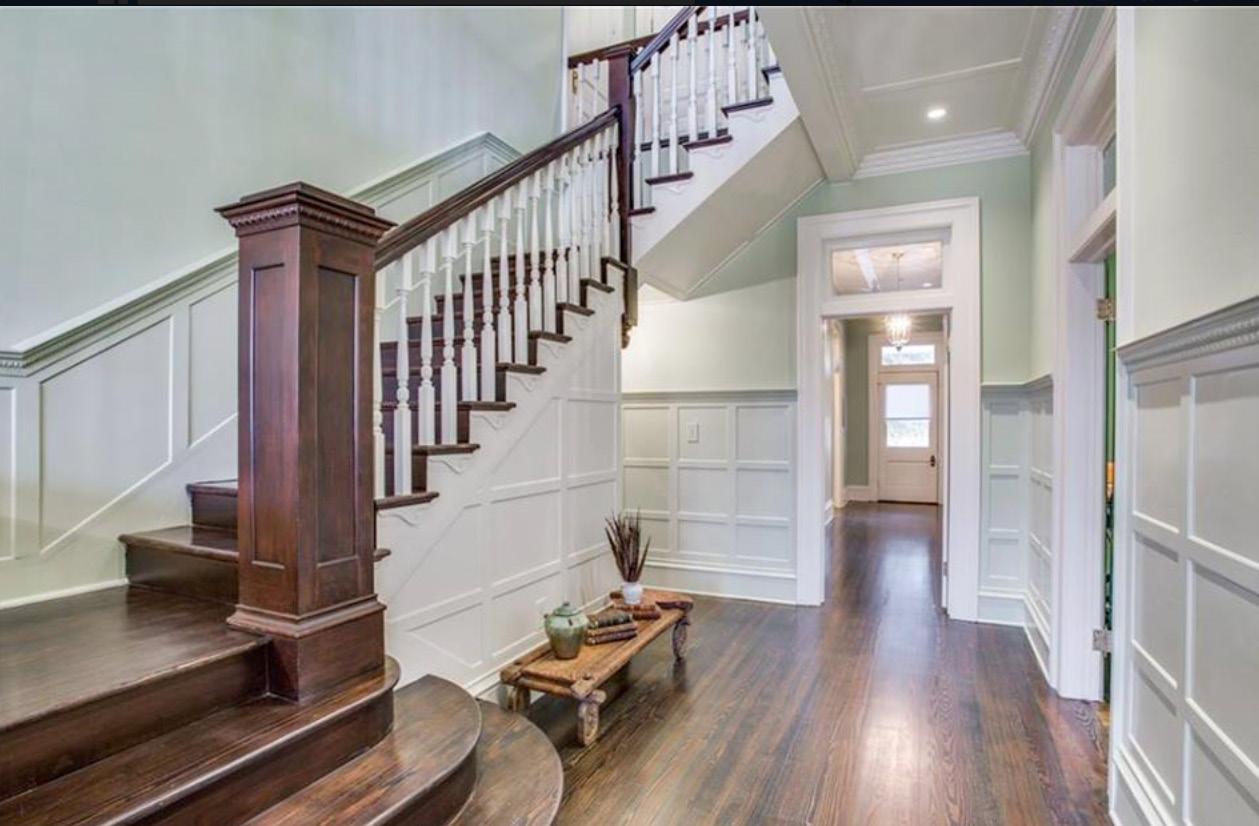

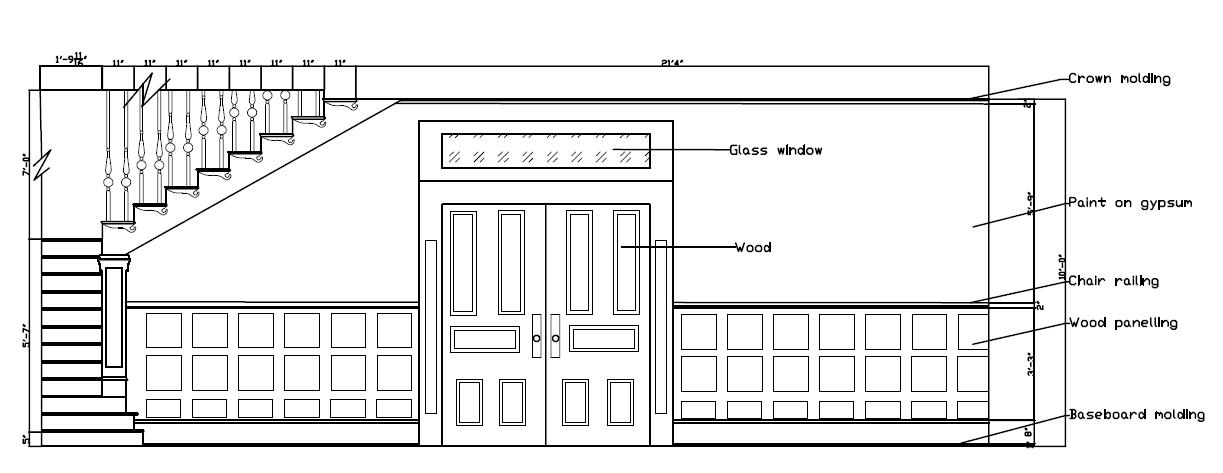

An Auto Cad project Inspired by a classic Denton home. The home was designed by an Austin architect and built in 1903 in the popular Colonial Revival style. The home expresses both classical influences and Victorian flourishes.

By Taylor Garonzik

TWO-STORY HOUSE

PROJECT: Two-Story house

DATE: SPRING 2018

DURATION:3 weeks

MEDIUM: AUTOCAD

This is exercise tested Auto cad abilities and problem solving. The house was calculated by using only a few existing dimensions. This exercise also required adding a set of stairs that would properly reach the second floor.

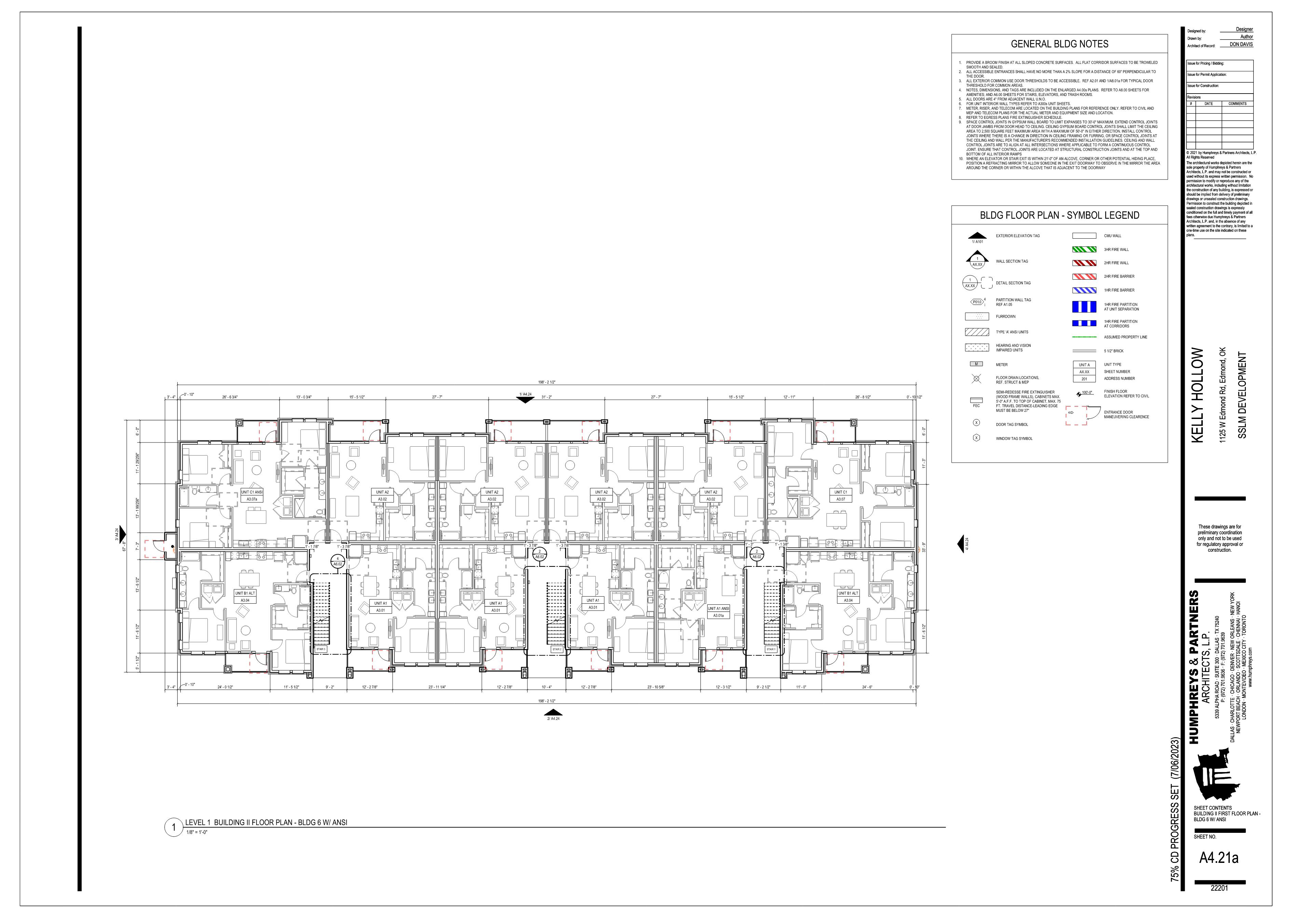

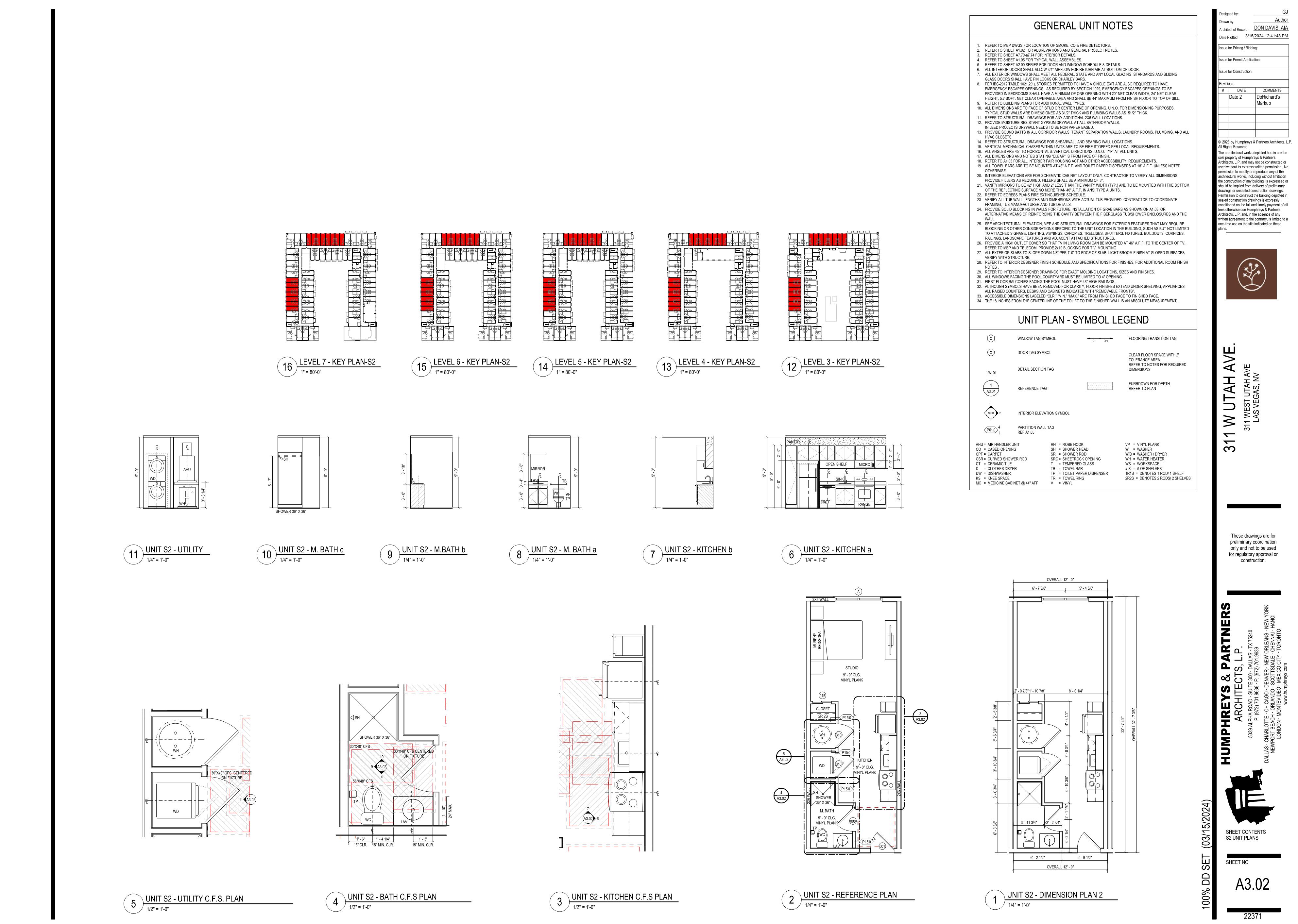

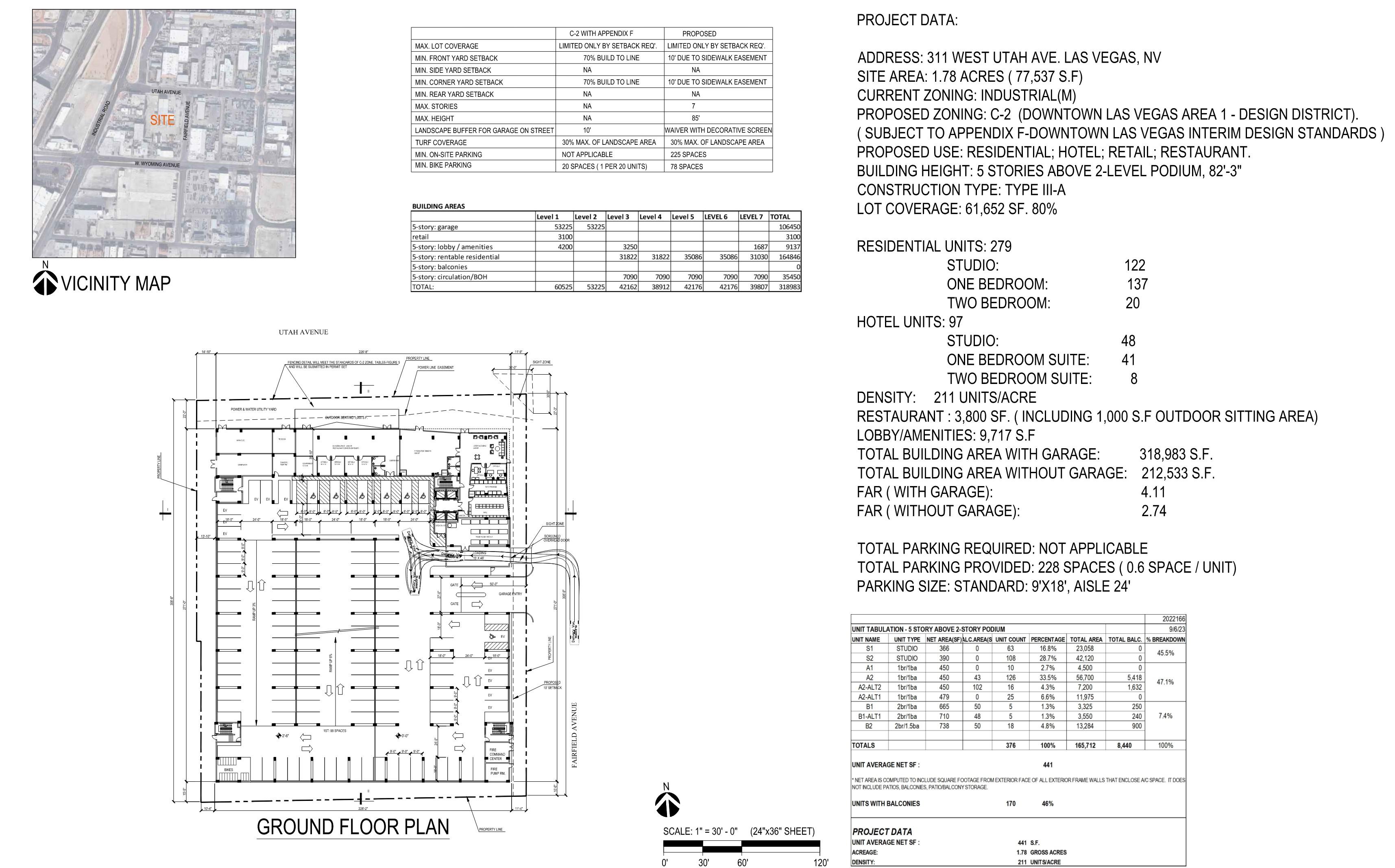

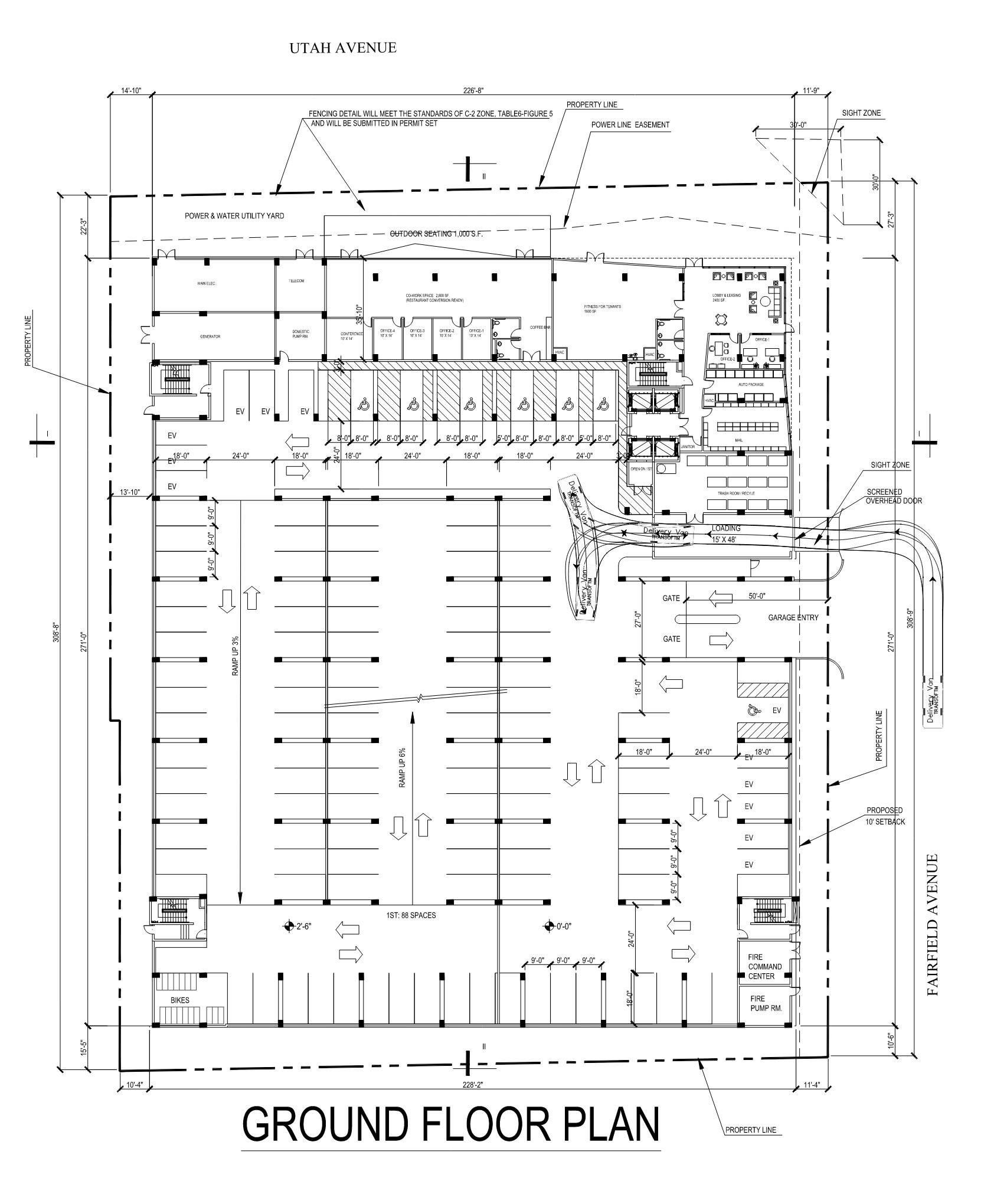

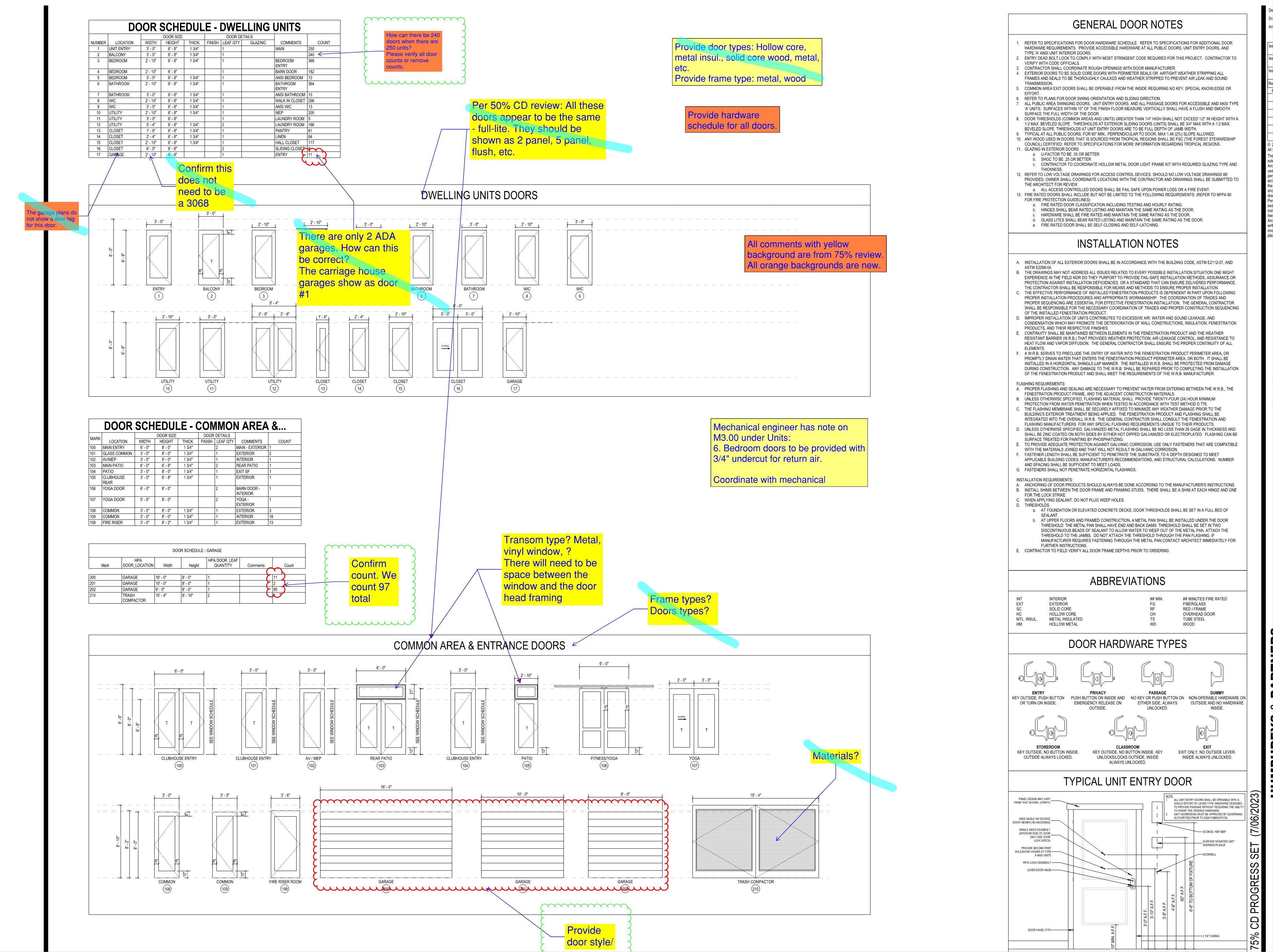

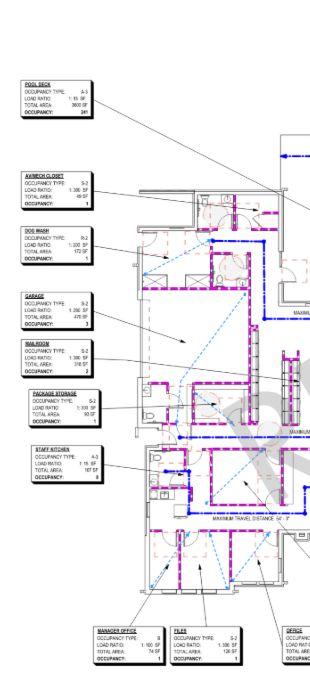

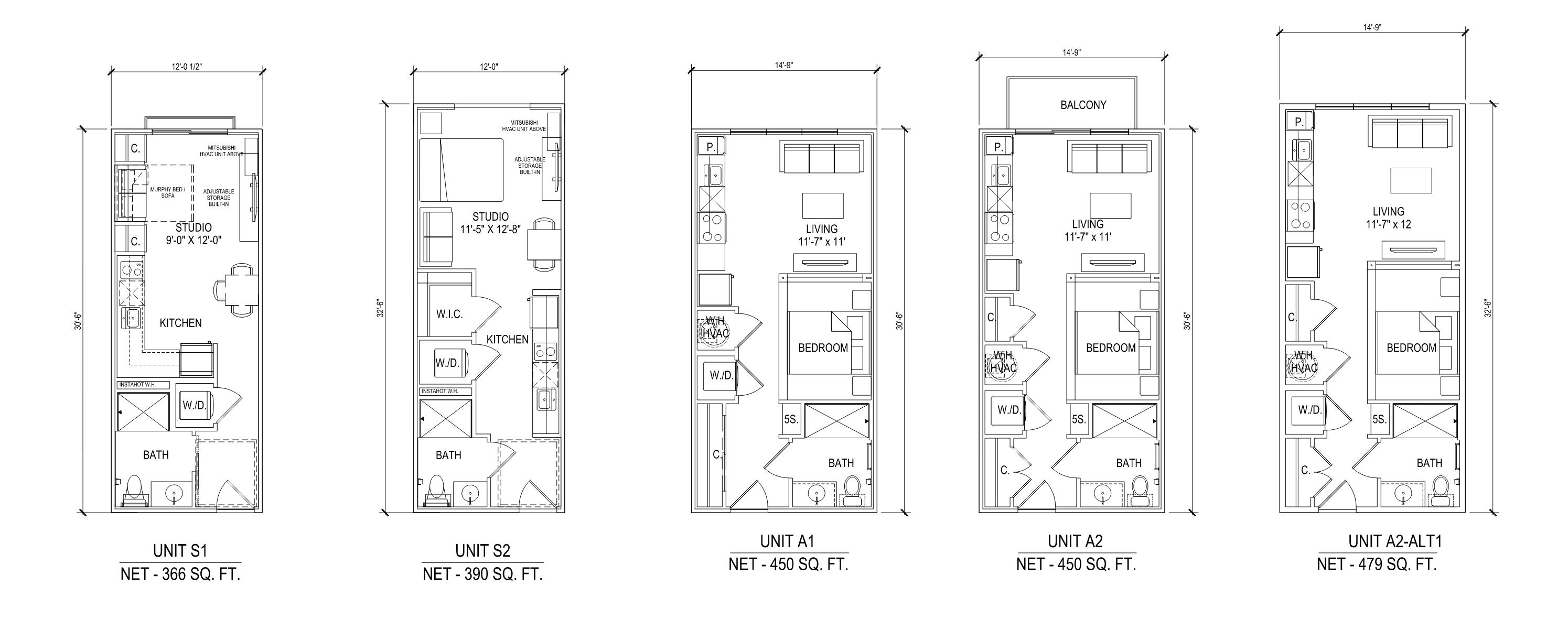

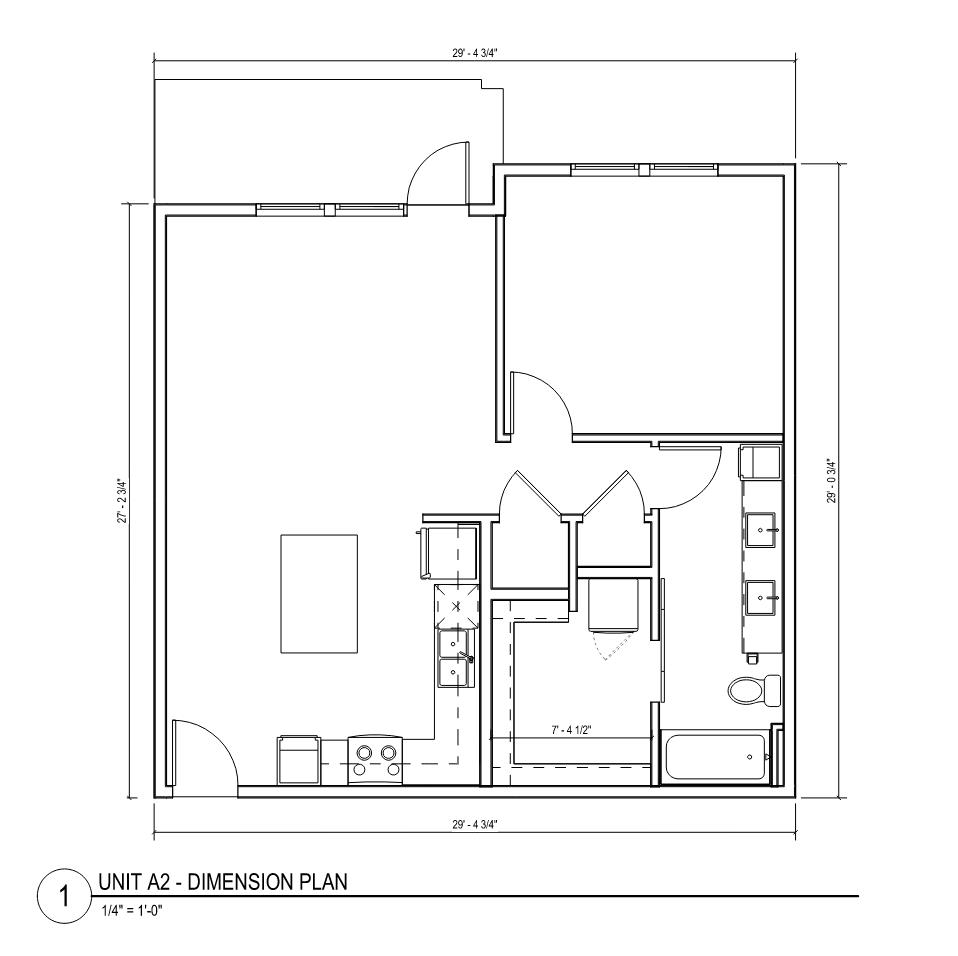

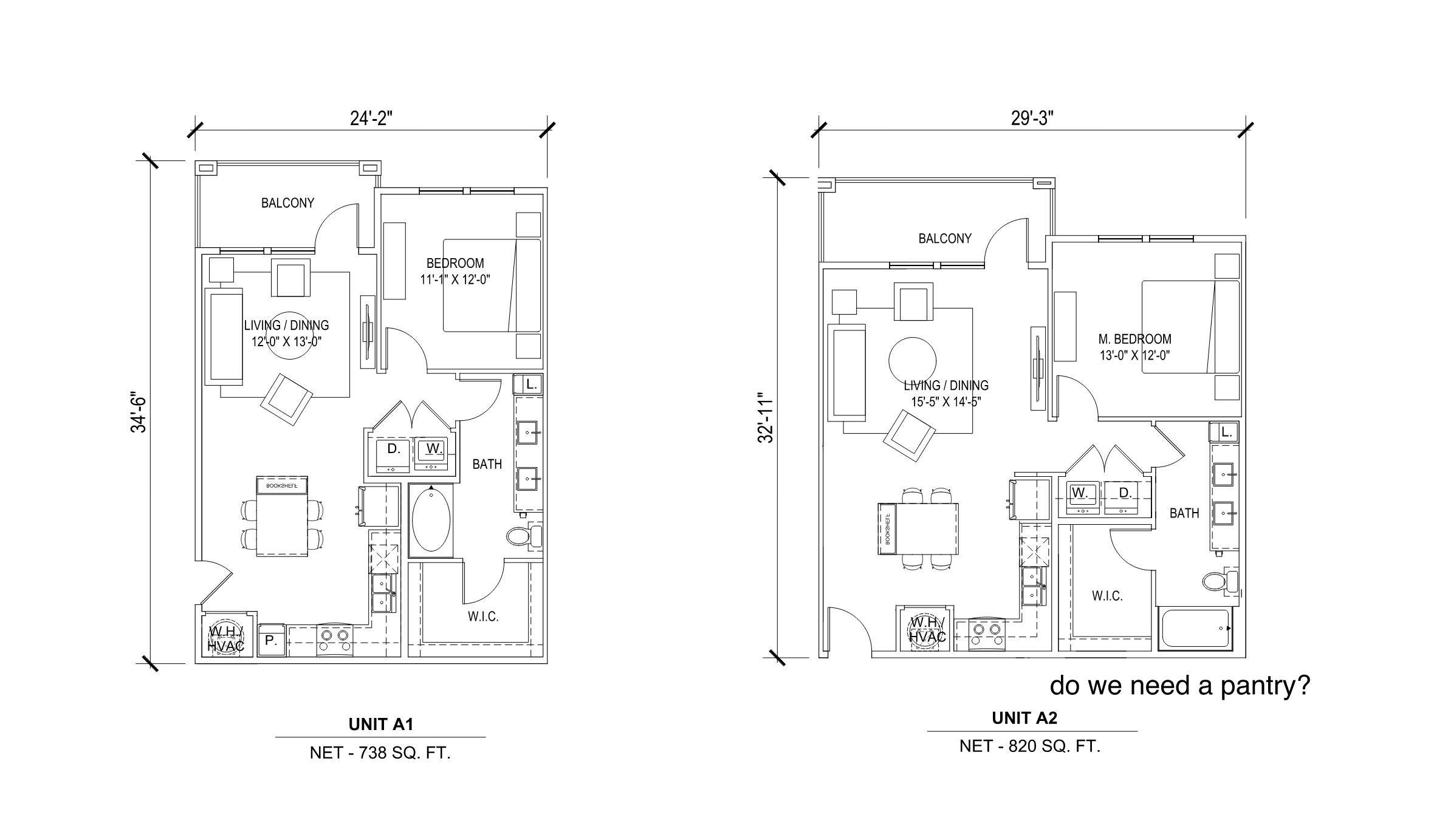

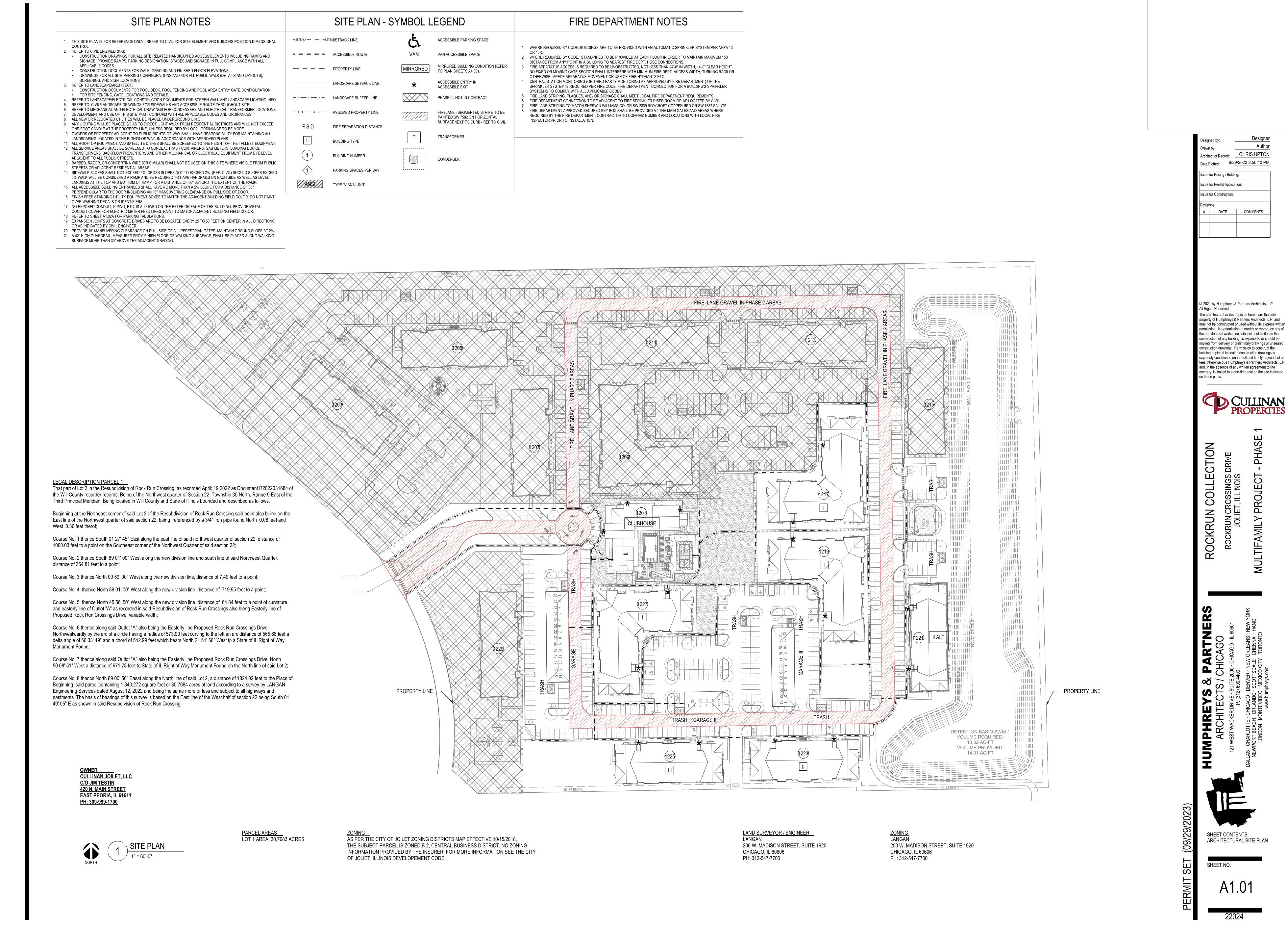

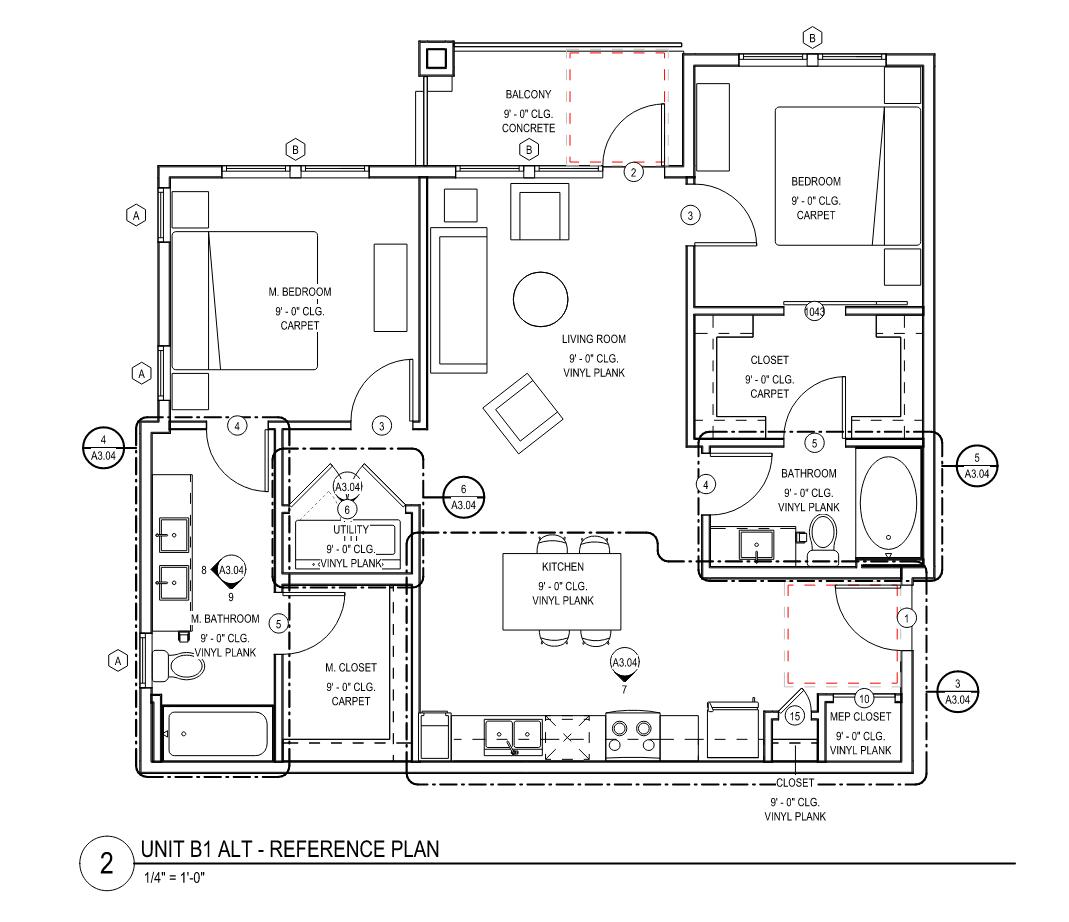

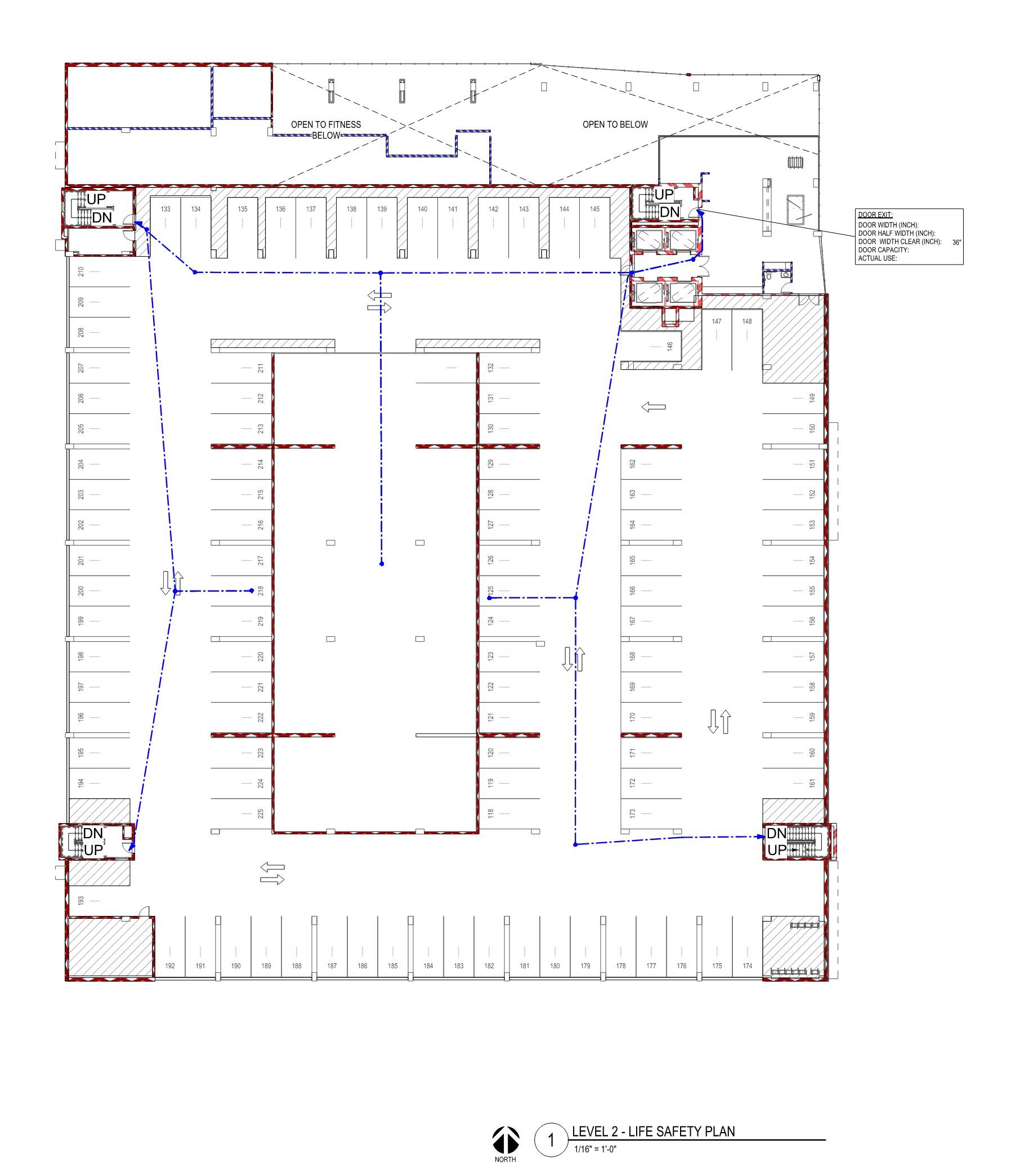

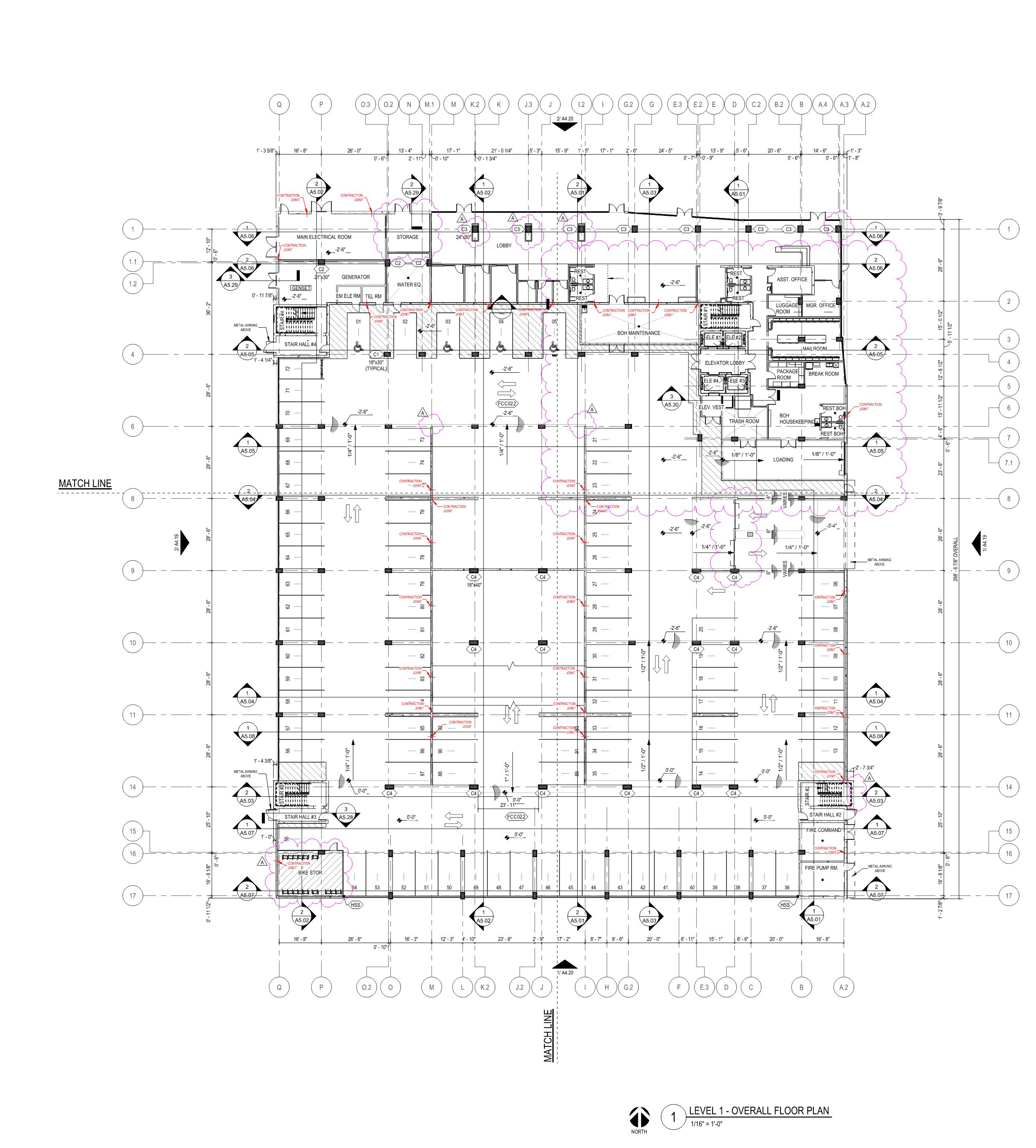

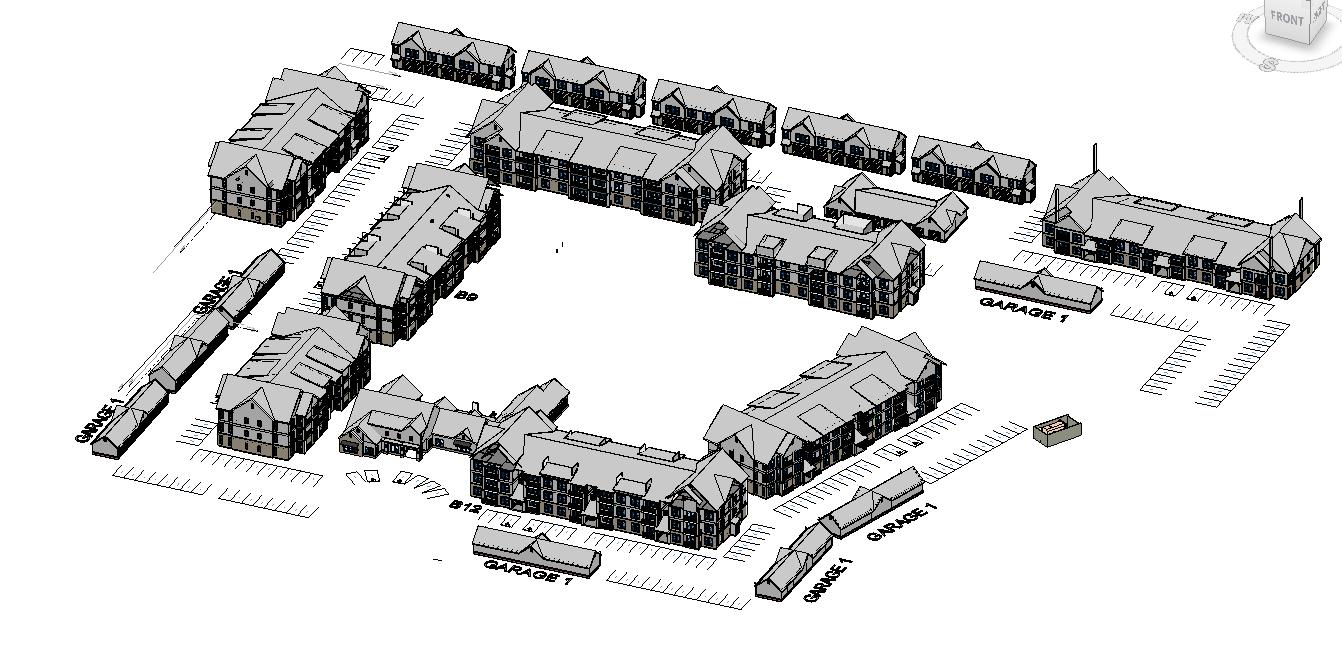

SD TO DD TRANSITION PHASE

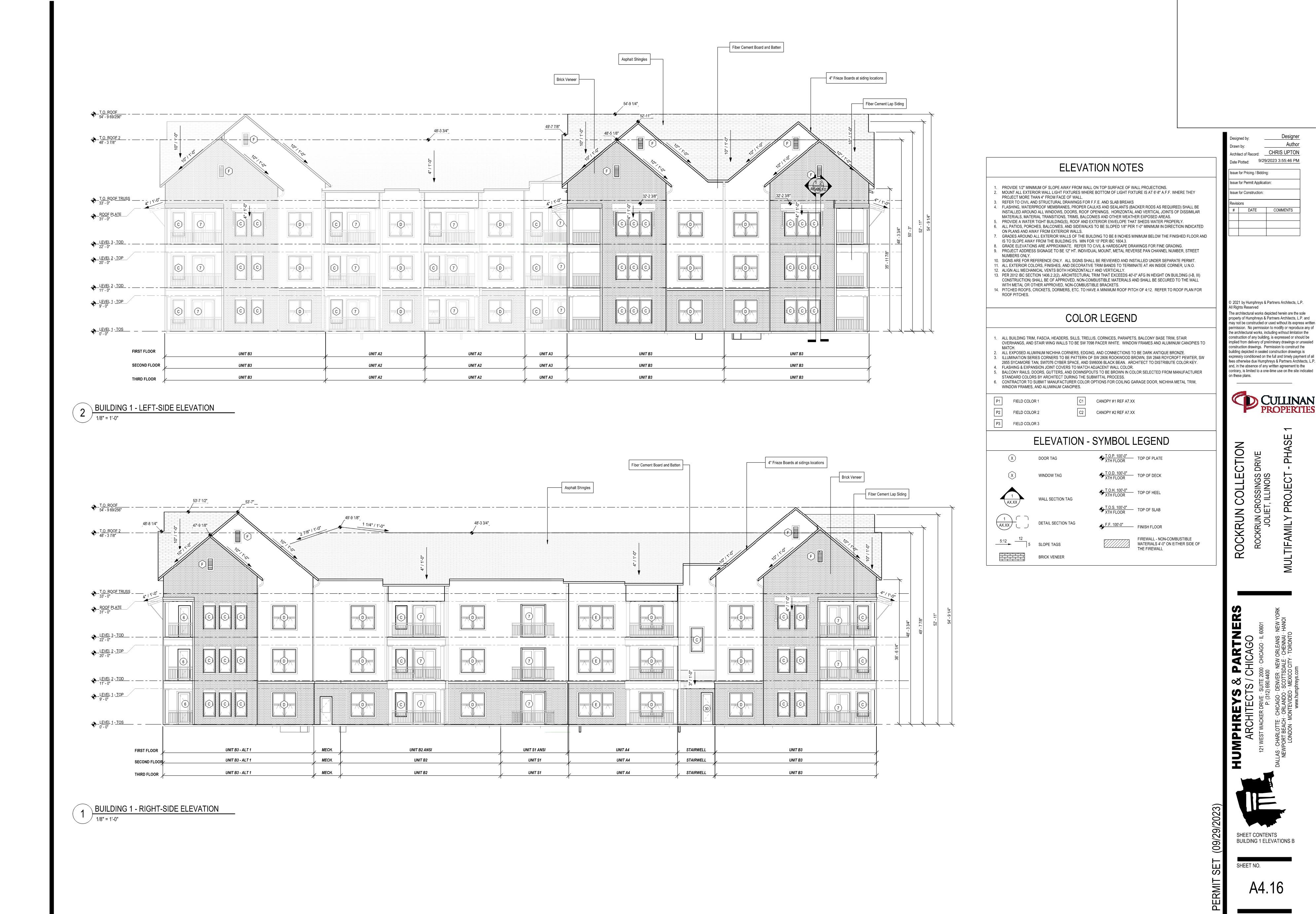

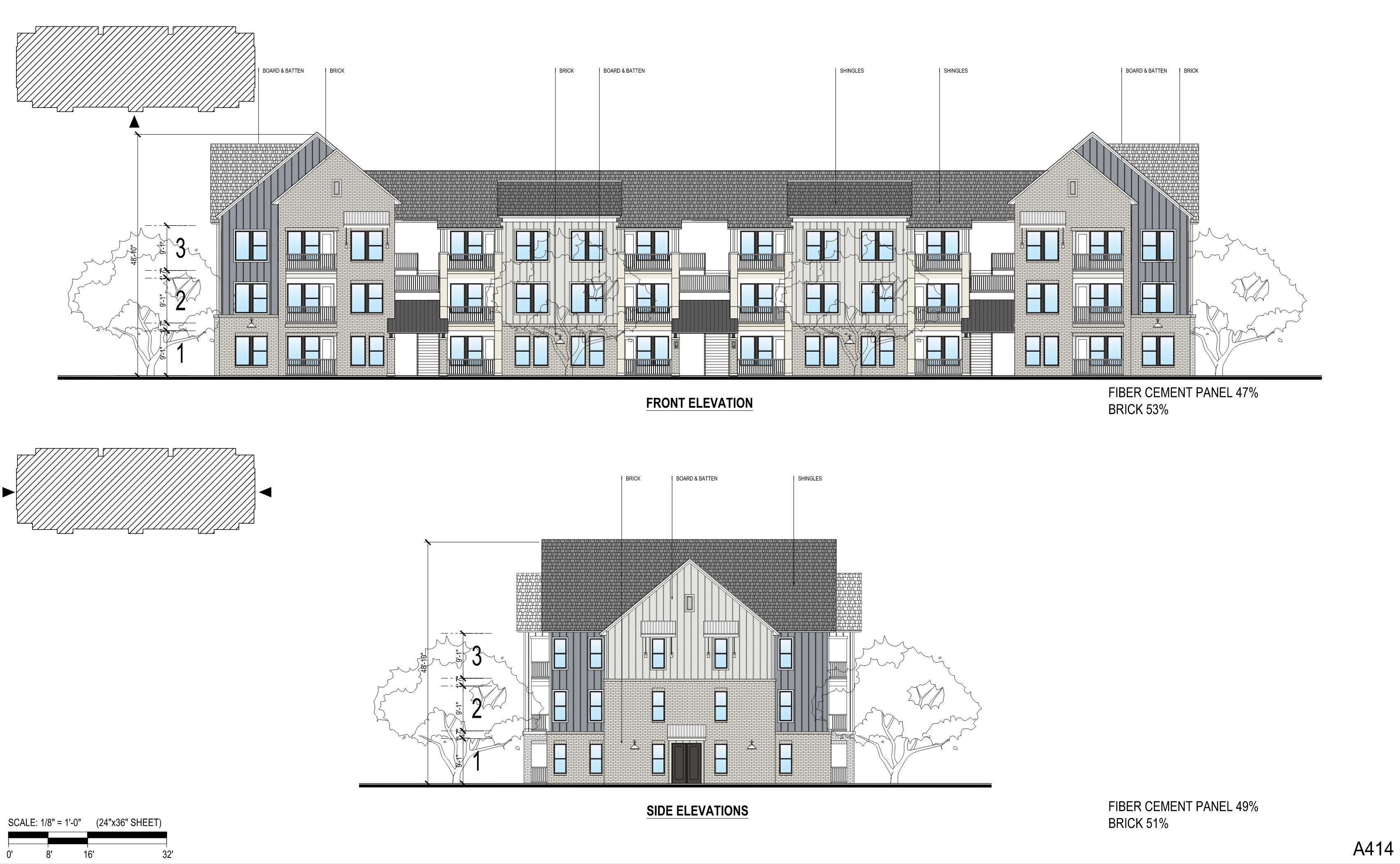

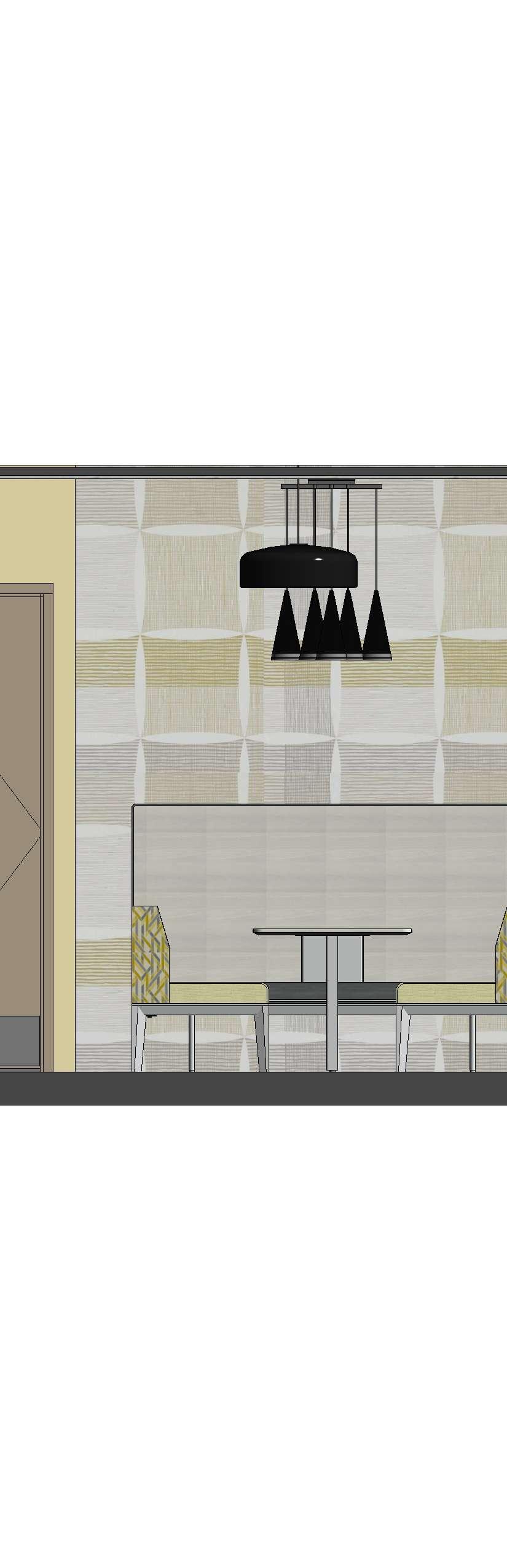

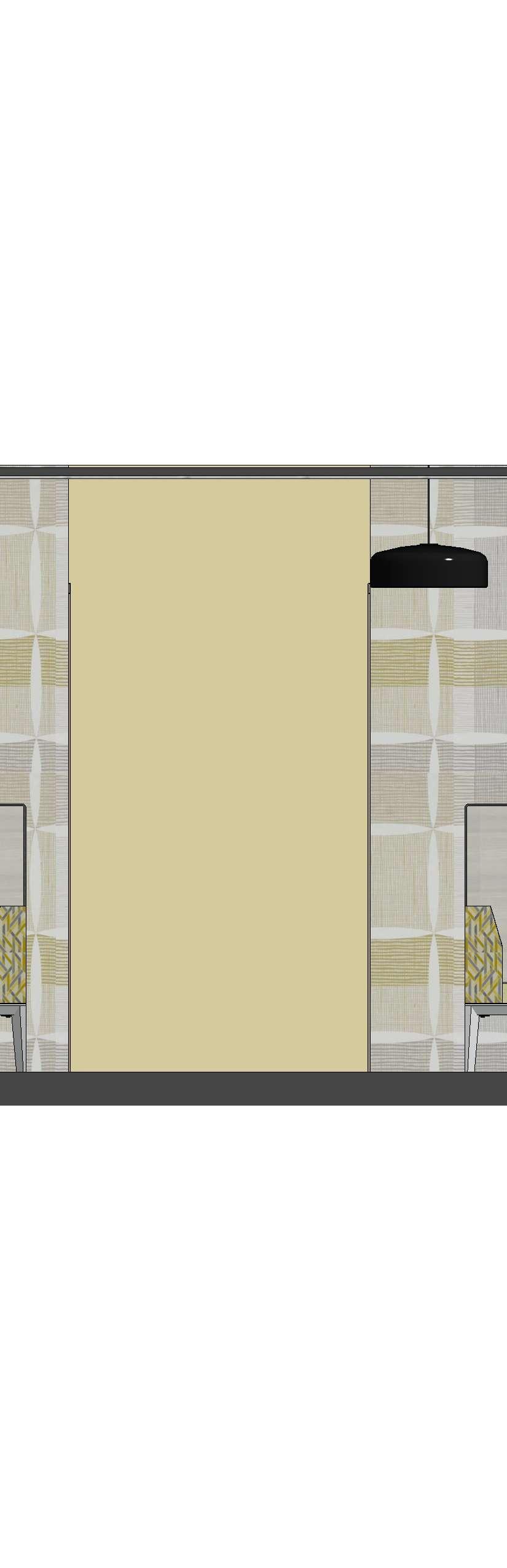

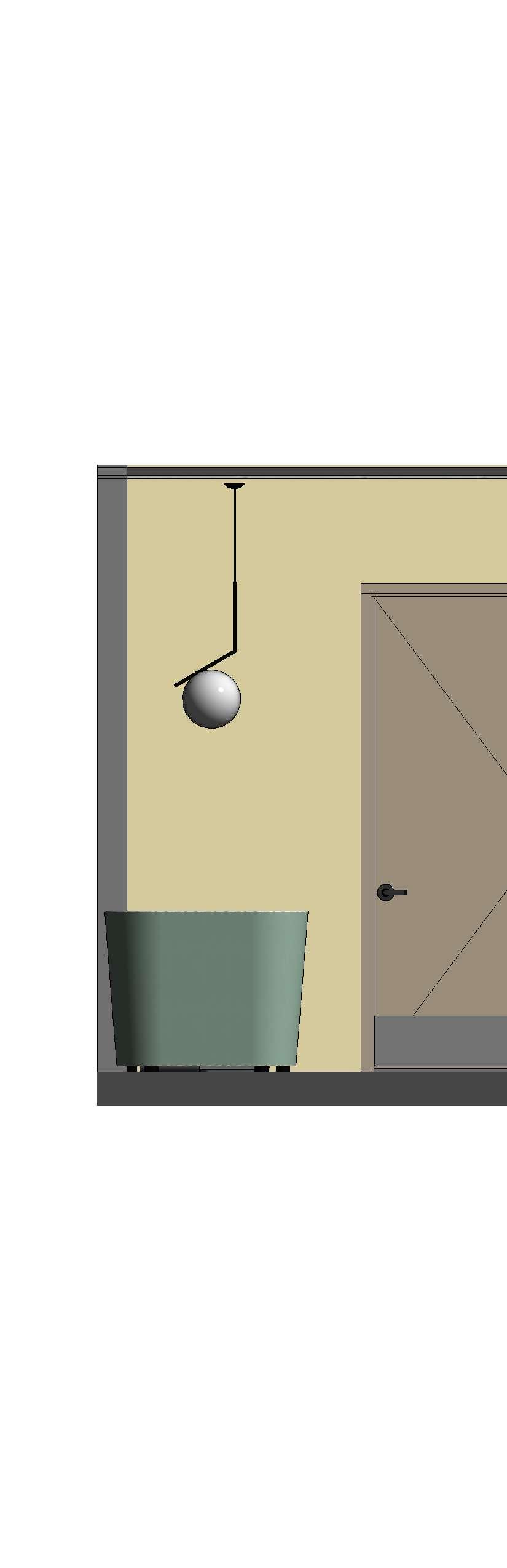

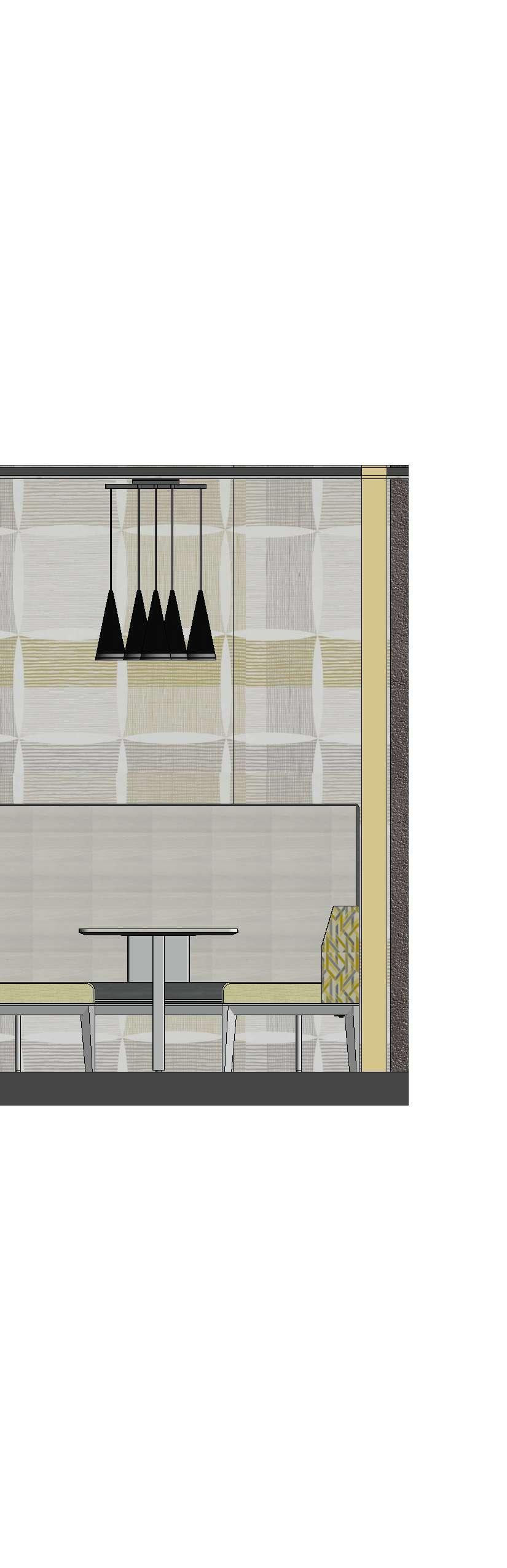

ELEVATION

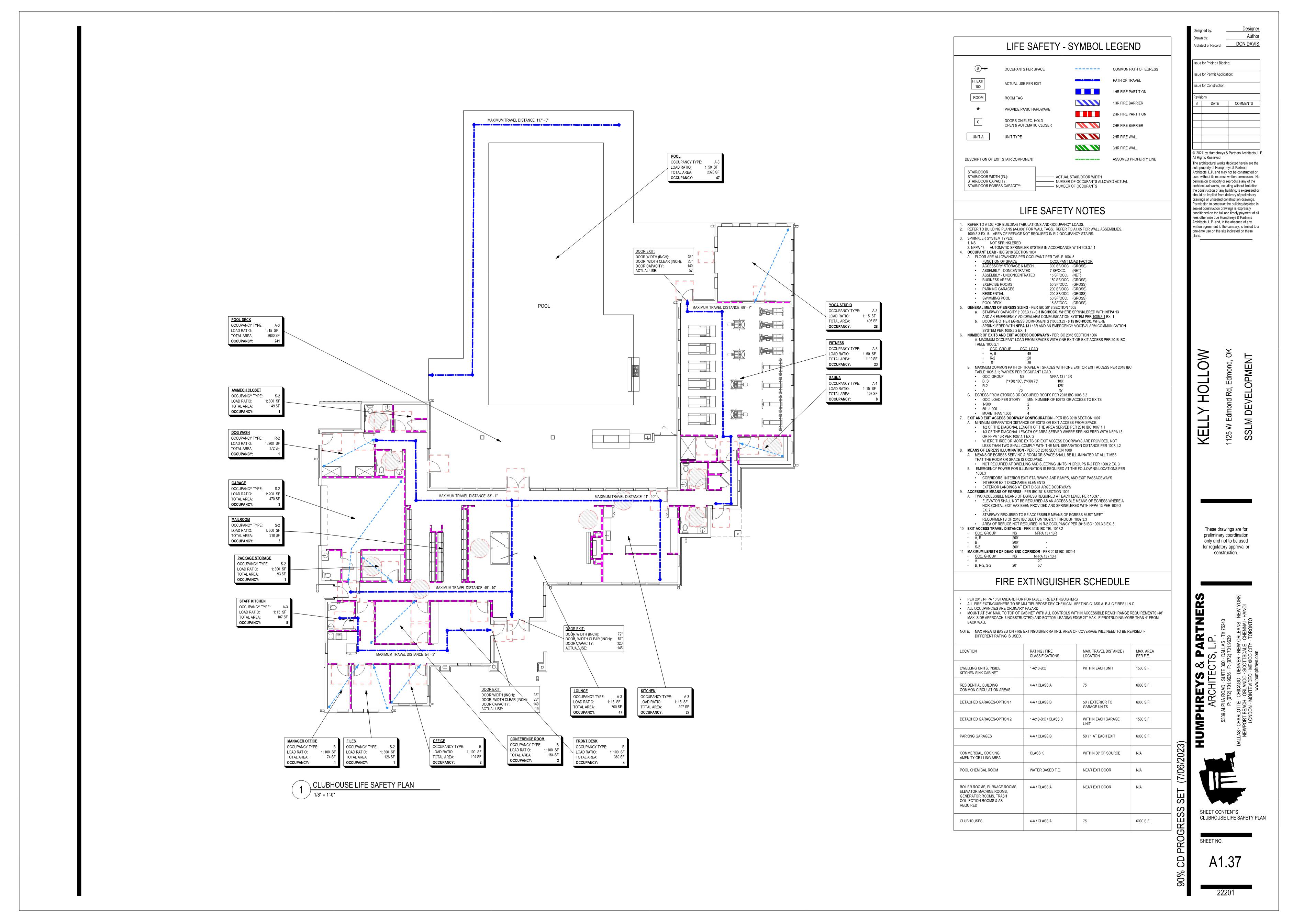

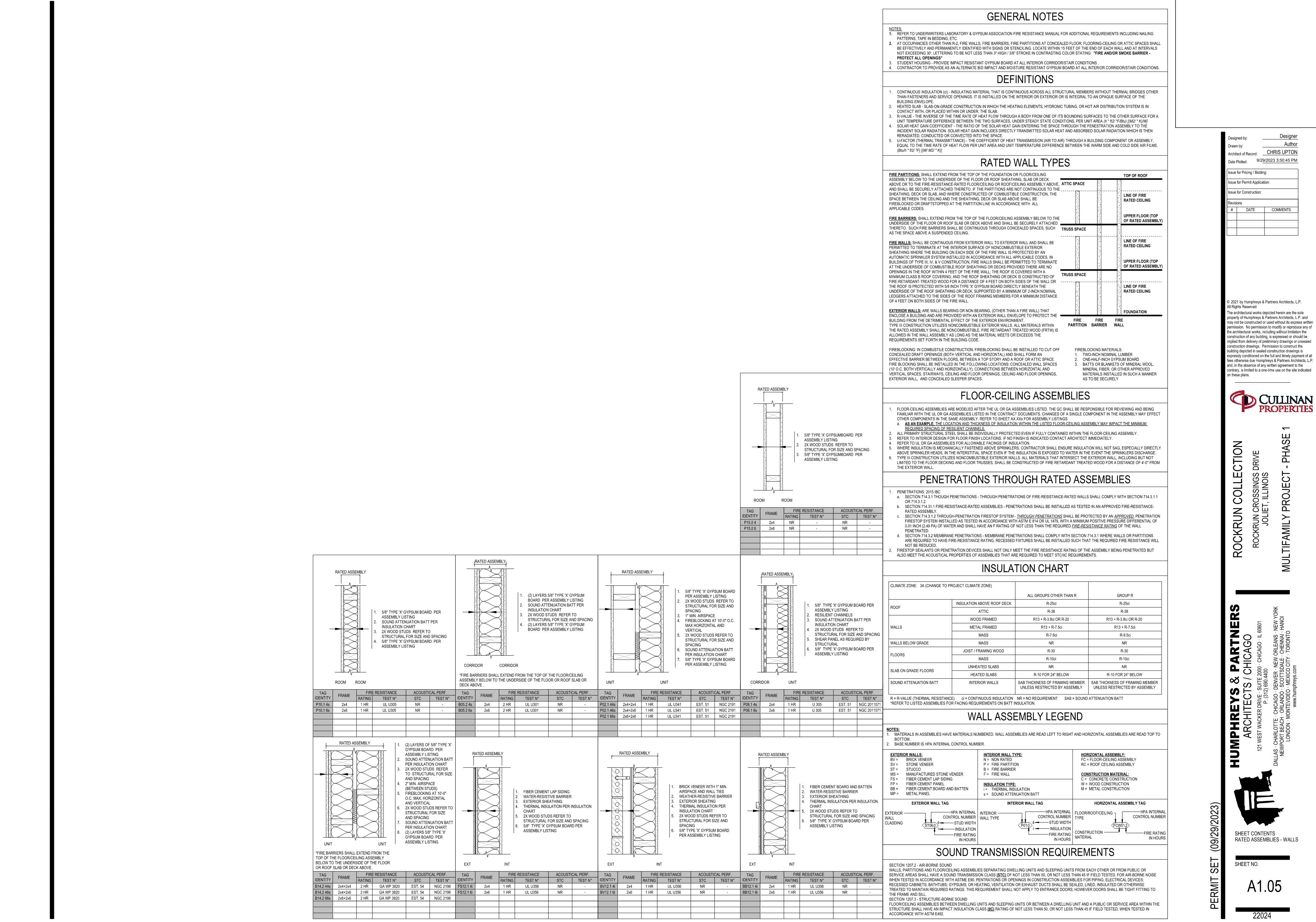

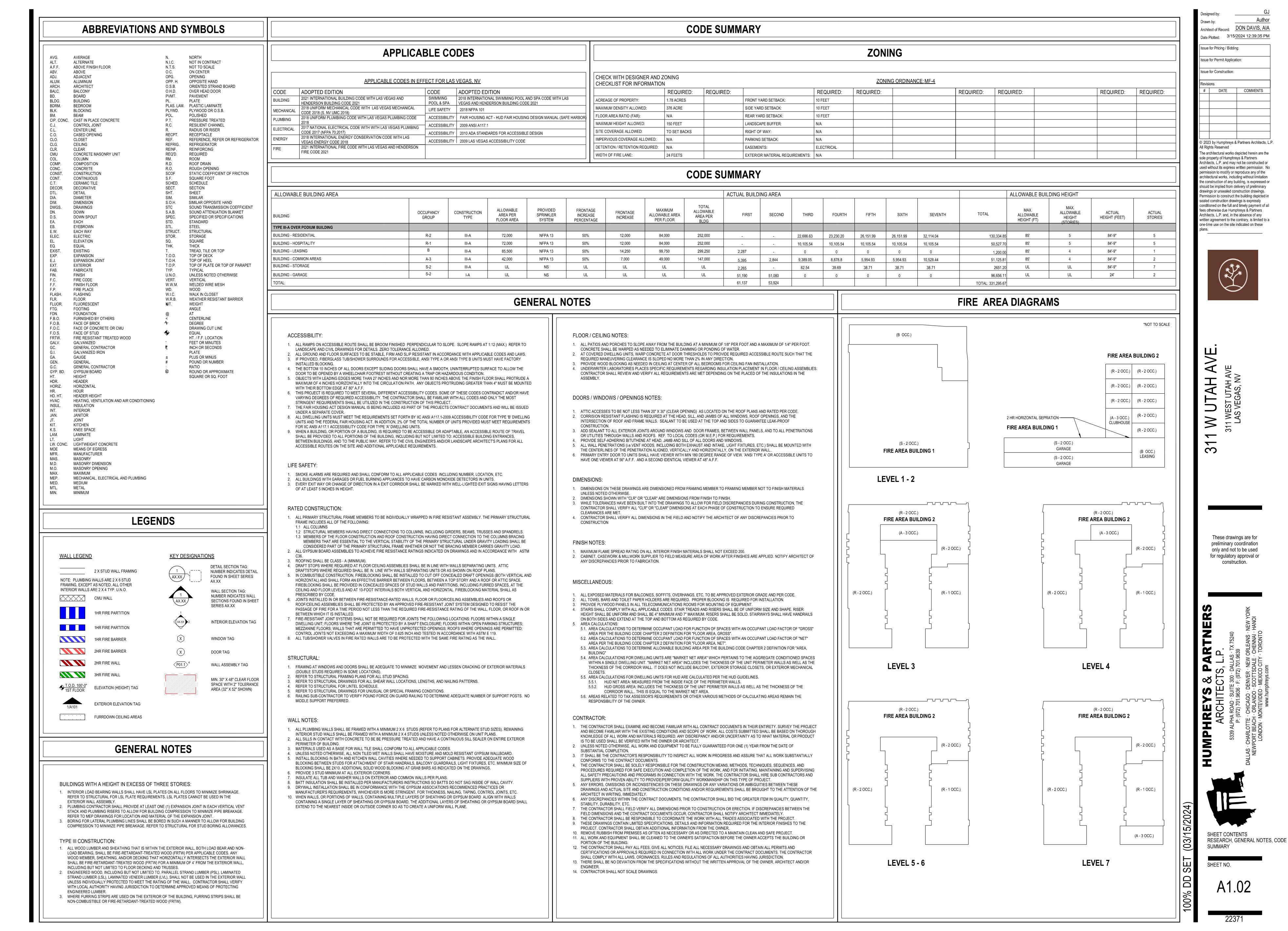

CD PHASE

FOR REFERENCE ONLY

TENANT IMPROVEMENTS

ACCESSIBLE

KEYED NOTES LEGEND

10.

NOTESGENERAL NOTES

x01041MOP SLIDERS

EXISTING EXTERIOR WALL

3 5/8" 20 GAUGE METAL STUDS AT 16" O.C., GC TO INSTALL AS REQUIRED, TYP. ENSURE FRAMING DOES NOT INTERFERE WITH MECHANICAL DUCT. REFER TO MECHANICAL SHEETS FOR MORE INFORMATION.

3 5/8" 20 GAUGE METAL STUDS AT 16" O.C. (MAX) TO BOTTOM OF STRUCTURE WITH 5/8" GYPSUM BOARD, TO BE SUPPORTED BY EXISTING STRUCTURE.

DIAGONAL BRACING - 3 5/8" 20 GAUGE METAL STUDS AT 16" O.C. (MAX).

UNISTRUT ATTACHED

3 5/8" 20 GAUGE METAL STUDS AT 16" O.C. (MAX) TO EXTEND TO B.O. DECK BUT SUPPORTED BY EXISTING STRUCTURE WITH 5/8" GYPSUM BOARD. PROVIDE ADDITIONAL METAL STUF FRAMING AS REQUIRED.

ACOUSTICAL PANEL SYSTEM ATTACHED TO UNISTRUT SUPPORTED BY EXISTING STRUCTURE.

3 5/8" 20 GAUGE METAL STUDS AT 16" O.C. (MAX) WITH 5/8" GYPSUM BOARD.

6" 20 GAUGE METAL STUDS AT 16" O.C. (MAX) TO BOTTOM OF STRUCTURE WITH 5/8" GYPSUM BOARD, TO BE SUPPORTED BY EXISTING STRUCTURE.

KEYED NOTESGENERAL NOTES

1. PROVIDE 3" HIGH BLACK ACRYLIC STORE ADDRESS ON GLAZING OR PER LOCAL JURISDICTIONAL CODE REQUIREMENTS.

2. BUILDING MOUNTED SIGNAGE. GC TO PROVIDE J-BOX WITH PULL STRINGS FOR FUTURE BUILDING SIGNAGE. COORDINATE FINAL LOCATION OF J-BOX WITH SIGNAGE VENDOR PRIOR TO INSTALL. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION.

3. WALL MOUNTED OSCILLATING FAN, MOUNTED AT MAX HEIGHT POSSIBLE TO MAINTAIN FULL OPERATION, UON. FANS TO BE ON SEPARATE CIRCUIT FROM LIGHTING AND POWER AT PATIO. ALL POWER AND LIGHTING TO BE ON SAME CIRCUIT. REFER TO ELECTRICAL SHEETS AND CEILING PLANS FOR MORE INFORMATION.

4. BLACK EXTERIOR SPEAKERS MOUNTED AT MAX HEIGHT POSSIBLE, UON. REFER TO SCHEDULES, ELECTRICAL SHEETS, AND CEILING PLANS FOR MORE INFORMATION.

5. STRING LIGHTS AT EXISTING CANOPY, ATTACHED TIGHT TO STRUCTURE. REFER TO CEILING PLANS FOR MORE INFORMATION.

6. EXISTING IMPACT RESISTANT RAILING. DASHED LINES INDICATE OUTLINE OF RAILING IN FOREGROUND.

7. EXISTING DECORATIVE WALL SCONCE, TYP.

8. EXISTING METAL CANOPY, TYP.

9. EXISTING RTU SCREEN.

10. EXISTING UTILITY SCREEN.

11. EXISTING DRIVE-THRU WINDOW, SHELF, AND AIR CURTAIN.

KEYED NOTESGENERAL NOTES

1. BUILDING MOUNTED SIGNAGE. GC TO PROVIDE J-BOX WITH PULL STRINGS FOR FUTURE BUILDING SIGNAGE. COORDINATE FINAL LOCATION OF J-BOX WITH SIGNAGE VENDOR PRIOR TO INSTALL. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION.

2. WALL MOUNTED OSCILLATING FAN, MOUNTED AT MAX HEIGHT POSSIBLE TO MAINTAIN FULL OPERATION, UON. FANS TO BE ON SEPARATE CIRCUIT FROM LIGHTING AND POWER AT PATIO. ALL POWER AND LIGHTING TO BE ON SAME CIRCUIT. REFER TO ELECTRICAL SHEETS AND CEILING PLANS FOR MORE INFORMATION.

3. BLACK EXTERIOR SPEAKERS MOUNTED AT MAX HEIGHT POSSIBLE, UON. REFER TO SCHEDULES, ELECTRICAL SHEETS, AND CEILING PLANS FOR MORE INFORMATION.

4. STRING LIGHTS AT EXISTING CANOPY, ATTACHED TIGHT TO STRUCTURE. REFER TO CEILING PLANS FOR MORE INFORMATION.

5. EXISTING IMPACT RESISTANT RAILING.

6. EXISTING DECORATIVE WALL SCONCE, TYP.

7. EXISTING METAL CANOPY, TYP.

8. EXISTING RTU SCREEN.

9. EXISTING UTILITY SCREEN AND DASHED LINES INDICATING OUTLINE IN FOREGROUND.

10. EXISTING DRIVE THRU WINDOW, SHELF, AND AIR CURTAIN.

11. EXISTING REAR SERVICE DOOR.

12. EXISTING ROOF ACCESS LADDER.

13. EXISTING UTILITIES.

14. EXISTING SECURITY LIGHT.

15. EXISTING DOWNSPOUT AND SCUPPER, TYP.

16. DATA DEVICES FOR HANDHELD ORDER POINT PROGRAM COORDINATE FINAL SPECIFICATIONS, LOCATIONS, AND INSTALLATION WITH STARBUCKS DESIGN AND CONSTRUCTION MANGERS.

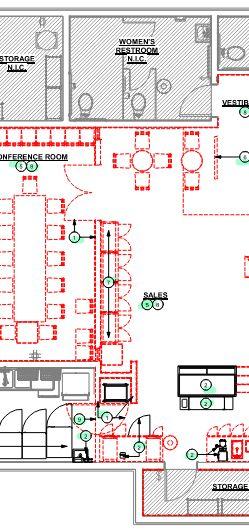

KEYED NOTESGENERAL NOTES

1. DIMENSION START POINT.

2. EXISTING STOREFRONT DOOR.

3. EXISTING REAR SERVICE DOOR. REFER TO MANEUVERING CLEARANCES FOR MORE INFORMATION.

4. RECESSED ELECTRICAL PANELS TO BE PROVIDED BY LANDLORD PER TENANT SPECIFICATIONS AND LOCATION INDICATED ON DRAWINGS. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION. MAINTAIN MINIMUM CLEARANCE AS REQUIRED BY CODE.

5. SHELF FOR WATER HEATER ABOVE. REFER TO DETAILS FOR CONSTRUCTION OF PLATFORM, SUPPORTING ASSEMBLY, AND MORE INFORMATION.

6. DASHED LINES INDICATE BULK HEAD TO STRUCTURE.

7. INSTALL NEW DOORS AS INDICATED. REFER TO DOOR SCHEDULE SHEET FOR MORE INFORMATION.

8. GC TO PROVIDE IN-WALL BLOCKING AND POWER/DATA FOR MENU BOARDS. REFER TO INTERIOR FINISH ELEVATIONS FOR EXTENTS AND MORE INFORMATION.

9. PROVIDE ELECTRICAL CONVENIENCE OUTLETS AT 18" AFF THROUGHOUT CAFE. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION.

10. PROVIDE WEATHERPROOF CONVENIENCE OUTLETS AT 18" AFF. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION.

11. DASHED LINES INDICATE OUTLINE OF BANQUETTE BASE PROVIDE FLOOR CORE AND ELECTRICAL CONVENIENCE OUTLETS

ENLARGED WATER HEATER PLAN

WALL BLOCKING KEY

10.

LEGEND

1. PLACE MERCHANDISE FIXTURES AND RETAIL FLOOR BASKETS PER PLAN. STORE OPERATORS TO ORDER RETAIL FLOOR BASKETS.

2. DO NOT BLOCK FOOD CASE INTAKE/EXHAUST.

3. SAFE LOCATED AT POS CABINET. REFER TO ELECTRICAL SHEETS FOR ADDITIONAL INFORMATION.

4. HAND SINK WITH INTEGRAL SPLASH GUARD.

5. INSTALL METAL CORNER GUARDS AS INDICATED IN WORKROOM MOUNTED AT 6" AFF, UP TO 42" AFF, AFFIXED WITH STAINLESS STEEL OVERHEAD SCREWS ON EITHER SIDE BY 12" VERTICALLY.

6. REFER TO ENLARGED RESTROOM PLANS AND ELEVATIONS FOR FIXTURE LOCATIONS AND MOUNTING HEIGHTS.

7. SECURE LOCKERS TO WALL AT 8" AFF. LOCKERS TO BE INSTALLED WITH PADLOCK ACCESSORY.

8. VENDOR TO INSTALL WATER FILTRATION SYSTEM PER MANUFACTURER'S REQUIREMENTS. GC TO PROVIDE PLUMBING AND ELECTRICAL REQUIREMENTS.

9. WATER HEATER LOCATED ABOVE. REFER TO PLUMBING SHEETS FOR MORE INFORMATION.

10. MANAGER'S DESK. REFER TO MANAGER'S DESK EQUIPMENT RACK ELECTRICAL DETAIL FOR MORE INFORMATION.

11. POWERED BANQUETTE ANCHORED TO FLOOR. REFER TO SCHEDULES, INTERIOR FLOOR PLAN, AND ELECTRICAL DRAWINGS FOR MORE INFORMATION.

12. WATER TAP AT FRONTBAR. REFER TO PLUMBING SHEETS FOR MORE INFORMATION AND SPECIFICATIONS.

13. HAMPER TO BE ORDERED WITH SMALLWARES PACKAGE BY STORE MANAGER.

A. THE SITE IS SERVED BY THE MUNICIPAL WATER AND SEWER SYSTEM UNLESS OTHERWISE NOTED.

B. ALL FOOD STORAGE SHALL BE 6" AFF.

C. ALL WOOD SURFACES (DOORS, TRIM, SHELVES, CABINETS) SHALL BE SEALED.

D. ALL EQUIPMENT AND INSTALLATION WILL MEET NATIONAL SANITATION FOUNDATION STANDARDS OR EQUIVALENT.

E. ALL EQUIPMENT AND CABINETRY WILL BE FLUSH MOUNTED TO COUNTERS, WALLS OR FLOORS, OR BE RAISED TO ALLOW FOR CLEANING.

F. CONFIRM ALL NECESSARY EQUIPMENT CLEARANCES ER PRODUCT CUT SHEET (E.G.

WITH SHELF27IN685MM SBGC

136201FREEZER REACH IN 1 DOOR LH - 27IN 685MMSBGC 136821FREEZER REACH IN 2 DOOR - 54IN 1370MMSBGC 200111FRIDGE NITRO 2 TAP JT NITCOM RHSBGCKIT INCLUDES UNDERCOUNTER FRIDGE, FONT, TRAY, AND TUBING

EQUIPMENT

103124BREWER SOFT HEAT WARMING STAND SINGLESBGC

107461BREWER DUAL SOFT HEATSBGC

108081GRINDER DITTING KR1203SBGC

108566BREWER SERVER SOFT HEATSBGC

109071DISHWASHER LEGS AND SKIRTSBGC

125082BLENDER QUIET MODEL ON COUNTERSBGC

151861DISHWASHER LXER ADVANSYSSBGC

197422ESPRESSO MACHINE MASTRENA IISBGC

200322OVEN EIKON E2S BLACKSBGC

216791NITROGEN GENERATOR ELEMENT COMPACTSBGC FOOD CASE

162381FOOD CASE ZEPHYR 66IN 1675MMSBVD ICE 105272ICE BIN DROP IN 45LB 20KGSBGC 180291ICE BIN B110 SBGCBPF-1 ADAPTER KIT (011076103) REQUIRED

188431ICE MACHINE CIM1136HR SERIES REMOTE COOLED SBGC

192782ICE BIN DROP IN 45LB 20KG HORIZONTALSBGC

100912CUP DISPENSER TALL HOT VERTICALSBGC

TOILET PAPER HOLDERSBGC

SEAT COVER DISPENSERSBGC 101792HAND DRYER SURFACE MOUNTEDSBGCINSTALLED

DISPENSER SHORT HOT VERTICALSBGC

CABINET 2 DRAWERSBGC

EXTINGUISHER GCGC

DISPENSER GRANDE

DATADEVICE SCHEDULE - "A"

DESIGN IDCOUNTDESCRIPTIONFURN. BYINST. BYCOMMENTS

AUDIO VISUAL

100051MUSIC SYSTEM SBGC

100101DT ORDER MONITOR SBVD

100121DT COMMUNICATION SYSTEMSBVD

100173SPEAKER SURFACE MOUNTED - BLACKSBGCSET

40W SBGC

187441EQUIPMENT RACK WITHLOCK 24IN 610MMSBSBLEFT HAND SWING; REFER TO DETAILS FOR MORE INFORMATION 202944IOT MODULE SBVDVENDOR DIRECT TO INSTALL: (2) ATTACHED TO ESPRESSO

POINT OF SALE

100082POS REGISTER WITH COMPACT CASH DRAWERSBSB

100143POS PRINTER SBSB

100221MONEY COUNTER SBSB

100296POS BANK SBGC

DISPENSER CADDYSBGC

DISPENSER TRENTA COLD VERTICALSBGC

BIN 2 PARTITION BLACK

3GAL SBGC 219882HAND DRYER BACK PANELSBGC

FONT

DISPENSER - RESTROOM WITH MOTION SENSOR

B-8263; PROVIDE WITH 826-20 AC ADAPRER (6V) x13011WATER TAP SBGCCOORDINATE FINAL SPECIFICATION WITH STARBUCKS DESIGN AND CONSTRUCTION MANAGERS

x13032KOALA - BOBRICK STAINLESS STEEL BABY CHANGING STATION WALL MOUNTED SBGCKB110-SSWM STORAGE

102222WIRE SHELF GRID AT SINKSBGC 104169WORKROOM SHELVING 36IN 915MMSBGC

104629WORKROOM SHELVING POSTSSBGC

106981MOP RACK WITH 3 HOLDERSSBGC

138341BASE 24X18IN 610X455MMSBGC

156991PARTNER WORK CENTERSBGC

172551PASTRY TRAY CART - 60IN 1525MMSBGC

172641ROLLING PASTRY TRAY THAW RACK 20X26IN 510X660MM SBGC

1947625 COMP LOCKER 12IN 305MMSBGC 222121WORKROOM SHELVING CART KITSBGC TRASH AND NAPKIN x13021TRASH AND NAPKIN DISPENSERSBGCVENDOR: SAN JAMAR; MODEL: H2005SC VENUE FULLFOLD; FINISH: SATIN CHROME

DESIGN IDCOUNTDESCRIPTIONFURN. BYINST. BYCOMMENTS

1. ALL COUNTERTOPS UTILIZED FOR CUSTOMER TRANSACTIONS, INCLUDING BAR, CONDIMENT AND SALES COUNTERTOPS SHALL BE INSTALLED AT 2'-10" MAXIMUM A.F.F.

2. VARIABLE WIDTH FILLER CABINET COUNTERTOP REQUIRED TO FILL GAP (FIELD VERIFY DIMENSION). FILLER PANEL AND COUNTERTOP SHALL BE SCRIBED AND FIELD CUT TO FIT. VENDOR TO COORDINATE EXACT DIMENSION WITH GC PRIOR TO INSTALLATION.

3. FLOOR SINK BELOW. CASEWORK MANUFACTURER TO COORDINATE DESIGN TO ENSURE THIS AREA IS READILY ACCESSIBLE FOR CLEANING AND FREE OF COUNTERTOP SUPPORT.

4. WALL FINISH BEHIND EXPOSED CABINETRY AND BELOW UNDERSIDE OF COUNTERTOP SUBSTRATE TO BE WHITE FRP, UON.

5. CASEWORK VENDOR TO ENGINEER PROPER COUNTERTOP SUPPORT AT ESPRESSO BAR AND OTHER WORKSTATIONS PER STARBUCKS MINIMUM PERFORMANCE REQUIREMENTS.

6. GC TO PROVIDE COUNTERTOP AND BACKSPLASH SEAMING DIAGRAMS TO STARBUCKS DESIGN MANAGER FOR APPROVAL AS NEEDED. COUNTERTOPS AND BACKSPLASH TO BE INSTALLED WITH SEAMLESS LOOK.

7. LED TAPE LIGHT AT FRONTBAR. REFER TO DETAILS AND SCHEDULES FOR MORE INFORMATION.

8. FULL HEIGHT WOOD CLADDING. REFER TO DETAILS AND SCHEDULES FOR MORE INFORMATION. GC TO PROVIDE BLOCKING AS REQUIRED FOR WOOD CLADDING.

9. MOP SLIDERS. REFER TO SCHEDULES FOR MORE INFORMATION.

10. WOOD CASING AT OPENING. REFER TO DETAILS FOR MORE INFORMATION.

11. WOOD TRIM AT STOREFRONT OPENING. REFER TO DETAILS FOR MORE INFORMATION.

12. CUSTOM UPPER CUBBY. REFER TO DETAILS FOR

KEYED NOTESGENERAL NOTES

219051CABINET - DOOR 30IN 760MMSBGC

219062CABINET - END CAP FRONTBARSBGC

219075CABINET - END CAP BACKBARSBGC

219083CABINET - FILLER PANEL - VARIABLE LENGTHSBGCOVERALL LENGTH: (1) 7 1/4"; (1) 1'-1/4"

219101CABINET - FRENCH CLEAT VARIABLE LENGTHSBGCLENGTH: 3'-2"

219123CABINET - BACK PANEL FOR POS 30IN 760MMSBGC

219132CABINET - EQUIPMENT MOUNTING PANELSBGC

226321CABINET - CBE DRY INCLUSION SHELF 44IN 1120MM FLAT BLACK MT0028 SBGC

x01013CUSTOM

COMPOSITE BLACK DIAMOND PAPERSTONE

CABINETS - EXTERIORCOMPOSITE BLACK DIAMOND PAPERSTONECP0024

OTHERCOMPOSITE BLACK DIAMOND PAPERSTONECP0024

COMPOSITE LINEN

COUNTERTOPS - BACKBARCOMPOSITE LINENCP0028

COUNTERTOPS - ESPRESSOCOMPOSITE LINENCP0028

COUNTERTOPS - ESPRESSO SHROUD COMPOSITE LINENCP0028

COUNTERTOPS - FRONTBARCOMPOSITE LINENCP0028

METAL FLAT BLACK POWDERCOAT

CABINETS DOOR PULLMETAL FLAT BLACK POWDERCOATMT0028

CABINETS TALL MERCH

CUBBY METAL FLAT BLACK POWDERCOATMT0028

CUSTOM CABINET AT DRIVE-THRU METAL FLAT BLACK POWDERCOATMT0028

FRAMING AND HARDWAREMETAL FLAT BLACK POWDERCOATMT0028

METAL STAINLESS STEEL BRUSHED

CABINETS - UNDERCOUNTER ICE BIN METAL STAINLESS STEEL - BRUSHED#4 BRUSHED 16GA

COUNTERTOPS - HAND SINKMETAL STAINLESS STEEL - BRUSHED#4 BRUSHED 16GA

FRAMING AND HARDWAREMETAL STAINLESS STEEL - BRUSHED#4 BRUSHED 16GA

PLAM GOLDEN BLONDE GRAIN

CABINETS TALL MERCH CUBBY PLAM - GOLDEN BLONDE GRAINPL0027

PLASTIC WHITE HDPE

CABINETS INTERIORPLASTIC WHITE HDPEPL0043

CUSTOM BAG DIVIDERSPLASTIC WHITE HDPEPL0043

WILSONART GREY 1500-60

CABINETS - DT POS CUBBYWILSONART GREY - 1500-60x1500

CUSTOM CABINET AT DRIVE-THRU WILSONART GREY - 1500-60x1500

WOOD - WHITE OAK

WOOD CASINGWOOD - WHITE OAKWD0073

WOOD TRIMWOOD - WHITE OAKWD0073

WOOD TRIM AT BACKBAR SOFFIT WOOD - WHITE OAKWD0073

WOOD TRIM AT BACKLINEWOOD - WHITE OAKWD0073

WOOD - WHITE OAK - ROUNDED SLAT VERTICAL

FINISH PANELSWOOD - WHITE OAK - ROUNDED SLATVERTICAL WD0073 MAD200-V

FINISH PANELS FRONTBARWOOD - WHITE OAK - ROUNDED SLATVERTICAL WD0073 MAD200-V

KEYED NOTES

1. MENU BOARDS. GC TO PROVIDE IN-WALL BLOCKING AND PROVIDE POWER DATA FOR DIGITAL MENU BOARDS. REFER TO INTERIOR ELEVATIONS FOR MORE INFORMATION.

2. WALL MOUNTED THERMOSTATS AND CO2 SENSORS. REFER TO MECHANICAL SHEETS FOR MORE INFORMATION.

3. SWITCHBANK. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION.

4. MOTION SENSOR LIGHT SWITCH IN RESTROOMS. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION.

5. PLATFORM FOR WATER HEATER SHELF AND WATER FILTRATION SYSTEM. PROVIDE 2X4 VCT CEILING, GC TO INSTALL WITH 18" MIN CLEAR ABOVE WATER HEATER OR WITH ADEQUATE CLEARANCE FOR SERVICING. REFER TO WATER HEATER DETAILS FOR MORE INFORMATION.

6. EXISTING DOOR WINDOW ACTIVATED AIR CURTAIN AT DRIVE-THRU DOOR PER JURISDICTIONAL REQUIREMENTS. REFER TO MECHANICAL SHEETS FOR MORE INFORMATION.

7. PROVIDE WIRELESS INTERNET ACCESS POINTS ABOVE FRONTBAR AND MANAGER'S DESK, AS SHOWN.

8. DATA RACK AT MANAGER'S DESK. GC TO INSTALL RACK TO ENSURE 2'-0" CLEAR WHEN OPENED. REFER TO ELECTRICAL DETAILS FOR MORE INFORMATION.

FIELD.

14. DASHED LINES INDICATE OUTLINE OF SUSPENDED ACOUSTICAL CEILING BAFFLES. GC TO INSTALL UNISTRUT AS REQUIRED. REFER TO ENLARGED DETAILS AND SCHEDULES FOR MORE INFORMATION.

15. PAINT ALL SIDES OF LIGHT COVE AS INDICATED, UON REFER TO INTERIOR FINISH ELEVATIONS AND DETAILS FOR MORE INFORMATION.

16. BULK HEAD TO STRUCTURE ABOVE.

17. OSCILLATING FAN AT PATIO, MOUNTED AT MAX HEIGHT POSSIBLE, UON. FANS TO BE ON SEPARATE CIRCUIT FROM LIGHTING AND POWER AT PATIO. ALL POWER AND LIGHTING TO BE ON SAME CIRCUIT. REFER TO ELECTRICAL SHEETS FOR MORE INFORMATION.

18. HVAC GRILLES PAINTED TO MATCH ADJACENT CEILING. REFER TO MECHANICAL SHEETS FOR MORE INFORMATION.

19. EXPOSED UTILITIES, MECHANICAL, STRUCTURE AND ROOF DECK TO BE PAINTED SW7053-ES ADAPTIVE SHADE.

20. WOOD CLADDING AND/OR CASING INSTALLED ON BOTTOM OF SOFFIT AND/OR HEADER. REFER TO DETAILS AND SCHEDULES FOR MORE INFORMATION.

21. SUSPENDED CEILING BAFFLE INSTALLATION STARTING POINT. REFER TO ENLARGED DETAILS AND SCHEDULES FOR TYPICAL SPACING AND MORE INFORMATION. ENSURE SCHEDULED LINEAR DIFFUSERS AT PERIMETER DO NOT CONFLICT WITH BAFFLES. ADJUST BAFFLES AS REQUIRED.

22. DOOR ACTIVATED AIR CURTAIN. REFER TO MEP DRAWINGS FOR MORE INFORMATION.

LEGEND

11.

10.

12.

13.

14. WALL SCONCE. REFER TO INTERIOR FINISH ELEVATION FOR MOUNTING HEIGHT.

COLORED

1. TILE START POINT WHERE INDICATED.

2. FLOOR SINK DRAIN LOCATION. REFER TO INTERIOR FLOOR PENETRATION PLAN AND PLUMBING SHEETS FOR MORE INFORMATION.

3. RECESSED ELECTRICAL. REFER TO PENETRATION PLAN AND ELECTRICAL SHEETS FOR MORE INFORMATION.

4. PLUMBING PENETRATION. REFER TO PENETRATION PLAN AND PLUMBING SHEETS FOR MORE INFORMATION.

5. RECESSED WALK OFF MAT AT ENTRY. ALIGN WALK OFF MAT WITH INSIDE OF DOOR JAMB. REFER TO INTERIOR DETAIL SHEETS FOR TRANSITION.

6. RECESSED WALK OFF MAT BORDER TO BE TRIMMED AS REQUIRED AND INSTALLED AS SHOWN. ALIGN WALK OFF MAT TO OUTSIDE OF DOOR MULLION.

7. MOP SINK WHERE INDICATED. REFER TO PLUMBING SHEETS FOR MORE INFORMATION.

8. CONTROL JOINTS PLACED AS NEEDED AND SEALED. COORDINATE FINISH PLACEMENT WITH STARBUCKS DESIGN AND CONSTRUCTION MANAGERS. CONTROL JOINTS INDICATED CONTINUE THE LENGTH AND WIDTH OF CONCRETE SLAB.

FLOOR FINISH LEGEND

1. SUSPENDED ILLUMINATED MOP SIGNAGE. PROVIDE TREATED BLOCKING AS REQUIRED. REFER TO REFLECTED CEILING PLAN AND ELECTRICAL SHEETS FOR MORE INFORMATION.

2. LED TAPE LIGHT AT FRONTBAR COUNTERTOP. REFER TO DETAILS FOR MORE INFORMATION.

3. DASHED LINE INDICATES CENTER OF FRONTBAR POS. CENTER DAILY OFFERING BOARD ON CENTER OF FRONTBAR POS.

4. LED TAPE LIGHT INSTALLED AT LIGHT COVE. REFER TO DETAILS FOR MORE INFORMATION.

5. INDICATES CEILING IN FOREGROUND. REFER TO REFLECTED CEILING PLAN FOR MORE INFORMATION.

6. INDICATES TAPE LIGHT IN COVE BEYOND. REFER TO LIGHTING PLAN AND DETAILS FOR MORE INFORMATION.

7. CUSTOM UPPER CUBBY. REFER TO DETAILS FOR MORE INFORMATION.

8. WALL FINISH BEHIND EXPOSED CABINETRY AND BELOW UNDERSIDE OF COUNTERTOP SUBSTRATE TO BE FRP.

9. PROVIDE 8" MIN. INTEGRAL SPLASHGUARD AT HAND SINK PER JURISDICTIONAL REQUIREMENTS.

10. BACKBAR WALL TILE. REFER TO DETAILS FOR MORE INFORMATION.

11. SHELVING FOR CBE STATION AS SHOWN. GC TO PROVIDE WALL BLOCKING FOR FASTENERS.

12. MENU BOARDS MOUNTED TO WALL. REFER TO DETAILS FOR MORE INFORMATION. GC TO PROVIDE POWER AND DATE FOR DIGITAL MENU BOARDS. (2) DUAL DATA PORTS AND (2) QUAD OUTLETS. POWER AND DATE TO BE CAPPED OFF IN WALL NEAR CENTER

13.

14.

KEYED

1. BACKBAR WALL TILE. REFER TO DETAILS FOR MORE INFORMATION.

2. CUSTOM UPPER CUBBY. REFER TO DETAILS FOR MORE INFORMATION.

3. STAINLESS STEEL PLATE INSTALLED BELOW DRIVE-THRU WINDOW.

4. ACCESSIBLE EXIT SIGNAGE.

5. WOOD CASING AT GLAZING. REFER TO DETAILS FOR MORE INFORMATION.

6. LED TAPE LIGHT INSTALLED AT LIGHT COVE. REFER TO DETAILS FOR MORE INFORMATION.

7. DASHED LINES INDICATE UNDERCOUNTER LED TAPE LIGHT. REFER TO DETAILS FOR MORE INFORMATION.

8. SUSPENDED ILLUMINATED MOP SIGNAGE. PROVIDE TREATED BLOCKING AS REQUIRED. REFER TO REFLECTED CEILING PLAN AND ELECTRICAL SHEETS FOR MORE INFORMATION.

9. BLACK EMERGENCY EXIT SIGN WALL MOUNTED AND CENTERED ON OPENING BELOW. REFER TO LIGHTING DIMENSION PLAN FOR MORE INFORMATION.

10. WALL MOUNTED MERCH DISPLAY FIXTURE. REFER TO CASEWORK PLAN FOR MORE INFORMATION.

11. EXPOSED WOOD STRUCTURE TO BE PAINTED SW7053-ES ADAPTIVE SHADE.

12. FULL HEIGHT WOOD CLADDING. REFER TO DETAILS FOR MORE INFORMATION. GC TO PROVIDE BLOCKING AS REQUIRED PER MANUFACTURER'S INSTALLATION REQUIREMENTS.

13. ACOUSTICAL PANEL SYSTEM SUSPENDED FROM UNISTRUT ATTACHED TO EXISTING STRUCTURE AT 10'-8" AFF TO BOTTOM OF BAFFLES. REFER TO REFLECTED CEILING PLAN AND DETAILS FOR MORE INFORMATION. REFER TO MANUFACTURER'S SPECIFICATIONS FOR INSTALLATION AND ATTACHMENT GUIDES.

14. REMOVABLE FINISH PANELS AT FRONTBAR POS FOR UTILITY ACCESS. MINIMUM OF 2 PANELS FOR EASE OF ACCESS.

15. ROLLER SHADES -ORDER LENGTH TO ALIGN WITH TOP OF BOTTOM INTERMEDIATE MULLION. ORDER CROPPED LENGTH ABOVE DOOR. GC TO VERIFY MOUNTING AND LENGTH IN FIELD.

16. CHAIR RAIL AND WAINSCOT BELOW. REFER TO SCHEDULES FOR MORE INFORMATION.

17. CUSTOM TALL STORAGE.

18. PROVIDE 8" MIN. INTEGRAL SPLASHGUARD AT HAND SINK PER JURISDICTIONAL REQUIREMENTS.

19. WOOD TRIM.

A. REFER TO SCHEDULES FOR PAINTS, WALL TREATMENTS AND GRAPHICS.

B. REFER TO MANUFACTURER'S INSTRUCTIONS INCLUDED WITH ARTWORK/GRAPHICS FOR PROPER INSTALLATION. C. CHANGE PAINT COLOR ONLY AT INSIDE CORNERS UNLESS OTHERWISE INDICATED.

D. PAINT FINISHES SHALL BE APPLIED AS FOLLOWS, UNLESS NOTED OTHERWISE:

a. WOODS AND METAL SURFACES SHALL BE DIRECT

1. EXPOSED UTILITIES, DUCTS AND WOOD STRUCTURE TO BE PAINTED SW7053-ES ADAPTIVE SHADE.

2. INDICATES UNISTRUT ATTACHED TO EXISTING STRUCTURE. UNISTRUT TO BE PAINTED TO MATCH DECK. GC TO ADD ADDITIONAL SUPPORTS AS REQUIRED.

3. ACOUSTICAL PANEL SYSTEM SUSPENDED FROM UNISTRUT ATTACHED TO EXISTING STRUCTURE AT 10'-8" AFF TO BOTTOM OF BAFFLES. REFER TO REFLECTED CEILING PLAN AND DETAILS FOR MORE INFORMATION. REFER TO MANUFACTURER'S SPECIFICATIONS FOR INSTALLATION AND ATTACHMENT GUIDES.

4. LED TAPE LIGHT INSTALLED AT LIGHT COVE. REFER TO DETAILS FOR MORE INFORMATION.

5. FULL HEIGHT WOOD CLADDING. REFER TO DETAILS FOR MORE INFORMATION. GC TO PROVIDE BLOCKING AS REQUIRED PER MANUFACTURER'S INSTALLATION REQUIREMENTS.

6. BLACK EMERGENCY EXIT SIGN MOUNTED ABOVE STOREFRONT, AND CENTERED ON DOOR BELOW. GC TO ENSURE BAFFLES DO NOT OBSCURE VIEW OF EXIT SIGNAGE.

7. BLACK EMERGENCY EXIT WALL MOUNTED AND CENTERED ON OPENINGR BELOW. GC TO ENSURE BAFFLES DO NOT OBSCURE VIEW OF EXIT SIGNAGE.

8. ACCESSIBLE EXIT SIGNAGE.

9. WOOD CASING AT GLAZING. REFER TO DETAILS FOR MORE INFORMATION.

10. CHAIR RAIL AND WAINSCOT BELOW. REFER TO SCHEDULES FOR MORE INFORMATION.

11. ROLLER SHADES -ORDER LENGTH TO ALIGN WITH TOP OF BOTTOM INTERMEDIATE MULLION. ORDER CROPPED LENGTH ABOVE DOOR. GC TO VERIFY MOUNTING AND LENGTH IN FIELD.

12. WALL MOUNTED MERCH DISPLAY FIXTURE. REFER TO CASEWORK PLAN FOR MORE INFORMATION.

13. WOOD CASED OPENING. REFER TO DETAILS AND SCHEDULES FOR MORE INFORMATION.

14. ARTWORK. REFER TO DETAILS FOR MORE INFORMATION.

15. CUSTOM COMMUNITY BOARD. REFER TO DETAILS FOR MORE INFORMATION.

16. DOOR / FRAME FINISH AS INDICATED. GC TO ENSURE FINISH TO BE APPLIED WITH MINIMUM 3 COATS.

17. ACCESSIBLE RESTROOM SIGNAGE.

18. WOOD TRIM.

A. REFER TO SCHEDULES FOR PAINTS, WALL TREATMENTS AND GRAPHICS.

B. REFER TO MANUFACTURER'S INSTRUCTIONS INCLUDED WITH ARTWORK/GRAPHICS FOR PROPER INSTALLATION.

C. CHANGE PAINT COLOR ONLY AT INSIDE CORNERS UNLESS OTHERWISE INDICATED.

D. PAINT FINISHES SHALL BE APPLIED AS FOLLOWS, UNLESS NOTED OTHERWISE: a. WOODS AND METAL SURFACES SHALL BE DIRECT TO METAL PAINT.

LEGEND

INDICATES WALL BLOCKING. BLOCKING TO BE PROVIDED AS REQUIRED TO SUPPORT WALL ATTACHMENTS. EXTEND BLOCKING 4" BEYOND EDGE OF ATTACHMENTS.

WALL TILE START POINT DATUM

15.

14.

12.

13.

11.

10.

120V140020AB82#12, 1#12G, 3/4C

20032MERRYCHEF EKON E2S OVEN208V6000W40AB1,33#6, 1#10G, 3/4"C 110832 DOOR REACH-IN REFRIGERATOR120V120020AA132#12 1#12G, 3/4"C

12508ON-COUNTER BLENDER120V180020AB212#12, 1#12G, 3/4"C 20032MERRYCHEF EKON E2S OVEN208V6000W40AB2,43#6, 1#10G, 3/4"C

12508ON-COUNTER BLENDER120V180020AB222#12, 1#12G, 3/4"C

126181 DOOR UNDERCOUNTER REFRIGERATOR120V50020AB62#12, 1#12G, 3/4"C

136822 DOOR REACH-IN FREEZER120V132020AA112#12, 1#12G, 3/4"C 126181 DOOR UNDERCOUNTER REFRIGERATOR120V50020AB52#12, 1#12G, 3/4"C

15186DISHWASHER208V634440AA8,103#6, 1#10G, 3/4"C

18845ICE MACHINE 208V450030AA7,92#10, 1#100G, 3/4"C

1#12G, 3/4"C

1. BLACK EMERGENCY EXIT SIGN, WALL MOUNTED AND CENTERED ON DOOR. ENSURE SIGN DOES NOT INTERFERE WITH AIR CURTAIN.

2. BLACK EMERGENCY EXIT SIGN, WALL MOUNTED DIRECTLY ABOVE, AND CENTERED ON DOOR OPENING BELOW.

3. BLACK EMERGENCY EXIT SIGN, CEILING MOUNTED AND CENTERED ON DOOR BELOW.

4. EMERGENCY LIGHT, WALL MOUNTED AT 7'-0" AFF.

5. EMERGENCY LIGHT, WALL MOUNTED AT 8'-0" AFF.

6. LED TAPE LIGHT. REFER TO DETAILS AND SCHEDULES FOR MORE INFORMATION.

7. RECESSED LED WORKROOM TROFFER LIGHTS.

8. DASHED LINE INDICATES LED TAPE LIGHT INSTALLED AT FRONTBAR COUNTER. REFER TO DETAILS AND SCHEDULES FOR MORE INFORMATION.

9. WHITE ADJUSTABLE RECESSED CAN LIGHT. REFER TO FURNITURE LIGHTING PLAN FOR MORE INFORMATION.

10. BLACK ADJUSTABLE RECESSED CAN LIGHT. REFER TO FURNITURE LIGHTING PLAN FOR MORE INFORMATION.

ACOUSTICAL CEILING BAFFLES. REFER TO FURNITURE LIGHTING PLAN AND INTERIOR ELEVATIONS FOR MORE INFORMATION. GC TO ADJUST HEAD LOCATIONS AS REQUIRED TO FIT BETWEEN BAFFLES.

12. WHITE CEILING MOUNTED TRACK AND TRACK HEADS. REFER TO FURNITURE LIGHTING PLAN AND DETAILS FOR MORE INFORMATION.

13. LED STRING LIGHTS TO BE ATTACHED TIGHT TO EXISTING PATIO STRUCTURE.

14. WALL SCONCE. REFER TO INTERIOR FINISH ELEVATION FOR MOUNTING HEIGHT.

EGRESS LIGHTING NOTES

A. EXIT SIGNS SHALL BE INTERNALLY ILLUMINATED, LISTED AND LABELED IN ACCORDANCE WITH UL 924 AND INSTALLED IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS.

B. ANYTIME A BUILDING OR A PORTION OF A BUILDING IS OCCUPIED, THE MEANS OF EGRESS SERVING THE OCCUPIED PORTION SHALL BE ILLUMINATED AT AN INTENSITY OF

1)AISLES

AND SPACES THAT REQUIRE TWO OR MORE MEANS OF EGRESS.

2)CORRIDORS, INTERIOR EXIT STAIRWAYS & RAMPS AND EXIT PASSAGEWAYS IN BUILDINGS REQUIRED TO HAVE TWO OR MORE EXITS.

3)EXTERIOR

4)INTERIOR EXIT DISCHARGE ELEMENTS, AS PERMITTED IN BUILDINGS REQUIRED TO HAVE TWO OR MORE EXITS.

5)EXTERIOR LANDINGS, AS REQUIRED EXIT DISCHARGE DOORWAYS IN BUILDING REQUIRED TO HAVE TWO OR MORE EXITS.

D. THE EMERGENCY POWER

LABELER

AERATOR 2.0 GPM

108041FAUCET PRE RINSE SWING SPOUTSBGC

108741FAUCET INSTAHOT SYSTEM SINGLE LEVERSBGC 109221FAUCET MOP SINK WALL MOUNTEDSBGC

109431FAUCET SINGLE LABORATORY WITH SWING SPOUT SBGC

110032FAUCET METERED SBGC

135881FAUCET HAND SINK WALL MOUNTEDSBGC

157492FAUCET INSTAHOT SYSTEM DUAL LEVERSBGC

x10001FAUCET TAP SINGLE HANDLEGCGCMANUFACTURER: WELBILT CONTACT: KERI HIGGS KERI.HIGGS.@WELBILT.COM 877.375.9300 SPEC: TRUPOUR ROTOTAP TOWER 000-D2S-0032 PART # 011075232

x213522FAUCET RESTROOM WITH MOTION SENSORSBGCWITH HARDWIRED POWER CONVERTER (P6000-HW6). ORDER (P6000-HW6) CONVERTER SEPARATELY. REFER TO ELECTRICAL AND PLUMBING DETAILS FOR MORE INFOMRATION.

FILTER

125011FILTER RO SYSTEM 600GPDSBVDGC TO COORDINATE WITH STARBUCKS VENDOR

125071FILTER RO SYSTEM STORAGE TANK RO40SBVDGC TO COORDINATE WITH STARBUCKS VENDOR

128961FILTER BRINE TANK SBVDGC TO COORDINATE WITH STARBUCKS VENDOR

128992FILTER POLY GLASS VESSELSBVDGC TO COORDINATE WITH STARBUCKS VENDOR

130761FILTER PREFILTRATION SYSTEMSBVDGC TO COORDINATE WITH STARBUCKS VENDOR

130821FILTER WATER SOFTENER TWINSBVDGC TO COORDINATE WITH STARBUCKS VENDOR

OTHER

222311WATER HEATER TANK GASGCGCRE: P601 FOR SPECIFICATION. ORDER FROM NATIONAL ACCUNT VENDOR; CONTACT: NATIONAL HOT WATER ATTN: KATHY SHAW, ACCOUNT MANAGER; DIRECT:214.876.0938, CUSTOMER SERVICE: 888.444.4435, EMAIL: HOTWATERNIGHTCALLS@NATIONALWHO LESALE.BIZ

SINK

101162SINK - RESTROOM WALL MOUNTEDSBGCTMV - RE: P601 FOR SPECIFICATION

105491SINK - RINSE DROP IN SST 12X20IN 305X510MMSBGC 109951SINK - MOP 24X24IN 610X610MMSBGC

137001SINK - 3 COMP WORK SST 105IN 2665MMSBGC 146881SINK - HAND WITH SIDE SPLASH WALL MOUNTED SST SBGCTMV - RE: P601 FOR SPECIFICATION

187431SINK - WATER FILLING

RENOVATIONS

ITEMS TO PRESERVEITEMS TO DEMOLISH

BACKBAR DRIVE-THRU

• ALLDATADEVICES,UON

• SHUTTLES(3)

• BREWER

• BLENDERS(2)

• NITROTAPW UCREFANDGENERATOR

• GRINDER

• 1DRUCREFS(3)

• MASTRENAS(2)

• SCALE

• PASTRYCASE&PASTRYTRAYCART

• PASTRYRACK

• SAFEANDSAFEBASE

• POSSTATION

• PRINTERS(4)

WORKROOM

• ALL EQUIPMENT, FIXTURESANDFINISHES,UON.

• RESTROOMS

• •ALLEQUIPMENT, FIXTURESANDFINISHES,UON.

VESTIBULE

• ACCESSIBLEUNISEXRESTROOM SIGNAGE

REAROFBUILDING

• TRASHTOTES(2)

SEATING/SALES

FURNITURE

MERCHBAYS

FLOORTILEANDBASE,UON.

WALLFINISHES

METALSCREENS(3)

SITHEREBAR

ROLLERSHADES(REF.DEMORCP)

WALKOFFMAT CONDIMENTCART

COMMUNITYBOARD

NEWSPAPERSTAND

ARTWORK COMMUNITYBOARD

CONFERENCEROOM

FURNITURE

WALLFINISHES

ARTWORK. DRYERASEBOARD

BACKBAR DRIVE-THRU

PLUMBINGFIXTURES,UON.

CASEWORK

WARMINGOVEN(2)

2DRUCREF

FLOORTILEANDBASE

UPPERCASEWORK(REF.DEMORCP)

MENUBOARDS(REF.DEMORCP)

POSEQUIPMENT

CUPCADDY(2) PRINTERS(3)

PATIO

FURNITURE

UMBRELLAS(4)

AND EQUIPMENT AS SHOWN.

6. REMOVE EXISTING METAL SCREEN AND ASSOCIATED SUPPORTS. REPAIR AND REPLACE SUB-FLOOR AS REQUIRED TO PROVIDE AN EVEN WALKING SURFACE FOR A FINISHED FLOOR

ALL EGRESS AND ACCESSIBILITY SIGNAGE FOR REINSTALLATION. PATCH AND REPAIR WALLS AS REQUIRED FOR NEWLY SCHEDULED FINISH.

11.

10.

G. VERIFY WITH STARBUCKS CONSTRUCTION MANAGER ACCESS TO THE DEMOLITION AREA, INGRESS AND EGRESS ROUTES FOR MATERIAL AND EQUIPMENT.

H. PROTECT EXISTING FLOORS, WALLS AND CORNERS TO REMAIN ALONG WORK ACCESS ROUTES.

I. CONTAIN DUST AND DEBRIS WITHIN THE DEMOLITION AREA.

J. THE GENERAL CONTRACTOR SHALL PERFORM WORK IN A MANNER THAT DOES NOT DAMAGE THE EXISTING STRUCTURE. DEMOLITION SHALL NOT COMPROMISE THE STRUCTURAL INTEGRITY OF ANY WALLS, FLOORS, CEILINGS, SUPPORTS, STRUCTURE, ETC. TO REMAIN.

K. ALL DEMOLITION MATERIALS AND DEBRIS SHALL BE DISPOSED OF ACCORDING TO FEDERAL, STATE AND LOCAL REGULATIONS.

L. AT LOCATIONS WHERE EXISTING WALLS ARE TO BE REMOVED NEAR EXISTING WALLS TO REMAIN, PERFORM DEMOLITION WITHOUT DISTURBING EXISTING ELEMENTS TO REMAIN. WALLS TO REMAIN SHALL BE INTACT AND HAVE A NEAT SURFACE.

M. REFER TO "ITEMS TO BE PRESERVED" LIST FOR ITEMS THAT SHALL BE SALVAGED FOR RELOCATION. VERIFY WITH OWNER FOR ON SITE STORAGE LOCATION OF SALVAGED ITEMS.

N. DAMAGED FIREPROOFING SHALL BE REPAIRED/ REPLACED TO MATCH EXISTING.

O. THE GENERAL CONTRACTOR SHALL DEMOLISH ANY EXISTING ABANDONED VOICE/DATA CABLING AND DEAD OR NON-USE ELECTRICAL BACK TO PANEL. ALL RECEPTACLES NOT REUSED ARE TO BE REMOVED, PATCHED AND PAINTED.

P. REMOVAL OF LOW VOLTAGE EQUIPMENT, PERTAINING TO DATA/COMMUNICATIONS AND TELEPHONE SHALL BE VERIFIED BY THE STARBUCKS CONSTRUCTION MANAGER PRIOR TO REMOVAL. SALVAGED EQUIPMENT SHALL BE STORED IN A CLIMATE CONTROLLED ENVIRONMENT FOR FUTURE INSTALLATION.

Q. LABEL

A. ALL STUB-UP DIMENSIONS ARE RELATIVE

1. DIMENSION START POINT.

2. WASTE LINE PENETRATION. REFER TO PLUMBING SHEETS FOR MORE INFORMATION.

3. PLUMBING SUPPLY LOCATION. REFER TO PLUMBING SHEETS FOR MORE INFORMATION.

4. FLOOR SINK LOCATION. REFER TO PLUMBING SHEETS FOR MORE INFORMATION.

5. MOP SINK. REFER TO PLUMBING SHEETS FOR MORE INFORMATION.

6. HAND SINK. REFER TO PLUMBING SHEETS FOR MORE INFORMATION.

7. SAWCUT EXISTING CONCRETE SLAB AND REMOVE AS REQUIRED FOR FLOOR SINK AND/OR FLOOR PENETRATION. REFER TO SLAB DETAIL FOR MORE INFORMATION.

8. VERIFY EXISTING SLAB CONDITIONS THROUGHOUT. X-RAY SLABS AS REQUIRED FOR PLUMBING AND ELECTRICAL TRENCHING. IF SITE CONDITIONS PROHIBITS LOCATION AS INDICATED, NOTIFY STARBUCKS CONSTRUCTION MANAGER IMMEDIATELY FOR ALTERNATE LOCATION. REFERENCE SLAB REPAIR DETAIL AS REQUIRED.

SUBSTRATE

KEYED NOTES GENERAL NOTES

KEYED NOTESGENERAL NOTES

1. EXISTING GYPSUM CEILING TO REMAIN. GC TO PREPARE CEILING AS REQUIRED FOR NEWLY SCHEDULED CEILING. REFER TO REFLECTED CEILING PLAN FOR MORE INFORMATION. GC TO NOTIFY STARBUCKS CONSTRUCTION MANAGER OF ANY DISCREPANCIES.

2. REMOVE AND RETAIN EXISTING HVAC GRILLES AS SHOWN GC TO VERIFY EXISTING CONDITIONS OF MECHANICAL DEVICES IN FIELD AND RETAIN FOR RE-USE IF POSSIBLE. REPLACE AS REQUIRED.

3. DEMOLISH EXISTING LIGHTING AS SHOWN. GC TO RETAIN ALL EXISTING J-BOXES FOR RE-USE IF POSSBLE. CAP ALL UNUSED J-BOXES. PATCH AND REPAIR EXISTING CEILING AS REQUIRED FOR SMOOTH, PAINT READY FINISH.

4. REMOVE AND RETAIN EXISTING MENU BOARDS AND SHELVING. PATCH AND REPAIR WALL AS REQUIRED FOR NEWLY SCHEDULED FINISHES.

5. REMOVE EXISTING WINDOW COVERINGS THROUGHOUT. PATCH AND REPAIR ALL AREAS OF ATTACHMENT TO PROVIDE A SMOOTH, PAINT READY FINISH.

6. REMOVE EXISTING SPEAKERS AND ASSOCIATED CONNECTIONS.

7. EXISTING CEILING, LIGHT FIXTURES, MECHANICAL EQUIPMENT AND UTILITIES TO REMAIN IN AREAS INDICATED. PROTECT THROUGHOUT DEMOLITION AND CONSTRUCTION.

8. REMOVE EXISTING WALL SCONCES

A. IF DURING DEMOLITION CONDITIONS ARE REVEALED THAT MAY JEOPARDIZE INTEGRITY OF STRUCTURE OR PRECLUDE FOLLOWING DESIGN INTENT, GENERAL CONTRACTOR TO NOTIFY STARBUCKS CONSTRUCTION MANAGER IMMEDIATELY.

B. REMOVE EXTRANEOUS EQUIPMENT AS NECESSARY.

C. DEMOLISH AND REMOVE SUSPENDED ACOUSTIC LAY-IN, SPLINE OR GYPSUM/ PLASTER CEILING INCLUSIVE OF HANGERS AND CARRYING CHANNELS, WIRES, CABLES, CONDUIT, ADHERED CEILING TILES, FLEX CONDUIT, ELECTRICAL BOXES, SMOKE DETECTORS, LIGHT FIXTURES AND WIRING, DUCT WORK, PIPING AND SUPPORT HANGERS. CUT HANGERS FLUSH. SPACES RECEIVING WALL DEMOLITION WILL ALSO HAVE CEILING DEMOLITION UNLESS OTHERWISE NOTED.
