C O N T E N T S

1

THESIS WORK

2

URBAN INSERT

3

AAROGYAM

4

AALAYAM

5

10th semester

9th semester academics

Multi speciality Hospital

Luxury condominium

PROFESSIONAL TRAINING Studio alaya pjt pvt ltd.

6

COMPETITIONS

7

ASSORTED

NASA Trophy and volumezero

Certificates ,sketches and artworks

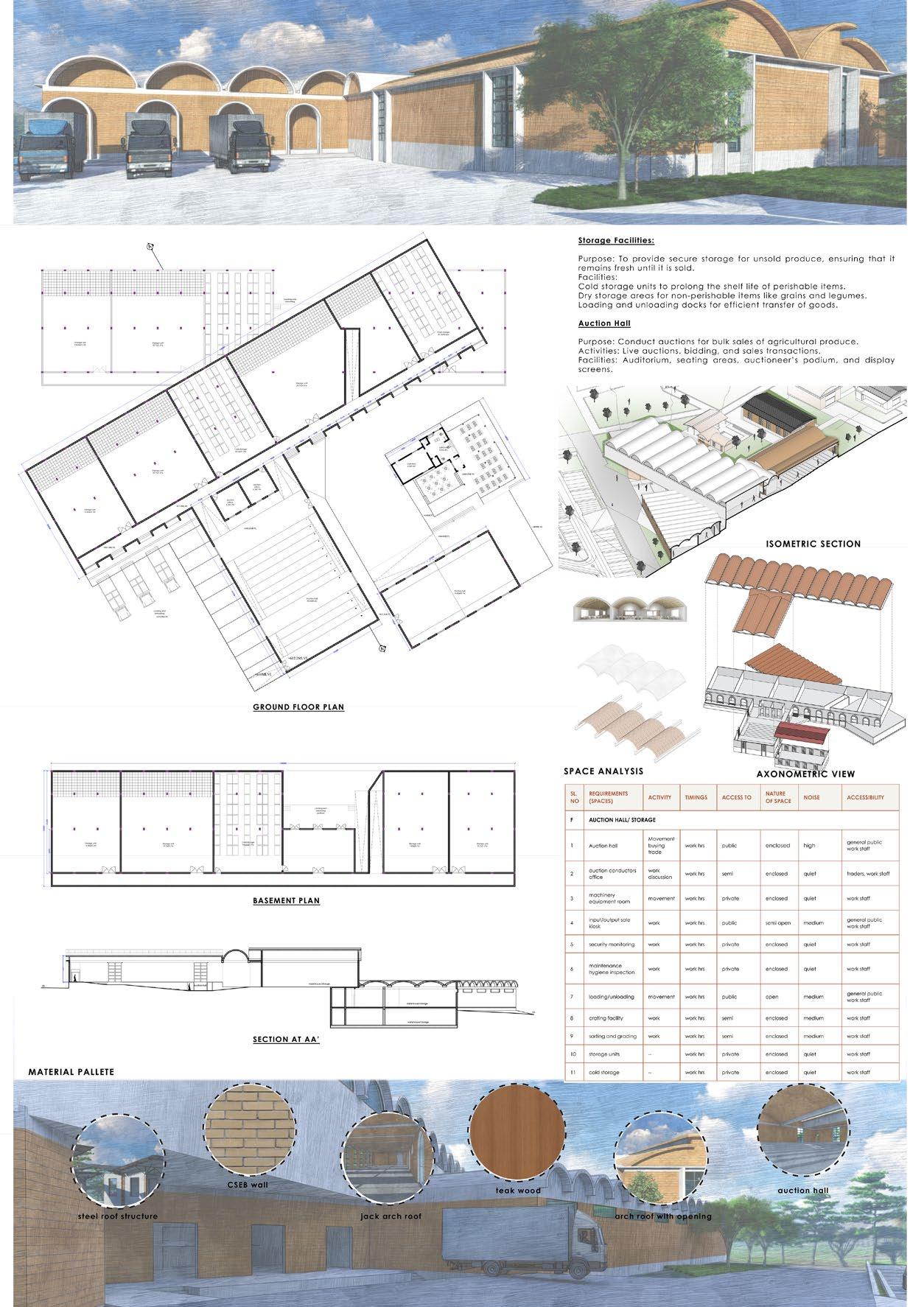

T H E S I S P R O J E C T

INTEGRATED PERI URBAN AGRICULTURE PRODUCE MARKET Neighboring site

603m

604m

ProjectIntegrated Peri urban Agriculture produce market Location of the propertyLatitude:13°58’39”NLongitude:75°34’4 5”E Altitude: 630m State, City, LocalityOpposite university of agro science shimoga karnataka Size of the propertyArea/Dimensions: Site area: - 88878 sq.m.

380.34m–North 363.20m- East 257.98m- South 231.26m- West Access to the property- The site is accessible by road from south and west directions which are parallel to the site.

Topographic condition- The Site has a slope of 11m approx. towards the north direction. from 612mlvl to 601mlvl.

Water supply & Sanitation- Water– The site has its own water supply.

There is an existing water pond on north side of site.

Electricity Supply - Source – The site has a set up sup ply from MESCOM.

605m

Climatic dataAnnual Rainfall: 624 mm No. of Rainy days: 69 days Rainfall pattern: april to September Wind Directions: Annual mean East and West Wind Speed: 9.8 Km.Pr.hr. annual mean Winters: November: Feb: East and South East Summers: March: East and South east April: East May: West

606m

607m

Neighboring site

608m

609m

610m

611m

Monsoon June: September: East Oct: East and West Temperature Summers: 23Cmin – 36 C max Winters: 14 C min – 26 C max Type of climate: Tropical wet and dry

612m 612m 611m 610m

SITE 1

2

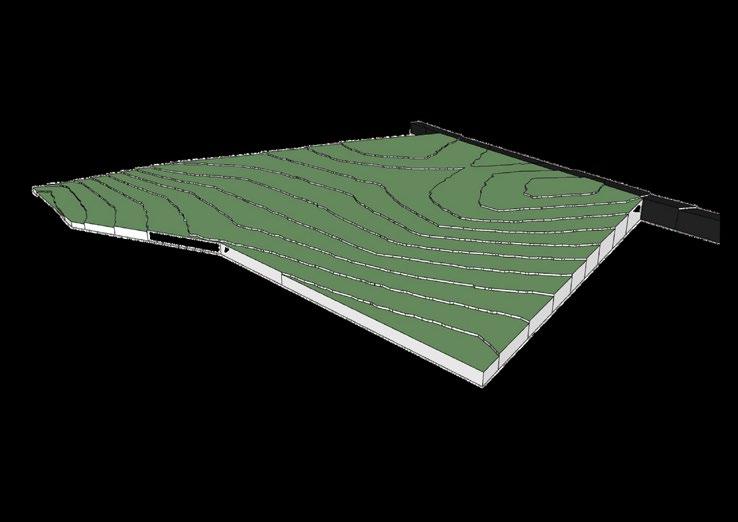

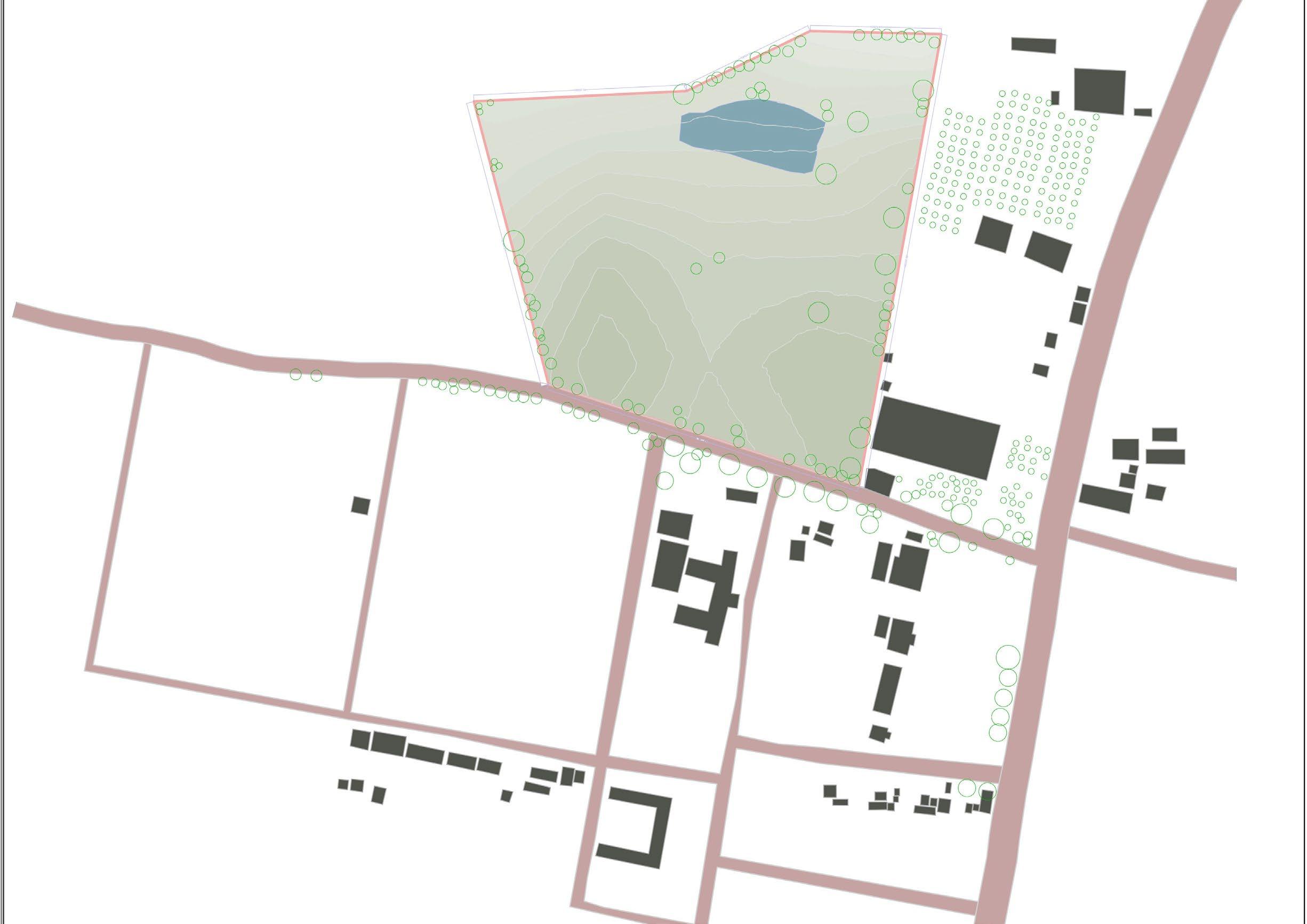

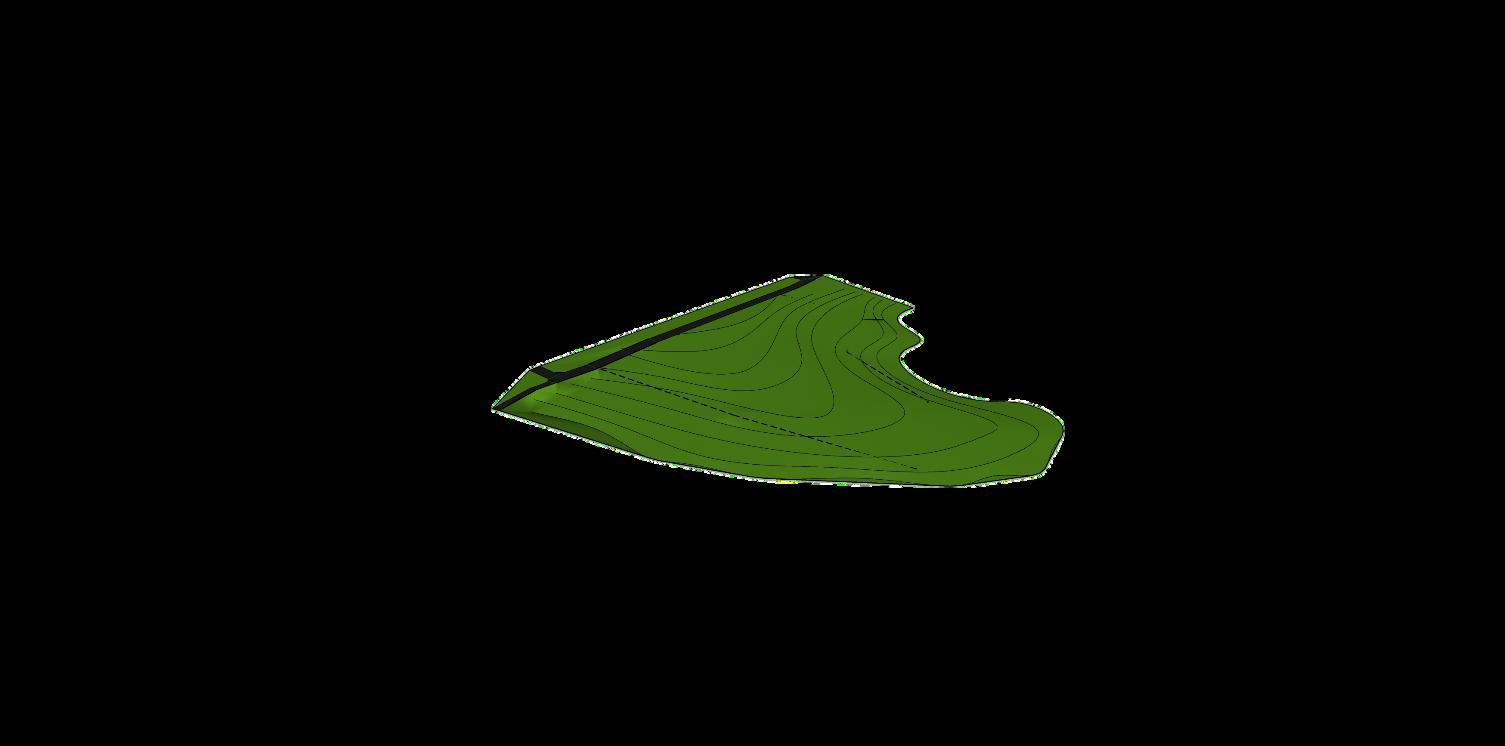

SITE AND CONTOUR

602mlvl

Presence of Vegetation: While the site does have some vegetation, such as mango trees, champa trees, gulmohor, and arecanut trees, the distribution and density of vegetation vary across the site.

Vegetation plays a crucial role in stabilizing soil and reducing erosion by intercepting rainfall, reducing water runoff, and binding soil particles together with their root systems

Vegetative Measures: Promote the preservation and planting of vegetation, such as grasses, shrubs, and trees, to stabilize soil and reduce erosion. Utilize existing vegetation like mango trees, champa trees, and gulmohor, and consider planting additional vegetation where needed.

vacant plot

12m

wid

e ro

ad

SH57

of

pond

drain pattern

The connectivity to state highway 57 suggests that the site may experience moderate traffic flow influencing its suitability for market or commercial development. the 12 m wide road running along the front of the site offers easy access and visibility facilitating connectivity to SH57.

Site has t space fo presence implies compatib neighbor

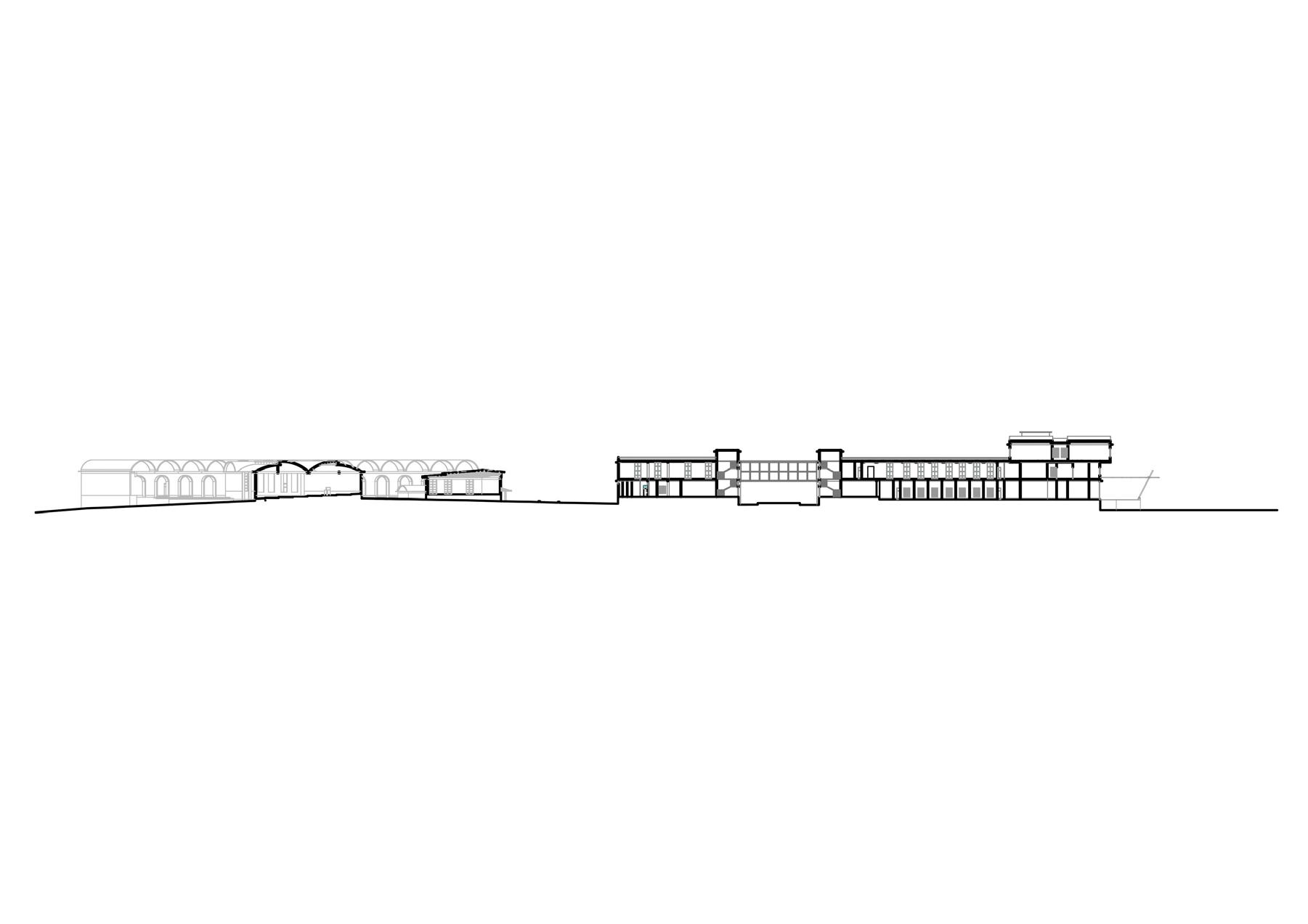

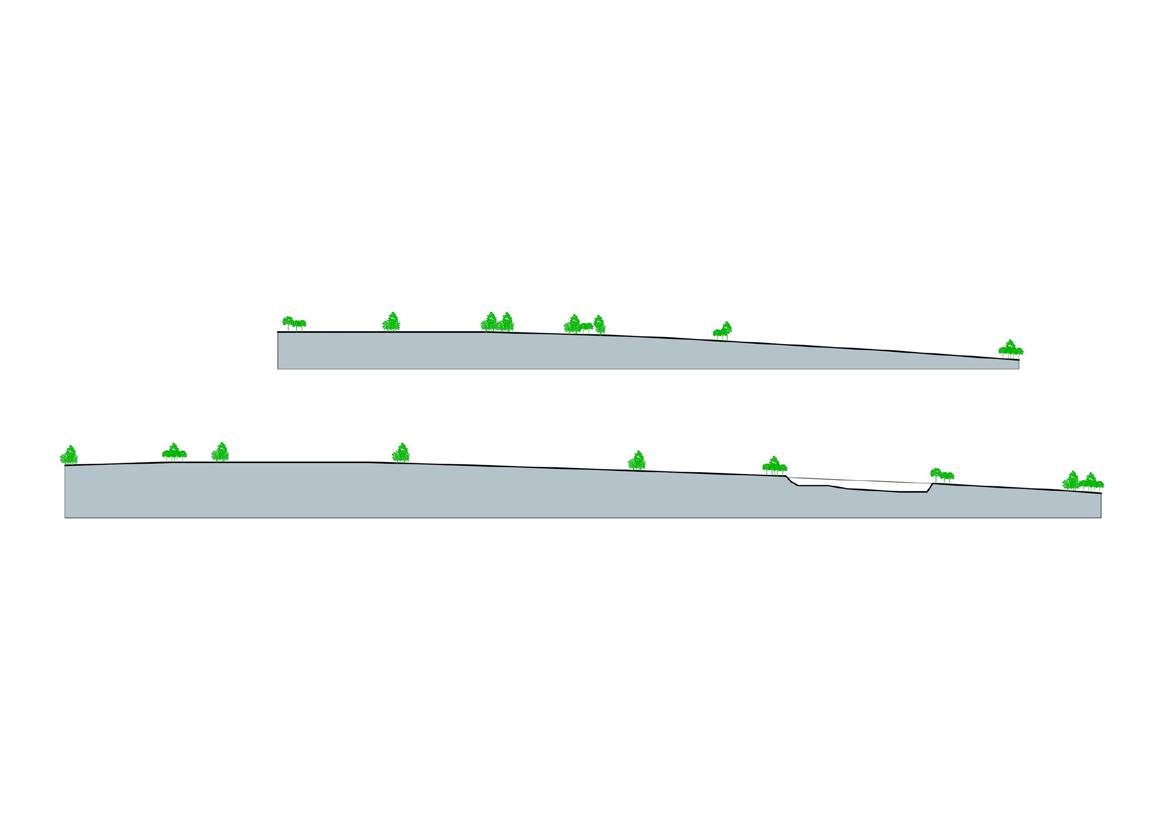

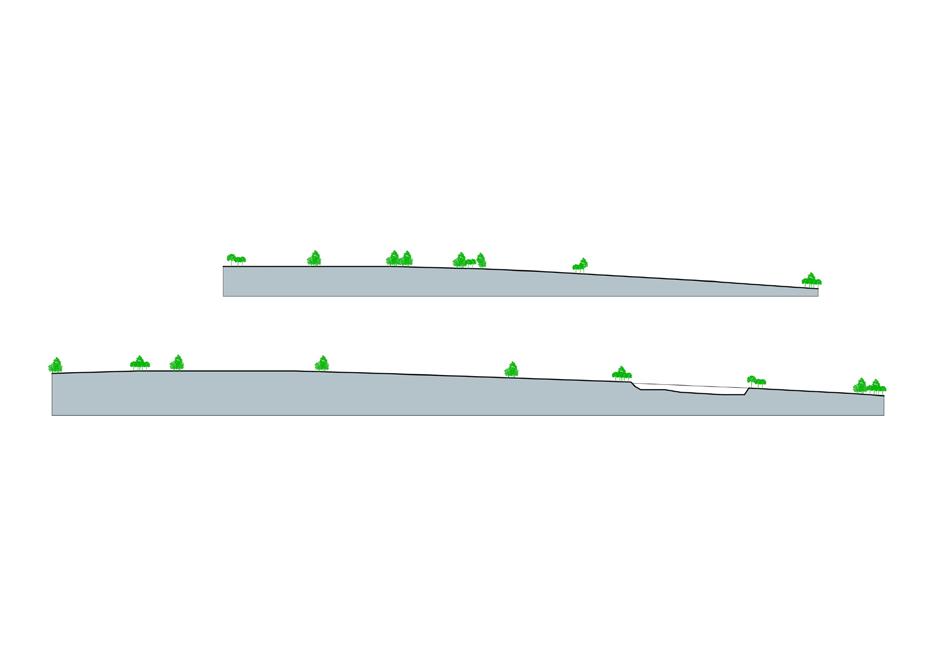

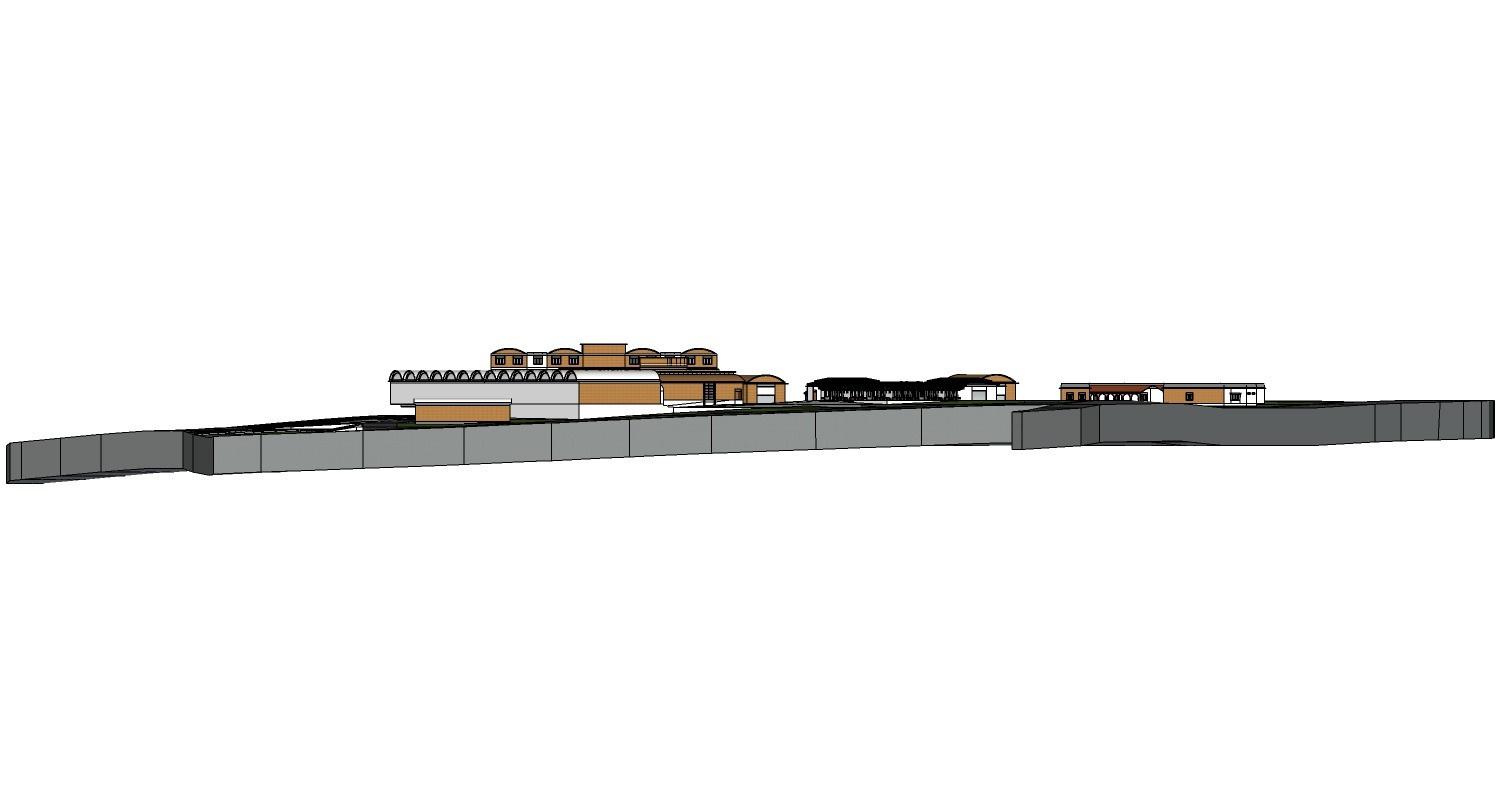

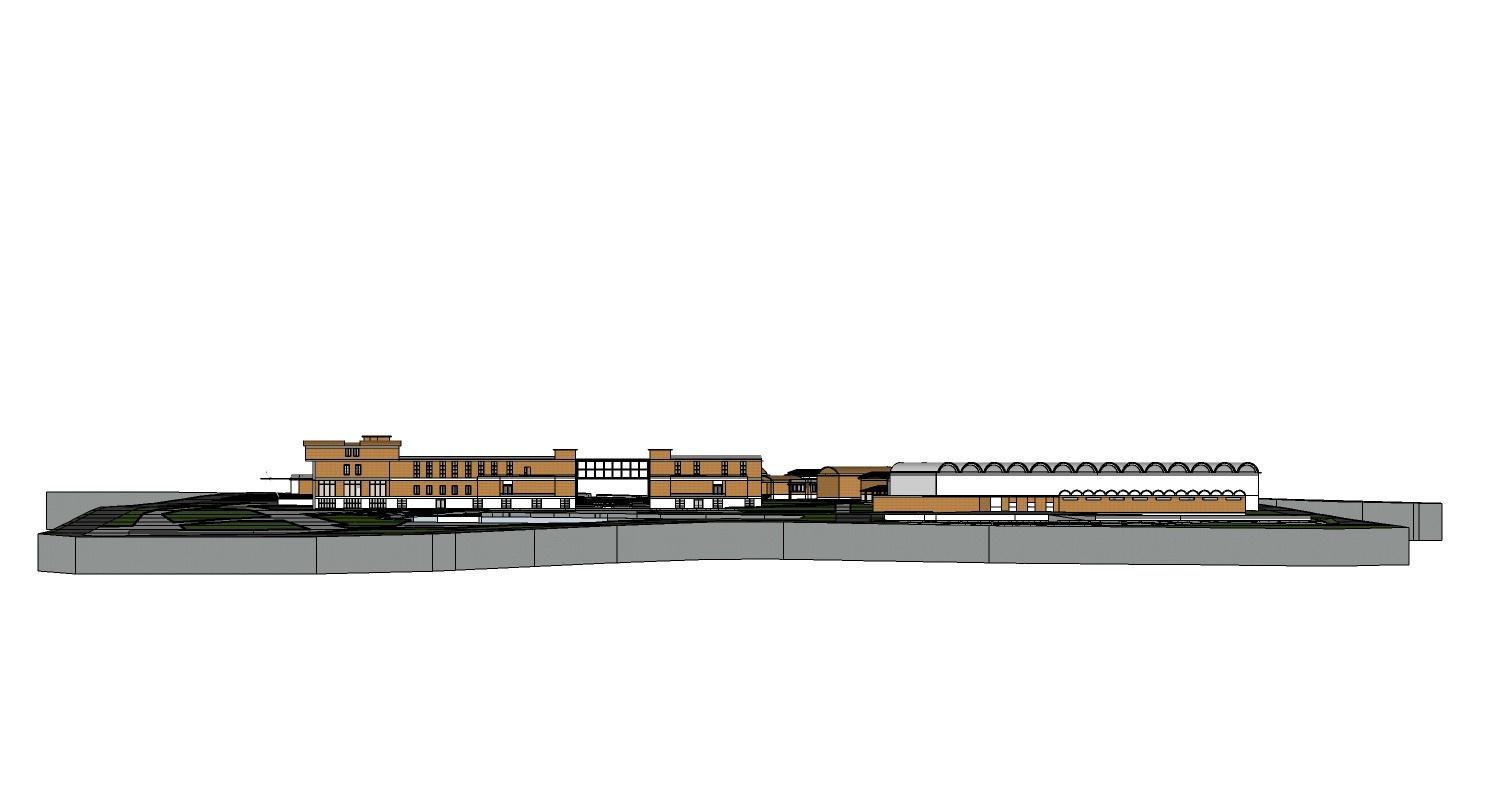

Section at AA’

Section at BB’

600m

305km 601m 602m

603m 604m

210km

322km

605m 606m

261km

pond

607m

608m

306km 154km

97km

193km

609m

Residential layout

610m

611m

3km

610m

611m

601mlvl vacant plot

3

4

Proximity to the state highway and potential traffic flow may result in elevated noise levels. the highest point is noted to be 612mlvl contour on site and flow towards north. site has a lowest point of 603mlvl

The presence of mango and arecanut, gulmohor neem trees along with residential layout and university campus contributes to the site's greenery and natural ambience. the presence of 4000sqm pond on the site adds aesthetic value and potential for water based recreational activities and landscaping features

residential layout 612mlvl

wid

e ro

ad

30M w

12m

ide ro ad

611mlvl

SH57

agriculture university shimoga

total area of 88878sqm provides ample or various types of development. the e of residential layout, university campus a mixed use influencing the sites bility and potential for synergy with the ring developments.

neem

matti

teak

tamarind

mango

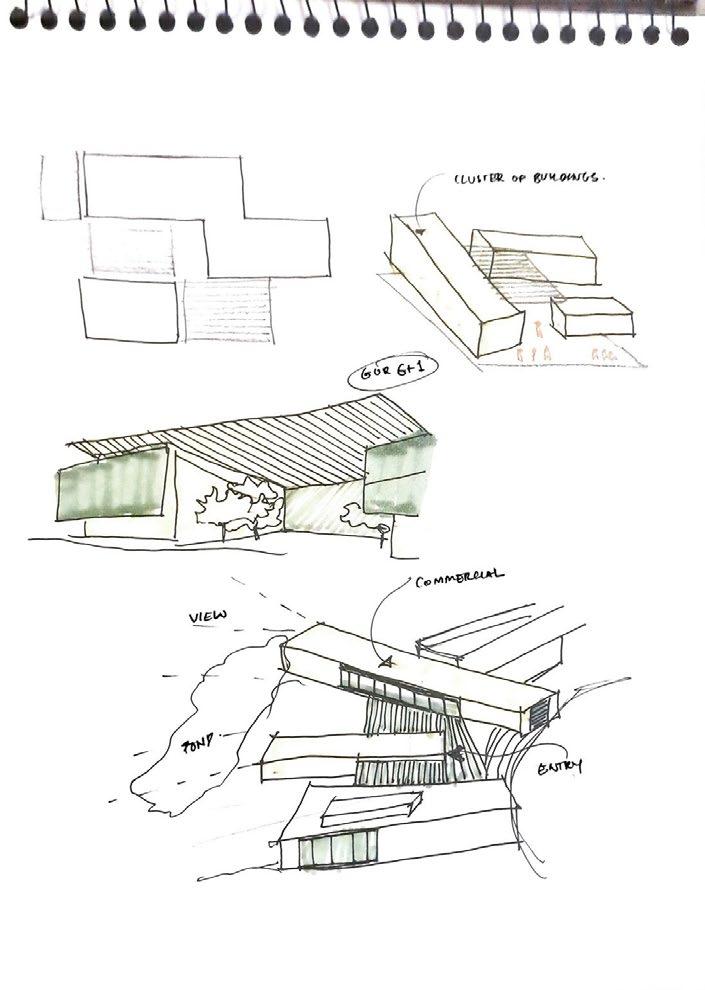

DESIGN CONCEPT AND DEVELOPMENT PROCESS

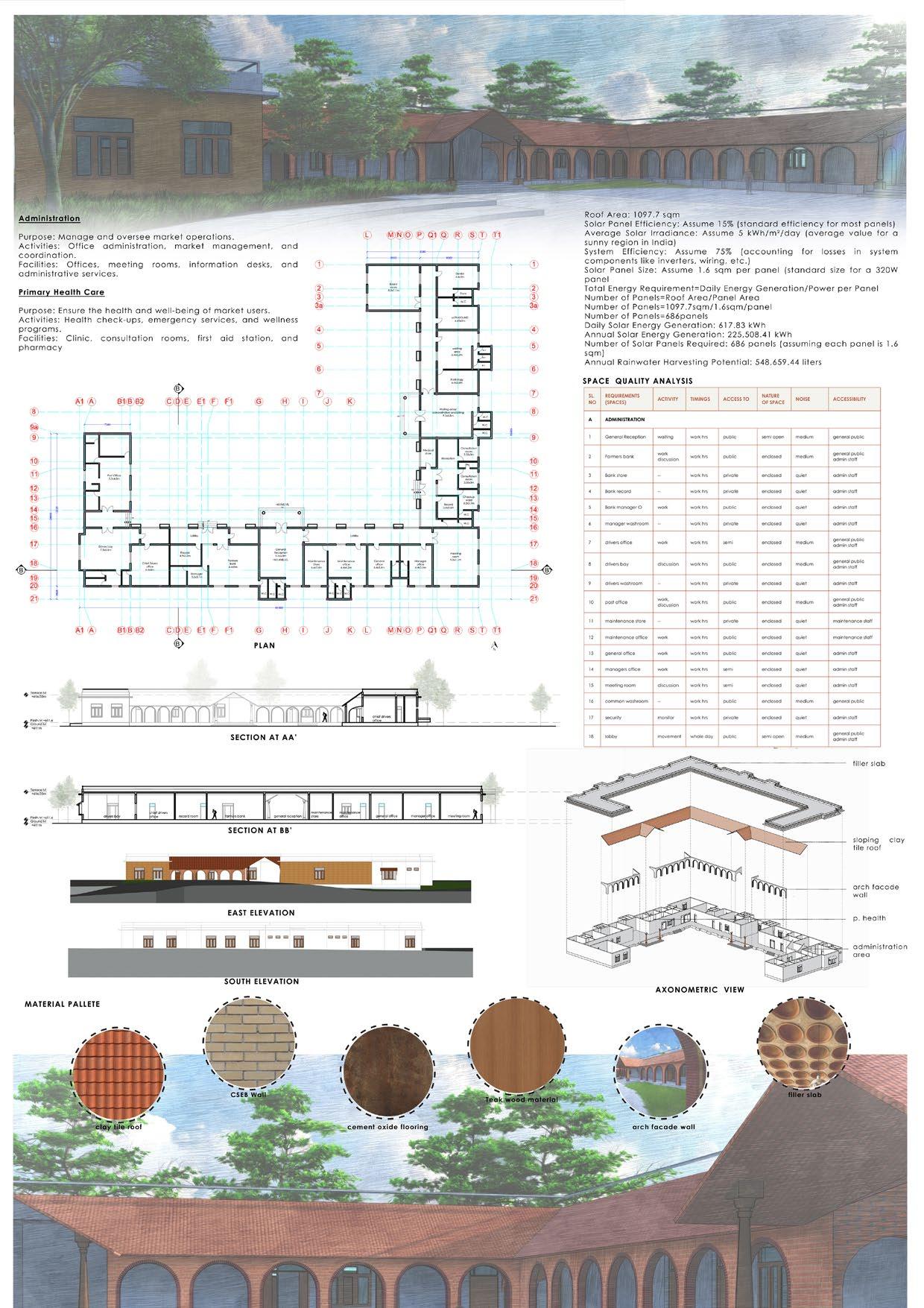

The master plan incorporates essential facilities such as a farmer skill center, agro machineries connections and service, equipment handling and training areas, a supermarket, farm produce market, vendor market, storage warehouse, loading and unloading platform, auction hall, eateries, shops, and primary health care.

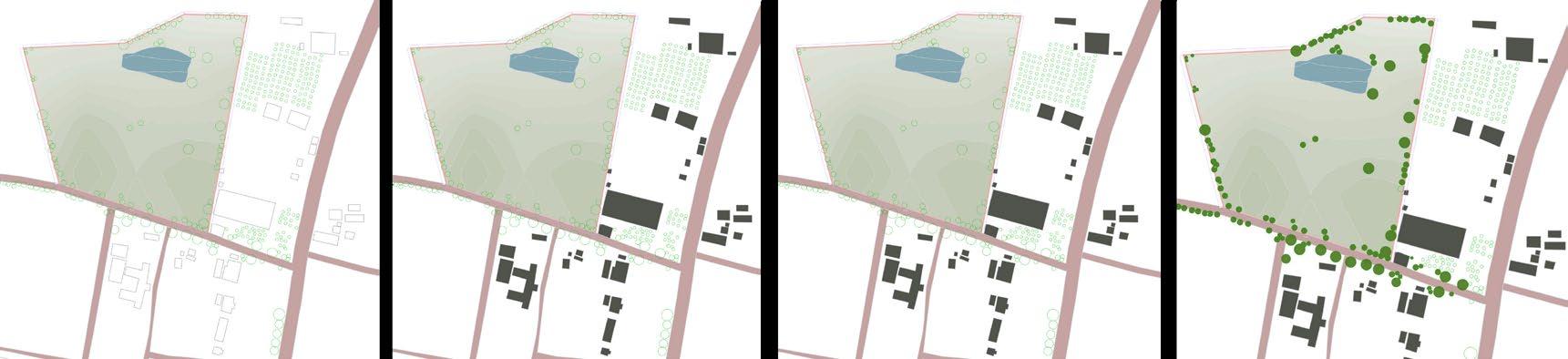

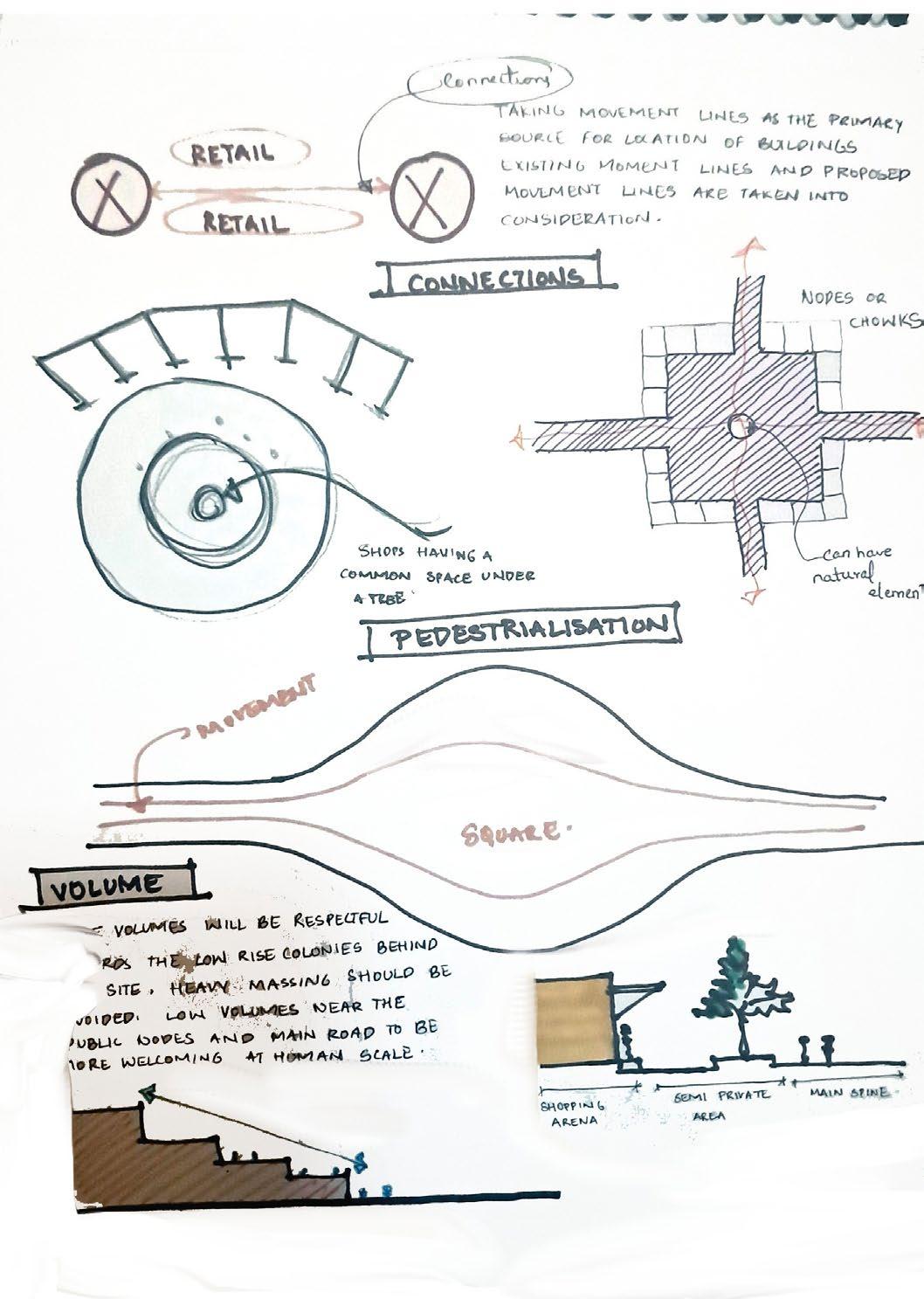

1. Grid: Establishes the CONNECTIONS basic layout for the modular units.

Ensures arrangement of primary stalls, pathways, Takingorderly movement lines as the source forand buildings. location of buildings existing moment lines and proposed movement lines are taken into 2. Path: Defines circulation routes for pedestrians and consideration.

Having re-collectable public space vehicles. Ensures smooth movement and accessibility to all features as well as congregation spaces parts of the market. in a big advantage as it not only creates visual markers but also helps in 3.Frame: Provides structural and organizational framework way for finding in the site. Spaces like plaza are good meeting points. The retail modular units. the main spine could also have Allows flexibility in reconfiguring spaces based along on sitting areas and nodes. changing needs.

4. Cluster: Groups related activities and facilities for functional efficiency.

Shops having a space Creates zones such as the market area, common training center, under a tree commercial area, and green spaces.

PEDESTRIALISATION nodes or chowks

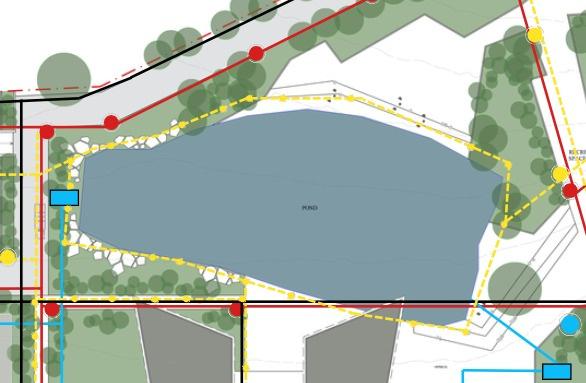

Pond

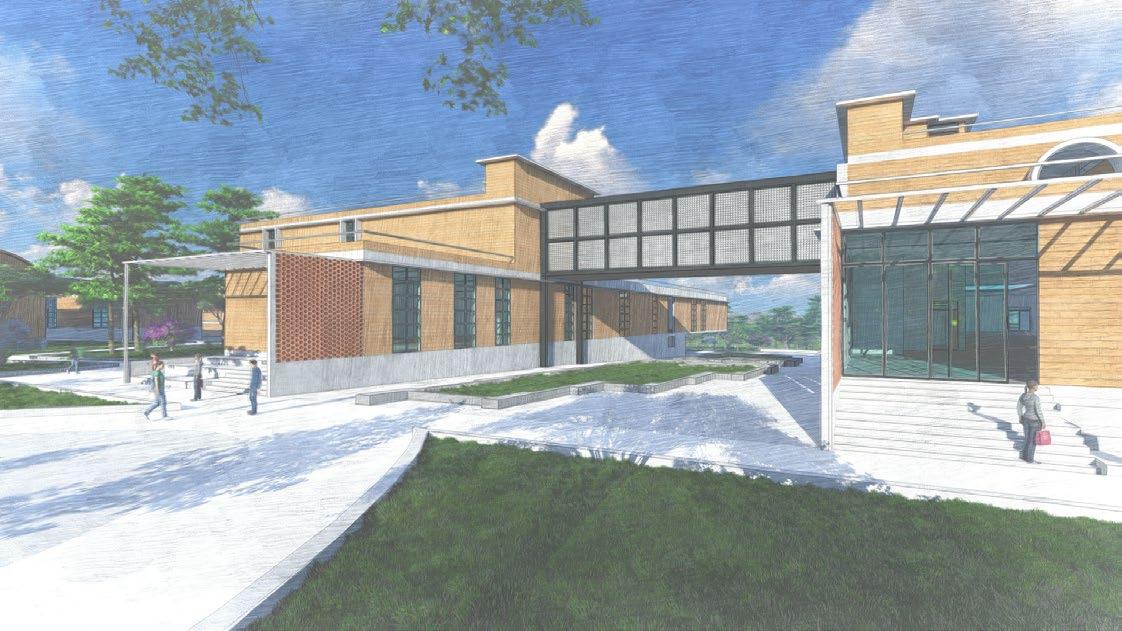

Bridge connecting the supermarket natural can have elements

landscape

The volumes will be respectful towards the low-rise colonies behind the site, heavy massing should be avoided low volumes near the public nodes and main road to be more welcoming at human scale

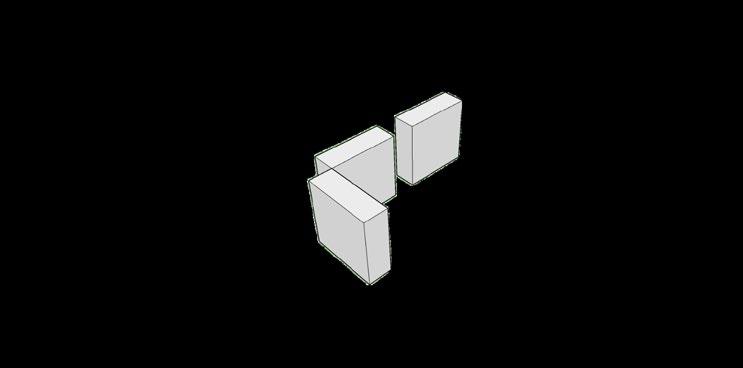

VOLUME

SERVICE PUBLIC SPACE LAYOUT

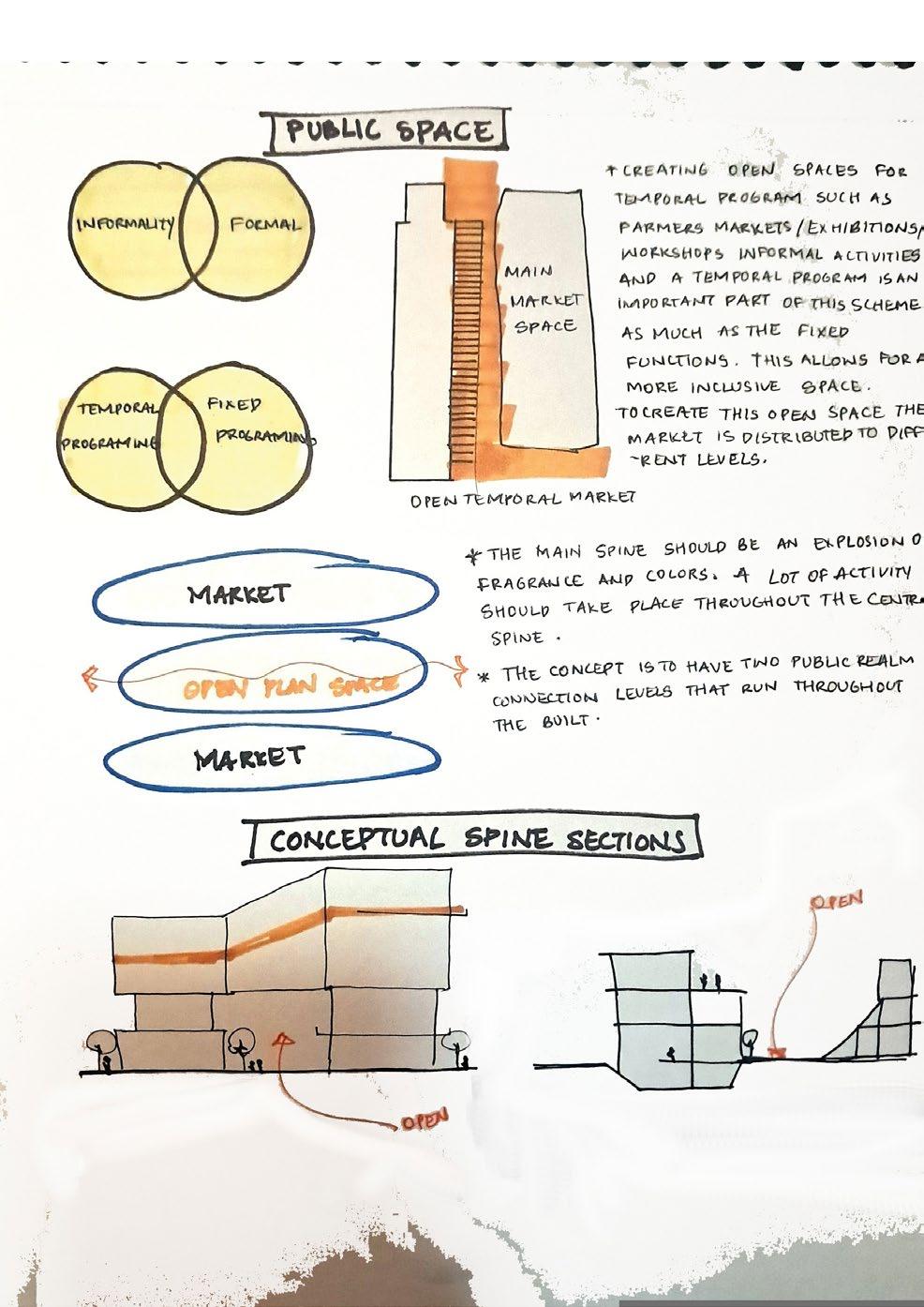

Creating open spaces for temporal program such as farmers markets/ exhibitions/workshops informal activities and a temporal program is an important part of this scheme as much as the fixed functions. this allows for a more inclusive space. to create this open space the market is distributed to different levels.

the main spine should be an explosion of fragrance and clolors. a lot of activity should take place throughout the central spine. the concept is to have two public realm connection levels that run throughout the built

single unit open air markets market square weekly/monthly covered spaces morning/ 21 permanent in Seating and shelter Location: Scattered throughout the market, Drinking water Location: Strategically placed throughout the market to evening nature especially near eateries, public toilets, and waiting areas. ensure easy access for all visitors and vendors. road side Features: Comfortable seating with shaded areas to protect Features: Clean, filtered water stations, potentially incorporating bottle street open from sun and rain refill stations to promote environmental sustainability. air informal septic tank size for 50 users minimum standard size of Waste bins Location: Strategically placed bins and recycling stations septic tank could be 5mx1.5m there is a need of 1 to street bazar withabove water level inside septic tank 1.5ft free space throughout the market. market within open public should be 6.5ft including depth, so overall height building enclosed space covered have capacity of minimum 11000 litres of liquid waste spaces in space Features: Segregated waste bins for recyclables, organic waste, and permanent vendor market admin/p.health auction nature hall general waste. storage warehouse

strong visual connection between all floors to create a feeling of large social hub

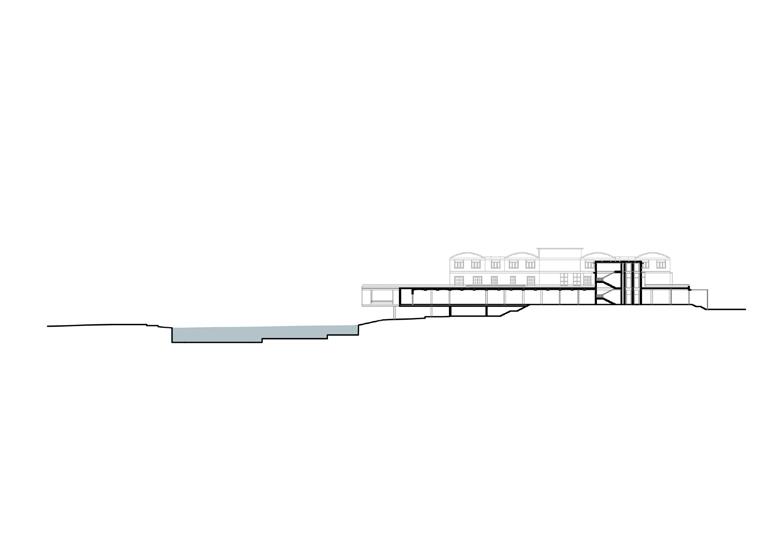

conceptual spine section

/ n a o

f e

h

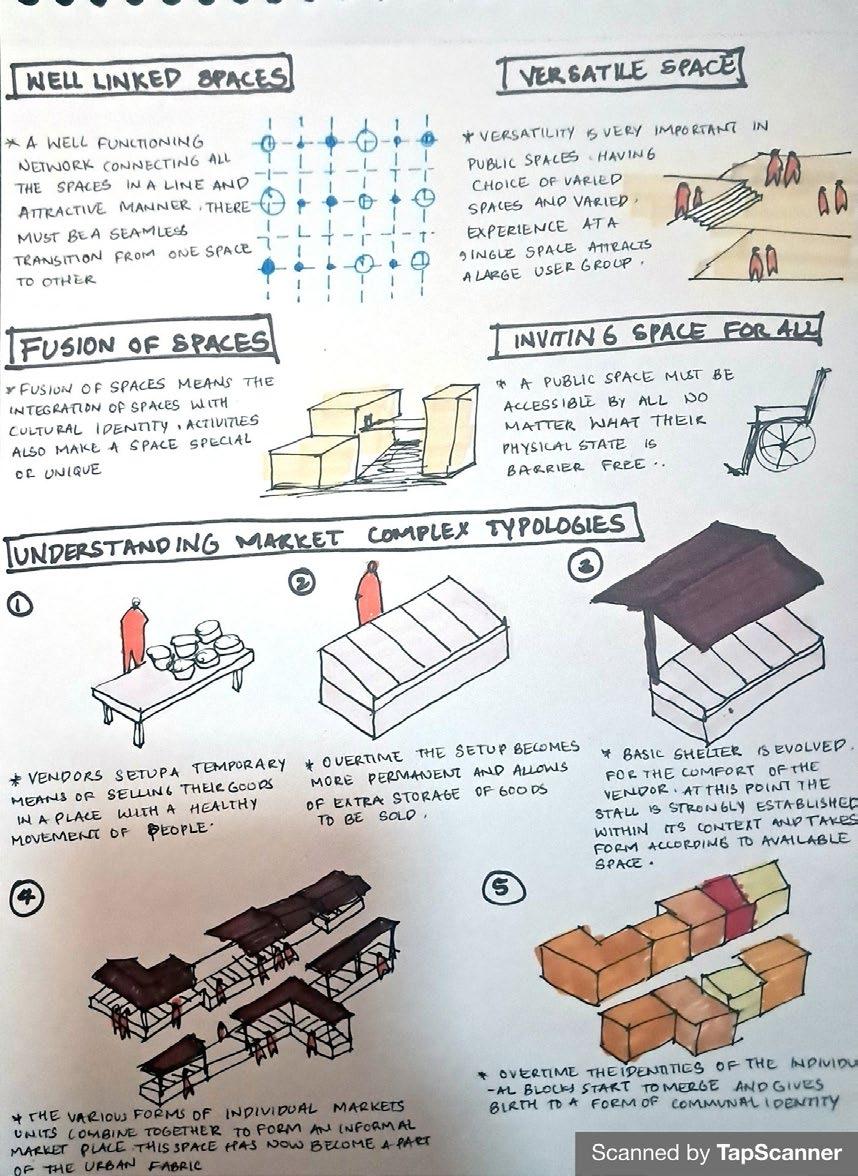

FORM AND SPACE WELL LINKED SPACES

VERSATILE SPACE

A well-functioning network connecting all the spaces in a line and attractive manner, there must be a seamless transition from one space to other

versatility is very important in public spaces having choice of varied spaces and varied experiences at a single space attracts a large user group

FUSION OF SPACES

INVITING SPACES FOR ALL

Fusion of spaces means the integration of spaces with cultural identity; activities also make a space special or unique

A public space must be accessible by all no matter what their physical state is and barrier free

FORM AND SPACE

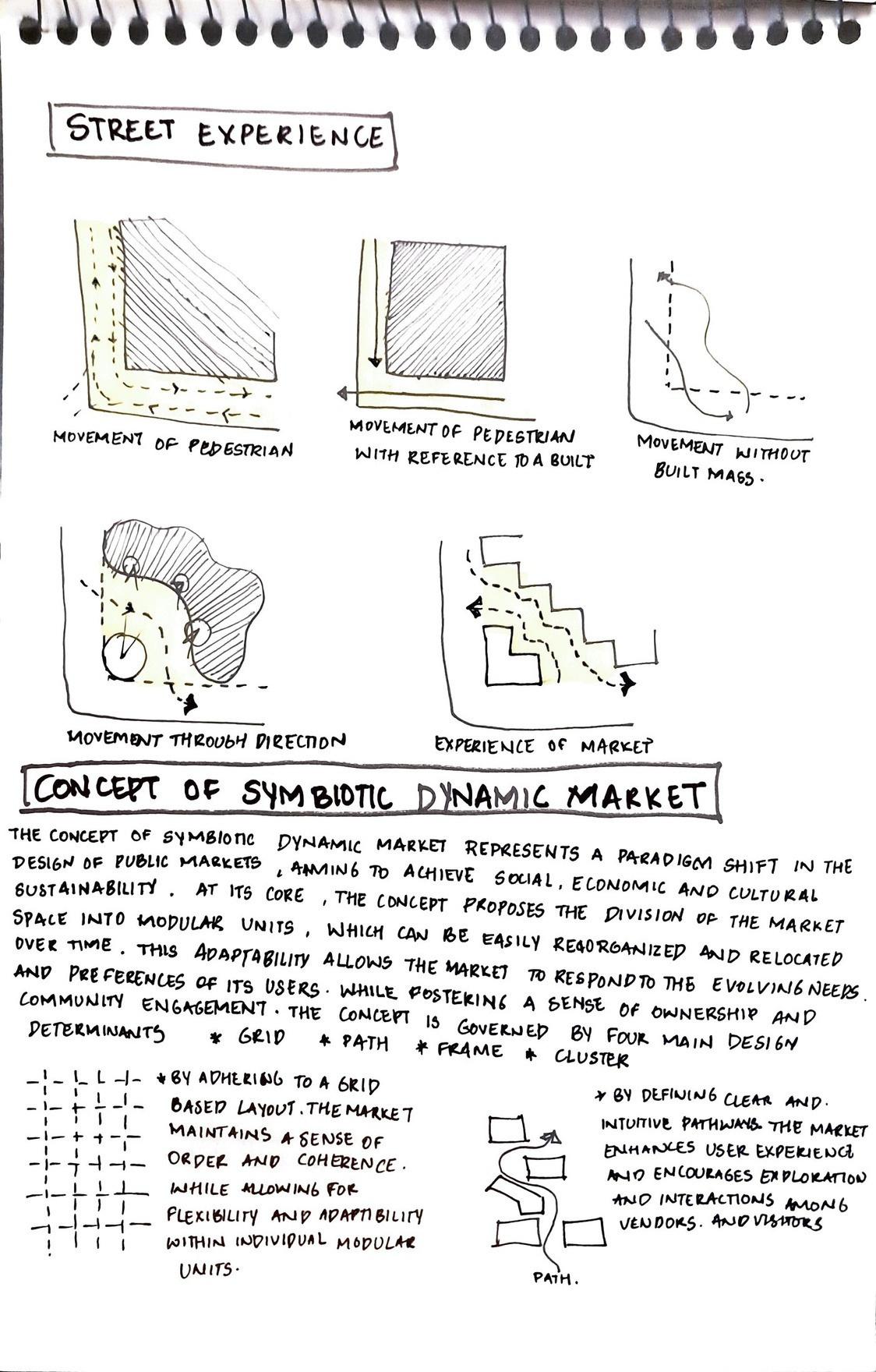

STREET EXPERIENCE

warehouse

Auction hall

movement of pedestrian

movement of pedestrian withmovement without built reference to a built mass

movement without direction

experience of market

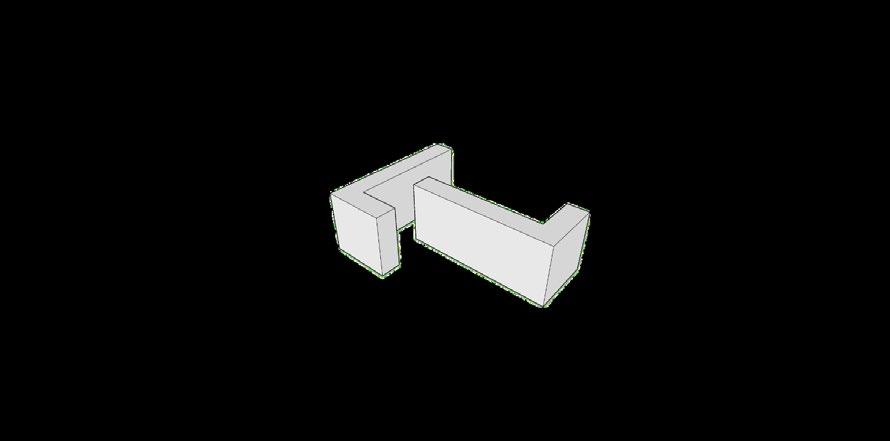

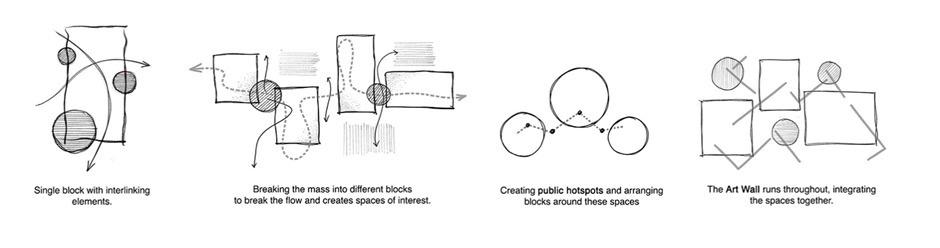

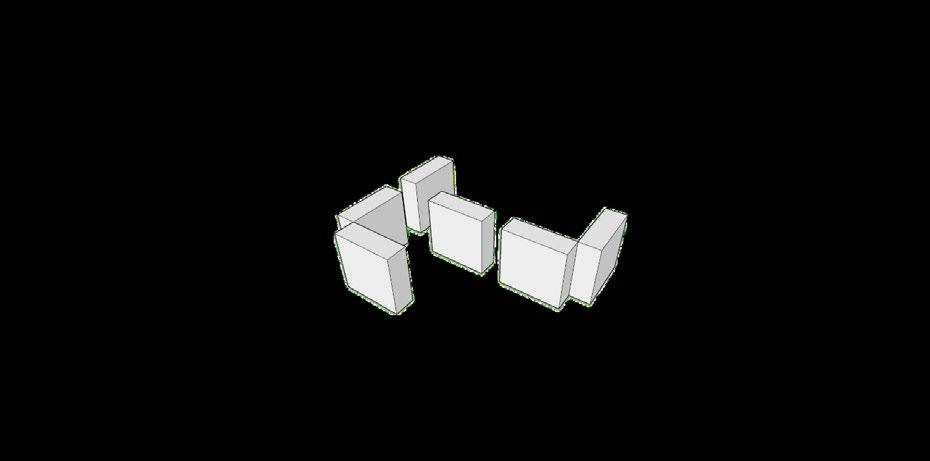

single block with interlinking elements

breaking the mass into different blocks to break the flow and creates spaces of interest

drinking water facility electric pole electric

line

drainage line underground electric line

Issues to be addressed structure bollard lights storage hygiene overhead mass circulation light access parking generator these factors room can be considered to improve the market place and improve the quality of spaces

pole light

creating public hotspots and arranging blocks around these spaces

landscaping runs throughout integrating the spaces together

Transformer Septic tank

path lighting

water tank

planted stone seating

The concept of symbiotic dynamic market represents a paradigm shift in the design of public markets, aiming to achieve social, economic and cultural sustainability. at its core, the concept proposes the division of the marketspace into modular units, which can be easily reorganized and relocated over time. this adaptability allows the market to respond to the andof evolving needs and preferences of its users. while fostering stone a sense grass by pavers ownership and community engagement. the concept is governed four main design determinants 1) grid 2)path 3)frame 4)cluster

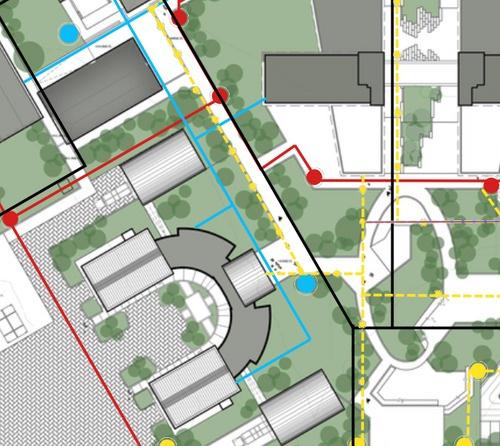

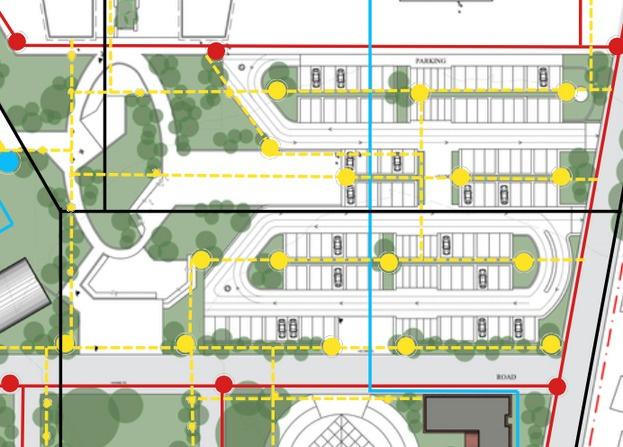

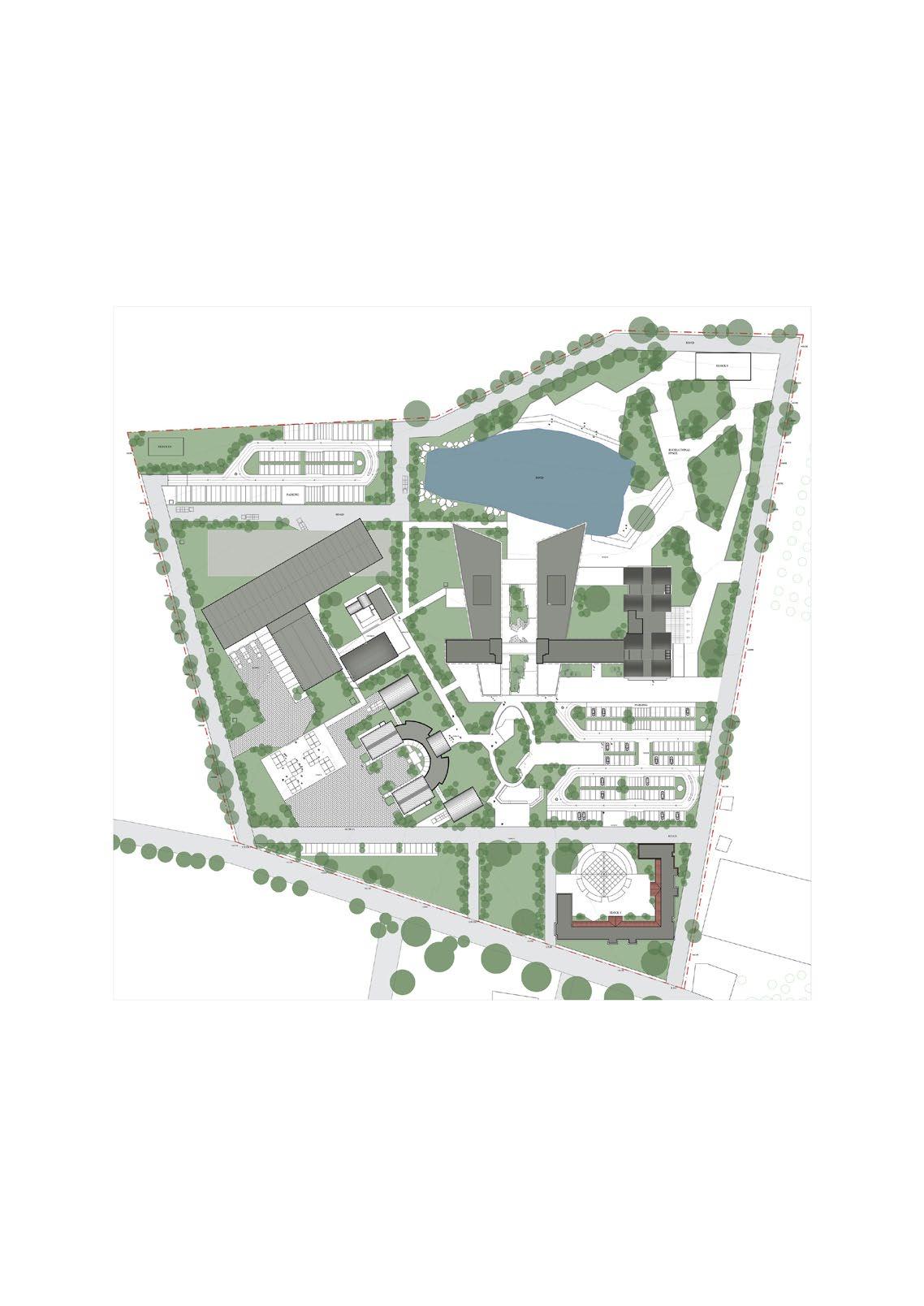

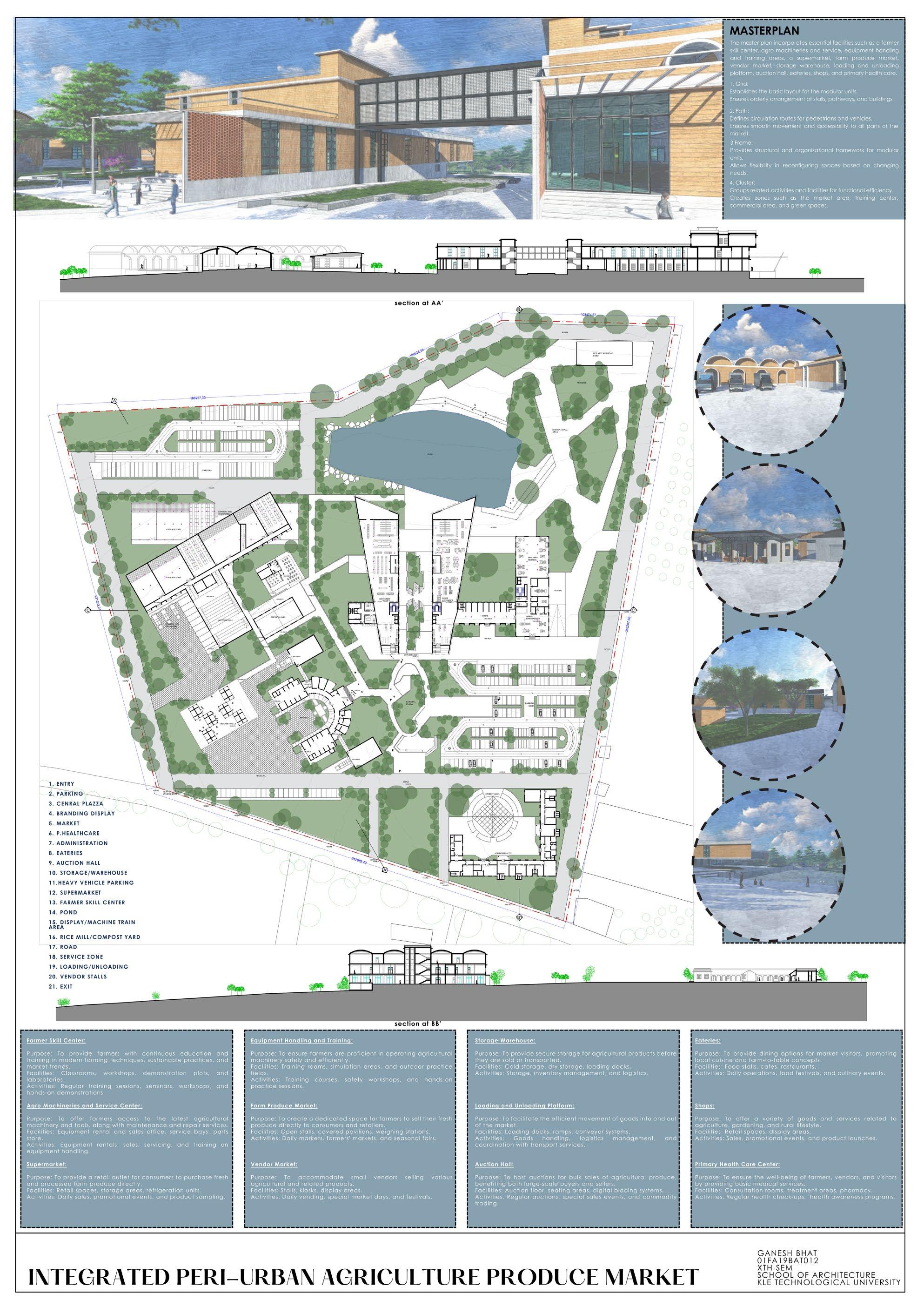

MASTERPLAN

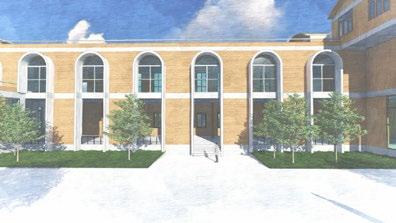

H E A T I S L A N D R E D U C T I O N , RO OF A N D N O N R O O F Traditional roofing materials often contribute to the UHI effect by reflecting and amplifying heat. CSEB roofs, being composed of natural earth materials, typically have lower reflectivity compared to conventional roofing materials. This can reduce the amount of heat that is reflected back into the atmosphere.

R ED U CT I O N O F R E FL E CT I VE S U R FA C E S CSEB arch roofs can be designed to incorporate passive cooling techniques such as natural ventilation, shading. These techniques can reduce reliance on mechanical cooling systems and contribute to lower overall urban temperatures.

Natural Ventilation: The curved shape of a arch roof allows for better natural ventilation and air circulation. This can help dissipate heat more effectively and create microclimates with lower temperatures around the building. Additionally, allowing hot air to rise and exit, while cooler air enters from below.

B U I L D I N G M A TE R I A L S A N D R E S O U R C E S USE OF E CO LABLLED BUI LDI NG MATER IALS / LO W EM ITTI NG MATE RIALS

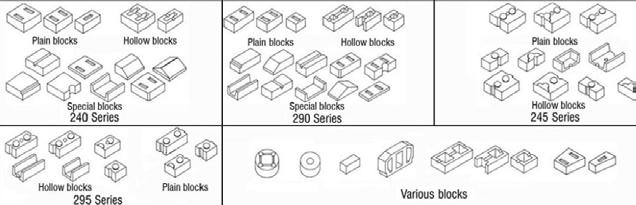

Earth is a local material and the soil should preferably be extracted from the site itself or not transported from too far away Labour costs for CSEB production amount to 40 to 45% of the total cost. This promotes endogenous development. It is a cost and energy effective material. The embodied energy of CSEB is 10.7 times less than country fired brick.

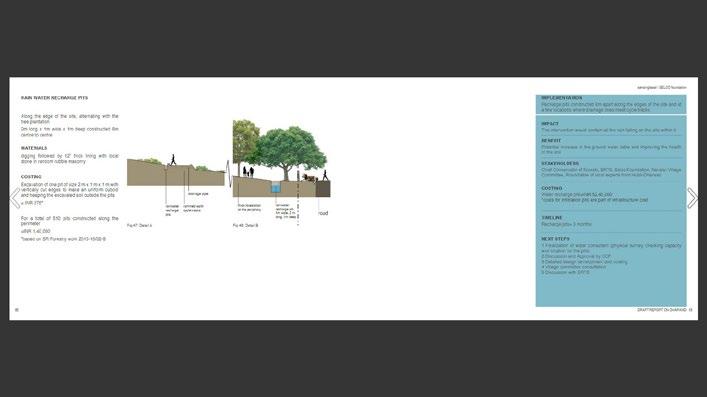

• Locate recharge well in the channel or off the channel • Make arrangements to remove silt and leaves before water enters recharge well • Monitor the rate of recharge and decide on the number of recharge wells necessary for the catchment Monitor the water table for both levels and quality With a good aquifer, the ground water table should rise and the recharge well can become a withdrawal

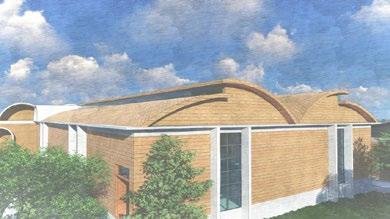

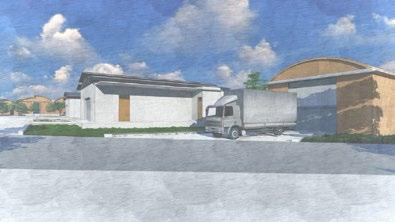

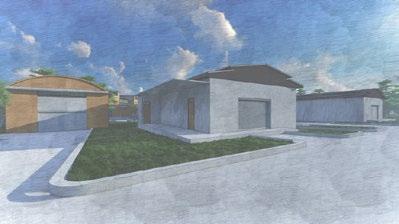

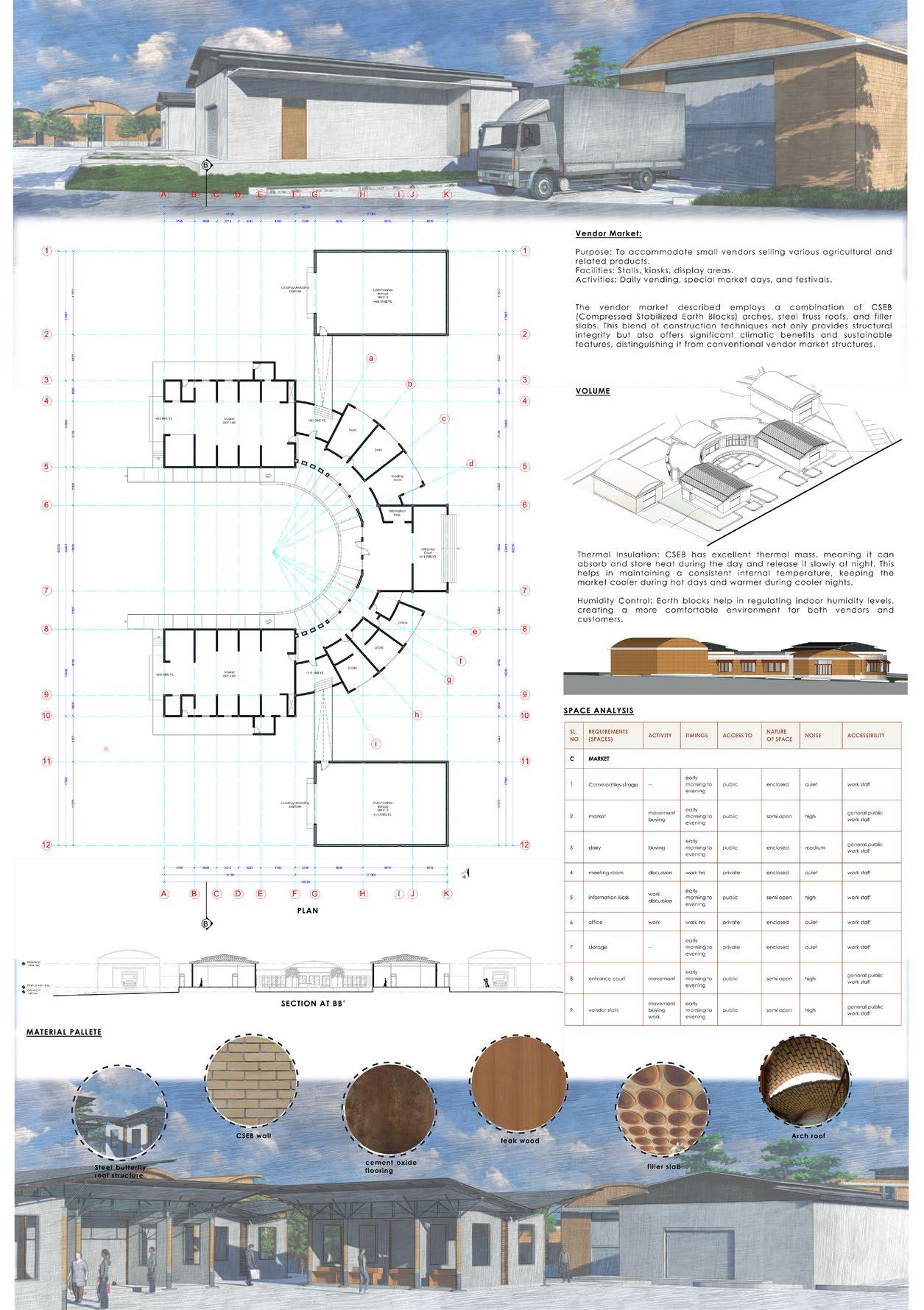

vendor stalls roofing systems

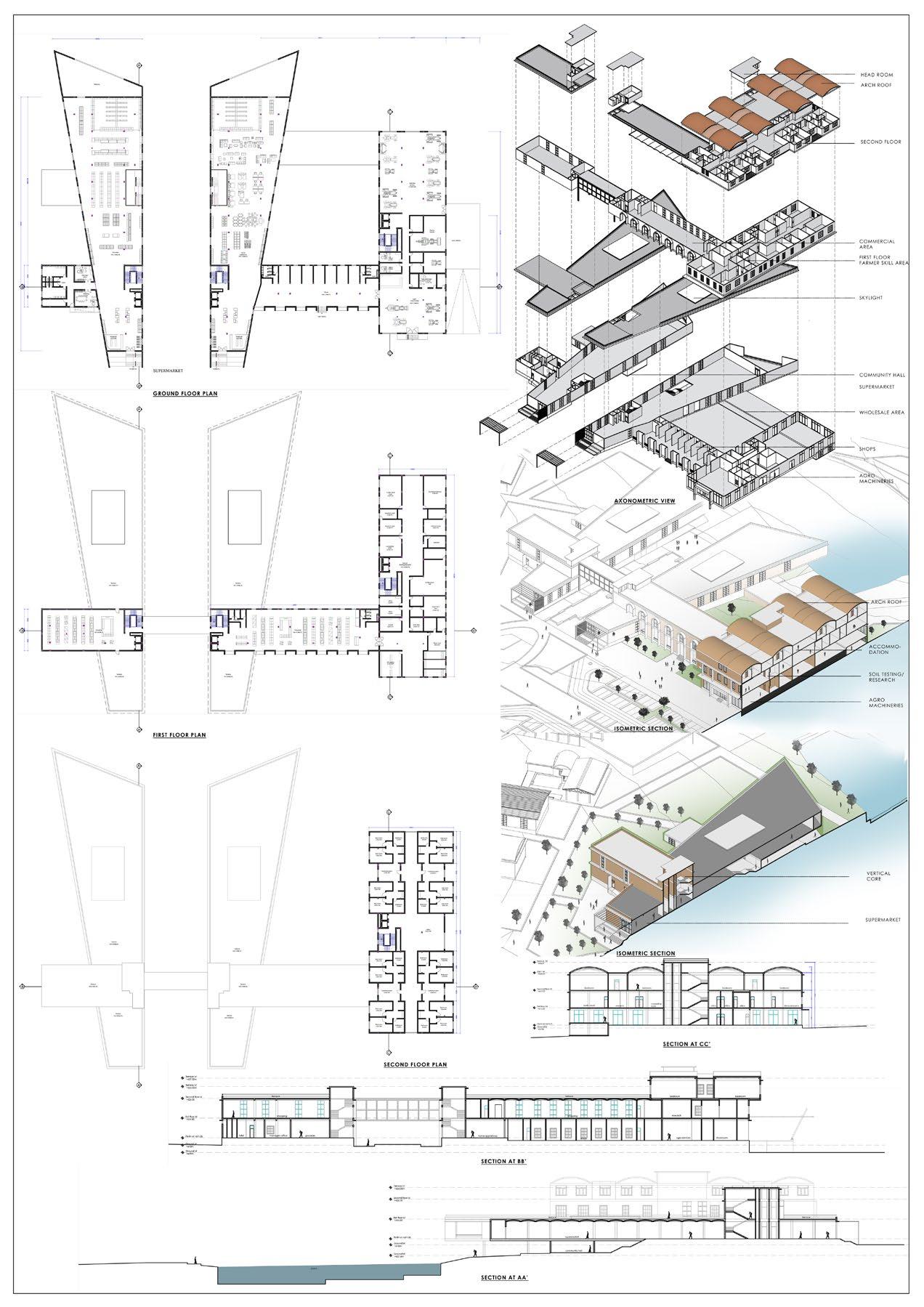

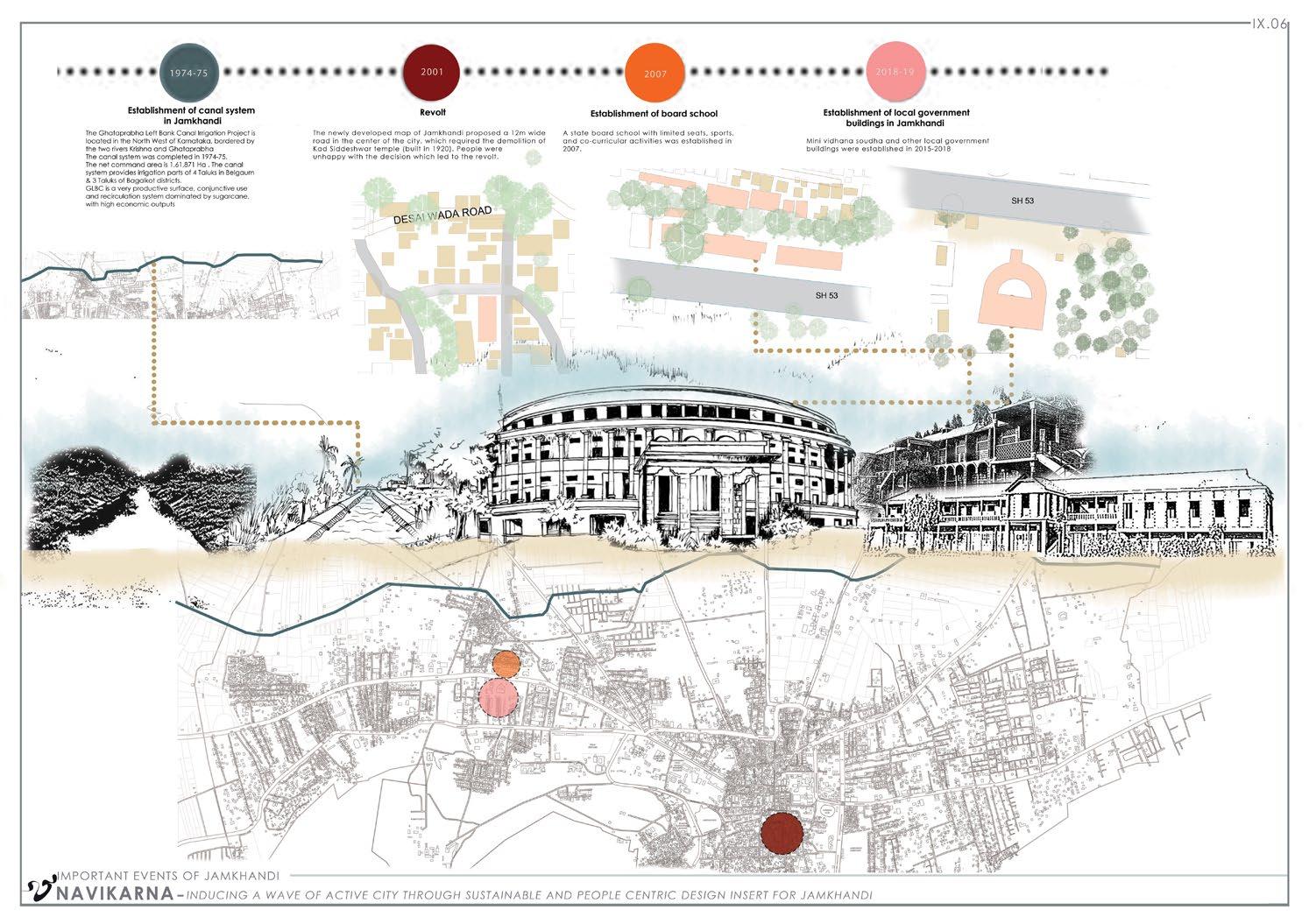

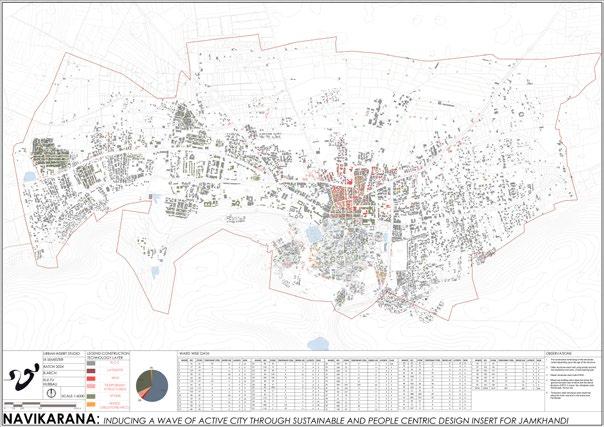

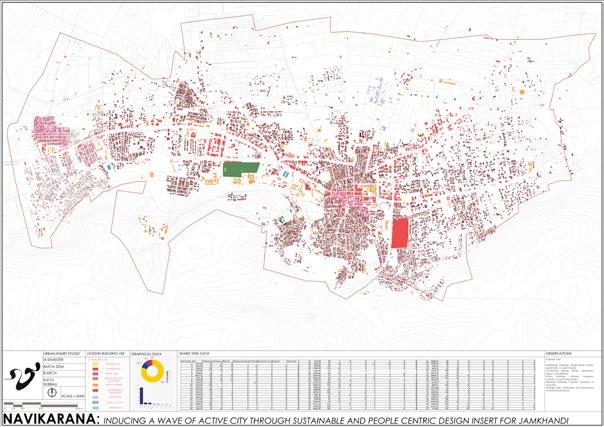

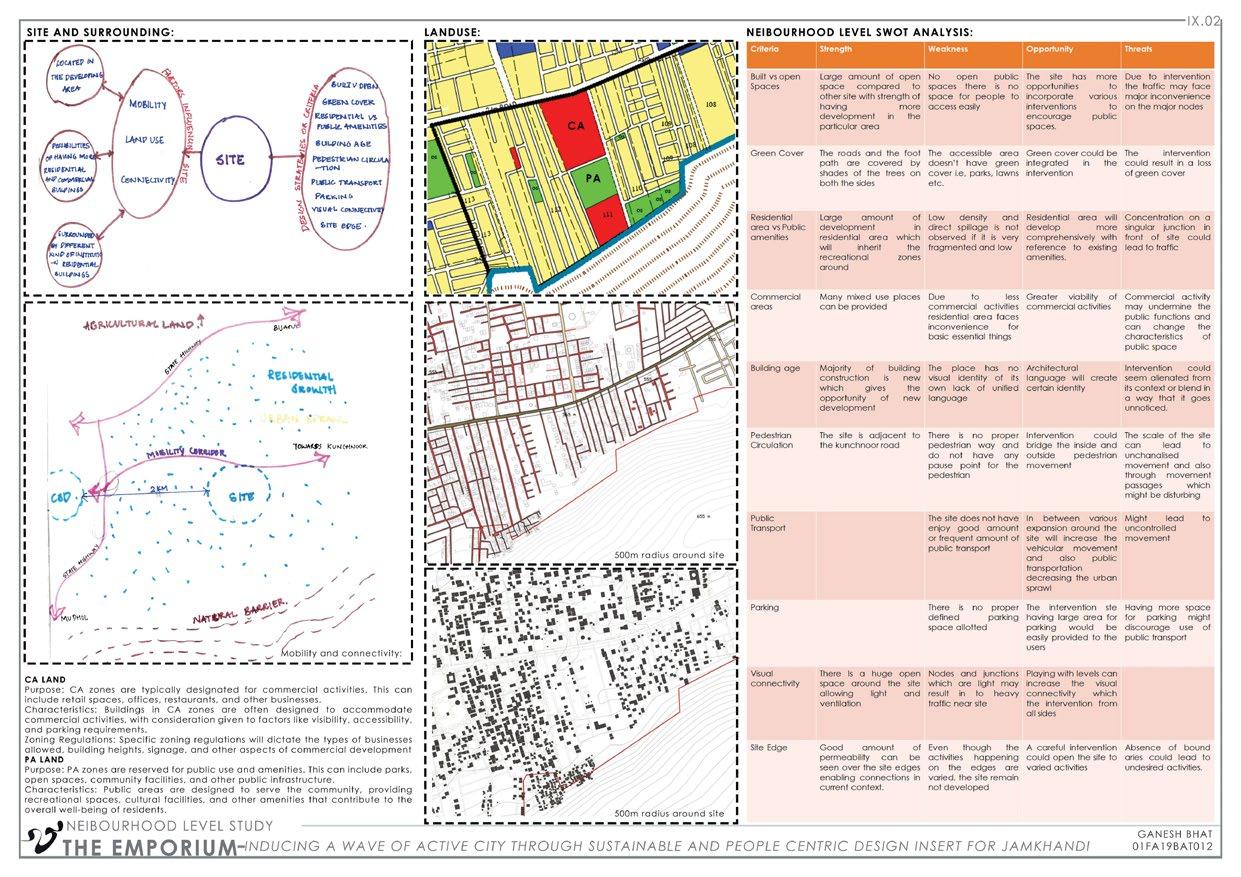

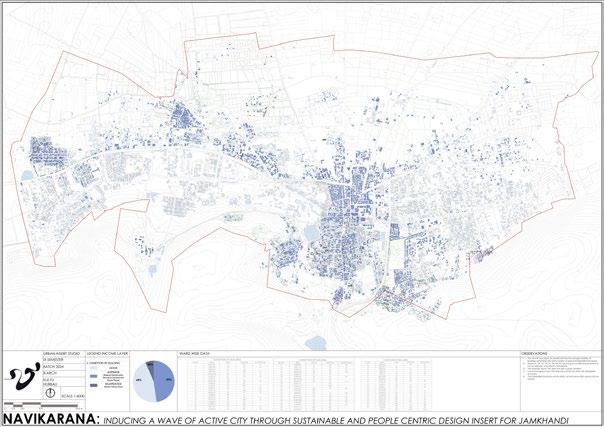

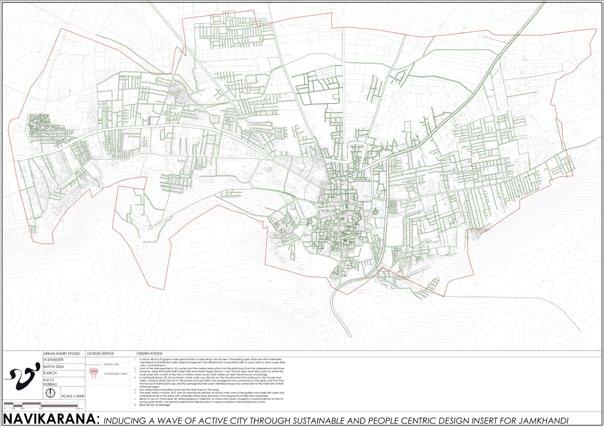

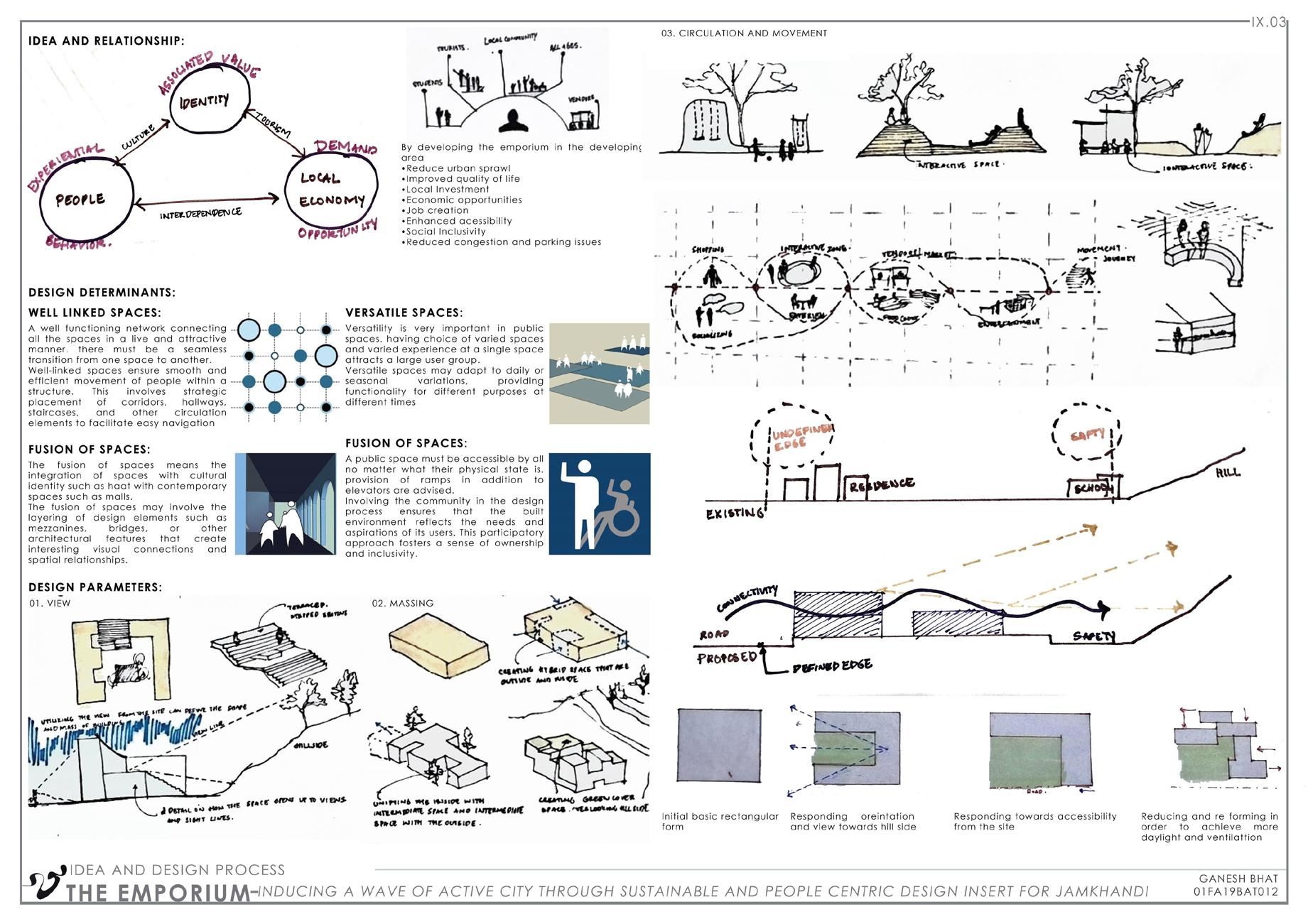

U R B A N I N S E R T

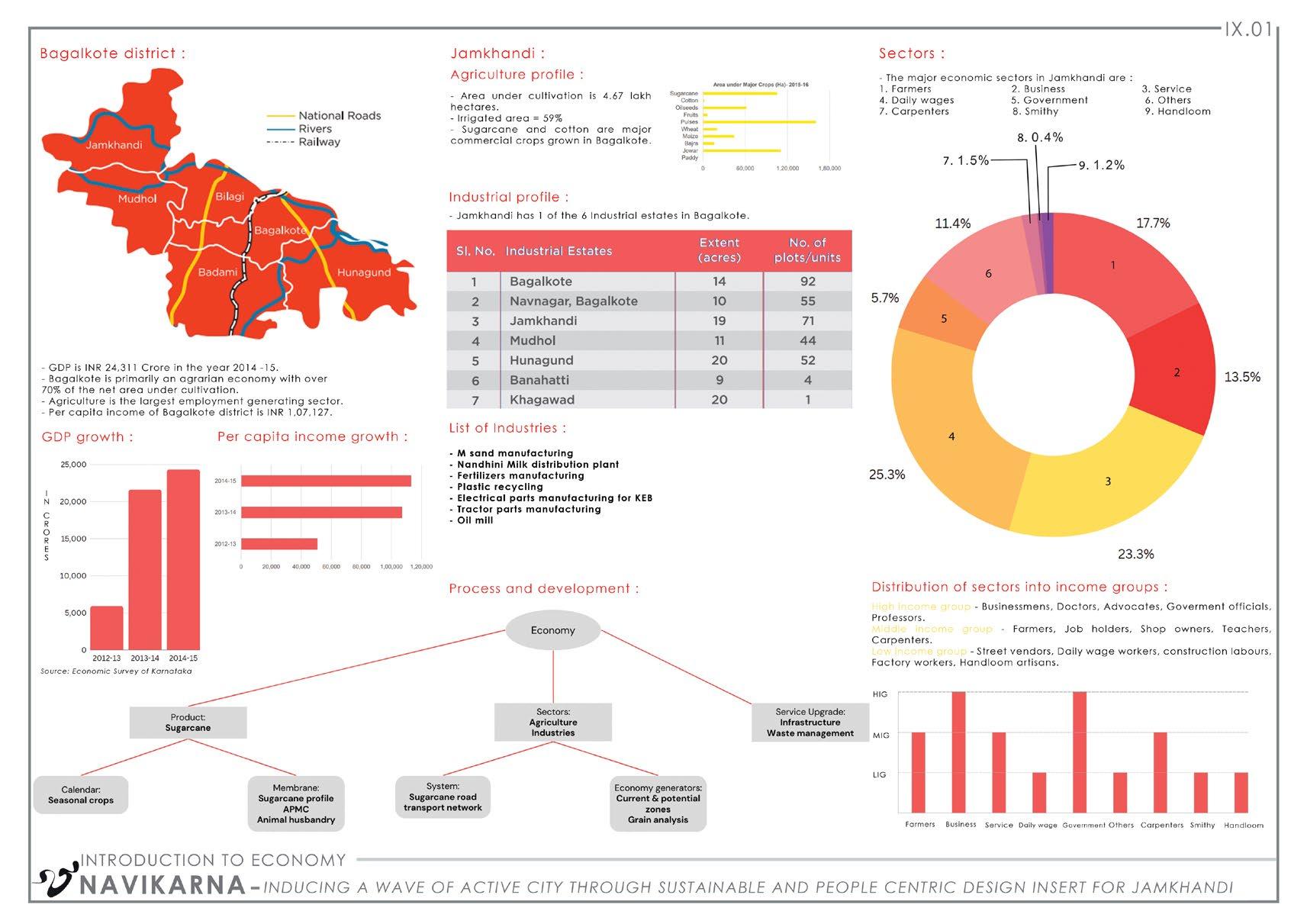

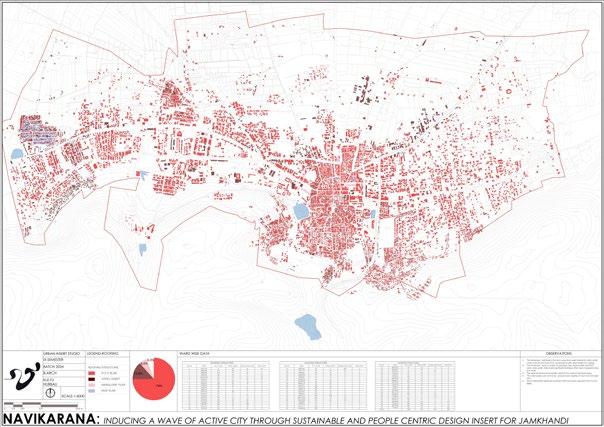

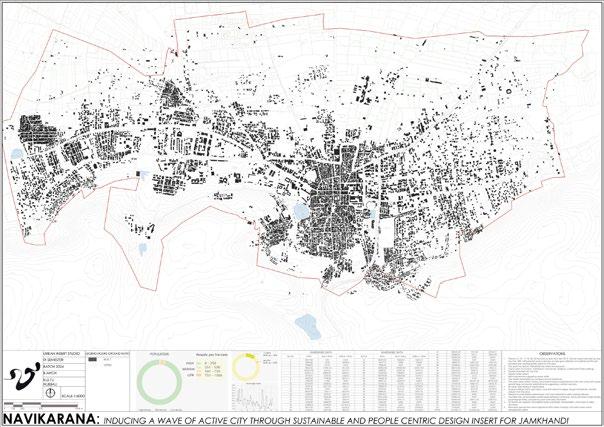

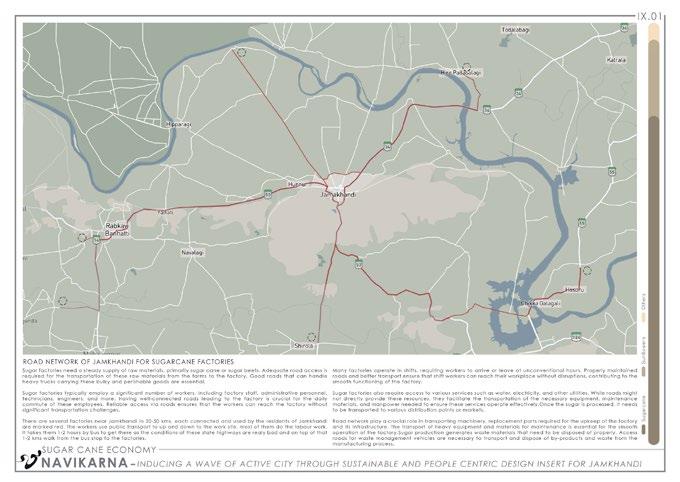

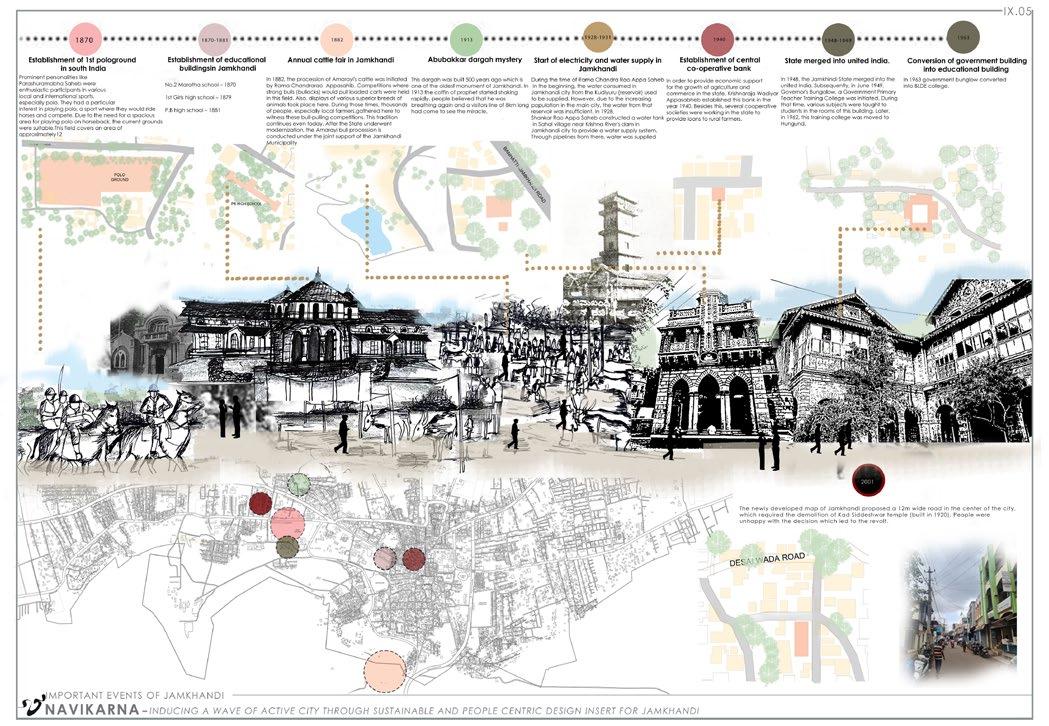

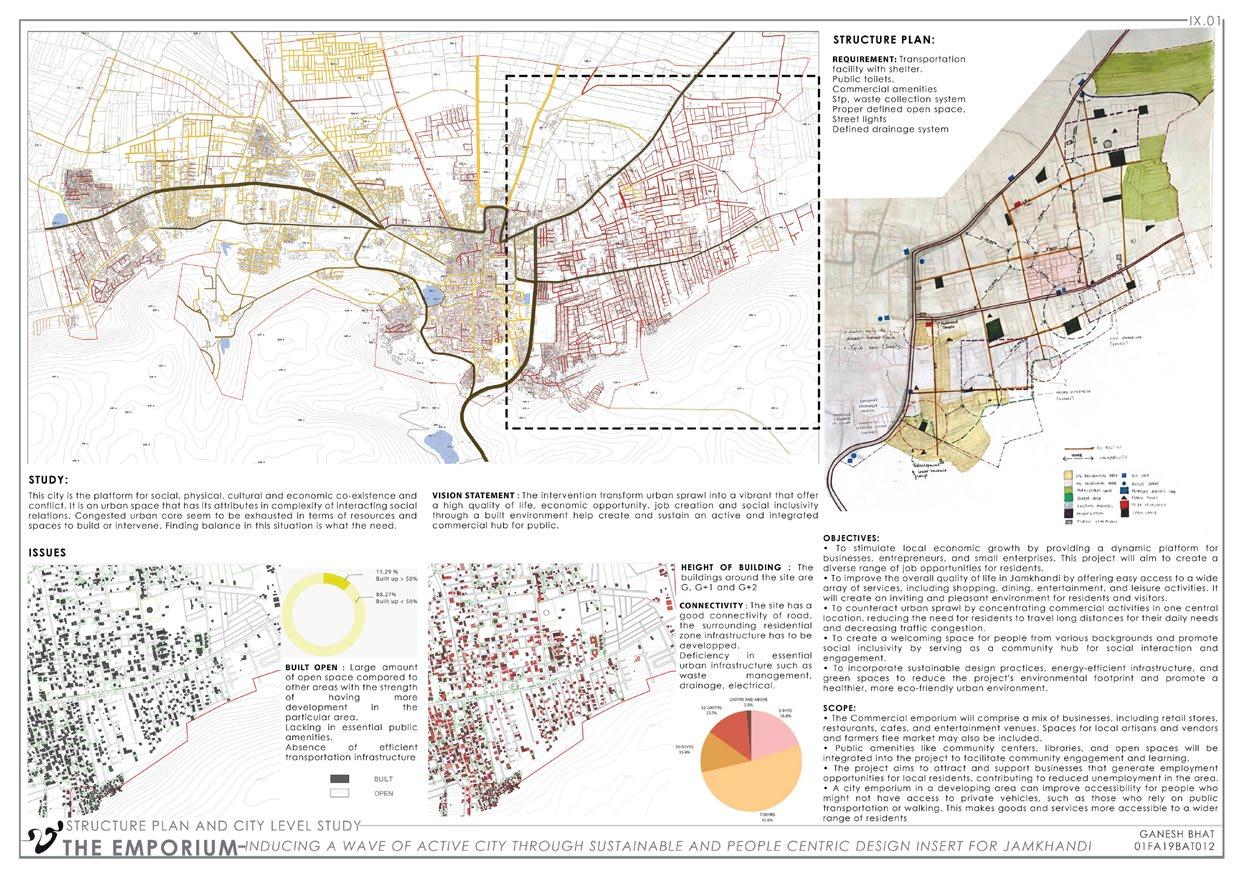

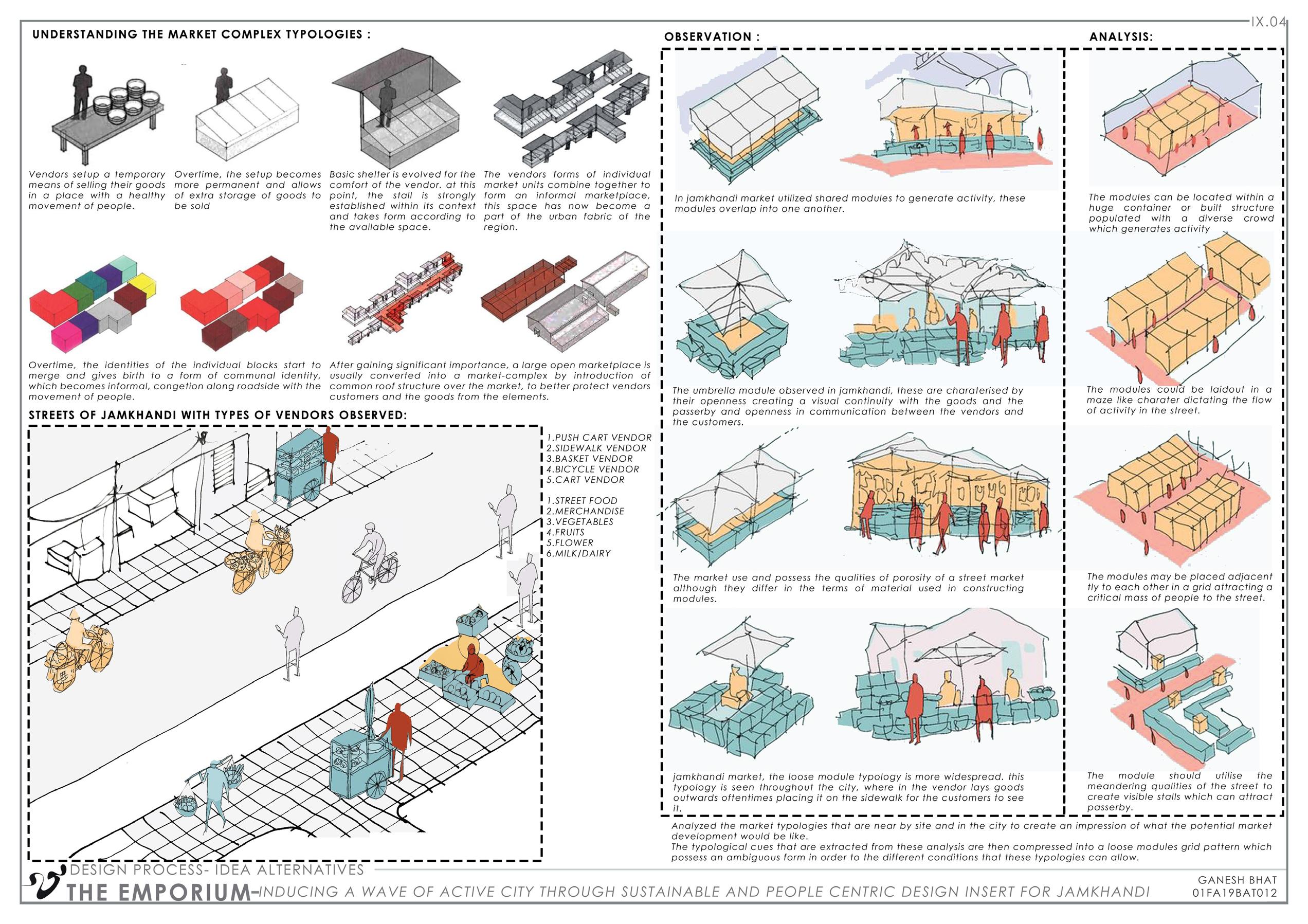

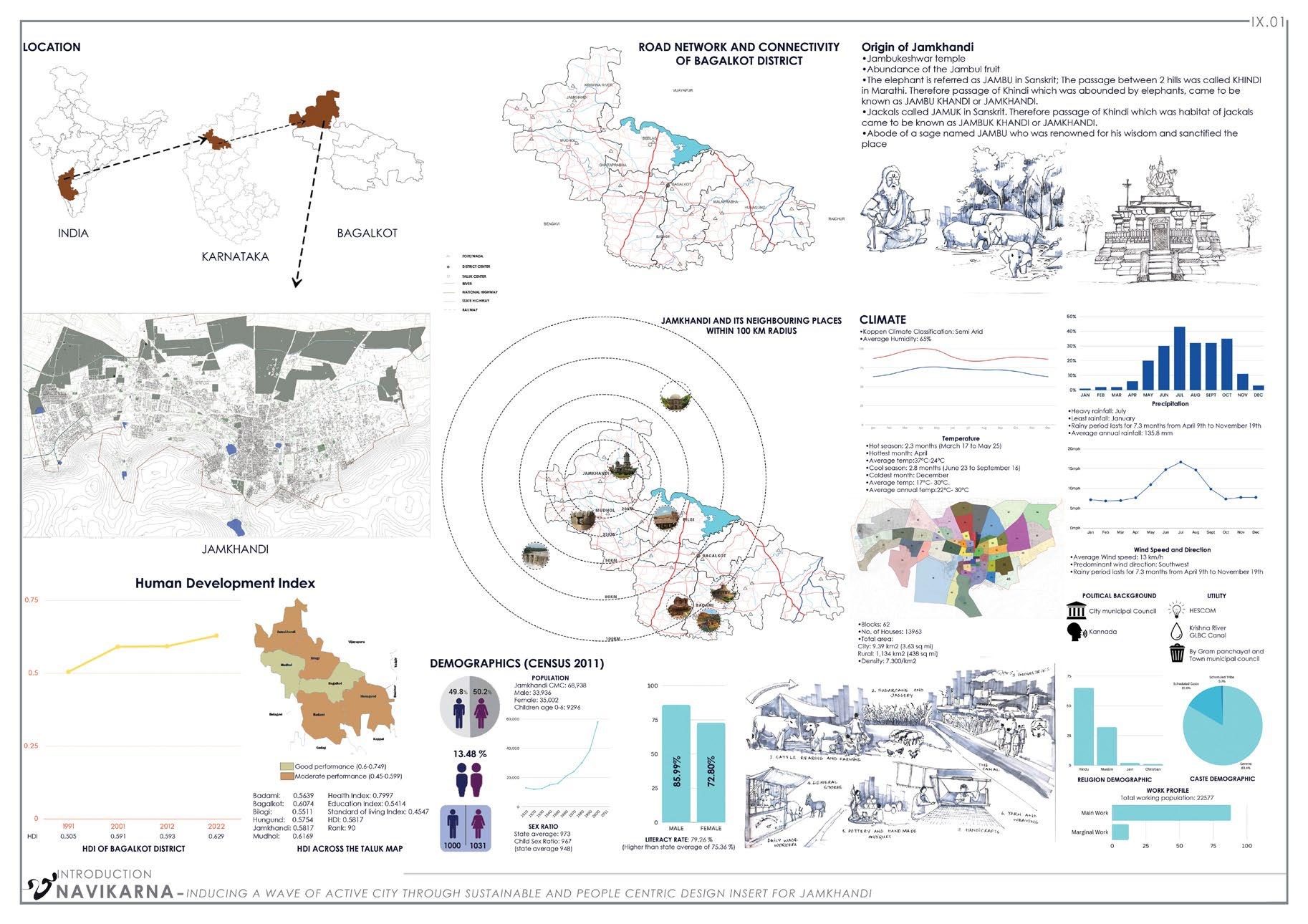

JAMKHANDI

ROAD WIDTH

BUILDING USE

CONSTRUCTION TECHNOLOGY

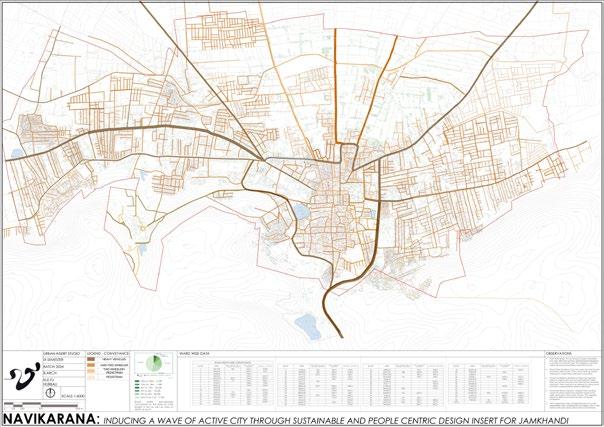

FIGURE GROUND

MODE OF CONVEYANCE

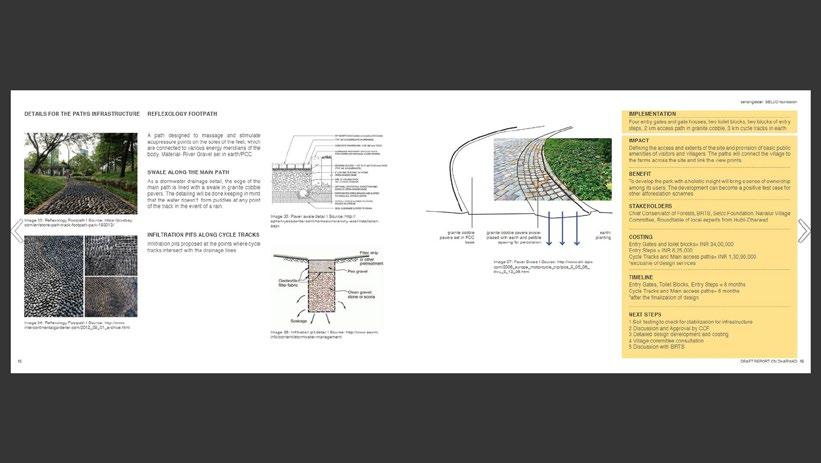

INFRASTRUCTURE SEWAGE

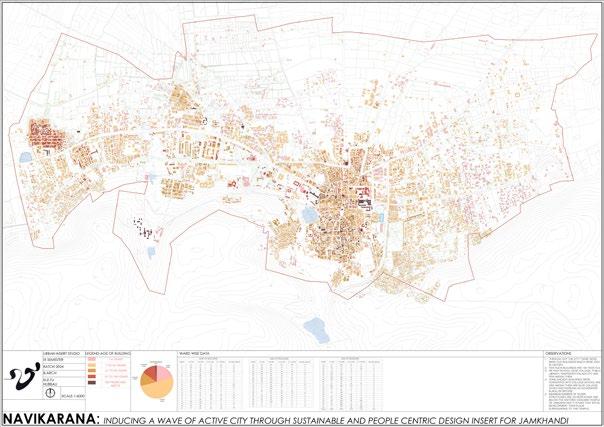

AGE OF BUILDING

CONDITION OF THE BUILDING

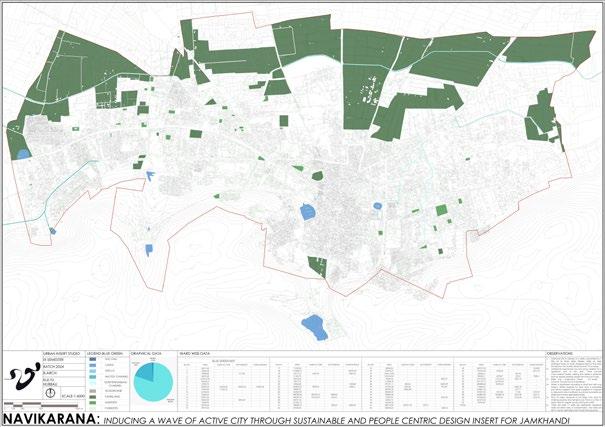

BLUE GREEN

ROOFING STRUCTURE

INCOME

TRADITIONAL LIVELIHOOD

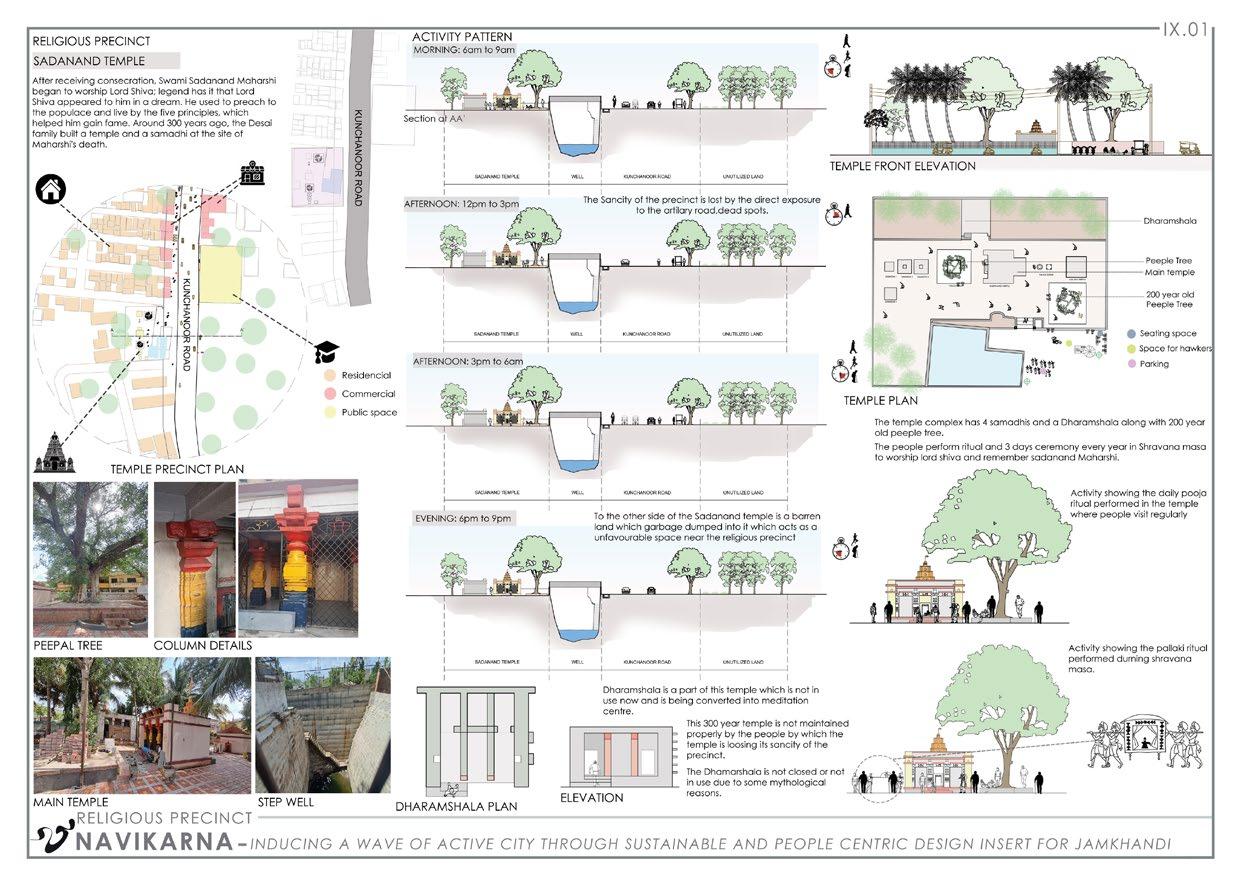

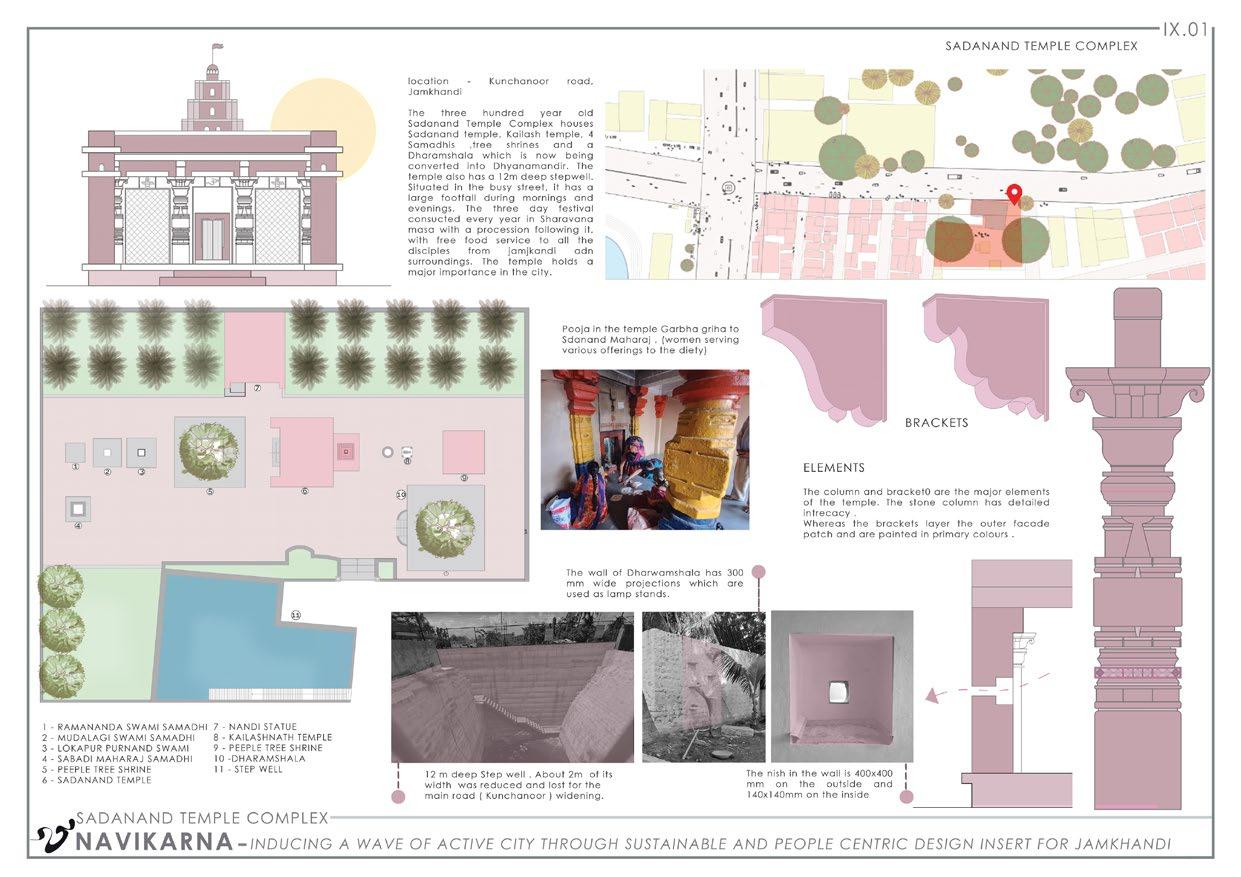

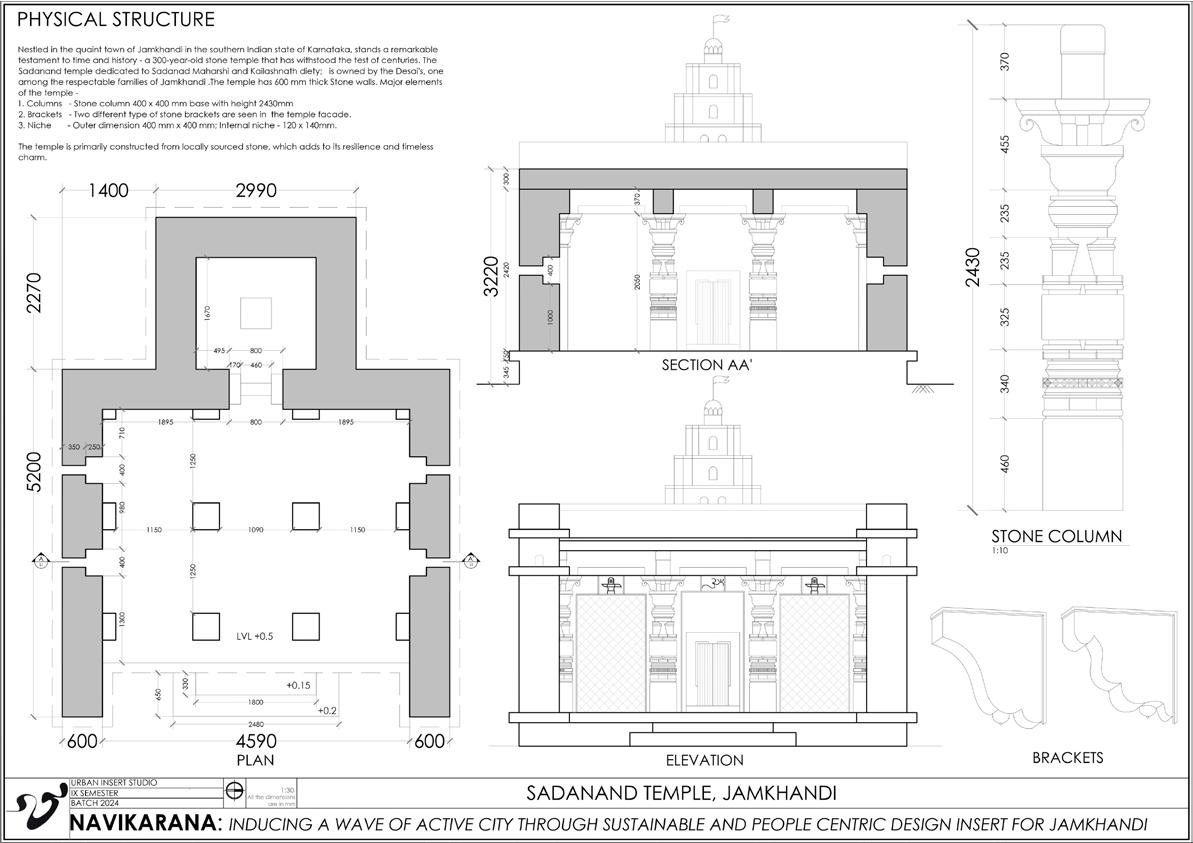

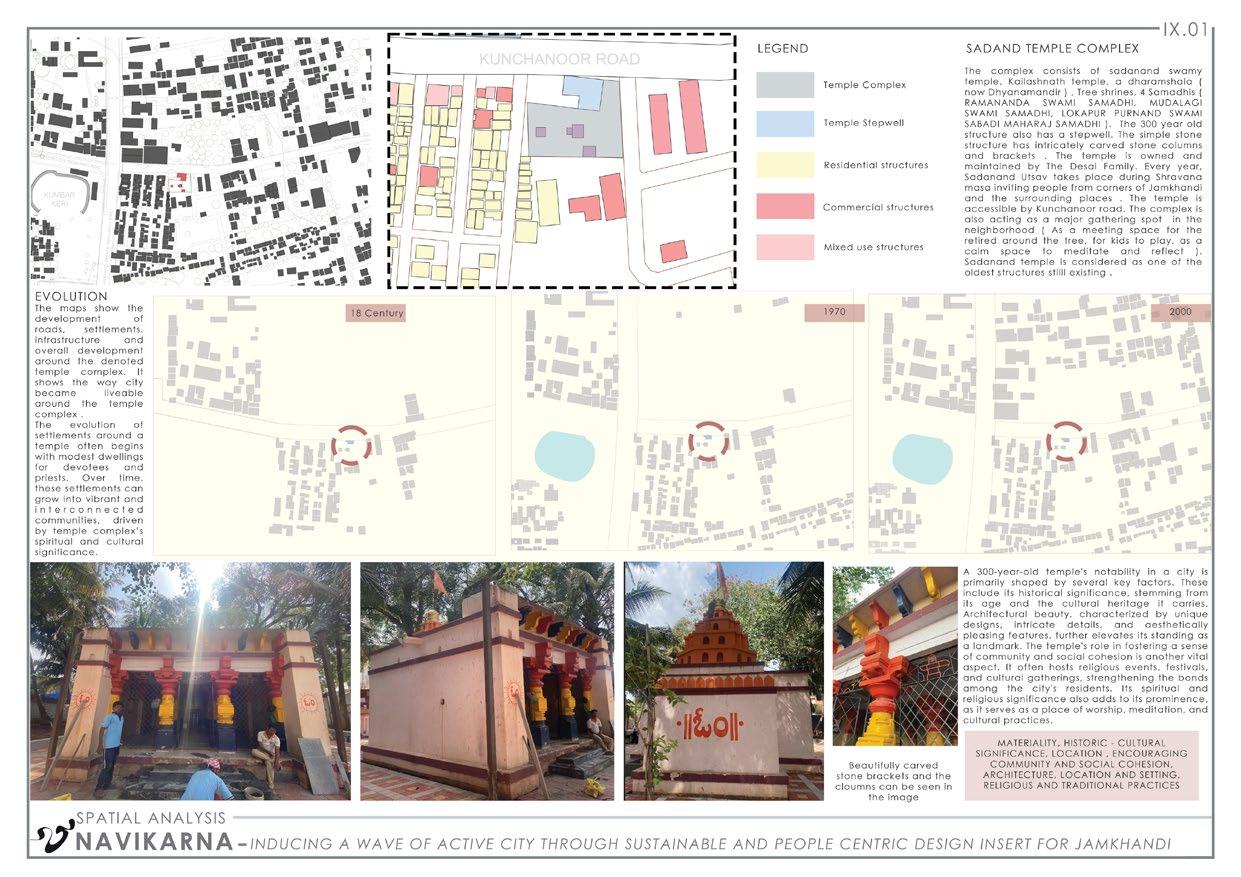

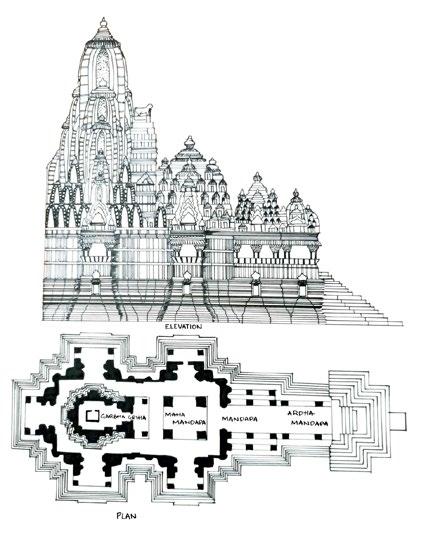

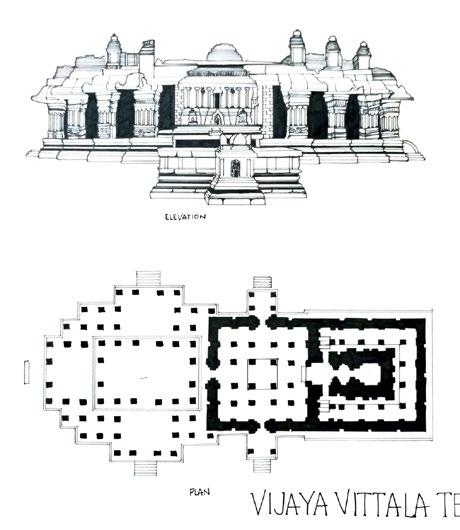

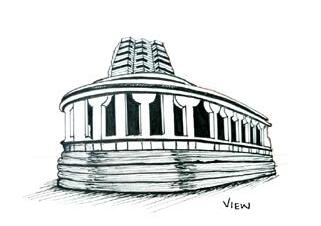

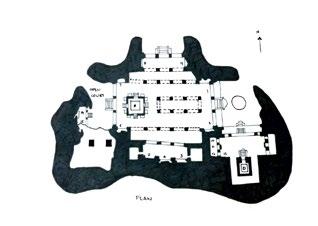

TEMPLE DOCUMENTATION

03

02

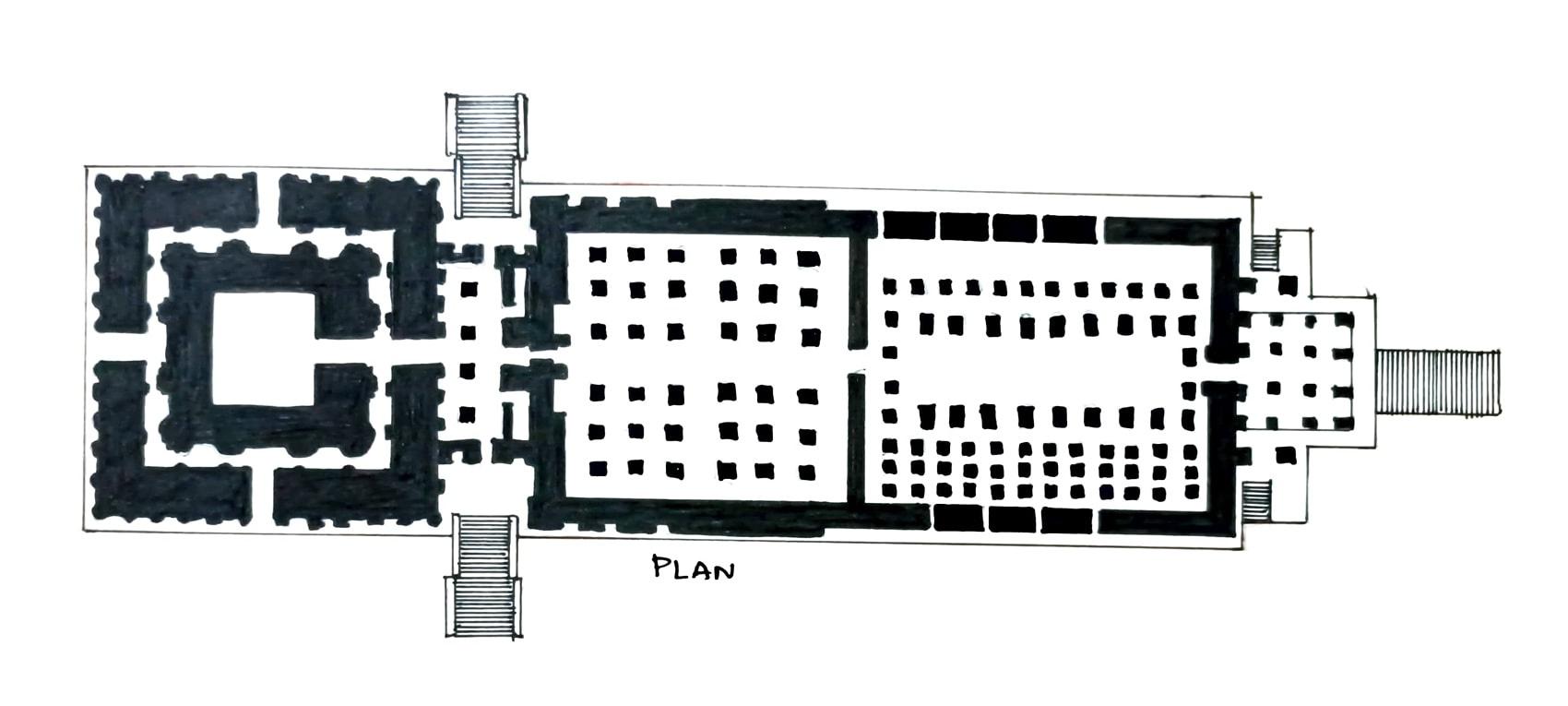

BLOCK PLAN

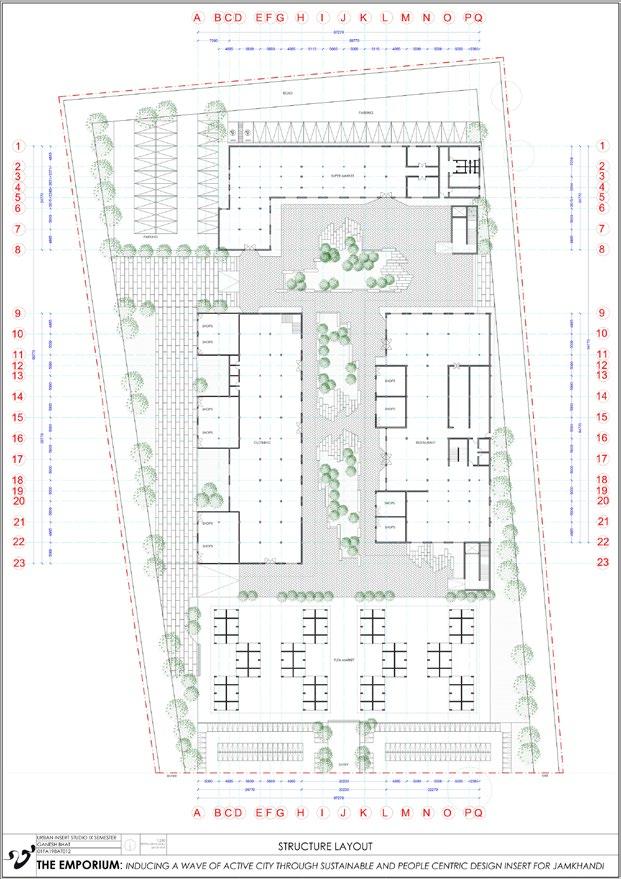

COLUMN LAYOUT

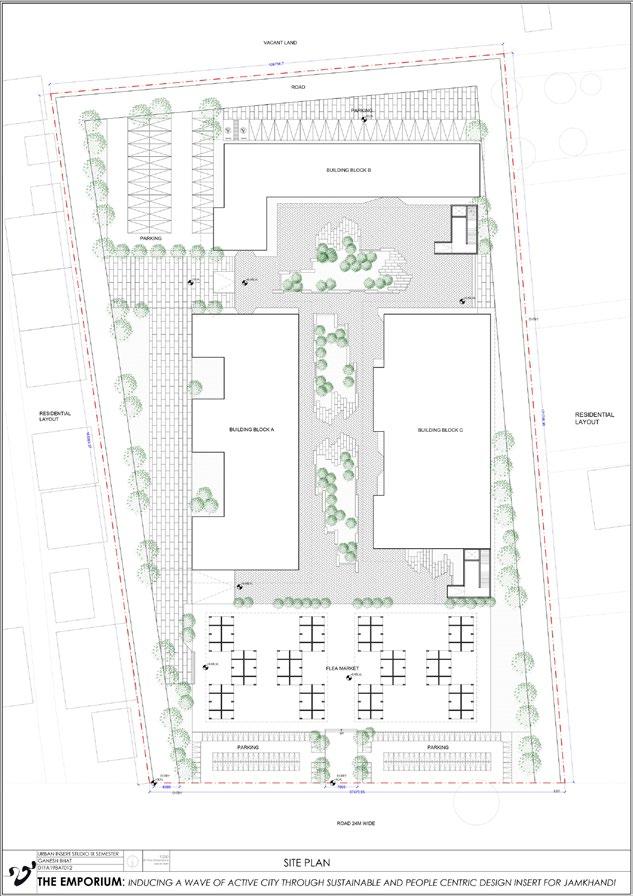

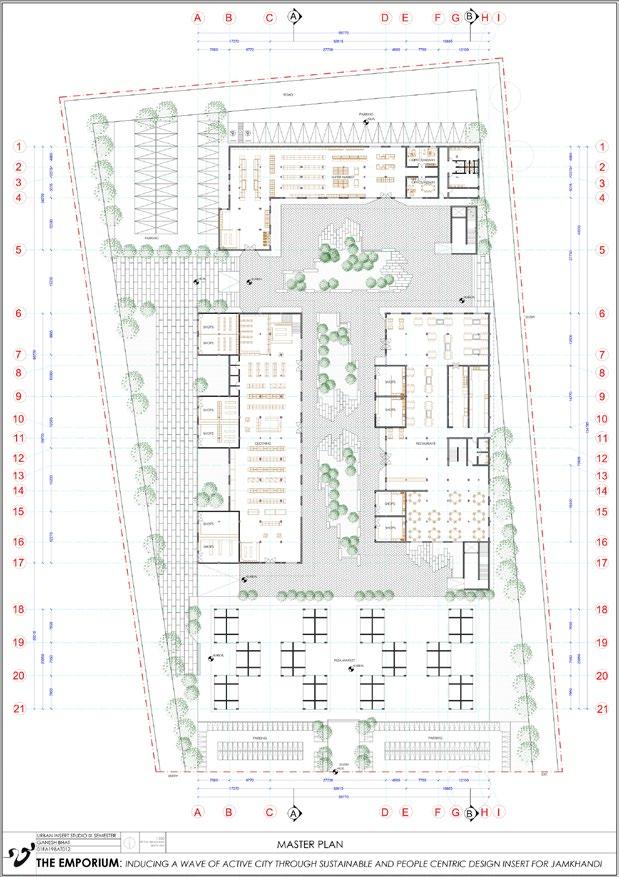

MASTERPLAN

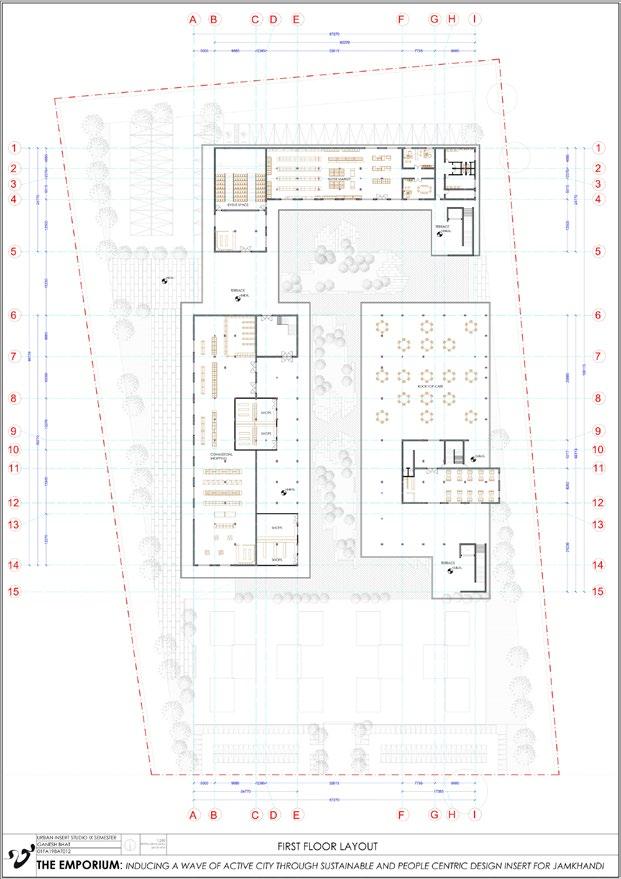

FIRST FLOOR LEVEL

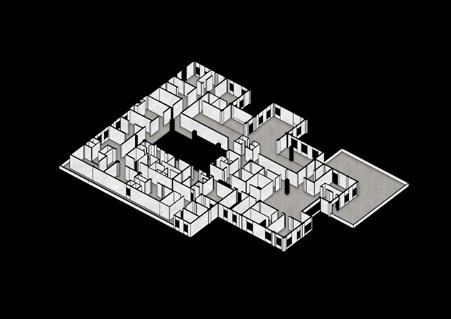

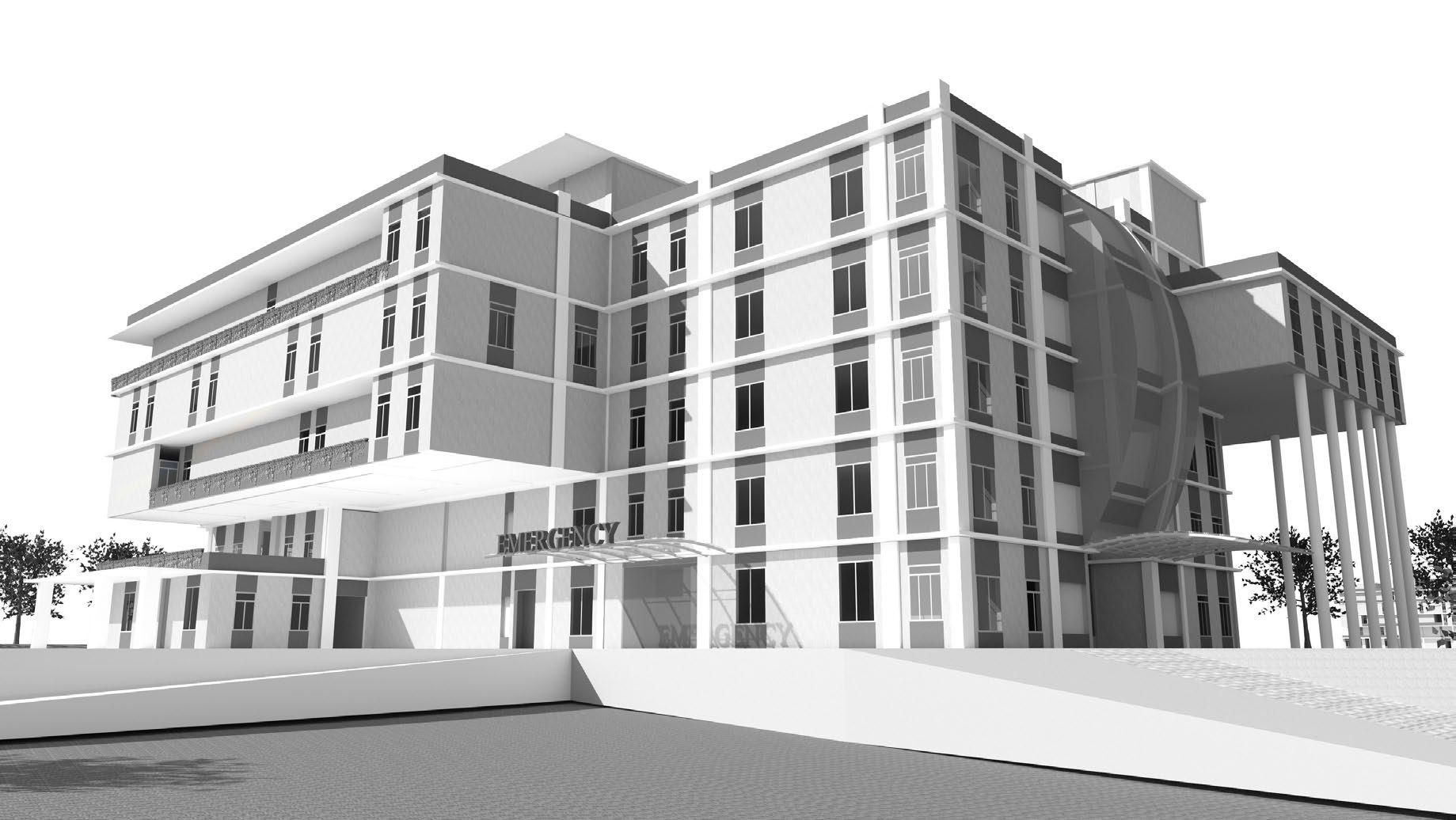

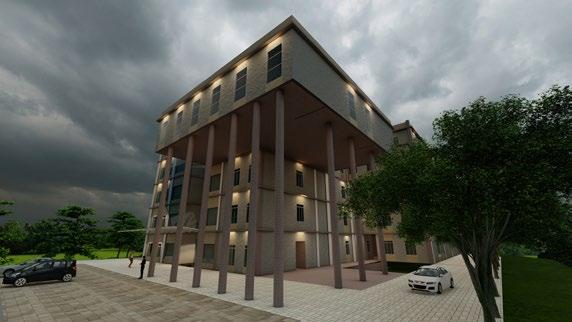

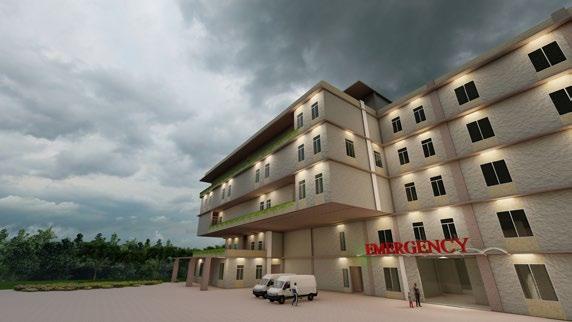

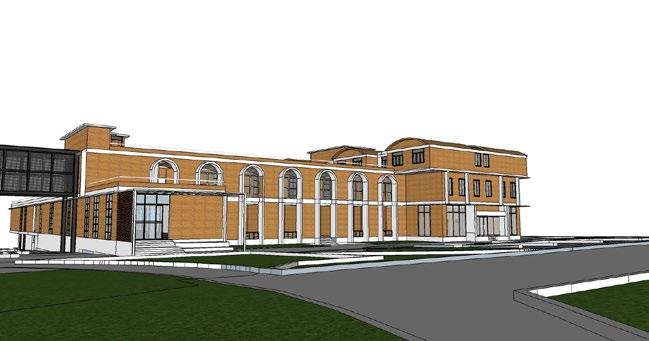

H O S P I T A L D E S I G N

AAROGYAM To design a 150 bedded hospital and provide multispecialty healthcare services comprising of medical clinic, orthopedic, eye clinic, ent, dental, gynecology, pediatric and general medicines.

The pace and intensity of changes are greater in hospitals than in any other building, the challenge is to design a flexible hospital to suit its needs considering the services and spatial requirements rigidity. in between spaces present contribute in maintaining healing environment.

LO CA TION The proposed site is in the hubli-dharwad region.

The city of Hubli lies in southern India, in the state of Karnataka.

BUILDING BLOCK

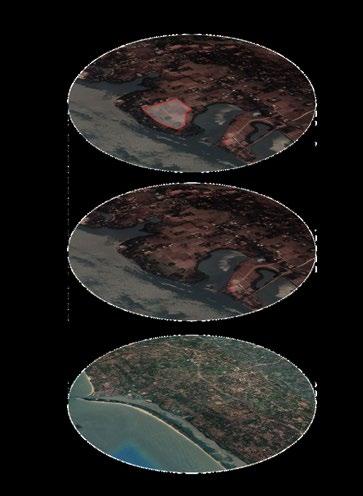

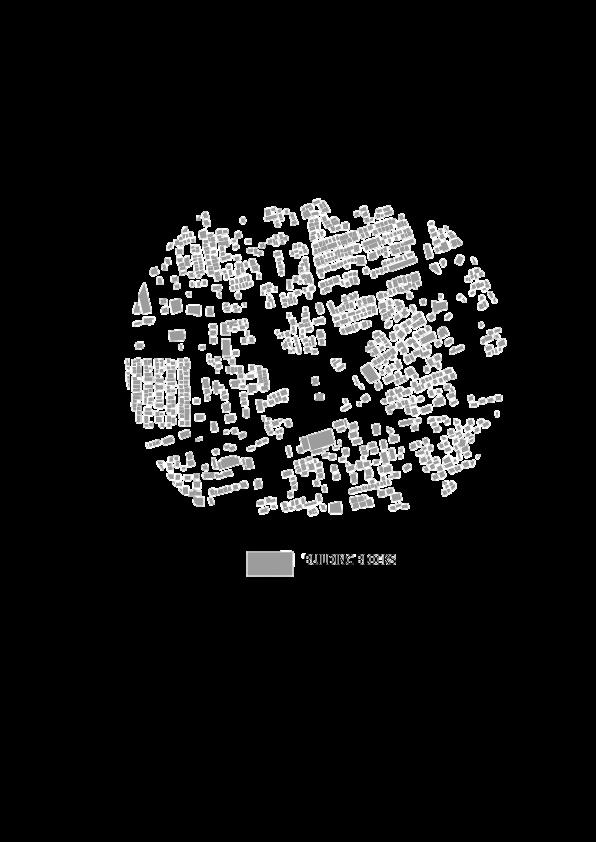

FIGURE GROUND The area is built with residential buildings all around the site, the sites major and highest buildings were towards east. most of the building near the site are maximum double floored height

BUILDING BLOCK

WATER CHANNEL

18M MAIN ROAD

OPEN SPACE NETWORK The site is connected to open spaces and park through the canals and highway.

BUILDING BLOCK

WATER CHANNEL

CANAL NETWORK The unkal lake is the major water channels the site is surrounded by canals from north, west, and south direction.

Near the site there is tolankere lake. water supply from HDMC water tank.

BUILDING BLOCK

WATER CHANNEL

18M MAIN ROAD

CROSS ROAD

STREET PATTERN R-network constitutes the frame of the city. it is also the carrier of the most social economic activities

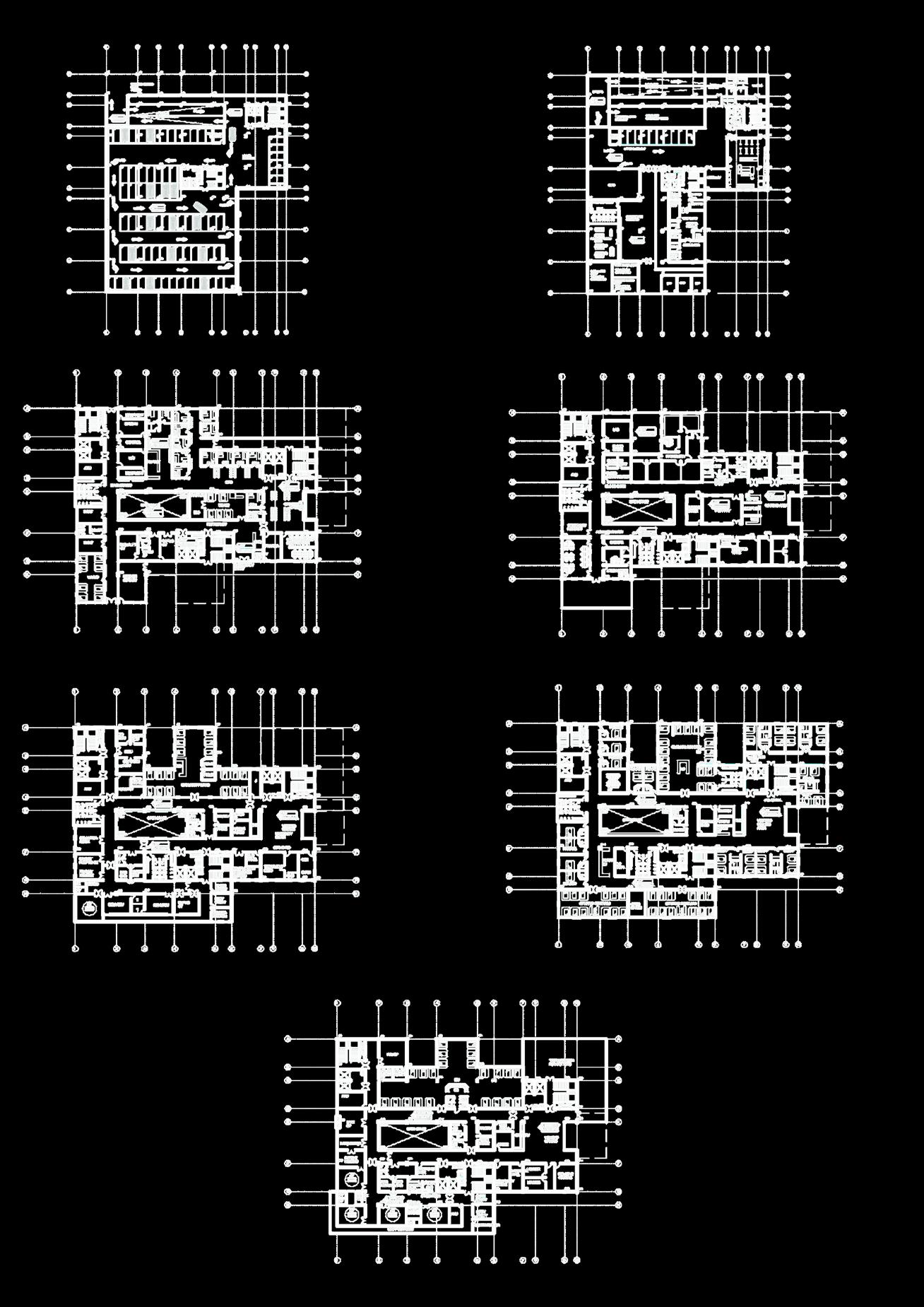

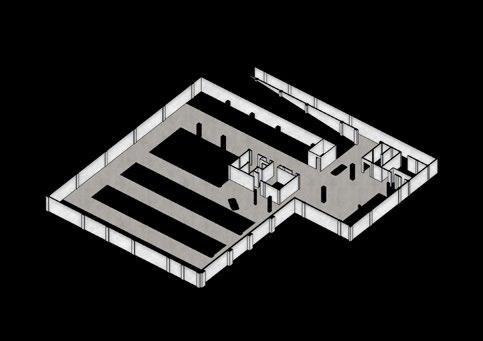

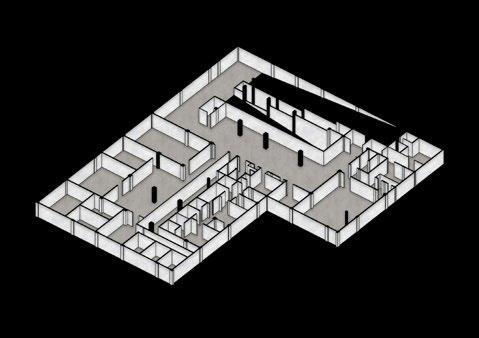

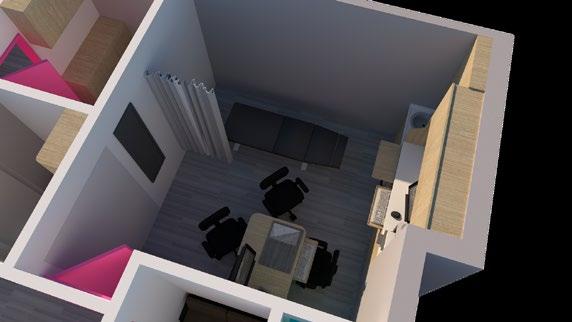

LO WE R BAS EM E N T P LA N

U P P E R BA S EM E NT P LA N

G R O UN D FL O O R PL A N

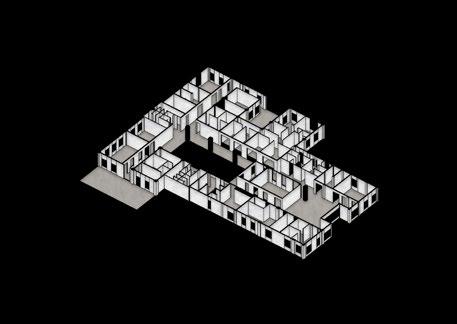

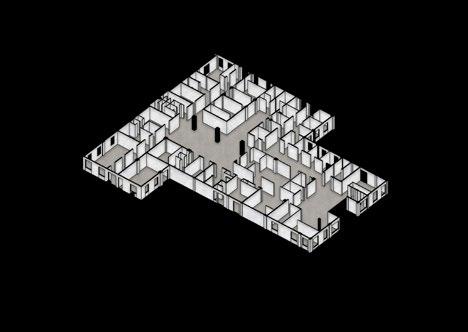

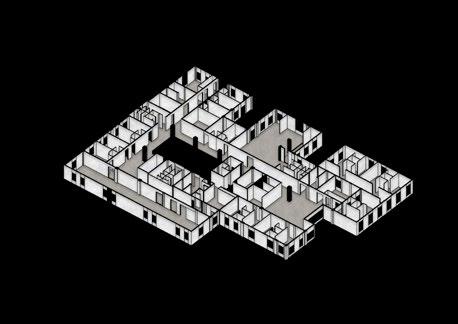

F I R S T F LO OR P LA N

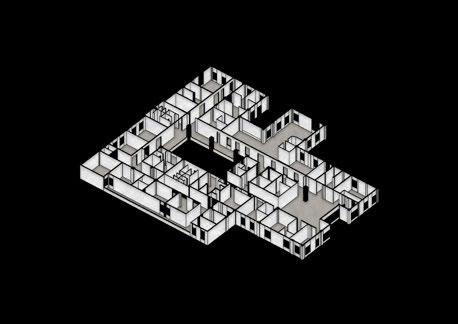

SE CO ND F L O O R PL A N

T H I R D FL OO R P LA N

F O U R TH F L OO R P L A N

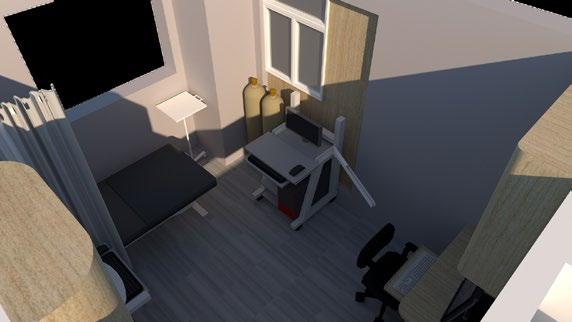

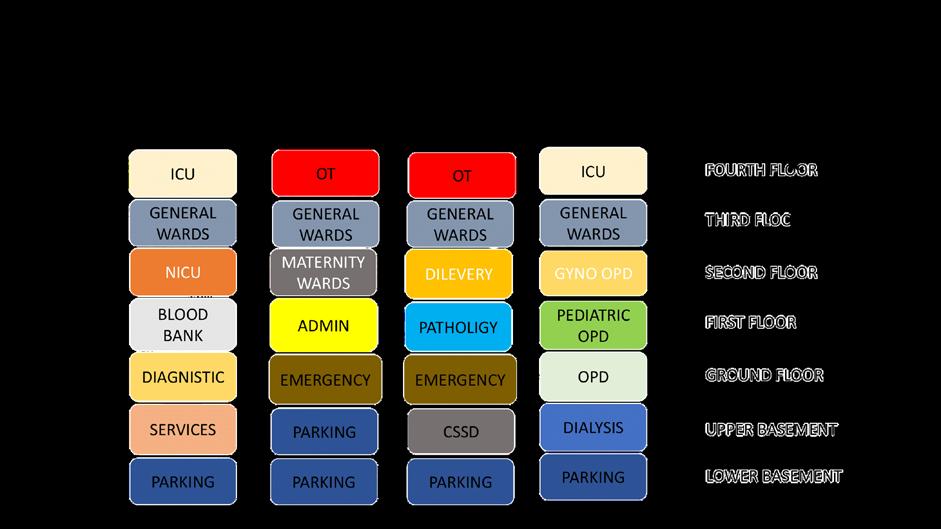

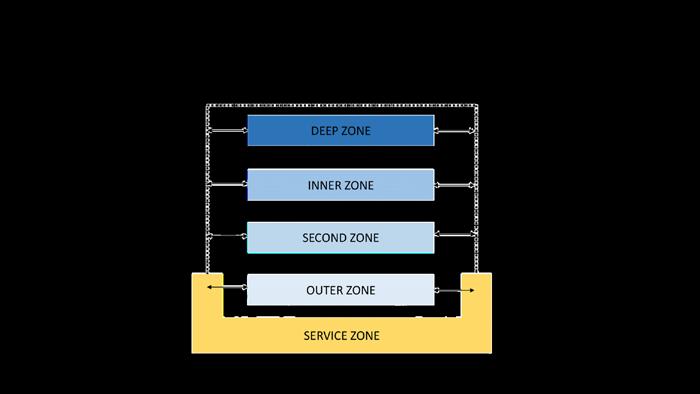

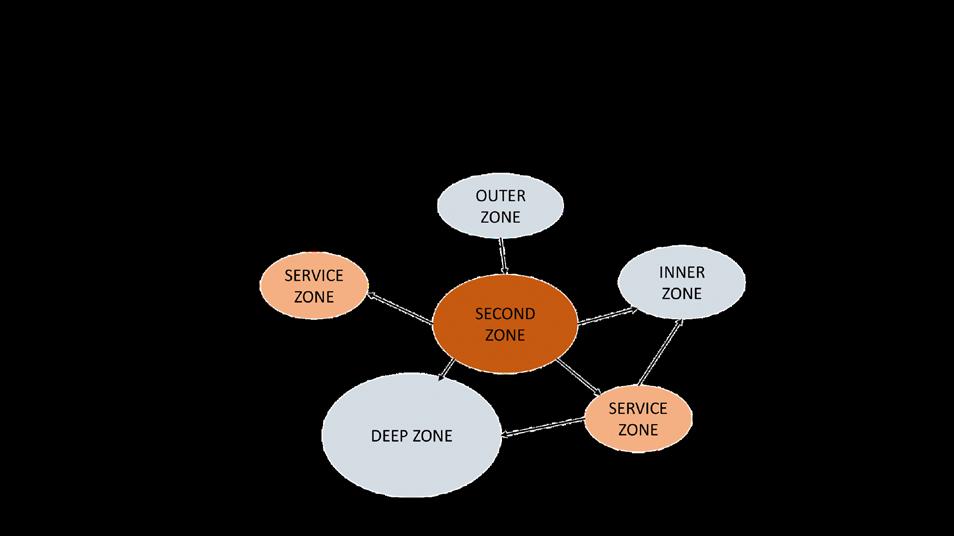

OUTER ZONE Areas that are immediately accessible to the public: emergency service, outpatient service, and administrative service. They are located near the entrance of the hospital SECOND ZONE Areas that receive workload from the outer zone: laboratory, pharmacy, and radiology. They are located near the outer zone.

INNER ZONE Areas that provide nursing care and management of patients: nursing service. They are located in private areas but accessible to relatives FF

TF

SF

DEEP ZONE Areas that require asepsis to perform the prescribed services: surgical service, delivery service, nursery, and intensive care. They are segregated from the public areas but accessible to the outer, second and inner zones.

FF

SERVICE ZONE Areas that provide support to hospital activities: dietary service, housekeeping service, maintenance and motor pool service, and mortuary. They are located in areas away from normal traffic.

GF

UB

LB

vertical movement is located at the focal point of the building OPDs and diagnostics kept in lower to floors to avoid unnecessary traffic on upper floors system of corridors interlinking areas parking is provided in the basement

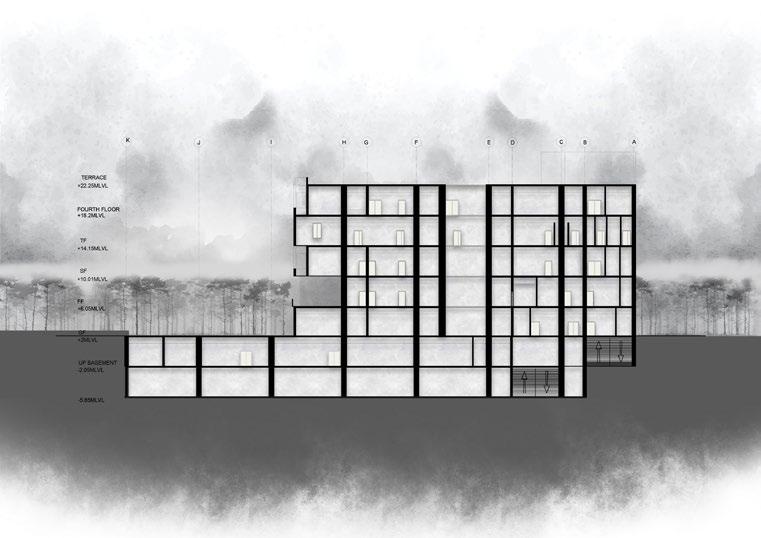

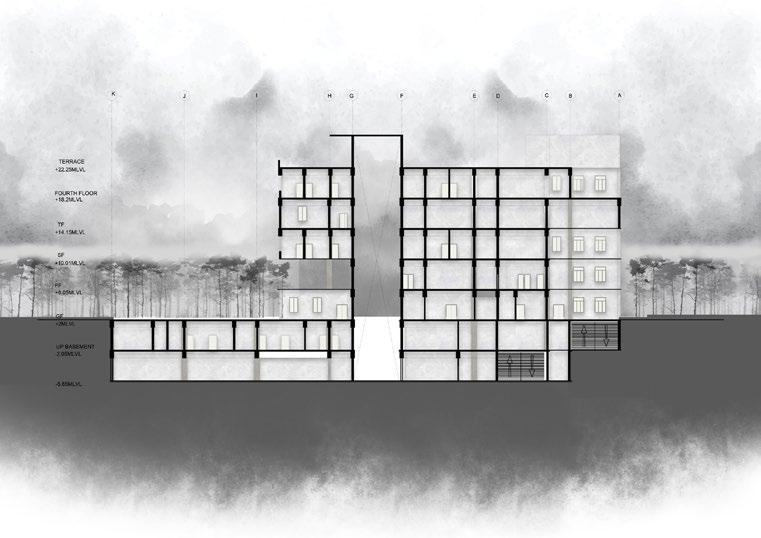

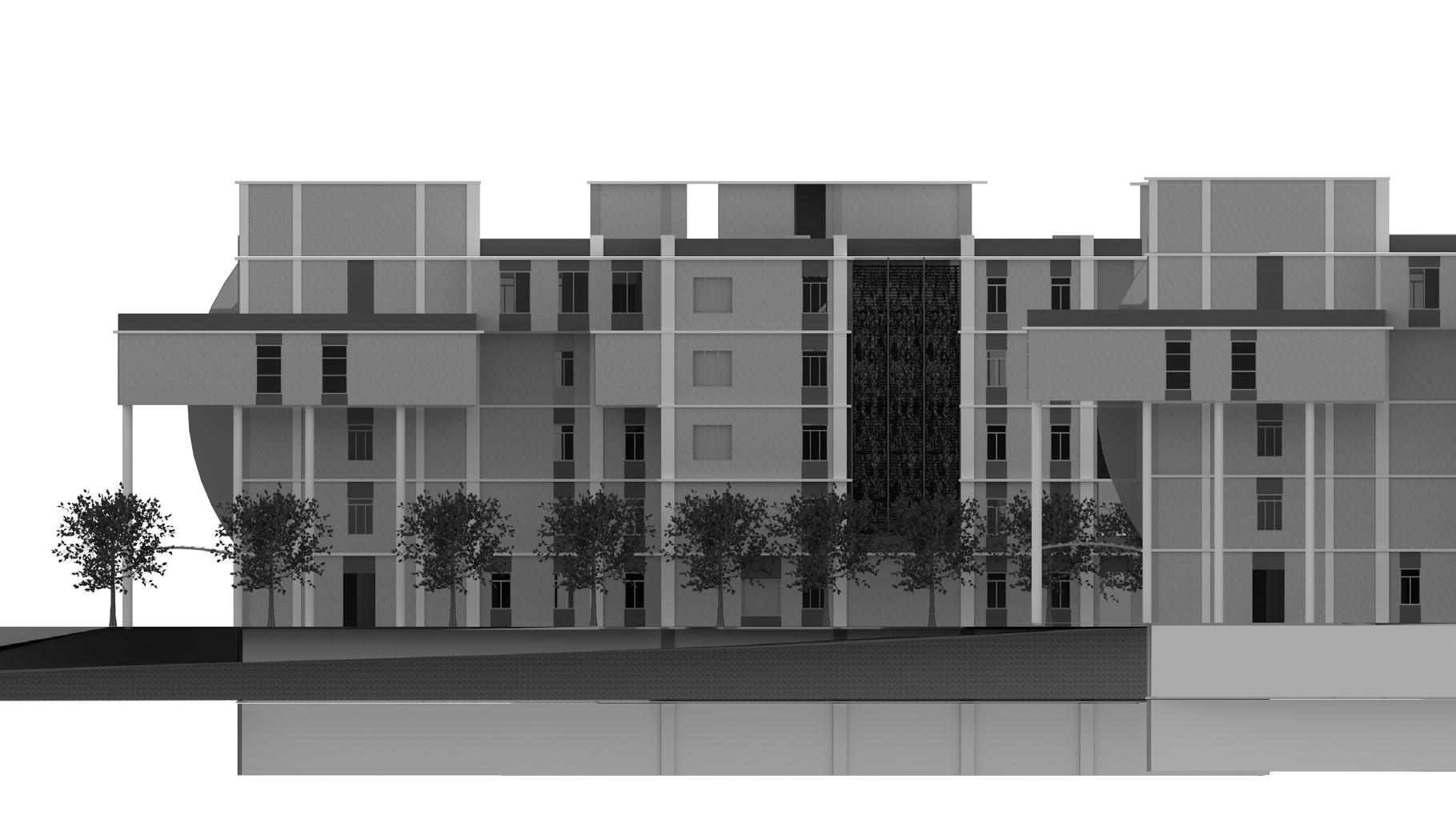

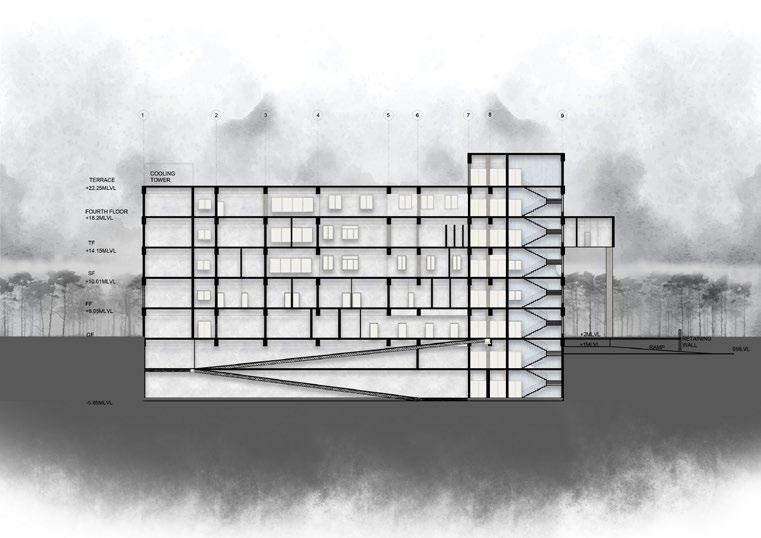

SECTION

SECTION

SECTION

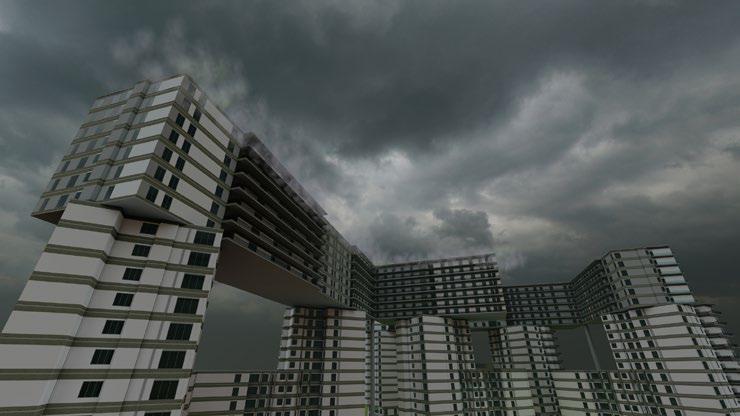

L U X U R Y C O N D O M I N I U M

AALAYAM How can a building improve the quality of our life? if I think and look at physical world whether it's our body or plants, grass, planets etc. The physical universe is all about geometry, how long something stands or how well something functions physically is only a question of geometry.

Shapes and forms, space has a significant impact on people the atmosphere they live in is very important, if I want to somehow live and die ,i can live anywhere but if I want to thrive really then it is important how and what kind of space, I live in.

L OC AT IO N Udupi is situated within the western ghats in the east and Arabian sea in the west. It is one of the 3 coastal districts of Karnataka.

Udupi has mainly 3 subdivisions; Kundapura, Karkala and Udupi the proposed site comes in udupi subdivision

SITE Site area: 42,164 sqm FAR:3 Total built up area:126,492sqm Ground coverage: 45% ie,18,973 sqm TOPOGRAPHY: Both drainage and visibility pattern can be seen. The site has an 8m contour level SLOPE: 1:30 ratio is seen as steepness LANDFORM: The site consists of trees and water pond, there is no uniform slope is seen in the site.

C

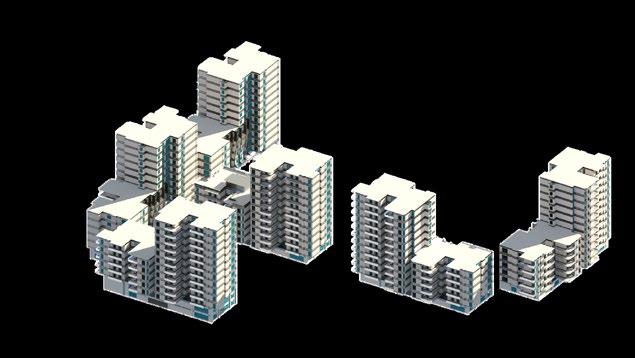

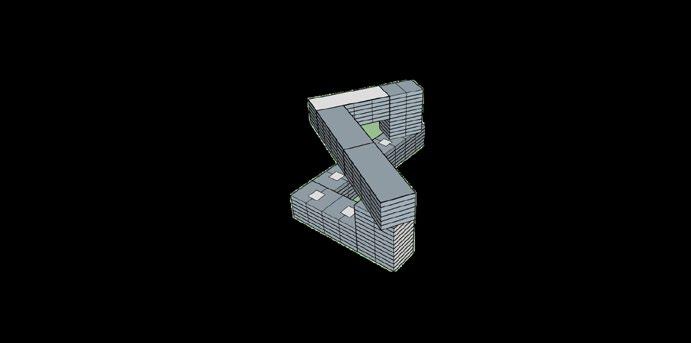

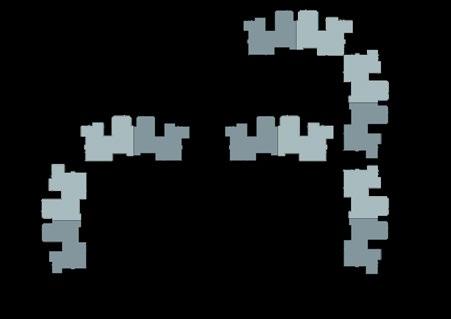

C O NC E PT The idea for this project is if you like to throw the vertical into the horizontal and stack or interlock a series of building blocks creating a bond on top of each other with a fairly dramatic topography in themselves, views to the outside surrounding landscape and also inside development.

Form is developed according to the climate, to access natural day lighting and cross ventilation through prevailing winds.

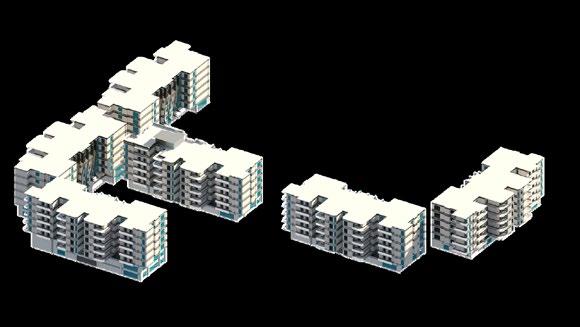

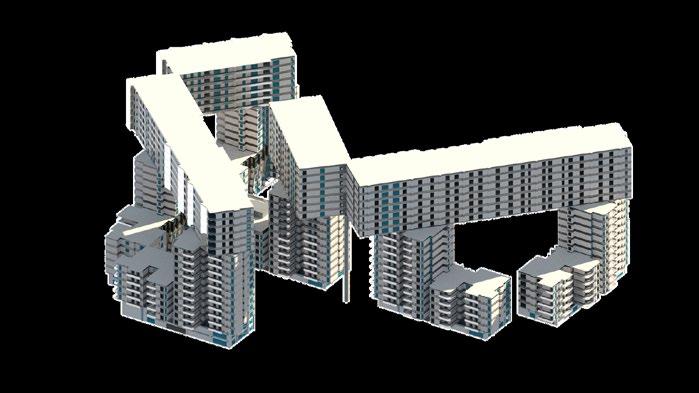

3D VIEW LEVEL SIX

3D VIEW LEVEL TWELVE

3D VIEW LEVEL EIGHTEEN

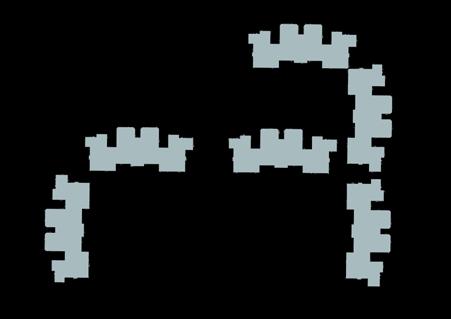

PLAN LEVEL SIX

PLAN LEVEL TWELVE

PLAN LEVEL EIGHTEEN

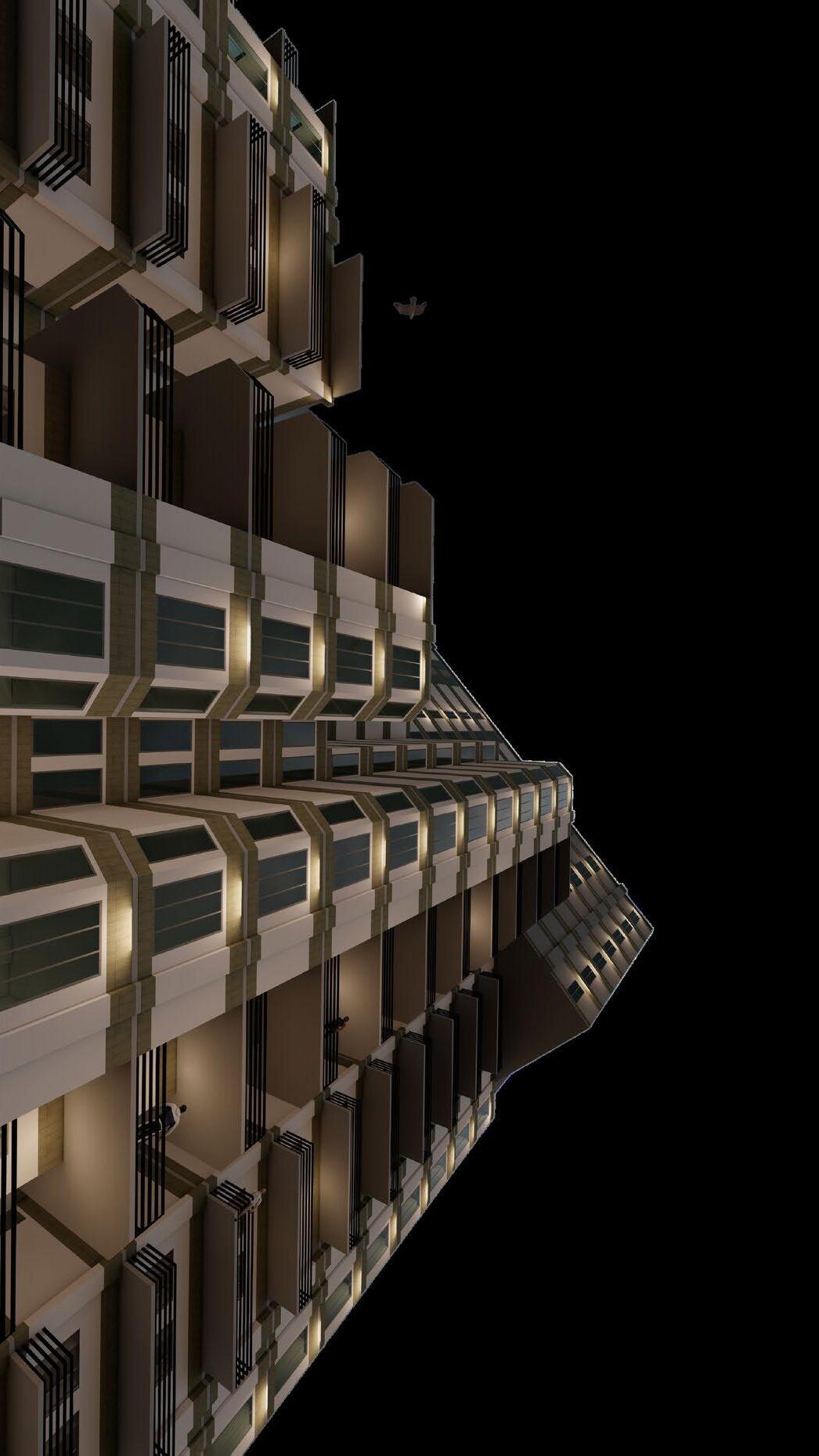

Arrangement of the building optimize views to the surrounding tropical for through extensive roof gardens landscaped sky terraces and cascading balconies. comfortable outdoor conditions due to the formation of shaded areas and courtyards and use of extensive roof garden cascading gardens spit over the facades of the building, drawing a visual connection between the elevated green refuge and expansive tropical landscape and sea, river view

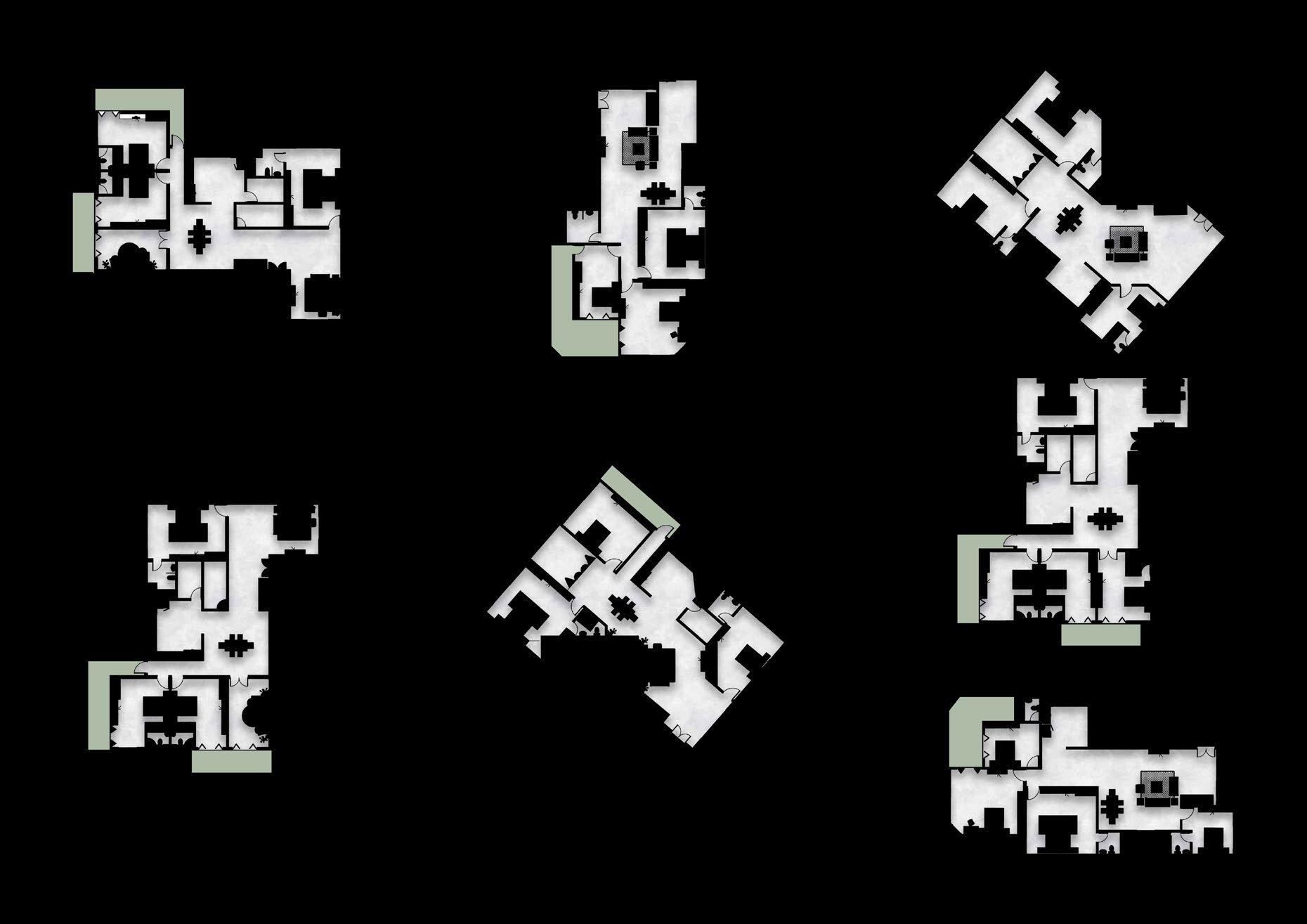

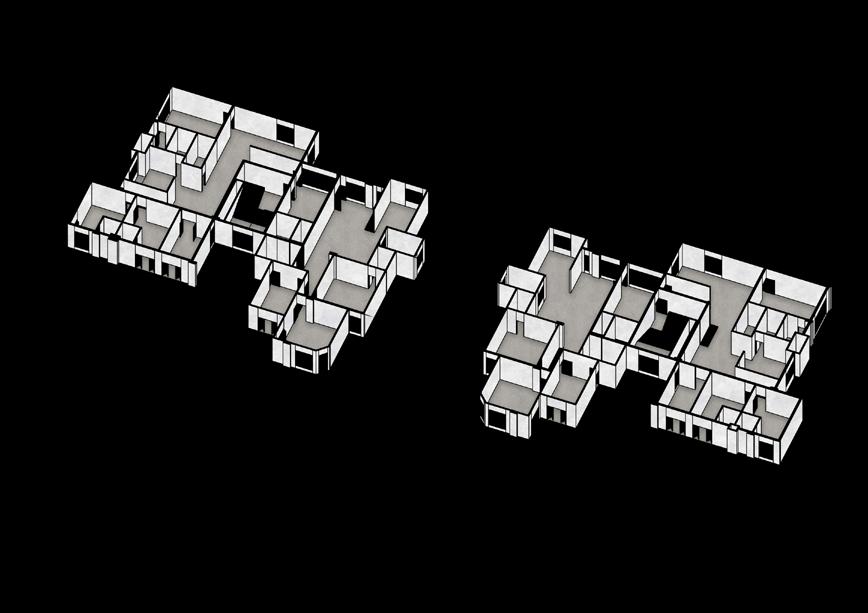

3B HK T Y P O LO G Y 1

3 B H K T Y P O LO G Y 2

3B HK T Y P O L O G Y 3

3BHK TYPOLOGY 4

3BH K T Y P O L O GY 5

4 B H K T Y P O LO G Y 1

4BH K TY P O LO G Y 2

U

F LOOR

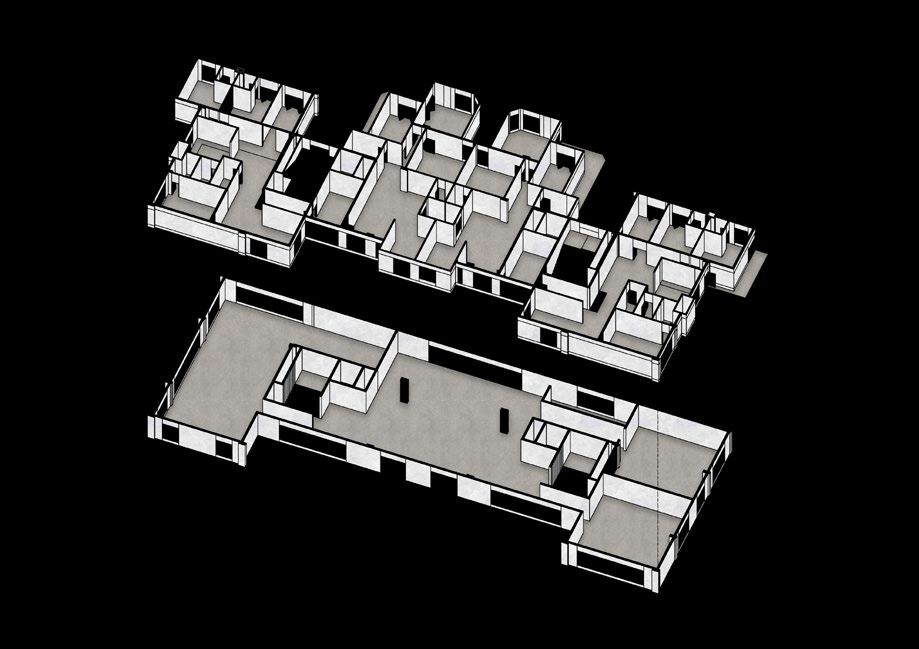

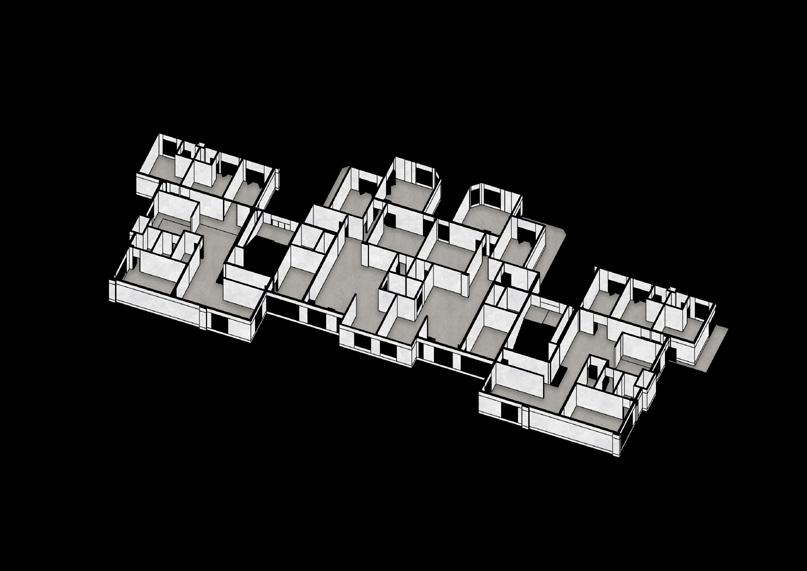

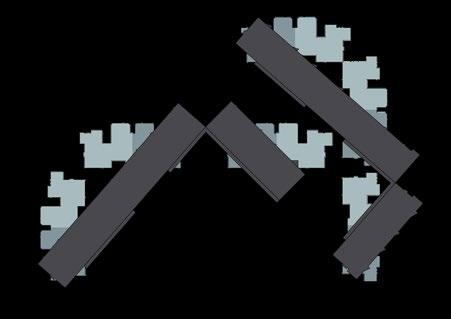

UN IT J OI NIN G

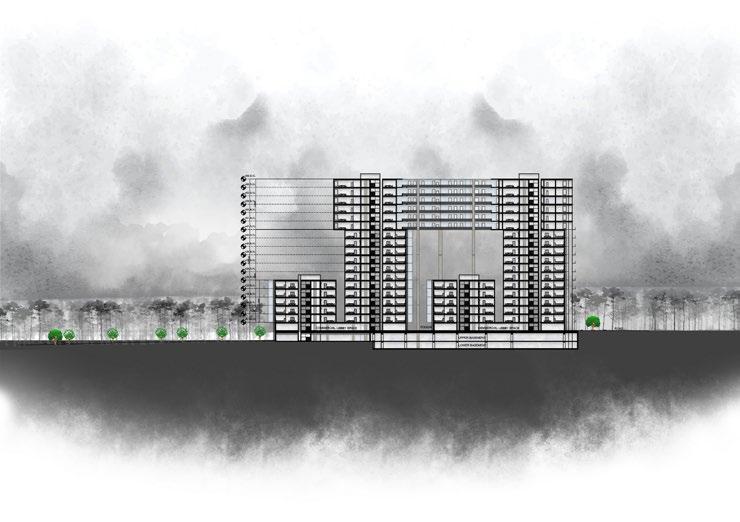

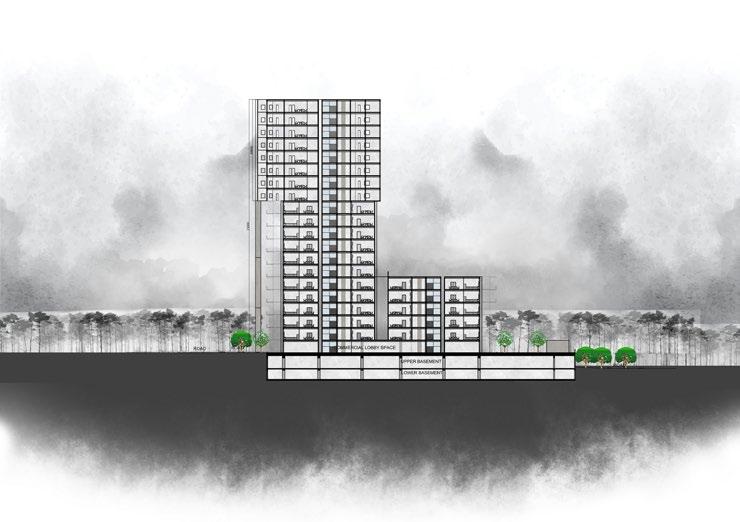

SECTION

SECTION ST AC K ING

I N T E R N S H I P

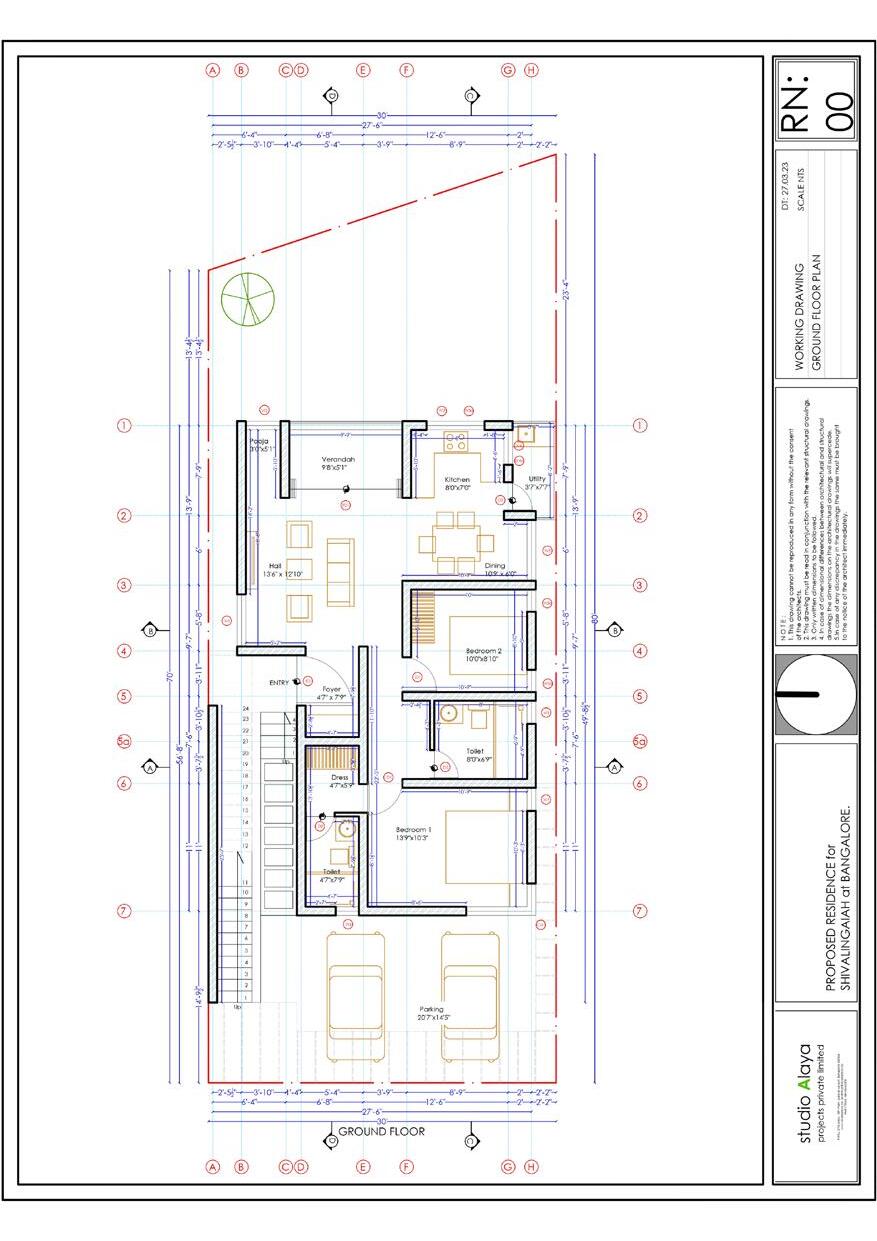

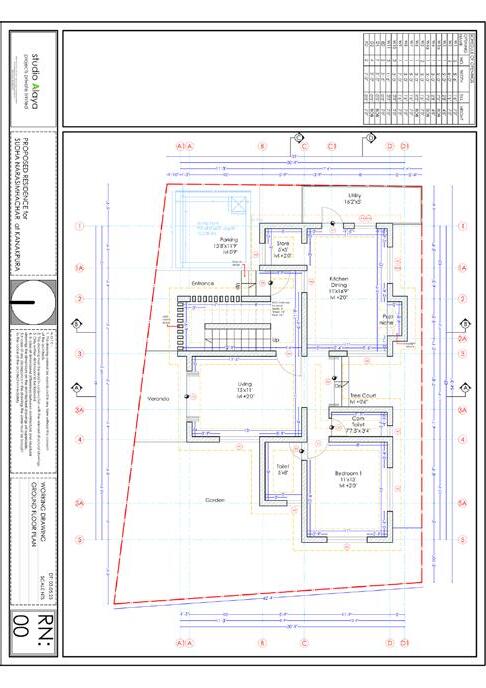

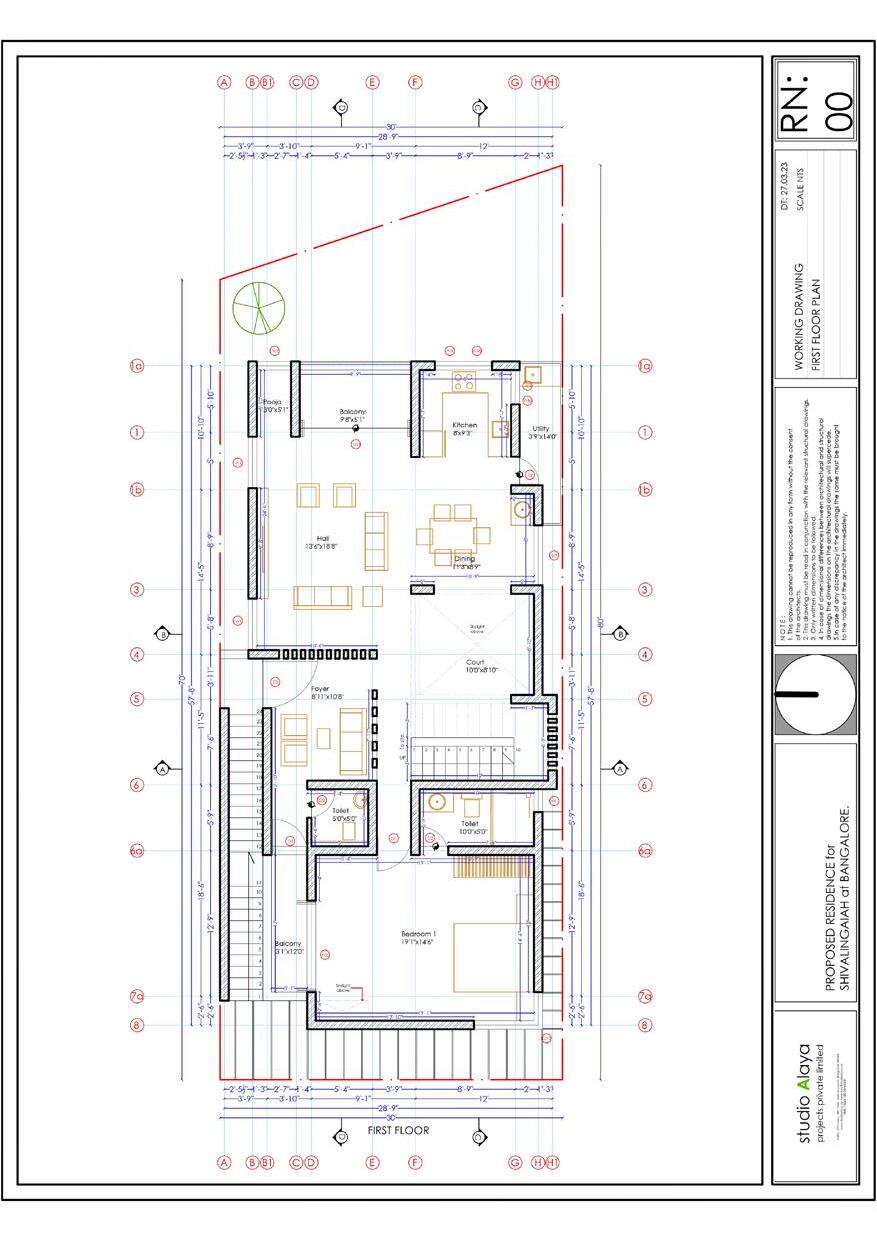

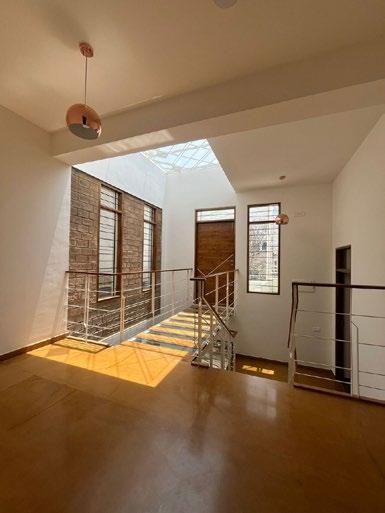

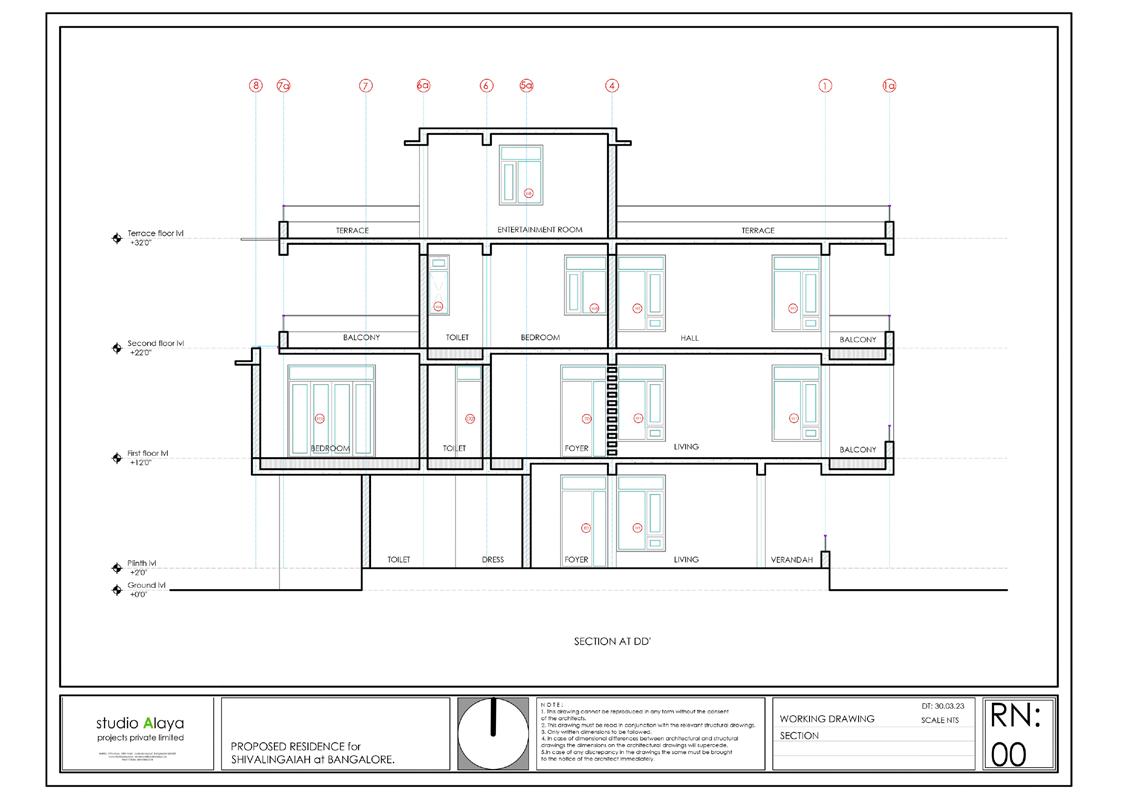

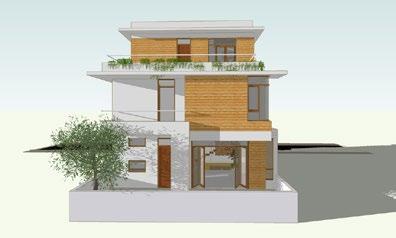

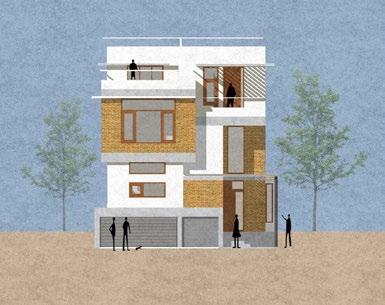

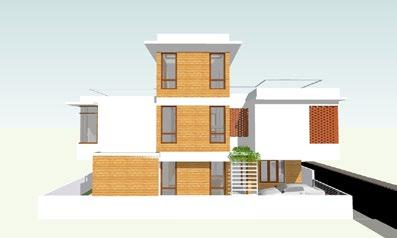

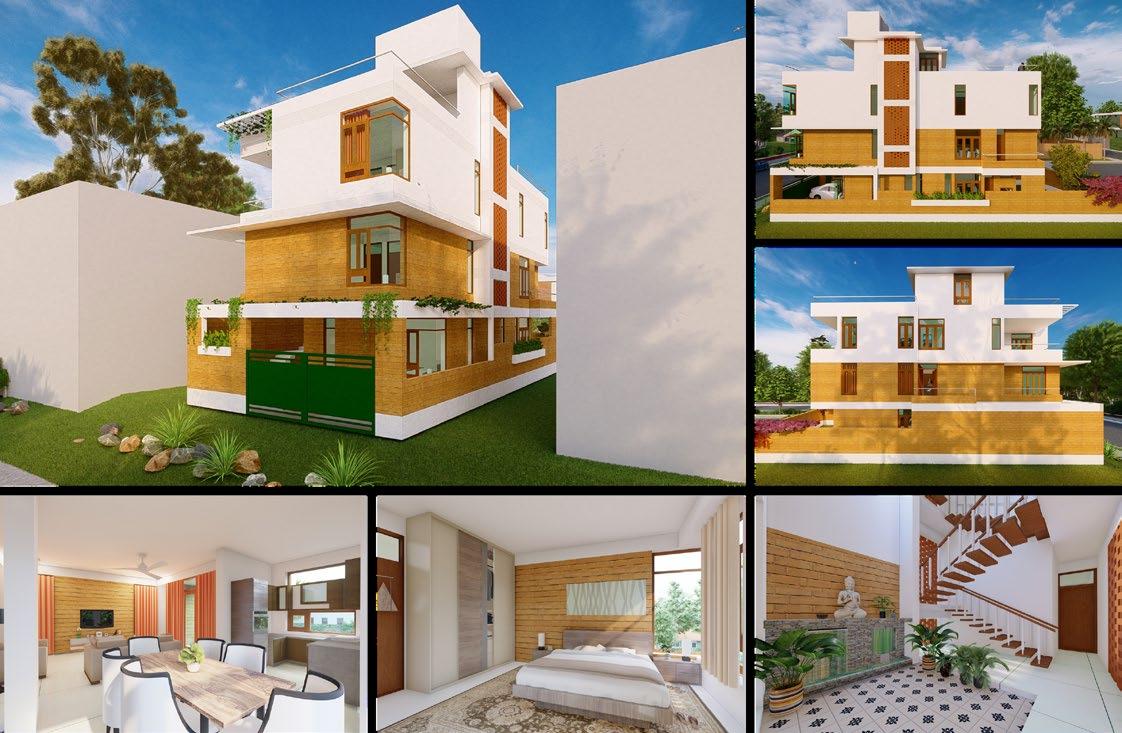

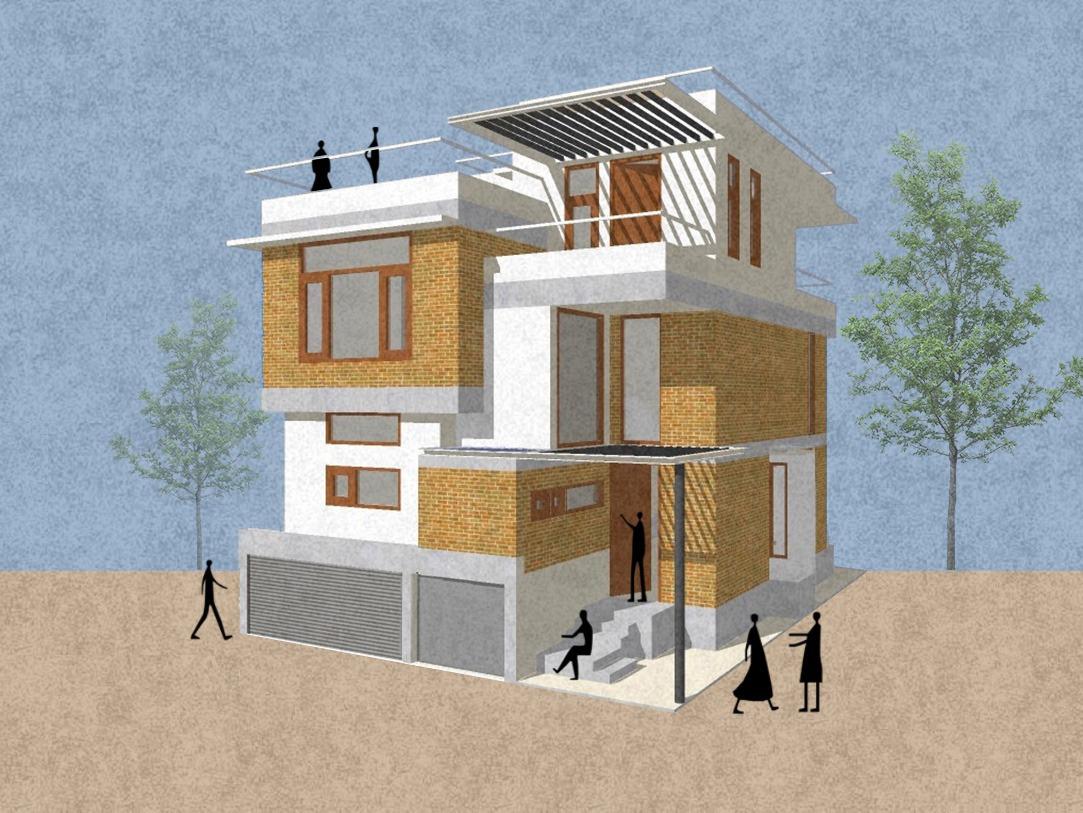

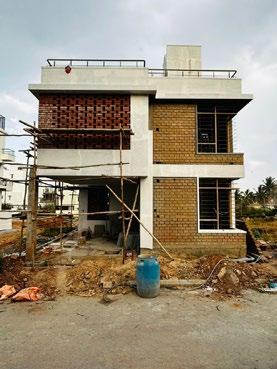

SHIVALINGAIAH'S DREAM HOUSE Type: Residential Location: kanakpura, Bangalore status: Under construction Shivalingaiya's residence in Kanakapura, Bengaluru, is an exemplary blend of thoughtful architecture and sustainable living. The ground floor houses a cozy 1BHK, while the first and second floors boast a spacious 3BHK layout. The design focuses on creating functional spaces that nurture family bonds and provide ample room for all activities. Constructed with Compressed Stabilized Earth Blocks (CSEB), this home champions eco-friendly building practices, significantly reducing its environmental footprint. A striking feature of this house is the double-height living area, which infuses the interior with an airy openness and a sense of grandeur, making it a focal point for dramatic visual impact. This harmonious combination of sustainable materials and innovative design ensures that the residence is both comfortable and environmentally responsible, offering a serene yet impactful living experience for its occupants.

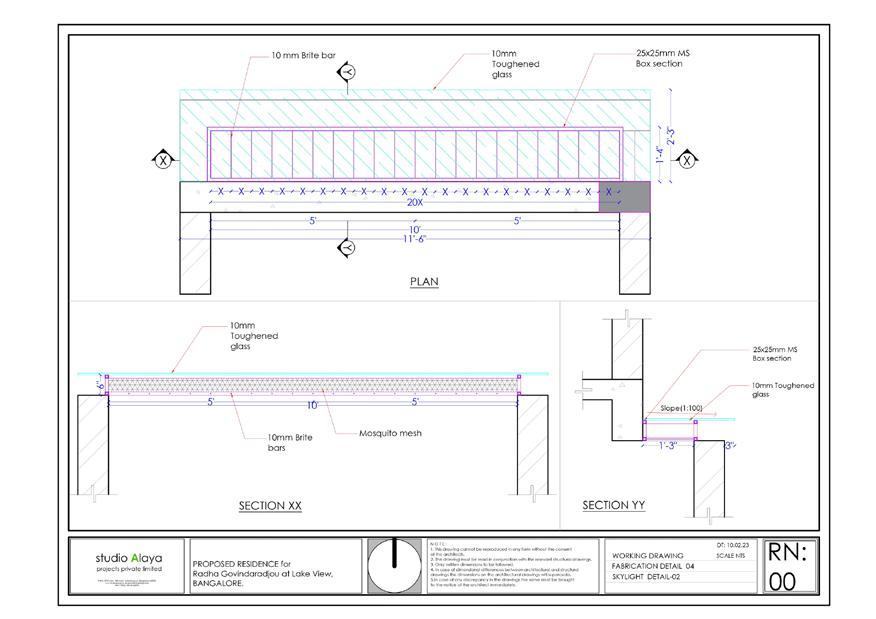

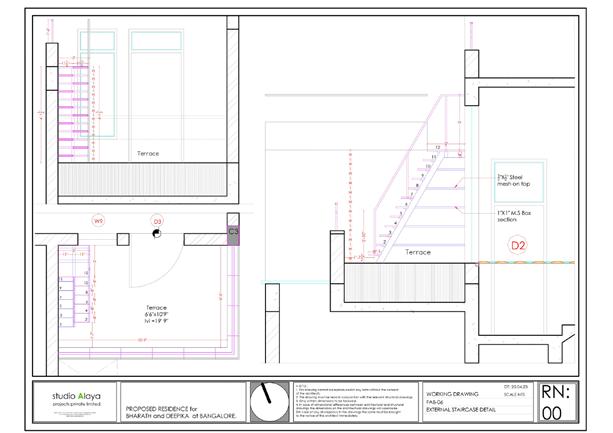

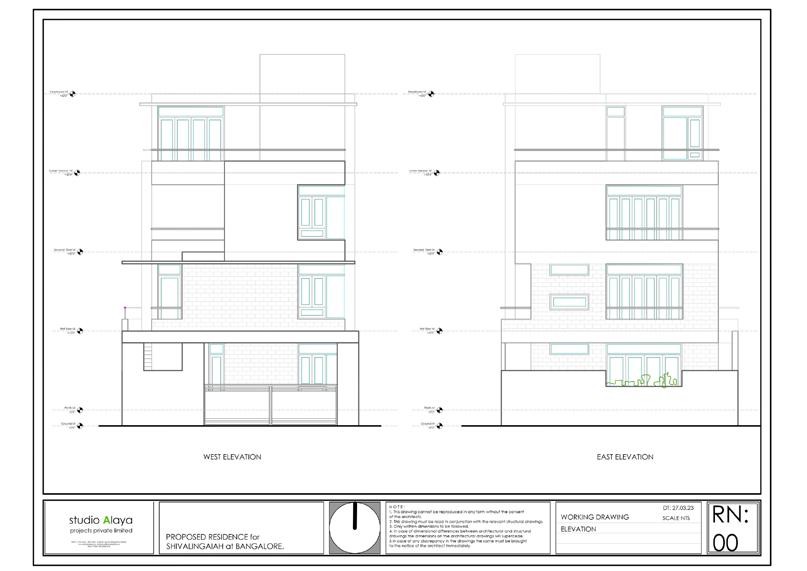

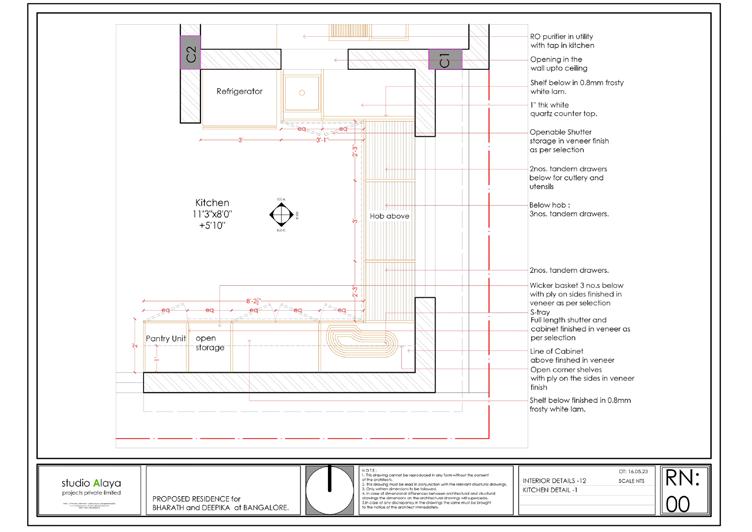

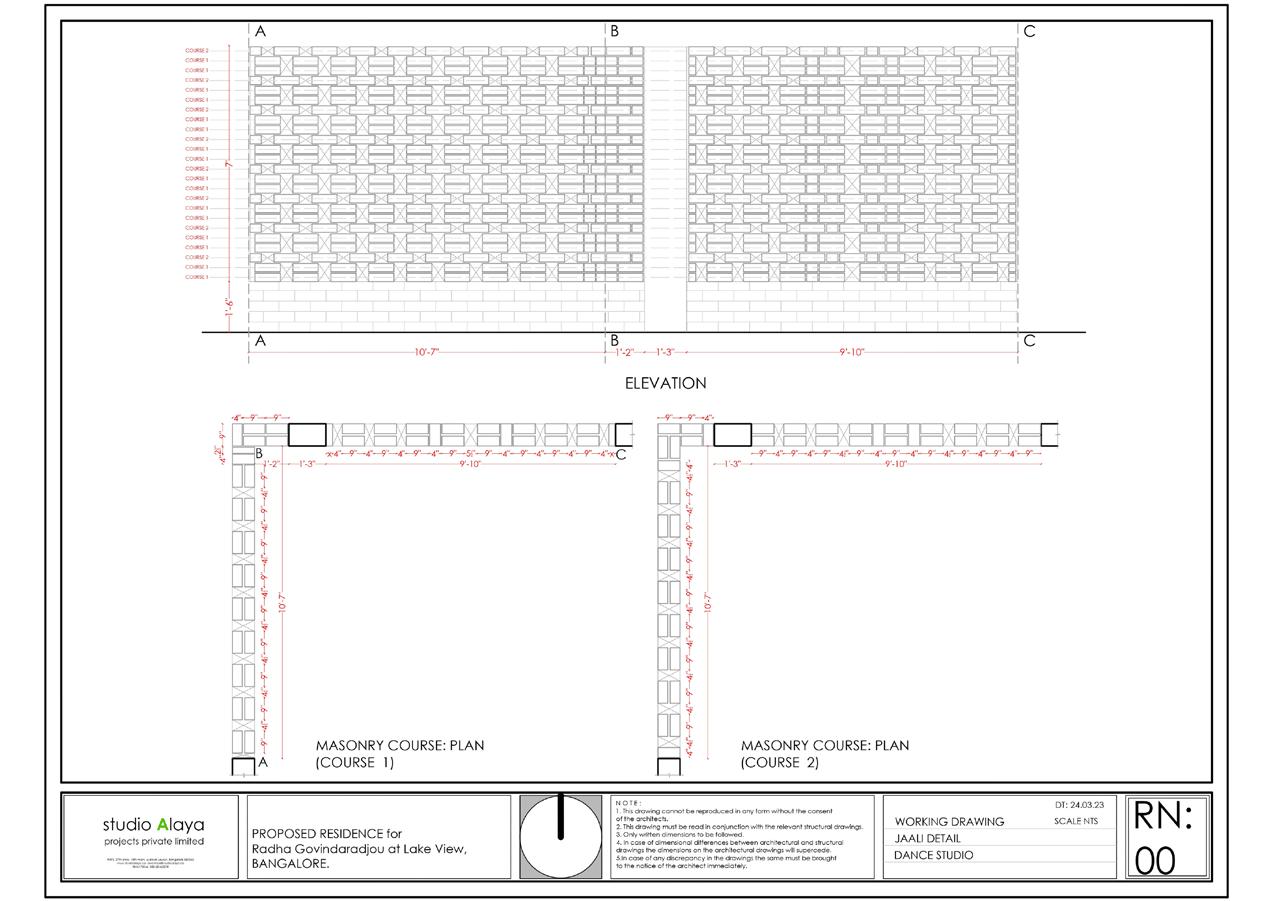

My role I had assigned with the task to generate working drawings, centerline drawings, sections, elevations, model, massing to produce elevations and renderings

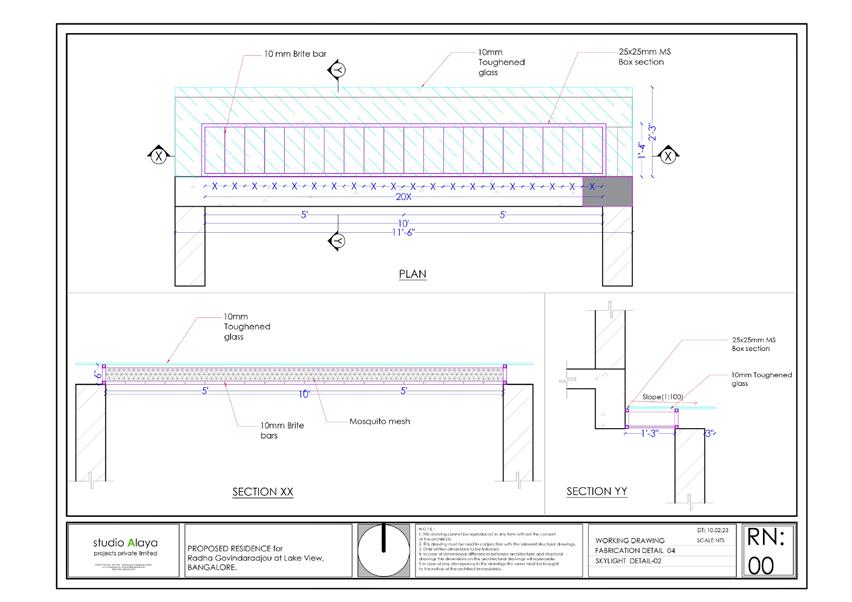

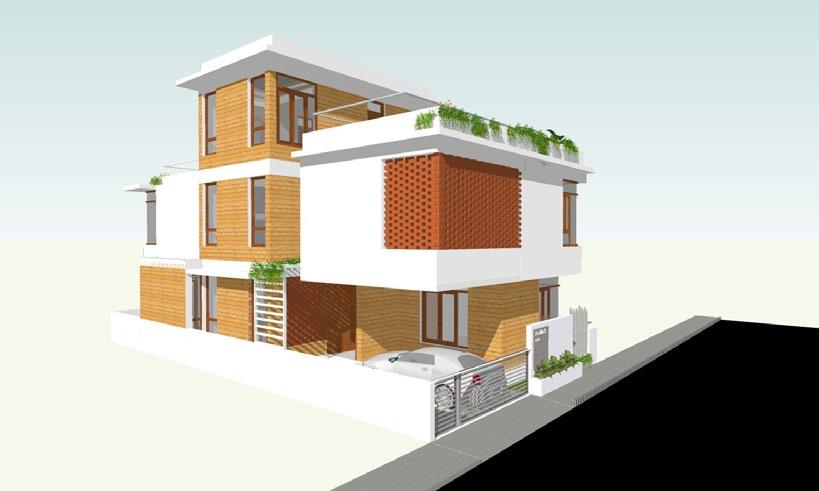

RADHA’S DREAM HOUSE Type: Residential Location: Electronic city, Bangalore status: Constructed 2023-24 Radha's residence in Electronic City, Bengaluru, is a beautiful testament to traditional aesthetics and sustainable architecture. This G+1 structure perfectly mirrors Radha's passion for Bharatanatyam and her love for all things classical. Built with a loadbearing structure using Compressed Stabilized Earth Blocks (CSEB) and adorned with elegant wall cladding, the house exudes charm and durability. A unique feature of this home is the dedicated dance studio, where Radha practices and teaches Bharatanatyam. The studio is designed with brick jali, allowing natural light to filter in, creating a serene and inspiring atmosphere. This house seamlessly blends functionality with a deep appreciation for cultural heritage and environmental consciousness.

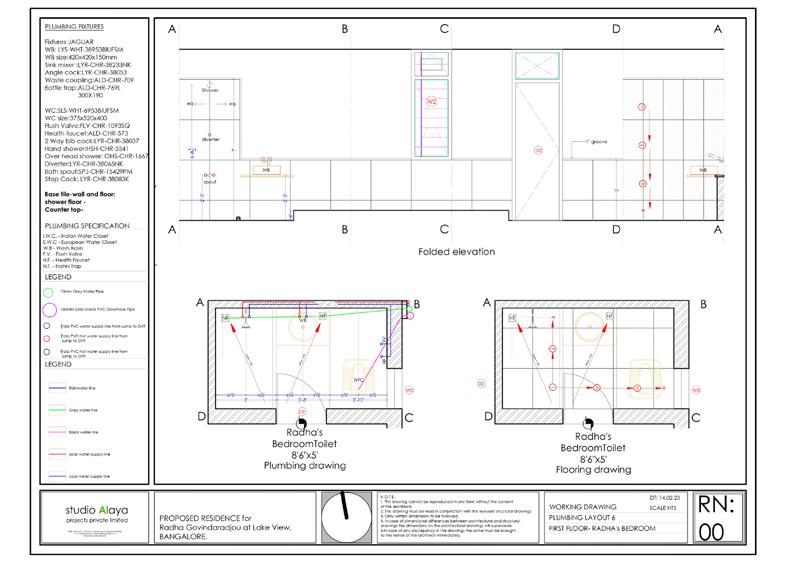

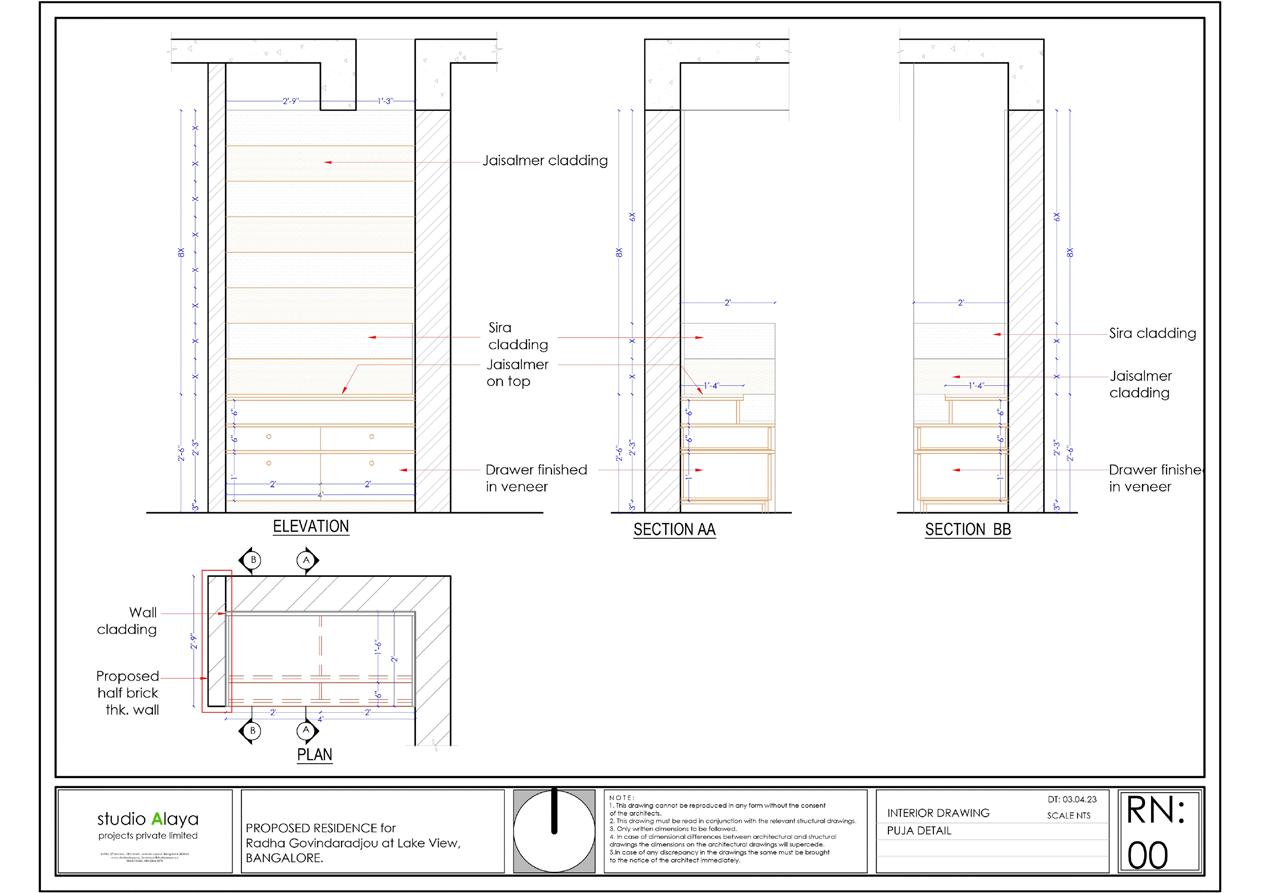

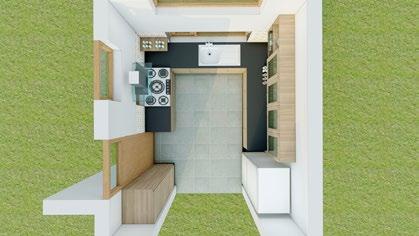

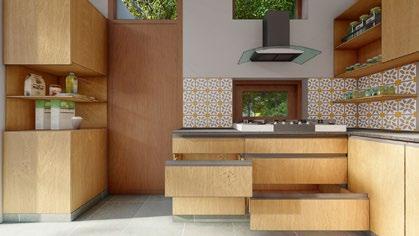

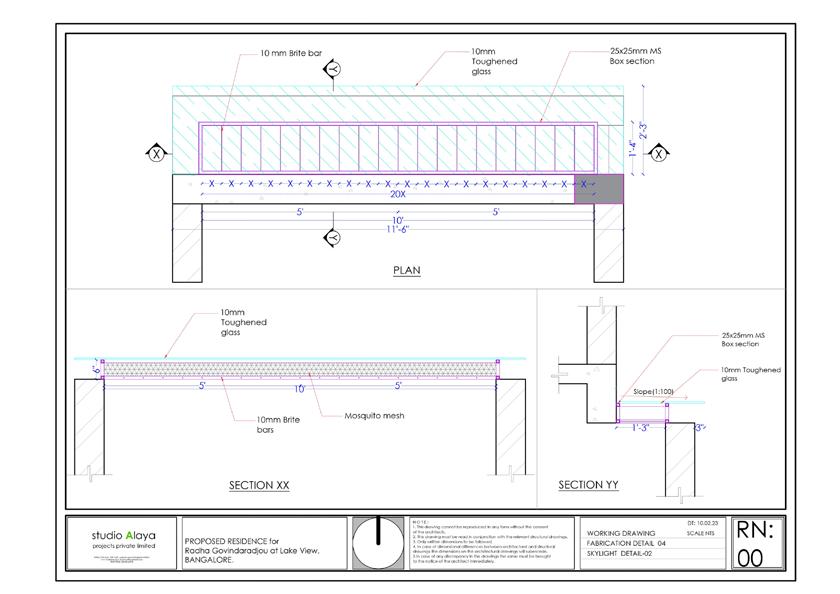

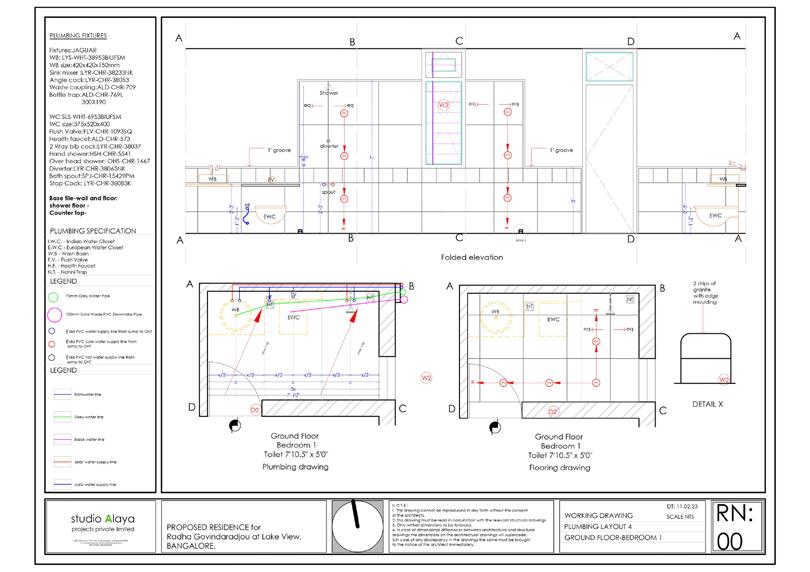

My role I had assigned with the task to generate flooring layout drawings, kitchen interiors, bedroom interiors, wall cladding, brick jaali design, toilet details and tiling, pooja room design, prefabrication details for skylights and renderings

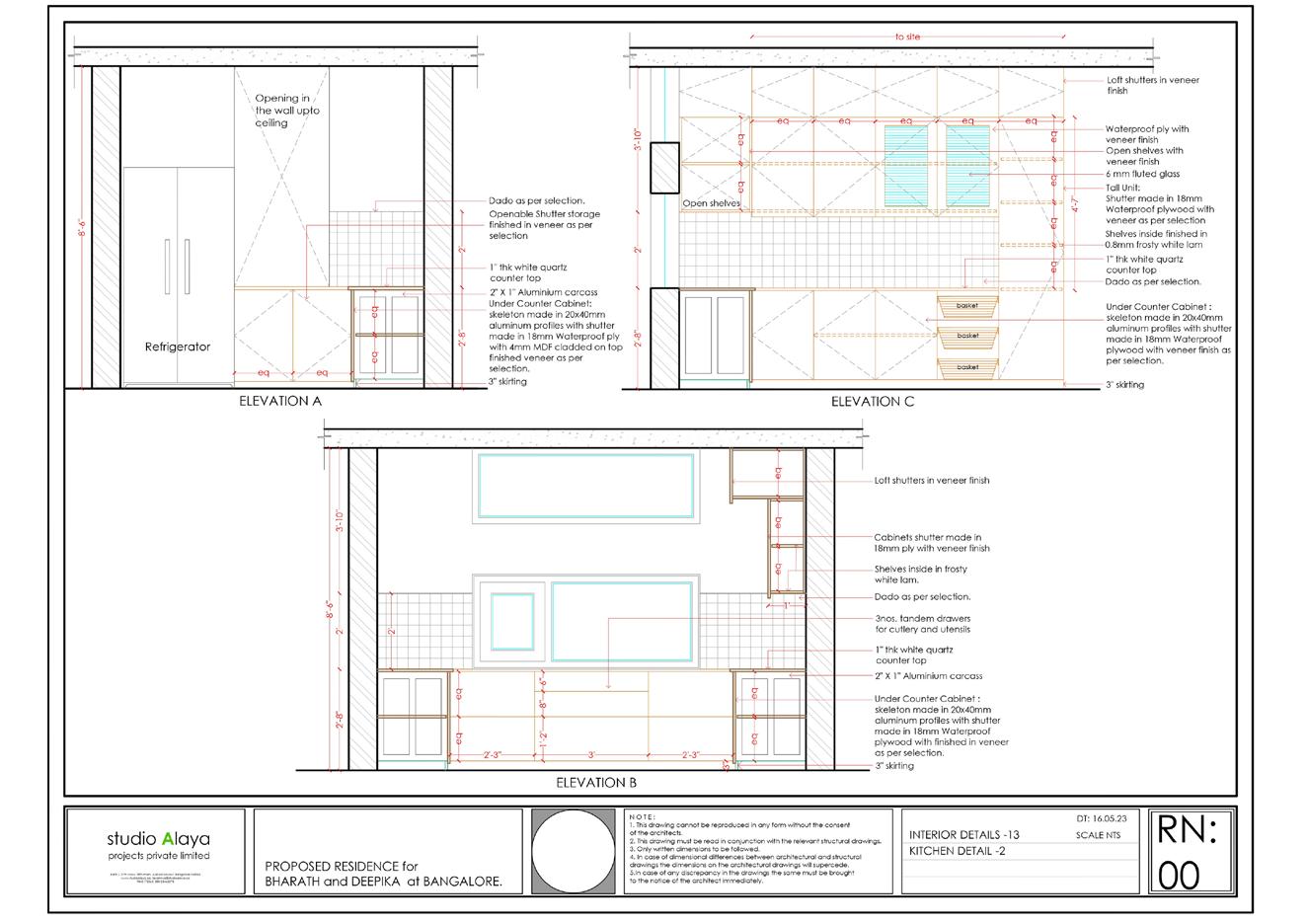

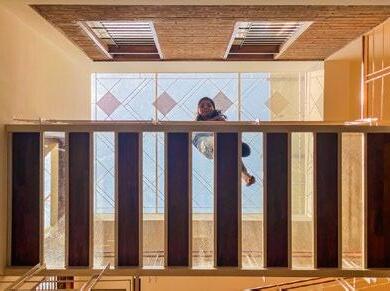

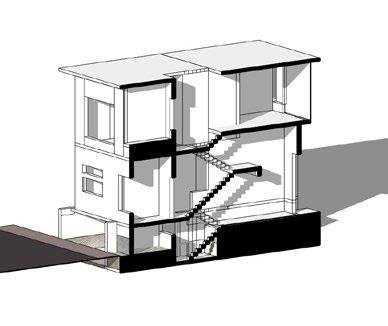

BHARATH AND DEEPIKA’S DREAM HOUSE Type: Residential Location: GKVK, Bangalore status: Constructed 2023-24 Bharath and Deepika's residence in GKVK, Bengaluru, stands as a beacon of modern sustainable living. This thoughtfully designed home features a basement and a G+1 structure, utilizing Compressed Stabilized Earth Blocks (CSEB) for construction, which underscores its eco-friendly ethos. The double-height living area, crowned with a skylight, floods the space with natural light, creating an open and inviting ambiance. The use of filler slabs further enhances natural ventilation and sustainability. Every corner of the house is designed to maximize light and airflow, ensuring a healthy and comfortable living environment. This home beautifully integrates innovative architectural elements with sustainable practices, making it a perfect blend of functionality and environmental consciousness.

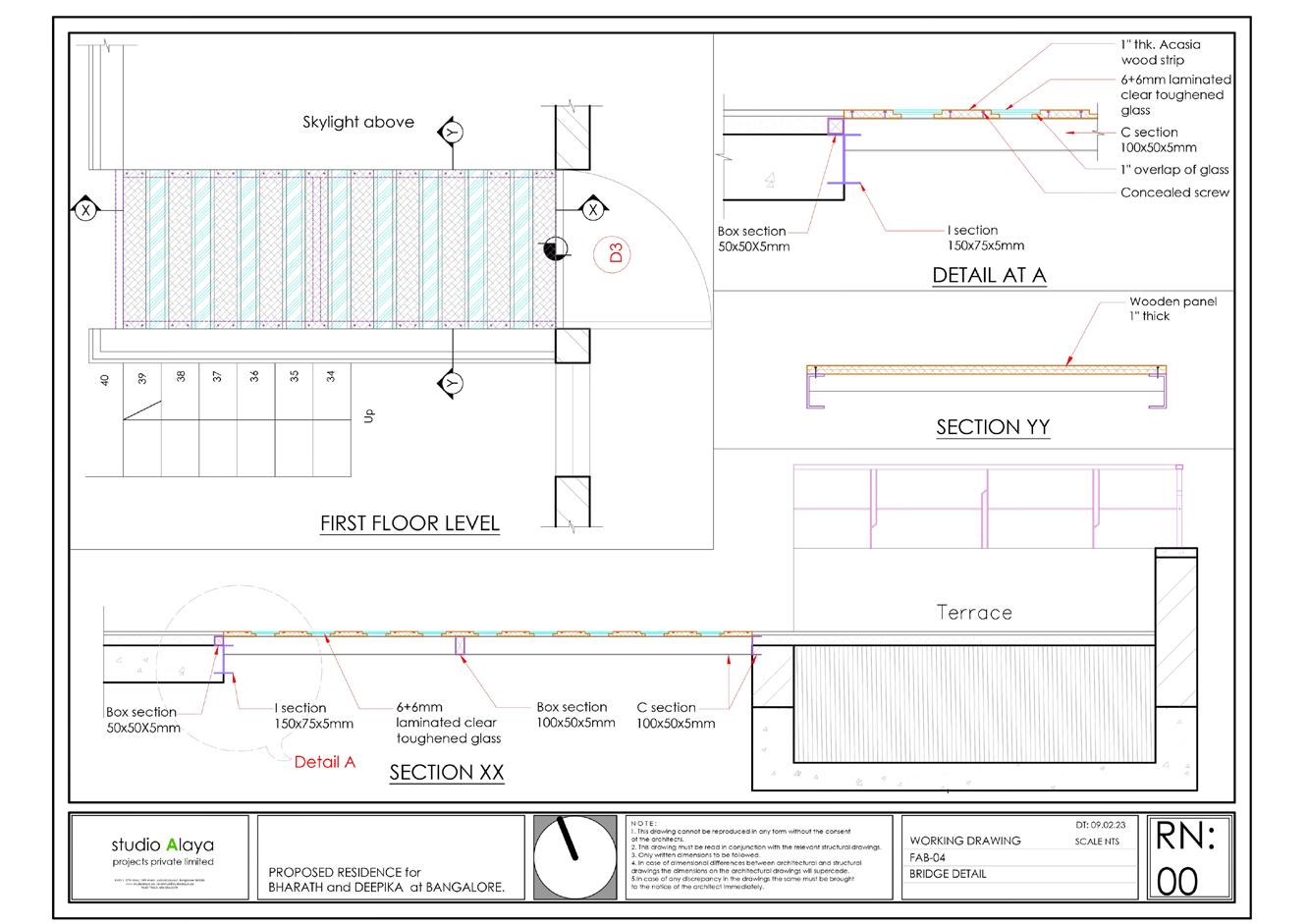

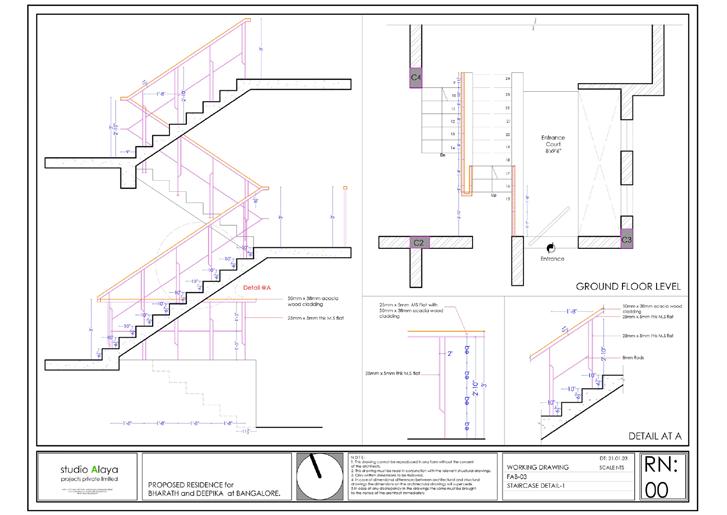

My role I had assigned with the task to generate flooring layout drawings, kitchen interiors, bedroom interiors, toilet details and tiling, pooja room design, prefabrication details for staircase, skylights and foot bridge and renderings

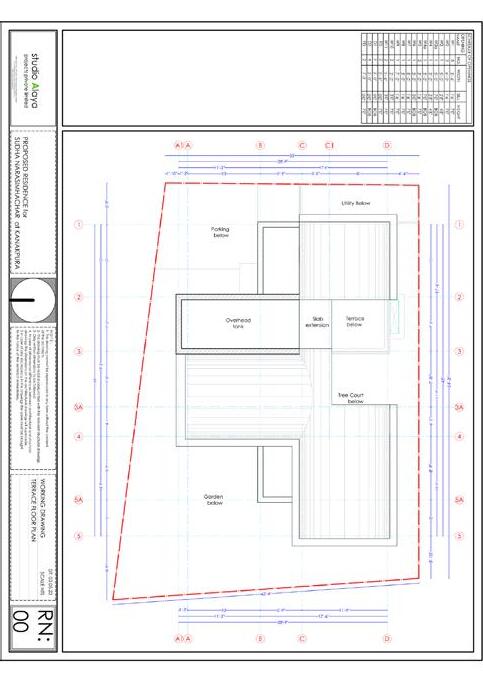

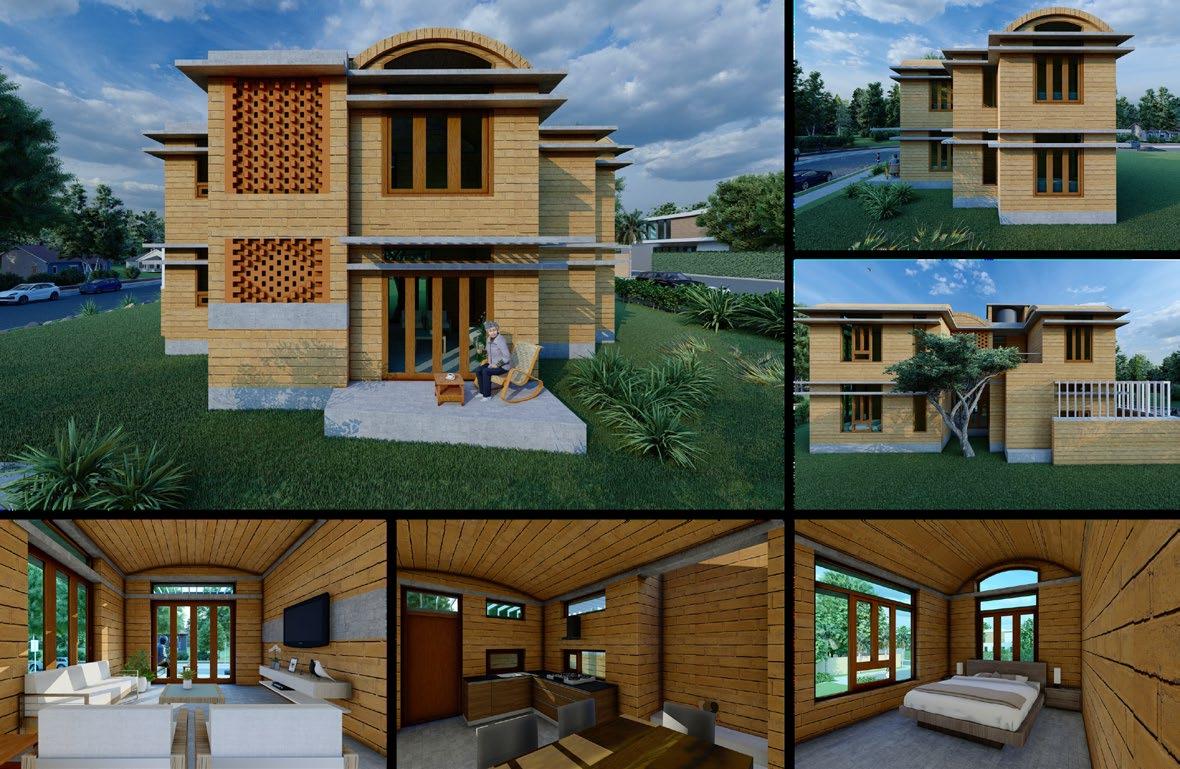

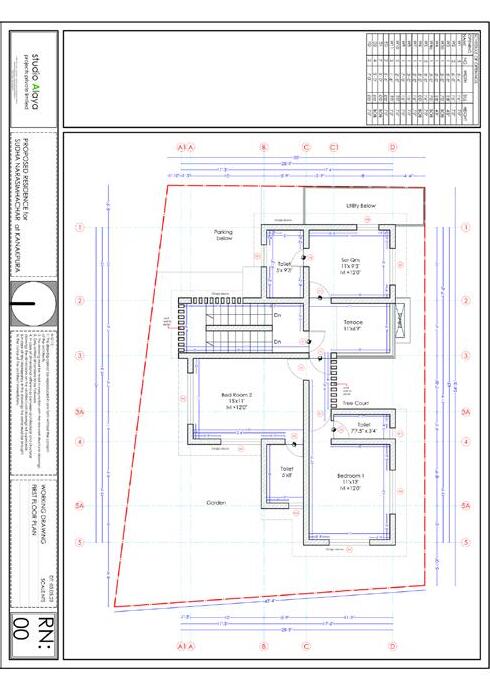

BHARATH AND DEEPIKA’S DREAM HOUSE Type: Residential Location: Kanakpura, Bangalore status: Constructed 2023-24 Sudha's house in Kanakapura is a stunning example of sustainable architecture and innovative design. Constructed with exposed Compressed Stabilized Earth Blocks (CSEB) and a rammed earth foundation, this residence showcases the beauty and strength of natural building materials. The arch roof design not only adds an aesthetic charm but also enhances the structural integrity of the home, creating a bright and airy atmosphere throughout. This harmonious blend of traditional techniques and modern sustainability principles ensures that Sudha's home is both environmentally friendly and visually captivating.

My role I had assigned with the task to generate flooring layout drawings, kitchen interiors, bedroom interiors, toilet details and tiling, pooja room design, prefabrication details for staircase, skylights and foot bridge and renderings

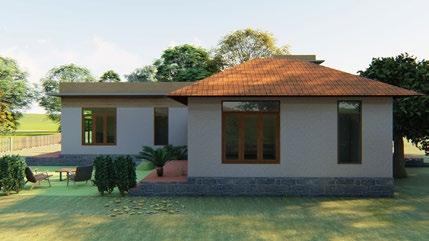

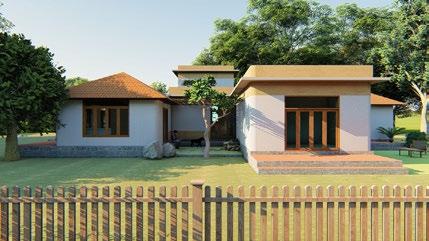

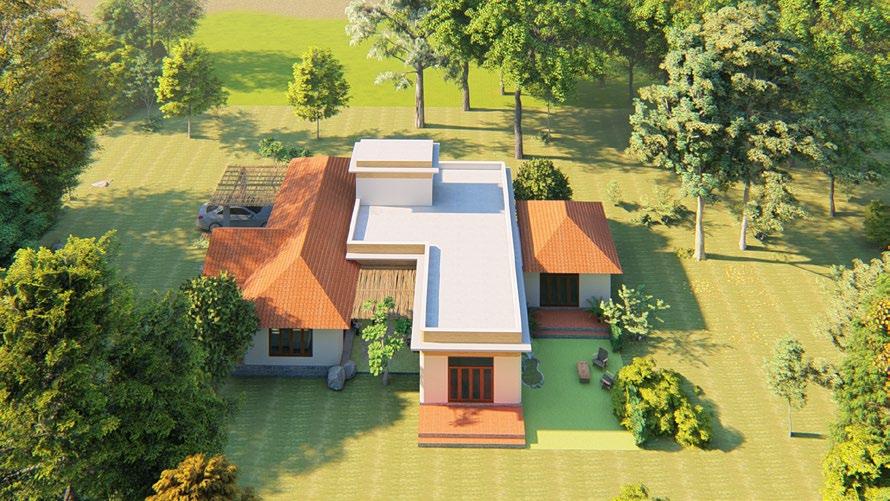

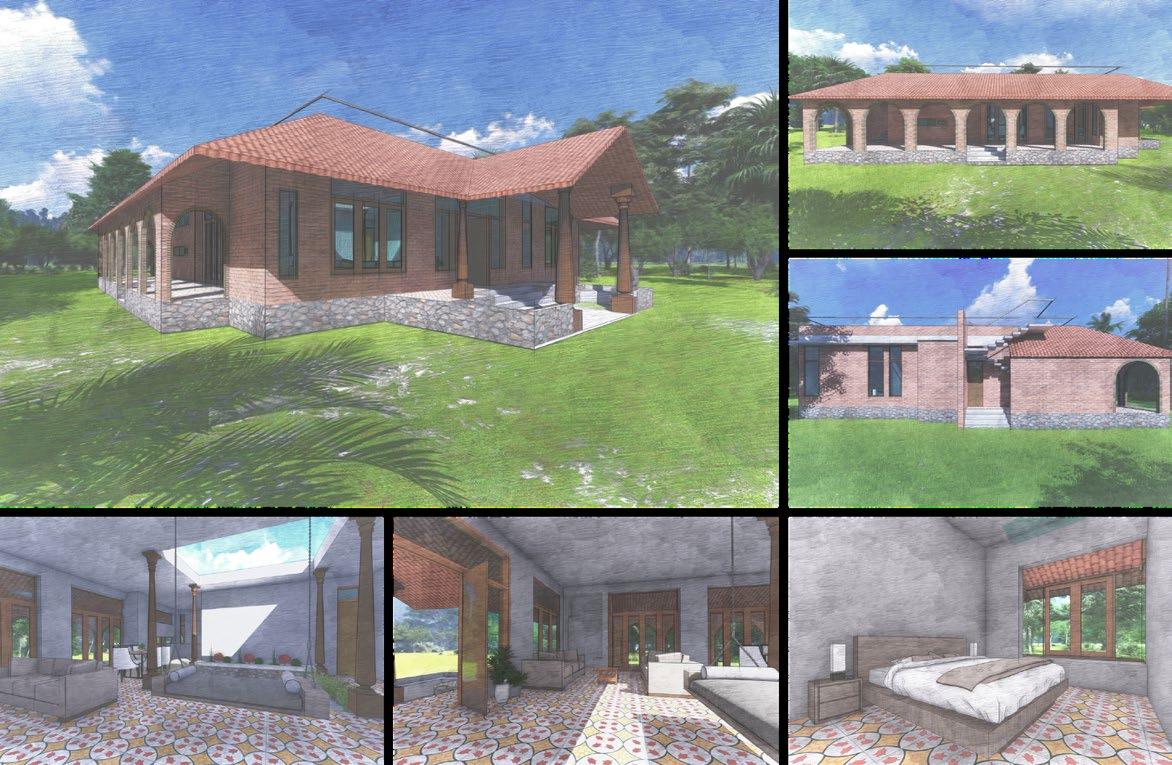

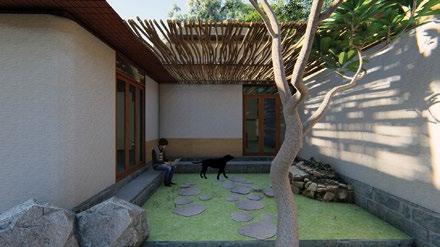

SANTOSH SHET’S DREAM FARMHOUSE

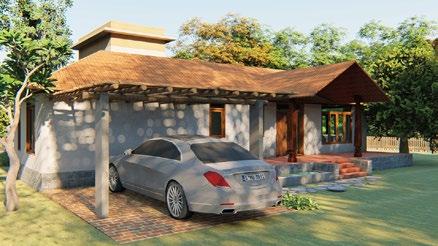

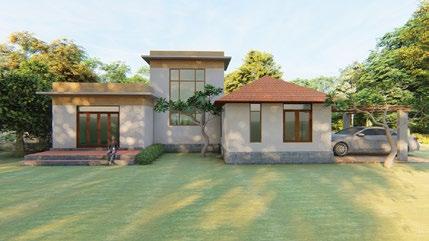

RICHA MEKIN’S DREAM FARMHOUSE

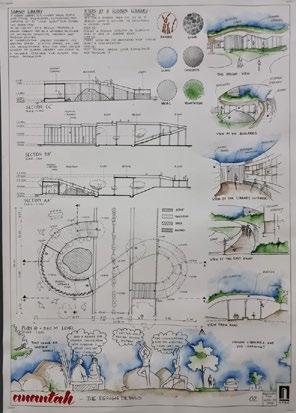

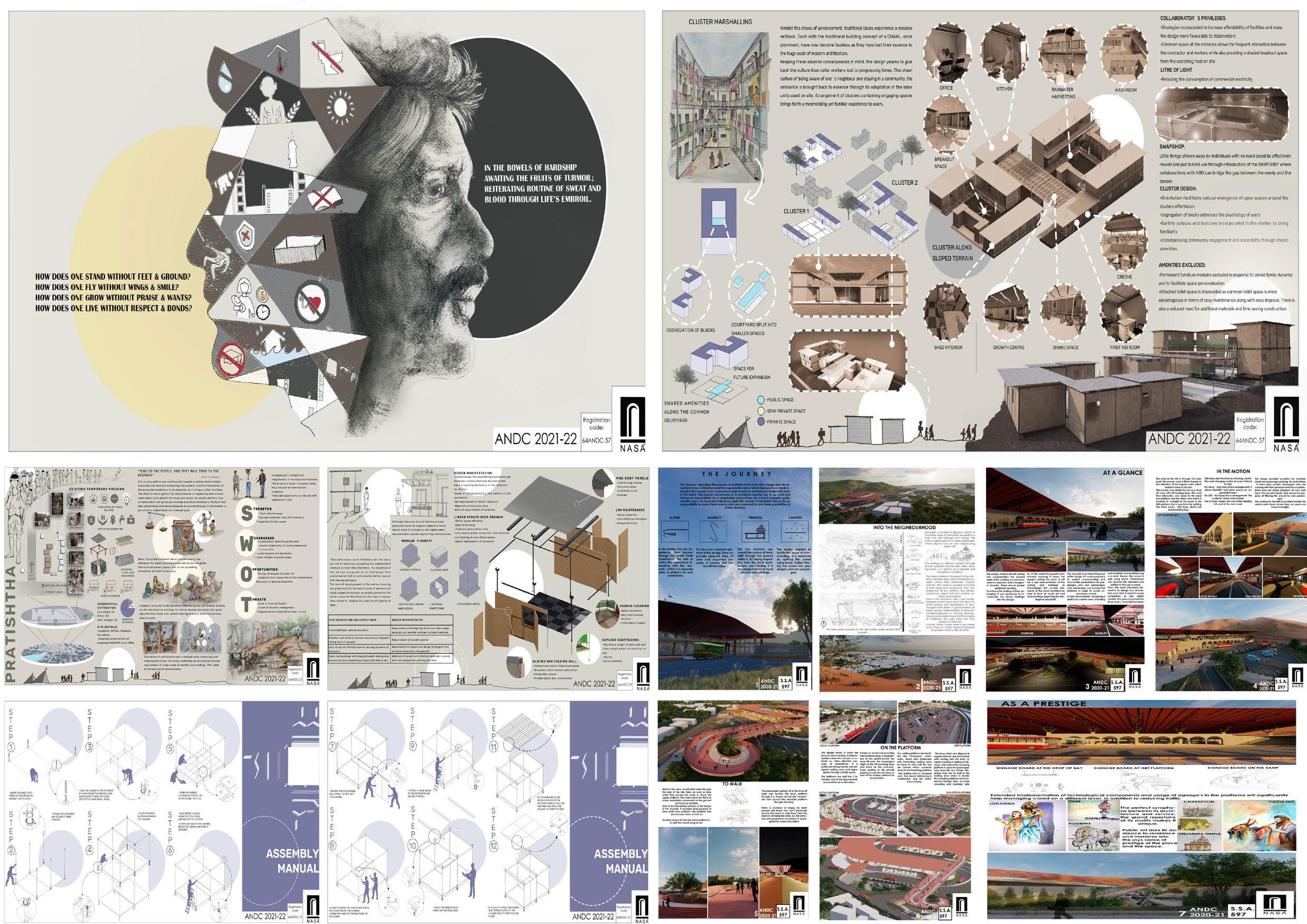

C O M P E T I T I O N S

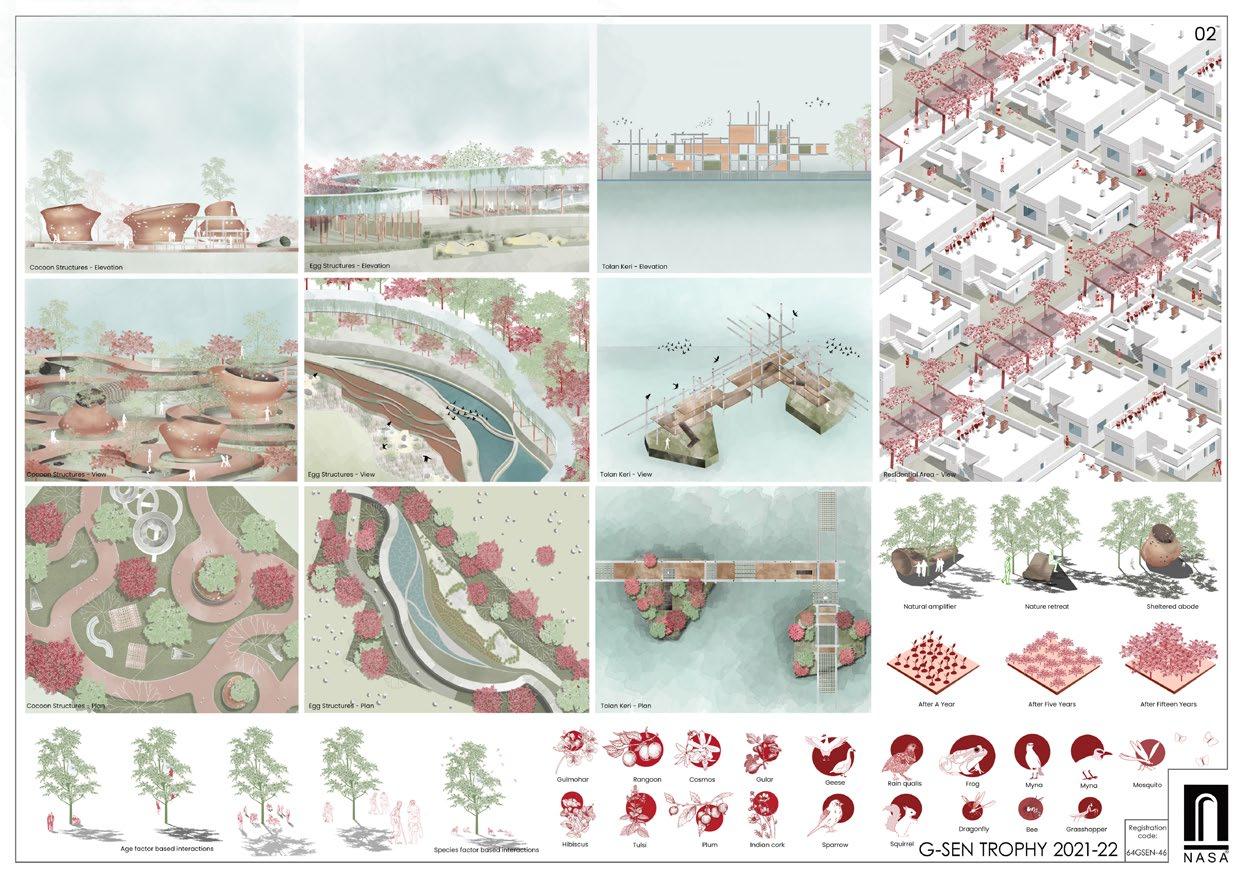

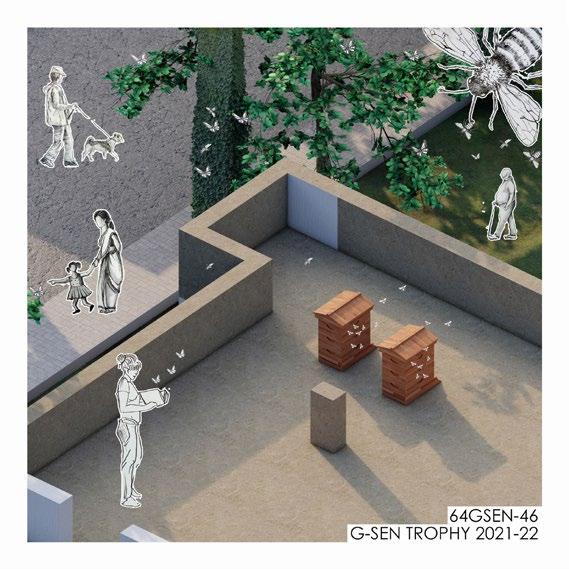

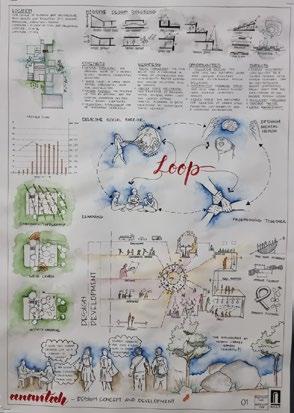

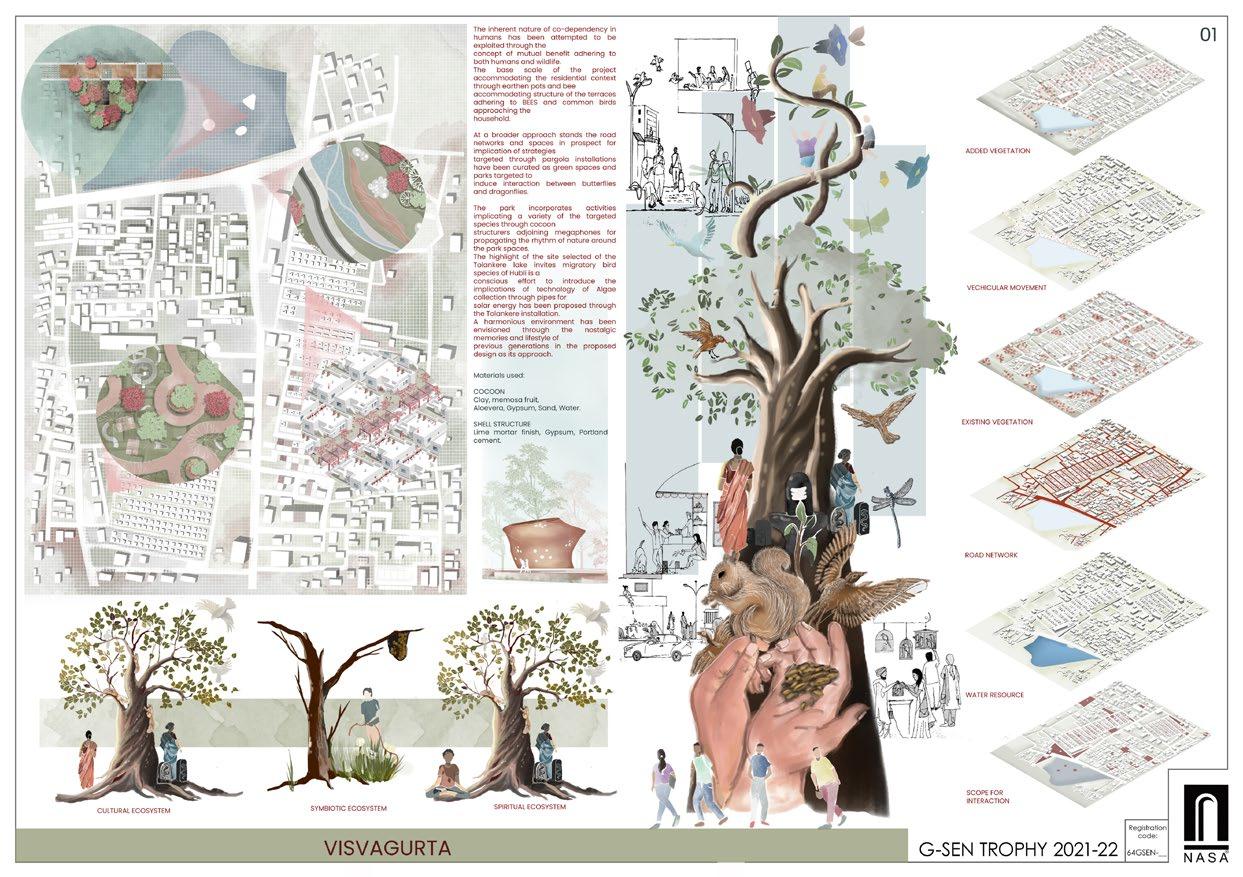

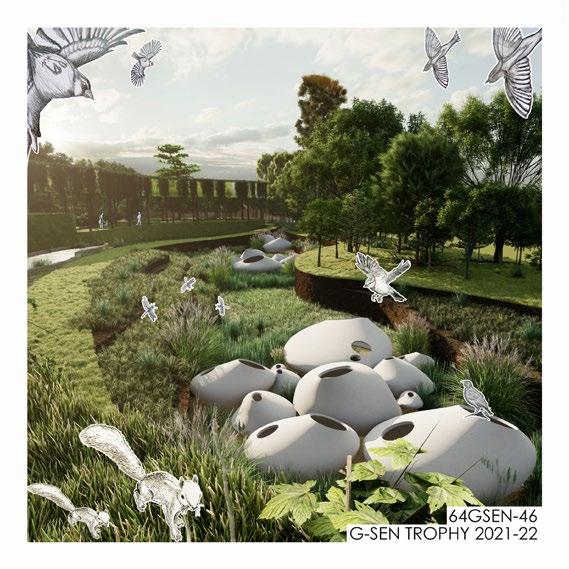

N A S A

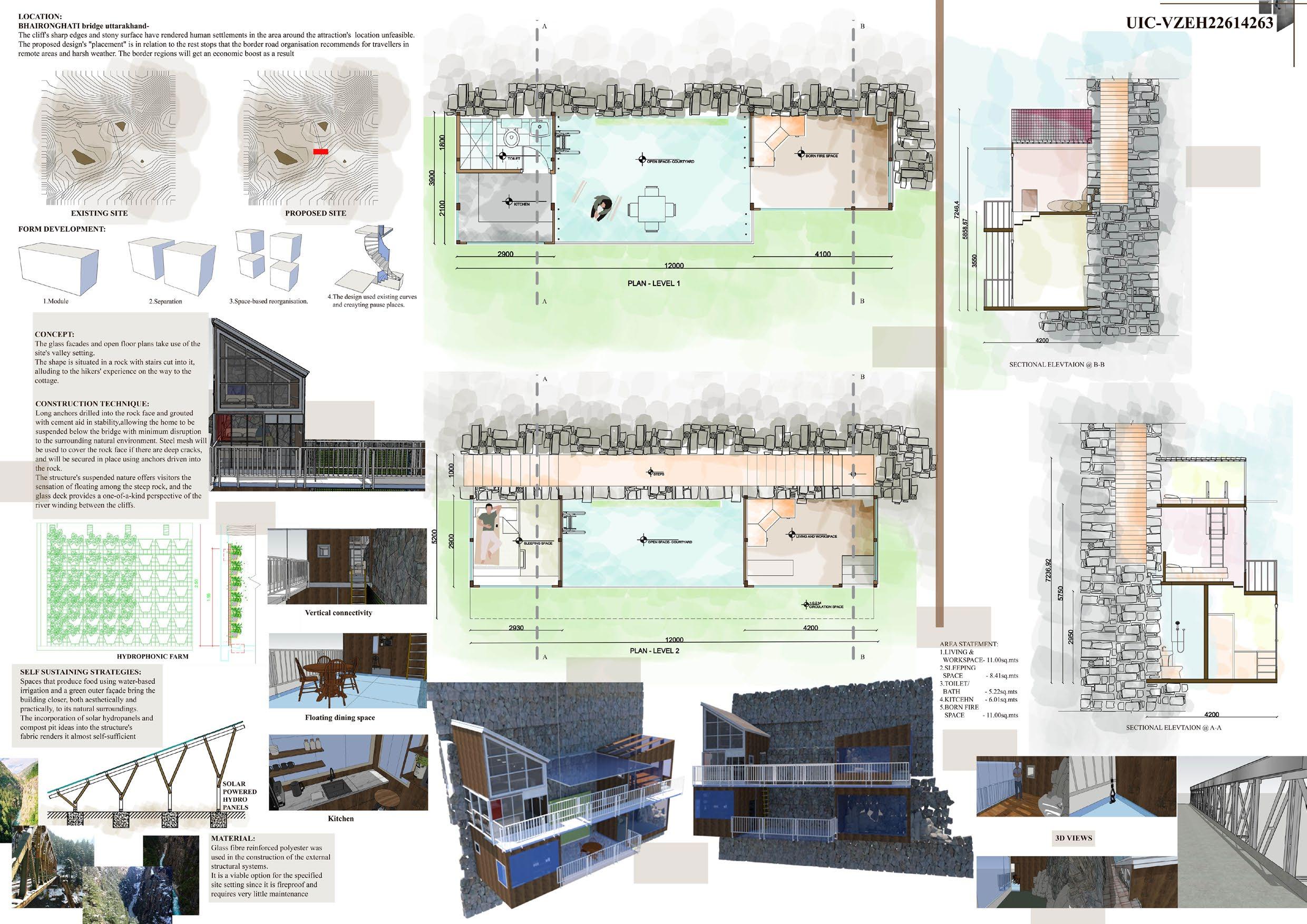

V O L U M E Z E R O

O T H E R W O R K S

AR T WO R K S

ART WORKS

PHO TOG R A P H Y

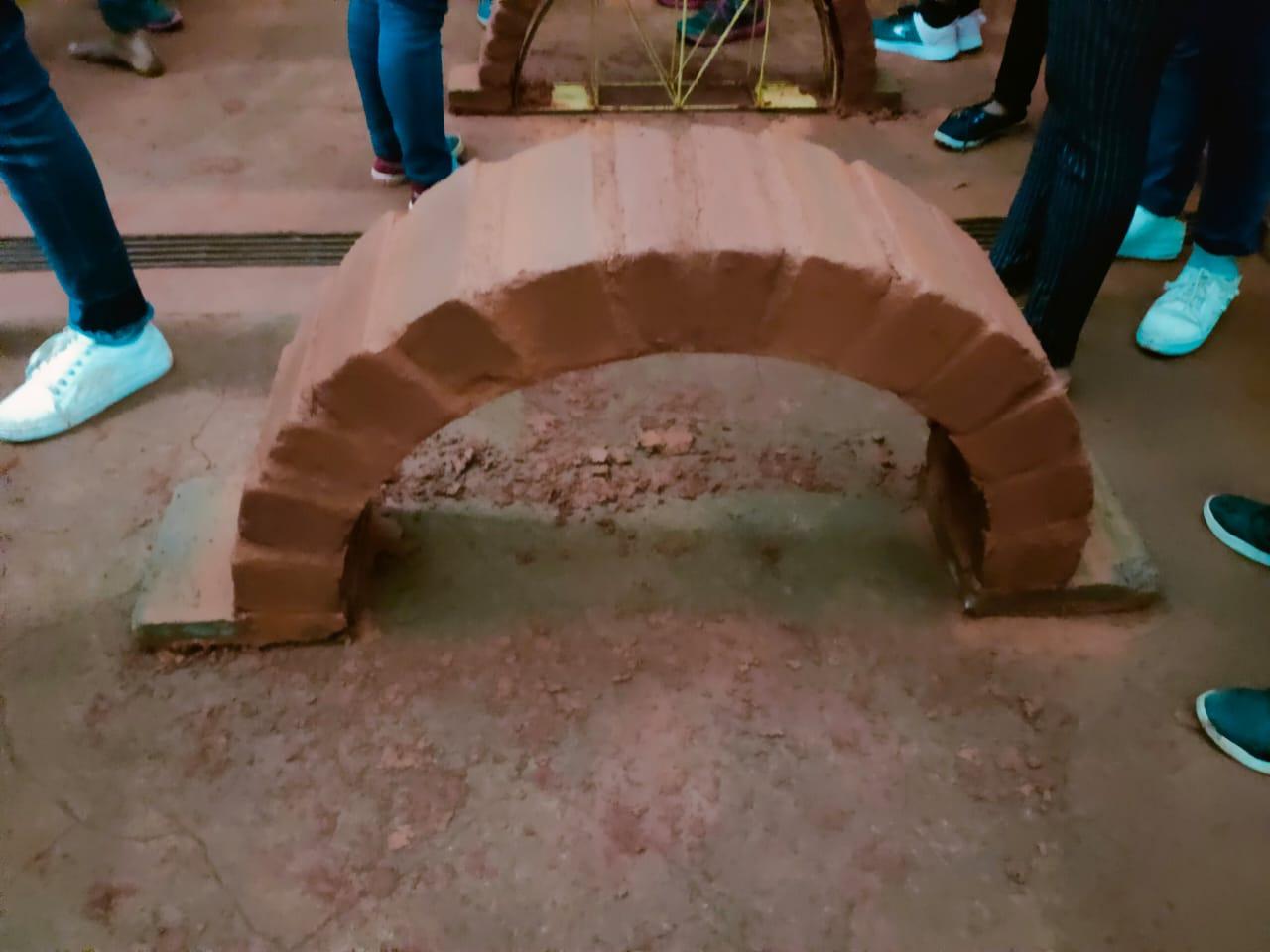

H A NDS O N SK I LL

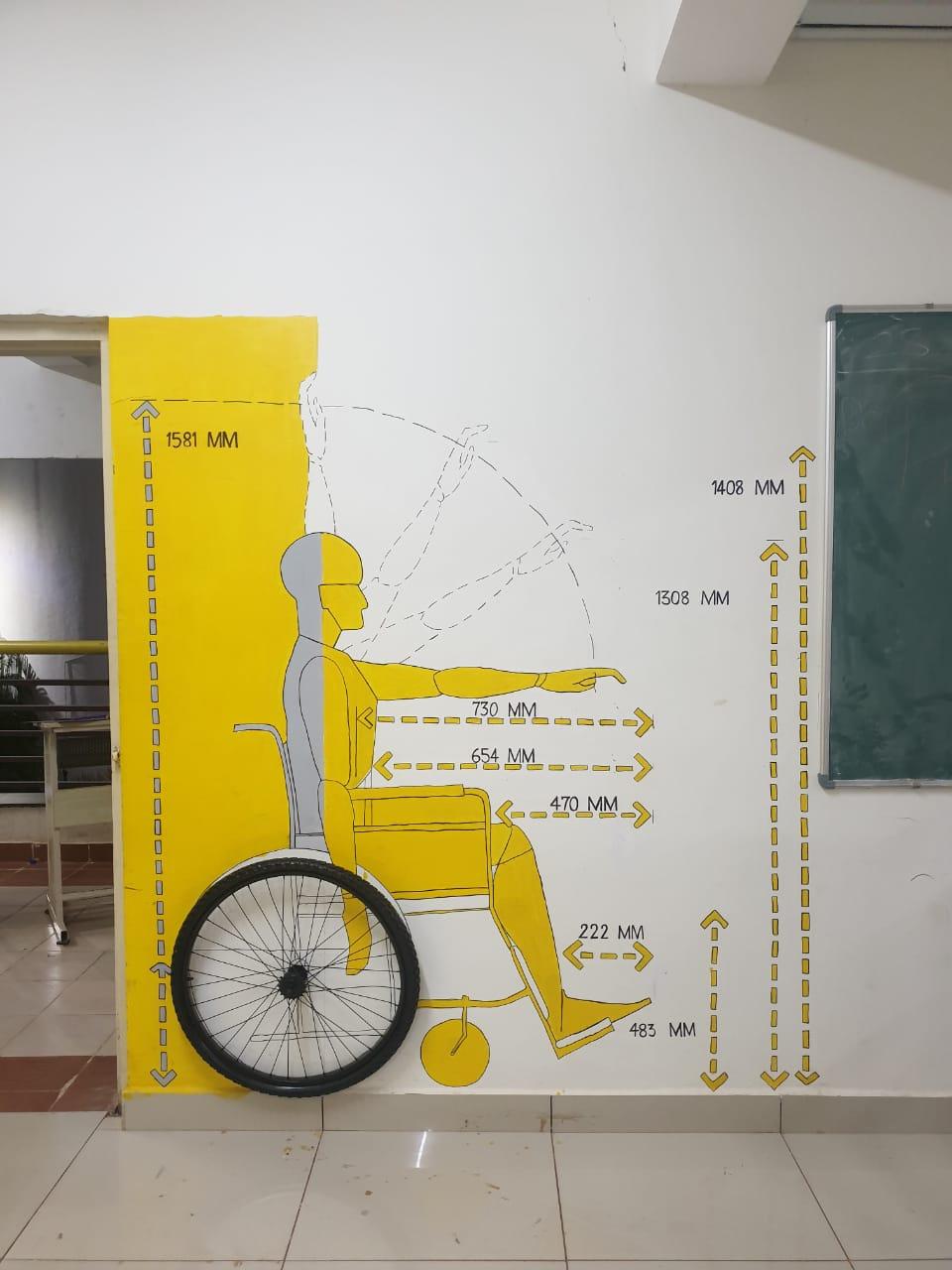

H AN D S ON S K I L L

THANK YOU I BELIEVE THAT THE WAY PEOPLE LIVE CAN BE DIRECTED A LITTLE

BY ARCHITECTURE - Ar. Tadao Ando

9482736045 ganeshbhat2026@gmail.com www.linkedin.com/in/ganeshkbhat/
