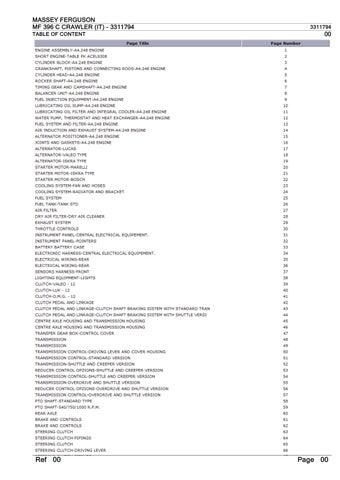

MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794 3311794 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794 3311794 TABLE OF CONTENT 00 Ref00 Page00
MF 396 C CRAWLER (IT) - 3311794 1 Ref1 Page1
MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794 3311794 ENGINE ASSEMBLY-A4.248 ENGINE 1 ItemPart NumberQtyDescriptionComments 1 3553132M911 Engine "LF31204" Ref1 Page1
MF 396 C CRAWLER (IT) - 3311794 1 Ref2 Page2
MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794 3311794 SHORT ENGINE-TABLE PK ACEL9308 2 ItemPart NumberQtyDescription Comments 1 LF393351 SHORT ENGINE 2 1 [A] (1) 4 (1) 1 (1) 4 (1) 4 (1) 4 (1) 10 (1) 8 (1) 4 (1) 1 (1) 1 HOUSING (1) 22 (1) 1 (1) [A] COMPLETE WITH PLUGS Ref2 Page2
MF 396 C CRAWLER (IT) - 3311794 15 9 14 2 28 10 26 12 8 13 4 19 20 21 17 22 23 16 27 25 7 24 3 29 1 6 5 11 18 Ref3 Page3
CYLINDER BLOCK-A4.248 ENGINE
3311794
MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794
3 ItemPart NumberQtyDescription Comments [X] . 1. 2. 4 1 ZZ502271 Cylinder Block 2 3135X0334 Liner [A, X] (1) . . 4. 8 2 3135X034X Liner [B, X] . 4. 4. 8 3 06507106 Plug (1) 4 324181224 Plug (1) 5 3314211110 Thimble (1) 6 3216632910 Bolt (1) 7 311341651 BUSH (1) 8 06507102 Plug (1) 9 2485A2041 Plug (1) 10 324161191 PLUG (1) 11 321682121 PLUG (1) 12 3311R0031 Washer (1) 13 324161184 PLUG (1) 14 324171341 Plug (1) 15 3681E0341 GASKET [X] . 1. 2. 4 16 4142V0641 Housing 17 2418F4751 Seal [X] (16) . 1. 4. 8 18 3681T0121 GASKET 19 074621110 Bolt 20 390972X110 Washer Metric 21 03500092 Dowel 22 21725302 Capscrew 23 331121112 Washer 24 06505941 Plug 25 06505882 Plug 26 321611142 Plug 27 06505881 Plug 28 324521131 Pointer 29 321141431 Plug [A] PRESS FIT [B] SLIP FIT [X] QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC) 11-25 (DDD) 26-50 Ref3 Page3
MF 396 C CRAWLER (IT) - 3311794 10 26 13 25 19 16 9 17 18 15 11 4 5 22 24 3 8 21 6 14 12 20 1 2 23 7 Ref4 Page4
CRANKSHAFT, PISTONS AND CONNECTING RODS-A4.248 ENGINE
MASSEY FERGUSON MF 396 C CRAWLER (IT) -
3311794
3311794
4 ItemPart NumberQtyDescription Comments 1 ZZ900811 Kit, Crankshaft [X] . 0. 0. 1 2 1 [X] (1) Not serviced, order REF.1 . 0. 0. 1 3 815581 Kit, Bearing [A, X] (1) . 0. 1. 2 3 81558AX Kit, Bearing [A] Thickness (-)0.25MM Thickness (-)0.010 3 81558BX Kit, Bearing [A] Thickness (-)0.50MM Thickness (-)0.020 3 81558CX Kit, Bearing [A] Thickness (-)0.75MM Thickness (-)0.030 4 850421 Kit, Bearing [A, X] (1) . . 1. 2 4 85042AX Kit, Bearing [A] Thickness (-)0.25MM Thickness (-)0.010 4 85042BX Kit, Bearing [A] Thickness (-)0.50MM Thickness (-)0.020 4 85042CX Kit, Bearing [A] Thickness (-)0.75MM Thickness (-)0.030 5 311375512 Thrust Washer [X] (1) . 0. 2. 4 5 31137312X Thrust Washer Thickness (+)0.19MM Thickness (+)0.0075 6 311375612 Thrust Washer [X] (1) . 0. 2. 4 6 31137322X Thrust Washer Thickness (+)0.19MM Thickness (+)0.0075 7 3242T0011 Thrust Block [D] 8 321861393 Screw [D] 9 4 [X] . 0. 4. 8 10 1 CONROD [X] (9) Not serviced, order REF.9 . 0. 4. 8 11 1 (9) Not serviced, order REF.9 12 311341231 Bush [X] (9) . 0. 4. 8 13 327621442 Bolt [X] (9) . 0. 8. 16 14 332213282 Nut [X] (9) . 0. 8. 16 15 U5LU00054 Kit, Piston [B, X] . 0. 4. 8 15 U5LP00094 Kit, Piston [C] 16 1 PISTON (15) Not serviced, order REF.15 17 1 (15) Not serviced, order REF.15 18 01700021 Circlip (15) 19 01700021 Circlip (15) 20 411580224 Kit, Piston Ring [X] . 0. 4. 8 21 311716811 Gear,Crankshaft[X] Number of teeth/spines 28 . 1. 2. 4 22 05000121 Woodruff Key 23 311487981 Pulley,Crank 24 331254161 Washer 25 3552228M11 CROWNWHEELNumber of teeth/spines 115 26 331171276 Washer Ref4 Page4
CRANKSHAFT, PISTONS AND CONNECTING RODS-A4.248 ENGINE
PRE-FINISHED [C]
PRE-TOPPED [B]
QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC)
11-25 (DDD) 26-50
[D]
NOT SUPPLIED WITH ASSEMBLY
FERGUSON
3311794
MASSEY
MF 396 C CRAWLER (IT) - 3311794
4
NumberQtyDescription Comments
ItemPart
[A]
UNTOPPED [X]
Ref4 Page4
MF 396 C CRAWLER (IT) - 3311794 22 29 20 28 33 21 27 19 59 26 18 60 25 17 58 24 16 14 5 4 11 36 52 12 9 51 10 54 53 34 3 8 4041 6 7 43 35 1 2 38 44 30 15 23 50 37 55 57 49 56 47 46 31 32 39 45 42 13 48 Ref5 Page5
MASSEY FERGUSON
3311794
MF 396 C CRAWLER (IT) - 3311794
5 ItemPart NumberQtyDescription Comments 1 ZZ801751 CYLINDER HEAD 2 ZZ801761 CYLINDER HEAD [X] (1) . 0. 0. 1 3 1 (2) Not serviced, order REF.2 4 4 (2) . 0. 4. 8 5 3343J0024 Guide [X] (2) . 0. 4. 8 6 06502031 Plug [X] (2) 7 24111571 Washer (2) 8 06507101 Plug (2) 9 3623K0071 Plate 10 3687M0181 GASKET 11 07464522 Setscrew 12 09200542 Washer 13 21832054 Screw 14 09200534 Washer 15 314318814 Valve Exhaust [D, X] Alternative 31431886 . 0. 4. 8 15 3142A0524 Valve Exhaust [C] (1) 16 334151184 Washer [X] (1) . 4. 8. 16 17 317441314 Spring [X] (1) . 4. 8. 16 18 317451214 Spring [X] (1) . 4. 8. 16 19 2415B2014 O Ring [X] (1) . 0. 4. 8 20 338171174 Seal [X] (1) . 0. 4. 8 21 334231474 Cap [X] (1) . 0. 4. 8 22 331731088 Cotter [A, X] (1) . 0. 4. 8 23 314316414 Valve Inlet [X] (1) . 0. 4. 8 24 334151184 Washer [X] (1) . 0. 4. 8 25 317441314 Spring [X] (1) . 0. 4. 8 26 317451214 Spring [X] (1) . 0. 4. 8 27 338171174 Seal [X] (1) . 0. 4. 8 28 334231474 Cap [X] (1) . 0. 4. 8 29 331731088 Cotter [A, X] (1) . 0. 4. 8 30 331521534 Insert [X] . 1. 2. 6 31 321663372 Screw 32 3216633812 Bolt 33 321663398 Screw 34 377627051 Body 3545576M11 BODY [E] 35 3685F0051 GASKET [X] . 2. 4. 8 36 24856591 Thermostat [X] . 1. 2. 6 37 24311541 Plug 38 24311541 Plug 39 22172021 Stud 40 21881351 Nut 41 09200541 Washer 42 00962381 Bolt 43 09200531 Washer Ref5 Page5
CYLINDER HEAD-A4.248 ENGINE
[A]
SERVICED IN PAIRS
[X]
QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC)
11-25 (DDD) 26-50
[E]
WITH CONDITIONED AIR
[C]
REMOVE AND FIT 31431881
[D]
FITTED IN PLACE OF EXHAUST VALVES SUPPLIED WITH CY LINDER HEAD ASSEMBLY
[B]
NOT SUPPLIED BY PERKINS ENGINES LIMITED.
MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794 3311794
HEAD-A4.248 ENGINE 5 ItemPart NumberQtyDescription Comments 44 00964391 Bolt 45 09200541 Washer 46 21832052 Screw 47 09200532 Washer 48 07464592 SCREW 49 09200542 Washer 50 24857911 Pin 51 1 [B] 52 368622251 GASKET [X] . 2. 4. 16 53 07464582 SCREW 54 09200542 Washer 55 3648C0041 Plate 56 353537X12 Screw Unf 57 09200542 Washer 58 361771111 Plate 59 353537X12 Screw Unf 60 09200542 Washer
CYLINDER
Ref5 Page5
MF 396 C CRAWLER (IT) - 3311794 28 27 29 26 25 30 22 21 11 12 10 9 32 2 34 3 8 35 4 1 5 33 16 14 15 13 19 7 6 18 17 23 20 24 31 Ref6 Page6
QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC)
(DDD) 26-50
FITTED UP TO ENGINE NUMBER U226708S
WAS 3775E011 USE 3775E012/2233022.
USED ONLY WITH 3775E011
USED ONLY WITH 3775E012
MASSEY FERGUSON
396 C CRAWLER
3311794
6 ItemPart NumberQtyDescription Comments 1 ZZ901581 SHAFT [X] . 0. 1. 2 2 ZZ900321 Rocker Shaft[X] (1) . 0. 1. 2 3 1 (2) Not serviced, order REF.2 4 06505071 Plug [X] (1) . 0. 2. 4 5 3818X9014 Bracket (1) 6 411514844 LEVER (1) Right Hand 7 411514834 LEVER (1) Left Hand 8 317441232 Spring (1) 9 317431082 Spring (1) 10 3775E0121 Connection [B] (1) 11 22312361 Setscrew [C] (1) 22330221 Screw [D] (1) 12 331174262 Shim (1) 13 01701512 Circlip (1) 14 331174342 Washer (1) 15 07205798 Screw (1) 16 05760528 Nut (1) 17 3142U0318 TAPPET [X] . 0. 8. 16 18 314343078 Pushrod [X] . 4. 8. 16 19 376525X11 Olive 20 00966344 Screw 21 09200064 Washer 22 371881411 COVER 23 3681A0271 Joint [X] . 1. 2. 6 24 21725134 Screw 25 09200024 Washer 26 09200524 Washer 27 24878451 Cap [X] . 1. 2. 4 28 1 (27) Not serviced, order REF.27 29 248700021 Joint (27) 30 338725161 Pipe,Breather 31 218251951 Clip 32 357311441 Pipe,Breather 33 00962151 Screw Up to Serial or Engine Number U226708S 21873331 Screw From Serial or Engine Number U226709S 34 390972X11 Washer Metric [A] 35 09200531 Washer [A] [X]
MF
(IT) - 3311794
ROCKER SHAFT-A4.248 ENGINE
11-25
[A]
[B]
[C]
[D]
Ref6 Page6
MF 396 C CRAWLER (IT) - 3311794 14 38 13 39 3 15 40 41 37 36 35 34 45 9 9 46 10 6 7 5 48 49 8 19 17 12 47 44 11 27 23 22 21 29 33 20 28 31 32 30 24 4 2 1 16 43 42 25 26 18 Ref7 Page7
MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794 3311794
ENGINE 7 ItemPart NumberQtyDescription Comments 1 371616421 Body 2 368141621 GASKET [X] . 0. 1. 2 3 21832058 Screw 4 09200538 Washer 5 07462111 Bolt 6 09200531 Washer 7 334261611 Hub 8 411150231 Idler Number of teeth/spines 63 9 00503452 Bush (8) 10 3241H0091 PLATE 11 21846343 Screw 12 314153741 Camshaft 13 331531211 Washer 14 21160531 Pin 15 3117L0121 GEAR Number of teeth/spines 56 16 05000121 Woodruff Key 17 4142A0411 COVER 18 2418F4361 Seal [X] . 1. 2. 4 19 3681P0151 GASKET [X] . 0. 1. 2 20 00962384 Bolt 21 09200534 Washer 22 218320510 Screw 23 092005310 Washer 24 21832054 Screw 25 24111524 Washer 26 3241H0041 Plate 27 338254271 GASKET 28 21832034 Screw 29 09200534 Washer 30 361711211 Plate 31 368331631 GASKET 32 21831042 Screw 33 09200522 Washer 34 321612171 Screw 35 331154081 Washer 36 317331211 Washer 37 331531281 Washer 38 362351181 PLATE 39 368621991 GASKET 40 21832042 Screw 41 09200532 Washer 42 375561481 Plate 43 368614661 GASKET 44 07485051 Screw 45 22381531 Nut 46 09200541 Washer 47 22321512 Screw 48 22381532 Nut 49 09200542 Washer
TIMING GEAR AND CAMSHAFT-A4.248
[X]
11-25
Ref7 Page7
QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC)
(DDD) 26-50
MF 396 C CRAWLER (IT) - 3311794 30 28 1 22 29 20 27 23 17 21 25 2 14 45 6 3 7 26 24 43 15 9 10 34 11 35 12 36 8 13 37 32 38 33 39 18 19 41 44 46 48 50 42 45 47 49 16 31 40 Ref8 Page8
MASSEY FERGUSON MF 396 C CRAWLER (IT) -
3311794
UNIT-A4.248 ENGINE 8 ItemPart NumberQtyDescription Comments 1 4111K0511 Balancer 4111K0511 Balancer [X] . 0. 0. 1 2 4145L0071 Frame (1) 3 1 (2) Not serviced, order REF.2 4 1 (2) Not serviced, order REF.2 5 2315C0524 Screw (2) 6 2314J0052 Screw (2) 7 331374082 Thimble (1) 8 325583141 Plug (1) 9 2431A0541 Plug (1) 10 3272E0051 Plunger (1) 11 3174D0041 Spring (1) 12 3342A6111 Cap (1) 13 2116A0561 Pin (1) 14 3753R0611 Cover (1) 3753R2211 Cover (1) 15 3687M0061 Joint (1) 16 03500422 Dowel (1) 17 2315C0524 Screw (1) 18 3117V0031 Shaft (1) Number of teeth/spines 21 19 2551A0091 Bearing Needle (1) 20 3116K0141 Weight (1) Number of teeth/spines 16/38 20 1 [X] . 0. 0. 1 21 2511A7301 Bush (1) 2511A7301 Bush [X] (1) . 0. 1. 2 22 2511A7301 Bush (1) 23 3117C0711 Gear,Balancer (1) Number of teeth/spines 37 24 334518041 Hub (1) 25 2314J6061 Screw (1) 26 2551A2011 Bearing Needle (1) 27 3321A0021 Washer (1) 28 3116K0041 Weight (1) Number of teeth/spines 38 28 3116K0041 Weight [X] . 0. 1. 2 29 2511A7301 Bush (1) 30 2511A7301 Bush (1) 31 4132F0411 Oil Pump (1) Repairs and replaces 4132F021 31 4132F0411 Oil Pump [X] . 0. 1. 2 32 2314H0061 Screw (1) Repairs and replaces 2315C059 33 2314H0122 Screw (1) Repairs and replaces 2315C053 34 3116W0011 Gear,Balancer (1) Number of teeth/spines 24 35 2551A0141 Bearing Needle (1) 36 335311361 Nut (1) 37 3661K0011 Cover (1) 38 2314C0344 Screw (1) 39 3764E0311 Pipe,Oil 3764E0311 Pipe,Oil [X] . 0. 2. 4 40 3683L0021 Joint 41 2314H0061 Screw Repairs and replaces 2315C053 42 2314H0121 Screw Repairs and replaces 2315C059 43 00964421 Bolt 44 331151291 Washer Ref8 Page8
3311794
BALANCER
MASSEY FERGUSON MF 396 C CRAWLER (IT) - 3311794 3311794 BALANCER UNIT-A4.248 ENGINE 8 ItemPart NumberQtyDescription Comments 45 00964412 Bolt 46 331151292 Washer 47 00964411 Bolt 48 331151291 Washer 49 00964392 Bolt 50 331151292 Washer [X] QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC) 11-25 (DDD) 26-50 Ref8 Page8
