Massey Ferguson MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Cylinder Head Page010-0000
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS10-003-A 2 3 4 1 RefIS103003-1 Page010-0005
Massey Ferguson
MF
Hanger Page010-0005
ItemPart NumberQtyDescription
1 3708271M911 Engine
2 3704136M921 Hanger
3 3704337M12 Bolt
4 3704695M11 Hanger
1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS01-005-A 13 13 13 13 5 11 15 8 12 3 3 2 2 14 9 1 4 16 7 6 RefIS013005-1 Page010-0010
E60100
Head
ItemPart NumberQtyDescriptionComments 1 3704687M911 Head 2 3704688M913 Plug (1) 3 3704389M11 Cup (1) 4 3704390M13 Cup (1) 5 3704391M13 Cup (1) 6 3704392M13 Cup (1) 7 3704380M13 Plug (1) 8 3707877M22 Plug (1) 9 3704693M13 Seat (1) 10 3704529M13 Valve Seat (1) 11 3704403M13 Guide (1) 12 3704282M13 Guide (1) 13 3704291M16 Seal (1) 14 3704104M21 Gasket 15 3704817M115 Bolt 16 3704326M12 Plug 17 3704377M12 Stud
Massey Ferguson MF 1260 COMPACT TRACTOR - --->|
- 1637263 1637263 Cylinder
Page010-0010
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS01-002-A 1 3 2 RefIS013002-1 Page010-0015
ItemPart NumberQtyDescription
1 3704090M911 Plug
2 3704093M15 Plug
3 3704389M13 Cup
1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263
Massey Ferguson MF
Cylinder Head - Repair Kit Page010-0015

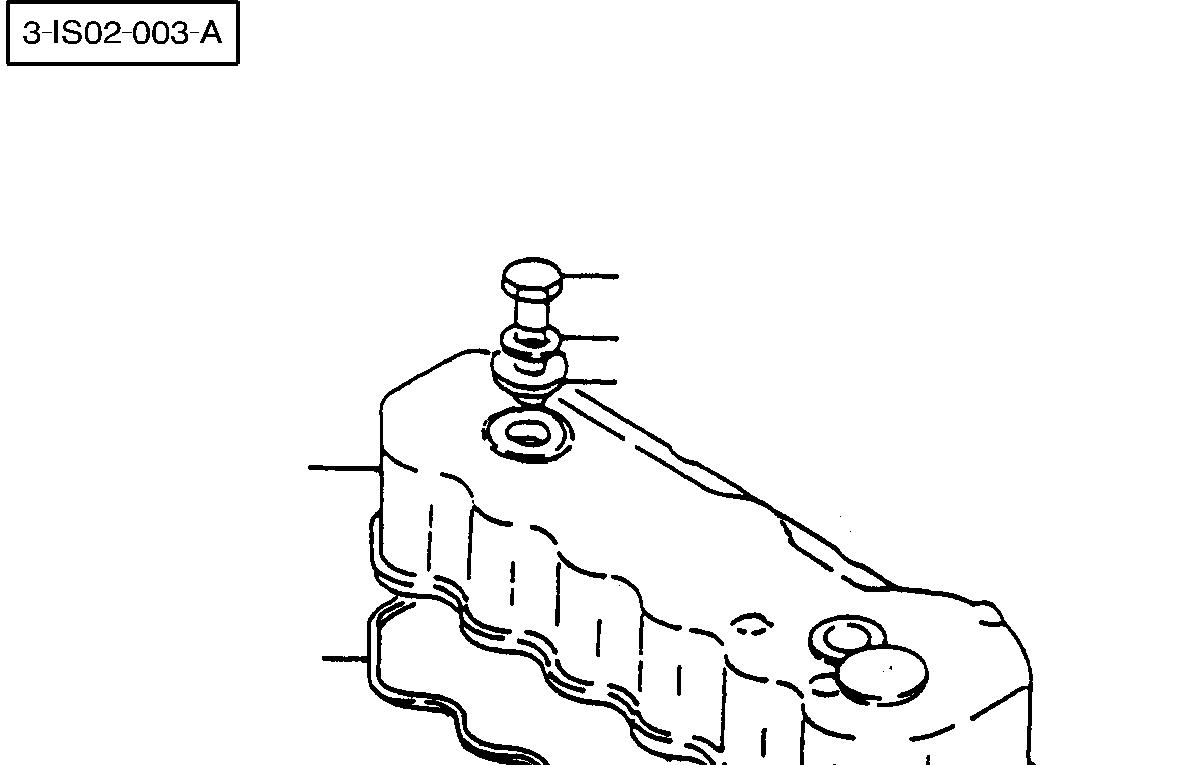

MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS02-003-A 3 4 5 1 2 RefIS023003-1 Page010-0020
Ferguson MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263
Cover Page010-0020
Massey
Cylinder Head
ItemPart NumberQtyDescription
Nut
Washer
Gasket
1 3708276M11 Cover 2 3704110M11 Gasket 3 3704393M12
4 3704395M12
5 3704394M12
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS03-003-A 2 1 3 4 RefIS033003-1 Page010-0025
Massey Ferguson MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Inlet Manifold Page010-0025 ItemPart NumberQtyDescription 1 3704720M11 Manifold 2 3704353M12 Stud 3 3704349M15 Bolt 4 3706638M11 Gasket

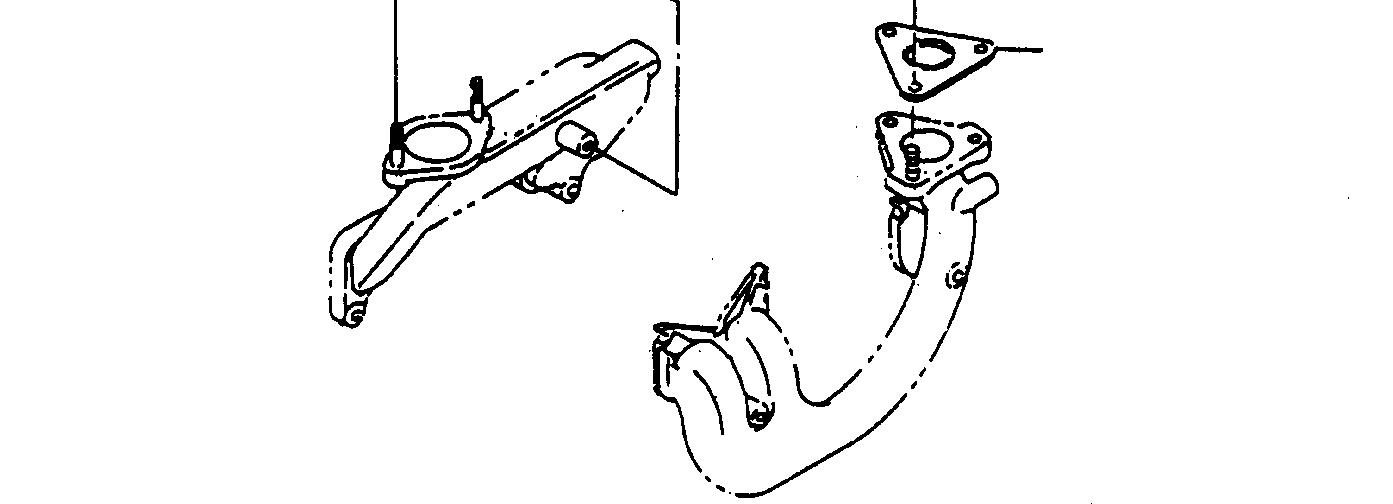

MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS04-003-A 2 3 1 4 5 RefIS043003-1 Page010-0030
Ferguson MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263
Manifold Page010-0030
NumberQtyDescription
Manifold
Gasket
Stud
Bolt
Bolt
Massey
Exhaust
ItemPart
1 3704721M11
2 3706645M11
3 3704753M13
4 3704349M11
5 3704677M11
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS05-005-A 18 13 16 12 12 17 11 11 21 5 19 6 9 9 2 2 2 2 1 8 8 15 7 3 4 14 10 20 RefIS053005-1 Page010-0035
1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Cylinder Block Page010-0035 ItemPart NumberQtyDescription Comments 1 3704691M911 Block 2 3704818M18 Bolt (1) 3 3704396M11 Cup (1) 4 3704389M15 Cup (1) 5 3707877M23 Plug (1) 6 3704257M12 Plug (1) 7 3704375M11 Plug (1) 8 3704374M12 Plug (1) 9 3704397M12 Gasket 10 3704128M911 Bearing STANDARD 3704129M91X Bearing [A] Thickness (-)0,25MM 3704130M91X Bearing [A] Thickness (-)0,50MM 11 3704276M14 Bearing (10) 12 3704277M14 Bearing (10) 13 3704131M12 Bearing Thrust (10) 14 3704382M11 Nipple 15 3704191M11 Pipe 16 3704806M12 Stud 17 3704694M11 Breather 18 3704347M11 Bolt 19 3704361M12 Nut 20 3704367M12 Washer 21 3704683M11 Hose
PRE-FINISHED
Massey Ferguson MF
FOOTNOTE[A]
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS05-002-A 6 1 4 7 7 5 2 9 8 3 11 10 RefIS053002-1 Page010-0040
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Cylinder Block - Rear Seal And Plate Page010-0040 ItemPart NumberQtyDescription 1 3704120M11 Plate 2 3704359M11 Pin 3 3704360M11 Pin 4 3704250M13 Bolt 5 3704443M11 Protector 6 3704341M13 Bolt 7 3704343M12 Bolt 8 3704362M11 Nut 9 3704368M11 Washer 10 3704260M11 Seal 11 3704157M11 Spacer
Massey Ferguson
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS07-003-A 1 4 2 6 3 5 14 12 13 7 11 9 15 8 10 RefIS073003-1 Page010-0045
1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Crankcase Page010-0045 ItemPart NumberQtyDescription 1 3704692M11 Crankcase 2 3704714M11 Pipe 3 3704086M12 Bolt 4 3704085M11 Bolt 5 3704084M14 Bolt 6 3704083M111 Bolt 7 3704121M911 Pan 8 3704091M11 Plug 9 3704094M11 Ring 10 3708475M11 Gasket 11 3704346M124 Bolt 12 3704132M911 Gauge 13 3704133M11 Gasket 14 3704379M11 Washer 15 3704347M11 Bolt
Massey Ferguson MF
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 3-IS08-001-A 8 12 1 13 7 5 6 3 4 15 9 10 14 11 2 RefIS083001-1 Page010-0050
MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Turbocharger Page010-0050 ItemPart NumberQtyDescription Comments 1 3704723M911 Turbocharger 2 3704722M21 Gasket 3 3704669M13 Nut 4 3704671M13 Washer 5 3704353M13 Stud 6 3704796M911 Tank 7 3704742M21 Stay 8 3704752M12 Bolt 9 3704361M12 Nut 10 3704367M12 Washer 11 3704371M1 2 Washer 12 3704679M11 Hose 13 3755554M12 Clamp Repairs and replaces 3704672M1 14 3704740M11 Stay 15 3704752M12 Bolt
Massey Ferguson
COMPACT TRACTOR
E60100
3-IS09-001-A 20 20 21 21 18 19 30 30 1 27 36 6 7 5 2 8 4 12 10 14 9 15 13 17 23 16 11 22 26 25 24 RefIS093001-1 Page010-0055
MF 1260
- --->|
- 1637263
Ferguson MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Timing Gear Housing Page010-0055 ItemPart NumberQtyDescriptionComments 1 3704115M921 Case 2 3704272M11 Cover 3 3704273M11 Cover 4 3706641M11 Gasket 5 3706642M11 Gasket 6 3702245M14 Bolt 7 3704353M14 Stud 8 3704398M12 Gasket 9 3704261M11 Seal 10 3704259M11 Gasket 11 3704354M12 Stud 12 3704263M11 Pin 13 3704081M13 Bolt 14 3704253M16 Bolt 15 3704340M15 Bolt 16 3704274M11 Cover 17 3704119M1 1 Gasket 18 3704118M11 Spacer 19 3706640M11 Gasket 20 3704361M18 Nut 21 3704367M18 Washer 22 3704117M11 Plate 23 3706639M11 Gasket 24 3704254M12 Stud 25 3704332M14 Bolt 26 1440689X12 Pin 10X22 27 3704168M911 Shaft 28 390984X1 2 Bear. 6007
Massey
TRACTOR
9 9 9 9 8 18 20 20 21 21 11 11 19 19 12 12 17 17 14 14 10 10 10 15 15 15 16 16 5 5 3 3 13 2 1 6 4 4 7 RefIS113001-1 Page010-0060
MF 1260 COMPACT
- --->| E60100 - 1637263 3-IS11-001-A

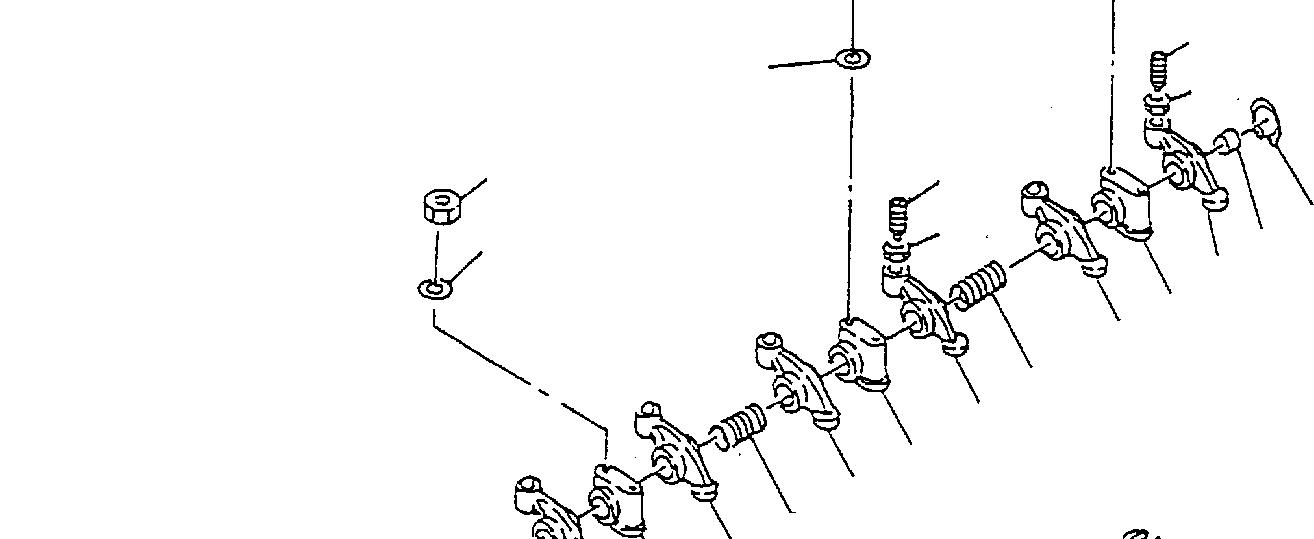

MF 1260 COMPACT TRACTOR - --->| E60100 - 1637263 1637263 Rocker Shaft And Valves Page010-0060 ItemPart NumberQtyDescriptionComments 1 3704709M13 Valve 2 3704174M13 Valve 3 3704412M16 Spring 4 3704322M16 Seat 5 3704290M112 Collar 6 3704413M16 Tappet 7 3704292M16 Rod 8 3704414M911 Shaft 9 3704415M913 Arm (8) 10 3704417M913 Arm (8) 11 3704175M16 Screw (8) 12 3704364M16 Nut (8) 13 3704420M11 Shaft (8) 14 3704421M12 Plug (8) 15 3704422M13 Bracket (8) 16 3704387M12 Spring (8) 17 3704373M12 Ring (8) 18 3704330M14 Bolt (8) 19 3704370M14 Washer (8) 20 3704363M12 Nut 21 3704371M1 2 Washer
Massey Ferguson
