Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Engine & Equipment Page010-0000
Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Engine & Equipment Page010-0000

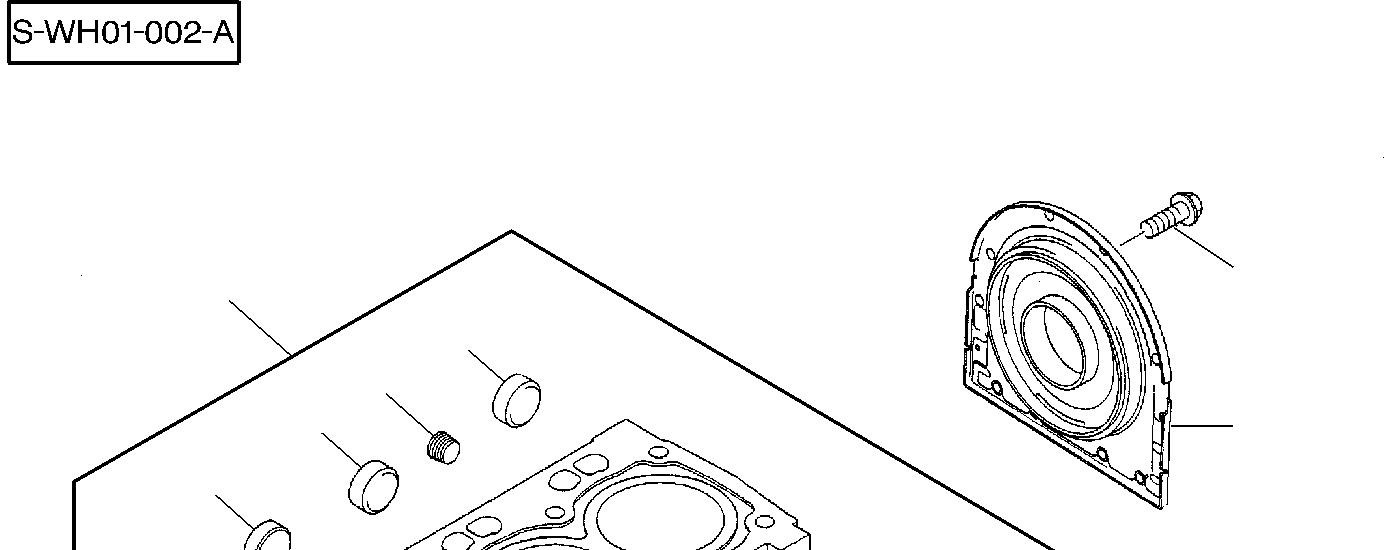

MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH01-002-A 27 1 12 11 13 26 17 10 2 15 28 22 21 19 23 6 25 20 5 7 4 3 8 29 RefWH01S002-1 Page010-0100
Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Cylinder Block - M.F 3425 Page010-0100 ItemPart NumberQtyDescription Comments 1 4225300M911 Kit,Cyl.Block 2 1 Cylinder Block (1) Not serviced,order REF. 1 3 1 Bearing Cap (1) Not serviced,order REF. 1 4 1 Bearing Cap (1) Not serviced,order REF. 1 5 1 Bearing Cap (1) Not serviced,order REF. 1 6 1 Bearing Cap (1) Not serviced,order REF. 1 7 8 Ring (1) Not serviced,order REF. 1 8 1476108X18 Screw (1) 9 4224829M11 Bush [A] (1) 10 4224874M11 Plug (1) 11 363819X11 Plug (1) 12 731354M11 Plug (1) 13 4224873M12 Plug (1) 14 4224863M11 Plug [A] (1) 15 4224866M11 Plug (1) 16 4225254M11 Water Pipe [A] (1) 17 4224781M11 Plug (1) 18 4224865M11 Bolt [A] (1) 19 4224717M13 Jet (1) 20 3641648M13 Screw (1) 21 4224936M12 Blanking Plate (1) 22 4224973M12 Gasket (1) 23 3638435M18 Screw (1) 24 4225132M11 Plug [A] (1) 25 731996M11 Plug (1) 26 4224762M11 Housing 27 4224860M110 Bolt 28 4226132M1 1 Pressure Switch 29 4225132M11 Plug
ILLUSTRATED
Massey
FOOTNOTE[A] NOT
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH01-001-B 25 1 24 1312 2 15 17 10 18 27 14 26 28 20 9 23 19 22 7 21 6 5 4 8 3 16 11 RefWH01S001-1 Page010-0105
Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Cylinder Block - M.F 3435/45/55 Page010-0105 ItemPart NumberQtyDescription Comments 1 4225075M911 Kit,Cyl.Block 4225075E911 Cylinder Block [A] 2 1 Cylinder Block (1) Not serviced,order REF. 1 3 1 Bearing Cap (1) Not serviced,order REF. 1 4 2 Bearing Cap (1) Not serviced,order REF. 1 5 1 Bearing Cap (1) Not serviced,order REF. 1 6 1 Bearing Cap (1) Not serviced,order REF. 1 7 733072M110 Ring (1) 8 1476108X110 Screw (1) 9 4224829M11 Bush (1) 10 4224874M11 Plug (1) 11 4224873M12 Plug (1) 12 363819X11 Plug (1) 13 731354M11 Plug (1) 14 4224863M11 Plug (1) 15 4224009M12 Dowel (1) 16 4224866M12 Plug (1) 17 4224781M11 Plug (1) 18 4224865M11 Bolt (1) 19 3641648M14 Screw (1) 20 4224717M14 Jet (1) 21 3638435M14 Screw (1) 22 4224936M11 Blanking Plate (1) 23 4224973M11 Gasket (1) 24 4224762M11 Housing 25 4224860M110 Bolt 26 4224782M11 Plug 27 4225132M11 Plug 28 4226132M1 1 Pressure Switch FOOTNOTE[A] STANDARD EXCHANGE
Massey
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH02-001-A 1 4 5 19 2 8 7 6 20 21 3 9 14 17 13 15 11 12 16 18 10 RefWH02S001-1 Page010-0110
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494
Piston & Connecting Rods - M.F 3425 Page010-0110 ItemPart NumberQtyDescription Comments 1 4225301M911 Kit, Crankshaft 2 1 Crankshaft (1) Not serviced,order REF. 1 3 4225305M911 Kit, Bearing (1) 4 4225306M911 Kit, Bearing (1) 5 747128M12 Thrust Washer (1) 735742M12 Washer Thickness (+) 0.007" 6 747129M12 Thrust Washer (1) 735743M12 Washer Thickness (+) 0.007" 7 4224833M11 Gear 8 709058451 Key 9 4225019M913 Kit, Piston/Ring 10 1 Piston (9) Not serviced,order REF. 9 11 1 Piston Pin (9) Not serviced,order REF. 9 12 4222135M12 Circlip (9) 13 4225072M911 Kit, Piston Ring (9) 4225858M911 Kit, Ring Thickness (+) 0,50 mm 4225859M911 Kit, Ring Thickness (+) 1,00 mm 14 4225016M911 Kit, Conrod Grade L 4225015M911 Kit, Conrod Grade K 4225014M911 Kit, Conrod Grade J 4225013M911 Kit, Conrod Grade H 4225012M911 Kit, Conrod Grade G 4225011M911 Kit, Conrod Grade F 15 1 Conrod (14) Not serviced,order REF. 14 16 1 Rod End (14) Not serviced,order REF. 14 17 4224827M11 Bush (14) 18 4224864M12 Bolt (14) 19 4225250M11 Pulley 20 4222401M11 Block 21 748074M13 Screw
Massey Ferguson
Crankshaft,
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494
5 4 9 10 2 1 11 6 7 8 3 19 16 17 12 18 13 20 14 15 RefWH02S002-1 Page010-0115
S-WH02-002-B
Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Crankshaft, Piston & Connecting Rods - M.F 3435/45/55 Page010-0115 ItemPart NumberQtyDescription Comments 1 4225086M911 Kit, CrankshaftMF 3435 4225085M911 Kit, CrankshaftMF 3445/55 2 1 Crankshaft (1) Not serviced,order REF. 1 3 4225059M911 Kit, Bearing (1) 4225060M91X Kit, Bearing Thickness (+) 0.010" 4225061M91X Kit, Bearing Thickness (+) 0.020" 4225062M91X Kit, Bearing Thickness (+) 0.030" 4 4225063M911 Kit, Bearing (1) 4225064M91X Kit, Bearing Thickness (+) 0.010" 4225065M91X Kit, Bearing Thickness (+) 0.020" 4225066M91X Kit, Bearing Thickness (+) 0.030" 5 747128M12 Thrust Washer (1) 735742M1X Washer Thickness (+) 0.007" 6 747129M12 Thrust Washer (1) 735743M1X Washer Thickness (+) 0.007" 7 709058451 Key (1) 8 4224833M11 Gear 9 4222867M11 Pulley,Crank 10 4222401M11 Block 11 748074M13 Screw 12 4225018M914 Kit, Piston/RingMF 3435 4225019M914 Kit, Piston/RingMF 3445/55 13 1 Piston (12) Not serviced,order REF. 12 14 1 Piston Pin (12) Not serviced,order REF. 12 15 4225135M12 Washer (12) 16 4225073M911 Kit, Piston Ring (12) MF 3435 4225072M911 Kit, Piston Ring (12) MF 3445/55 17 4225011M914 Kit, Conrod Grade F 4225012M914 Kit, Conrod Grade G 4225013M914 Kit, Conrod Grade H 4225014M914 Kit, Conrod Grade J 4225015M914 Kit, Conrod Grade K 4225016M914 Kit, Conrod Grade L 18 1 Piston Rod (17) Not serviced,order REF. 17 19 4224827M11 Bush (17) 20 4224864M12 Bolt (17)
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH03-002-A 1 22 22 21 10 16 16 15 15 13 13 11 14 14 4 4 7 24 24 23 23 6 18 19 8 9 2 5 3 17 12 20 RefWH03S002-1 Page010-0120
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Cylinder Head - M.F 3425 Page010-0120 ItemPart NumberQtyDescription Comments 1 4225299M911 Kit, Cyl. Head 2 1 Cylinder Head (1) Not serviced,order REF. 1 3 4224895M13 Insert (1) 4 4223987M16 Guide (1) 5 4224896M13 Insert (1) 6 376606X13 Plug (1) 7 363819X13 Plug (1) 8 4222043M13 Plug (1) 9 4224009M12 Dowel (1) 10 4224867M15 Screw (1) 11 4224868M13 Screw (1) 12 4224847M13 Inlet Valve (1) 13 4225538M16 Kit, Service (1) 14 4224856M16 Spring (1) 15 4224898M16 Cap (1) 16 4222141M112 Cotter (1) 17 4224846M13 Exhaust Valve (1) 18 4224884M11 Plug (1) 19 4224752M11 O Ring (1) 20 4225388M11 Head Gasket 21 4225314M11 Connection 22 376606X13 Plug 23 4224933M12 Support 24 3637139M14 Screw
Massey Ferguson
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH03-001-A 24 23 1 19 16 13 13 12 12 10 10 8 18 11 11 15 3 3 21 21 4 20 2 7 6 5 14 9 22 17 RefWH03S001-1 Page010-0125
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Cylinder Head - M.F 3435/45/55 Page010-0125 ItemPart NumberQtyDescription Comments 1 4225077M911 Kit, Cyl. Head 2 1 Cylinder Head (1) Not serviced,order REF. 1 3 4223987M18 Guide (1) 4 376606X11 Plug (1) 5 4224895M14 Insert (1) 6 4224896M14 Insert (1) 7 4222043M12 Plug (1) 8 363819X14 Plug (1) 9 4224847M14 Inlet Valve (1) 10 4225538M18 Kit, Service (1) 11 4224856M18 Spring (1) 12 4224898M18 Cap (1) 13 4222141M116 Cotter (1) 14 4224846M14 Exhaust Valve (1) 15 4224752M11 O Ring (1) 16 4224884M11 Plug (1) 17 4225850M11 Head GasketRepairs and replaces 4225140M1 18 4224867M17 Screw 19 4224868M13 Screw 20 4225268M11 Bracket 21 3637139M14 Screw 22 4224933M11 Support 23 4225314M11 Connection 24 376606X11 Plug
Massey Ferguson
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494
4 5 6 7 8 3 2 1 11 12 10 9 RefWH13S001-1 Page010-0130
S-WH13-001-B
Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Heater/Starter Switch - M.F 3425 Page010-0130 Item Part NumberQtyDescription 1 4225288M11 Insulator 2 3637247M11 Screw 3 4225249M1 1 Terminal 4 4225287M11 Bar 5 4224813M1 3 Spark Plug 6 3640346M11 Nut 7 4225235M11 Washer 8 344107X11 Washer 9 4224819M1 1 Sender 10 4224850M11 Cable 11 356039X11 Plug 12 2.7099.930.0 1 Thermostat
Massey
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH13-002-B 2 1 3 4 8 7 5 6 RefWH13S002-1 Page010-0135
Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Heater/Starter Switch - M.F 3435/45/55 Page010-0135 Item Part NumberQtyDescription 1 4224813M1 4 Spark Plug 2 4225164M11 Bar 3 4224884M11 Plug 4 4224752M11 O Ring 5 4224819M1 1 Sender 6 4224850M11 Cable 7 365332X11 Plug 8 2.7099.930.0 1 Thermostat
Massey
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH04-001-A 1 15 11 14 12 13 10 9 5 8 6 7 19 18 3 17 16 2 4 RefWH04S001-1 Page010-0140
Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Rocker Arm - M.F 3425 Page010-0140 ItemPart NumberQtyDescriptionComments 1 4225289M911 Rocker Shaft 2 4225290M911 Rocker Shaft (1) 3 1 Rocker Shaft (2) Not serviced,order REF. 2 4 4224780M12 Plug (2) 5 4225020M913 Rocker (1) 6 1 Rocker (5) Not serviced,order REF. 5 7 1 Button (5) Not serviced,order REF. 5 8 376123X11 Nut (5) 9 4223933M11 Screw (5) 10 4224855M12 Spring (1) 11 4225021M913 Rocker (1) 12 1 Rocker (11) Not serviced,order REF. 11 13 1 Button (11) Not serviced,order REF. 11 14 376123X11 Nut (11) 15 4223933M11 Screw (11) 16 3638812M12 Circlip (1) 17 4224720M12 Washer (1) 18 4224742M11 Screw (1) 19 4224743M12 Screw (1)
Massey
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH04-002-B 1 11 15 14 12 13 10 9 8 5 6 7 19 18 3 4 2 17 16 RefWH04S002-1 Page010-0145
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Rocker Arm - M.F 3435/45/55 Page010-0145 ItemPart NumberQtyDescription Comments 1 4225022M911 Rocker Shaft Ass 2 4225023M911 Rocker Shaft (1) 3 1 Rocker Shaft (2) Not serviced,order REF. 2 4 4224780M12 Plug (2) 5 4225020M914 Rocker (1) 6 1 Rocker (5) Not serviced,order REF. 5 7 1 Pad (5) Not serviced,order REF. 5 8 376123X11 Nut (5) 9 4223933M11 Screw (5) 10 4224855M13 Spring (1) 11 4225021M914 Rocker (1) 12 1 Rocker (11) Not serviced,order REF. 11 13 1 Pad (11) Not serviced,order REF. 11 14 376123X11 Nut (11) 15 4223933M11 Screw (11) 16 3638812M12 Circlip (1) 17 4224720M12 Washer (1) 18 4224742M11 Screw (1) 19 4224743M13 Screw (1)
Massey Ferguson
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494
1 10 13 9 8 4 14 5 6 7 2 29 3 11 12 23 28 27242625 21 16 17 15 19 30 20 18 22 RefWH10S002-1 Page010-0150

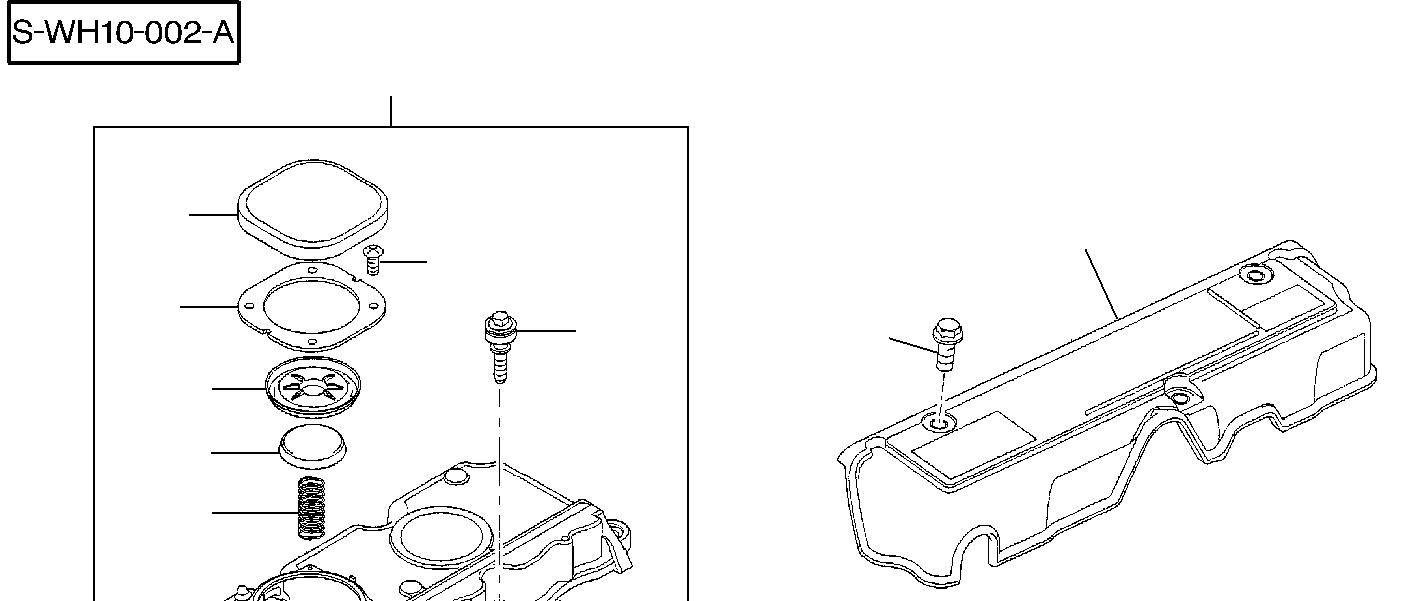

S-WH10-002-A
Ferguson MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 1637494 Lubricating Oil Filler & Breather - M.F 3425 Page010-0150 ItemPart NumberQtyDescription Comments 1 4225298M11 Cyl. Head Cover 2 1 Cyl. Head Cover (1) Not serviced,order REF. 1 3 4225269M1 1 Joint. (1) 4 4224723M18 Screw (1) 5 4225000M11 Diaphragm (1) 6 4224996M11 Cap (1) 7 4224857M11 Spring (1) 8 4224931M11 Cover (1) 9 4225236M14 Screw (1) 10 4224997M11 Cap (1) 11 4225246M11 Valve (1) 12 4224735M12 Screw (1) 13 4225286M11 Cyl. Head Cover 14 3637090M13 Screw 15 4225039M11 Lub.Oil Filler 16 1 Body (15) Not serviced,order REF. 15 17 4222437M11 O Ring (15) 18 3641889M11 Cap (15) 19 1 Cap (18) Not serviced,order REF. 18 20 3641231M11 O Ring (18) 21 3637095M11 Screw 22 3637102M11 Screw 23 4225043M11 Breather Pipe 24 1 Tail Pipe (23) Not serviced,order REF. 23 25 4224972M11 Gasket (23) 26 4224723M12 Screw (23) 27 4224748M11 O Ring (23) 28 4225384M11 Hose 29 3641405M11 Hose Clip 30 745489M11 Bracket
Massey
Suggest:
If the above button click is invalid.
Please download this document first, and then click the above link to download the complete manual.
Thank you so much for reading
MF 3425 / 3435 / 3445 / 3455 VSF TRACTORS - 1637494 S-WH10-003-A 12 11 10 9 8 7 6 5 1 4 2 3 18 15 14 16 13 17 23 24 22 20 19 21 25 RefWH10S003-1 Page010-0155
