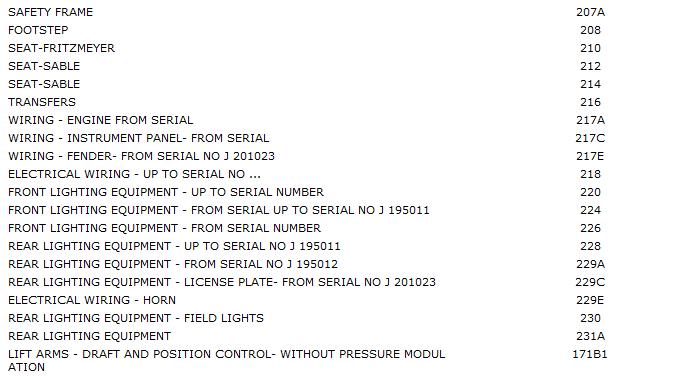

MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 TABLE OF CONTENT 00 Ref00 Page00
TRACTOR,
2 3 1 20 19 18 17 16 15 12 13 11 14 9 10 5 67 8 4 Ref2 Page2
MF 245
|-> (FR) - 1637059
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 ENGINE AND ACCESSORIES 2 ItemPart NumberQtyDescription Comments 1 1662736M911 Engine AD3 152 1672513M911 Engine (B) AD3.152 2 355851X11 Bush 3 1877721M921 Pressure Switch 4 1877731M921 Sender 5 963929M11 Blade Fan 6 963930M11 Blade Fan 7 897057M12 Brake 8 361444X14 Screw 9 363625X12 Nut 10 362479X11 Screw 11 362491X13 Screw 12 191314M12 Centraliser 13 362499X18 Screw 14 191314M12 Centraliser 15 353432X12 Lock Washer 16 362501X12 Screw 17 361773X11 Screw 18 353432X11 Lock Washer 19 1876670M11 Belt 20 828123M11 Bearing Assy
WHEEL 10X32 Ref2 Page2
(B)
45 4647 43 44 40 41 42 1 39 38 37 36 35 34 33 32 29 30 31 282726 25 24 2322 2120 19 18 17 1213 14 15 3 2 4 5 6 7 8 9 10 11 16 Ref3A Page3A
MF 245 TRACTOR, |-> (FR) - 1637059

(C)

REPLACES 0746254+0920299

MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 CYLINDER BLOCK 3A ItemPart NumberQtyDescription Comments 1 614241 Cylinder BlockUp to Serial or Engine Number U635848G 645731 Cylinder BlockFrom Serial or Engine Number U635849G 2 313583813 Liner (1) (A) 2 31358345X Liner (B) 3 06505634 Plug 4 368625111 Joint 5 06506641 Plug (1) 6 334731061 Connection 7 308541 Seal 8 374167511 Housing 9 08262013 Stud (C) 10 09200533 Washer (C) 11 05760023 Nut (C) 12 328131061 Cap Nut 13 07207982 Screw 14 08262144 Stud 15 371479741 Plate 16 07464546 Setscrew 17 09200546 Washer 18 378131131 Plug 19 24153911 Seal 20 07462559 Setscrew 21 09200039 Washer 22 06100451 Pin 23 314191 Cock 24 03500152 Dowel 25 374246111 Housing 26 03500162 Dowel 27 338261111 Joint 28 06505941 Plug 29 321814422 Screw (1) 30 331374082 Thimble (1) 31 24156082 O Ring 32 04706821 Adaptor 33 321144711 Plug 34 321814416 Screw (1) 35 331374086 Thimble (1) 36 06505662 Plug 37 325265121 Stud 38 06507101 Plug (1) 39 02010473 Connection 40 05660021 Olive (42) 41 05761111 Nut (42) 42 355683191 Pipe 43 00953501 Bolt 44 09201262 Washer 45 353524041 Pipe,Oil 46 05761112 Nut (45) 47 05660022 Olive (45)
(A) PRESS FIT (B) SLIP FIT
Ref3A Page3A
7 8 44 45 6 9 10 43 42 5 4 3 2 1 41 40 39 36 37 38 28 27 26 25 29 31 30 34 33 32 35 22 23 24 21 20 19 12 11 13 14 15 16 18 17 Ref3E Page3E
MF 245 TRACTOR, |-> (FR) - 1637059
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 CYLINDER HEAD 3E ItemPart NumberQtyDescription Comments 1 681281 Cylinder Head 891411 Cylinder Head 2 332617236 Guide (1) 3 334151336 Washer (1) 4 07800066 Spring (1) 5 01500086 Cap (1) 6 331731156 Cotter (1) (A) 7 05760512 Nut 8 09200542 Washer 9 09200041 Washer 10 08264662 Stud 11 362377271 Plate 12 24311542 Plug 13 321814474 Screw 14 04904851 Joint 15 09408091 Plate 16 332213152 Nut 17 07462556 Setscrew 18 09200536 Washer 19 368121271 Gasket 20 325241322 Stud 21 364563211 Plate 22 08264622 Stud 23 09200542 Washer 24 05760512 Nut 25 314312813 Valve Inlet (1) (B) 25 314316813 Valve Inlet (1) (C) 26 314315913 Valve Exhaust (1) (B) 26 314317613 Valve Exhaust (1) (C) 27 331244283 Insert 28 04904821 Joint 29 377663621 Body 30 00964371 Bolt 31 09200541 Washer 32 22151781 Stud (D) 33 09200541 Washer (D) 34 05760511 Nut (D) 35 06505861 Plug 36 08262141 Stud (E) 37 09200531 Washer (E) 38 05760021 Nut (E) 39 24856661 Thermostat 40 321814453 Screw 41 321814469 Screw 42 04901841 Joint 43 377475811 Connection 44 00964322 Screw 45 09200542 Washer (A)
IN PAIRS (B)
ONLY WITH 68128 (C) USED ONLY WITH 89141
Ref3E Page3E
SERVICED
USED
(D) REPLACES 0096441+0920155 (E) REPLACES 0746255+0920053
33 23 22 21 34 20 19 17 18 16 1 2 3 27 28 26 25 24 15 14 10 12 11 13 6 5 7 8 9 3231 29 4 30 Ref10 Page10
MF 245 TRACTOR, |-> (FR) - 1637059
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 CRANKSHAFT 10 ItemPart NumberQtyDescription Comments 1 944581 Kit, Crankshaft 2 1 Crankshaft (1) Not serviced, order 94458 3 850361 Kit, Bearing (1) (A) 3 85036AX Kit, Bearing (A) Thickness -0,25MM 3 85036BX Kit, Bearing (A) Thickness -0,50MM 3 85036CX Kit, Bearing (A) Thickness -0,75MM 4 313282412 Weight Repairs and replaces 0995415 5 317315152 Washer Right Hand 6 317315162 Washer Left Hand 7 21851894 Screw 8 09210623 Tab Washer 9 321622036 Screw 10 411127971 Flywheel 11 1 Flywheel (10) Not serviced, order 41112797 12 04102361 Starter Ring (10) 13 311372112 Thrust Washer (1) 31137212X Washer Thickness +0,18MM 14 311372212 Thrust Washer (1) 31137222X Washer Thickness +0,18MM 15 680841 Kit, Bearing (1) (A) Repairs and replaces 68083-58703 15 68084AX Kit, Bearing (A) Thickness -0,25MM 15 68084BX Kit, Bearing (A) Thickness -0,50MM 15 68084CX Kit, Bearing (A) Thickness -0,75MM 16 362717041 Woodruff Key 17 321623121 Screw 18 331251121 Washer 19 311437331 Pulley,Crank 20 331763081 Flange (D) 21 04101321 Gear,Crankshaft 22 03308111 Spacer 23 M7BJ00143 Kit, Conrod Repairs and replaces 91051 24 311341511 Bush (23) 25 1 Piston Rod (23) Not serviced, order 91051 26 00952502 Bolt (23) 27 332213272 Nut (23) Repairs and replaces 33221319 28 1 Cover (23) Not serviced, order 91051 29 683313 Kit, Piston (B) 683323 Kit, Piston (C) 30 3 Piston (29) Not serviced, order 68331-68332 31 3 Piston Pin (29) Not serviced, order 68331-68332 32 01700016 Circlip (29) 33 411580573 Kit, Piston Ring 35 Not Used (A) PRE-FINNISHED (B) UNTOPPED (C) PRE-TOPPED (D) Ref10 Page10
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 CRANKSHAFT 10 ItemPart NumberQtyDescription Comments ORDER 33176137-2415343 Ref10 Page10
1 2 3 4 5 6 7 8 9 9 18 17 12 11 10 13 14 15 27 28 19 19 19 20 20 25 26 29 21 21 21 21 22 22 22 22 30 33 32 31 34 23 23 23 24 16 36 35 Ref12 Page12
MF 245 TRACTOR, |-> (FR) - 1637059
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 CYLINDER HEAD COVER 12 ItemPart NumberQtyDescription Comments 1 05761022 Nut 2 09200032 Washer 3 09203022 Washer 4 371885711 Cyl.Head Cover 5 368111151 Joint 6 01800631 Clip Repairs and replaces 2481802 7 338725311 Pipe 8 317541181 Spring 9 365611292 Clip 10 08276221 Stud 11 09200531 Washer 12 05760021 Nut 13 07483541 Screw 14 09200521 Washer 15 09200021 Washer 16 831351 Rocker Shaft 17 538431 Rocker Shaft (16) 18 06505072 Plug (17) 19 05204303 Lever (16) Right Hand 20 07800052 Spring (16) 21 03305054 Spacer (16) 22 01011384 Bracket (16) 23 05204293 Lever (16) Left Hand 24 07801751 Spring (16) 25 01700332 Circlip (16) 26 355683521 Pipe,Oil (16) 27 22112832 Nut 28 09200042 Washer 29 02060021 Union 30 22142092 Stud Repairs and replaces 0826469 31 07206776 Screw 32 05760526 Nut 33 08600126 Tappet 34 327544352 Stud Repairs and replaces 32754412 35 22112832 Nut 36 09200042 Washer Ref12 Page12

MF 245 TRACTOR, |-> (FR) - 1637059

5 6 7 8 4 3 2 1 57 46 49 50 51 52 47 48 53 54 55 56 45 44 42 43 37 38 36 39 40 33 34 35 41 30 31 32 28 29 23 24 22 21 20 19 18 17 16 25 26 27 11 10 9 12 13 14 15 Ref14 Page14
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 TIMING GEAR 14 ItemPart NumberQtyDescription Comments 1 07462143 Screw 2 09200533 Washer 3 04102411 Gear,Camshaft 4 314152611 Camshaft 5 074635512 Screw 6 092005312 Washer 7 12 Not Used 8 371614811 Timing Case 9 07462542 Setscrew 10 24111522 Washer 11 368141191 Joint 12 24878541 Cap (13) 13 357841231 Filler 14 368374131 Joint 15 07485102 Bolt 16 374611041 Plate 17 368354131 Joint 18 09200542 Washer 19 22381532 Nut 20 03500051 Dowel 21 09954471 Hub 22 373543121 Timinggear Cover 23 00962322 Bolt 24 09200532 Washer 25 00962342 Bolt 26 09200532 Washer 27 2 Not Used 28 08276191 Stud 29 09200531 Washer 05760021 Nut 30 24141111 Seal (49) (A) 31 07483538 Screw 32 09200528 Washer 33 07484052 Screw 34 09200532 Washer 35 368625121 Joint 36 08276072 Stud 37 05760022 Nut 38 09200532 Washer 39 07483526 Screw 40 24111516 Washer 41 362341141 Blanking Cover 42 07484111 Screw 43 24111521 Washer 44 07484142 Setscrew 45 09200532 Washer 46 00962133 Bolt 47 09200533 Washer 48 05760023 Nut 49 618001 Cover 50 368131361 Joint 51 07800671 Spring (49) Up to Serial or Engine Number 51 3661P0021 Spring From Serial or Engine Number 52 06900611 Rivet (49) Up to Serial or Engine Number 52 21261511 Rivet From Serial or Engine Number 53 00951991 Screw 54 09208831 Washer 55 09407381 Plate 56 311643621 Gear,Idler 57 Not Used Not Used
Ref14 Page14
(A) ORDER 2415343-33176137
1 2 3 7 8 9 9 10 11 18 17 16 15 14 13 12 19 20 4 5 6 21 22 Ref16 Page16
MF 245 TRACTOR, |-> (FR) - 1637059
MASSEY FERGUSON MF 245 TRACTOR, |-> (FR) - 1637059 1637059 ALTERNATOR POSITIONER 16 ItemPart NumberQtyDescription 1 354267X11 Bolt Unc 2 353756X11 Washer 3 1872714M931 Cowl 4 353756X11 Washer 5 353434X11 Lock Washer 6 355566X11 Nut Unc 7 355565X11 Nut Unc 8 353446X11 Lock Washer 9 353755X12 Washer 10 353446X11 Lock Washer 11 353682X11 Screw Unc 12 375811731 Bracket 13 331354231 Spacer 14 361781741 Lever 15 09200031 Washer 16 09200531 Washer 17 08276231 Stud 18 05760021 Nut 19 00962412 Bolt 20 09200531 Washer 21 09200532 Washer 22 05760022 Nut Ref16 Page16
1 2 3 4 5 6 25 7 8 9 11 12 13 14 15 24 23 22 16 17 18 10 21 20 19 Ref17A Page17A
MF 245 TRACTOR, |-> (FR) - 1637059
