Massey Ferguson MF 375 TRACTOR, - B18008 Parts Catalogue Manual Instant Download

Page 1

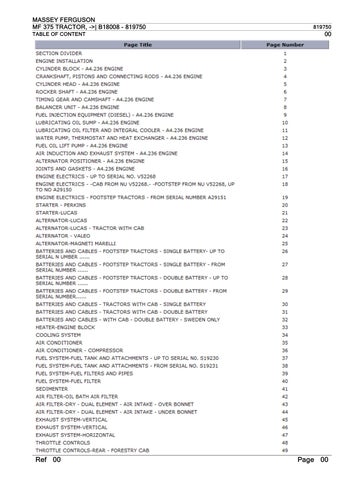

MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TABLE OF CONTENT 00 Ref00 Page00
MF 375 TRACTOR, ->| B18008 - 819750 Ref1 Page1

SECTION DIVIDER

DescriptionComments

For UK only or any text in English only

SERIAL NUMBERS

..............

For France only or any text in French only NUMEROS DE SERIES

For Germany only or any text in German only SERIEN NUMMER

For Italy only or any text in Italian only MATR.O NUMERO

E NUMERO SERIE

MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750
1
Ref1 Page1
MF 375 TRACTOR, ->| B18008 - 819750 1 52 51 15 54 8 53 28 4 5 14 7 13 6 12 9 32 10 2 11 35 25 34 17 33 18 27 3 19 20 23 23 21 21 21 22 22 22 22 22 42 24 24 24 24 41 44 45 16 26 Ref2 Page2
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 ENGINE INSTALLATION 2 ItemPart NumberQtyDescription Comments 1 1694429M911 Engine PEL - LD31140 3476390M911 Short Engine PEL - LD39312 3612674M911 Engine (A) PEL - LD31248 1 3478237M911 Short Engine (A) PEL - LD39303 2 1447048M11 Oil Filter 3 1693745M11 V Belt 1687610M911 Kit, Belt (A) 4 1694276M41 Bracket 5 376334X11 Screw Unc 6 353755X11 Washer 7 355565X11 Nut Unc 8 353536X11 Screw Unf 9 1696465M21 Bracket Up to Serial or Engine Number ....... 10 1696871M11 Clip Up to Serial or Engine Number ....... 11 339123X11 Screw Metric Up to Serial or Engine Number ....... 12 390972X11 Washer MetricUp to Serial or Engine Number ....... 13 339374X11 Lock WasherUp to Serial or Engine Number ....... 14 339169X11 Nut Metric Up to Serial or Engine Number ....... 15 828123M21 Bearing Assy 16 339030X11 Nut Metric From Serial or Engine Number ....... 17 339375X11 Lock WasherFrom Serial or Engine Number ....... 18 3612888M11 Bracket From Serial or Engine Number ....... 19 1876383M11 Clamp From Serial or Engine Number ....... 20 3001753X11 Screw Metric From Serial or Engine Number ....... 21 3019851X13 Bolt Metric 22 3019853X15 Bolt Metric 23 825302M12 Dowel 24 3019855X14 Bolt Metric 25 3019878X11 Bolt Metric 26 3019862X11 Nut Metric 27 3019858X11 Bolt Metric 28 353756X11 Washer 32 3638564M11 Spacer Thickness 17,7MM 33 1695933M11 Fan 34 353521X14 Bolt Unf 35 353446X14 Lock Washer 41 3637938M11 Fan (A) 42 743046M11 Extension (A) 736519M11 Spacer (A) Up to Serial or Engine Number B14049 42 3759095M11 Spacer (A) From Serial or Engine Number B14050 Thickness 40,7MM 44 353446X14 Lock Washer (A) 45 353527X14 Screw (A) Up to Serial or Engine Number B14049 45 353529X14 Bolt Unf (A) From Serial or Engine Number B14050 51 3614283M11 Fan (B) 52 3638564M11 Spacer (B) Thickness 17,7MM 53 353521X14 Bolt Unf (B) 54 353446X14 Lock Washer (B) (A) WITH AIR CONDITIONING (B) SCANDINAVIA ONLY Ref2 Page2
15 25 32 16 6 17 10 8 8 18 12 20 14 27 21 13 24 28 19 33 11 7 29 3 5 2 1 4 30 26 23 22 31 Ref3 Page3
MF 375 TRACTOR, ->| B18008 - 819750

CYLINDER BLOCK - A4.236 ENGINE

MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750
3 ItemPart NumberQtyDescription Comments A4.236 ENGINE 1 3637379M911 Cylinder Block 2 1 Cylinder Block (1) Not serviced, order REF.1 3 5 Bearing Cap (1) Not serviced, order REF.1 4 1476108X110 Screw (1) 5 733072M110 Ring (1) 6 3637331M14 Liner (1) (A) 6 3637332M1X Liner (B) 7 731354M16 Plug (1) 8 735944M14 Plug (1) 9 731354M12 Plug (1) 10 1476282X11 Plug (1) 11 3638579M11 Bush (1) Repairs and replaces 3638093M1 Repairs and replaces 734883M1 12 733705M11 Plug 13 735869M14 Plug 14 736868M11 Plug 15 3638358M11 Head GasketRepairs and replaces 3637341M1 16 3638347M911 Housing Repairs and replaces 748163M91 17 1 Housing (16) Not serviced, order REF.16 18 1447691M11 Seal (16) 19 740828M11 Joint 20 353519X110 Screw Unf 21 375703X110 Washer 22 731947M12 Dowel 23 357987X12 Bolt 24 745015M12 Washer 25 376180X11 Plug 26 376196X11 Washer 27 748040M11 Plug 28 733067M12 Plug 29 3638540M11 Plug 30 3637016M12 Plug 31 733067M11 Plug 32 745017M11 Pointer 33 731862M13 Stud (A) PRESS FIT (B) SLIP FIT Ref3 Page3
10 27 26 28 13 12 19 9 17 15 11 14 4 5 2 1 22 3 24 6 7 8 21 Ref4 Page4
MF 375 TRACTOR, ->| B18008 - 819750

CRANKSHAFT, PISTONS AND CONNECTING RODS - A4.236 ENGINE

MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750
4 ItemPart NumberQtyDescription Comments A4.236 ENGINE
3637401M911 Kit, Crankshaft 2 1 Crankshaft (1) Not serviced, order REF.1 3 735168M911 Kit, Bearing (1) (A) 3 735169M91X Kit, Bearing (A)
Thickness
3 735170M91X Kit, Bearing (A)
Thickness
3 735171M91X Kit, Bearing (A)
Thickness
4 736950M911 Kit, Bearing (1) (A) 4 736951M91X Kit, Bearing (A)
Thickness
4 736952M91X Kit, Bearing (A)
Thickness (-)0.020" 4 736953M91X Kit, Bearing (A)
Thickness (-)0.030" 5 747128M12 Washer (1) 735742M1X Washer Thickness (+)0.19MM
6 747129M12 Washer (1) 735743M1X Washer
Thickness
7 3638115M11 Thrust Block (D) 8 3638113M13 Screw (D) 9 3637034M914 Kit, Conrod 10 1 Conrod (9) Not serviced, order REF.9 11 1 Cap (9) Not serviced, order REF.9 12 733767M11 Bush (9) 13 3637029M12 Bolt (9) 14 3637030M12 Nut (9) 15 3637515M914 Kit, Piston (B) 3637516M914 Kit, Piston (C) 16 1 Piston (15) Not serviced, order REF.15 17 1 Pin (15) Not serviced, order REF.15 18 376131X11 Clip (15) 19 376131X11 Clip (15) 20 745760M914 Kit, Piston Ring 21 734749M11 Gear Number of teeth/spines 28 Up to Serial or Engine Number U171963P 21 3638105M11 Gear Number of teeth/spines 28 From Serial or Engine Number U171964P 22 2196X1 Key 23 742539M11 Washer 24 3638098M11 Pulley 25 747631M11 Pulley 26 742106M911 Flywheel 27 1 Flywheel (26) Not serviced, order REF.26 28 731008M11 Annular Gear (26) 115T 29 375763X16 Screw 30 745365M16 Washer Repairs and replaces 737514M1
Ref4 Page4
1
Thickness (-)0.25MM
(-)0.010"
Thickness (-)0.50MM
(-)0.020"
Thickness (-)0.75MM
(-)0.030"
Thickness (-)0.25MM
(-)0.010"
Thickness (-)0.50MM
Thickness (-)0.75MM
Thickness (+)0.0075"
Thickness (+)0.19MM
(+)0.0075"
(A) PRE-FINISHED

CRANKSHAFT, PISTONS AND CONNECTING RODS - A4.236 ENGINE

MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 -
819750
819750
4 ItemPart NumberQtyDescription Comments
UNTOPPED
(B)
(C) PRE-TOPPED
Ref4 Page4
(D) NOT SUPPLIED WITH ASSEMBLY
24 17 31 32 33 16 22 15 14 38 37 39 21 13 20 12 19 29 11 30 25 45 5 28 4 43 44 3 41 42 8 40 6 7 1 2 10 18 34 36 35 23 26 27 46 Ref5 Page5
MF 375 TRACTOR, ->| B18008 - 819750

CYLINDER HEAD - A4.236 ENGINE

(B)

FITTED IN PLACE OF EXHAUST VALVES SUPPLIED WITH CY LINDER HEAD ASSEMBLY

(C)

SERVICED IN PAIRS

MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750
5 ItemPart NumberQtyDescription Comments A4.236 ENGINE 1 3637486M911 Cylinder Head 2 3638333M911 Cylinder Head (1) Repairs and replaces 3637386M91 Repairs and replaces 3637783M91 3 1 Cylinder Head (2) Not serviced, order REF.2 4 3637056M14 Guide (2) 5 748420M14 Guide (2) 6 731410M11 Plug (2) 7 376178X11 Washer (2) 8 731354M11 Plug (2) 10 747552M14 Valve Exhaust (1) (A) 10 741466M14 Valve Exhaust (B) 11 733824M14 Washer (1) 12 747813M14 Spring (1) 13 747814M14 Spring (1) 14 1447652M14 Ring (1) 15 3637041M14 Seal (1) 16 746698M14 Cap (1) 17 736453M18 Cotter (1) (C) 18 735820M14 Valve Inlet (1) 19 733824M14 Washer (1) 20 747813M14 Spring (1) 21 747814M14 Spring (1) 22 3637041M14 Seal (1) 23 746698M14 Cap (1) 24 736453M18 Cotter (1) (C) 25 748368M11 Plate 26 3637039M11 Joint 27 353536X12 Screw Unf 28 1650486M12 Washer 29 353518X14 Screw Unf 30 1650484M14 Washer 31 747741M12 Screw 32 747742M112 Screw 33 747743M18 Screw 34 3638162M11 Plate 35 16589X2 Bolt 36 1650486M12 Washer 37 3638163M11 Plate 38 16589X2 Bolt 39 1650486M12 Washer 40 1 Housing (D) 41 1 Thermostat (D) 42 1 Joint (D) 43 3638193M11 Connection 44 745106M11 Joint 45 345127X12 Bolt 46 1650486M12 Washer
REMOVE AND FIT 741466M1
(A)
Ref5 Page5
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 CYLINDER HEAD - A4.236 ENGINE 5 ItemPart NumberQtyDescription Comments (D) SEE WATER PUMP SECTION Ref5 Page5
MF 375 TRACTOR, ->| B18008
28 30 29 32 31 27 24 25 15 33 16 14 13 35 36 2 12 3 4 1 5 20 19 18 17 23 9 6 22 21 34 26 Ref6 Page6
- 819750
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750
SHAFT - A4.236 ENGINE 6 ItemPart NumberQtyDescription Comments A4.236 ENGINE 1 3637391M911 Rocker ShaftRepairs and replaces 3637394M91 2 3637395M911 Rocker Shaft (1) 3 1 Shaft (2) Not serviced, order REF.2 4 731330M12 Plug (2) 5 3638403M14 Bracket (1) Repairs and replaces 3637063M1 Repairs and replaces 746461M1 6 733809M14 Lever (1) Right Hand 9 3637072M914 Lever (1) Left Hand Repairs and replaces 733810M1 12 733811M12 Spring (1) 13 733812M12 Spring (1) 14 3638499M11 Connection (1) Repairs and replaces 3637064M1 15 3637065M11 Screw (1) 3638500M11 Screw (B) 16 739513M912 Shim (1) 17 3638547M12 Circlip (1) 18 747876M12 Washer (1) 19 731516M18 Bolt (1) 20 3638536M18 Nut (1) 21 740671M18 Tappet 22 733817M18 Rod 23 376525X11 Olive 24 361543X14 Bolt 25 1440275X14 Washer Metric 26 734912M911 Cover 27 3638461M11 Joint Repairs and replaces 746714M1 28 376192X14 Bolt 29 344107X14 Washer 30 353441X14 Lock Washer 31 740497M11 Pipe 32 3638598M11 Clip Repairs and replaces 375790X1 33 740498M911 Pipe 34 375829X11 Screw Up to Serial or Engine Number U2267087 3637695M11 Screw From Serial or Engine Number U2267088 35 375703X11 Washer (A) 36 1650484M11 Washer (A)
FITTED UP TO ENGINE NUMBER U226708S
USED ONLY WITH 3638499M1 Ref6 Page6
ROCKER
(A)
(B)

MF 375 TRACTOR, ->| B18008 - 819750

43 50 51 52 48 44 40 49 47 15 41 16 53 54 55 3 1 2 22 20 6 5 7 12 11 29 8 28 33 25 13 26 32 23 35 58 31 30 24 34 57 37 39 36 38 46 14 42 45 4 18 17 21 19 10 27 56 9 Ref7 Page7
MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TIMING GEAR AND CAMSHAFT - A4.236 ENGINE 7 ItemPart NumberQtyDescription Comments A4.236 ENGINE 1 735651M11 Case 2 742474M11 Joint (A) Up to Serial or Engine Number U106654N 2 3637536M11 Joint (A) From Serial or Engine Number U106655N 3 1476319X18 Screw 4 1650484M18 Washer 5 353519X11 Screw Unf 6 1650484M11 Washer 7 735852M11 Hub 8 3637075M911 Gear Number of teeth/spines 63 Up to Serial or Engine Number U171963P 8 3638220M911 Gear Number of teeth/spines 63 From Serial or Engine Number U171964P 9 1 Gear (8) Not serviced, order REF.8 10 731033M11 Bush (8) 11 731033M11 Bush (8) 12 731036M11 Plate 13 353550X13 Bolt Unf (A) Up to Serial or Engine Number U106654N 13 361511X13 Screw (A) From Serial or Engine Number U106655N 14 736818M11 Camshaft (A) Up to Serial or Engine Number U106654N 14 3637537M11 Camshaft (A) From Serial or Engine Number U106655N 15 733728M11 Pressure Washer 16 1476145X11 Pin 17 3637421M11 Gear (A) Up to Serial or Engine Number U106654N 17 748207M11 Gear (A) From Serial or Engine Number U106655N 18 2196X1 Key 19 747776M11 Screw 20 734663M11 Washer 21 734276M11 Washer 22 734182M11 Washer 23 734888M11 Cover Up to Serial or Engine Number U171964P 3637542M11 Cover From Serial or Engine Number U171964P 24 1447690M11 Seal 25 734887M11 Joint 26 353531X14 Bolt Unf 27 1650484M14 Washer 28 1476319X110 Screw 29 1650484M110 Washer 30 1476319X14 Screw 31 1650484M14 Washer 32 734118M11 Plate 33 734892M11 Joint 34 1476316X12 Screw 35 353441X12 Lock Washer 36 747788M11 Plate 37 734890M11 Joint 38 1476317X14 Screw 39 1650484M14 Washer 40 734594M11 Plate 41 734593M11 Joint 42 342164X12 Screw 43 354123X12 Nut 44 1650486M12 Washer 45 376538X11 Bolt 46 354123X11 Nut 47 1650486M11 Washer 48 3637543M911 Filler 49 1 Filler (48) Not serviced, order REF.48 50 734962M911 Cap (48) Ref7 Page7

(A)

SEE

MASSEY FERGUSON MF 375 TRACTOR, ->| B18008 - 819750 819750 TIMING GEAR AND CAMSHAFT - A4.236 ENGINE 7 ItemPart NumberQtyDescription Comments 51 1 Cap (50) Not serviced, order REF.50 52 1881644M11 Joint (50) 53 734945M11 Joint 54 1476318X12 Screw 55 1650484M12 Washer 56 3638360M11 Damper From Serial or Engine Number U171964P Up to Serial or Engine Number 88/07 56 3638209M11 Damper From Serial or Engine Number 88/07 57 3638359M11 Shield From Serial or Engine Number U171964P Up to Serial or Engine Number 88/07 57 3638208M11 Shield From Serial or Engine Number 88/07 58 3637685M12 Screw From Serial or Engine Number U171964P
Ref7 Page7
