MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA TABLE OF CONTENT 00 Ref00 Page00
COMPACT
43 45 9 1 30 13 3 3 38 28 29 31 32 32 14 12 16 7 7 11 4 19 18 8 2 2 2 23 33 37 36 35 21 34 27 20 6 24 17 5 26 15 10 22 25 48 44 51 50 49 46 Ref2 Page2
MF 1010
TRACTOR, HYDRO - 651563EA
MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA CYLINDER BLOCK 2 ItemPart NumberQtyDescription Comments 3439698M911 Engine 3439702M911 Block 1 3437394M911 Block 2 3284003M18 Bolt 3 3284004M12 Locator 4 3284006M11 Shaft 5 3284005M11 Plate Diameter 55MM 6 3280498M11 Adaptor 7 3283891M14 Plug 1/8" 8 3280120M12 Plug Diameter 14MM 9 3280121M13 Plug Diameter 40MM 10 3283997M12 Stud M12 - 1.5 X 90MM 11 3435018M11 Stud M8 - 1.5 X 55MM 12 3284847M11 Stud M8 - 1.5 X 40MM 13 3284846M14 Stud M8 - 1.5 X 22MM 14 391000X11 Stud M8 - 1.25 X 20MM 15 1440690X12 Pin 10 X 22MM 16 3283991M12 Locator 17 3435645M12 Pin 18 3284001M11 Bush 19 3284002M12 Bush 20 3437358M11 Stud 21 3437341M11 Bolt 22 3283980M11 Guide 23 3283981M14 Gasket 24 3283982M11 Screw 25 3283983M11 Gasket 26 3283984M11 Worm Gear 27 3283985M11 Dipstick 28 3283986M11 Plate 29 3283987M11 Gasket 30 3283988M11 Union 31 3283978M11 Screw 32 3283538M12 Gasket 33 3437395M911 Pan 34 3283491M11 Gasket 35 3280104M12 Plug 36 3280105M12 Gasket 37 3283489M116 Screw Not serviced, order 1440711X1 Not serviced, order 353446X1 38 3283979M12 Bolt Not serviced, order 339560 Not serviced, order 353441X1 43 3284011M911 Housing 44 3283518M11 Gasket 45 3284012M11 Gasket 46 3284013M11 Plate 48 3284009M17 Bolt Not serviced, order 339337X1 Not serviced, order 390972X1 Not serviced, order 353446X1 49 3283468M14 Bolt Not serviced, order 391931X1 Not serviced, order 390972X1 Not serviced, order 353446X1 50 1441134X16 Screw Metric 51 339376X16 Lock Washer X Heater See Page - Reference Number 94 Ref2 Page2
1010 COMPACT TRACTOR,
1 3 4 7 7 5 8 6 30 35 33 37 37 26 31 44 44 42 42 27 34 15 18 40 36 17 43 43 43 39 29 41 2 24 25 28 14 16 43. 32 Ref5 Page5
MF
HYDRO - 651563EA
MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA
TIMING GEAR 5 ItemPart NumberQtyDescription Comments 1 3283523M11 Camshaft 2 3283524M11 Pinion 3 3283525M11 Key 4 3283526M11 Plate 5 3280146M11 Washer 6 1442558X11 Bolt 7 3283521M18 Bolt Not serviced, order 390379X1 Not serviced, order 353446X1 8 339376X11 Lock WasherM10 14 3283864M911 Pinion 15 1 Shaft See Page - Reference Number 2 16 3283868M11 Spacer 17 3283863M11 Clip 18 3283865M1X Thrust Washer1.8MM 3283866M1X Thrust Washer2.0MM 3283867M1X Thrust Washer2.3MM 24 3283882M911 Cover 25 3283885M11 Gasket 26 3283886M12 Bush 27 3283884M12 Stud 28 3283877M11 Plate 29 3437398M11 Plate 30 3283878M11 Housing 31 3283879M11 Pinion 32 3283880M1X Thrust Washer0.3MM 3283881M1X Thrust Washer0.5MM 3284638M1X Thrust Washer0.1MM 33 3283873M11 Gasket 34 3283874M11 Gasket 35 3283875M11 Gasket 36 3283876M11 Thruster 37 3283872M15 Bolt 39 339168X13 Bolt Metric 339291X11 Bolt Metric 40 339368X11 Bolt Metric 41 3283871M12 Bolt Not serviced, order 339123X1 Not serviced, order 353446X1 42 1440203X13 Nut Metric 43 353446X18 Lock Washer5/16" 44 339064X12 Bearing Ball Ref5 Page5
CAMSHAFT,
MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 4 3 1 5 6 29 18 31 30 32 16 33 19 19 19 13 17 12 14 20 21 22 23 2 Ref6 Page6
MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA
RODS AND CRANKSHAFT 6 ItemPart NumberQtyDescription Comments 1 3283494M13 Piston 2 3283498M13 Clevis Pin 3 3284984M913 Kit, Ring 3284985M913 Kit, Ring .05 O/S 4 3283499M16 Bearing -.25MM 3284635M16 Bearing -.50MM 3284636M16 Bearing 5 3283500M913 Conrod 6 3283503M16 Bolt 12 3283509M911 Crankshaft 13 3283512M11 Pinion 14 3280001M12 Key 3284626M911 Kit, Bearing 16 4 Bearing Not serviced, order 3284626M91 17 4 Bearing Not serviced, order 3284626M91 3284627M911 Kit, Bearing -.25MM 16 4 Bearing -.25MM Not serviced, order 3284627M91 17 4 Bearing -.25MM Not serviced, order 3284627M91 3284628M911 Kit, Bearing -.50MM 16 4 Bearing -.50MM Not serviced, order 3284628M91 17 4 Bearing -.50MM Not serviced, order 3284628M91 18 3284629M911 Parts Pack 19 2 Flange Not serviced, order 3284629M91 18 3284630M911 Parts Pack +.25MM 19 2 Flange +.25MM Not serviced, order 3284630M91 18 3284631M911 Parts Pack +.50MM 19 2 Flange +.50MM Not serviced, order 3284631M91 20 3283505M11 Pulley 21 3280140M11 Flat Washers23 X 46 X 5MM 22 1441611X11 Nut Metric 23 3280947M14 Pin 29 3284010M911 Flywheel 30 3435646M11 Bearing Assy 31 3283516M11 Annular Gear 32 3283514M13 Pin 33 1441302X14 Bolt Metric Ref6 Page6
PISTONS, CONNECTING
COMPACT
4 4 27 25 32 16 3 3 17 9 1 20 7 8 6 15 5 45 45 37 37 37 51 19 18 53 39 33 33 33 42 48 41 38 43 43 50 52 36 26 31 24 29 28 30 21 22 2 23 44 44 47 54 40 49 Ref9 Page9
MF 1010
TRACTOR, HYDRO - 651563EA
MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA
HEAD 9 ItemPart NumberQtyDescription Comments 1 3283947M911 Cylinder Head 2 3283951M13 Padding 3 3280312M16 Plug Diameter 20MM 4 3280121M12 Plug Diameter 40MM 5 3283891M11 Plug 1/8" P.T. 6 3283950M13 Stud 7 3283949M11 Stud 8 391000X12 Stud M8 - 1.25 X 20MM 9 3283952M12 Stud M8 X 1.25 X M10 X 1.25 X 95MM 15 3283937M11 Head Gasket 16 3283938M18 Bolt 17 3283939M13 Bolt 18 3283945M13 Valve 19 3283946M13 Valve 20 3283934M16 Spring 21 3283935M16 Retainer 22 3283936M16 Gasket 23 3283942M911 Valve Cover 24 3283943M11 Plug 25 3280071M11 Gasket 26 3283940M11 Tube 27 3283941M11 Tie 28 3280072M12 Washer 29 3005908X12 Nut 30 3280023M112 Lock 31 3284128M13 Glow Plug 32 3284129M12 Plate 3283527M911 Rocker Arm Shaft 36 3283529M911 Shaft 3283530M916 Arm 37 3283536M16 Arm 38 3283537M16 Screw 39 1440203X16 Nut Metric 3283531M911 Support 40 3283539M11 Support 41 3283540M11 Bolt 42 3283538M11 Gasket 43 3283532M12 Support 44 3283533M12 Spring 45 1441970X12 Circlip Thickness 19MM NOM. X 1.2MM 47 3437309M11 Bolt Metric 48 339376X14 Lock Washer M10 49 390734X13 Washer Metric 10.5 X 21 X 2MM 50 3283522M16 Tappet Rod 51 1441409X12 Nut Metric 52 3280145M16 Valve 53 390734X12 Washer Metric 10.5 X 21 X 2MM 54 339376X12 Lock Washer M10 Ref9 Page9
CYLINDER
COMPACT
23 17 15 13 12 3 10 10 30 1 35 21 21 21 31 36 19 37 20 20 20 5 18 6 7 32 33 38 9 8 4 14 34 22 25 2 16 11 24 Ref10 Page10
MF 1010
TRACTOR, HYDRO - 651563EA
MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA LUBRICATING SYSTEM 10 ItemPart NumberQtyDescription Comments 3284123M911 Parts Pack 1 3283924M11 Bolt 2 3283925M11 Bolt 3 3283926M11 Gasket 0.1MM 4 3283927M911 Head 5 3283894M11 Cover 6 3283892M11 Pressure Valve 7 3283893M11 Spring 8 3280194M11 O Ring 9 3280193M11 Bolt 10 3283891M13 Plug 1/8" P.T. 11 3283928M911 Oil Pump 12 1 Body Not serviced, order 3283928M91 13 1 Shaft Not serviced, order 3283928M91 14 1 Rotor Not serviced, order 3283928M91 15 3283929M11 Pinion 3280184M11 Pin 17 3283930M11 Pin 18 339168X12 Bolt Metric 19 3284119M11 Bolt 20 390972X13 Washer Metric8.4 X 17 X 1.6MM 21 353446X13 Lock Washer 5/16" 22 3283341M11 Oil Filter 23 3284120M11 Switch 24 3284121M11 Gasket 25 1440203X11 Nut Metric 30 3437333M11 Pipe 31 3437334M11 Nut 32 3437421M911 Chamber 33 3437337M911 Screen 34 3437404M12 Screw 35 3437419M11 Bracket 36 3437602M11 Bolt Metric 37 339376X11 Lock Washer M10 38 1441409X11 Nut Metric Ref10 Page10
MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 4 1 7 5 2 3 6 22 23 19 25 21 24 20 28 26 27 8 18 Ref13 Page13
MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA GASKET KITS 13 ItemPart NumberQtyDescription 3284624M921 Kit,Joint/Gasket 1 3283937M11 Head Gasket 2 3284113M11 Gasket 3 3283959M11 Gasket 4 3284917M11 Gasket 5 3283472M11 Gasket 6 3280025M13 Gasket 7 3280071M11 Gasket 8 3284112M11 Gasket 3284625M911 Kit,Joint/Gasket 18 3284012M11 Gasket 19 3283873M11 Gasket 20 3283874M11 Gasket 21 3283491M11 Gasket 22 3280105M11 Gasket 23 3284121M11 Gasket 24 3284084M11 Gasket 25 3284082M11 Gasket 26 3283987M11 Gasket 27 3280194M11 O Ring 28 3283875M11 Gasket Ref13 Page13
MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 12 11 15 10 13 6 7 7 16 16 16 30 30 17 17 17 17 5 1 35 34 19 31 2627 2 4 32 3 8 20 18 21 22 24 23 25 14 Ref14 Page14

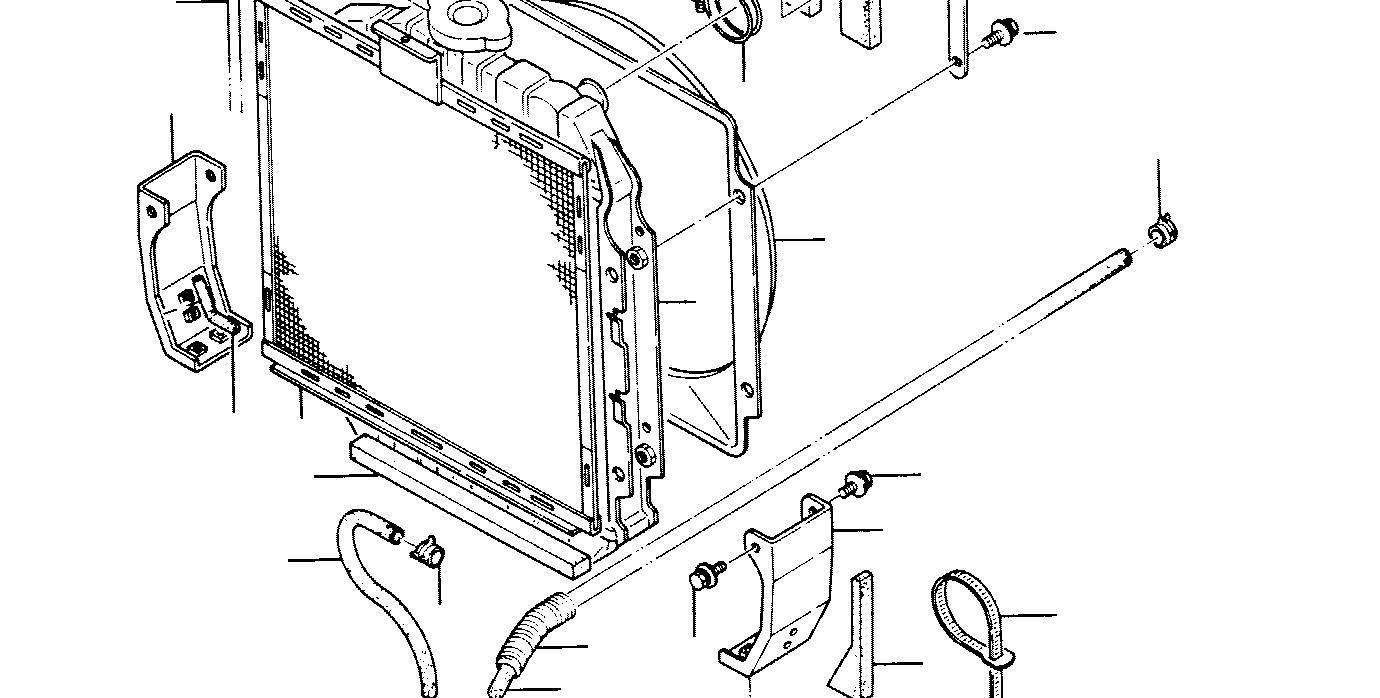

MASSEY FERGUSON MF 1010 COMPACT TRACTOR, HYDRO - 651563EA 651563EA COOLING SYSTEM 14 ItemPart NumberQtyDescription Comments 1 3437416M11 Radiator 1 Radiator Not serviced, order 3437416M1 2 3280783M11 Radiator Cap 3 3439629M11 Protector 4 3435612M11 Hose 5 3284640M11 Deflector 6 3284708M11 Hose 7 364125X12 Clamp 8 3284099M11 Gasket 10 3437411M11 Seal 11 3437412M911 Screen 12 3437393M11 Seal 13 3284428M11 Gasket 14 3284103M11 Hose 15 832713M11 Clamp 16 3284159M16 Bolt Not serviced, order 1440711X1 Not serviced, order 353446X1 Not serviced, order 390972X1 17 3284093M14 Clamp 18 3284023M11 Protector 19 3284091M11 Exhaust Pipe 20 3284878M11 Hose 21 3284102M11 Body 22 3284097M11 Plug 23 3284098M11 O Ring 24 391931X11 Bolt Metric 25 3280543M11 Washer 26 353446X11 Lock Washer5/16" 27 1440203X11 Nut Metric 30 3437413M912 Bracket 31 3284089M14 Bolt 32 3436182M12 Gasket 34 3284225M12 Gasket 35 3284090M11 Clamp Ref14 Page14
