LED DRIVERS

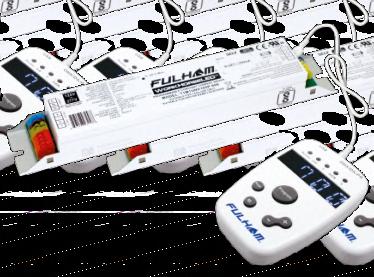

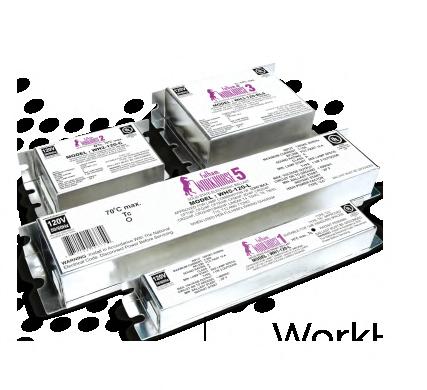

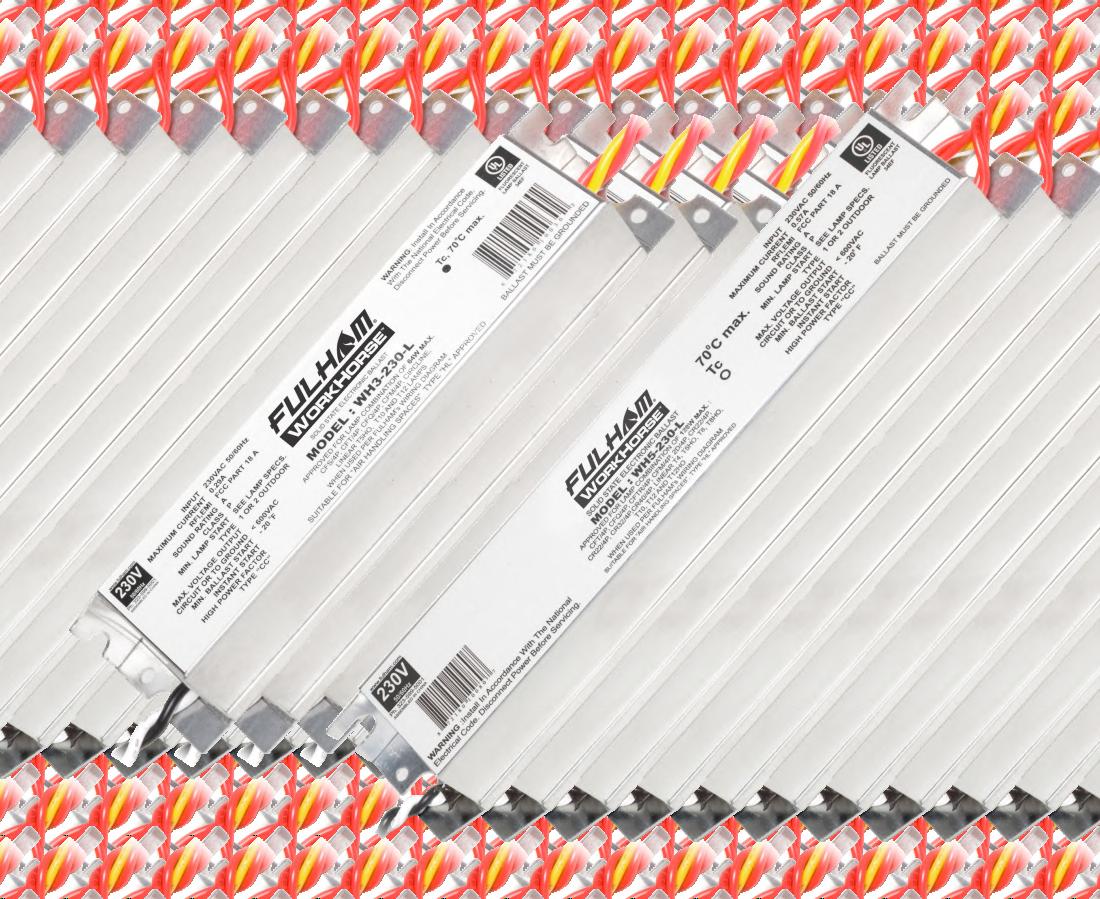

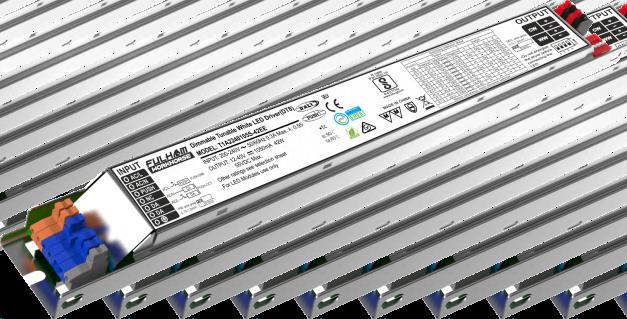

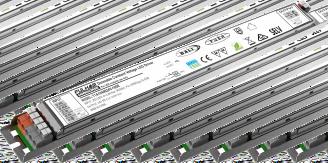

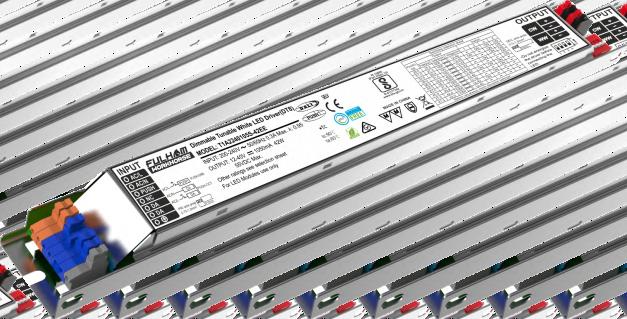

WorkHorse LED Programmable Drivers

4-5

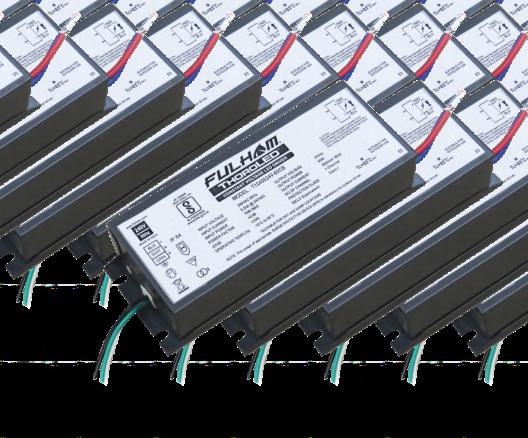

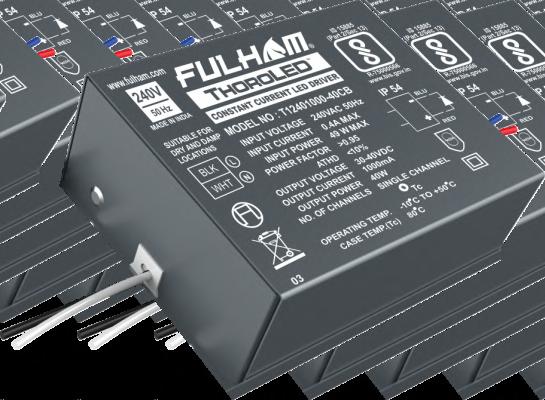

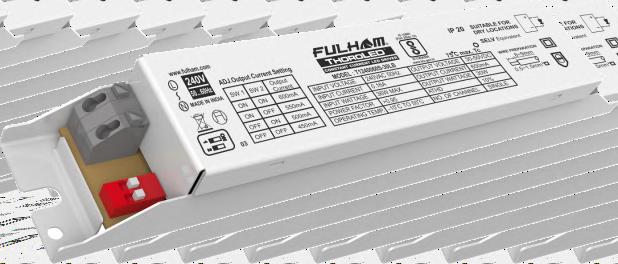

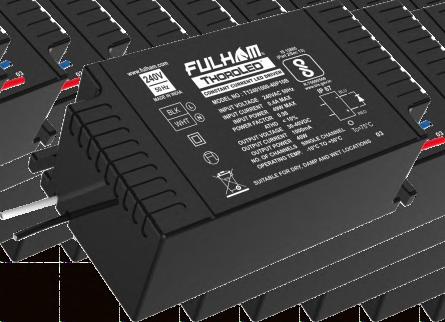

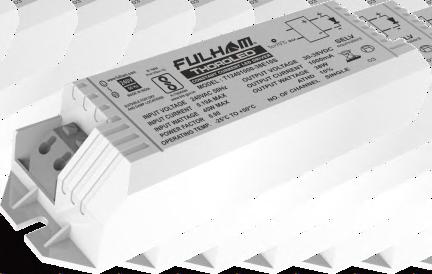

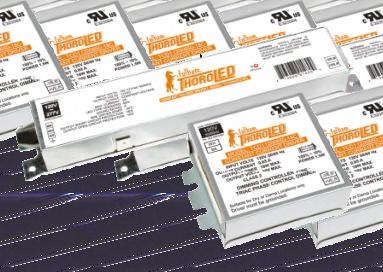

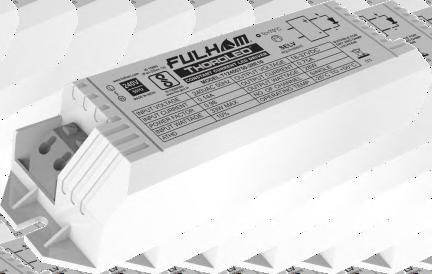

ThoroLED LED Drivers

6-9

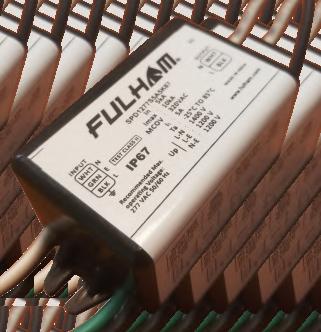

ThoroLED Surge Protection Devices

10

FLUORESCENT

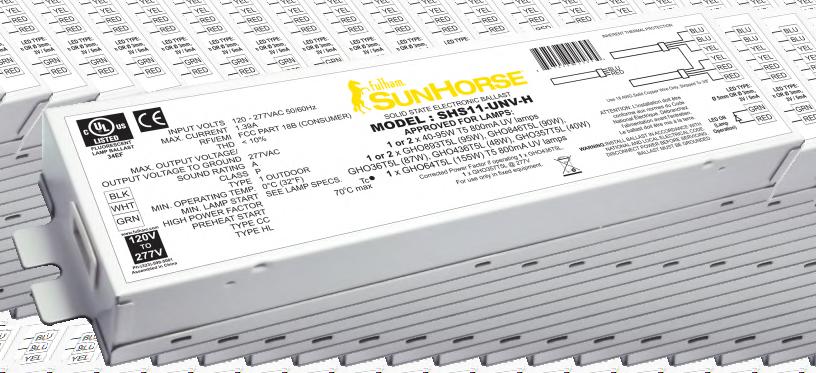

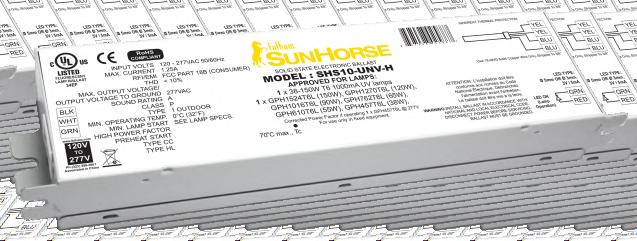

SunHorse UV/Purification Ballasts

CONTROLS

10

Elite Control CCT Tunable Splitter

11

Bluetooth Mesh Lighting Control System

12

ÂŽ


From our headquarters in Los Angeles and design centers in China and India, our team of product managers and engineers work with our customers to conceive, design, and manufacture reliable, sustainable lighting solutions that bring cutting edge innovation to a global market.

2013 HotSpot2 LED emergency system wins ECM Product of the Year Award

2017 LinearHO modules released

2015 2011

clever, controllable lighting components launched

2019

WorkHorse LED & HotSpot Plus programmable drivers launched

Fulham India opens

Table of Contents

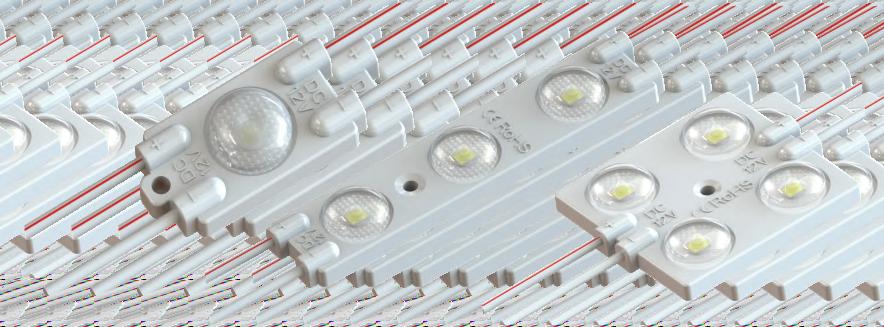

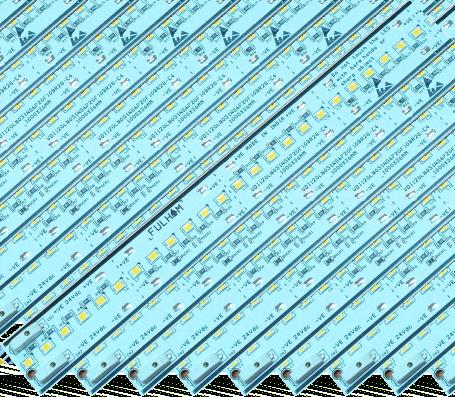

LIGHT SOURCES Vizion DC LED Modules

13

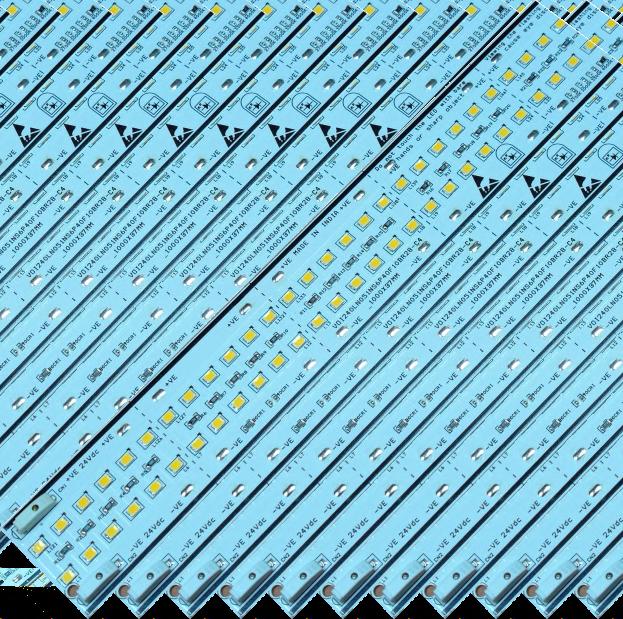

Vizion Linear High Output DC LED Modules

14

EMERGENCY HotSpot EZ Exit LED Emergency System

15

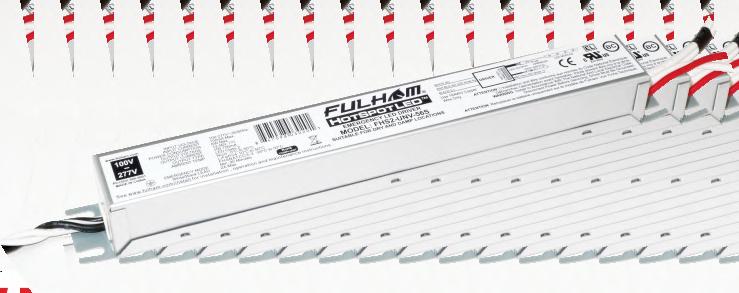

HotSpot Plus LED Driver & Emergency System

16

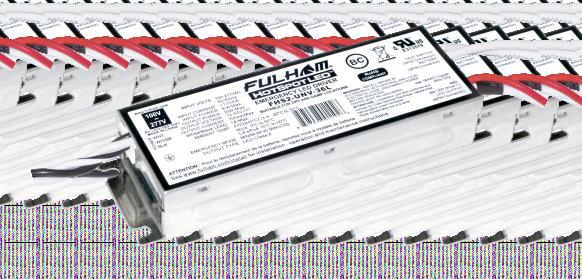

HotSpot2 LED Emergency System

17

INDUCTION HighHorse Induction Systems

18

Warranty Information Contact Us

19 Back Cover

Visit www.fulham.com for additional products not shown here, including fluorescent ballasts for UV and general lighting, DC LED light engines, and products for international markets.


LED DRIVERS

Fulham India +91 22 66388775 www.fulham.com

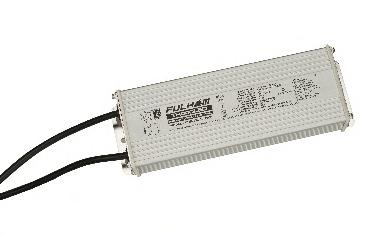

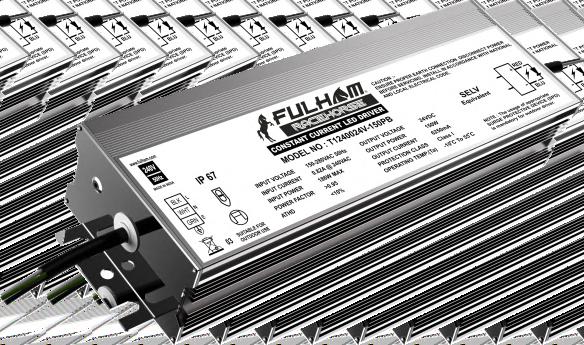

WorkHorse LED Extreme IP65 Programmable Drivers • IP65 for harsh, demanding environments • 0-10V, DALI, and wireless dimming options • Wide programmable current range in 1mA increments • Handheld programmer or SmartSet software • Advanced programmability of output current and thermal temperature protection (NTC)

XP Series: Programmable output current, dimming curves, and NTC profile Model Number

Output Watts (W)

Output Current (mA)

Output Voltage (VDC)

Input Voltage (VAC)

Dimming Type

Surge Protection L-N

L&N-G

IP

Dimensions (mm) (L x W x H)

Case Type

T1M1UNV150P-40L

40

250-1500

10-57

120-277; 50/60Hz

0-10V

4kV

6kV

65

168 x 50 x 30

Linear w/End Leads

T1A1UNV150P-40L

40

250-1500

10-57

120-277; 50/60Hz

DALI

4kV

6kV

65

168 x 50 x 30

Linear w/End Leads Compact w/End Leads

T1R1UNV150P-40C

40

250-1500

10-57

120-277; 50/60Hz Tvilight Wireless

4kV

6kV

65

150 x 89 x 25

T1M1UNV210P-60L

60

500-2100

10-57

120-277; 50/60Hz

4kV

6kV

65

241 x 43 x 29

Linear w/End Leads

T1R1UNV210P-60C

60

500-2100

10-57

120-277; 50/60Hz Tvilight Wireless

4kV

6kV

65

150 x 89 x 25

Compact w/End Leads

T1M1347070P-80L

80

350-700

50-200

0-10V

4kV

4kV

65

241 x 43 x 30

Linear w/End Leads

0-10V

4kV

6kV

65

150 x 89 x 36

Compact w/End Leads

500-1500 50-150 120-277; 50/60Hz Tvilight Wireless

4kV

6kV

65

150 x 89 x 36

Compact w/End Leads

350-1050 50-225

0-10V

4kV

4kV

65

241 x 59 x 37

Linear w/End Leads

500-1500 70-280 120-277; 50/60Hz

0-10V

4kV

6kV

65

241 x 59 x 39

Linear w/End Leads

350-1050 75-300

347; 60Hz

T1M1UNV150P-100C 100

500-1500 50-150 120-277; 50/60Hz

T1R1UNV150P-100C 100 T1M1347105P-120L

120

T1M1UNV150P-150L 150 T1M1347105P-160L

0-10V

347; 60Hz

0-10V

4kV

4kV

65

241 x 59 x 37

Linear w/End Leads

T1M1UNV140P-200L 200

500-1400 80-280 120-277; 50/60Hz

0-10V

4kV

6kV

65

226 x 69 x 41

Linear w/End Leads

T1A1UNV140P-200L 200

500-1400 80-280 120-277; 50/60Hz

DALI

4kV

6kV

65

226 x 69 x 41

Linear w/End Leads

160

347; 60Hz

Certifications 120-277V models: cULus Class P, CE, ENEC, CB Scheme, RoHS, FCC (for wireless models); 347V models: cURus, RoHS

XE Series: Programmable output current Model Number

Output Watts (W)

T1M1UNV240P-96L

96

Output Current (mA)

Output Voltage (VDC)

700-2400 30-56

T1M1UNV500P-185L 185 1500-5000 30-56 Certifications cULus Class P, RoHS

Input Voltage (VAC)

120-277V; 50/60Hz 120-277V; 50/60Hz

Dimming Type

Surge Protection

IP

Dimensions (mm) (L x W x H)

Case Type

6kV

65

170 x 65 x 32

Linear w/End Leads

6kV

65

222 x 68 x 42

Linear w/End Leads

L-N

L&N-G

0-10V

4kV

0-10V

4kV

Wireless dimming and driver management Fulham has teamed with Tvilight to develop the industry’s first integrated driver with wireless, cloud-based IoT management and controls. • Web-based management software for SmartCity applications • Real-time driver and luminaire health monitoring • Simplified installation and commissioning 4

Management Software

Internet

Gateway

Remote Server for Management & Analytics


LED DRIVERS

Fulham India +91 22 66388775 www.fulham.com

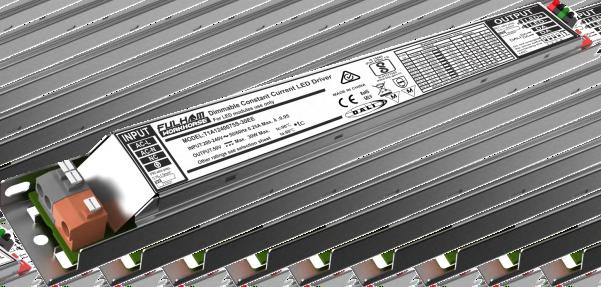

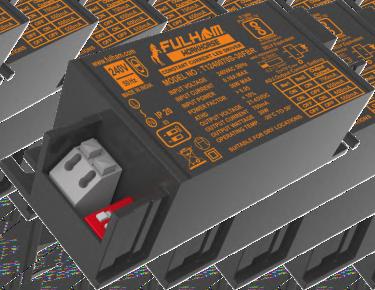

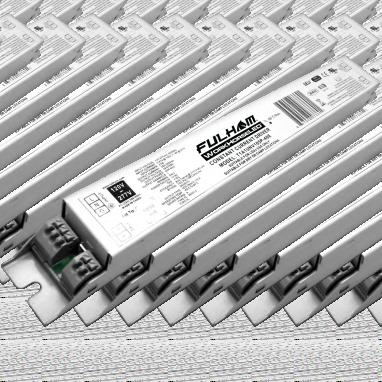

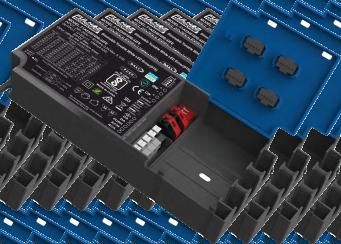

WorkHorse LED IP20 Programmable Drivers • 250mA - 1050mA programmable output current • 0-10V and DALI dimming • Handheld programmer or SmartSet software • Programmable dimming curve allows step dimming and dim-to-off • Advanced programmability of output current and thermal temperature protection (NTC)

0 - 10V Dimming Output Watts (W)

Model Number

Output Current (mA)

Output Voltage (VDC)

Input Voltage (VAC)

Dimming Type

Surge Protection L-N

L&N-G

IP

Dimensions (mm) (L x W x H)

Case Type

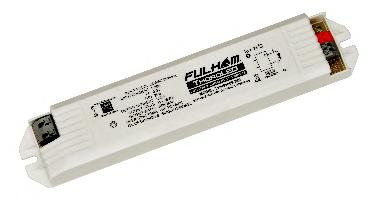

T1M1UNV105P-40E

40 250 - 1050 10 - 57 120-277; 50/60Hz

0 - 10V

2kV

4kV

20

275 x 31 x 25

Linear w/End Terminals

T1M1UNV105P-60E

60 250 - 1050 10 - 57 120-277; 50/60Hz

0 - 10V

2kV

4kV

20

237 x 41 x 30

Linear w/End Terminals

T1M1UNV105P-60F

60 250 - 1050 10 - 57 120-277; 50/60Hz

0 - 10V

2kV

4kV

20

127 x 76 x 31

Compact w/ End & Back Terminals

20

127 x 76 x 31

Compact w/ End and Back Terminals, Back Studs

IP

Dimensions (mm) (L x W x H)

Case Type

T1M1UNV105P-60G

60 250 - 1050 10 - 57 120-277; 50/60Hz

0 - 10V

2kV

4kV

DALI Dimming Output Watts (W)

Model Number

Output Current (mA)

Output Voltage (VDC)

Input Voltage (VAC)

Dimming Type

Surge Protection L-N

L&N-G

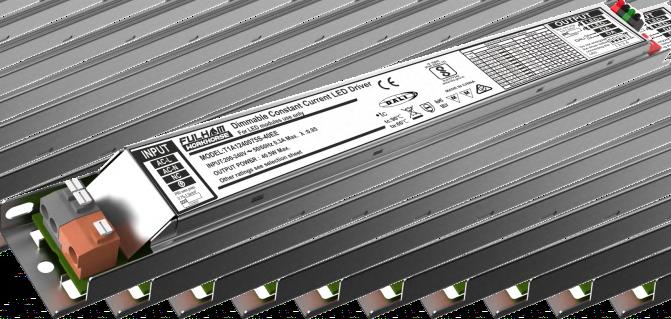

T1A1UNV105P-40E

40 250 - 1050 10 - 57 120-277; 50/60Hz

DALI

2kV

4kV

20

275 x 31 x 25

Linear w/End Terminals

T1A1UNV105P-60E

60 250 - 1050 10 - 57 120-277; 50/60Hz

DALI

2kV

4kV

20

237 x 41 x 30

Linear w/End Terminals

The Power of Programmability All WorkHorse LED drivers feature Fulham’s innovative SmartSet programming platform, which gives the user the power to create the right driver for any situation. • Auto-Programming capability for high volume usage • Driver does not need to be powered during programming • Programming via handheld controller or PC software

TPSB-100 SmartSet Controller

SmartSet Software

To see the Fulham SmartSet programming platform in action visit the links below: Overview of basic programming features: www.fulham.com/smartsetprogramming One touch Auto-Programming: www.fulham.com/smartsetauto Programming custom dimming curves: www.fulham.com/smartsetdimmingcurve

5


LED DRIVERS

Fulham India +91 22 66388775 www.fulham.com

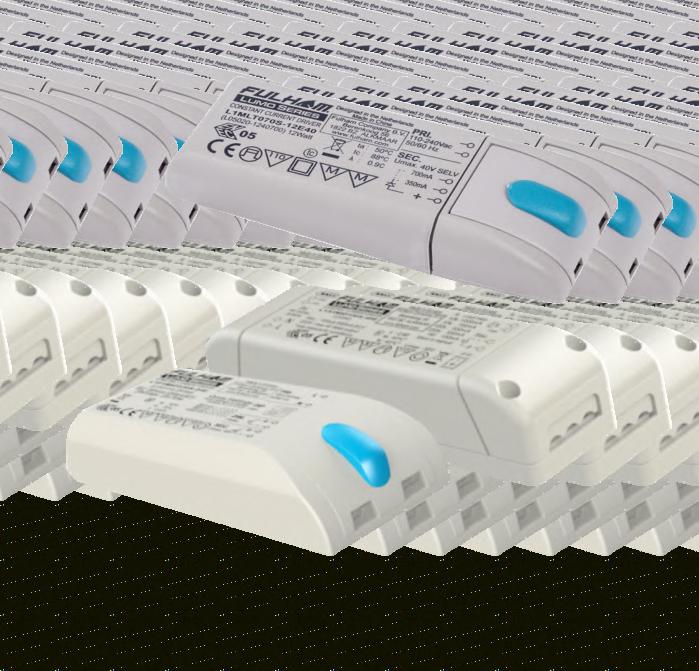

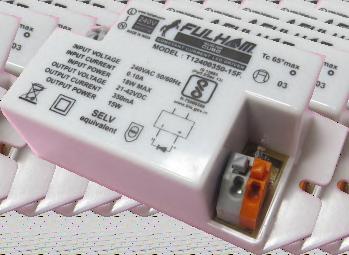

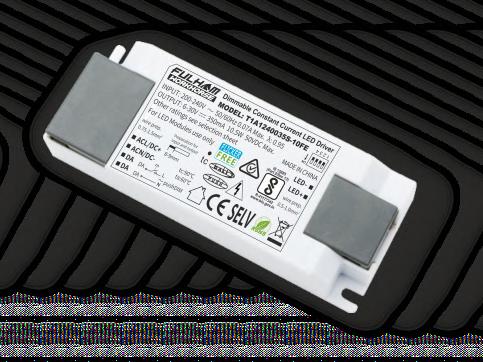

Dimmable Dedicated Constant Current LED Drivers • Smooth dimming: 100% to 1% & 100% to 10% models • Dedicated output, single channel • Wide range of output currents and voltages • Compatible with leading dimmer brands • Compact and linear case types to fit numerous applications

Dimmable Dedicated Constant Current LED Drivers: 0-10V Model Number

Output Watts (W)

Output Current (mA)

T1M1UNV0350-15F

15

350

T1M1UNV0350-15L

15

T1M13470350-15V

Output Voltage (VDC)

Input Voltage (VAC)

Surge Protection

IP

Dimensions (mm) (L x W x H)

Case Type

2kV

60

81 x 72 x 25

Compact w/End Leads

1kV

2kV

64

100 x 30 x 23

Linear w/End Leads

347; 60Hz

1kV

2kV

64

120 x 68 x 31

Compact w/Bottom Leads & Mounting Studs

347; 60Hz

1kV

2kV

64

120 x 68 x 31

Compact w/End Leads

21 - 42 120-277; 50/60Hz

1kV

2kV

60

72 x 81 x 25

Compact w/End Leads

700

18 - 45 120-277; 50/60Hz

1kV

2kV

64

118 x 30 x 30

Linear w/End Leads

40

1000

18 - 40

347; 60Hz

1kV

2kV

64

120 x 68 x 31

Compact w/End Leads

T1M13471050-40C

40

1050

18 - 38

347; 60Hz

1kV

2kV

64

120 x 68 x 31

Compact w/End Leads

T1M13470700-40C

40

700

18 - 57

347; 60Hz

1kV

2kV

64

120 x 68 x 31

Compact w/End Leads

T1M13470700-40V

40

700

18 - 57

347; 60Hz

1kV

2kV

64

120 x 68 x 31

Compact w/Bottom Leads & Mounting Studs

T1M1UNV0900-40L

40

900

10 - 45 120-277; 50/60Hz

1kV

2kV

64

241 x 33 x 27

Linear w/End Leads

T1M1UNV1050-42C

42

1050

12 - 40 100-277; 50/60Hz

2kV

4kV

64

120 x 68 x 31

Compact w/End Leads

T1M1UNV1400-60L

60

1400

10 - 43 120-277; 50/60Hz

2kV

4kV

64

241 x 43 x 31

Linear w/End Leads

T1M1UNV1680-88L

88

1680

21 - 44 120-277; 50/60Hz

2kV

4kV

64

241 x 43 x 29

Linear w/End Leads

T1M1UNV1800-88L

88

1800

21 - 44 120-277; 50/60Hz

2kV

4kV

64

241 x 43 x 29

Linear w/End Leads

T1M1UNV2100-88L

88

2100

21 - 42 120-277; 50/60Hz

2kV

4kV

64

241 x 43 x 29

Linear w/End Leads

T1M1UNV0800-100Z

100

800

70 - 130 120-277; 50/60Hz

2kV

3kV

Dry

213 x 50 x 36

Interconnect Terminals

L-N

L&N-G

21 - 42 120-277; 50/60Hz

1kV

350

18 - 45 120-277; 50/60Hz

15

350

18 - 42

T1M13470700-28C

28

700

18 - 42

T1M1UNV0700-30F

30

700

T1M1UNV0700-30L

30

T1M13471000-40C

Dimmable Dedicated Constant Current LED Drivers: TRIAC T1T11200700-9C

9

700

7 - 12.8

120

1kV

2kV

Damp

81 x 72 x 25

Compact w/End Leads

TCD11200350-11C

11

350

12 - 40

120

1kV

2kV

Damp

81 x 72 x 25

Compact w/End Leads

T1T11200350-15L

15

350

20 - 42

120

1kV

2kV

64

100 x 30 x 23

Linear w/End Leads

T1T11200350-17CB

17

350

26 - 49

120

1kV

2kV

64

72 x 81 x 25

Compact w/End Leads

T1T1120070018CA

18

700

13 - 26

120

1kV

2kV

64

72 x 81 x 25

Compact w/End Leads

T1T11200700-30C

30

700

21 - 42

120

1kV

2kV

64

85 x 65 x 19

Compact w/End Leads

T1T11200700-30L

30

700

21 - 42

120

1kV

2kV

64

118 x 30 x 29

Linear w/End Leads

6

cULus Class P


LED DRIVERS

Fulham India +91 22 66388775 www.fulham.com

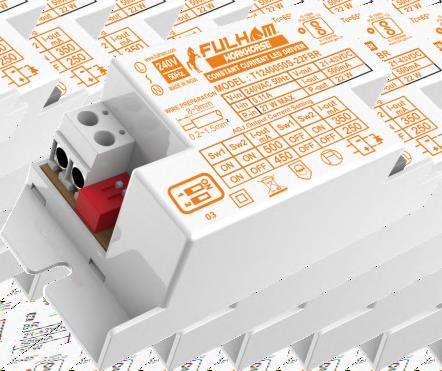

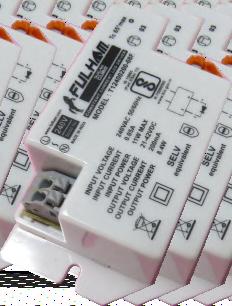

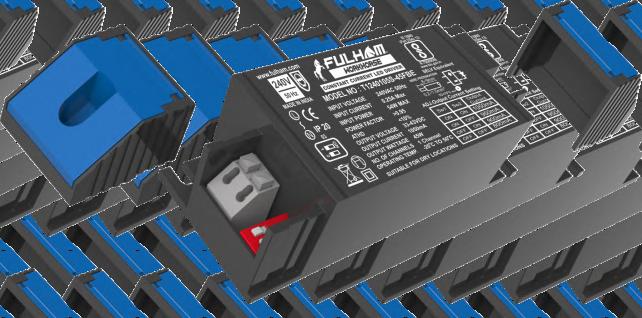

Non-Dimmable Dedicated Constant Current LED Drivers • Optimized for high efficiency performance • Dedicated output, single channel • Wide range of output currents and voltages • Compact and linear case types to fit numerous applications

Non-Dimmable Dedicated Constant Current LED Drivers Model Number

Output Current (mA)

Forward Voltage (V)

Max Watts (W)

THD %

Power Factor

Surge Protection

Dimensions (mm) (L x W x H)

T12400350-06F

350

9 -18

6

60

0.85

3KV

80 x 40 x 27

T12400200-08F

200

21-42

8

60

0.85

3KV

80 x 40 x 27

T12400700-08F

700

7-12

8

60

0.85

3KV

80 x 40 x 27

T12400250-10F

250

22-42

10

60

0.85

3KV

80 x 40 x 27

T12400300-13F

300

21-42

13

60

0.85

3KV

80 x 40 x 27

T12400640-13F

640

12-21

13

60

0.85

3KV

80 x 40 x 27

T12400350-15F

350

21-42 12-21

15

15

60

60

0.85

0.85

3KV

3KV

80 x 40 x 27

80 x 40 x 27

T12400400-17F

400

21-42

17

60

0.85

3KV

80 x 40 x 27

T12400700-15F

700

T12400450-16C

450

24-36

16

60

0.85

3KV

81 x 41 x 31

T12400500-19C

500

30-38

19

10

0.95

4KV

87 x 46 x 32

T12400500-18C-R

500

22-36

18

10

0.95

4KV

94 x 53 x 35

T12400610-22C

610

24-37

22

10

0.95

4KV

94 x 53 x 35

T12400700-25C

700

24-36

25

10

0.98

4KV

94 x 53 x 35

T12400500-25C-R

500

30-50

25

10

0.95

4KV

94 x 53 x 35

T12400750-28C

750

24-37

28

10

0.98

4KV

94 x 53 x 35

T12400800-30C-R

800

24-37

30

10

0.95

4KV

94 x 53 x 35

T12400900-33C-R

900

24-37

33

10

0.95

4KV

94 x 53 x 35

T12400700-35C-R

700

40-50

35

10

0.95

4KV

97 x 64 x 38

T12401000-38C-R

1000

24-38

38

10

0.95

4KV

97 x 64 x 38

T12400610-22E10

610

18-36

22

10

0.97

4KV

150 x 40 x 28

T12400700-25E10

700

18-36

25

10

0.97

4KV

150 x 40 x 28

T12400500-25E10

500

24-50

25

10

0.97

4KV

150 x 40 x 28

T12400350-25E10

350

42-72

25

10

0.97

4KV

150 x 40 x 28

T12400550-28E10

550

30-50

28

10

0.98

4KV

150 x 40 x 28

T12400750-28E10

750

18-37

28

10

0.98

4KV

150 x 40 x 28

T12400800-30E10

800

21-38

30

10

0.98

4KV

150 x 40 x 28

T12401120-31ES

1120

20-28

31

10

0.98

4KV

150 x 40 x 28

T12400850-32E10

850

21-38

32

10

0.98

4KV

150 x 40 x 28

T12400900-33E10

900

24-37

33

10

0.98

4KV

150 x 40 x 28

T12400700-35E10

700

36-50

35

10

0.98

4KV

210 x 40 x 30

T12401000-36E10S

1000

24-36

36

10

0.98

4KV

150 x 40 x 28

T12401000-38E10S

1000

30-38

38

10

0.98

4KV

150 x 40 x 28

T12401000-42L

1000

21-42

42

10

0.98

4KV

280 x 30 x 28

T12401200-46L

1200

24-38

46

10

0.98

4KV

280 x 30 x 28

7


LED DRIVERS

Fulham India +91 22 66388775 www.fulham.com

Dimmable Constant Voltage LED Drivers • 12VDC or 24VDC Output

• Surge protection, overload protection

• 0-10V Dimming; 100% -10%

• Low temperature performance

• Linear form factor

• Ideal for signage, cove, and niche applications

Dimmable Constant Voltage LED Drivers Model Number

Output Watts (W)

Output Current (mA)

Output Voltage (VDC)

Input Voltage (VAC)

Ch.

Surge Protection

L-N

L&N-G

IP

Dimensions (mm) (L x W x H)

Case Type

T1M1UNV012V-20L

20

1660

12

100-277; 50/60Hz

1

1kV

2kV

Damp

160 x 40 x 25

Linear w/End Leads

T1M1UNV024V-20L

20

833

24

100-277; 50/60Hz

1

1kV

2kV

Damp

160 x 40 x 25

Linear w/End Leads

T1M1UNV012V-60L

60

5000

12

100-277; 50/60Hz

1

2kV

4kV

64

241 x 43 x 31

Linear w/End Leads

T1M1UNV024V-60L

60

2500

24

100-277; 50/60Hz

1

2kV

4kV

64

241 x 43 x 31

Linear w/End Leads

T1M1UNV012V-75L

75

6250

12

100-277; 50/60Hz

1

2kV

4kV

64

241 x 43 x 31

Linear w/End Leads

T1M1UNV024V-75L

75

3125

24

100-277; 50/60Hz

1

2kV

4kV

64

241 x 43 x 31

Linear w/End Leads

6kV

67

227 x 68 x 40

Linear w/End Leads

150

6250

24

100-277; 50/60Hz

1

4kV

T4N4UNV024V-100B

100

1050/ CH

24

120-277; 50/60Hz

4

3kV

4kV

20

231 x 81 x 30

Linear w/Terminal

T4N4UNV024V-100K

100

1050/ CH

24

120-277; 50/60Hz

4

3kV

4kV

20

370 x 41 x 30

Linear w/Terminal

T1M1UNV024V-150L

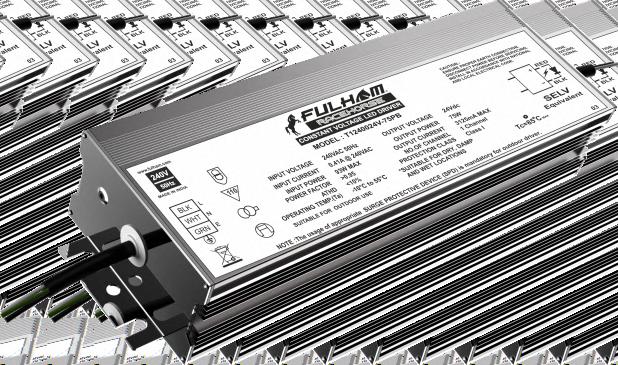

Non-Dimmable Constant Voltage LED Drivers • 12VDC or 24VDC Output

• Surge protection, overload protection

• Linear form factor

• Low temperature performance

Non-Dimmable Constant Voltage LED Drivers Model Number

Output Watts (W)

Output Current (mA)

Output Voltage (VDC)

Input Voltage (VAC)

Ch.

T1240012V-60CB

60

T1240024V-60CB

60

5000

12

120-300; 50Hz

2500

24

120-300; 50Hz

T1UNV012V-60LG

60

5000

T1UNV024V-60LF

60

2500

12 24

T1120012V-60LE

60

5000

12

T1240012V-75CB

75

T1240024V-75CB

75

6300 3100

Surge Protection

IP

Dimensions (mm) (L x W x H)

Case Type

5KV

54

165 x 38 x 36

Linear w/End Leads

5KV

54

165 x 38 x 36

Linear w/End Leads

4kV

68

242 x 42 x 34

Linear w/End Leads

4kV

64

241 x 43 x 31

Linear w/End Leads

2kV

4kV

64

241 x 43 x 31

Linear w/End Leads

1

5KV

5KV

54

165 x 38 x 36

Linear w/End Leads

1

5KV

5KV

54

165 x 38 x 36

Linear w/End Leads

L-N

L&N-G

1

5KV

1

5KV

100-277; 50/60Hz

1

2kV

100-277; 50/60Hz

1

2kV

120; 60Hz

1

12

120-300; 50Hz

24

120-300; 50Hz

T1UNV024V-100LE

100

4170

24

120-277; 50/60Hz

1

2kV

4kV

64

241 x 43 x 29

Linear w/End Leads

T1UNV024V-100LS

100

4100

24

100-277; 50/60Hz

1

2kV

4kV

64

261 x 40 x 30

Linear w/End Leads

T1UNV024V-100LE-H

100

4170

24

120-277; 50/60Hz

1

2kV

4kV

64

241 x 43 x 29

Linear w/End Leads

8


LED DRIVERS

Fulham India +91 22 66388775 www.fulham.com

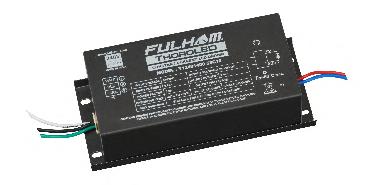

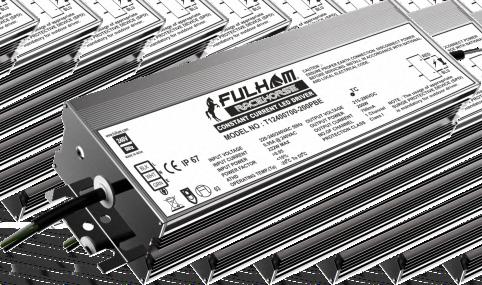

Outdoor Rated LED Drivers

• Harsh / wet location rated drivers for use in outdoor luminaires • Potted Drivers • IP 67 versions available

Outdoor Rated LED Drivers Max Watts (W)

THD %

Power Factor

Surge Protection

Model Number

Output Current (mA)

Forward Voltage (V)

T12400350-15P10E

350

26-42

33

10

0.96

-

4KV

81 x 41 x 31

T12400700-15P10

700

12-21

34

10

0.96

-

4KV

81 x 41 x 31 87 x 46 x 32

CM

DM

Dimensions (mm) (L x W x H)

T12400430-16C10

430

30-38

34

10

0.96

-

4KV

T12400700-17P10B

700

18-24

38

10

0.98

-

4KV

87 x 46 x 32

T12400700-25PB

700

24-36

38

10

0.98

-

4KV

94 x 53 x 35

T12400800-30C10

800

30-38

40

10

0.96

-

4KV

94 x 53 x 35

T12400750-31P10B T12400860-33C10

860

750

30-42

40

10 10

0.96

-

4KV

94 x 53 x 35

T12400950-34CB

950

28-36

40

10

0.96

-

4KV

94 x 53 x 35

T12400800-34PB

800

30-42

42

10

0.98

-

4KV

94 x 53 x 35

T12401050-38CB

1050

28-36

38

10

0.96

-

4KV

94 x 53 x 35

T12400900-38PB

900

30-42

38

10

0.98

-

4KV

94 x 53 x 35

T12400670-40PB

670

40-60

40

10

0.98

-

4KV

94 x 53 x 35

T12401000-40P10B

1000

30-40

40

10

0.98

-

4KV

94 x 53 x 35

T12400700-42PB

700

40-60

42

10

0.98

-

4KV

94 x 53 x 35

T12400700-40PB-R

700

40-57

40

10

0.98

-

4KV

97 x 64 x 38

30-38

42

0.98

-

4KV

94 x 53 x 35

T12400700-42PB-R

700

40-60

42

10

0.98

-

4KV

97 x 64 x 38

T12400900-38PB-R

900

30-42

38

10

0.98

-

4KV

97 x 64 x 38

T12401000-40PB-R

1000

30-40

40

10

0.98

-

4KV

97 x 64 x 38

T12401050-38PB-R

1050

28-36

38

10

0.98

-

4KV

97 x 64 x 38

T12401400-53C10

1400

24-38

53

10

0.99

4KV

4KV

150 x 68 x 38

T12401400-59C10

1400

28-42

59

10

0.97

4KV

4KV

150 x 68 x 38

T1M1UNV1200-69PB

1200

40-57

69

10

0.98

5KV

5KV

197 x 75 x 40

T1M12400700-75CBE

700

60-108

75

10

0.98

5KV

5KV

160 x 60 x 36

T12400700-75CO

700

60-108

75

10

0.98

5KV

5KV

160 x 60 x 36

T1240070P-75CB

500-700

60-110

75

10

0.98

5KV

5KV

160 x 60 x 36

T1240078P-83CB

750-780

65-106

83

10

0.98

5KV

5KV

160 x 60 x 36 172 x 68 x 40

T1M1UNV1400-80C

1400

36-57

80

10

0.98

5KV

5KV

T12401000-105PB

1000

75-105

105

10

0.98

4KV

4KV

197 x 75 x 40

T1UNV0990-150P

990

110-152

150

10

0.98

6KV

6KV

244 x 75 x 40

T1M12400700-150LBE

700

140-214

150

10

0.95

5KV

5KV

205 x 63 x 36

T12400700-150LO

700

140-214

150

10

0.95

5KV

5KV

205 x 63 x 36

T1M1UNV1050-160P

1050

110-152

160

10

0.98

6KV

6KV

244 x 75 x 40

T1M1UNV1200-180PE

1200

110-150

180

10

0.98

6KV

6KV

244 x 75 x 40

9


LED DRIVERS

Fulham India +91 22 66388775 www.fulham.com

10KV & 20KV Surge Protection Devices

• Series connected Class II surge protection device • EOL protection (thermal cut off)

• 440 VAC (maximum continuous operating voltage)

10KV Max Operating Voltage(VAC)

Recommended Operating Voltage (VAC)

Nominal Discharge Current (A)

Maximum Discharge Current (A)

Voltage Protection Level (Up)

IP Rating

Approval Class

Dimensions (mm) (L x W x H)

440

360

5,000

10,000

L-N:1400;L-E:1400;N-E:1200

54

IEC 61643-11

47 x 27 x 25

360

10,000

20,000

L-N:1500;L-E:1500;N-E:500

54

IEC 61643-11

81 x 48 x 27

20KV 440

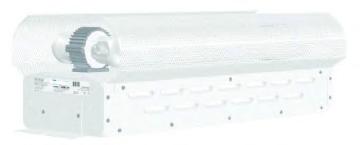

FLUORESCENT UV/Purification Ballasts Standard Electronic UV Ballasts Model Number

Operating Voltage (VAC)

Max. Input Current (A)

Rated Max. Load (W)

Min. Operating Temp.

Max Case Temp.

Dimensions (mm) (L x W x H)

SHS2-MLT-L

120-240

0.19

17

0°C (32°F)

75°C (167°F)

149 x 38 x 26

SHS3-MLT-L

120-240

0.29

32

-10°C (14°F)

75°C (167°F)

149 x 38 x 26

SHS1-UNV-C-I

120-277

0.408

42

0°C (32°F)

75°C (167°F)

128 x 60 x 25

SHS5-024-C

24

2.59

42

0°C (32°F)

75°C (167°F)

92 x 79 x 26

SHS10-UNV-H

120-277

1.25

150

0°C (32°F)

80°C (176°F)

254 x 66 x 32

SHS14-UNV-H

120-277

1.6

150

0°C (32°F)

70°C (158°F)

254 x 66 x 32

SHS11-UNV-H

120-277

1.35

190

0°C (32°F)

70°C (158°F)

254 x 66 x 32

SHS15-UNV-H

120-277

2.9

310

0°C (32°F)

75°C (167°F)

254 x 66 x 32

FEP-120-600-L

120

2.86

320

-18°C (0°F)

70°C (158°F)

489 x 76 x 32

FEP-210-600-L

210

1.52

320

0°C (32°F)

70°C (158°F)

489 x 76 x 32

FEP-230-600-L

230

1.50

320

-18°C (0°F)

70°C (158°F)

489 x 76 x 32

SHGS1 MID 2 200 L

208-240

1.85

380

0°C (32°F)

75°C (167°F)

405 x 79 x 44

          

SHGS6 MID 4 120 N

208-240

1.70

480

10°C (50°F)

N/A - No case

250 x 70 x 48

SHGS3 MID 6 100 L

208-240

2.50

600

0°C (32°F)

75°C (167°F)

406 x 79 x 45

  

230

1.64

320

0°C (32°F)

70°C (158°F)

424 x 44 x30

SHGD1 MID 2 200 L

208-240

1.71

400

0°C (32°F)

75°C (167°F)

304 x 79 x 44

10

    

Dimmable Electronic UV Ballasts SHD21-230-L-I

 


CONTROLS

Fulham India +91 22 66388775 www.fulham.com

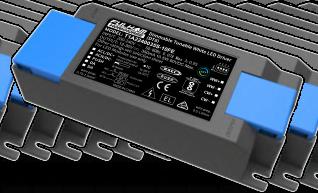

CCT Tunable Splitter

ELITECONTROL

A simple, easy-to-use component that connects to existing 0-10V, 1-10V, or Non-Dimming Drivers to provide colour tuning capability across a wide range of output voltage and output currents. • Series connected CCT tunable splitter • Suitable for Constant Current LED Drivers • 2 Channel (Cool White LED & Warm White LED) • 1-10V Tuning Signal, Tuning Range 0-100% of each channel • Wide output voltage range: 24V - 60V • Wide operating current: 350mA - 1000mA

CCT Tunable • Works with wired/wireless 0-10V Control

Splitter Drawing

• Integrated with Elite Blue for scenes & grouping of fixtures • Easy Commissioning with mobile app • Compatible with third-party sensors, wall switches and other devices Wiring Diagram

CCT Tunable Splitter

1. For Non-Dimmable & CCT Tuning Application

PURPLE (+)

GREY (-)

Wiring Diagram

OUTPUT

LED DRIVER

350-1000

CH-2

DIMMING

INPUT

WHITE

24-60

0-10V DIMMING

+ T1M2LCD100TWC + 1-10V 0-10V

Dimensions (mm) (L x W x H)

80 x 42 x 28

CH-2

DIMMING

Wiring Diagram

Wiring Diagram

CH-1

INPUT

PURPLE (+)

LED DRIVER T1M2LCD100TWC

BLACK

GREY (-)

OUTPUT

PURPLE (+)

INPUT

GREY (-)

WHITE

2. For Dimmable & CCT Tuning Application

Output / Channel CCT Tunable SplitterVoltage Drawing CCT Tunable Dimming Splitter Drawing Current (mA) (VDC)

Max Output Wattage (W) CH-1 INPUT + T1M2LCD100TWC 60 +0-10V

Model Number

BLACK

3. For Dimmable Application With Bluetooth 1. For Non-Dimmable & CCT Tuning Application

2. For Dimmable & CCT Tuning Application

1. Application For Non-Dimmable CCT Tuning Application 2. For Dimmable & CCT Tuning Application 1. For Non-Dimmable & CCT Tuning 2. & For Dimmable & CCT Tuning Application

CH-2LED 0-10V DIMMING MODULE

0-10V DIMMING

-

INPUT

OUTPUT

LED DRIVER

CH-2

CH-1

INPUT

+

T1M2LCD100TWC+0-10V DIMMING

0-10V DIMMING

-

CH-2

PURPLE (+)

LED NTC/ R-SET DRIVER I²C(RJ12)

DIMMING

+

T1M2LCD100TWC+-

GREY (-)

BLU RED ORG YLW

BLACK

CH-1 WHITE

INPUT

PURPLE (+)

-

+ T1M2LCD100TWC LED DRIVER + 0-10V

GREY (-)

GREY (-)

DIMMING 0-10V

LED DRIVER

CH-2OUTPUT

0-10V DIMMING

INPUT

CH-1 OUTPUT

INPUT INPUT

WHITE

PURPLE (+)

+

OUTPUT

GREY (-)

BLK(L)

WHT(N)

GRY

INPUT

T1M2LCD100TWC +-

LED DRIVER

PUR

BLACK

CH-1WHITE

INPUT

PURPLE (+) GREY (-)

OUTPUT

GREY (-)

INPUT

PURPLE (+)

WHITE

PURPLE (+)

BLACK

BLACK

3. For Dimmable Application With Bluetooth 3. For Dimmable Application With Bluetooth 3. For Dimmable & CCT Tuning Application With Bluetooth

4. For Dimmable & CCT Tuning Application With Bluetooth BLK(L)

BLK(L) WHT(N)

BLACK (Line Input) OUTPUT

INPUT

RED/BLACK (Line Output)

PUR CTBRCB02JM02 DIMMING GRY 0-10V

LED NTC/ R-SET PURPLE (+ Dimming 0-10VDC) DRIVER I²C(RJ12) WHITE (Neutral Input/Output)

WHT(N) BLACK

PUR WHITE GRY

GREY (- Dimming 0-10VDC)

BLU OUTPUT LED RED MODULE RED ORG LED NTC/ R-SET ORG INPUT OUTPUT CH-1 YLW INPUT YLW + DIMMING DRIVER LED I²C(RJ12) T1M2LCD100TWC 0-10VDRIVER +

LED MODULE

BLU INPUT

PURPLE (+)

0-10V DIMMING

GRN/YLW (GRD)

GREY (-)

-

0-10V DIMMING

CH-2

IC (RJ12 Cable) 2

4. For Dimmable & CCT Tuning Application With Bluetooth BLACK 4. For Dimmable & CCT Tuning Application With Bluetooth INPUT OUTPUT CH-1 INPUT WHITE

ELIOPJX00SR

LED DRIVER

0-10V BLACK (Line Input) GREY (-) DIMMING

BLACK (Line(Line Input) BLACK Input)

T1M2LCD100TWC +-

BLACK

CH-2

BLACK INPUT

WHITE (Neutral Input/Output)

OUTPUT

WHITE WHITE (Neutral Input/Output) WHITE (Neutral Input/Output)CTBRCB02JM02 WHITE LED CH-1 DRIVER PURPLE (+ Dimming 0-10VDC) + BLACK - 0-10V PURPLE (+) PURPLE (+ Dimming 0-10VDC) LED DRIVER T1M2LCD100TWC PURPLE (+ Dimming 0-10VDC) GREY (Dimming 0-10VDC) INPUT OUTPUT CH-1 + DIMMING INPUT GREY (-) PURPLE (+) WHITE GREY (- Dimming 0-10VDC) 0-10V + GRN/YLW (GRD) GREY (- Dimming 0-10VDC) 0-10V DIMMING GREY (-) LED DRIVER DIMMING T1M2LCD100TWCCH-2 GRN/YLW (GRD) 2 + PURPLE (+) IC (RJ12 Cable) GRN/YLW (GRD) 0-10V 2 0-10V IC (RJ12 Cable) 2 CH-2 DIMMING IC (RJ12 Cable) DIMMING GREY (-) BLACK INPUT

OUTPUT

INPUT

BLACK WHITE

ELIOPJX00SR

ELIOPJX00SR

-

0-10V DIMMING

RED/BLACK (Line Output)

RED/BLACK (Line(Line Output) RED/BLACK Output)

CTBRCB02JM02 CTBRCB02JM02

+

PURPLE (+)

BLACK (Line Input)

WHITE INPUT

OUTPUT

LED DRIVER

PURPLE (+) BLACK 0-10V (Line Input) DIMMING GREY (-) RED/BLACK (Line Output)

INPUT

CTBRCB02JM02

PURPLE (+ Dimming 0-10VDC)

OUTPUT

LED CH-1 DRIVER

+ 0-10V T1M2LCD100TWC +- DIMMING 0-10V

DIMMING

WHITE (Neutral Input/Output)

RED/BLACK (Line Output)

INPUT

BLACK

CH-2

PURPLE (+) GREY (-)

INPUT

CH-1

+

T1M2LCD100TWC +-

-

0-10V DIMMING

CH-2

INPUT

CH-1

+

T1M2LCD100TWC +-

0-10V DIMMING

-

CH-2

11


CONTROLS

Fulham India +91 22 66388775 www.fulham.com

Connected Driver A 40W, 0-10V constant current driver with the unique ability to add Bluetooth mesh connectivity by attaching an intelligent Bluetooth antenna. Compatible with third-party sensors, wall switches, and other devices, the connected driver serves as the core component for powerful, easy-toexpand connected systems. • 0-10V dimming standard. Add Bluetooth dimming with optional ESLI01HB01 SmartLink • Compatible with Fulham’s SmartSet programming platform

Specifications Model Number

Input Voltage (VAC)

Watts

Output Voltage (VDC)

Dimensions (mm) (L x W x H)

Case Type

Case Qty.

T2C1UNV150P-40L

UNV (120-277)

40

10-57

168 x 50 x 30

Compact w/End Leads

30

Bluetooth to 0-10V SmartBridge

ELITECONTROL

A simple, easy-to-install component that connects to an existing 0-10V driver to add SIG Qualified Bluetooth mesh capability. The SmartBridge is an ideal solution for manufacturers looking to develop their Bluetooth product lines or contractors seeking to provide wireless lighting options in the field.

Specifications Model Number

Max Load (W)

Max Input Current (A)

Input Voltage (VAC)

IP

Features

Dimensions (mm) (L x W x H)

Case Qty.

66

On / Off, 0-10V Dimming Control, Sensor Input On / Off, 0-10V Dimming Control, Sensor Input, Color Control, Power Metering

131 x 57 x 33

30

CTBRCB02JM02 CTBRCB03JM03-PC

600

5

UNV (120-277)

Bluetooth Accessories Model Number

ESLI01HB01

Description

Bluetooth SmartLink (attaches to T2C1UNV150P-40L to provide Bluetooth capability)

ELIOPJX00SR

Short-range PIR occupancy and daylight harvesting sensor for SmartBridge

ELIOPJX00LR

Long-range PIR occupancy and daylight harvesting sensor for SmartBridge

ESRPB-W-EO

Single Rocker EnOcean Switch

EDRPB-W-EO

Double Rocker EnOcean Switch

Fulham eliteBlue Commissioning Software Fulham’s eliteBlue commissioning software provides an intuitive set of tools for commissioning and monitoring qualified Bluetooth mesh lighting devices. Using simple web and iOS apps, users can easily customize lighting control parameters in accordance with site-specific needs and building energy codes. • Web portal Used off site to manage lighting installation projects and plan commissioning, including mapping zones within a building, setting up control scenarios for zones and managing users collaborating on the project. Try it at eliteblue.fulham.com • Mobile app for iOS Used onsite to commission devices and fine-tune installations. No specialized training or lighting control expertise is needed- the intuitive interface lets you add Bluetooth mesh lighting devices to a wireless network in no time. 12


LIGHT SOURCES

Fulham India +91 22 66388775 www.fulham.com

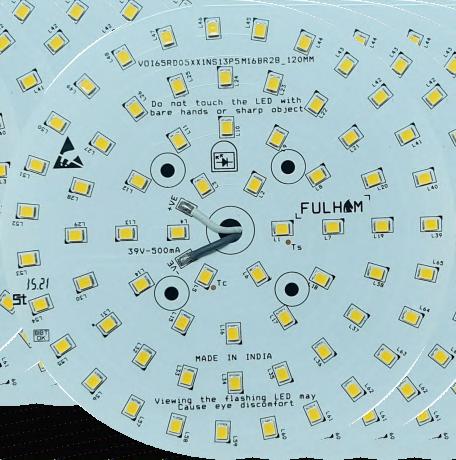

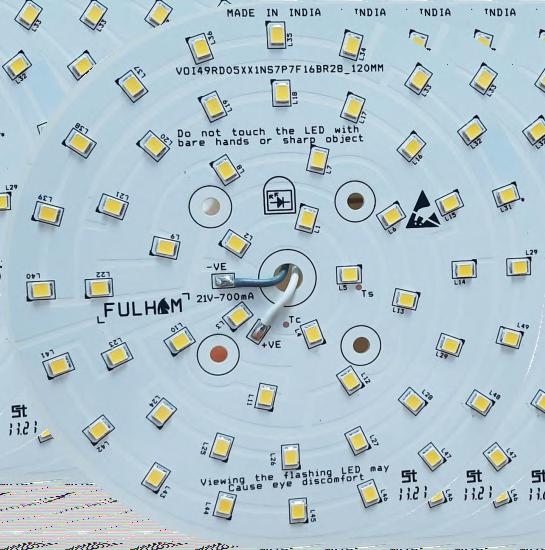

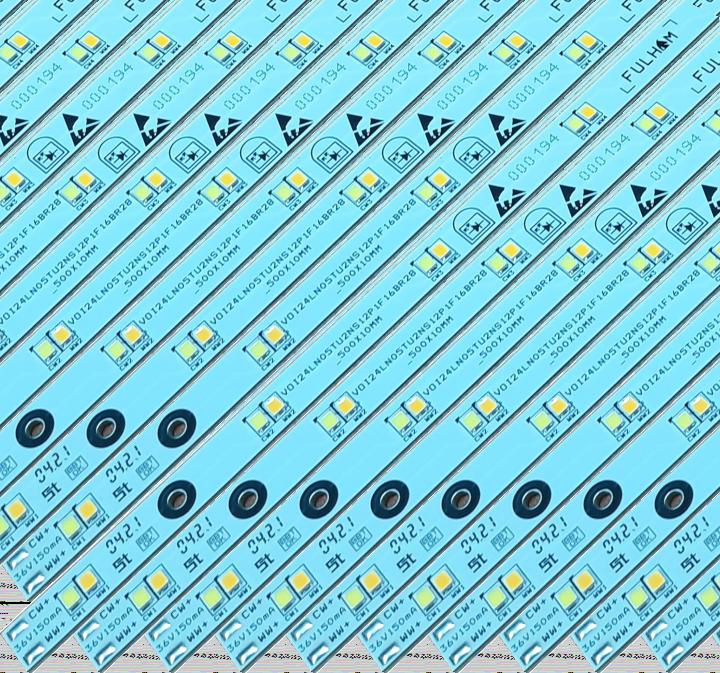

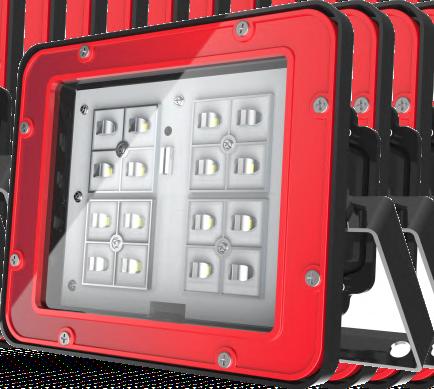

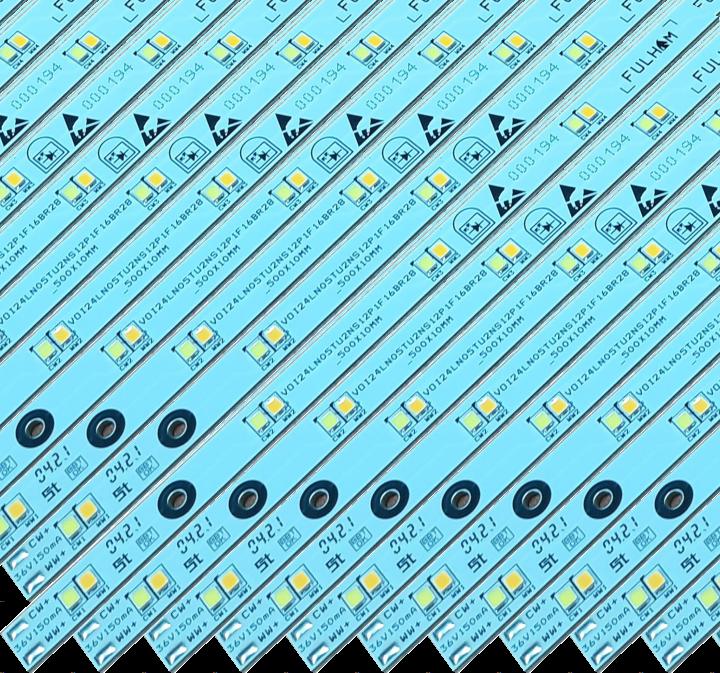

DC LED Modules • Standard and custom boards available • 80 CRI standard - also available in 70 and 90 CRI on request • Choice of easy push-in dual connectors or pre-wired with leads • Dimmable when used with dimming LED driver • Optional diffusers available • Choice of standard FR-4 or metal clad printed circuit boards

2’ x 2’ Fixtures

500 x 8 500 x 10 500 x 10 538 x 10

Number of LED

PCB Material

TMB10LN04XXS10P1M10EV/BR/SM28 TMB10LN05XX1NS10P1F16BR/EV/SM28 VOI12LN05571NS12P1F16BR28 TMB14LN03XXS14P1F16ED28/EV28

Size (mm) (L x W)

10 10 12 14

MCPCB FR4 FR4 FR4

TMB12LN05XX1NS4P3/S6P2/S12P1F16BR/EV/SM28 TMB24LN05XX1NS6P4/S12P2F16BR/EV/SM28 TMB48LN03XXS12P4/S6P8F16EV28/ED28/SM28 TMB48LN05XX1NS12P4/S6P8F16BR/EV/SM28 VOI96LN05XX1NS12P8M16BR/EV/SM28 VOI96LN05XX1NS12P8F16BR-EV-SM28 TMB96LN04XXS12P8F16SM/EV/ED-28 TMB96LN04XXS12P8F16SM/EV/ED-28

140 x 15 280 x 15 560 x 20 585 x 15 595 x 25 1120 x 20 1170 x 20 1170 x 20

12 24 48 48 96 96 96 96

TMB35RD03XXS7P5F16BR30 TMB48RD03XX1NS12P4F16EV28/ED28/SM28 TMB42RD05XXS7P6F16BR30 VOI70RD05XX1NS14P5F16BR-EV-SM28 TMB66RD03XXS6P11F16BR30/OS30

100 120 120 120 170

TMB10RD40XXS10P1M16OS50 TMB14RD26XX1NS7P2M16OS50 VOI32RD50XX2NS16P2M16OS50 TMB21RD40XXS7P3M16OS50

Model Number

No. of Max. Modules Output per set Power (W)

LM/W*

LED Type

Compatible Driver

10 9 9 14

30 30 36 42

163 152 152 167

2835 2835 2835 2835

T12401000-38E10S T12401000-38E10S T12401000-38E10S T12401000-42L

FR4 FR4 FR4 FR4 MCPCB FR4 FR4 FR4

2 1 2 1 1 1 1 1

7.2 10.8 28.8 18 36 36 21.96 21.96

146 144 159 144 160 160 161 161

2835 2835 2835 2835 2835 2835 2835 2835

T12400200-08F T12400300-13F T12400800-30E10S T12400500-25E10 T12401000-38E10S T12401000-38E10S T12400610-22E10 T12400610-22E10

35 48 42 70 66

FR4 FR4 FR4 FR4 FR4

1 1 1 1 1

16.8 14.4 21 21 25.2

149 144 148 161 152

3030 2835 3030 2835 3030

T12400400-17F T12400400-17F T12400500-25E10 T12400500-25E10 T12400700-25E10

70 90 100 120

9 14 32 21

MCPCB MCPCB MCPCB MCPCB

1 1 1 1

37.8 29.4 96 58.8

148 155 157 157

5050 5050 5050 5050

T12400700-42C10 T12400700-40P10B T12401000-105PB T12401400-59C10

TMB48RT10XXS2P24M16BR30 VOI12RT50XX1NS6P2-S4P3M16BR50 VOI24RT10XX1NS6P4M16LX30 TMB120LN02XXS12P10M16ED28/EV28

242 x 57 143 x 47 143 x 47 350 x 25

48 12 24 120

MCPCB MCPCB MCPCB MCPCB

5 1 1 1

79.8 31 23 18

158 163 155 131

3030 5050 3030 2835

T1M1UNV1400-80PB T12400860-33C10 T12400650-23CB T12400500-25E10

TMB16SQ42XXS8P2M16OS50 TMB28OT21XX1NS28P1M16OS-G2/OS-G3 TMB28OT60XX2NS7P2M16OS50

125 x 125 186 x 145 186 x 145

16 28 28

MCPCB MCPCB MCPCB

1 1 1

67.2 58.8 84

151 140 156

5050 2828 5050

T12401400-59C10 T1M12400700-75CBE 2 * T12401000-40P10B

TMB36RT21XXS36P1M16OS-G3 TMB44RT21XXS44P1M16OS-G3 TMB72RT21XX2NS36P1M16OS-G3 TMB92RT21XX2NS46P1M16OS-G3 VOI165RT10XX1NS33P5M16LX30

180 x 180 230 x 180 330 x 180 350 x 230 220 x 185

36 44 72 92 165

MCPCB MCPCB MCPCB MCPCB MCPCB

1 1 1 1 1

75.6 92.4 151.2 193.2 138

144 155 136 147 160

3535 2828 2828 2828 3030

T1M12400700-75CBE T1M12400700-150LBE 2 * T1M12400700-75CBE 2 * T1M12400700-150LBE T1M12400700-150LBE

VOI20LN05TU2NS10P1F16BR/EV/SM28 VOI28LN05TUS14P1M10ED-EV-BR-SM VOI96LN05TU2NS12P8F16EVBRSM28 VOI196SQ05XX2NS14P7S7P14F16BR/EV/SM28 VOI196LN05XX2NS14P7F16BR-EV-SM28

500 x 10 520 x 10.5 560 x 30 240 x 240 1120 x 35

20 28 96 196 196

FR4 MCPCB FR4 FR4 FR4

9 14 1 1 1

30 30 18 15 30

127-150 155-175 135-158 135-155 135-155

2835 2835 2835 2835 2835

T12401000-38E10S T12400700-35E10 T12400500-25E10 T12400350-25E10 T12400700-35E10

Linear Fixtures

Downlight Fixtures

Well Glass Fixtures / Flame Proof Fixtures

Highbay Fixtures

Street Light Fixtures

Flood Light Fixtures

Tunable White 2x2 Fixtures

All LED modules available in CCT ranging from 2700K to 6500K (*Lumen is calculated based on 5700K/Tc 75 deg)

13


LIGHT SOURCES

Fulham India +91 22 66388775 www.fulham.com

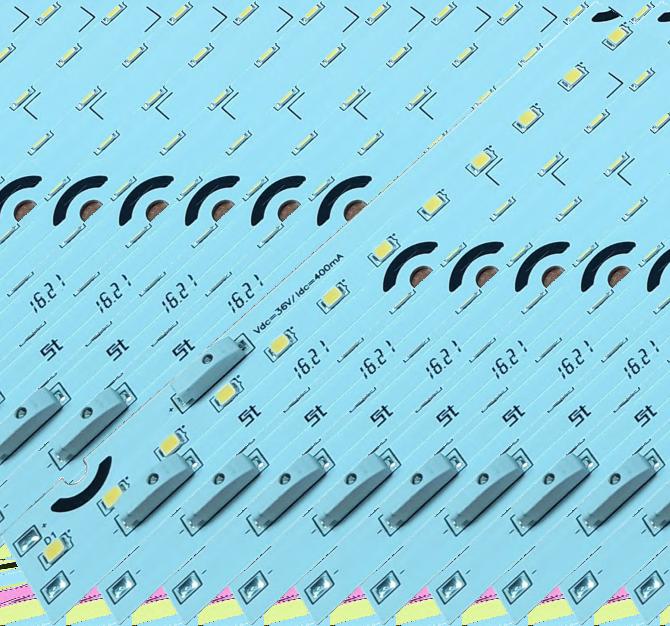

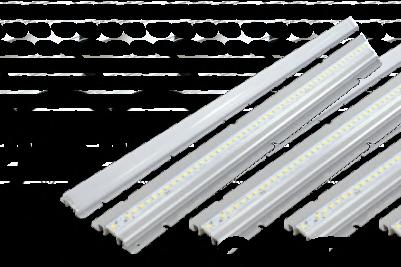

Linear High Output DC LED Modules • Ideal replacement for T5HO in linear highbays, water/vapour proof, and recessed and wall luminaires • Up to 219 lm/W; output range 234 lm to 14,699 lm (@4000K/80CRI) • Aluminium extrusion mount for thermal management and quick install • Optional lenses snap on in seconds

Specifications

Model Operating Temp. Range PCB Material Colour Consistency Warranty Safety/compliance

Linear High Output DC LED Module -40°C to +60°C / -40°F to 140°F CEM3 Binning per ANSI C78.377-2015 @ 25°C; 3 SDCM 5 years @ Max Tc from the date of manufacture cURus (File # E351548), UL Class 2 Lighting System, CE,

Low Profile Linear High Output DC LED Module -40°C to 55°C / -40°F to 131°F MCPCB (Aluminium Clad)

SELV, RoHS Compliant

Linear High Output DC LED Modules Model Number / Dimension (mm) (L x W x H)

Number of LED

Input Current (mA)

Nom. Fwd. Voltage (VDC)

Nom. Rated Power (W)

Max. Fwd. Voltage (V)

Max. Rated Power (W)

Nom. Lum. @4000K/80CRI (lm)

Nom. Efficacy @4000K/80CRI (lm/W)

TMU125050CL8xxA 560 x 44 x 10

96

350 1250* 350 1400*

33 36 33 36

12 44 11 50

35 39 34 39

12 49 12 55

2245 7130 2255 8015

195 161 196 161

TMU140055CL8xxA 1120 x 44 x 10

108

TMU240095CL8xxA 1120 x 44 x 10

180

1400

34

48

37

52

8640

180

TMU240095CL8xxC† 1473 x 44 x 10

180

2400*

36

85

39

94

13610

159

3.9 11.40 11.9 22.8 11.8 28.5 23.9 44.4 23.7 49.7 36.4 49.7 47.9 85.4 47.9 85.4

25 26 37 39 37 39 36 38 36 39 38 39 37 39 37 39

4 12 13 25 13 31 26 49 25 55 39 55 52 94 52 94

799 1959 2347 3919 2380 4899 4698 7700 4736 8656 6847 8656 9331 14,699 9331 14,699

205 172 197 172 202 172 197 173 200 174 188 174 195 172 195 172

Low Profile Linear High Output DC LED Modules VMU048012LPyxxA 140 x 32 x 7

24

VMU064025LPyxxA 278 x 32 x 7

48

VMU080030LPyxxA 560 x 32 x 7

60

VMU125050LPyxxA 560 x 32 x 7

96

VMU140055LPyxxA 1120 x 32 x 7

108

VMU140055LPyxxC† 1168 x 32 x 7

108

VMU240095LPyxxA 1120 x 32 x 7

180

VMU240095LPyxxC† 1473 x 32 x 7

180

175 480* 350 640* 350 800* 700 1250* 700 1400* 1050 1400* 1400 2400* 1400 2400*

22.3 23.8 34.0 35.6 33.7 35.6 34.1 35.5 33.8 35.5 34.7 35.5 34.2 35.6 34.2 35.6

* Indicates maximum rated current. Modules may be operated at a current less than or equal to this value, below the Tc rating. † Made to order. Minimum order quantity applies.

Accessories for Low Profile Linear HO & Linear HO Output DC Modules Model Number

TLEOPT120-002 TLEOPT120-003 TLEOPT120-004 TLC-HN02 TLEOPT120-020

14

Description

Model Number

Description

140mm snap-on lens, 82% transmissivity TLEOPT120-013 1120mm snap-on lens, 82% transmissivity 278mm snap-on lens, 82% transmissivity TLEOPT120-014 1168mm snap-on lens, 82% transmissivity 560mm snap-on lens, 82% transmissivity TLE-OPT-120-021 1473mm snap-on lens, 82% transmissivity 560mm wire harness for 1 or 2 modules in parallel TLC-HN04 560mm wire harness for 3 or 4 modules in parallel Module end caps, 2 pieces (not compatible with low profile models)


EMERGENCY

Fulham India +91 22 66388775 www.fulham.com

HotSpot EZ Exit LED Emergency System The innovative alternative to traditional emergency fixtures. Linear LED strips mount seamlessly in standard T-grid ceilings, with constant power emergency drivers mounted out of sight on top of the grid. During power outages the system provides at least 90 minutes of reliable, hassle-free emergency lighting.

Power outage- emergency LEDs activated

Normal conditions

Specifications Input Voltage

Output Type

100-277VAC, 50/60Hz

Recharge Time

Surge Protection

24 Hours

Emergency Operation

90 Minutes

Operating Temp. Range (Ta)

Tc max 90°C / 194°F

Estimated Lumen Maintenance

L70: >60,000Hrs / L90: 40,000Hrs FCC PART15A Non-Consumer

Per C62.41 (TVS) 1.2mm Frosted Polycarbonate V-0 Flame rated

Protective Lens

0°C to 50°C / 32°F to 122°F

Module Case Temperature (Tc) RFI/EMI

Class 2

Lens Transmittance

15%

PCB Material

FR4

Warranty

5 years from the manufacture date

Product Models Model Number

Max Input Current (A)

Nominal Input Power (W)

Output Power (W)

Module Operating Voltage (VDC)

FHEZ10A24

0.087

5.7

10.7

26.2

1480

NiCd 9.6Vdc

607 x 24 x 47

FHEZ17A48

0.11

7.9

17

25.8

2485

NiCd 14.4Vdc

1217 x 36 x 47

Max Lumen Output(lm)

Dimensions (mm)(L x W x H)

Battery

EZ Exit System Includes:

FHEZ10A24

FHEZ17A48

607mm EZ Exit Module and 10.7W HotSpot Constant Power Emergency Driver

1217mm EZ Exit Module and 17W HotSpot Constant Power Emergency Driver

2 Caddy clips 2 Silver clips 4 Screws 3m Extension harness

Visit Fulham.com for installation video and instructions 15


EMERGENCY

Fulham India +91 22 66388775 www.fulham.com

HotSpot Plus LED Driver & Emergency System The revolutionary HotSpot Plus LED Driver & Emergency System combines the functions of a dimmable, programmable LED driver, emergency LED driver, and replaceable backup battery in a single compact unit. Under normal conditions this all-in-one solution operates as a constant current driver; during a power outage the integrated battery automatically activates, providing reliable emergency illumination for safe building egress. Benefits include smaller size, simplified installation, and the ability to bring emergency LED capability to smaller luminaires. • Programmable output current in 1mA increments • UL 924 Self-Diagnostics • Selectable emergency output:

40W models: 5W for 180 minutes or 10W for 90 minutes

70W model: 7W for 90 minutes, programmable for lower power and longer runtime

• Compact size and simple installation for maximum flexibility SD

HotSpot Plus LED Driver and Emergency System Watts

40

Output Current (mA)

250-1400

Output Voltage (VDC)

11-55

40

250-1400

11-55

45

250-1400

11-50

40

250-1400

70

350-2400

Input Voltage (VAC)

Model Number

FHSAC1-UNV-40BLS 120-277; 50/60Hz

11-55

11-55

Dimming Type

0-10V

Ch.

Dimensions (mm) (L x W x H)

Case Type

1

162 x 80 x 39

Compact w/ Bottom Leads

1

241 x 61 x 34

FHSAC1-UNV-40C

120-277; 50/60Hz

0-10V

1

FHSAC1-230-45CE

220-240; 50/60Hz

0-10V

1

FHSAC1-UNV-40L FHSAC1-UNV-70S

120-277; 50/60Hz

120-277; 50/60Hz

0-10V

0-10V

1

160 x 76 x 28

229 x 81 x 33 424 x 30 x 25

Compact w/ End Leads Linear w/ End Leads

Compact w/ End Leads Linear w/ Terminals

HotSpot Plus Accessories FHS-TSTWL-BC

IP67, bicolour LED Indicator / test switch for use in exposed, outdoor-rated luminaires for 40W models

FHS-TSTWL-BC-S

IP67, bicolour LED Indicator / test switch for use in exposed, outdoor-rated luminaires for 70W model

FHS-EXT-48-TST

48” test switch extension cable

The Power of Programmability All HotSpot LED drivers feature Fulham’s innovative SmartSet programming platform, which gives the user the power to create the right driver for any situation. • Auto-Programming capability for high volume usage • Driver does not need to be powered during programming • Programming via handheld controller or PC software

TPSB-100 SmartSet Controller

SmartSet Software

To see the Fulham SmartSet programming platform in action visit the links below: Overview of basic programming features: www.fulham.com/smartsetprogramming One touch Auto-Programming: www.fulham.com/smartsetauto Programming custom dimming curves: www.fulham.com/smartsetdimmingcurve

16


EMERGENCY

Fulham India +91 22 66388775 www.fulham.com

HotSpot2 LED Emergency System The HotSpot2 emergency lighting system drives existing constant current LED modules during power outages. A complete system is composed of an emergency driver, emergency battery, and output wire harness. A wide range of lumen output and run times are available.

HotSpot2 Drivers Model Number

FHS2-UNV-36L

Input Voltage

Input Frequency

50/60Hz

Input Current

0.1A Max

LED Currents

100mA - 700mA

Standby Input Power

SD

FHS2-UNV-56S

100-277VAC

<0.8W

Total LED Power

20W

Input Surge Protection

2.5KV Ring Wave

Over Current Protection

Fuse

Illumination Time

90 - 350 Min

LED Connection

Series

LED Output Protection

Self Resetting PTC

Bicolour LED Indicator

UL1310/Class 2 Included LED indicator / test switch provides automatic system status updates 12 - 55VDC 12 - 56VDC

Output Classification Output Voltage

Dimension (mm) (L x W x H)

135 x 43 x 24

241 x 30 x 25

HotSpot2 Emergency Battery Packs Model Number

Dimensions (mm) (L x W x H)

Chemistry

Capacity (mAh)

Battery Count

Recharge Time

FHSBATT8-AA.9 FHSBATL3-1 FHSBATL6-.6 FHSBATL3-1.5 FHSBATL3-1.5S FHSBATL9-.6 FHSBATTCC3-3† FHSBATL6-1.5 FHSBATL6-1.5L FHSBATL6-1.5S FHSBATT8-C3 FHSBATT8-C3L FHSBATL3-3 FHSBATT8-D4 FHSBATL6-3 FHSBATL6-3L

133 x 61 x 17 88 x 58 x 23 133 x 48 x 22 88 x 69 x 23 225 x 28 x 24 191 x 46 x 30 152 x 91 x 39 145 x 69 x 23 200 x 38 x 30 424 x 28 x 24 105 x 84 x 54 200 x 52 x 26 112 x 70 x 31 126 x 98 x 68 191 x 70 x 31 202 x 53 x 30

NiCd LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 NiCd NiCd LiFePO4 NiCd LiFePO4 LiFePO4

900 1000 1200 1500 1500 1800 3000 3000 3000 3000 3000 3000 3000 4000 6000 6000

8 Cells 3 Cells 6 Cells 3 Cells 3 Cells 9 Cells 3 Cells 6 Cells 6 Cells 6 Cells 8 Cells 8 Cells 3 Cells 8 Cells 6 Cells 6 Cells

24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 24Hrs 32Hrs 32Hrs

† Cold Pack Battery: -20°C minimum operating temperature

* Rated 10W for Canada

Max. Load for 90 min. (W) -36L

4 4 6 8 8 10 14* 16 16 16 16 16 16 20 20** 20**

-56S

4 4 4 8 8 8 14* 14 14 14 16 16 16 20 20** 20**

** Rated 16W for Canada

HotSpot2 Accessories Wiring harnesses:

Model Number

mA

Model Number

mA

Model Number

mA

FHS-HARNESS-100 100 FHS-HARNESS-250 250 FHS-HARNESS-550 Used to set the output current FHS-HARNESS-125 125 FHS-HARNESS-300 300 FHS-HARNESS-600 to the LED module during FHS-HARNESS-150 150 FHS-HARNESS-350 350 FHS-HARNESS-650 emergency operation. FHS-HARNESS-175 175 FHS-HARNESS-400 400 FHS-HARNESS-700 Using lower current will allow FHS-HARNESS-200 200 FHS-HARNESS-450 450 longer run times. FHS-HARNESS-225 225 FHS-HARNESS-500 500 FHS-TSTWL-BC IP67, bicolour LED Indicator / test switch for use in exposed, outdoor-rated luminaires FHS-EXT12M 12” battery extension cable FHS-EXT12L 12” battery extension cable (for battery FHSBATT8-AA.9 only) FHS-EXT12H 12” battery extension cable (for battery FHSBATT8-D4 only) FHS-EXT-48-TST 48” test switch extension cable Also available: battery mounting brackets and wallplates. For more information, visit www.fulham.com

550 600 650 700

17


INDUCTION

Fulham India +91 22 66388775 www.fulham.com

Induction Systems

Systems include generator and lamp. Contact Fulham for details.

Disc

Die Cast

Profile

Tubular Watts

Input Current (AMP) 120V - 277V

Input Power (W)

Rated Initial Luminance (lm)

Efficacy (lm/W)

HH ILS TP40 5K, HH IL TP40 510M*

40

0.35-0.15

42

2800-3000

70-75

Model Number

HH ILS TP70 5K, HH IL TP70 510M*

70

0.62-0.27

74

4900-5250

70-75

HH ILS TP80 5K, HH IL TP80 510M* HH ILS TDC80 5K

80

0.70-0.30

84

6000-6400

75-80

HH ILS TP100 5K, HH IL TP100 510M* HH ILS TDC100 5K

100

0.88-0.38

105

7500-8000

75-80

HH ILS TP120 5K, HH ILS TDC120 5K

120

1.05-0.45

126

9000-9600

75-80

HH ILS TP150 5K, HH IL TP150 510M* HH ILS TDC150 5K

150

1.32-0.57

158

12000-12750

80-85

HH ILS TP200 5K, HH IL TP200 510M* HH ILS TDC200 5K

200

1.75-0.76

210

16000-17000

80-85

HH ILS TP200 5 17†, HH IL TP200 510M 17† HH ILS TDC200 5 17†

200

1.75-0.76

210

16000-17000

80-85

HH ILS TP250 5K, HH IL TP250 510M* HH ILS TDC250 5K

250

2.19 -0.9 5

263

21250-22500

85-90

HH ILS TDC300 5K

300

2.63-1.14

315

25500-27000

85-90

H I TDC400 5 35, HH ILS TDC400 5K

400

3.50-1.52

420

34000-36000

85-90

HH ILS CP40 5K, HH IL CP40 510M* HH ILS CDS40 5K

40

0.35-0.15

42

2800-3000

70-75

HH ILS CP70 5K, HH IL CP70 510M* HH ILS CDS70 5K, HI CDS70 5M*

70

0.62-0.27

74

4900-5250

70-75

HH ILS CP80 5K, HH IL CP80 510M* HH ILS CDS80 5K, HH ILS CDC80 5K

80

0.70-0.30

84

6000-6400

75-80

HH ILS CP100 5K, HH IL CP100 510M* HH ILS CDS100 5K, HH ILS CDC100 5K HI CDS100 5M*

100

0.88-0.38

105

7500-8000

75-80

HH ILS CP120 5K, HH ILS CDS120 5K HH ILS CDC120 5K

120

1.05-0.45

126

9000-9600

75-80

HH ILS CP150 5K, HH IL CP150 510M* HH ILS CDS150 5K, HH ILS CDC150 5K HI CDS150 5M*

150

1.32-0.57

158

12000-12750

80-85

HH ILS CP200 5K, HH IL CP200 510M* HH ILS CDS200 5K, HH ILS CDC200 5K HI CDS200 5M*

200

1.75-0.76

210

16000-17000

80-85

HH ILS CP250 5K, HH IL CP250 510M* HH ILS CDS250 5K, HH ILS CDC250 5K HI CDS250 5M*

250

2.19 -0.9 5

263

21250-22500

85-90

HH ILS CDS300 5K, HH ILS CDC300 5K HI CDS300 5M*

300

2.63-1.14

315

25500-27000

85-90

HH ILS CDS400 5K, HH ILS CDC400 5K HI CDS400 5M*

400

3.50 - 1.52

420

34000-36000

85-90

HH ILS CDS 500 5K

500

4.61 - 2.00

525

42500-45000

85-90

Luminance Maintenance (60K Hrs.)

CRI

70%-75%

> 80

Colour Temperature (K)

Average Lamp Life (Hrs.)

5000K (standard)

100,000

Additional Colour Temps: 2700K, 3000K, 3500K, 4000K, 4100K, 4500K, 6000K, 6500K,

Circular

* 0-10V Dimmable

18

43.2cm length

70%-75%

> 80

5000K (standard) Additional Colour Temps: 2700K, 3000K, 3500K, 4000K, 4100K, 4500K, 6000K, 6500K,

100,000


Limited Warranty Length of Warranty and Coverage

Warranty period will be determined from the date of manufacture as indicated by the date code stamped on each product and will be covered as follows: FireHorse™ - 2 to 5 Years FREELITE™ - 5 Years HighHorse™ Electronic HID Ballast - 3 Years HighHorse™ Induction - 5 to 7 Years (If installed per instructions) HotSpot™ - 3 to 5 Years* IceHorse™ Ballast - 3 Years LongHorse™ Electronic Remote Fluorescent Ballast - 5 Years LumoSeries™ - 5 Years PONY™ Electronic Ballast - 2 Years PONY™ Electronic SugarCube™ - 2 Years PONY™ Electronic Transformer - 2 Years RaceHorse™ Electronic Ballast – 70ºC 5 Years, 90ºC 3 Years SunHorse™ Ballast - 3 Years SineHorse™ Ballast - 3 Years ThoroLED™ Drivers - 2 to 5 Years ThoroLED™ Modules/Engines - 3 to 5 Years* ThoroLED™ Retrofit - 5 Years* ThoroLED™ Luminaire - 5 Years* Vizion™ Modules/Engines - 5 Years* Vizion™ Retrofit - 5 Years* Vizion™ Luminaire - 5 Years* WorkHorse™ Electronic Fluorescent Ballast - 5 Years WorkHorse LED™ Drivers - 5 Years * Covered defects for Vizion, ThoroLED, and HotSpot LED modules. For purposes of this limited warranty, a defect in a module shall be defined as one or more individual LEDs dark at initial installation or greater than 10% of individual LEDs dark during the Warranty Period. Replacement and/or repair of individual Vizion, ThoroLED, or HotSpot LED Modules does not extend this limited warranty beyond the original Warranty Period.

Warranty Conditions

Fulham extends this express limited warranty only to the original purchaser or to the first user. This constitutes the complete warranty for the product. Fulham is not responsible for any auxiliary equipment not furnished by Fulham, which is used in connection with or attached to the product, or for operation of the product with any auxiliary equipment. Damage to all such equipment is expressly excluded from this warranty. In addition, Fulham is not responsible for any damage to the product resulting from the use of auxiliary equipment not supplied by Fulham.

Warranty Conditions Not Covered

This warranty is not applicable to any product manufactured by Fulham not installed and operated in accordance with: * Underwriters Laboratories Inc. (UL) * National Electrical Code (NEC) * Standards set by the International Electrotechnical Commission (IEC) * European Norms Electrical Certification (ENEC) * Applicable international federal, state and local codes * Remote applications beyond maximum distance noted on product specification sheet. If maximum distance is not provided, remote application is not covered. * Fulham specific, most recent instructions and application guidelines provided for installation of the product Additionally, this warranty is not applicable to Fulham manufactured products that have been subjected to excessive stress including, but not limited to, operating temperatures exceeding the recommended maximum temperature on any part of the product.

Obtaining Warranty Service

If within the warranty period it appears that the installed product does not meet the warranty conditions specified, the purchaser must notify Fulham of its warranty claim. Fulham or its authorized service company will provide warranty service directly to you.

General Provisions

All responsibilities regarding the product are set forth by this warranty. Replacement or repairs of the product is your exclusive remedy. For purposes of clarity, “replacement or repairs of the product” does not include any removal or reinstallation costs or expenses, including, without limitation, any labor costs or expenses, shipping costs to return non-conforming products or any damages that may occur during the return of product to Fulham. If Fulham chooses to replace the product and is not able to do so because it has been discontinued or is not available, Fulham may replace it with a comparable product. Fulham reserves the right to use new, reconditioned, refurbished, repaired or remanufactured products or parts in the repair or replacement of any product covered by this warranty. If no replacement product is available, Fulham, solely at its discretion, may issue a credit for the product, prorated for its remaining warranty life. This warranty is given in lieu of all other express warranties. Implied warranties, including those without limitation, warranties of merchant ability and fitness for a particular purpose, are limited to the duration of this limited warranty. Fulham shall in no event be liable for damages in excess of the purchase price of the product, for any loss of use, loss of time, inconvenience, commercial loss, lost profits or savings or other incidental, special or consequential damages arising out of the use or inability to use such product, to the full extent such may be claimed by law.

Local Exceptions

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, therefore the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and purchasers may have other rights that vary by jurisdiction.

Returned Materials Authorizations (RMA) Customers shall contact Fulham directly for all RMA’s.

After receiving the RMA, the user shall promptly return the product at the user’s expense to Fulham after receiving instructions as to when and where to ship product. Failure to follow this procedure shall void this warranty. Should the number of pieces received by Fulham differ from the RMA either +/-, the customer will be notified and adjustments will be made at that time. Fulham reserves the right to examine all failed products to determine the cause of failure and patterns of usage and reserves the right to be the sole judge as to whether any products are defective and covered under this warranty.

Contact Information Fulham India

+91 22 66388775

Fulham North America

+1 323 599 5001 warranty@fulham.com

Fulham Europe

warranty.eu@fulham.com

Effective: August 1st, 2018

19


Contact Us

Visit www.fulham.com for product information, sales representative contact info, technical documentation, and more.

Fulham (India) Pvt. Ltd. (Registered Office) 201, Kaliandas Udyog Bhavan Sadanand Tandel Marg Century Bazaar Lane Prabhadevi, Mumbai - 400025 Tel: +91.22.66388775-8 sratti@fulham.com

Fulham (India) Pvt. Ltd. (Manufacturing Unit) Survey No. 26-3 Village Narhe Taluka Haveli, Dist: Pune -411041 Tel: +91.20.24690703/4 sratti@fulham.com

Fulham (India) Pvt. Ltd. (Warehouse) C-74 Basement DDA Shed Okhla Industrial Area Phase I, New Delhi, Delhi – 110020 Tel: +91 11 41437162 sratti@fulham.com

Fulham (India) Pvt. Ltd. (Research & Design Centre) 3rd Floor, 6-3-1009/1100 BabuKhans Millenium Center Somajiguda Hyderabad Telangana – 500082 Tel: +91 40 67880703 sratti@fulham.com

India Regional Locations & Contacts Key Accounts and RoM Mr. Shekar Kapadne Cell No.: +91 9168626413 skapadne@fulham.com

North Mr. Rakesh Ranjan Kumar Cell No.: + 91 9999557024 rkumar@fulham.com

North America Manufacturing California

West & South Mr. R Vigneshkumar Cell No.: + 91 9513333196 vkumar@fulham.com

Asian Manufacturing Beijing, China Suzhou, China

Global Headquarters Hawthorne, CA

Asian R&D Center Shanghai, China

European Sales HQ

Fulham India R&D, Sales and Manufacturing Pune

Manufacturing & Engineering

Asia Pacific Sales HQ Hong Kong

Corporate & Engineering Sales HQ

Global Locations & Contacts Fulham Headquarters (North America) 12705 S. Van Ness Avenue Hawthorne, CA 90250 Tel: +1 323.599.5000 Fax: +1 323.754.9060 order@fulham.com Fulham Company B.V. (Europe) Amperestraat 1 1704 SM Heerhugowaard Netherlands Tel: +31.(0)72.572.3000 sales.eu@fulham.com

Fulham Company Ltd. (Hong Kong) Unit 6, 6/F Kowloon Plaza 485 Castle Peak Road Cheung Sha Wan, Kowloon Hong Kong Tel: +852.2314.4801 Fax: +852.2314.4186 hongkongsales@fulham.com

Fulham Electronic Co. Ltd. (South China) Room 604, Vanke Tower, Hongqi Road, Nancheng District, Dongguan City, Guangdong Province, P.R. China Post Code: 523000 Tel: +86.769.2199.2606 Fax: +86.769.2199.2605 southchinasales@fulham.com

Fulham Electronic Co. Ltd. (Central, East & North China) Room 302, Xing Yuan Technology Plaza, No 418, Gui Ping Road Caohe-Jing Hi-Tech Park Shanghai, P.R. China Post Code: 200233 Tel: +86.21.6495.2777 Fax: +86.21.5426.5271 centralchinasales@fulham.com

All trademarks are the property of their respective owners | ©Fulham Co. Inc., 2019 | P/N: IN-FEATURE-CAT | REV: OCT19

Profile for Fulham Co., Inc.

Fulham India Featured Products Catalog

Innovative lighting solutions from Fulham India

Fulham India Featured Products Catalog

Innovative lighting solutions from Fulham India
