utility
frans yan febri teresia syafina naira
plumbing
CLEAN WATER
The clean water piping system in the apartment with 2-inch pipes is designed to flow water from the main source to various apartment units smoothly and efficiently.
The clean water piping system in this apartment uses Rucika PVC Class D (for medium pressure, used for water distribution systems without pressure or gravity)
Here are the specifications of the pipes used:
• Outer diameter: 60.5 mm
• Wall thickness: 2.7 mm
• Working pressure: Up to 5 kg/cm² (PN5)
DIRTY WATER
The dirty water piping system in an apartment functions to drain liquid waste, such as used washing water, bath water, or waste water from the kitchen, to the drainage system or waste treatment plant. In this system, a 4-inch pipe size is often used for drainage from sanitary devices such as sinks, showers, or washing machines that drain low-pressure dirty water.
This apartment's dirty water piping system uses Rucika PVC Class C (for low pressure or gravity channels such as dirty water drainage systems)
Here are the specifications of the pipes used:
• Outer diameter: 114 mm
• Wall thickness: 2.7 mm
• Working pressure: Not for pressure (only for gravity drainage systems).

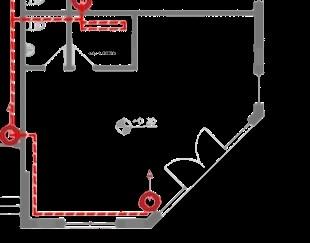

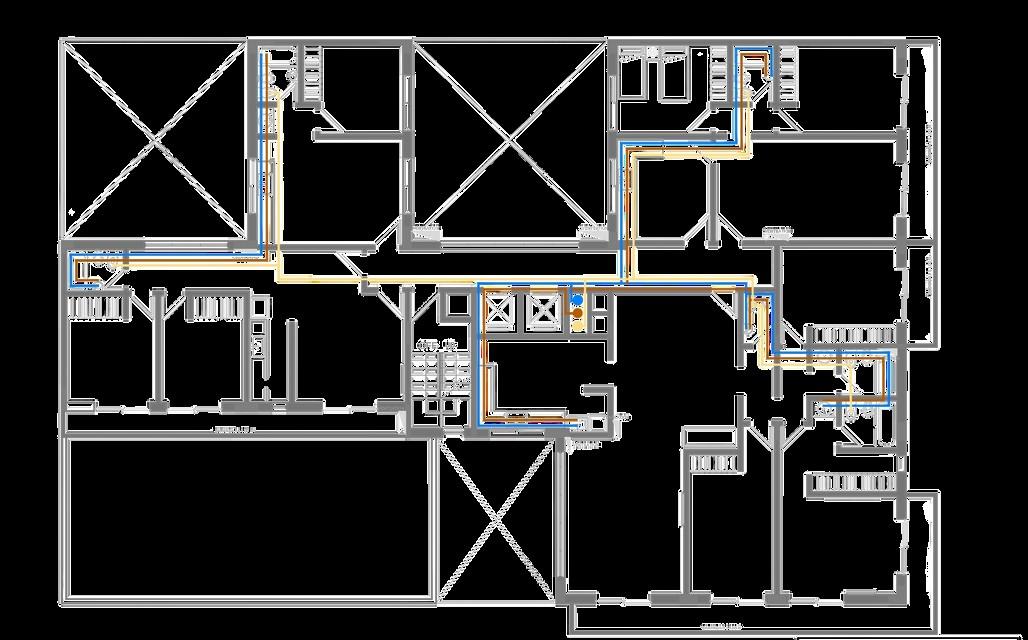

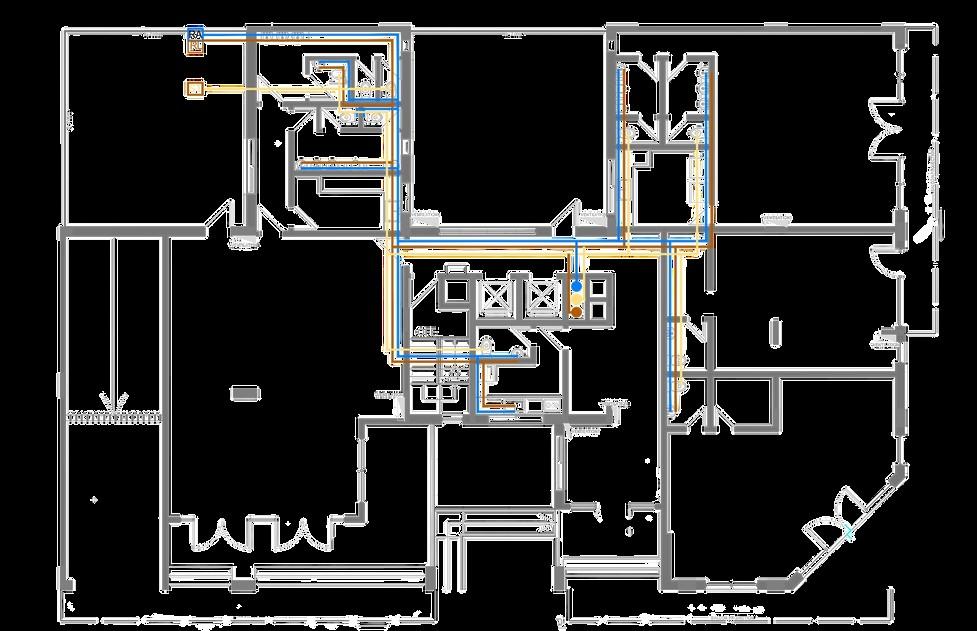

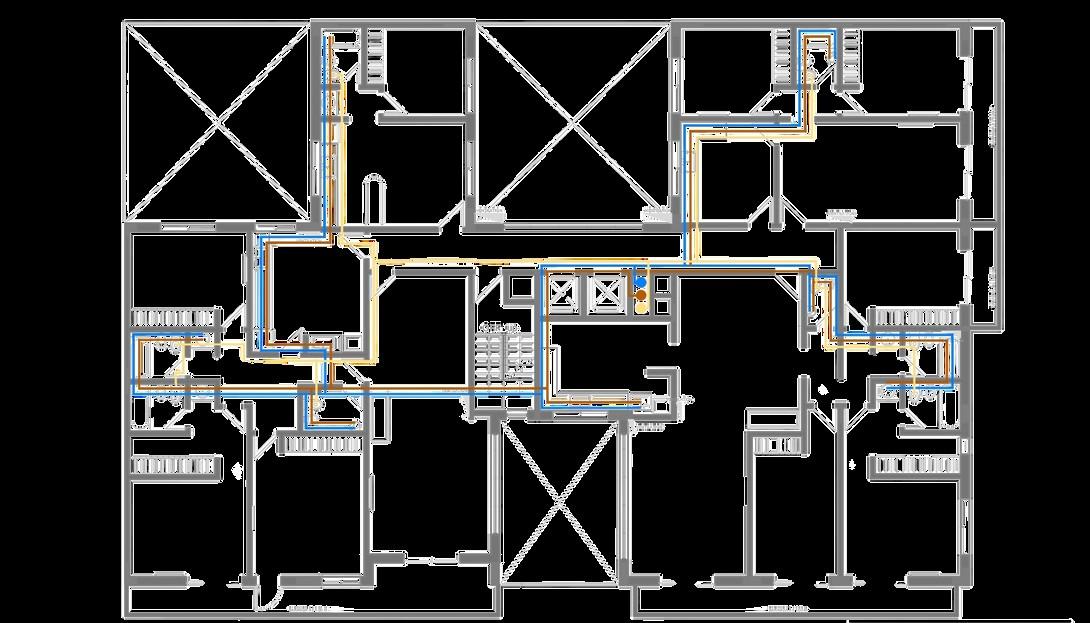

plumbing.

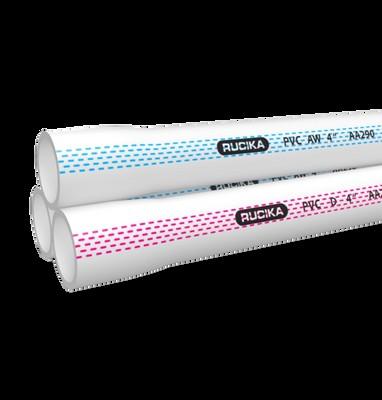

4 inch rucika pipe

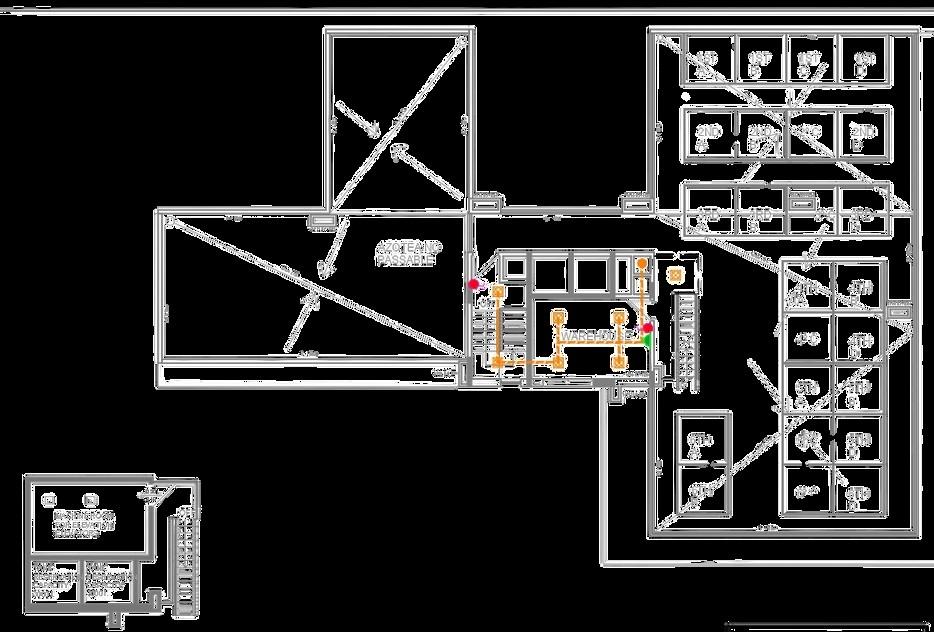

Lantai 1, 2 dan 5
Lantai 3 dan 4
Lantai 6 dan 7 USED WATER
The used water piping system in the apartment functions to drain wastewater from daily activities such as bathing, washing dishes, washing clothes, and sinks. This used water is also called gray water, different from dirty water or waste from the toilet. To channel the used water, a 4-inch pipe is generally used because it is suitable for handling large volumes of water but not high pressure.
In the used water system of this apartment, Rucika PVC Class C is used (for low pressure or gravity channels such as wastewater disposal or drainage systems):
4 inch rucika pipe
Here are the specifications of the pipes used:
• Outer diameter: 114 mm
• Wall thickness: 2.7 mm
• Working pressure: Not for pressure (only for gravity drainage systems).
i n g
fire safety and protection
fire protection
Fire protection system or also called fire alarm system (fire sensing system) is an integrated system designed to detect fire symptoms
fire protection also consists of several types, namely:
1. Fire Detector System.
2. Fire Alarm System.
3. Fire Sprinkler System.
4. Fire Suppression System.
5. Fire Hydrant System.
FIRE DETECTOR SYSTEM
HOW FIRE DETECTOR WORKS IS BY capturing fire signals through smoke, heat, gas leaks, and flames
FIRE DETECTOR detects fire by detecting small particles in the air fire detectors also have several types, namely, heat detectors, smoke detectors, flame detectors, gas detectors and beam detectors.
fire detector '(ásenware)

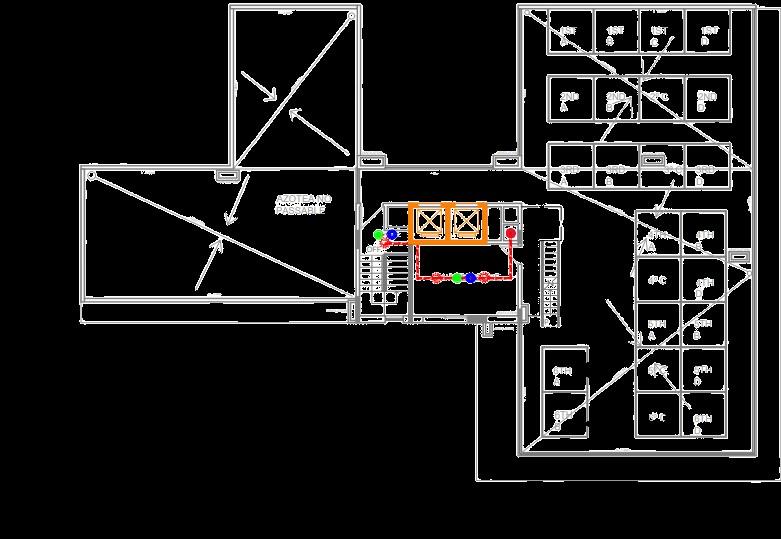

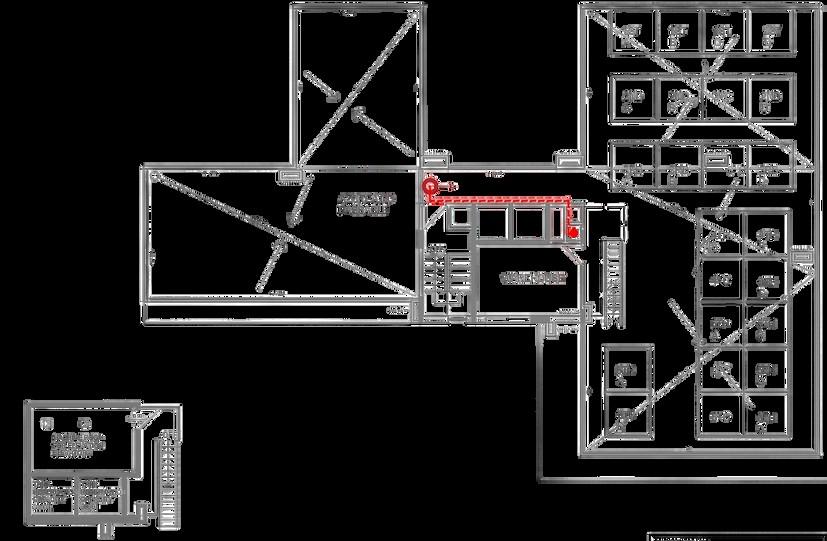

parKING AREA
kau pepek

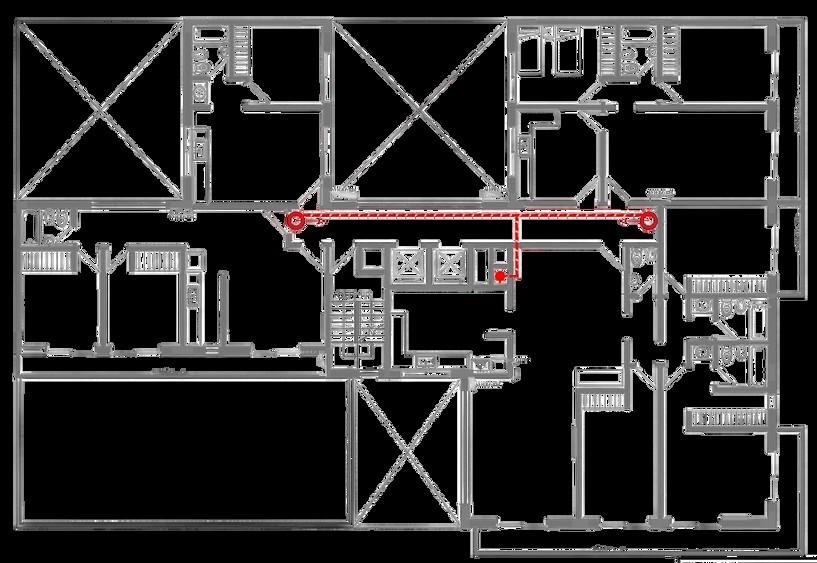

2. FIRE ALARM SYSTEM
fire alarm system Fire alarm is a system built with the aim of detecting fire symptoms in a building, especially for multi-storey buildings or neutral buildings.
So, with the presence of a fire alarm in a building, of course, it will make it easier for the building security team to quickly find out the specific fire area. So, the evacuation and extinguishing process can be done quickly. The way the fire alarm works itself relies on a detector that will detect fire symptoms in a room. here are the types of fire alarms
Conventional Fire Alarm, is a type of fire alarm used in relatively small buildings because it has a cheap price.
Addressable Fire Alarm, is a type of fire alarm used in large buildings and has an expensive price. Each device has its own ID and also an alarm at each point.
Semi Addressable Fire Alarm, is a type of fire alarm that is similar to an addressable fire alarm but has a conventional input detector.

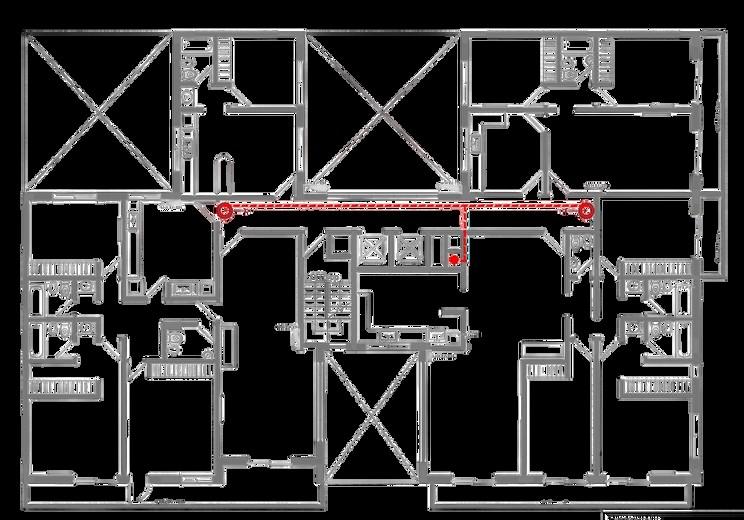

fire safety and protector

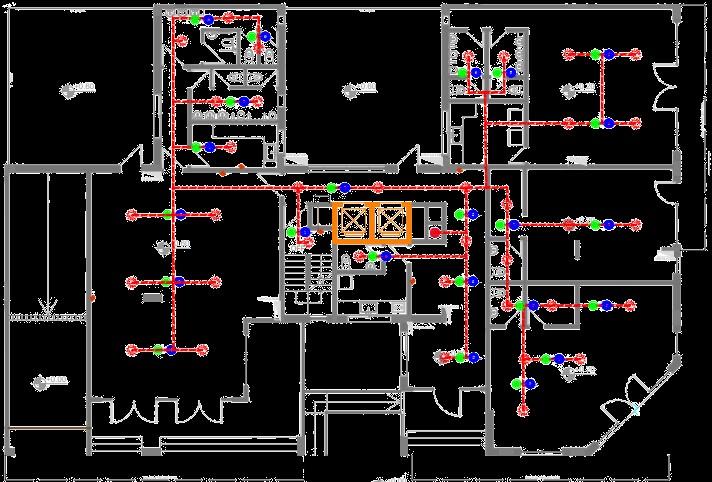

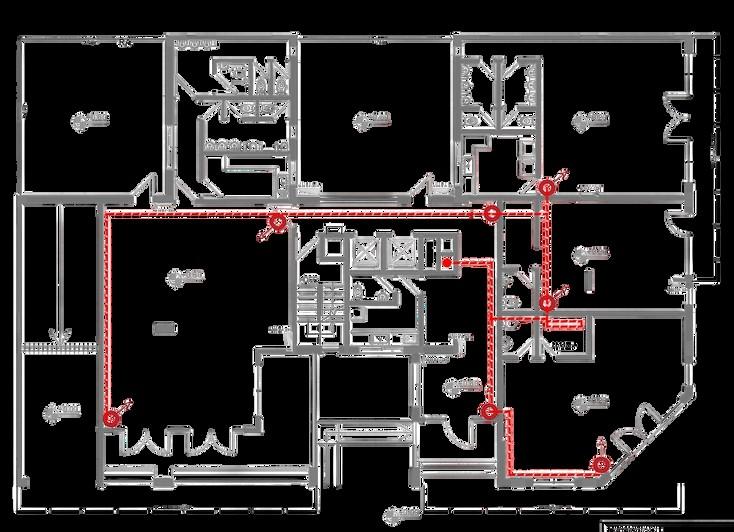

1,2 and 5 floor

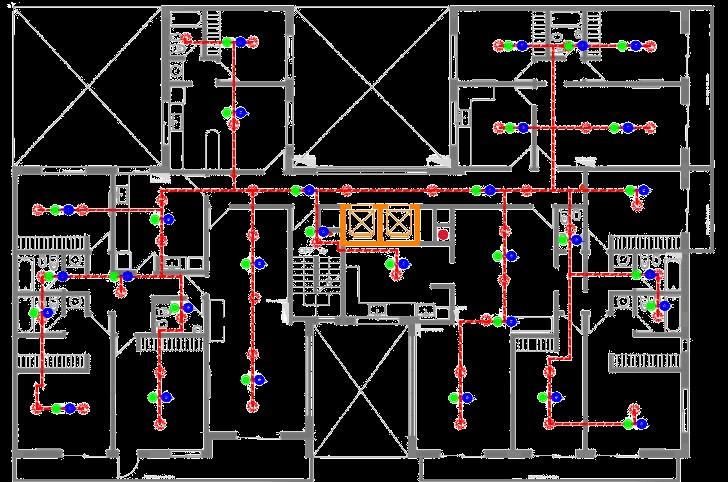

fire alarm (spectalert)
3 and 4 floor

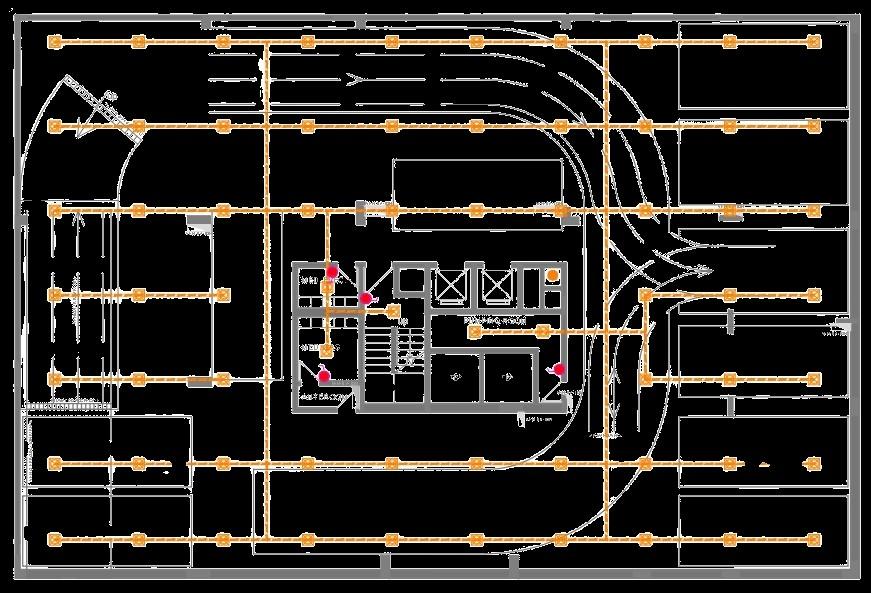

fire sprinkler (tyco)
f3. fire sprinkler system

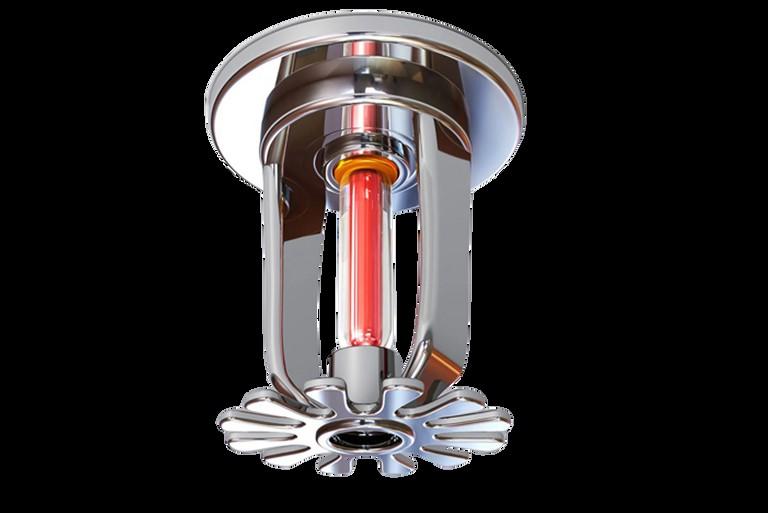

Fire sprinkler system is an automatic fire extinguishing system designed to detect and respond quickly to fires in buildings. This system works by spraying water media into areas where fire is detected. The following are types of sprinkler systems:
1. Wet Pipe Sprinkler System
A wet pipe sprinkler system is the most common type of sprinkler where the pipes are always filled with water. This allows for a very fast response to fires because water is sprayed directly onto the fire as soon as the sprinkler head is activated by heat.
2. Dry Pipe Sprinkler System
The fire sprinkler components in a dry pipe system are filled with pressurized air or nitrogen gas up to the sprinkler head. So, water is only filled into the pipe when a change in pressure is detected due to activation of the sprinkler system head.
3. Pre-action Sprinkler System
A pre-action fire sprinkler combines components from a dry pipe and an electronic fire alarm system. Water is not filled into the pipe until the fire detection system first identifies a fire in the protected area.
4. Deluge Sprinkler System
The deluge system is equipped with all sprinkler heads open and pipes that do not contain water. Water is released to all sprinkler heads at once when a fire detection system is triggered. Generally, this system is often used in areas with high fire risk.
fire safety and protector
6 and 7 floor fire suppression (fenwal)

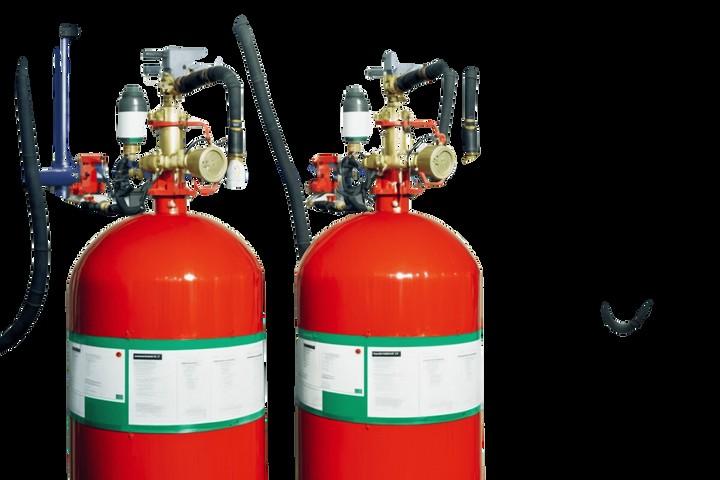

4. fire suppression system
This system is equipped with a highly sensitive fire detector that can detect early signs of fire, such as smoke or increased temperature. With this early detection, fires can be overcome before they grow wider and are difficult to control. After detecting a fire, the fire suppression system function immediately works to extinguish the fire. The extinguishing media used is designed to work quickly, reduce property damage, and minimize the risk of fire spreading to other areas.
fire safety and protection
5. fire hydrant system
Fire hydrant is a fire extinguishing system that functions as a water terminal that will extinguish fire if a fire occurs. This fire extinguisher consists of various components, namely a reservoir, suction pipe network, fire pump, distribution pipe, and output components. The following are types of fire hydrants:
1. Reservoir / Ground Tank
This hydrant component functions to store a certain amount of water that will be needed to extinguish fire if a fire occurs.
2. Hydrant Pump
A hydrant pump is a pump found in the hydrant system and has the function of pumping water from the reservoir that has been installed. Then,
3. Hydrant Pipe
The hydrant piping network is a number of pipe fittings that have various diameters. This pipe network system functions to channel water media from the water reservoir to the output network, such as the hydrant pillar.
4. Hydrant Pillar
The hydrant pillar is an output network in a series of water distribution systems. So, after the water is pumped from the reservoir, it will be directed directly to the hydrant pillar. Only after that, the water can be connected to the fire hose to extinguish the fire.
5. Hydrant Box
The function of the hydrant box is to keep the equipment inside safe and undamaged. In addition, it will also make it easier for officers so that they do not have difficulty in finding fire extinguishing equipment.

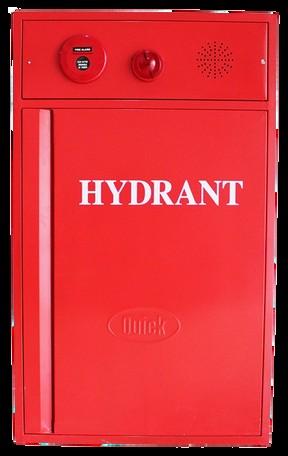

hydrant box (starvvo)

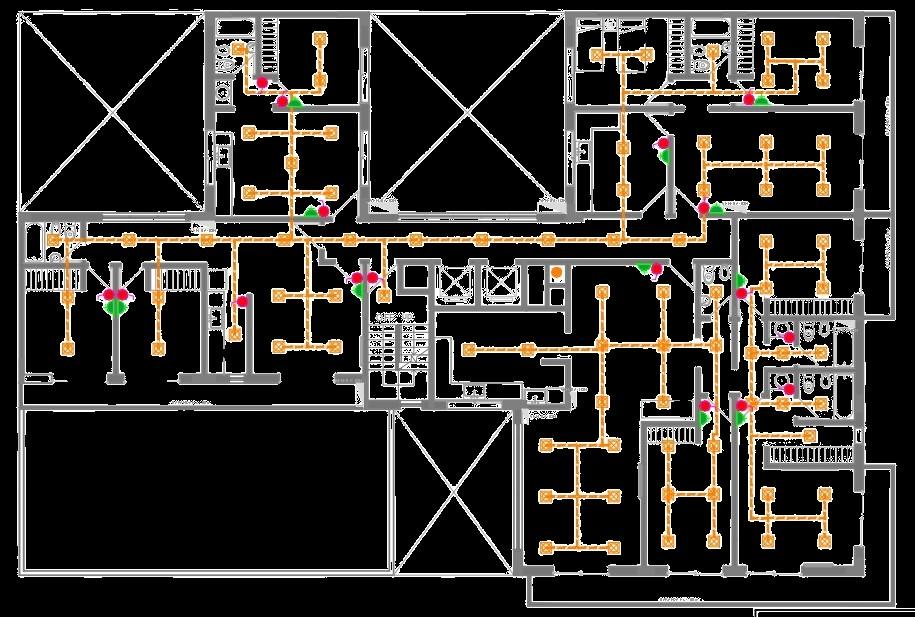

ELECTRICAL PLAN

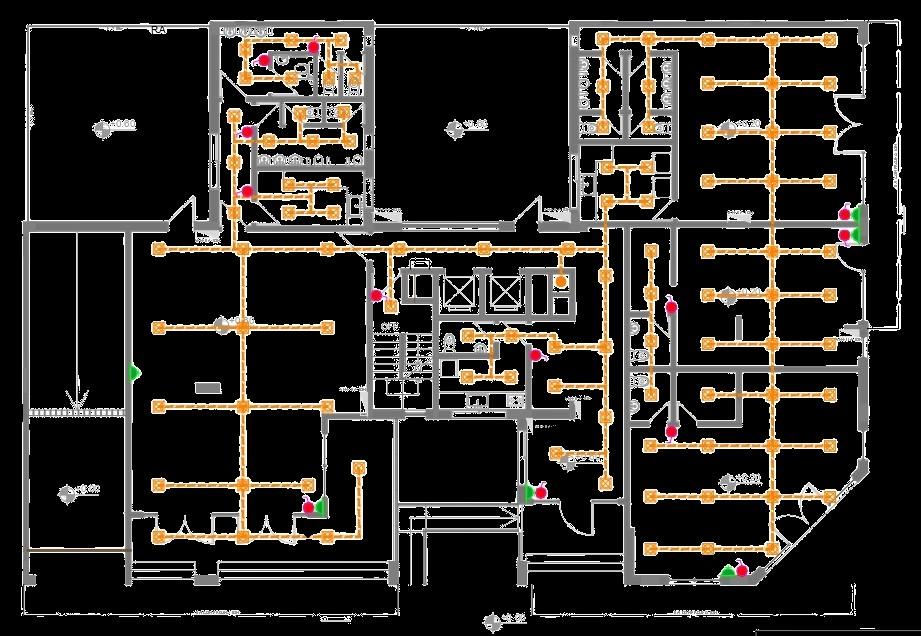

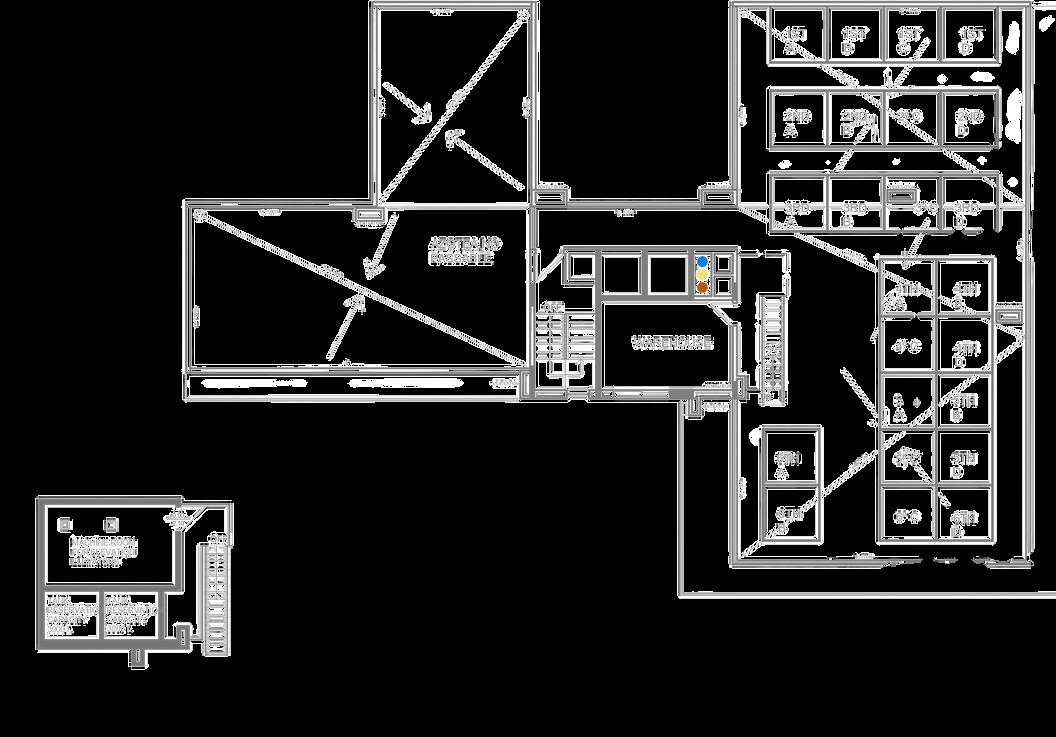

GROUND FLOOR
ELECTRICAL LINE

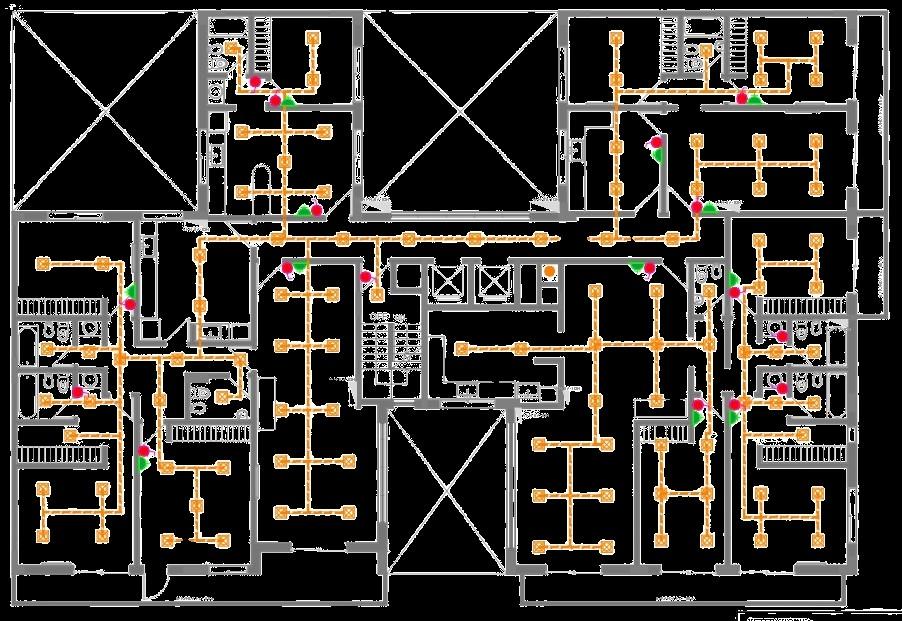

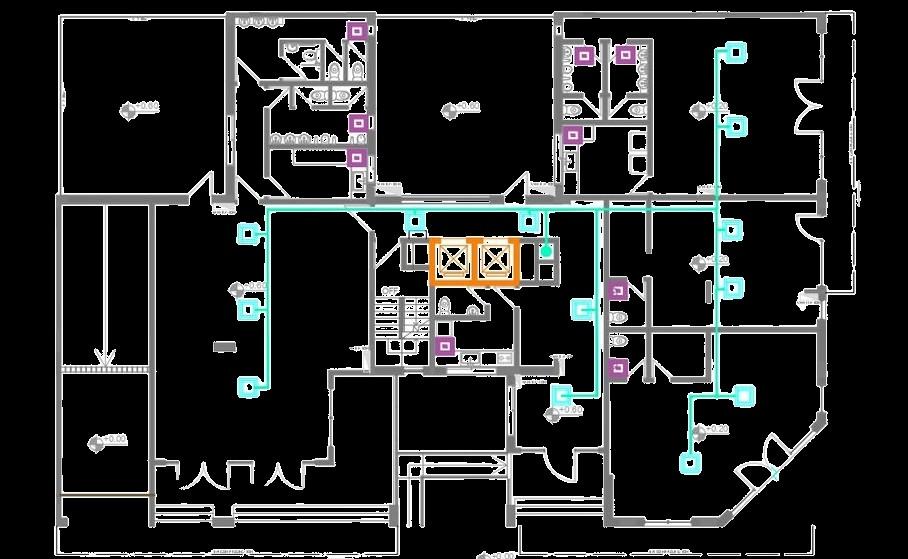

single switchl selectric socket
FUNCTION OF LIGHTS IN BUILDINGS
• General Information
• Accent Lighting
• security
• Energy Efficiency

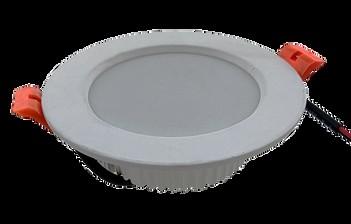

Downlight is a term for lamps that have a directed and focused lighting effect for lighting that requires accents. This type of lamp is very popular for residential and commercial areas because it adds an elegant touch to a room. Simply put, downlights are lights that shine into an area by directing the light into a narrow beam.
Usually the most commonly used installation areas in the home are the kitchen, living room and bathroom. Downlights are suitable for highlighting the aesthetics and elegance of an architectural feature, work of art, or decorative element that makes a room look alive. Not only that, this type of lamp is also a solution to save electricity costs.
tYPES OF DOWNLIGHT LIGHTS
• Inbow Downlights
• Outbow Downlights
• slim Downlights
• spot Downlights
• square Downlights
Benefits of Downlights
Installing these lights can provide many benefits for your home.
Downlights can provide a contemporary look and the light beam makes your home elements look modern compared to traditional lighting.
Apart from that, downlights also make the room look bigger and can save energy consumption when combined with incandescent lights.
This type of lamp can last a long time and still provide bright lighting because it consumes 75% less energy and lasts 25 times longer. Downlights are also more environmentally friendly and really help save in terms of energy, space and costs.
1ST AND 2ND FLOOR
lampu downlight inbow
ELECTRICAL LINE single switchl selectric socket
ELECTRICAL LINE
single switchl selectric socket
3RD AND 6TH FLOOR

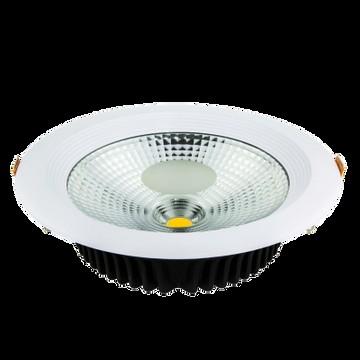

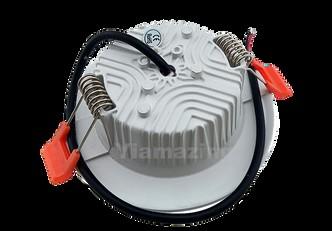

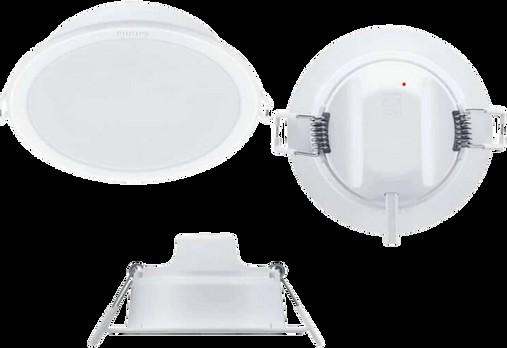

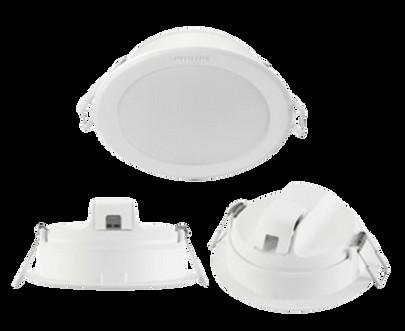

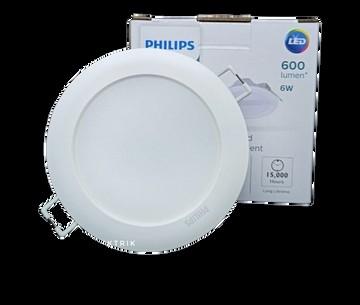

Philips Eridani LED Downlight 12W
superiority
• Minimalist and Aesthetic Design
• Energy saving
• even Lighting
• easy to Install
• light Color options
downlight LED philips DN020B 8W 8 watt w D100 sparepart
SUPERIORITY
• compact and Modern Design
• flexible use
• high durability
• ease of installation lumens requirement
• Sleep space: about 100-150 lumens
• bathroom: 210-240 lumens
An LED lamp has a light effectiveness of around 7090 lumens per watt (lm/W)
electrical PLAN
TA 220V RGB Outdoor Waterproof
IP65 IP66 IP67 LED Downlight 6W 9W 12
LED lights rated IP66 or IP67 are especially suitable for engine rooms because they are resistant to dust and water, so they can be used in aggressive environments.
MECHINE ROOM
PARKING AREA
interlaced optics technology helps reduce glare, thereby providing more even and comfortable lighting in the parking area. ELECTRICAL LINE single switchl selectric socket
Downlight LED Philips 59449
MESON 105 9W 65K WH ID recessed
vertical circulation
Vertical transportation in architecture is a transportation method used to transport people or goods vertically, either from bottomtotoporviceversa vertical sirculation mechanical manual
LIFT (ELEVATOR) TRAVATOR
vertical circulation
The specifications for an ideal apartment staircase include:
• Wide, Emergency stairs should ideally be 1.5 meters wide so that two people can pass side by side.
• Railings, Emergency stairs are equipped with safety fences or sturdy stair railings on both sides. The height of the stair railing ranges from 75-100 cm
• Banister, The height of the stair handrail or handrail is usually between 85-95 cm from the nosing tread
cross over
vertical circulation
An elevator is a vertical transportation vehicle used to transport people or goods in high-rise buildings. Modern lifts have four main types, namely hydraulic, traction, machine roomless, and vacuum
The most commonly used passenger lifts are traction lifts
General Specifications:
• Capacity : 450 kg to 1000 kg (5-13 people).
• Speed : 1 m/s to 2.5 m/s.
LIF T

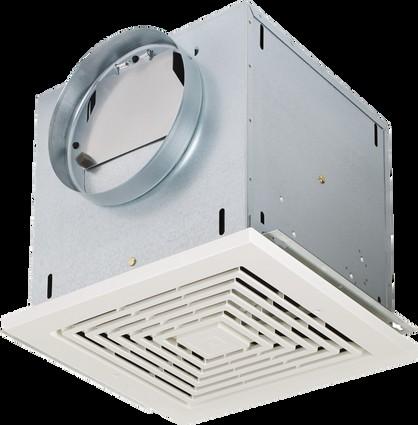

exshost fan
Exhaust Fan, adalah alat yang digunakan untuk
meningkatkan sirkulasi udara di dalam ruangan dengan cara menarik udara dari luar ruangan atau
mendorong udara dari dalam ruangan sehingga
udara di dalam ruangan tetap bersih.
Fungsi exshost fun
• ventilasi udara
• pendinginan
• penghilang debu dan partikel
• penghilang gas bahaya
• pengendalian kelembapan
• pengehemat energi
• perlindungan terhadap kebakaran
broad nu tone, Light Commercial 270 CFM
Ceiling Mount Ventilation Fan, 1.5 Sones
ENERGY STAR® certified
satu merkec
xshost fun yang dimana memiliki pengendalian
udara yang tinggi

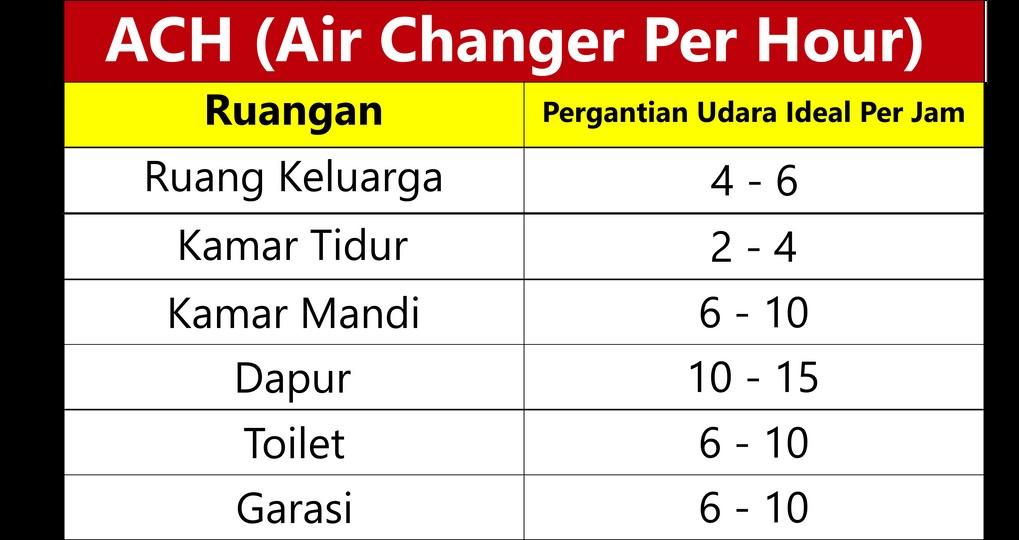

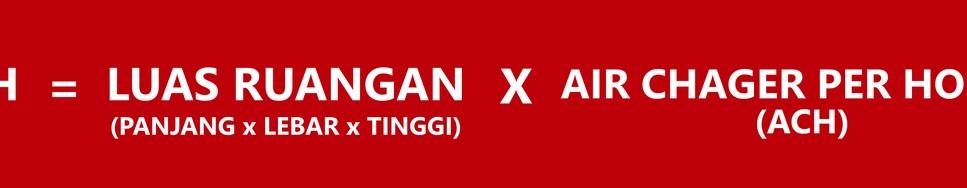

Perhitungan exshost fun
Luas parkir mobil dengan lebar 3m x 5m x tinggi
plafoan 3m dengan pergantian strandart udara 10 makan kebutuhan exshonst fun? = (3m x 5m x 3m) x 6 ? = 45 x 6
= 270 m/jam / 270 cmh
Salah

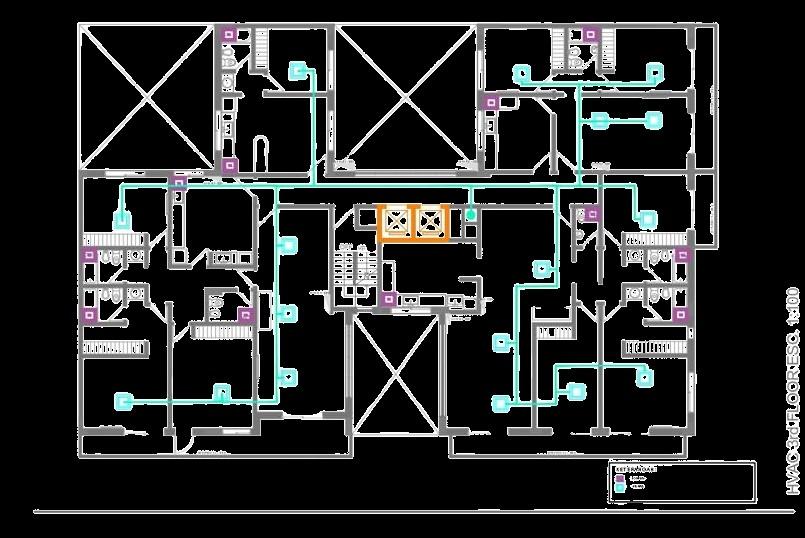

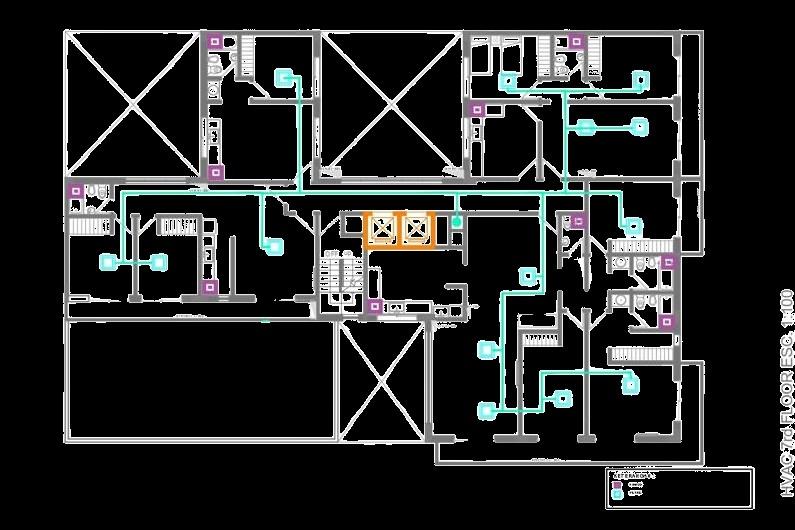

Ac & exshost fun
lantai 1,2&5
Berjalan secara otomatis melalui sensor gerak dan sensor kelembaban*. Suara kipas dan motor dikontrol guna meminimalkan tingkat kebisingan. Kipas knalpot yang tertanam di langit-langit dengan daya tahan yang sangat baik. *FV-24CHRV2, FV-24CURV2 saja

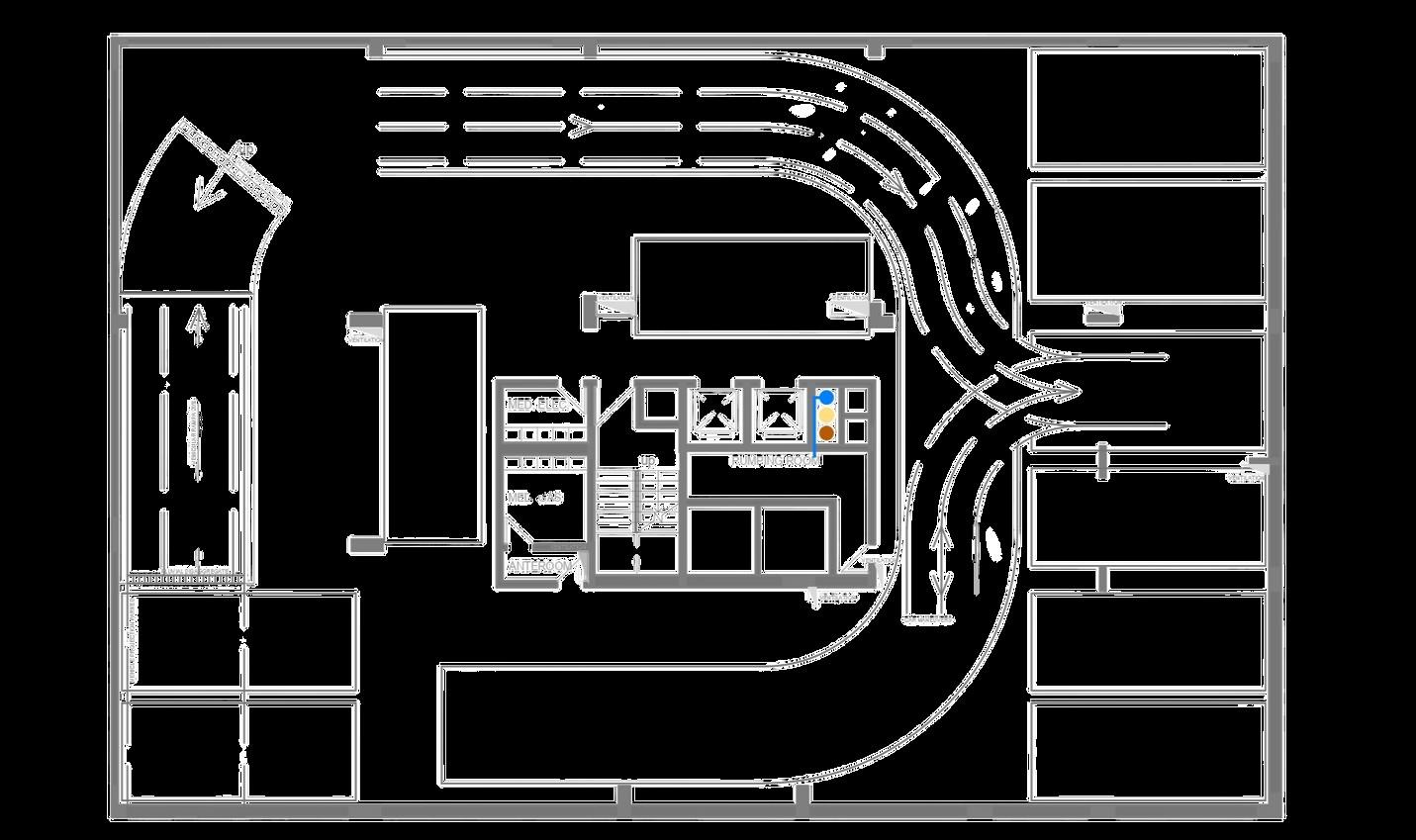

Parking area

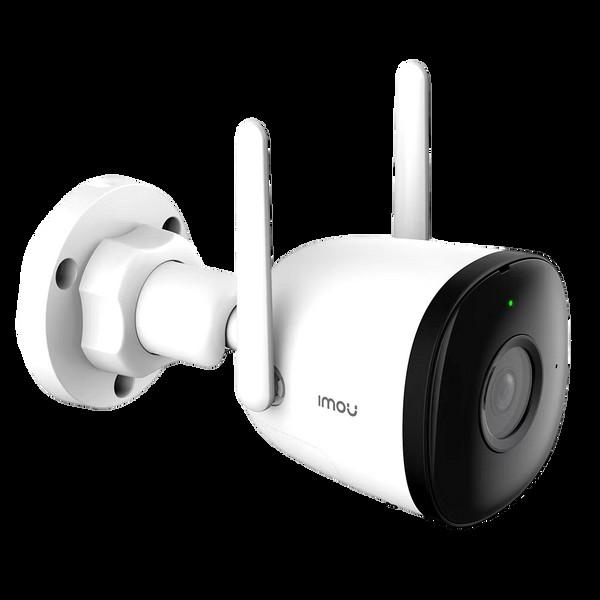

Imou smart ip camera CCTV
bullet 2c h. 265 ip67 2.8 mm
Cctv
CCTV or closed circuit television, is a camera system used to monitor and record activities in certain areas. CCTV signals cannot be accessed by just anyone, CCTV can only be accessed by certain people and based on certain needs.
CCTV function
CCTV has several main functions, namely;
• increase supervision in certain places.
• providing recordings that can be used as evidence in legal cases
• allows for remote monitoring
CCTV type
• can produce clearer and more detailed images even in complete darkness.
• can capture clearer sound with minimal interference
• can also detect humans.
• can have a range of 30m at night.
• can have a horizontal field of view of about 110°
Ground floor
1st and 2nd floor
Cctv
• Placing a CCTV control room on the ground floor allows security officers to quickly access and monitor the situation, especially in emergencies. This location makes it easier to monitor critical areas such as entrances and exits, placement on the ground floor minimizes the risk of damage due to extreme weather or device theft.
• Place the CCTV in a position that can reach the entire room.

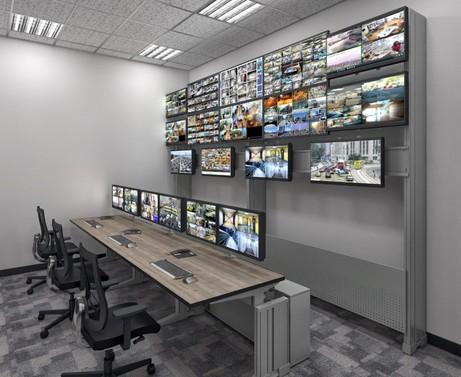

Cctv control room
Placing CCTV at the end of the corridor can still maintain the privacy of apartment users. The position of CCTV at the ends of the corridor can make it easier for SECURITY to maintain and monitor the situation, especially in emergencies. This location makes it easier to monitor critical areas such as entrances and exits,
3rd To 6th floor
Placing CCTV near the stairs can make it easier for security to monitor anyone who accesses the location, especially in emergencysituations
Machine room
Rooftop
