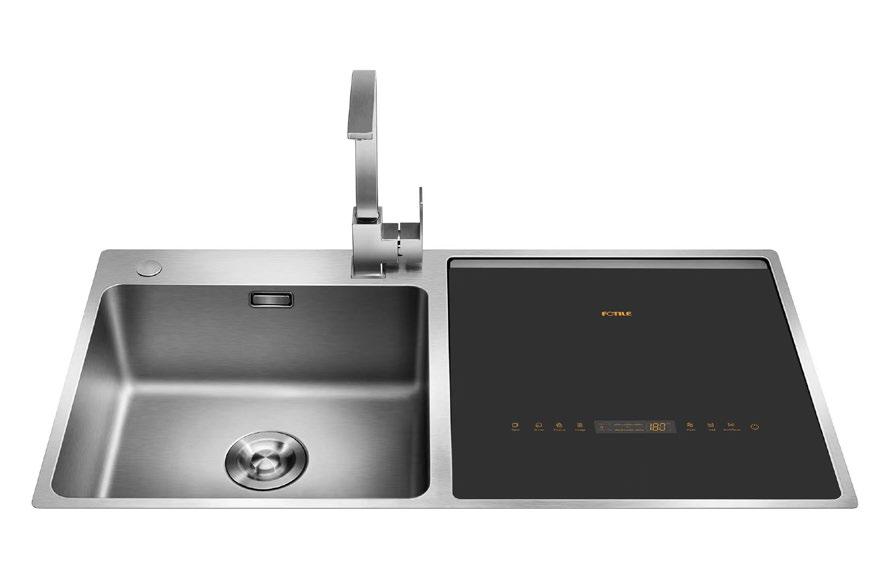

Fotie 3-In-1 Sink Dishwasher

FOTILE Sink Dishwasher High Pressure HydroJet Technology Remove pesticide residues from fruits and vegetables* Sink Dishwasher Original Inventor

China Home Appliances First Prize for Scientific and Technological Progress

China Home Appliances AWE Award

*The product is not equipped with a faucet and needs to be purchased separately

Canton Fair Export Product Design Supreme Gold Award

China National Light Industry Council Science and Technology Invention Award

High Pressure HydroJet Technology What is High Pressure HydroJet Technology？ High Pressure HydroJet Technology was inspired by military-grade submarine underwater cleaning technology. By continuously injecting a stream of bubbles into the water, hundreds of billions of cavitation bubbles are continuously generated in the water, accelerating the speed and momentum of the water flow. Concurrently, the explosion of bubbles effectively strips away stubborn bacteria and stains.

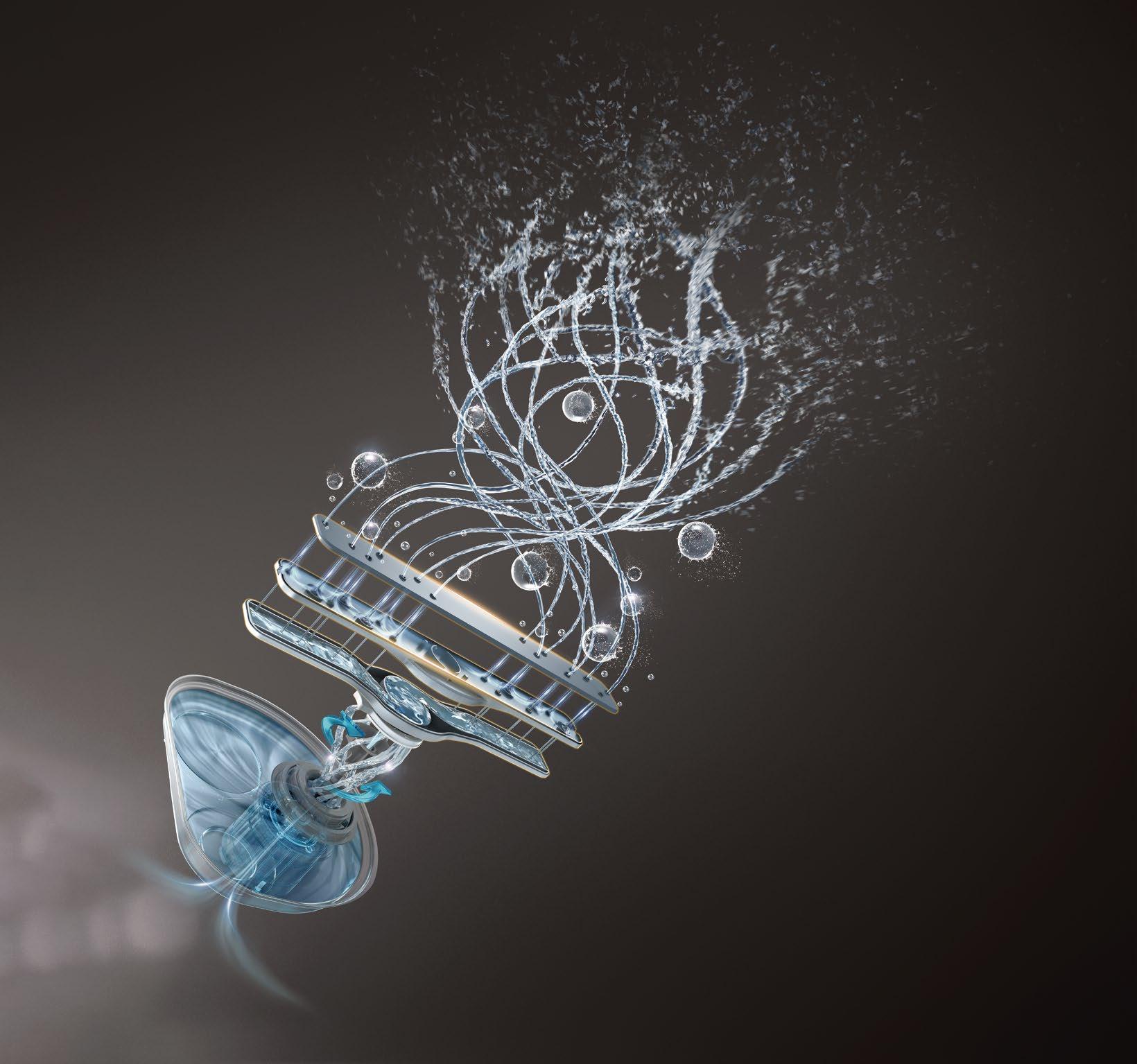

Water-Vapour mixing spray arm Through a specially designed dual-layer spray arm structure, water and air are combined to create a hybrid spray column of water vapour, generating a significantly stronger jet of water compared to a regular water column."

Revolutionising dishwashing power Propel the evolution of the industry Compared to pure water washing, the high-speed water flow from the hybrid water-vapour mixture and the explosive impact generated by high-energy bubbles are as powerful as a bomb, effectively addressing the challenge of stubborn grease stains that are hard to clean.

Blasting grade cleaning Complete coverage

Stubborn seafood stains can be effortlessly cleaned with a powerful spray

High-energy bubbles provide rapid, impactful coverage, effectively stripping stubborn grease stains from tableware

Crabs, crayfish, and other seafood can be easily cleaned, allowing you to enjoy a seafood feast without any hassle.

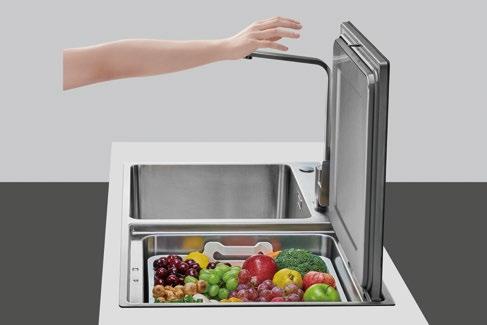

Three modes of washing fruits, vegetables Remove pesticide residues from fruits and vegetables

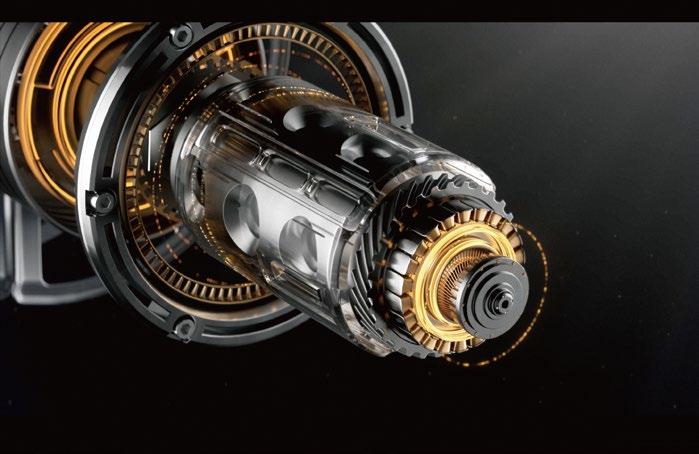

Equipped with a high-quality DC motor, it delivers maximum water pressure for stable and powerful performance

Mastery over water ensures that fruit and vegetable residues vanish without a trace

DC variable frequency for surging power

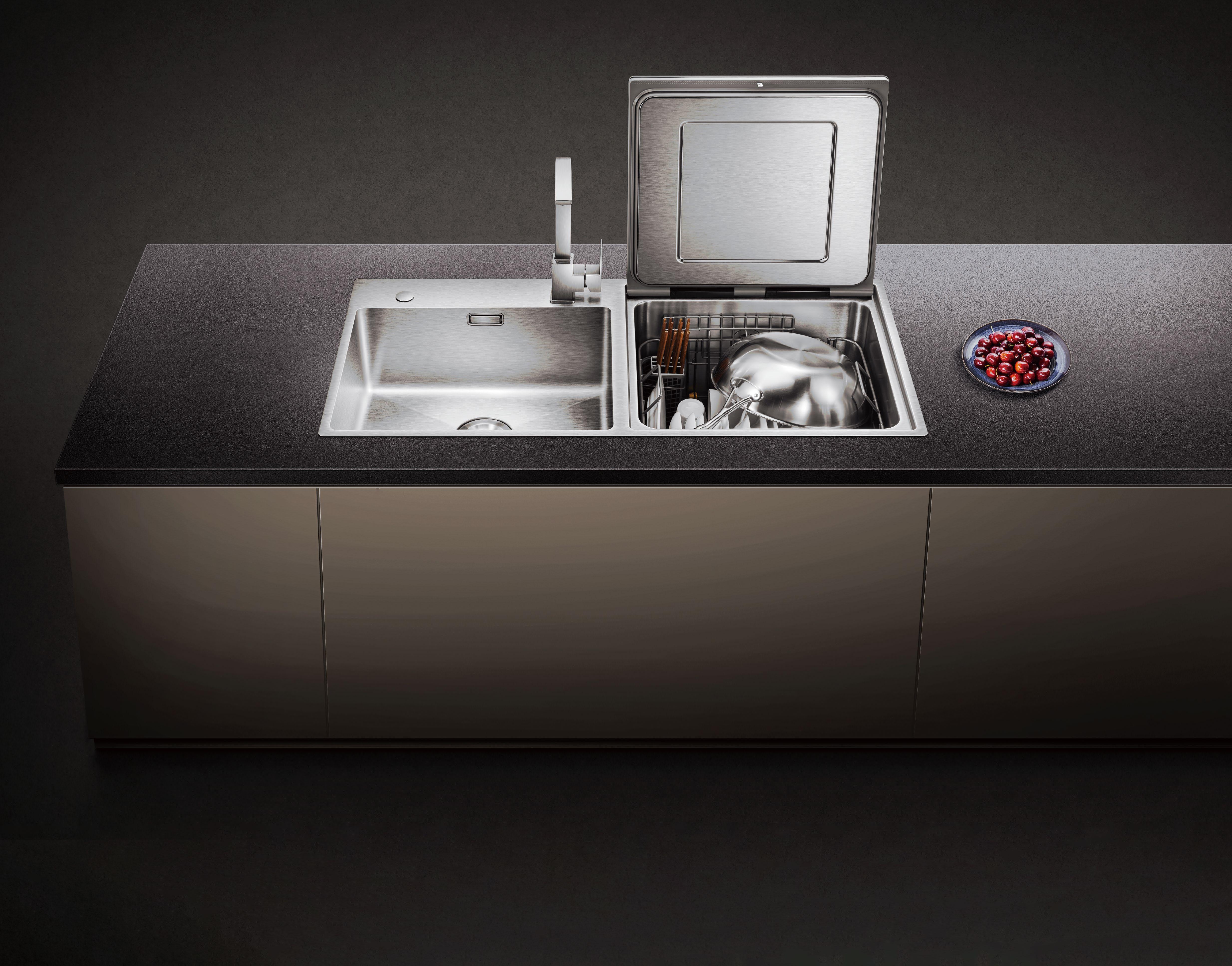

Handmade large sink

Large volume for 5 place setting Dinner platex15

Glassx5

455MM

Coffee cupx5

Knife and forkx10

Larger sink capacity

Small platex5

Spoonx15

All-in-one Design Washing, Disinfection, Drying and Dehumidifying with one touch Not only washing and removing pesticide residues, but also disinfecting, drying and storing.

Six major features converge in one, utilising revolutionary high-energy bubble washing to effortlessly eliminate tough grease stains, ensuring cleanliness and safeguarding the health of the entire family.

15

Quick Wash

Powerful drainage

One button "ultra-fast wash"

Patented efficient water drainage No residual water

15 mins fast cleaning

odour in the chamber

Hassle free Drying

Odour-free Storage

Triple strong drying for preventing

Automatic air circulation in he chamber 96 hours long-lasting cleaning storage

secondary contamination

PTC hot wind - Using residual heat from high-temperature wash for fast drying, the door lifts automatically for ventilation, ensuring effective dish drying

*The product is not equipped with a faucet and needs to be purchased separately

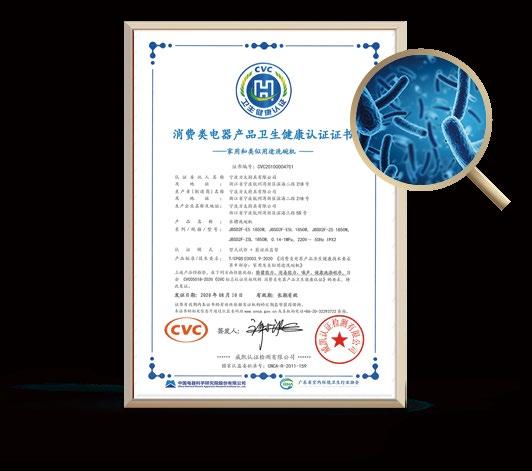

CVC Certification & Testing Co., Ltd. Certification

Sterilisation with confidence Equipped with a built-in rapid heating plate, the dishwasher can quickly raise the water temperature to 75℃ during the washing mode.

Paired with Fotile's unique high-energy bubble washing technology, it achieves a 99% sterilisation rate, ensuring a worry-free experience.

Inactivation of poliovirus logarithmic value >99.99% Escherichia coli and Staphylococcus aureus removal rate >99.99

Humanised design and Thoughtfulness everywhere

Take and place bowls without bending over

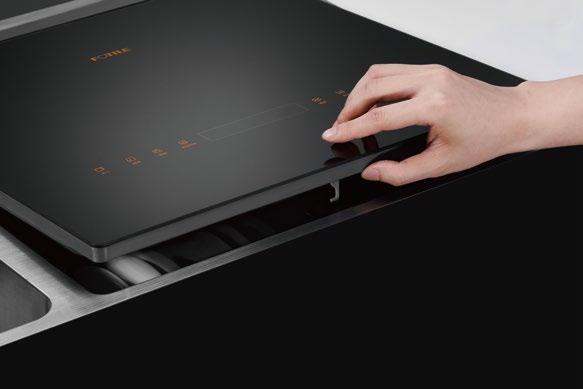

Memory wash for more peace of mind

Ergonomic design

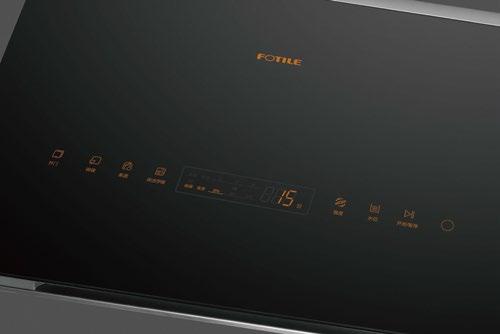

The control panel automatically recalls the last cleaning mode.

Easier to use.

Healthier and more comfortable for daily use or cleaning without bending over

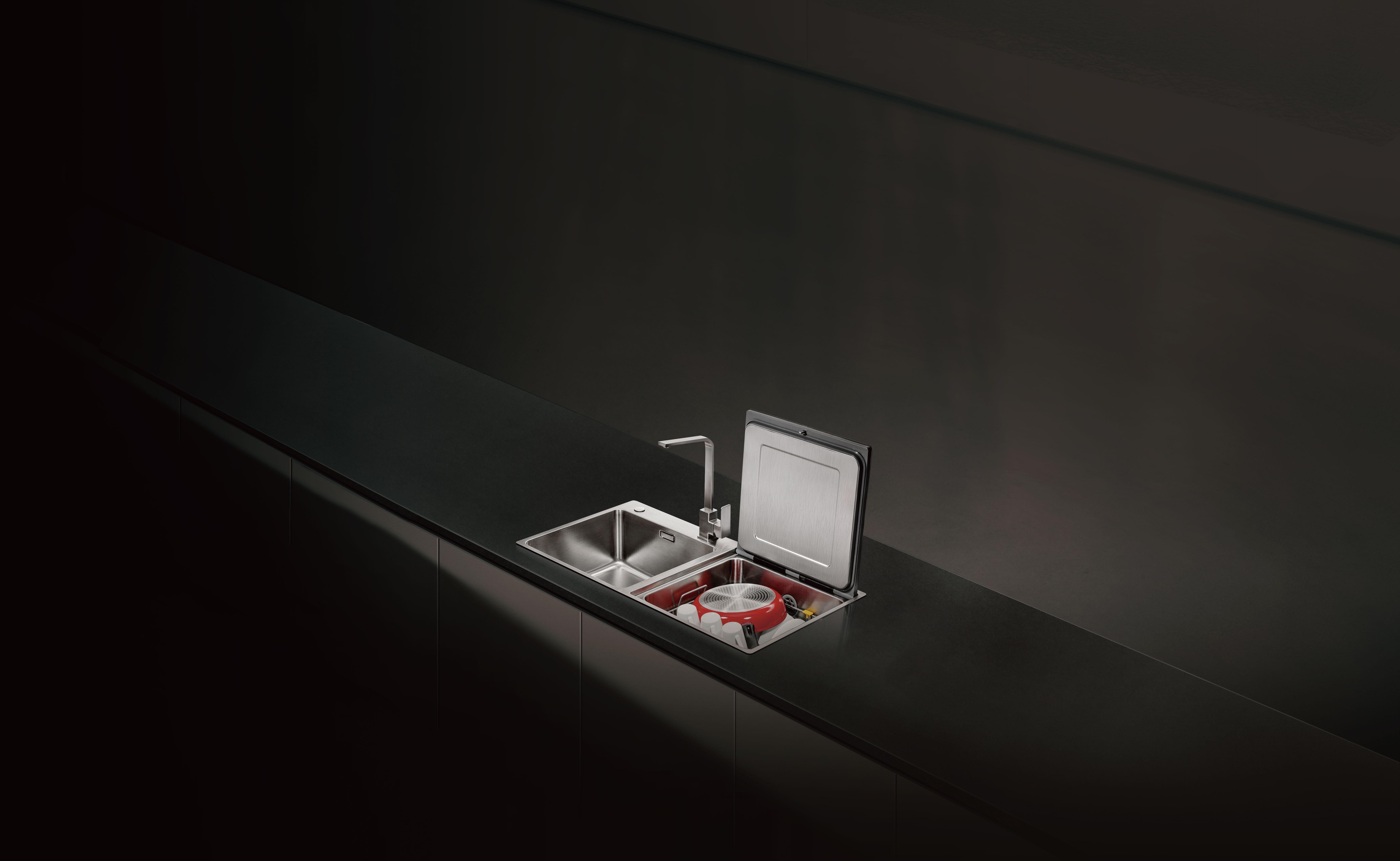

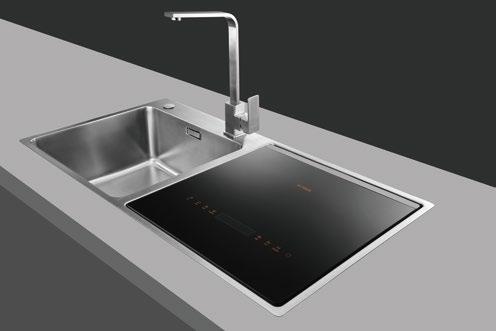

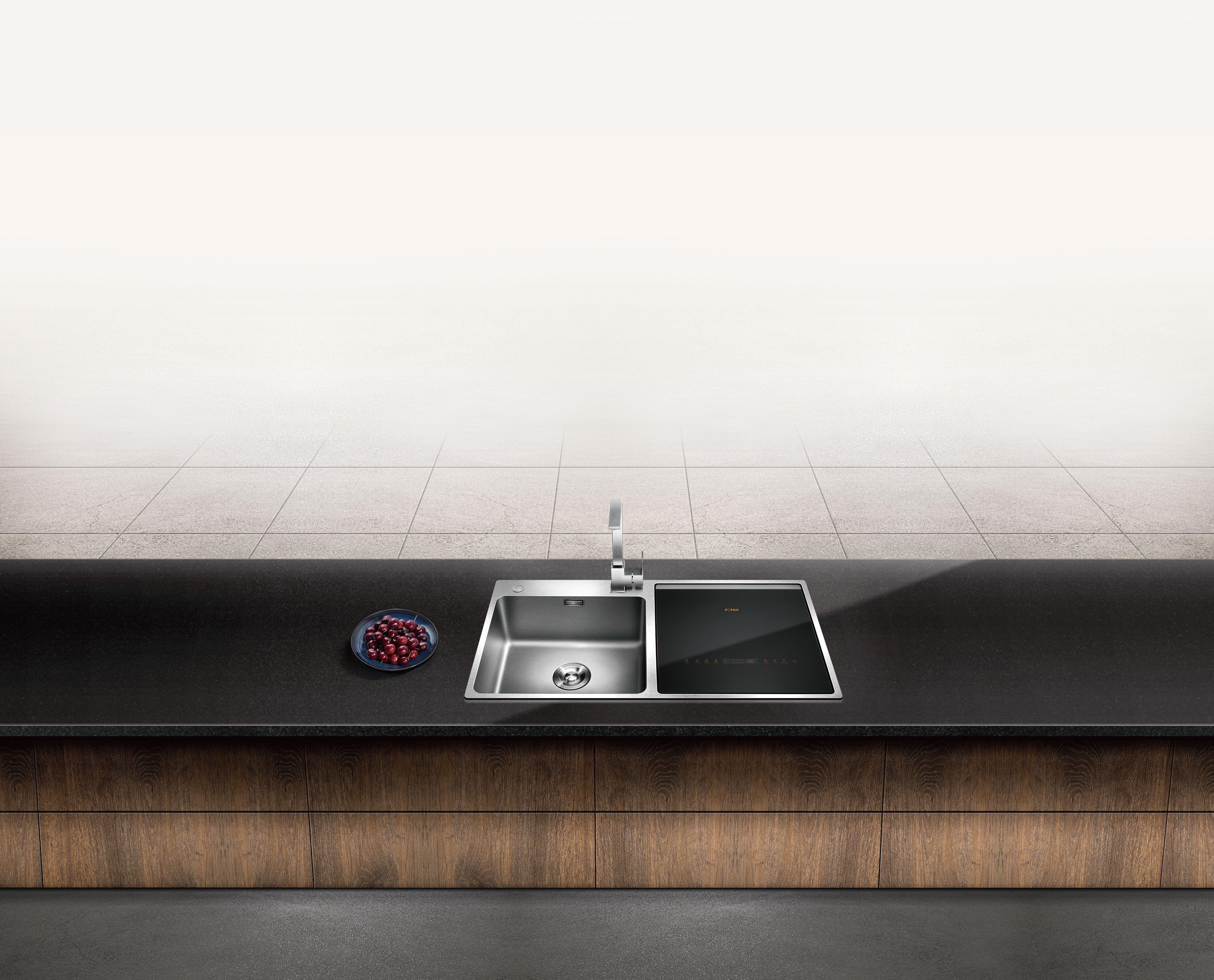

Flush-mounted Installation The sink seamlessly integrates with the countertop, combining aesthetics with easy maintenance.

*The product is not equipped with a faucet and needs to be purchased separately

Enhanced safety through multiple layers of protection Mechanical door lock

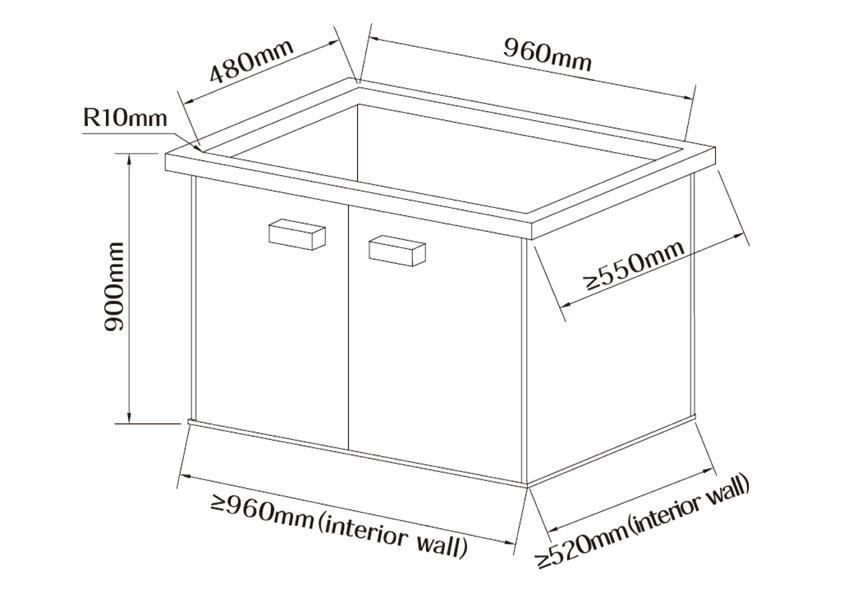

FOTILE Sink Dishwasher Cabinet design and installation instructions Opening dimensions Product dimensions 985MM

MM

505

≥ 550MM

550MM

MM

480

960MM

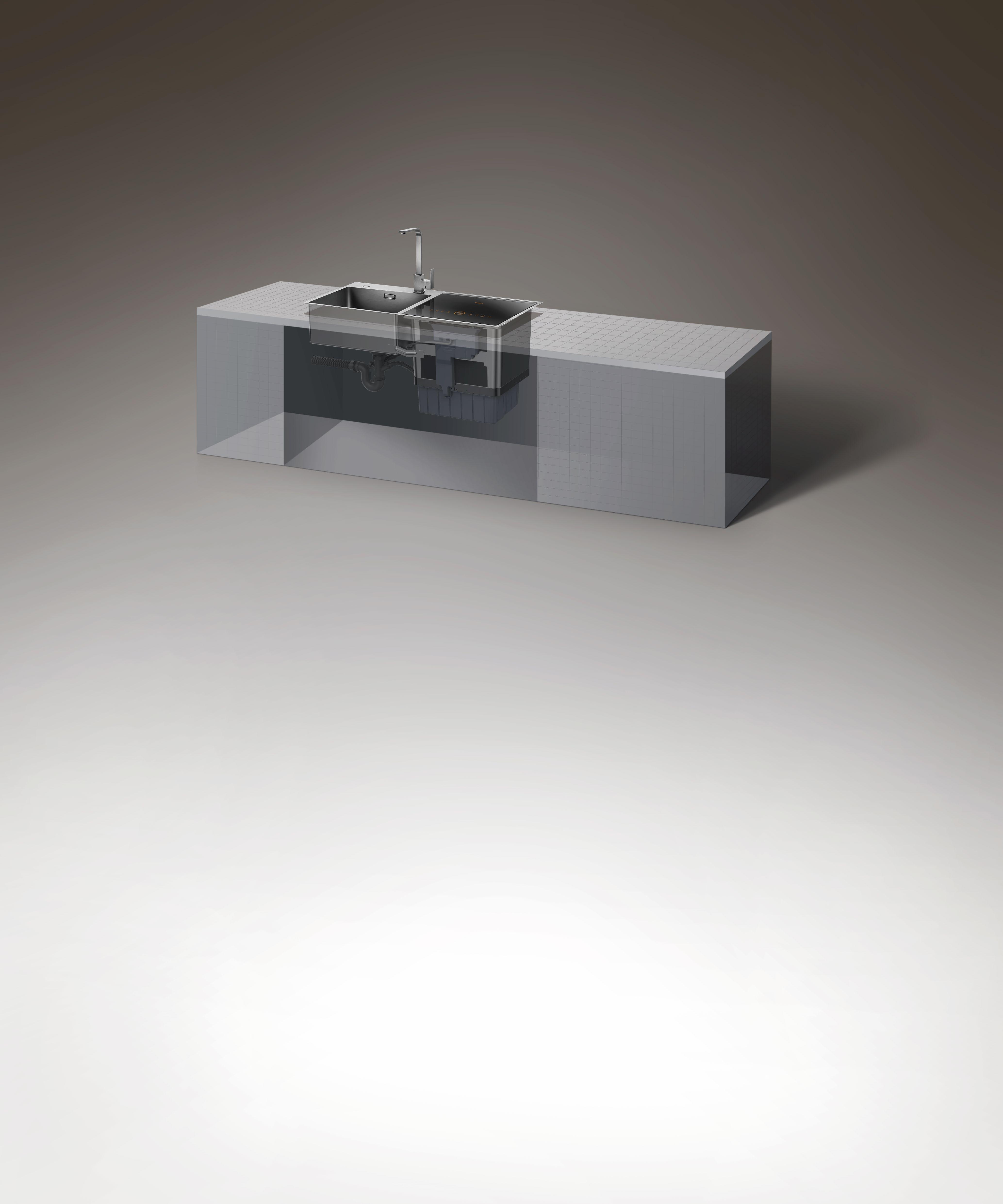

Installation method It should be installed securely in a stable and accessible location for easy operation and maintenance, and must not be installed in an inclined position It is strictly prohibited to install the product in a place where it may be exposed to moisture or easily wetted by water.

The product is embedded in the cabinet, the cabinet material where the product is installed must be resistantto heat and humidity.

When installing the product, the distance between the product and the gas meter and gas pipe should be kept more than 30cm, and the distance between the socket and the gas meter and gas pipe should be kept more than 15cm.

Drainage pipe height requirements: the height from the top of the installation countertop to the downpipe should be greater than or equal to 550mm.

Rear view

Top view

505mm

247mm 497mm

221mm

550mm 490mm 345mm

985mm

455mm 985mm

490mm

345mm

22mm

82mm

480mm 505mm

Side view

800mm

Front view

*The product is not equipped with a faucet and needs to be purchased separately

550mm

444mm

444mm

35mm

Product parameter

SD2F-P6 Product Dimensions (LxWxH)(mm):

985x505x550

Opening Dimensions (LxWxH)(mm):

960x480x≥550

Voltage/Frequency:

240V/50HZ

Power (W):

1950W

Water Pressure Range:

0.14-1MPa

Maximum Noise (dB):

55.6dB

Capacity for tableware sets:

5

Energy Usage:

190KWH/Year

WELS Water Rating:

3.5 Stars

Max Washable Dinnerware Diameter:

260mm

Rack Adjustability：

Yes

Interior Material:

Food grade stainless steel

Control Type:

Touch Control

Display Panel:

Digital

Leak Protection:

Yes

Child Lock:

Yes

Dishwashing Temperature:

Quick 15min 60°C, Quick 45min 70°C Intensive 75 °C, ECO 52°C

Program:

Quick 15min, Quick 45min, Intensive, ECO

Water Consumption:

Quick 15min 8L, Quick 45min 10L Intensive 12L, ECO 6.2L

FOTILE Australia Authorized General Distributor: Aurora Trading Group Pty Ltd 620 Camberwell Road, Camberwell Vic 3124 Telephone: 61-3-9939 9926 Emai: sales@ifotile.com.au

Official website： www.fotile.com.au *The product is not equipped with a faucet and needs to be purchased separately
