Screeds, Pavers Trowels
Sponsored by
Miller Formless M-8800 Slipforming System
The M-8800 can pour up to 102-in. barrier walls and bridge parapet walls and up to 20-ft. in straddle or side-mount configuration. • 173-hp Tier 4 Final diesel engine • MFS Control System includes sensors, handheld remote, and is 3D ready • Four tracks with independent steering and two-speed hydraulic drive motors • Includes 10-spool vibrator control, hydraulic frame widening (48 in.), heavy-duty dual transfer augers, 45-in. elevation tubes, highvolume water wash down system and triple grouser track pads • Pours in right- or left-hand configuration
ForConstructionPros.com/21093588

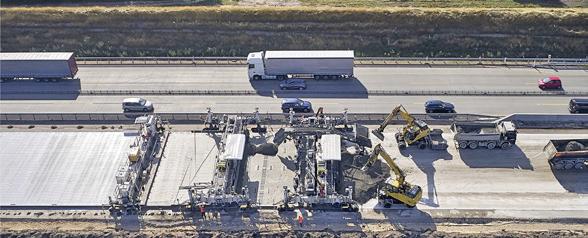

Wirtgen WPS 62i Concrete Placer/ Spreader
The WPS 62i/ WPS 62 two-track placer/spreader is designed to efficiently feed concrete from the side and spread it homogeneously in front of the slipform paver. Trucks feed the concrete from the side, which the placer/spreader then evenly distributes over the entire working surface. Two different working widths are available between 12 ft. and 24 ft. With both sizes, concrete can be laid up to 20 in. thick.
ForConstructionPros.com/21115736

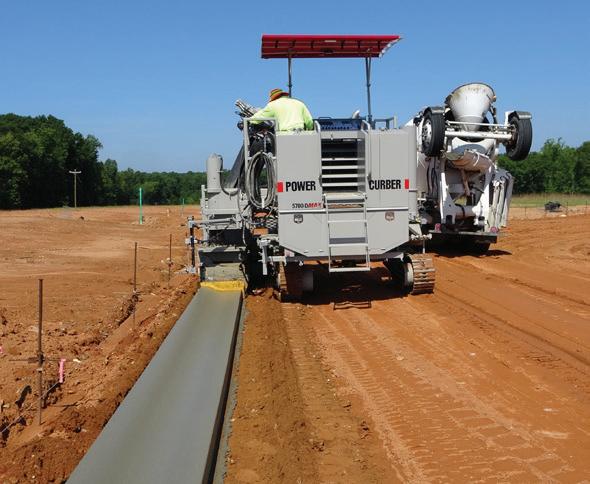

Power Curbers 5700-D Slipform Curb Machine
The 5700-D features the SlipSmart Control System, simple and accurate controls that come ready to interface with Topcon, Leica and Trimble 3D stringless systems. • “All up” jog switch raises or lowers all crawler posts simultaneously • Vibrator master scaling knob allows operator to increase or decrease vibration across all vibrators while individual vibrator adjustments remain relative to each other • Features improved cross-slope control, auto-calibration for the radius steer sensor, fine scaling of speed pots, an easy-pivot conveyor and more
ForConstructionPros.com/21096387
Salsco TPC-96 Concrete Paver
The TPC-96 guidance-controlled concrete paver can be operated via a radio-controlled belly pack instrument box carried by an operator. • 74-hp Hatz Tier 4 diesel engine • 1.5-cu.-yd. hopper capacity • Screed comes in 48-, 72-, 96- or 120-in. widths • Follows guidance string and adjusts tracking and screed elevation automatically in auto mode • Includes three adjustable, variable-speed, pencil-type vibrators, a 4.3in. color display with intuitive interface and rubber tracks with six idler rollers and a top drive sprocket for smooth travel
ForConstructionPros.com/12303526
Multiquip LD6 Hydrostatic Ride-on Trowel
The 6-ft. model LD6 rideon power trowel features a fully hydrostatic drive system and utilizes proven design concepts taken from larger ride-on models. • Standard 24-hp Briggs & Stratton V-twin engine direct coupled to a servo-controlled hydraulic pump and high torque drive motors • Available accessories include a six-LED light kit for illumination, retardant spray system, arm rests and an edging kit that enables finishing closely against walls • Each accessory kit designed for quick field installation
ForConstructionPros.com/21112985
Ligchine 2D Laser and 3D GPS/LPS Screeding Machines
Ligchine’s 2D laser- and 3D GPS/LPS-guided boom extension concrete screeding machines includes four wireless, remote-controlled, boom-operated models. • ScreedSaver II and ScreedSaver MAX 200 provide 130 and 200 sq. ft. of coverage per pass—suitable for confined, difficult to navigate pours • ScreedSaver PRO 220 and ScreedSaver BOSS 240 cover 220 and 240 sq. ft. per pass and include a 360-degree hydraulic turn system,
LED lighting and touchscreen display ForConstructionPros.com/21024784

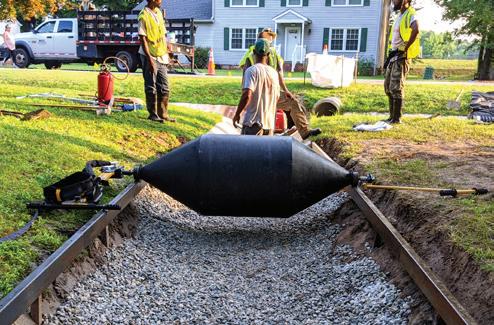

Custom Drum Designs by Curb Roller Manufacturing
Curb Roller’s custom drum solutions can be applied to applications as wide as 26 ft. and as deep as 4 ft. and can be created in a variety of shapes to meet job specifications. The custom solutions pair with the Curb Roller’s Hydra-Screed 3000 to allow for faster production times and a superior-quality finish on projects that would normally require multiple pours.
The custom rollers are ideally suited for unique shape requirements or large pours on jobs like drainage systems or spillways. The team at Curb Roller designs the drum to exact specifications, working with the project engineers to make sure the drum meets all project requirements. The drums are built to spec and are usually created in a month or less depending on shape and size.
Operators pair the custom drum with the Hydra-Screed 3000, Curb Roller’s two-operator hydraulically powered screed system that allows for continuous pours in applications like flatwork, flumes and more. The Hydra-Screed achieves job completion in half the time of alternative hand shaping methods and offers removable drive ends to quickly change different lengths of pipe or profile shapes.
ForConstructionPros.com/21378292
SCREEDS, PAVERS & TROWELS

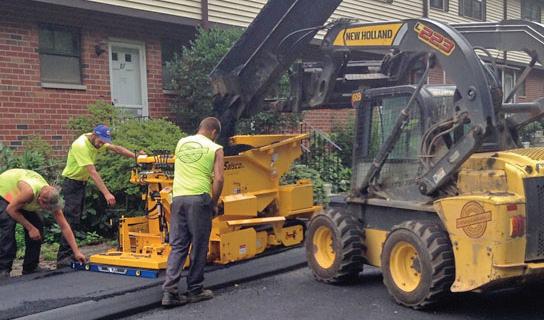

Salsco TP 44 Track Paver
The TP44 Track Paver is suited for paving sidewalks, cart paths, hiking and biking trails, trench work and any areas that are 2 to 6 ft. wide. • Hydraulic tilt hopper easily bolts together, allowing for the complete raising of the hopper for easy maintenance • Hydraulic end-gates move in and out, and have rulers on the top of the end-gate to see where they are • All controls located on the rear of the machine including the key switch and throttle
ForConstructionPros.com/21061078
Wirtgen SP 154i Slipform Paver
The SP 154i slipform paver features a 436-hp Cummins Tier 4 Final engine that enables paving concrete surfaces up to 52.5-ft. wide and 18-in. thick. • Available with automatic dowel bar inserter, up to three automatic side tie-bar inserters and a concrete conveyor for bottom layer paving • Standard oscillating beam and super smoother to produce a level surface
• Hydraulically adjustable one-piece or two-piece side plates on both sides to minimize concrete loss • Four steerable and slewing crawler tracks
ForConstructionPros.com/21138060
Curb Roller Eel Screed 6100
The lightweight Eel Screed 6100 corded roller screed offers variable speed control for working speeds from 0-300 rpm and provides easy adjustment for different slump conditions or delivery rates. • One-pin connection on the stainless-steel shaft and screed ends allows for fast setup • Simply insert screed ends into the SCH40 4-in. aluminum pipe and plug the system into a power source • Single button directional change • Features a direct drive system, multi-position folding handle, all-steel housing and heavy-duty kickstand • Requires a 120V, 60-Hz outlet or generator
ForConstructionPros.com/21136234
FEATURED PRODUCT

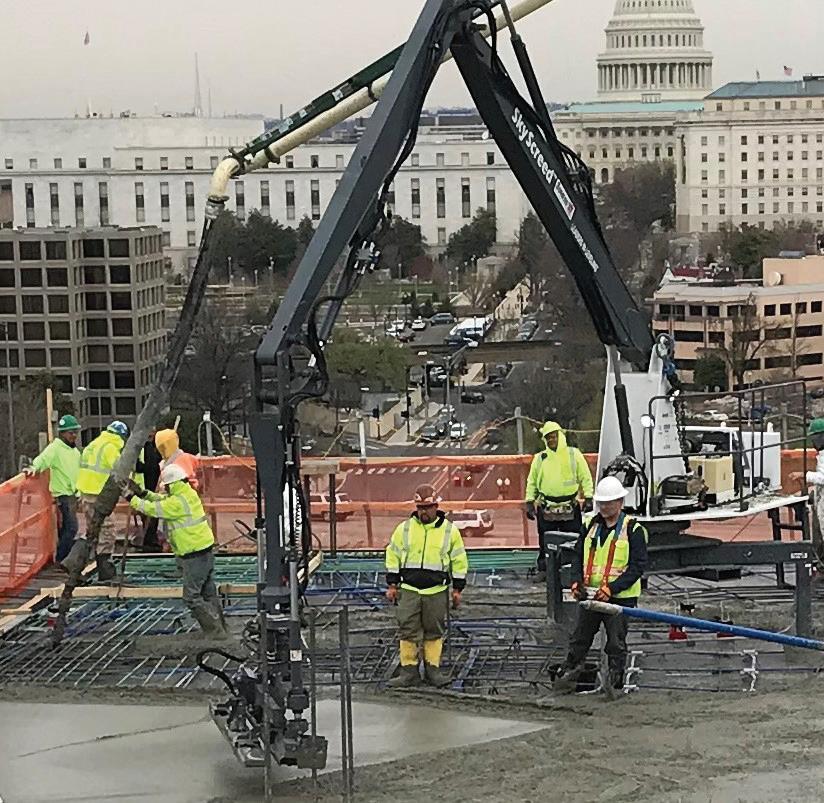

Somero Sky Screed 25 Knuckle Boom Laser Screed
The Sky Screed 25 features an articulating knuckle boom that allows screeding on structural high-rise and slab-ongrade applications. • Lower frame rests on three stabilizers, while upper frame and screed head can rotate 360 degrees for flexibility • Auger-less screed head • Powerful vibrator motor consolidates concrete • Elevation controlled by the OASIS laser control system, with all machine functions controlled via wireless remote control • 32.5-hp Kubota gasoline engine with electric start
ForConstructionPros.com/21044855 www.somero.com
Sponsored by
Magic Screed
• Precision, light-weight, manually operated vibrating concrete screed • Ergonomically designed • Hardened extruded aluminum blade prevents the accumulation of excess concrete • Blades available in length from 4 ft. to 16 ft. • Blade can be changed in less than two minutes • Tilt-up stand and carrying bars
ForConstructionPros.com/10083835
Allen PRO446X Walk-behind Trowel
The PRO446X is a heavy-duty walk-behind trowel that comes with an efficient helical gearbox that can tackle the most demanding projects. Its variable torque converter clutch allows for low-speed torque and high-speed finishing and the plow handle design puts the operator at ease when pitching the blades to an all-new height of 28-30 degrees. • A 12 hp Honda GX390 gasoline engine • 46-in. rotor diameter • Rotor speeds up to 225 rpm for greater job site efficiency • Adjustable plow handle design • Lifting point for easier transfer • Efficient helical gearbox • Heavy-duty frame
ForConstructionPros.com/21551493
The E-Screed from Allen Engineering
The E-Screed by has an electric-powered design with the same power and performance as the original Magic Screed. It is fast and easy to use, and its high-frequency screed vibration provides uniform distribution over the entire blade length. • 1.5 hp 40-volt lithium-ion battery engine • Vibration speeds up to 7,500 rpm • Adjustable handles • Consolidation depth up to 6 in. • Battery unit backpack • Accepts the standard Magic Screed blades (4-16 ft. widths)
ForConstructionPros.com/21551492
SCREEDS, PAVERS & TROWELS
Miller Formless Expands Concrete Lineup with Slipform Paver Models C-101 and CG-200
Miller Formless acquired the MBW slipform paver models C-101 and the CG-200. The C-101 and CG-200 join the company's six other products capable of installing concrete curb, curb and gutter, barrier walls and concrete pavements. "In an effort to expand market share and continue our corporate growth strategies, we saw this small paver as an excellent opportunity to add a quality machine to our existing line of products," says Darick L. Franzen, vice president of business development - North America, Miller Formless.
ForConstructionPros.com/21199642
Ligchine SCREEDSAVER ELITE
The all-wheel-drive SCREEDSAVER ELITE includes a 12-ft. head that allows for more finished square footage per pass, plus its side-shift ability makes it easier to screed around stick-ups in the slab with precise accuracy. • Heavy-duty boom sections reach out to 18 ft. • Narrower chassis fits through smaller doors or onto smaller trailers • Improved radio provides more intuitive layout and diagnostics at the operator's fingertips • Includes a 65-gal. onboard fluid tanks and an onboard pressure washer for cleanup
ForConstructionPros.com/21195235
MBW ScreeDemon Wet Screed
The ScreeDemon ergonomically-friendly wet screed is powered by M18 REDLITHIUM battery for zero emissions and quieter operation, making is suited for indoor work. • Lights improve visibility in darker work areas • Clamp system makes assembly and disassembly fast and easy • Sealed exciter requires no maintenance • Reduces hand/arm vibration by up to 50% to 90%
ForConstructionPros.com/21194240
FEATURED PRODUCT

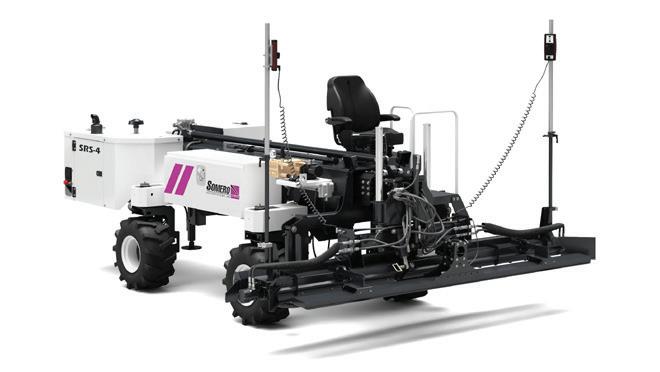

The go-anywhere, do-anything compact boom Laser Screed Machine, the Somero SRS-4 is the company’s lightest weight, most mobile, completely versatile Laser Screed machine designed to be perfect for medium to large-sized slab on grade projects, especially in the agriculture market. • Intelligent steering adjusts steering angle to prevent stress and damage to components • Steering capabilities include two wheel, four wheel, and crab-style options • Powered by a Kubota DH 902 T4f Diesel or Kubota DH 972 T4f Gas/Propane engine • Auger Head - 10 ft. (5 in. single flight auger) • Boom Length - 18 ft. (wear roller boom) • Utilizes the Somero’s signature “soft landing” feature, making every pass efficient and on-grade • Conveniences include LED work lights, optional seat, and pressure-washer • Remote-control operation with ScanReco Remote • Safer / Better Visibility (No lower frame and no-nonsense design gives 360 degree visibility) • Easier to Operate (head lowering with hydraulic cylinder, not wrenches) • Smoother Process (roller boom – no-wear pad boom) • Lighter Weight (at just 4,400 lbs. it's Somero’s lightest boomed Laser Screed machine ever)
ForConstructionPros.com/21136283 www.somero.com

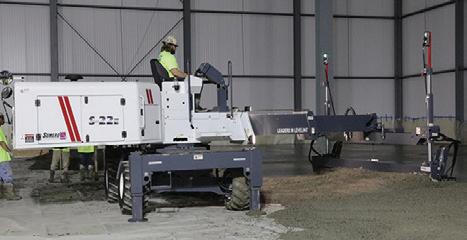

Somero S-22EZ Laser Screed Machine
The S-22EZ features a zero-turn drive, 360 degree machine rotation, a 20-ft. telescopic boom, and a choice of pivoting screed heads. • Customized OASIS laser control system • Comes with a fullcolor LCD display with integrated diagnostics, Quick
GradeSet System, automatic throttle and Programmable
Quick Pass • Redesigned, EZ Clean Head reduces cleanup time and improves long-term maintenance • Options include a 12- or 14-ft. head width, roller plow, onboard pressure washer with hose reel, operator heat, spray bar and Floor
Levelness System
ForConstructionPros.com/21136302
GOMACO CC-1200e Battery-powered Curb Machine
The CC-1200e is equipped with a 48VDC lithiumion battery pack that provides enough power for a full day of paving. The G+ control system with full-function radio remote control puts all machine operations in the hands of the operator. Rotary-sensored slew drive steering on the front wheel assemblies allows smoother paving, easier control, and maximum turning capability with the ability to slipform a 24-in. radius (depending on mold profile).
ForConstructionPros.com/21508925
Ligchine SCREEDSAVER MAX PLUS
The 4,800-lb. SCREEDSAVER MAX PLUS screed features the SwingBoom pivoting frame that enables up to 5 ft. 3 in. of side-to-side screed head movement with a pivoting boom member. It offers a 17-ft. boom extension with a 10-ft. highperformance screed head. It comes with a standard Topcon LS-B110 2D laser leveling system or is available with Topcon 3D mmGPS satellite control or LPS robotic 3D system. Powered by a 24.9-hp Honda iGX800 gasoline engine, the unit comes with a two-wheel proportional hydraulic drive system and 90 degree manual pivoting undercarriage drive frame—enabling parallel to the pour driving capability.
ForConstructionPros.com/21497280

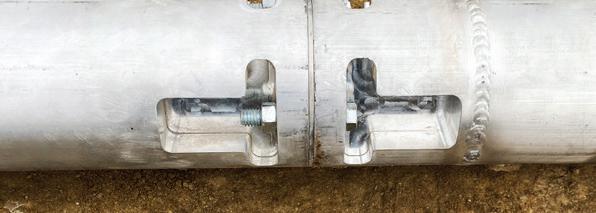

Curb Roller Lynx Modular Roller Screed
The Lynx Screed has a modular design featuring a series of linkable screed pipes that can accommodate concrete pours in varying widths from 3-22 ft. • Available in a package consisting of three 7-ft. pipes, or a package containing a 5-, 7- and 9-ft. pipe, length combinations can be customized up to 22 ft. • Pipes aligned and connected with three separate bolts and a centering ring for quick, easy installation • Setup completed by bolting drive and static heads to the assembled pipe’s ends and connecting to the electric Eel Screed or batterypowered Batt Screed
ForConstructionPros.com/21508919
The Husqvarna BV 30i Battery-Powered Screed
BV 30i battery-powered screed is cordless and lightweight, operates with low vibrations and does not emit direct exhaust fumes—proving a pleasant, working environment.
ForConstructionPros.com/21627901

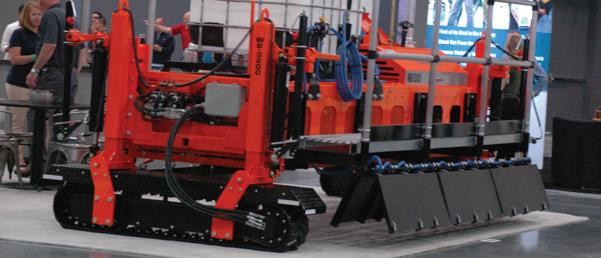

Miller Formless WB-3200 Work Bridge
With the WB-3200 slipform paving machine work bridge, contractors can utilize fully functional texture/cure abilities. Its compact design allows a working height as low as 18 in. from grade and the adaptive frame design allows for any attachments to be mounted on either side. The tethered electronic control console is mounted the same way as the operator seat, allowing the operator to be on the left or right side with a quick-change feature. A quick selection in the control system allows for all controls to be reversed, with no electrical or hydraulic connections needing to be removed. The unit has a 12-ft. minimum paving width and is available with optional frame extensions up to 32 ft.. Power is provided by a 25-hp Caterpillar 1.1 diesel engine.
ForConstructionPros.com/21508931
Sponsored by
Allen Engineering's Triple Roller Tube Paver
Allen's model 75 Triple Roller Tube Paver (TRTP) is a lightweight, economical roller tube paver that comes with an electric start, powered by a Honda engine. It is equipped with your choice of tube length, allowing for a variety of concrete pours to best serve the contractors' project needs. • 22 hp Honda IGX700 air cooled gasoline engine • Lightweight and economically efficient • Available in tube lengths of 14-24 ft. (2-ft. increments) • 6 in. or 8 in. roller tube diameter options • Holds a 50-gallon water tank
ForConstructionPros.com/21627973
Curb Roller Manufacturing
