Pumps, Placing & Consolidation
Sponsored by
FEATURED PRODUCT
Denver Concrete Vibrator GBPH25 Backpack Vibrator
• Lightweight fiberglass frame with multi-point adjustment straps for maximum comfort • Vented padding maximizes airflow • Extremely reliable Honda 4-cycle gas engine • All metal high-stress transmission components • Throttle actuated kill switch allows the engine to be shut off without removing the backpack • Flex shaft quick disconnect system, standard • A hinged mount pivots the engine for comfort • Low oil shut off system prevents damage • Weighs only 29 lbs. • Head sizes up to 3 in. diameter
ForConstructionPros.com/21015902 denverconcretevibrator.com
Minnich 50cc Gaspowered Back Pack Concrete Vibrator

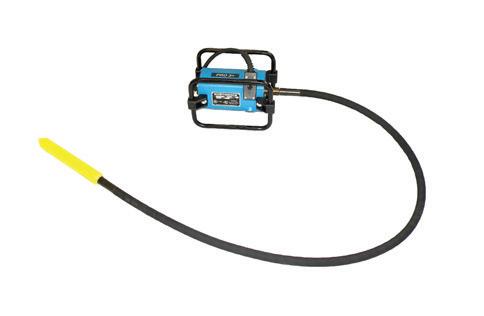

Northrock Pro 3+ Concrete Vibrator
The work horse of the company's electrical vibrator line the Pro 3+ was designed to handle the most demanding concrete vibrating applications. Able to run up to 60 ft. of flexible shaft with a 2 1/2 in. head, the Pro 3+ has earned a reputation of the must have vibrator when pouring bridge columns, levies, dams, sky scraper cores, and any demanding vibrator job.
ForConstructionPros.com/21015899

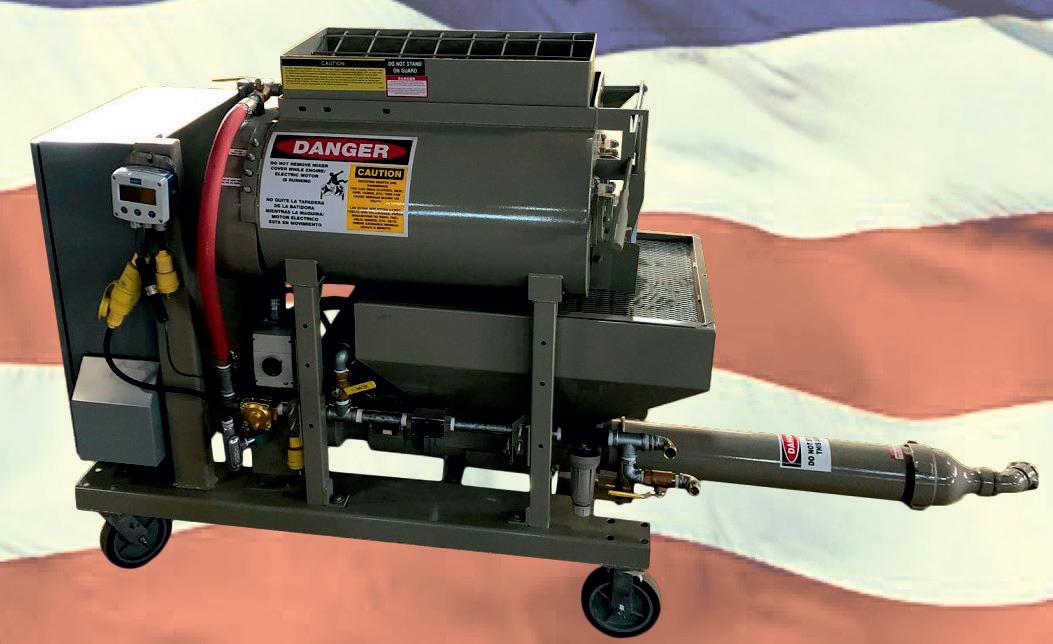

Blastcrete's MX-10 Mixer/Pump
Blastcrete's MX-10 Mixer/Pump can mix dense refractory materials in less than two minutes with its closed-loop hydraulic circuit. • Handles up to 2,500 lb. of material • High-speed hydraulic agitator • 3-in. swing tube piston pump operates with up to 2,200 psi for consistent installation of as much as 12 tons of material per hour • High-pressure pump achieves up to 450 vertical pumping distances • 22-sq.-ft. platform • Swing-out receiving hopper • Electrical controls mounted on the platform • Mounted on dual 7,000-lb. capacity axles with electric braking and lights • Can be equipped with John Deere 4045T 99-hp or Deutz BF4M 2012 102-hp water-cooled diesel engine, also offered with electric motors • Optional 2,000-psi hydraulic pressure washer for easy cleanup
ForConstructionPros.com/21093055
The 20.5-lb. vibrator is designed to maximize operator comfort, mobility and productivity during concrete consolidation. • Powered by a Honda 50cc motor • Includes a removable throttle assembly that enables operator to relocate the throttle for easy operation • Core/casings and vibrator heads interchangeable between all of the company's gas-powered and electric flex shaft units • True universal quick-disconnect system provides equipment flexibility
ForConstructionPros.com/21102526
The Revolution Boom by Schwing
Schwing's Revolution boom on the S 36 X truck-mounted concrete pump offers maneuverability and speed with continuous 360-degree articulation of the tip and 330-degree articulation of the third section. • Provides 115 ft. 6 in. of reach • Compact X-style outriggers set-up with a 20 ft. 5 in. outrigger spread • The 730-degree slewing range (365 left and 365 right) aids in fast set-up and versatility to overcome jobsite obstacles • The standard 2025H-5 pump kit offers 178 cu. yds. per hour output and 23 strokes per min. • Vector Control system operation provides wireless proportional joystick control
ForConstructionPros.com/21050764
Enerpac ZU5 Post Tensioning Pumps
Enerpac's ZU5 Post Tensioning Pumps offer increased jobsite efficiency for post tensioning contractors. With six pistons for increased stressing speed, operators can stress more tendons per day. The ZU5 improves contractors’ ability to stay on schedule or move onto other jobs.
Available in two models, the ZU5 features an on-pump control switch, on-pump remote switch, and user adjusted relief valve. The ZU5708RB-P features a 3-way, 2-position valve. The ZU5908PB-P model features a 4-way, 3-position valve along with a pendant control.
ForConstructionPros.com/21199219
Water Add Meter by Command Alkon
Command Alkon's Water Add Meter measures the amount of water added before and during the pour to help validate concrete quality. When further integrated with COMMANDbatch, the Water Add Meter allows for calculation of W/C ratio throughout the delivery cycle. The meter comes packaged with plumbing kit, fittings, clamps, and a step-by-step installation guide. WAM-350 allows water addition information to be read directly on the meter on easy-to-read display or on in-cab display. WAM-300 has the same functionality as the 350 model but without the digital display on the meter. The hardware is tough enough to withstand the demanding conditions that ready mix fleets operate.
ForConstructionPros.com/21233318
PUMPS, PLACING & CONSOLIDATION
Oztec BP-50a Backpack and RubberHead
The Oztec BP-50a Backpack Vibrator’s rugged design is built for jobsite durability and easy maintenance. Utilizing Honda gasoline engines, coupled with a “speed up” transmission, vibrator heads develop 12,000 vpm and never drop below 10,000 vpm. The BP-50a backpack vibrator's totally enclosed rotary throttle eliminates improper setting of the engine speed and ensures optimum consolidation. • Clog-preventing kill switch conveniently located on the handle • RubberHead creates a stronger radius of action along its entire length
ForConstructionPros.com/21024619
Sponsored by
Minnich A-4SCW Dowel Pin Drill with i-QAN System
The A-4SCW on-slab selfpropelled wireless dowel pin drill features the I-QAN remote communication system. The system runs on 24-volt power for compatibility with most large air compressors. The drill unit has a service weight of 3,260 lbs. and a 18-in. maximum hole depth with drills automatically retract and shut off when the hole depth has been reached. A magnetic feed sensor prevents the drill from traveling if the slider is not completely retracted due to the drill steel becoming stuck in the concrete.
ForConstructionPros.com/21121079
Updates to the ACCU-POUR AP Office and AP Mobile Platform Components
Cemen Tech's ACCU-POUR's update for platform components AP Office and AP Mobile included new functionalities include electronic signature to text and/or email an electronic batch ticket to your customer and your office, credit card preauthorization to place a hold on funds for a job to ensure customer’s credit card has sufficient funds. ACCUPOUR generated invoices now display Mix Design and Purchase Order. Originally developed to integrate with Cemen Tech C60 mixers, ACCU-POUR is now compatible with Cemen Tech M Series mixers, as well as other volumetric mixers developed by competitive OEMs.
ForConstructionPros.com/21203978
The FloorMate80E - A Fully Electric Mobile Mixer & Pump Combination
Small jobs? No problem. With an all-new fully electric model, the FloorMate80E leaves no footprint on where it has been. Designed to be a zero-emission and a non-consumable machine, the FloorMate80 gives the customer full access to working indoors safely. FloorMate80 has vertical heights of over 100 ft. and an output ranging from 10 to 30 GPM. Don’t let the size of this machine fool you. It is paired with Mitsubishi for its electronics, having a control system with a fail rate of fewer than 100 parts per million which is extremely critical.
ForConstructionPros.com/21259897
Milwaukee Tool MX FUEL Backpack Concrete Vibrator
The MX FUEL Backpack Concrete Vibrator features a POWERSTATE brushless motor that delivers the power to push up to 2.5-in. heads at over 11,000 vpm for optimal concrete consolidation, even in stiff concrete applications. • REDLINK PLUS Intelligence ensures optimal performance and provides overload protection • MX FUEL REDLITHIUM battery pack provides instant power with push-button start • Accepts shafts up to 21-ft. long and is compatible with Oztec shafts and heads • Weighs 34.5 lbs. with battery • Kit includes wireless remote for operation from up to 30 ft. away, MX FUEL charger and two MX FUEL REDLITHIUM XC406 batteries
ForConstructionPros.com/21366277
PUMPS, PLACING & CONSOLIDATION
The Placer Mobile Batch Plant & Gypsum Pump
Originally designed in 1977, the Placer is no stranger to the world of Gypsum underlayment. Truth be told, one of the very first Placers built has just now been retired in 2021. If that does not scream quality, then what does?
The Placer is built to last with the trustworthy performance of the John Deere 4045 99-hp engine. With the combination of Strong Manufacturing’s progressive cavity pump, the company's 12-ft.3 double-drum mixer, material output of 100 GPM, and vertical pumping distances of over 200 ft., there is simply nothing like it.
ForConstructionPros.com/21259895
Oztec BP-45 Backpack Concrete Vibrator
The BP-45 backpack concrete vibrator offers a 2-hp option capable of running vibrator heads up to 2 in. in diameter in a lightweight configuration. • Built to withstand the demands of concrete construction sites and designed for easy maintenance and long life • Sturdy steel frame, Honda engine, fully adjustable padding system, and high-quality components • Quick Disconnect for flexible shafts and vibrator heads
ForConstructionPros.com/21105020
The CoreHub In-Vehicle IoT Platform by Coretex
Coretex's CoreHub integrated IoT solution connects an in-vehicle IoT hub with self-installed wireless drum rotation, hydraulic temperature, water add meter sensors, and cameras throughout the vehicle to collect and present information about the driver, asset and load—providing contextualization of what is happening on the load and full digital view of supply chain operations.
ForConstructionPros.com/21508873
Sponsored by
MQ Whiteman's track-drive power buggy features a pivot dump tub capable of rotating up to 180 degrees to easily and precisely deliver material.
• Steel embedded ladder track design and rugged undercarriage utilizing cast ductile iron guide wheels • Standard fail-safe brakes • 16 ft³ tub (2,500 lb.) capacity • Polyethylene construction for easy cleaning • 22 hp Honda GX690 engine • Speeds of 5.3 mph unloaded and 4.7 mph loaded
ForConstructionPros.com/21172049
Liebherr 110 D-K Crawler Concrete Pump
The 16,424-lb. 110 D-K features sturdy construction, can be flexibly maneuvered and has been specially developed for concrete pile foundations in combination with a drilling rig. • Maximum concrete output of 133 cu. yd. per hour and 1,088-psi maximum concrete pressure • 194-hp six-cylinder Tier 4 Final engine • Open hydraulic circuit • Can communicate via radio with the company's drilling rigs
ForConstructionPros.com/21107584
As part of their LumiCon Smart Construction Platform product suite, the LumiNode Plus concrete sensing solution by AOMS Technologies is an advanced wireless sensing solution that offers direct cloud connectivity, enabling instant streaming of concrete temperature and maturity data directly to the cloud without the need for extra devices such as network gateways, repeaters, or signal boosters.
ForConstructionPros.com/21627359
PUMPS, PLACING & CONSOLIDATION

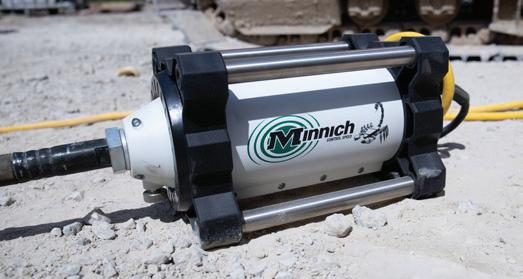

Minnich's Control Speed Concrete Vibrator
The Control Speed Vibrator (CSV) from Minnich Manufacturing is a lightweight, durable, electric flex shaft concrete vibrator controlled through connectivity. Using Bluetooth and the Minnich app on an iOS or Android device, operators can choose between set speeds of 6,000, 8,000, 10,500, and open VPM. Choosing slower vibration speeds lessens material separation and reduces surface blemishes and repairs. Once a speed is chosen, the CSV will maintain that speed as the concrete load changes. The 15-amp (115-volt) universal motor drives a full line of Minnich shafts and heads and comes standard with a quick disconnect that adapts to the vibrators of many manufacturers. The CSV has been designed with a soft start that saves energy and mechanical wear on the motor and power system.
ForConstructionPros.com/21710799
AMS-Merlo DBM 3500 Cement Mixers
The self-contained DBM 3500 has a 1,321-gal. drum that delivers 4.6 yds.3 of concrete. Its self-loading bucket handles up to 25 ft.3 of aggregate at each load cycle. The pump moves 66 gpm of water into the drum, enabling up to 37.7 ft.2 of concrete to be made in less than 15 minutes. The compact unit can discharge concrete up to 330 degrees around the machine. It has a 100-hp Tier 4 engine, 4WD with three steering modes and a hydrostatic transmission. Its spacious, ROP-certified cab has front controls for driving with a seat that spins 180 degrees to access the rear controls to drive the vehicle and manage the mixing drum and self-loading bucket. Ground controls replicate those found in the cab.
ForConstructionPros.com/21549889
DICA FiberTech Super Duty Outrigger Pads
The FiberTech Super Duty Outrigger Pads spread out outrigger loads and create stability for equipment such as mobile cranes, concrete pump trucks, high-reach aerial devices, rock crushers, mobile substations and more. • Crush ratings of up to 600 psi and rated capacities of up to 170,000 lbs. • 13 layers of quad axial continuous glass fibers and vinyl ester resin • Non-conductive, waterproof and chemical resistant • Available in 36-, 42- and 48-in.-diameter sizes with additional sizes available • Can be used alone or as part of multi-pad setup
ForConstructionPros.com/21295644

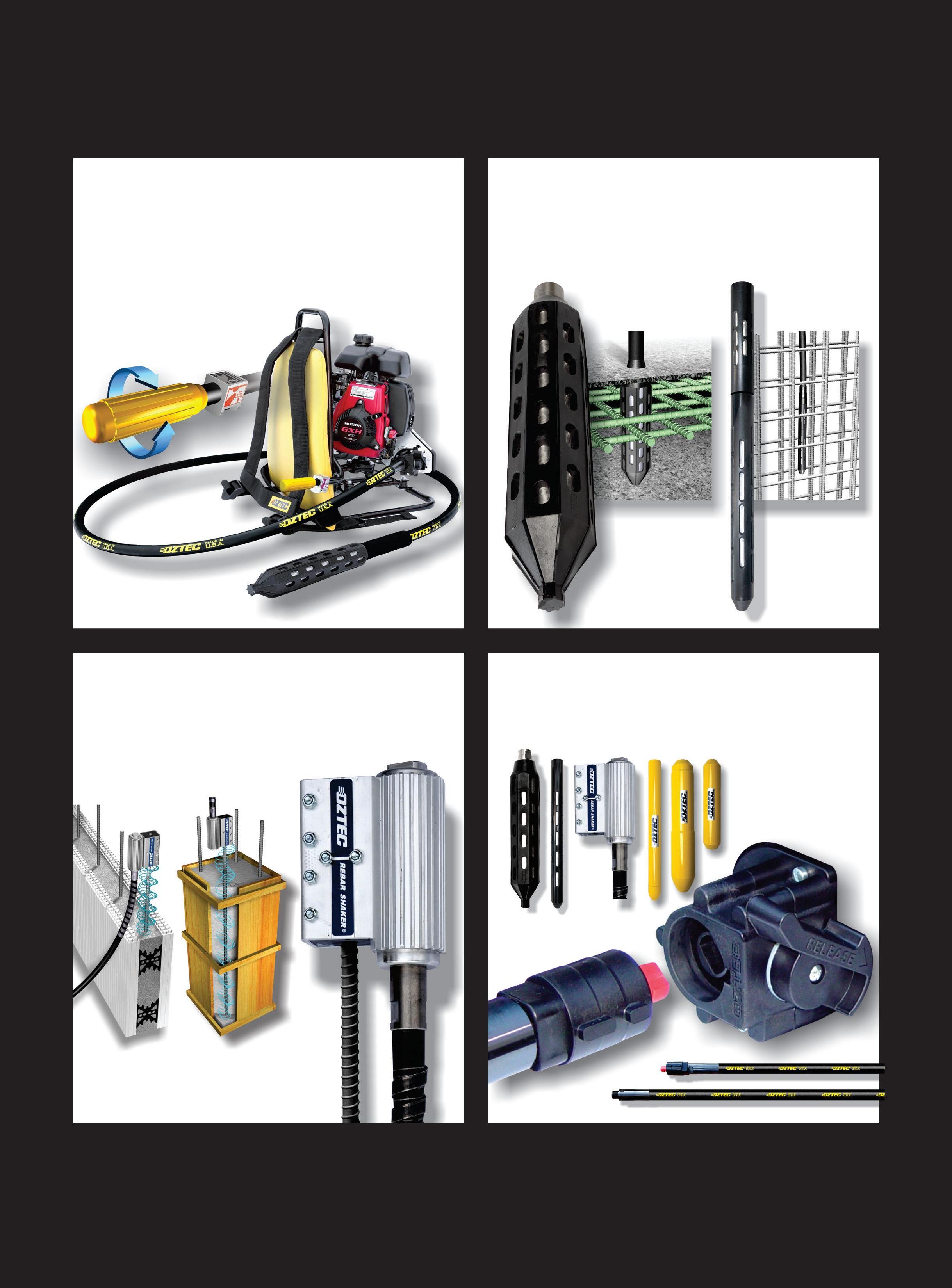

Oztec RubberHeads Line
Oztec’s RubberHead's design keeps concrete in contact with the entire length of the vibrator head which causes strong shockwaves to be sent off of the entire length of the head creating a larger radius of action, producing denser concrete with fewer voids. RubberHeads are available with an optional rubber-coated extension piece. • Extension piece reduces the chance of the head becoming entangled in the rebar • Protect epoxy-coated rebar and delicate form faces • Makes concrete denser with fewer voids to patch. • Vibrates at 12,000 vpm, never drops below 10,500 vpm when lowered deep into low slump concrete.
ForConstructionPros.com/21105025
Toro Grapple Bucket
This dedicated grapple bucket attachment for the Dingo line of compact utility loaders is the Dingo line of compact utility loaders is designed for simplified handling of a designed for simplified handling of a variety of materials including boulders, variety of materials including boulders, timber, concrete, scrap, waste and other timber, concrete, scrap, waste and other
debris. debris. • Constructed of high-strength steel and available in a standard 34-in. width • Weighs approximately 238 lbs. • Available for the Dingo 320-D, 323, TX 427, TX 525 and TX 1000 models and e-Dingo
ForConstructionPros.com/21205074
12 CONCRETE CONTRACTOR OCTOBER/NOVEMBER 2021 2301 University Drive • Pine Bluff AR 71602
(870)-535-4753
www.strongmfg.com
Fully Electric • • No Consumables • No Consumables • Zero Emissions Zero Emissions
www.ForConstructionPros.com/Concrete
MudMixer Multi-use Mixer
This multi-use mixer has a 14-gauge, high-strength steel body supported by two large Marathon flatfree tires. • Auger moves along any mixture and delivers it where it’s needed. • Integrated bag opener for easy drop-and-fold opening of dry mix • Fully adjustable water dial allows for customized water flow • All-electric, water-sealed motor with forward and reverse settings • 330 degree pivot system
ForConstructionPros.com/21391698
Euclid Chemical's EUCON AWA-P20 anti-washout concrete admixture is readyto-use and designed to modify the rheology of selfconsolidating concrete and prevent the loss of cement and fine aggregate during the placement of underwater concrete, while not discoloring the concrete. Featuring thixotropic properties, it can also be used to reduce excessive bleeding and segregation of concrete or mortar during pumping.
ForConstructionPros.com/21647992
Overland 950 Series Power Carts
The 950 series power cart's 24V 950-watt transaxle provides an overall speed of 3.5 mph—capable of hauling 950 lbs. on hard, flat surfaces and 500 lbs. on grass inclines. The 75-amp-Hr battery pack is rated at 7-8 hours of real-world use or an estimated 8-9 miles on a single charge. Flat-free dual ag drive tires have a semi-pneumatic design that performs similar to an air tire but does not require inflation. A 10-cu.-ft. wheelbarrow-style or 9-ft.3 wagon-style hopper is offered as standard. Both hoppers feature heavy-gauge HDPE construction.
ForConstructionPros.com/21497106
CEMEX Vertua Low Carbon ReadyMix Concrete
Suitable for a wide range of commercial and residential applications and representing CEMEX's commitment to its Climate Action strategy, defining a global target of a 35% reduction of CO2 emissions per ton of cementitious products by 2030, the Vertua low carbon ready-mix concrete line offers a range of products—including Vertua Classic, Vertua Plus and Vertua Ultra—designed to achieve progressively greater reductions in CO2. Vertua Classic offers a reduction of 20-30% compared to portland-cement-based concrete. Vertua Plus and Vertua Ultra will offer even greater reductions of CO2.
All Vertua products can support the efforts of builders and contractors to earn more credit points toward LEED, Whole Building LifeCycle Assessment, and other green building certifications.
“Our Vertua products are uniquely designed to balance limited carbon specifications with our customers’ needs for high-quality performance and resilience,” says Francisco Rivera, CEMEX USA Regional President, California Region.
ForConstructionPros.com/21244373
