Nordic Outdoor FR PRO Alu Panel
Nordic Outdoor FR PRO Alu Panel
The Nordic Outdoor FR PRO Alu Panel is an innovative façade panel that combines a corrosion-resistant aluminium sheet with fire-protected ThermoWood made from Nordic pine. The wood is heat-treated without chemicals, enhancing resistance to rot, fungi, and moisture while ensuring long-lasting durability with minimal maintenance. The panel blends functionality with a clean, natural look that supports modern architecture.
The B-s2,d0 certified panel meets EU façade safety standards for buildings up to 22 metres in height – ideal for public, commercial, and private construction where fire safety and material quality are paramount. The product is patent pending.
The panel is designed for efficient installation on steel or timber substrates using colour-matched façade screws. The combination of carefully selected materials and simple installation ensures a stable, aesthetic, and long-lasting façade where function and form go hand in hand.
With our FR PRO Alu Panel, you get:
High fire safety
B-s2,d0 according to PN-EN 13823+A1:202212
Efficient accessory system
Delivers the perfect façade finish.
Long-lasting quality
ThermoWood slats resist moisture, rot, and pests.
Maintenance-free façade
The aluminium sheet is corrosion-resistant and requires no post-treatment.
Modern design
The mix of aluminium and wood creates a sleek, contemporary façade appearance.
A responsible choice
All wood used in the Nordic Outdoor FR PRO Alu Panel is certified with the Nordic Swan Ecolabel.
Features:
• Lightweight construction
Easy handling and fast installation.
• Minimal tool use
Requires only a few standard tools.
• Fire classification
B-s2,d0 according to PN-EN 13823+A1:2022-12
• Quick installation
Designed for easy and efficient onsite mounting.
• High weather resistance
Resistant to moisture, temperature fluctuations, and UV radiation.
• Impact-resistant and robust
Durable build ensures long life and minimal maintenance.
• Flexible application
Suitable for both new construction and renovation projects.
• Unique installation system
Our comprehensive accessory system enables easy and seamless façade finishes.
Fire-rated B-s2,d0 according to EU testing standards PN-EN 13823+A1:2022-12
The wooden panels are made from FSC®-certified wood and other controlled materials.
FSC® C165957
ThermoWood should be disposed of as clean wood for recycling, upcycling, or incineration. Aluminium is 100% recyclable and should be taken to a metal recycling facility.
ThermoWood Pine
AWAITING APPROVAL
Installation Guide
Tools for Installation:
Spirit level
For accurate and straight alignment
Screwdriver/power drill
For securing the panels
Circular saw or plunge saw
For panel trimming with appropriate blade
Tin snips
For cutouts around windows and corners
The Nordic Outdoor FR PRO Alu Panel is designed for quick and secure installation, with a focus on stability and long-lasting durability. Proper installation ensures optimal performance and aesthetics.
Substrate and Construction Requirements
• The panel is mounted on a horizontal substrate made of either steel or timber.
• Maximum batten spacing: Max C/C 600 mm for optimal stability.
• The substrate must be flat, stable, and suitable for outdoor use.
Fastening
• Use Nordic Outdoor PRO Alu façade screws (aluminium-compatible).
• Panels are fastened directly through the aluminium sheet into the substrate.
• A minimum of 12 screws per m² is recommended for secure attachment.
Step-by-Step Installation
1. Preparation: Ensure the wall is clean, dry, and flat.
2. Installing battens: Mount battens with a maximum spacing of C/C 600 mm. Check alignment.
3. Fastening panels: Fix the panels with Nordic Outdoor PRO Alu façade screws.
4. Overlap: Panels should be installed with vertical overlap to ensure consistent water drainage and a harmonious façade.
Finishing and Inspection
• Verify that all panels are properly mounted and aligned.
• Ensure the façade is flat and uniform.
Maintenance Guide
To ensure that the Nordic Outdoor FR PRO Alu Panel retains its aesthetic appearance and long lifespan, regular inspection and light maintenance are recommended. Thermally treated wood typically requires less maintenance than untreated wood, but external factors such as weather, sunlight, and moisture can affect the surface over time.
Regular Inspection of Façade Panels
Periodic inspection is recommended to detect any changes in the wood surface or attachment points. Pay close attention to areas near the ground and panel joints.
Cleaning the Panels
The polyurethane coated aluminium requires no special care but can be cleaned as needed with a soft cloth and mild soapy water to maintain its appearance and corrosion resistance.
Natural Patina of the Wood
Over time, ThermoWood will naturally develop a silver-grey patina due to UV exposure. This process does not affect the wood’s durability but contributes to a more weathered aesthetic. The product must not be painted or surface-treated, as this would compromise its fire-resistant properties.
With proper maintenance, the Nordic Outdoor FR PRO Alu Panel ensures a long-lasting and beautiful façade that requires minimal effort and retains its exclusive appearance year after year.

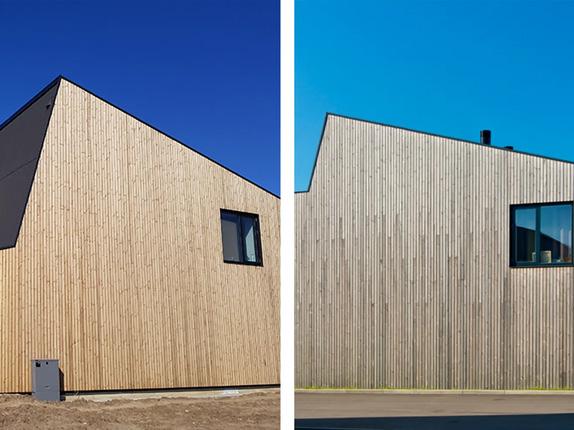

Over time, the wood will naturally develop a silver-grey patina – a completely natural process.
Accessories
Outer Alu Corner Standard
Dimensioner
A: 80 mm B: 33 mm
C: 42 mm
Længde: 3000 mm
Outer Alu corner Wood
Dimensioner
A: 80 mm B: 33 mm
C: 42 mm
Længde: 3000 mm
Inner Alu corner Standard
Dimensioner
A: 80 mm
B: 33 mm
C: 33 mm
Længde: 3000 mm
Dimensioner
A: 80 mm
B: 42 mm
C: 33 mm
Længde: 3000 mm
Dimensioner
A: 50 mm
B: 25 mm
Længde: 3000 mm
Dimensioner
A: 80 mm
B: 40 mm
C: 30 mm
Længde: 3000 mm
Inner Alu corner Wood
Foundation Ventilation screen
Drip edge bottom
Drip edge top (rys.5)
Dimensioner
A: 80 mm
B: 40 mm
C: 30 mm
Længde: 3000 mm
Window Sill (rys.2)
Dimensioner
A: 110 mm
B: 30 mm
Længde: 3000 mm
Reveal Profile (rys.3)
Dimensioner
A: 90 mm
B: 80 mm
C: 35 mm
Længde: 3000 mm
ThermoWood Slat
Loose ThermoWood slats can be purchased as accessories and used for custom adjustments and aesthetic details when installing the Nordic Outdoor Panel.
