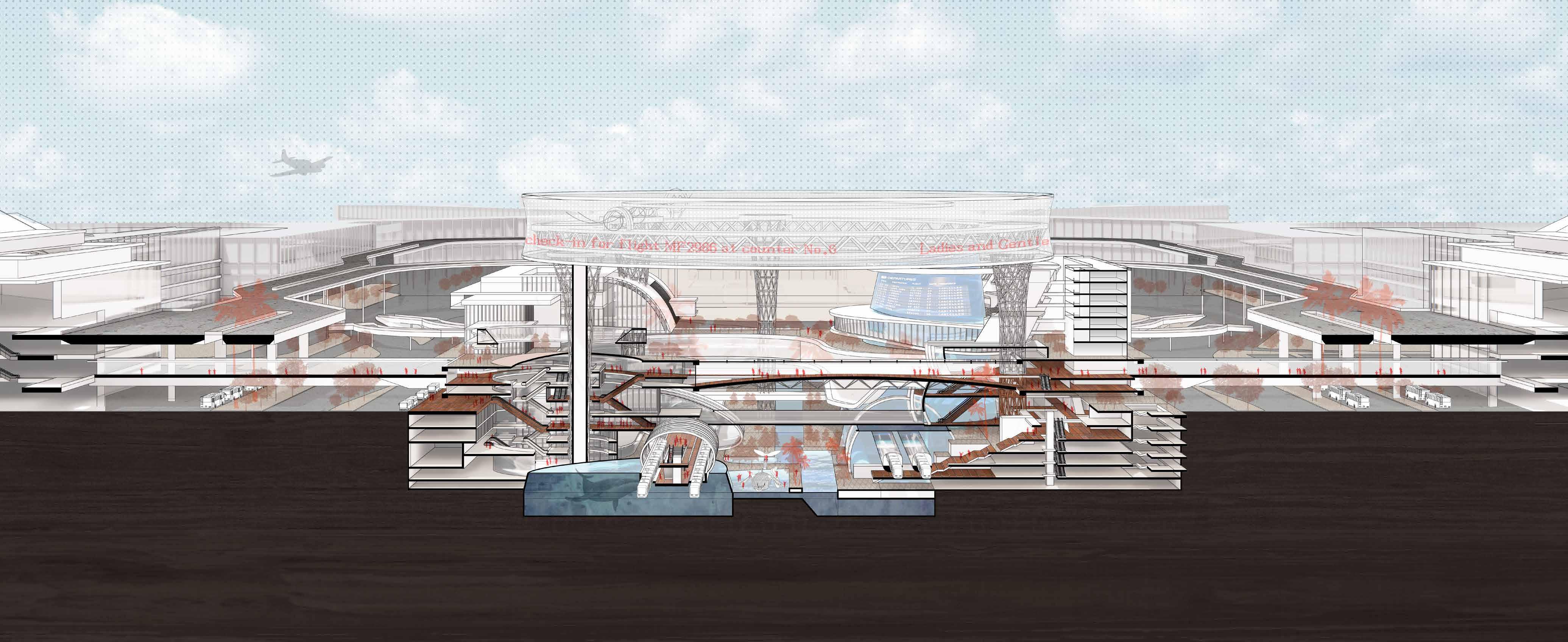

Aerolantis - Air Passenger's Ground Transportation Center between Business and Trip

29

Attempts: Switch beyond Architecture 07

Otherworks - Animation, On-site Construction, Game Rules, etc.

35

01 Heaven Eleven Community Church between Sacred and Secular Individual Work Tutor: Qinghuang Zhu Location: Tamsui, China(Taiwan) Academic Project 2019.09 ~ 2019.11 The history of the development of Christianity in Taiwan began with Jose’s colonization in the mid-17th century, but its comprehensive development began after the opening of Taiwan’s port in the mid-19th century. The three major Christian denominations, including Catholicism, Orthodox Church, and Protestantism, all have churches in Taiwan. Protestantism has the largest number of believers in Taiwan among the three major denominations due to its relatively active mission.

Tamsui Old Street is one of the best cultural attractions in Taiwan. In this place with a centuries-old history of Christian culture, and a trend of tourism in the local night market, a church will be built in the most crowded area to meet the needs of local Christians, residents and visitors from far away.

The aloofness of the traditional church is incompatible with the vitality and liveliness of Tamsui Old Street. What kind of relationship, in a community centre with religious attributes, should there be between God and man? My answer is: this is not a church, but Heaven Eleven, a convenience store opened by God in Tamsui, where Jesus is both sacred and common touch to us all.

3

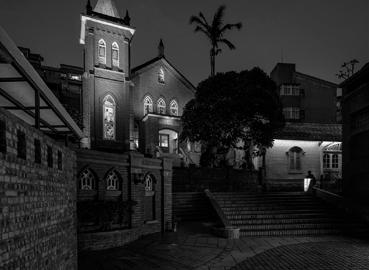

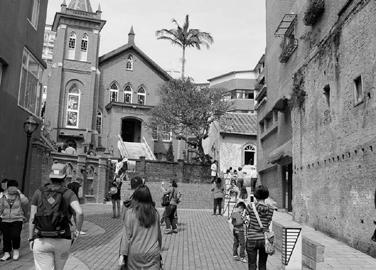

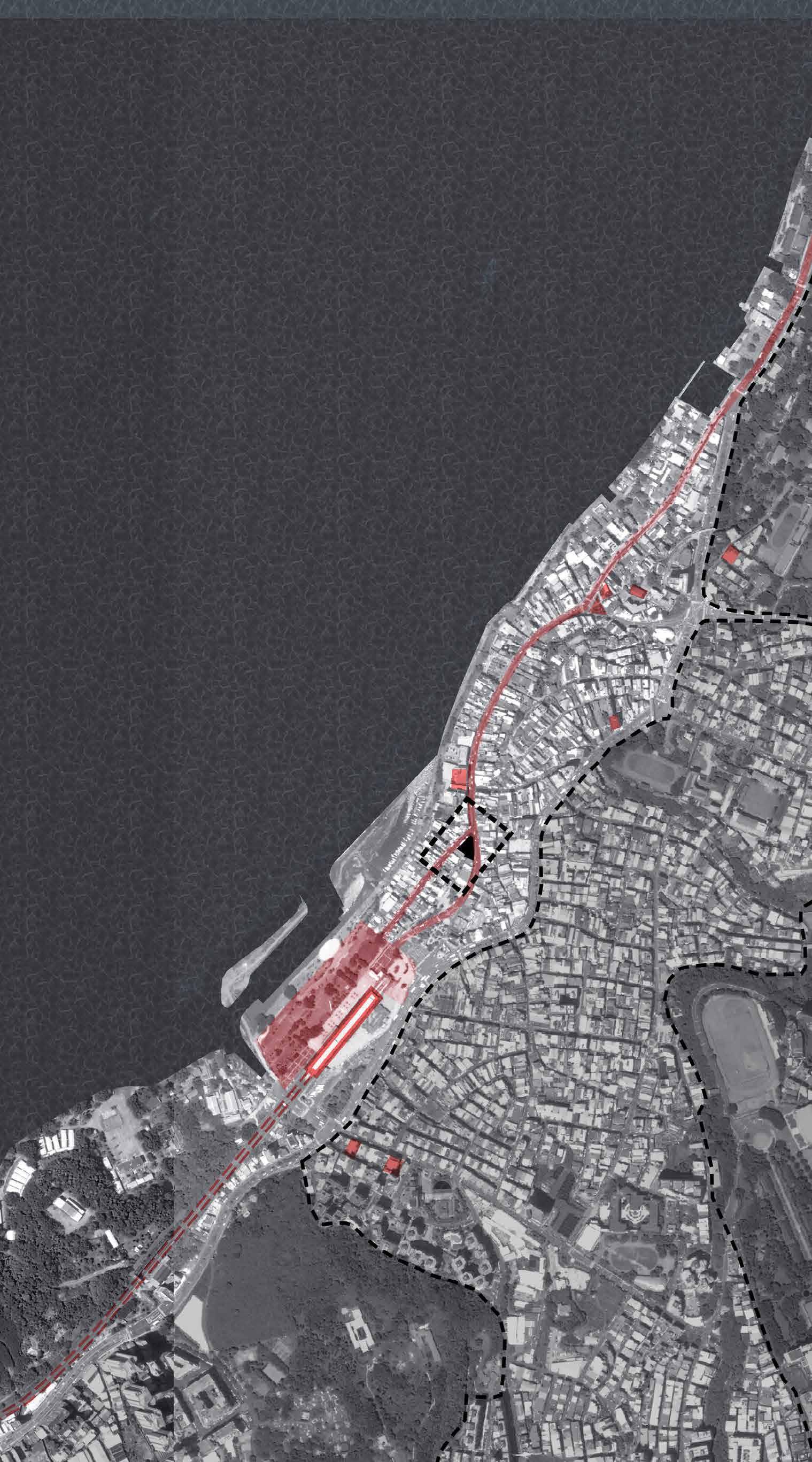

Tamsui Old Street, Xinbei City, Taiwan Tourism & Religiou Culture As one of the most distinctive historical districts in northern Taiwan, Tamsui Old Street is famous for its time-honored food, Christian culture and historical buildings since the end of the 19th century. With the opening of the subway and the development of tourism, its bustling night market has gradually become a haunt for tourists.

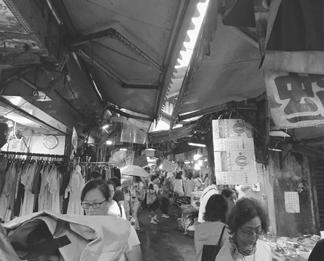

God inside the Night Market

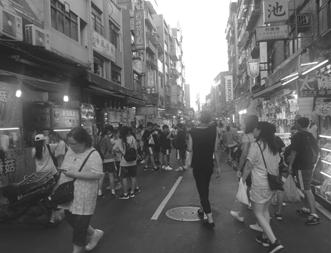

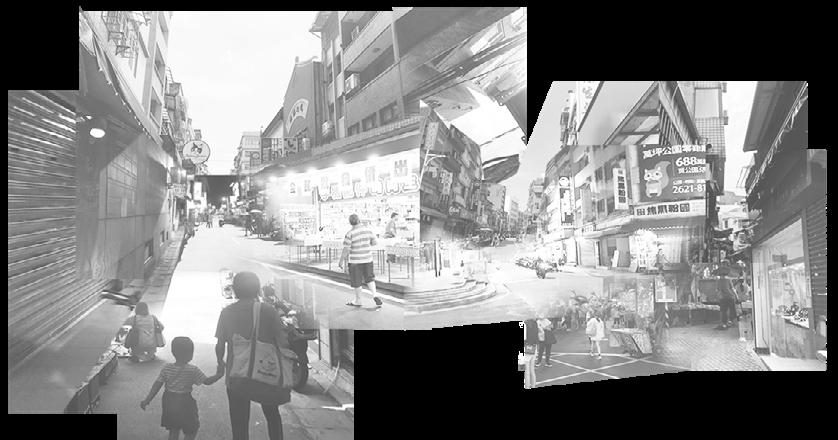

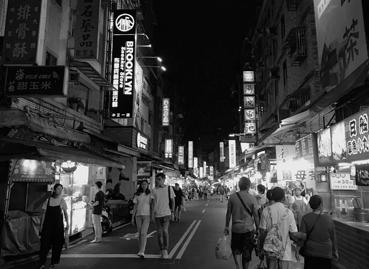

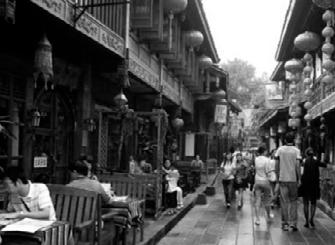

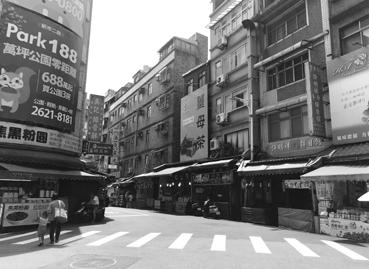

Study of Night Market Street

The missionary essence of Jesus is to travel and enjoy with others. His gospel spreads across the open street.

The project will foucus on the integration of altar and marketplace to create a church that opens to the street.

Churches for christians

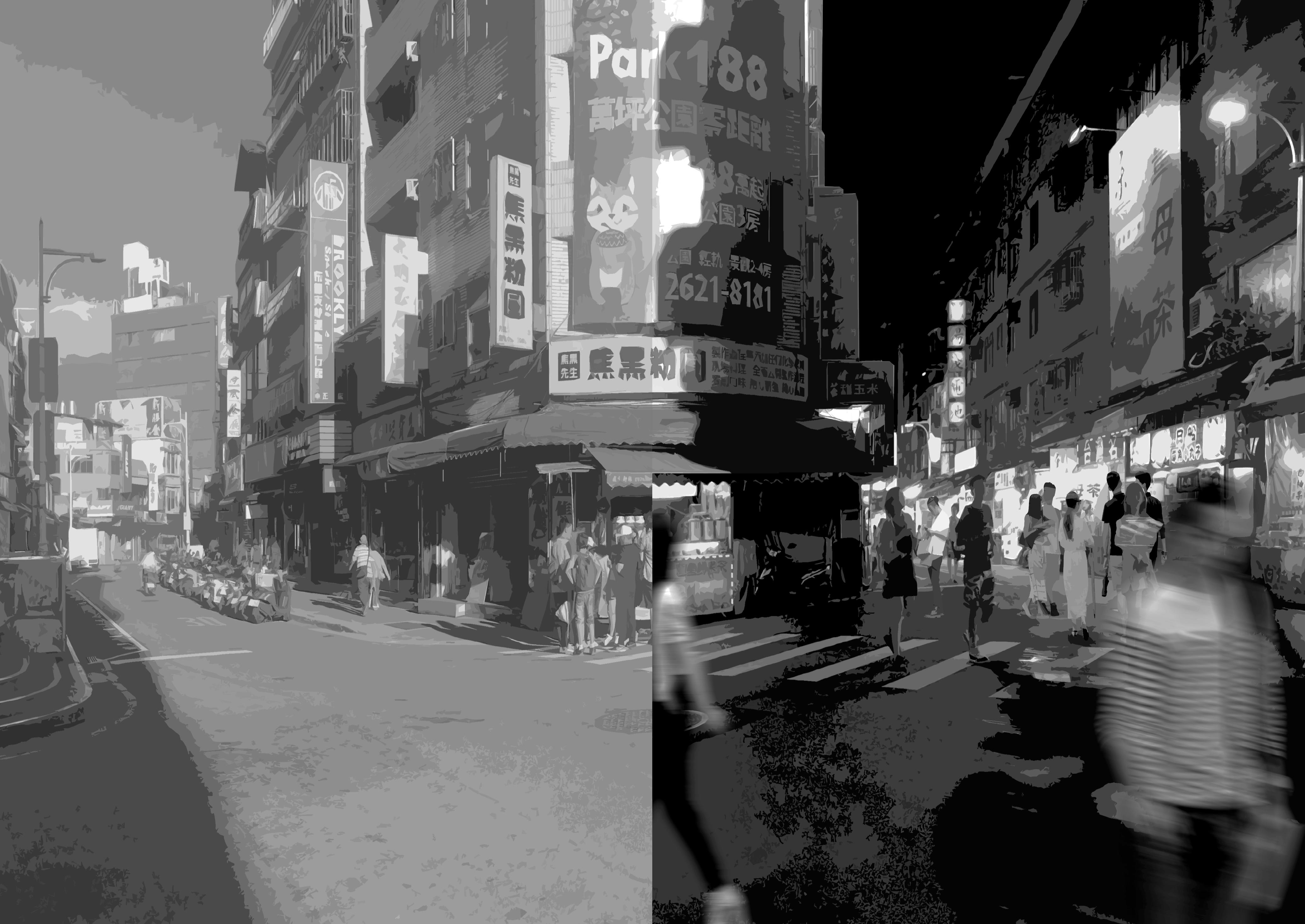

Incontinuity of Daily Life The activities of church and street market change with time, switching between two different life-style and space.

Different Shapes of Street Skylight

Tamsui Grace Home Church Tamsui Prebyterian Church Tamsui Hongkong Church Statue de Mackay

Night Market Street

Morning

Morning Markets Street

for local residents

Tourists Area Coastal Park

Our Lady of Fatima Catholic Church

Evening

for tourists and vehicles

Tamsui BeiJia Church

for tourists

Traditional Church

Night Market Street Facade Textures of Diverse Streets

Man-of-all-trades

Site

Residential Area

The integration of churches and community service facilities was advocated to highlight the closeness of religion to the people.

Morning

Tamsui MTR Station

Tamkang University

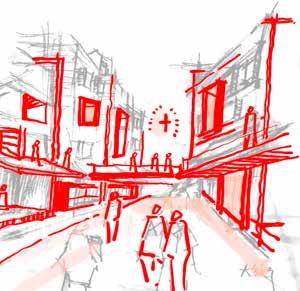

Image of the Altar in the street

Evening Sightsee

Feast

Take Lessons

Stroll

Drink

Tourists

Worship

Shop

Residents

LingLiangTang Church Tamkang Church

Wed

Celebrate

Go Honeymoon

Lovers

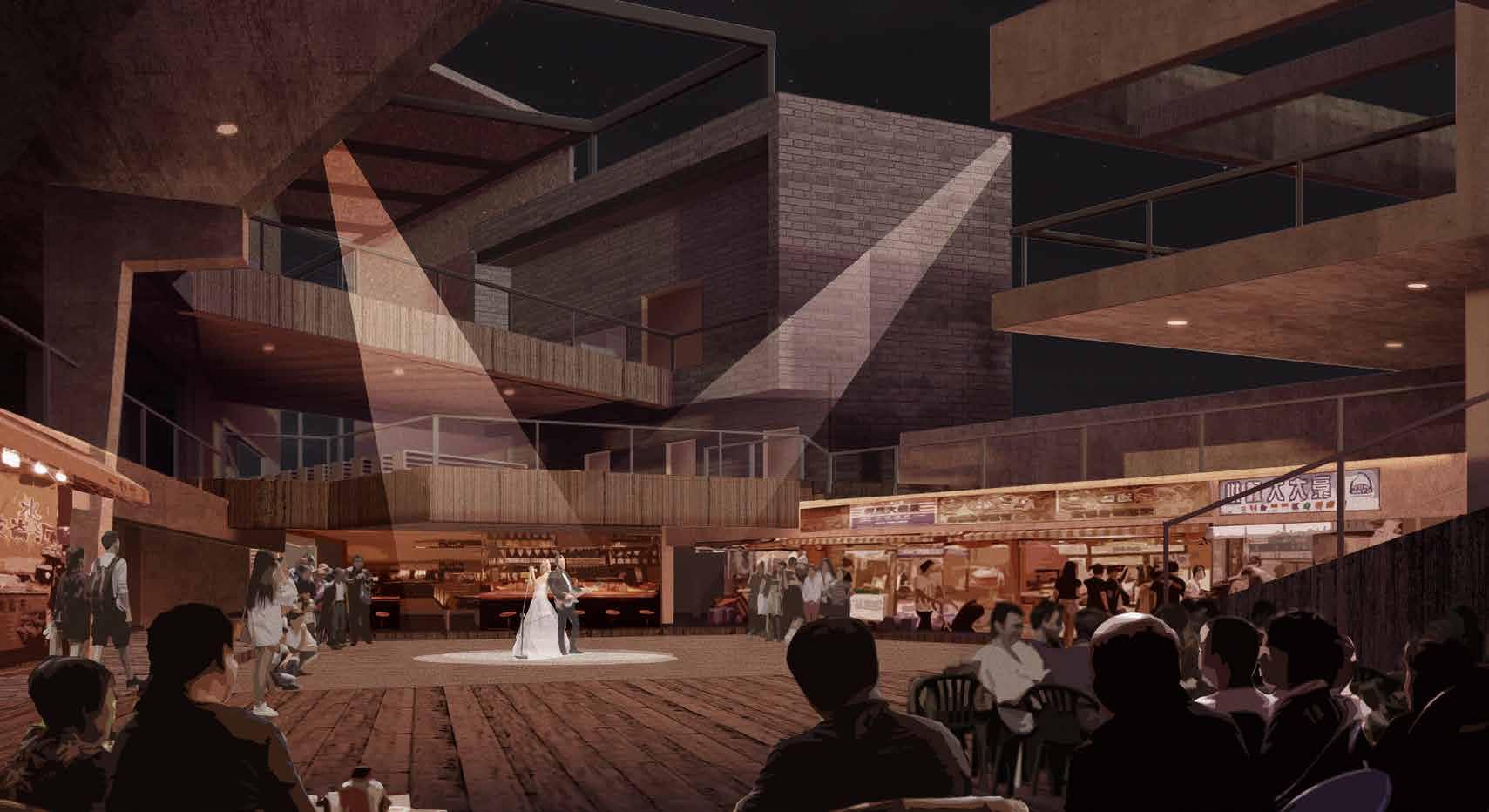

"A church as one part of the night market street"

4

Heaven-Eleven Store

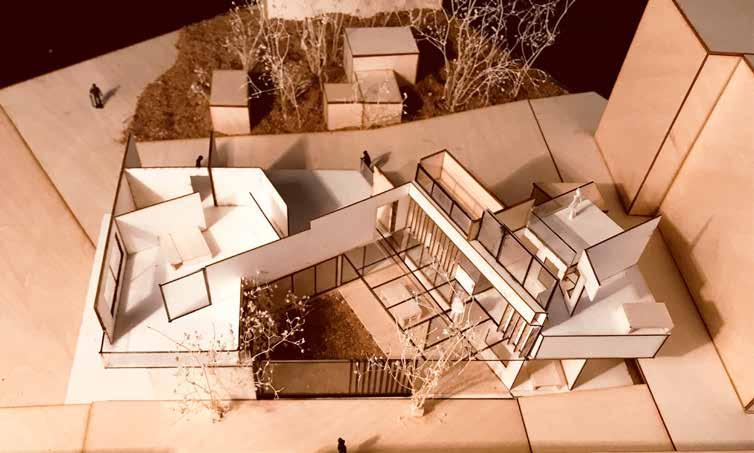

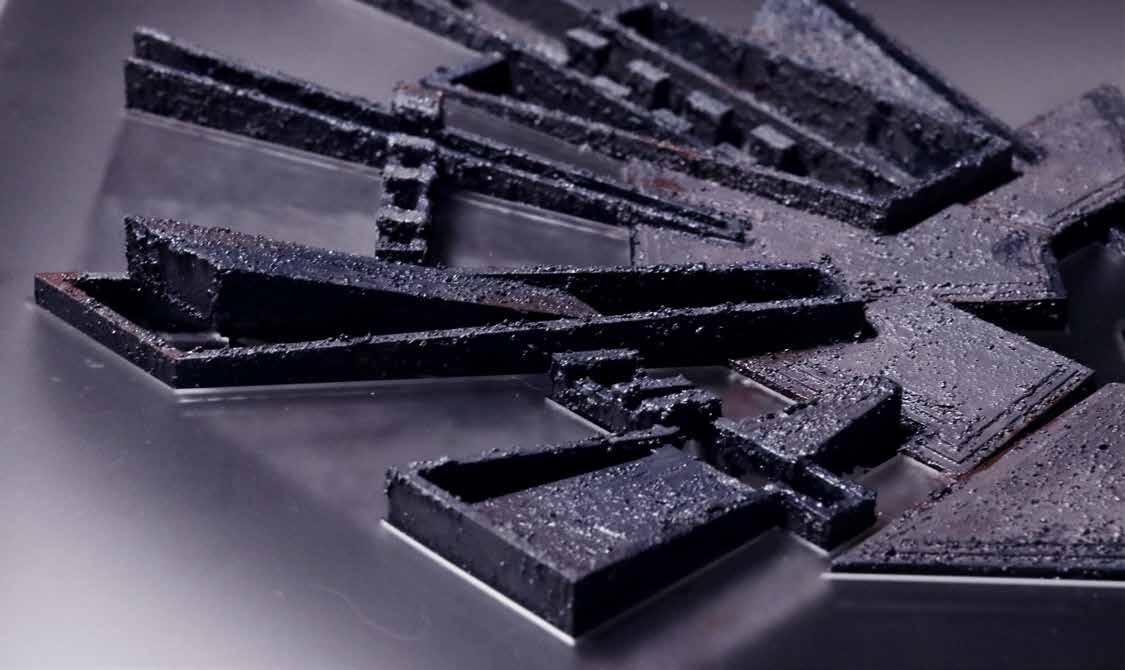

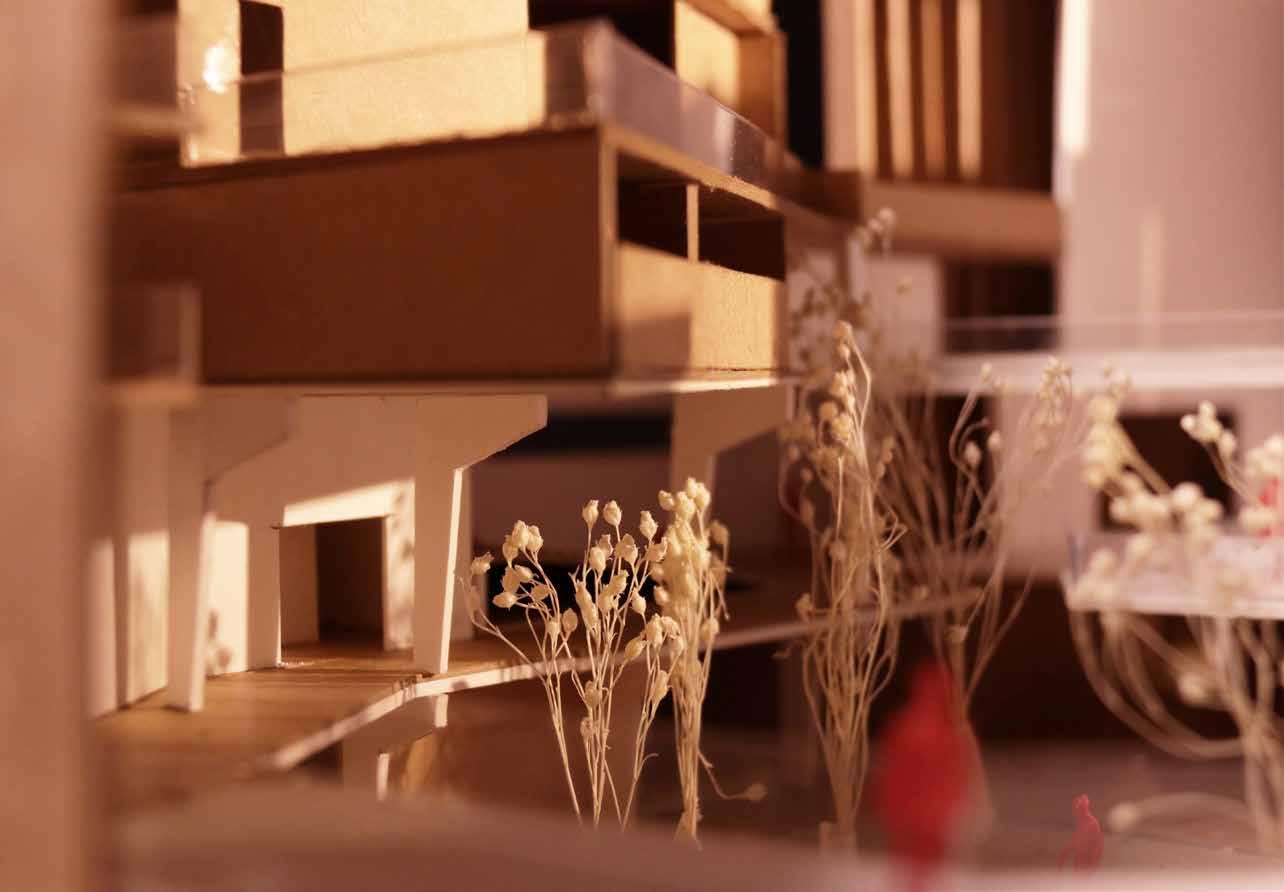

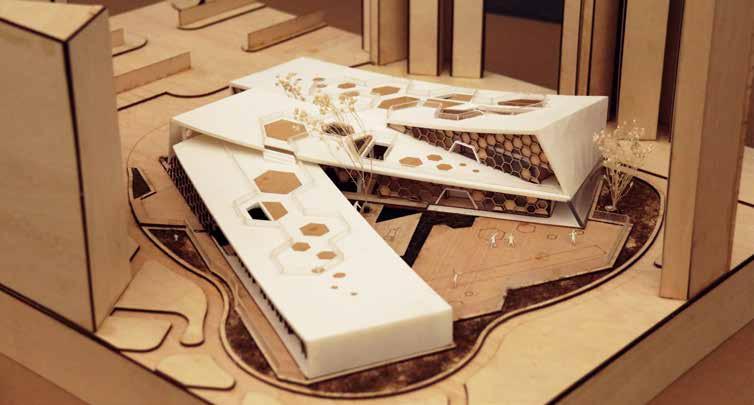

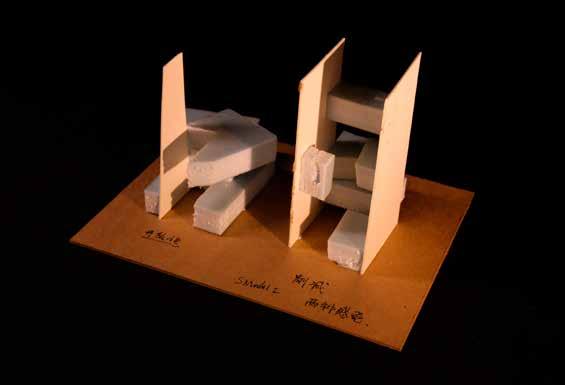

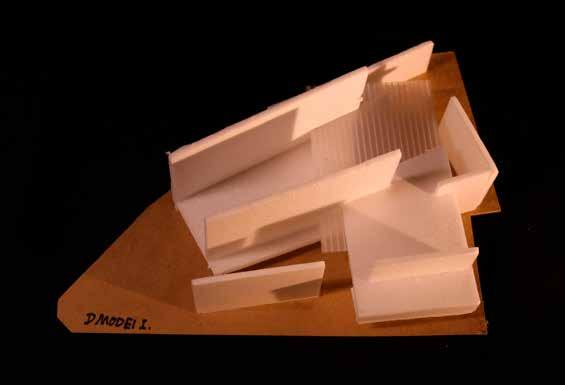

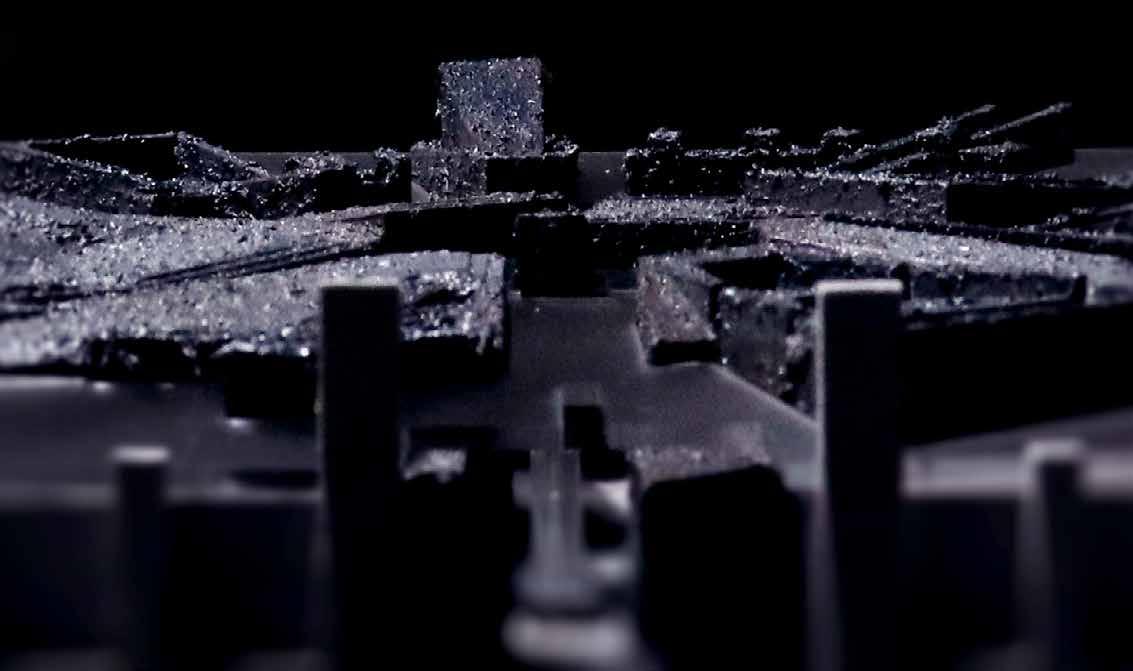

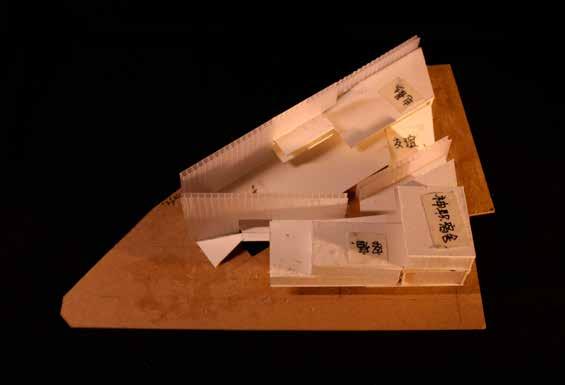

Hand-made Modelling

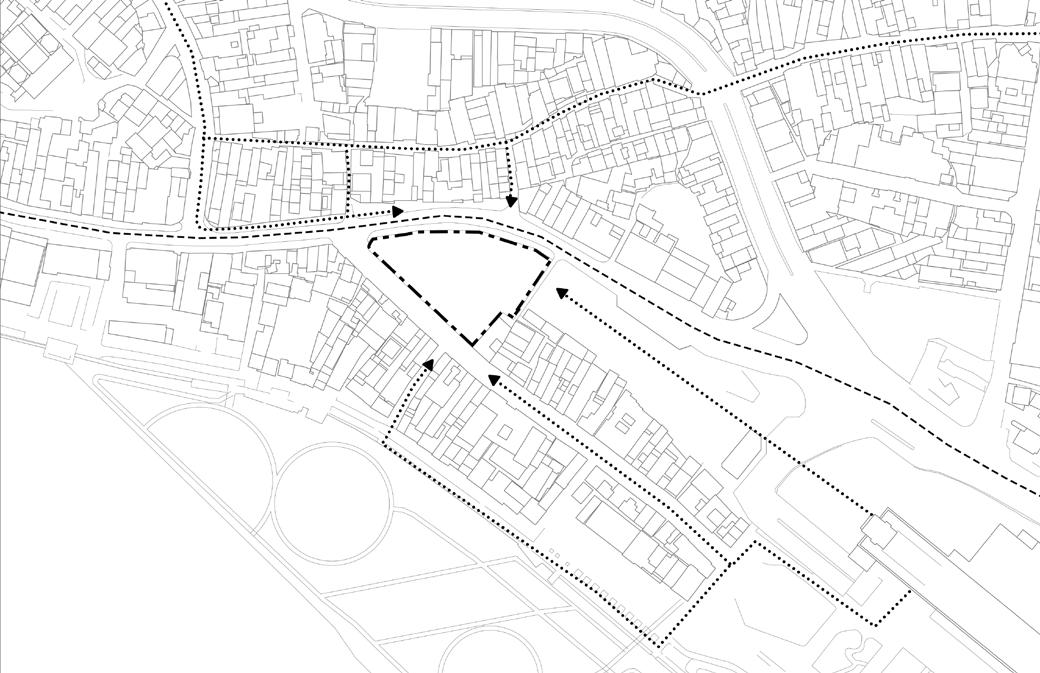

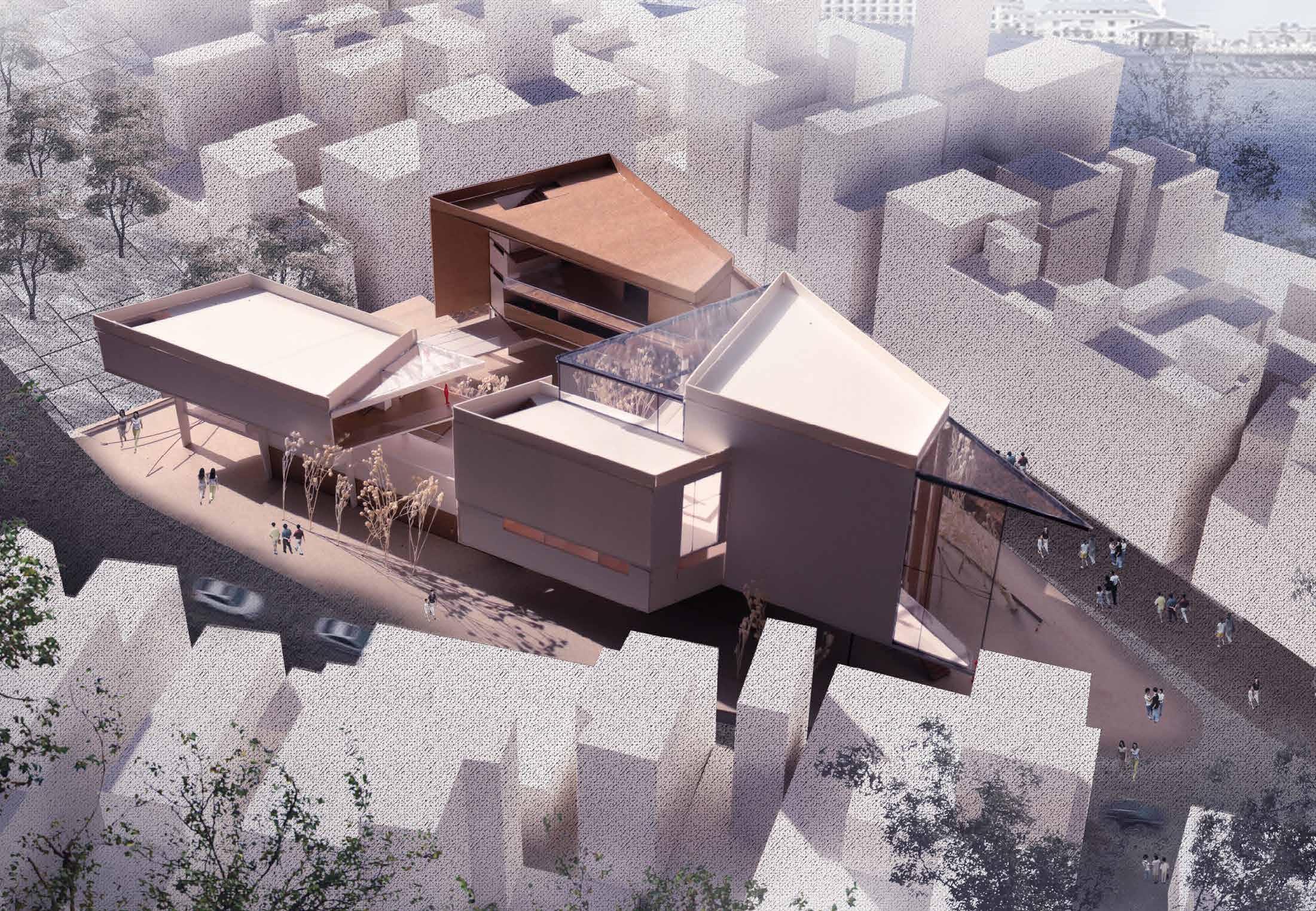

The site is located at the beginning of the old street with the highest density of tourists and locals. God becomes a “7-11” (a convenience store brand) waiter.

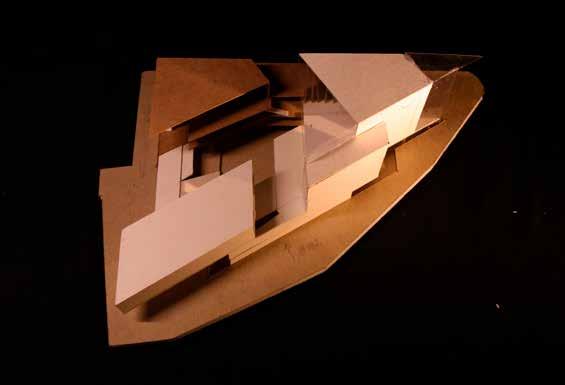

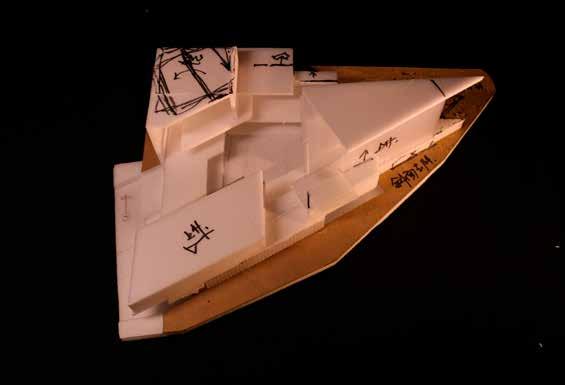

Formally, the “walls” of the church were “spatialized,” and the chancel was transformed from a space initially enclosed by walls into an urban plaza open to the public.

arket

Morning M

Morning Market

Residents

Residents

Night Ma

Ve h

rket

icle

To u

s&

ris

To u

ris

To u

Co

ris

as

ta

ts

ts

Ni

ts

gh

Mo

tor

cyc

les

tM

ark et

M

TR

lP

N

ark

Market Street

Church Altar

St

at

ion

Community

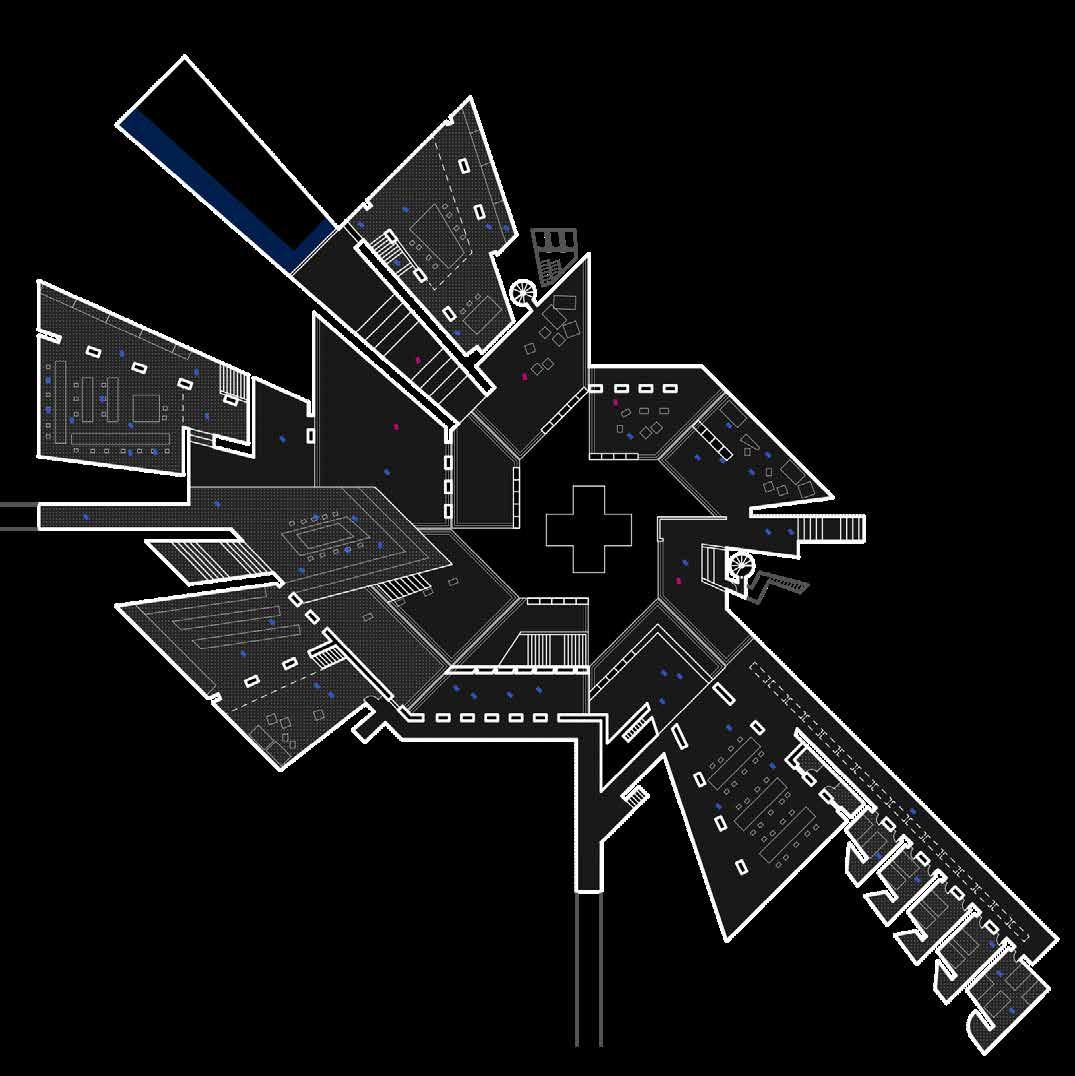

Masterplan

Resident Entrance

MT

RE

Ni

gh

tM

ar

ke t

En

tra

ntr

an

ce

nc

e

0

4

8

16

5

1 2 3 4 5 6 7

Snack Bar Multimedia | Tavern Public Kitchen Couryard | Stage Barbecue Tourist Center Storage

7

1

1 1

Up

1

6

3

1

2

4

5

Up 1

1

1

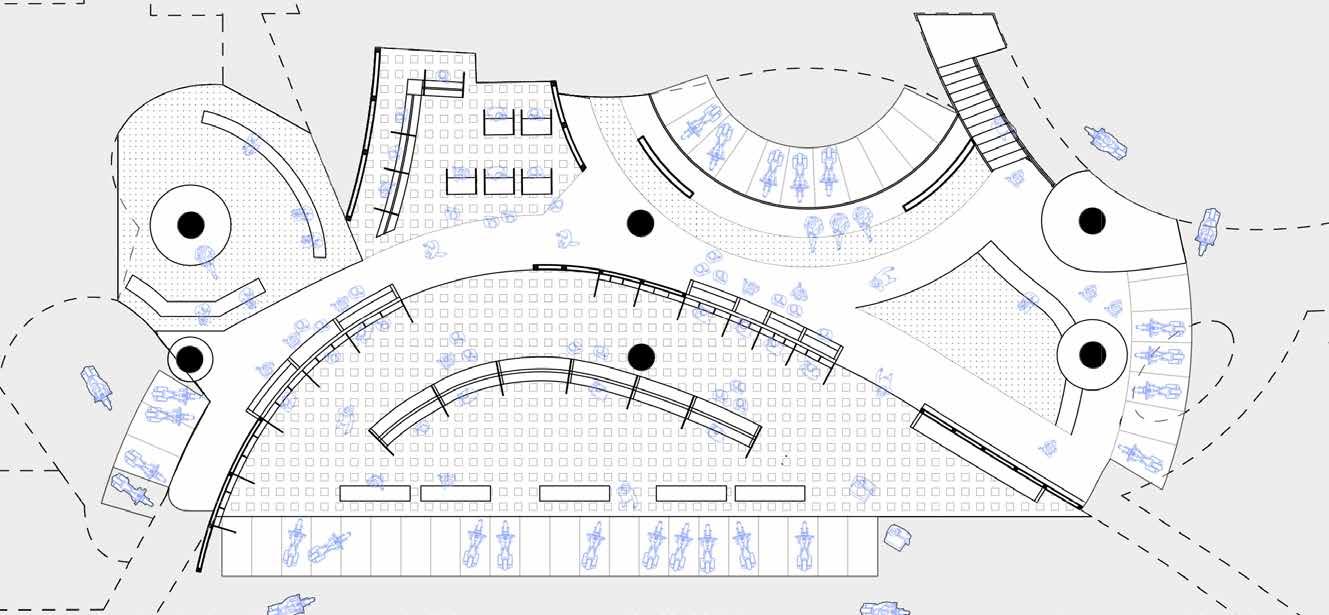

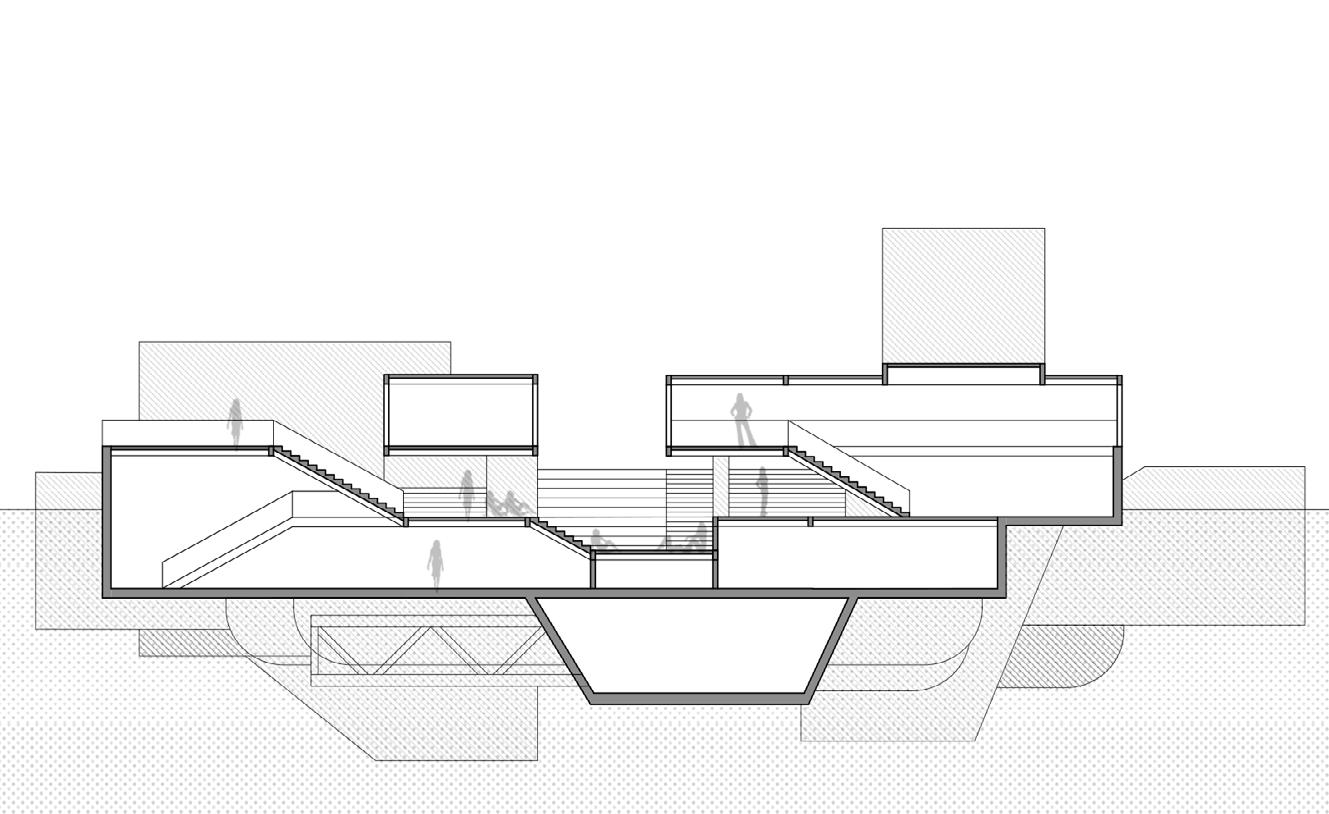

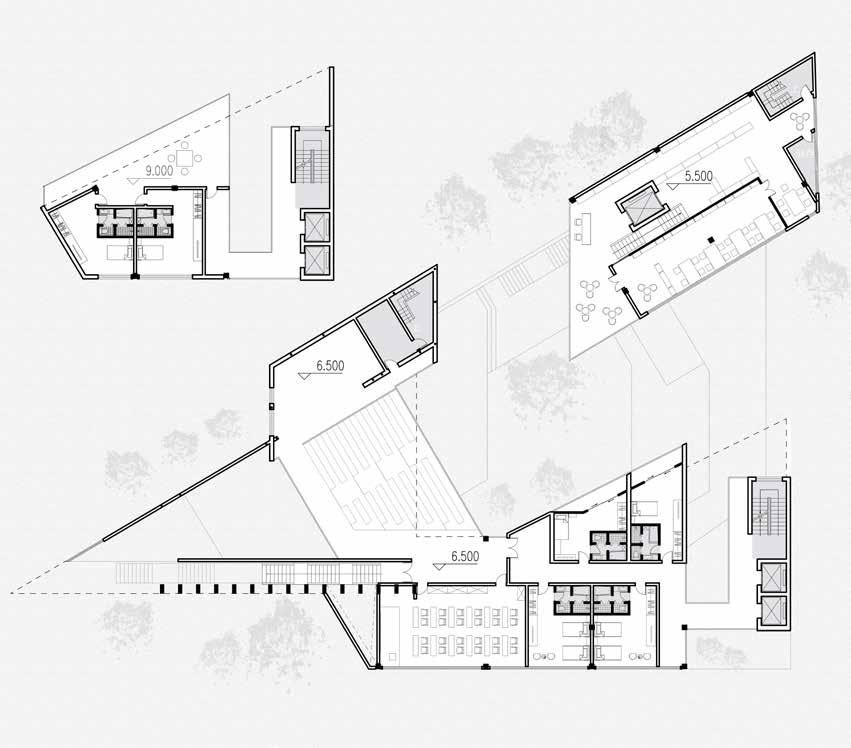

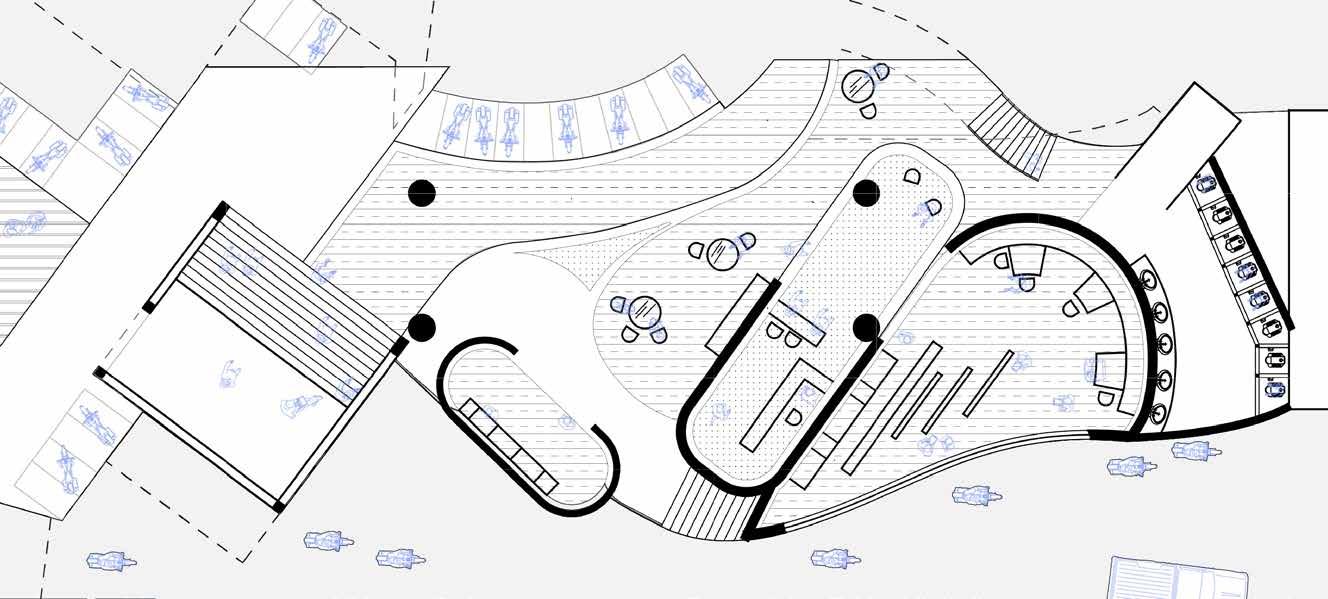

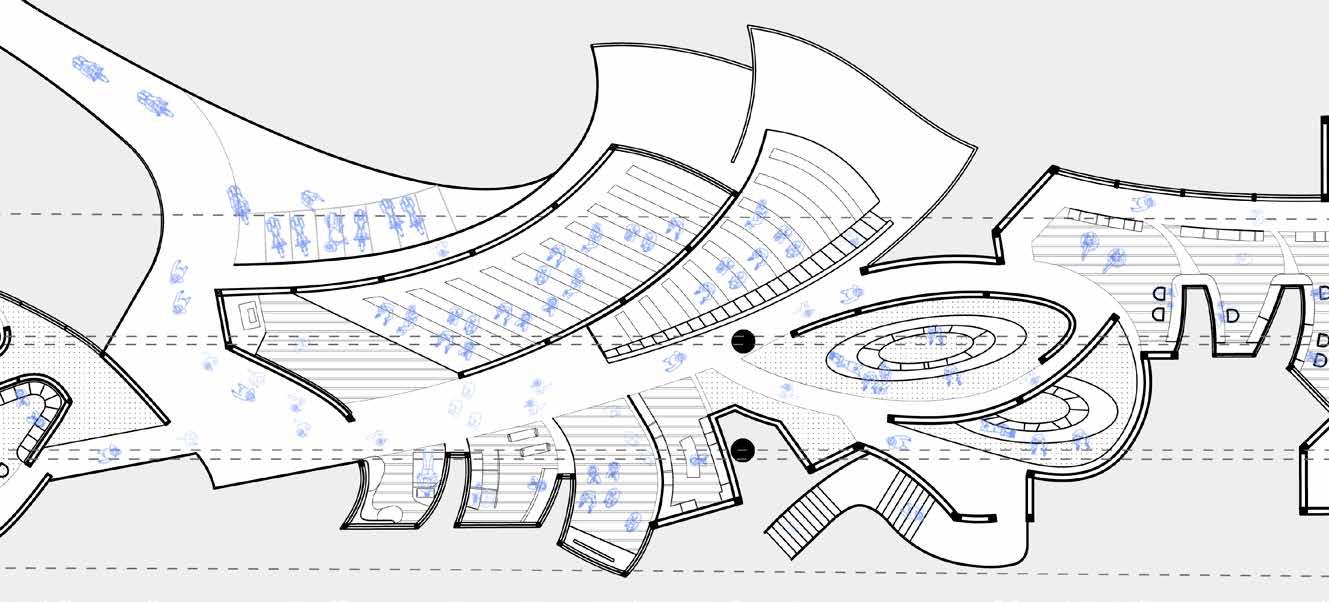

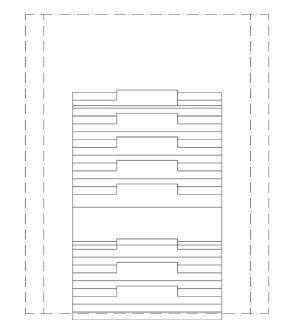

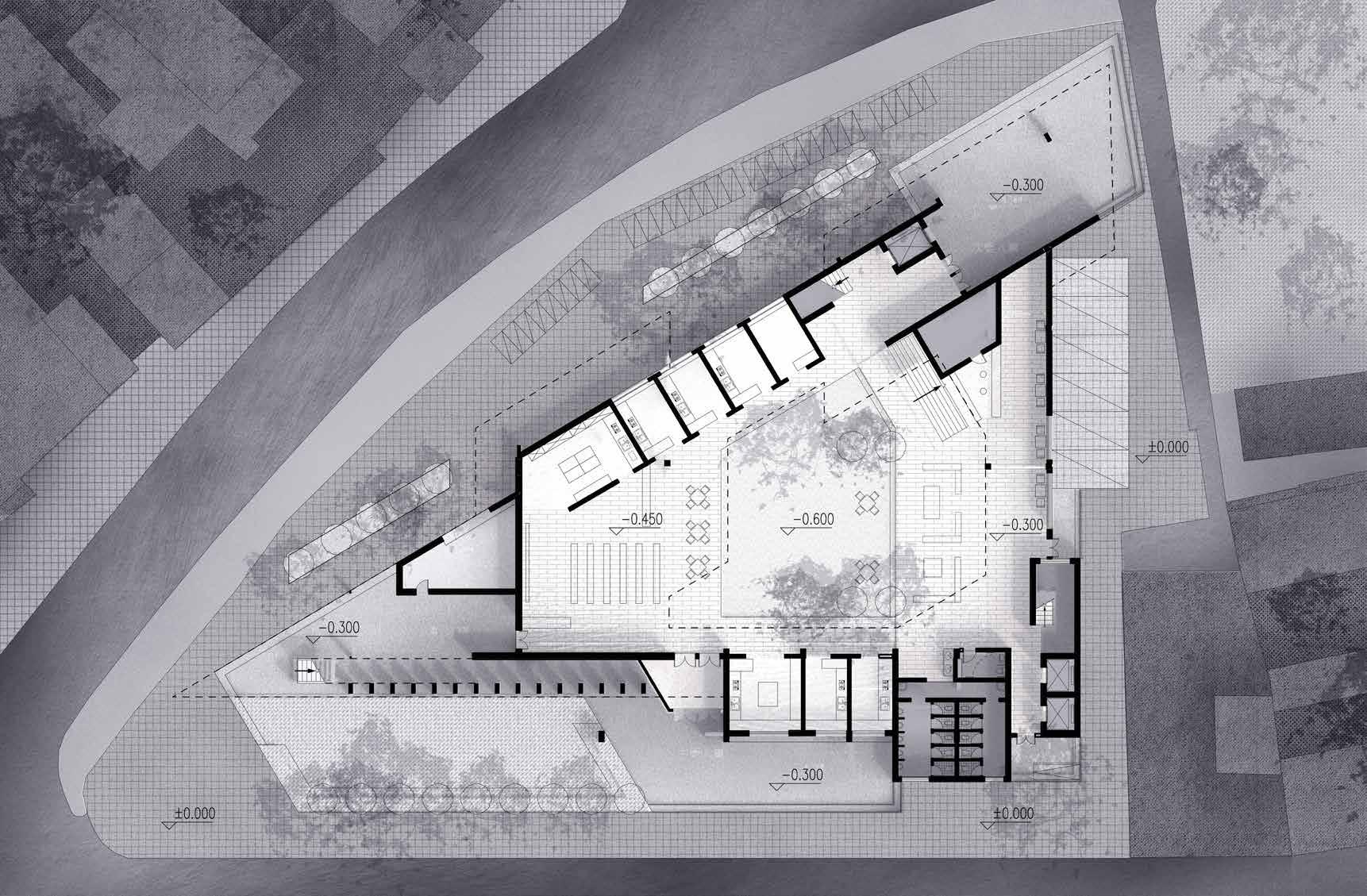

1F Plan

8 9 10 11 12 13 14 15

Altar Prayer Room Classroom Reading Room Choir Hostel Office Dorm

012

4

8

11 15

9

15

9

9

12

13

8

13 10

14

2F Plan

10

0 2 4

8

13

13

3F & 4F Plan

0 2 4

8

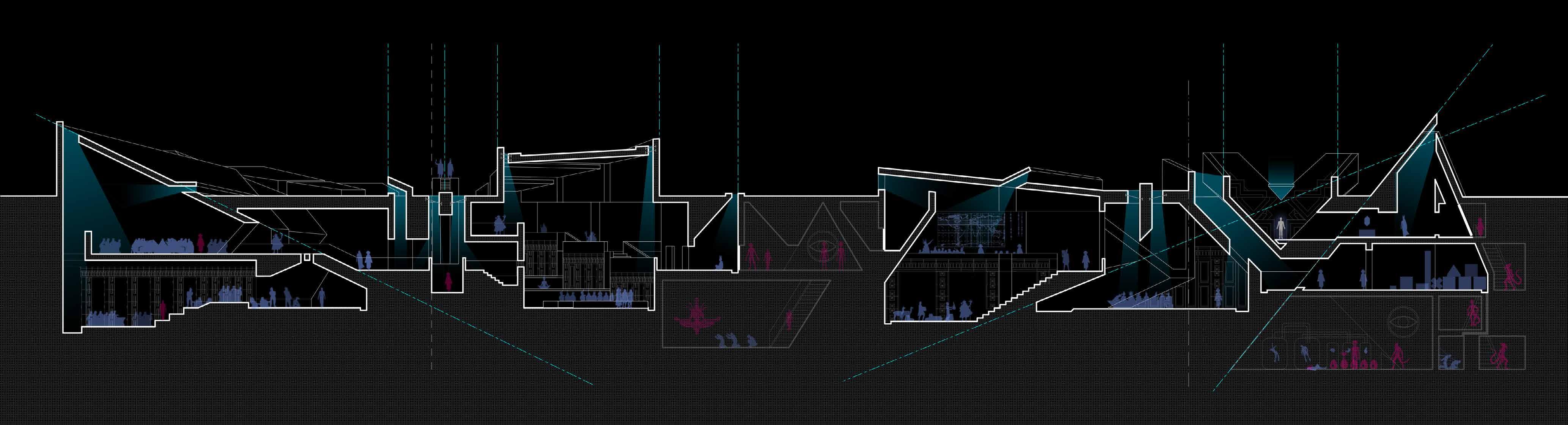

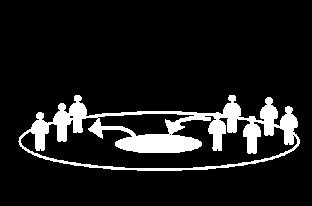

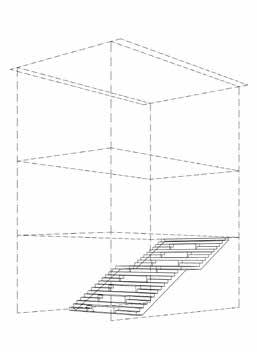

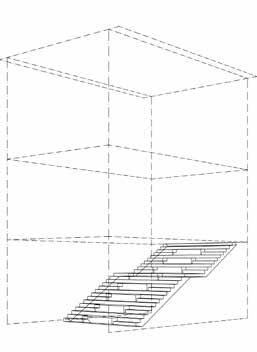

Space as a Confrontation

Architecture as the Switch Button

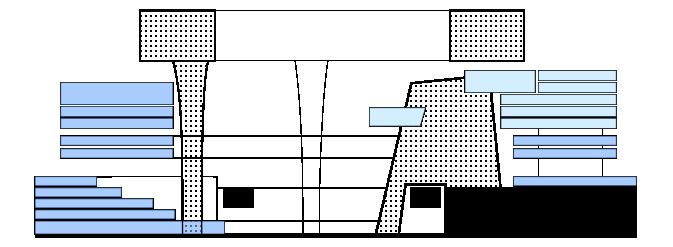

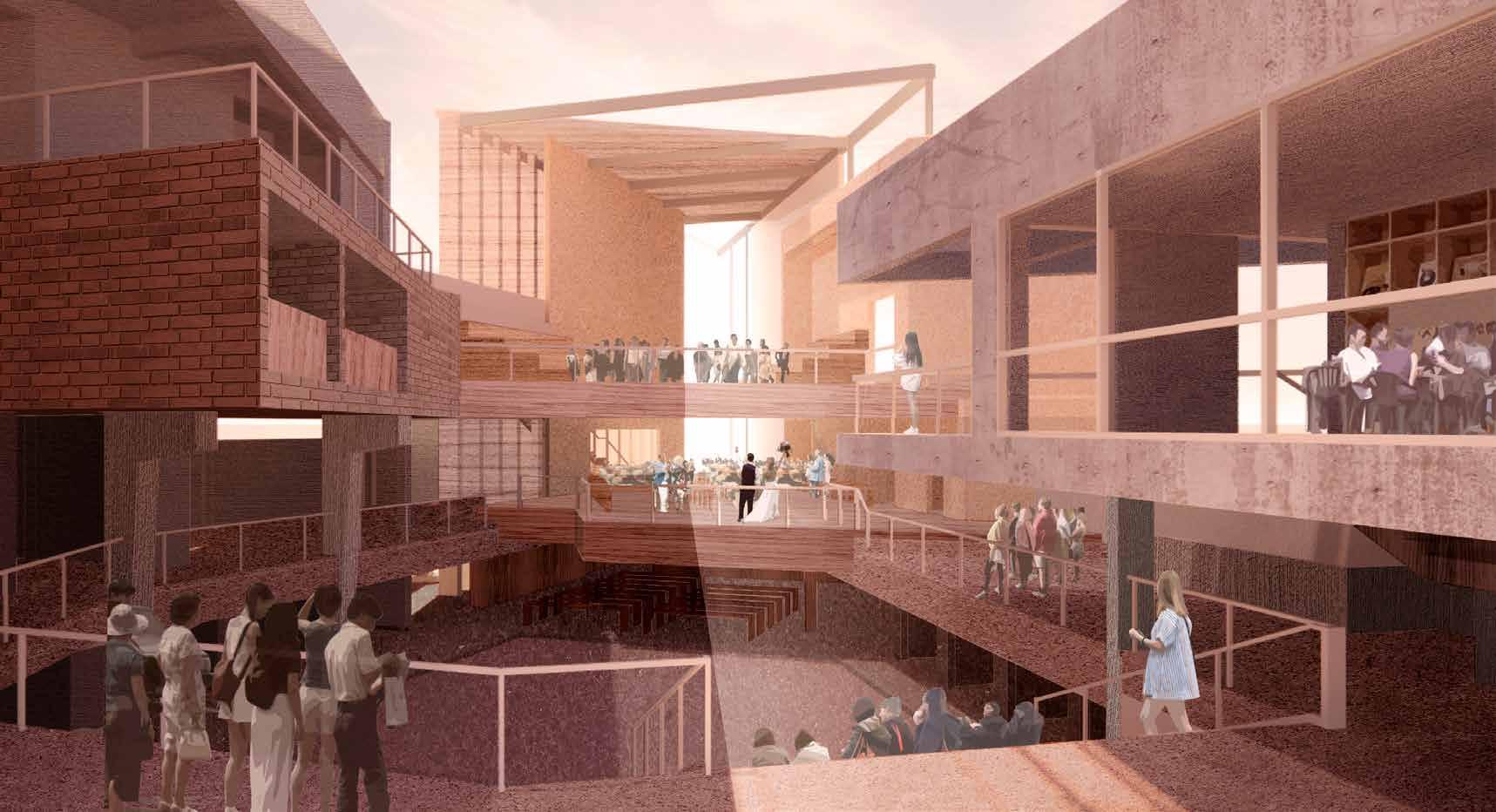

In the spatial layout, the first floor is set as an open space next to the the T-junction, surrounded by snack bars, taverns, etc. to form an inner courtyard, which is open to the tourists. Above the ground are the altar, prayer rooms, libraries and other local activity related facilities. The community church stands above the street market, which accommodate two different scenes.

During the day, around the central courtyard, local residents can immerse themselves in choir songs while attending classes, or witness a wedding while reading. At night, the first floor is lit up, and the courtyard of the church is switched into an open stage for the night market. Tourists come around the atrium to shop, barbecue, eat and drink, and enjoy the show of Tamsui artists at the same time.

6

02 Atrium Inside

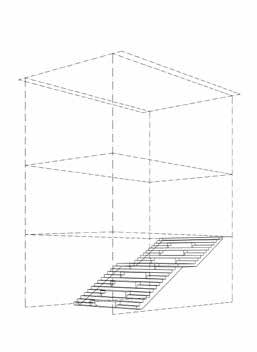

Tension Membrane between Traditional and Modern Studio Work Members: Chuhan Xu, Jianen Yao, Chen Li, Ximeng Fu Contribution: Leading Designer, Algorithm Designer & Team Leader Tutor: Yi Hong, Chengyang Lin Location: School of Architecture, Huaqiao University, Fujian, China(Mainland) Studio Project 2019.01 ~ 2019.03 The project is inspired by the traditional space form "atrium inside atrium". We adopted the method of tension membrane that has the least impact on the existing structure. This is aimed to strengthen the node image of the large steps and to activate the space's vitality above the stairs. Formally, the "hexagonal atrium roof" can evoke the image of ancient traditional space inside the modern atrium, forming a switch between "tradition and modern".

I would like to express my gratitude to the Digital Lab of Huaqiao University for its technical support.

7

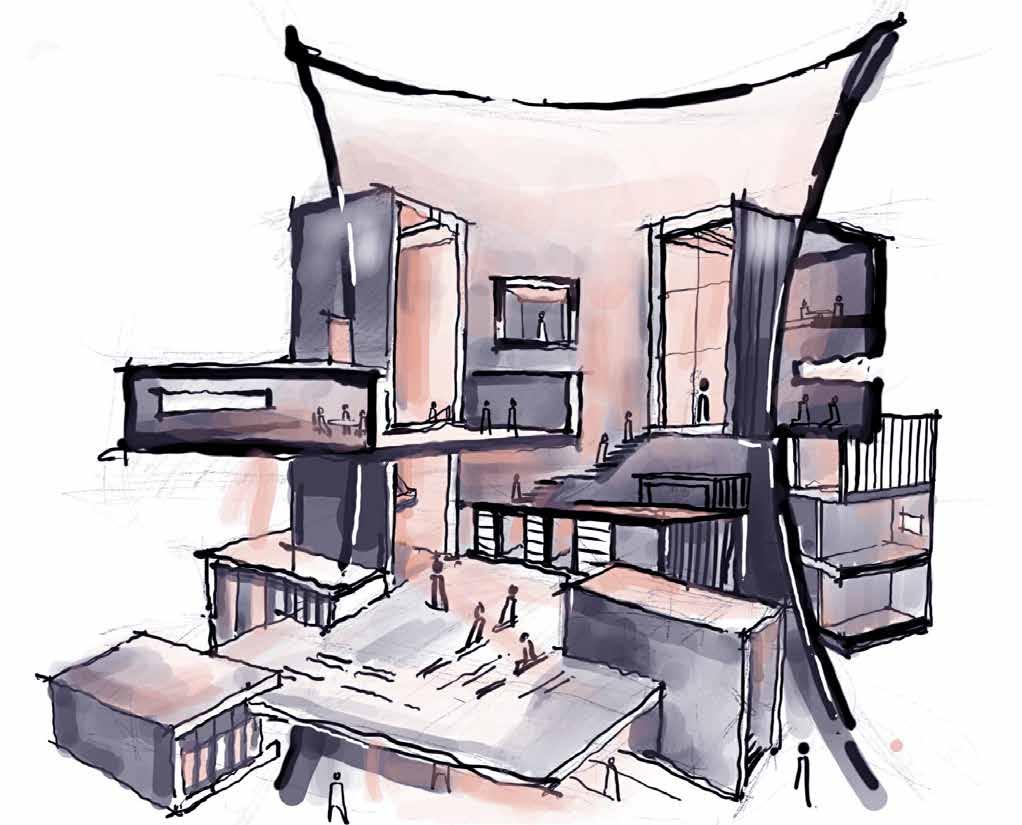

Atrium inside Atruim, Sourthern Fujian

Site Analysis

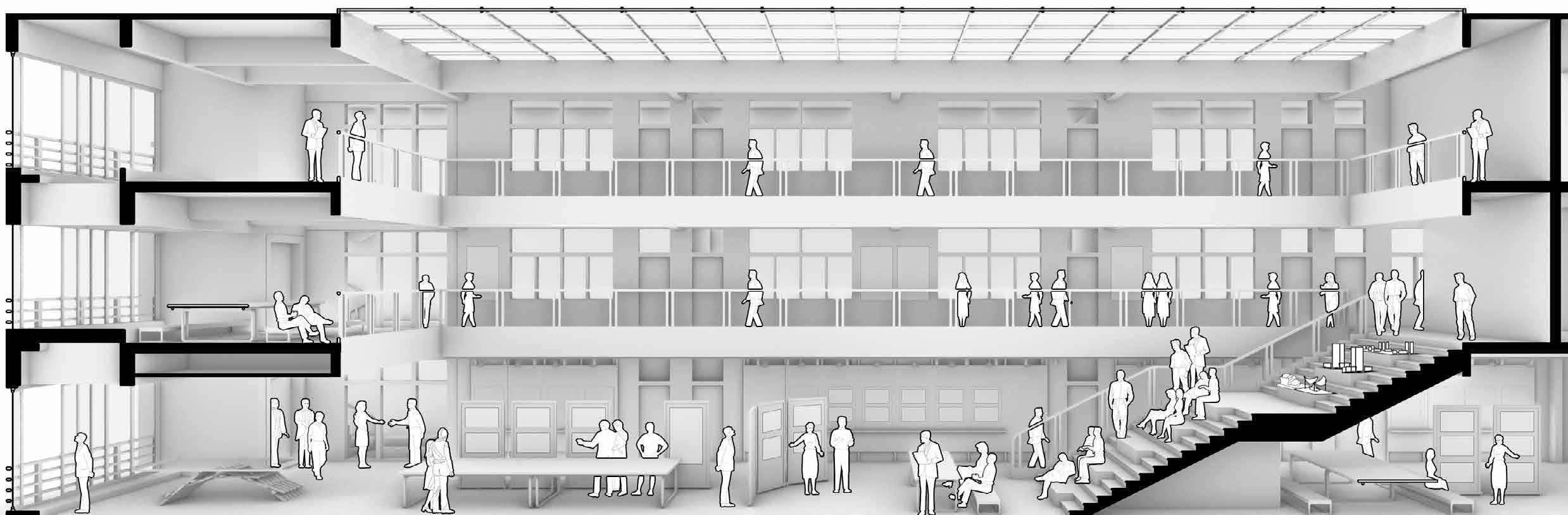

Atrium Inside Central Atrium Foyer

First Floor

Discussions

Corridors Second Floor

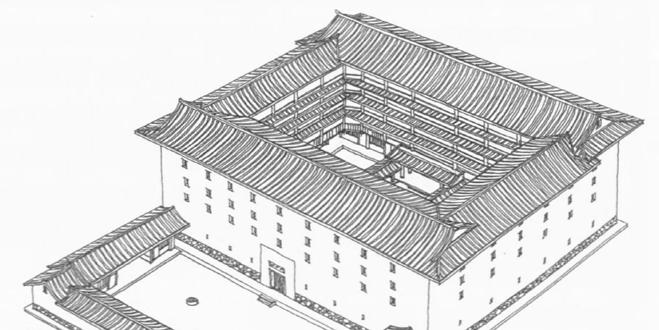

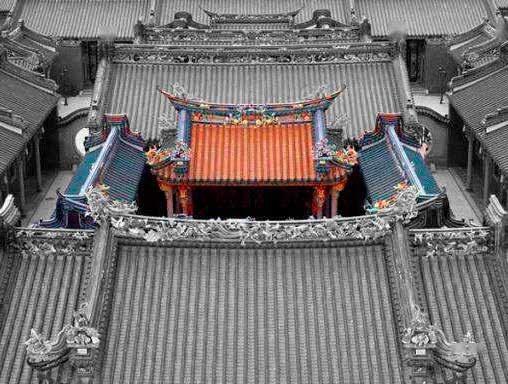

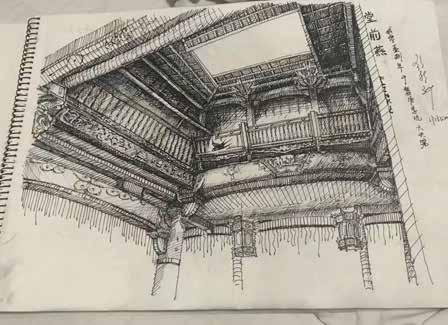

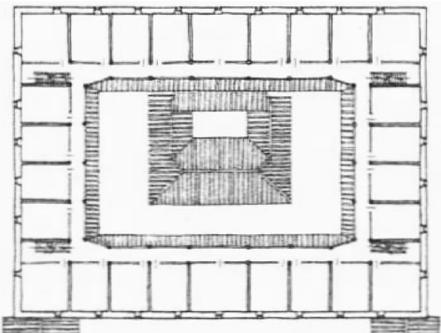

In the traditional residential buildings (Tulou) of Hokkien Architecture, a smaller courtyard can often be seen in the middle of the courtyard of the larger building, a space with high status for discussions or important worship and ceremonies.

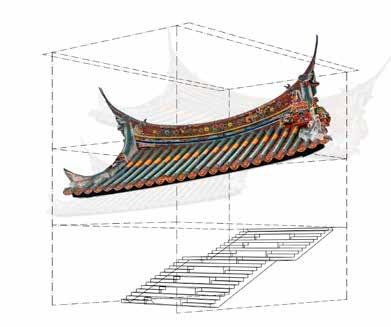

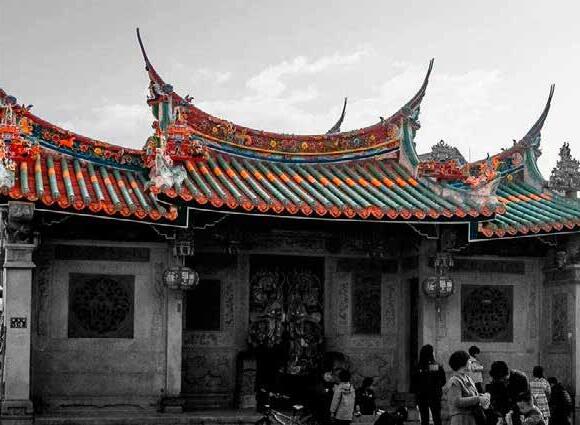

The Reshape of Roof Hexagon Polychrome Roof

shapes

Layout Collecting

Entrance & Foyer

Texture and Technic Analysis

Atrium inside Atrium

triggers

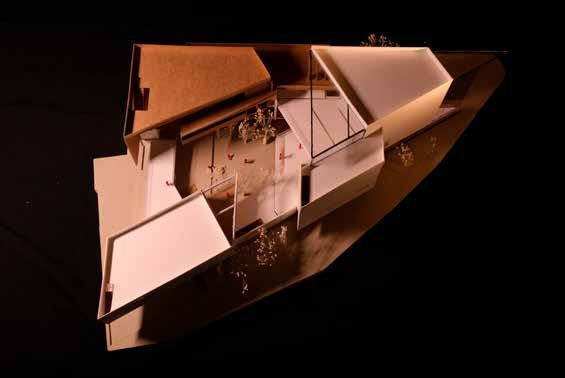

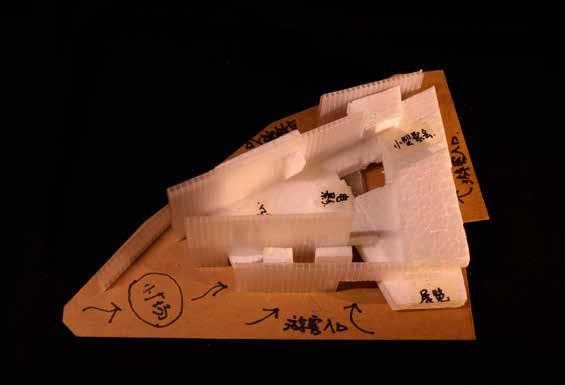

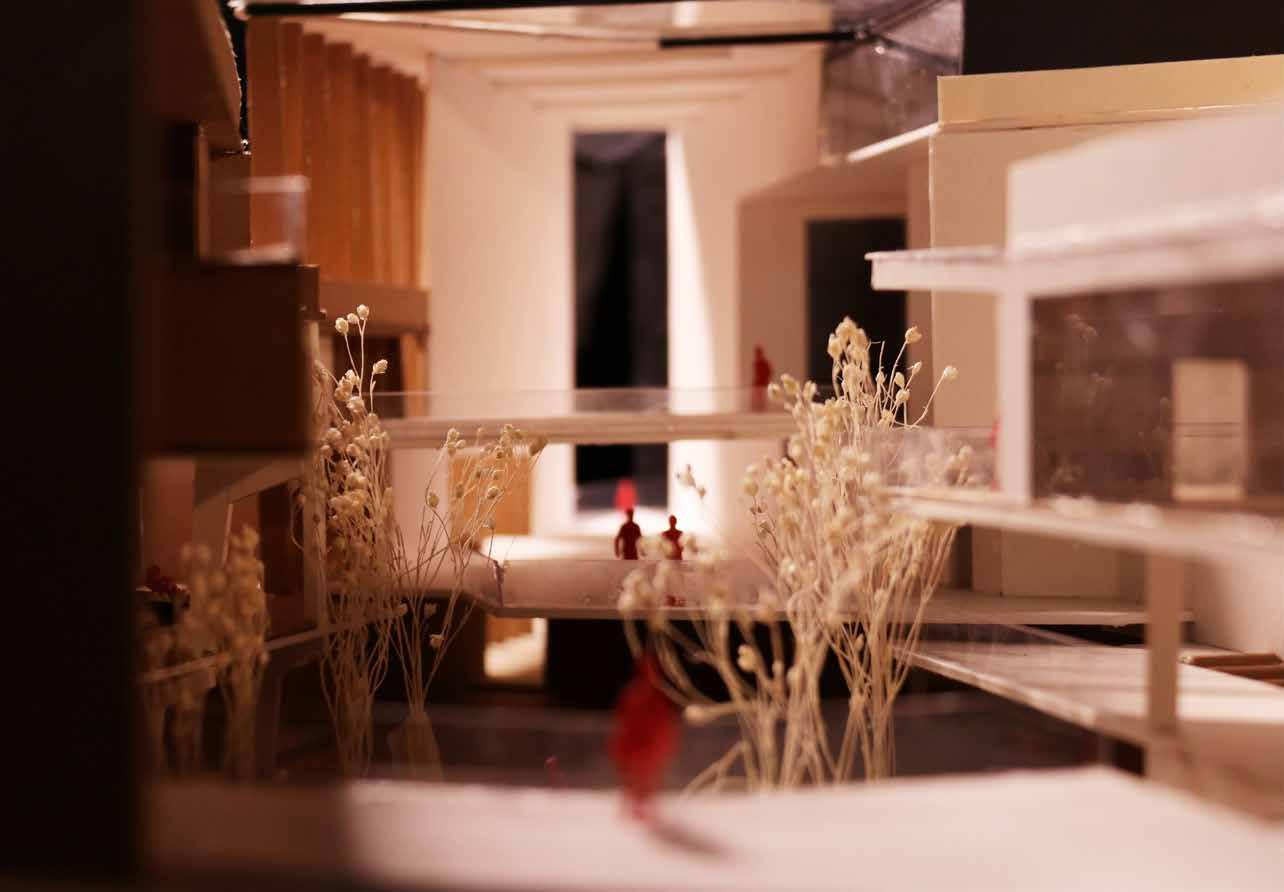

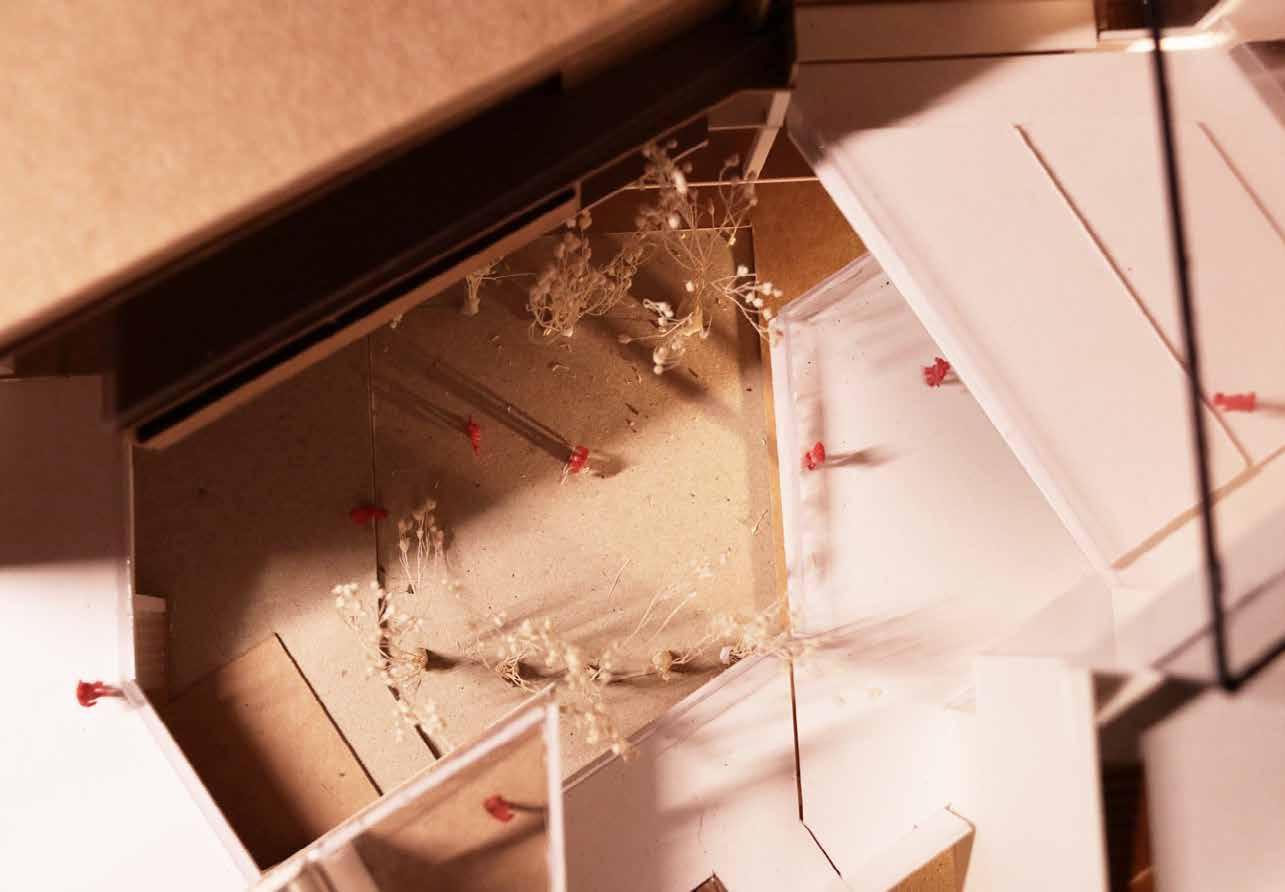

Model Exhibits

Layout Exhibits

Oral Defences

Rehearsals

Atrium inside Atrium

Central Atrium

(Unintensified)

to the next atrium

Lightweight Material Reshape

Hokkien Traditional Space

Joints

Membrane

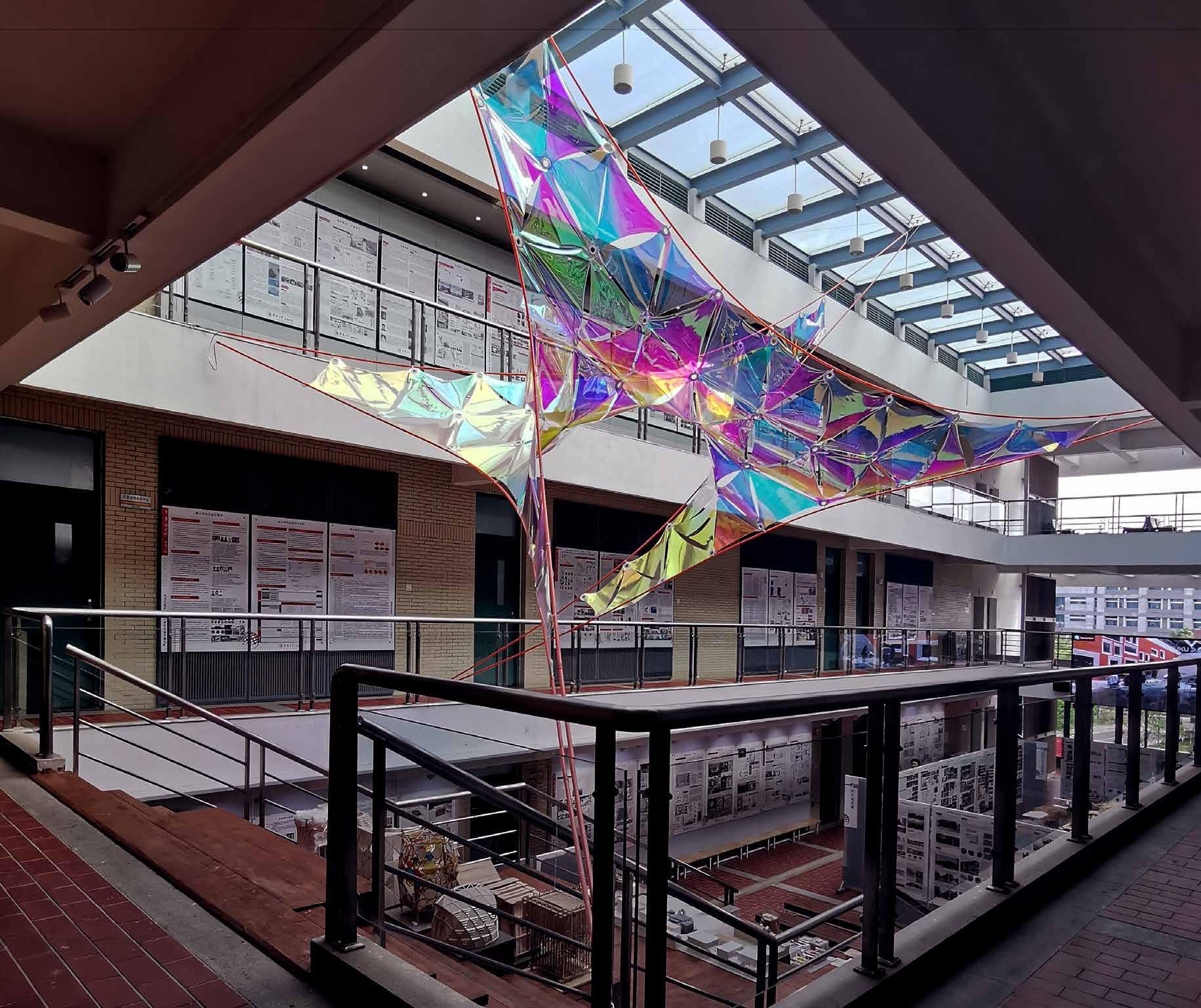

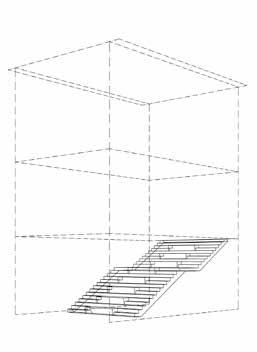

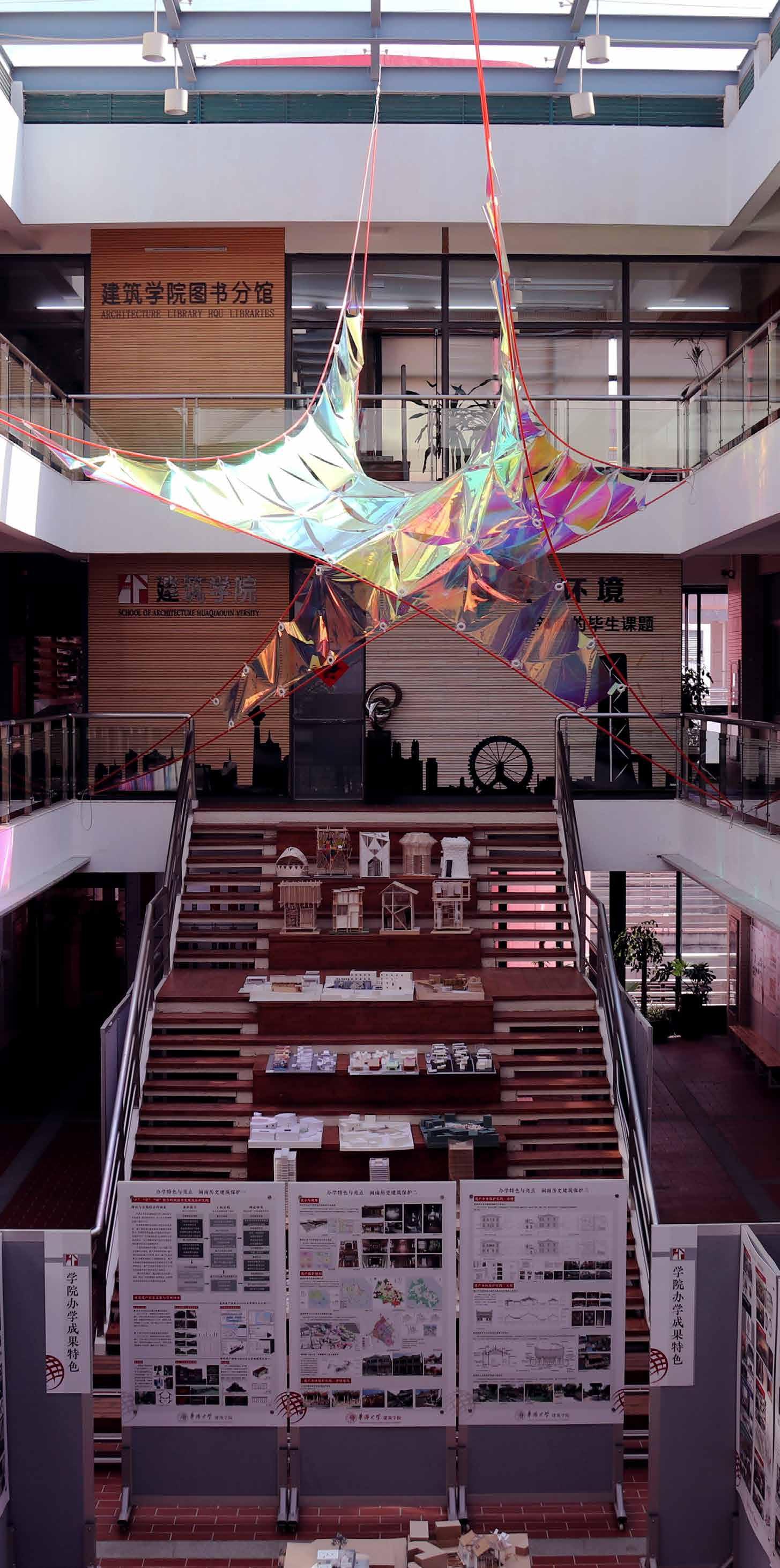

Tension Wire Edge The hexagonal glazed polychrome roof is a spatial symbol of buildings of great importance in southern Fujian. The project will be shaped based on the form of hexagonal roof and the consideration of the existing structure.

The project attempts to find the connection pattern between components from the existing traditional roof in southern Fujian, and then transform this connection pattern with a lightweight structure. And try to echo the practice of colored tiles with polychrome membranes.

8

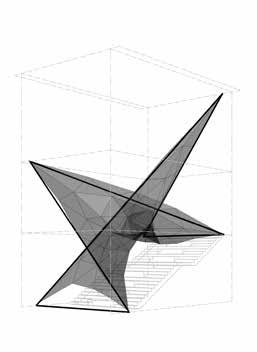

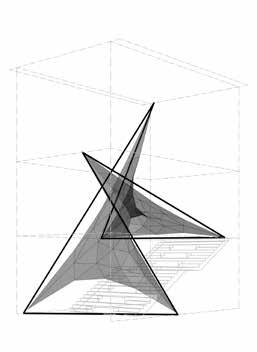

II. Forming and Screening

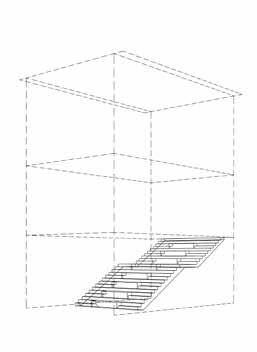

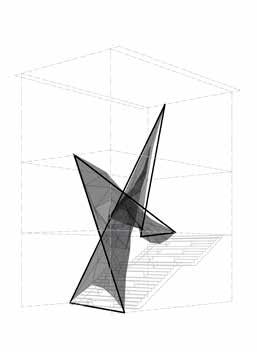

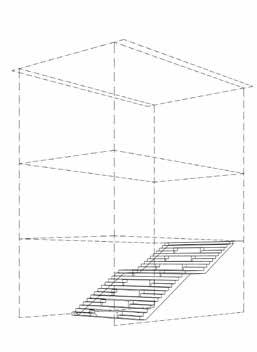

I. Space Enclosure

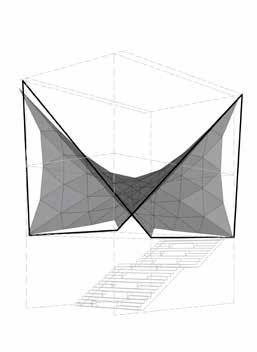

The Roof Floating Above

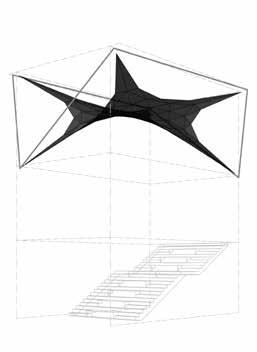

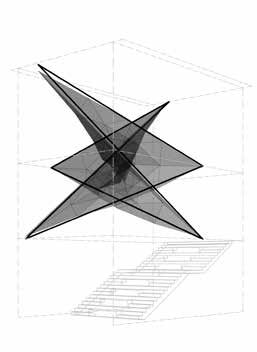

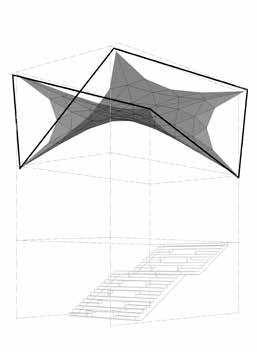

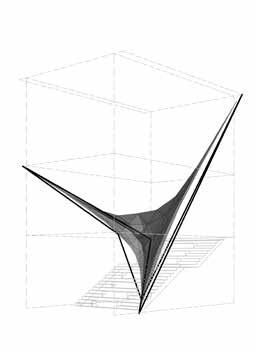

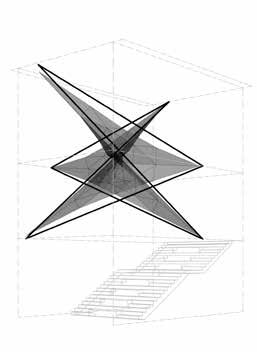

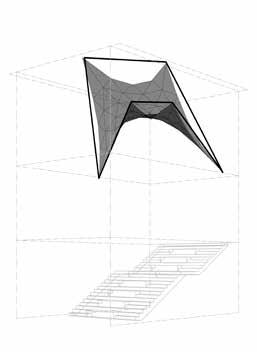

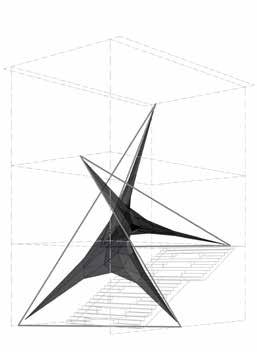

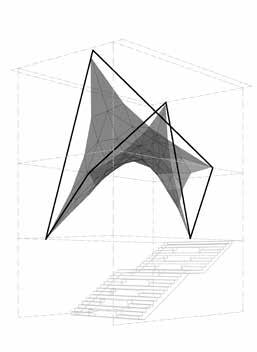

X & Y Axis Variable: Shade Cover

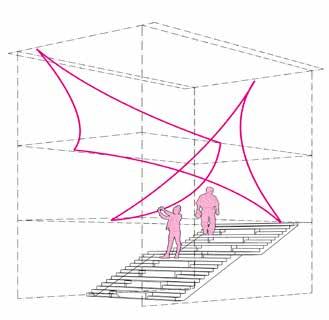

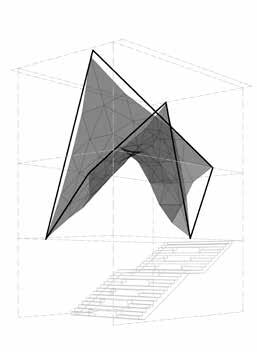

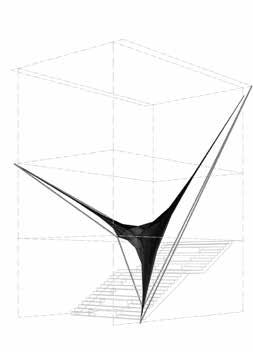

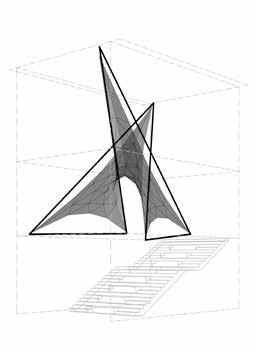

Z Axis Variable: Man Interact

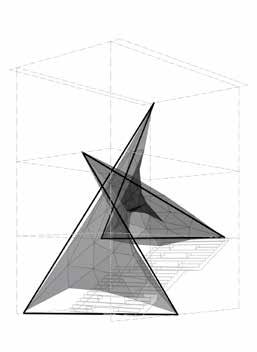

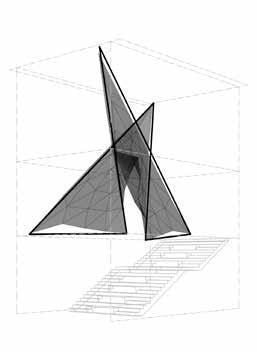

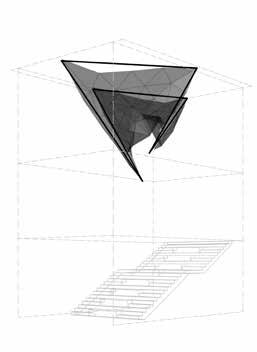

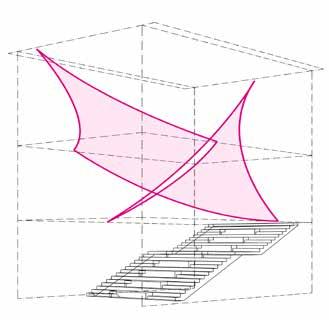

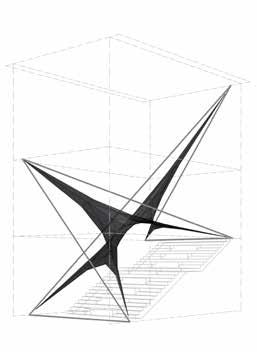

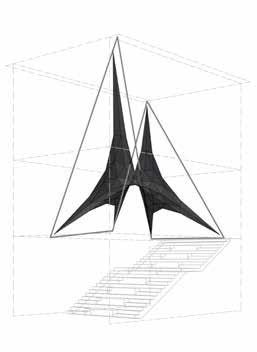

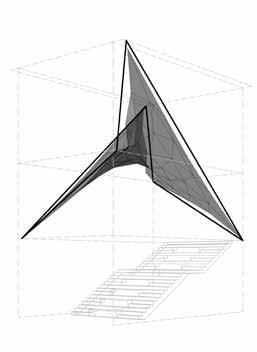

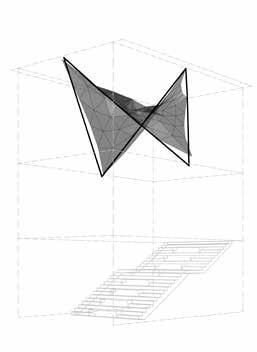

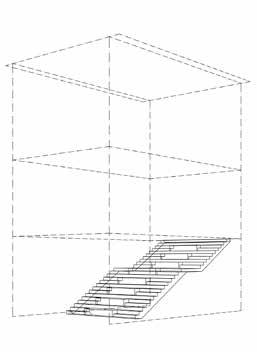

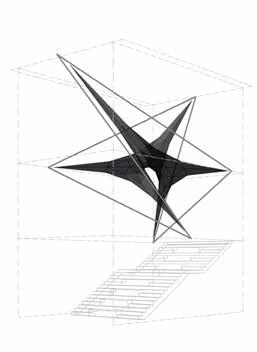

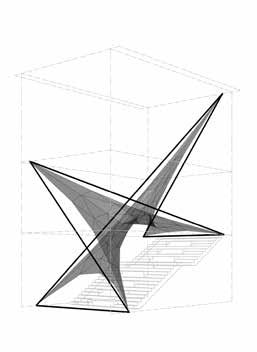

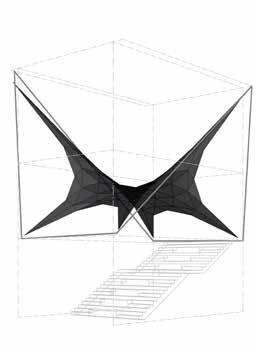

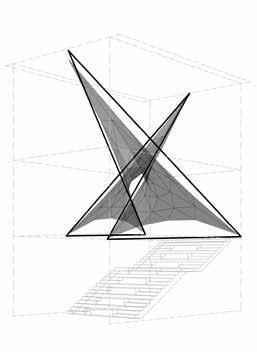

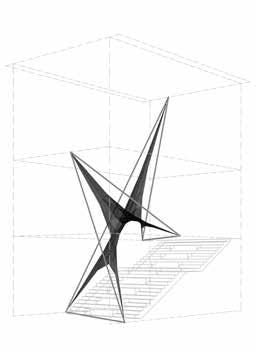

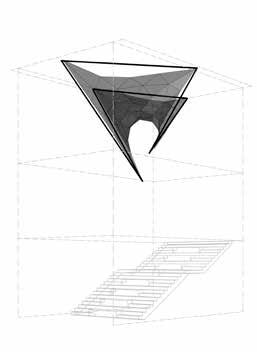

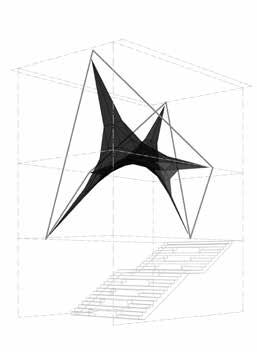

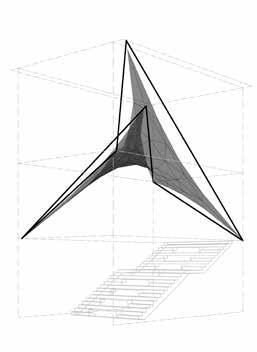

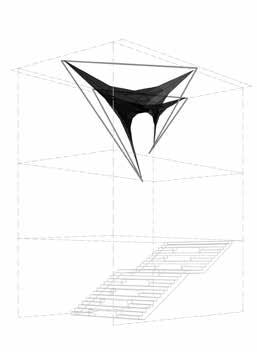

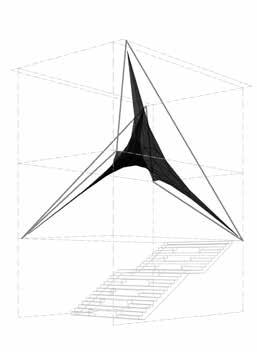

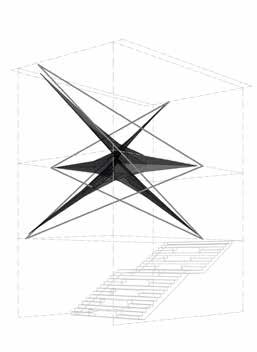

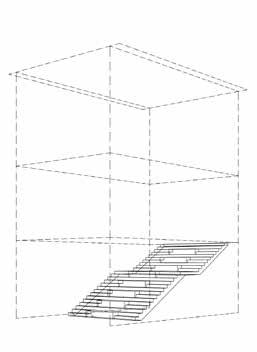

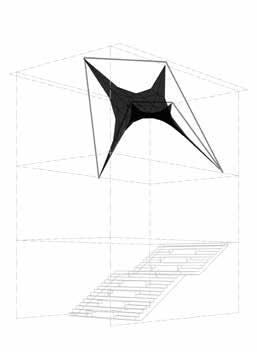

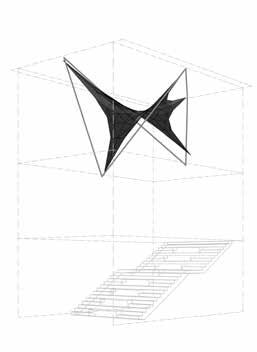

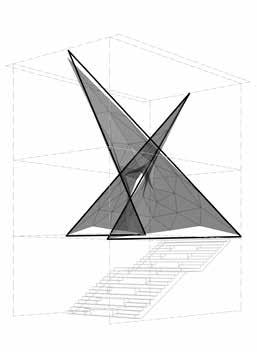

Tension Fabric Stretching

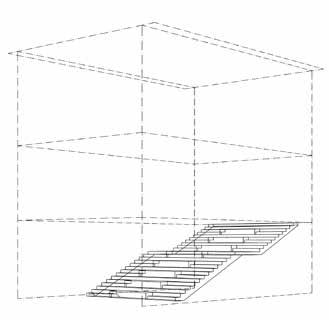

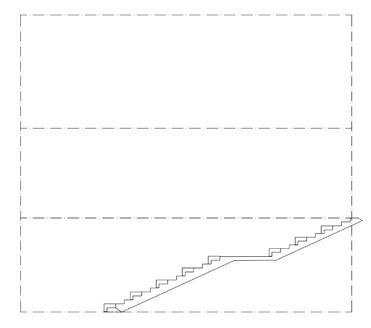

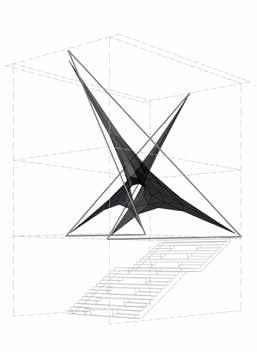

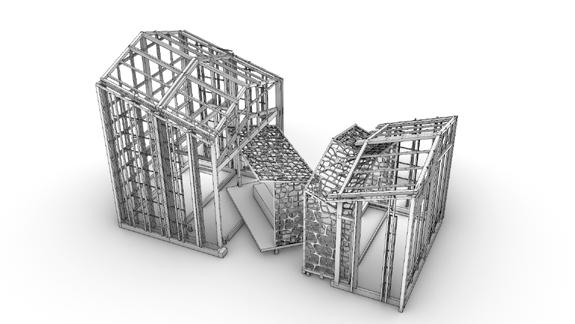

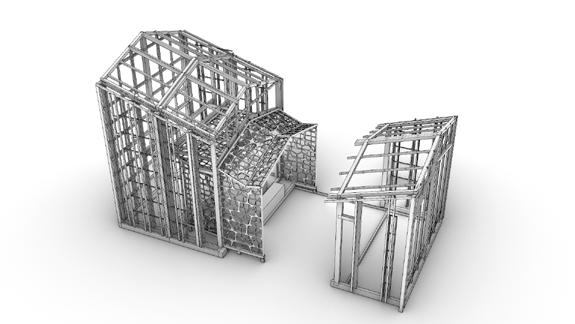

Existing Structure Anchoring

III. Structuralizing and Testing

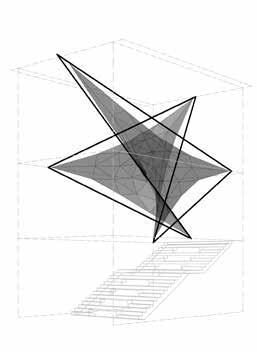

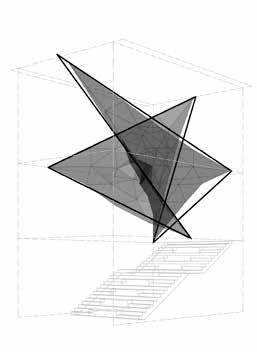

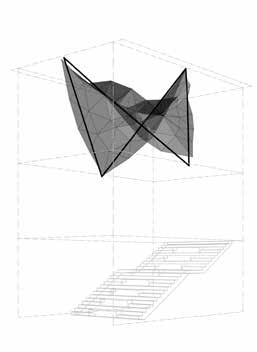

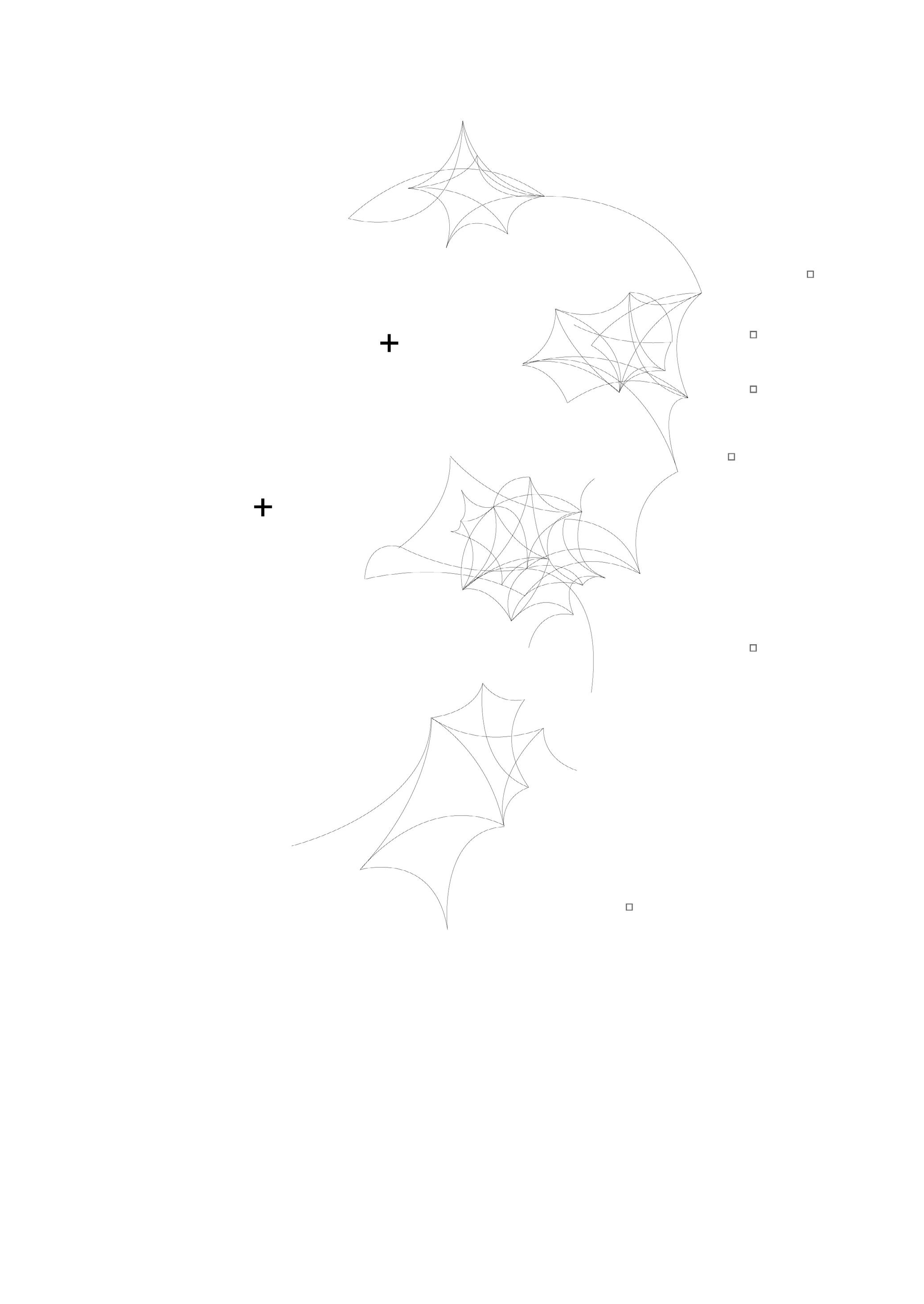

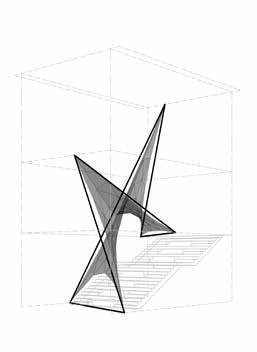

Membrane Dynamic Simulation

Suitable Cover and Interaction

Digital Model Visualization

Tension Experiment

Less Cover

Less Interact

More Interact

More Cover

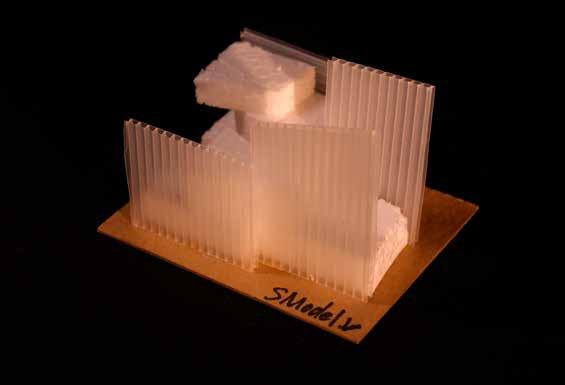

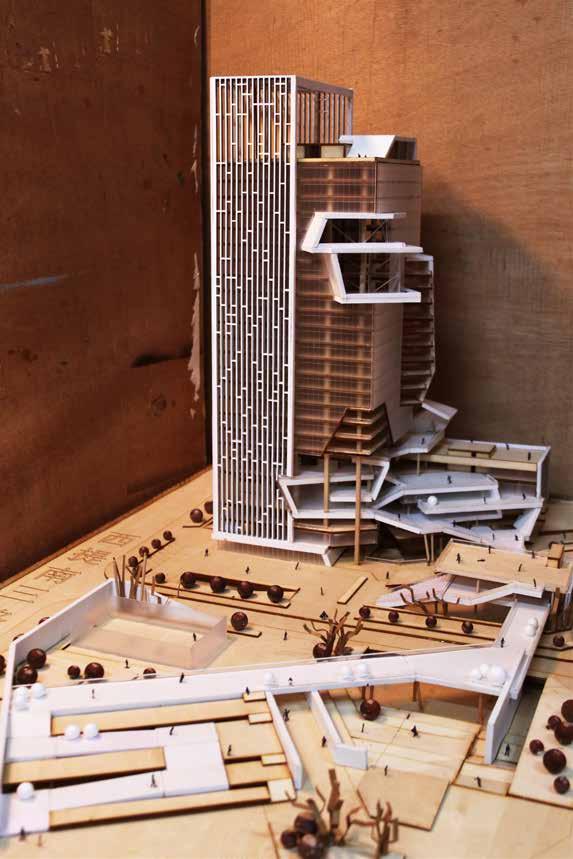

Scaling Model

High Cover, High Interact

Moderate Cover, High Interact

Mild Cover, High Interact

Low Cover, High Interact

High Cover, Moderate Interact

Moderate Cover, Moderate Interact

Mild Cover, Moderate Interact

Low Cover, Moderate Interact

High Cover, Mild Interact

Moderate Cover, Mild Interact

Mild Cover, Mild Interact

Low Cover, Mild Interact

High Cover, Low Interact

Moderate Cover, Low Interact

Mild Cover, Low Interact

Low Cover, Low Interact

9

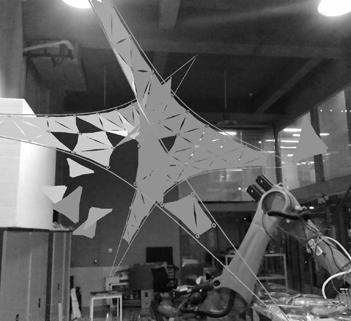

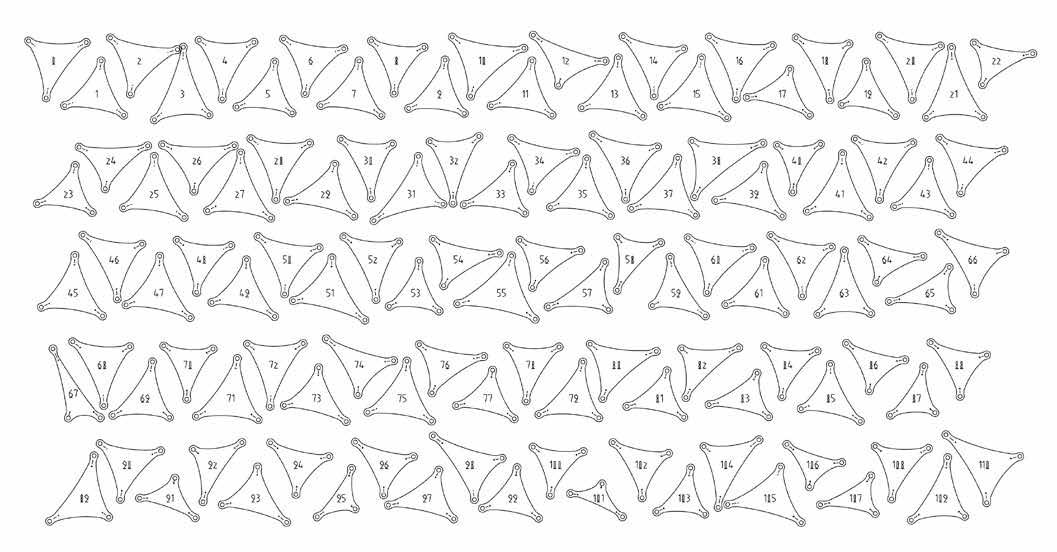

Robotic Cut

Membrane After the membrane is evenly subdivided by triangles, it has similar areas, and there are slight differences in size. The corners are marked with the joint numbers they are connected to.

Membrane Assembling

Joints The joints take the exact same shape and material, and mark the center points of the membranes corresponding to different directions to reduce errors.

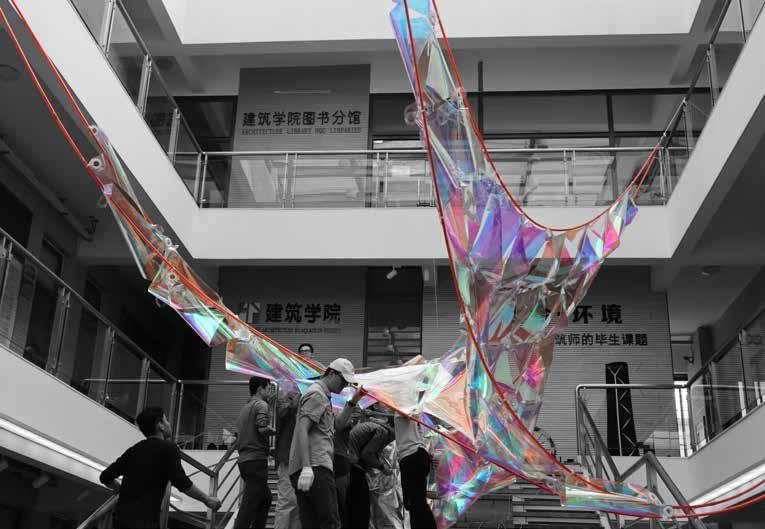

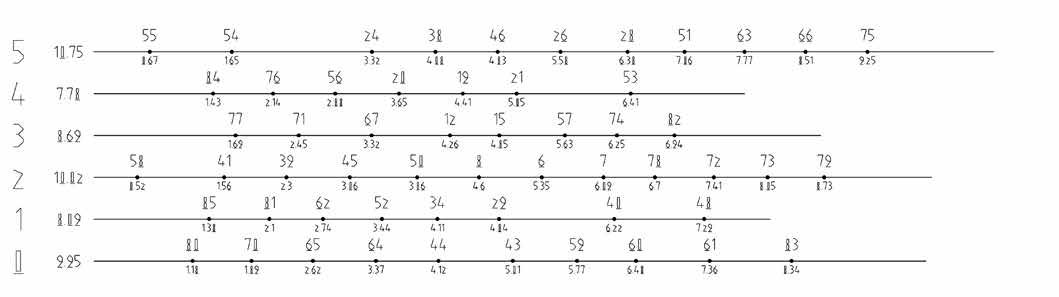

Tension Wire Fabricating

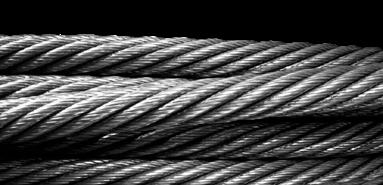

Tension Wire The tension wire is divided into two layers: the inner layer is steel cable, which plays the role of tension force, and the outer layer is a plastic rod, which plays the role of connecting with the membrane.

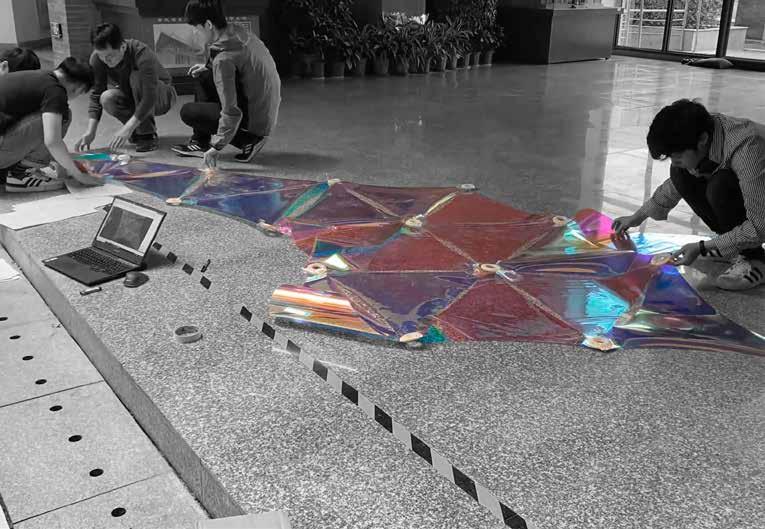

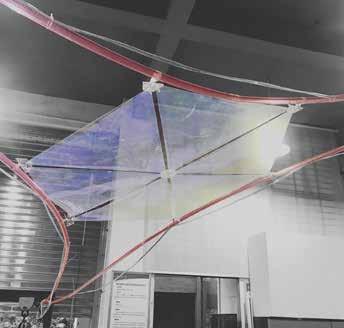

Constructing

10

03 Tied to the Sea Ama's Ocean Nomad House between Land and Sea Group Work Group Members: Chuhan Xu, Yichen Yang Contribution: Leading Design, Analysis(50%),Modeling(50%), Rendering(50%),Drawing(50%)

Tutor: Jiawei Xue Location: Toba, Japan Academic Project 2021.05 ~ 2021.06 Ama Divers refers to women who dives into the ocean to catch shellfish, seaweed and other seafood. Ama live all over Japan. Among them, Toba in Mie Prefecture and Shima area live in about half of Japan's ama. It is known as the most likely "city to meet Ama" in Japan.

Japanese Ama culture is one of the unique cultures belonging to independent women in Asia.

The most significant difference between Amas and ordinary women is that conventional women's activities do not constrain Amas. Their daily routine combines work and life between land and sea. However, after embracing the era of tourism and cultural re-creation, Amas are still stuck by old land-oriented regime and routine. The project tends to create nomadic living blocks that allow Ama groups to work independently above the sea and assemble spontaneously to form public spaces when social activities are needed. Thus, a switch between land and sea is maded possible.

11

Ama Divers, or Ama, dive into the ocean to catch small sea creatures. Female divers take over the profession.

They can flexibly dive 20 meters and hold their breathe for minutes, with only few equipments to avoid overfishing.

Background Basic Information of Ama

M Ebisan HonshojiTemple S Arashima Community Center

T Pearl Street

T Arashima Elementary School

M Sea Museum S Ama Platform

M Ebisan Honshoji Temple

T M Emperor Meiji Monument T S Toba Aquarium

Iseshima,Mie-ken, Japan

M Sea Museum

3 28℃

M Poseidon

80-100

S Oyster Farm T Yamayasu Fishery

TOBA

40-80

Shinmei Shrine M

10-40

Ama Diver Population

M Ama Diver's Museum S Ama's Restaurant

M Adako Shrine

S

6

Old Generations: Dive for Production

T Sugimura Fisheries

S

T T

T

2

T

T Shima Spanish Town

S

Anori Fishing Center

T Fishing center

22℃

M

T

24℃

T Sugimura Fisheries

T

SHIMA

5

T Kakimaru

1-10

M

1

26℃

T Mutsumi

T KakiTaro

4

T Sugimura Fisheries T

S

T

S Watakano Ferry

New-Generations: Dive for Self-Pursuit

1

2

3

4

5

6

Amas work as groups and dive with only one rope tied to the waist, to call for alert and help.

When the work is done, amas have to leave the sea and return home on land.

Amas gather in Ama's Hut, a place with firepit, where they get warm, cook and rest after coming back.

As time goes, diving is less necessary for making a living. Tourism had boosted more job opportunities

Ama now go diving and hold ceremonies out of the love of the ocean and the culture shaped by their own hands.

More people come to learn about Ama's lifestyle and culture. Young generations begin to join the crew.

T

T

MatoyakakiTerrace

S

S Sight-seeingPlatform S Shima Kanko Hotel

S Islands

T Shima Sea Village

S Miyako Resort Beach S T Camp Village S Ama's Restaurant

S

S

Tourist Harbour

S Islands

T

S

T

S

M

20℃

Hotel Sunperla Shima

Attend Celebrations & Rituals (During Festivals)

Sell to Market S

S

Shima Kanko Hotel

S National Park T

S Ama's Restaurant

M

Kashikojima Hojoen

T 18℃

S

M Towns & Markets T Scenes & Hotels S Point of Interests

Museums & Shrines

TreatVisitors

Set Fire & Cook

Warm, Chat & Rest

Ama-Hut

Dry in the Sun

Put on Outfits

Pray for Luck

16℃

Ceremonies & Performances

Rest & Collect

Assemble & Classify

When they throw the larvae back into the sea.

S Dive & Pick

Folk Tour & Special Dishes

Temperature

Typhoon

Normad

Changes in sea temperature caused by ocean currents and bad weathers like heavy storms can affect coastal fishing route and destinations.

Sightseeing & Parties

Modern tourism brought new effects to coastal normads.

Dive withVisitors & Perform

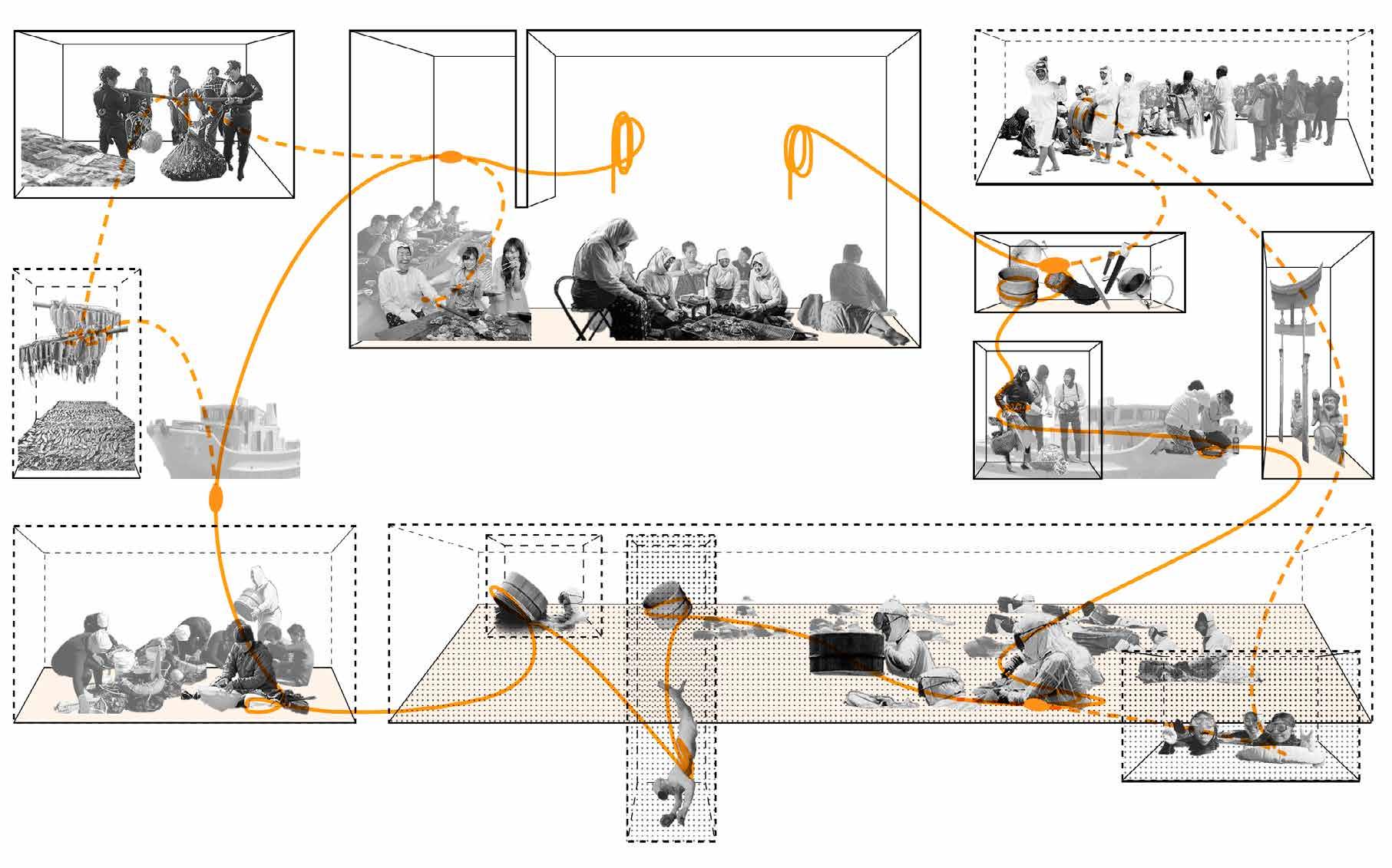

Ama's Daily Scene Though Ama's life-goal has changed, they still follow the same routine as before. A routine that only stresses the importance of production efficiency.

Work on Sea Connect with Land

12

Auntie

Strategy

Some Noon...

Space Creativity of Ama

Yes my dear?

Can we go somewhere other than the market?

Ama were liberated from the land's industrial power, yet......

Guy Debord

Temps Pseudocyclique

...instead of breaking out of the fixed lifestyle, Ama obediently follows the industrialized track.

Above Sea

On Land

On Land A Mundane Circle

Here's an advice to...

Derive

jump out of the industrial scene to rearrange the pace of life

A Flexible Switch Button Tonight's the World Cup, people will come to the town and watch ball game together

And to...

Detour

create scenes that belong to ocean normads, to themselves.

A Land-Ocecn Urban Symphony One of us gets married

1st Ocean Beer Festival

Treat UNESCO

And so on...

You've been learning real quick young ladies!

Let's head to the market, big catch for today!

...we want to join them.

We can bring our harvest there, and set-up a public field ahead of time.

Sure, we shall send message to other groups then.

"Derive"

Amas' Apartments

Live above sea in group

Fish & Social Facilities

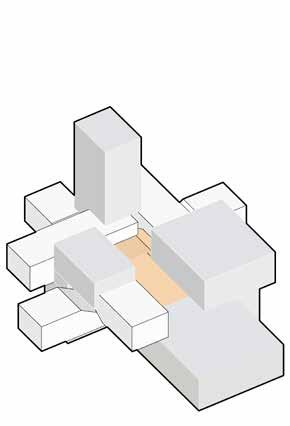

Space Enclosure

Central Firepit

"Detour"

And so on...

Connect with land at will

T

S

M

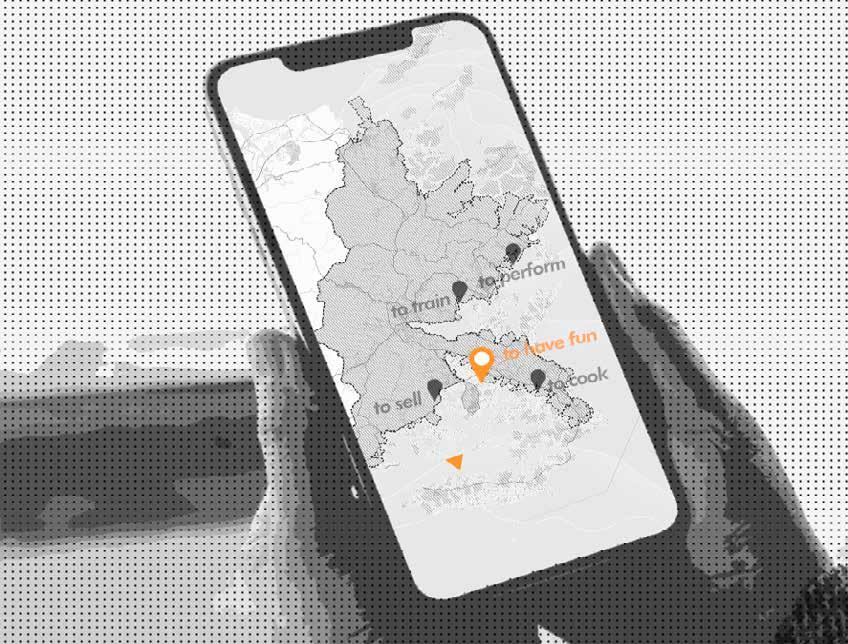

To Sell

To Have Fun

To Hold Rituals

Resource Trading & Food Drying...

S

To Cook

Cooking, Training & Visitor Treating...

Ritual Ceremonies & Big Celebrations...

T

M

To Train

To Perform

To Dive

And so on...

And so on...

This is the beginning...

The Hut is coming!!!

...of the first Ocean Beer Festival.

13

Topless

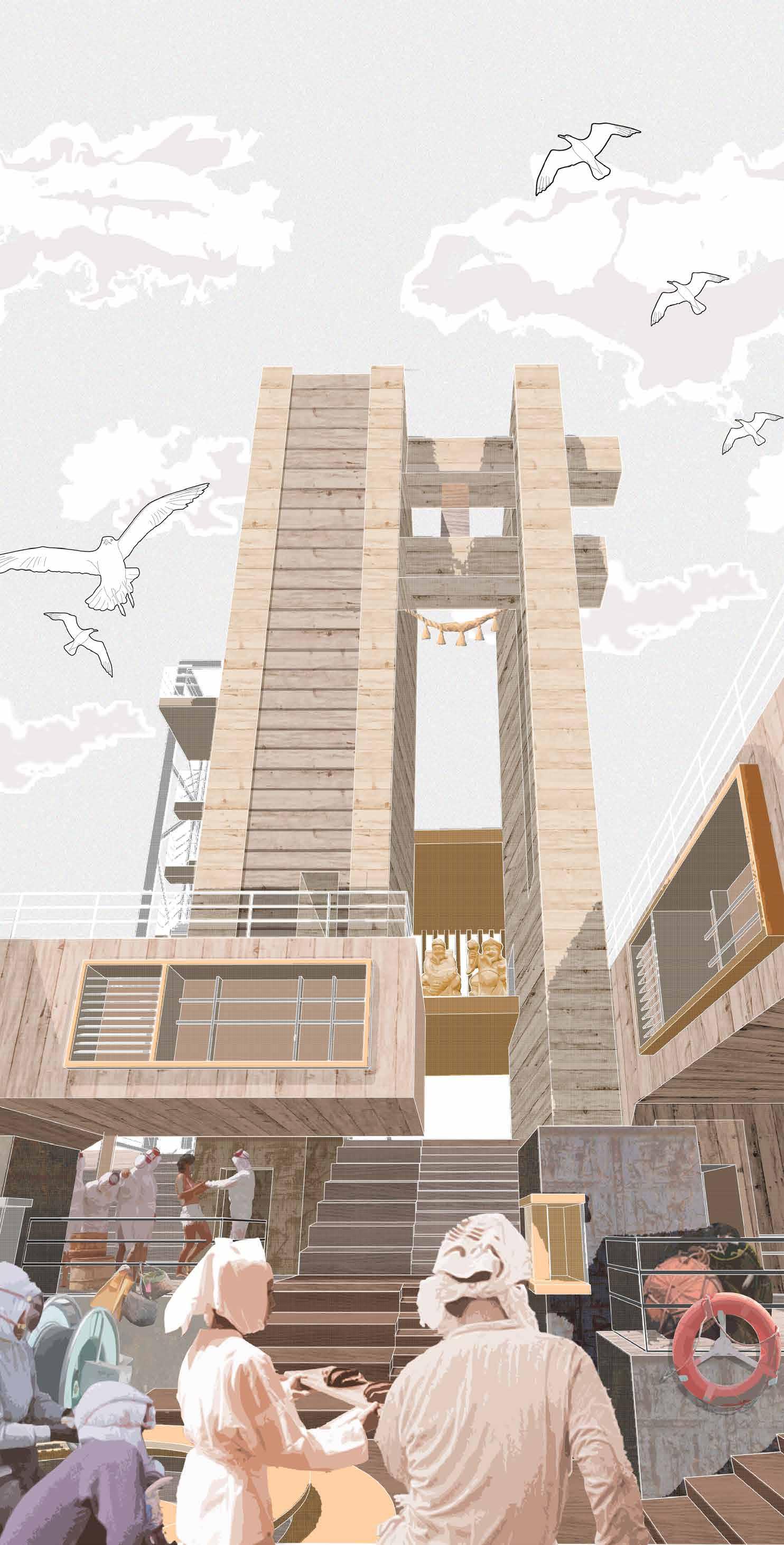

Upper Layer 1 Cockpit & Watchtower

8

Down

1

Up

1

0.750

Up

3

Up Down

8

1

3

Up

3 Down

8

Up

5

4 Up Down

Up

Mid Layer

±0.000

Up

Up

Up

1 Living Unit 2 Open Kitchen

9 Extension-type Public Platform

1.000

6

2.000 Up

12

10

11 Engine Room 7

8 Pipe Shaft 2

Nether Layer 10 Water BallastTank

7 Extension-type Public Platform

1

9 7

5

5 Storage 6 Diving Platform

8

7 Fishing Deck 8 Storage

Down

3 Shower Room 4 Central Firepit

6

6 Ama Units

Up

Up

1

4

4 Fuel Deposit 5 Shrine

2

3

1

0

2

3 Roof Gardens

Up Down Up Up

1

1

2 Customized Public Blocks

4

12 Transmission Device

11

8

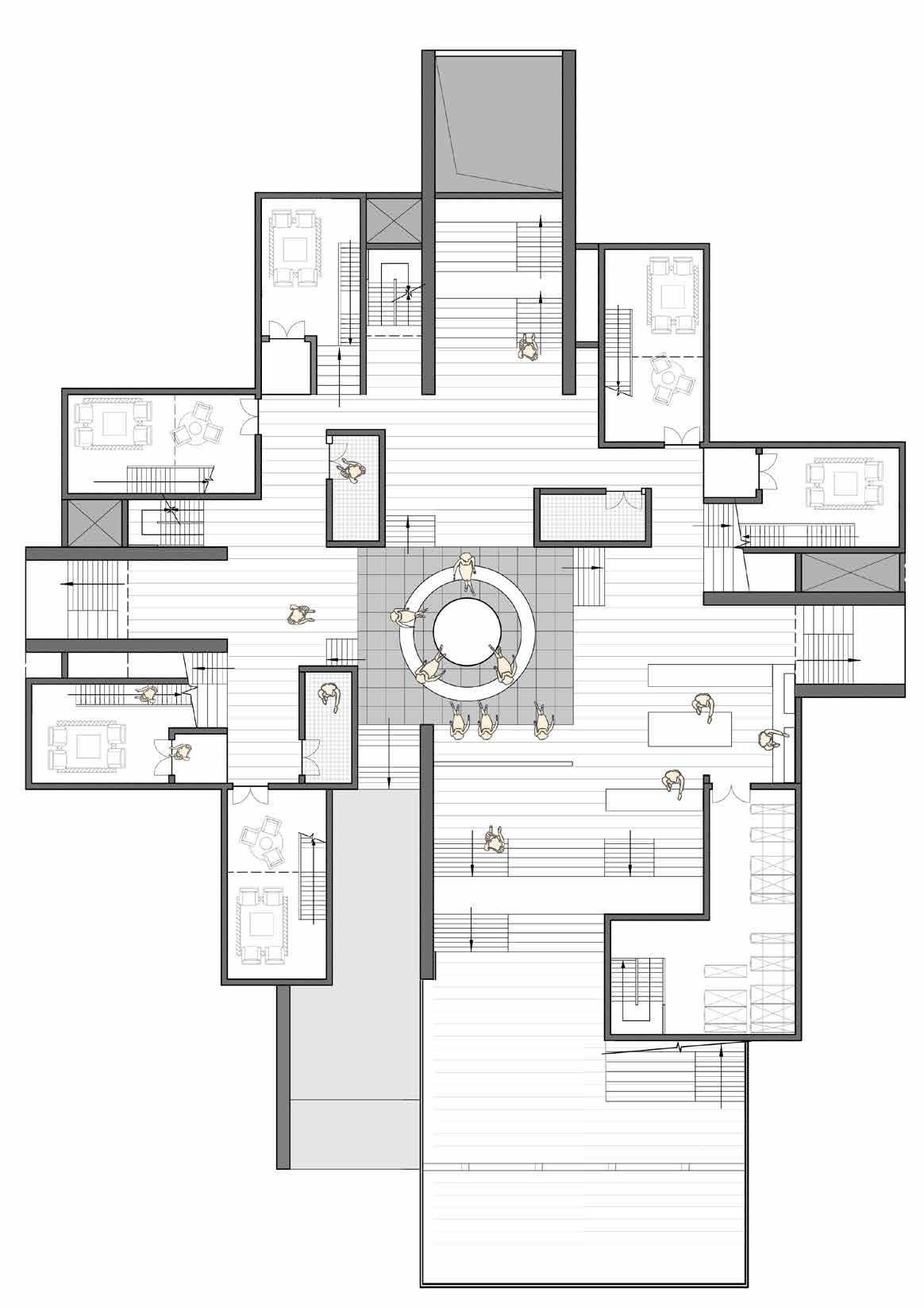

Ama-Hut Plan

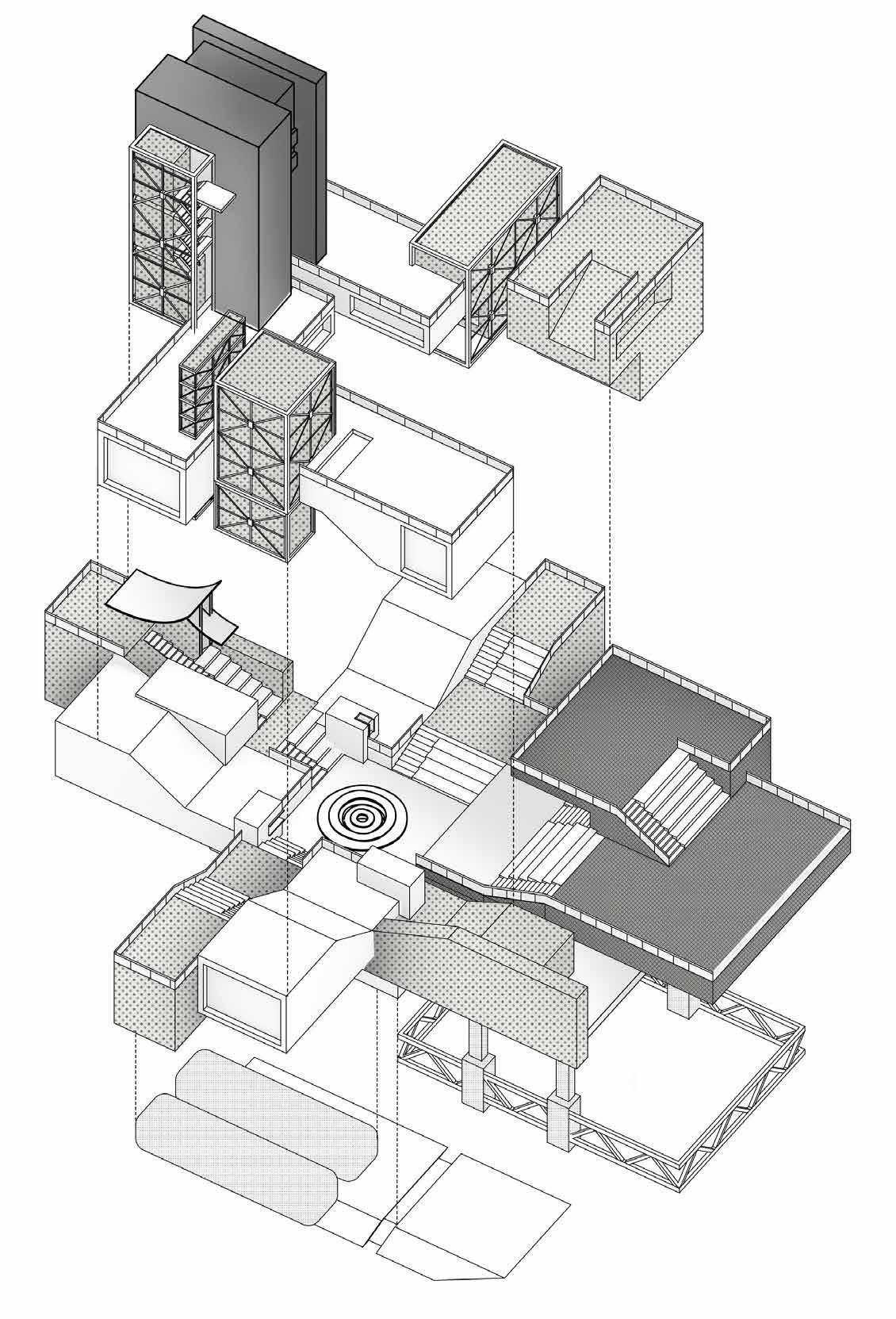

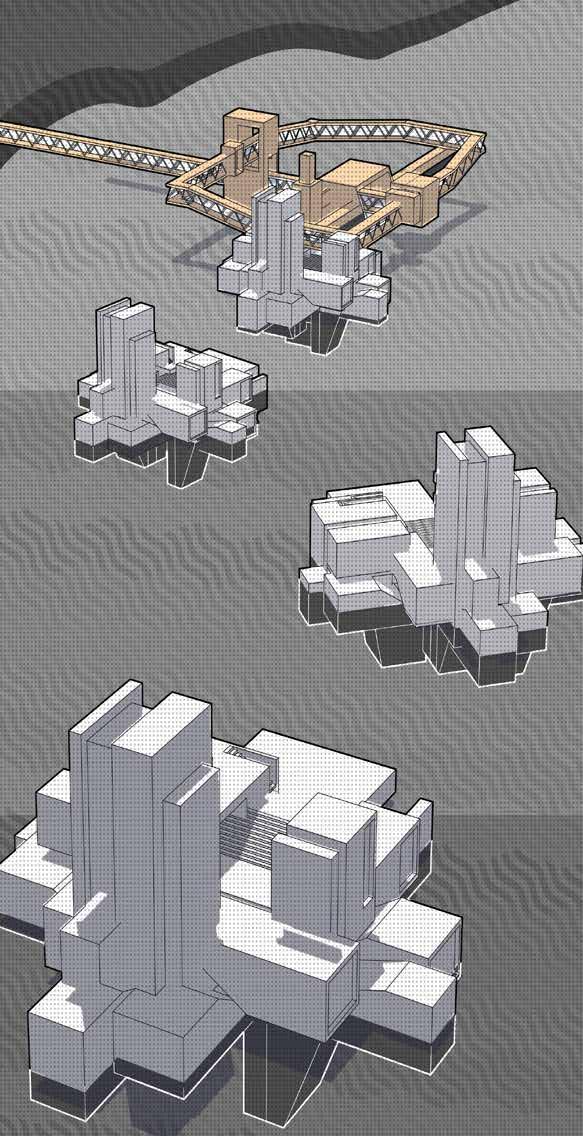

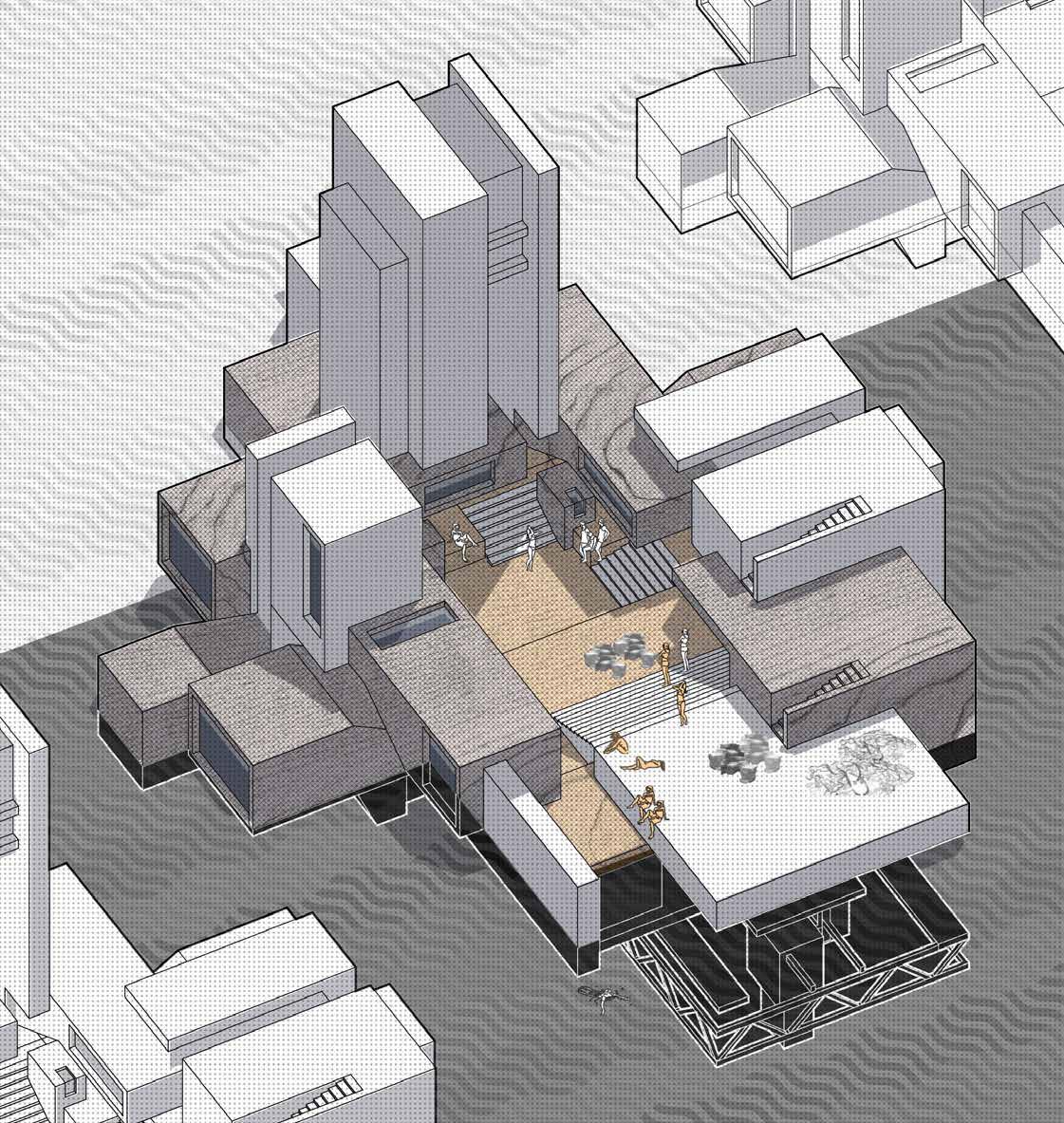

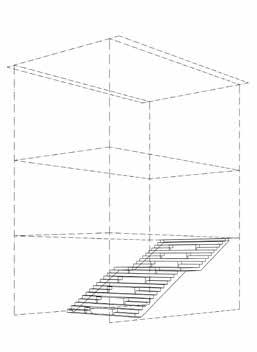

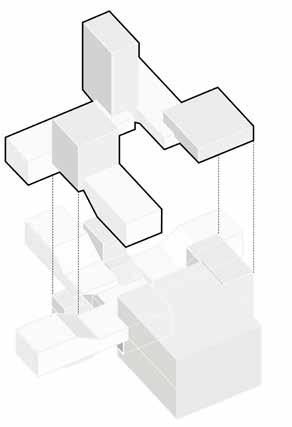

Unit Axonometric Drawing

"Make Preparations"

"Check the Systems"

Amas have to tidy up equipments, to shower, to cook, and to pack up food.

Sometimes they change the oblation on the shrine with fresh abalones.

They also have to clean up public spaces, check the fuel deposit, and to check if the docking system works as usual before they arrive at their destination.

14

SECTION A-A

SECTION B-B

5

4.500

1

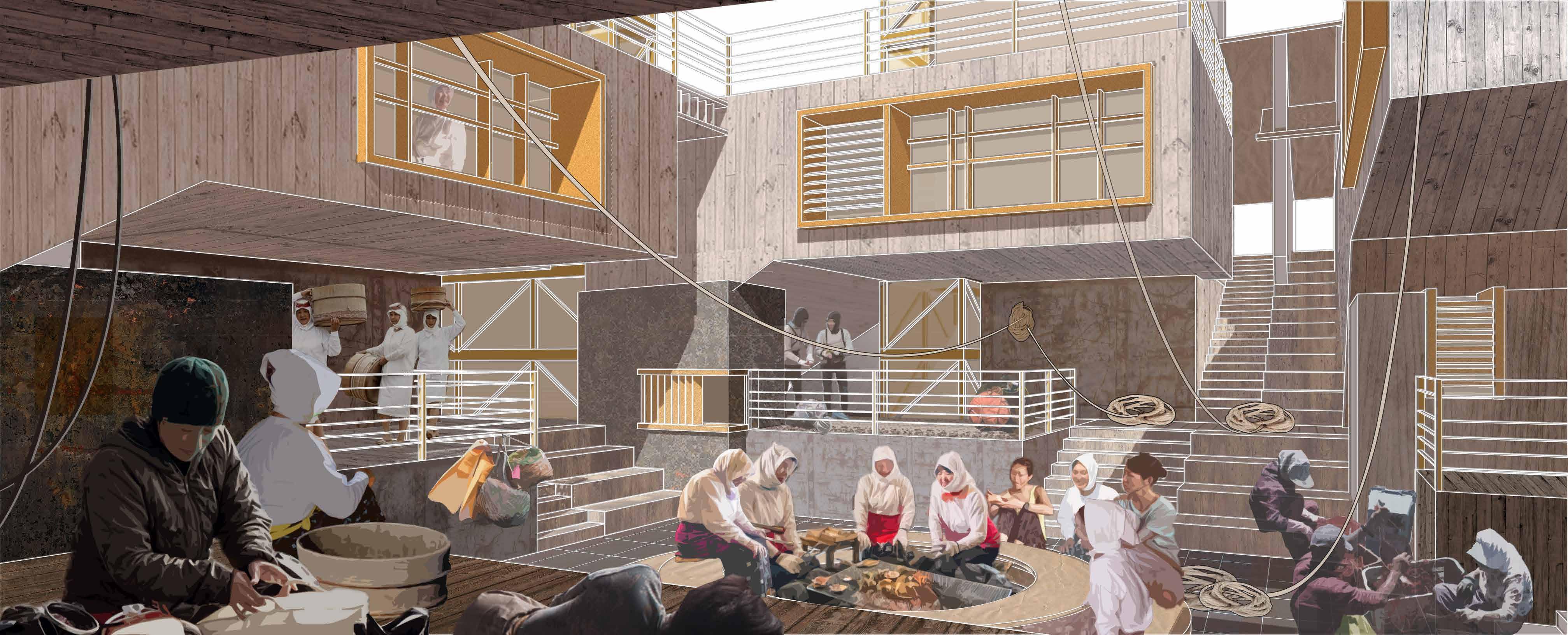

The Firepit "Sisterhood" Amas gather around the firepit, which represents the crew's spirit of unity. The central firepit not only acts as the most important core of the hut, but also a spiritual symbol of sisterhood that passed down from generations.

1 2

1

1

2.250 0.750

3

-1.200

2.250

4

10

2

± 0.000

3

4.500

11

3

6

0.750

1 2 3 4 5 6 7 8 9

Living Unit Firepit Storage Open Kitchen Shrine Fuel Deposits Pump Device Engine Room Water BallastTank

10

Extension-type Public Platform Practice Pool

11

± 0.000

7 -1.200

8

-3.500

8

-2.100 -3.500

0 1 2

4

8

15

12 12

5

-2.000

Ama-Hut A

6

12

11 6

7 2.150

2.250

-2.000

Ama-Hut B

8

2.000

4

6

2.150

± 0.000 2.250

3

Dock on land

9 1 10

8

-1.000

2.000

3.500

3.650

12

-2.000

2

Ama-Hut C 1 Seafood Restaurant 2 Barbecue DIY 3 Stage & Screen 4 Auditorium 5 Ocean Izakaya(Bar) 6 Overnight Inn 7 Camping Site 8 Diving Pool 9 Ama's Diving Club 10 Harbour 11 Souvenir Shop 12 Ordinary Ama's Unit

0

1

2

4

12 12

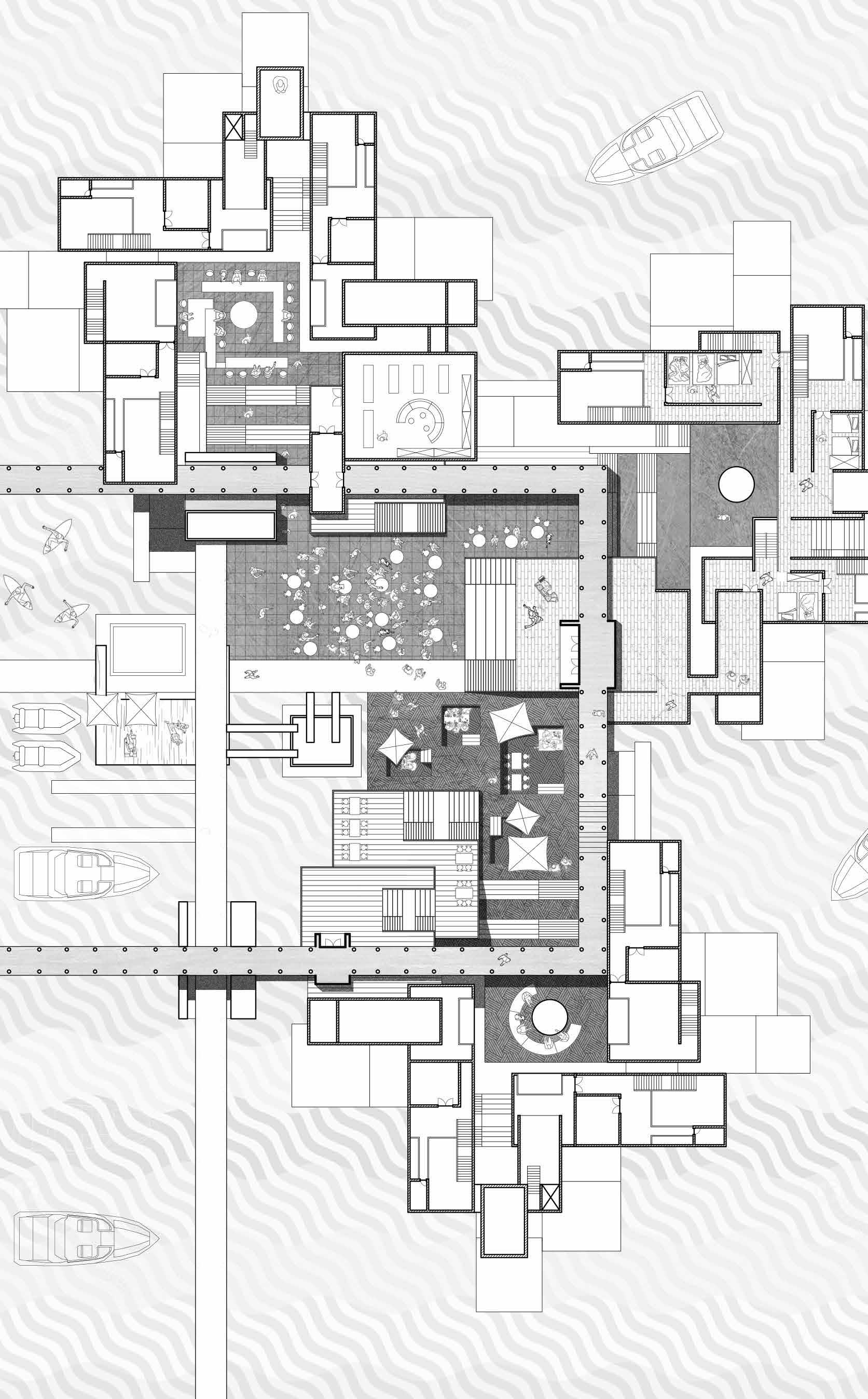

Community Plan 8

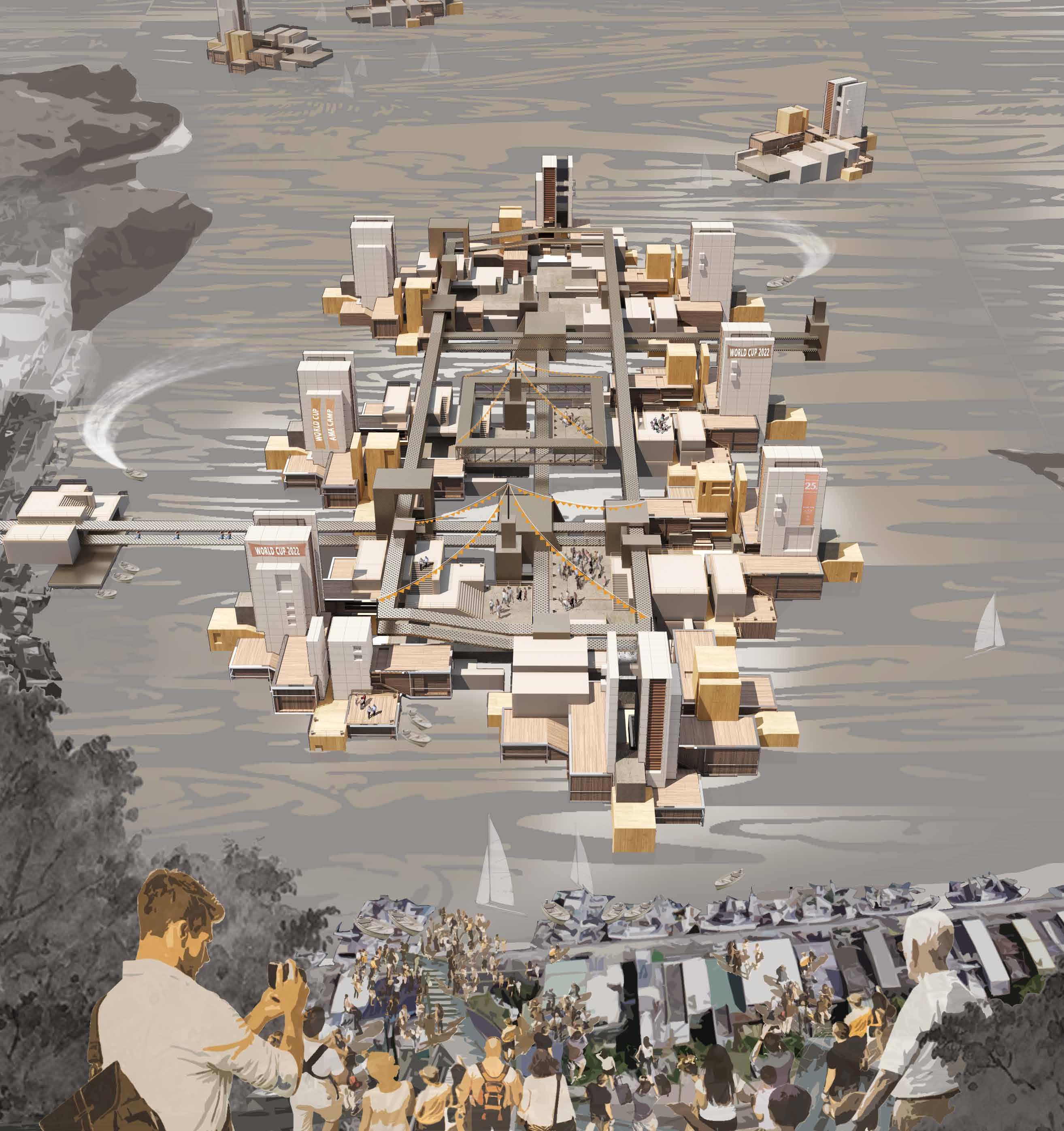

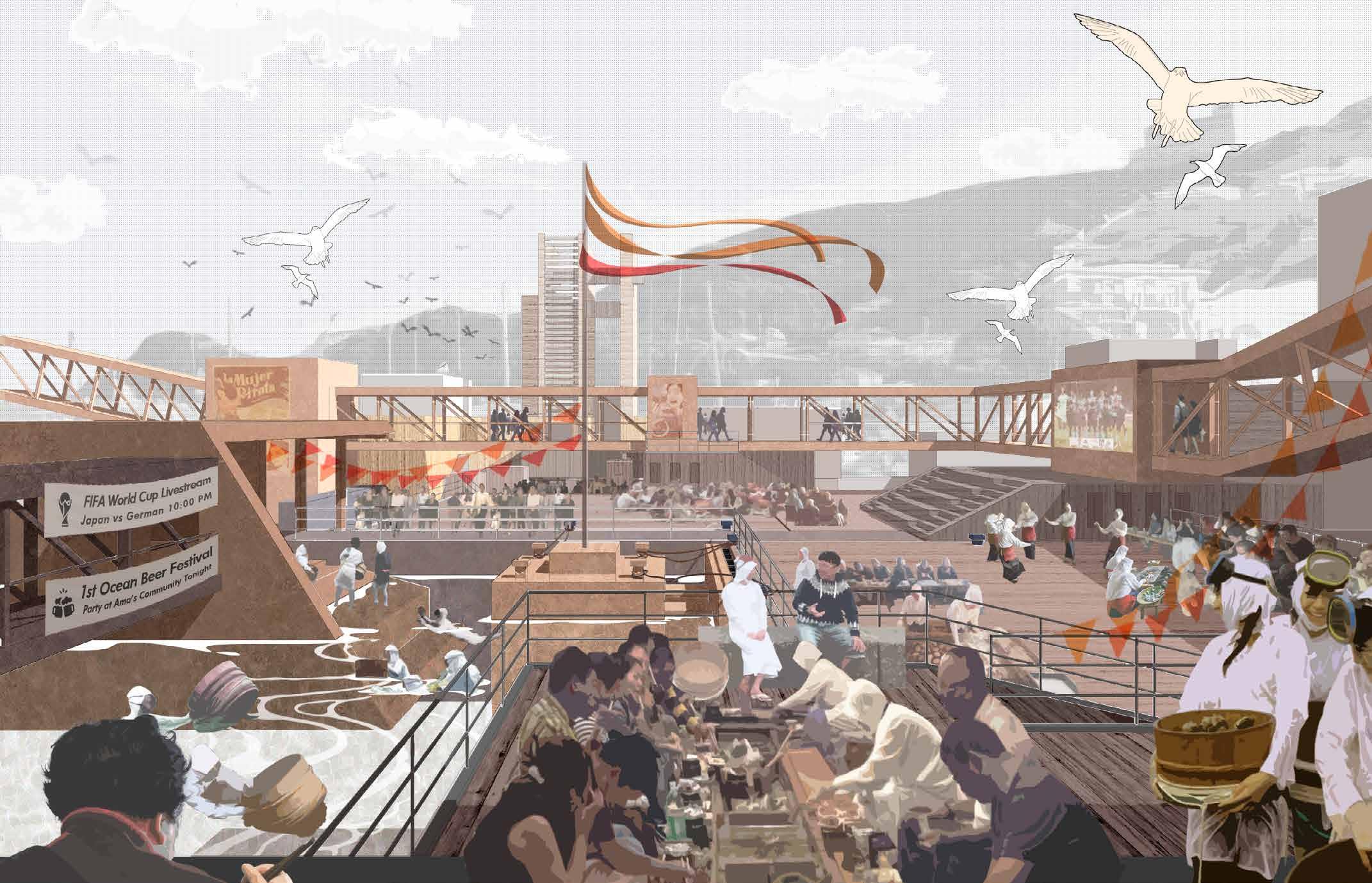

"1st Ocean Beer Festival"

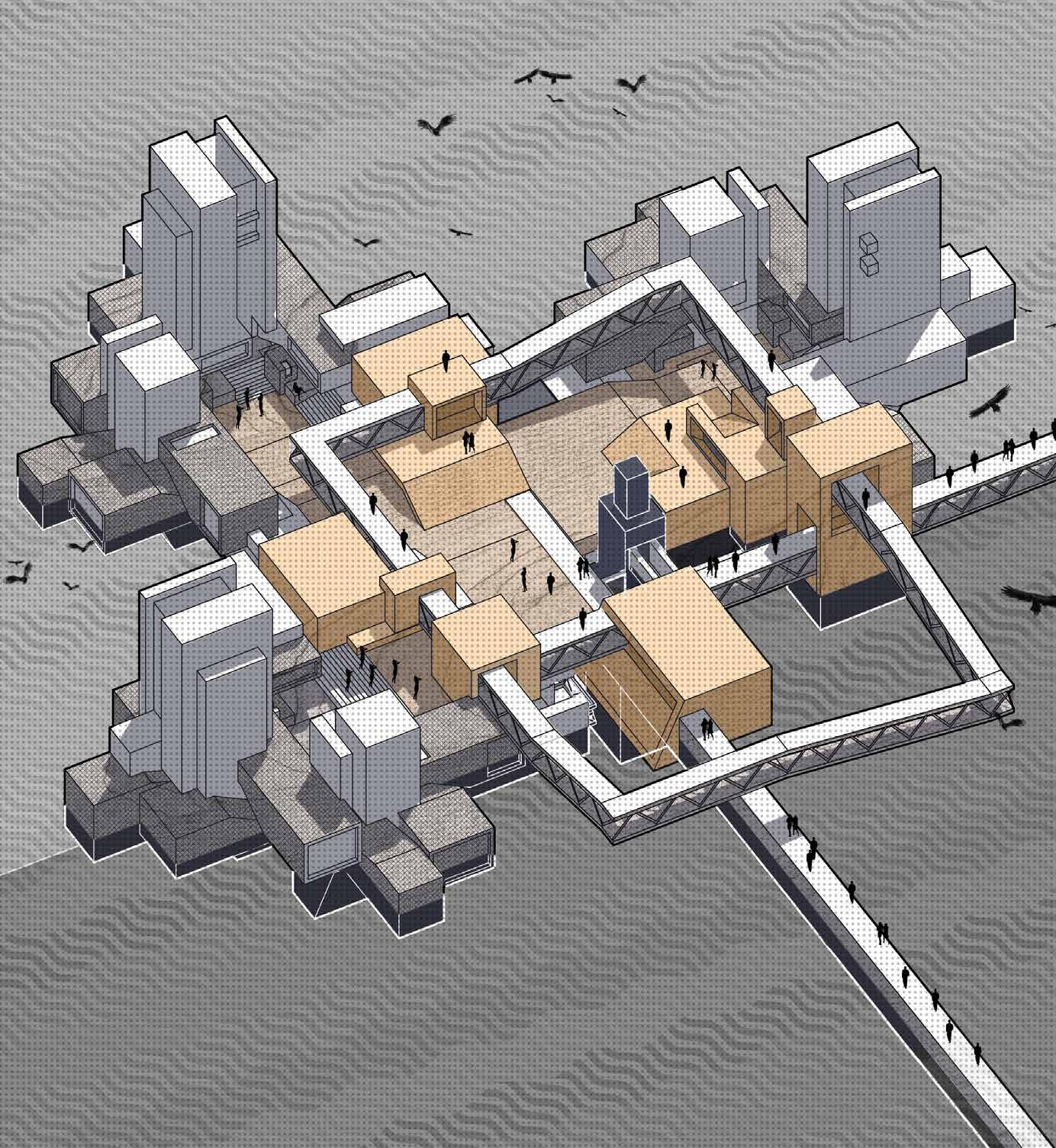

Inside the Community

16

04 Time-in, Time-out Takeaway Rider's Work Station between Peak & Off-peak Group Work Group Members: Chuhan Xu, Zhaoyan Wang Contribution: Concept(60%),Analysis(50%),Modeling(50%), Rendering(60%),Drawing(40%)

Tutor: Jie Gu Location: Tianhe, Guangzhou, China(Mainland) Competition Project 2021.03 ~ 2021.05 In 2020, an article titled "Takeaway Riders, Trapped in the System" made itself a trending topic on Chinese social media, exposing to the public the inequality between riders and online takeaway platforms.

Takeaway Riders in China are known as "Urban Ferrymen". As megalopolis' new-born freelancers, they are hired by different platforms to deliver daily necessities such as food takeaways, medicine and fresh produce. Yet people found that under the veil of "freedom", the delivery time of riders is infinitely oppressed by the platform's algorithm, which leads to frequent traffic accidents and provokes misunderstanding on riders by both merchants and customers. After being accused by public, takeaway companies had then introduced relevant policies to ensure riders' basic rights, but a guarantee to a safer urban workplace is also worth mention.

Tianhe District is a bustle and hustle district in Guangzhou.

Thousands of takeaway riders shuttle through the streets, battling against algorithms, racing against time. The project is located under Tianhe Bridge, known as "rider's temporary rest place", to transform fringe space of the city into a specific working area for takeaway riders.

17

Online Takeaway Platform Riders have fixed working hours and are strictly controlled by the platform's algorithm. Attracted by the gamification system of the platform, they believe in "more pay for more work". At the same time, some riders are attracted by the flexibility of the platform to do parttime jobs and earn extra money.

Peak & Off-peak Hour The algorithm puts tremendous pressure on the riders by endlessly limiting their delivery time. The number of orders surges in peak hours, and vice versa in off-peak hours. During peak hours, due to the meal preparation efficiency of merchants and the traffic situations during the delivery process, more time is wasted and more risks for riders. During off-peak hours, even if there is no order, the riders must remain online rather than go home for rest.

The Absence of Workplace It has caused increasing conflict between the development of information technology as well as online space and the offline space produced by traditional planning methods, which is greatly reflected in the “to”, every individual of riders, that connects two kinds of space. In other words, as an employee in O2O mode, riders conflict with the actual architectural space of the city.

Alienated Groups The attitude of the city can be seen in cases where riders belong nowhere when they are waiting for food produced by restaurants inside or outside of the storefronts occupying pedestrian spaces, those who wear a yellow or blue uniform are prohibited to enter office buildings and malls, or they are wandering around the city doing nothing as the still rider that is an outgrowth with no value. The right for riders to stay in spaces of the city has been taken.

18

No problem my fellas.

See you in 6-months

A1: What Riders Know

A2: What Riders Saw

A3: What Riders Have

A4&5: What Riders Need

For takeaway riders, the most familiar urban spaces are on both sides of the road, where they spend almost a whole day.

The street view is pulled and deformed by the speed during peak hour, and starts to repeat itself boringly during the off-peak hour.

Rider's equipment and motorcycles are their treasure during the transition between peak and off-peak hour, their "home on the road".

With the collage of street views and equipment, the rider's urban spaces are created, which then activated by their daily keywords.

19

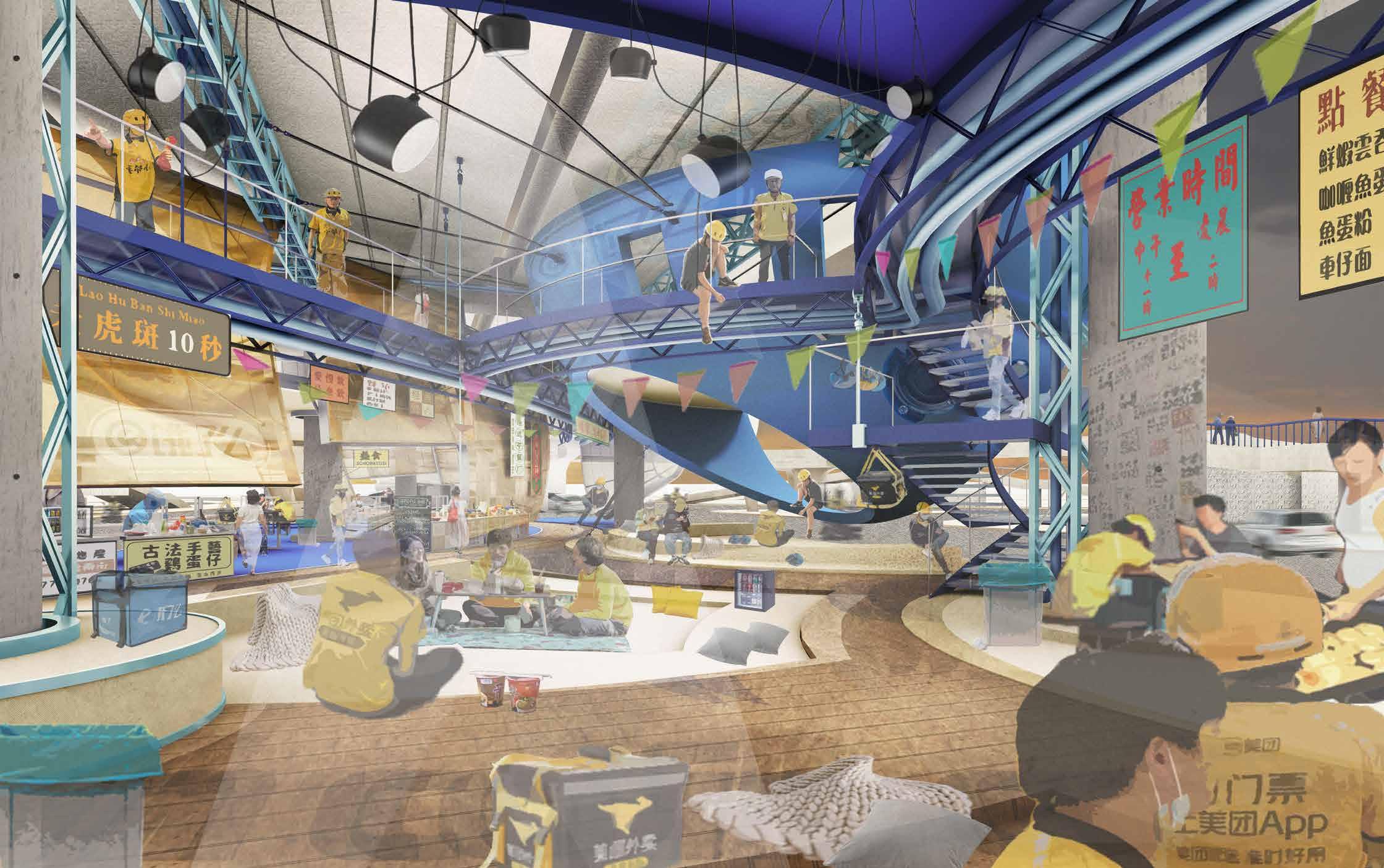

6 months later....

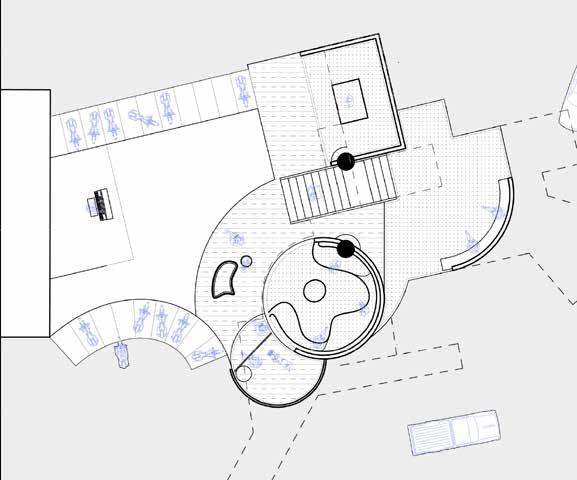

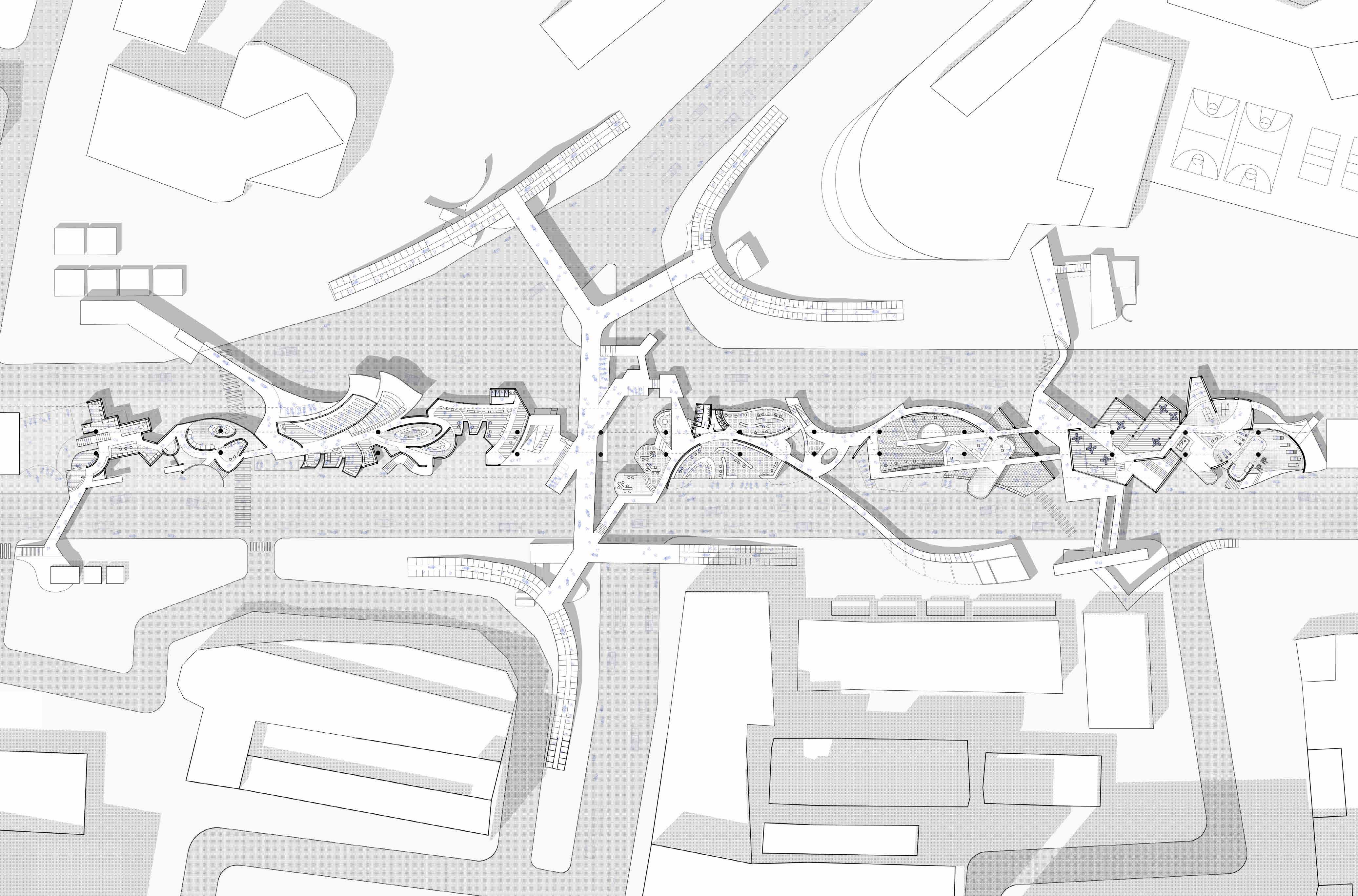

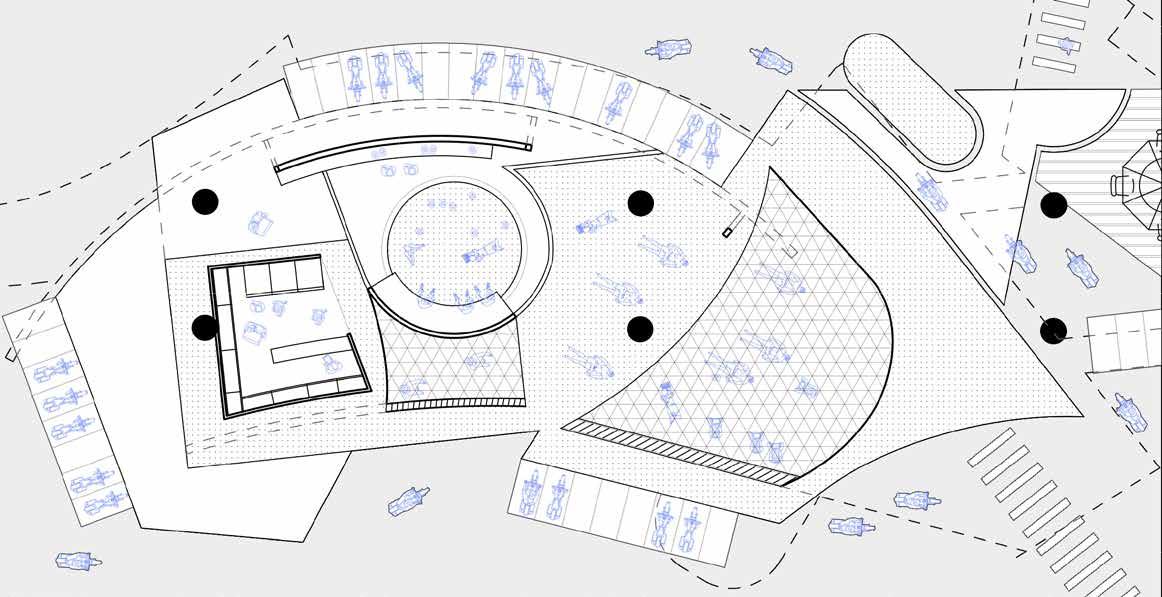

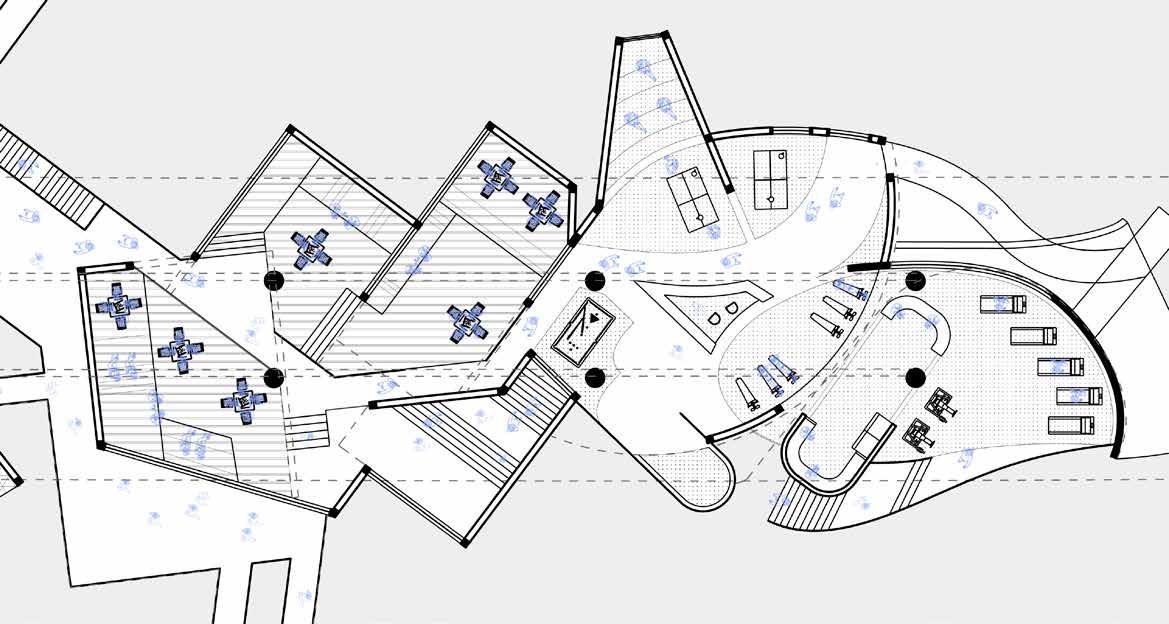

Mall School Plaza

School

Food Packing & Storage Street Restaurants Waiting & Food Packing

Waiting Platform & Check-in Stage

Food Packing & Storage

RestRoom

Multimedia Lecture

Newsstand

Chessroom

Cafeteria & Food Vendors

Food Packing & Storage Restaurants

Hospital

Newsstand & Electric Station

Loungh Web

Chessroom

Waiting & Food Packing

Newsstand

Street Restaurants

Restaurants

Repair Shop

Mall

20

AM 11:50

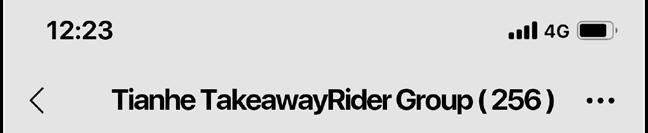

Is anyone go visiting the Riders'?

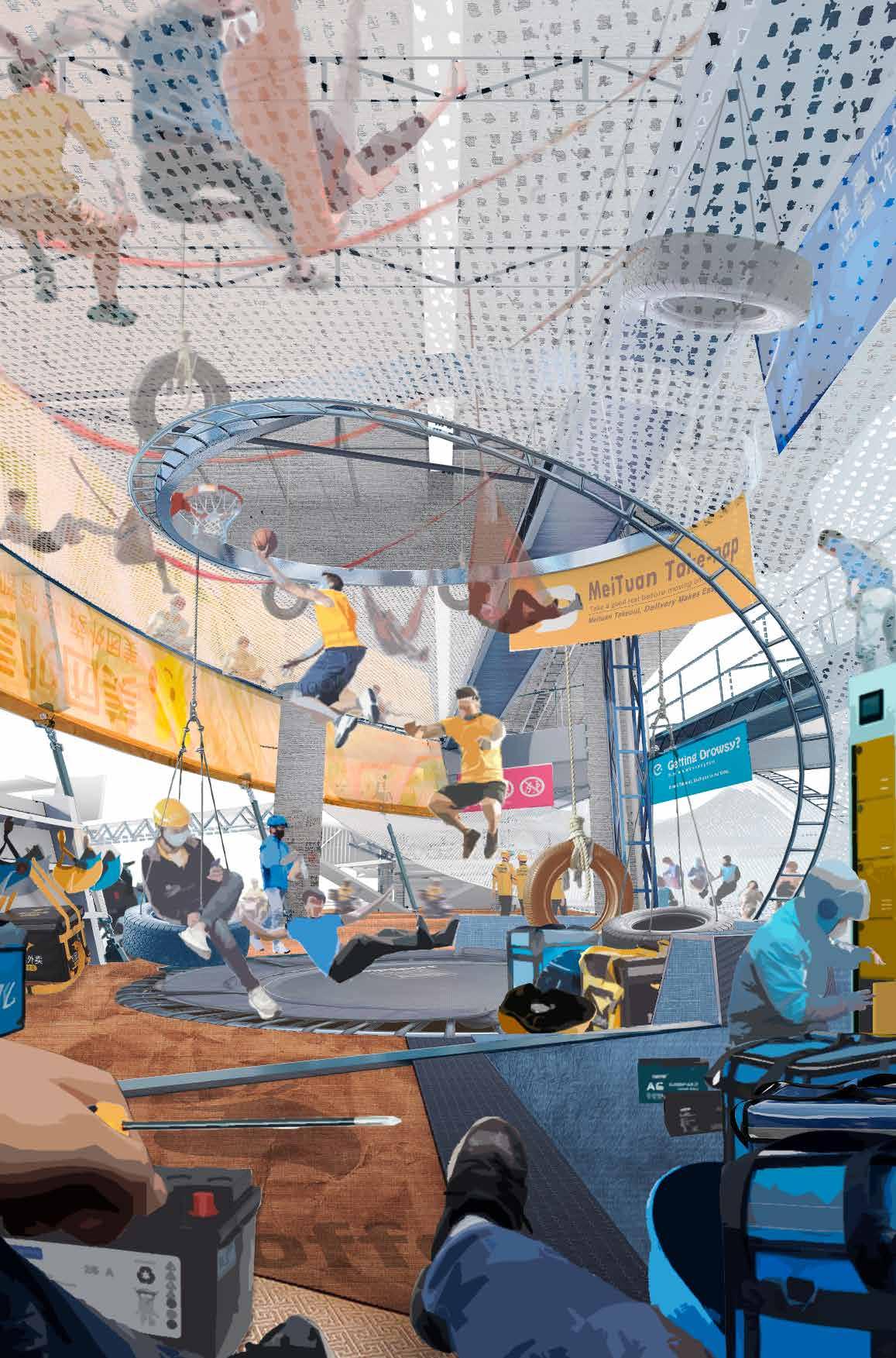

Check-in Stage The Riders' Rider's Travel Route

#Check-in Stage# 1.41M

PEAK | OFF-PEAK Get Send

@RookieSixSieged u there yet?

Have some trouble delivering

😂

Call us anytime you need help.

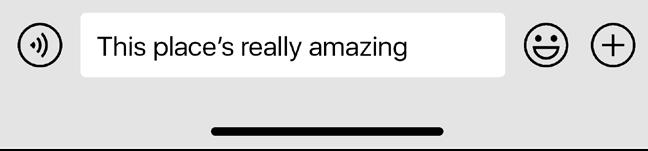

Thx, 3 more orders to go.

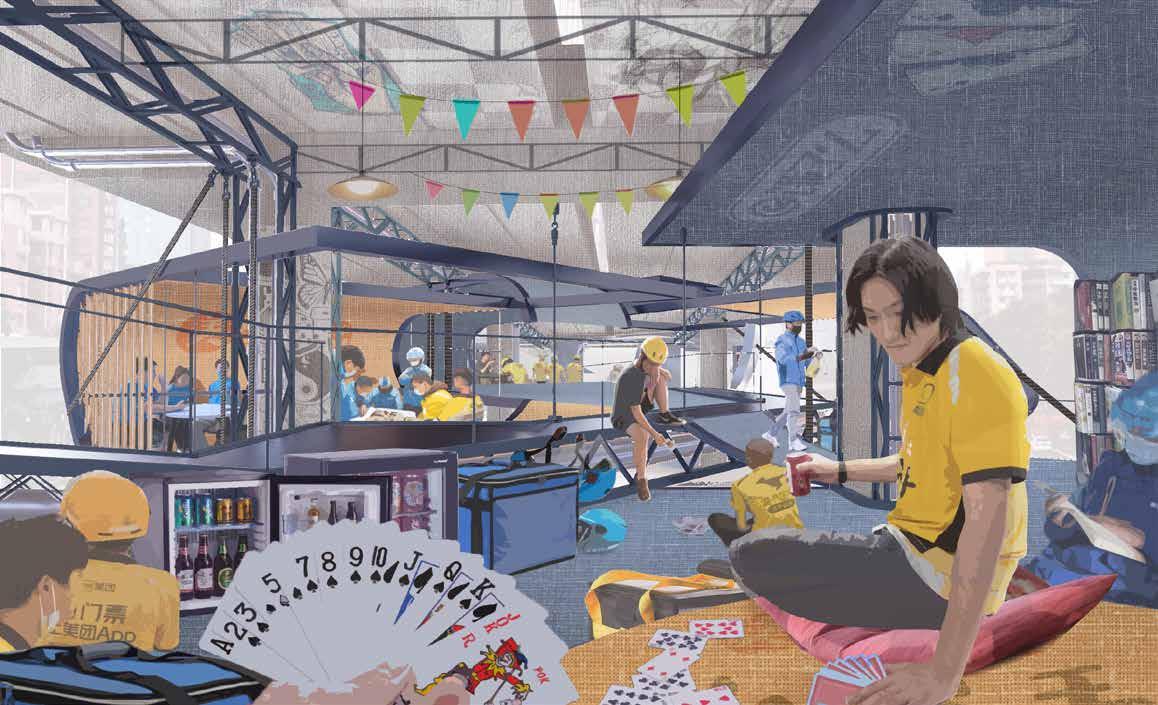

Underbridge Tea-chessing, The Riders' Rider's Travel Route

Call it my lucky day y'all

#Chessroom# 2.32M

New orders, gotta go They even got a chess room?

It's like we are having an office.

PM 12:20

@RookieSixSieged u finish yet?

Done, somewhere taking a nap.

Where u at?

On-line On-web, The Riders' Rider's Travel Route

PEAK | OFF-PEAK

Looks cozy for a noon break Omg someone is dumping I'm streaming a live, check it out Portal plz.

Take a look at my Channel Tik-Tok

#RestOnWeb#

21

My Post

Community RookieSixSieged

Guangzhou · 10 min ago

😂

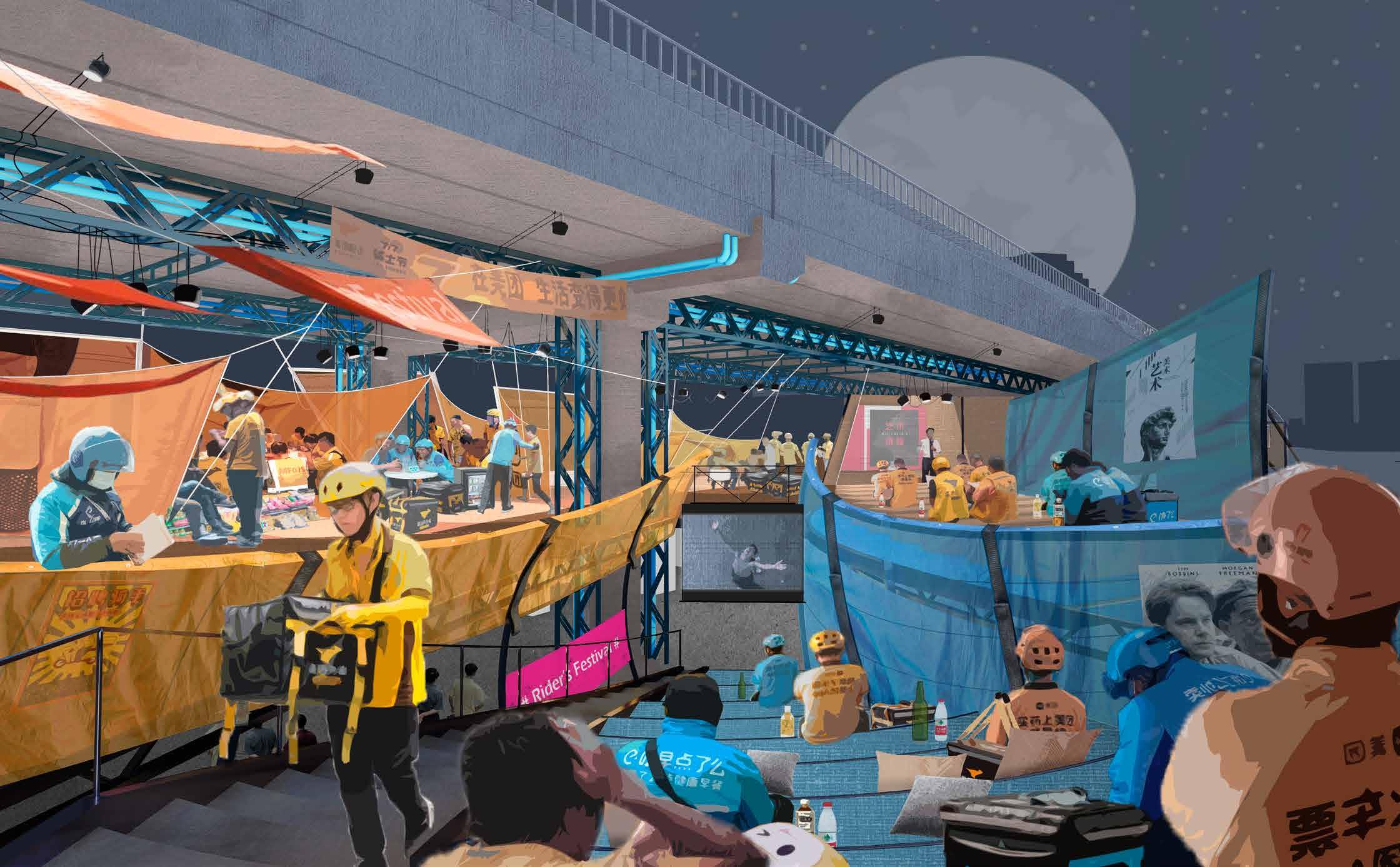

Been having a great day at the Riders', the night fair's attraction nearby, served well in making more deliveries during peak time . And guess what, we came across Rider Festival, with movies, lectures and feasts(I even take orders from riders!!!).

Lovely place to go #TheRiders# #RiderFestival# #NightFair# Too bad my bike's broken, gotta go home before repair shop closed.

Get Send 5

3 2

4

1

#NightFair#

Get Send

#PeakHour##FoodWaitingAndPacking#

3 2

1

#RiderFestival#

48

3

All Replies Winzy

5 min ago

😏 first floor at the east end of the bridge.

They've got repair shop

#RiderStation#

RookieSixSieged: Lmao I'll pay more attention next time!

10

1

#Off-peakHour##StandbyAndSelf-Improvement#

22

05 Lyran-Terrans Earth Defender's Underground Info Center between Overt & Covert

Individual Work Tutor: Minfeng Yao Location: Tiwanaku City, Peru Competition Project 2022.05 ~ 2022.06 In May 2022, the U.S. Congress held a UFO hearing. The military spokesperson acknowledged the existence and visit of aliens through authoritative media, which brought a lot of discussions about extraterrestrial civilizations. Most of aliens' sighting place are related to prehistoric relics that have had a huge impact on architecture, technology, culture, and art in a certain cultural circle for a certain period of time. This can't help but make us wonder: Do extraterrestrial civilizations play an important role in the process of human evolution history?

Other non-secular functional cultures can also be worth mentioning: From the ancient documents of Egypt and Sumer, we find that the ancient builders were a group of highly skilled people, knowing the stars of the universe, the astronomical calendar, the mysteries of mathematics, the way materials are constructed, the meaning of symbols, and even the mechanism of the human body. Are there some secret interplanetary communication inside those relics of what was once an observatory, or earth information center?

Let us travel back to the relics of Tiwanaku City in BC 15000, study the ruins of the ancient observatory. Imagine a story that happened under the infiltration threat of the cosmic invader Fallen Angles (FA), the Earth guardians are preaching to their believers, observing the celestial phenomena, while at the same time, having secret connections with Guardian Alliance (GA) through astrology. A story of ancient double life.

23

Fallen Angles (FA)

Guardian Alliances(GA) SG-7 Earth Defenders

FA-Human Hybrids

Kathara Grid Lyran Wars, GA and FA

Fallen Human Rescue Peoject and Conspiracy

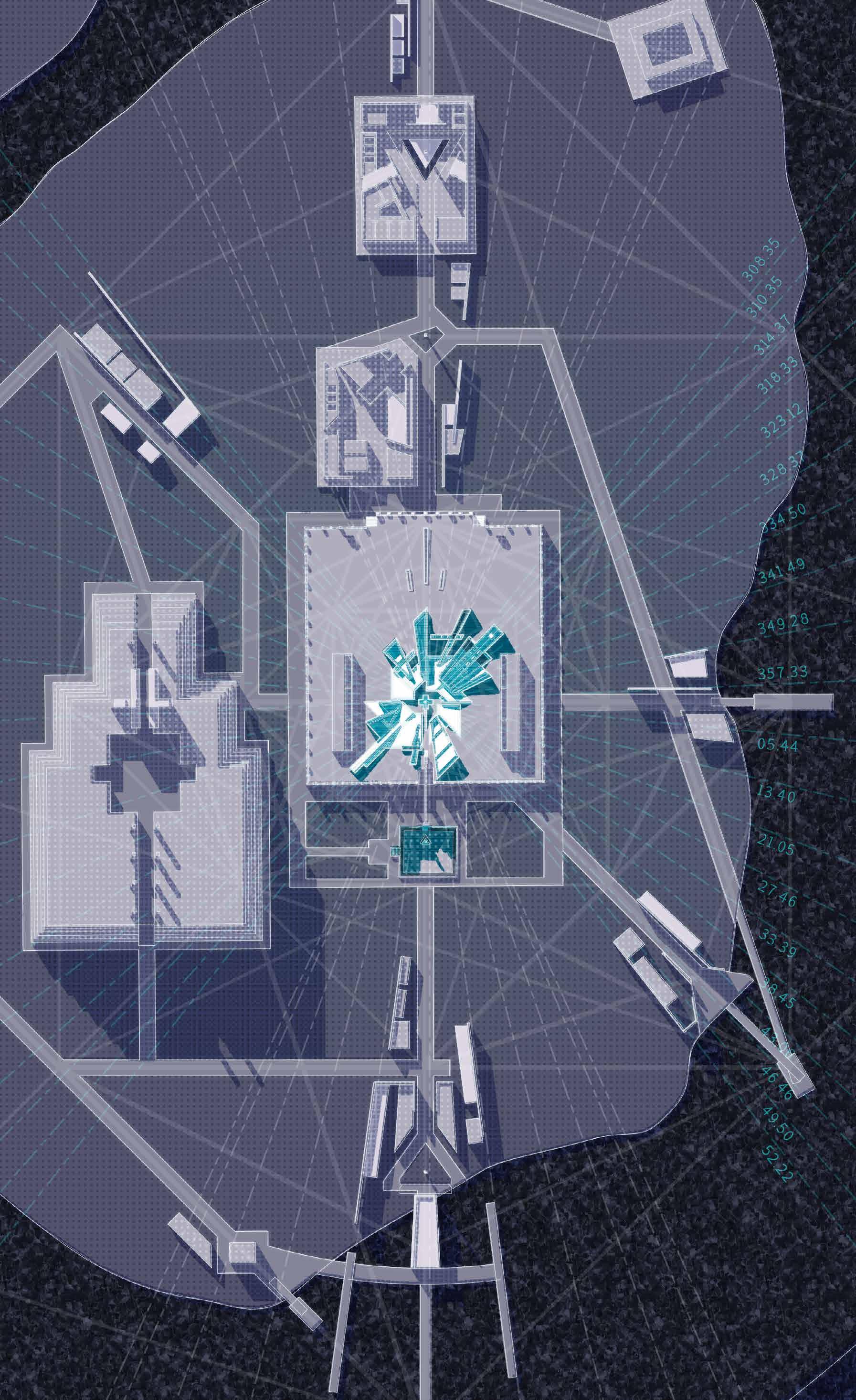

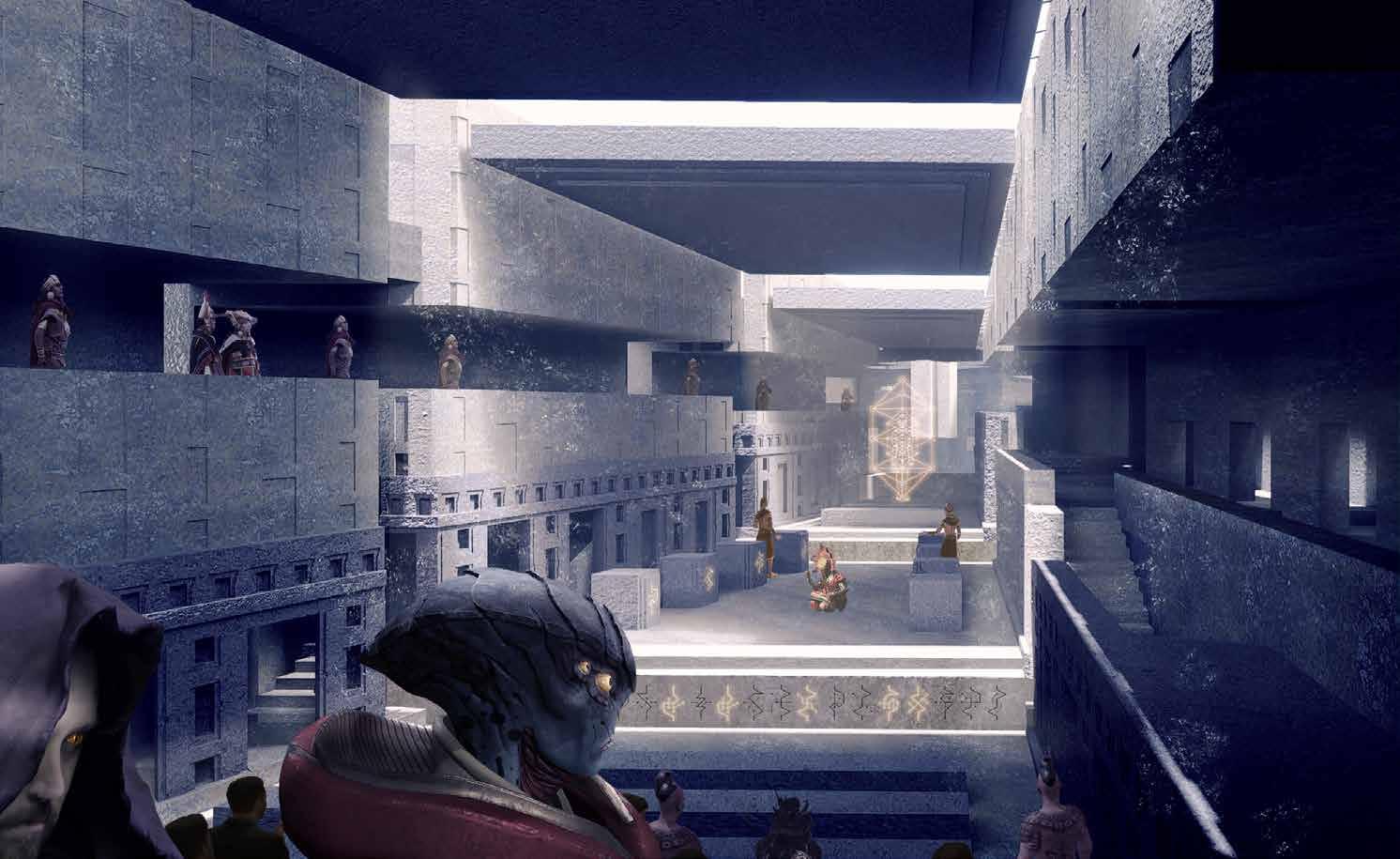

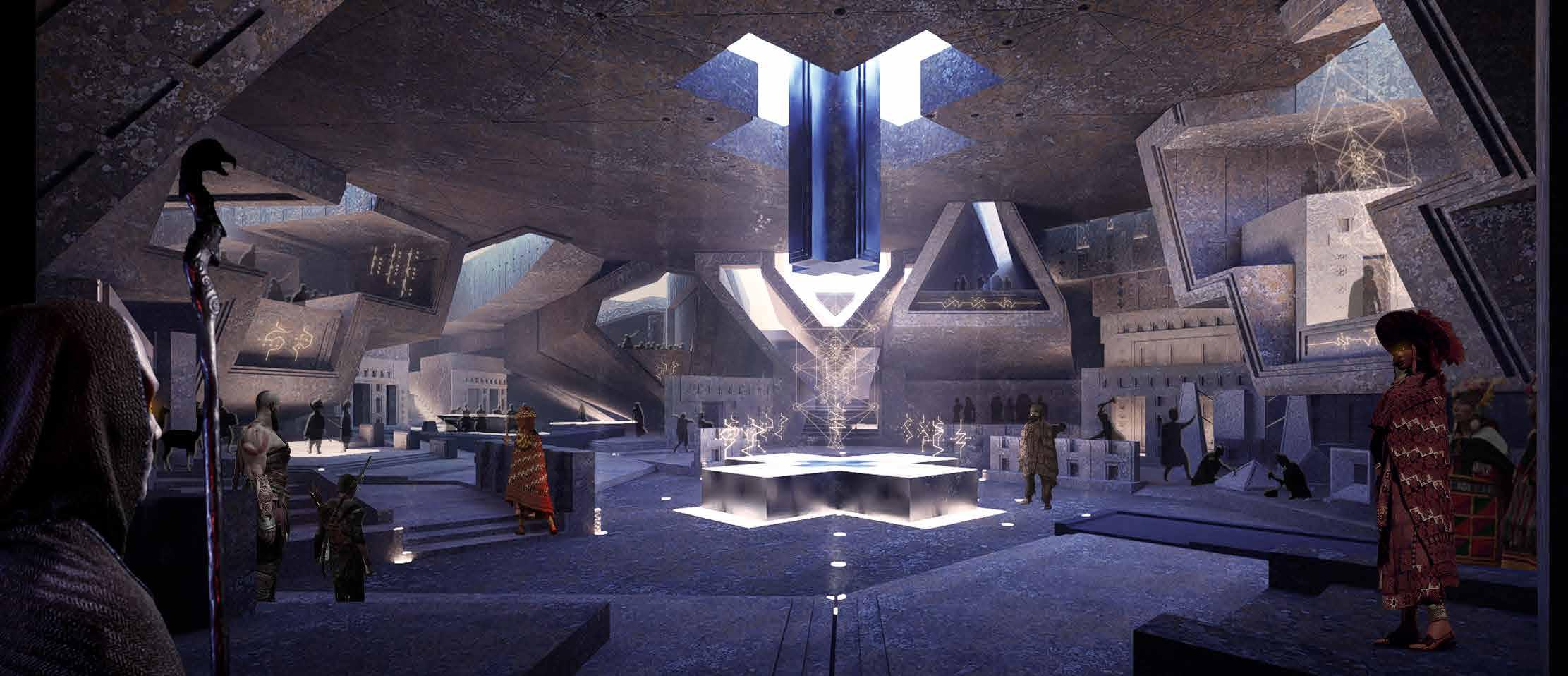

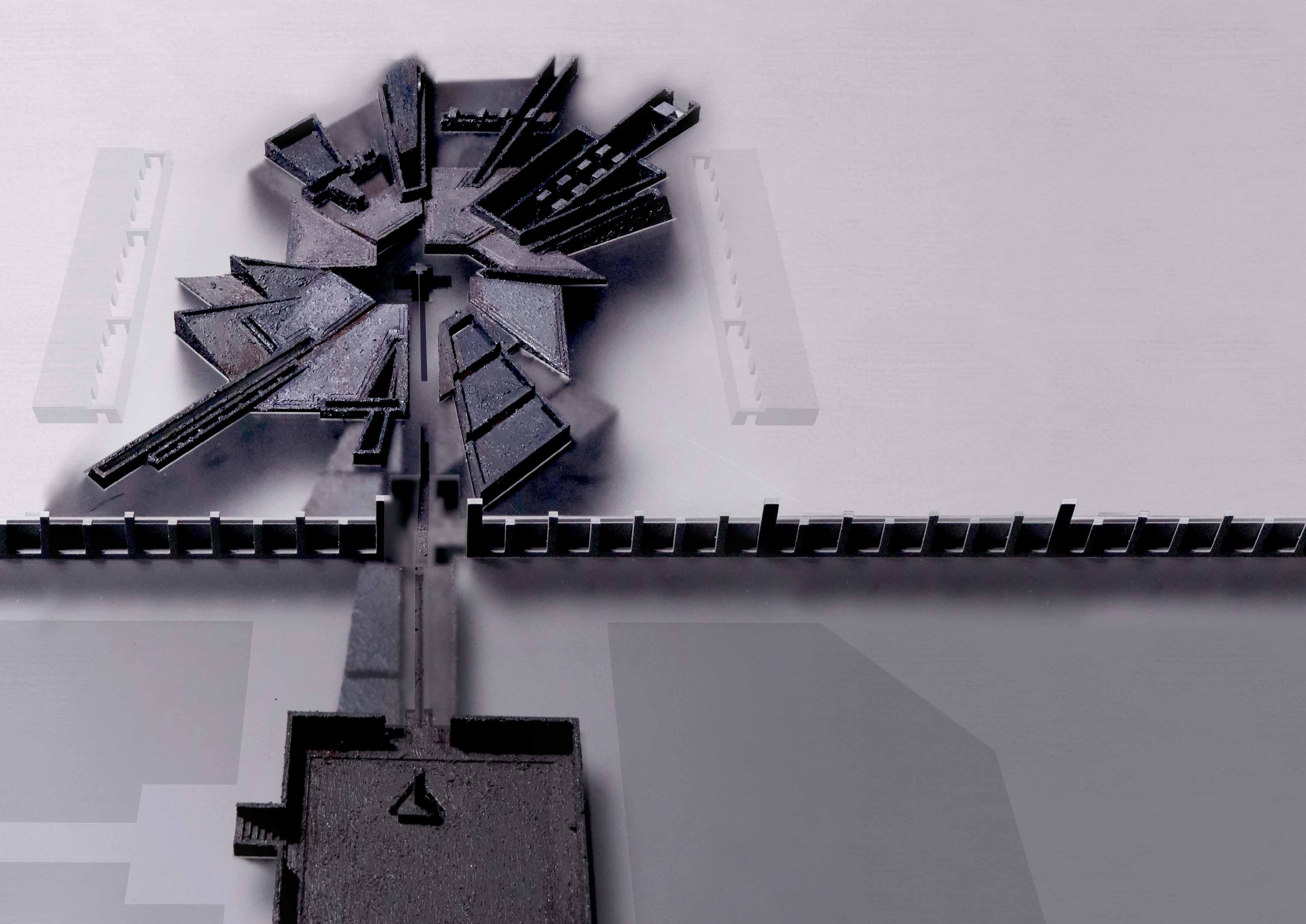

Tiwanaku City Underground Intelligence Center

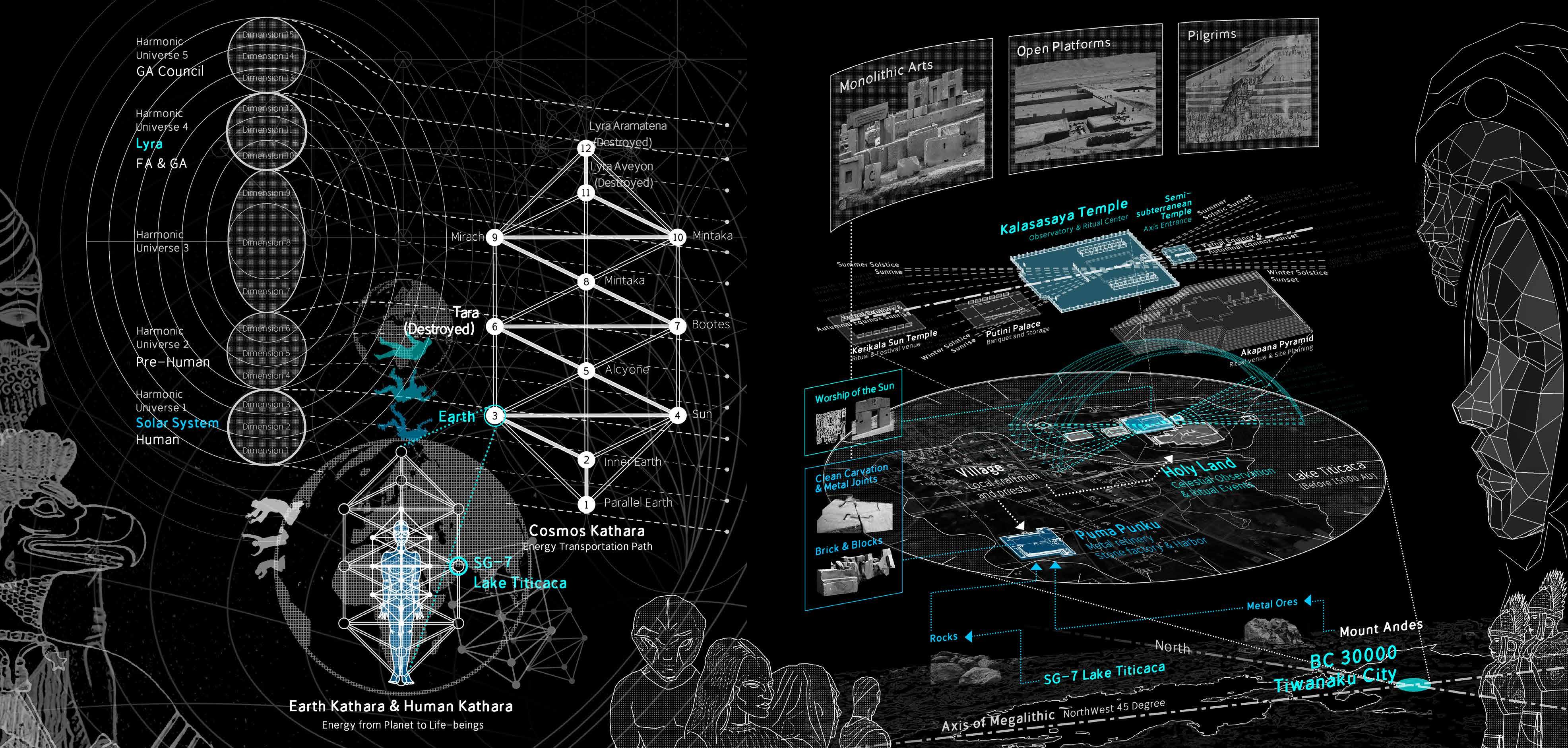

The Kathara structure is the path of the expansion of the universe. It forms cosmic Star Gates connecting different dimensions, extends to the planet to form the planetary Star Gates, and extends to the biological body to form acupuncture points. It is the original geometric template, through which energy is transported layer by layer to support the existence of life.

The race of humans originally lived on the planet Tara in the sixth dimension. After the Lyran War, due to the intervention of FA, humans modified their genes and the Tara War broke out. With the destruction of the Kathara Grid in the human body, the human race fell to planet Earth, which accelerated the process of extinction.

In the ancient Lyra galaxy, one group of Lyran tampered with their genes, destroyed Kathara Grid inside the body and lost unlimited energy supply, followed by the Lyran War. The war destroyed the universe's star gates 11 and 12, leaving the universe in a crisis of energy depletion. The race degenerated into the Fallen Angles(FA), the first race to invade the universe for energy plunder. The remaining Lyran race formed the Guardians Alliances(GA), trying to help the universe get rid of the fate of extinction.

To prevent human beings from degenerating as FA did, GA adopted a plan called Biological Regenesis to help intensify human genes, enabling them to utilize the Star Gate on planet Earth to reshape human Kathara, eventually travel through dimensions and return to Tara. FA hopes to infiltrate human genes to manipulate Human noble families and dignitaries with lyran-terrans hybrids, thereby taking over human society, and using the Earth Star Gates to plunder energy.

Lake Titicaca is Earth Star Gate 7, next to which the ancestors of the Incas in Peru established Tiwanaku City. Craftsmen used rocks from lakesides and mines from mountains to build monolithic buildings, set up astronomical observatories and ritual centres to record celestial trajectories and to worship the sun. With the help of astronomy, geometry and architecture, Tiwanaku quickly became a well-known holy land, attracting crowds of visitors and believers.

People of Tiwanaku are drawing energy form ESG-7 to repair human Kathara. To battle with the threat of FA’s infiltration, under the guidance of GA, the defenders established a secret info center under the Kalasasaya Temple. While imparting Biological Regenesis technics to the visitors, they gathered information and stayed in touch with GA in secret.

Lyra Science + Earth Technology Geometry

Keep Overt

Astronomy and Architecture

&

To record star movements To teach Bio-regenesis To keep political families from being infiltrated

Stay Covert To send messengers worldwide To cipher and decipher code To contact with GA-Lyrans through astrology

24

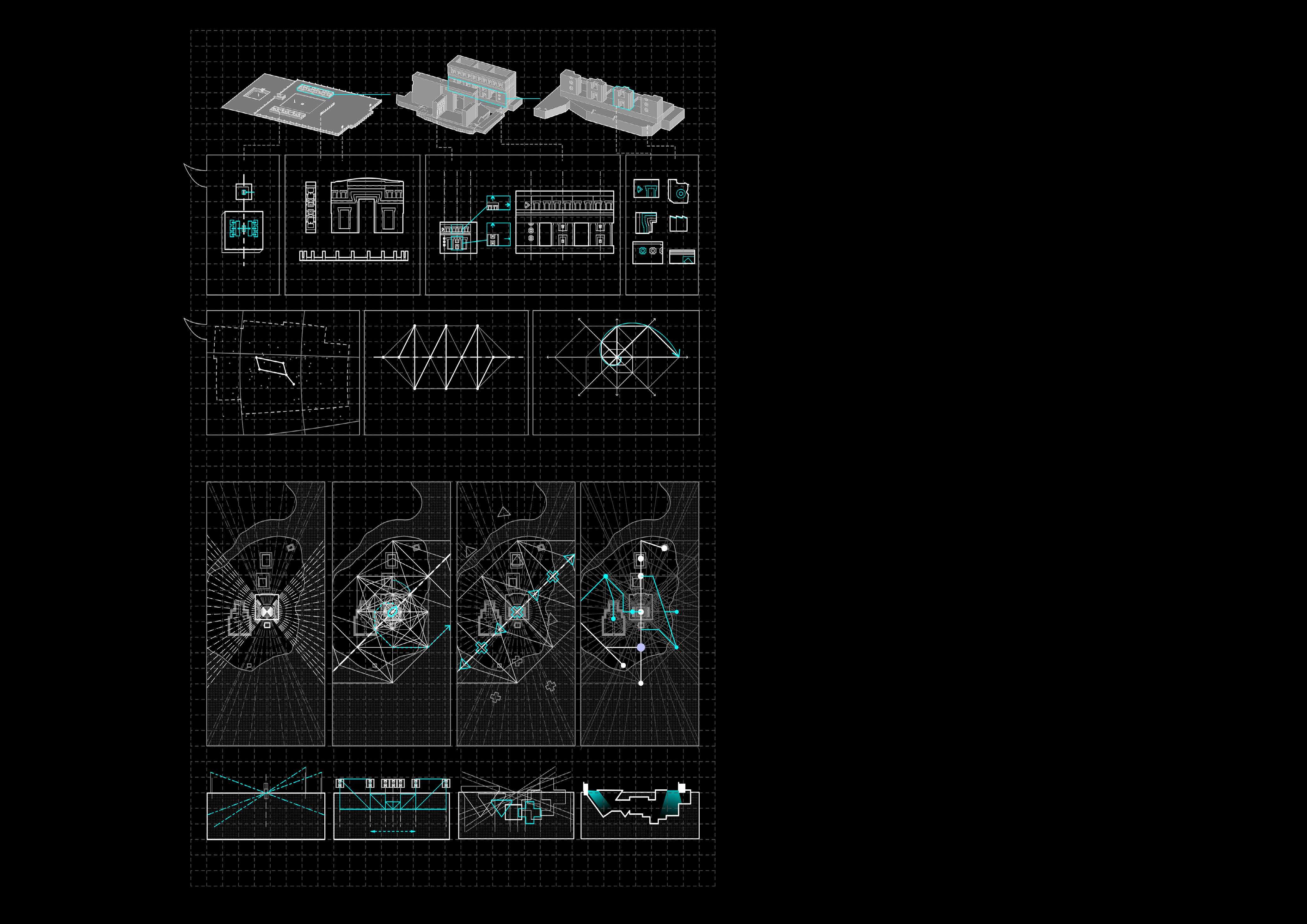

rise Sun

Whose mission is to inherit and improve ancient skills, like accurate carving and iron forging, to build sundial-like structures and modualized monolithic blocks

Totems

Axis and layers of space

X*M

X*M

Graphics

20-month timming and Celestial Structures

Multipled by X

Blocks

Module Pattern

Priests

Kathara Connecting Pattern Main axis and paths

Sun rise

2

√2

2√2 8

4√2

4

Kathara Self-growing Pattern Ratio of 1:√2 :2

Staff-only Dock

Info Centre

To combine and to make innovations...

Observatory & Underground IC

Akapana Pyramid Sun Axis

Axis of Megalithic

Rise

Site reconnaissance & Ritual events

Staffs

45°

Semi-subterranean Temple Security Check #2

Staffs

newly built Lyra Axis

Astronomers

Diplomatic Dock For invited sages and royal families

Security Check Pilgrims

Sun Plaza

and FA Hybrids

Set

Celestial Axis System

Kathara Grid System

Carving Symbol

Anti-Penetration

Divide into 20 segment

Grow from 1m to Infinity

Match with the joints

Seperate into 2 routes

4M

2M M 2M

4M

Commercial & Security Check #1

et uns eS stic Sol ter

Conceal facilities

Win

Anti-Penetration

Carve out spaces

et uns

Carving Symbol

Define the module

ce S

Kathara Grid System

Direct to celestial bodies

For non-native pilgrims and FA Hybrids

lsti

Celestial Axis System

Outsider Harbor

r So

Geometrists

Freight Dock

me

APIC

Sum

Observatory

Vernal & Autumnal Equinox Sunset

Whose mission is to make arrangements of the site planning based on several celestial rules.

Whose mission is to exploit graphics and mathematics of the ancient, to cipher and decipher letters and messages between in and out.

ice

True History & Knowledge Storage

Symbols

8√2

Constellation Lyra 18h 50min ascension, 36° declination

Ritual & Festival events

Putini Library

Sungate

1

Whose mission is to report to GA Lyra after making connections with local communities and royal families.

And to obtain higher dimensional intelligence, which reveal the secrets of KATHARA.

Storage & Security Check #3 Staff-Only

Kerikala Sun Temple

Sum me r So lst

ice

st Sol

M M

Stonemasons

Resource Entrance

Vernal & Autumnal Equinox Sunrise

te r Win

Join us to discover human & lyra technologies...

25

03.04 & 10.11 Sunset

Lyra Axis 11 of 20

03.21 & 09.23 Sunset

04.08 & 09.03 Sunset

08.15 & 04.26 Sunset

Lyra Axis 1 of 20. Rise

06.21 Sunset

Lyra Axis 5 of 20

Lyra Axis 08 of 20 Lyra Axis 14 of 20

Lyra Altar

Observatory Practise Room Public Banquet Hall

Ritual Dept.

Cipher Dept.

Geometric Coding to Great Court Dorm Corridor

Conference Hall

Bio-regenisis Training Hall

Mailroom Hall

Staff Canteen [Fallen Valhalla]

[The Hatching Room]

[Prison]

Section A-A: Overt

Section B-B: Covert

Under the observatory, visitors are taught with Bio-regenisis technics and well-treated with feast

Start with deciphering, through strategy making and ciphering to contacting, pieces of intelligence are sent to GA-Lyrans.

26

ra Ly tar Al [Th

eH

B

eR oo m

atc hin gR oo

A

Pr ac tis

m]

l ua Rit pt.

De

isty

Sacr

om

etr

yD

.

Security Roy al

g

vin

r Ca

er ssag Me tings e Me

ce eren Conf Hall

Library of Truth

ode B fo & C ept.

D In

Lord Office

Mee

Check #

2

ting

s

r he ip om c De Ro

e

g tora

S

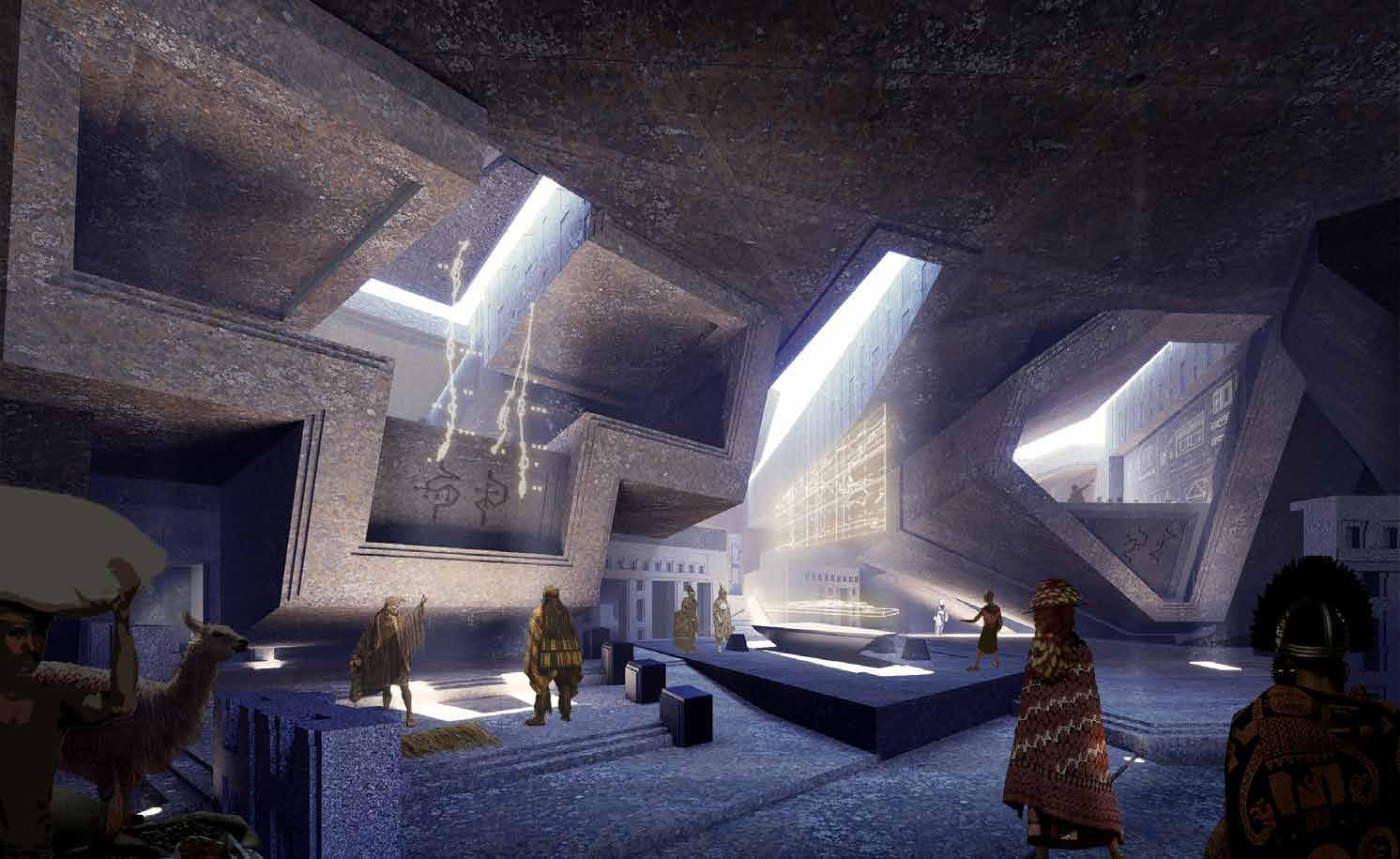

Underground Temple

Up

Rock Experiment

ept

n

Priso

Geometry Dept.

al tu .

Ri ept D

Ge

isis egen Bio-r ng Hall i Train

Lammas Sacks & loads

rm

Do

A

s

f af en St nte Ca

Security Check #3

ic t bl ue Pu anq B all H

M

om

ro

ail

-9.00m Plan

2m 4m

-4.00m Plan

Bio-regenisis Training

Block Module

Cyphering & Strategy Making

Interplanetary Contacting

27

Camouflage The astronomical observatory on the ground uses the part of the information centre protruding from the ground to record the exact time of the sun and Lyra. These protruding building volumes also function as ventilation ducts, light wells, and underground water wells, reinforcing the status of the holy land as the Stonehenge of Tiwanaku.

28

06 Aero-lantis Air Passenger's Ground Transportation Center between business and trip Group Work Group Members: Chuhan Xu, Yichen Yang Contribution: Concept(60%), Analysis(40%),Modeling(50%), Rendering(50%),Drawing(50%) Tutor: Minfeng Yao Location:Xiang'an, Xiamen, China(Mainland)

Graduate Project 2022.1 ~ 2022.6 Airport City was first proposed by Koninklijke Schiphol Group in the early 1990s, referring to the gradual evolution of the functions of an international airport into a comprehensive airport, combining facilities and services in passenger transport, logistics, leisure, business, residence and office, etc., to attract passengers to increase the economic activities of the airport and nearby areas, and form an intensive, distinctive special area or a comprehensive economic zone of industrial type.

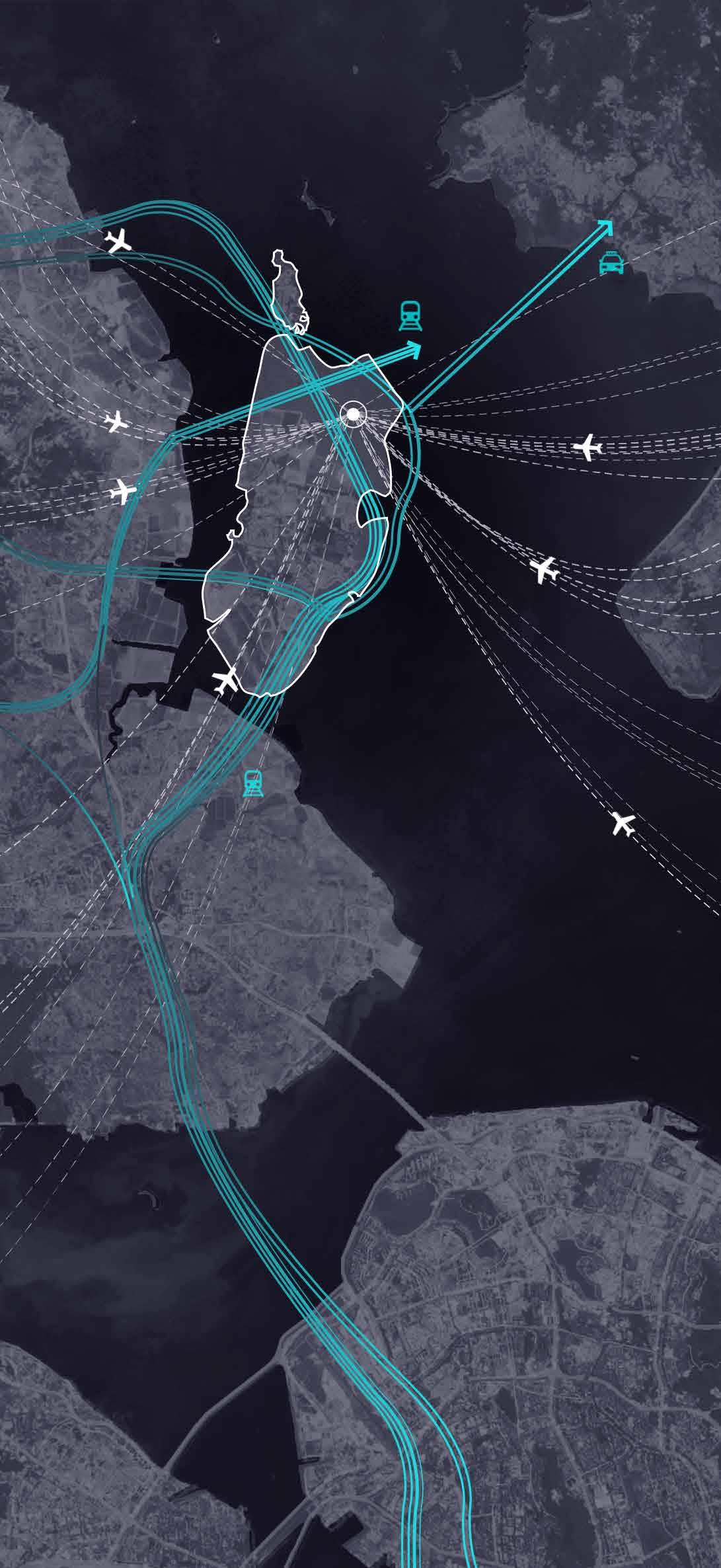

Xiamen Xiang'an New Airport, as a transportation hub connecting Xiamen, JinMen and Quanzhou. The project draws on the successful experience of Jewel Changi. While meeting the traffic transfer needs of Xiang'an Airport T2 &T3 central plot, it conducts research on the business format of the airport economic zone and the surrounding ecology of AeroCity, serving as the external window, displaying marine coastal theme and characteristics of the city. A rainforest canyon scene with a sense of futuristic technology is set to establish the "city facade" of Xiamen. To business travellers, it is a place to "switch" between business affairs and entertainment vacations.

29

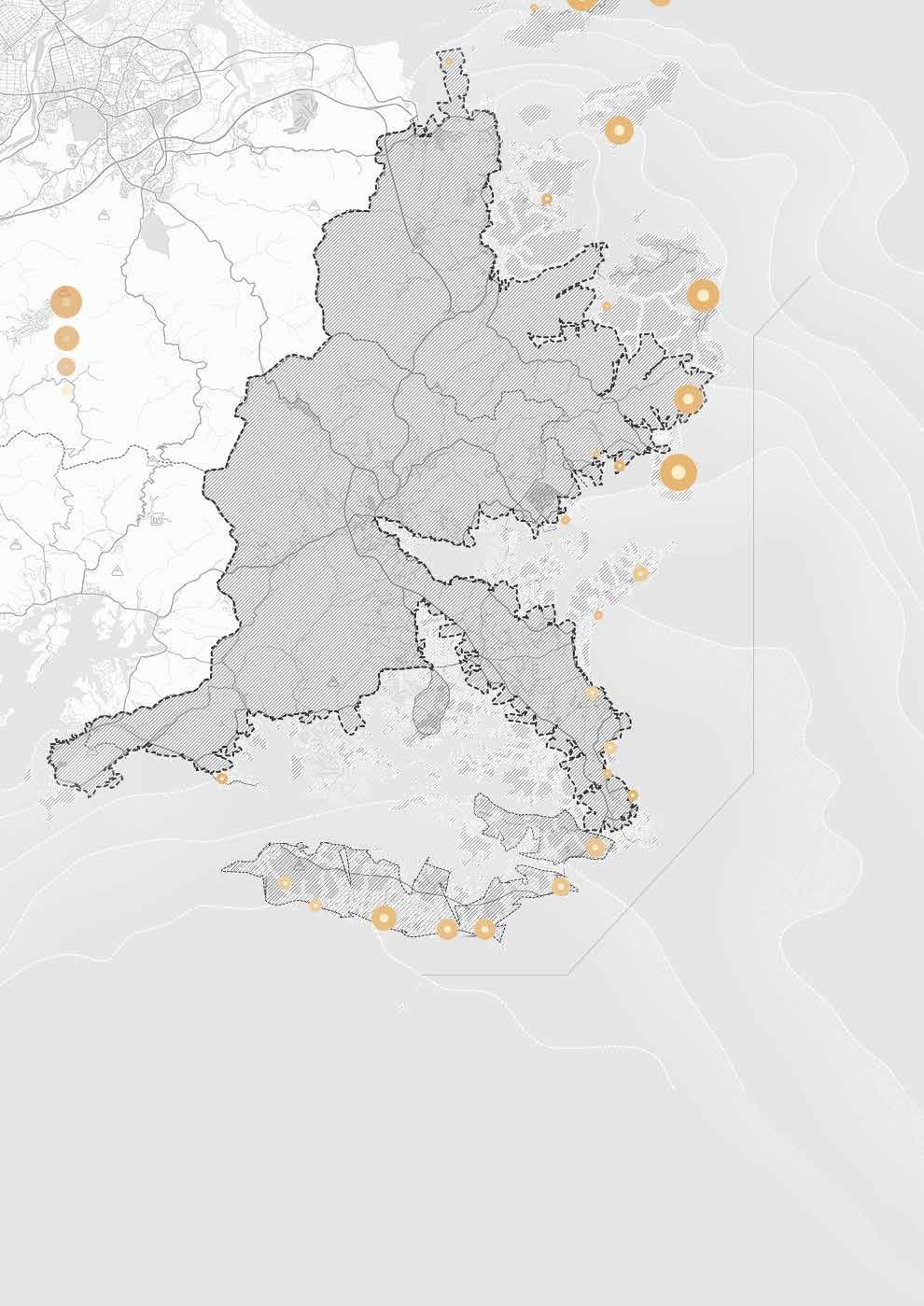

Transportation Hub of Southeastern China

Study of Ground Transportation Center (GTC)

Strategy: Window of Xiang'an, Xiamen

Theoretrical Study: Airport City GTC

I. To Select from Airport City Industries

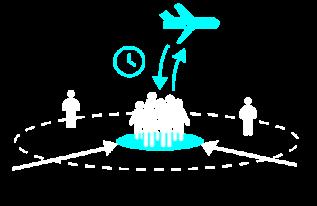

Different from urban TOD, as an Airport City TOD, GTC only serves airport-related businesses, and its targets are mostly air passengers and airport business people

Ordinary TODs

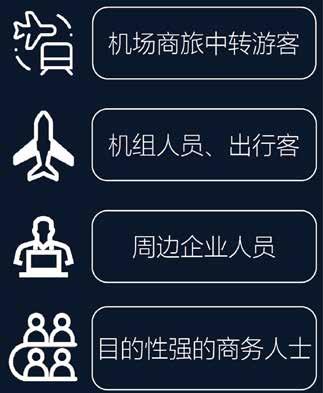

Airport City Users Intercity Railway

from Northern Mainland, China

#Coastal Tourism#

#Cross-Strait & Global Communication#

Bridge to Kinmen Island

Xiang'an Airport Transit Passengers

Airport Staff

Cross-Strait Exchange Study

Global Marine Annual Convention

Marine Biological Drugs Research

Digital Marine Technology

National Exhibitions and Ceremonies

Bird-strike Prevention & Protection

Xiang'an Industrial & Cultural Activities

from Taiwan, China Tourists & Local Business Staff Businessmen

from Central Mainland, China

Urban-life Oriented

II. To Merge and Spatialize

Airport Oriented

from Kinmen City Ce

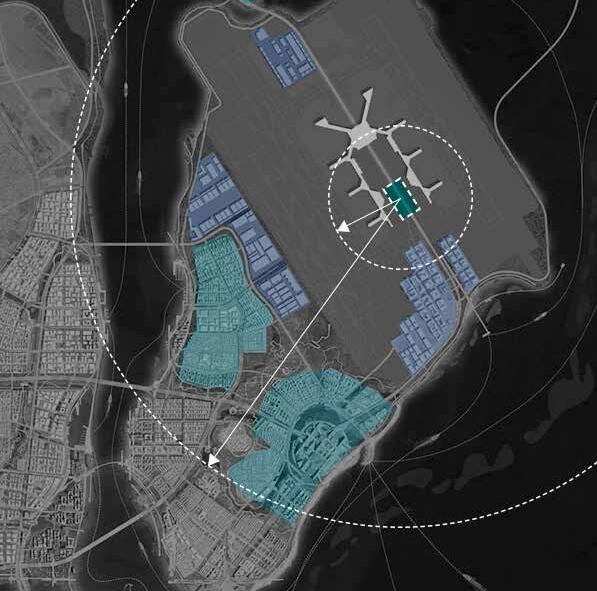

Site Study: GTC, Xiang'an Airport, Xiamen

Airport Blocks Terminal 1

Subway Line 3,4

Freight Transportation Blocks

GTC 1

Xiang'an Airport City, Xiamen The industry of Xiang'an Airport City is mainly related to foreign trade and cross-strait trade.

m

Aero-Core

Landscape

Aero-Business Blocks

Terminal 3

Transfer Bridge

Transit Passengers

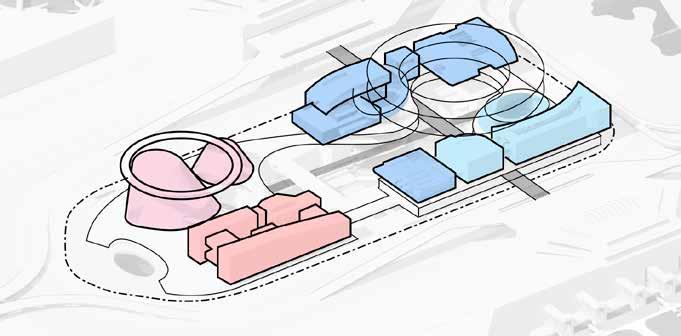

Stradegy Study: GTC as Window of the City

Activities

Bird Pre Strike ven tion

Airport Staff Member

Research Powerhouse

Communication Auditorium

Theme-Park Aqualand

Marine-Tech Develop, Exhibit & Sell

Worldwide Ceremonies & Conferences

Coastal Marine Theme Tourism & Culture Creation

III. To Show Image of the City

27.6 km

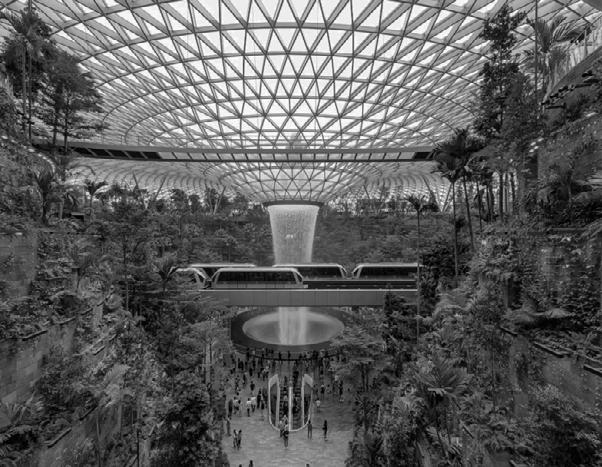

The successful experience of Jewel Chang-i's operation model is worth studying

Coastal Tourism

City Representative Airport City Industries Financial Support

Garden City Image

Before the city was put into planning, the surrounding forests and seas were protected areas

Jewel Chang-i, Singapore

Acknowledge

Display Stage & Freight Delivery

GTC Facilities Services

Xiamen City Center

City Image ce lan y k G Sta c i Qu rary po m Industrial & Cultural Te

Subway Station

Marine-Tech Development Blocks

Shape

Ceremonies & Conferences

our ily T

Terminal 2

GTC Cross-Strait Trade

Tourists & Businessmen

Fam

Coastal Marine

Parking

km

5k

Cross-Strait Business Blocks

d te ela ip R r ine ss T ar M sine Bu

s rd Bi re ed u ur & C Inj ve Sa

from abroad

M Local Enterprise Stud arine y & Tec Staff Member De hno vel opm logy ent Edge P r o Exhib ition duct & Se ll

al nu s An nie o m re

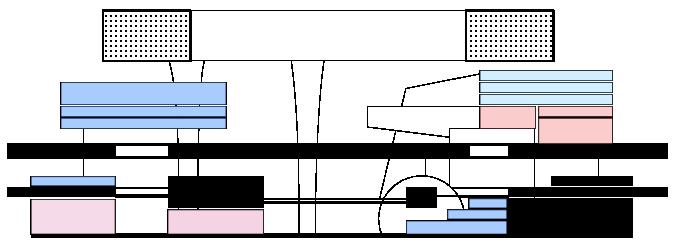

While GTC carries the traffic transfer task, it is affected by the related business forms of the airport within five kilometers.

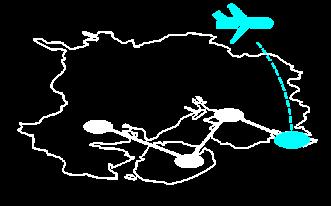

from Southern Mainland, China

Marine-Tech Development

#Marine Technology Development#

Ma Co rine nfe Re ren late ce d

from abroad

Airport City GTC

Stay, Consume & Experience

Airport City Users

Coastal Marine Creature Protection

30

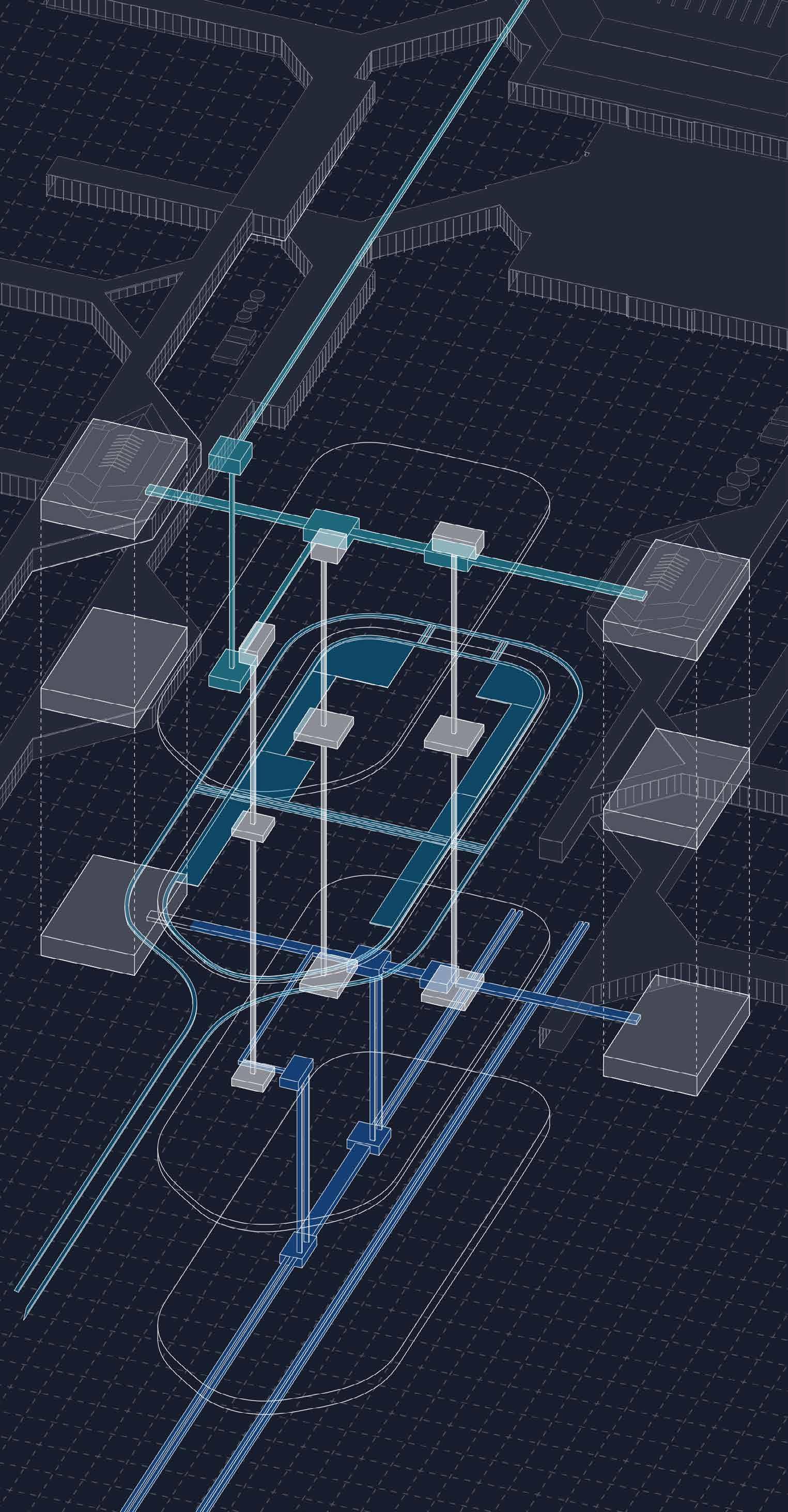

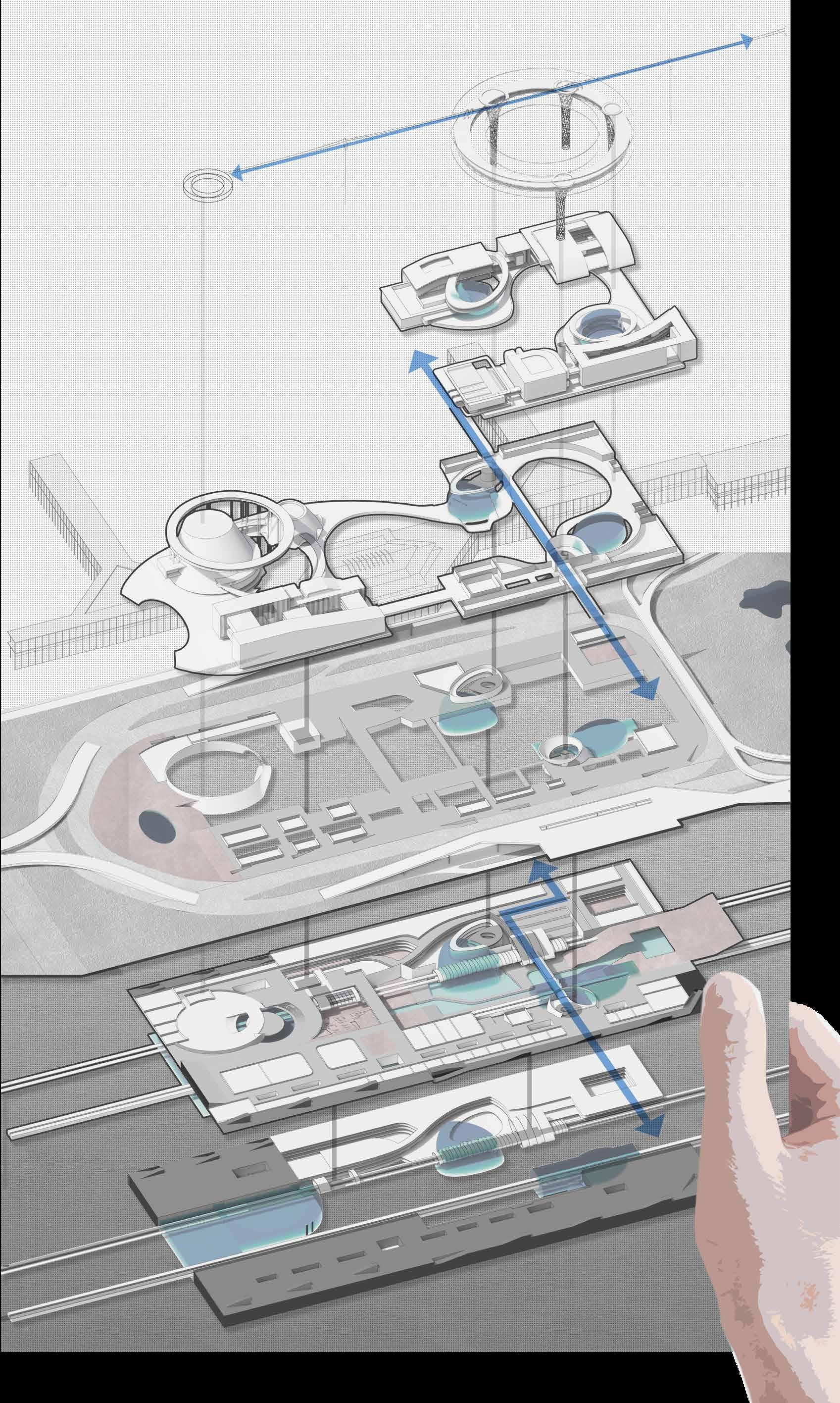

Transportation System as Blood Vessel

Function as Organs

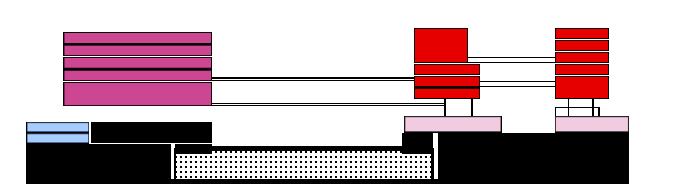

TOD System Pattern

Coastal Marine Scene Generator

50.0m above

Wetland

1 Bird Strike Research & Rescue 2 Flight Information Board 3 Cable Car Station

Cetaceans

Birds

1

To T1 (Slow) 2 3

Core

2 Cores

Corridor

Web

4

5

12.0m to 37.0m

50m

A

Cable Car Transfer & Sightseeing

B

C Mall & Club

Hotel

Exhibition

Office & Hall

4 5 6 7 8

Diving & Surfing Club Medical & Spa Treatment Hotel Room Conference Hall Banquet Hall & KTVs

6 7 8

7.5m Bridge Transfer

To T3

12

13

A: Communication Auditorium 4.5m to 12m 9 Tax-free Shops 10 WeWork & Offices 11 Research Institutions 12 Transfer Core 13 Exhibition & Trade Show

11 9

10

0.0m

17

14

Vehicle Circulation Coach, Private Cars & Taxi Platform

To T2 15

0.0m to 4.5m

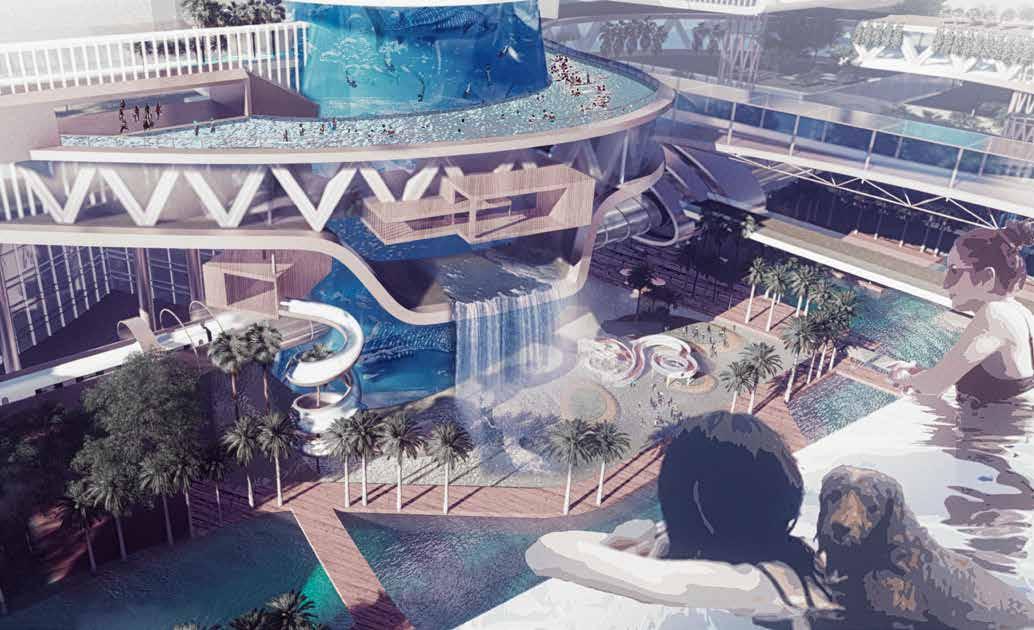

B: Theme-Park Aqualand

14 Coach Station 15 Taxi Platform 16 Office Hall 17 City Core

To T3

16

-9m Metro Station Entrance & Underground Transfer

19

Ground Floor

22

-25.0m to 0.0m

20

21

18 Restaurant 19 Mall 20 Exhibition Hall 21 Front Plaza 22 Amusement Park

C: Research Powerhouse -17m

20 18

20

23

To T2

24

Metro Station Platform Ground Floor

23 Mall 24 Parking 25 Watertank

18

25

24 24

31

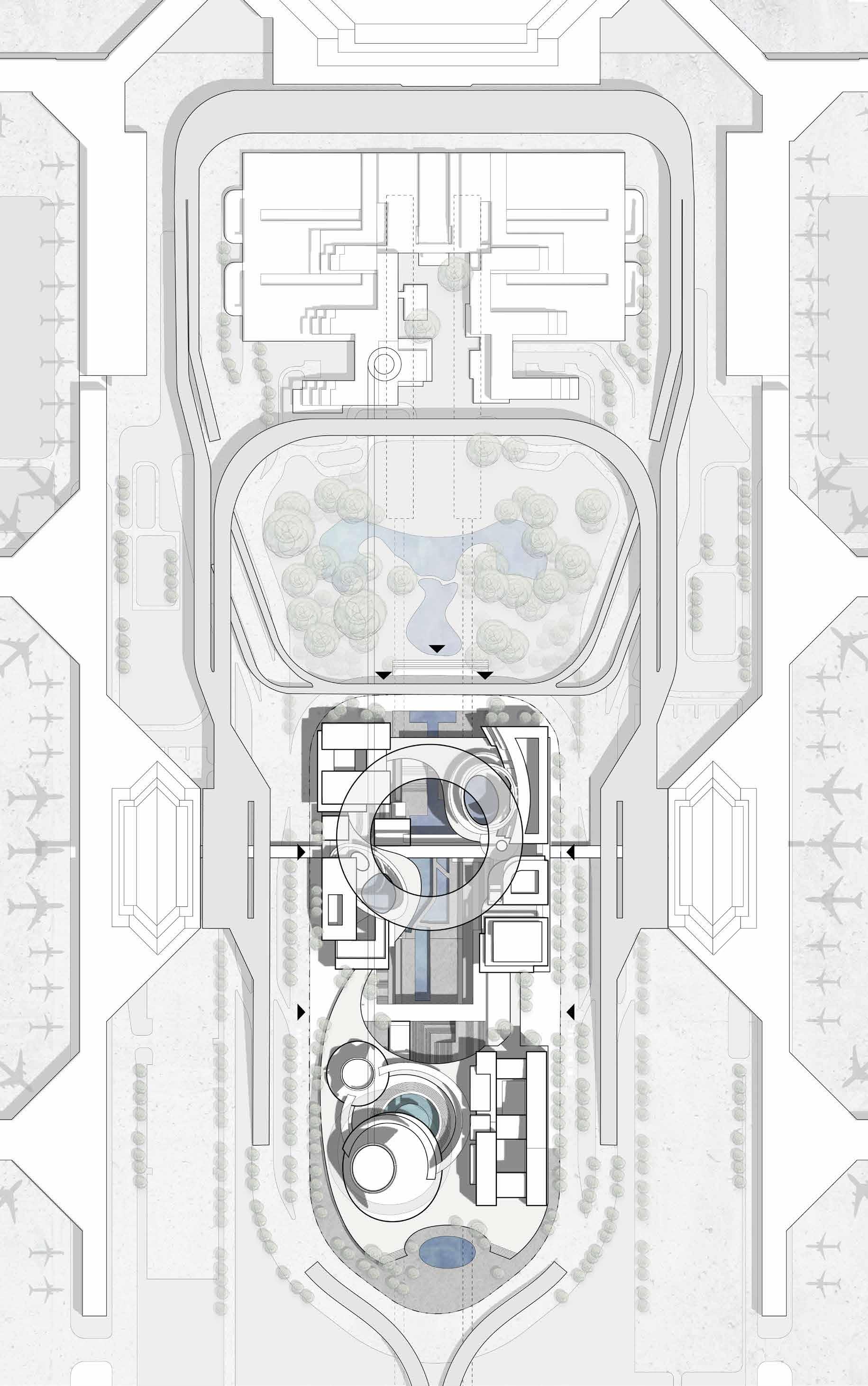

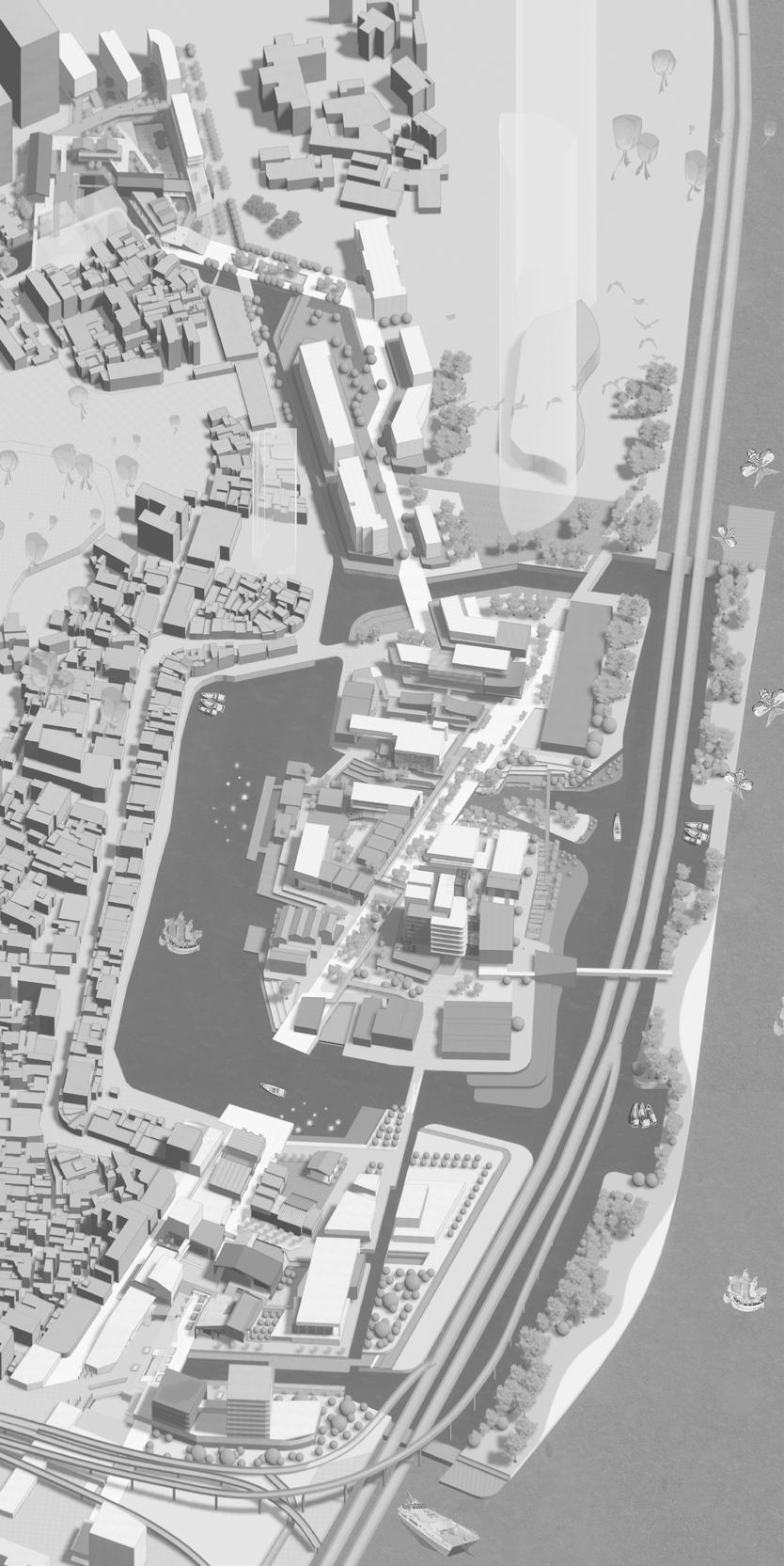

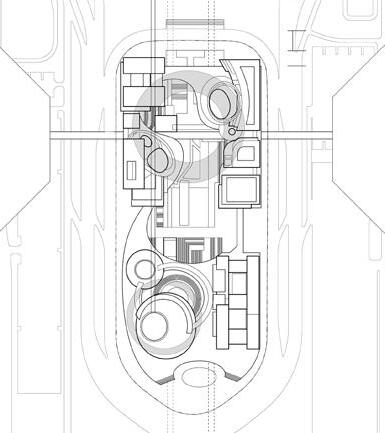

Master plan

1

Medical & Spa Treatment

2

Diving & Surfing Club

3

Banquet Hall & KTVs

4

Conference Hall

5

Hotel Rooms

6 7

Transfer-Core of Terminal 2

8

Transfer-Core of Research Area

9

Trade Exhibition Hall

Terminal 1 H=50m

GTC of Terminal 1

Transfer-Core of Terminal 3

10 WeWork & Offices 11 Research Institution 12 0m Entrance of vehicles 13 7.5 m Entrance of passengers 14 0m Entrance of vehicles 15 7.5 m Entrance of passengers 16 0m Entrance of vehicles

Entertainment 14

1

Terminal 3 H=50m

7

5

13

15 2

4

6

Terminal 2 H=50m

3

12

16

8

11

10

9

Research Powerhouse

010 25

50

100

32

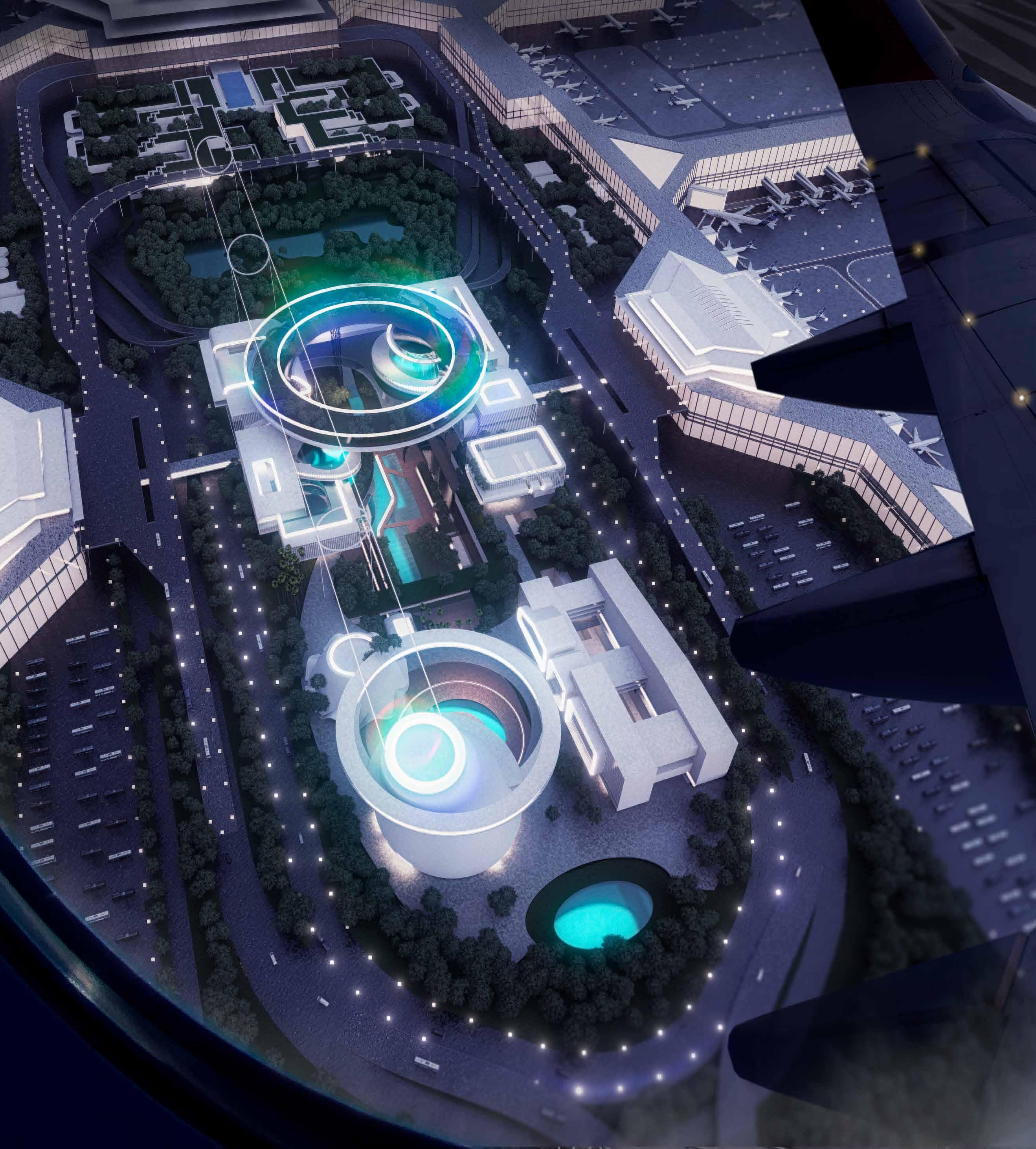

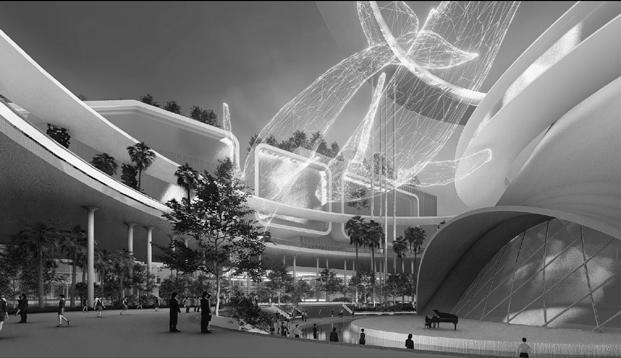

One Day Business Trip in Aerolantis Arrival at 9:00 am

B A

A

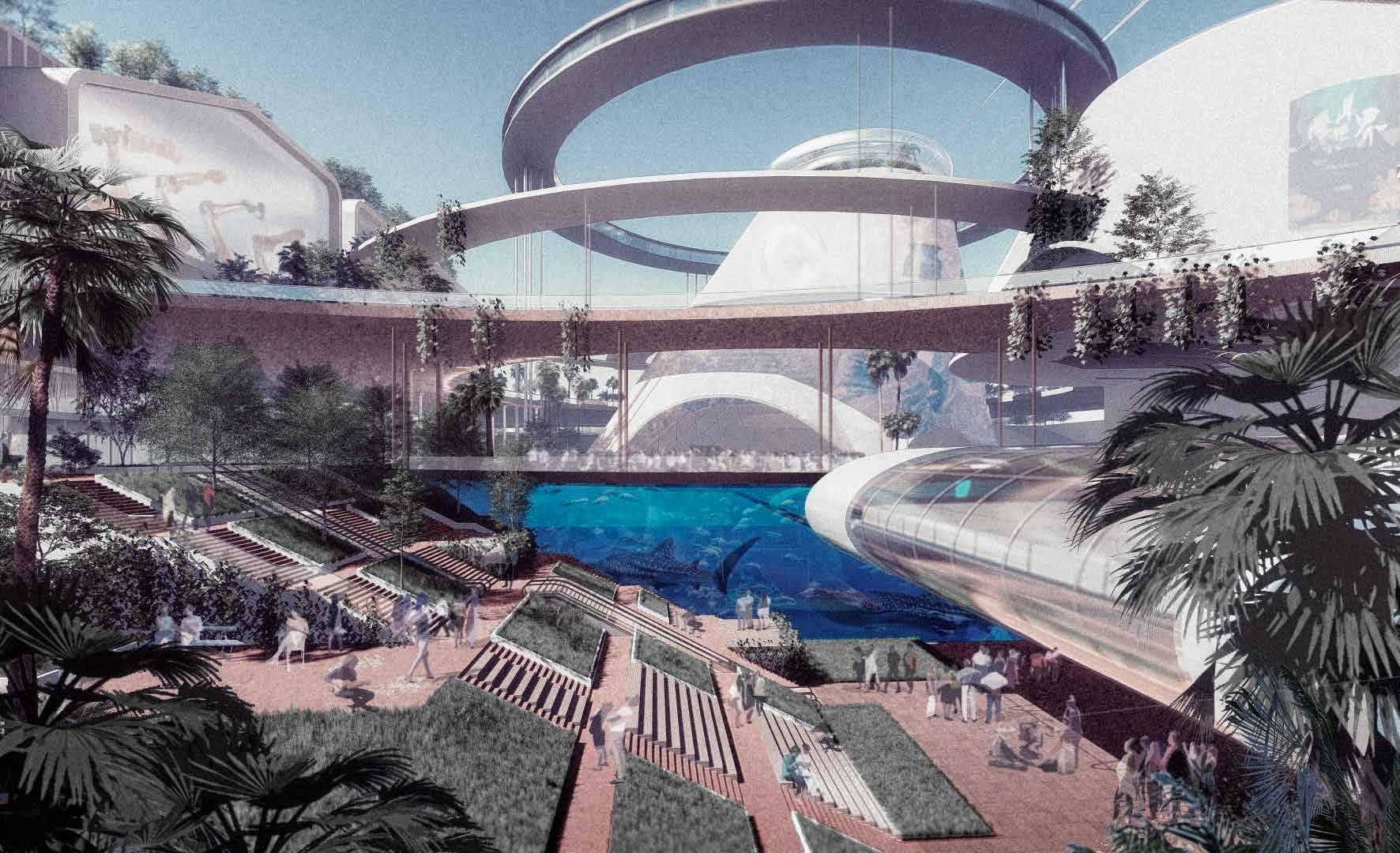

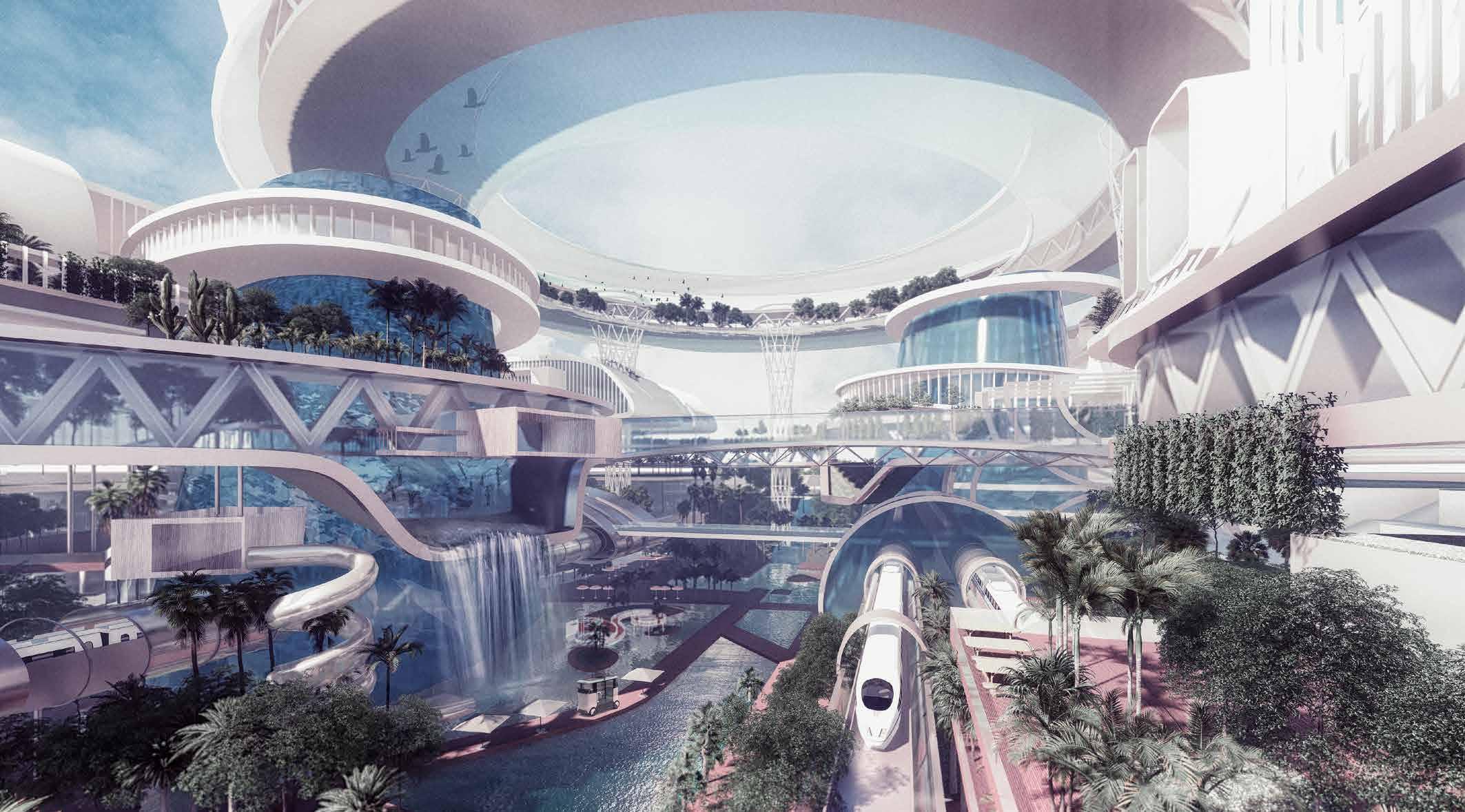

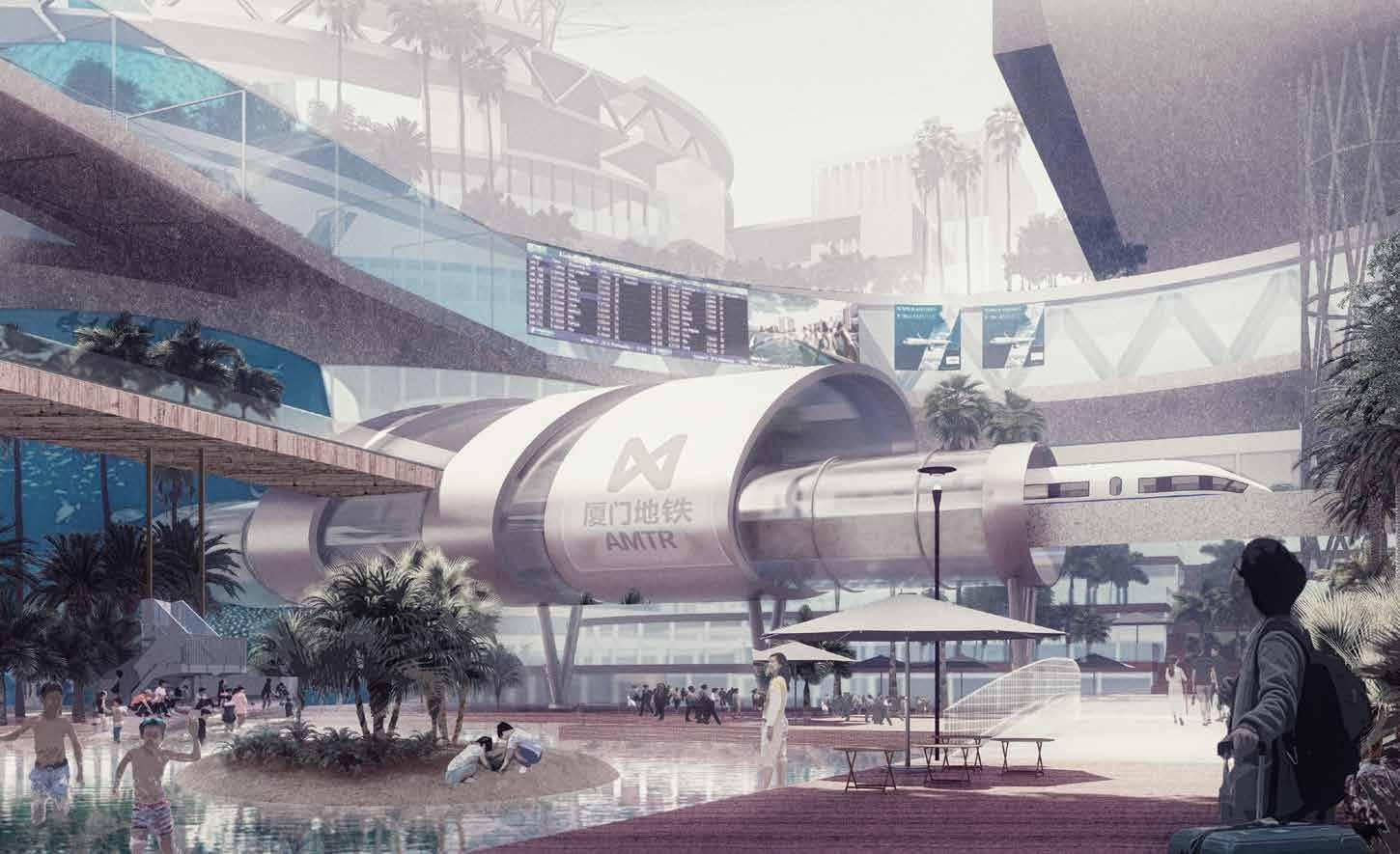

When the train is about to arrive, you can take a look at the artificial rainforest landscape from the window. When you arrive at the station, you may visit the aquarium and paddling pool located on the central axis of the landscape before going to the meeting room above the station level.

B

1

2

3

4

5

6

7

8

9

61.500 Height Limit

60.000

Hotel Room

37.000

16.000 12.000 7.500

7.500

7.500

±0.000

-13.000 -17.000

Store

Terminal 3 Lobby Coach Station Diving & Surfing Club Transfer-Core to T3 Line 3 Station Line 4 Sightseeing Tunnel Tranfer-Core to T2 Hotel Garden Terminal 2 Lobby

-9.000

-9.000

Parking Lot

1 2 3 4 5 6 7 8 9

Conference

-9.000

Mall

±0.000

-25.000

-25.000

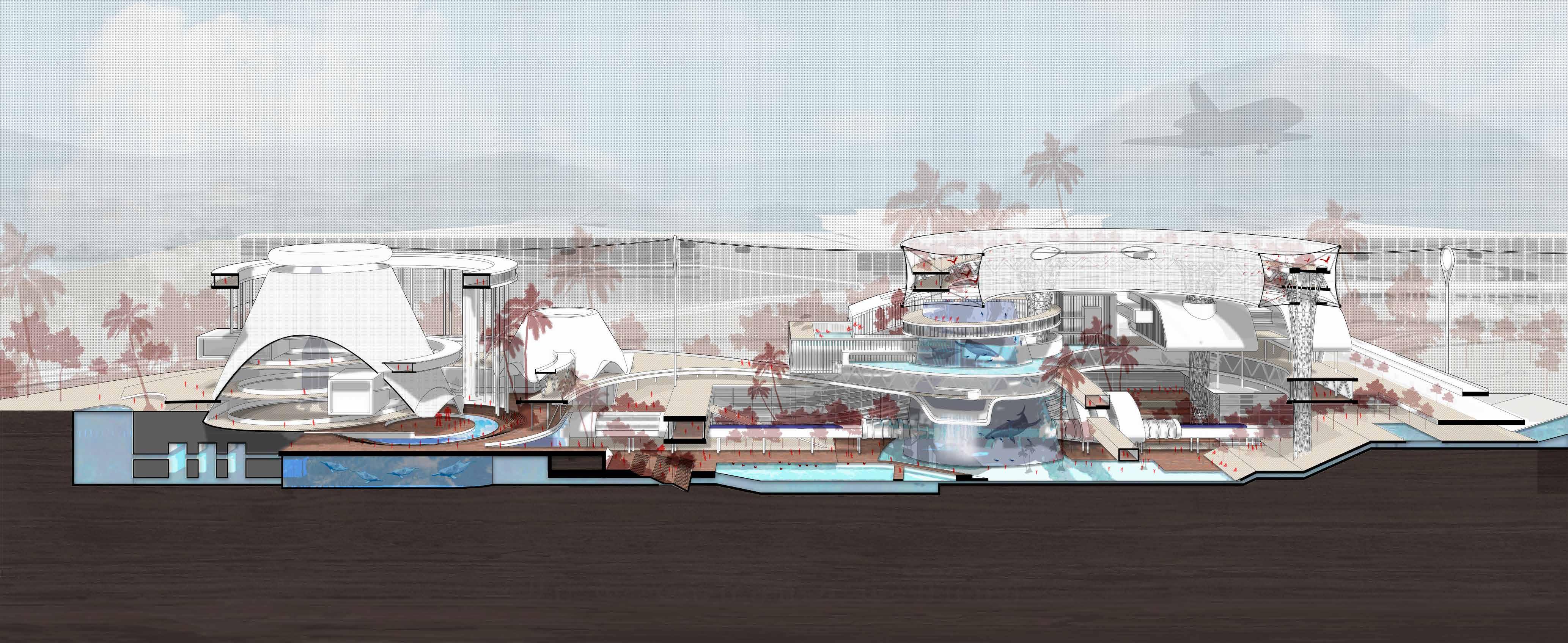

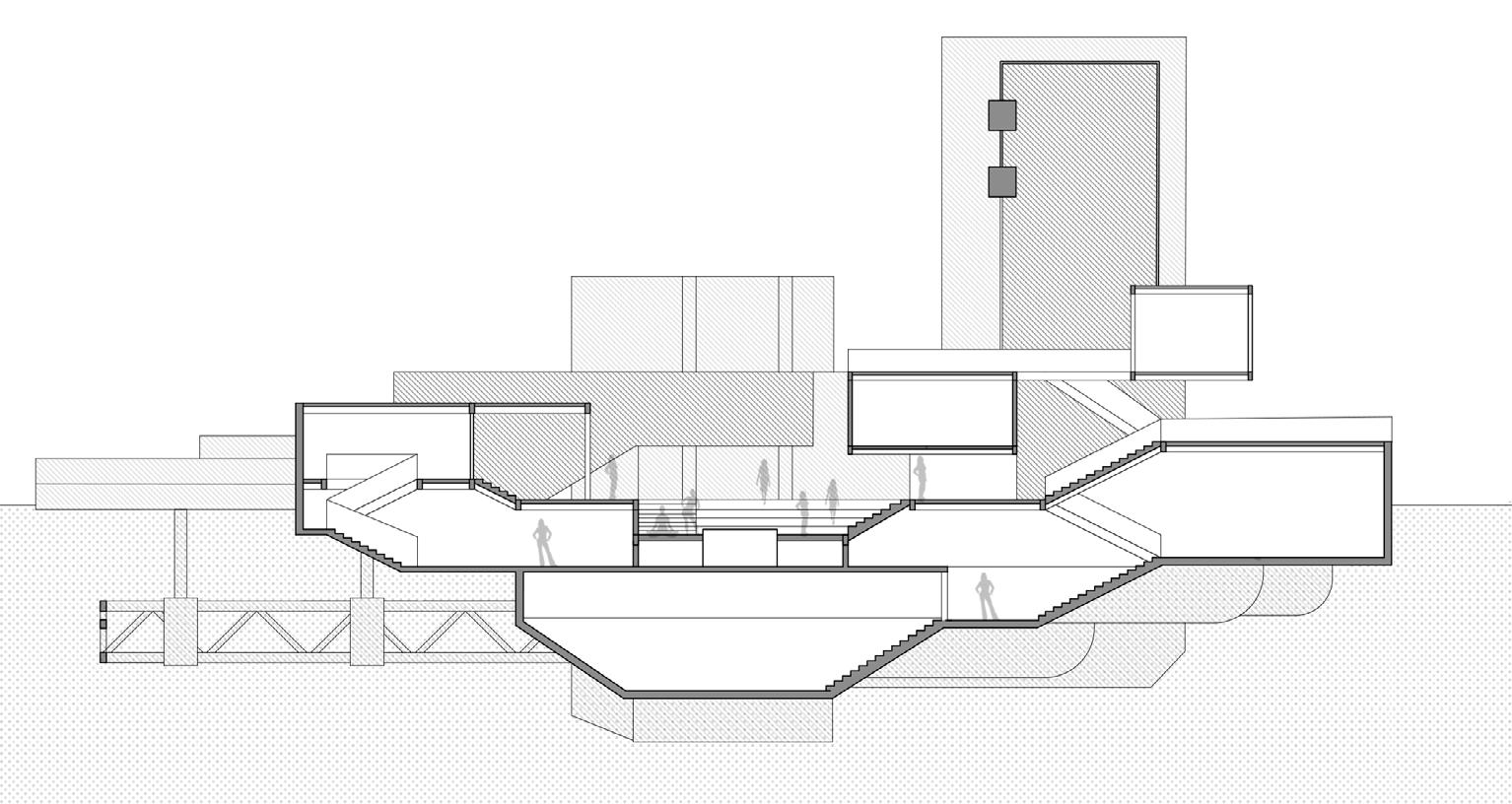

Section A-A 0 4

10

20

40

33

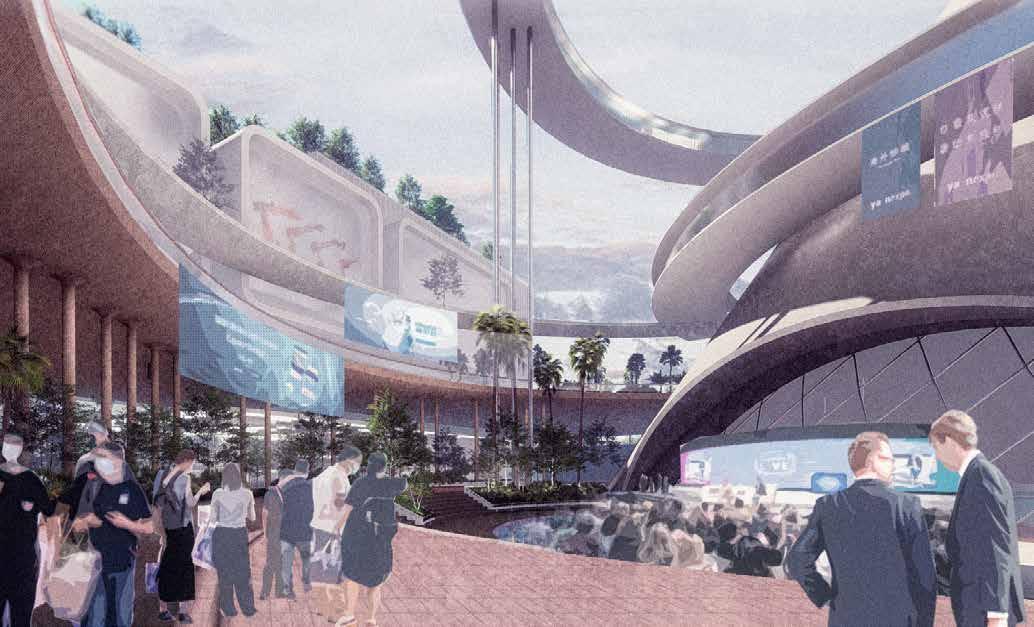

Cooperation Meeting at 11:00 am

Trade Exhibition at 15:00 pm

Company Trip at 18:00 pm

The cross-strait cooperation negotiation press is held inside the conference room with a background of a rainforest landscape.

It is also recommended to attend a fish oil product launch in the public square before visiting the company's trade-exhibition.

After finishing the work content of the business trip, you can stay in the hotel and enjoy the holiday in the water club located at the higher level.

1

2

3

4

5

6

7

8

10

9

11

12

13

14

60.000

52.000 46.000

12.500 4.500

4.500

7.500 ±0.000

±0.000

±0.000

A

1 2 3 4 5 6 7

B

Trade Exhibition Hall Cable Car Station Exhibition Plaza Transfer Core Line 3 Station Exit A -9 m Transfer Corridor Conference Hall

Diving & Surfing Club Subtropical Sightseeing Garden 7.5 m Transfer Corridor Line 3 Station Exit B Tax Free Mall Medical & Spa Treatment Transfer Level Mall

F -25.000

C

8 9 10 11 12 13 14

-9.000

-9.000

-9.000

D

E

Section B-B A B C

Wetland Pool Purification System Aquarium Tank

D Wetland Pool E Aqualand Pool F Wetland Pool

0 4

10

20

40

34

I. Animation 1. Starfire of Shapowei Website: https://youtu.be/YE-LsRzNMdQ Scripting & Camera Setting based on UD project.

Storyboards Presentation Intro: On the Train Chen is a Malaysian Chinese. He recalled the life story of his father, who used to live in Shapowei.

End: Residential Community

07 Otherworks

Chapter 1: First Step Home When Chen set foot in his old hometown, he recalled his father's wish.

"Switch" beyond Architecture During my five-year as an architecture student, I was making attempts to use different media to present my design.

I love animation because the combination of shots can enrich the story of the space. I once had the opportunity to lead my teammates to write scripts, develop storyboards, and refine modelling, rendering, editing and dubbing. Within two weeks, we presented an 8-minute animated short film in front of everyone and received many praises. The animation allows me to complete a switch in the mood of the story by switching the camera and light.

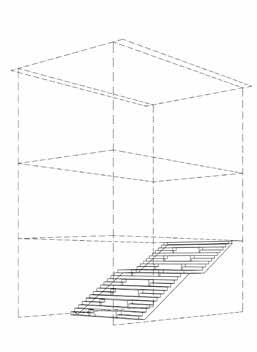

I like playing games, I like to study their fundamental rules, and I am very curious about the interaction between people and rules. In an on-site construction project, I tried to use a set of folding structures to create a transformation pattern, so that users who master this set of rules can create space of their favourites. In a competition related to the pandemic, I tried to create rules for quarantined people to affect the publicity of city streets. I try to learn about space interaction to achieve the purpose of space switching more directly.

Space-oriented design makes me satisfied and fulfilled because it is the most amusing way to show interaction with people, while at the same time the most direct way to express my thoughts on society.

Chapter 3: Coastal Scene

End: Religious Boat

Chapter 2: Inner Bay

Chapter 2: An Encounter Chen met Tang, the descendant of his father's friend, who is now a local boatman.

Chapter 4: Cultural Scene End: Sea Shore

Chapter 3: Prosperity Tang introduced the development of the harbour while taking him on a boat trip on the water.

End: Harbor

Chapter 1: Market Street End:MTR Station

Chapter 4: Homesickness As dusk fell, Chen completed his root-seeking journey at the Water Lantern Festival.

Intro: On the Train

2. Aerolantis: Metaverse Version

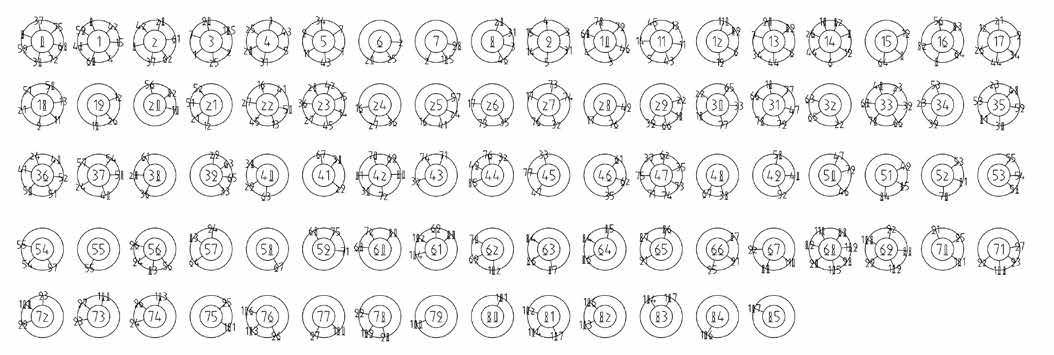

3. Folding Manual

Website: https://www.bilibili.com/video/BV1HA4y1Z7KY

Website: https://www.bilibili.com/video/BV17i4y137yM

35

II. On-site Construction

IV. Other-otherwork

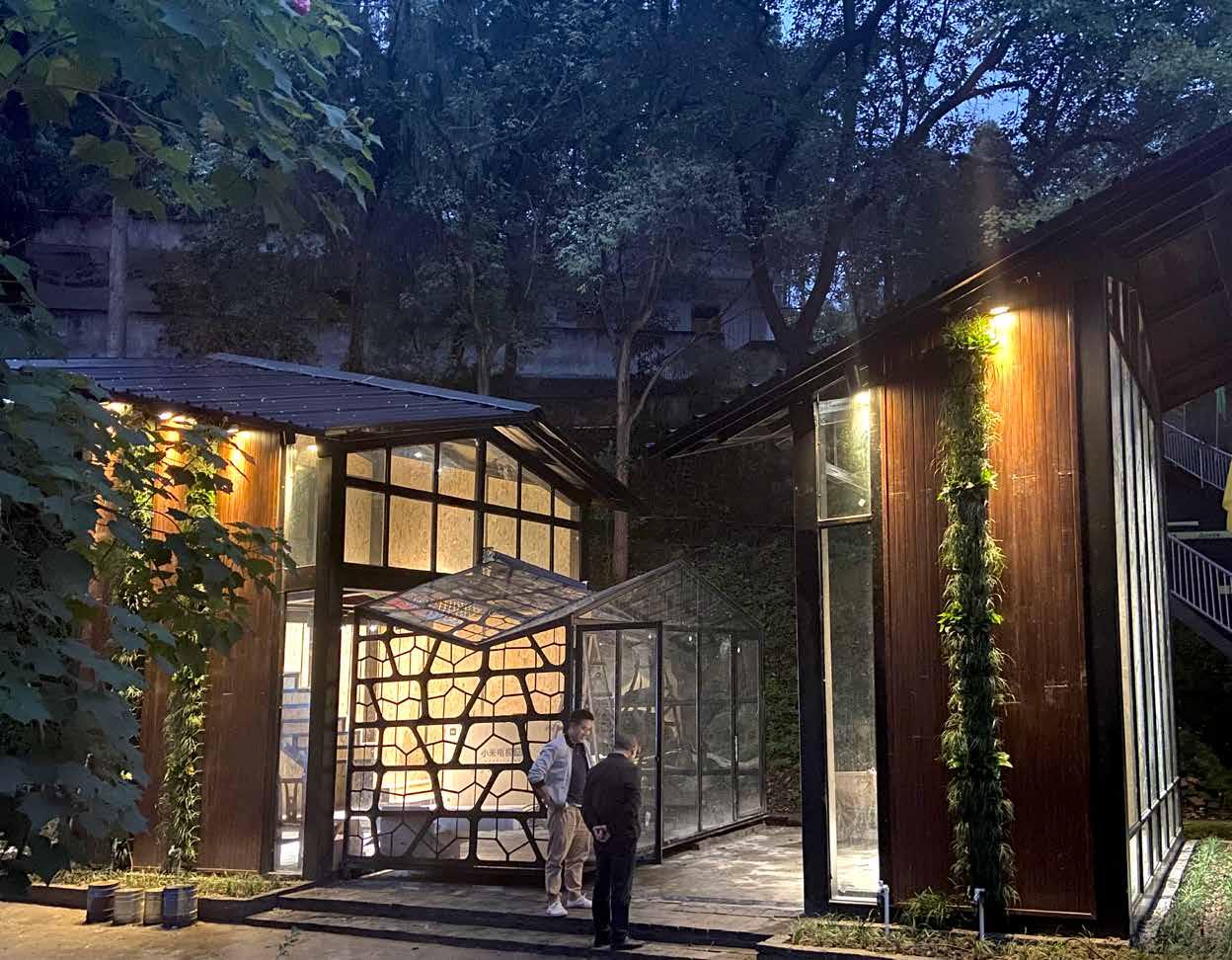

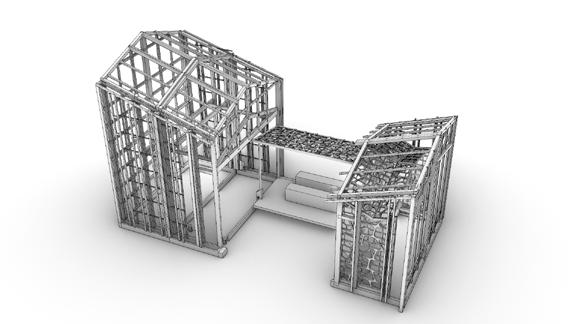

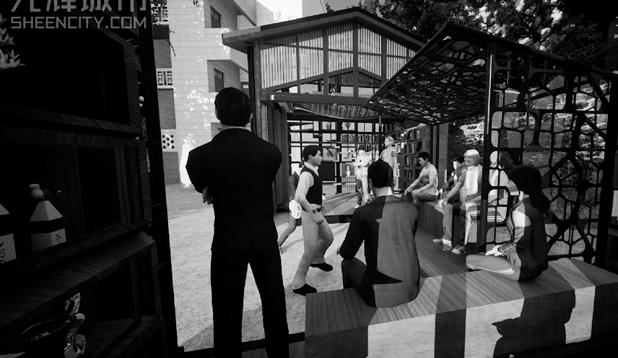

Foldable Bookroom in Xianyang Middle School, Sichuan, China

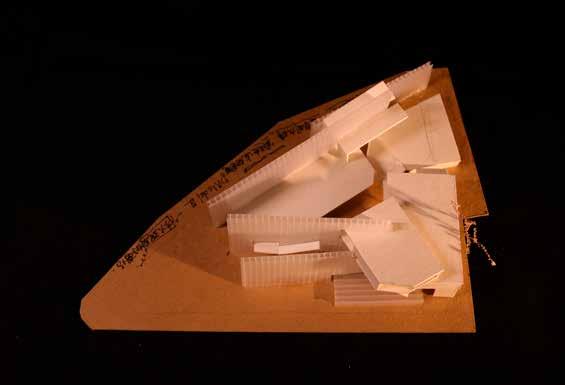

Hand-made Model

Backyard

Street

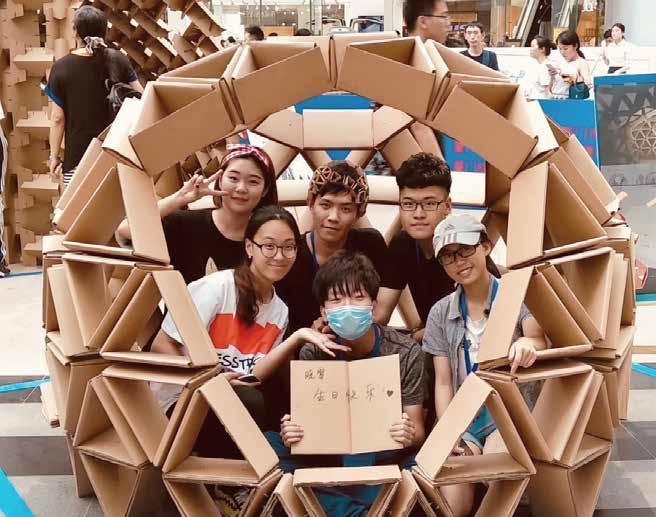

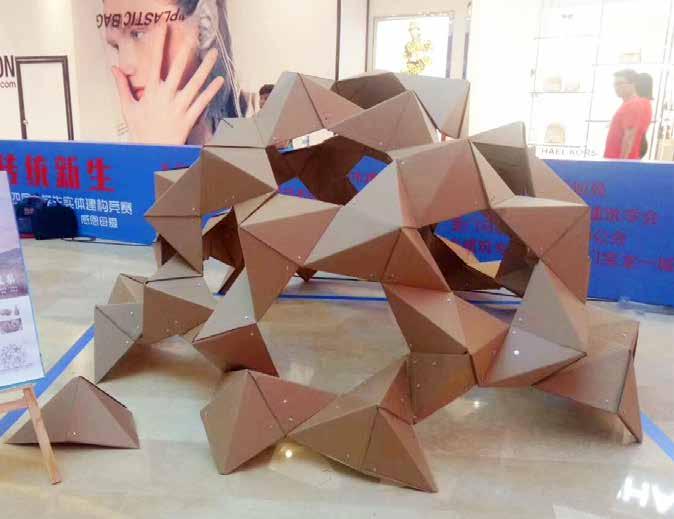

Corrugated Paper Construction

Courtyard

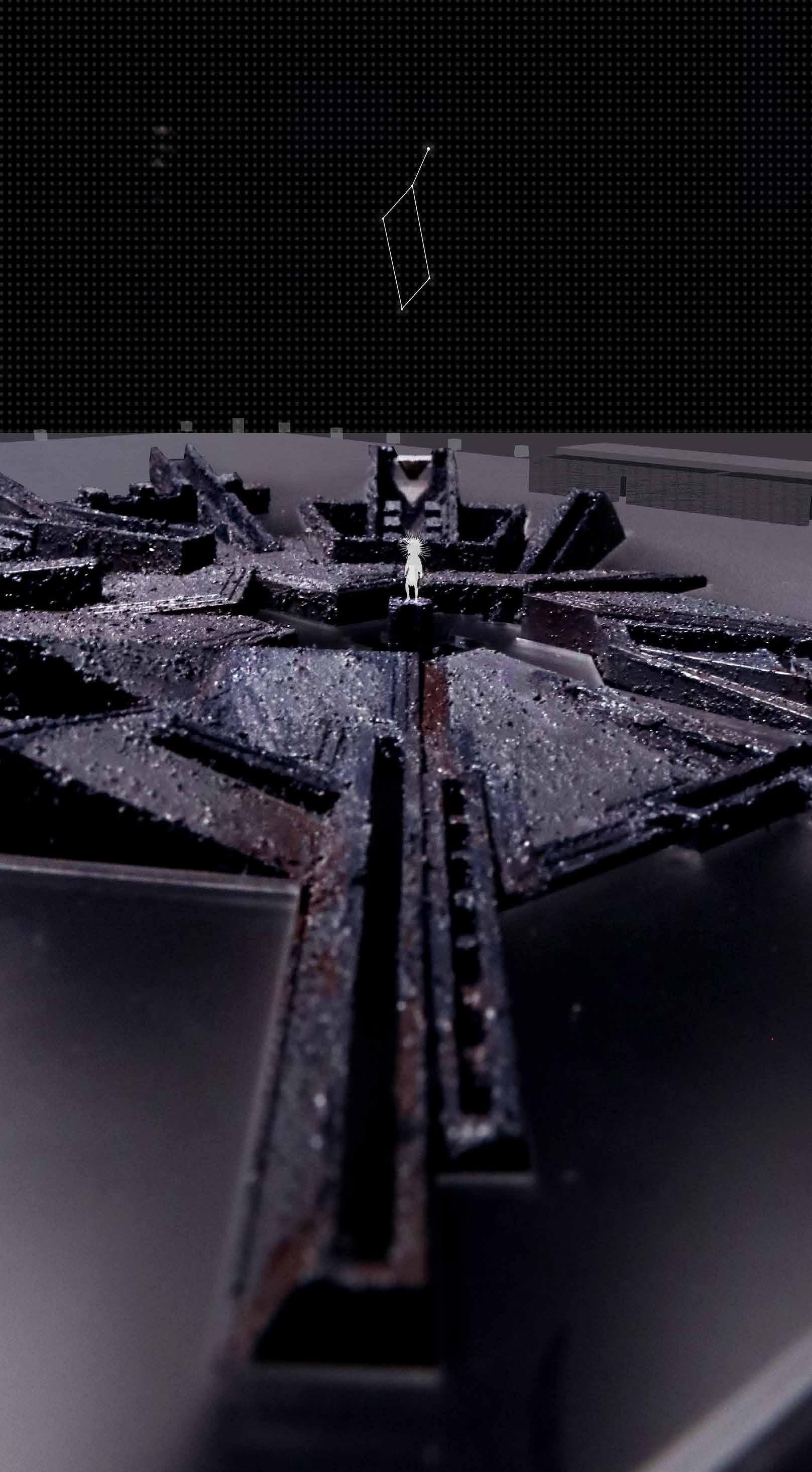

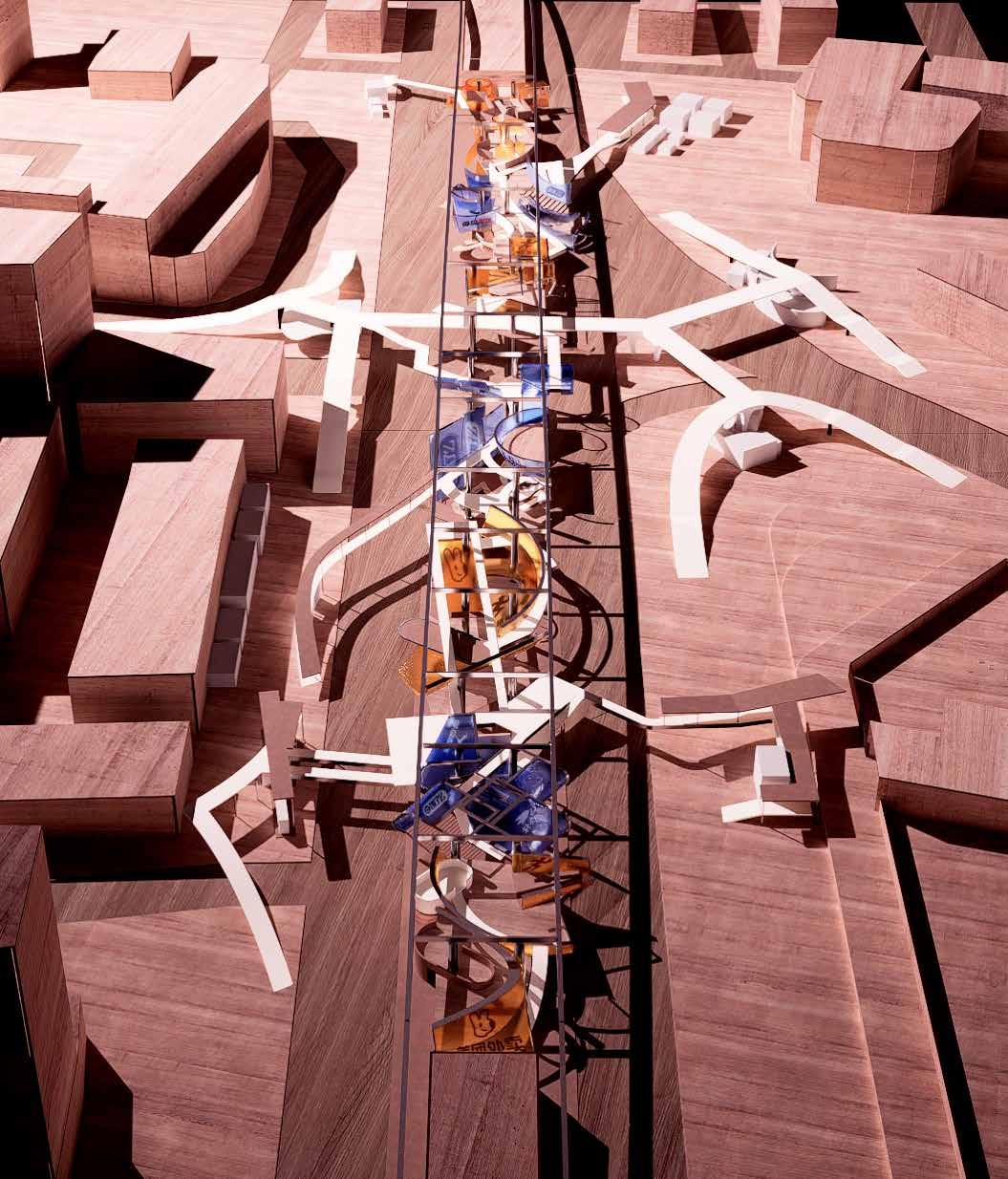

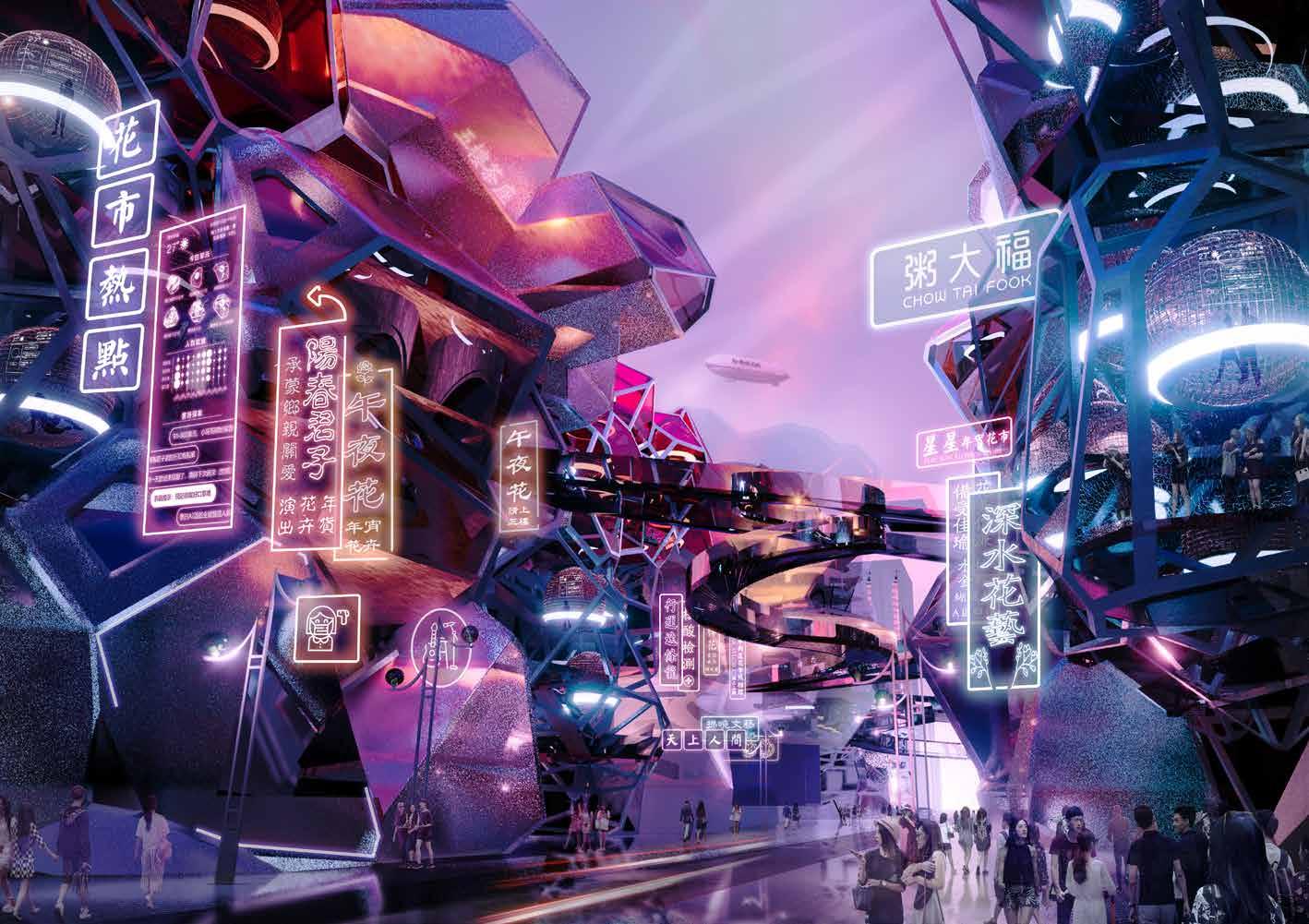

III. Game Rules Quarantine Cells for Cross-Border People in Sham Shui Po, Hongkong, China

Closed Mode

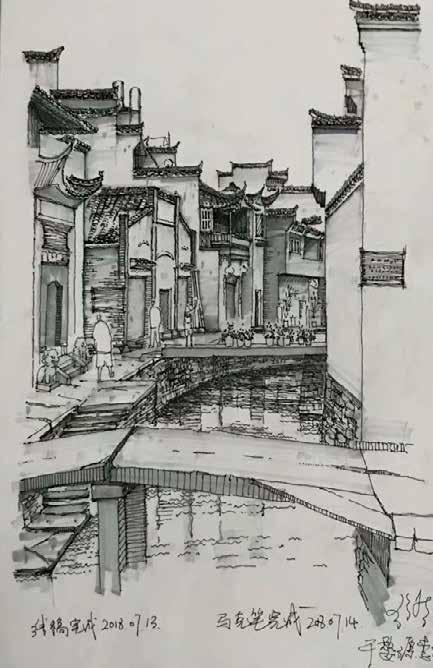

Paintings

Open Mode

Closed Facade

Open Street

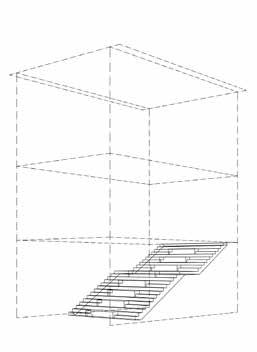

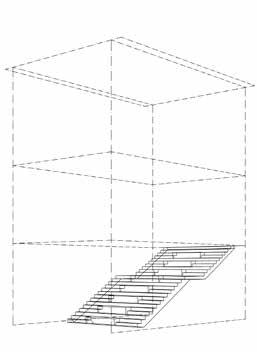

Living Core & Adjustable Social Space

36
