Introduction

Residential

Flanagan Lawrence has designed and built an impressive portfolio of homes across all residential tenures and now plays a key role in the regeneration of brownfield sites across London and the South East.

This paper focuses on selected projects from that portfolio and demonstrate our approach to the key themes of sustainability, residential quality, building safety and urban design, never forgetting that we are designing homes for people, and thereby supporting the creation of successful, diverse communities.

We have fully embraced the introduction of the Building Safety Act 2022 and emerging Fire Safety Guidance and have interrogated and understood the implications of new legislation designed to maximise building safety, whilst maintaining efficient and deliverable design solutions.

We now relish the opportunity to respond to the new Government’s commitment to the delivery of an ambitious construction programme and continue to deliver the quality of design which is essential to its successful implementation.

Alameda, Brent

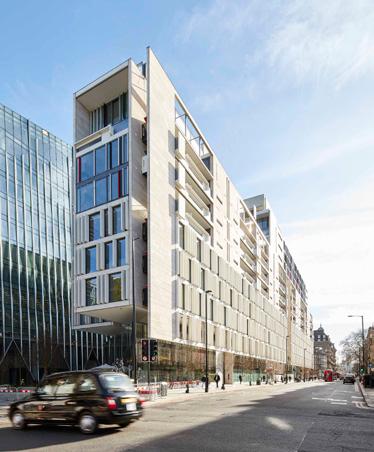

The Nova Building, Westminster
Chiswick Point, Ealing
Landsby East, Brent Alto, Brent

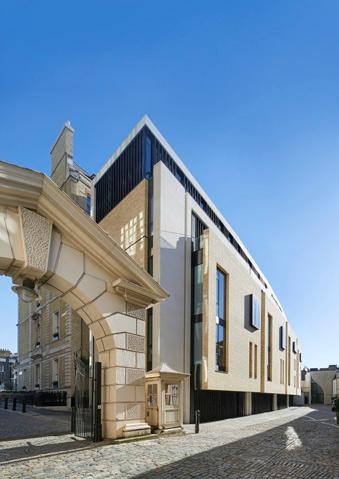

Belgravia Gate, Westminster Fisherton Street, Westminster
Snowfield Yard, Southwark
56 Shepherd’s Bush Green, Hammersmith Cheval Place, Westminster
Samford Street Townhouses, Westminster
Landsby West, Brent

Dynamic communities emerge from well considered development. We understand the vital contribution that residential development makes to the sustainable evolution of cities and create exceptional homes and communities through our designs.

Flanagan Lawrence Residential Projects

1. Alameda, Brent

2. Alto Apartments, Brent

3. Belgravia Gate, Westminster

4. Bromley by Bow, Tower Hamlets

5. Buckingham Gate, Westminster

6. Candle Factory, Wandsworth

7. Cecil Avenue, Brent

8. Cheval Place, Westminster

9. Chapel Street, Salford

10. Chiswick Point, Ealing

11. Crescent House, Brent

12. Felixstowe, Bexley

13. Fisherton Street, Westminster

14. Fisherton Street Homes, Westminster

15. Harlow Quarter, Harlow

16. Hurlingham, Hammersmith & Fulham

17. Ion Building, Luton

18. Landsby, Brent

19. Milton Road, Harrow

20. Nova Building, Westminster

21. Nova Place, Westminster

22. One Crown Place, Hackney

23. Peninsular Quays, Greenwich

24. Snowfield Yard, Southwark

25. Thameside West, Newham

26. Ujima House, Brent

27. Union Building, Luton

28. Walnut Tree Road, Bexley

29. Walnut Tree Close, Guildford

30. Watercress, Hoddesdon

31. Waterloo & Queen Street, Havering

32. Wood Wharf, Tower Hamlets

33. 56 Shepherd’s Bush Green, Hammersmith & Fulham

Enfield
Waltham
Barking
Bexley
Southwark
Goldhawk
Belgravia Gate Westminster, 2011 - Completed 2019
Snowfield Yard Southwark, 2011 - Completed 2017
Chiswick Point Ealing, 2011 - Completed 2015
Chapel Street Salford, 2013 - Completed 2017
Millendreath Cornwall, 2013
Alto Brent, 2014 - Completed 2018
Landsby West Brent, 2015 - Completed 2019
Nova Place Westminster, 2015
56 Shepherd’s Bush Green Hammersmith & Fulham, 2015Completed 2021
Alameda Brent, 2016 - Completed 2019
Bromley by Bow Tower Hamlets, 2016
Walnut Tree Close Guilford, 2018 - Completed 2022
Felixstowe Bexley, 2018
Union Building Luton, 2018 - Completed 2021
Ion Building Luton, 2018
One Crown Place Hackney, 2019 - Completed 2022
Wood Wharf Tower Hamlets, 2020
Buckingham Gate Westminster, 2020
Waterloo & Queen Street Havering, 2020
Hurlingham Waterfront Hammersmith & Fulham, 2022
Crescent House Brent, 2022
Candle Factory Wandsworth, 2022
One Palace Green Kensington, 2022
Cheval Place Westminster, 2011 - Completed 2015
Nova Building Westminster, 2011 - Completed 2016
Peninsular Quays Greenwich, 2012
Fisherton Street Westminster, 2012 - Completed 2022
Landsby East Brent, 2015 - Completed 2019
Watercress Hoddesdon, 2014
Taylor Wimpey Competition, 2016
Fisherton Street Homes Westminster, 2017 - Completed 2022
Harlow Quarter Harlow, 2018
Thameside West Newham, 2019
Walnut Tree Road Bexley, 2020
Milton Road Harrow, 2021 East of Cecil Avenue,
Cecil Avenue Brent, 2022
Ujima House Brent, 2023
Becton Low Rise Estate Camden, 2023

Residential Typologies

The Candle Factory, Wandsworth Total

Chapel Street, Salford

Alto, Brent

Landsby East & West, Brent

Crescent House, Brent

Walnut Tree Road, Bexley

Ujima House, Brent

Chiswick Point, Ealing

Over 6,000 homes submitted as planning applications

The Nova Building, Westminster

Bromley by Bow, Tower Hamlets

Harlow Quarter, Harlow

Total

Union & Ion Buildings, Luton

Total

Snowfield Yard, Southwark

Cecil Avenue, Brent

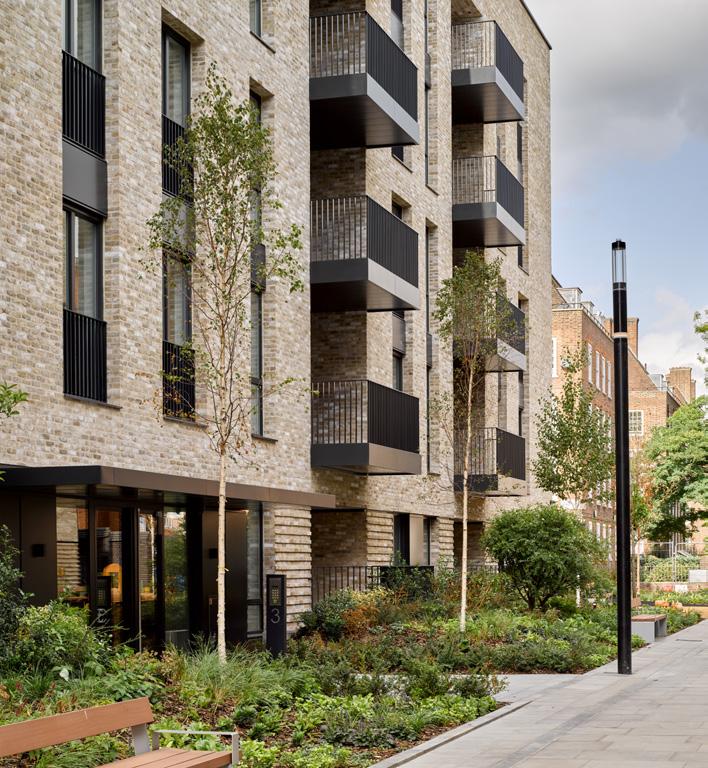

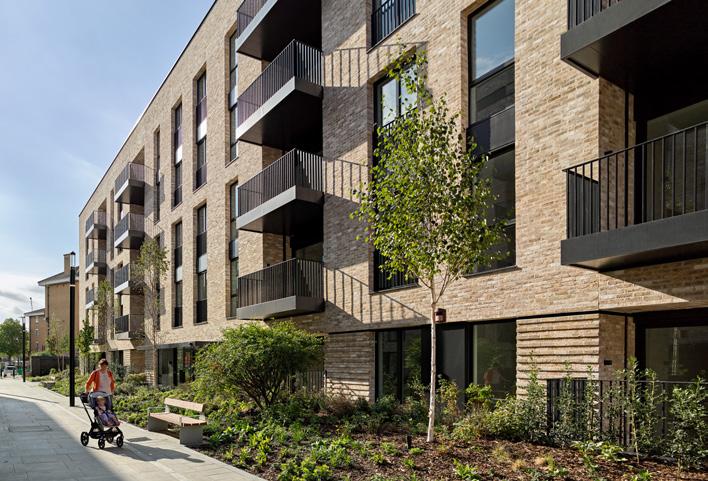

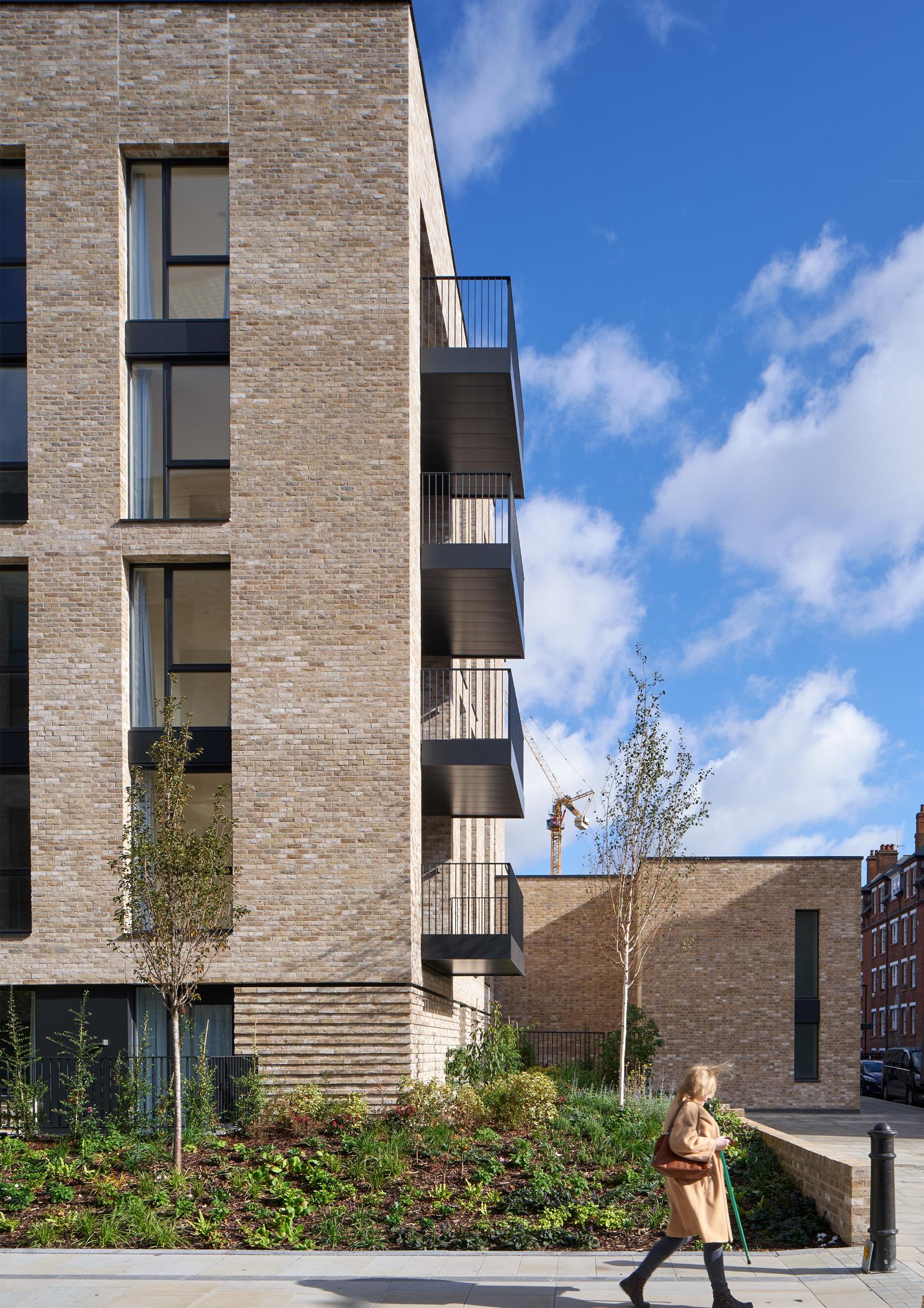

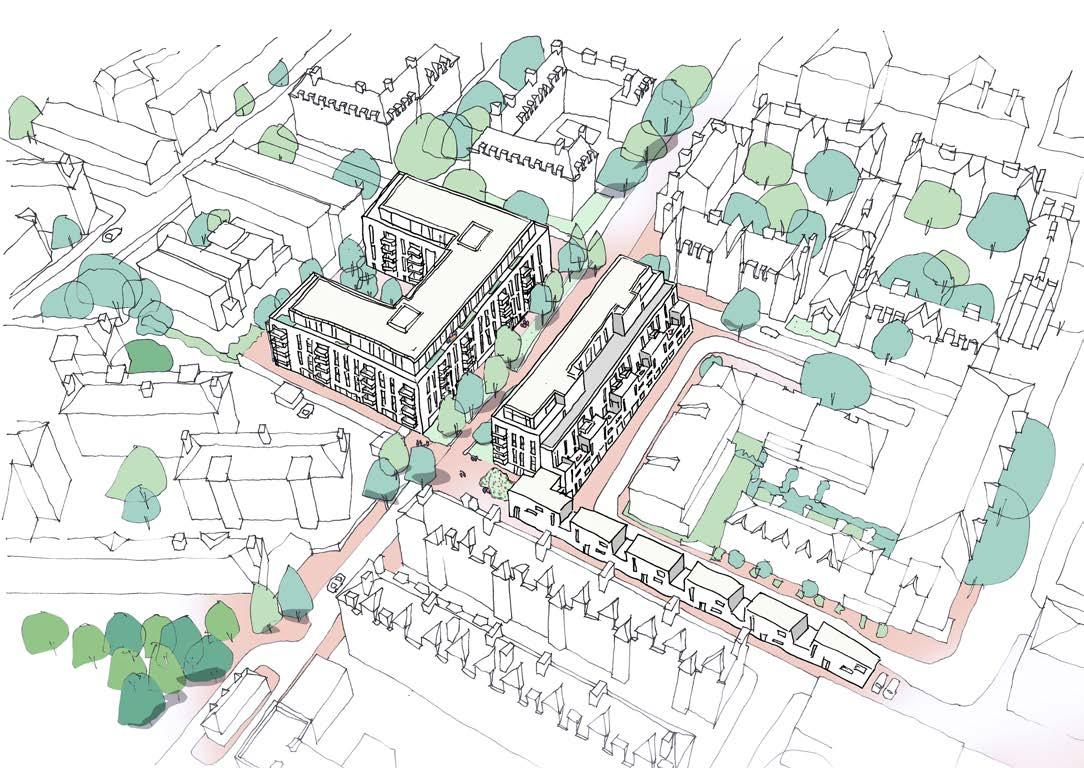

Fisherton Street

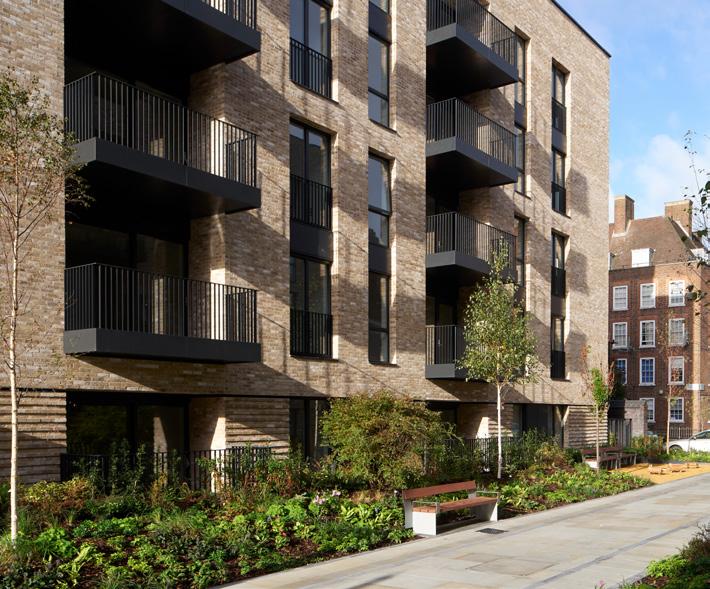

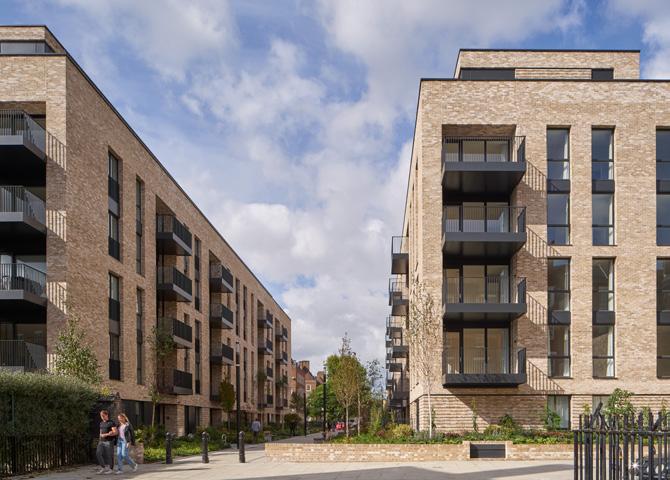

This pioneering project is the first step in Westminster Council’s long-term regeneration of the established Church Street neighbourhood, revitalising the area with new homes and state-of-theart community facilities which overall will provide huge economic benefit to the area.

Located between Edgware Road and Lisson Grove, Fisherton Street is a residential development providing a mix of affordable and private homes. Of the 168 modern new homes 106 are for private sale and 62 are designated affordable, including 12 affordable townhouses.

We specialise in collaborations to regenerate places for the people that live, work and spend time there. The regeneration of Church Street—home to one of London’s best-known antiques markets, Alfie’s–is also bringing new green spaces to the area, all underpinned by the ‘Green Spine’ which connects with the Fisherton Street development. This linear green route forms a green backbone for the regeneration of the local area, uniting the landscaped framework of parks, wellbeing and social experiences.

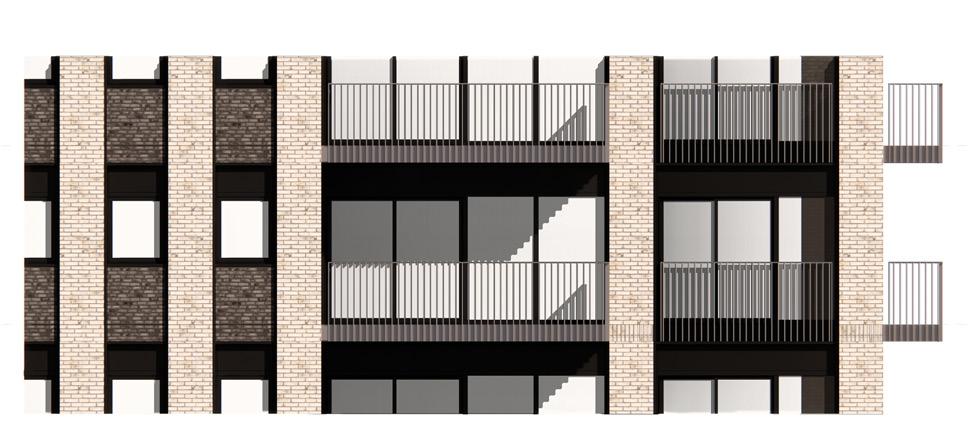

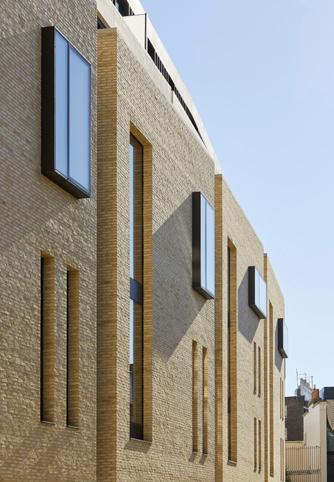

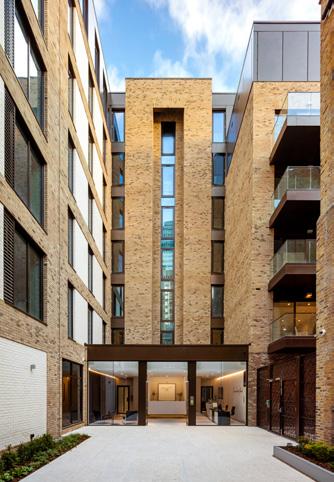

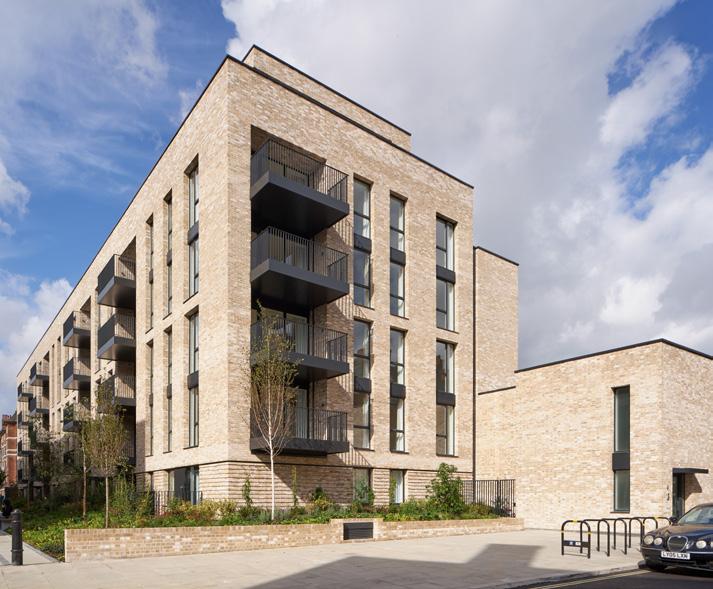

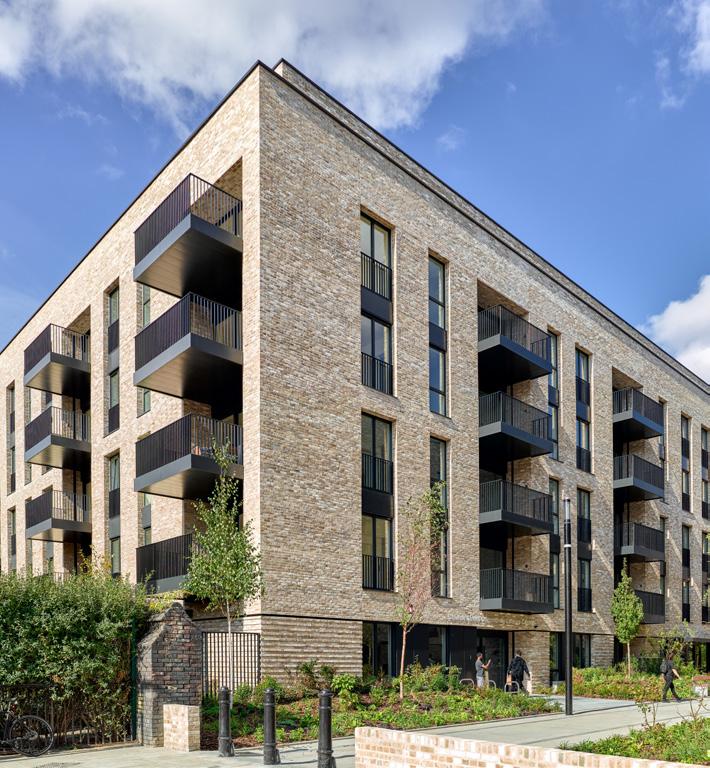

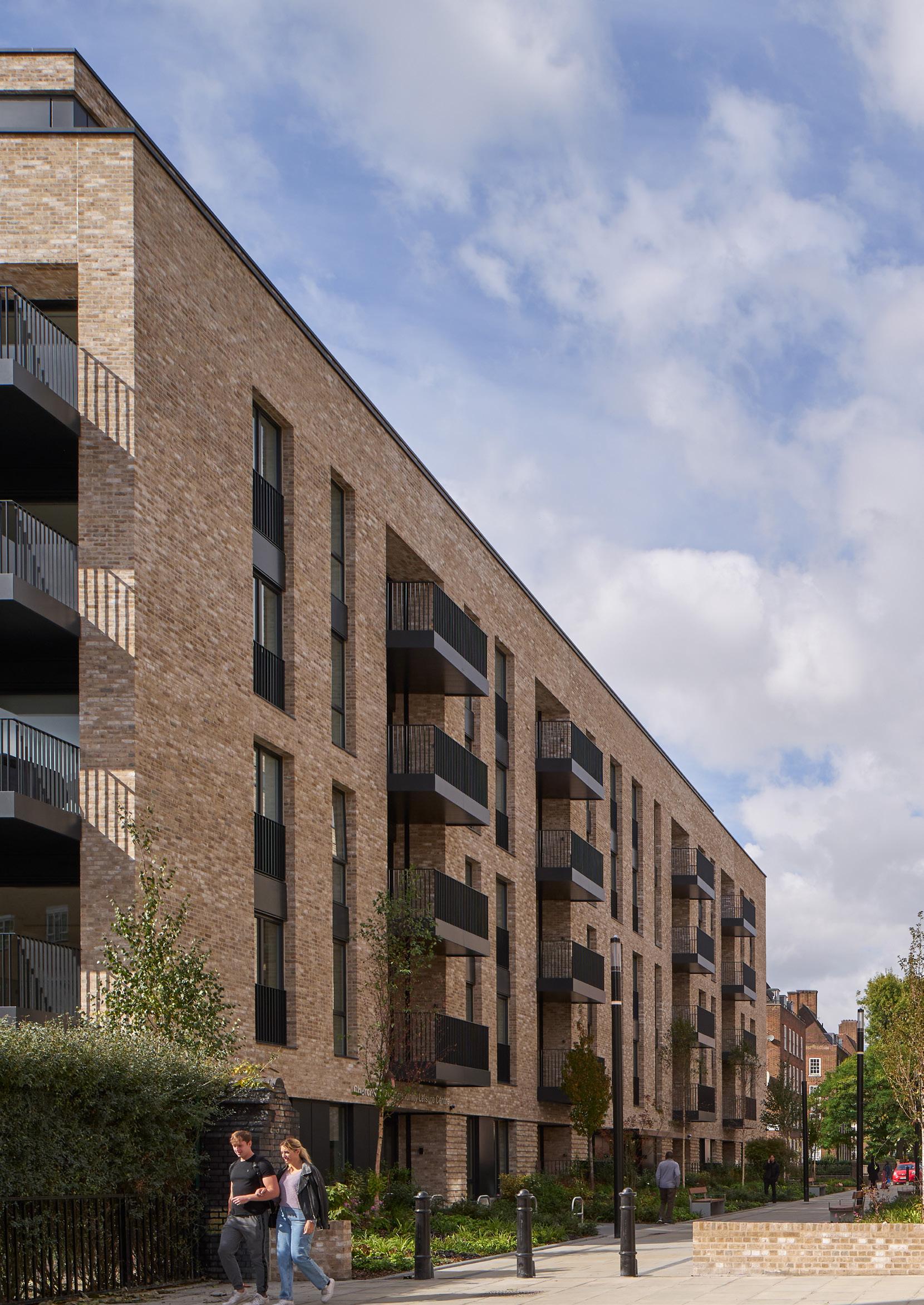

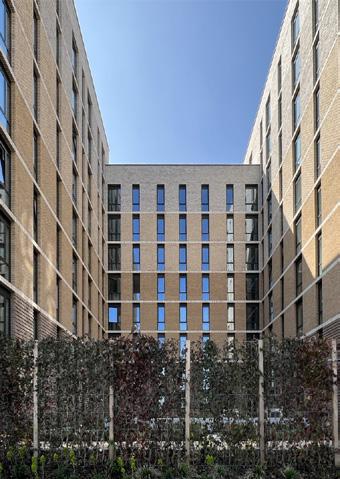

Fisherton Street is elegantly proportioned using traditionally hand laid brick. Two apartment buildings face the Green Spine and align with existing neighbouring residential buildings.

Architecturally, the scheme was conceived as a contemporary interpretation of a classic London mansion block that relates clearly to the scale and materiality of the neighbouring apartment buildings that were built in the late 19th and mid-20th centuries.

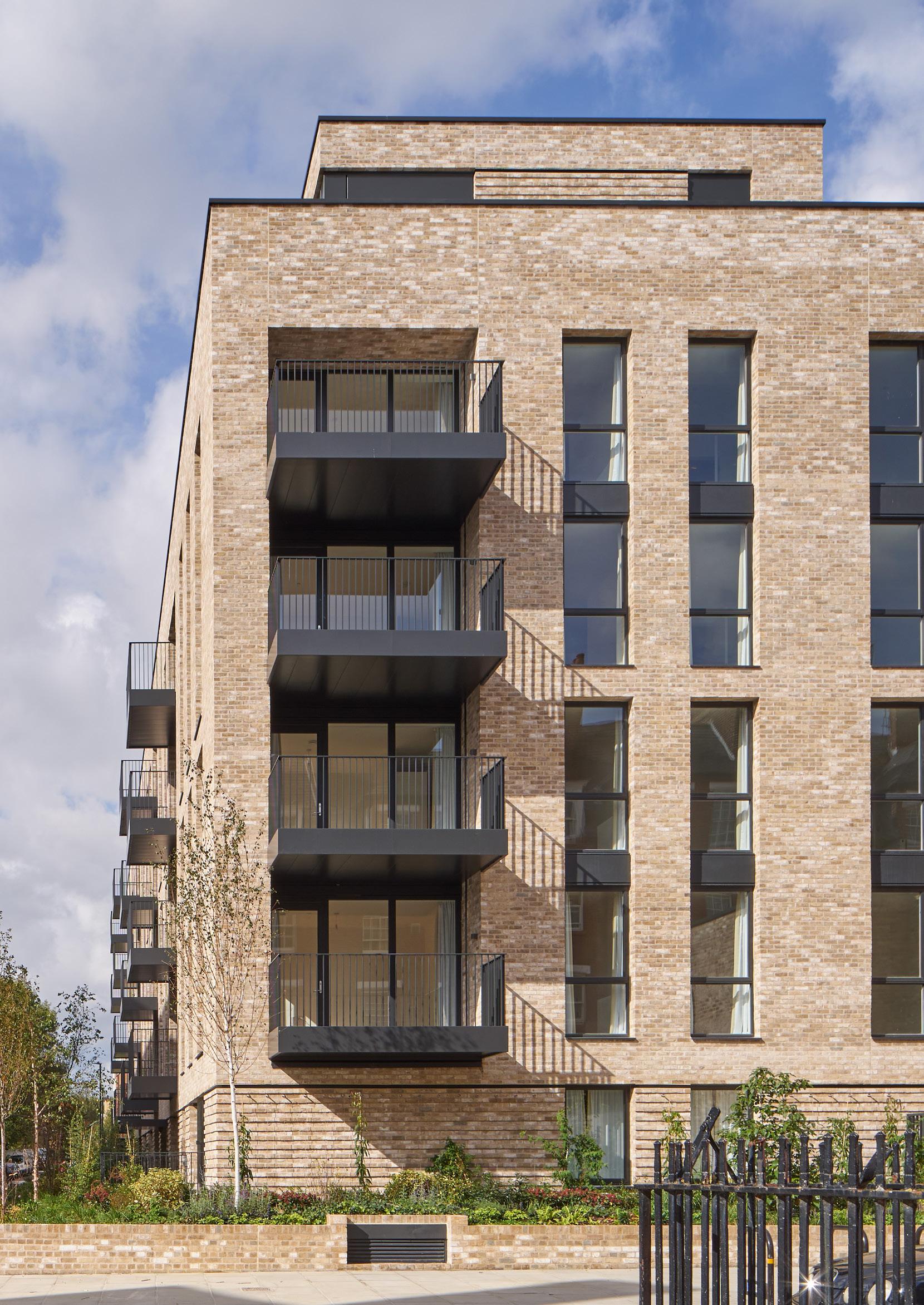

Sculpturally the buildings appear as monolithic brick blocks carved to reveal their depth and mass into which delicate metal balconies are inserted. There is a consistent palette of materials across all buildings creating a holistic environment.

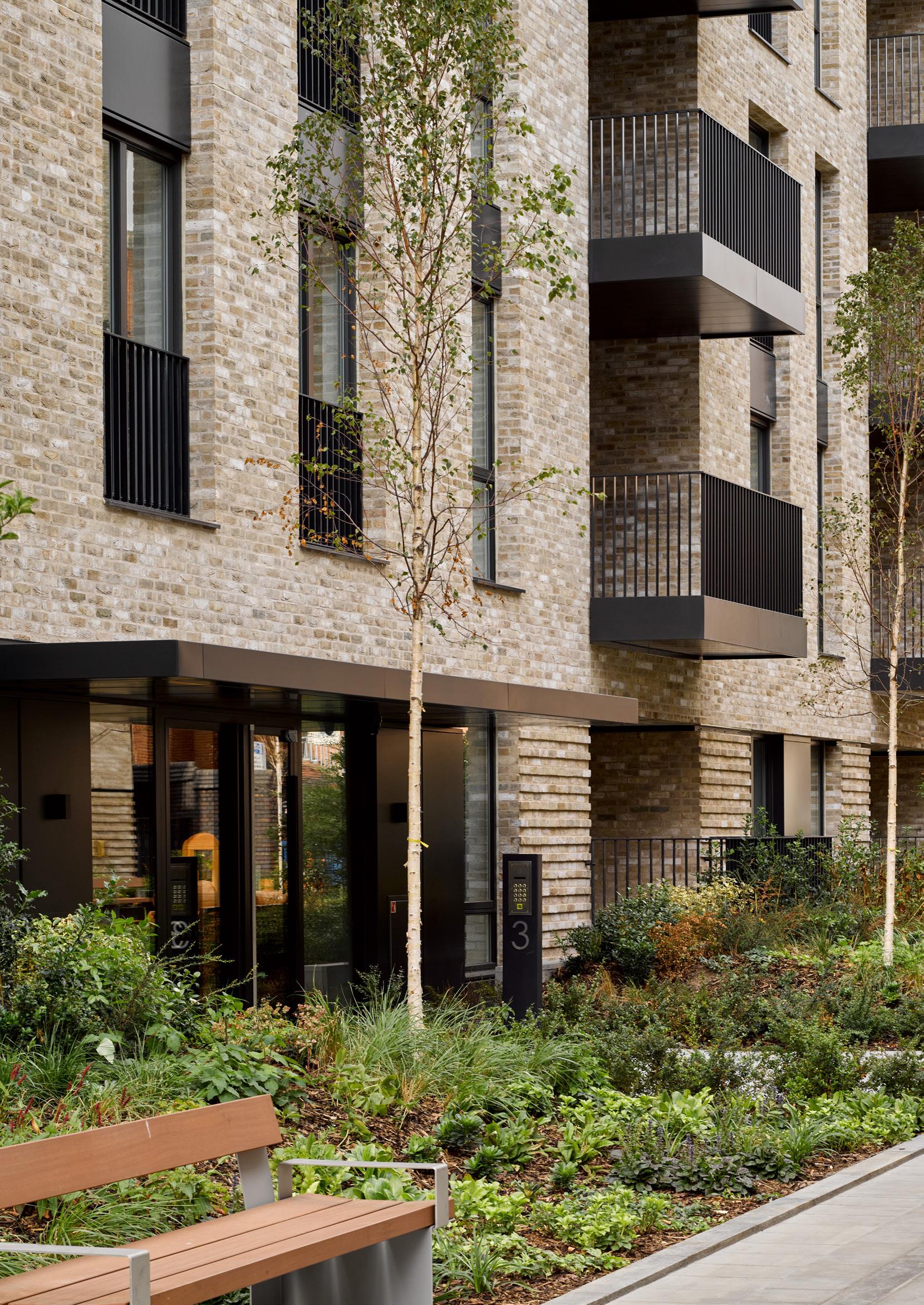

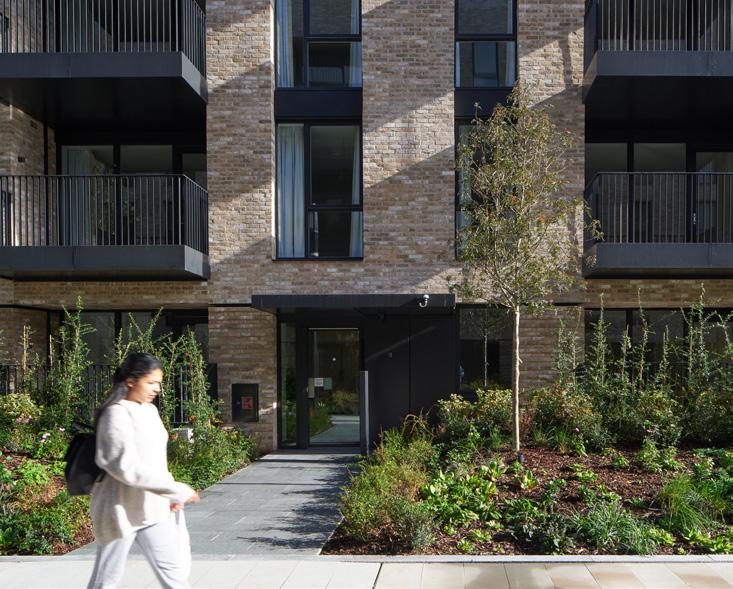

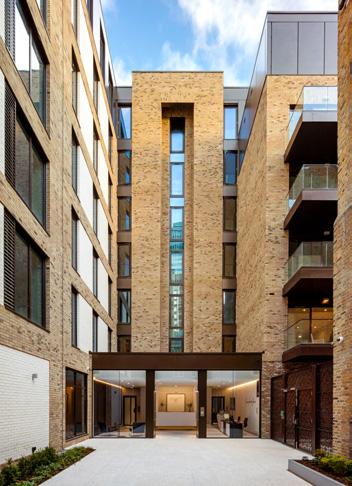

Entrances to the apartment buildings provide animation along the thoughtfully landscaped space and maximises footfall and activity.

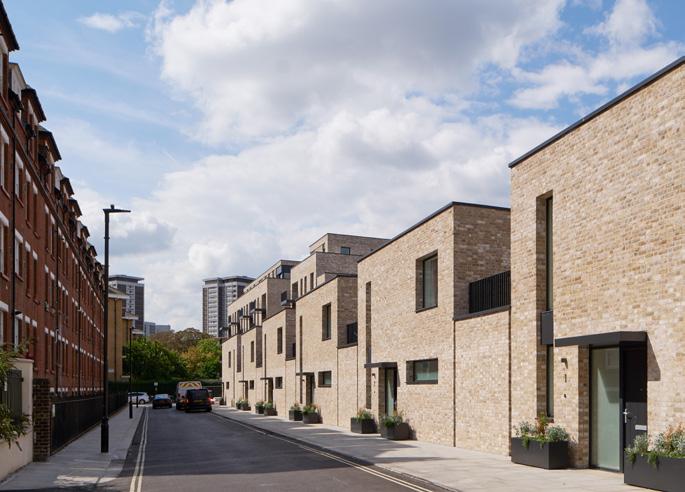

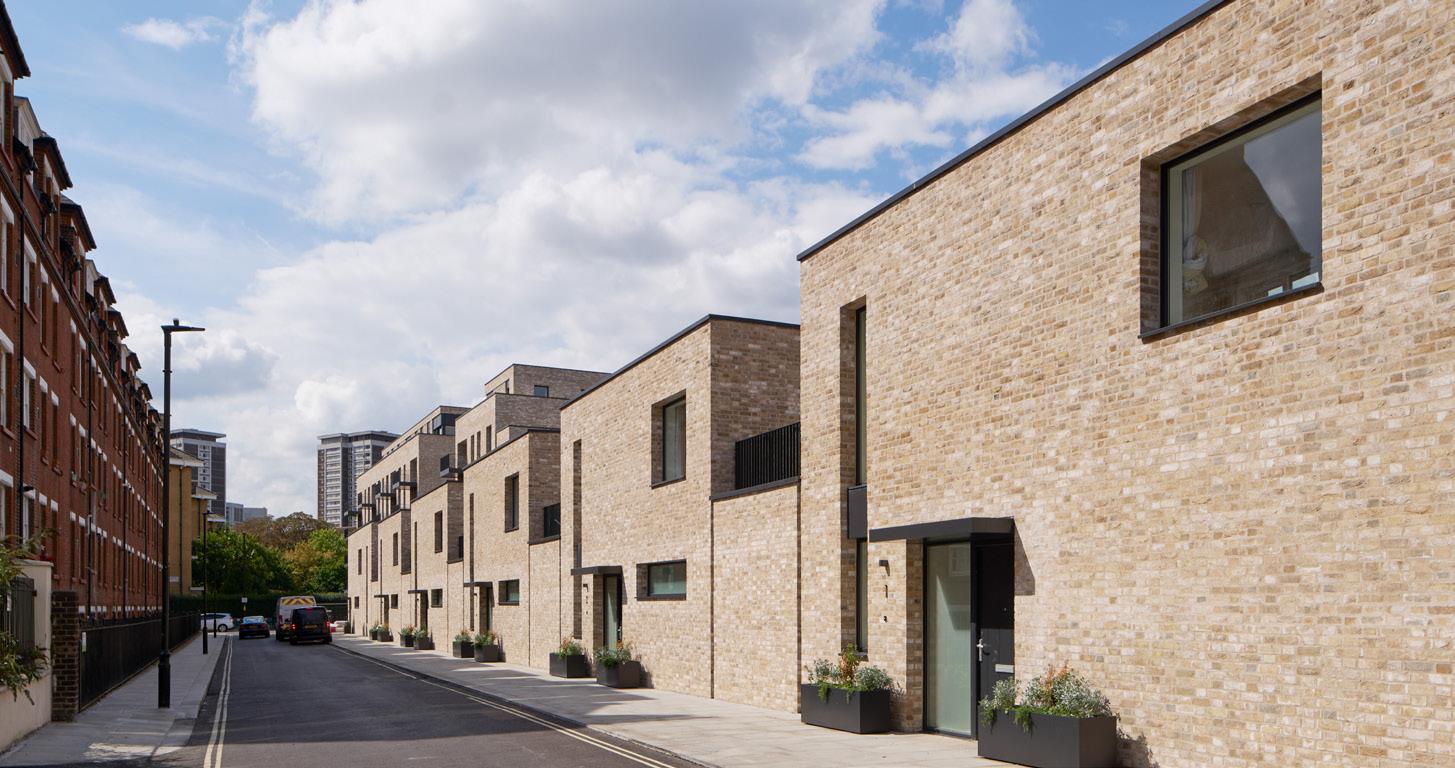

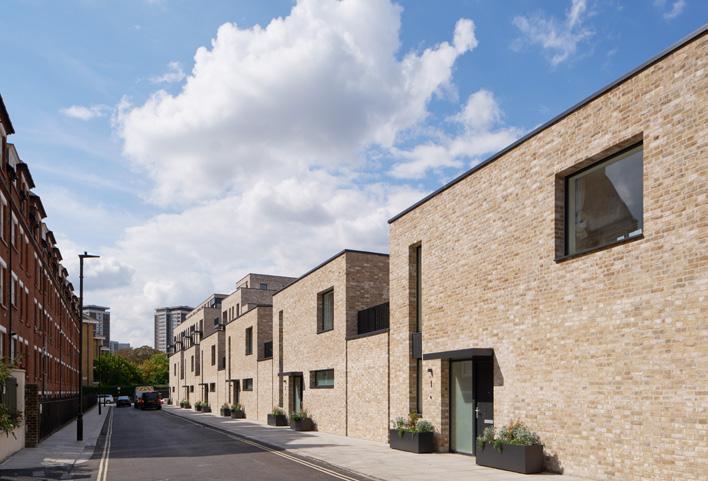

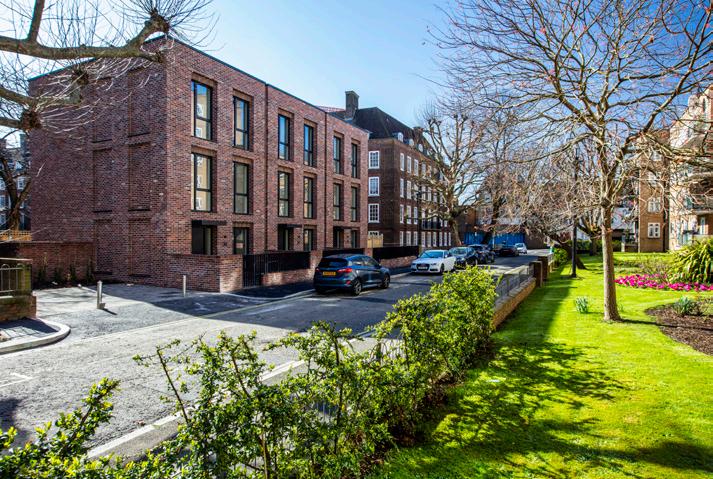

Located beside the apartment block, there are 12 affordable family townhouses in two different typologies which also demonstrate further articulation to the scheme.

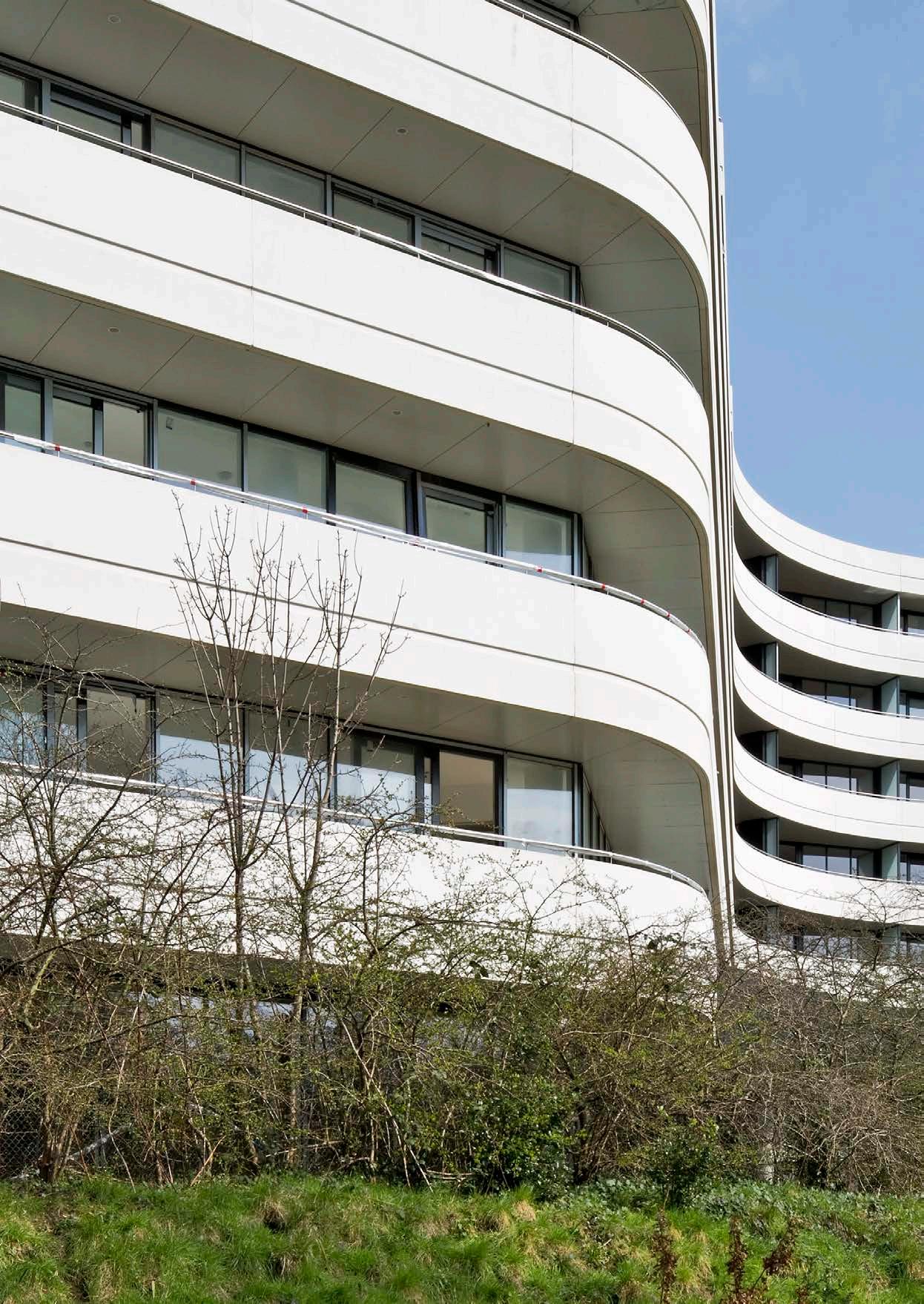

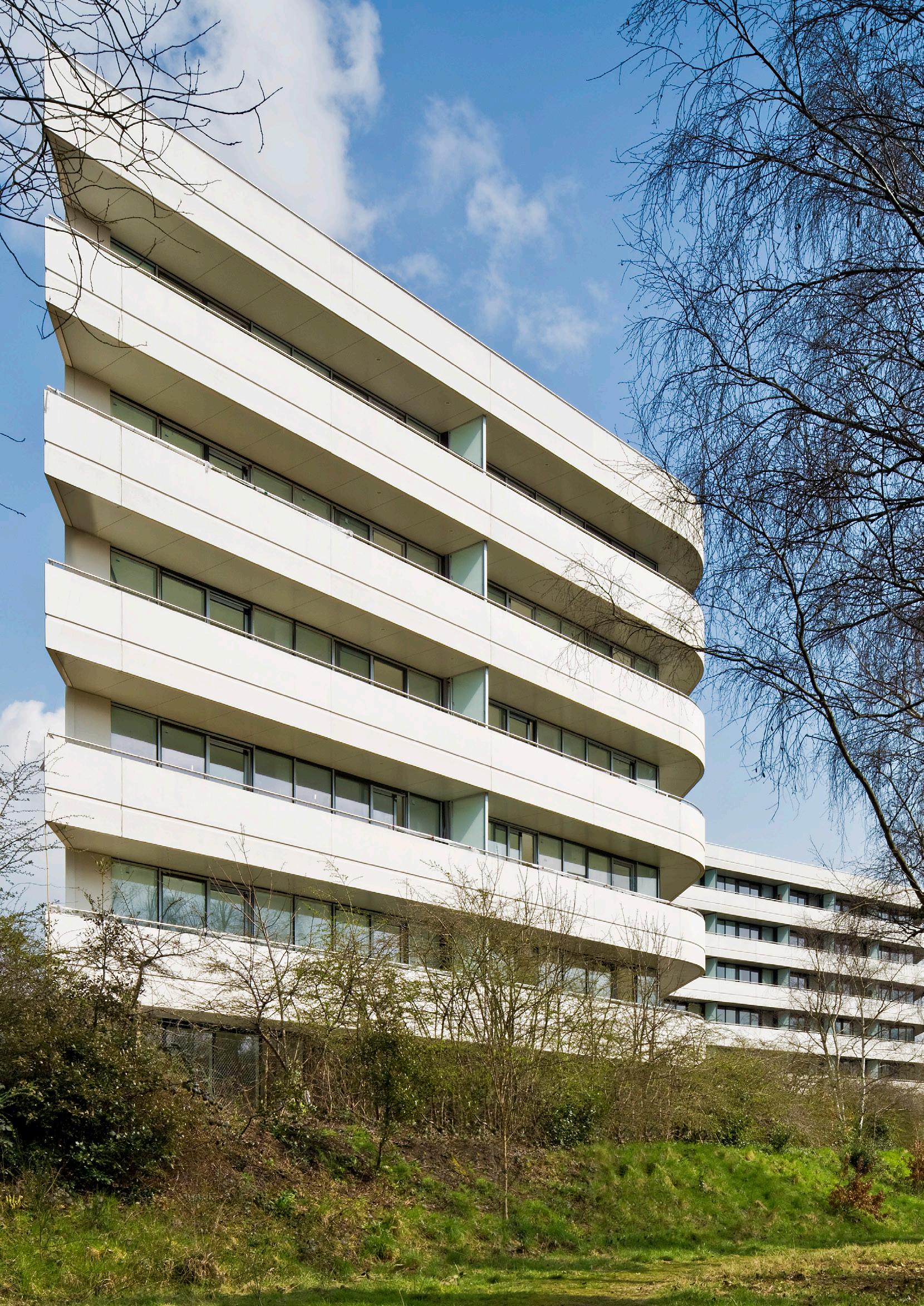

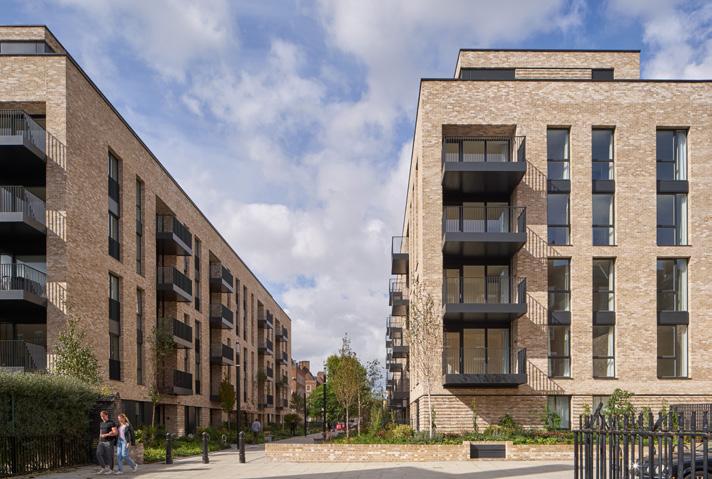

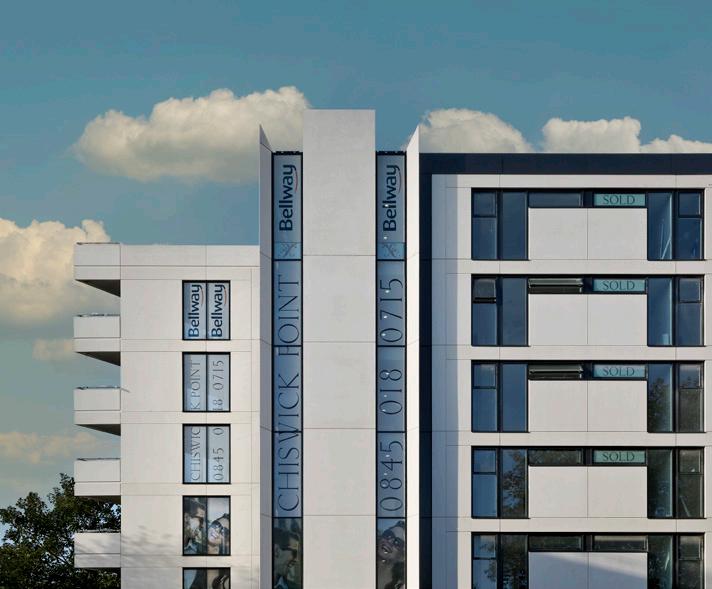

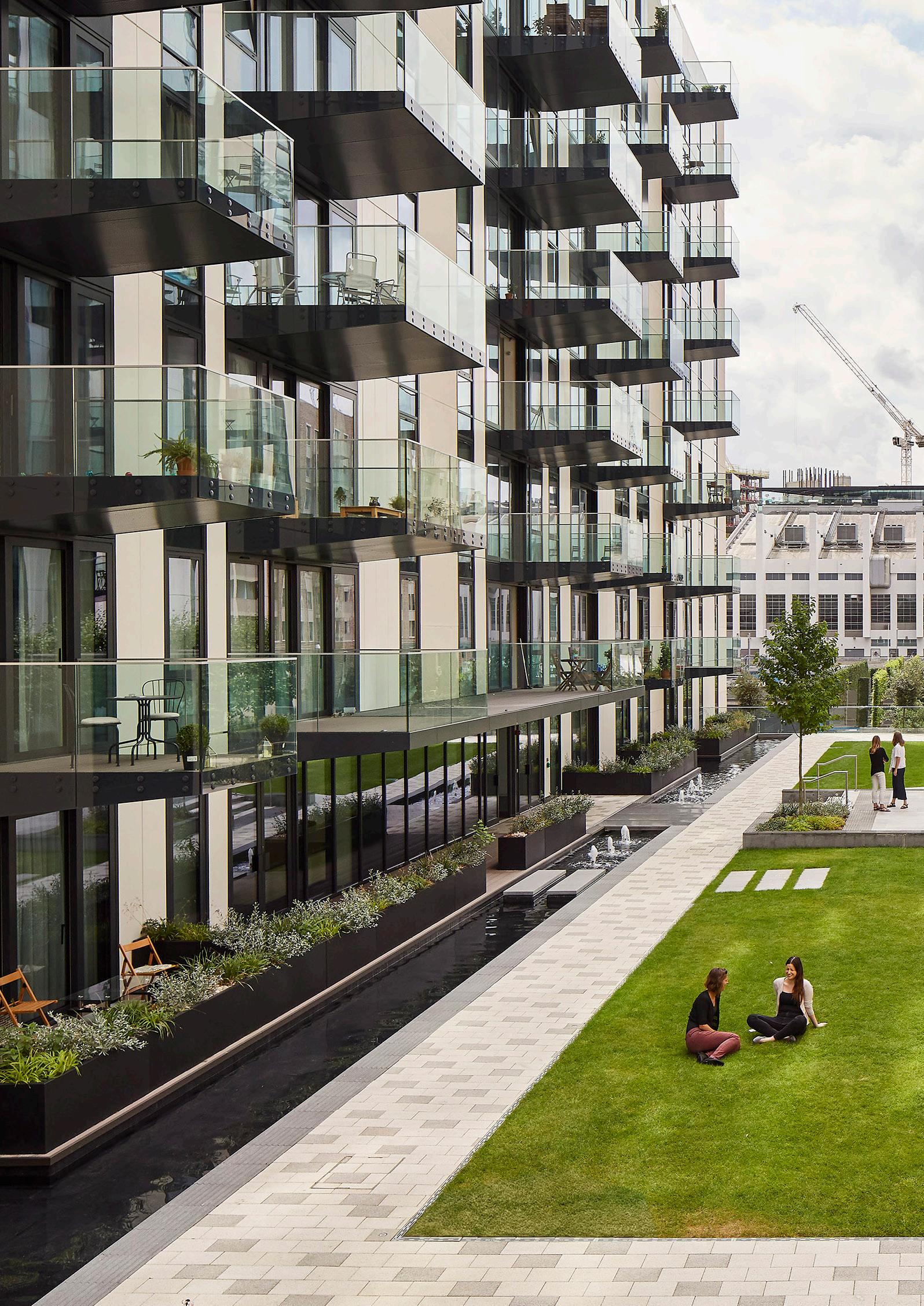

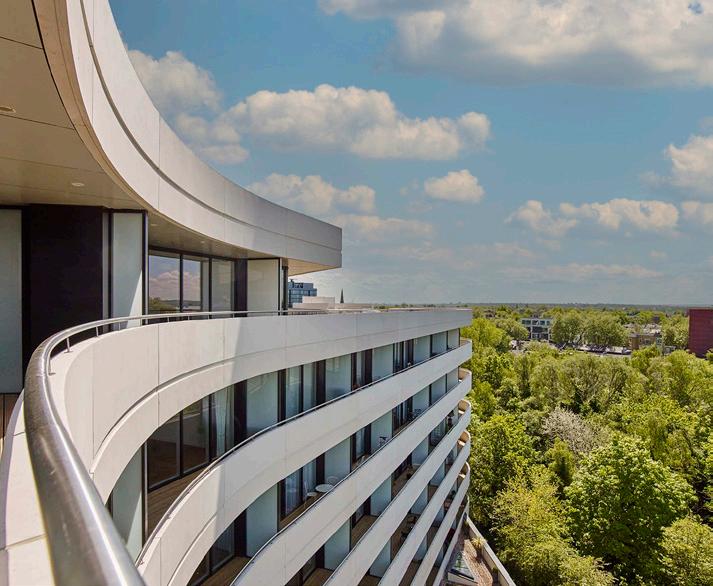

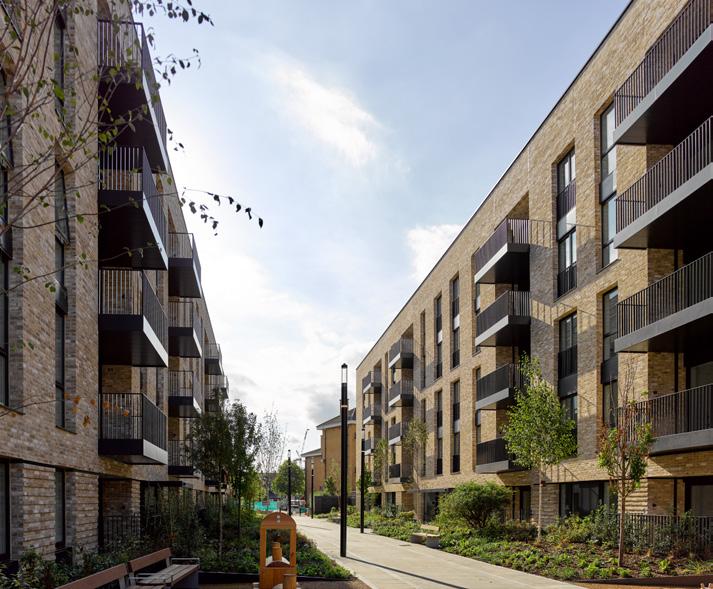

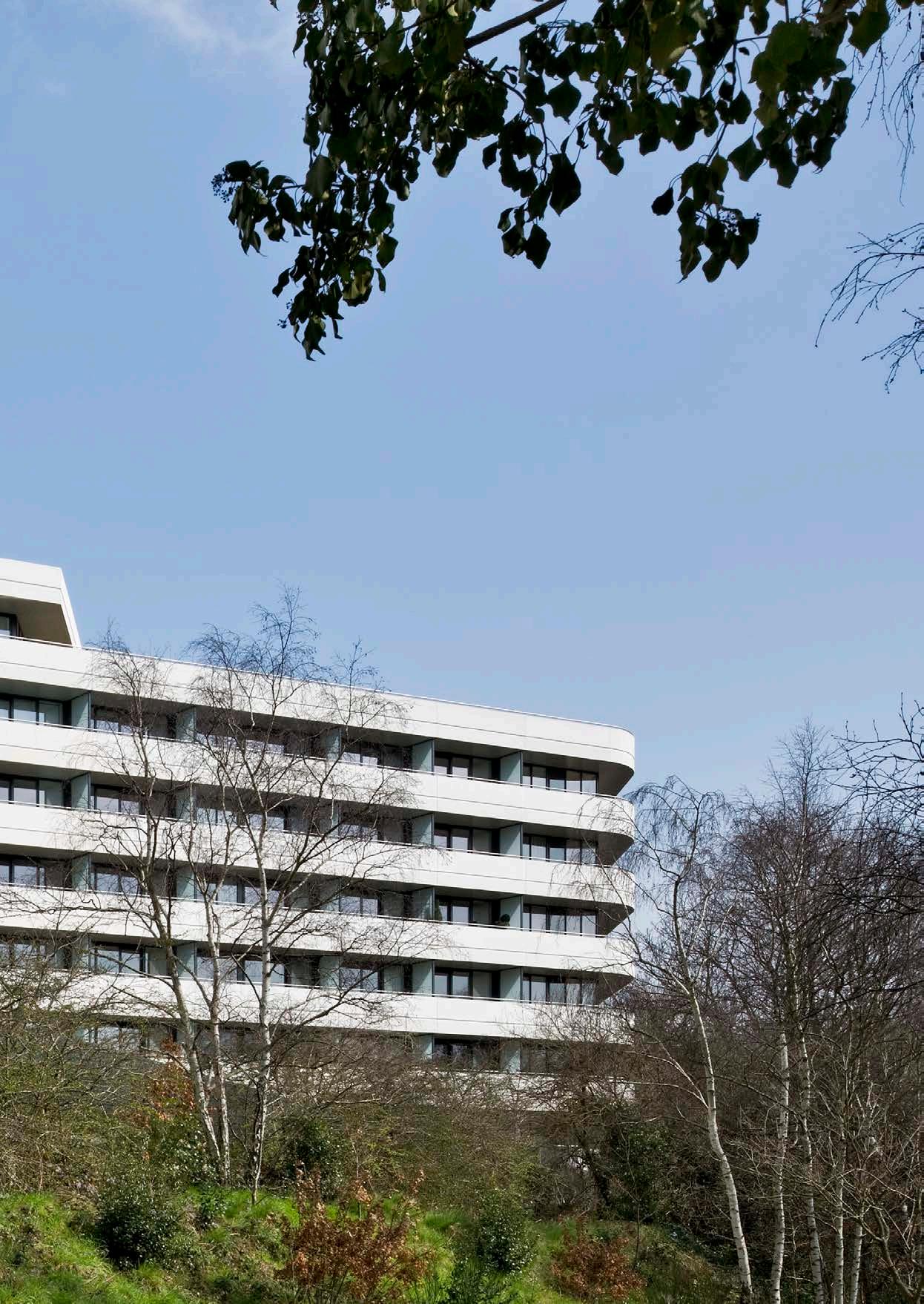

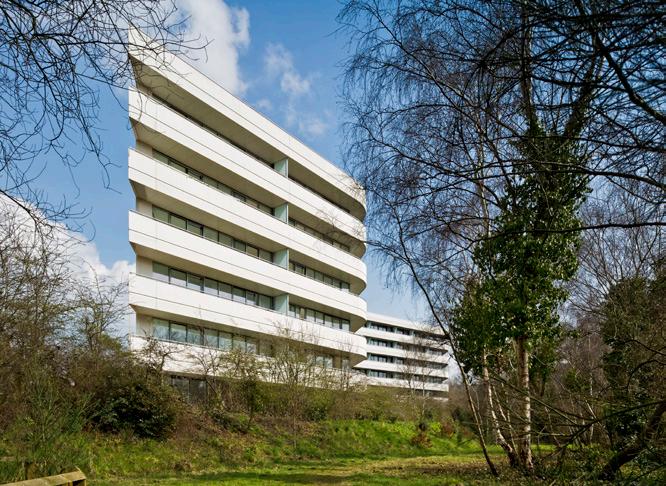

Chiswick Point

The regeneration of this largely disused industrial site with a residential redevelopment has made a positive contribution to the surrounding area.

The largely car free scheme includes 91 private and 33 affordable apartments. Commercial spaces activate the ground level and complete the programme.

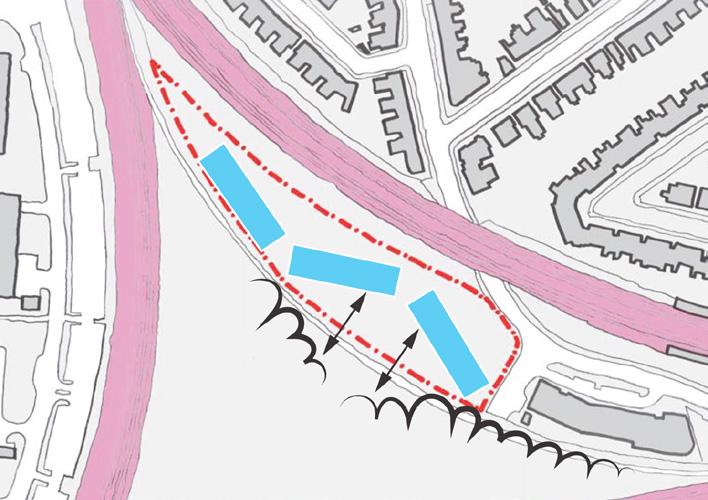

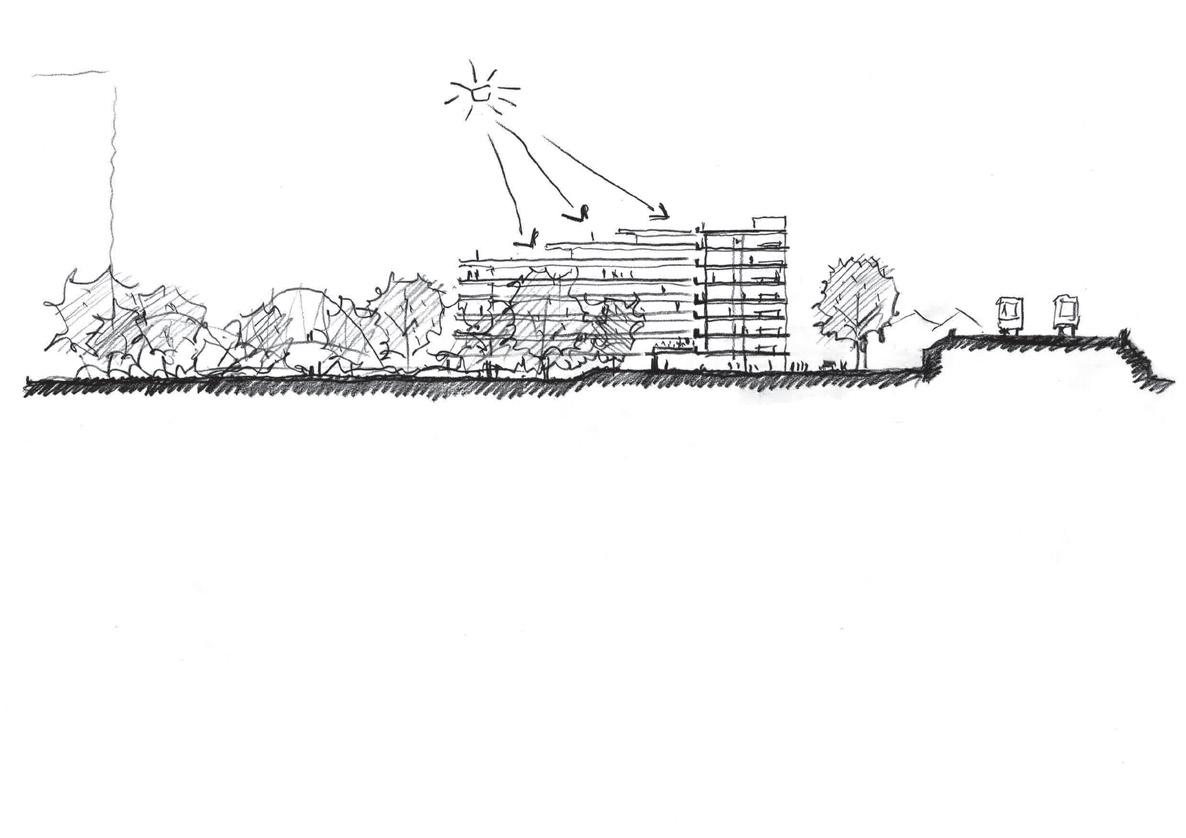

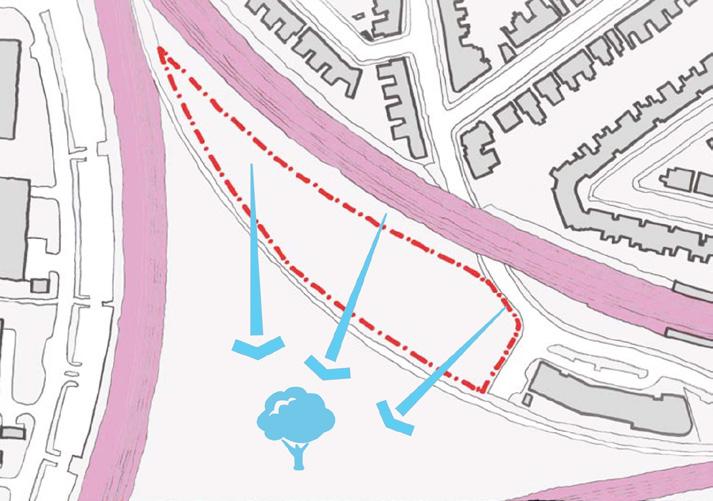

It is situated between a railway viaduct to the north and a nature reserve to the south and the buildings are internally configured to ensure that all living spaces face south, to benefit from the open views out over the neighbouring nature reserve. The development is designed to be externally tenure blind.

The Concept

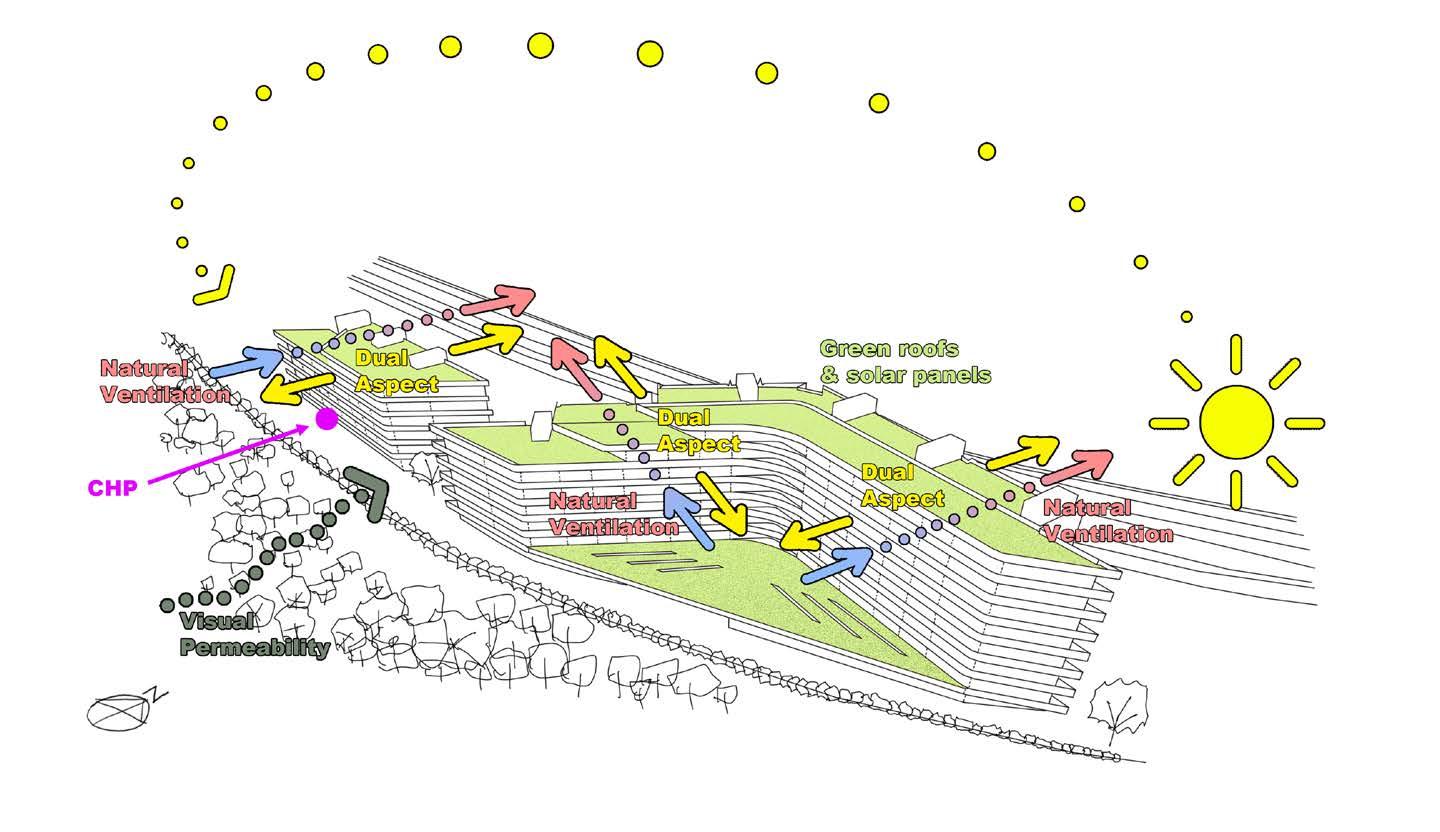

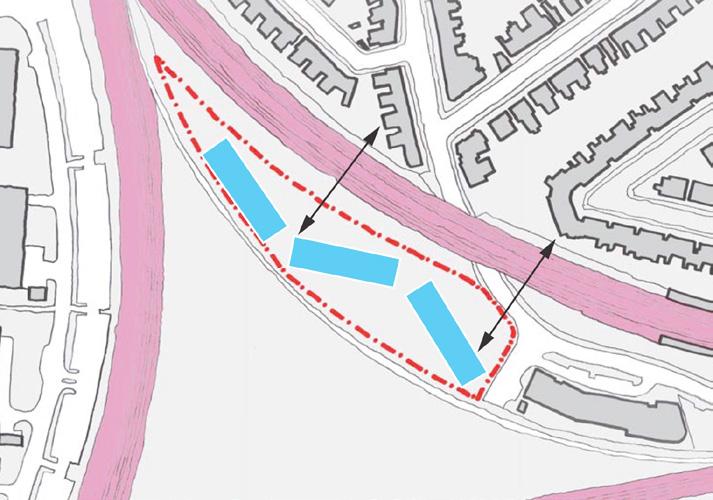

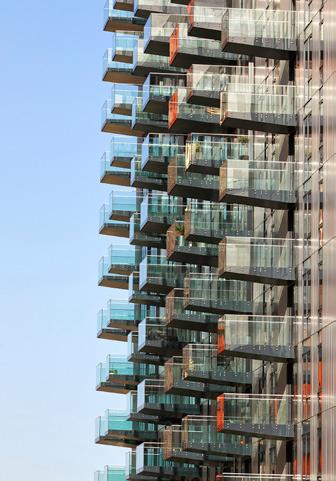

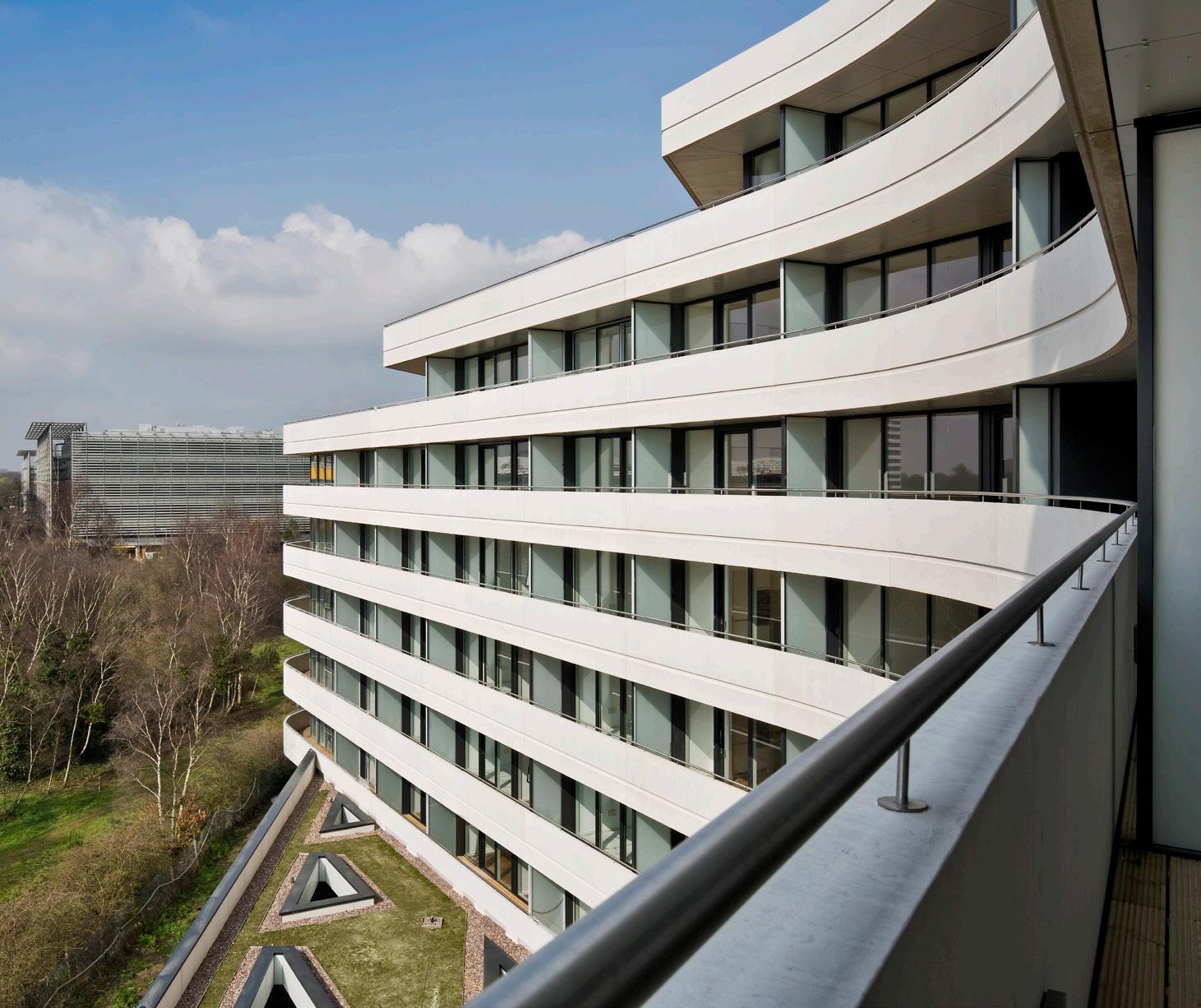

The sinuous graceful building form is configured to optimise dual aspect residential accommodation, maximising daylight and sunlight into all living areas within apartments together with balconies providing generous private external amenity space that is predominantly south facing.

The zig zag configuration of the building footprint within the site allows the majority of the mass of the building form to be kept back from the site boundaries. As such

the relationship between the highest point of the building and the southern boundary adjacent to the neighbouring nature reserve is tall but slender, almost immediately receding back away from the southern boundary and the nature reserve

The buildings visual mass increases in height through ascending storeys from west to east by way of a series of stepping horizontal planes, rising to an anchor point at the eastern end of the floorplate.

Buildings are setback from the trainline to minimise acoustic impact.

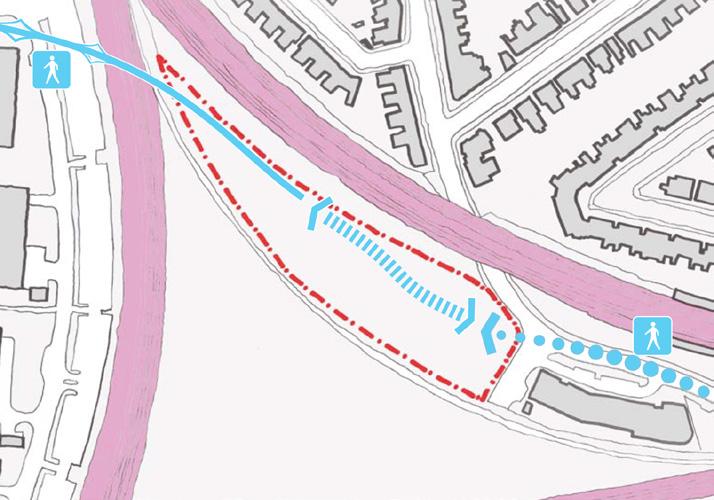

A sinuous pedestrian route connects through the site and informs the building geometry.

Without appearing overbearing the buildings are set back from the nature reserve.

Views to the nature reserve are maximised with south facing living rooms.

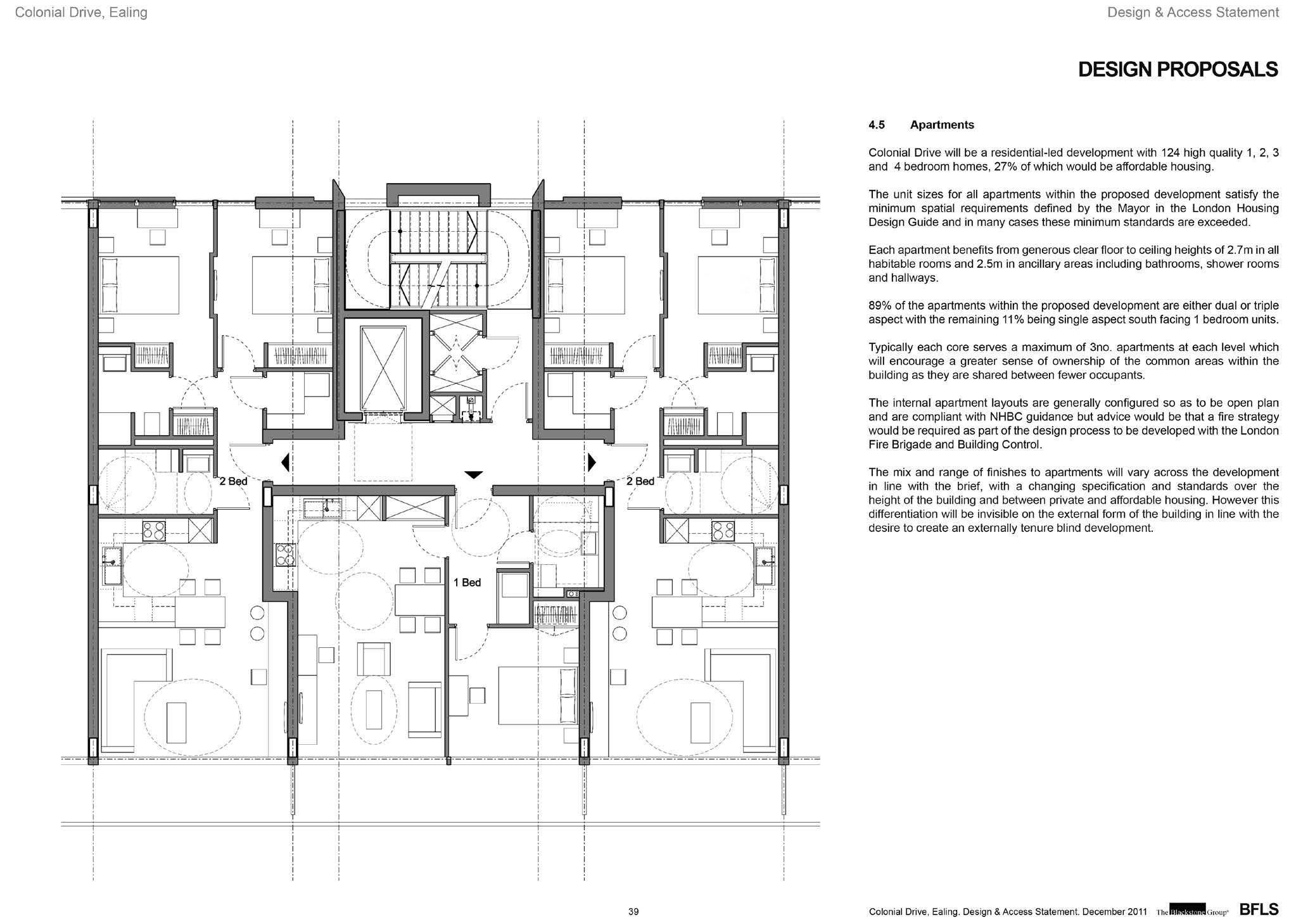

Residential Layout

Dwellings are either single aspect when south facing, or otherwise dual aspect. Living rooms enjoy large windows which maximise natural daylight and enhance the connection with the greenery of the nature reserve whilst bedrooms face northwards and have smaller windows set within deeper reveals to achieve a greater sense of privacy and security.

14.5m
6.8m
1.5m

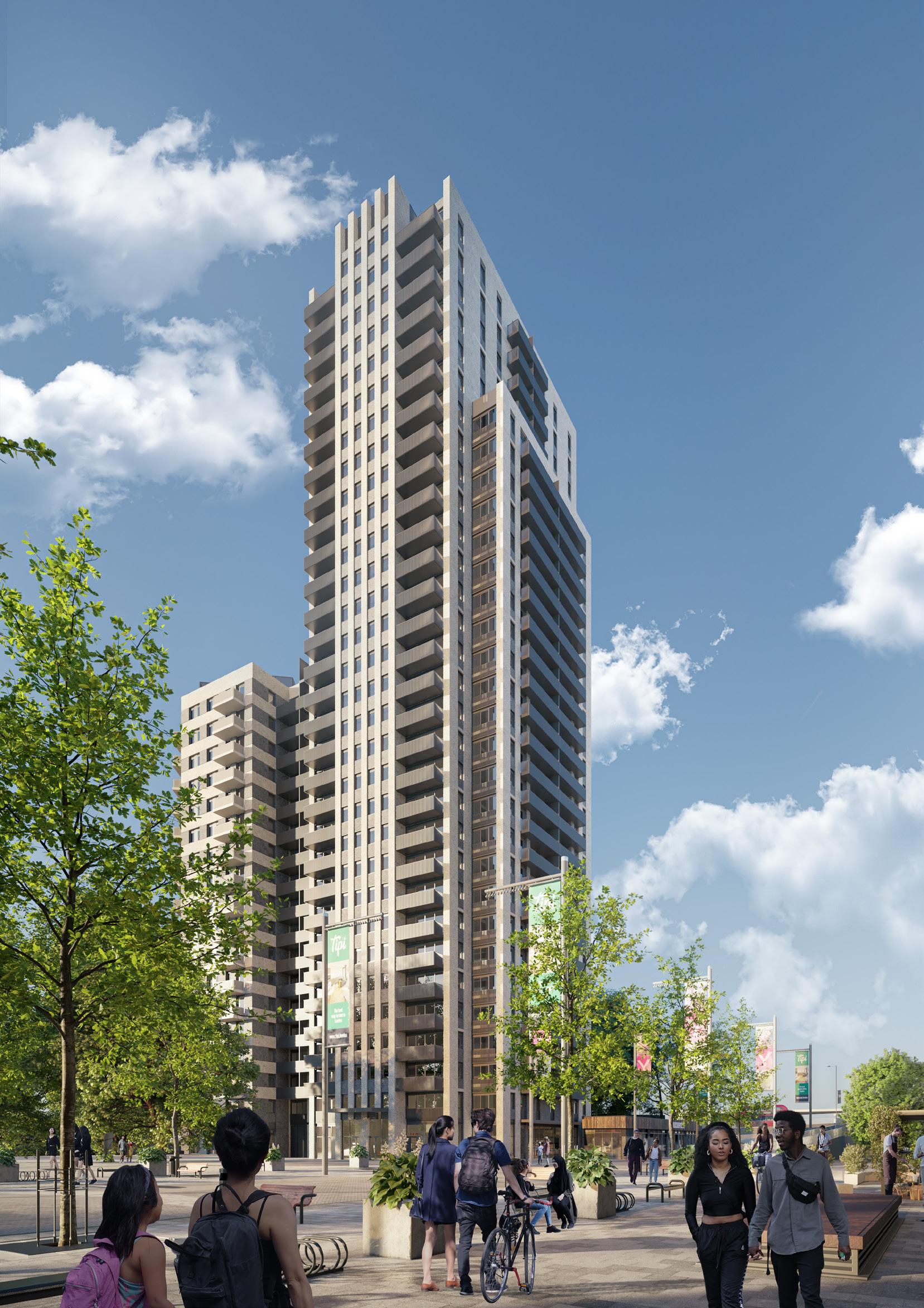

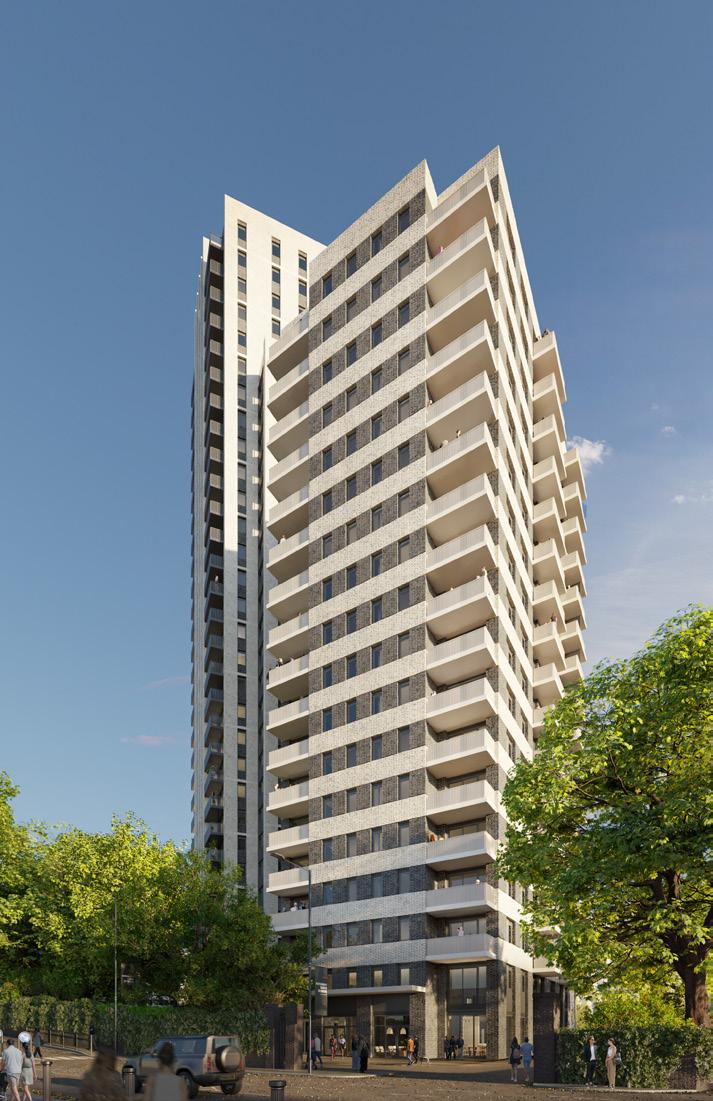

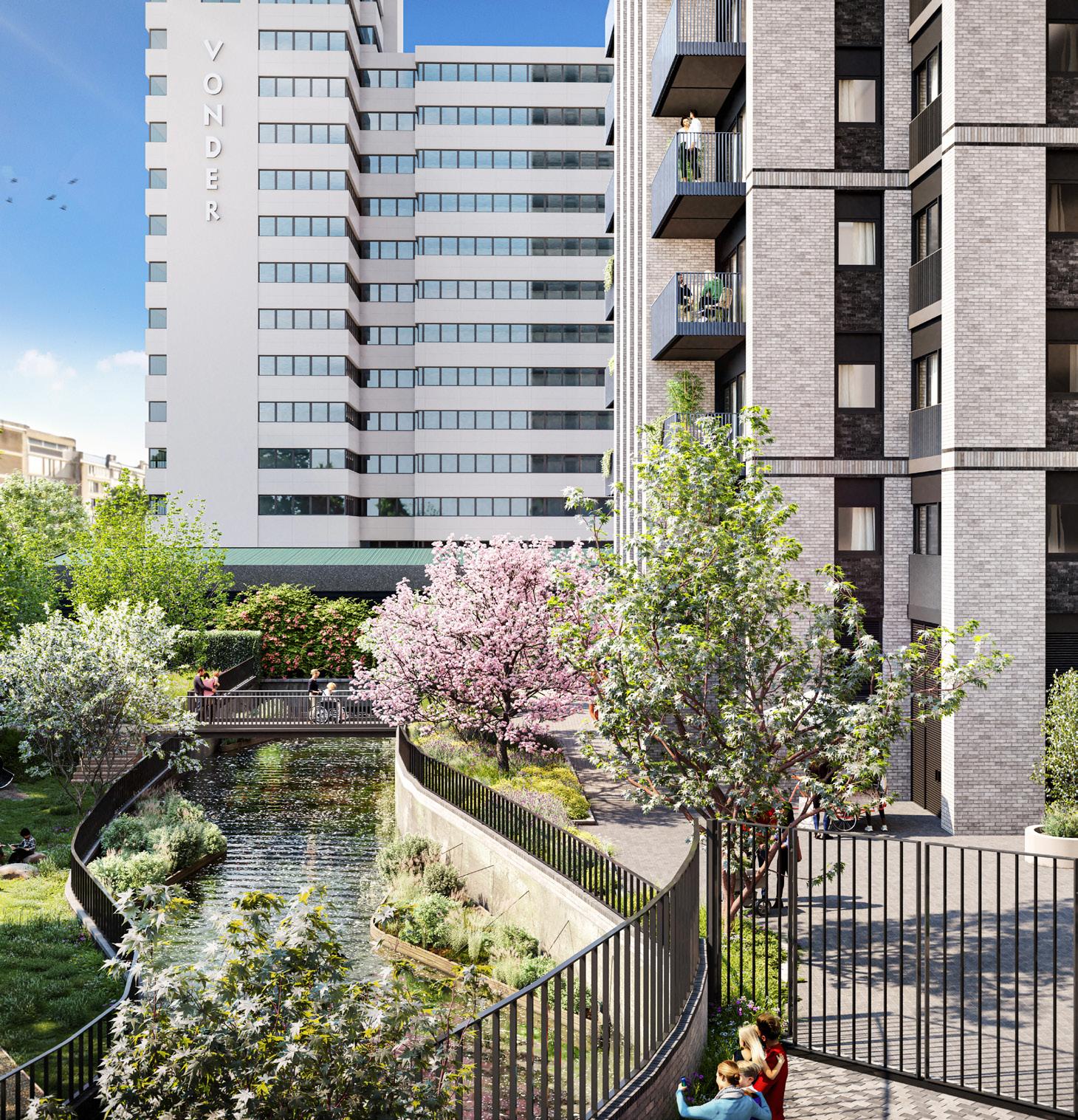

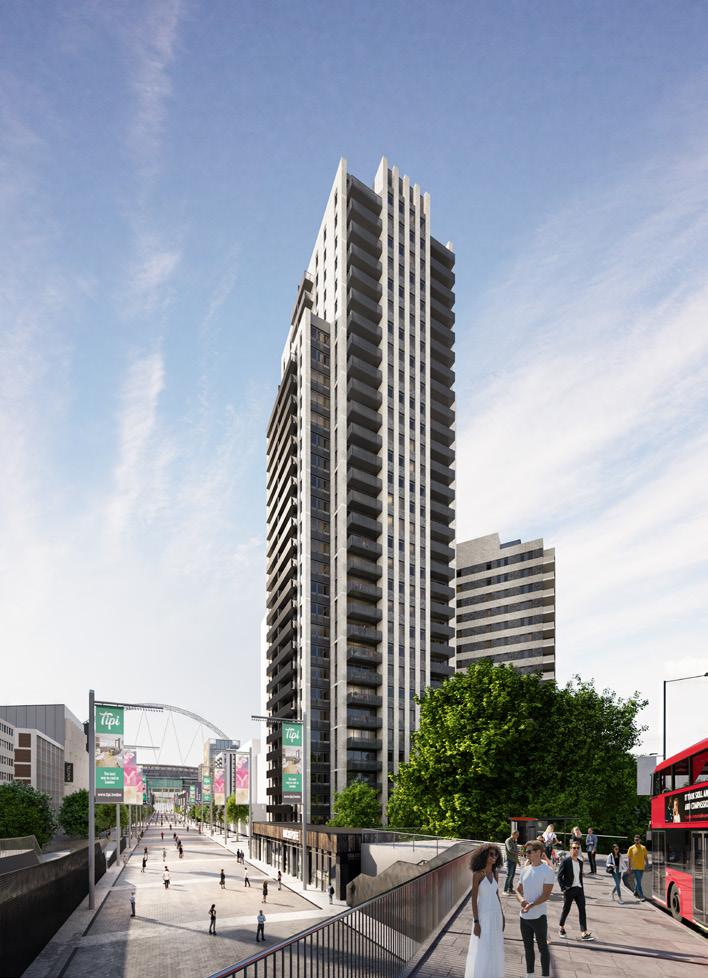

Crescent House

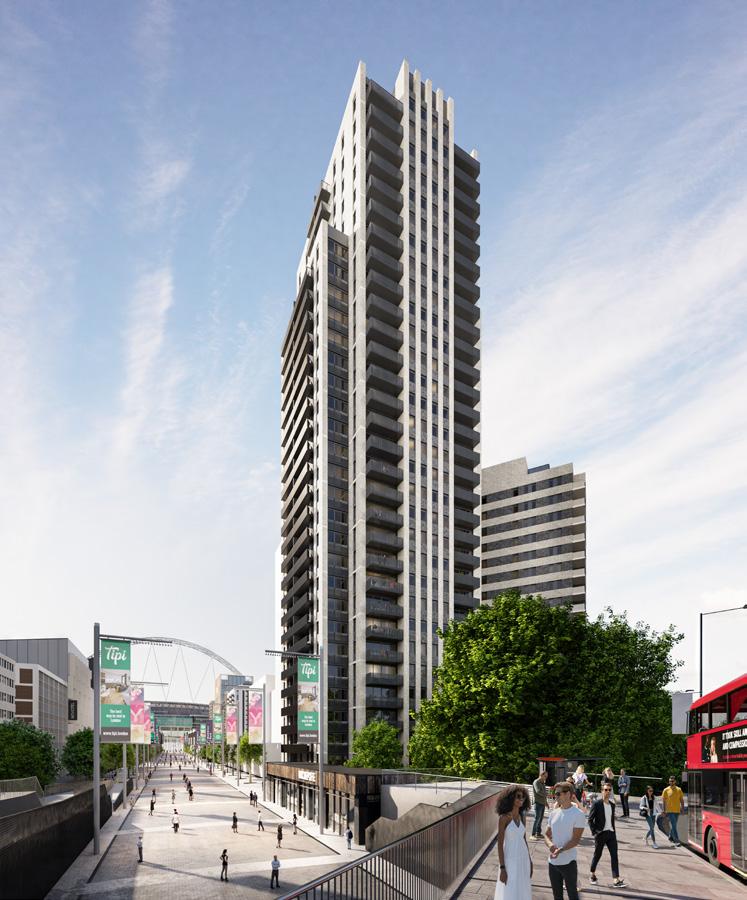

The redevelopment of the Crescent House site will deliver 307 homes, enable the creation of world class education facilities off site and is a landmark building fitting of its iconic and modern setting.

Crescent House will contribute muchneeded new homes to the Brent area, enhance the local retail landscape, and significantly elevate the overall quality of the public realm while prioritizing sustainability and environmental design aspects and residential quality.

Client Hill Group

Environmental sustainability.

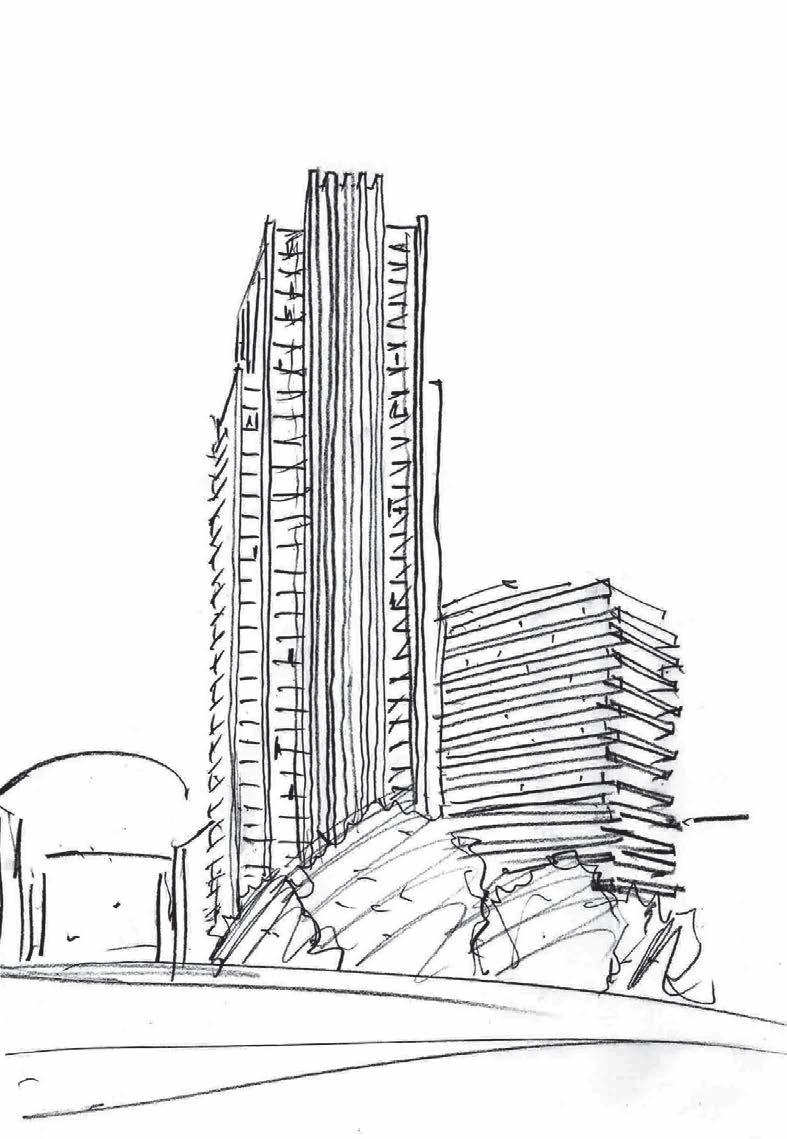

The Concept

The orthogonal alignment with Olympic Way in a N/S orientation is proposed

The tower comes to ground and faces Olympic Way. Greater articulation and slenderness is proposed on both axes to the tower.

The alignment with Wembley Park Drive creates an alternative orientation. The building here turns the corner to meet the tower and resolve the 2 geometries.

Greater articulation is required to resolve the junction between the 2 buildings and give the impression of separation between each building.

18m 18m

Expressed crown Setbacks for slenderness and expressed verticality

Stepped crown responds to stadium arch

Crescent HouseBuilding Envelope

Tower comes to ground

2 separate buildings

Vertical articulation and setbacks

2 separate buildings Recessed corners to maximise dual aspect & provide setbacks

Further articulation for slenderness

Expressed double storey heights and balconies Horizontal articulation

Private amenity to all buildings & maximised dual aspect provision

Tower Point Block
Lower Building Shoulder

The Sustainability Strategy

The design transforms the site from a college campus into a residential mixed-use scheme.

The project is targeting high energy efficiency and sustainability standards in line with the Brent and London Plan policies and the national Building Regulations Part L and Part O.

The proposed layouts have optimal orientation and glazing areas appropriately sized to provide balance between daylighting and overheating risk mitigation.

A fabric first approach will be utilised to minimise energy demand prior to the implementation of any low or zero carbon technologies

Efficient services will be incorporated including mechanical ventilation with heat recovery and highly efficient LED fittings.

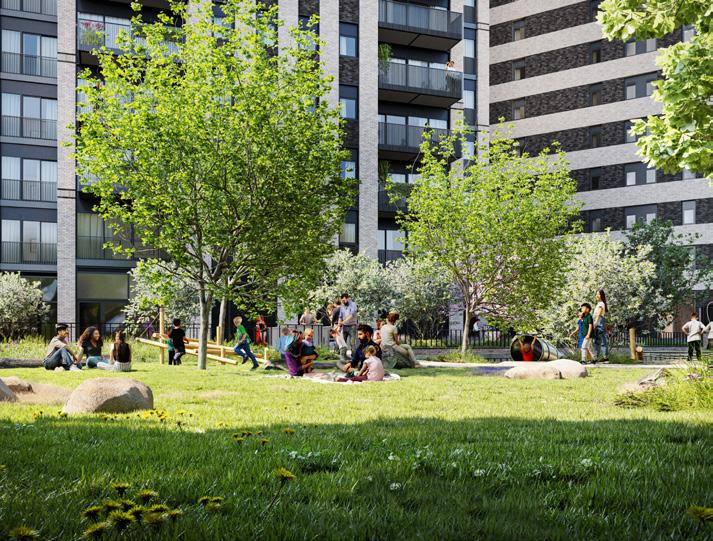

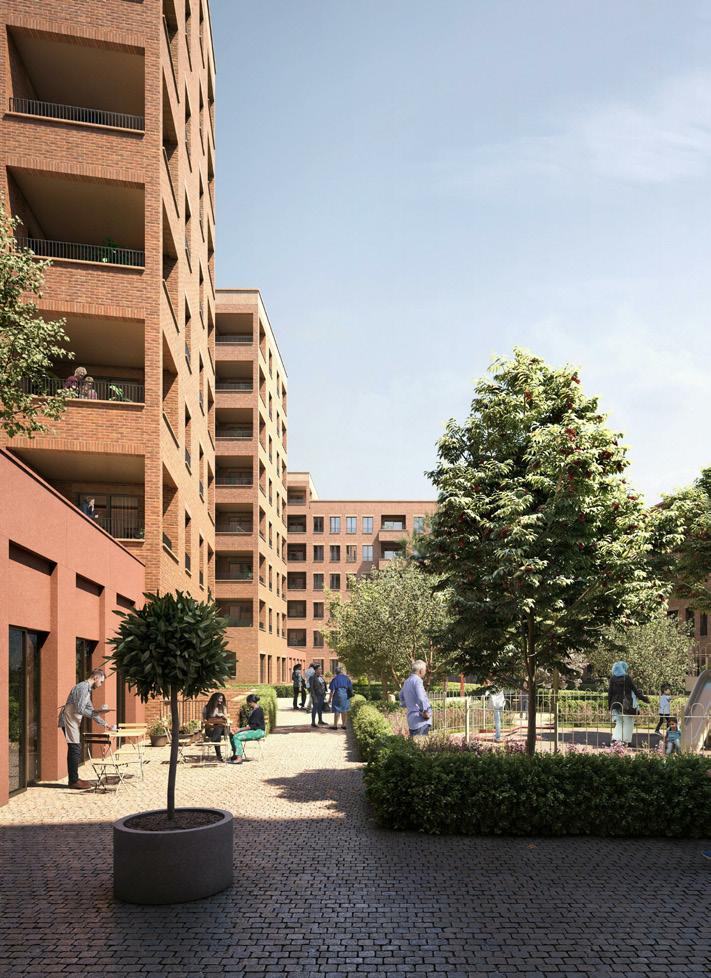

Landscaping & Wellbeing

A woodland glade not only provides a respite from urban life but also promotes biodiversity and preserves the essence of the woodland ecosystem within our urban setting.

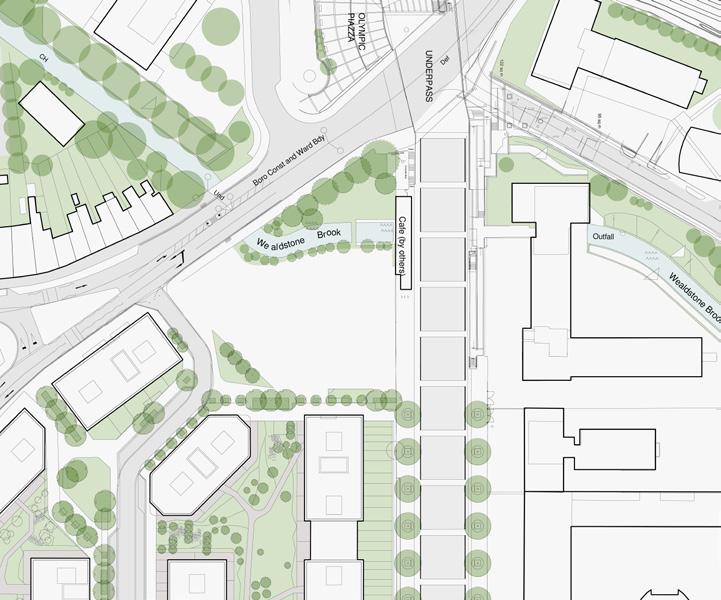

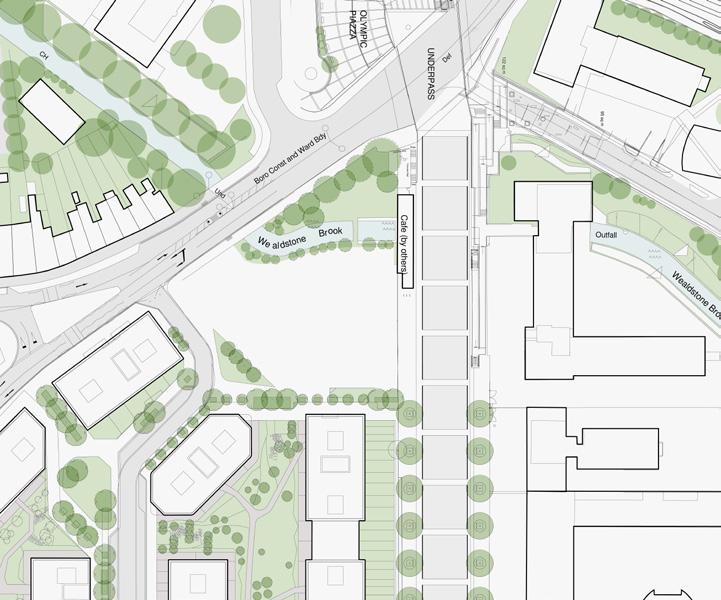

Drawing inspiration from the unique setting of Wealdstone Brook the concept seeks to celebrate the wilderness of the brook by enhancing it and extending its naturalistic character across the site.

Environmental & Residential Quality

The concept of corner living and the articulated plan benefits residential quality by maximising dual aspect provision and balancing solar gain with daylight and sunlight whilst mitigating overheating impact.

0

Layout Analysis

4 units per core

Typical floor plate width: 28.2m Typical flat depth: 7m

Responding to Environmental Factors

Reduced glazing to bedrooms &

zones

provide shading to glazed living room areas

The Evolution of the tower form has been led by the rationale of moving balconies to the corners of the building with direct access from the living room.

Reduced windows to the south, east and west with shading provided by balconies benefits Daylight and Sunlight & reduces overheating impact.

Corner balconies provide an opportunity for a more dynamic serrated profile and balconies are semi recessed for greater perception of security and comfort.

Window sizes and placement respond to orientation and outlook. The Overheating assessment has found that all habitable residential rooms meet the Part O overheating risk criteria for the London Weather Centre DSY1 future weather data set (2020 High 50 Percentile).

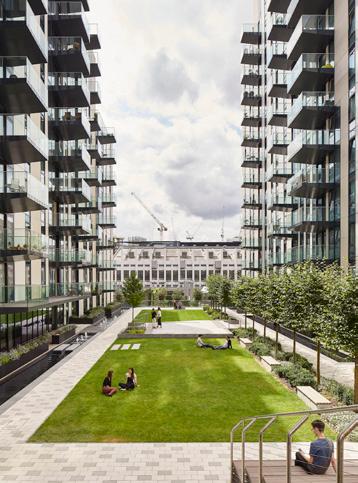

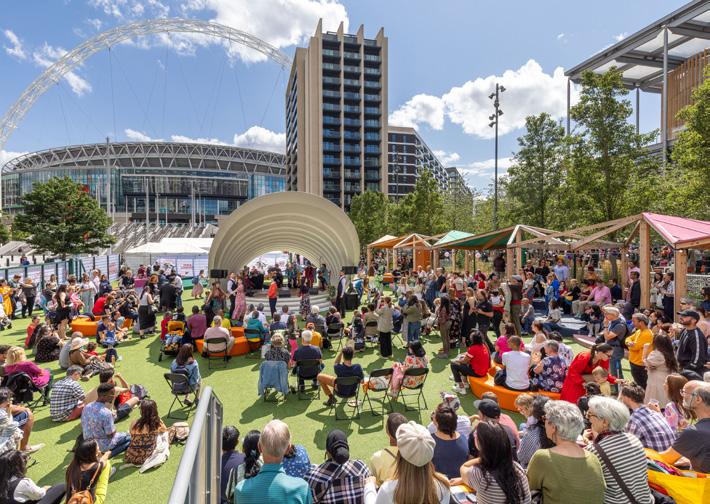

Wembley Park

Elvin Gardens

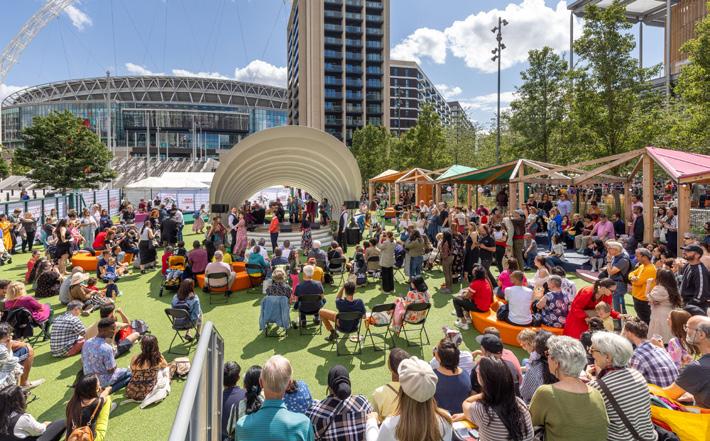

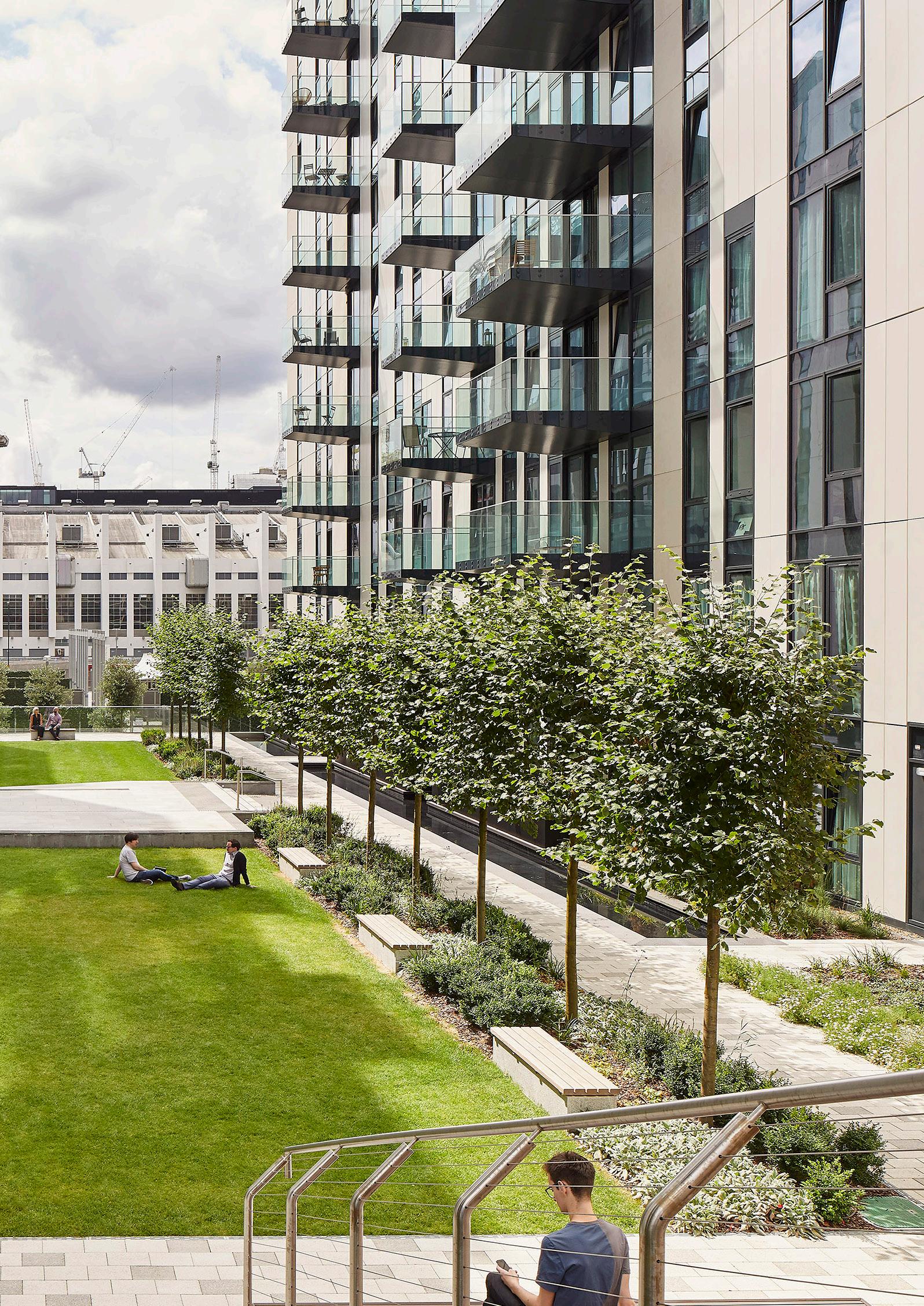

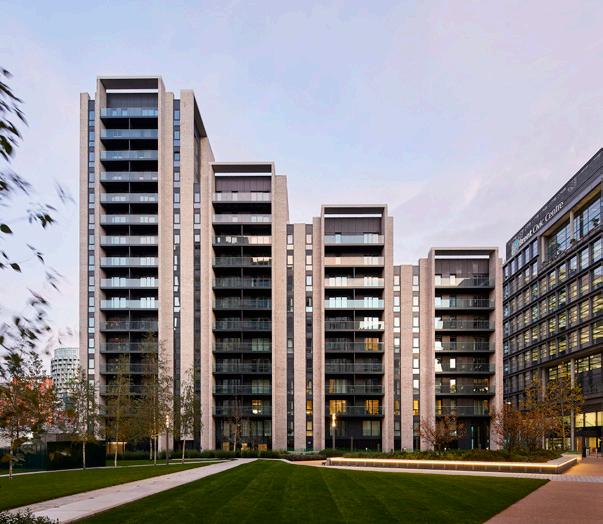

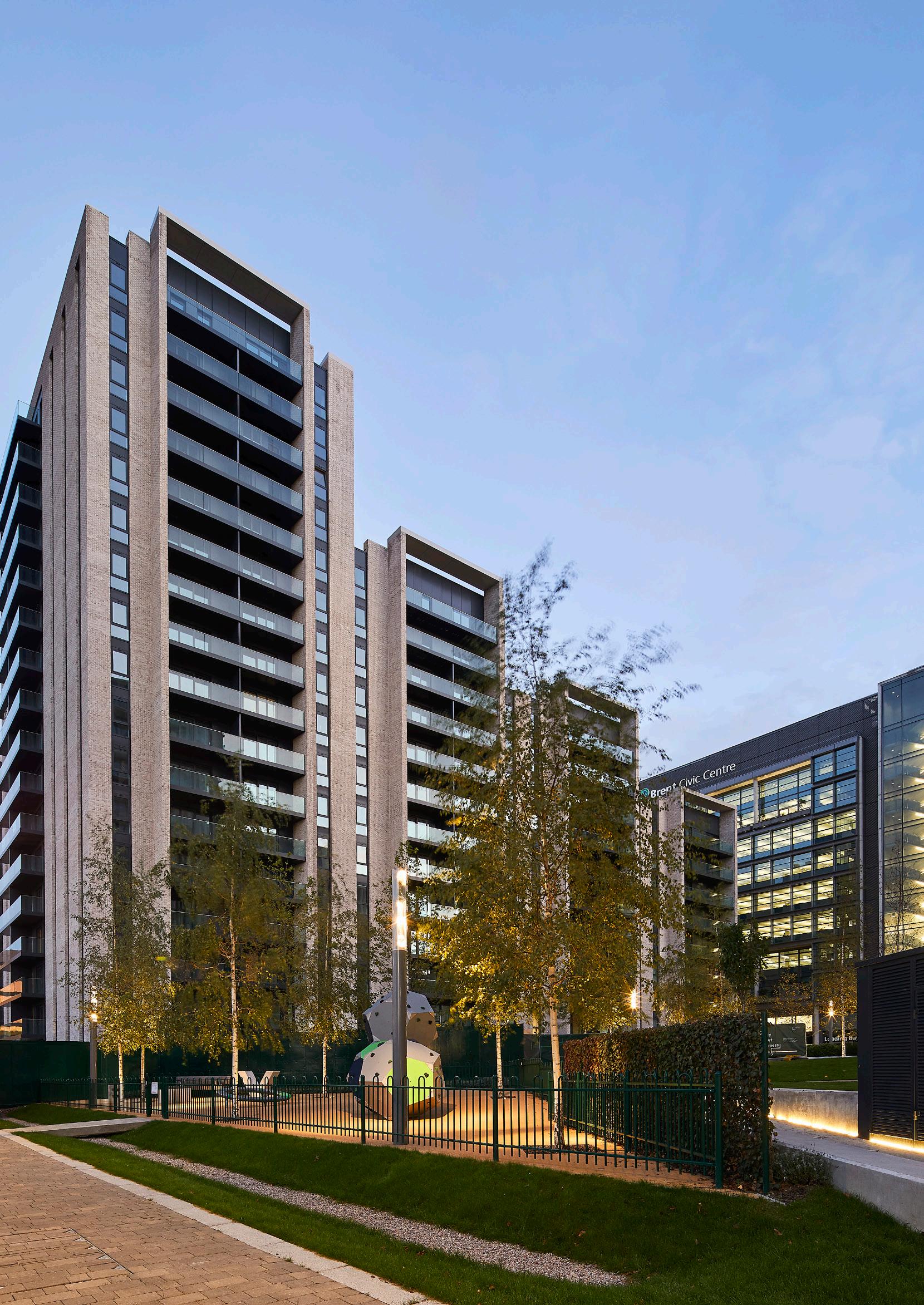

The new London square, Elvin Square Gardens, is an attractive public space in the heart of Wembley Park. Elvin Square Gardens offers a landscaped garden square set between Alto, Landsby and the Brent Civic Centre. The pleasant green space honours the location’s heritage and reflects the rich woodland that was once present.

Weaver Walk

Set between Landsby East and West this pedestrian route connects Market Square / Samovar Space with Repton Gardens to the north. Weaver walk is the setting for locally focused shops and spaces for residents in the area.

Samovar Space

Flanagan Lawrence collaborated with apprentices through an iterative process to help translate their initial conceptual ideas into realisable spatial solutions. The end result is a brightly coloured space with a commissioned floor mural by Lois O’Hara.

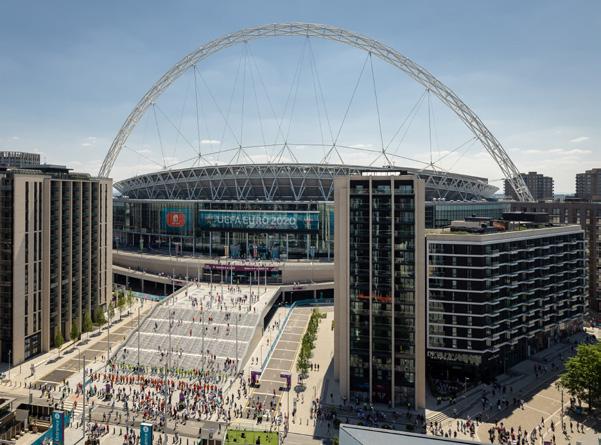

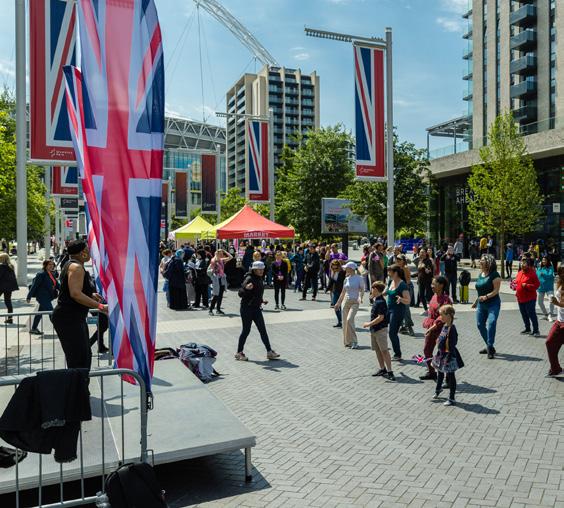

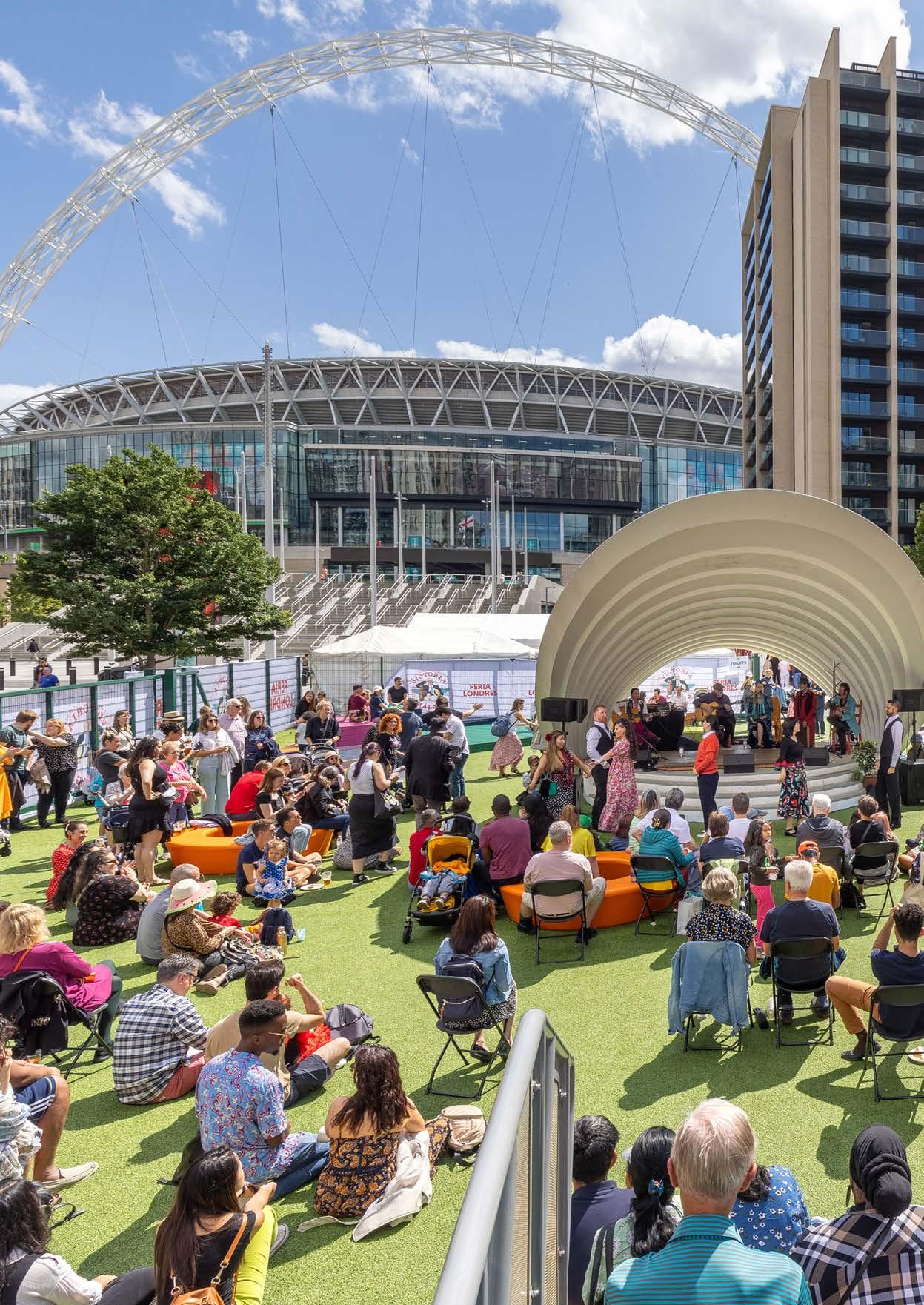

Olympic Way

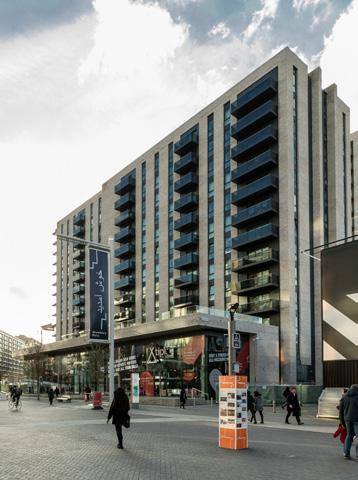

Landsby East and Alameda frame Olympic Way and provide the backdrop for this important axis to the stadium.

Creating communities.

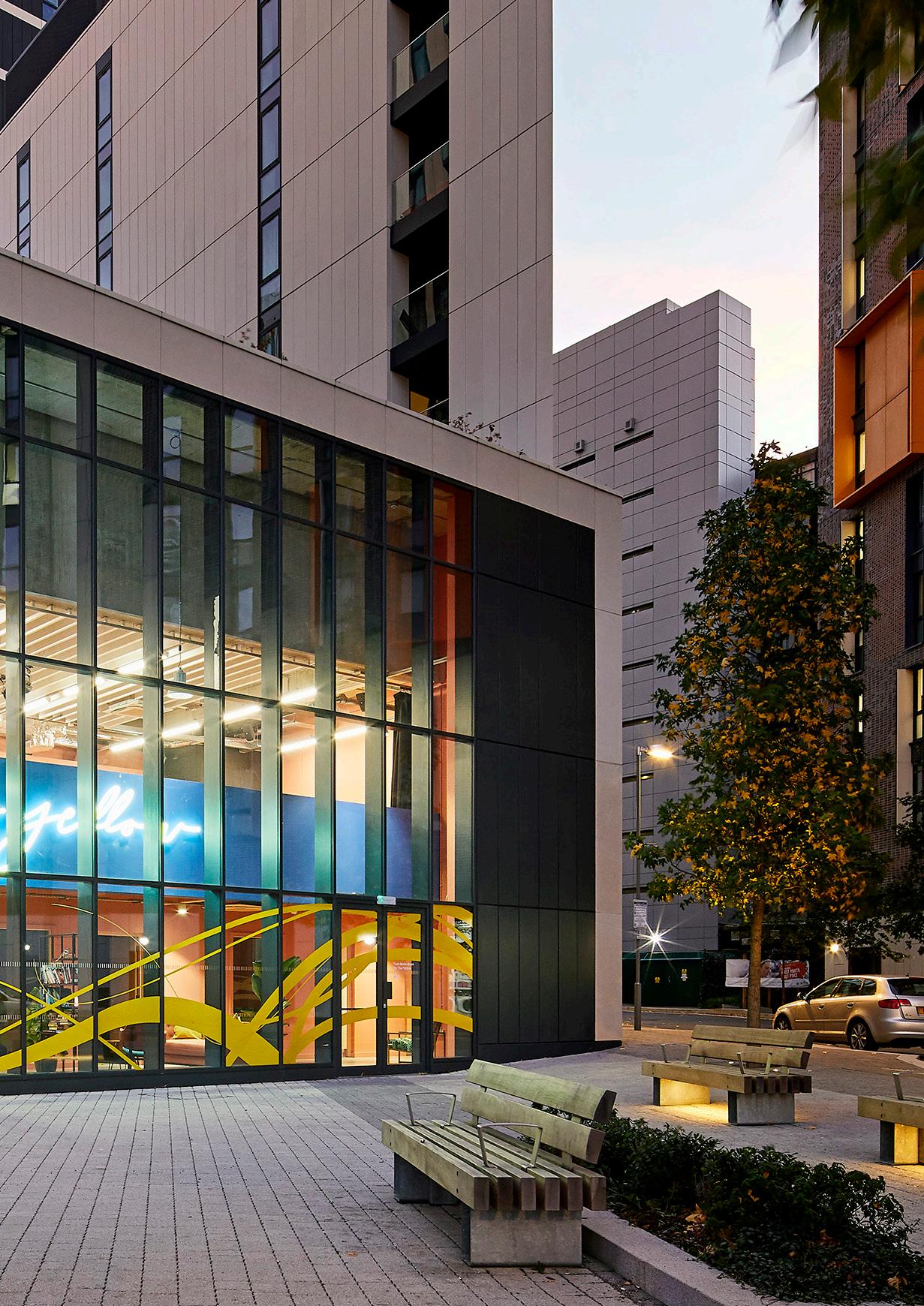

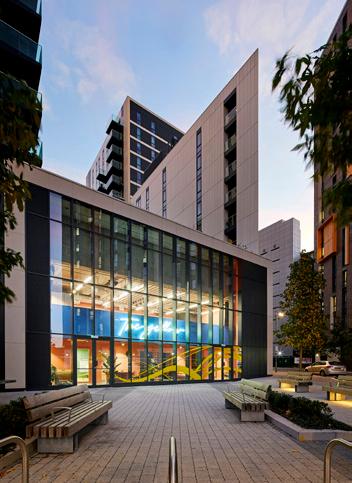

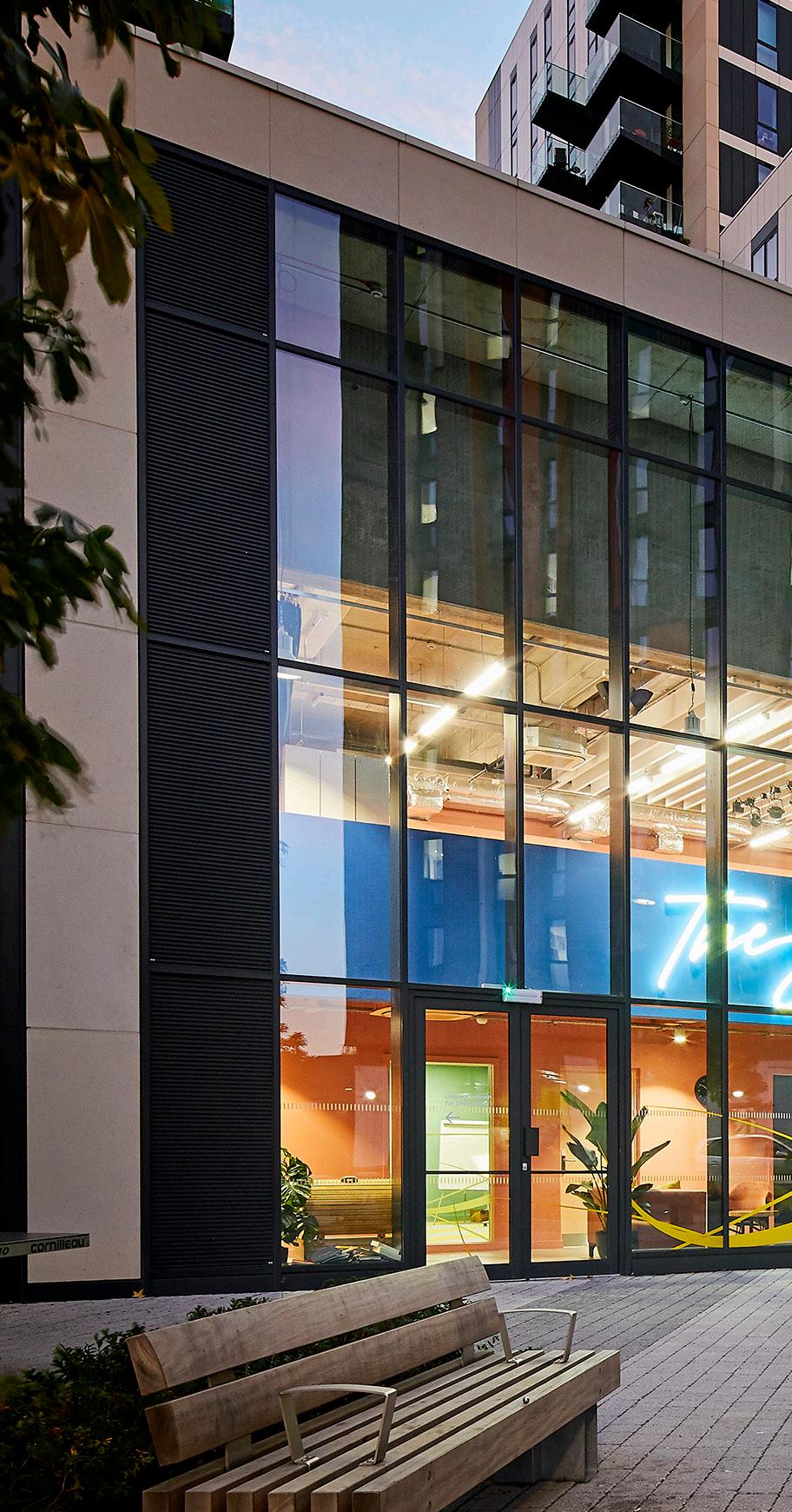

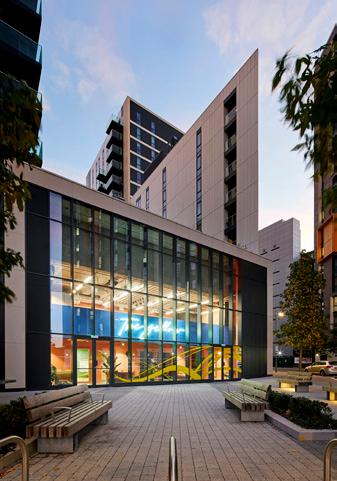

The Yellow

A welcoming hub for the local community

The Yellow sits at the heart of the Alto development.

The Yellow is designed for the thriving community who live, work and study in Brent Park. With the aim of bringing people together, its programme of free and low cost events, workshops and classes are run by a team of over 100 local volunteers.

On the ground floor it includes a shared kitchen for cooking classes and community supper clubs, meeting rooms with TV’s and media players, performance studios and fully furnished breakout spaces. On the mezzanine area, and fully accessible, a fitness area includes gym and sport equipment.

Client Quintain

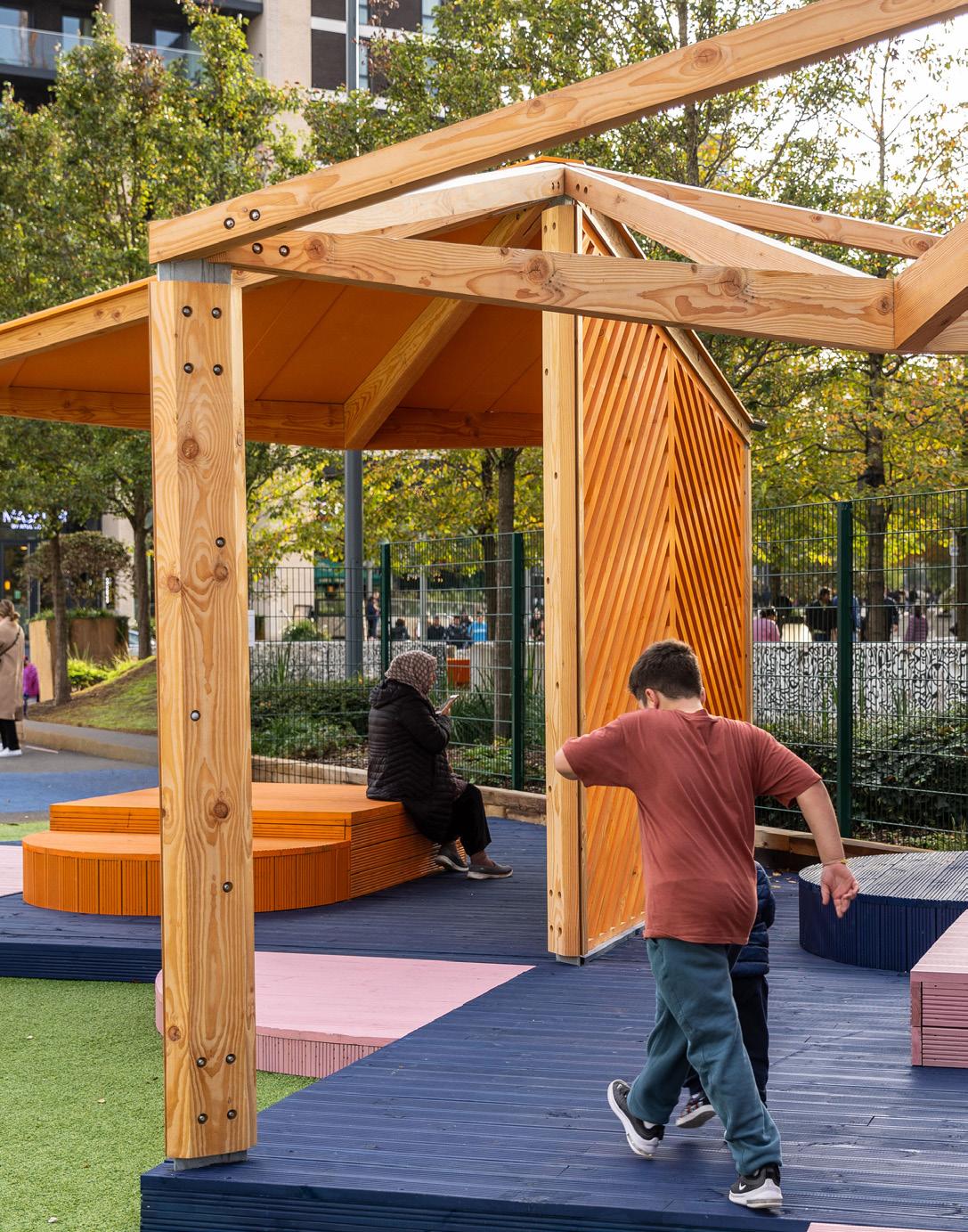

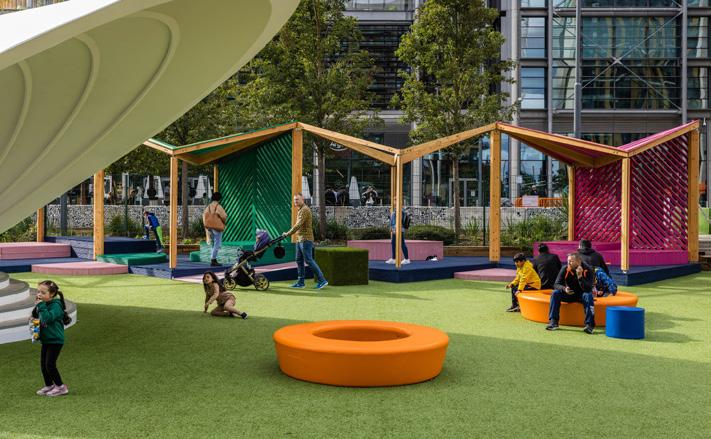

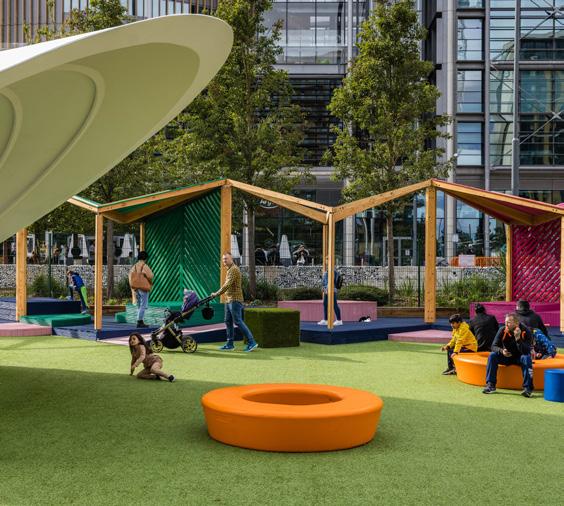

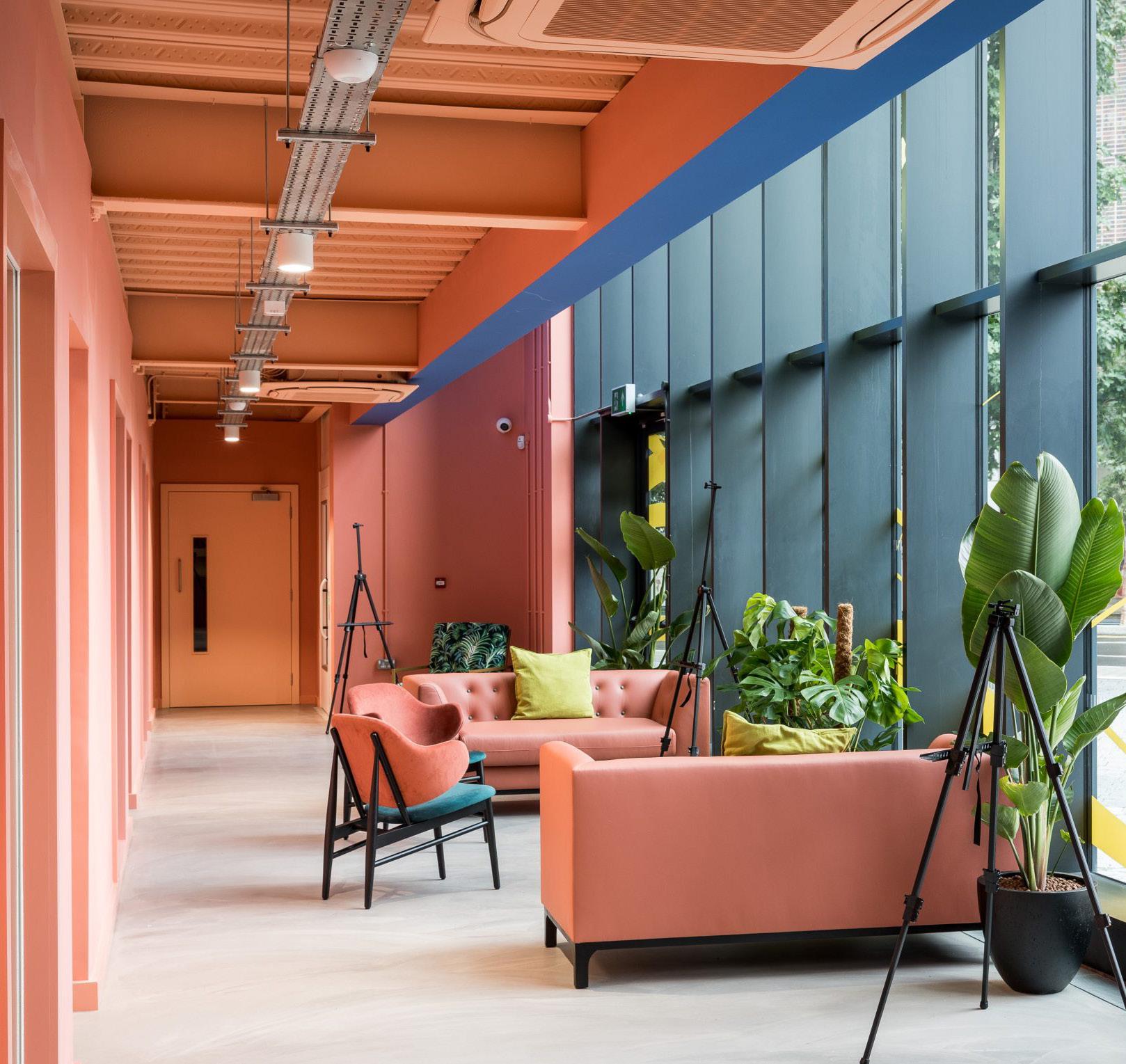

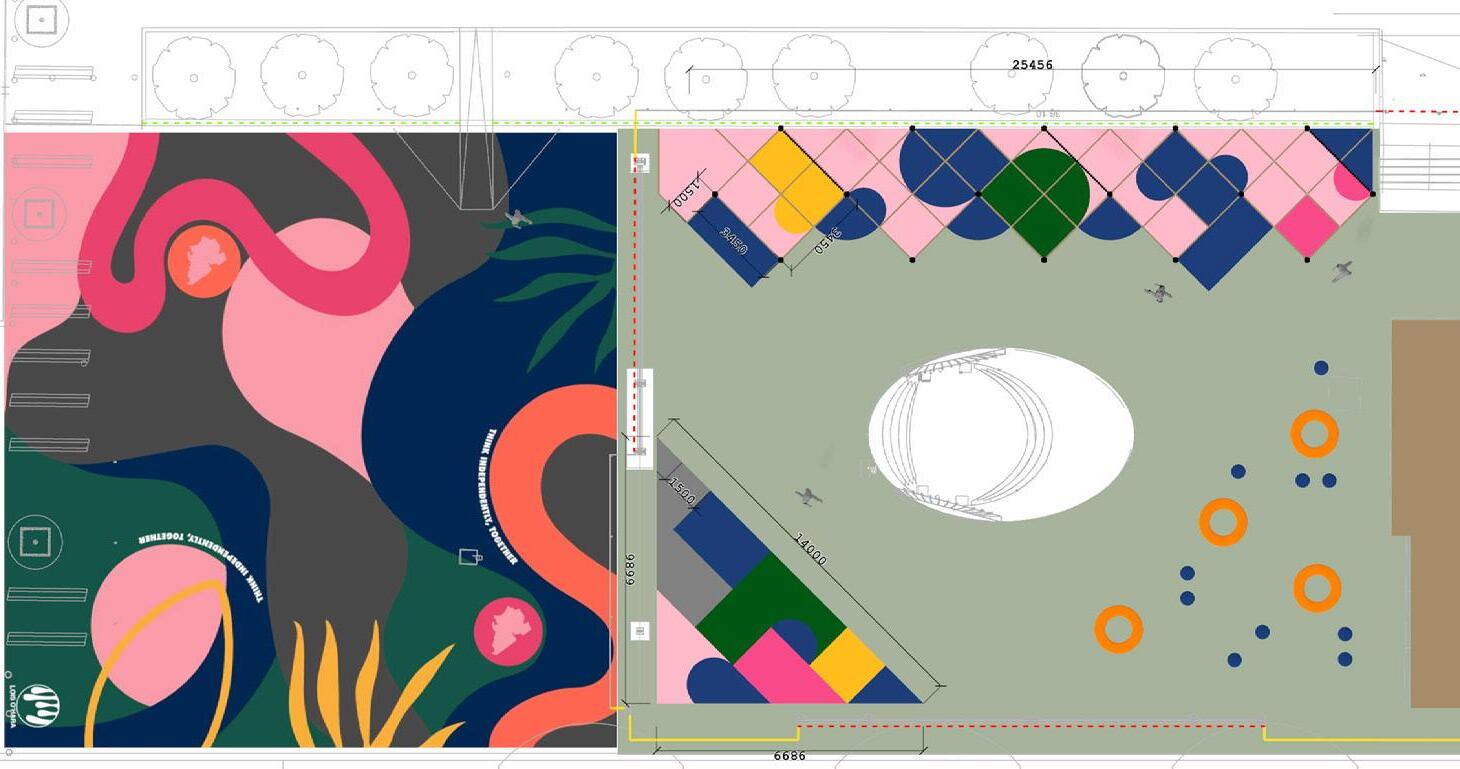

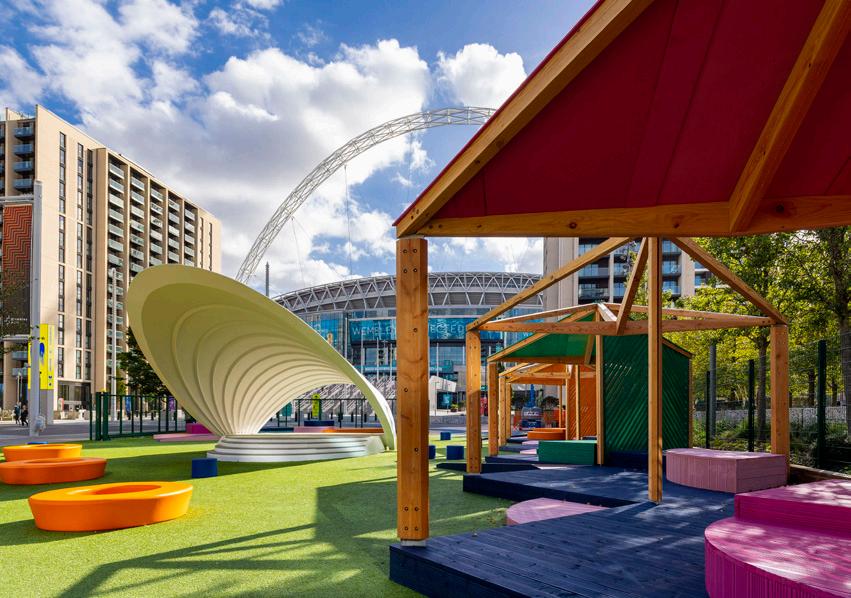

Samovar Space

Samovar Space is a vibrant inclusive space where young people can come together and socialise. The aim was to design a place to ‘just be’ and features dining, shelter and collaborative areas, including the purpose-built Brent Soundshell that hosts events throughout the year.

Three distinct zones accommodate for slight variations of how young adults ‘hang out’: Consume, Collaborate, and Calm. The Consume Zone is a place to informally gather to eat. Collaborate is a playscape distinctly for young adults to gather and engender a sense of socialization. Finally, the Calm Zone aims to bring the security of the home into the public sphere and offer a public, semi-outdoor living room.

Awards

Won: Eurocities Award 2023

Client Quintain

Commended: Brent Design Awards 2023

A joyful space which celebrates the diversity in the area
Lois O’Hara

Social Value

Our Ethos

Flanagan Lawrence is a socially responsible organisation whose method of operation is based on ethical principles. We care about the way we do business and we’re proud that we do it responsibly, professionally and ethically. We believe that development projects can have a very positive impact on the local community, engendering interest and generating short and long term benefits to the wider local community.

Volunteering

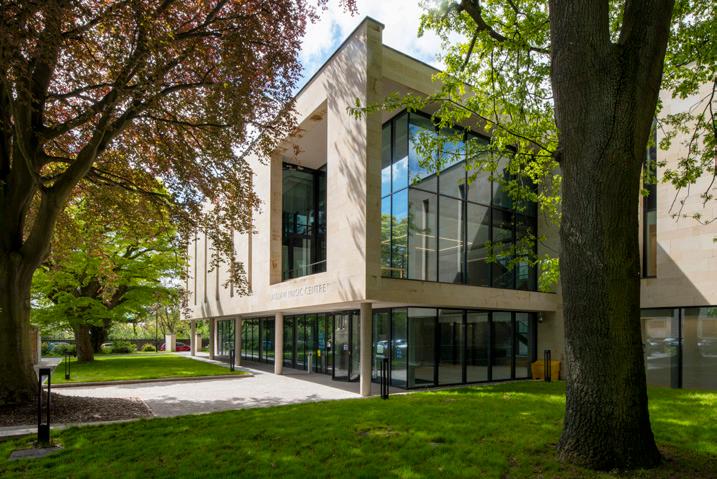

Through our work on the Laidlaw Music Centre we supported a group of architecture students from the University of Edinburgh with a case study on the Laidlaw Music Centre. It helped students make connections between their professional practice experience and design studio by considering the logistical challenges involved in taking a building design through to completion.

Involvement Through Design

Our involvement with this initiative comes from a belief that developments should provide the widest possible economic opportunity to people living in the local community. Located in the Yellow, at the heart of the Alto development, a programme of free and low cost events, workshops and classes are run by a team of over 100 local volunteers.

Community

Samovar Space was created by apprentices as a place where young people could ‘hang out’ and be, without being told to move on. Flanagan Lawrence collaborated with apprentices through an iterative process to help translate their initial conceptual ideas into realisable spatial solutions. The end result is a brightly coloured space with a commissioned floor mural by Lois O’Hara.

Our Commitment

As a practice we believe that good education opens up possibilities for children regardless of their background. We offer work experience to local schools to give pupils an insight into what a career in architecture could be like, and we actively contribute to the Open City Architecture in Schools programme.

Engagement

For the Samovar Space the apprentices were from the London School of Economics (LSE) Apprenticeship in City Design. Flanagan Lawrence collaborated with the LSE apprentices to help realise their vision. With Dr Julia King from the LSE, the apprentices were engaged through the design and completion.

Education

As part of our Social Value commitments on projects, the Milton Road project was used as a case study by Harrow College students studying Architecture, Interior and Product Design.

Realisation

The Samovar Space project was completed in September 2022. The success of the project is evidenced by Open City contacting us about Samovar Space, as they are considering how Samovar Space could be integrated into a series of Architecture in Schools workshops for primary school pupils in Brent.

Emerging Fire Safety Guidance

Following the introduction of the Building Safety Act 2022 and its secondary legislation the way we design buildings is changing.

Buildings exceeding 18 meters or at least 7 stories in height are now subject to heightened levels of project oversight, ensuring clearer accountability for building safety during design, construction, and occupation.

Approved Document B has undergone changes. These changes have adopted a two-stair approach for HigherRisk Buildings.

During this period, Flanagan Lawrence have prepared designs that incorporate these requirements with the aim to maximise building safety while minimising Client risk.

The following collection of project case studies maps our journey through the transitional phases of this change and highlights different approaches to accommodate a dual core / two-stair building.

Ujima House, Brent Cecil Avenue, Brent
Crescent House, Brent
Thameside West, Newham

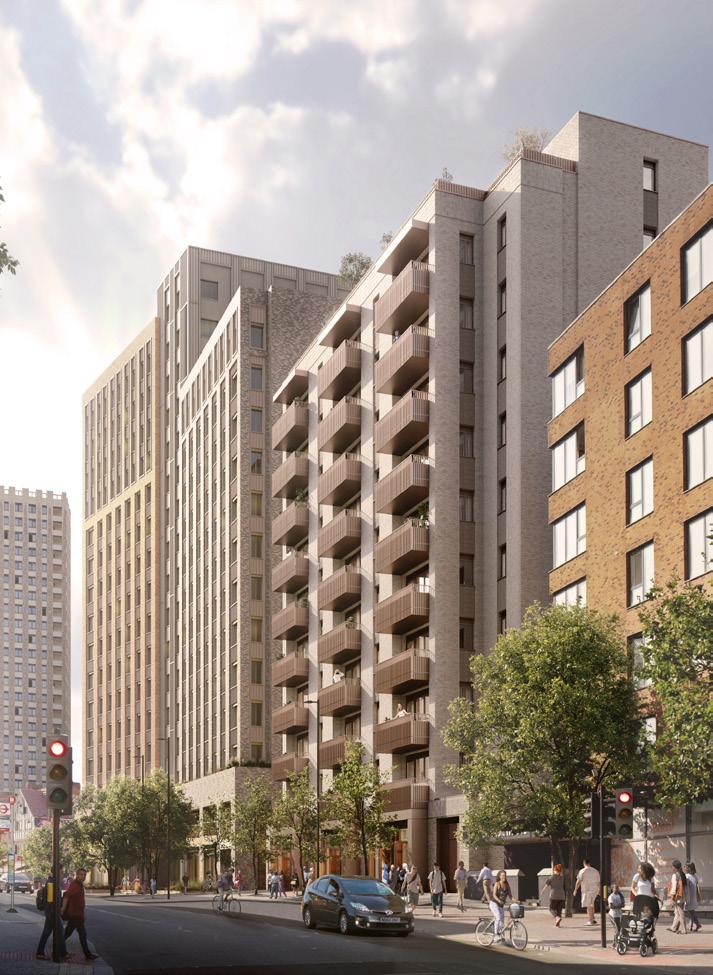

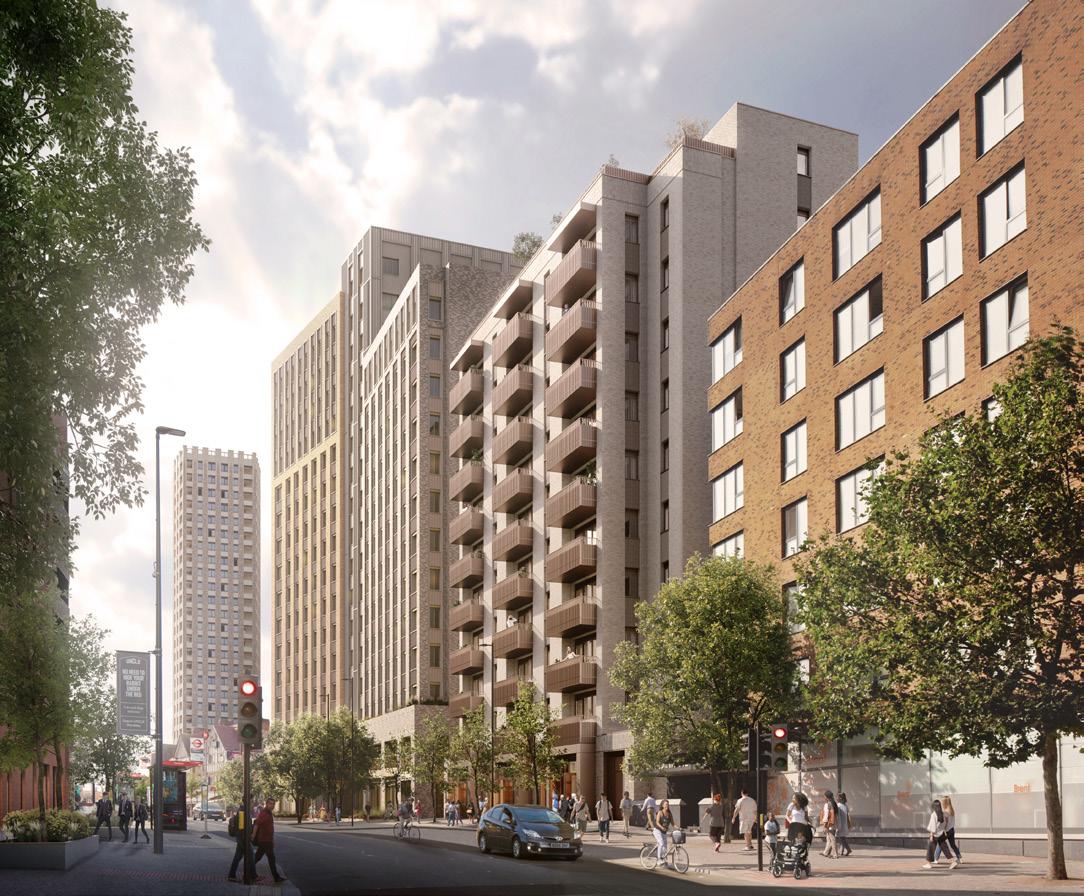

Ujima House

Case Study

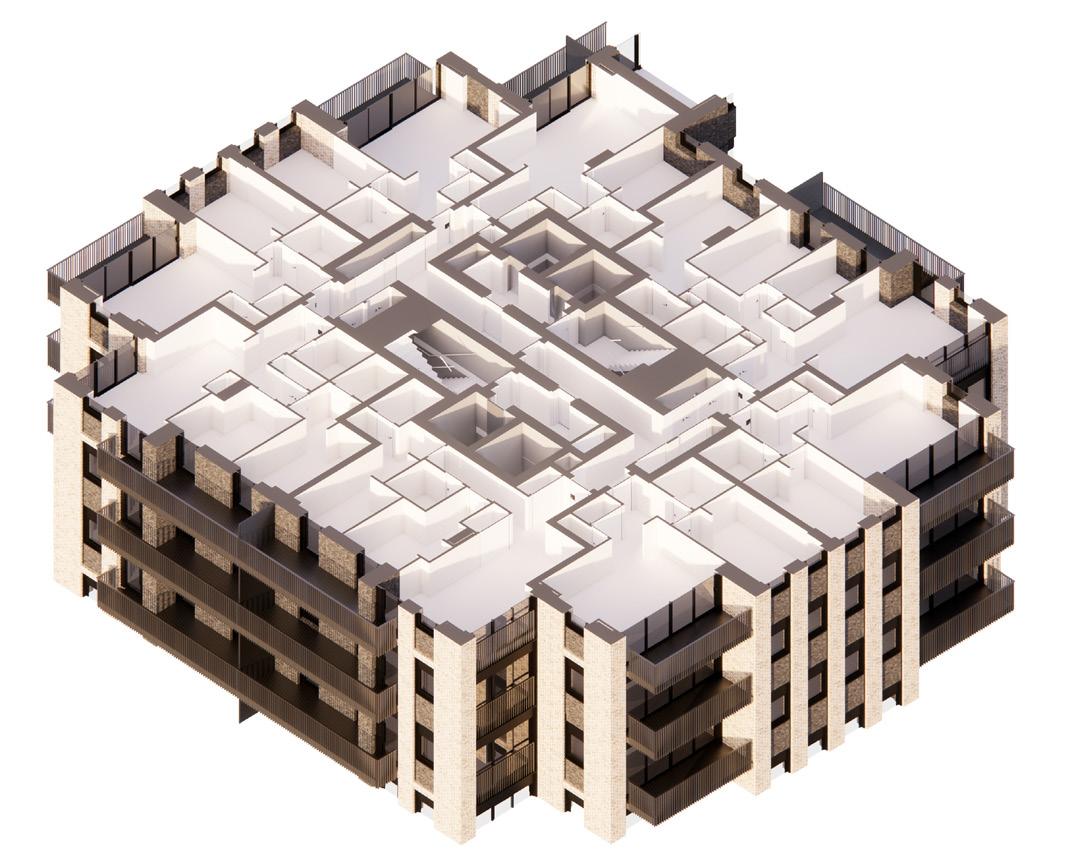

Core Layout - Typical Floor

Layout Analysis

6 units per core

3 x 1B2P

2 x 2B4P

1 x 3B5P

Typical floor plate width: 20.5m

Typical flat depth: 7.9m

Dual aspect ratio: 83%

Key

Firefighting lift

Evacuation lift

Smoke extract

Fire / Residential stair

Fire stair lobby

Linear- Block Typology

Commentary

Two stair approach BS9991-2021 Draft compliant.

• 1 fire-fighting lift, 1 evacuation lift & fire stair to primary residential entrance core.

• 1 fire-fighting/evacuation lift & fire stair to satellite core.

The proposal incorporates two fire-fighting shafts in a primary (for day to day residential use) and satellite (for fire brigade access) arrangement.

Each stair core is independently lobbied from the communal corridor and positioned apart at either end of the building.

Strategy additions: Emergency communication system to all stair/lift lobbies, ADB compliant emergency evacuation alarm system, sprinkler system and mechanical smoke control system.

Cecil Avenue

Case Study

Core Layout - Typical Floor

Layout Analysis

6 units per core

Key Typical floor plate width: 11.4m Typical flat depth: 5.1m

Firefighting lift

Linear- Block Typology

Evacuation lift

Smoke extract

Fire stair lobby 3 x 1B2P 2 x 2B4P 1 x 3B5P

Fire / Residential stair

Commentary

Two stair approach BS9991-2021 Draft compliant.

• 1 fire-fighting lift, 1 evacuation lift & fire stair to primary residential entrance core.

• 1 dual fire-fighting/evacuation lift & fire stair to satellite core.

The proposal incorporates two fire-fighting shafts in a primary (for day to day residential use) and satellite (for fire brigade access) arrangement.

Each stair core is independently lobbied from the communal corridor and positioned apart at either end of the building.

Strategy additions: Emergency communication system to all stair/lift lobbies, ADB compliant emergency evacuation alarm system, sprinkler system and mechanical smoke control system.

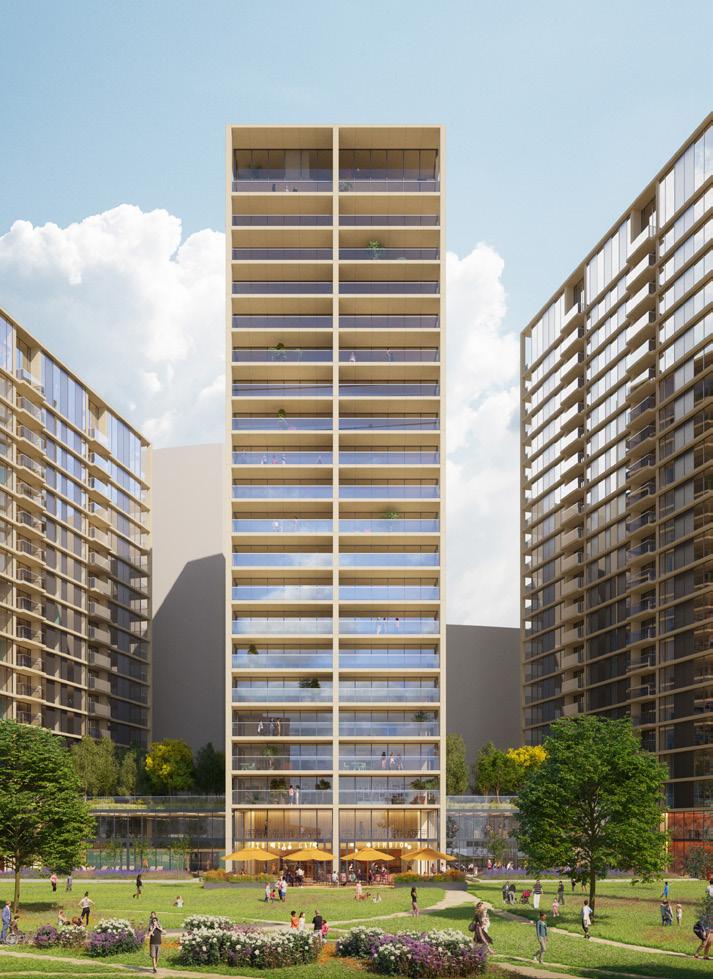

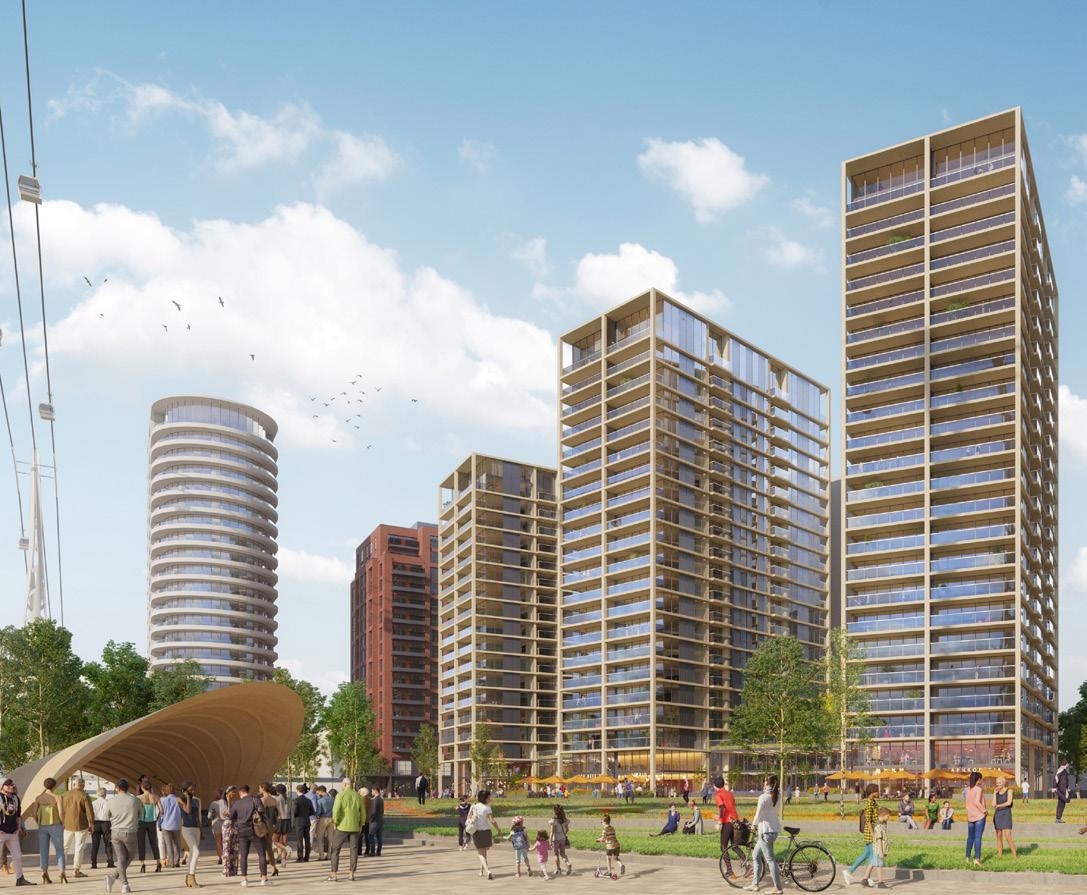

Thameside West

Project Summary

Stage

Stage 1

Location

Thameside West, Newham

Dwelling Nos 799

Proposal 11 / 23 storeys.

Team Summary

Client Keystone

Core Layout - Typical Floor

Layout Analysis

Typical floor plate width: 18m Typical flat depth: 7.5m Dual aspect ratio: 57%

Case Study

Key

Firefighting lift

Linear- Block Typology

Evacuation lift

Smoke extract

Fire stair lobby 4 x 1B2P 2 x 2B4P

Fire / Residential stair

Commentary

Two stair approach BS9991-2021 Draft compliant.

• 1 fire-fighting lift, 1 evacuation lift & fire stair (primary).

• 1 dual fire fighting / evacuation lift & fire stair (secondary).

The proposal incorporates two fire-fighting shafts in a primary and secondary arrangement within a centralised combined core.

Each stair core is independently lobbied from the communal corridor and distanced / separated from the other by a cross corridor door.

Strategy additions: Emergency communication system to all stair/lift lobbies, ADB compliant emergency evacuation alarm system, sprinkler system and mechanical smoke control system.

Case Study

Core Layout - Typical Floor

Layout Analysis

8 units per core

5 x 1B2P 2 x 2B4P 1 x 3B5P

Typical floor plate width: 28.2m

Typical flat depth: 6.5 / 7m

Dual aspect ratio: 91%

Key

Firefighting lift

Evacuation lift

Smoke extract

Fire / Residential stair

Fire stair lobby

Point Block Typology

Commentary

Two stair approach BS9991-2021 Draft compliant.

• 1 fire-fighting lift, 1 evacuation lift & fire stair to both cores.

The proposal incorporates two full fire-fighting shafts within a centralised combined core.

Each stair core is independently lobbied from the communal corridor and distanced / separated from the other by a cross corridor door.

Strategy additions: Emergency communication system to all stair/lift lobbies, ADB compliant emergency evacuation alarm system, Sprinkler system and mechanical smoke control system.

Awards

Residential Awards

Won

Better Society Awards

Built Environment category 2023

International Property Awards (IPA)

Best Mixed-Use Architecture - East of England region 2020

Best Development Marketing – East of England Region 2019

Best Mixed-Use Development – London Region 2019

First-Time Buyers Readers’ Award

Best Off-plan Development 2019

RESI Awards

Development of the Year 2018

The Hammersmith Society Environment Award 2022

Commended

Evening Standard New Homes Awards

Best Large Development 2023

What House? Awards

Bronze - Best Regeneration Scheme

Silver - Best Partnership 2023

The Sunday Times British Home Awards

Highly Commended 2017

Evening Standard Awards

Highly Commended 2017

Shortlisted

National Housing Awards

Best Large Scheme in Planning 2018

The Sunday Times British Home Awards

Development of the Year (more than 100 homes) 2018

NLA Mixed-Use 2018

World Architecture Awards

Completed Buildings: New and Old 2019

AJ Retrofit Awards

Housing £5 million and over 2019

INSIDE Festival Awards

Residential Interior Design Finalist 2017

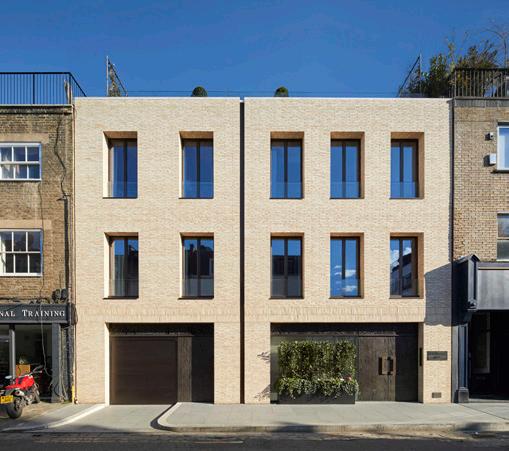

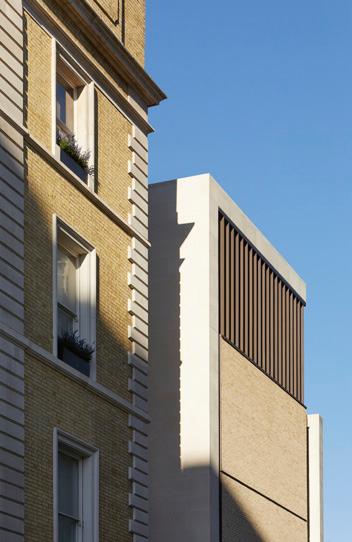

Samford Street Town Houses Westminster
The Nova Building, Westminster
Fisherton Street Homes, Westminster

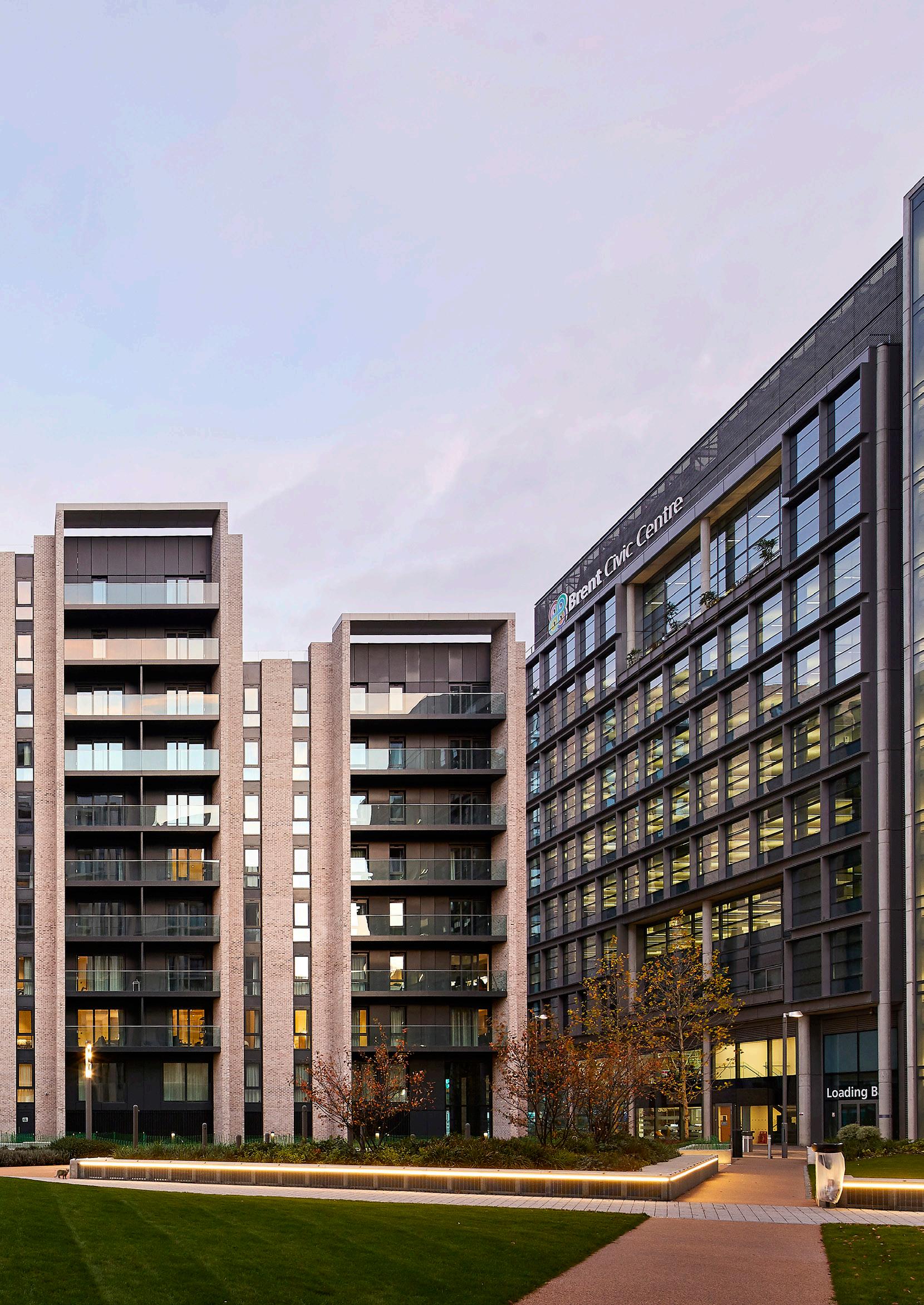

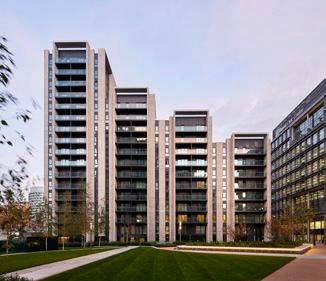

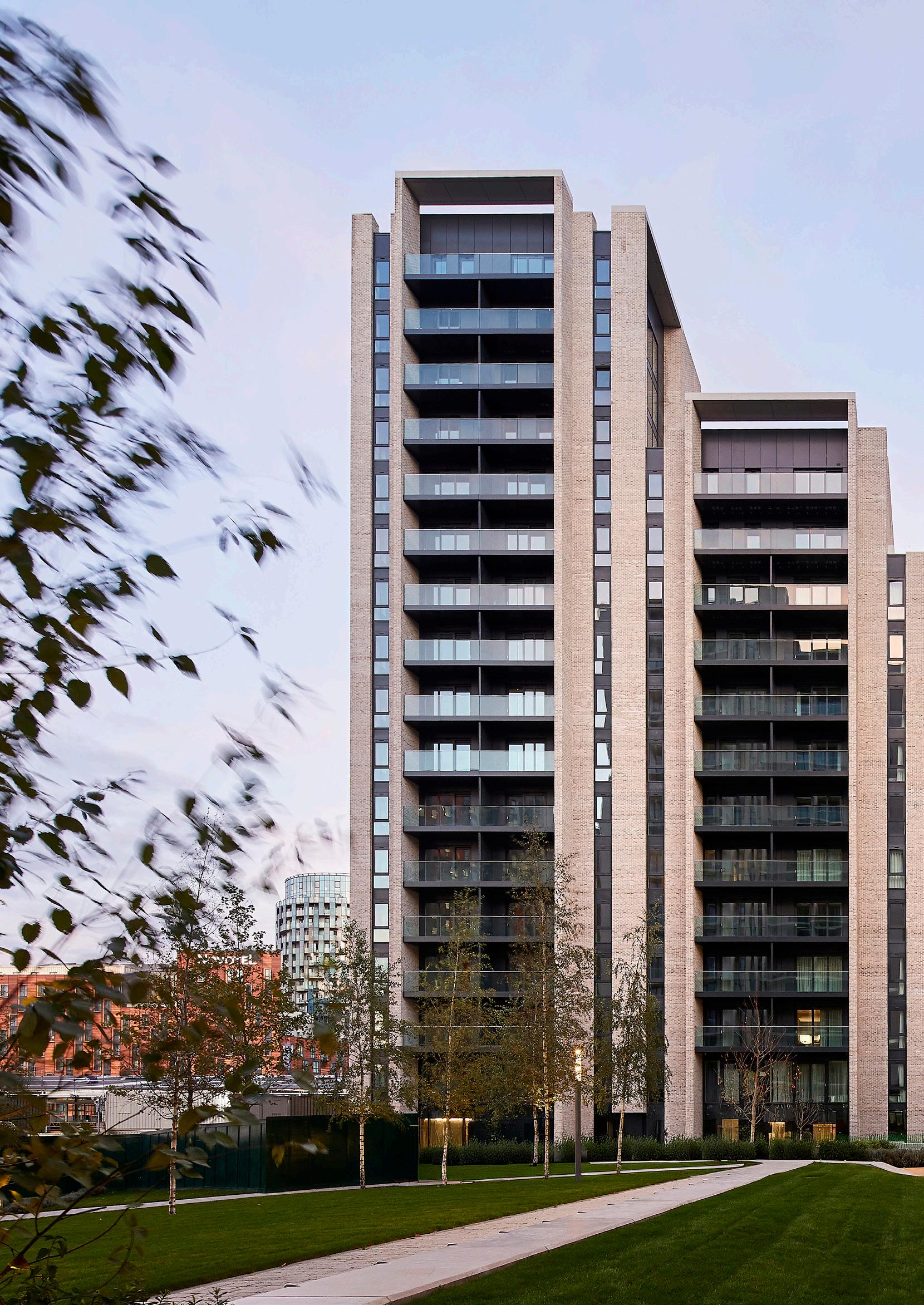

Alto, Brent

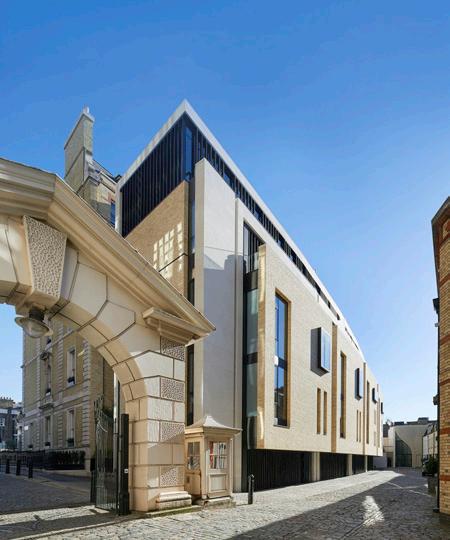

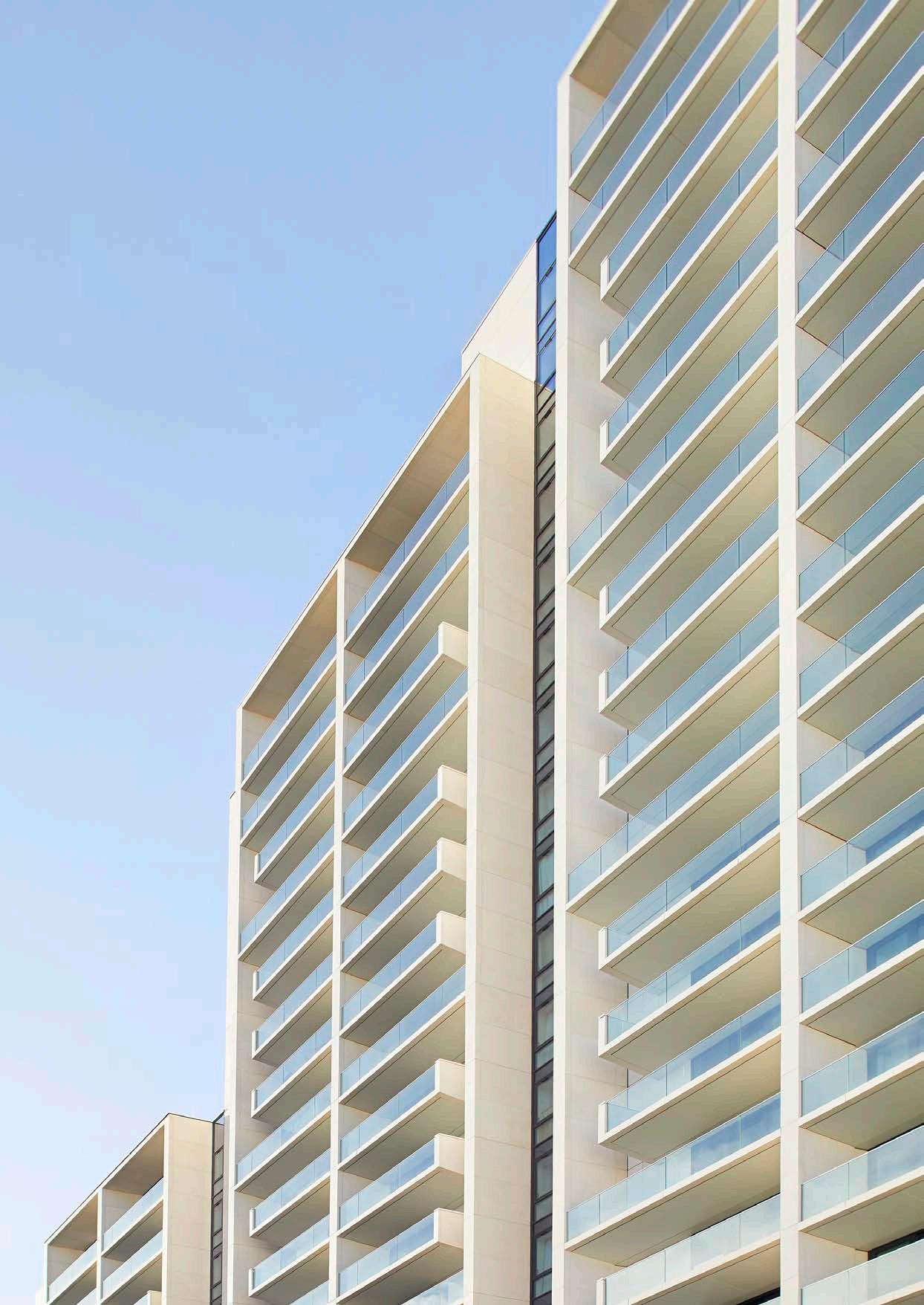

Belgravia Gate, Westminster
The Union Building, Luton Fisherton Street, Westminster

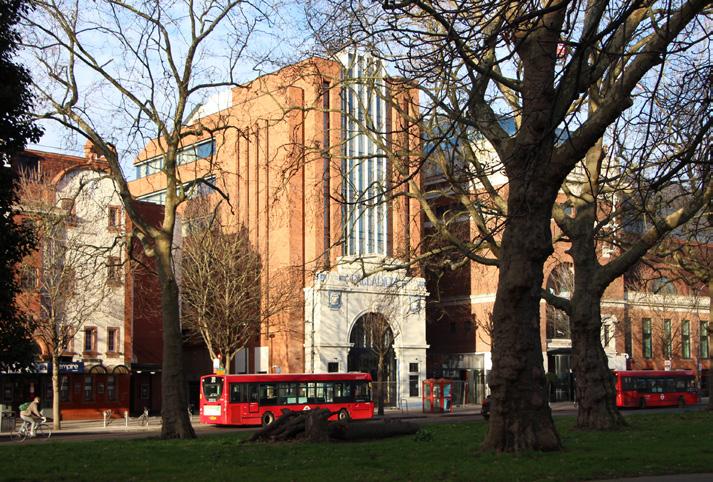

56 Shepherd’s Bush Green, Hammersmith
Belgravia Gate, Westminster Alto, Brent
Snowfield Yard, Southwark

About Us

Workspace

Residential

Leisure

Public

Masterplanning

Flanagan Lawrence is an award-winning, design-led practice of architects, masterplanners and interior designers based in London.

The practice has an impressive collective expertise across a broad range of public and private sectors and building typologies including large-scale commercial projects and high-end residential schemes, as well as cultural, hotel and leisure, and major masterplanning projects both in the UK and internationally. Flanagan Lawrence has worked with a diverse body of clients in both the private and public sectors.

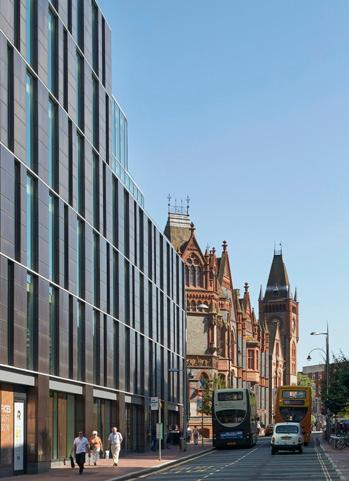

Reading+, Reading Fisherton Street, Westminster

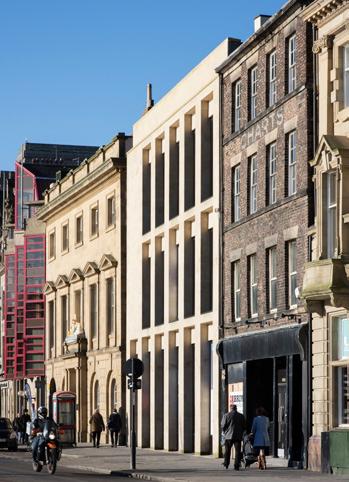

Liveworks, Newcastle
Samovar Space, Brent
56 Shepherd’s Bush Green, Hammersmith Belgravia Gate, Westminster

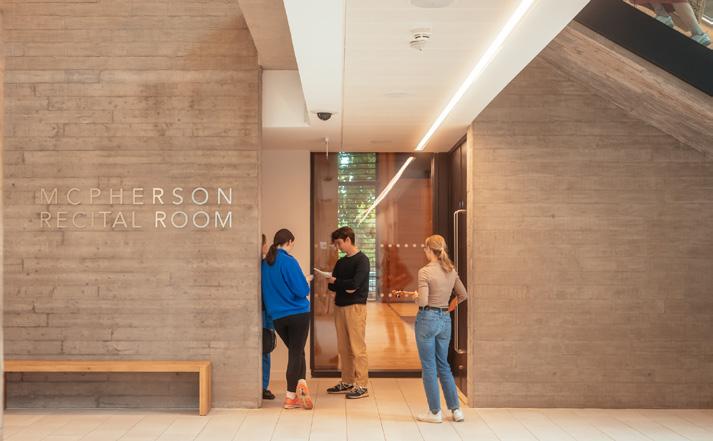

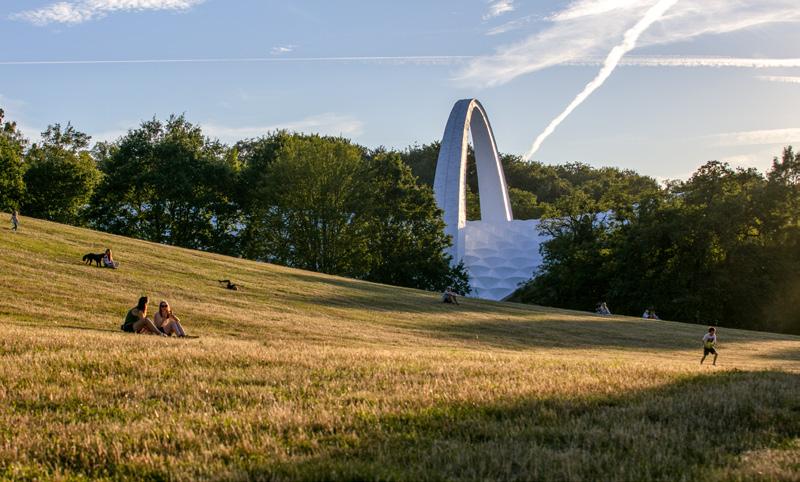

University of St Andrews Music Centre, St Andrews Szczecin Summer Theatre, Szczecin, Poland
20 Grosvenor Street, Westminster Alto, Brent
The Yellow, Brent

Image Credits Photography

Andrew Beasley

Andrew Hendry

Archimage

Chris Winter

Hufton + Crow

Jill Tate

Jim Stephenson

Nick Guttridge

Paul Eccleston

Paul Zanre

Piotr Krajewski

Pollitt and Partners

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
