Cable Range
FireSense is a specialist supplier of Fire Alarm Systems and Fire Rated Cable to installers, wholesalers and service companies. With over 30 years’ experience, FireSense are experts in the fire industry.
Our mission is to keep society safe through quality fire solutions. We are 100% Australian owned and operated priding ourselves on Quality, Expertise and the highest levels of Service.
We have been independently audited and awarded Triple ISO accreditation and certification in Qua We partner to deliver excellence, when & where it counts. Making Complex Easier.
Fire Rated Cable Specialists
expertsensuringtheymeettheneedsofthefire,electricalandm industries.Withtheenduserinmind,FireSensecablesareflexib strip,installandterminate.
FireSensepromisesquality,expertiseandthehighestlevelofse Withover80staffacrossthreebranches,significantstockholdi personalisednextdaydelivery,FireSensefocusonourcustomer ked rin cts i
Compliance

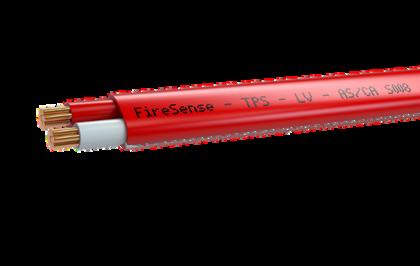

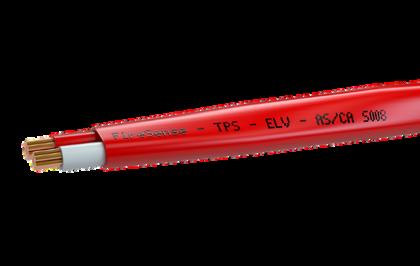

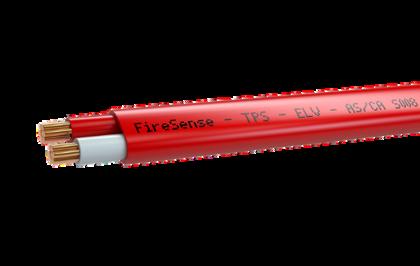

TPS FIRE ALARM
Mechanical protection - AS/NZS 3013
AS/CA S008 compliant
Conductors - AS/NZS 1125
Insulation & Sheath - AS/NZS 3808
Markings - AS/NZS 1670:2018
Bureau Veritas - PVC Best Practice certified
Vinyl Council of Australia / Green Building Council of Australia
*Refer to technical datasheet for certificate numbers
WSX1
WSX1
WSX1
WSX1
Fire&MechanicalProtection-AS/NZS3013,AS/NZS4507(RHE-3)
CableConstruction-AS/NZS5000.2

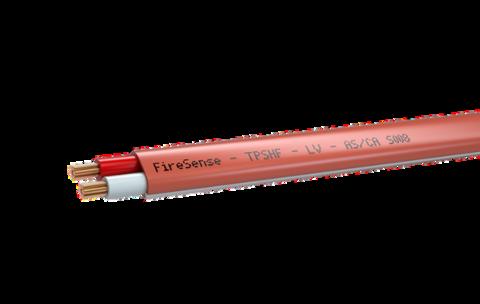

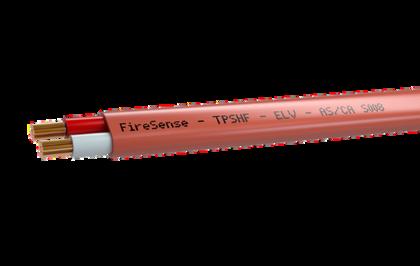

TPS FIRE ALARM - HALOGEN FREE
ACMACompliance-AS/CAS008
Conductors,Insulation&Sheath-AS/NZS1125,AS/NZS3808
VerticalFlameSpread-AS/NZS1660.5.1(Sec6-CatC-AS/NZSIEC603
SmokeDensity-AS/NZS1660.5.2,AS/NZSIEC61034
HalogenGas-AS/NZS1660.5.3,AS/NZSIEC60754-1
AcidityofGases-AS/NZS166054,AS/NZSIEC60754-2
VerticalFlamePropagation-AS/NZS1660.5.6,AS/NZSIEC60332-1
BureauVeritas-PVCFree
*Refer to technical datasheet for certificate numbers

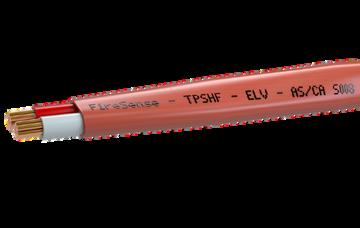

TPS FIRE ALARM - HALOGEN FREE
Available on 500m drums
WSX1
WSX1
WSX1

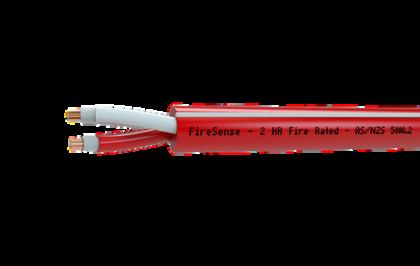

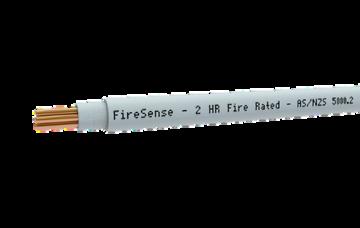

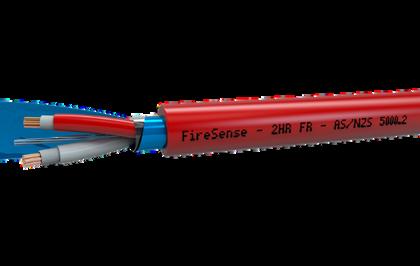

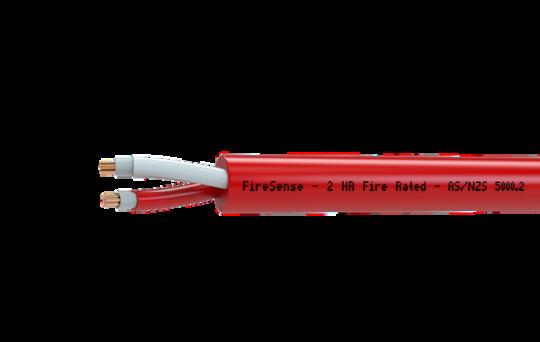

2HR FIRE RATED FIRE ALARM
Compliance
Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)
Cable Construction - AS/NZS 5000.2
ACMA Compliance - AS/CA S008
Conductors, Insulation & Sheath - AS/NZS 1125, AS/NZS 3808
Vertical Flame Spread - AS/NZS 1660.5.1 (Sec 6 - Cat C - AS/NZS IEC 60
Smoke Density - AS/NZS 1660.5.2, AS/NZS IEC 61034
Halogen Gas - AS/NZS 1660.5.3, AS/NZS IEC 60754-1
Acidity of Gases - AS/NZS 1660.5.4, AS/NZS IEC 60754-2
Vertical Flame Propagation - AS/NZS 1660.5.6, AS/NZS IEC 60332-1
Bureau Veritas - PVC Free
RCM / Global Mark Certificate of Suitability
2HR FIRE RATED FIRE ALARM
Available on 250m or 500m drums. Can be cut to length for project.
WS51W
WS52W
WS52W
Compliance
Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)

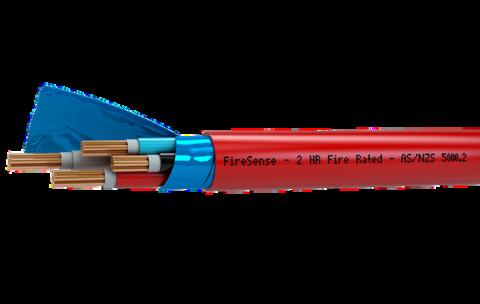

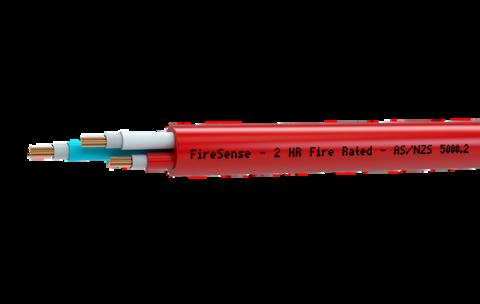

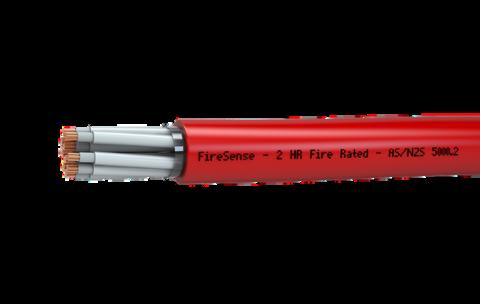

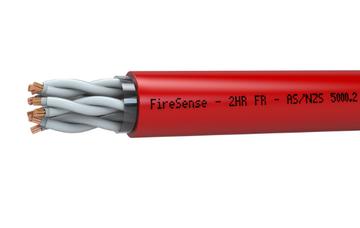

2HR FIRE RATED CONTROL
Cable Construction - AS/NZS 5000.2
ACMA Compliance - AS/CA S008
Conductors, Insulation & Sheath - AS/NZS 1125, AS/NZS 3808
Vertical Flame Spread - AS/NZS 1660.5.1 (Sec 6 - Cat C - AS/NZS IEC 6
Smoke Density - AS/NZS 1660.5.2, AS/NZS IEC 61034
Halogen Gas - AS/NZS 1660.5.3, AS/NZS IEC 60754-1
Acidity of Gases - AS/NZS 1660 5 4, AS/NZS IEC 60754-2
Vertical Flame Propagation - AS/NZS 1660.5.6, AS/NZS IEC 60332-1
Bureau Veritas - PVC Free
RCM / Global Mark Certificate of Suitability
2HR FIRE RATED CONTROL
Cable is cut to length per project.
Approvals&Compliance

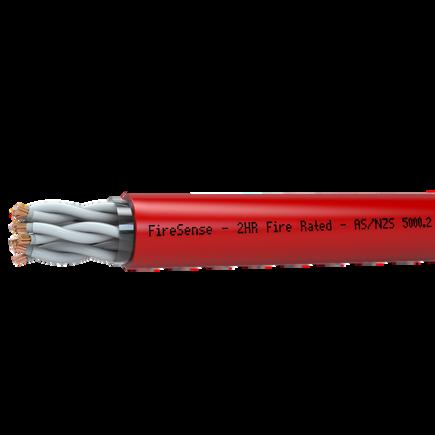

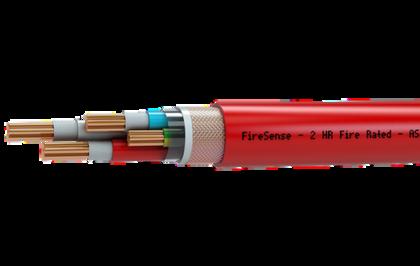

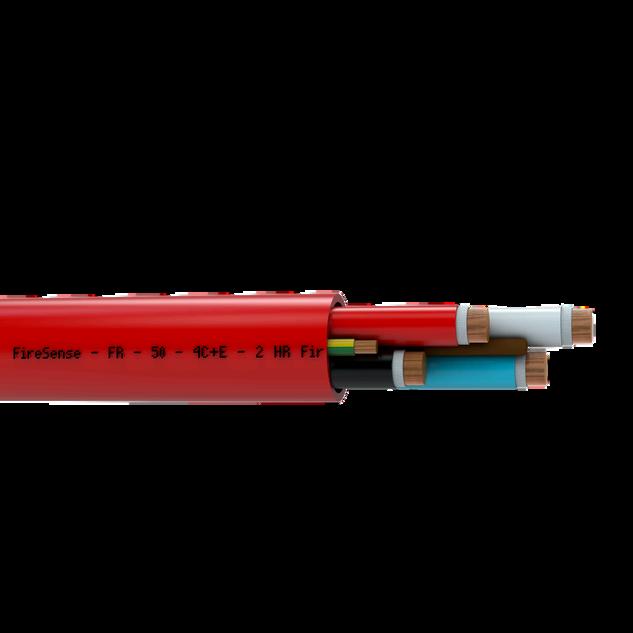

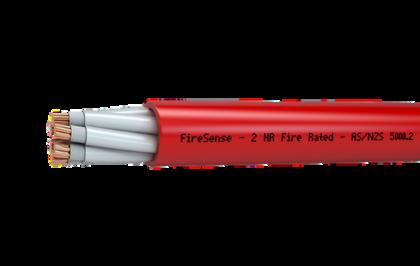

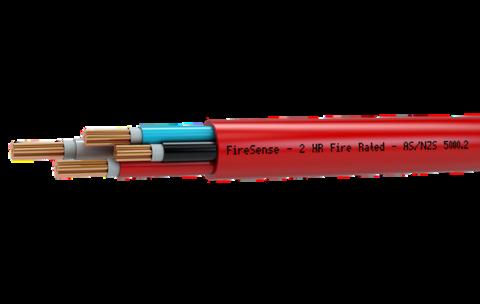

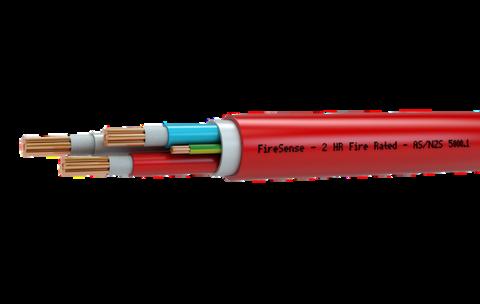

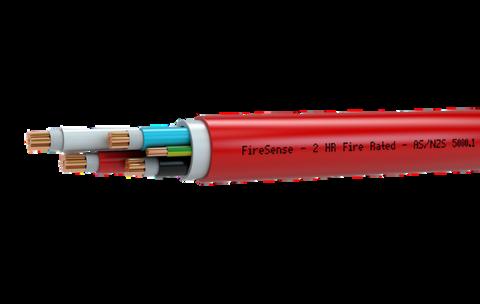

2HR FIRE RATED MULTICORE
Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)
Cable Construction - AS/NZS 5000.1
ACMA Compliance - AS/CA S008
Conductors, Insulation & Sheath - AS/NZS 1125, AS/NZS 3808
Vertical Flame Spread - AS/NZS 1660.5.1 (Sec 6 - Cat C - AS/NZS IEC 6
Smoke Density - AS/NZS 1660.5.2, AS/NZS IEC 61034
Halogen Gas - AS/NZS 1660.5.3, AS/NZS IEC 60754-1
Acidity of Gases - AS/NZS 1660.5.4, AS/NZS IEC 60754-2
Vertical Flame Propagation - AS/NZS 1660.5.6, AS/NZS IEC 60332-1
Bureau Veritas - PVC Free
RCM / Global Mark Certificate of Suitability

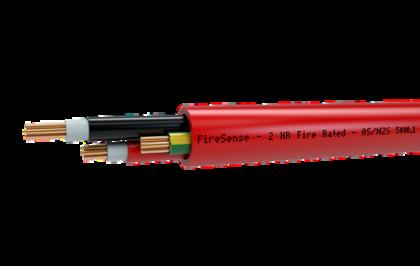

2HR FIRE RATED MULTICORE
0 6/1kV voltage rating
-25°C to +110°C operating temperature

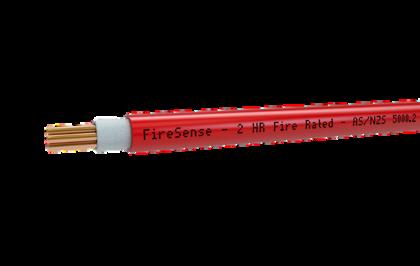

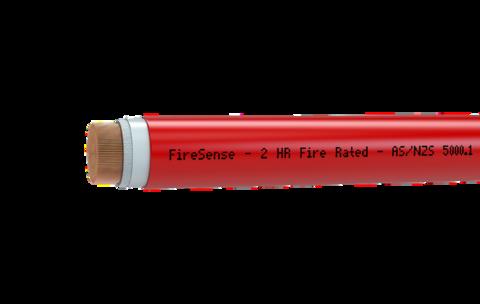

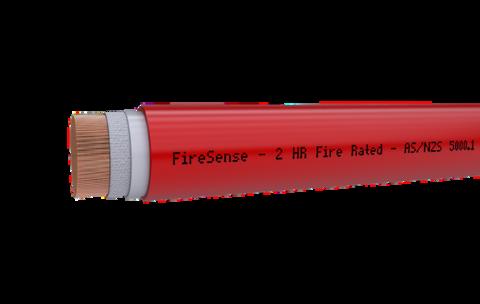

2HR FIRE RATED SINGLE CORE
10 x cable diameter minimum bending radius
Approvals&Compliance
Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)
Cable Construction - AS/NZS 5000.1
ACMA Compliance - AS/CA S008
Conductors, Insulation & Sheath - AS/NZS 1125, AS/NZS 3808
Vertical Flame Spread - AS/NZS 1660.5.1 (Sec 6 - Cat C - AS/NZS IEC 60
Smoke Density - AS/NZS 1660.5.2, AS/NZS IEC 61034
Halogen Gas - AS/NZS 1660.5.3, AS/NZS IEC 60754-1
Acidity of Gases - AS/NZS 1660.5.4, AS/NZS IEC 60754-2
Vertical Flame Propagation - AS/NZS 1660.5.6, AS/NZS IEC 60332-1
Bureau Veritas - PVC Free
RCM / Global Mark Certificate of Suitability
2HR FIRE RATED SINGLE CORE
Cable is cut to length per project.

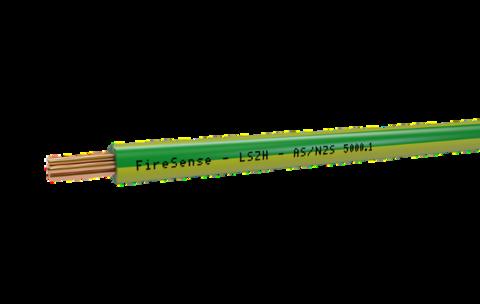

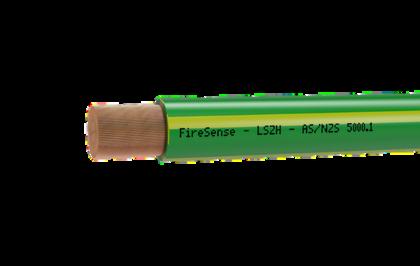

LSZH FLEXIBLE EARTH
Suited to meet Green Building Council of Australia (GBCA) requirements where cable being installed must be halogen free.
Features
PVC Free - Low Smoke Zero Halogen 110°C continuous operation
Flame retardant
Flexible, easy to strip, install & terminate
Class 6 Flexible conductors (≥10mm)
RCM certified
Environmentally friendly meeting GBCA requirements
PVC Free certified - Bureau Veritas & GECA
Technical Specifications
Stranded annealed copper conductors
Flame retardant PVC Free LSZH
X-HF-110 insulation
0.6/1kV voltage rating
Green and yellow sheath
-25°C to +110°C operating temperature
Compliance
Conductors & Insulation - AS/NZS 1125, AS/NZS 3808, AS/NZS 1660.1, 1660.2, 1660.3, 1660.4
Cable Construction - AS/NZS 5000.1, AS/NZS 3000:2007
Vertical Flame Spread - AS/NZS 1660.5.1 (Sec 6, Cat C, AS/NZS 60332-3-24)
Smoke Density - AS/NZS 1660.5.2, AS/NZS IEC 61034
Halogen Gas - AS/NZS 1660.5.3, AS/NZS IEC 60754-1
Acidity of Gases - AS/NZS 1660.5.4, AS/NZS IEC 60754-2
Vertical Flame Propagation - AS/NZS 1660.5.6, AS/NZS IEC 60332-1
Bureau Veritas - PVC Free
RCM / Global Mark Certificate of Suitability
Cable is cut to length per project.

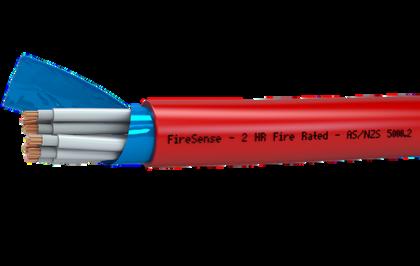

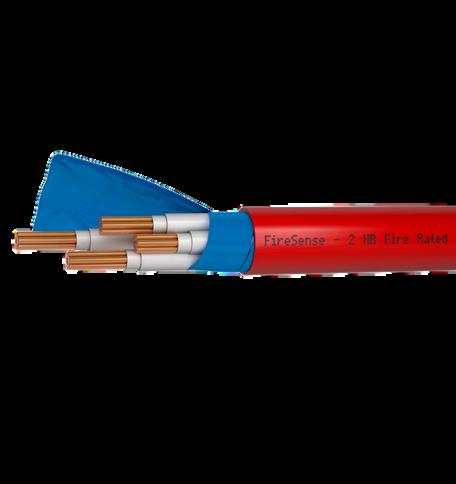

2HR FIRE RATED CUSTOM CABLE
FireSense can produce high quality custom cables to meet your project needs. Our specialist team will work with you to understand your cable and project requirements and will oversee the development and manufacturing process, ensuring the most stringent quality standards are achieved.
Custom cables are indent items and lead times will apply. FireSense cables have all relevant certifications and approvals and are independently certified.
2HR FIRE RATED CUSTOM CABLE

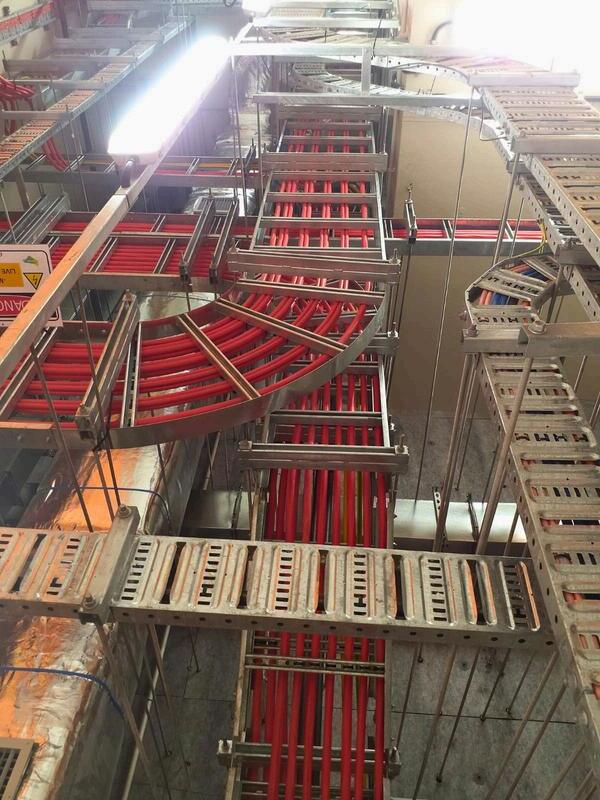

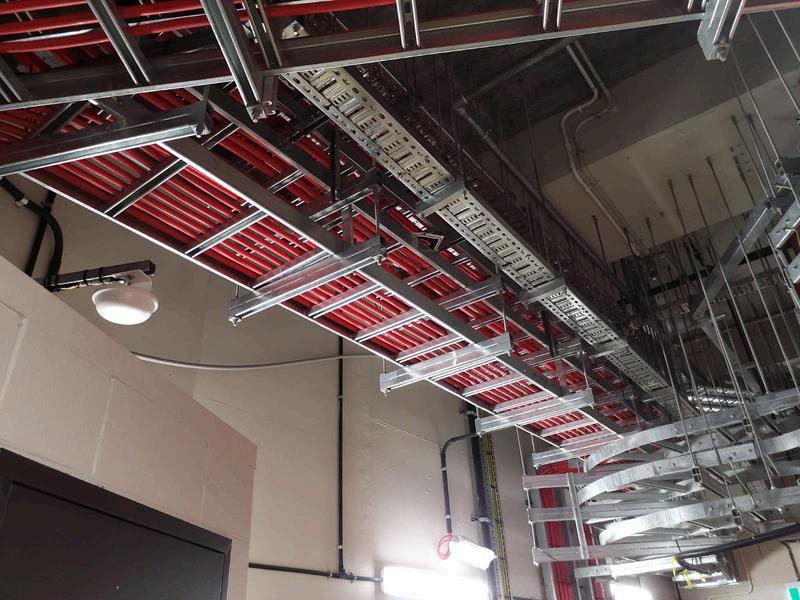

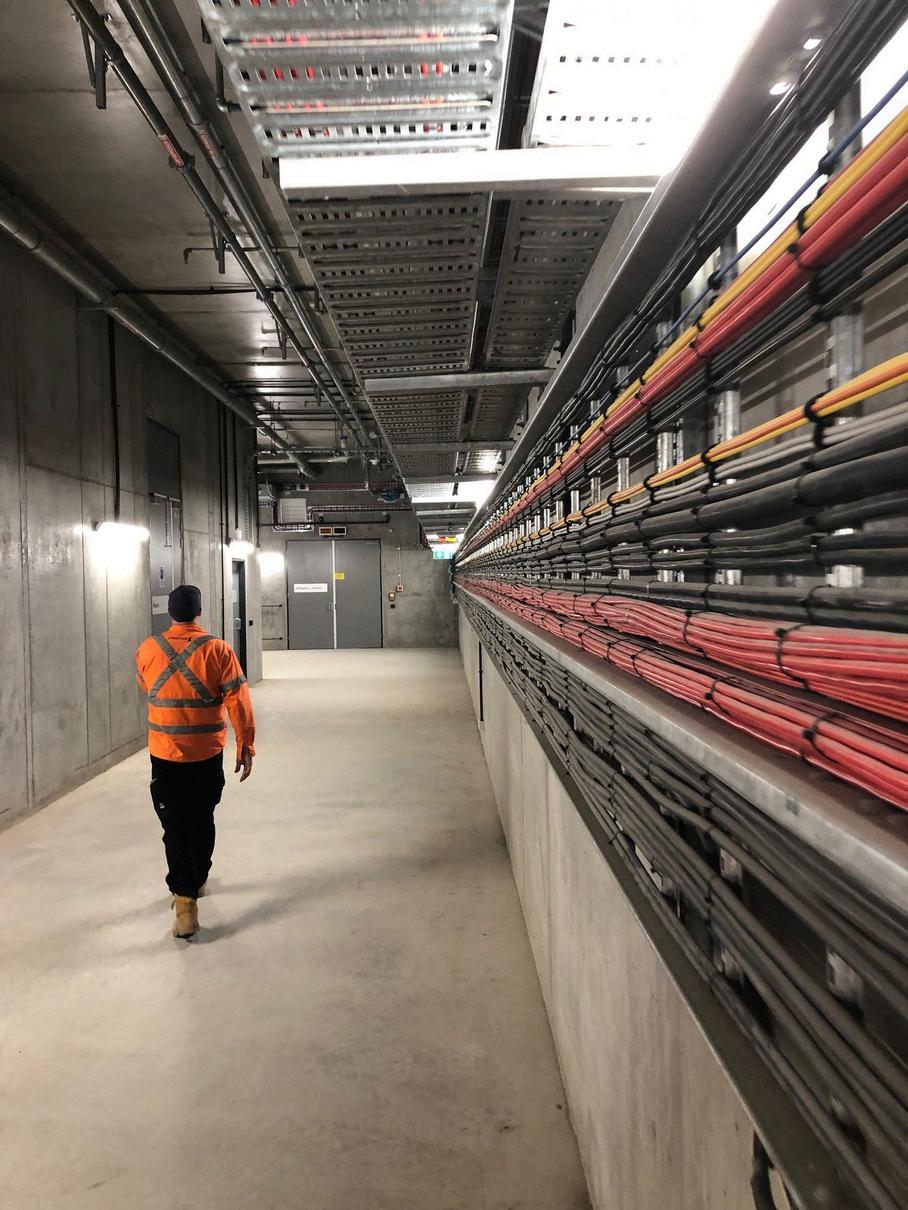

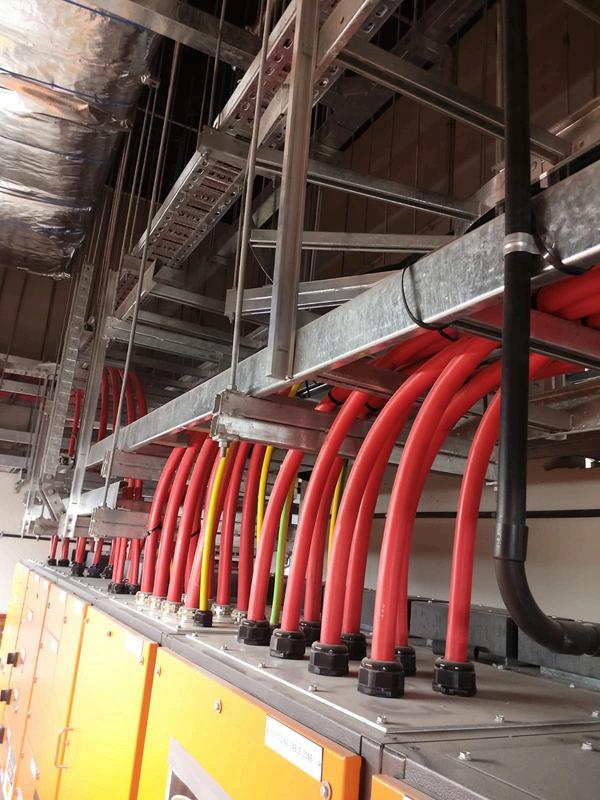

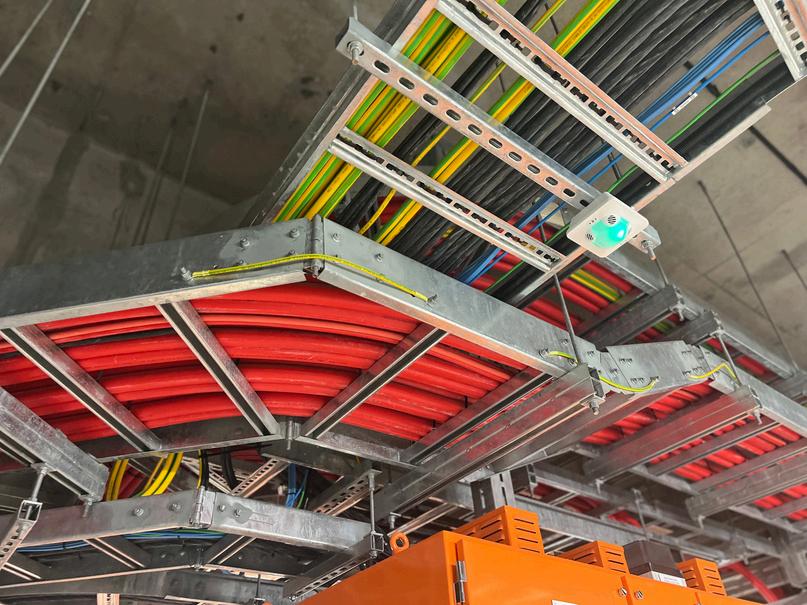

Below are examples of custom cables we have produced for major infrastructure road tunnel and rail projects across Australia.
Cable is cut to length per project.

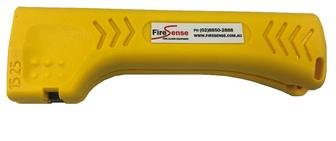

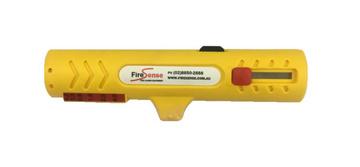

ACCESSORIES
undergroundtunnels AllFireSenseFireRatedcablesuseLSZHmaterials,areco PVCfree,andhavethirdpartyPVCFreecertification.
Terms & Definitions
WSX1-theminimummechanicalprotectionacablemustadheretoinordertob firealarminstallations.AdoptedinAS/NZS1670.1:2015tosetabaserequiremen cablesandtheirmechanicalprotection ThisrequirementisalsostipulatedinAS 1670.1:2018.
V-90-PVCmaterialwithmaximum90ºCoperatingtemperature Applicabletoo cableinsulation&sheath.
X-HF-110-LSZHmaterialwithmaximum110ºCoperatingtemperature Applicab FireRatedinsulation.
HFS-110-TP-LSZHmaterialwithmaximum110ºCoperatingtemperature Appl ourFireRatedsheath.
UVStablised-Astabiliserisaddedtotheresinofasubstanceiecablesheathwh protectsitfromlong-termdegradationfromUVlightegsunlight.
thatprovidesthefirerating.Themicatapeiswrappedaroundeachsinglecopp thecableandprotectsthecoresfromshortingwhichallowsthecabletocontin functionfor2hoursinafiresituation.Theoutersheathisformechanicalprotec
IsyourFRcableUVstabilised?
Yes TheoutersheathofthefireratedcableisconstructedwithHalogenfreec polymersthatareUVstabilised.Theconstructionofthecableisinaccordance relevantstandards.Fadingcanoccurwhenexposedtodirectsunlight,however doesn’taffectthemechanicalpropertiesofthecable.
WhatdoesWS52Wmean?*
AS/NZS3013coverstheFire&Mechanicalperformanceofwiringsystemelem electricalinstallations AWS52WratingindicatesthatALLelementsofacablin havebeentested,andhavepassedthetests,definedinAS/NZS3013relatingt Resistance,ImpactResistance&WaterSprayResistance.Thesetestsensure systemwillmaintaincircuitintegrityunderfireconditionsforaspecifiedtimep frommechanicalimpactsduringnonfireconditions *Seediagramonnextpag

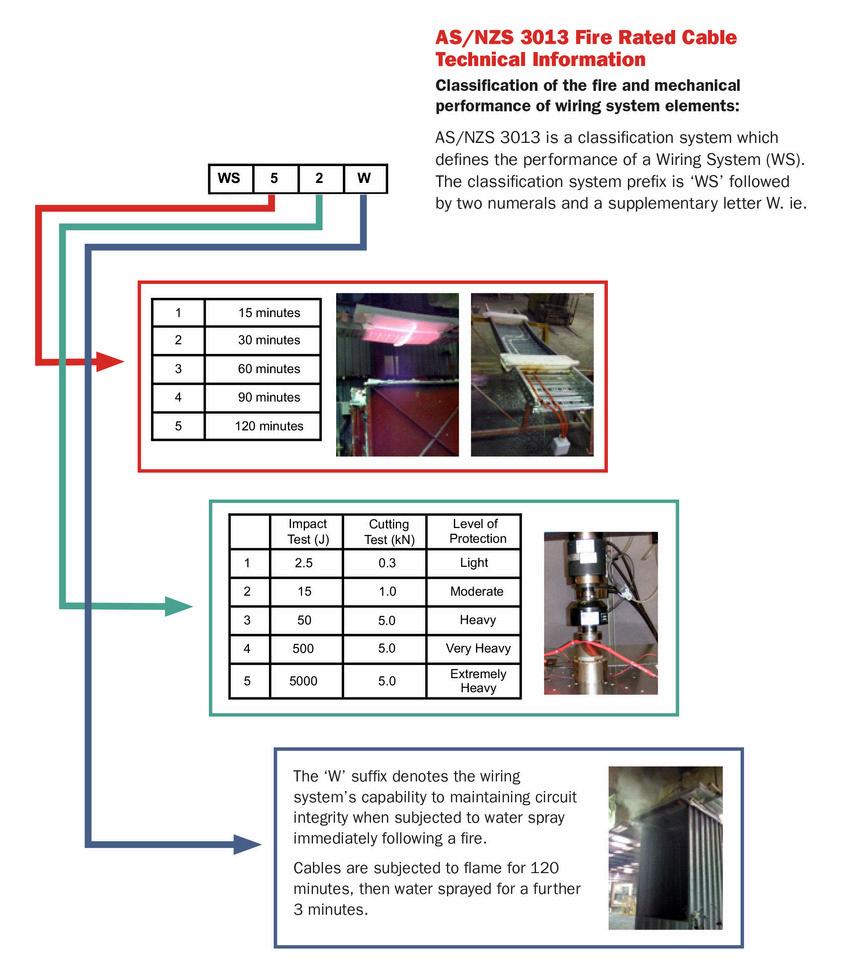

What is WS52W?
AS/NZS 3013 Fire Rated Cable Technical Information
Classification of the fire & mechanical performance of wiring system elements:
AS/NZS 3013 is a classification system which defines the performance of a Wiring System (WS) The classification system prefix is “WS” followed by two numerals and a supplementary letter W.
Making sense of certifications
Product certifications are essential to ensure compliance. You can trust the team at FireSense understands this and work hard to ensure all products have best in class certifications.
FireSense cables are ActivFire certified and are the ONLY full range of ActivFire certified cable in Australia.
FireSense is Triple ISO accredited and certified in Quality, Environment and OH&S.
FireSense cables have RCM / Global Mark Certificates of Suitability and are compliant with all electrical regulations
Partnering to deliver excellence, when & where it counts.
