Contents Executive Summary.....................................................................................06 01 Working With First Nations...................................................................... 08 Always Was Always Will Be.................................................................... 10 History .................................................................................................11 02 Retrofit Opportunity ............................................................................... 12 Why Retrofit......................................................................................... 14 Impact For Greater Melbourne .............................................................. 15 03 Wilam Ngarrang ..................................................................................... 16 The Building Before.............................................................................. 18 The Process ......................................................................................... 20 04 Transformation ...................................................................................... 22 Shopping List ...................................................................................... 24 Before / After Photos............................................................................26 05 Social .................................................................................................... 30 Social Initiatives................................................................................... 32 A Responsible Landlord ....................................................................... 34 06 Environmental .......................................................................................36 What Makes It Special.......................................................................... 38 Energy, Water & Waste ......................................................................... 40 Materials ............................................................................................. 42 07 Financials ..............................................................................................46 Cost Breakdown................................................................................... 48 Costs & Initiatives ...............................................................................50 Living Costs ........................................................................................ 51 08 The Future ............................................................................................. 52 Appendices ................................................................................................56

Wilam Ngarrang Apartments

4

We proudly acknowledge the Wurundjeri people of the Kulin Nation as the owners of the lands on which Wilam Ngarrang exists, and pay our respect to their Elders past, present and emerging.

We recognise the deep connection of First Peoples to Country and value their contribution to caring for, and managing the land, water, natural and built landscapes and their profound knowledge systems.

Team Client:

Architect:

Builder:

Project Manager:

Planning Consultant:

Environmental Consultant:

Executive Summary Imagine transforming all existing buildings in Melbourne from consumers to producers.

The purpose of transforming this building was to create an example for the city. A financially replicable model of a low environmental impact retrofit which is comfortable, whilst reducing operating costs for tenants.

The building has undergone a minimalintervention retrofit, implementing as many cost-effective environmental initiatives as possible, whilst increasing the amenity for tenants and extending the building’s lifespan.

This project serves as an example of what mandatory environmental building retrofits in Melbourne could do, creating a precedent which could be easily replicated across existing buildings in Melbourne.

Rather than knock down our existing structures, with all of their embodied energy and carbon, this project celebrates the opportunity to repair them in a pragmatic and financially viable manner.

Key Facts • ~ 80% reduction in bills • ~80% reduction in embodied carbon emissions in comparison to constructing an equivalent new apartment block • ~35% reduction in mains water consumption through rainwater collection, efficient water fittings and fixtures • Added insulation, airtightness, double glazing & heat recovery ventilation for indoor comfort & energy savings

Wilam Ngarrang Apartments

Key targets of the project were: Net-positive energy, minimised grid water demands, approaching zerowaste operations, minimised carbon in construction, and approaching zerowaste construction.

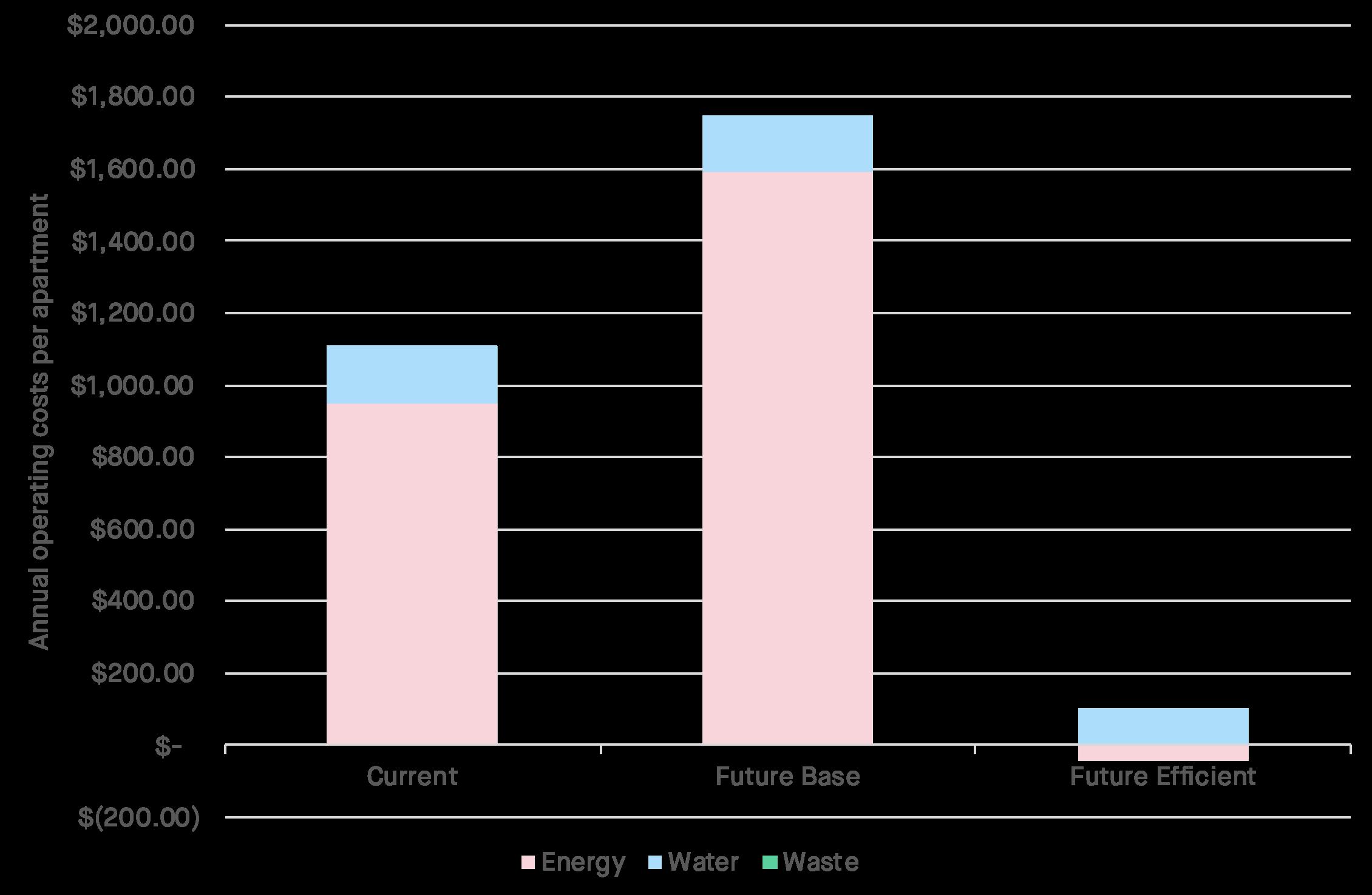

These initiatives target zero cost operations, resulting in a significant reduction in bills.

HomeGround Real Estate - an ethical real estate agency where 100% of profits are used to help end homelessness have been appointed to let out all the apartments. Additionally, two of the apartments will be rented at below market rate to people needing support getting into the rental market.

Working closely with the Wurundjeri Land Council, the building has been named in Woi Wurrung language and in collaboration with Wurundjeri artist, Alex Kerr, a mural has been created on the building. The project is also committed to “Pay The Rent” back to First Nations organisations annually.

We acknowledge that Wilam Ngarrang Apartments are on Wurundjeri Land.

Sovereignty has never been ceded, this was and always will be, Aboriginal land.

• Added efficient VRF heating and cooling for occupant comfort, with added energy consumption more than offset by on-site solar generation • Added CO2 heat pumps for DHW, with sufficient thermal storage to run exclusively in daylight hours to maximise the use of rooftop solar PV • 33kW rooftop solar system that generates more power than the building consumes each year • Designed to reduce waste through onsite communal composting • A commitment to Pay the Rent 6

Why is retrofitting important?

The most cost-effective solution to making major cuts in greenhouse gas emissions is retrofitting existing buildings.

The industry is still focused on new “sustainable” buildings, but the best solution is actually in retrofit.

Existing buildings present a much larger problem — and a larger opportunity — than new buildings.

Two thirds of all existing building stock globally will still be in use by 2050.

Embodied emissions are the next big issue and new buildings cannot compete with the low environmental impact of improving our existing structures.

There are over 1 million buildings in Melbourne that need energy efficiency upgrades - 1.3 million residential homes and 40,000 commercial buildings.

Melbourne wastes around $4.5 billion annually through inefficient buildings.

Australia’s First Plus Energy Retrofit of an Apartment Block Reducing energy consumption through retrofitting buildings is a significant and cost-effective opportunity. It is estimated that energy efficiency could result in a 53% reduction in energy consumption in residential buildings, and a 44% reduction in energy consumption in non-residential buildings.

The aim was to create a profitable example of retrofitting, that connects with people to help speed up much needed policy.

Here are three simple steps to retrofit our existing building stock; 1. Electrification of buildings 2. Energy efficiency upgrades including building fabric and efficient equipment 3. Increasing solar uptake on buildings By doing this, we can reduce emissions in Greater Melbourne by more than 40%.

7

01.

Working with First Nations We proudly acknowledge the Wurundjeri people of the Kulin Nation as the owners of the lands on which Wilam Ngarrang exists, and pay our respect to their Elders past, present and emerging

Wilam Ngarrang Apartments

8

9

Always Was And Always Will Be

We acknowledge the Wurundjeri Woiwurrung people as the sovereign custodians of the land on which this project exists on. We acknowledge their long-standing and continuing care for Country and we recognise First Peoples stronge practice has been thriving here for millennia. We extend our respect to ancestors and Elders past and present, and to all First Nations people.

This land is situated on Wurundjeri land and was stolen from them - we are therefore the beneficiaries of this stolen land. This is only one of the reasons why we believe it is so important to pay our respects to the Traditional Owners of the land and incorporate them into the development process.

From early on, we engaged with the Wurundjeri council, meeting with their elders and discussing the project. We had a few ideas about how we could pay our respects and gratitude. The Aunties were incredibly forthcoming with their time and were honest and open. This project would not have been the same without their involvement.

the courtyard of the building. Alex, who also performed a Welcome to Country at the opening of the building, designed a mural for the building.

The design is to represent all the residences that will live here and the journeys they have all been on by the use of meeting places and the curved path from each meeting place. We then have both Waa (crow) - Our protector & Bunjil (Egale) - Our creator, watching over everyone while they are on country and keeping them safe.

The project is also committed to paying 2% of revenue from the building back to First Nations led organizations annually.

This signifies an acknowledgement that we are in fact on Aboriginal land and we should be passing on the wealth that is generated on their land. In line with the rest of the project, we think that this acts as an example that other developers/ property owners could replicate.

Out of these consultations, the major theme that emerged was the presence of culture. Unfortunately the First Nations culture was being diminished over time. The Aunties suggested a number of interventions that could add First Nations culture into the project and create a place where Indigenous Australians would feel comfortable.

One of the recommendations was using Woi Wurrung language to name the building, and so the name ‘Wilam Ngarrang’ was suggested. Wilam Ngarrang - translates to ‘Place to reflect’ - felt like a beautiful and fitting name for the building.

In collaboration with Wurundjeri artist, Alex Kerr, a mural has been created in

Wilam Ngarrang Apartments

10

History

Ngár-go/Fitzroy a place of great significance for the Aboriginal and Torres Strait Islander rights movement in Australia. Ngár-go/Fitzroy was a safe gathering place for Aboriginal and Torres Strait Islander people moving to Melbourne from the 1920s onwards, and a place where many of the Stolen Generations came to find family and reconnect with their community.

The Wurundjeri people before contact lived, worked and looked after the land in the area now known as Fitzroy since the beginning of time. The cities of Fitzroy and Collingwood now stand on these traditional lands. The settlement and development of the city of Melbourne impacted heavily upon the Wurundjeri people. Dispossession of land, dislocation, frontier clashes, massacres and the impact of introduced diseases saw a dramatic decline in Aboriginal populations of the area. In 1835, Wurundjeri ‘Ngurungaetas’ (or tribal leaders) Billibellary and Bebejan were tricked into signing a treaty (later deemed invalid by the English government) with visiting businessman, John Batman, that signed over a large portion of Wurundjeri land in exchange for gifts such as flour, blankets and steel axes. As the government tried to assimilate Aboriginal people into white society, the Wurundjeri people were encouraged to move to the Merri Creek Protectorate Station. When this failed, people were moved to the Acheron Mission Station, and later to Coranderrk (run by the Aboriginal Protectorate Board), near Healesville. Coranderrk was closed in the 1920s by the government, but some of the Wurundjeri refused to leave and stayed on.

the 1920s onwards, the Aboriginal community of Melbourne began to steadily increase with the wave of Aboriginal people coming straight from the missions such as Thomas James, Grace Brux, Margaret Tucker, Martha Nevin (Wandin, Wurundjeri women) and William Cooper, who moved to Fitzroy from Cummeragunja between 1920 and 1935. By the 1950s, Fitzroy supported a community of more than 300 Aboriginal people, with many living in surrounding inner city suburbs. Fitzroy not only became the largest Aboriginal community in Victoria, it also became the social and political hub of Aboriginal Melbourne.

We highly recommend everyone exploring Fitzroy/Ngar-go through the Yalinguth app. Yalinguth uses soundbased augmented reality to connect people walking through a location with stories told by local Aboriginal and Torres Strait Islanders. With headphones on and the app launched you will be guided by stories and sounds, drawing you closer, until you are right there in the middle of a protest, sitting beside a storyteller, or walking next to a poet. https://www.yalinguth.com.au/ Information gathered from the FITZROY ABORIGINAL HERITAGE WALKING TRAIL, accessed via https:// aboriginalhistoryofyarra.com.au/

Despite the effects of colonisation, Aboriginal people and culture survived and the strong bonds between families and clans could not be broken. From 11

02.

Retrofit Opportunity Retrofitting is the most cost-effective way to make major cuts in energy use and reduce greenhouse gas emissions

Wilam Ngarrang Apartments

12

13

Why Retrofit?

Retrofitting is the most cost-effective way to make major cuts in energy use and reduce greenhouse gas emissions.

We can significantly improve the energy performance of existing buildings by doing three things:

The industry is still focused on building new “sustainable” buildings, however existing buildings present a much larger problem, and much greater opportunity.

Two thirds of the buildings that will be around in 2050 already exist today.

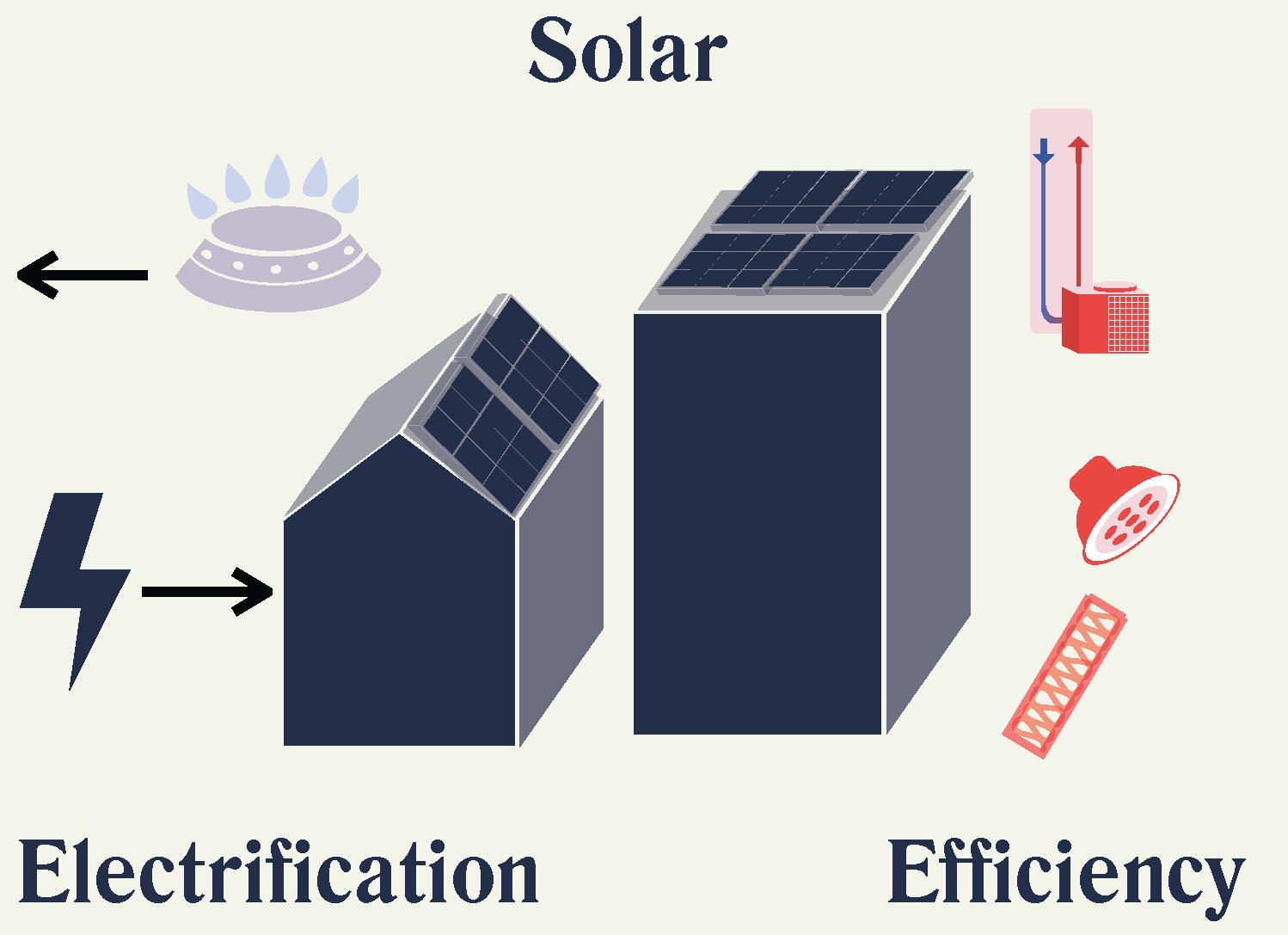

1. Electrifying the Existing Building 2. Adding Energy Efficiency Upgrades 3. Increasing solar uptake on buildings

Melbourne’s emissions can be reduced by more than 40% if we retrofit our existing residential and non-residential buildings.

All these initiatives are cost effective, in average paying for themselves in 7 years.

Solar

Electrification

Wilam Ngarrang Apartments

Efficiency

14

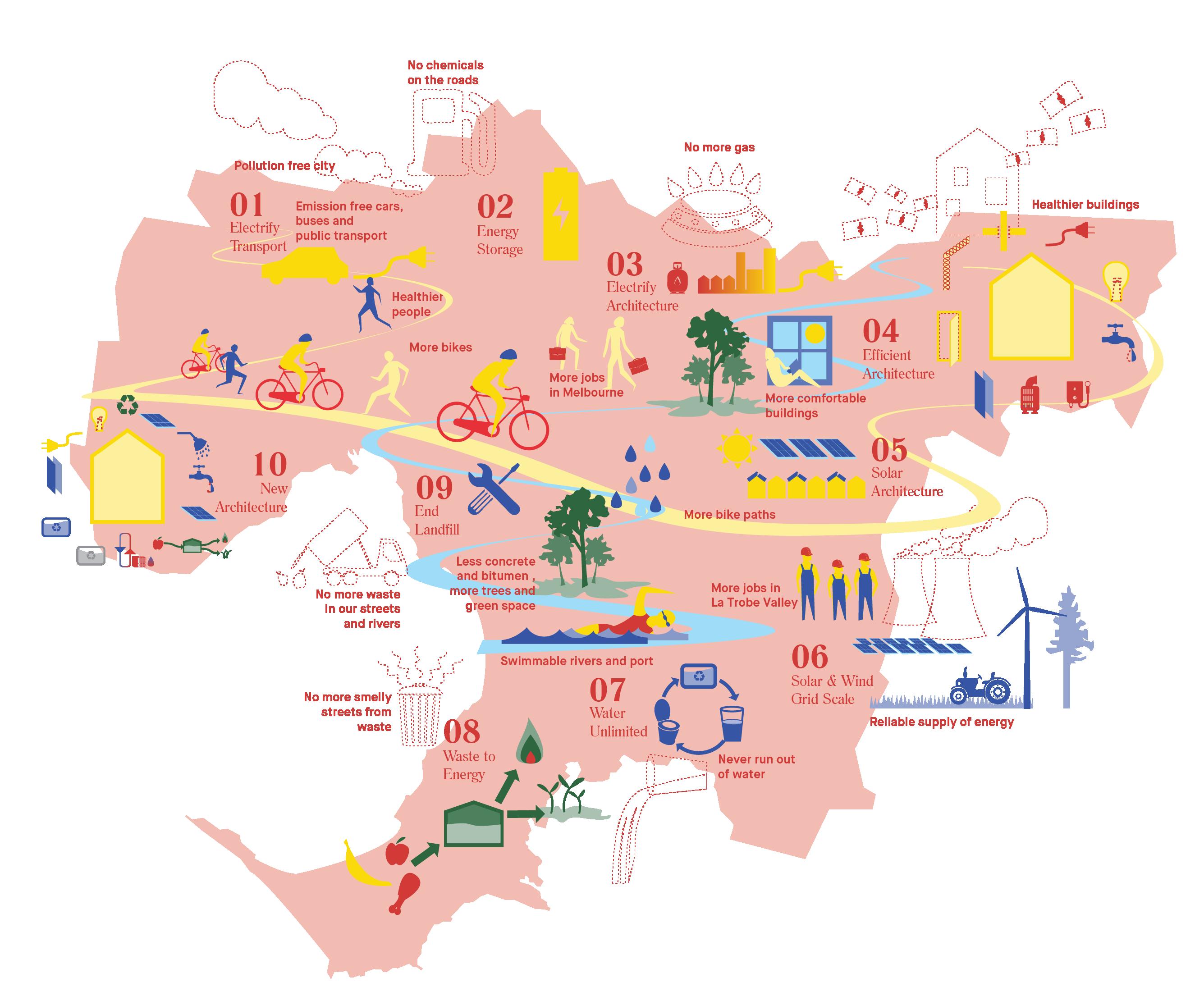

Impact for Greater Melbourne What is the environmental impact?

Efficiency retrofits can reduce energy consumption by 28%. Applied across the city, in combination with electrification and expansion of solar PV, this could reduce emissions by over 40%.

capital cost:

$55 billion

How much will it cost?

There are over 1 million buildings in Melbourne that require energy efficiency upgrades.

This is a $55 billion opportunity for Melbourne that will create over 55,000 jobs.

payback period:

within 7 yrs

What is the return on investment?

This is estimated to save around $8.29 billion annually, resulting in a simple payback of around 7 years.

annual savings:

$8.29 billion

Capital Cost

Annual Savings

Payback

Jobs

Electrification

$3.8 billion

$0.59 billion

6.5 years

1,400

Efficiency

$28.7 billion

$4.5 billion

6.4 years

11,000

Solar

$22 billion

$3.2 billion

7 years

43,000

Total

$54.5 billion

$8.29 billion

7 years

55,000 jobs

15

03.

Wilam Ngarrang

Wilam Ngarrang Apartments

16

Australia’s first plus energy retrofit of an apartment building

We Are Here

ransport Greater Melbourne

CBD

17

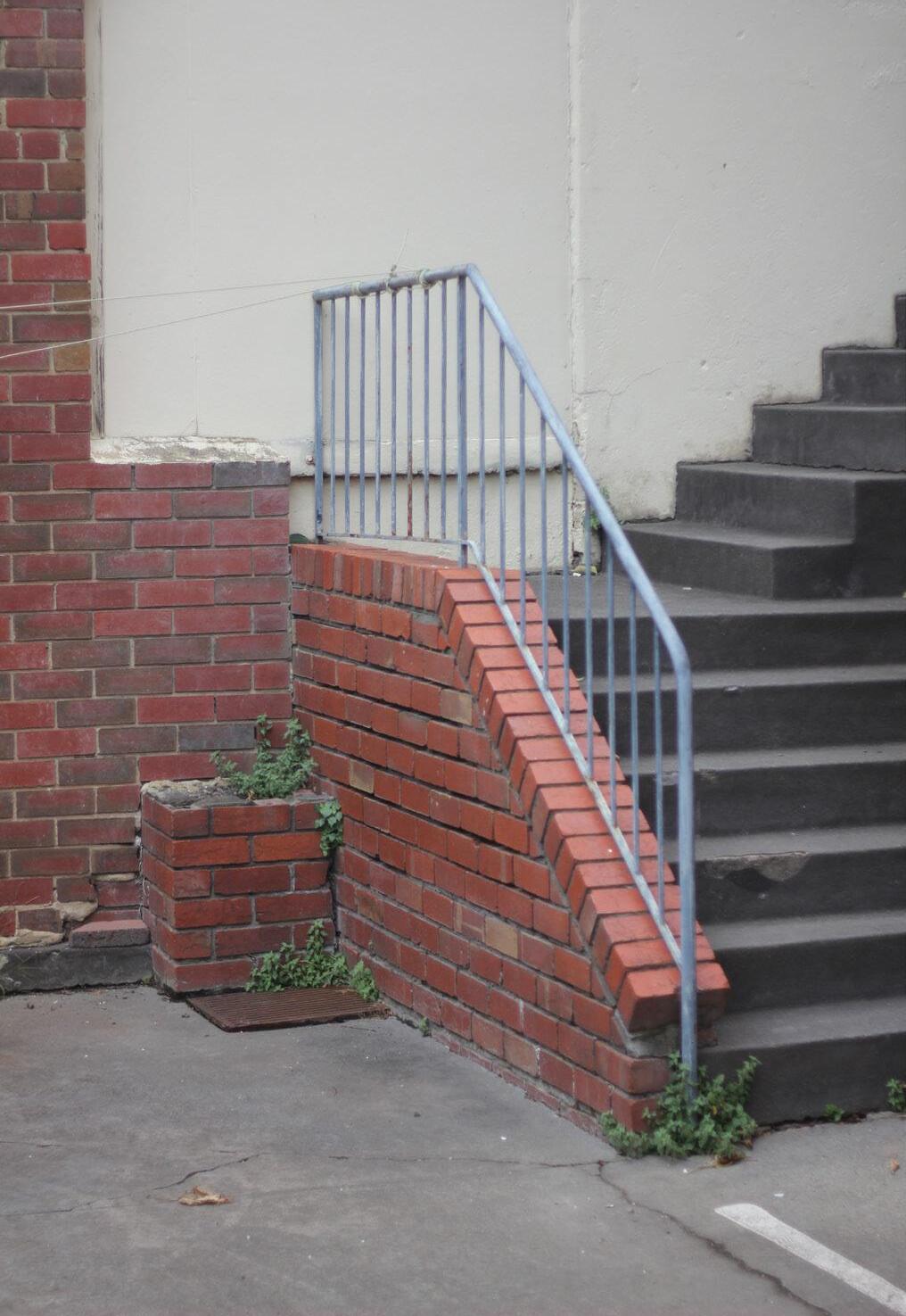

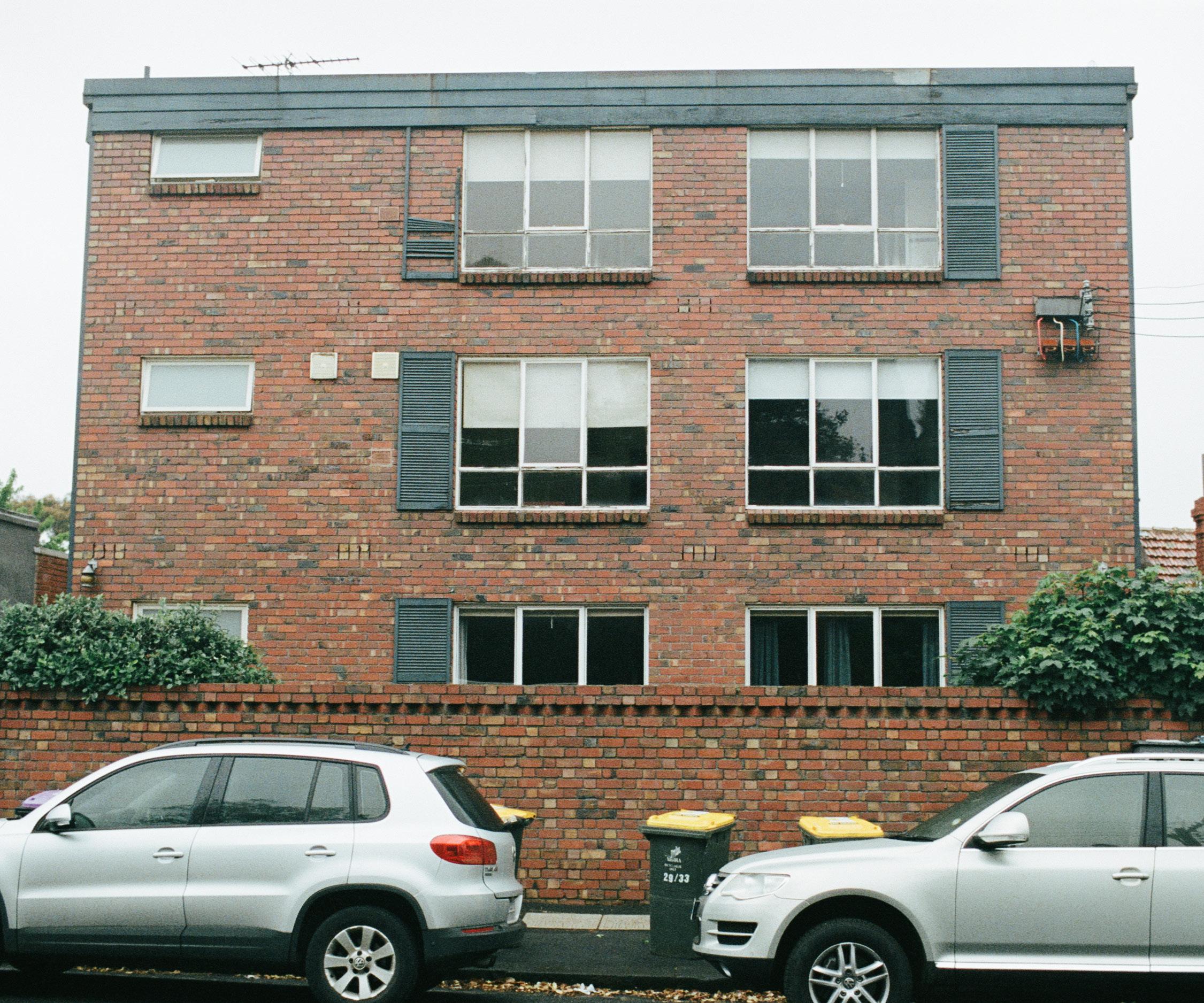

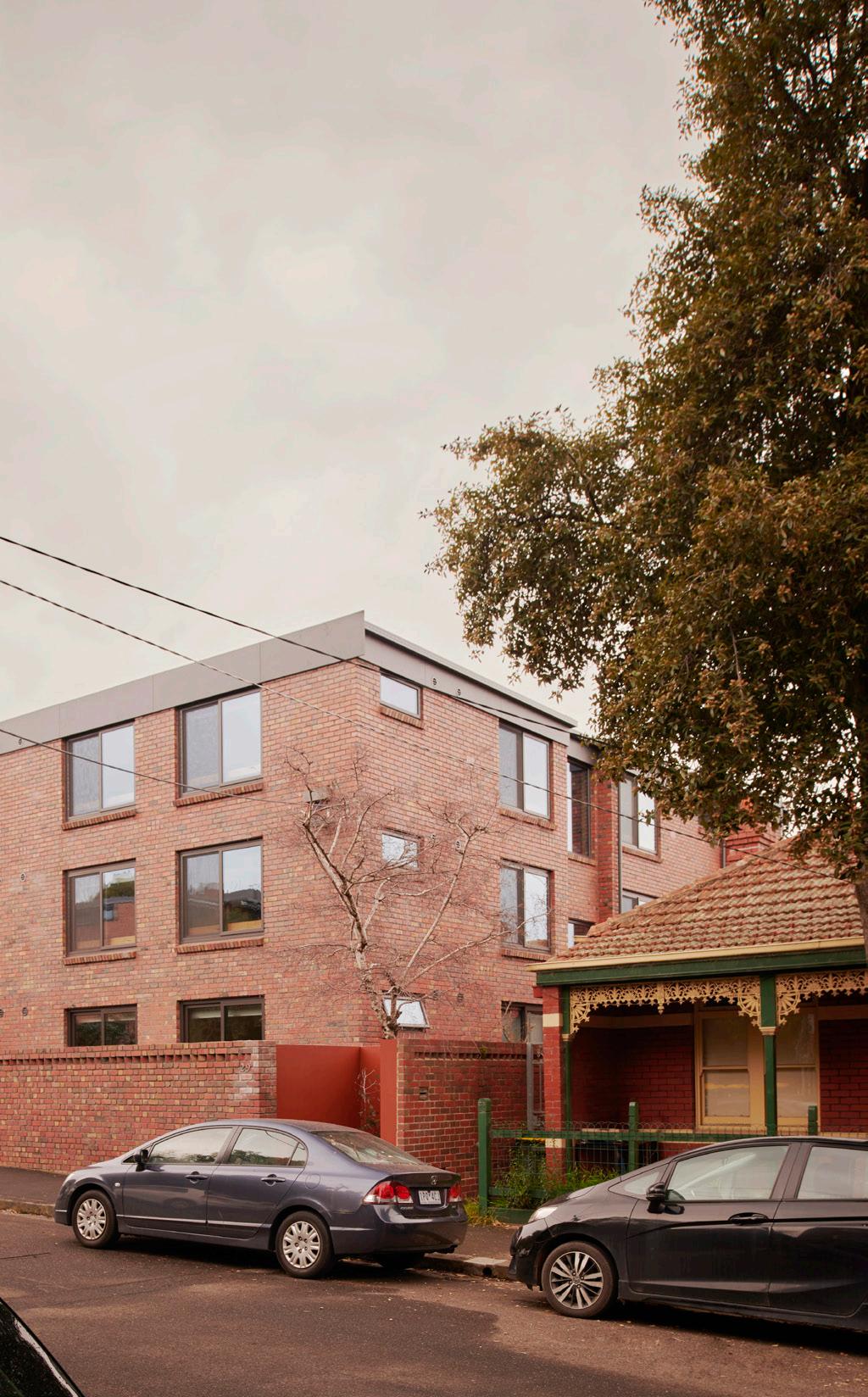

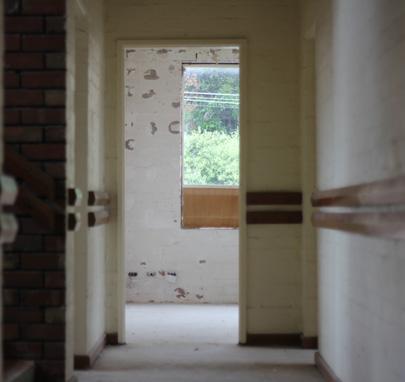

The Building Before

Wilam Ngarrang Apartments are located on King William Street in Fitzroy, Naarm (Melbourne).

There are 15 studio apartments spread across 3 stories. Each apartment is ~30m2.

The entire apartment building has undergone an extensive retrofit which involved major upgrades to the apartments, communal spaces and outside spaces.

The original building included: // A rear car park // No bike storage // No functional intercom system // No heating and cooling // No fixed cooking equipment // No rainwater storage // No solar // Coin operated communal laundries // Instantaneous electric hot water units // No kitchen or bathroom exhaust system

Photographer: Nat Jurrens

Wilam Ngarrang Apartments

18

Location

Wilam Ngarrang

Carlton Gardens

Melbourne CBD

Melbourne Cricket Ground

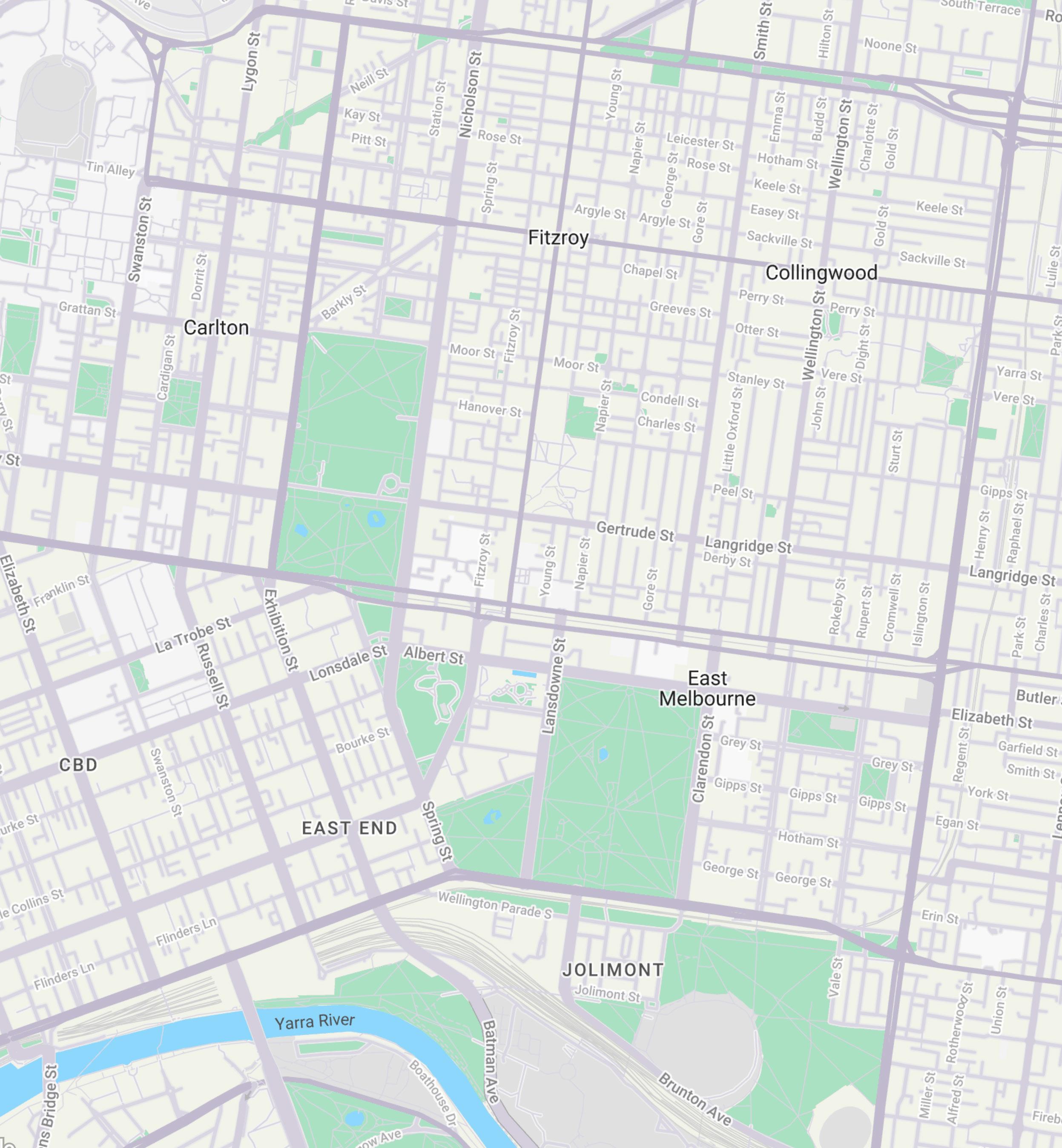

Figure 1: Location Plan of the Wilam Ngarrang Apartments

19

The Process The process:

How long did it take?

This project was an environmentally led retrofit, designed to be replicable, driven by environmental pragmatism and social outcomes, and required to demonstrate market rate returns for investors.

From its inception to launch day, the project took just over 2 years to complete.

The client, builder, architect and environmental consultant were all involved in the design and decision making process, particularly when it came to selecting which environmental and social initiatives to include.

The final figure was $2.2 million - or just under $150,000 per apartment including renovating communal areas.

Approach: Our approach was centred around fair tenancy, transparency, environmental pragmatism and creating a holistic, comfortable place to live.

Rather than testing and experimenting with future technologies, this project aims to meet the environmental financial threshold - where every currently cost effective initiative is implemented.

We aimed to create a model for how to bring our existing building stock into the sustainability movement. This involved implementing every cost effective initiative, increasing the amenity for tenants, and extending the lifespan of the building while not increasing rents to a point where the community would need to move to a new area.

How much did it cost ?

What does simple payback mean?

Simple payback refers to the time it takes to pay back or recover the cost of an investment such as energy saving lights, solar panels, or rainwater tanks.

When calculating the payback period, we don’t just consider the cost of the investment, we also take into account how much each investment saves annually in regards to bills.

Once we work out this, we can then determine how long it will take to pay back the energy, water, and waste saving investments we have implemented.

Generally, we try to focus on initiatives that pay for themselves within 10 years.

Integral to the project approach was: // A great and dedicated team // Consulting with Wurundjeri Land Council from the start // Implementing key environmental Initiatives // Implementing key social initiatives // Finding a like minded estate agent, HomeGround Real Estate

Wilam Ngarrang Apartments

20

2021

Environmental Feasibility

Client Briefing workshop

Engage Architect Engage Other Consultants

Engage Builder

Vic Smart Planning Process

Develop Design Concept

(10 days)

Finalise Design

Commence Demolition Work

Commence Construction Works

2023 Construction Completion

Occupation

21

04.

Transformation

Wilam Ngarrang Apartments

22

Implementing cost-effective initiatives can reduce the impact of the building and save occupants money

Cost-effective initiatives

23

Shopping List In order to transform the existing building into Australia’s first plus energy retrofit, a number of cost effective initiatives had to be implemented.

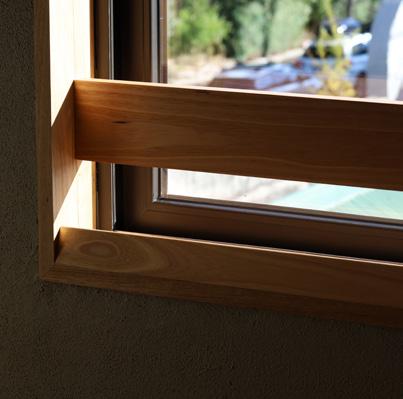

What We Did: // Internal Insulation // Window Upgrade // Airtightness // Efficient Lighting // Solar PV System // Domestic Hot Water Upgrade // Heat Recovery System (HRV) // Efficient Showers & Taps // Rainwater Collection & Storage // Greywater used for communal laundry // Communal Compost // Energy Monitoring System // Zero Waste Apartment Design // Bike Parking // Heating and Cooling (VRV) // Upgrade Communal Laundry // Upgrade Front & Back Fence // Upgrade Communal Areas // Upgrade Interior & Finishes // Upgrade Entry // Upgrade Intercom // New Kitchen // New Bathroom // New Communal Kitchen // Remove / Replace Carpets // Remove Carpark // Landscaping & Gardens // Concrete Repair // Upgrade Roof

Wilam Ngarrang Apartments

When it came to deciding which initiatives to include, the shopping list was quite extensive.

Amazingly, the majority of the items on the list made the cut.

Initiatives that we were unable to implement: // Extend the building to create diversity of apartment typologies // External shading // Make the building fully accessible // Integrated furniture // External insulation and cladding // Solar pergola in courtyard // Electric car share // Private external storage for tenants These initiatives were removed from the scope for a number of reasons; mainly to do with feasibility, budget, regulations (such as fire) & objective design decisions.

24

Priorities Initiative / item Concrete repair / structural upgrade

Category

Priority

Have to do

High

Upgrade individual kitchens

Social

High

Upgrade bathrooms

Social

High

Window upgrade

Environmental / have to do

High

Solar PV system

Environmental

High

Social

High

Environmental

High

Upgrade roof

Other

High

Communal laundry upgrade

Social

High

Environmental / Social

High

Have to do

High

Other apartment interior upgrades (finishes etc) Exhaust upgrade

Heating & cooling (split systems) Electric panel wall heaters New intercom system and lock upgrade

Environmental

Medium

Communal compost

Social

Medium

Replace / remove carpets in common areas

Social

Medium

Replace / remove carpets in apartments

Social

Medium

Car parking - remove or reconfigure / communal landscape

Social

Medium

Other communal spaces in current laundries

Social

Medium

Landscape – new general paving & planting

Social

Medium

Communal productive gardens

Social

Medium

Environmental / Social

Medium

Internal insulation

Environmental

Medium

Airtightness

Environmental

Medium

Efficient showers and taps

Environmental

Medium

Entry upgrade*

Social

Medium

Letterboxes*

Social

Medium

Energy monitoring system

Environmental

Medium

Internet upgrade (NBN)

Social

Medium

Rainwater collection & storage

Environmental

Medium

Heat Recovery ventilation

Environmental

Medium

Integrated furniture / fit-out

Social

Low

Have to do

Low

Social

Low

Environmental

Low

Environmental / Social

Low

External insulation / cladding*

Environmental

Low

Shading

Environmental

Low

Bike parking

Back fence Storage cages Domestic hot water upgrade (heat pump) Heating (hydronic)

Front fences

Social

Low

Solar pergola in rear courtyard

Environmental / Social

Low

Electric car share

Environmental / Social

Low

New communal kitchen(s)

Social

Low

Balconies

Social

Low

Extend building - towards street, east, west or rear*

Other

Low

Figure 2: We created a shopping list of every initiative we wanted to do, categorised them

into environmental, social and ‘have to do.’ As a team we arranged these in order of priority to determine what was going to happen and how to inform the budget.

25

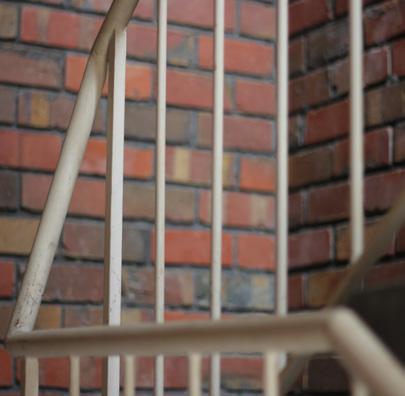

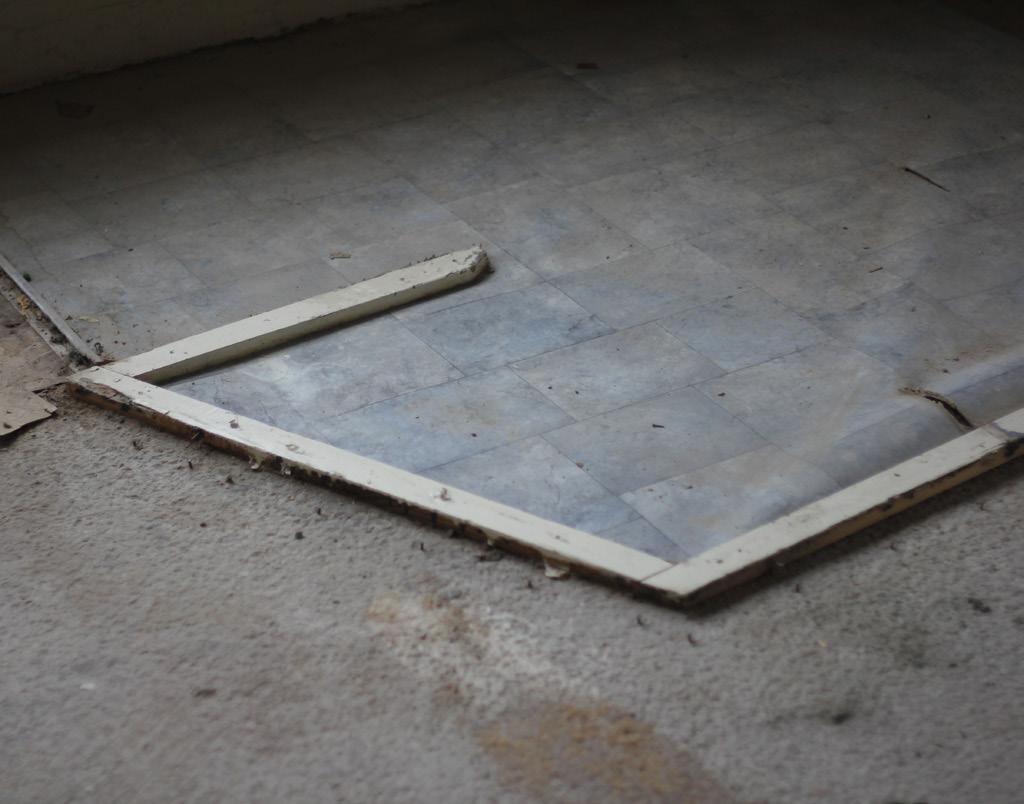

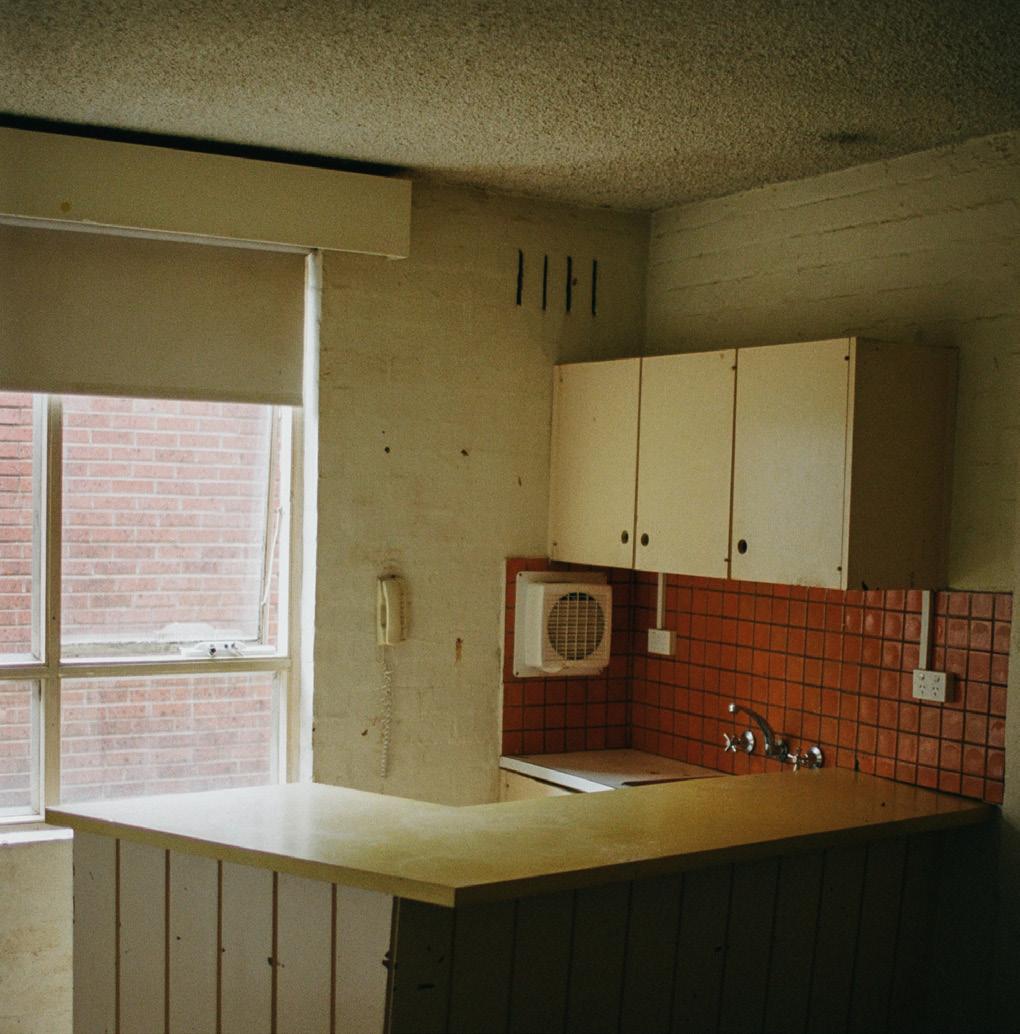

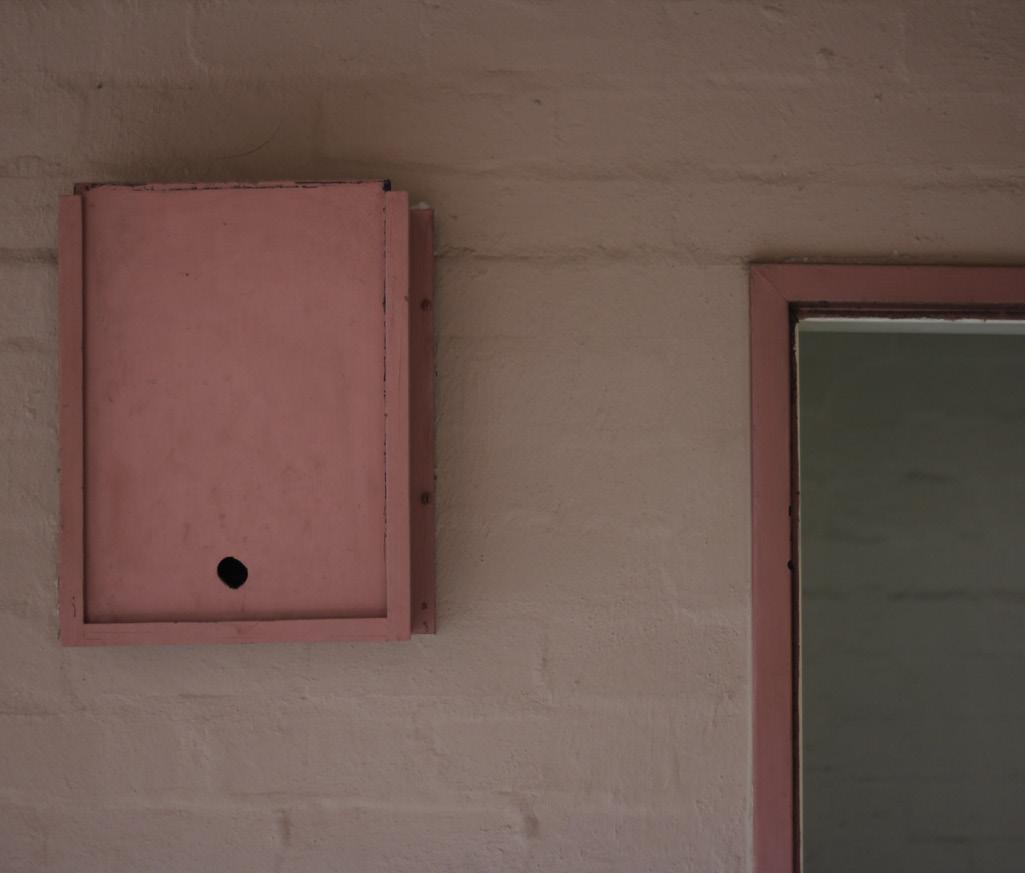

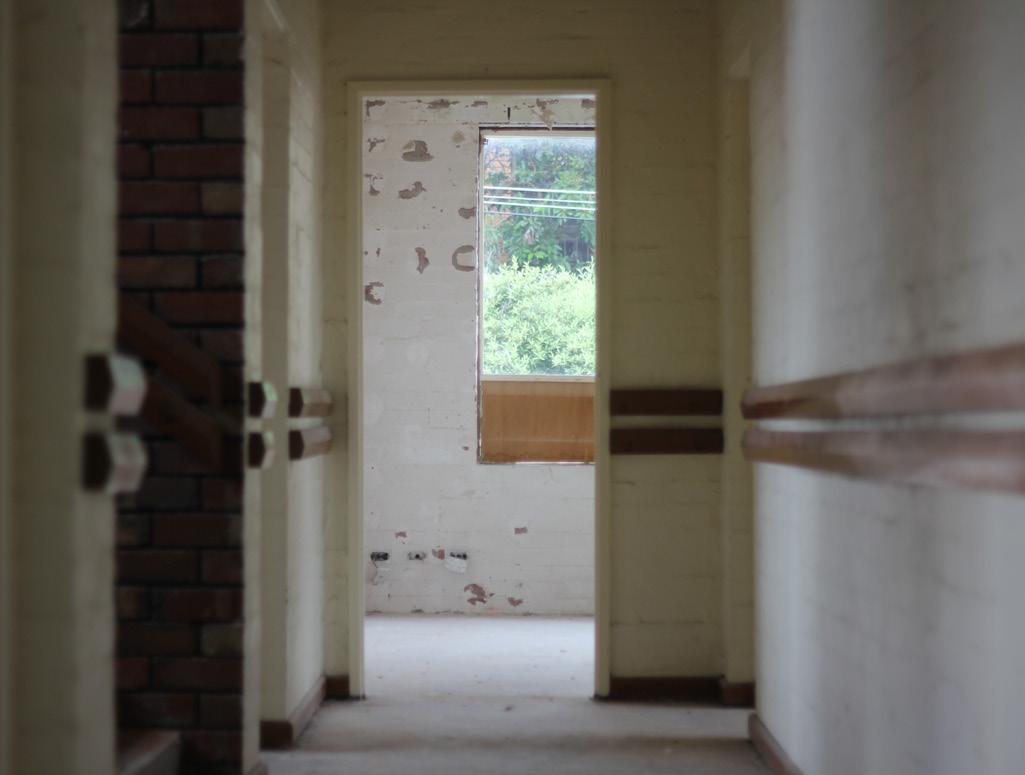

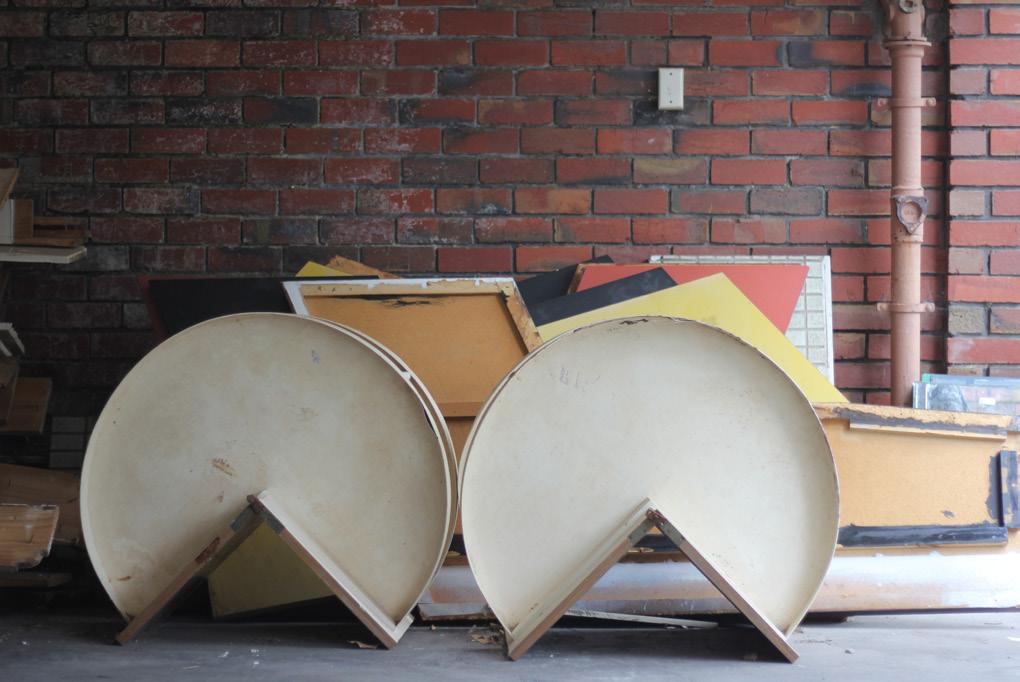

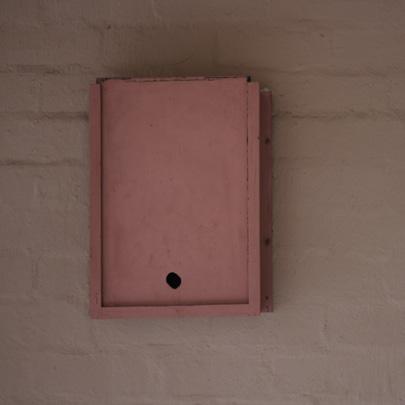

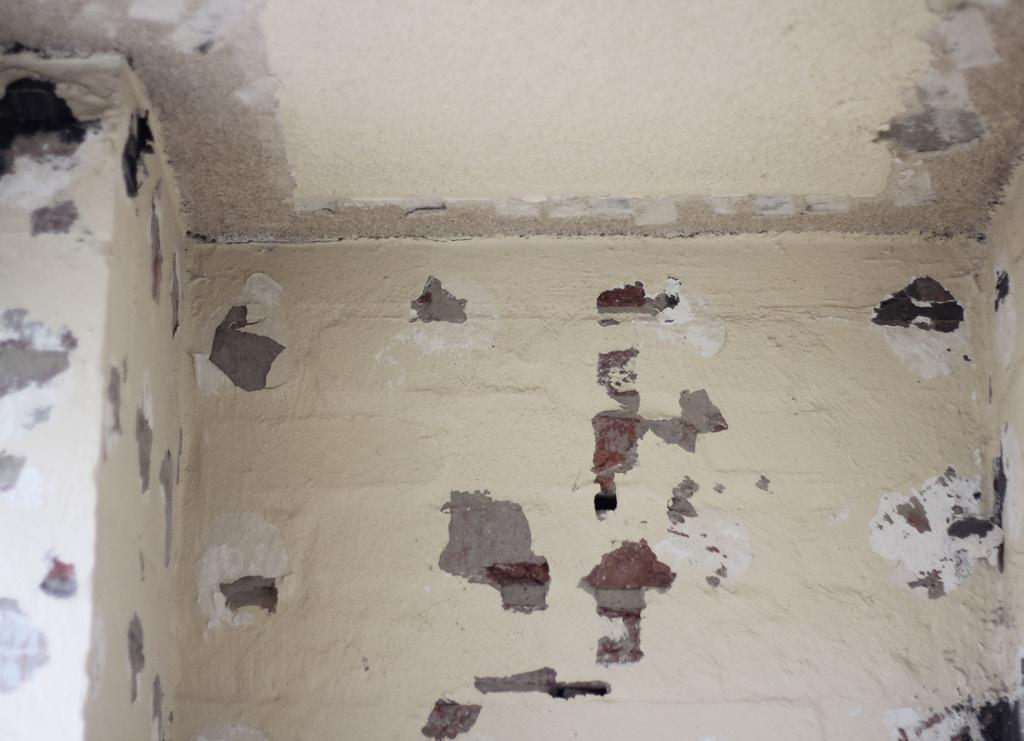

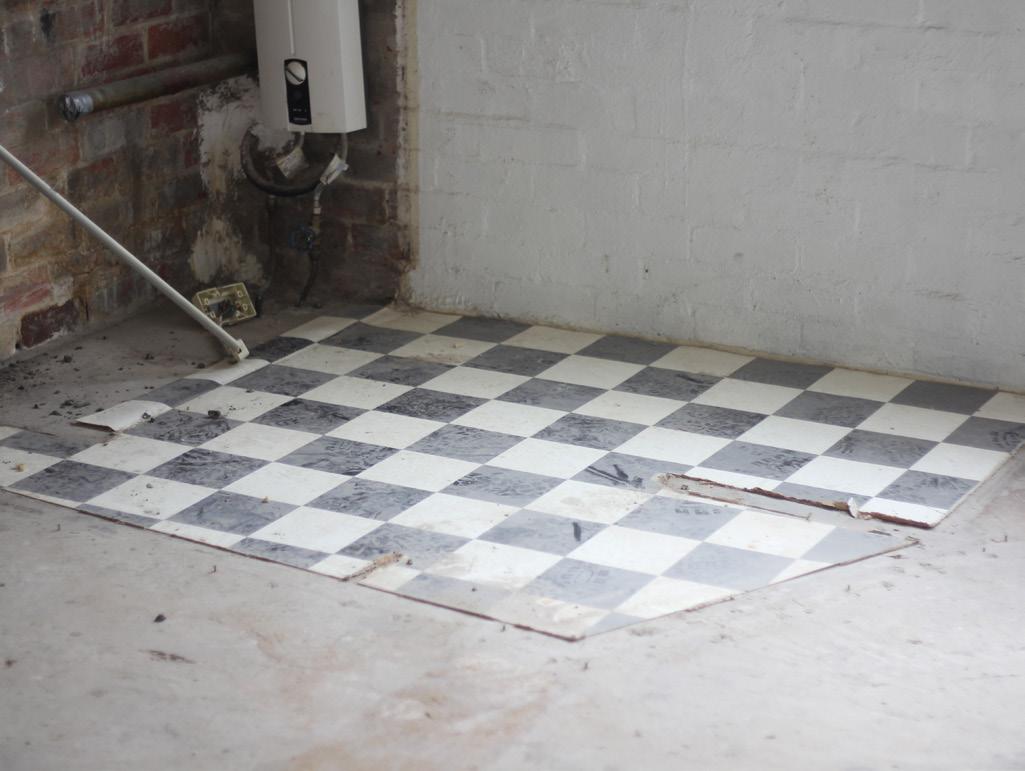

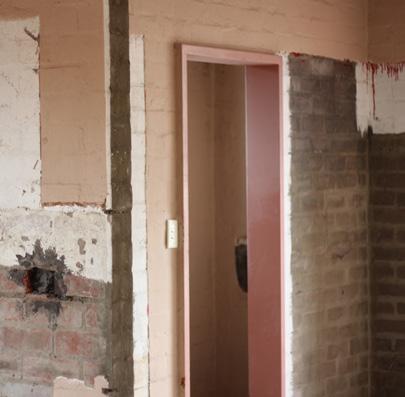

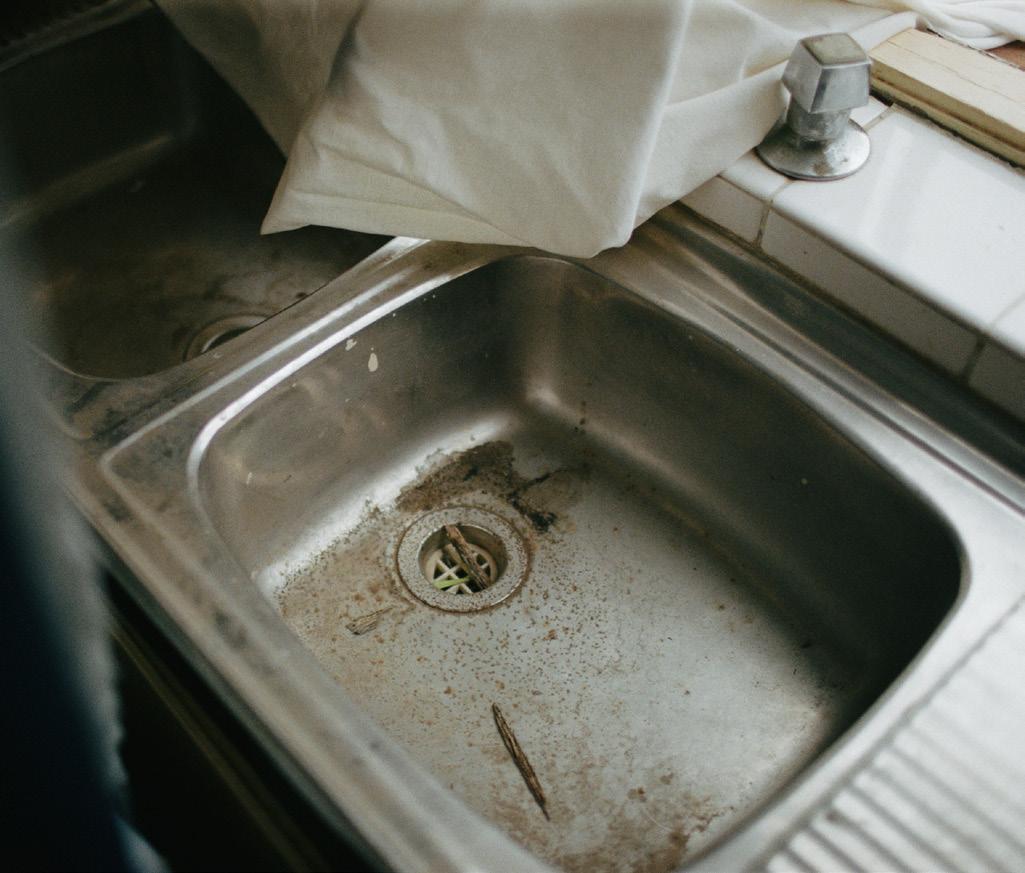

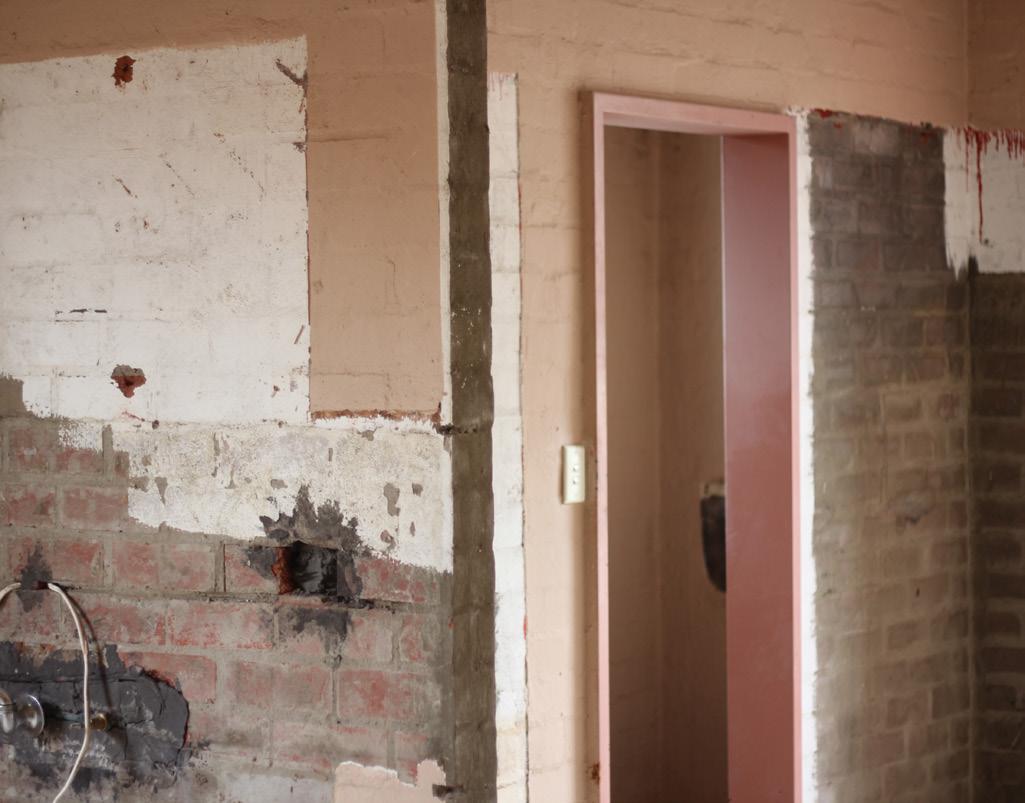

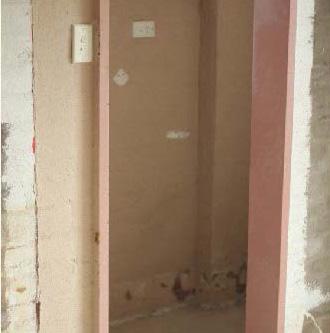

Before

Wilam Ngarrang Apartments

26

Image credit: Nat Jurrens & Tony Laterza

27

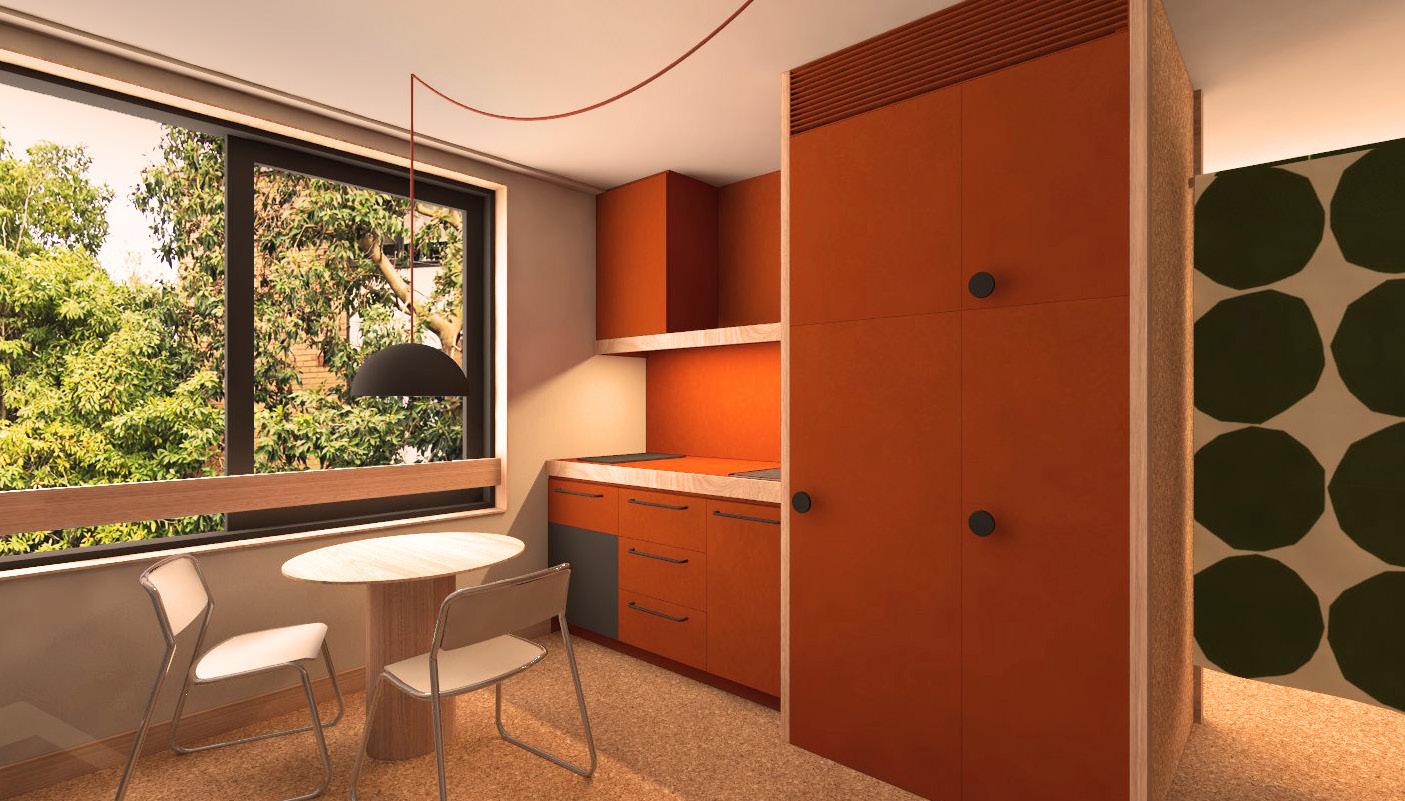

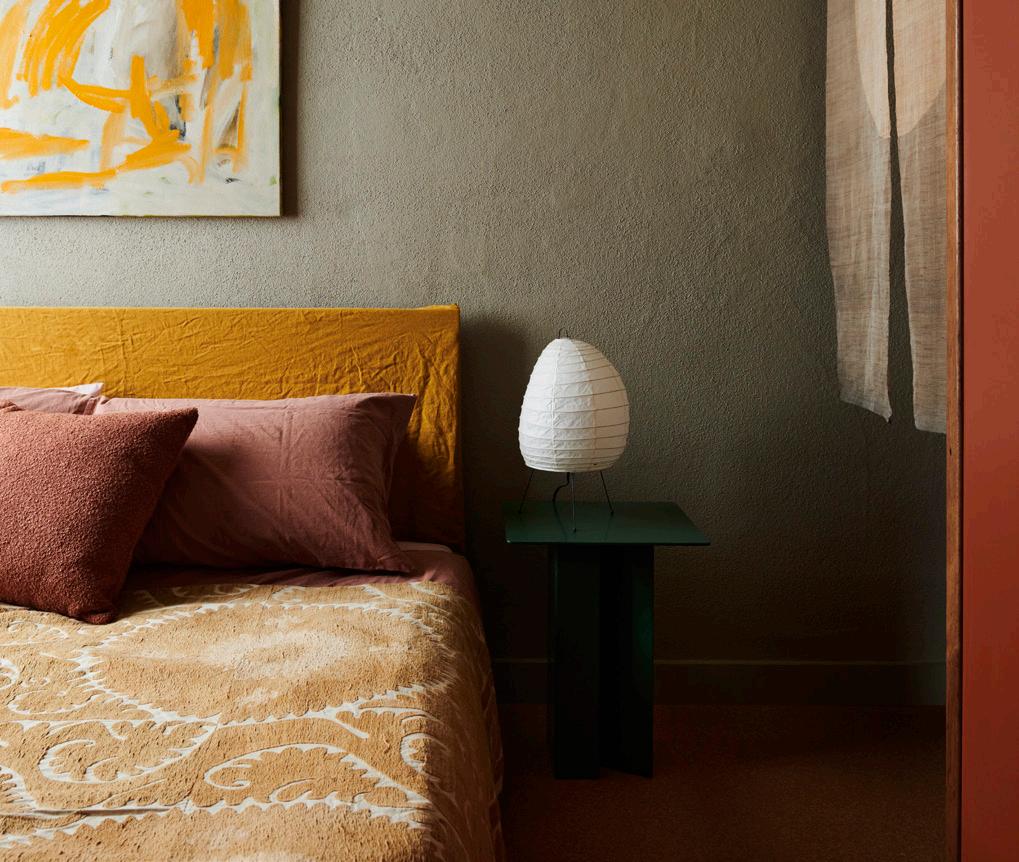

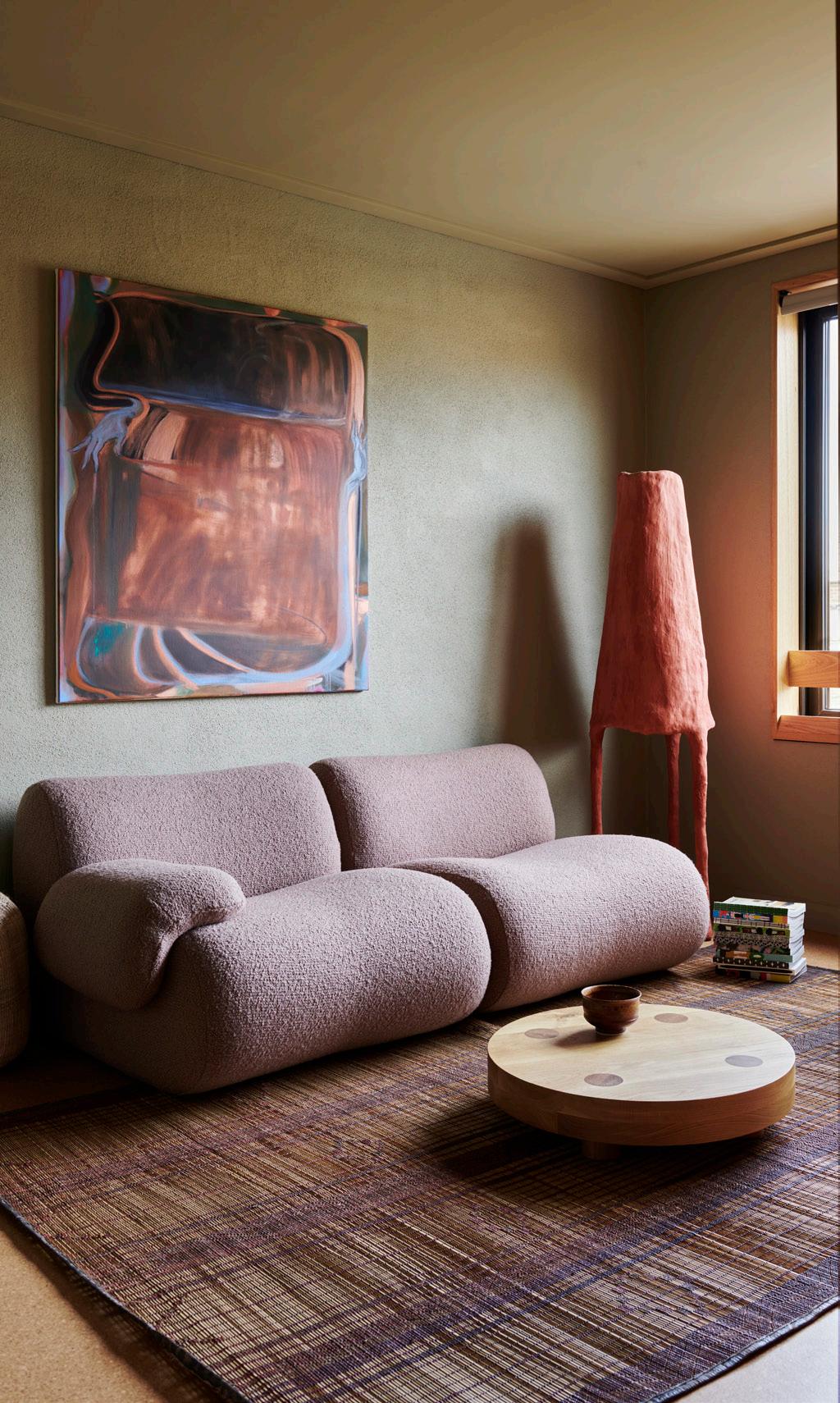

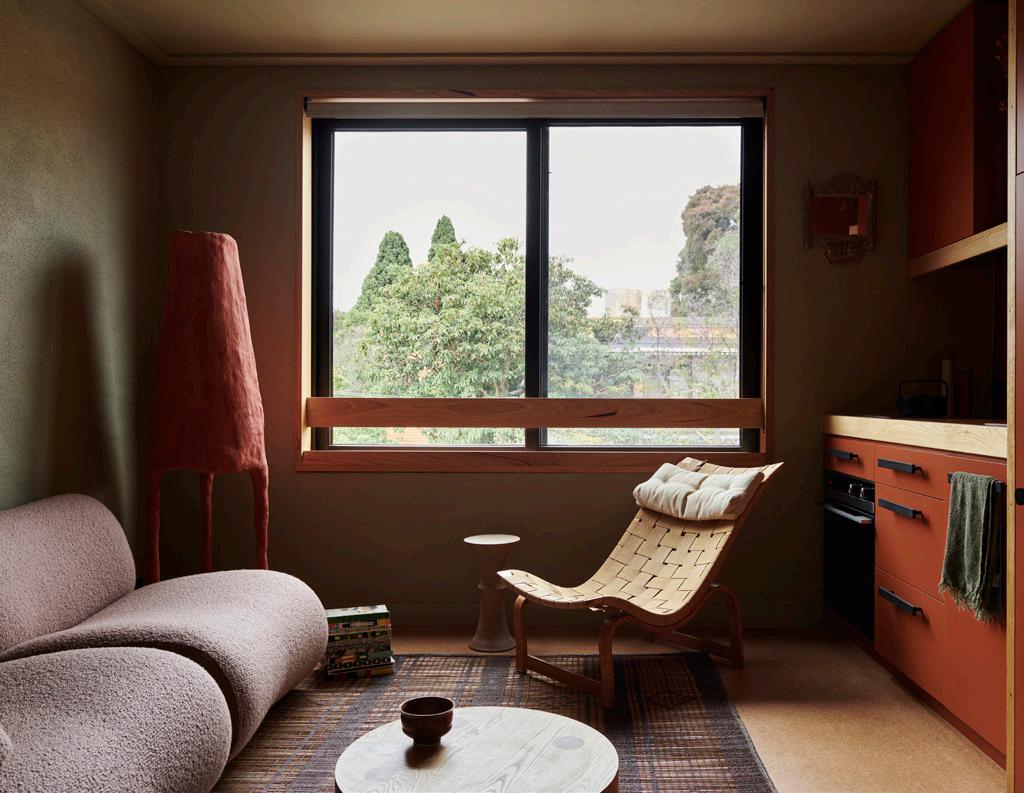

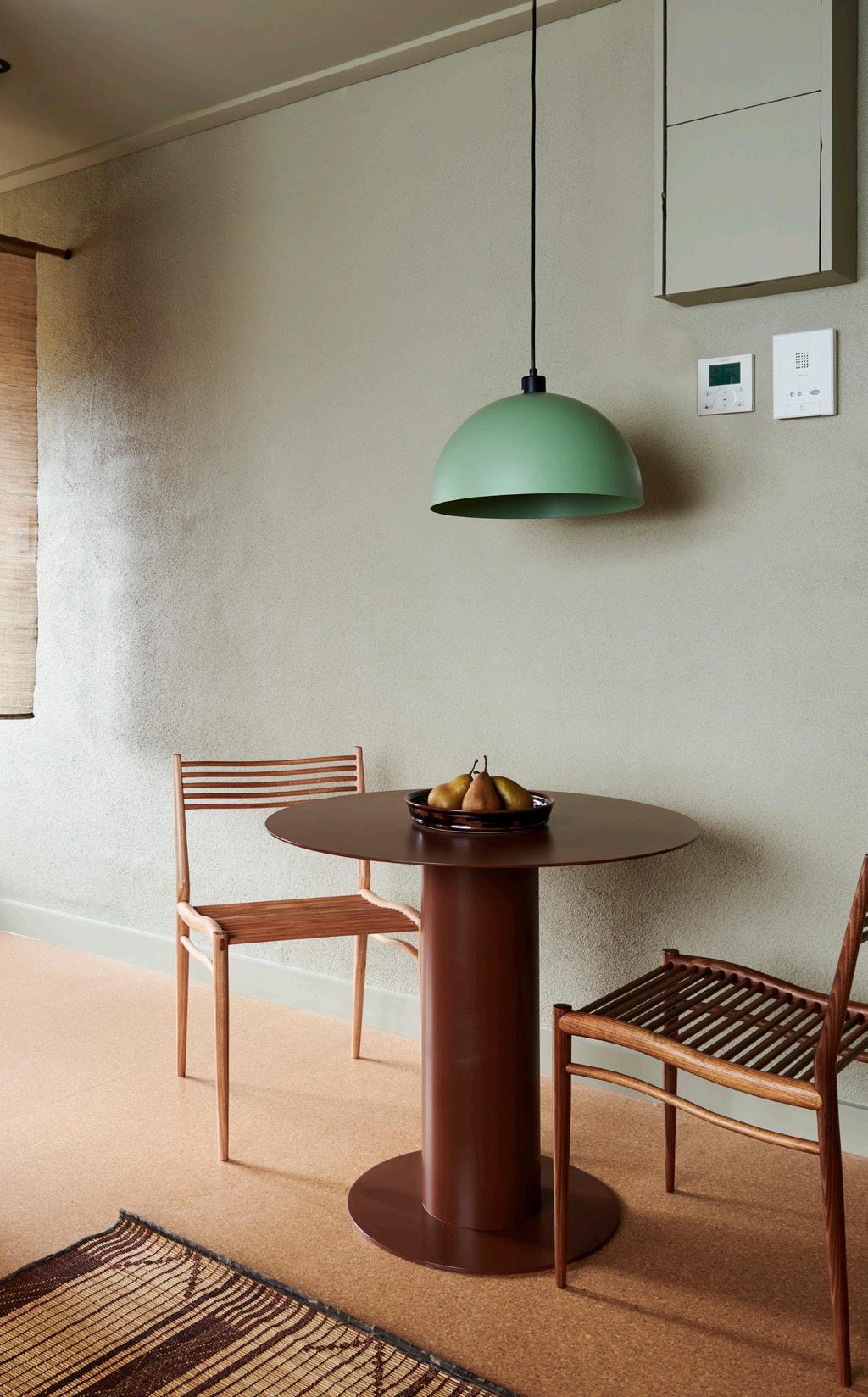

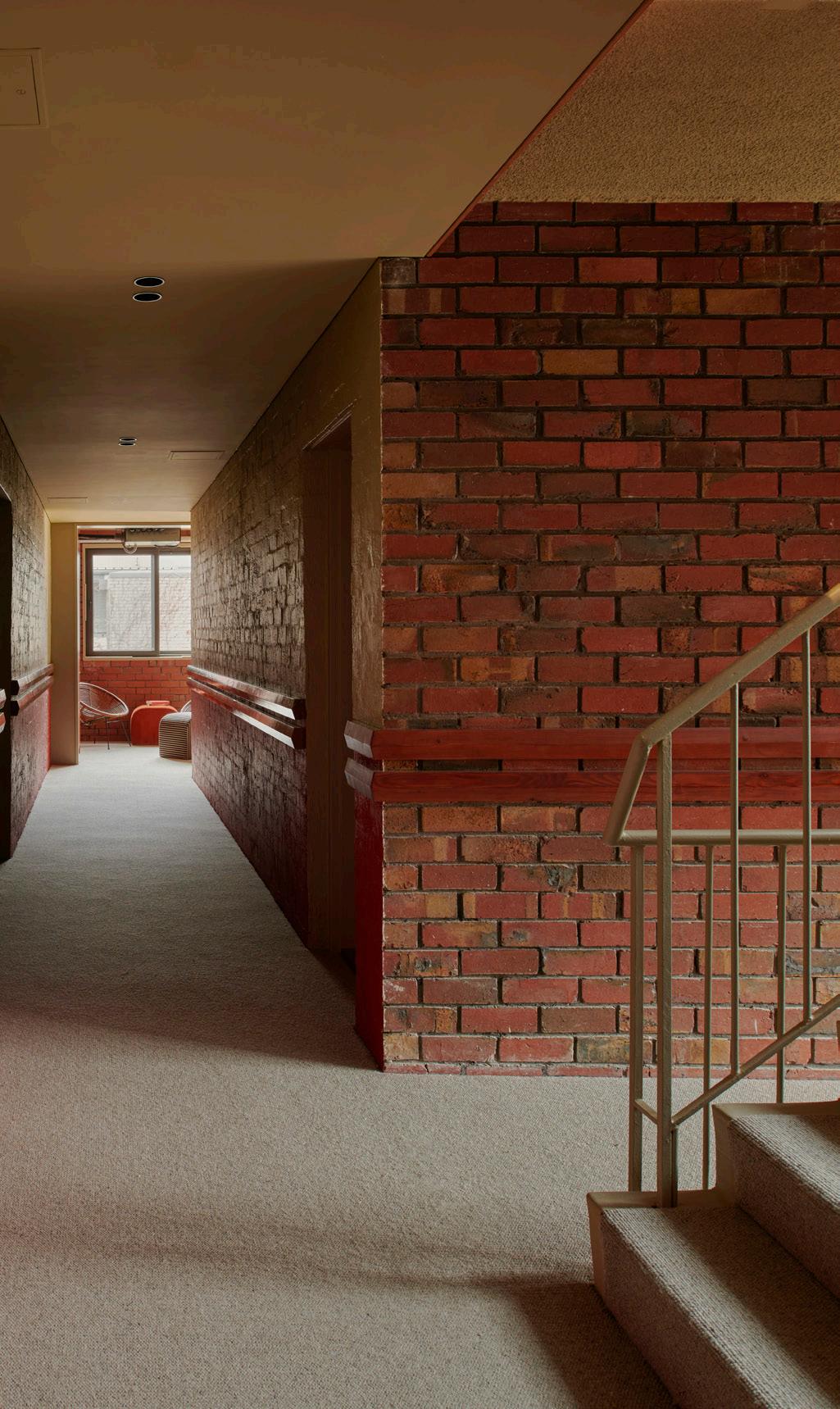

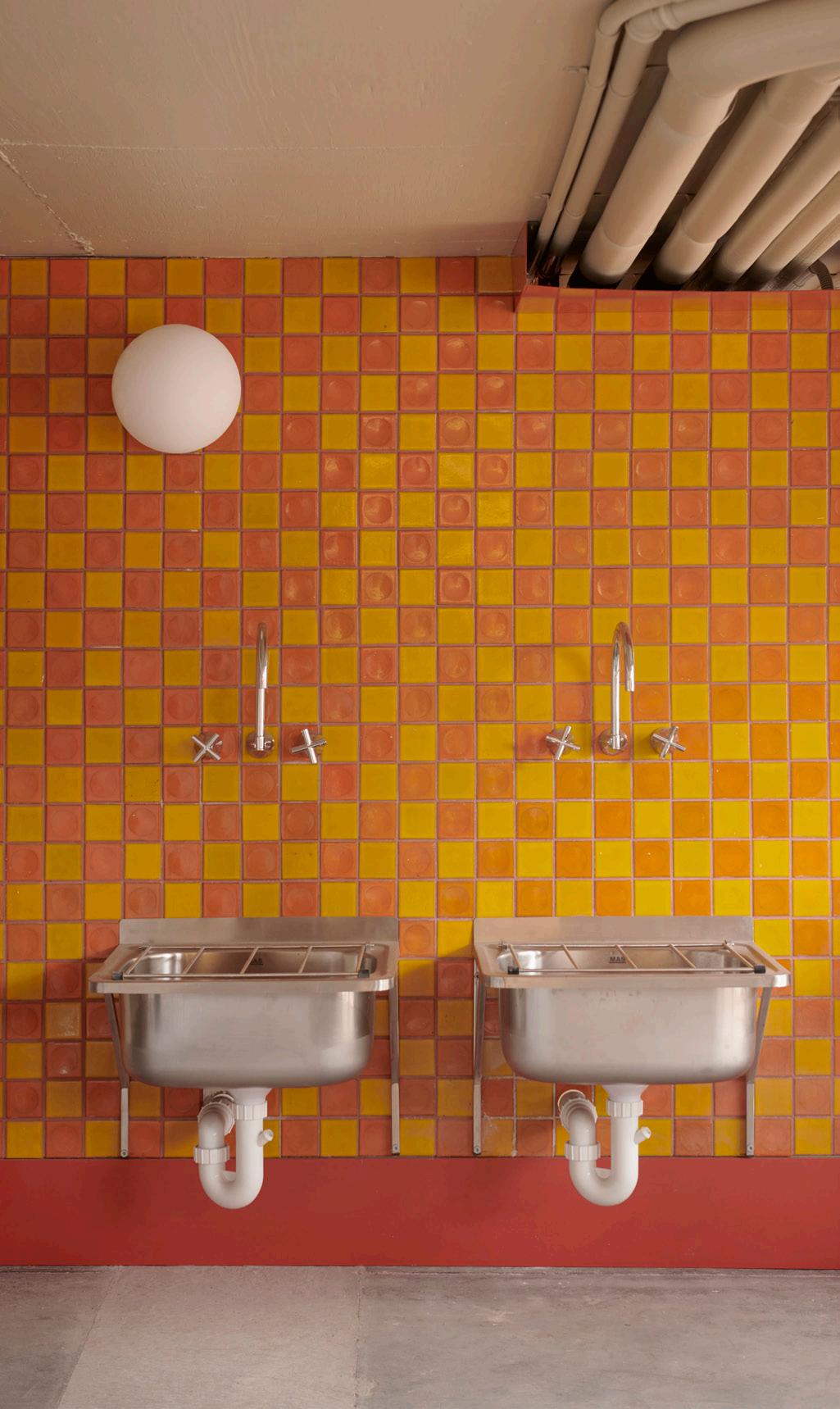

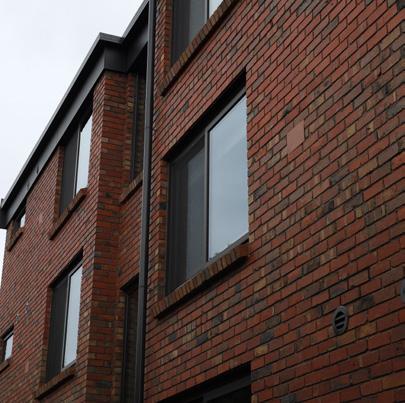

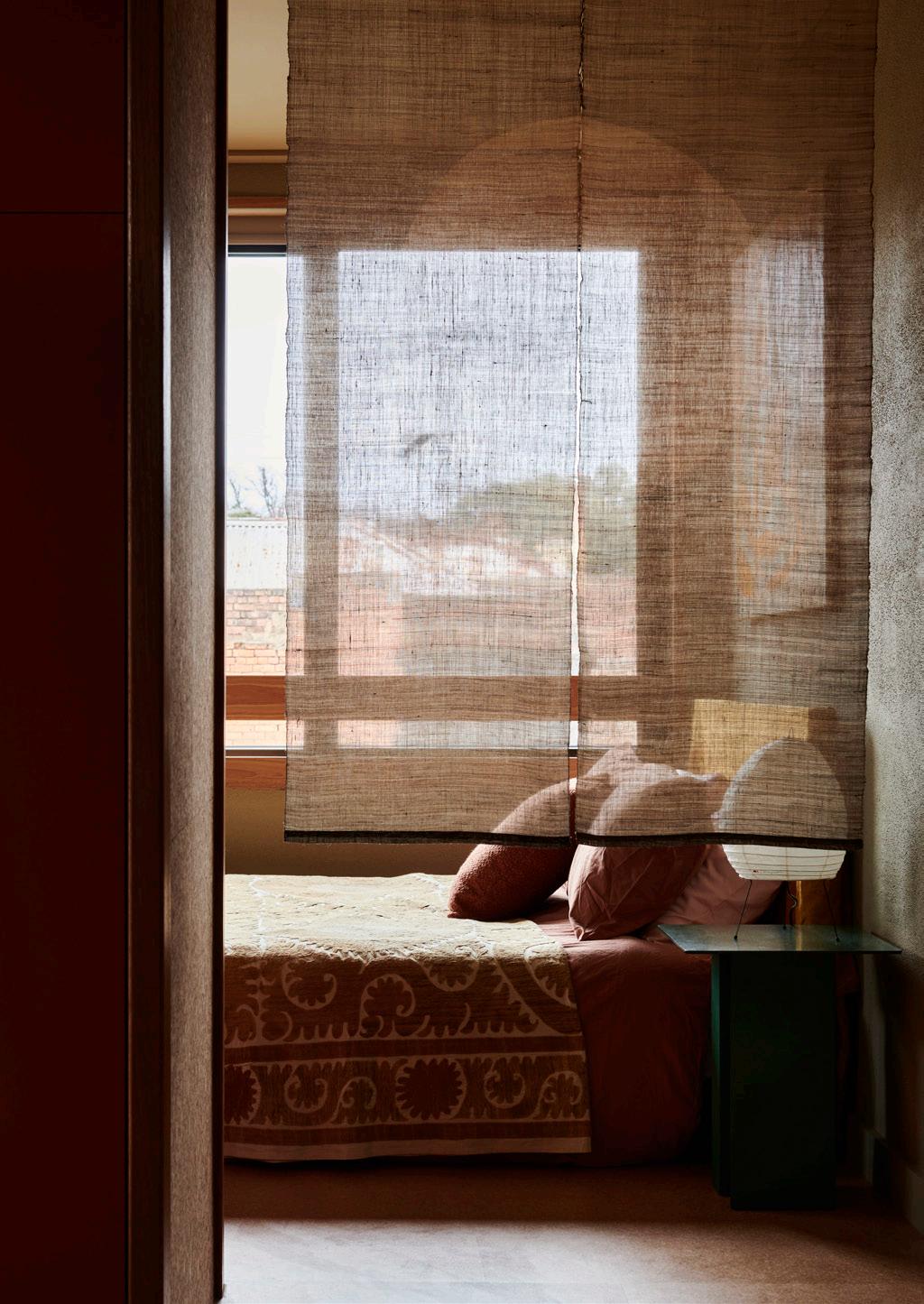

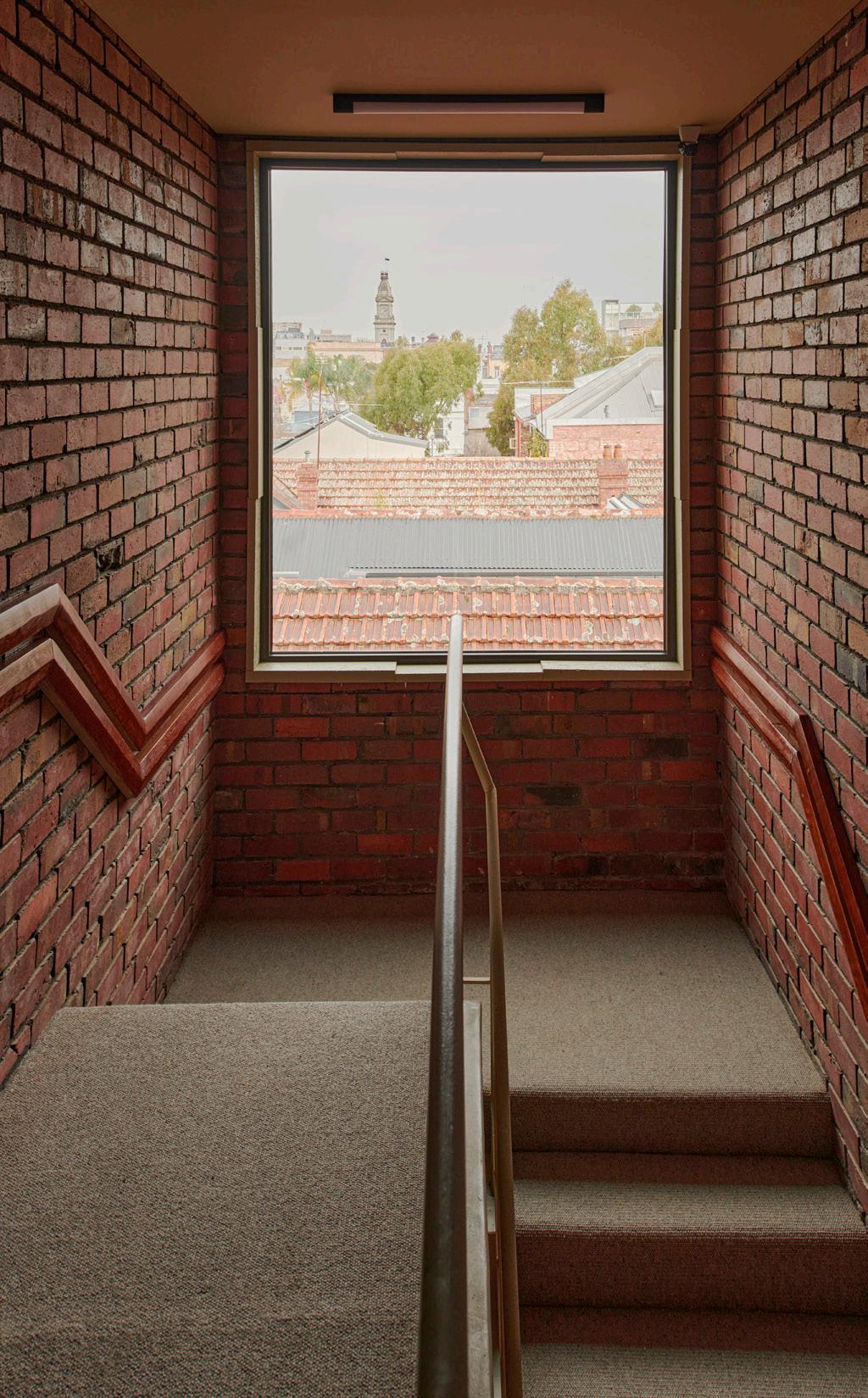

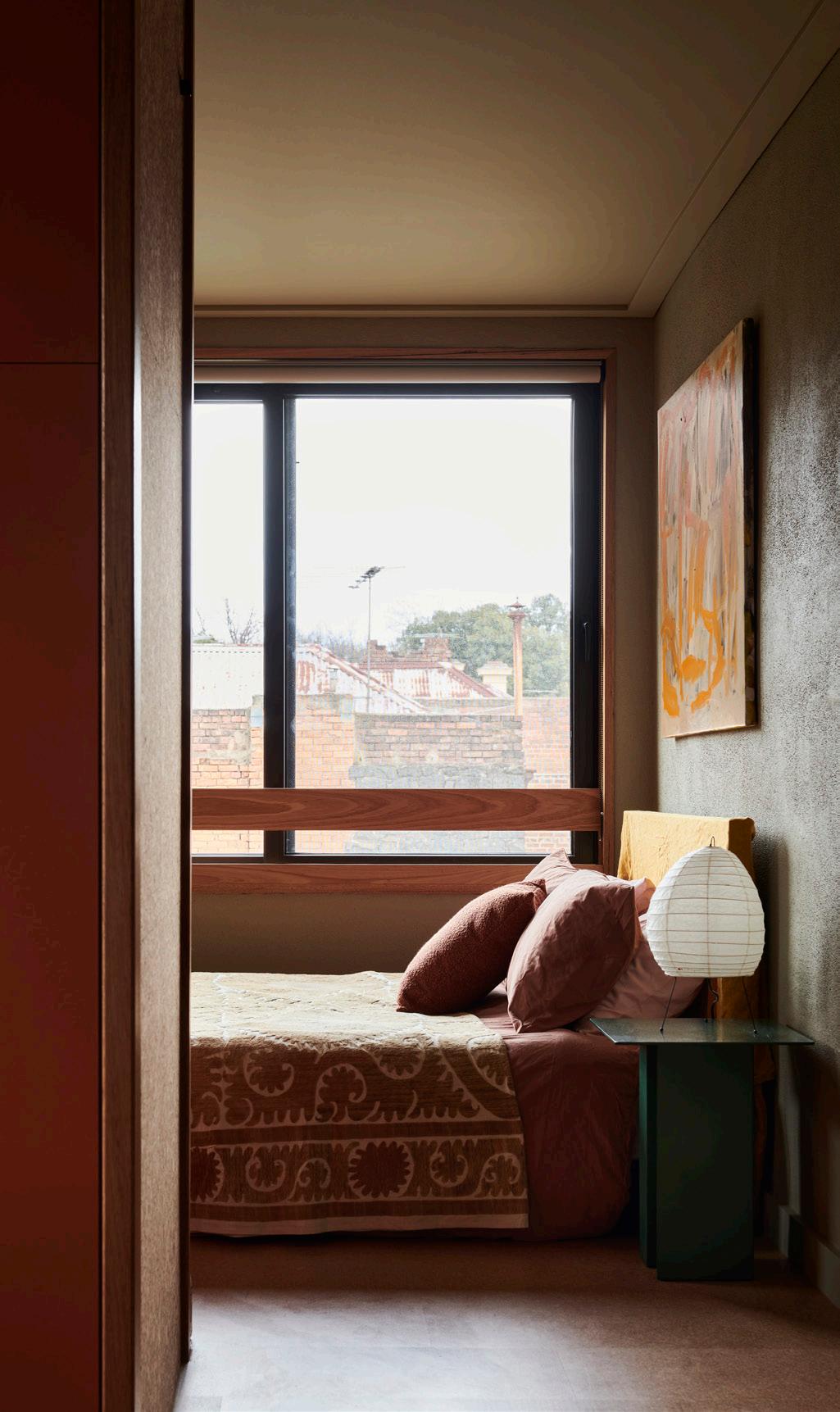

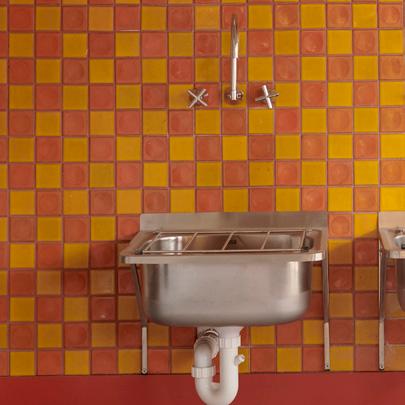

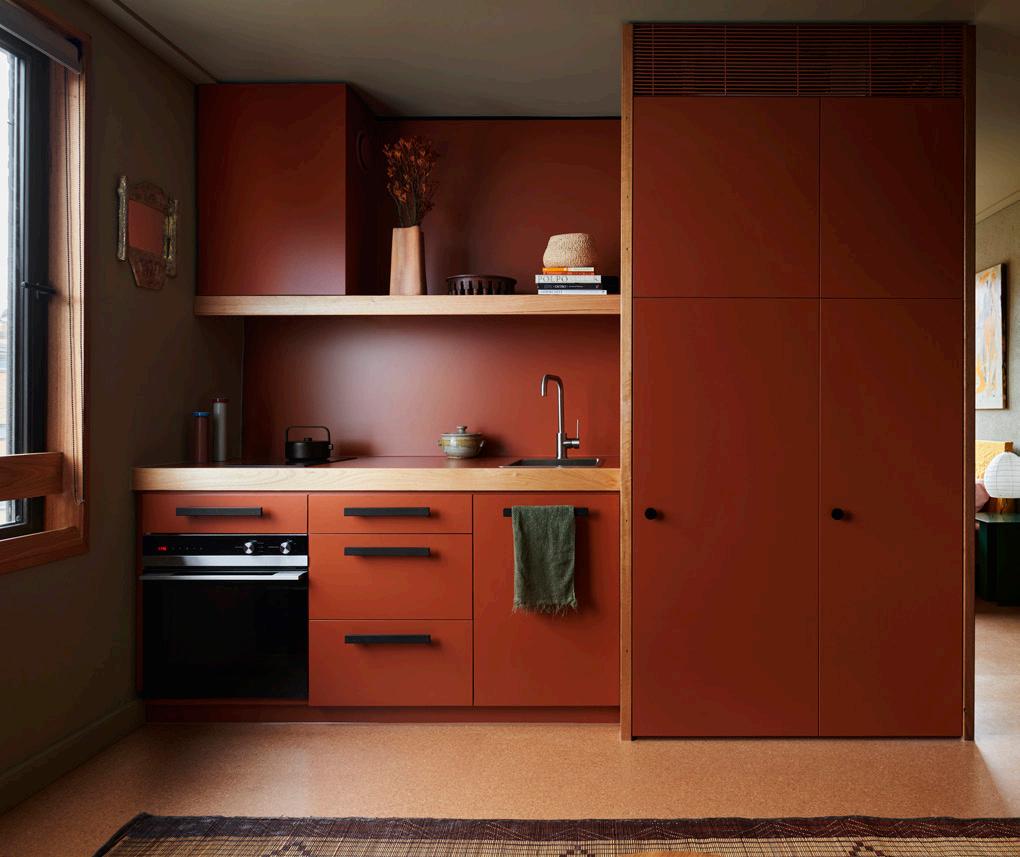

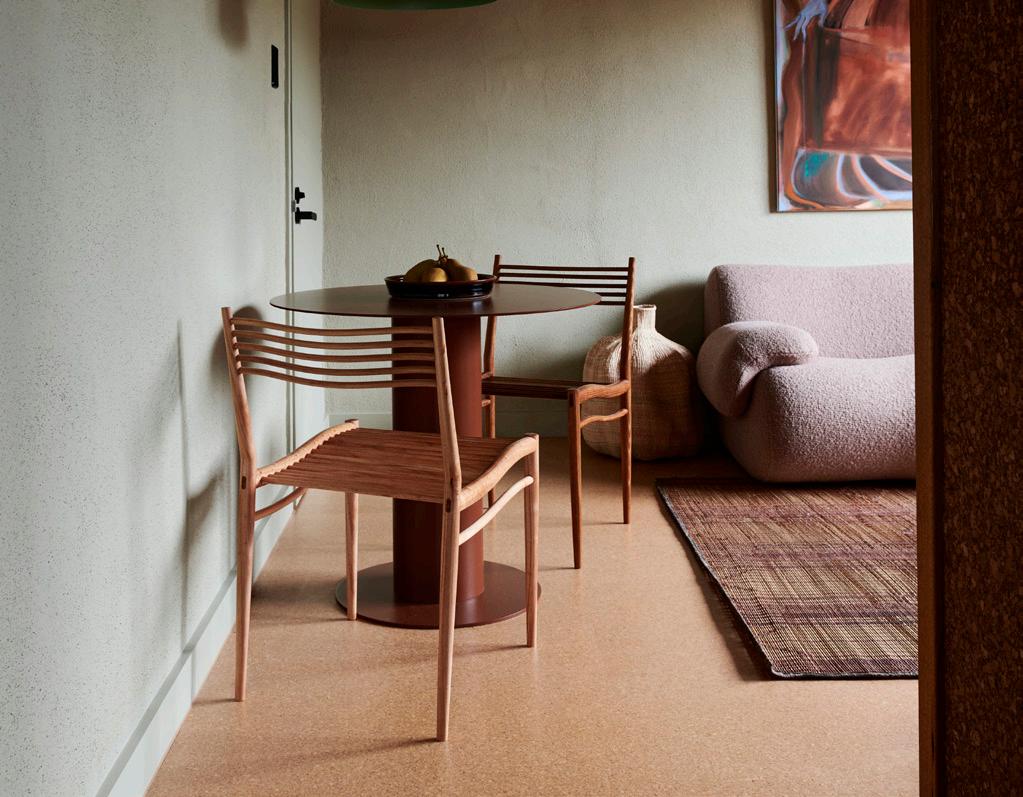

After

Wilam Ngarrang Apartments

28

Image credit: Eve Wilson

29

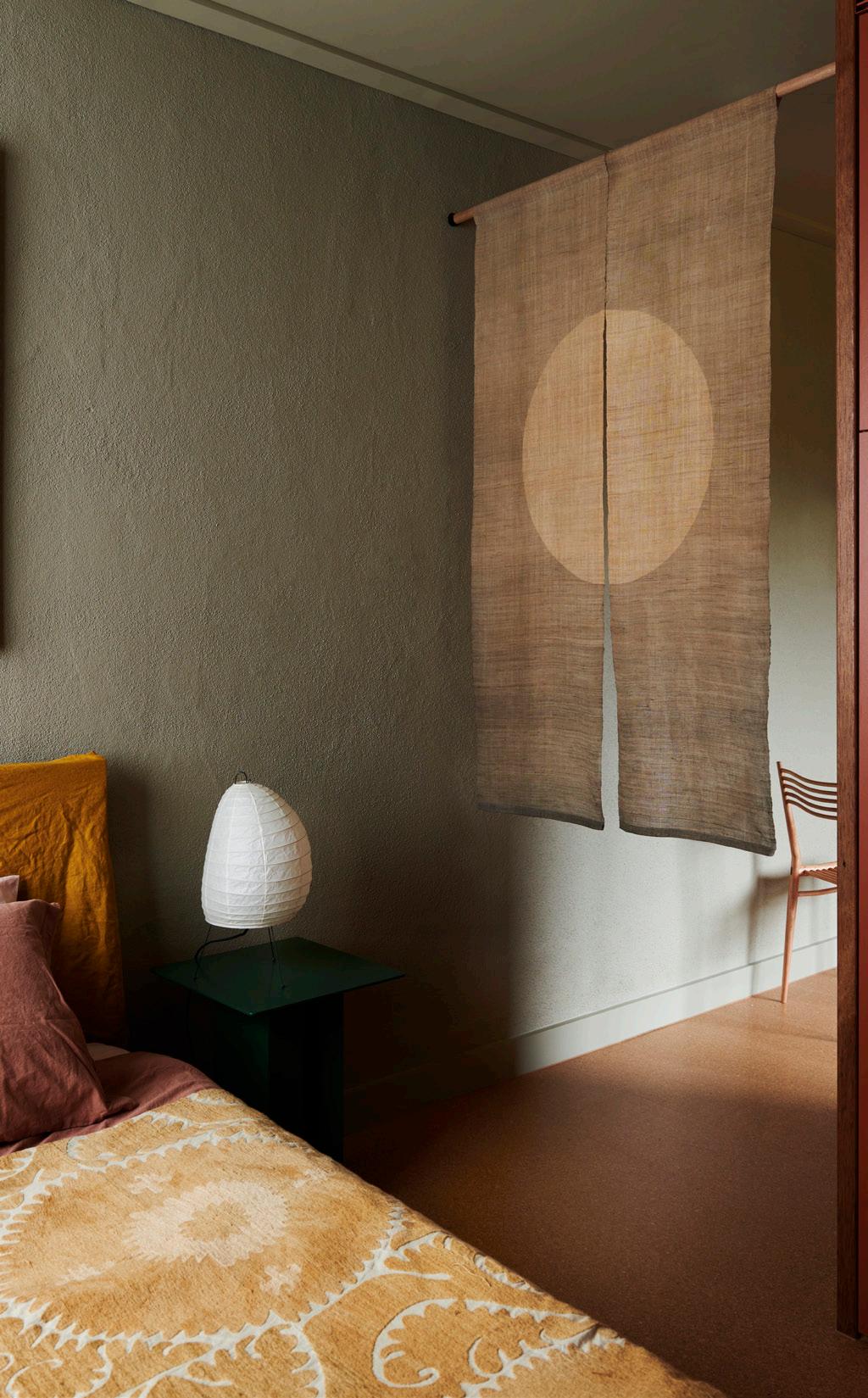

After

Wilam Ngarrang Apartments

30

Image credit: Eve Wilson

31

After

Wilam Ngarrang Apartments

32

Image credit: Eve Wilson

33

05.

Social

People spend around 90% of their time indoors, so its important that our indoor spaces feel good

Social Initiatives

To be a replicable example, the building needs to be great to live in. A lot of the environmental initiatives actually help create a lovely home. For example, the insulation, airtightness and new windows keep the apartments nice and warm and quiet, while the Heat Recovery Unit removes toxins from the air.

On top of these, we added some initiatives that were purely for social / occupant benefit.

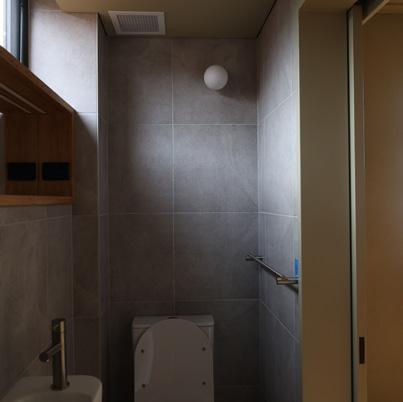

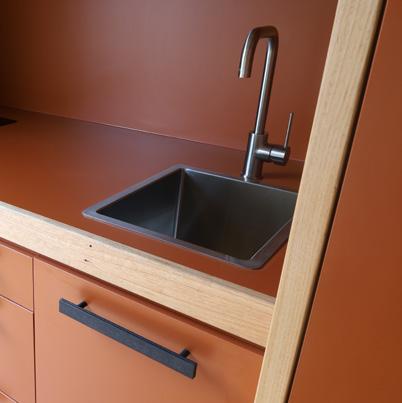

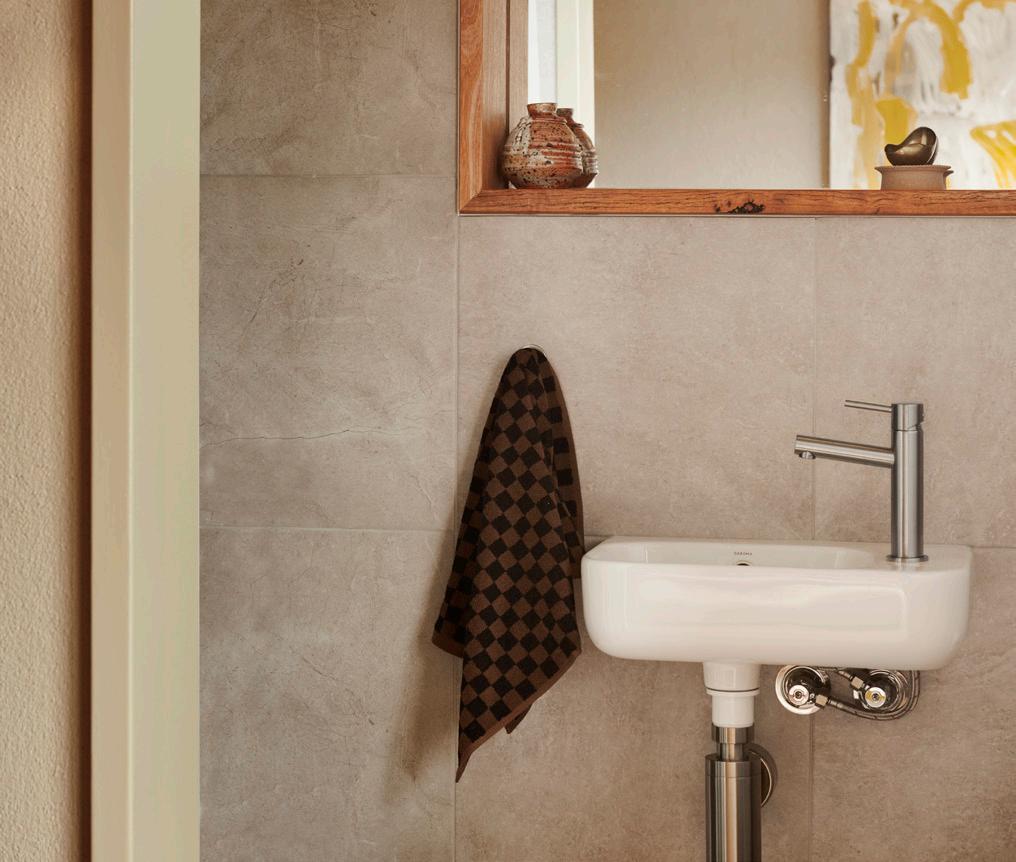

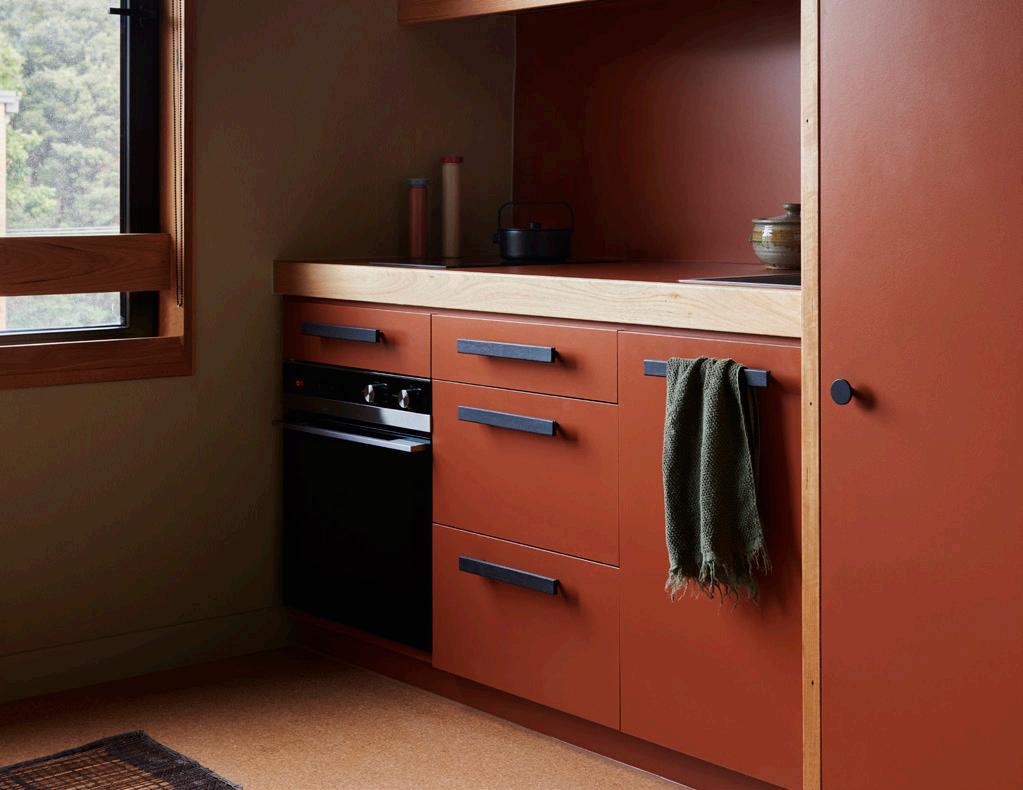

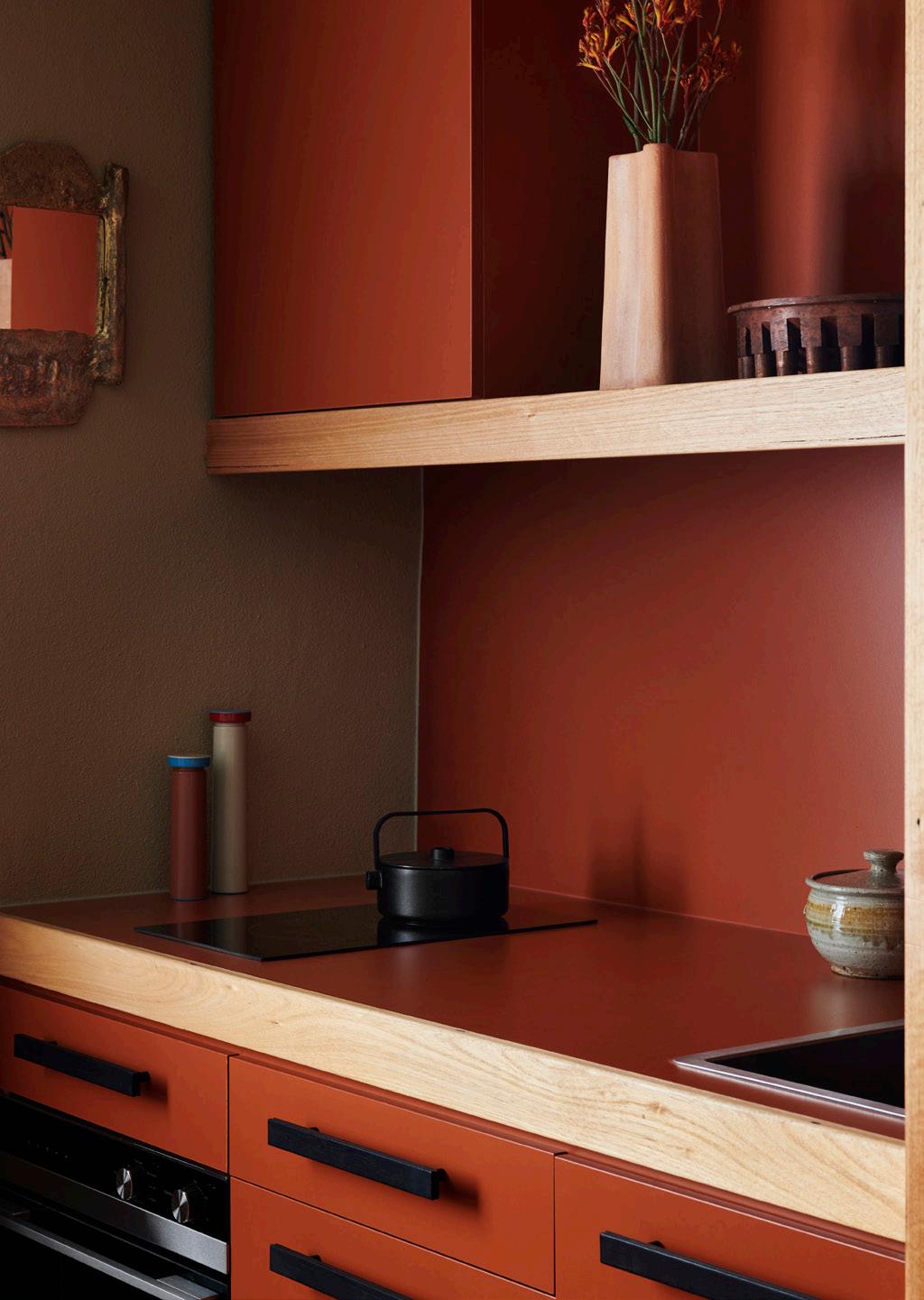

The additional social initiatives include: // New Kitchens & Bathrooms // Communal Area Upgrades, including the reading nook and study // Security Upgrades // Upgrades to the Outdoor Areas // Increased on site landscaping and planting // Shared wicking beds for growing fruits and vegetables // Lowering utility bills for residents

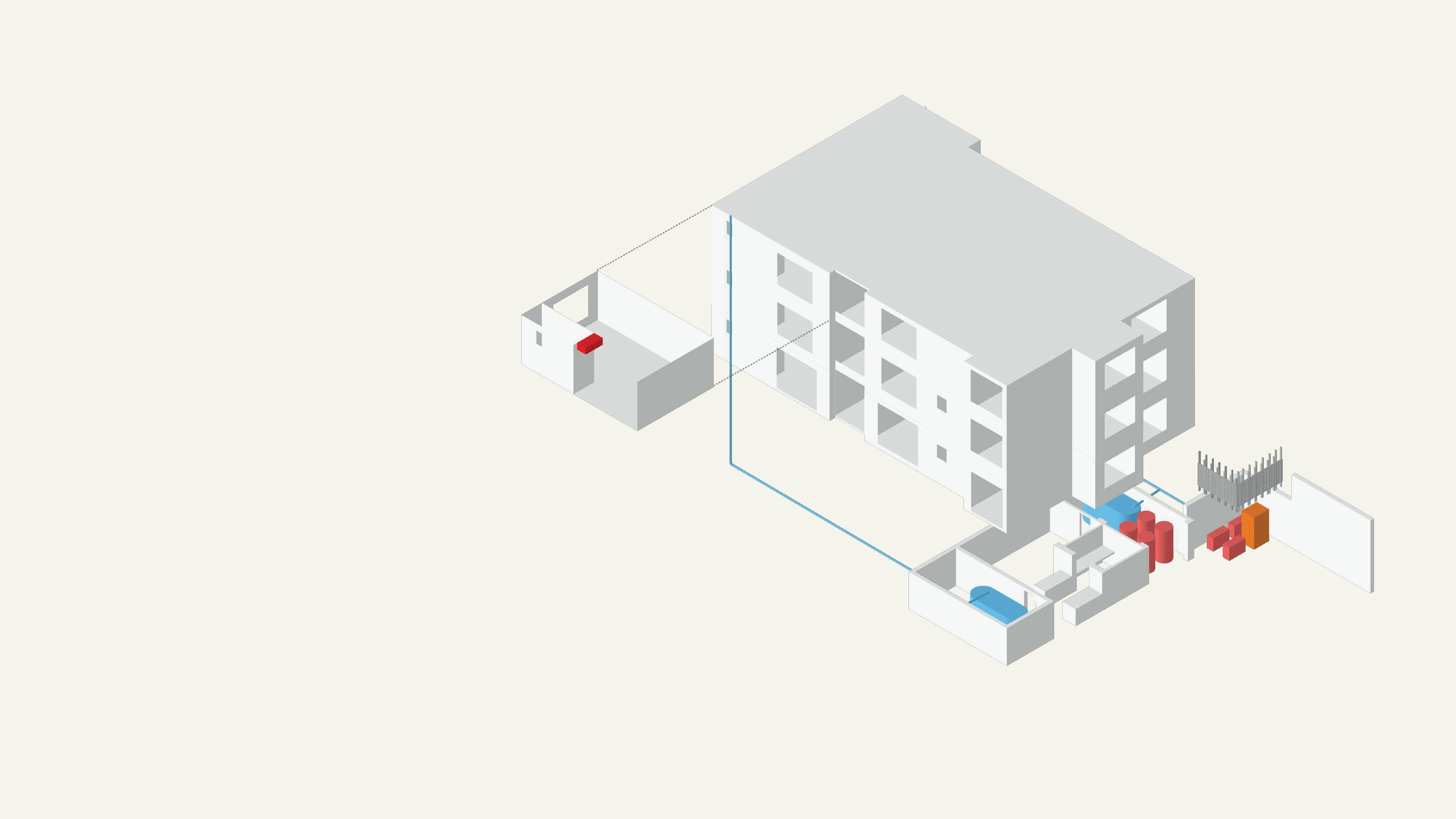

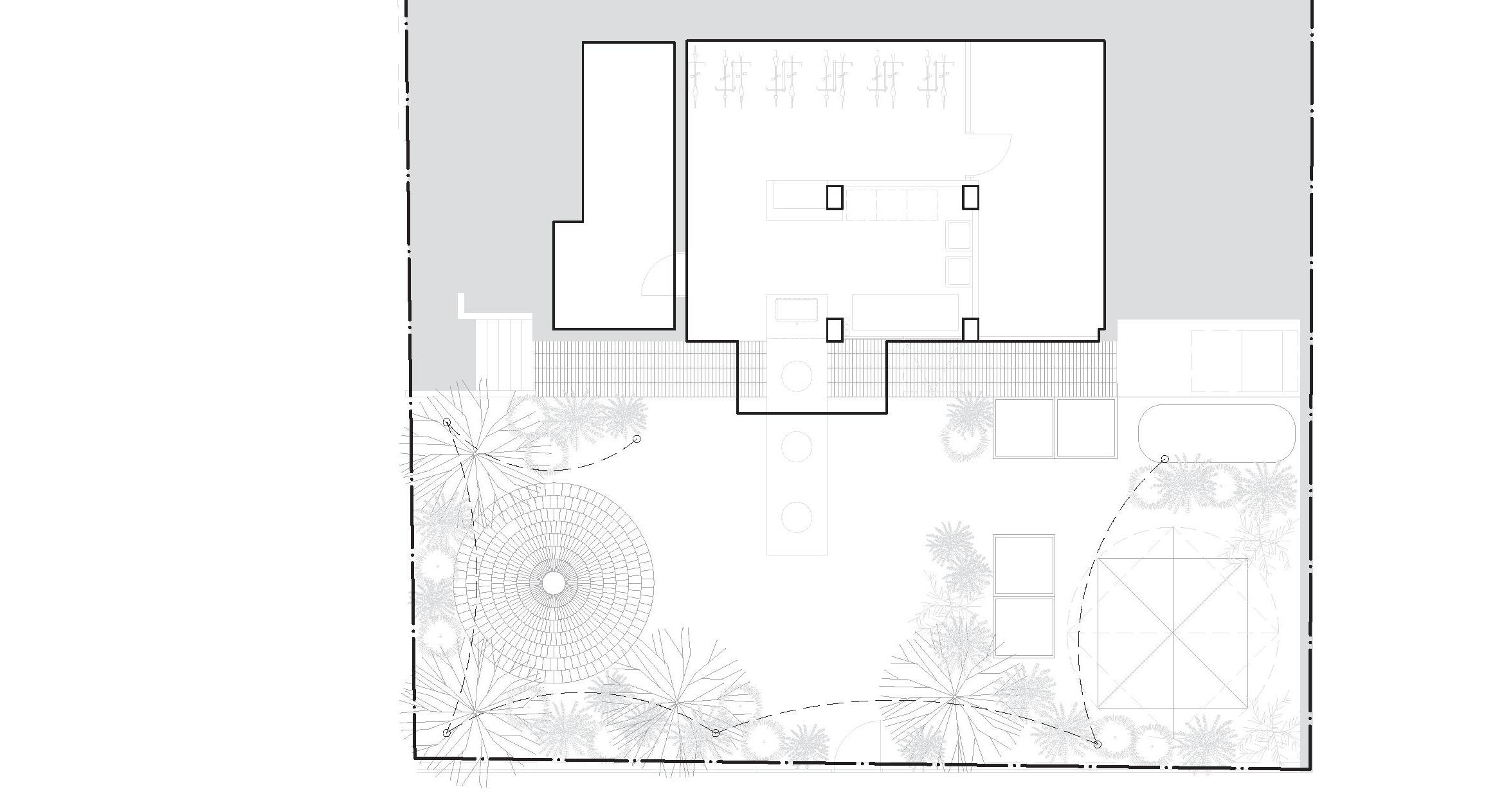

Floor Plan view:

Communal Area Upgrade

Landscaping

Removed Car Park

Wilam Ngarrang Apartments

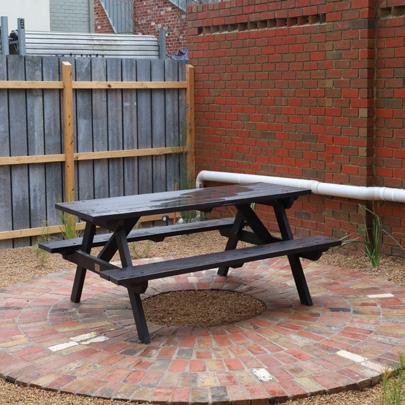

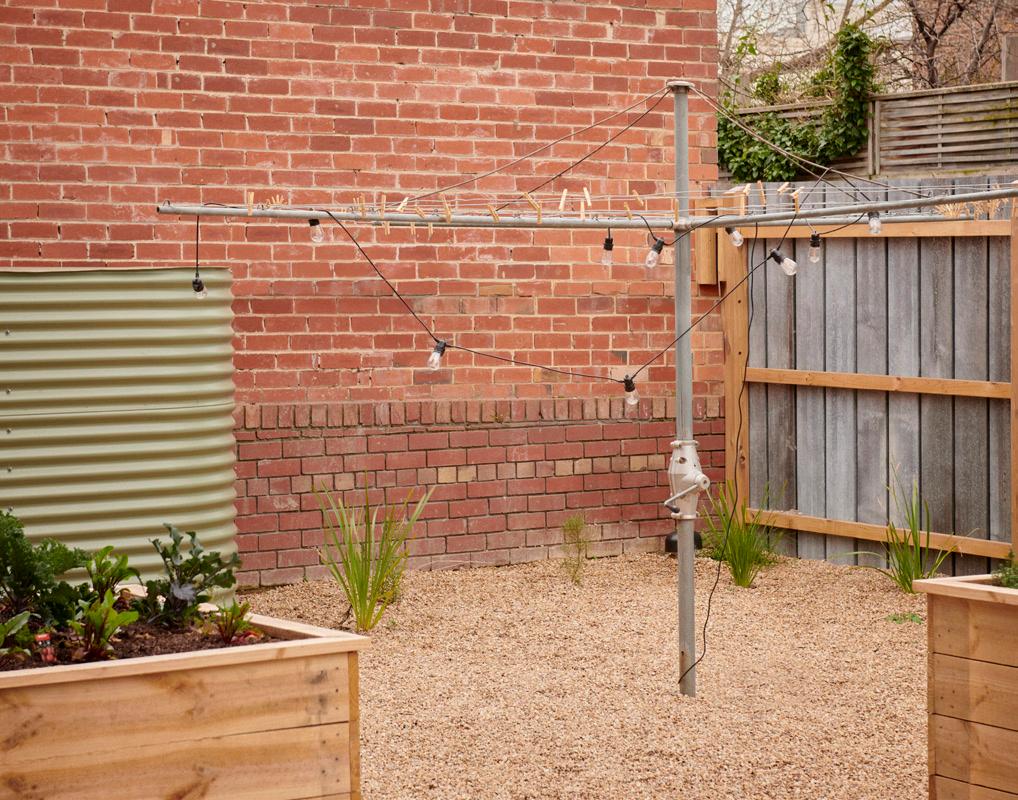

Communal Gardens

36

Rear view:

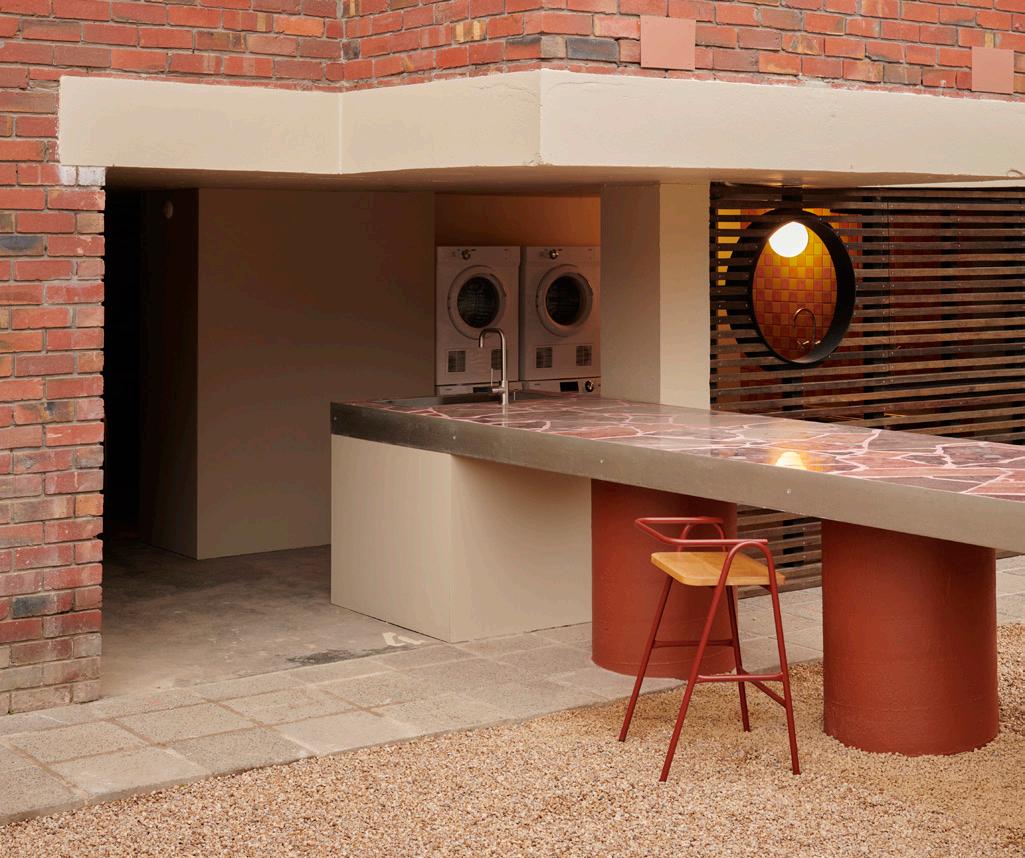

Coworking Space

Reading Nook

Accessible Laundry

Bike Storage

Fence Upgrade

Communal Laundry

37

A Responsible Landlord

We believe that all organisations have a role to play in creating a just and sustainable world - and this does not end with being a landlord. Renters often have little choice or ability to change their living spaces either for personal comfort or for sustainability. We are aiming to be a fair and reasonable landlord for our tenants, which we believe will return to us with tenants who move less and less on-going issues, both of which are large costs for landlords.

We have partnered with HomeGround Real Estate. Home Ground is an ethical real estate agency that directs 100% of it’s profits to helping end homelessness.

HomeGround has also been chosen to lease out all fifteen apartments, two of which will be rented at a below market rate to people that need support getting into the rental market.

With the phase out of gas and sustainability concerns becoming more and more pressing, landlords will need to electrify their buildings and improve the building fabric. At some stage this will become mandatory. Given this, we believe that from an investment perspective, this reduces our long-term risk and positions the building well for years to come.

Wilam Ngarrang Apartments

38

39

06.

Environmental

Energy

Water

Retrofitting buildings is the most cost-effective way to make major cuts in energy use and greenhouse gas emissions

Waste

Materials

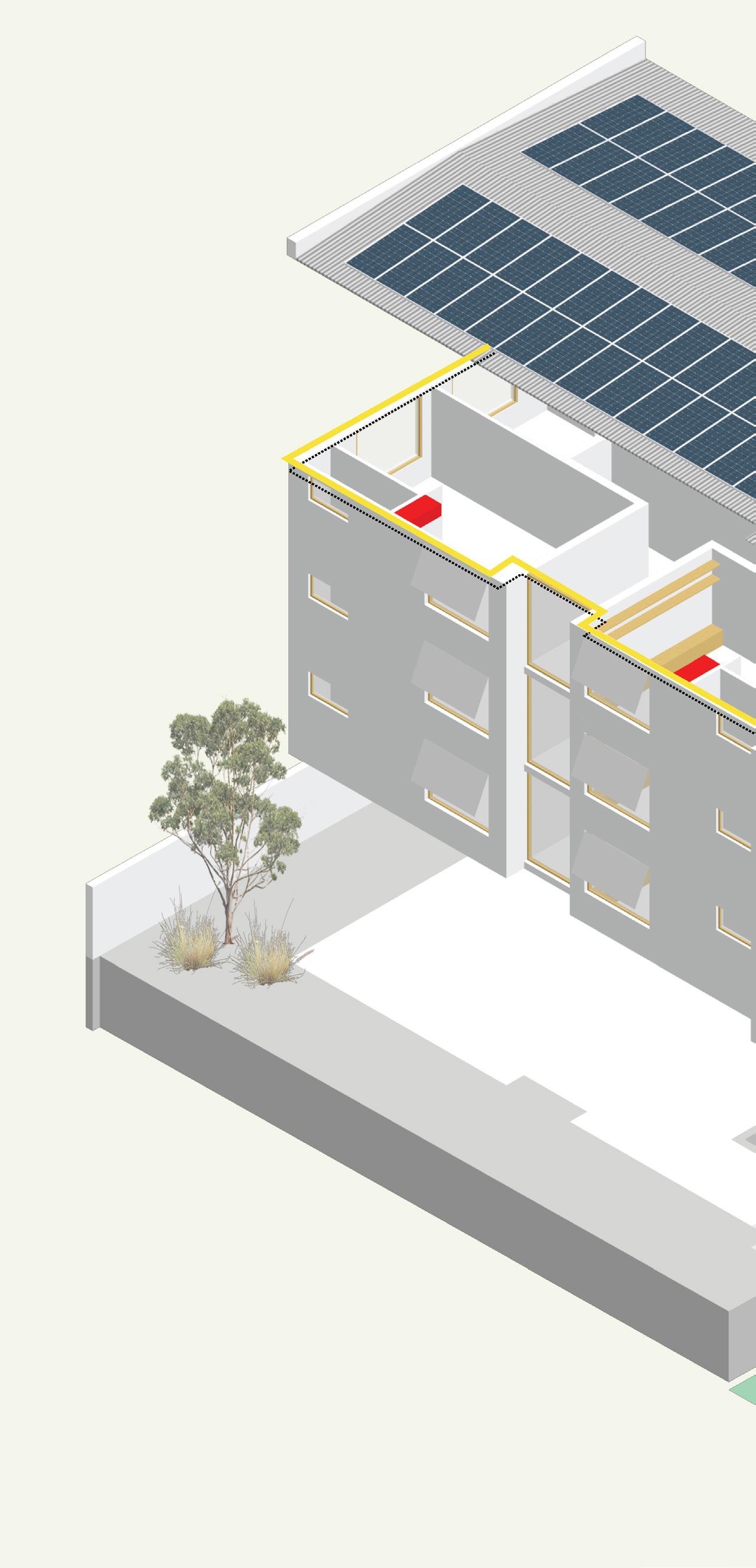

What Makes it Special Here are the initiatives implemented to transform the original building into Australia’s first net-positive retrofit of an apartment building; A 33kW rooftop solar system was installed. It generates more power than the building consumes each year Window upgraded to high performance uPVC double glazing

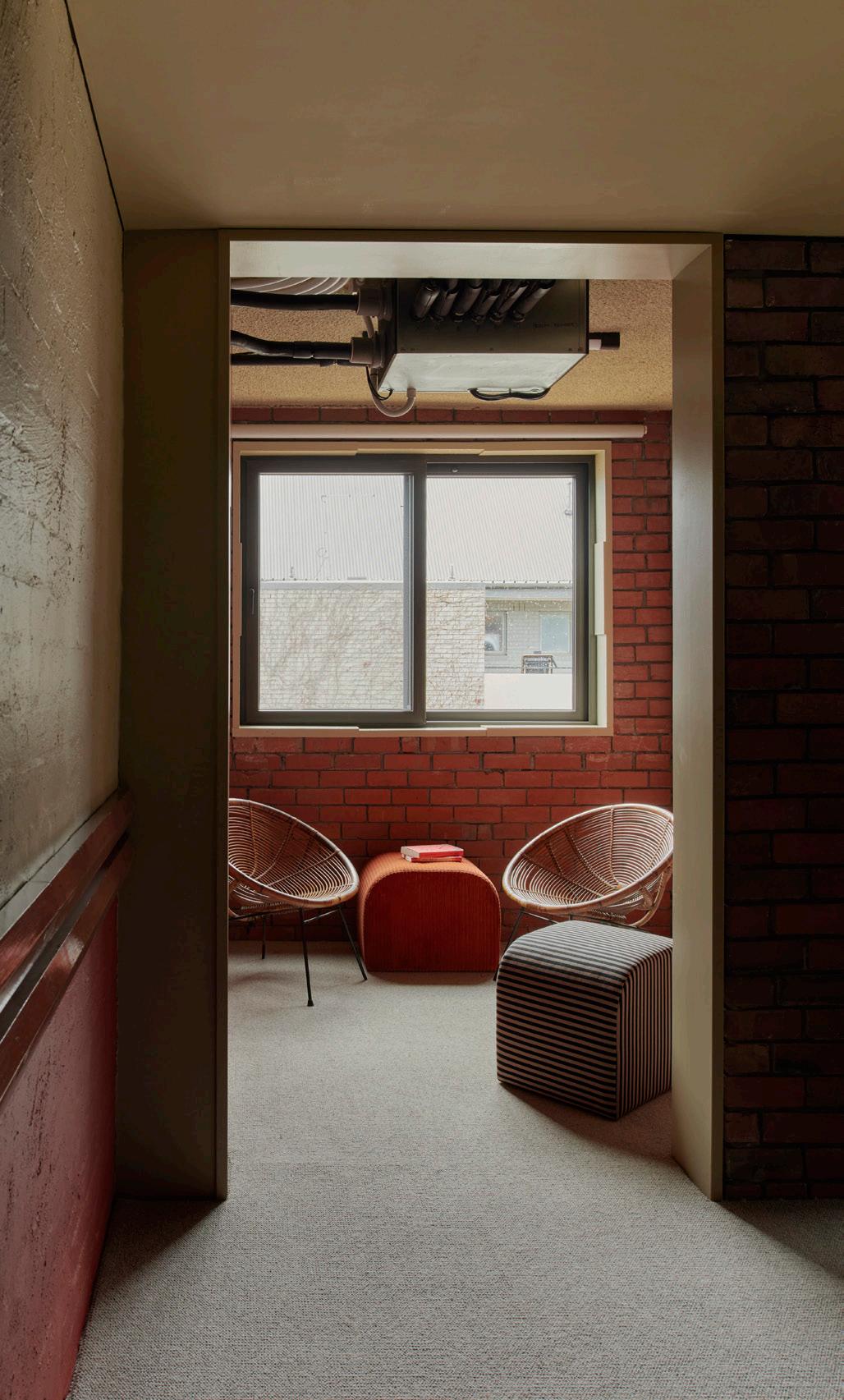

A new Heat Recovery Ventilation system in each apartment provides constant fresh air which is preheated using exhaust air It also removes odours, moisture, contaminants, and pollutants.

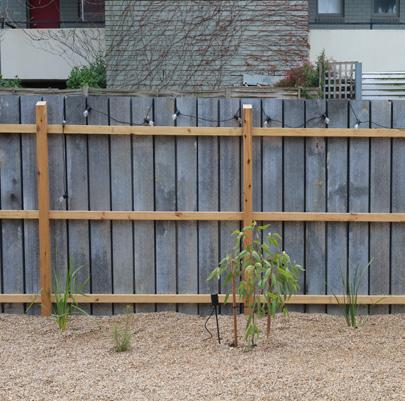

Fence Upgrades Landscape Paving & Planting

7,000L of rainwater storage across two tanks. The rainwater captured in the tanks is used on the gardens On-site communal composting to help residents reduce the amount of waste sent to landfill

Communal Gardens

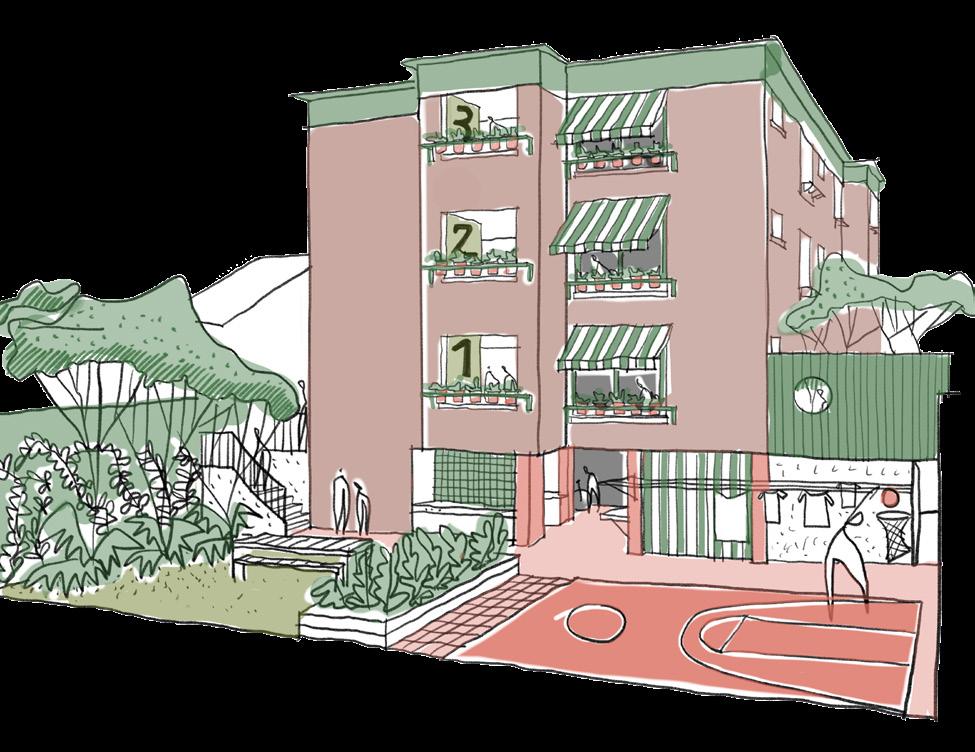

Figure 3: Initiatives implemented to make this the first net-positive retrofit of an apartment

building in Australia.

Wilam Ngarrang Apartments

42

Roof and wall insulation was added and the airtightness was improved to reduce energy consumption and increase indoor comfort

A new CO2 heat pump provides domestic hot water using 3-5 times less energy than previous

Domestic hot water storage allows for hot water created using solar power to be stored for use when the sun isn’t shining

Bike Parking

A new VRF heating and cooling system efficiently heats and cools apartments

l s

43

Energy

Water

We achieved energy efficiency for the building through passive design to first reduce the need for heating and cooling, improving the efficiency of system Domestic Hot Water and finally a 33 kW solar panel system on the roof.

These initiatives reduced the energy usage of the building by 70%, with the remaining energy supplemented with solar energy generated on site.

16%

724 kL

Efficient Fixtures & Fittings

Rainwater Collection

Rooftop Solar PV

16%

DHW Heat Pump

4%

Efficient Lighting & Appliances

HVAC Upgrades

Insulation

Airtightness

Glazing

2%

Additionally, we removed ~80% of the landscape’s original concrete to allow for permeable surfaces for stormwater.

Reduction In Mains Water Consumption

Plus Energy Retrofit In Australia

10%

The result, a 35% reduction in mains water consumption.

35%

1st

108 MWh

To reduce the building’s water consumption, we installed two rainwater tanks, and improved the water efficiency of water fixtures & fittings.

11%

24%

22%

38%

Figure 4: Annual % energy reduction of each initiative

Wilam Ngarrang Apartments

Figure 5: Annual % water reduction of each initiative

44

Waste

*More information on these initiatives is located in Appendices A - F

In order to reduce the amount of waste sent to landfill, food waste recycling and material reuse was implemented.

By introducing a composting bin for organic food waste, it is estimated we can reduce waste sent to landfill by 60%.

Material reuse also allowed us to avoid 80% of typical construction waste.

On-site Organic Treatement

Designed To Reduce Waste

1,100 tonnes

60%

Figure 6: Annual % waste to landfill reduction

45

Materials In line with the whole ethos for this project, we tried to reuse as much material on site as possible. Where this was not possible or feasible, we aimed to source the lowest carbon alternatives.

reused for communal laundry area // Salvaged marble used for communal table // Salvaged furniture for communal fit-outs

Some of the material initiatives included:

Recovering, reusing, and recycling existing materials and construction materials was a top priority for this project. All aluminium, glass, metal, plaster, timber, and concrete waste that could not be retained was separated and recycled. During the demolition process all materials were catalogued and stored on site for re-use.

// The existing double brick structure retained // Rendered internal wall finish // Avoided MDF in joinery // Cork internal floor finish // Corrugated steel roof sheeting // uPVC Double glazing // Existing roof sheeting repurposed as fencing around the site // Former kitchen splashback tiles

Material Selection Hierarchy 1.

Dematerialisation: Avoid using unnecessary materials

Where a material is needed

Wilam Ngarrang Apartments

2.

If there is Use a material found no re-use on the original site option (e.g. timber from the old cupboards, tiles from the old kitchens etc.)

3.

Circular Materials

Materials with recycled content, and materials that can be used again

If there is no circular option

4.

Virgin Materials

Favour low embodied carbon and carbon sequestering materials. Look for materials destined for landfill.

46

Materials Retained / Recycled

Brick Landscaping Recycled bricks and pavers have been used for the steps and landscaping around the building and Hills Hoist.

Fencing Original roof sheeting was reused for the fencing.

The Hills Hoist The Hills Hoist was pre loved from a family home.

Window Sills Timber was reused for the window reveals, and brick from the old brick window sills were reused to patch up the brick cavities.

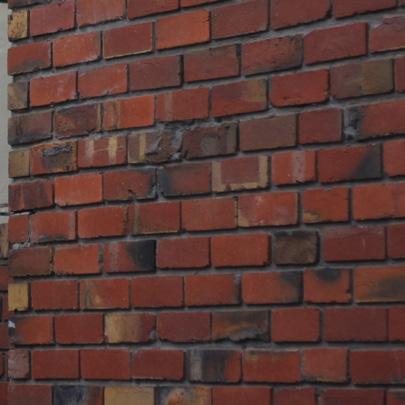

External Brick The external bricks were retained from the existing building.

Laundry Wall Tiles The checkerboard red and yellow tiles in the laundry are all recycled tiles taken from the splash back in the old kitchens.

47

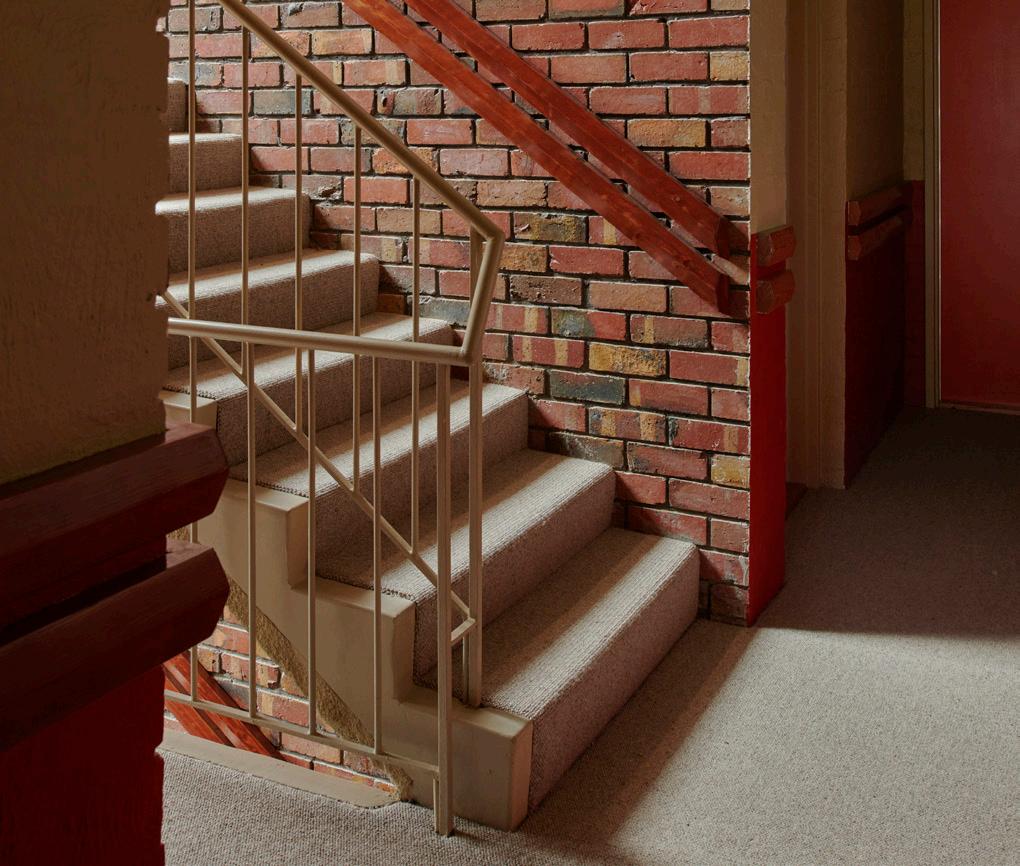

Hallway Handrails The handrails in the hallway were retained from the existing building.

Framing and Joinery The internal door frames of each apartment were retained and timber was reused for the joinery handles and details and bathroom cabinet.

Stair Balustrades The existing retained.

stair

balustrades

were

Electric Fuse Box & Switchboard The new electric fuse box and switchboard located in each apartment were built with materials from site.

Concrete The concrete carpark was removed to increase site permeability and create landscape, concrete was 100% recycled.

Reused timber on-site // Window reveals / balustrade // Joinery handles // Strapping on joinery units // Fuse boxes // Pelmets // Entry & Bathroom threshold sills // Shaving Cabinet

Wilam Ngarrang Apartments

48

Virgin / Circular Materials

Joinery No MDF was used for the joinery.

The joinery was made from laminate with a chipboard substrate Fixtures & Fittings New and efficient water saving fixtures and cooking appliances were installed

Tiles Tiles in the bathroom were sourced from discontinued lines

Flooring Cork flooring used throughout the apartments

49

7.

Financials

Inefficient Buildings Cost Money

We can now construct profitable buildings with no negative environmental impact

appliances thermal breaks lighting insulation glazing water fittings and fixtures

sealing

water heating

HVAC

Mandatory Retrofits Save Money

Cost Breakdown Below is a breakdown of the total project costs associated with the retrofit.

*See Appendix G for a more detailed breakdown of costs

Repairs include all the upgrades to the roof, concrete, and communal areas that were necessary for the longevity of the building.

The comfort upgrades include all the social initiatives that were implemented to make Wilam Ngarrang apartments a comfortable and enjoyable place to live.

Consultant fees 12% Repairs 27% Builder's preliminaries / margin 15%

Environmental 16%

Comfort upgrades 25%

Landscape / external 5%

Figure 13: The graph provides a breakdown of all the costs associated with the retrofit.

Wilam Ngarrang Apartments

52

53

Costs & Initiatives Below is a list of all the environmental initiatives that were implemented and the total cost of each.

Most initiatives can pay back within 10 years or less, and while the up front cost of each initiative may seem substantial, the annual savings far outweigh the up front cost of each.

Cost ($)

Impact

Annual Saving ($)

Simple Payback (years)

~16% reduction

~6,200

~16.2

Internal Insulation

24,000

Window Upgrade *

96,000*

Airtightness

77,000

Heating & Cooling (VRV)

150,000

~8% reduction

~4,000

~38

Efficient Lighting

Within Budget

~16% reduction

~4,000

N/A

Solar PV System

~44,000

~38% reduction

~5,000 - 9,000

~3 - 6

Domestic Hot Water Upgrade

~21,500

~22% reduction

~5,000

~4.3

Heat Recovery system (HRV)

~45,000

~8% reduction

~4,000

~11.25

Efficient showers & Taps

Within Budget

~24% reduction

~600

N/A

Rainwater Collection & Storage

~7,300

~11% reduction

~1,000 / yr

~5-15

Communal Compost

~450

~60% reduction

N/A

N/A

Energy Monitoring System

~700

N/A

N/A

N/A

Within Budget

~40% reduction

N/A

N/A

~370,000

108% energy reduction 35% water reduction 60% waste reduction

~33,800

~10.9

Zero Waste Apartment Design

Totals

depending on use

Figure 14: The table provides a breakdown of all the costs associated with the retrofit.

*Window upgrades required as part of repair budget, not included in final sum Wilam Ngarrang Apartments

54

Living Costs The graph below outlines the impact the environmental initiatives have on operating costs / living costs.

Operating costs only include variable costs such as energy and water consumption charges, they do not include fixed costs like sewer connection and electricity connection daily charges.

The operating costs for three scenarios was modelled to better understand what impact the initiatives would have on living costs.

The end result was a reduction in the variable cost of living of nearly 100%, while adding heating.

The Three Scenarios: // Current operating costs: Estimated electricity and water cost before the retrofit. // The Future Base scenario: Estimated electricity and water cost taking into account the addition of heating as required by rental law. // The Future Efficient scenario: Estimated electricity and water cost after the retrofit.

~ 80%

Reduction in Bills

Adding heating increases annual operating costs by 58%

Environmental initiatives reduce operating costs by 96%

Figure 15: The graph outlines how living costs are impacted under three different scenarios

55

8.

The Future

Electrify Transport

The Future What Wilam Ngarrang Apartments proved beyond anything else is that environmentally led retrofits: // Reduce carbon emissions // Create good social outcomes // Be profitable // Create jobs But is it scalable? Can this project be easily replicated and can other projects implement the same initiatives and achieve the same outcomes for buildings right across Melbourne and beyond? We believe it is.

In fact, Wilam Ngarrang Apartments are the first of several A New Normal projects that aim to prove exactly that.

Wilam Ngarrang Apartments (and all future New Normal projects) are a working example of what buildings can be and should be. More than that, these projects are designed to be copied.

So what does this look like for future of our city: A New Normal asked: if Melbourne implemented every single profitable initiative over the next decade, targeting the environmental and financial threshold, how far could we get?

comparison to constructing a new block of apartments.

When implemented in combination with various environmental and social initiatives, we made even greater savings on carbon, energy, water, and waste, and had an even greater impact on our planet. If we were to take this an replicate it across the city: // Our buildings would be more comfortable, healthier, and have better indoor environmental quality. // Our water system would capture and store rainwater which can be returned to nature and used on our gardens. // Our organic waste could be turned into fertiliser that could be used to grow food. // And we could avoid sending organic waste and construction waste to landfill and benefit from the reuse and recycling of materials.

There are over 1 million buildings in Melbourne that require energy efficiency upgrades. This is a $55 billion opportunity that will create over 55,000 jobs. This is estimated to save around $8.29 billion annually, resulting in a simple payback of around 7 years.

The answer; we can transform Melbourne to operate on resources that will never run out — and profit from the transition.

As our experience on Wilam Ngarrang demonstrates, retrofitting does not only reduce carbon emissions, it also reduces the amount of waste sent to landfill by avoiding construction waste, it saves water, and it saves energy.

Our embodied carbon calculations estimated that retrofitting reduced embodied carbon emissions by ~80% in

Wilam Ngarrang Apartments

58

This is one example of how we can future proof our existing buildings as resources start depleting, as changing rainfall patterns impact our water supply, and as we experience more extreme temperatures, we can feel comfortable knowing that our buildings will be: // Comfortable in hot and cold temperatures // Generate their own energy // Water efficient // Divert waste from landfill // Use precious resources responsibly This may seem radical but it’s simply the combination of a series of tried and tested, cost-effective initiatives, which can all be rolled out on existing buildings throughout our city.

59

Appendices

Appendix A Energy The building’s energy consumption was modelled using a 3D thermal simulation software called Integrated Environmental Solutions Virtual Environment (IESVE).

The graph below outlines the % reduction of each energy saving initiative.

Initiatives: // Building Fabric Improvements // HVAC Upgrade // Efficient Lighting and Appliances // DHW Heat Pump // Rooftop Solar PV

1st

16%

Rooftop Solar PV

16%

DHW Heat Pump

4%

Efficient Lighting & Appliances

2%

HVAC Upgrades

10%

Airtightness

108 MWh

Insulation

Glazing

Plus Energy Retrofit In Australia

22%

38% Figure 4: Annual % energy reduction of each initiative

Wilam Ngarrang Apartments

62

Energy The below graph summarises the annual energy performance of the building with and without the proposed energy saving initiatives.

When all of the proposed energy saving initiatives are implemented, the buildings energy consumption is reduced by ~70%!

Annual Energy Consumption (MWh/year)

The baseline represents the existing condition of the building, with the addition of HVAC, which is now required under rental code.

~70% Reduction

Baseline Consumption

Proposed Consumption

> 100% on site generation

Solar PV Generation

Figure 5: Annual energy consumption of the two scenarios.

63

Appendix B Water To reduce the building’s annual water consumption and supply, two key water saving initiatives were implemented; Initiatives:

35%

Reduction In Mains Water Consumption

// Two rainwater tanks totalling 7000L used for garden irrigation and the communal laundry // Efficient water fixtures and fittings

721 kL

Efficient Fixtures & Fittings

Rainwater Collection

These two key water saving initiatives have effectively reduced the building’s mains water consumption by 35%.

11%

24%

Figure 6: Annual Impact of each water saving initiative.

Wilam Ngarrang Apartments

64

Appendix C Operational Waste In order to reduce the amount of waste sent to landfill, food waste recycling and material reuse was implemented.

Initiatives: // A 400L compost (Aerobin) is located on site to treat food waste.

The bin requires a balance of garden waste, newspaper, and food waste. The bin can treat up to 32L of food waste / day,(excluding meat and dairy).

Construction Waste Recovering, reusing, and recycling existing materials and construction materials was a top priority for this project.

The result, 80% of construction waste was avoided.

On-site Organic Waste Treatment

It is estimated that this food waste treatment initiative could reduce the amount of waste the building sends to landfill by 60%.

Designed To Reduce Waste

1,100 tonnes

60%

Figure 7: Annual Impact of waste initiatives

65

Appendix D Embodied Carbon

Embodied Carbon Explained

To determine the best materials for this retrofit, an embodied carbon study was performed to compare a new building versus a retrofit.

Embodied carbon refers to the amount of carbon released when constructing a building, taking into consideration the emissions associated with every stage of its life cycle. This includes all materials, their extraction, manufacturing, transportation, installation, construction, maintenance, and disposal. It does not consider the emissions released from the building when it is up and running/ operational.

The embodied carbon associated with retrofitting an existing building compared to building new has been estimated at ~82% less.

Based on this finding we decided to retrofit the building!

82%

Reduction in Embodied Carbon EMBODIED CARBON COMPARISON

190tCO2e

-82%

33tCO2e

Figure 8: Embodied carbon - new building compared to a building retrofit

Wilam Ngarrang Apartments

66

Appendix E Operational Carbon To better understand how much carbon the building emits with all of the initiatives in place, the operational carbon and energy of the building was modelled.

Operational Carbon Explained

The first graph illustrates how much operational carbon each initiative saves annually as a %.

Altogether the initiatives reduced the annual operational carbon from 99 tonnes of Co2 to well below 0!

Operational carbon refers to the carbon released from the building when it is in operation/ in-use. This includes all the sources of energy required to keep it warm, cool, ventilated, operate the lights, and keep the power on.

16%

Rooftop Solar PV

16%

DHW Heat Pump

4%

Efficient Lighting & Appliances

2%

HVAC Upgrades

10%

Airtightness

99 tCO2e

Insulation

Glazing

OPERATIONAL CARBON

22%

38% Figure 9: Annual Operational carbon of initiatives for the retrofit.

67

Appendix F Carbon in our Materials In order to determine what materials were best for the retrofit, we also modelled the embodied carbon associated with our proposed materials.

carbon and the operational carbon savings, the results are summarised below.

We compared this with the embodied carbon of a new build, the operational

107% Reduction

Embodied Carbon As Built

Operational Carbon Baseline

Operational Carbon As Built

Proposed Scenario Includes: Proposed Scenario Includes: UPVC Glazing UPVC Glazing Laminex Joinery Joinery (kitchen) (kitchen) Cork Flooring Hardwood Joinery Joinery (bedrooms) (bedrooms) Blow in insulation Ceramic Tiles Tiles (bathroom) (bathroom) Roof Insulation Insulation (Kingspan) Blinds (new) Figure 11: The above graph outlines the operational carbon vs the embodied carbon of several materials considered for the retrofit.

Wilam Ngarrang Apartments

68

Appendix G Project Costs Below is a list of all the costs associated with the retrofit.

Initiative / item

Cost ($)

Category

Heating & cooling (VRV)

~150,000

Environmental

Internal Insulation

~24,000

Environmental

Window Upgrade

~96,000

Environmental

Airtightness

~77,000

Environmental

Shading

~60,000

Environmental

Efficient Lighting

Within Budget

Environmental

Solar PV System

~44,000

Environmental

Domestic Hot Water Upgrade

~21,500

Environmental

Heat recovery system (HRV)

~45,000

Environmental

Within Budget

Environmental

Rainwater Collection & Storage

~7,300

Environmental

Communal Compost

~3,000

Environmental

Energy Monitoring System

~700

Environmental

External insulation & Cladding

~160,000

Environmental

Upgrade Roof

~50,000

Repair

Concrete Repair

~49,000

Repair

Service Upgrades (stormwater, sewer, fire protection)

~79,000

Repair

Electrical upgrades (install, switches)

~150,000

Repair

New Bathrooms

~90,000

Comfort/ Repair

Communal Laundry Upgrade

~33,000

Comfort

New Kitchens

~160,000

Comfort

Replace Carpets

~4,900

Comfort

Remove Carpark

~4,700

Comfort

Communal Area Upgrades

~5,000

Comfort

Wall Render

~26,000

Comfort

Joinery

~140,000

Comfort

-

Comfort

Entry Upgrades & Intercom

~10,000

Comfort

Internet NBN Upgrade

~5,000

Comfort

Landscaping & Gardens

~50,000

Landscape

Front & Back Fences

~38,000

Landscape

Bike Storage

~2,300

Landscape

Efficient showers & Taps

Salvaged Marble Communal table

Figure 12: The table provides a breakdown of all the costs associated with the retrofit.

69

Transforming Greater Melbourne from a consumer to a producer by 2030.
