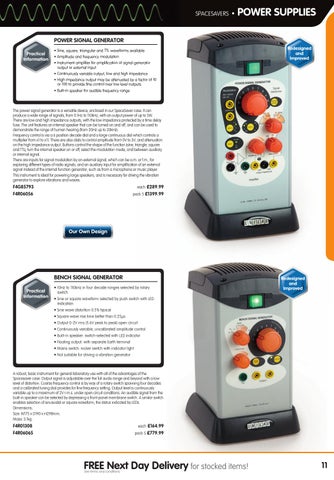

SPACESAVERS •
POWER SUPPLIES
POWER SIGNAL GENERATOR Practical Information
Redesigned and Improved
• Sine, square, triangular and TTL waveforms available • Amplitude and frequency modulation • Instrument amplifier for amplification of signal generator output or external input • Continuously variable output, low and high impedance • High impedance output may be attenuated by a factor of 10 or 100 to provide fine control over low level outputs • Built-in speaker for audible frequency range
The power signal generator is a versatile device, enclosed in our SpaceSaver case. It can produce a wide range of signals, from 0.1Hz to 110kHz, with an output power of up to 5W. There are low and high impedance outputs, with the low impedance protected by a time delay fuse. The unit features an internal speaker that can be turned on and off, and can be used to demonstrate the range of human hearing (from 20Hz up to 20kHz). Frequency control is via a 6 position decade dial and a large continuous dial which controls a multiplier from x1 to x11. There are also dials to control amplitude from 0V to 5V, and attenuation on the high impedance output. Buttons control the shape of the function (sine, triangle, square and TTL), turn the internal speaker on or off, select the modulation mode, and between auxiliary or internal signal. There are inputs for signal modulation by an external signal, which can be a.m. or f.m., for exploring different types of radio signals, and an auxiliary input for amplification of an external signal instead of the internal function generator, such as from a microphone or music player. This instrument is ideal for powering large speakers, and is necessary for driving the vibration generator to explore vibrations and waves.
F4G85793
each £289.99
F4R06056
pack 5 £1399.99
Our Own Design
BENCH SIGNAL GENERATOR Practical Information
Redesigned and Improved
• 10Hz to 110kHz in four decade ranges selected by rotary switch • Sine or square waveform selected by push switch with LED indication • Sine wave distortion 0.5% typical • Square wave rise time better than 0.25µs • Output 0-2V rms (5.6V peak to peak) open circuit • Continuously variable, uncalibrated amplitude control • Built-in speaker: switch-selected with LED indicator • Floating output: with separate Earth terminal • Mains switch: rocker switch with indicator light • Not suitable for driving a vibration generator
A robust, basic instrument for general laboratory use with all of the advantages of the Spacesaver case. Output signal is adjustable over the full audio range and beyond with a low level of distortion. Coarse frequency control is by way of a rotary-switch spanning four decades and a calibrated tuning dial provides for fine frequency setting. Output level is continuously variable up to a maximum of 2V r.m.s. under open circuit conditions. An audible signal from the built-in speaker can be selected by depressing a front-panel membrane switch. A similar switch enables selection of sinusoidal or square waveform, the status indicated by LEDs. Dimensions; Size: W175 x D190 x H298mm. Mass: 3.1kg.
F4R01308
each £164.99
F4R06065
pack 5 £779.99
FREE Next Day Delivery for stocked items!
11
See terms and conditions
