Trail of Gardens
Menil Campus | Houston, TX ARCH 2501 | Spring 2021
pg. 4-11
Bellaire Music Center
Bellaire | Houston, TX ARCH 4510 | Fall 2023
pg. 12-21
Brady Island | Houston, TX
ARCH 3500 | Fall 2022
pg. 22-29
Cordemex | Merida, Mexico ARCH 5500 | Spring 2024
pg. 30-37
Selected Works ARCH 1500 | Fall 2020
pg. 38-40
Menil Campus
Houston, TX
Public Center that joins a coffee shop, bookstore, dormitory, tennis courts and locker rooms

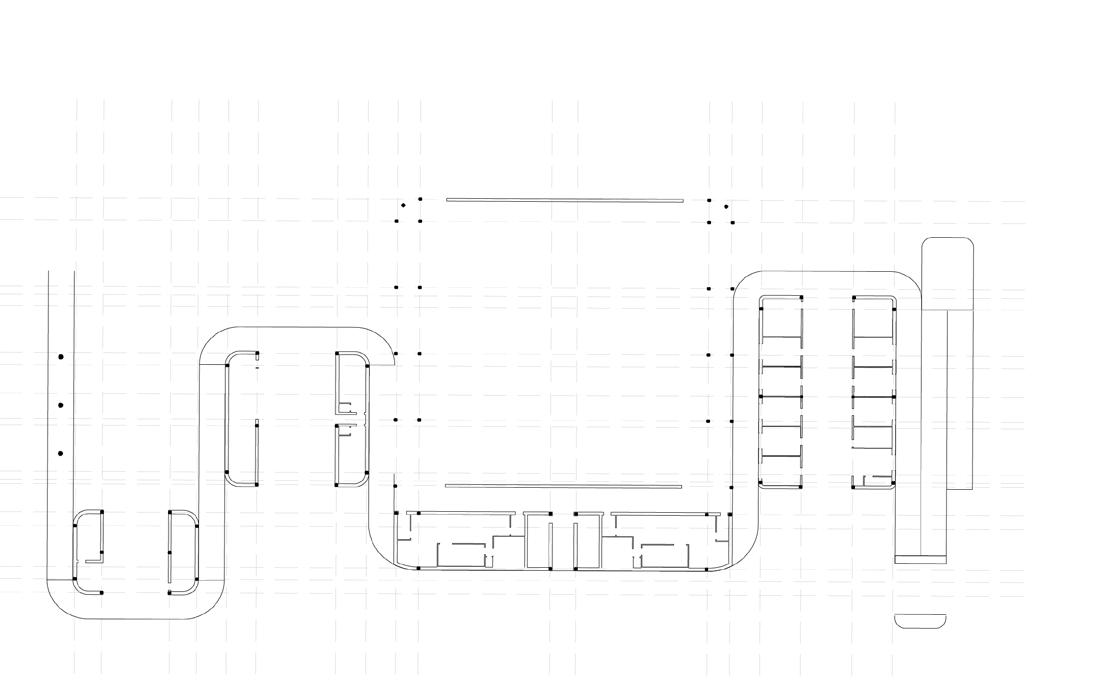

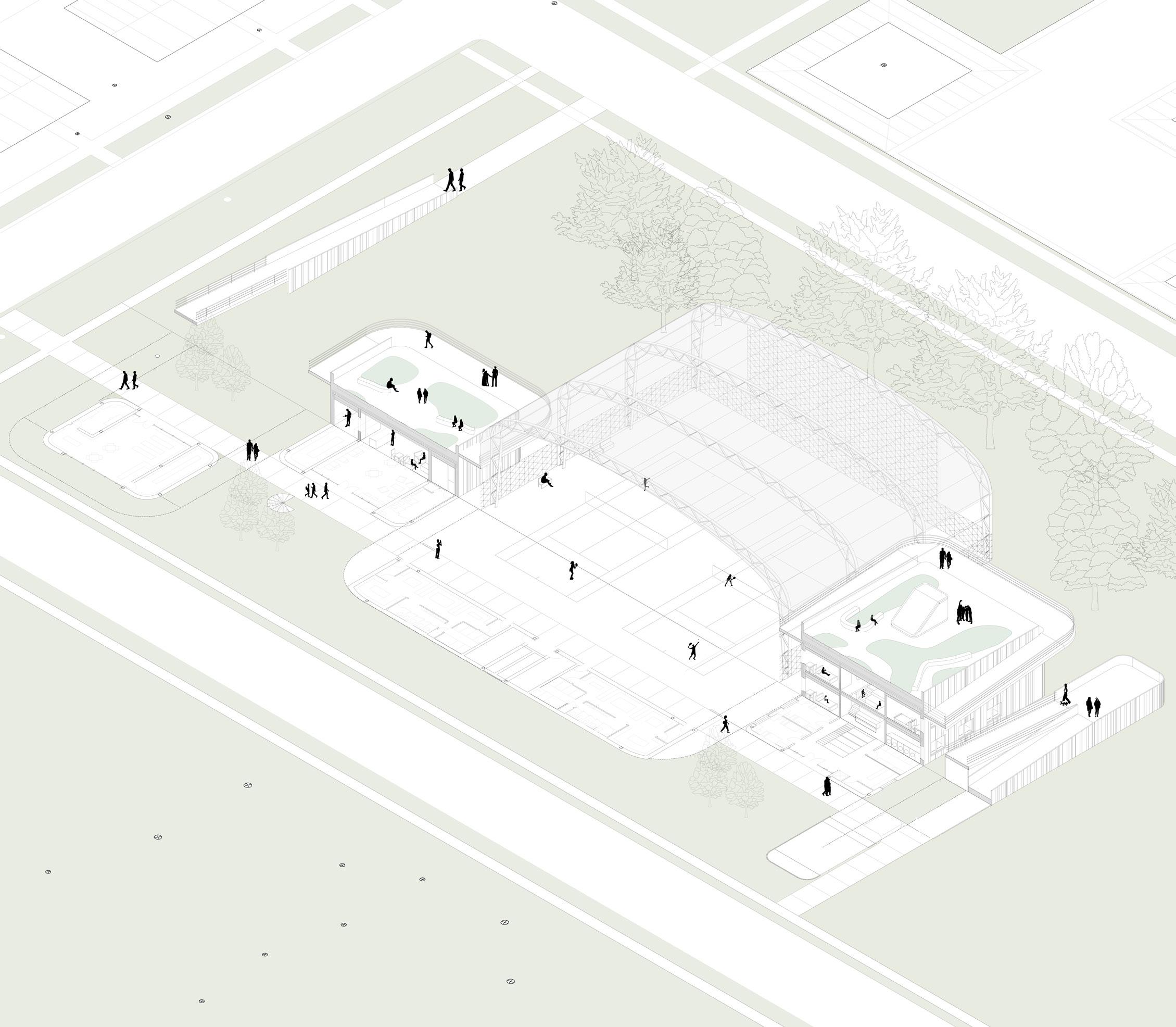

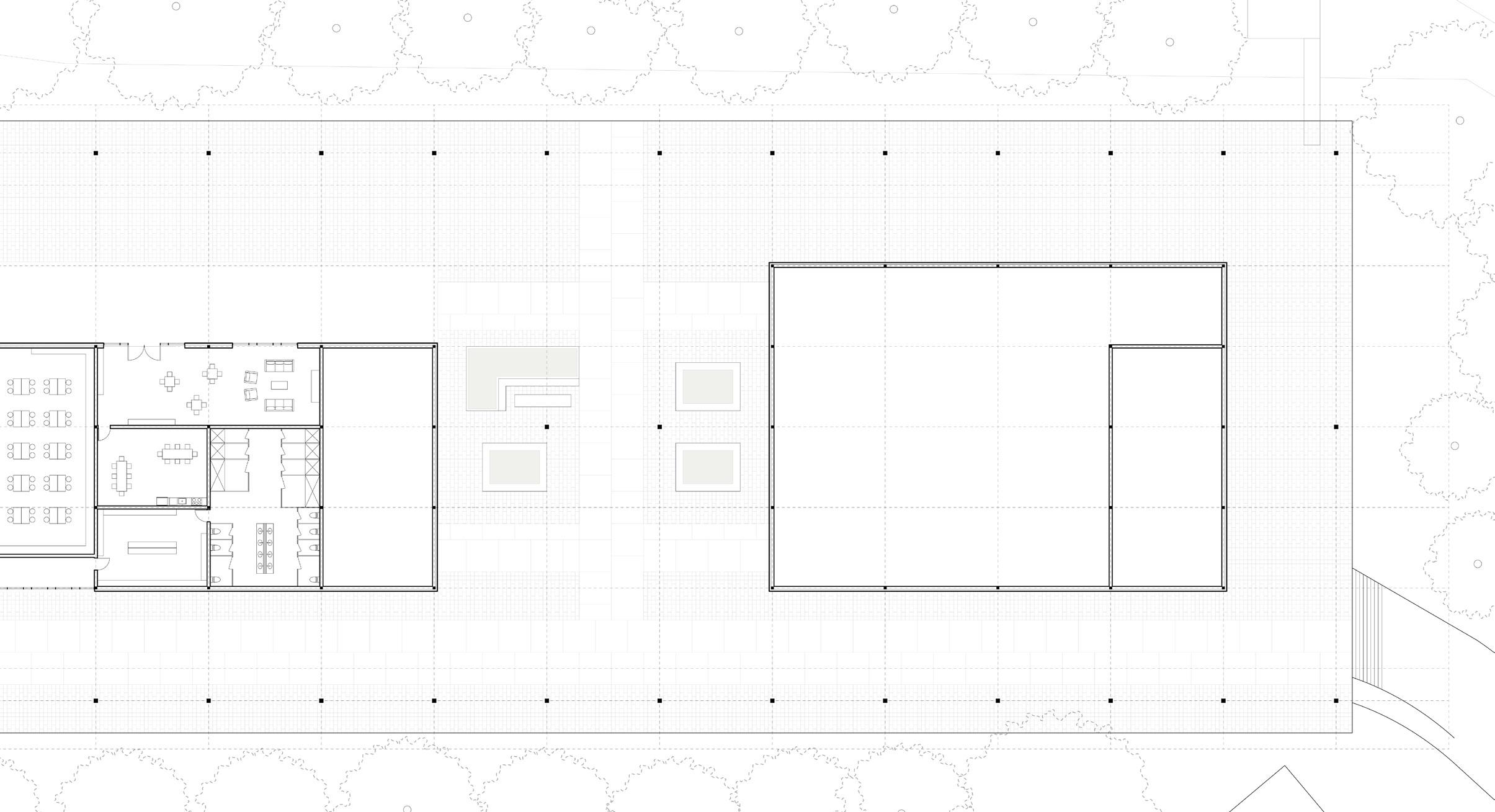

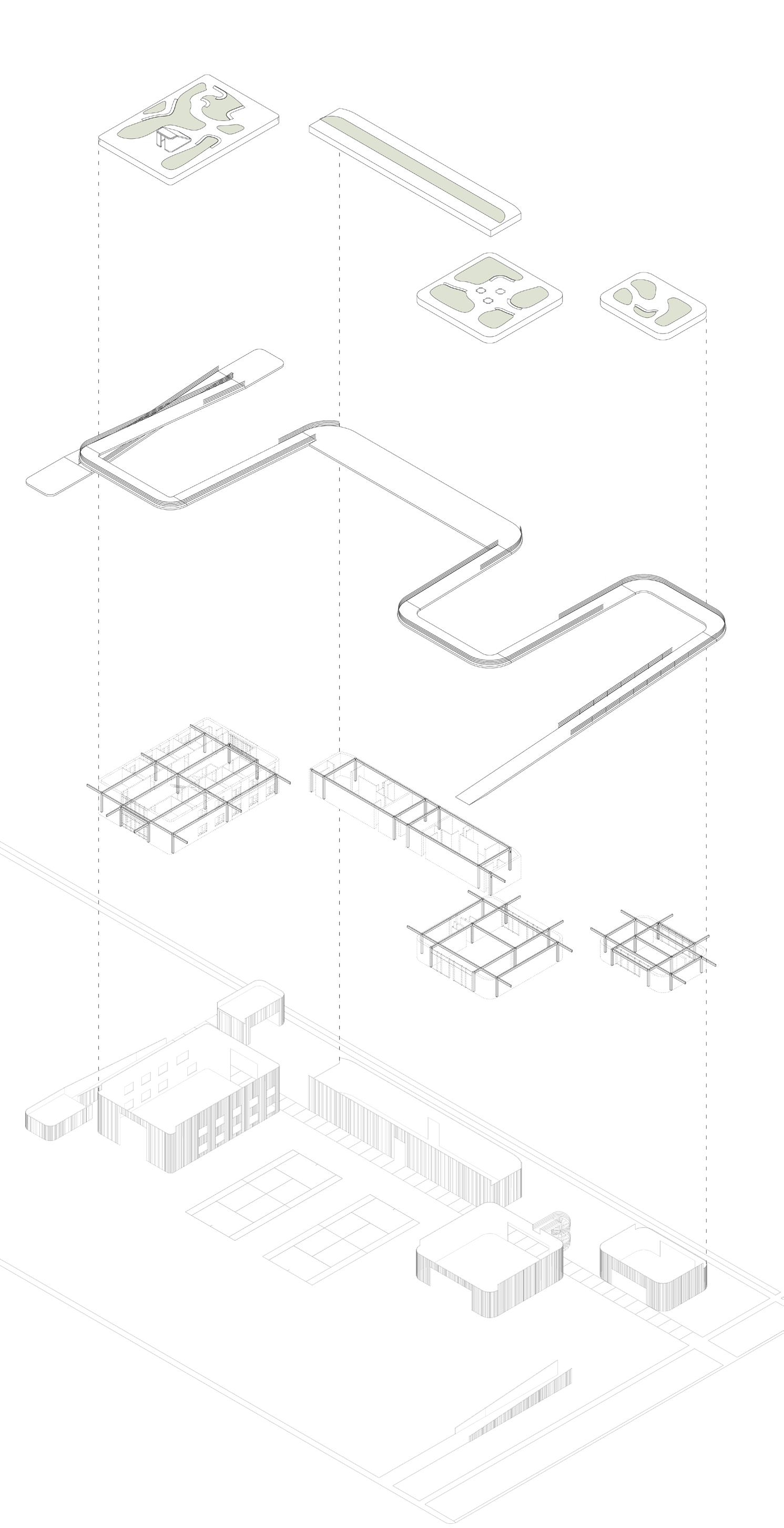

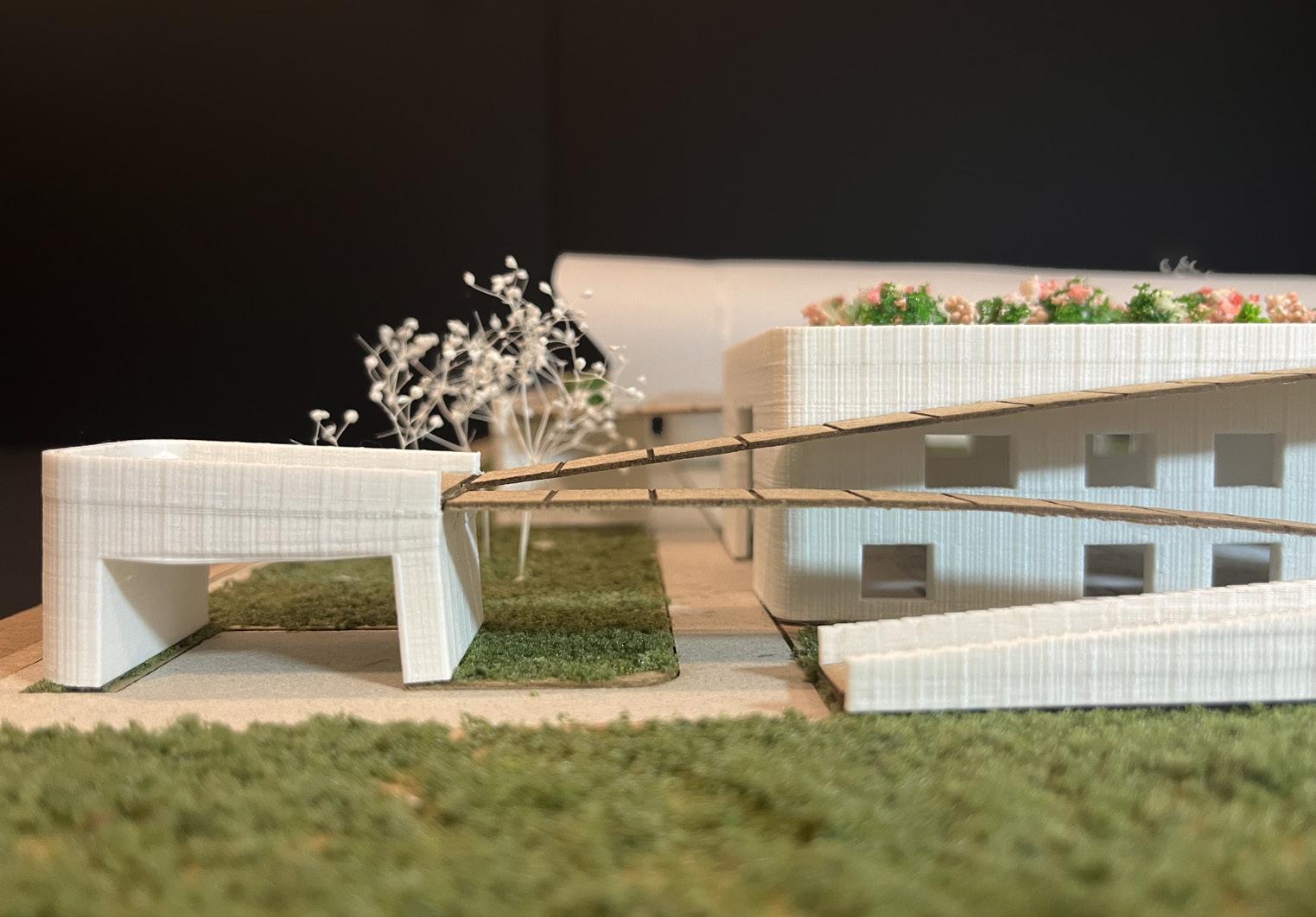

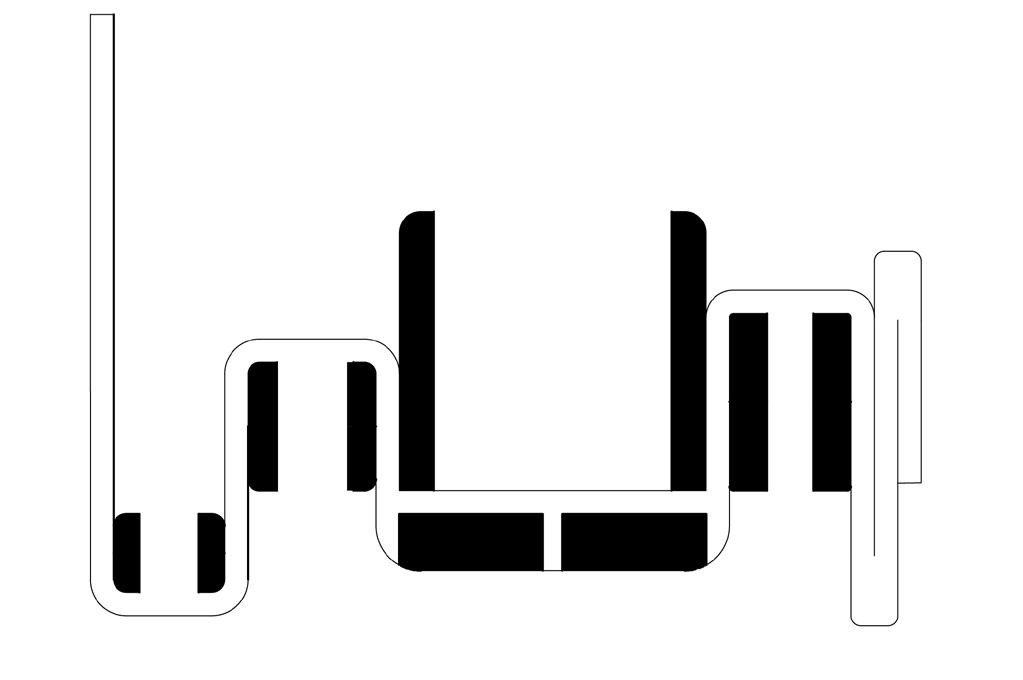

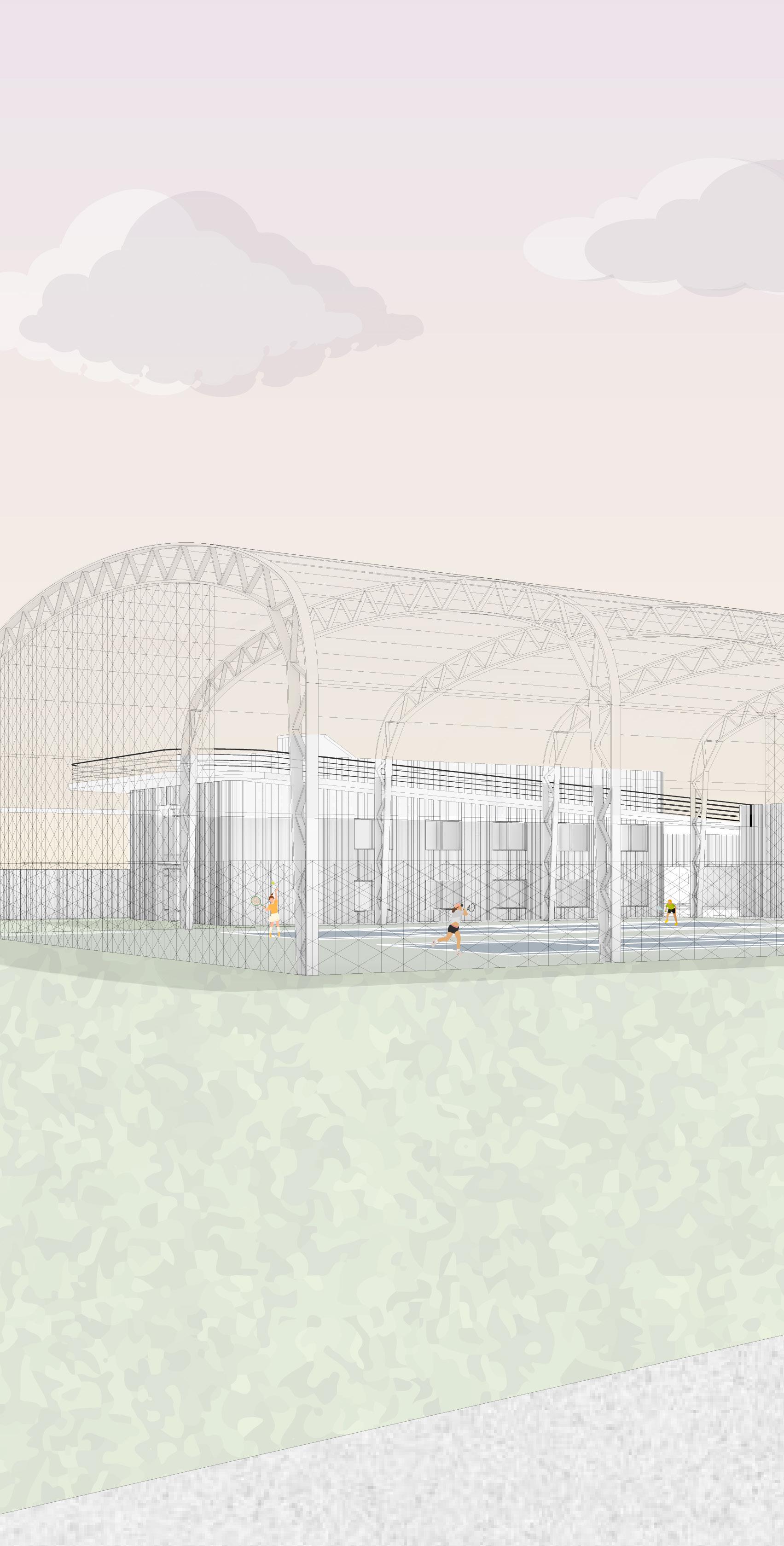

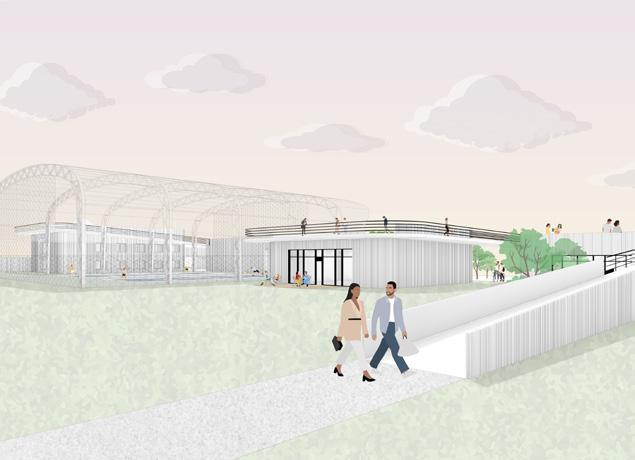

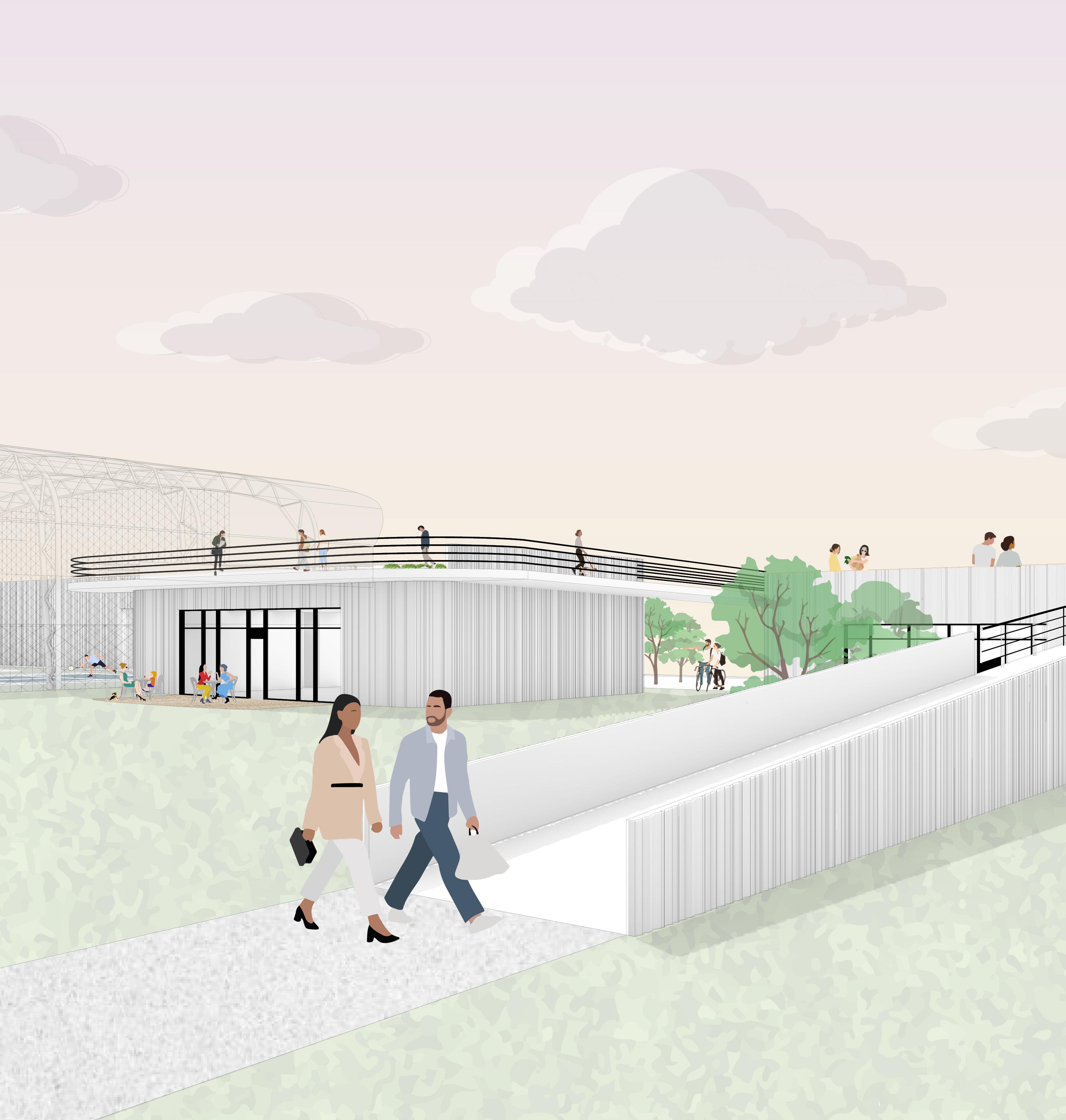

Trail of Gardens is Located on the Menil campus, across from the Menil Drawing Institute. The programs are located in separate buildings, but are connected by a path that runs in between them, which also acts as a connection between Loretto Street and Colquitt Street. In addition, there is a ramp that weaves through all of the rooftops that provides a path for passerbys to access the tops of the buildings without having to enter them.
ARCH 2501
Spring 2021
Programs used: Rhino 3D, Adobe Illustrator

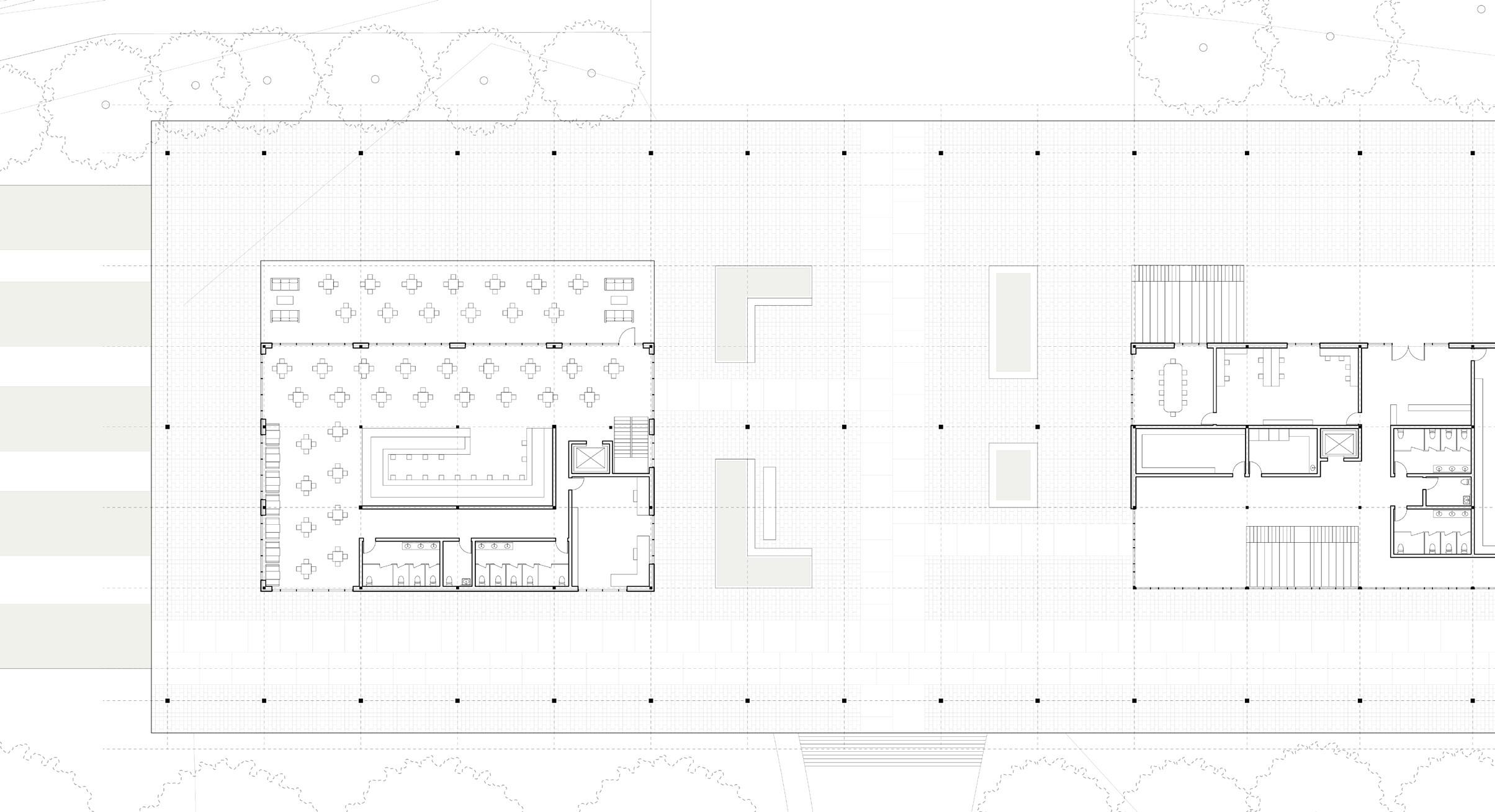

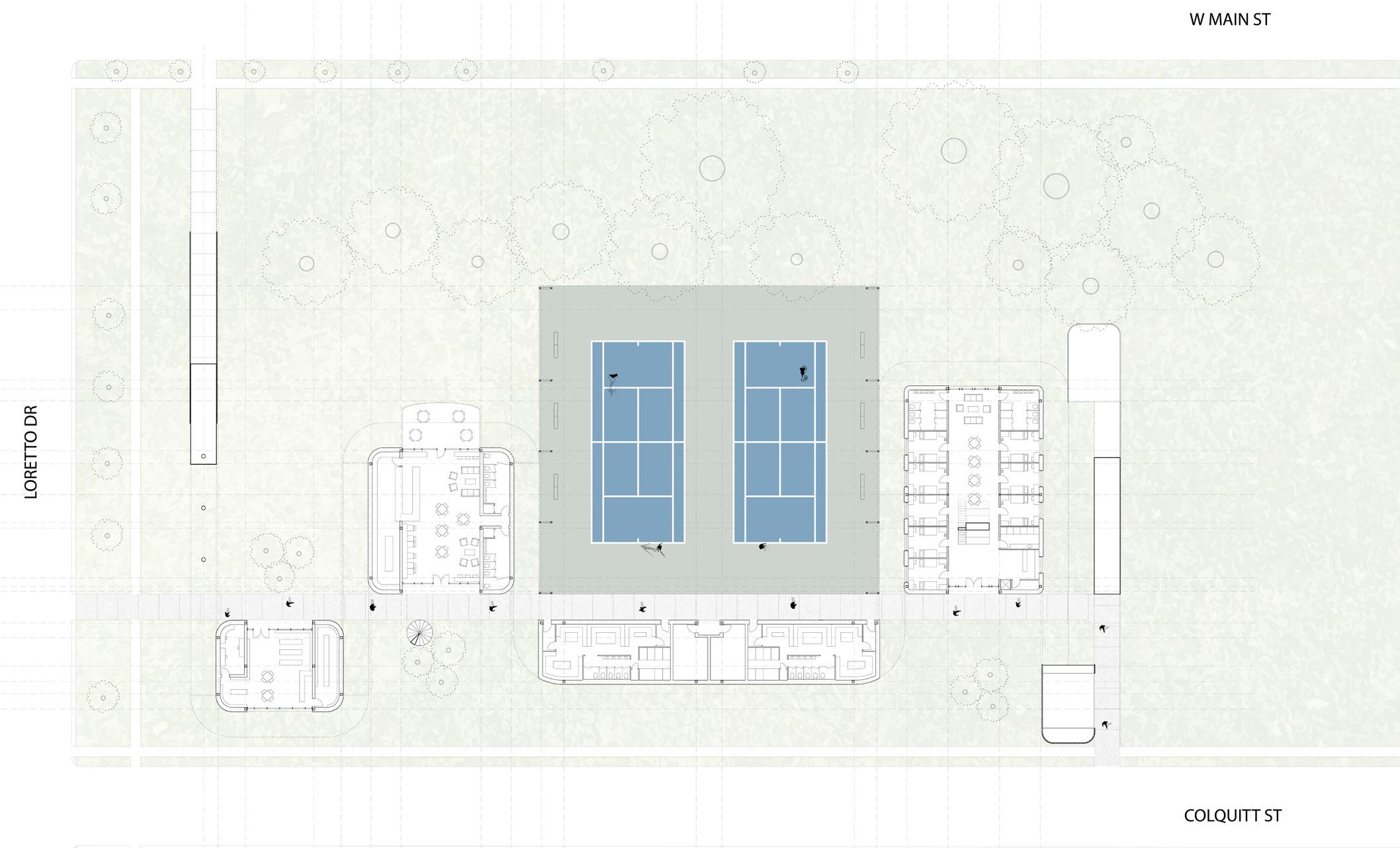

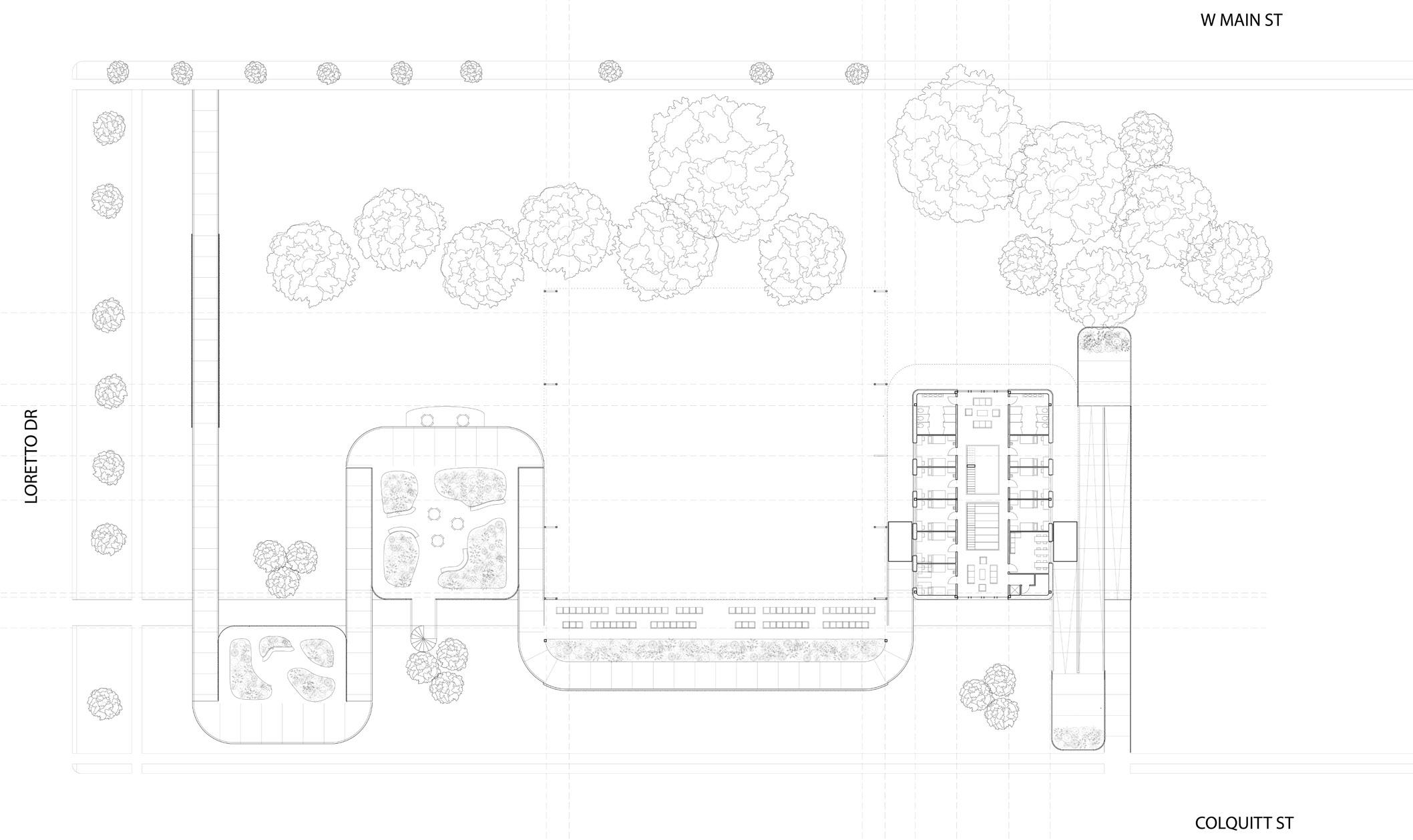

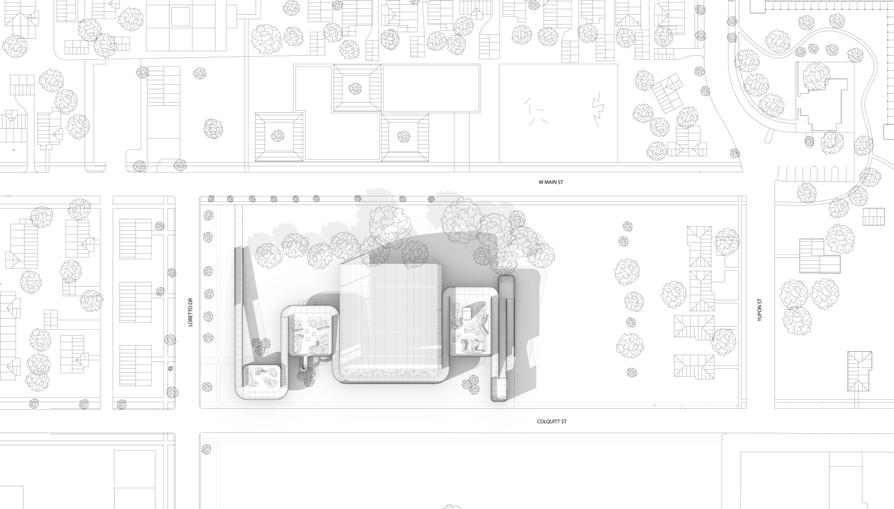

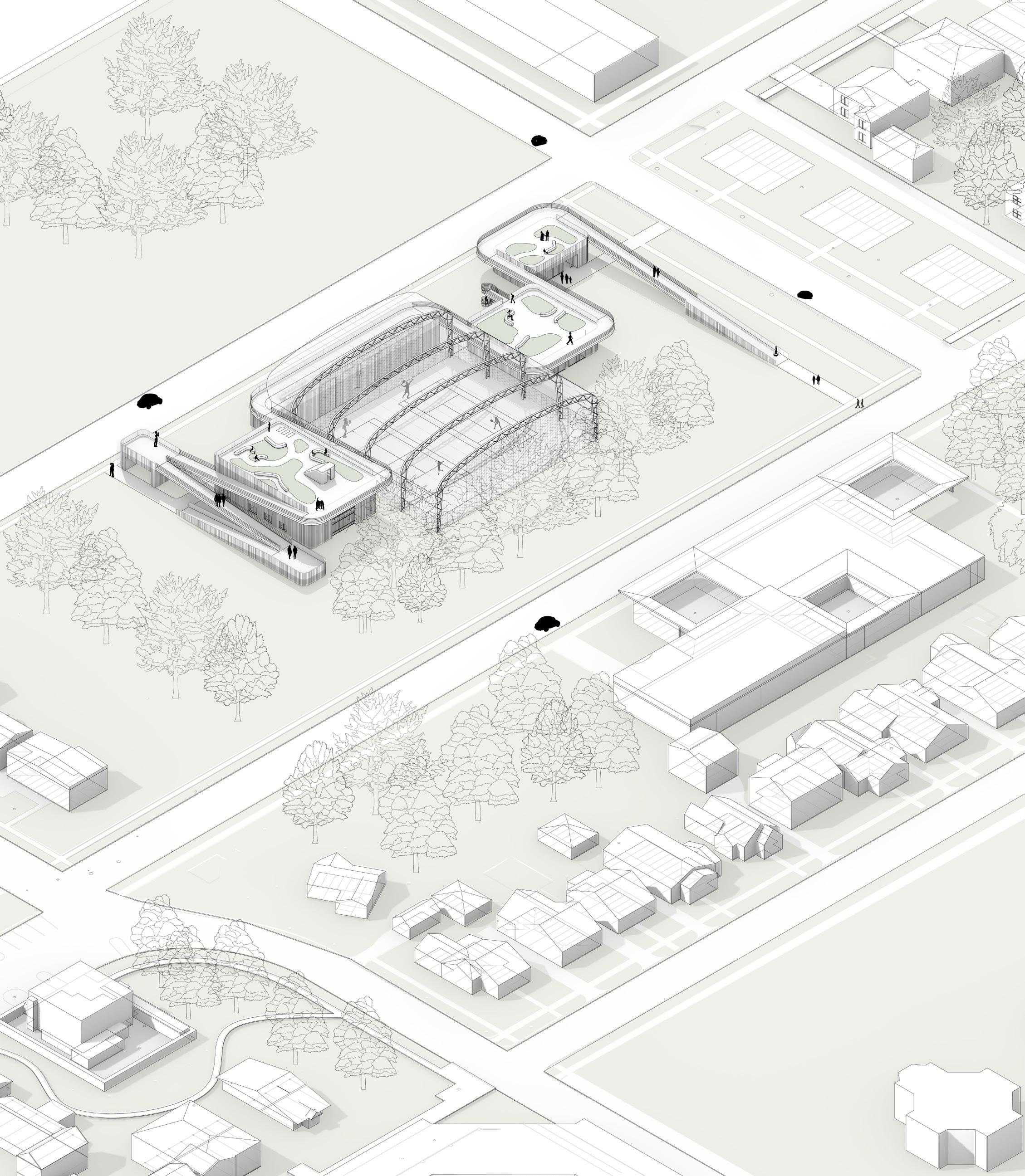

Menil Campus Site
Structure/Private

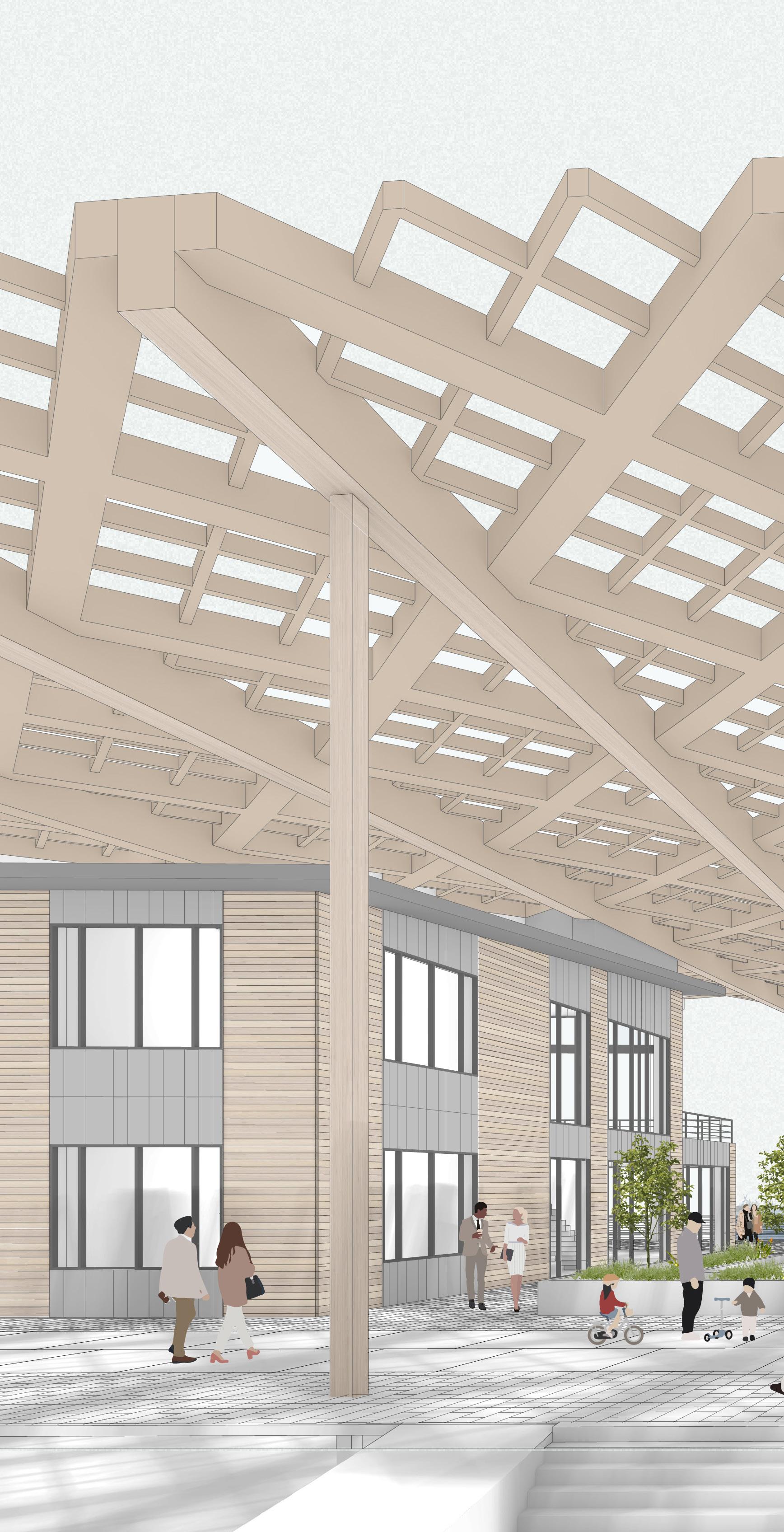

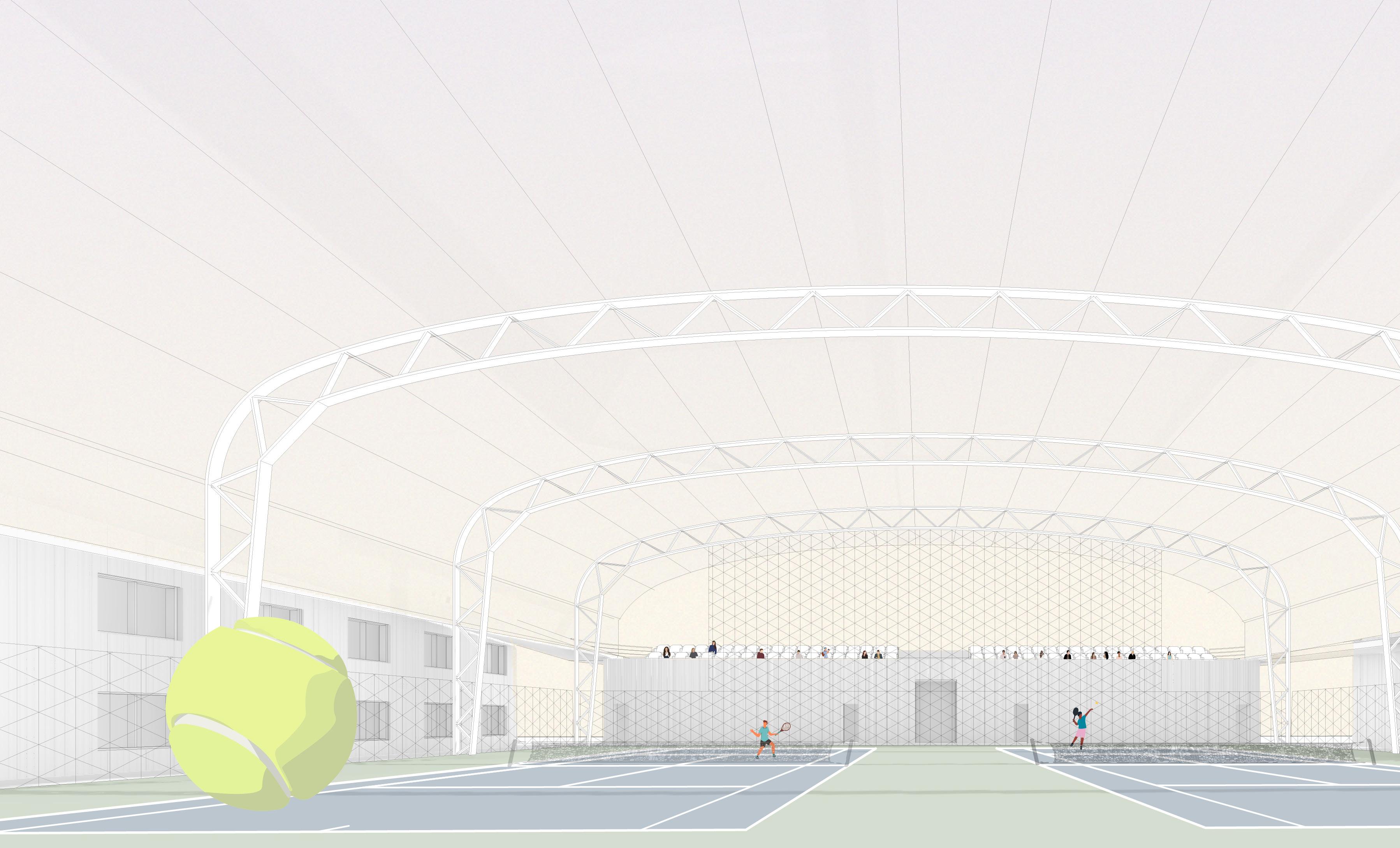

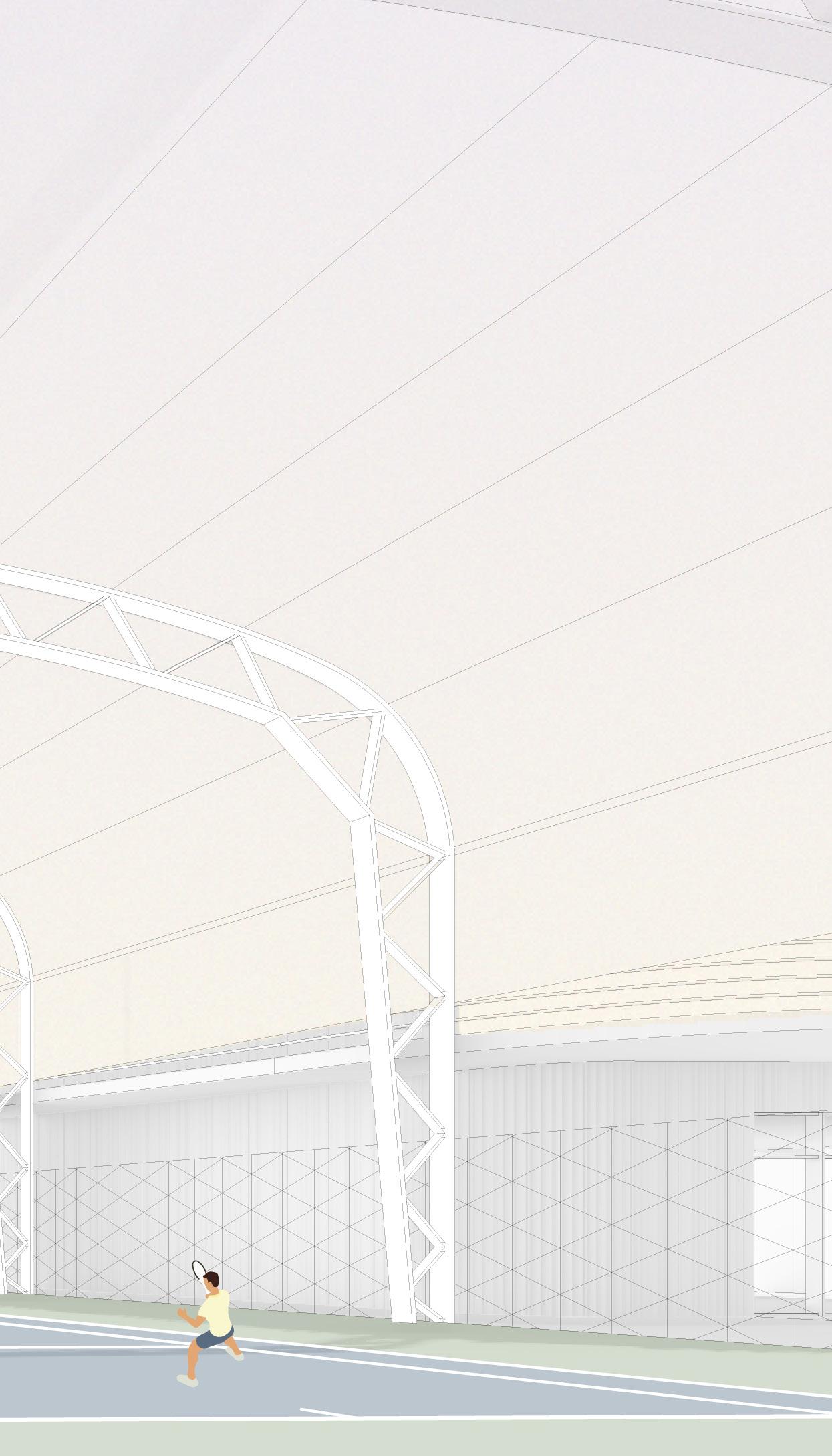

COURT INTERIOR VIEW

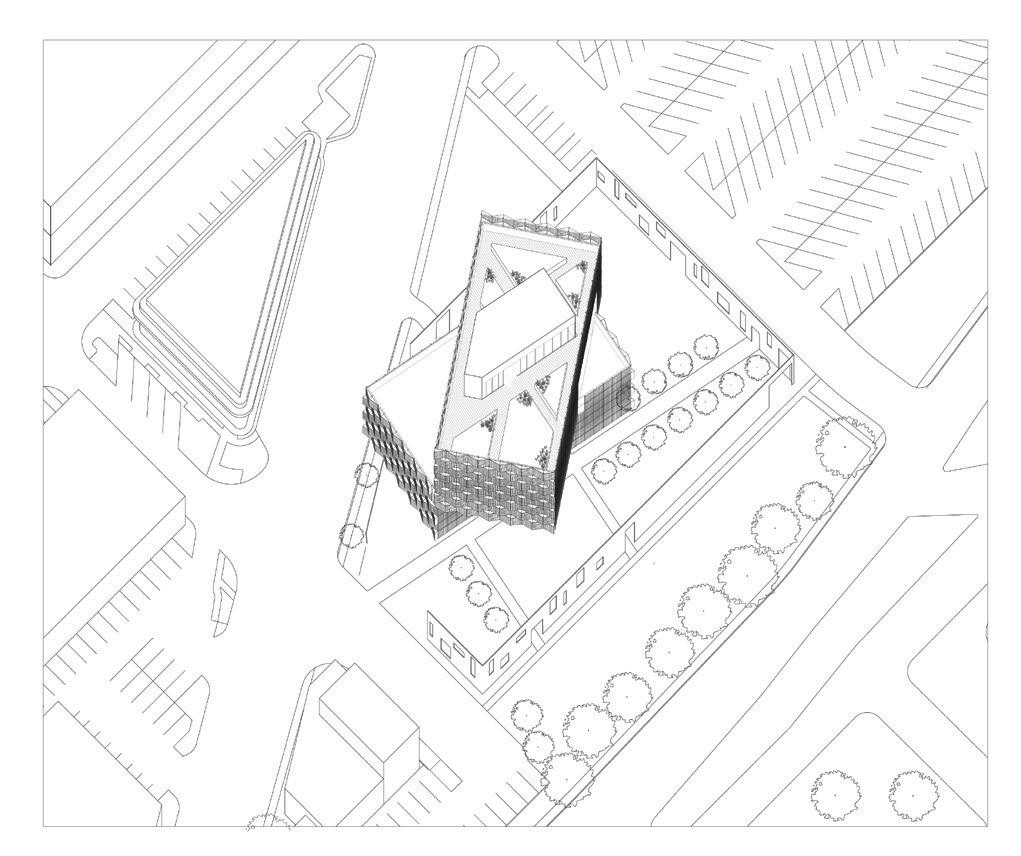

Bellaire
Houston, TX
Our project aims to create a community music center for the Bellaire neighborhood, offering a space for people to learn about music, attend performances, and engage with the arts. The program includes areas for music education, rehearsal spaces, performance venues, and community gathering areas. Located in Bellaire’s downtown district, along Bellaire Boulevard, the city’s most diverse corridor, the site sits on the grounds of an abandoned supermarket. We plan to demolish the old building while preserving the surrounding wall, blending the new design with the existing exterior structure to create a music hub for the community.
ARCH 4510
Fall 2023
Programs used: Rhino 3D, Adobe Illustrator, Vray

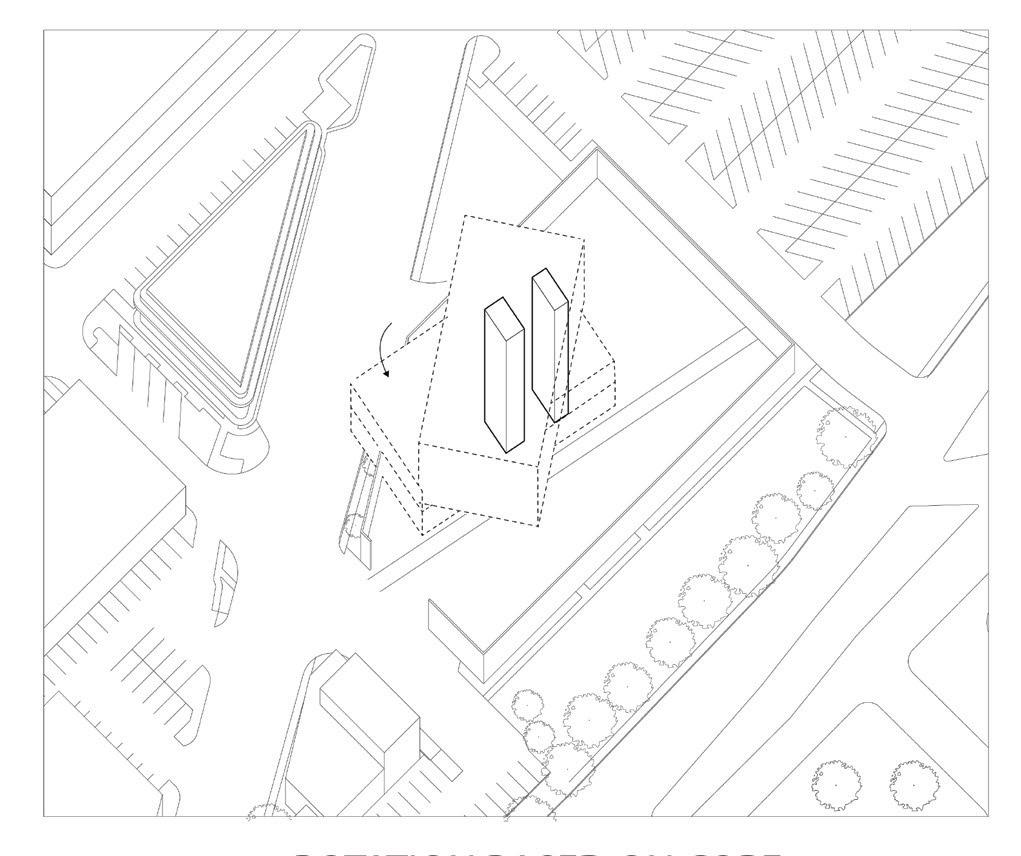

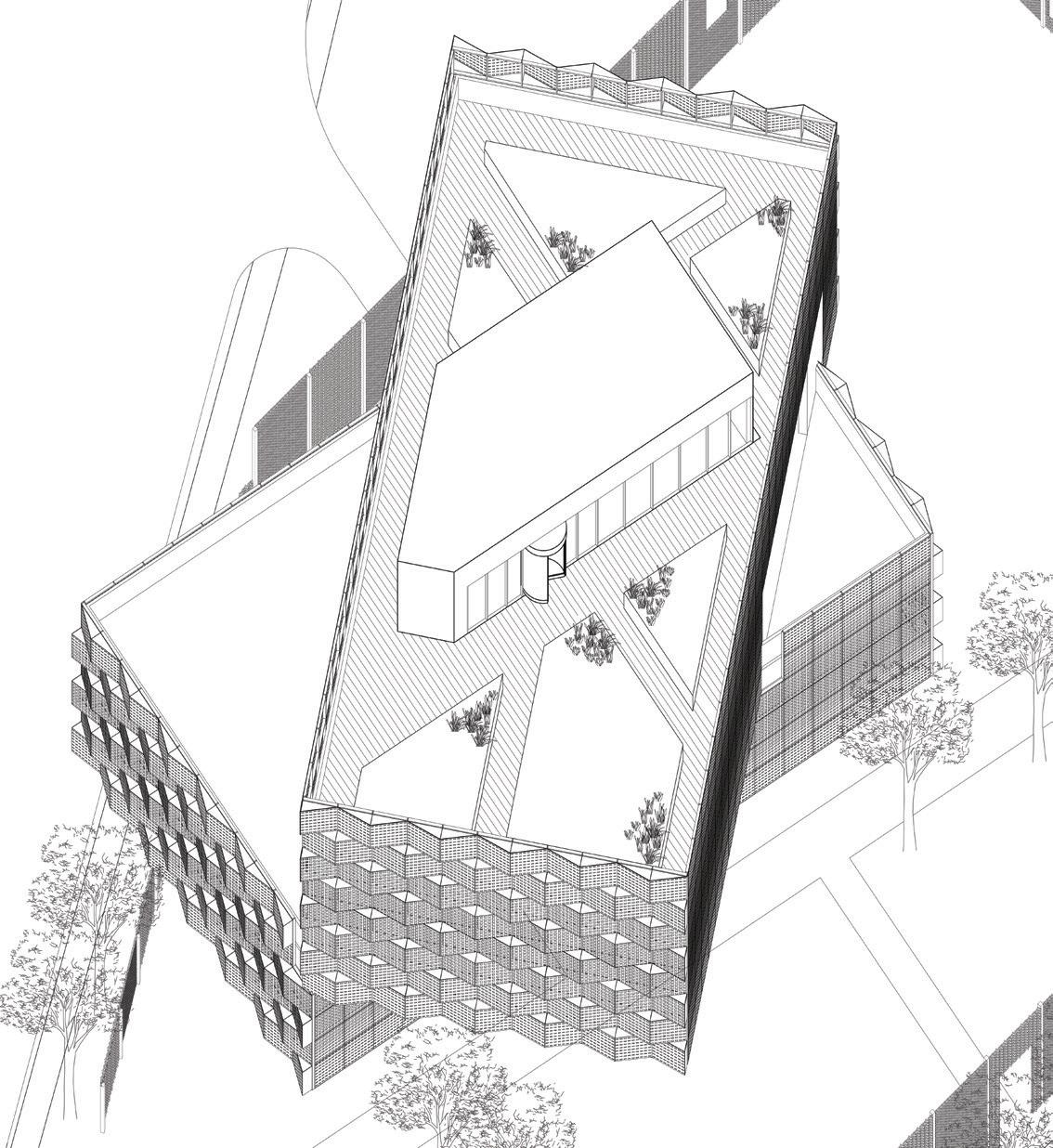

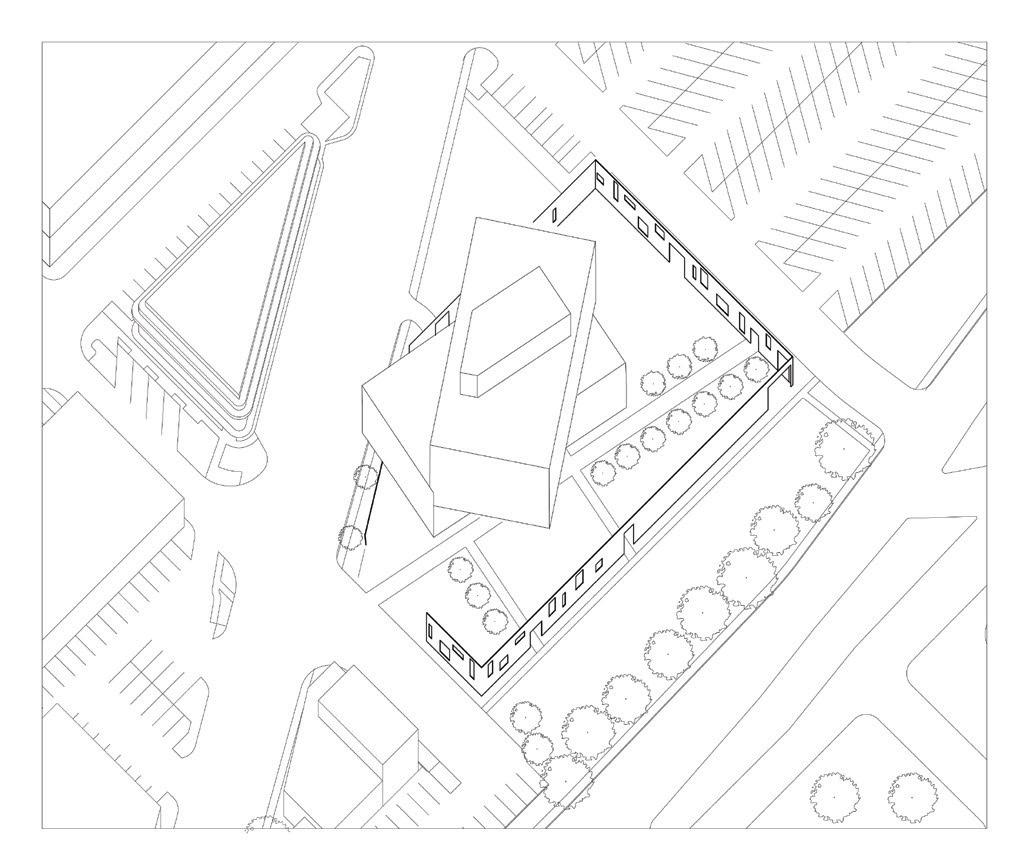

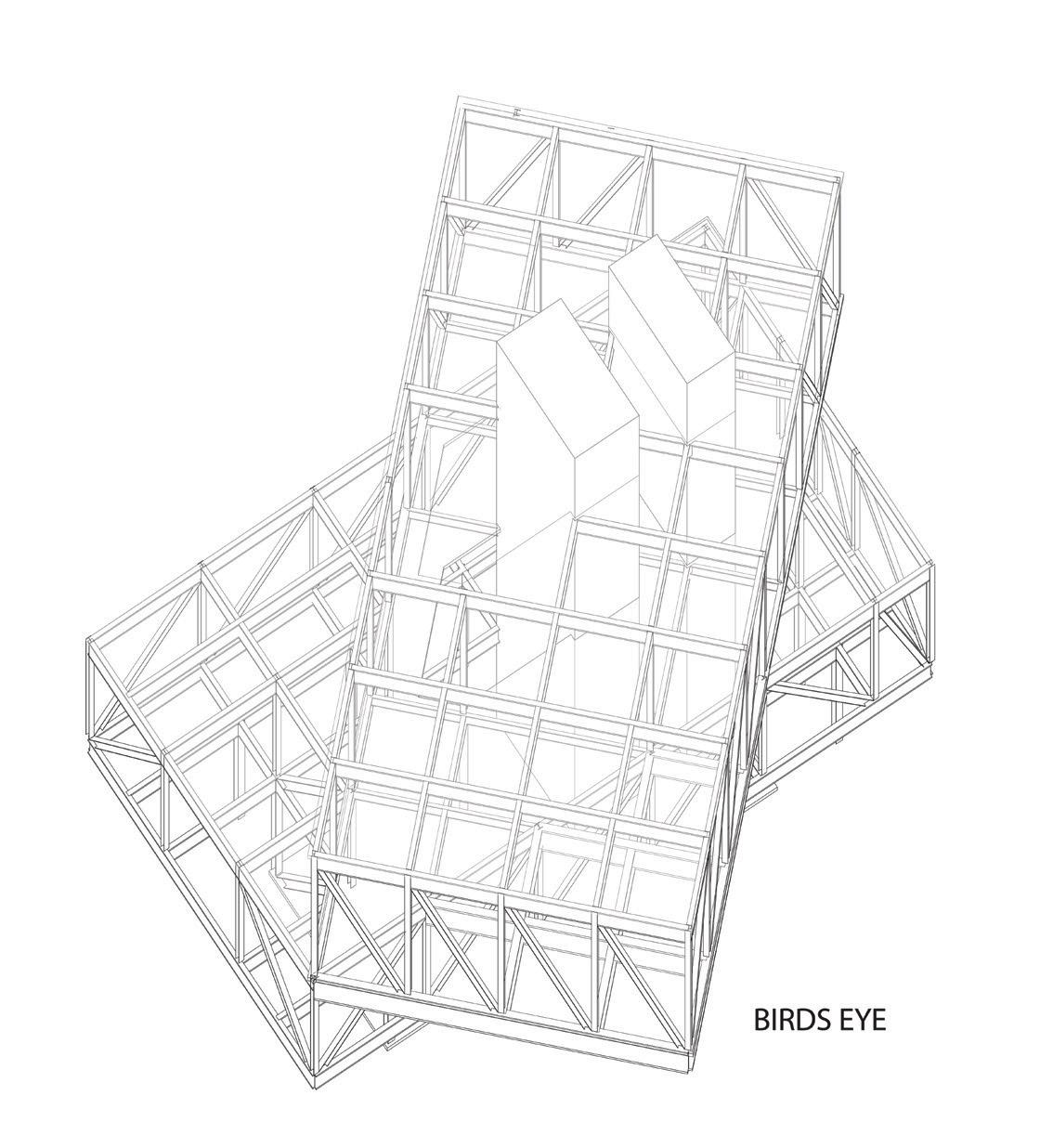

ROTATION BASED ON CORE

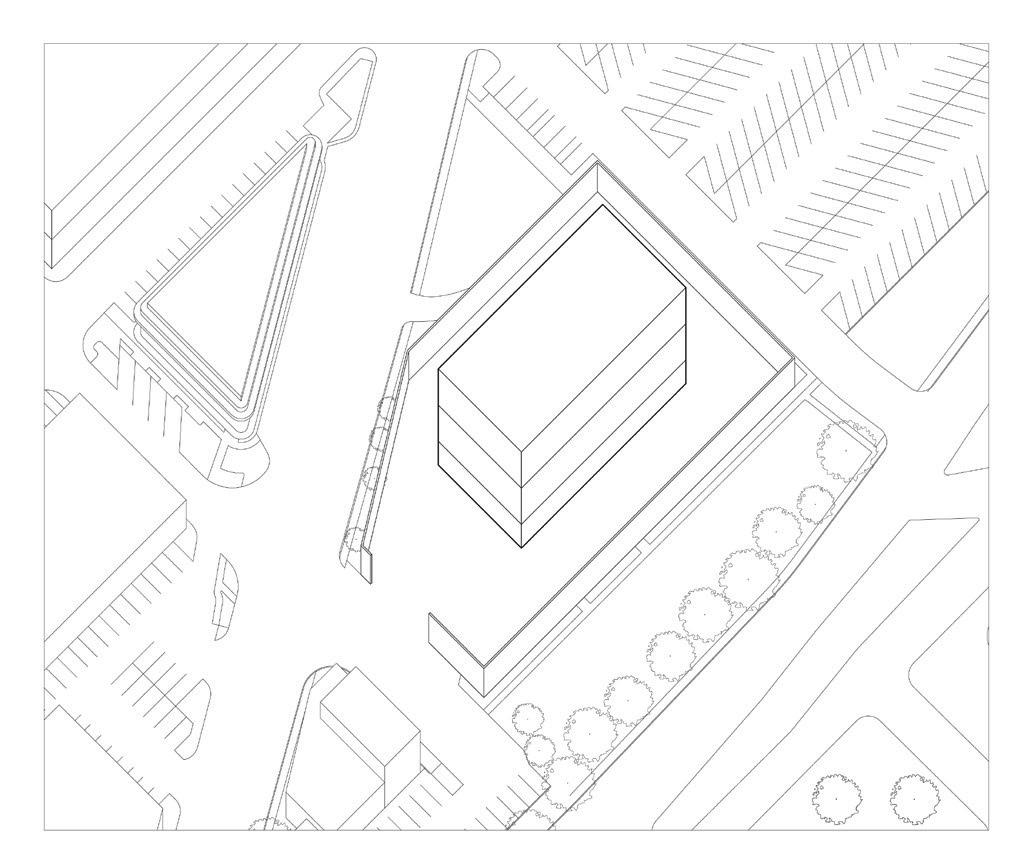

DESIGNING BRICK WALL

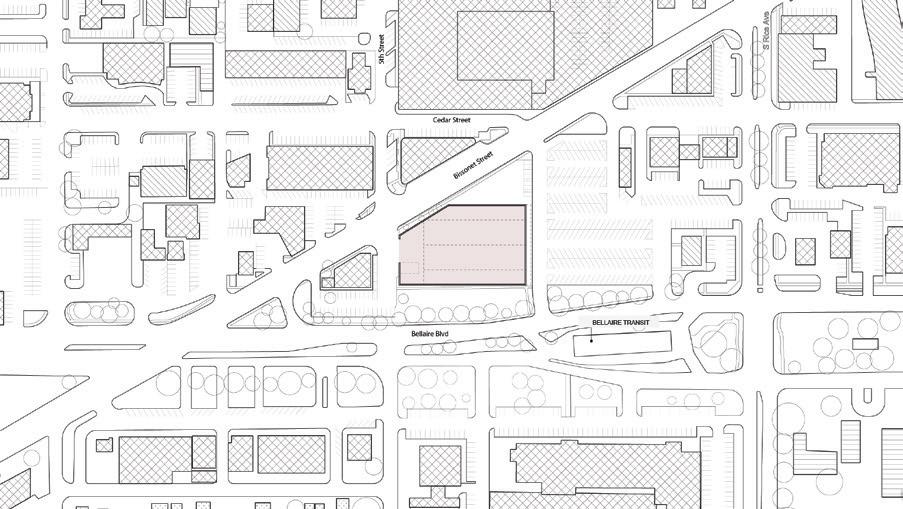

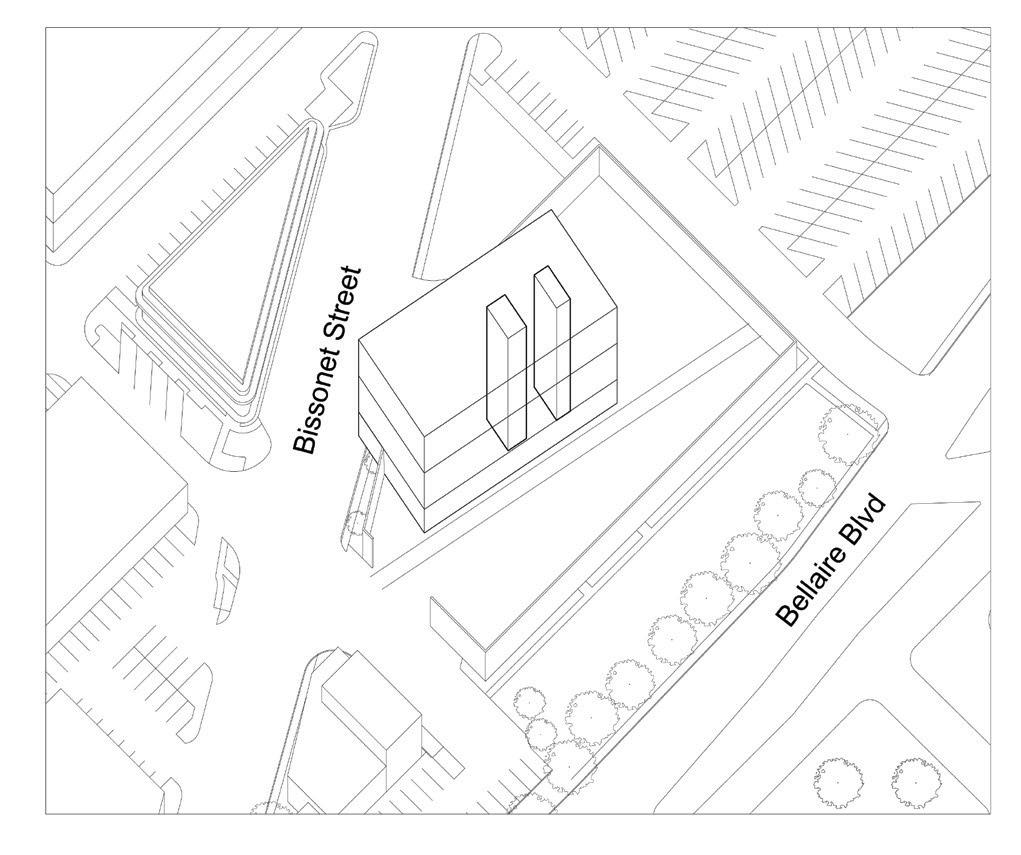

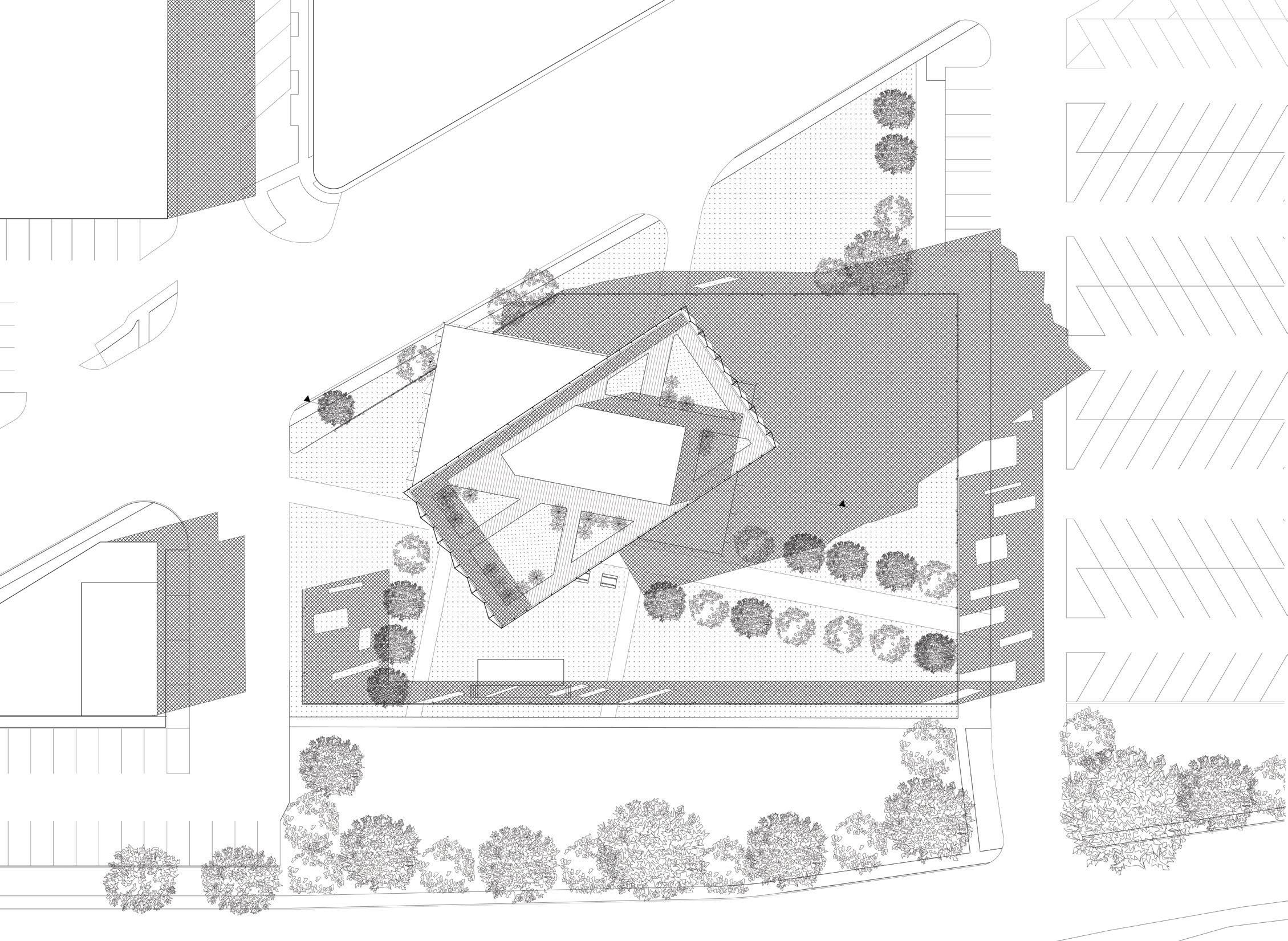

CONNECTION FROM BISSONET ST TO BELLAIRE BLVD

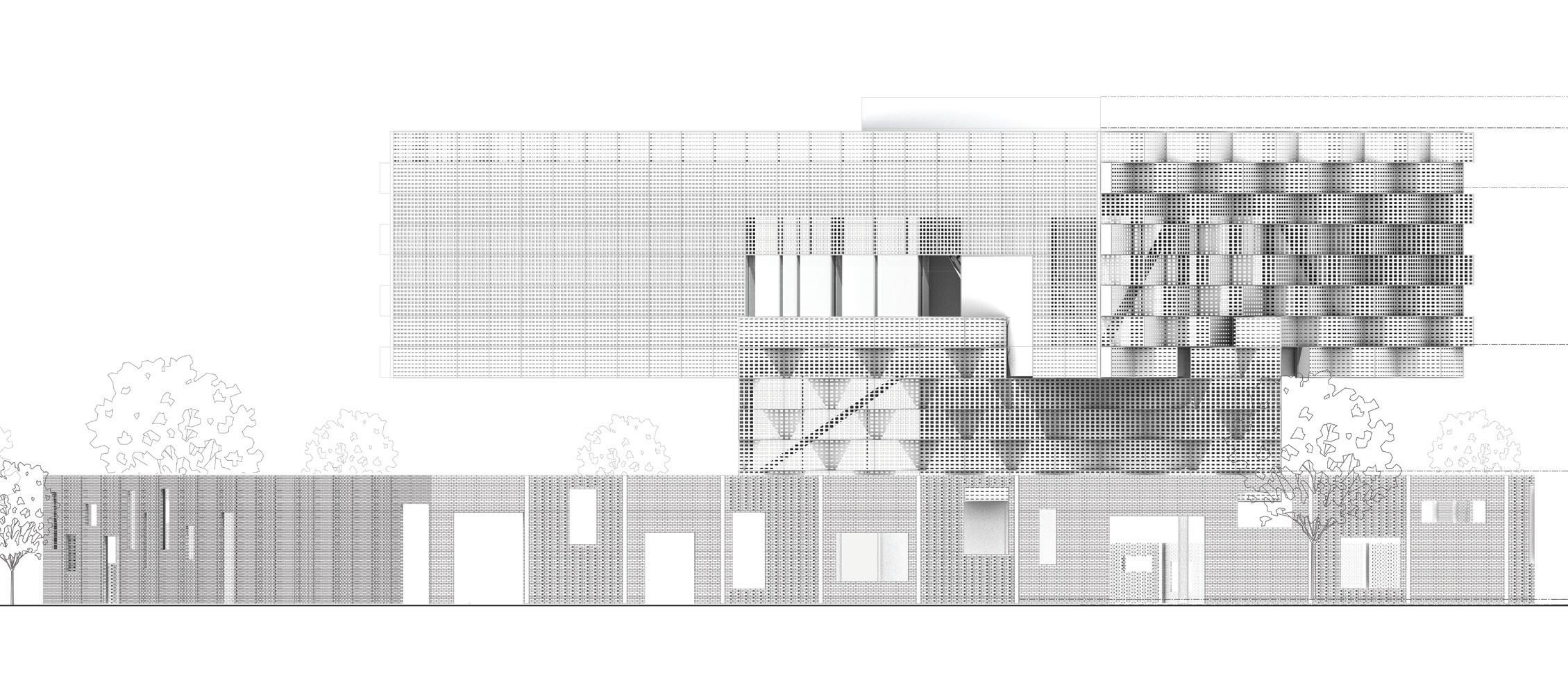

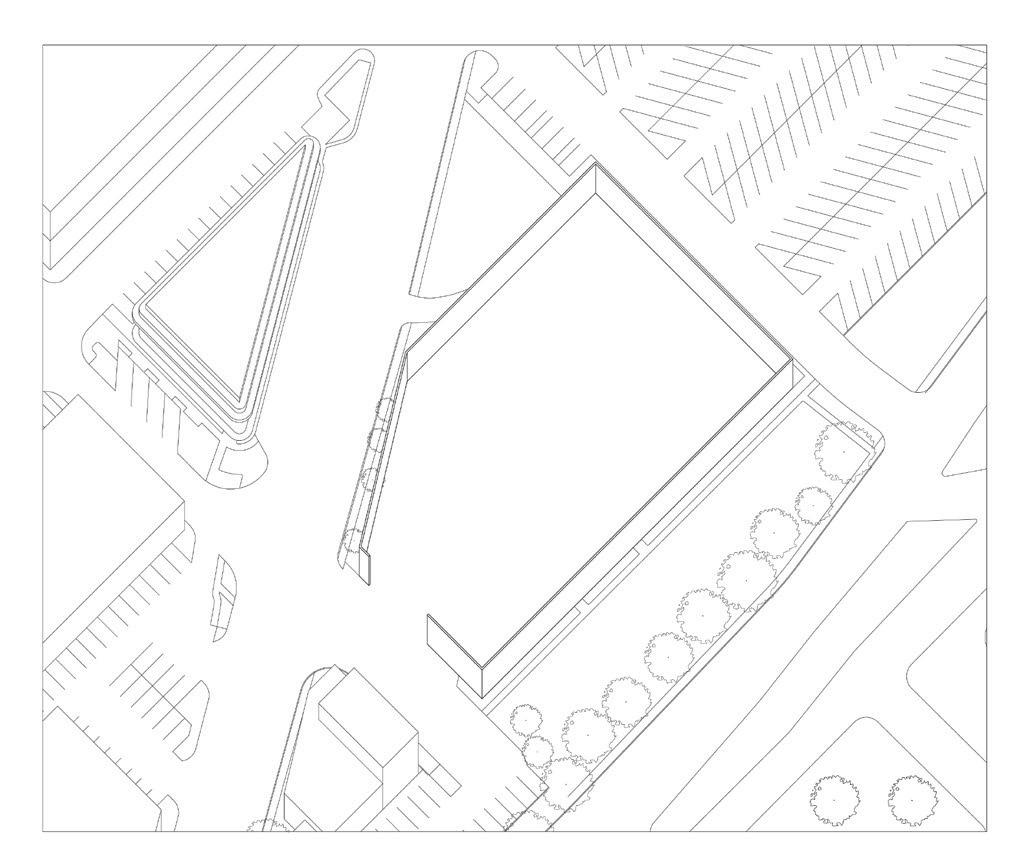

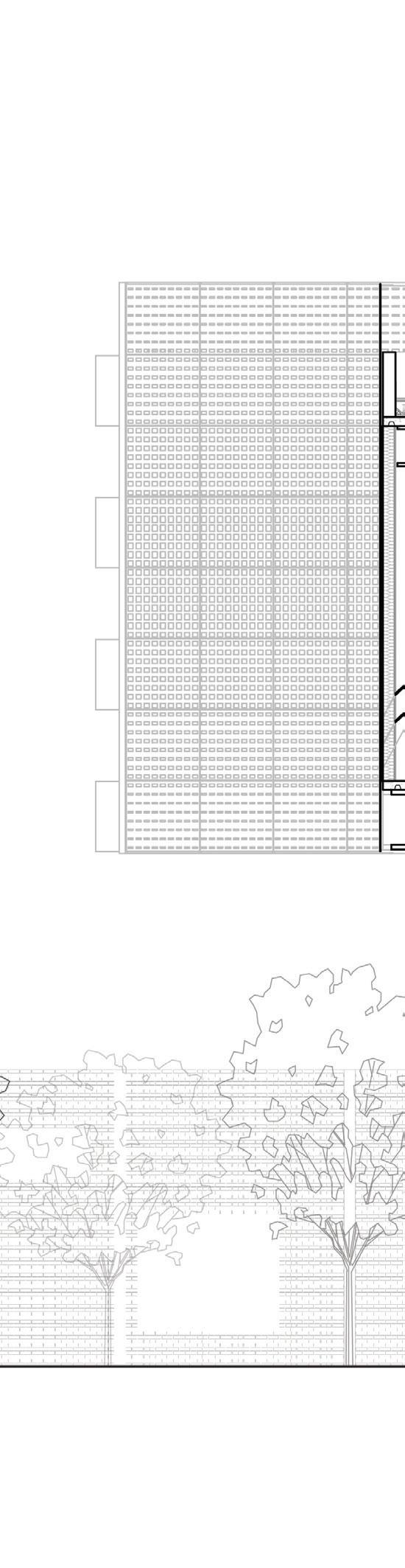

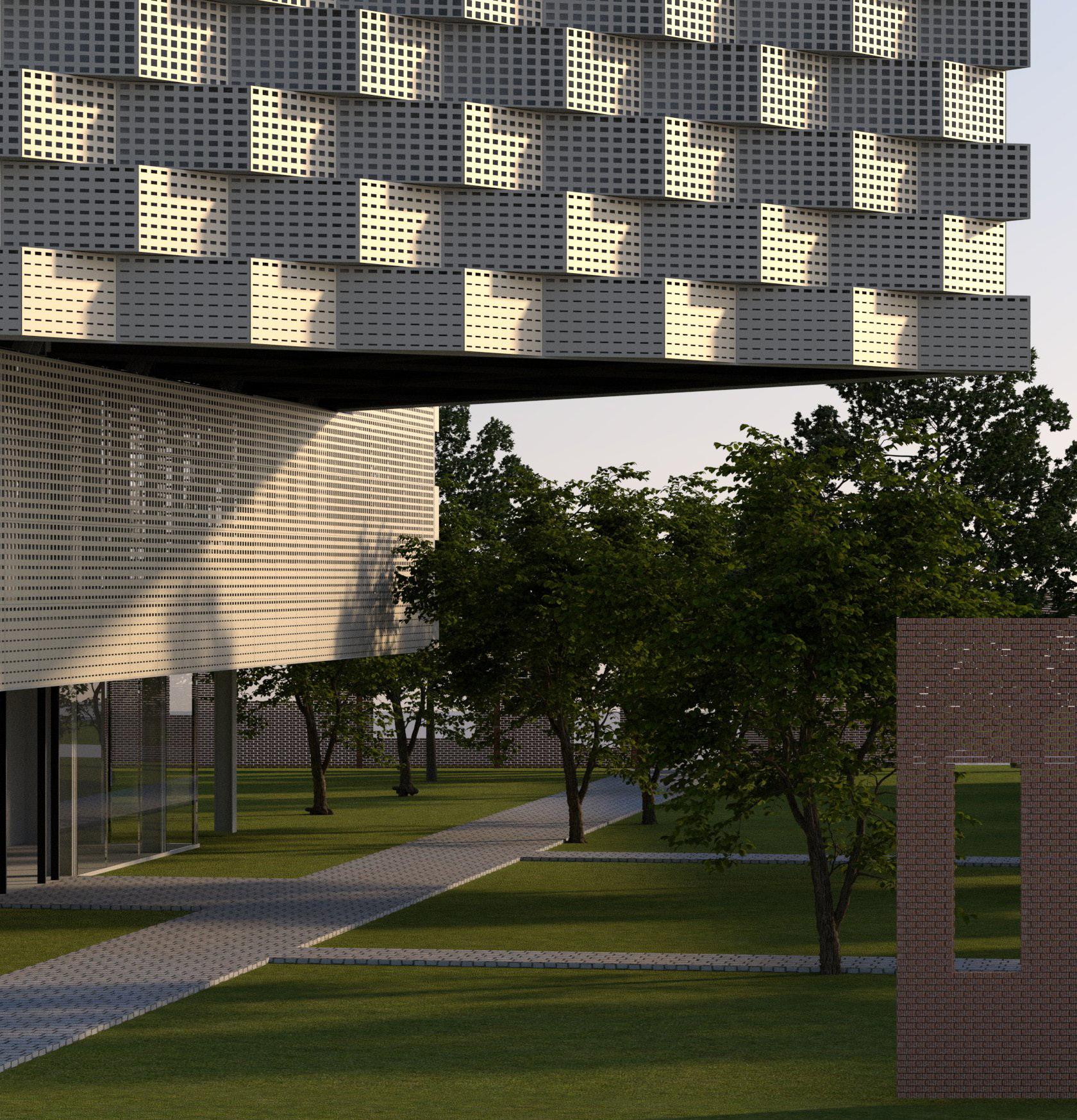

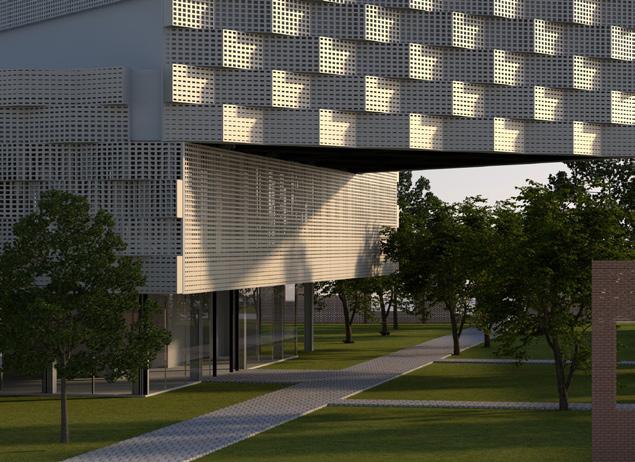

FACADE RELATION TO BRICK WALL

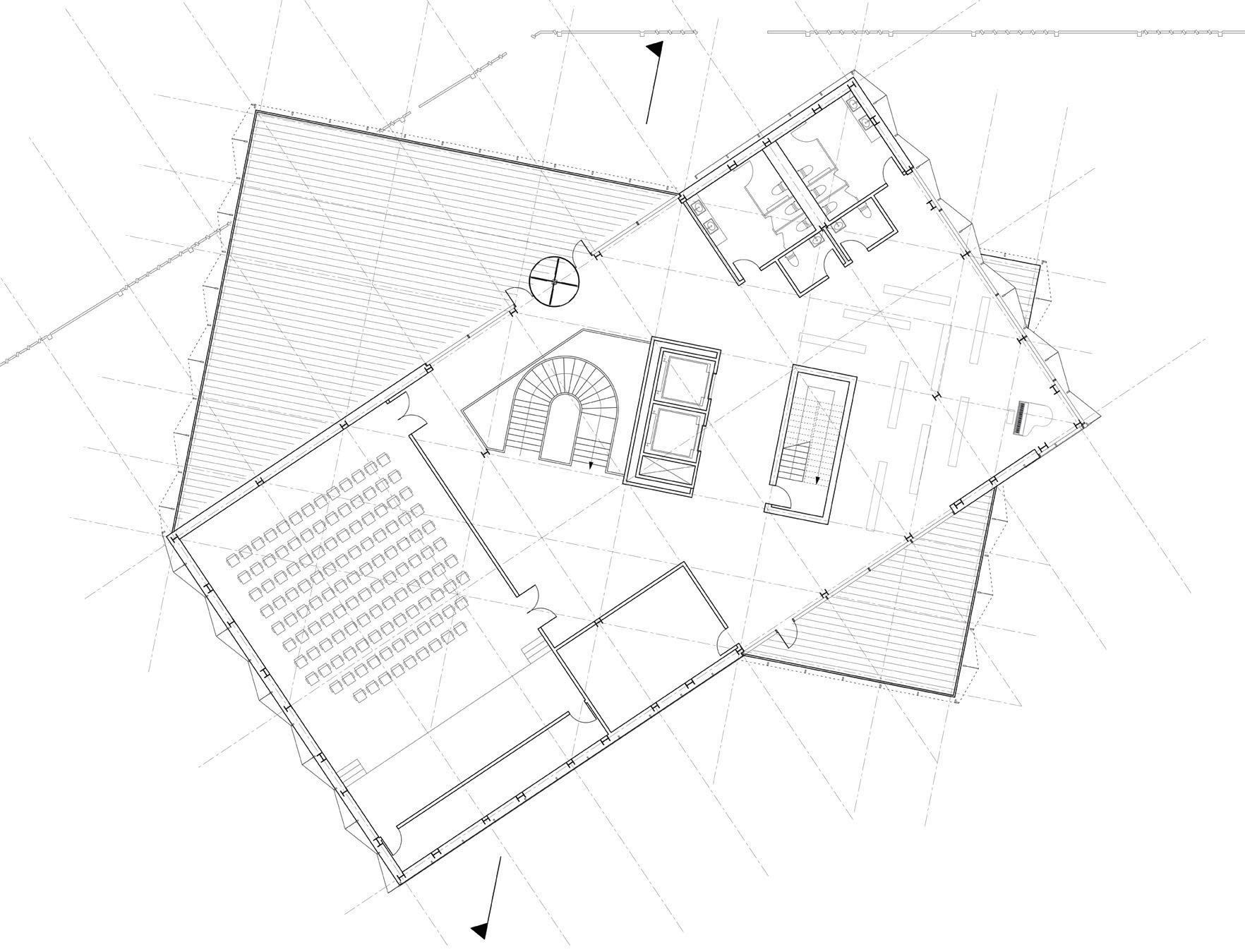

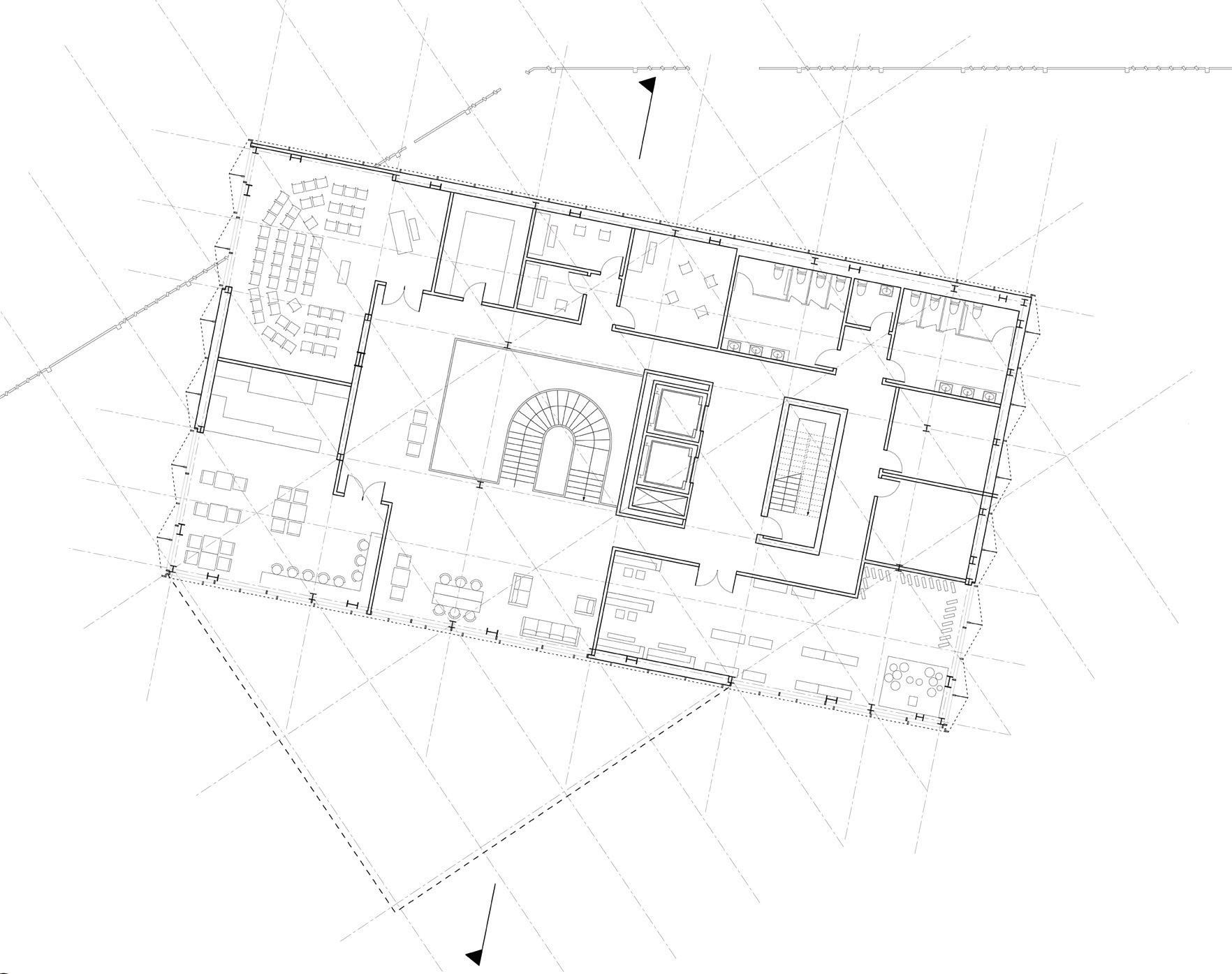

Due to the site susceptibility to flooding, the first floor of the building is only comprised of the Lobby so that the rest of the buillding can be lifted off the ground floor. The second floor houses spaces for music lessons and practice rooms as well as a coffee shop and a music store. Finally, the third level is an open area which houses the exhibition and performance space

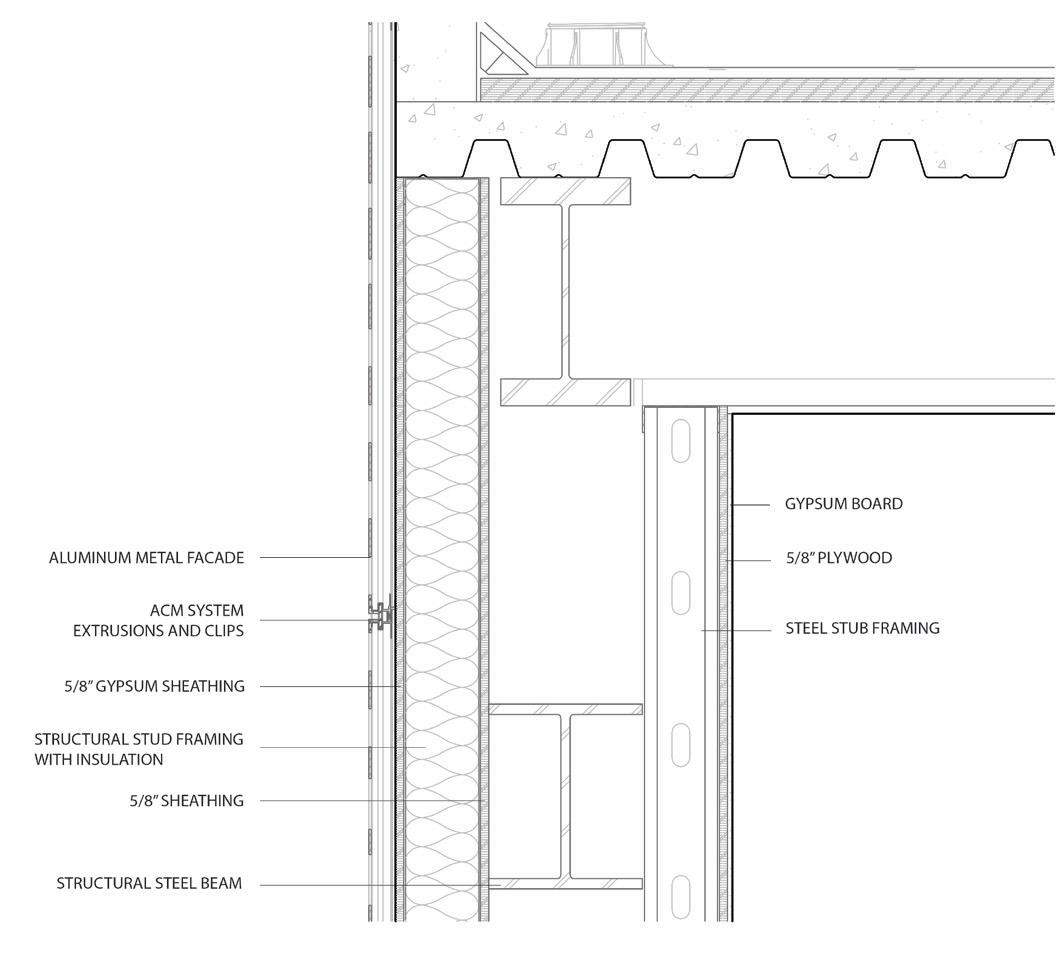

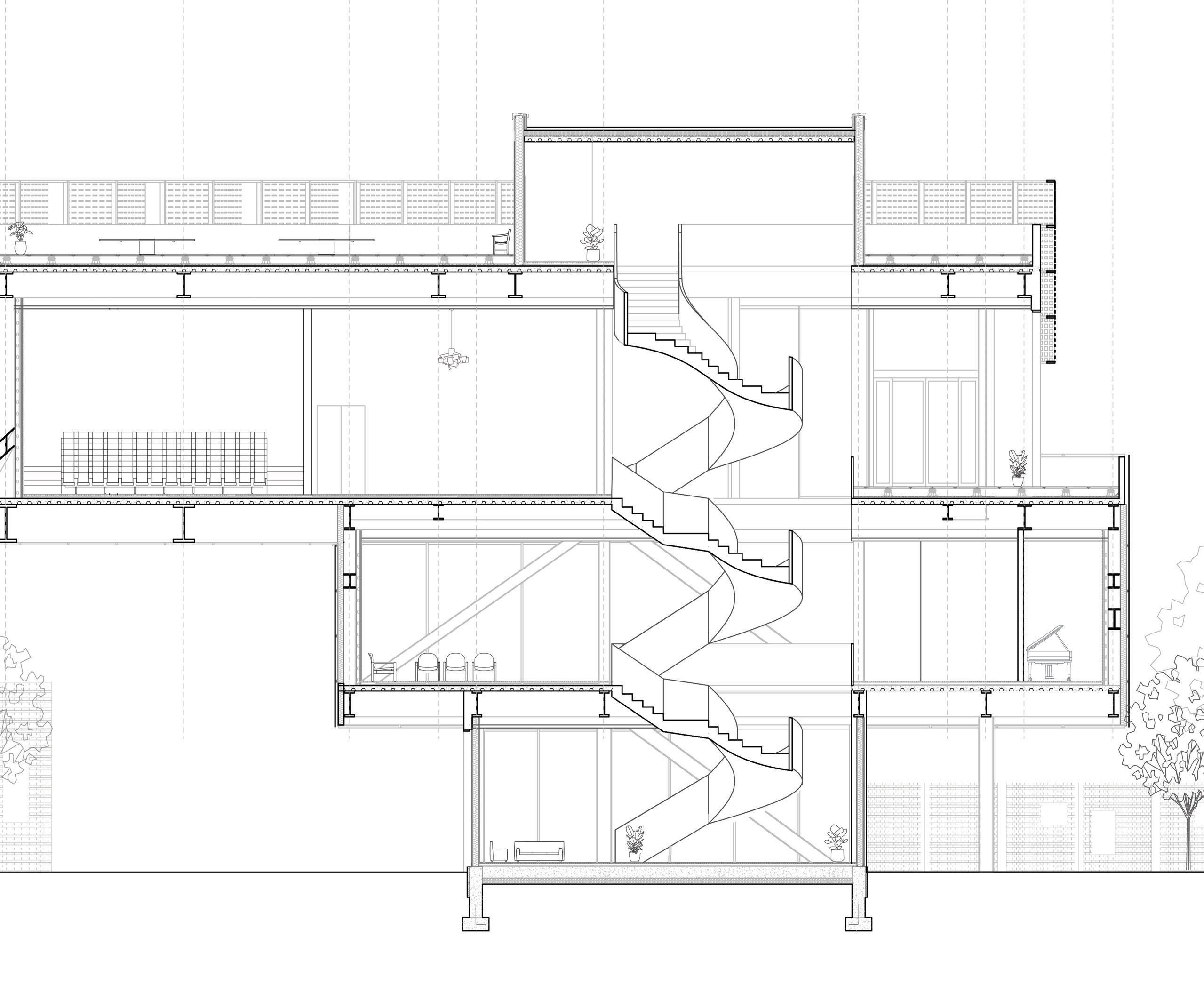

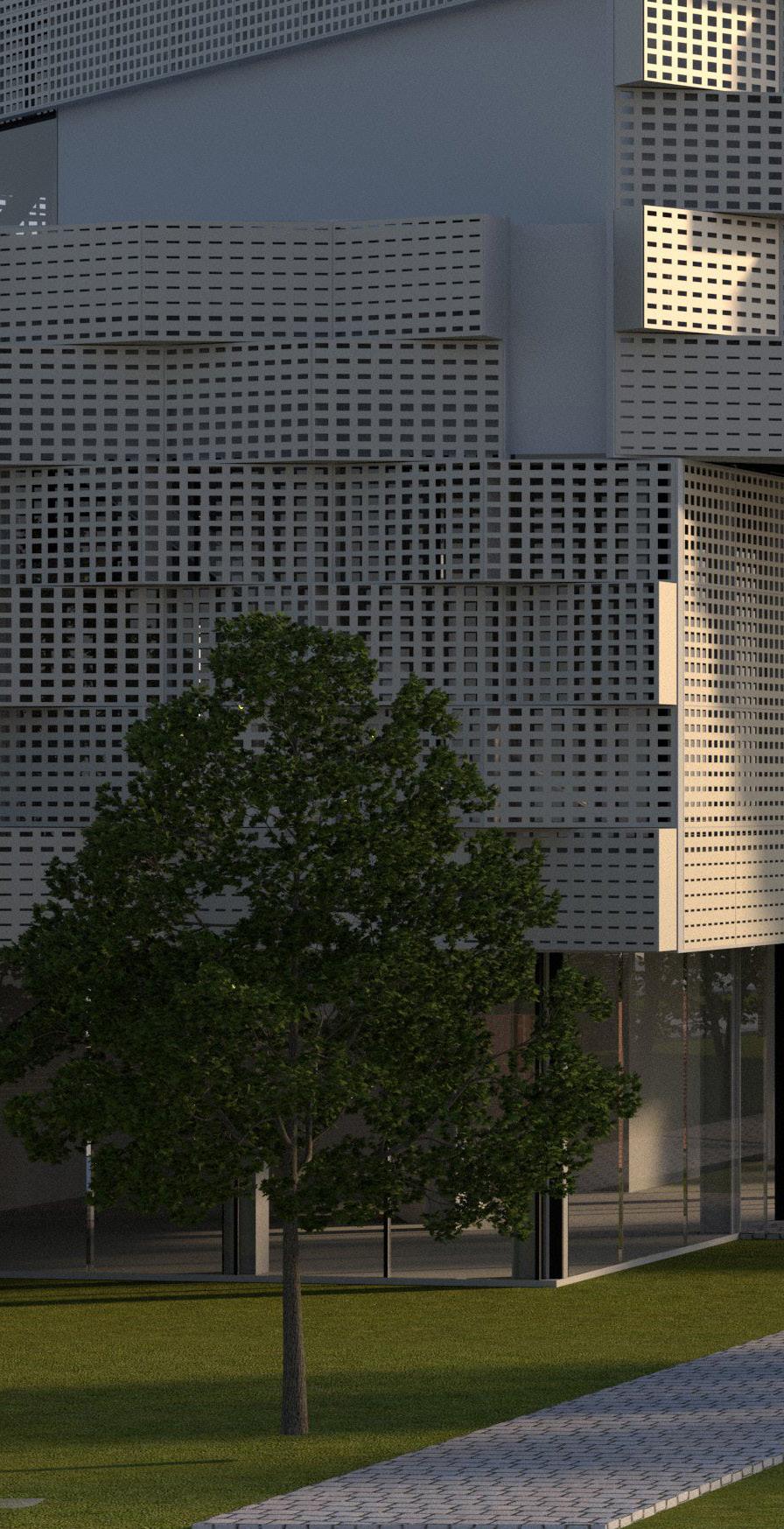

The structure utilizes a steel framing system and a shear wall at the base. In addition, it uses concrete cores for the elevator and stair case to help support the cantilever. The exterior facade consits of aluminum metal panels.

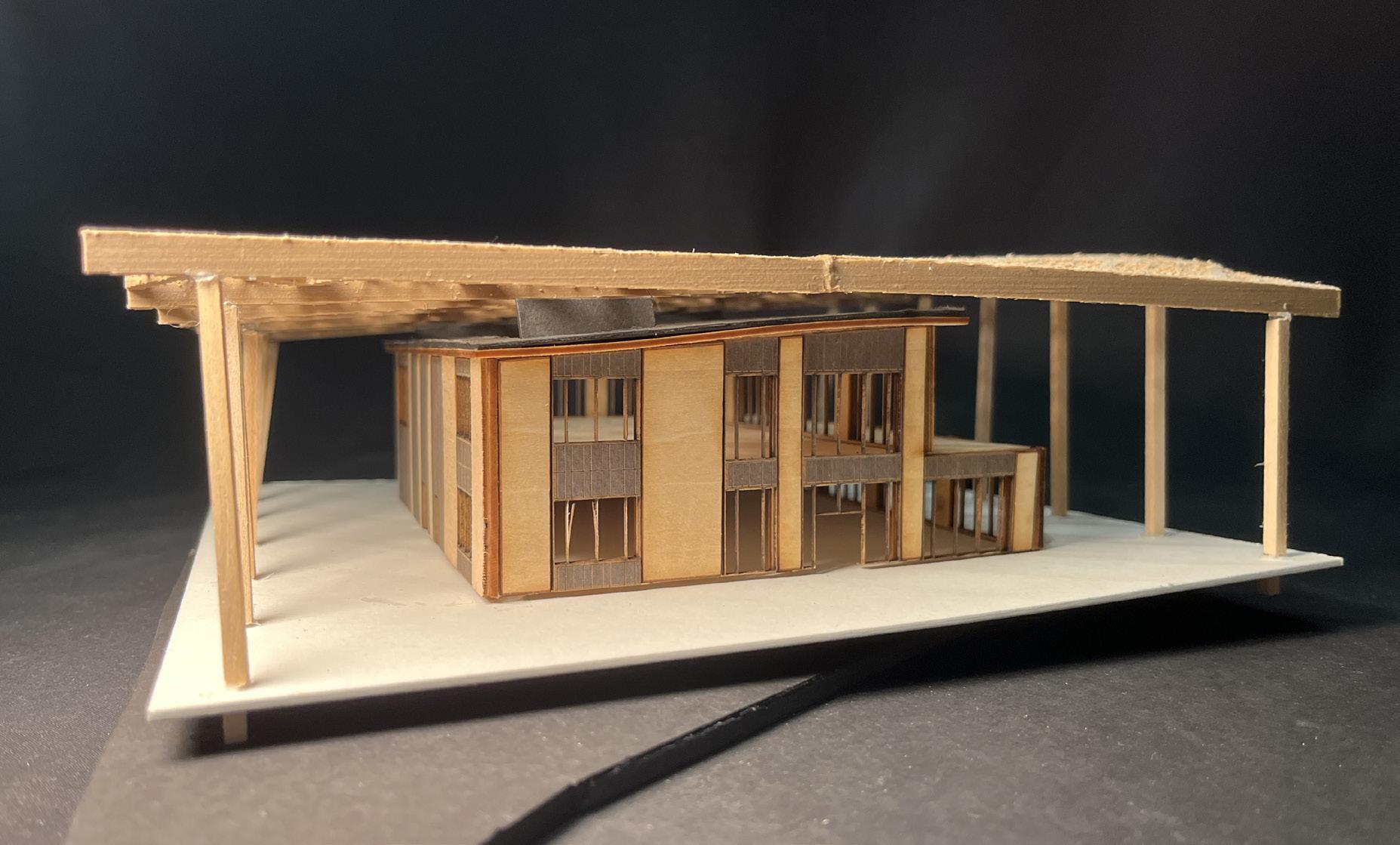

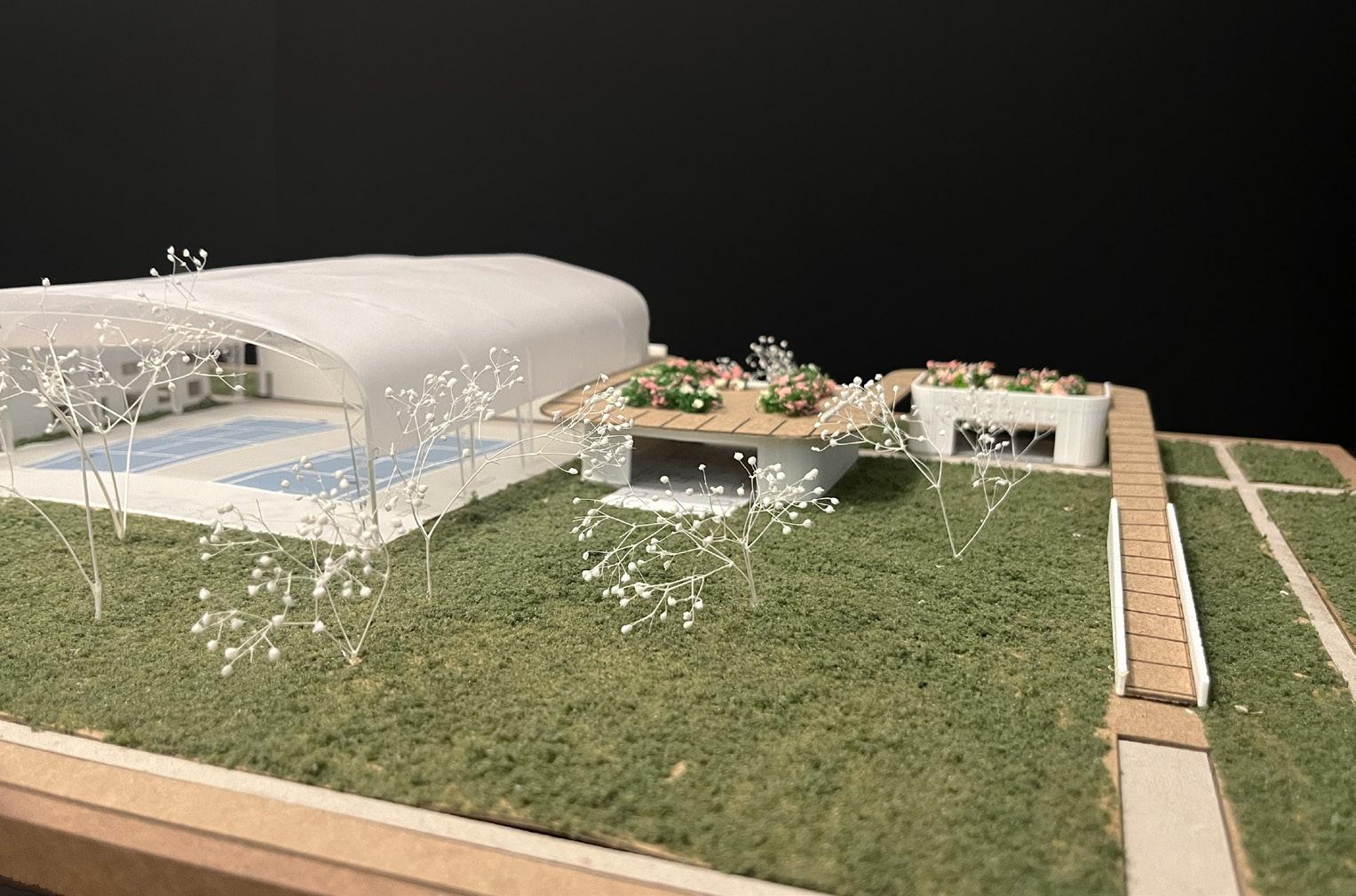

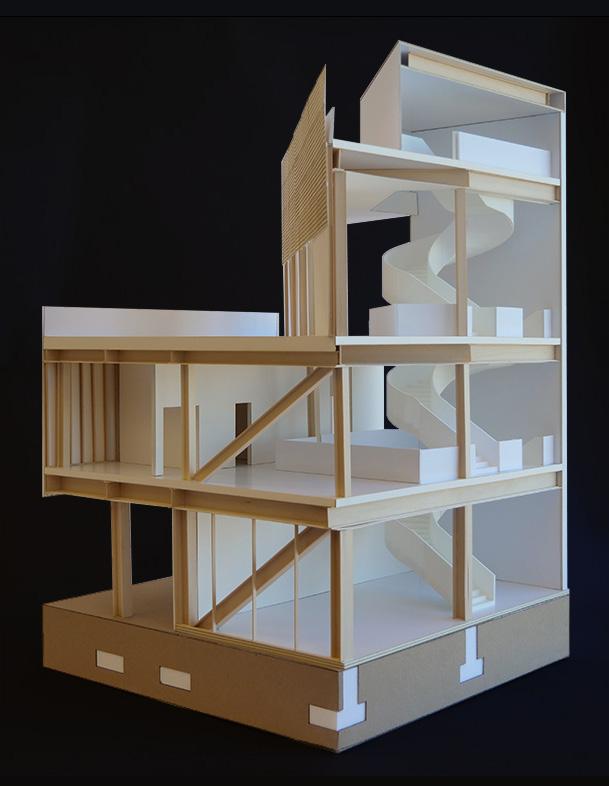

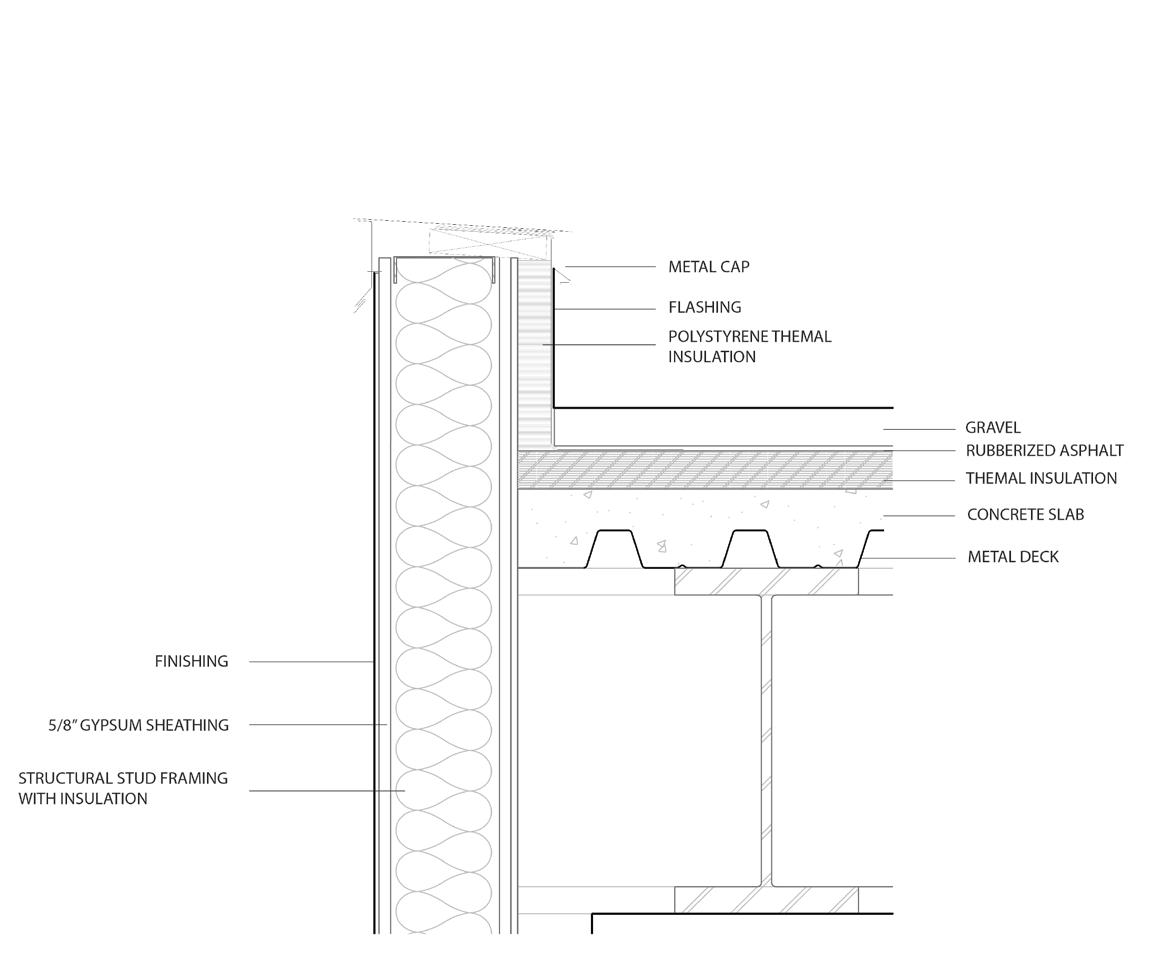

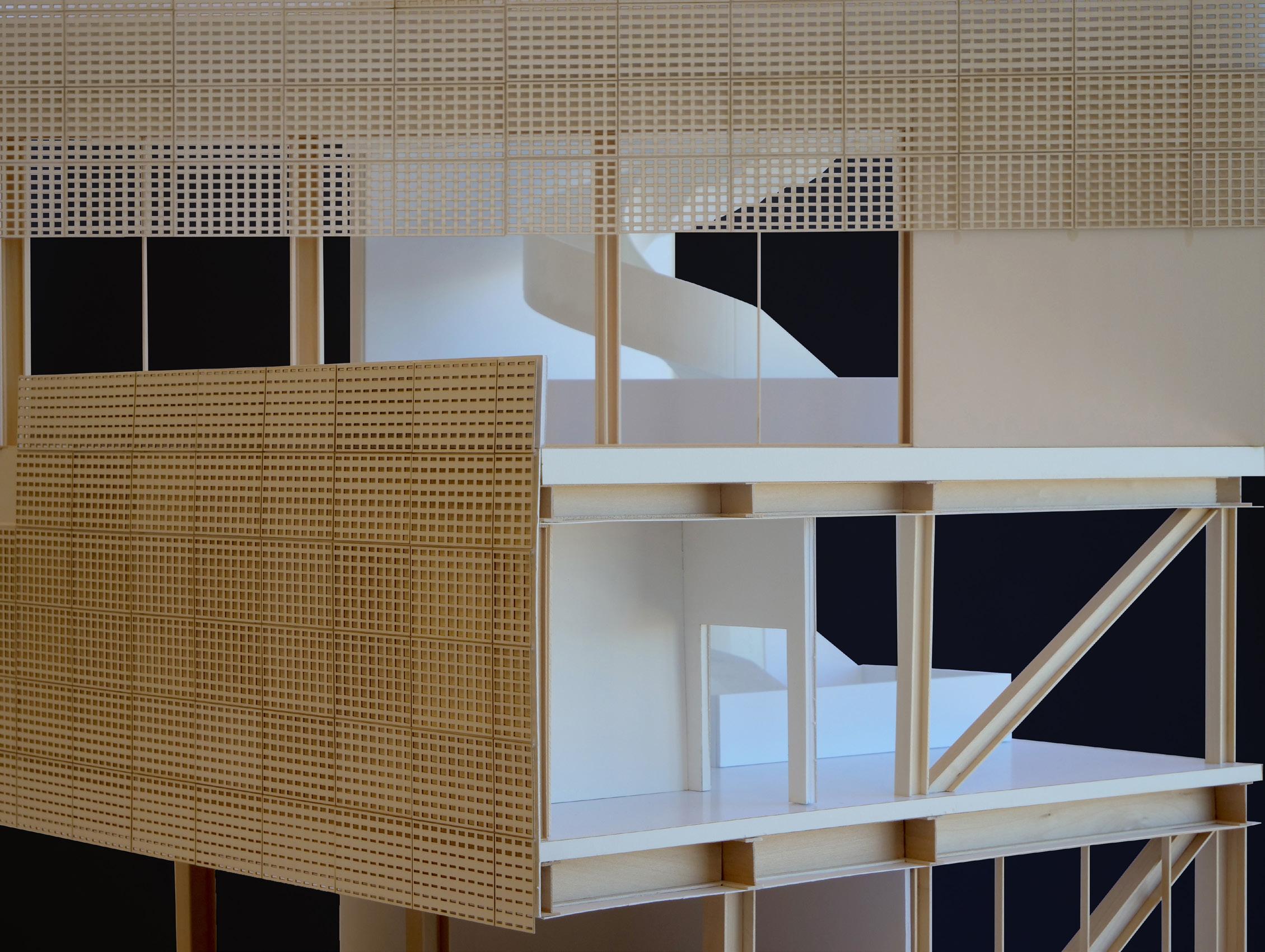

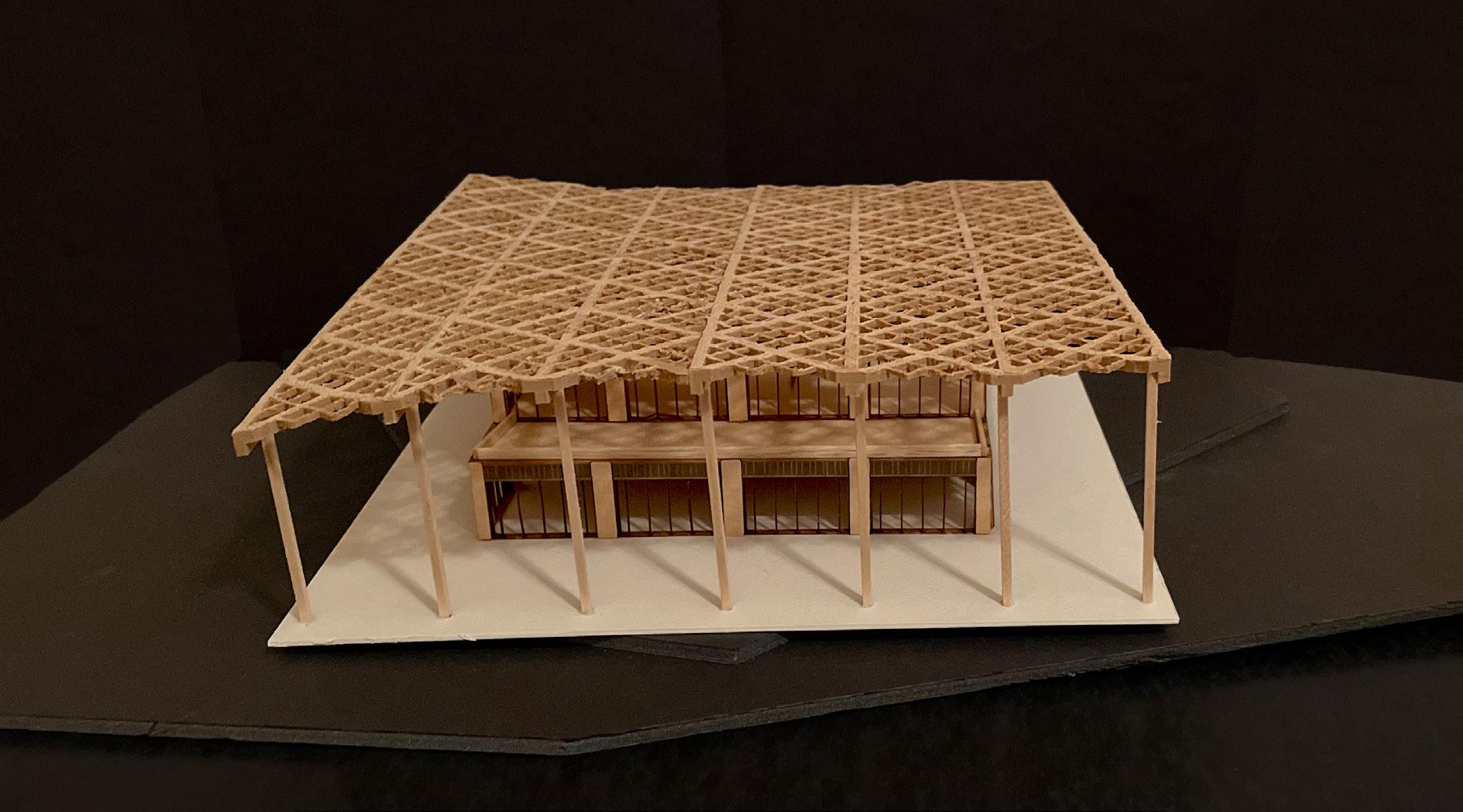

CHUNK MODEL 1/2” SCALE DECK DETAIL
Brady Island
Houston, TX
Waves of Brady is a self-sustaining destination that transforms compostable waste from Houston into compost and mulch. The project seeks to restore the island’s land while supporting agriculture and commercial use. The site will also feature a vegan, plant-based restaurant that incorporates composting practices to minimize waste and promote sustainability.
In line with the Buffalo Bayou Partnership East Masterplan, the project will link Downtown to the Port of Houston to unite the community.
ARCH 2500
Fall 2022
Programs used: Rhino 3D, Adobe Illustrator

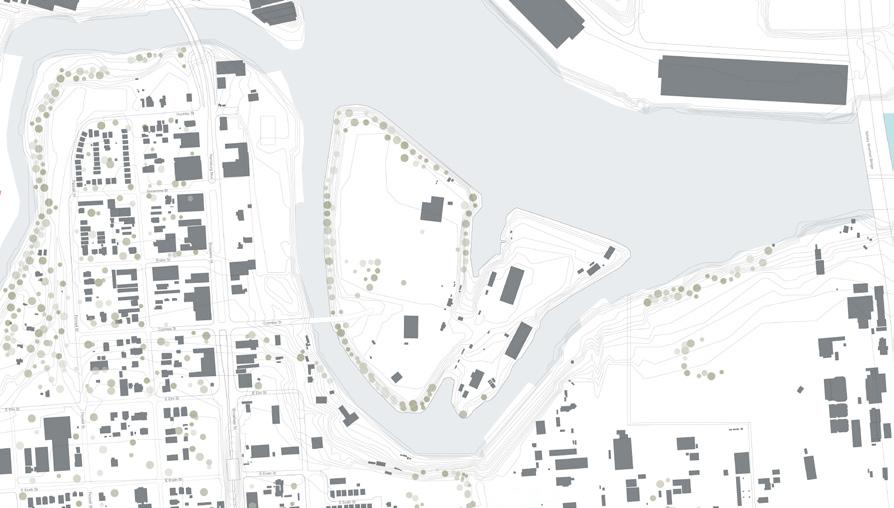

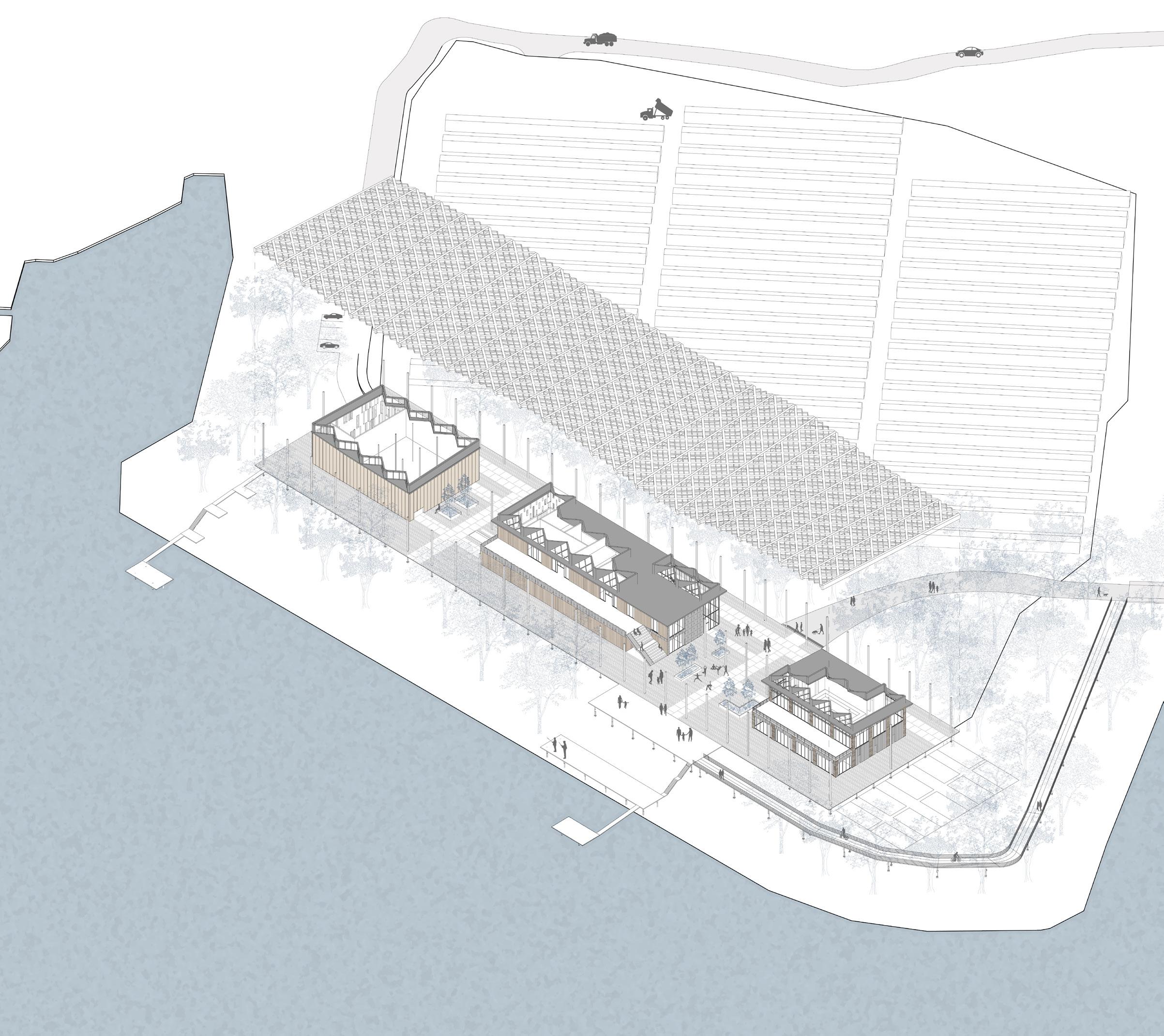

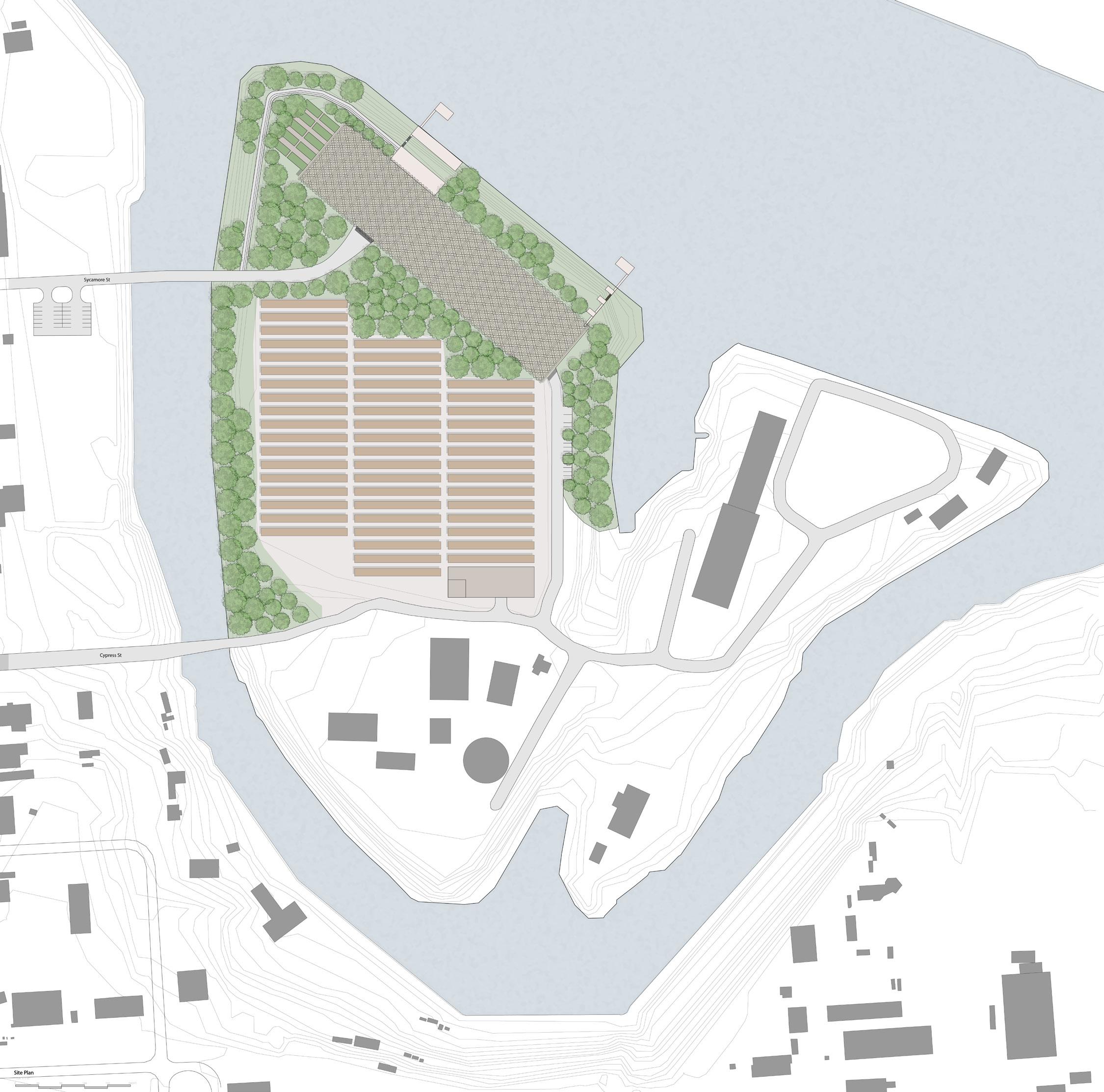

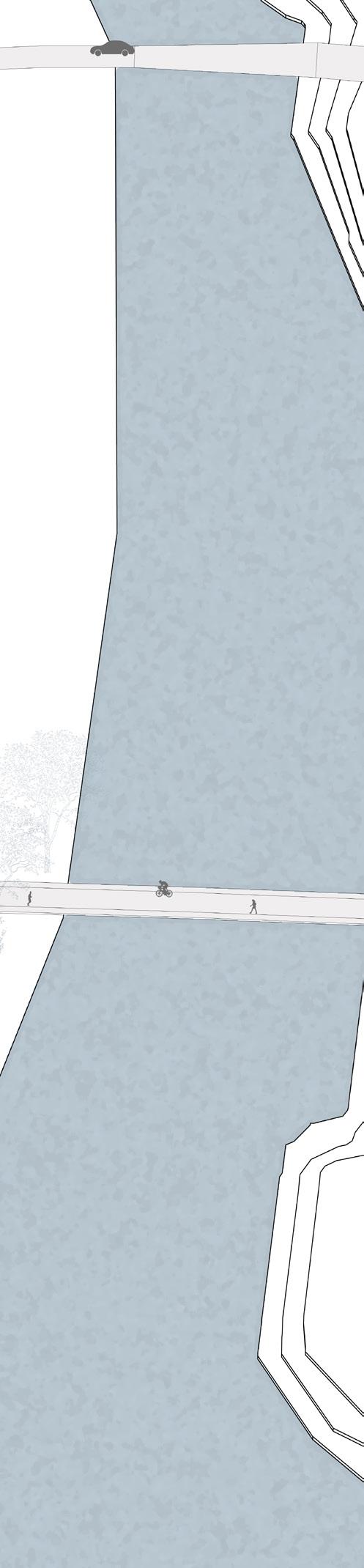

Brady Island Site

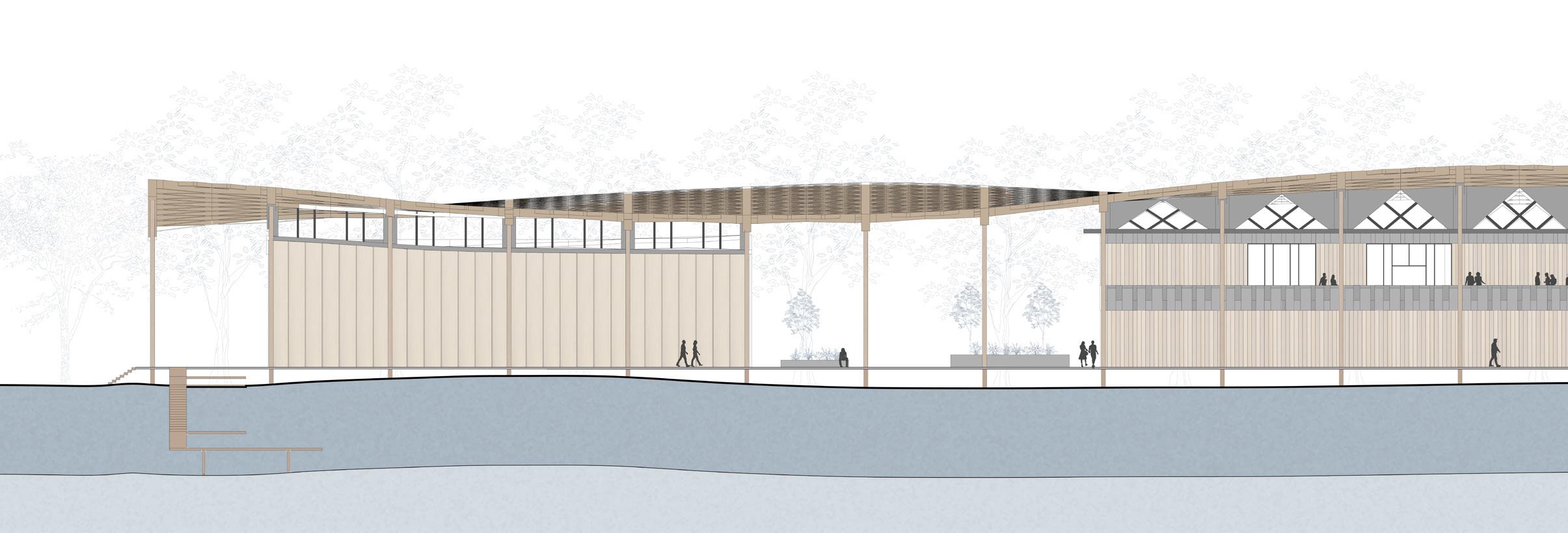

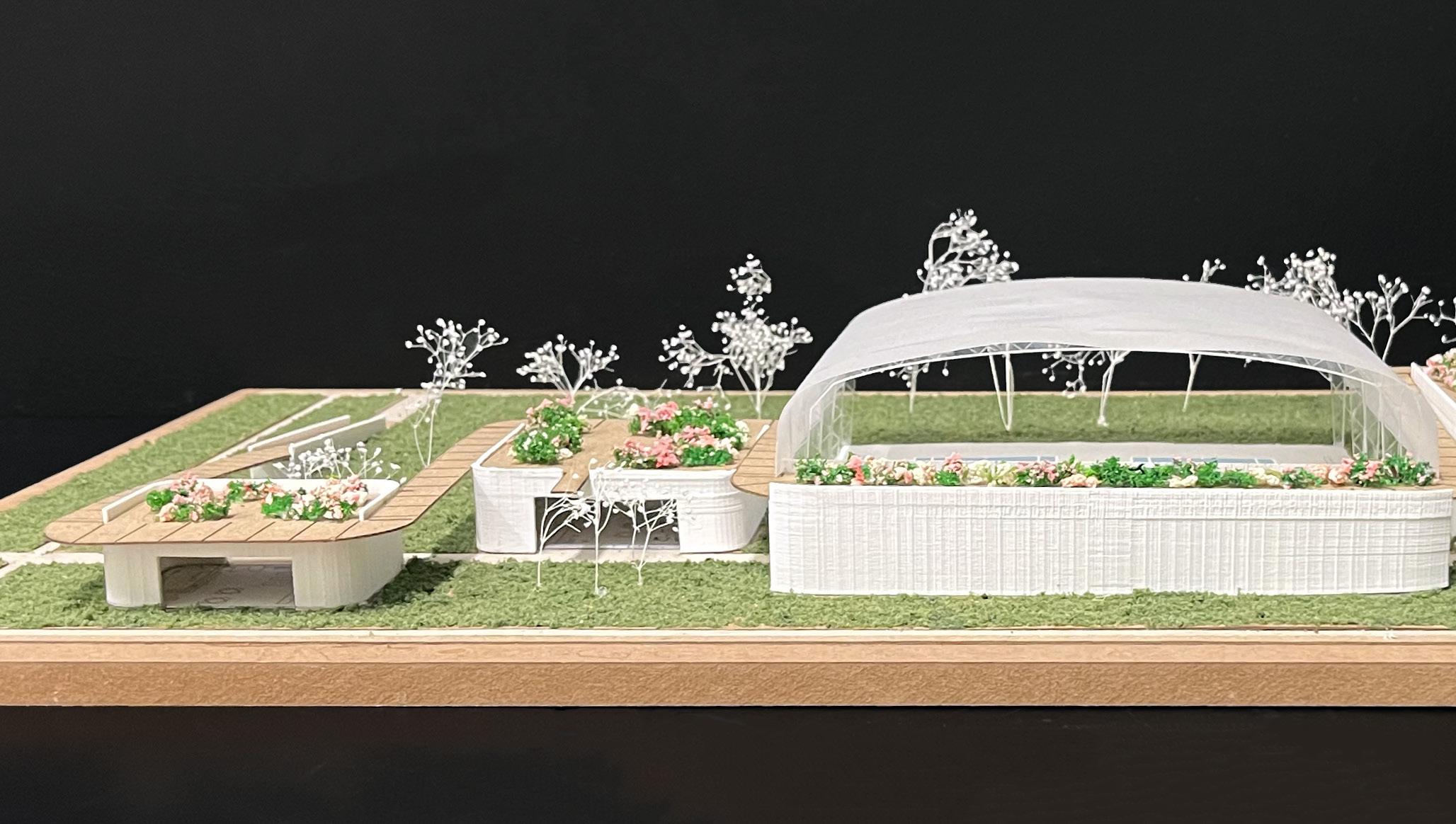

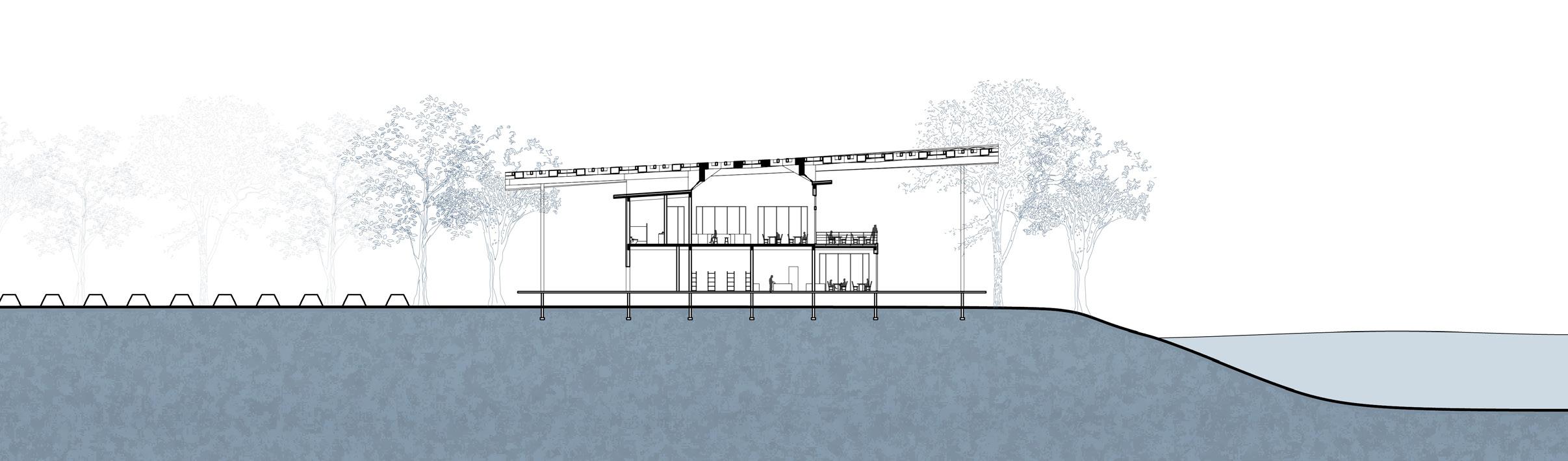

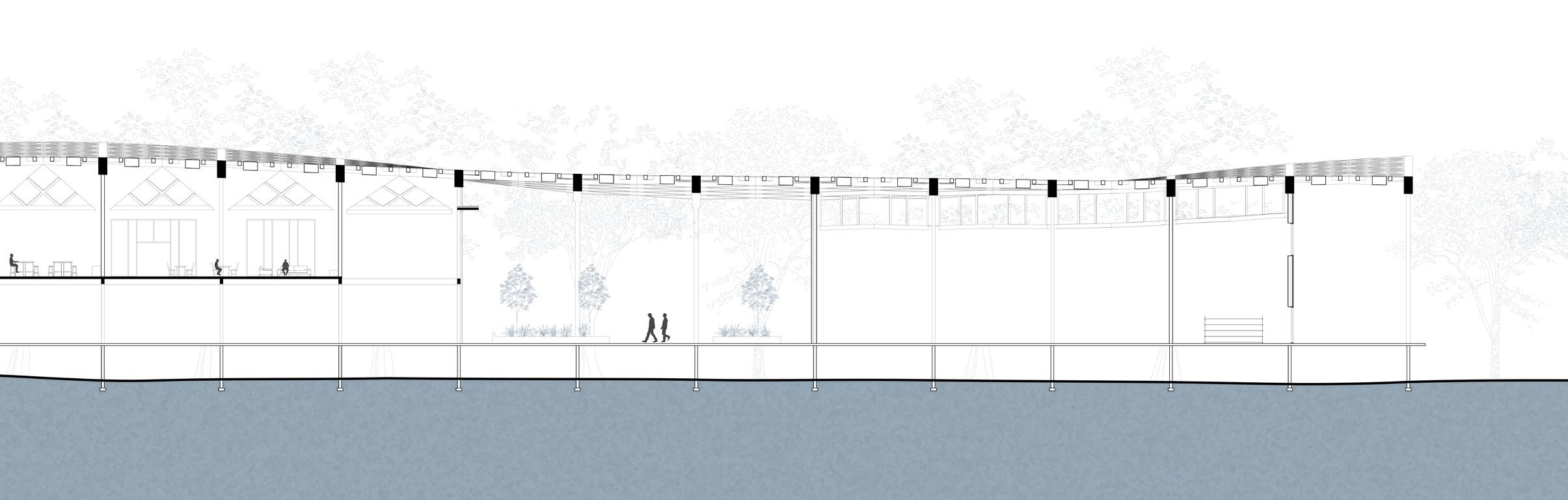

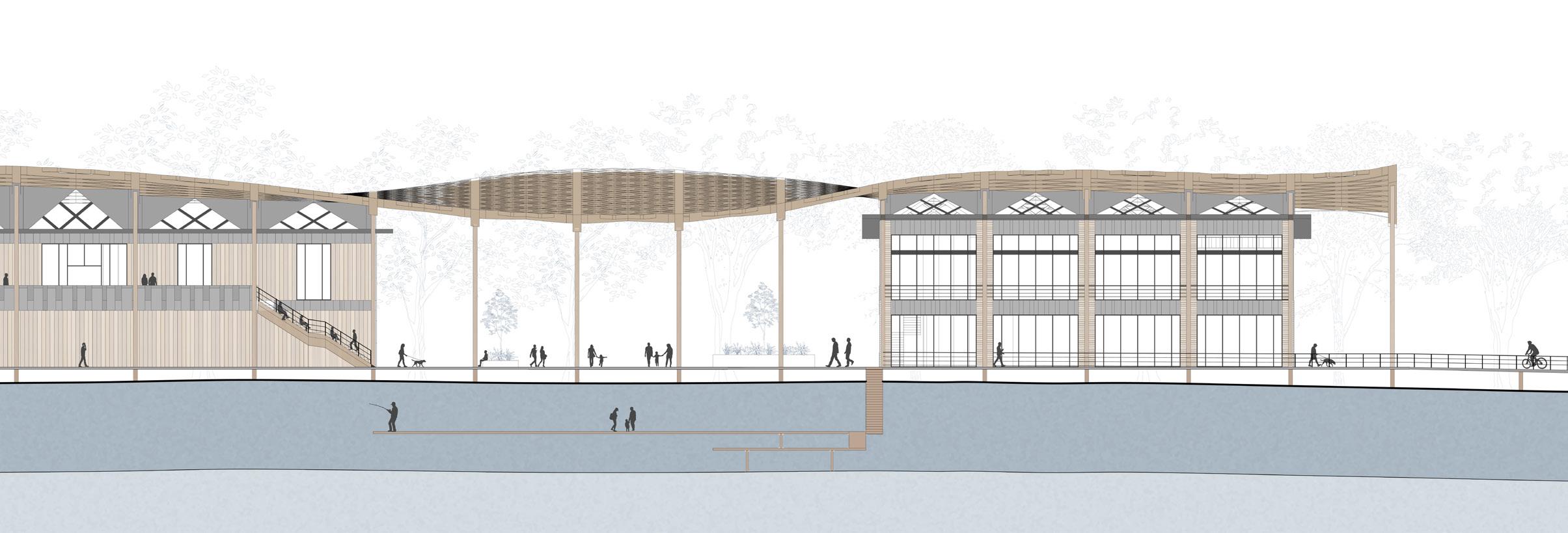

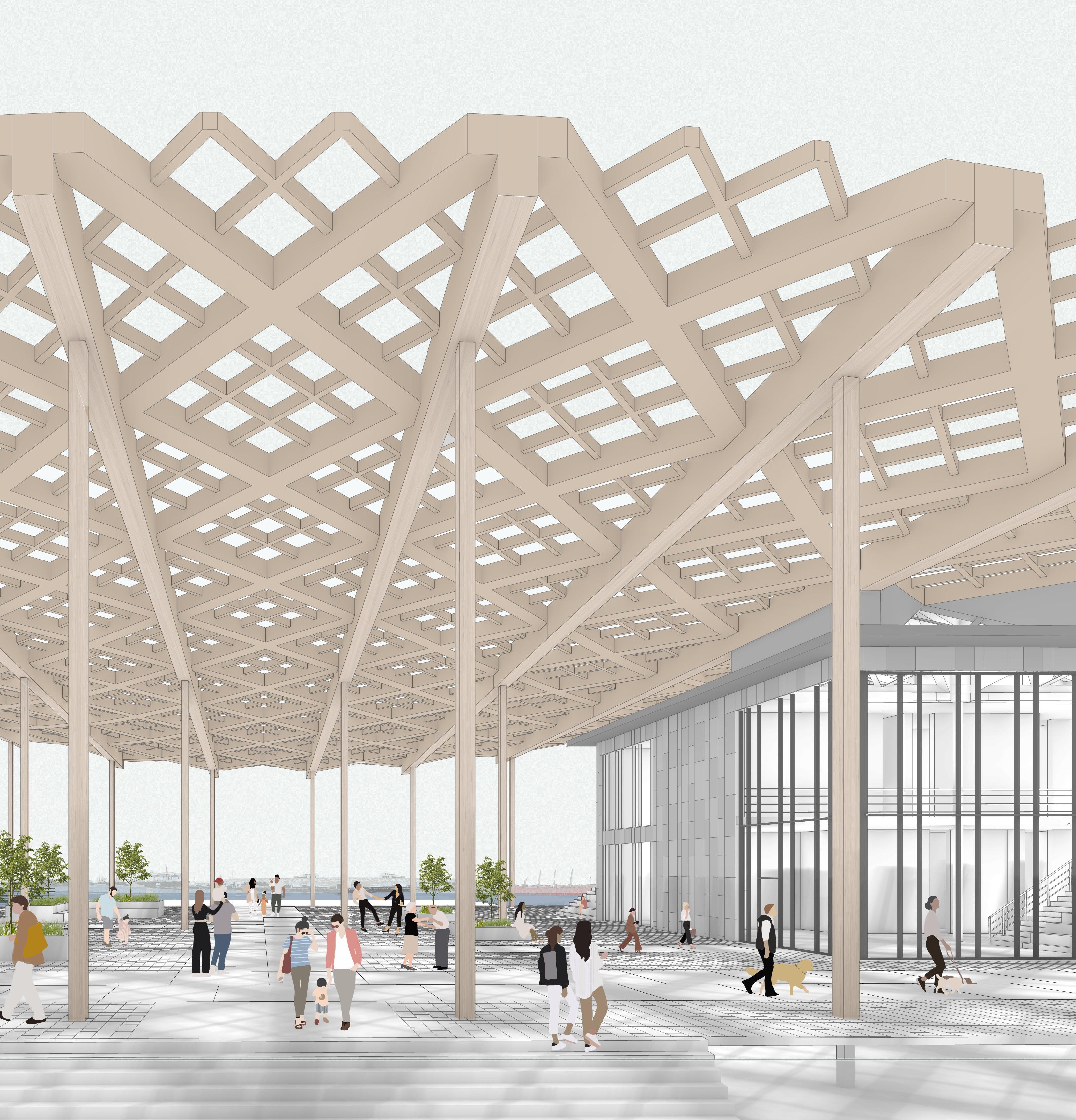

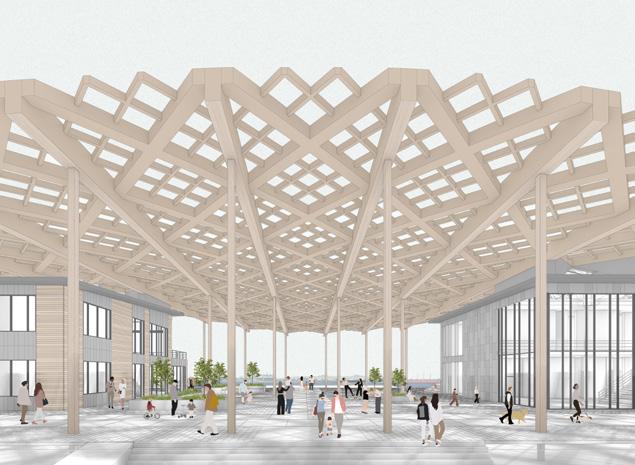

The Final Design... incorporates a hybrid system of Cross Laminated Timber (CLT) and Cold Formed Steel. Some walls and columns extend to the transparent curved roof, allowing natural light to fill the space. The roof itself is made of glulam beams and is equipped with solar panel glass, which collects sunlight to power the island.

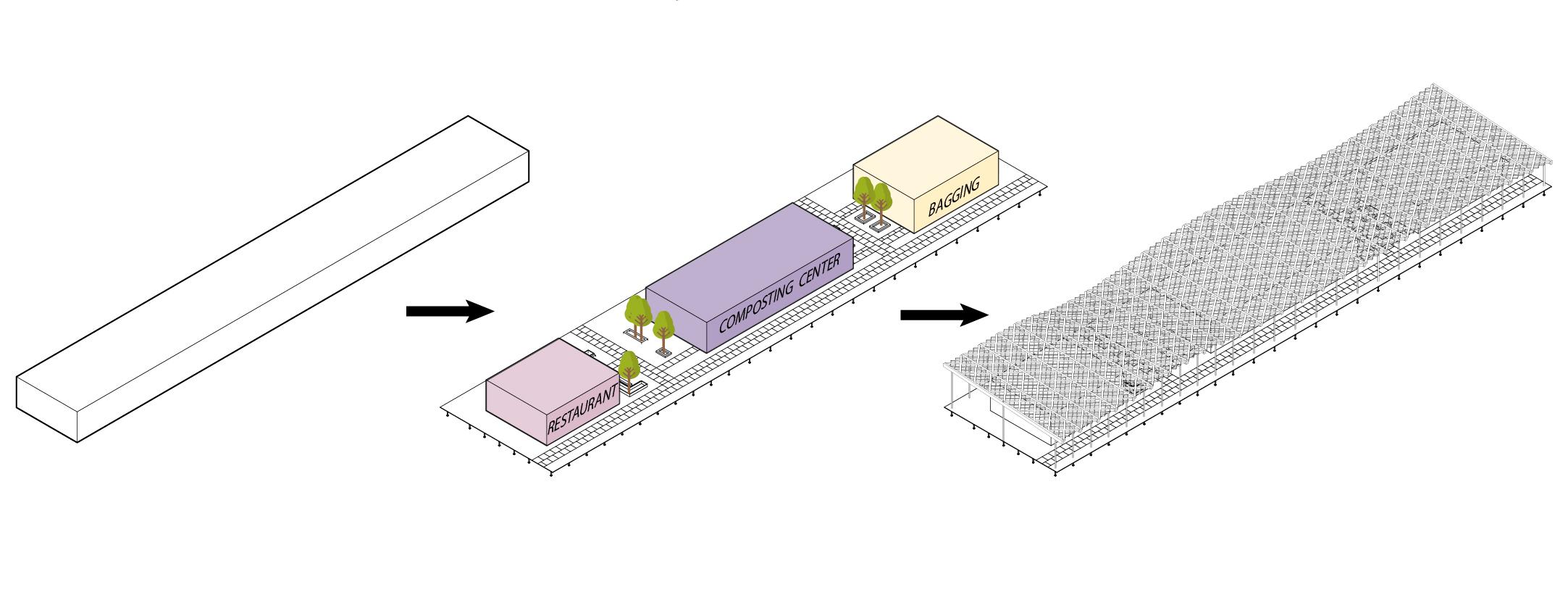

Step 1: Volume created on the highest elevation of the island
Step 2: Volume broken up into 3 major program spaces; restaurant, composting center, and bagging area, all separated with the plaza spaces, and raised on stilts to prevent flooding

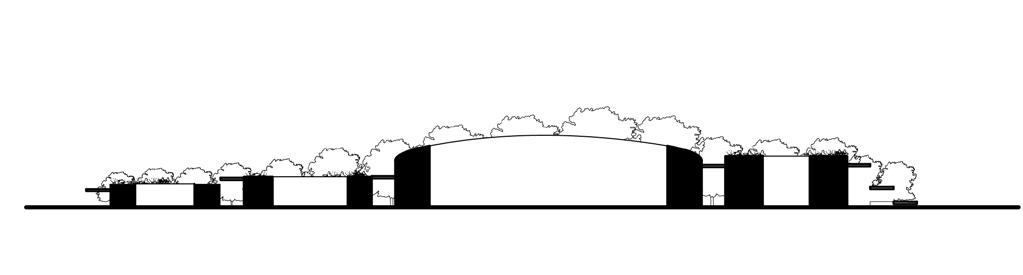

Step 3: Final touch of adding the curved roof that connects all the spaces together as well as creating shade

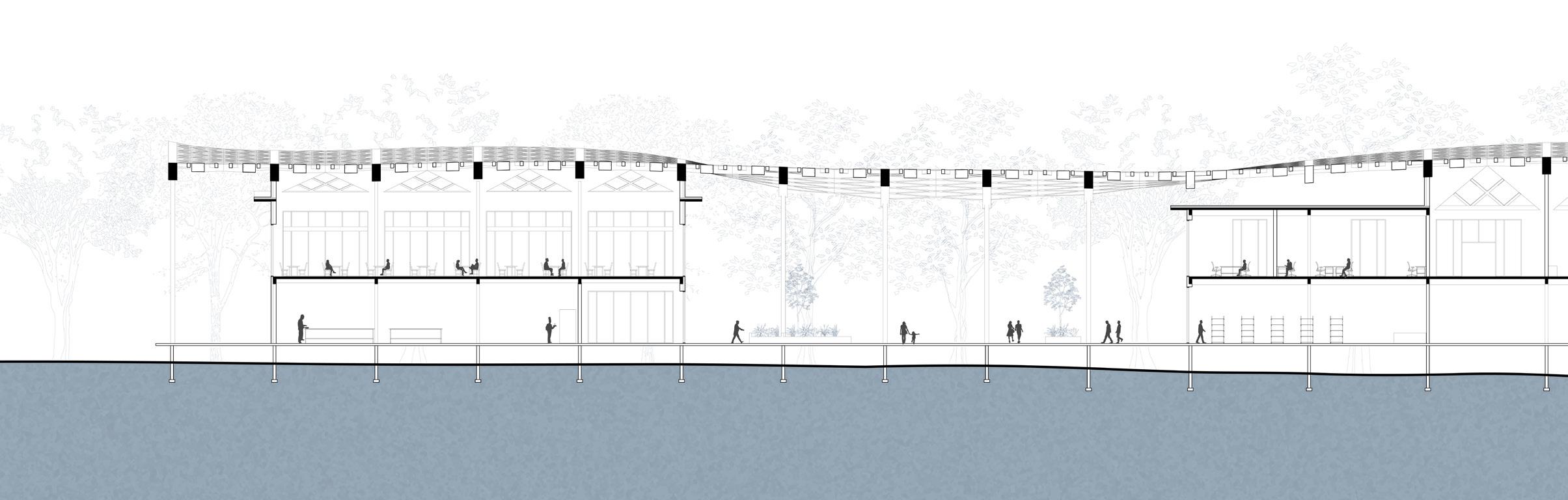

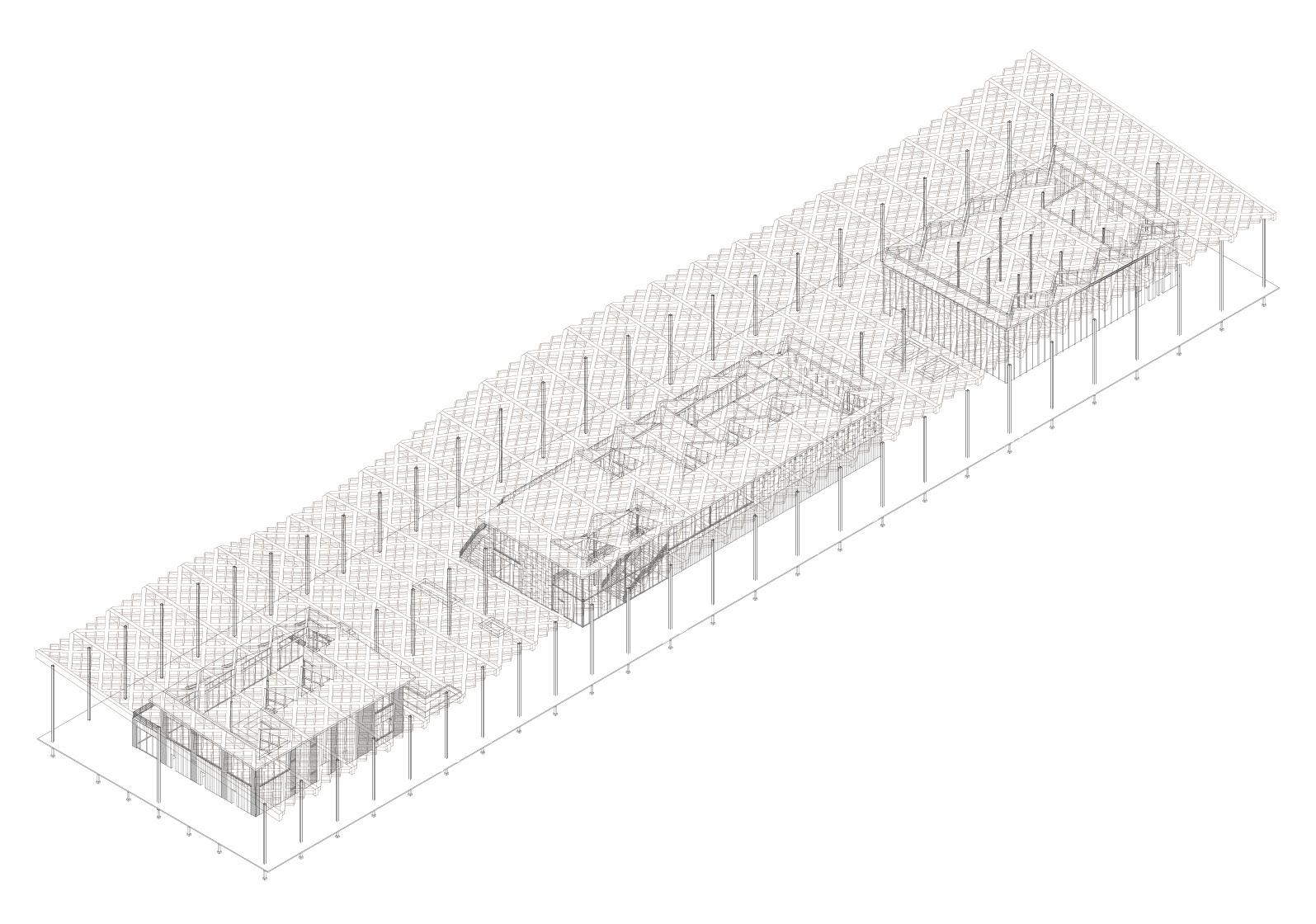

EXPLODED ROOF AXONOMETRIC

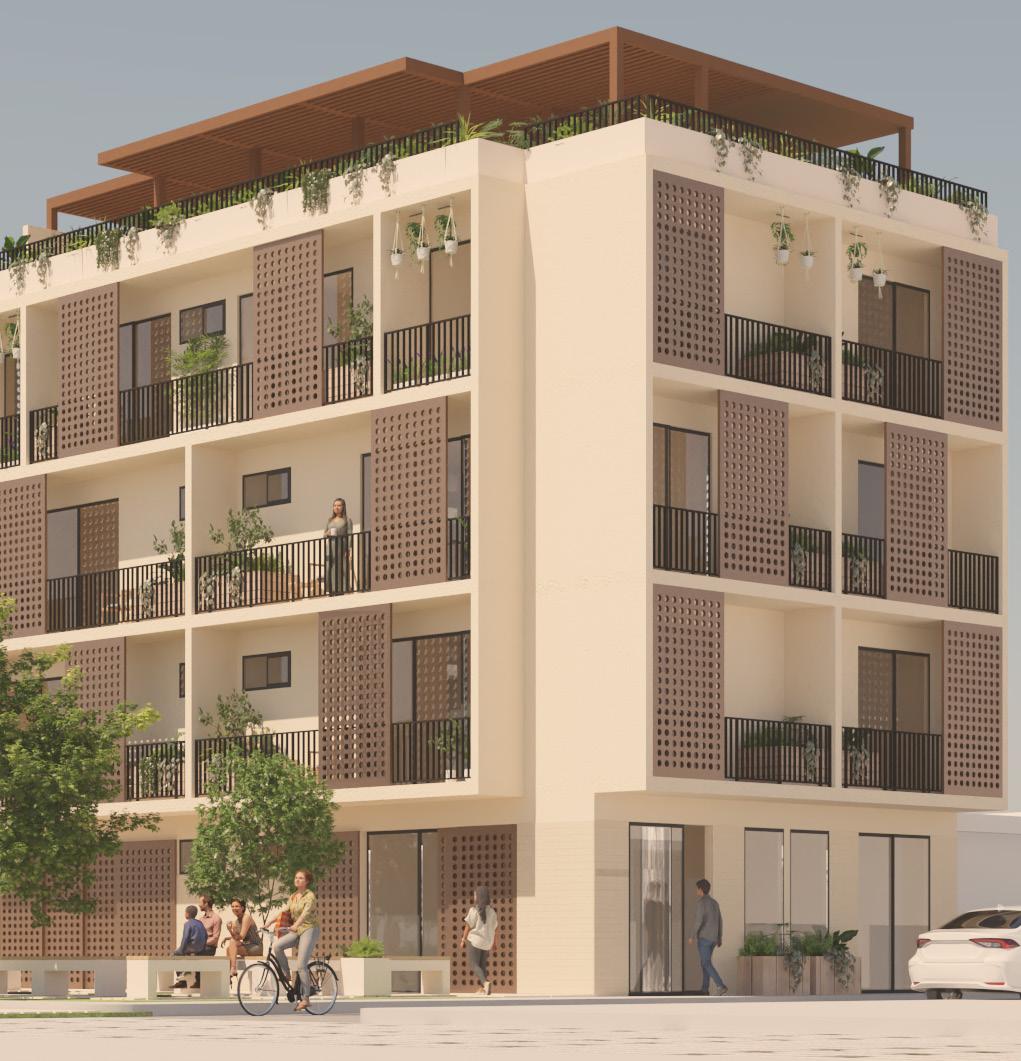

Cordemex
Merida, Mexico

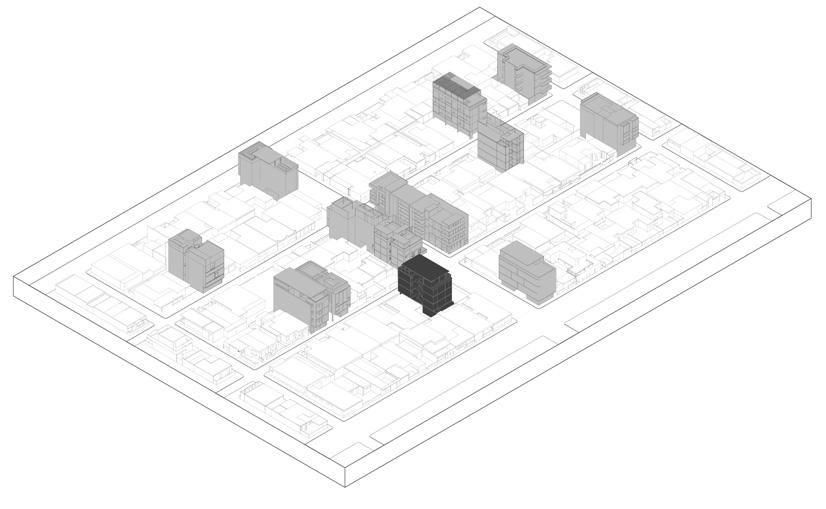

Redensification of the Cordemex neighboorhood

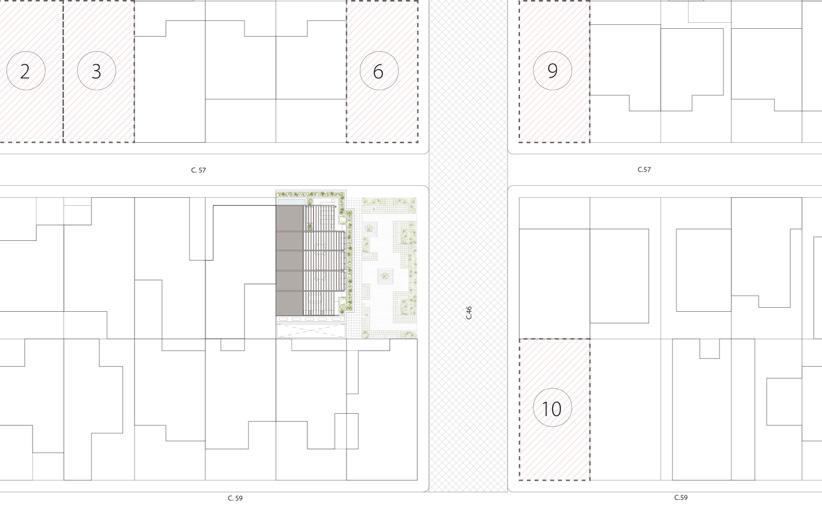

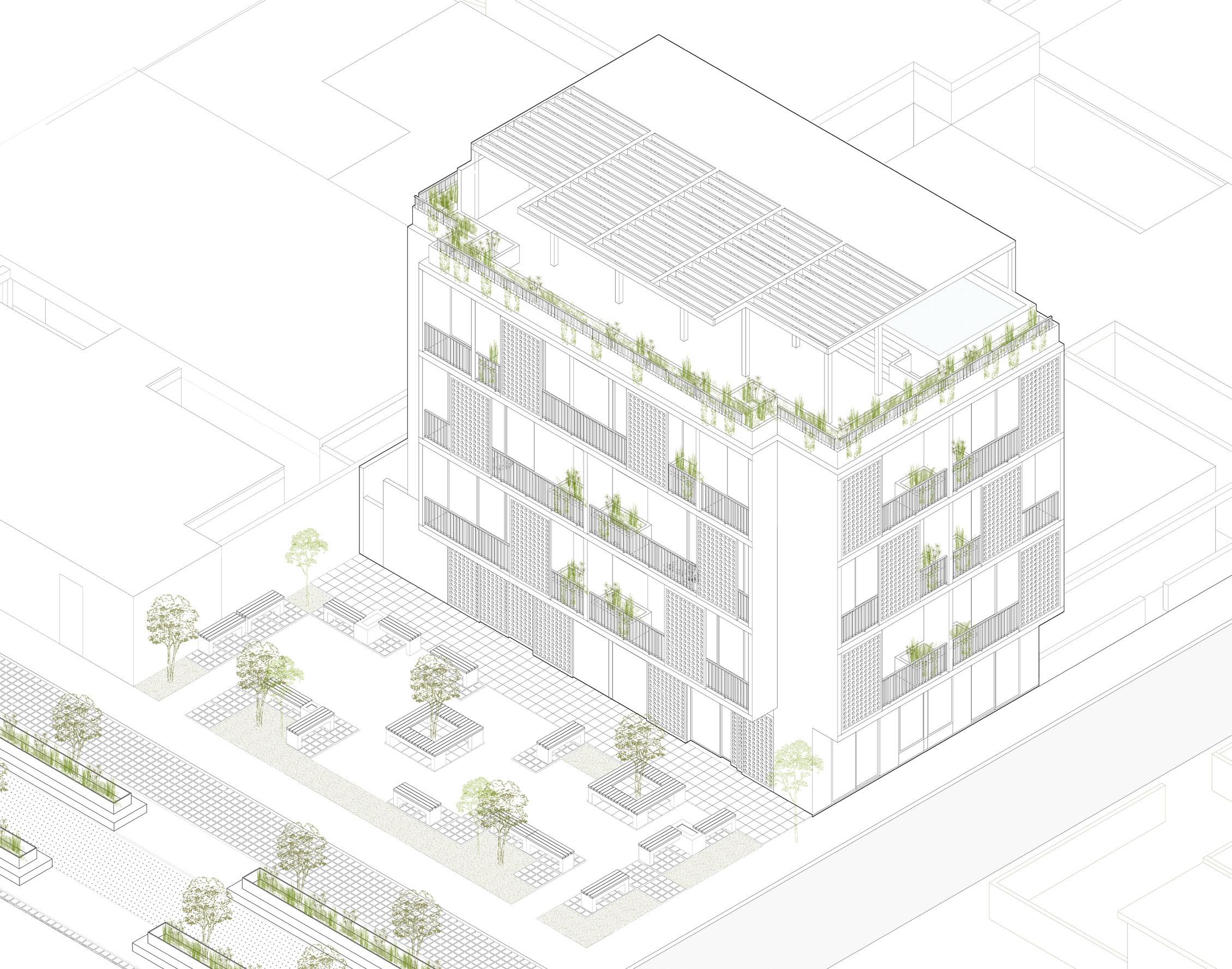

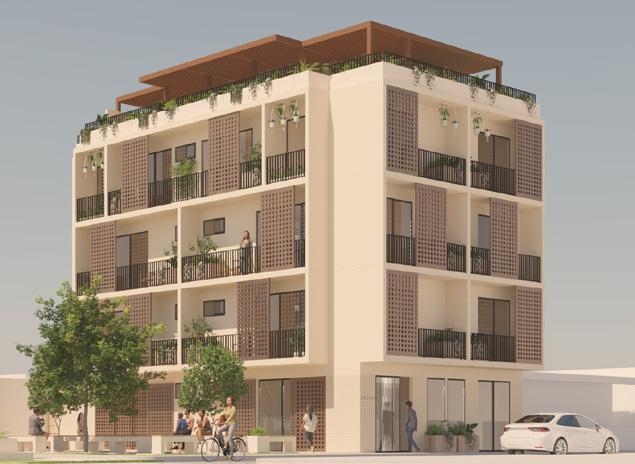

Our project focuses on creating mixed, diverse, and dense housing in the Cordemex neighborhood. Each team in the class is assigned a 9x18 meter plot, where we will design buildings that engage with the public at ground level while providing housing on the upper floors. Given the location of the project we are focused on natural ventilation strategies. Our designs will incorporate features such as crossventilation, strategically placed windows, open courtyards, and shaded areas to maximize airflow and ensure comfort.
ARCH 5500
Fall 2023
Programs used:
Revit, Rhino 3D, Adobe Illustrator, V-Ray

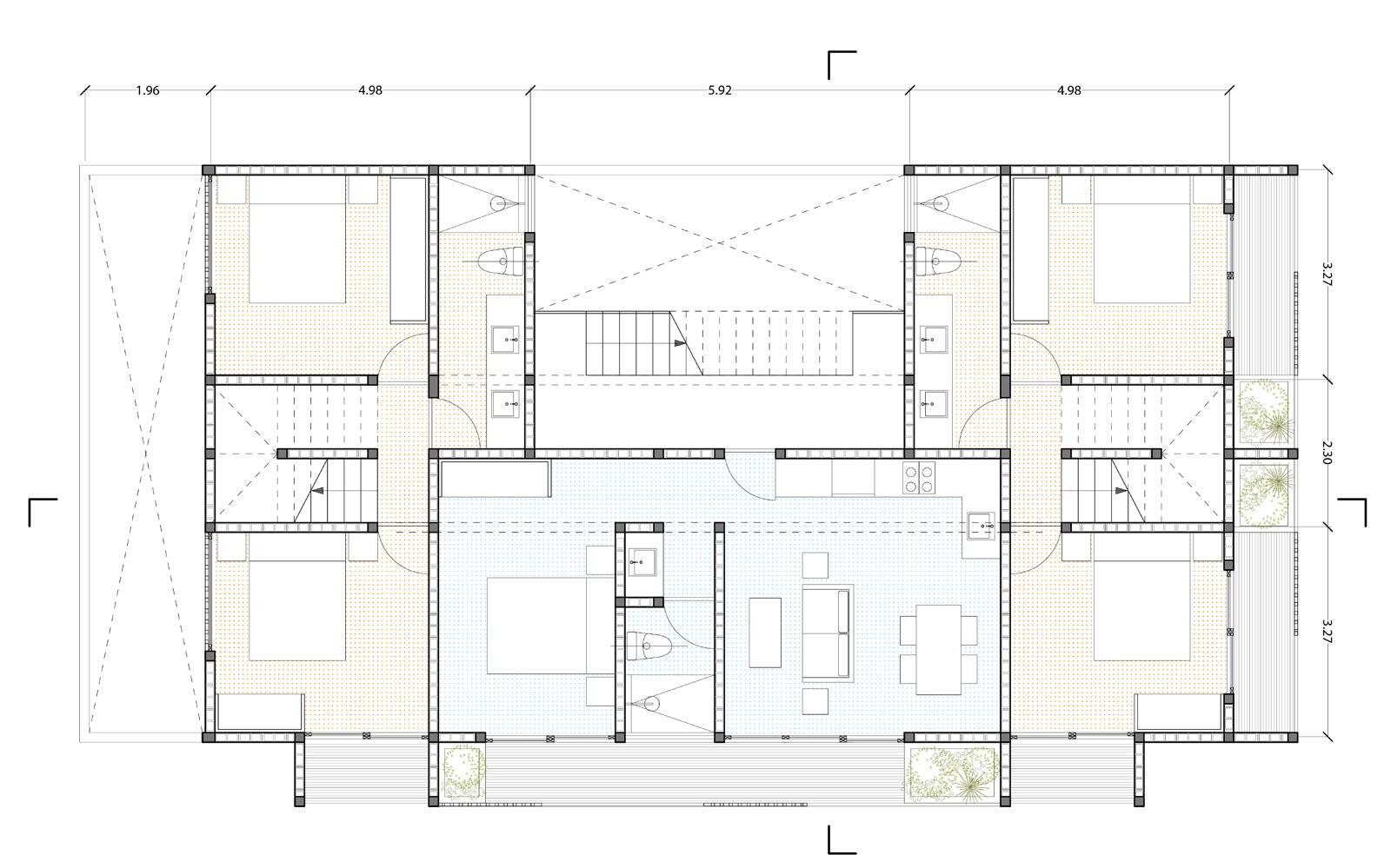

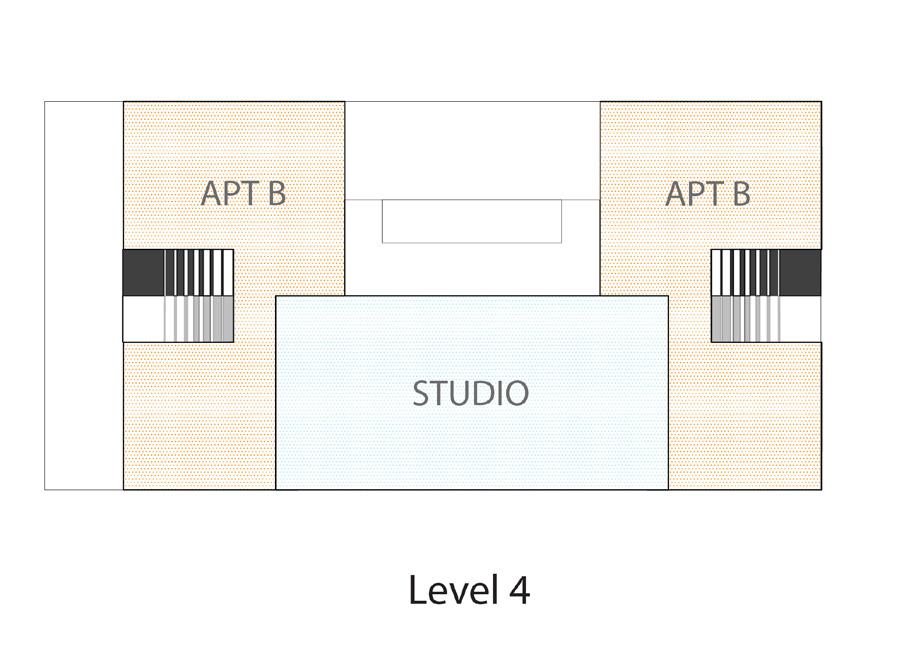

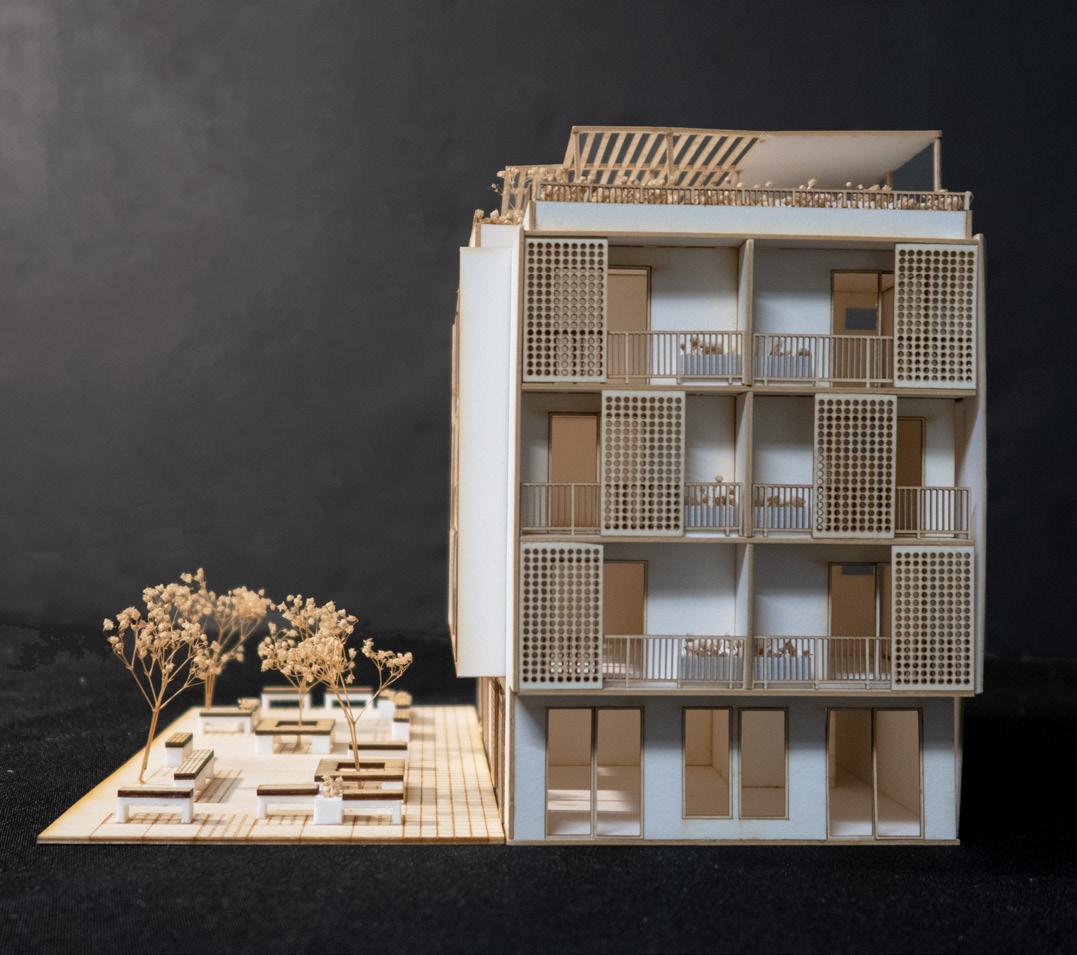

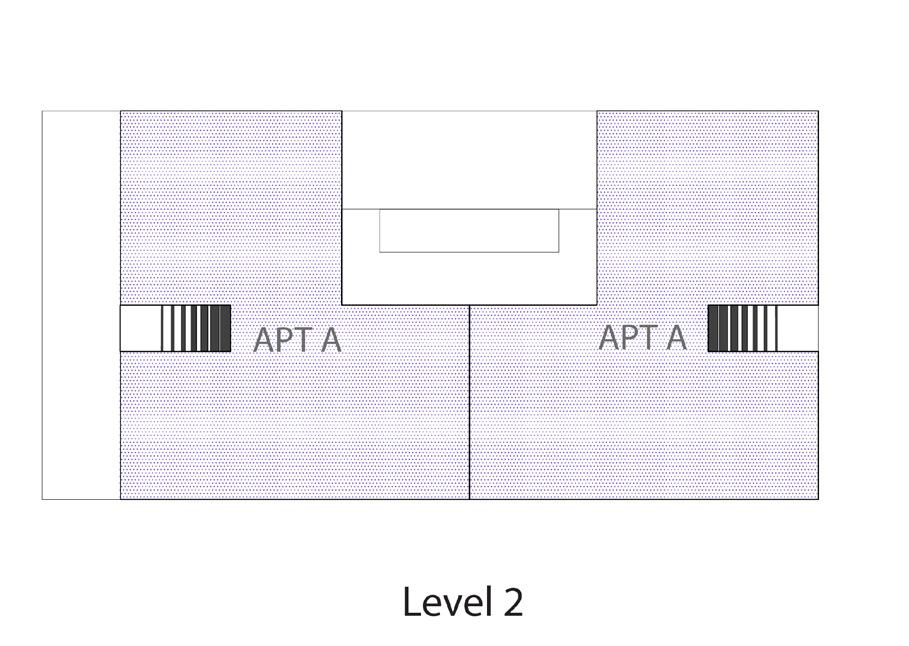

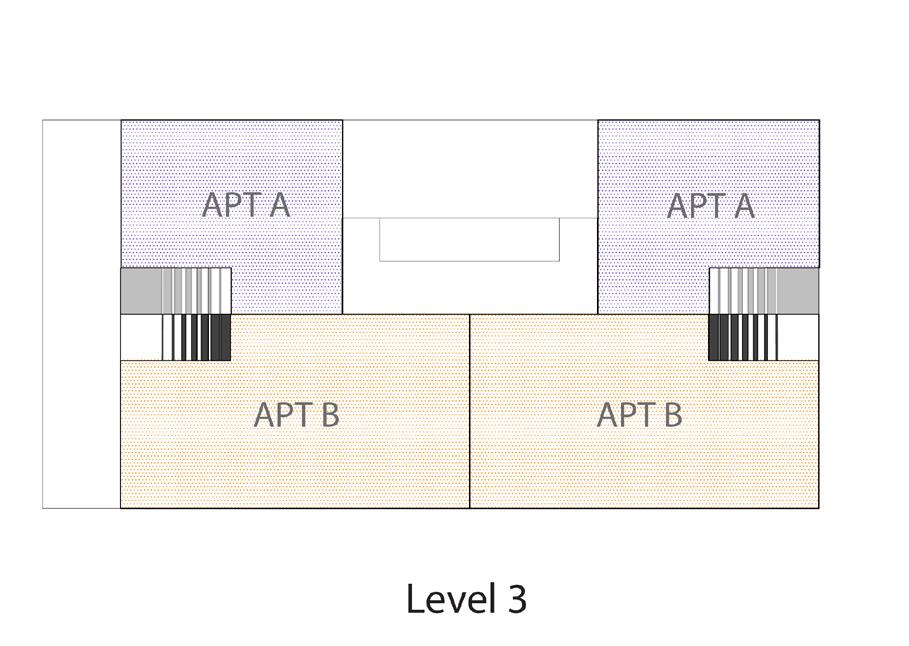

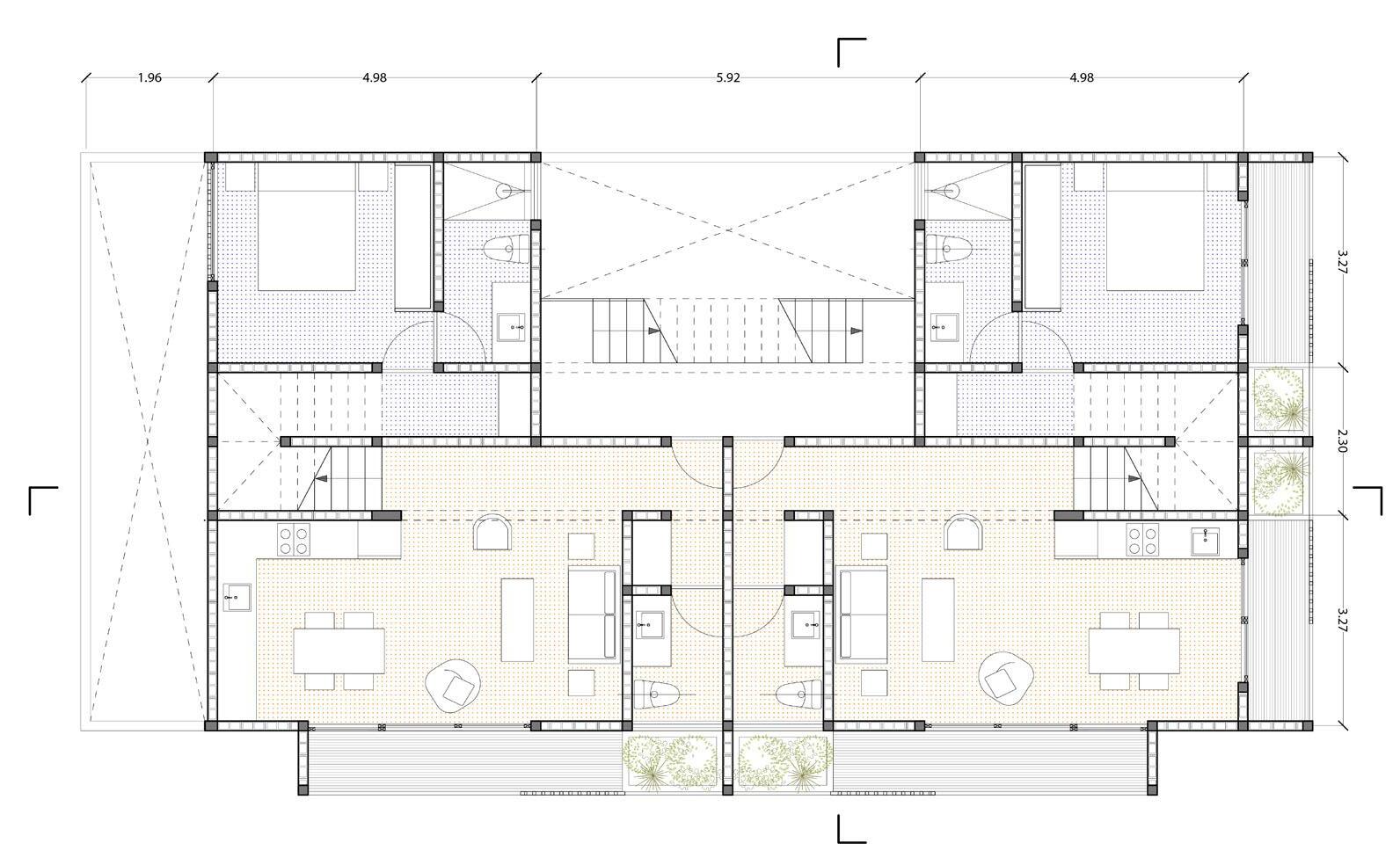

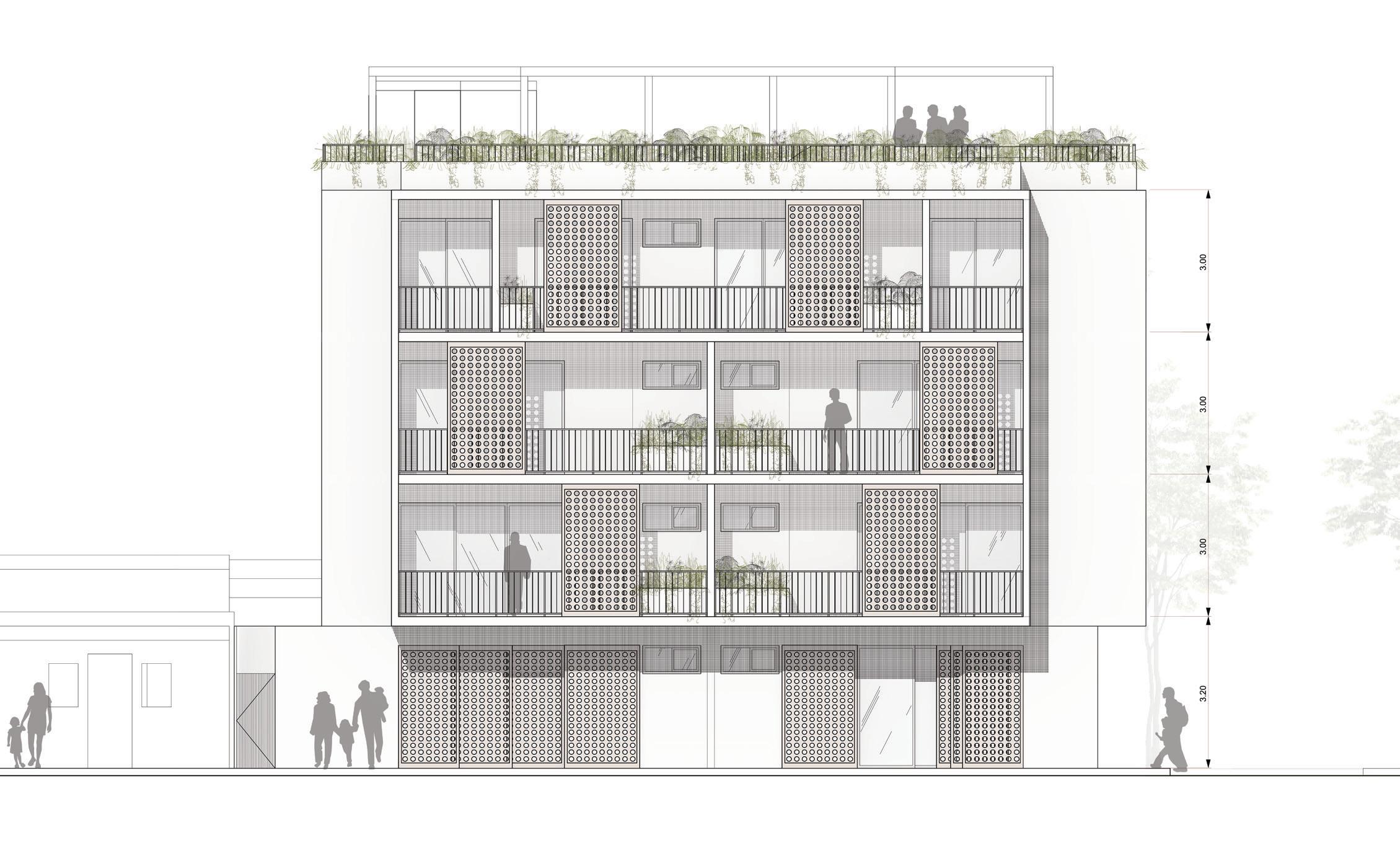

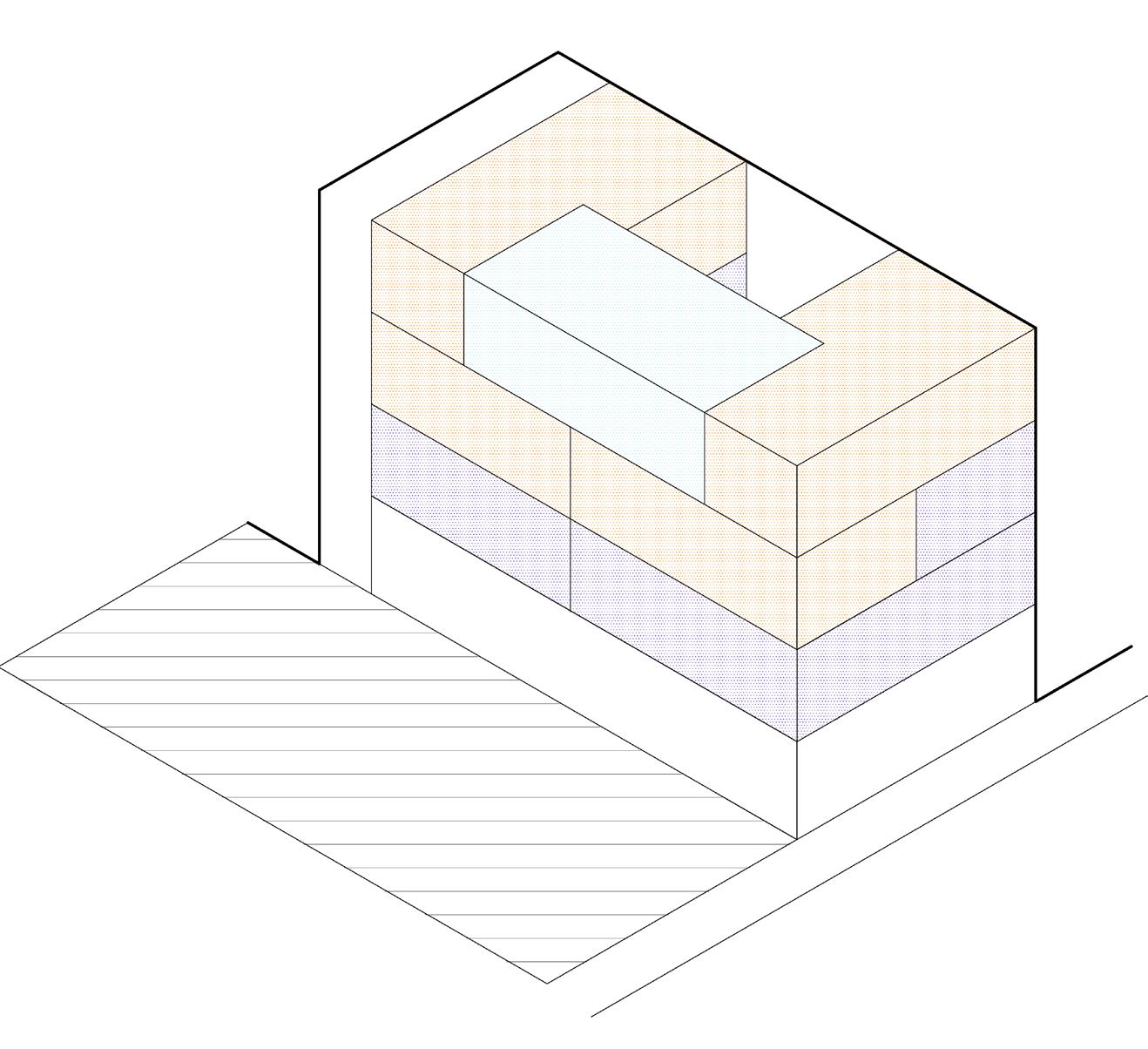

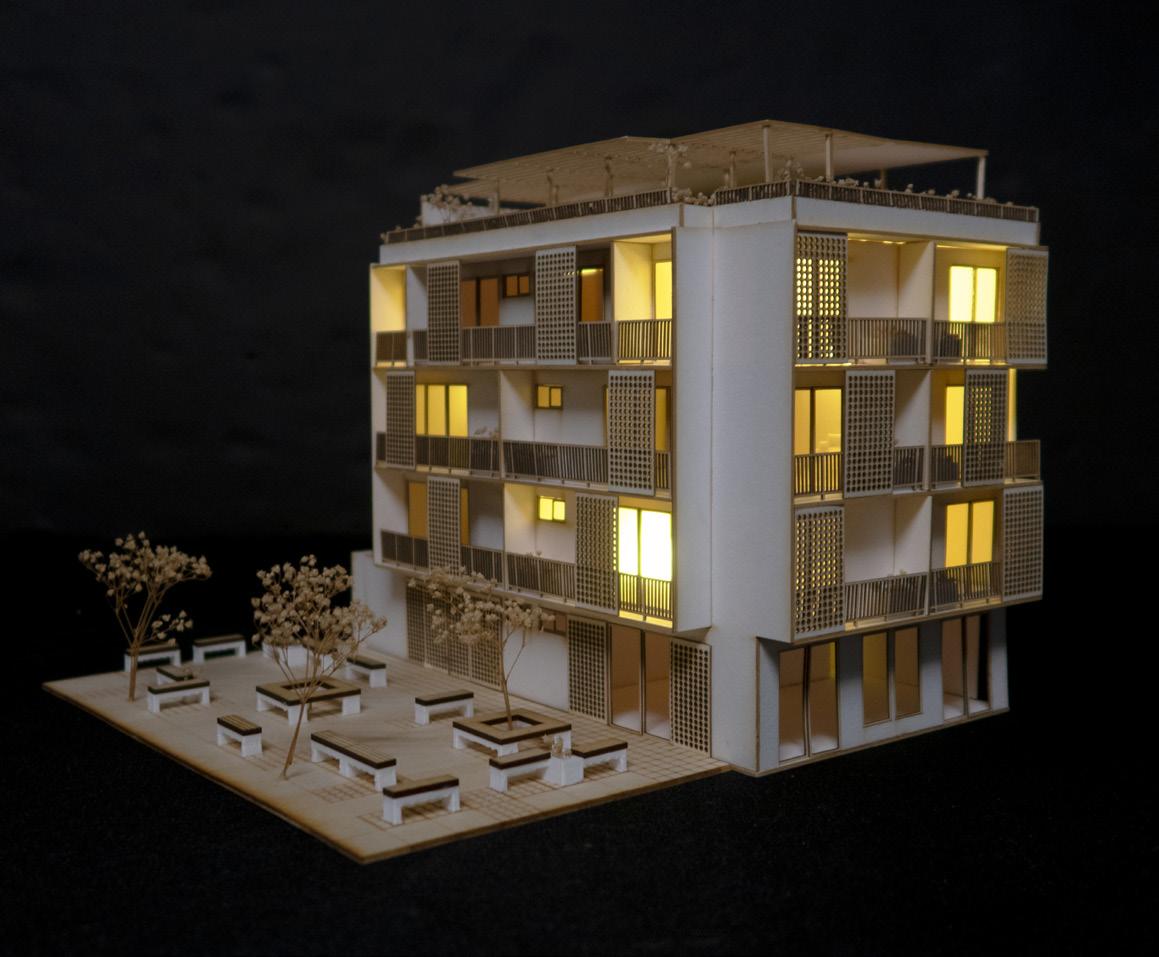

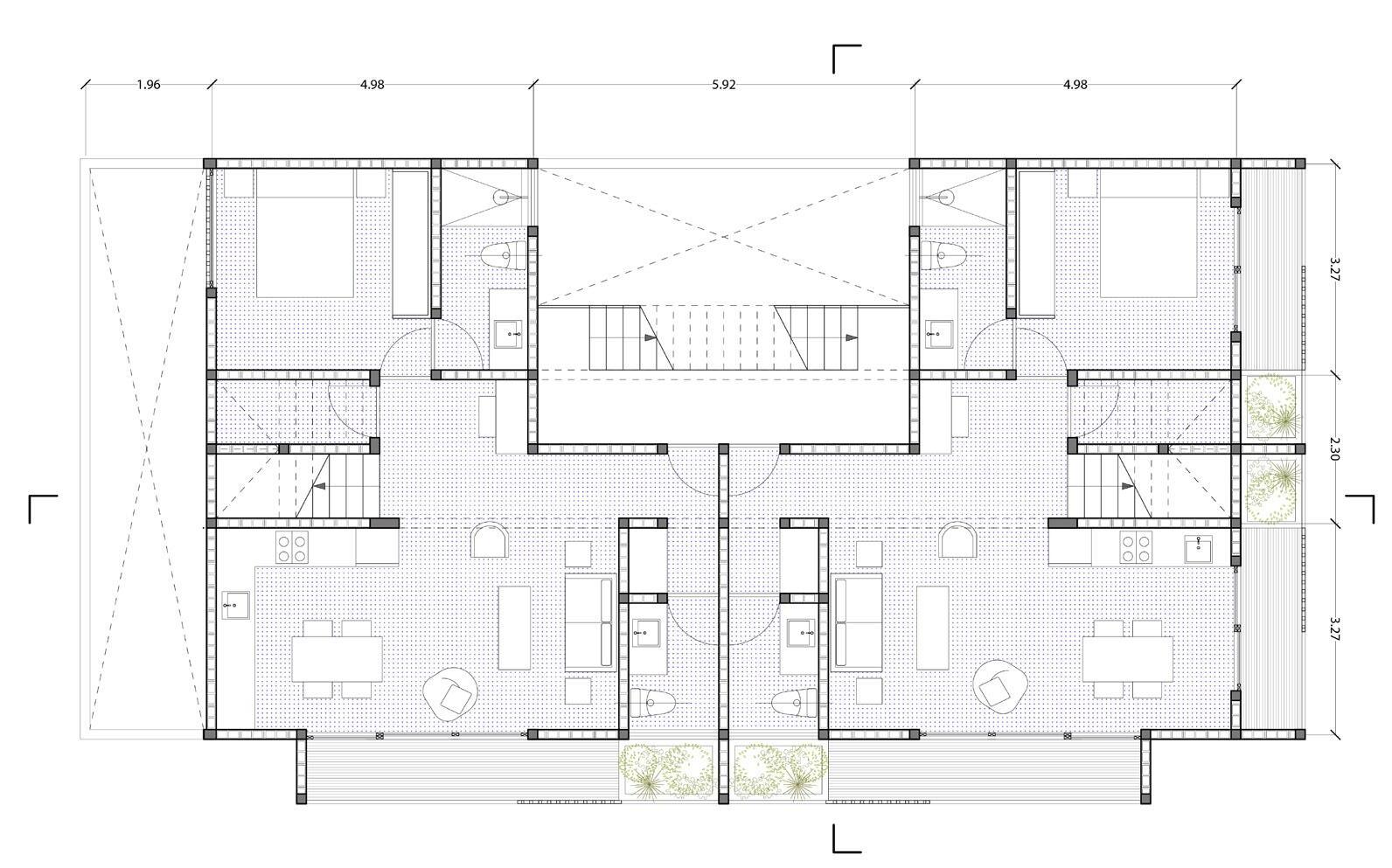

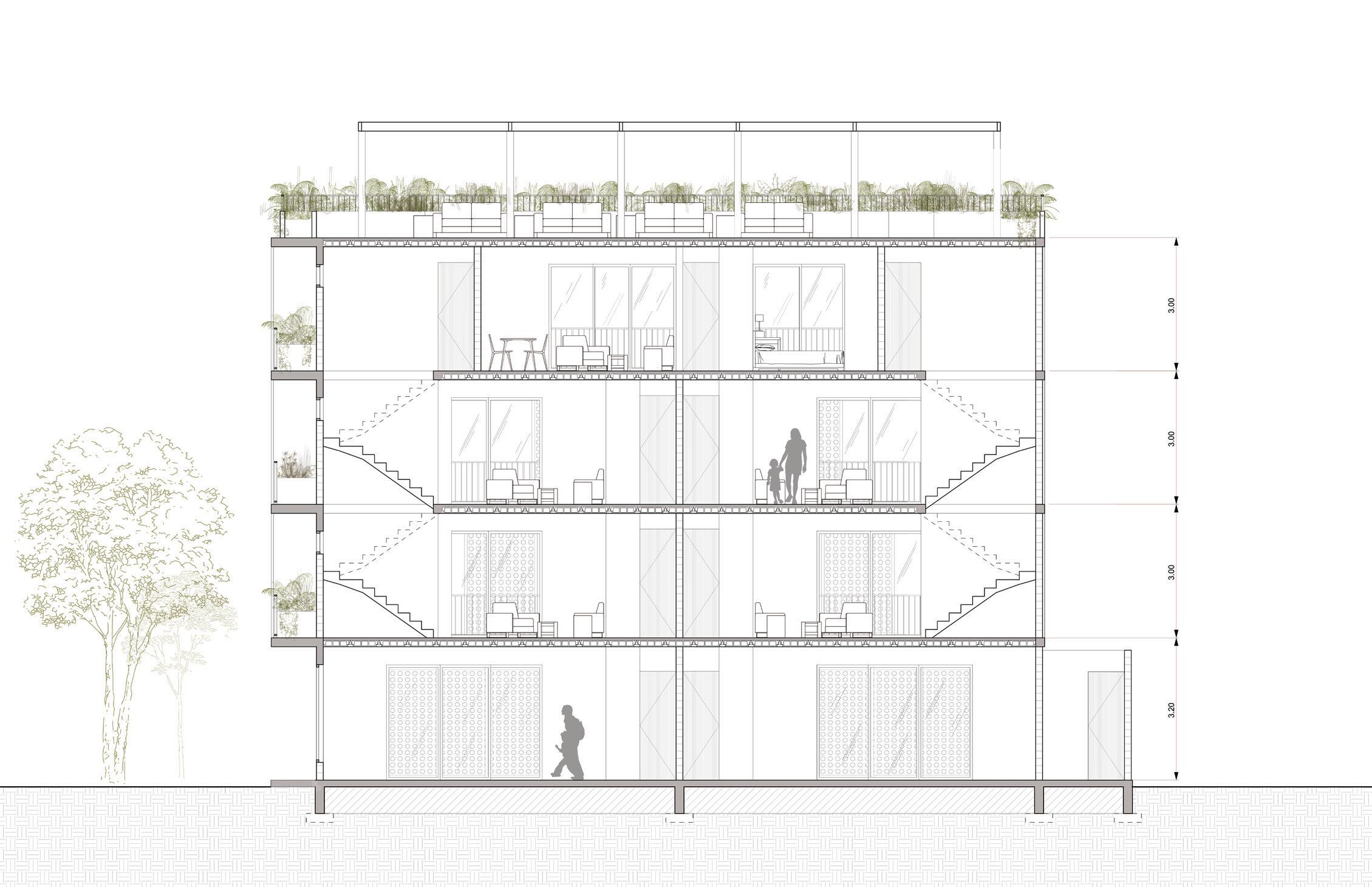

Our project begins with the concept of two apartments spanning three floors. ‘Apartment A’ starts on the second floor and extends across half of the third floor, while ‘Apartment B’ begins on the third floor and occupies a portion of the fourth floor. These layouts are mirrored on the opposite side of the building to create a balanced and symmetrical design.
Tempered Clear Glass
Perforated Metal Panel
Stainless Steel Base Frame
Pre-stressed Bovedilla Sliding Door Wheel
Aluminum Sliding Frame
Pre-Stressed Vigueta
Tempered Clear Glass
Perforated Metal Panel
Stainless Steel Base Frame
Pre-stressed Bovedilla Sliding Door Wheel
Aluminum Sliding Frame
Pre-stressed Vigueta
Tempered Clear Glass
Perforated Metal Panel
Wire Mesh
Concrete Footing

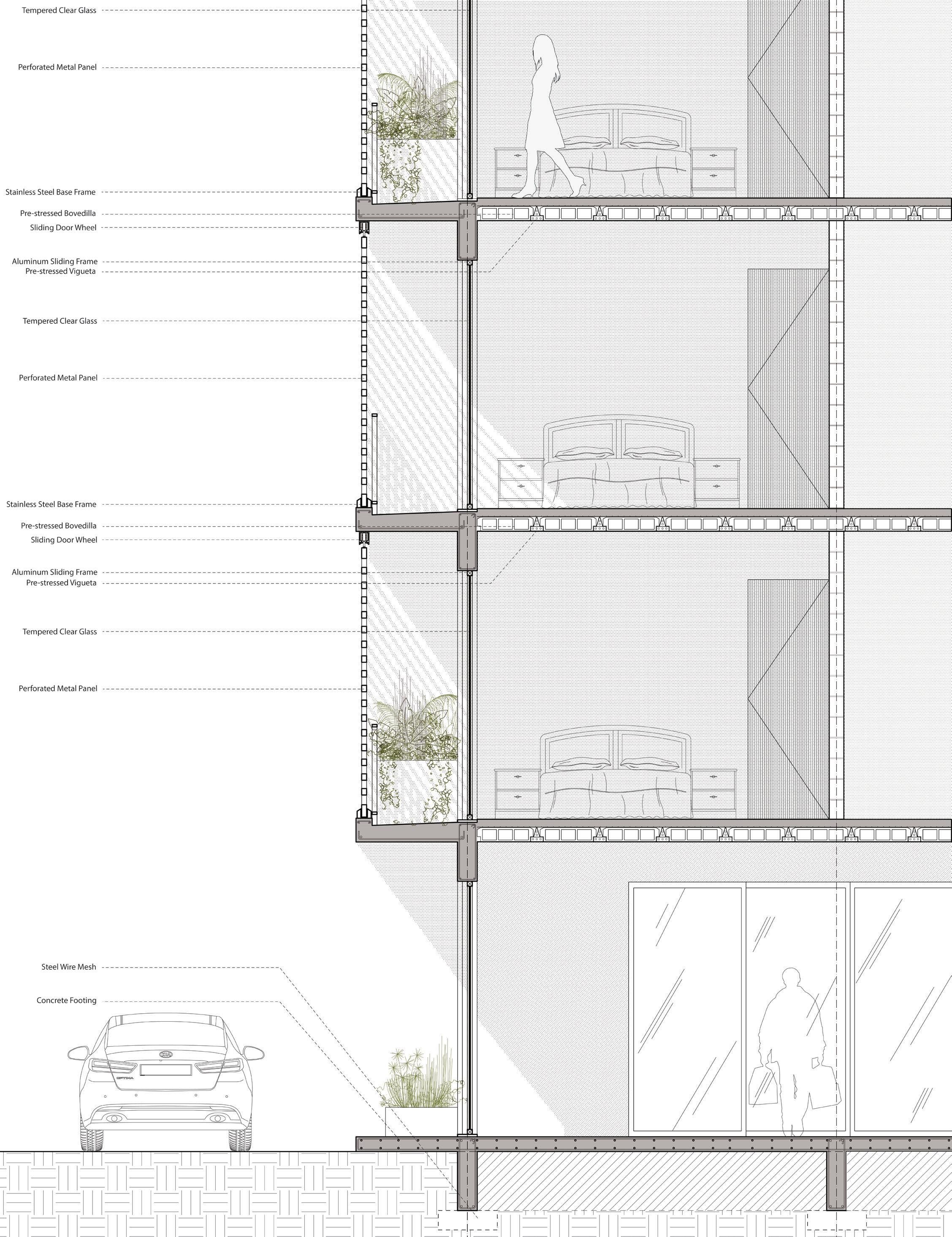

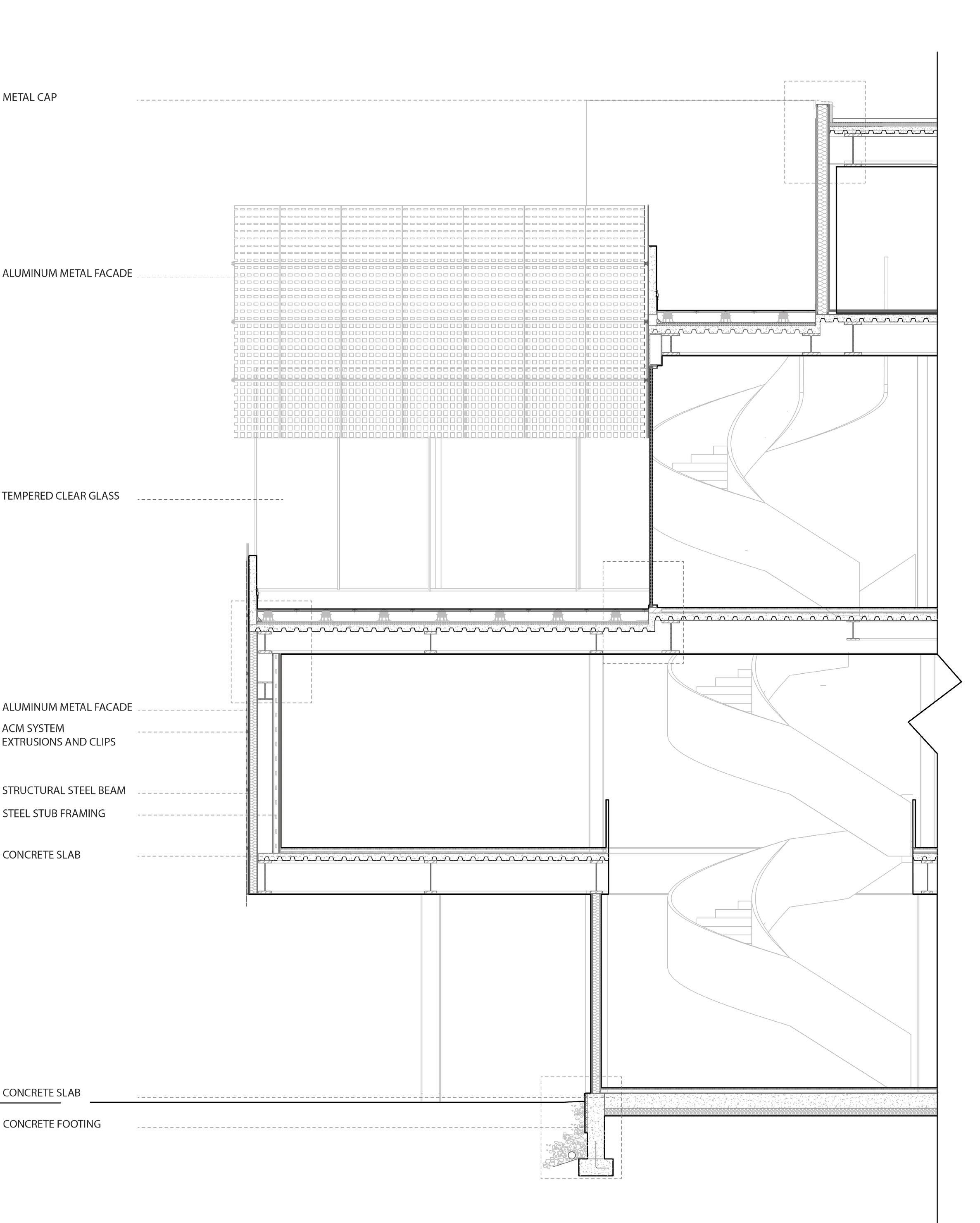

DETAILED SECTION

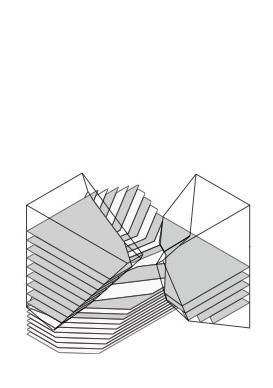

Iteration Study

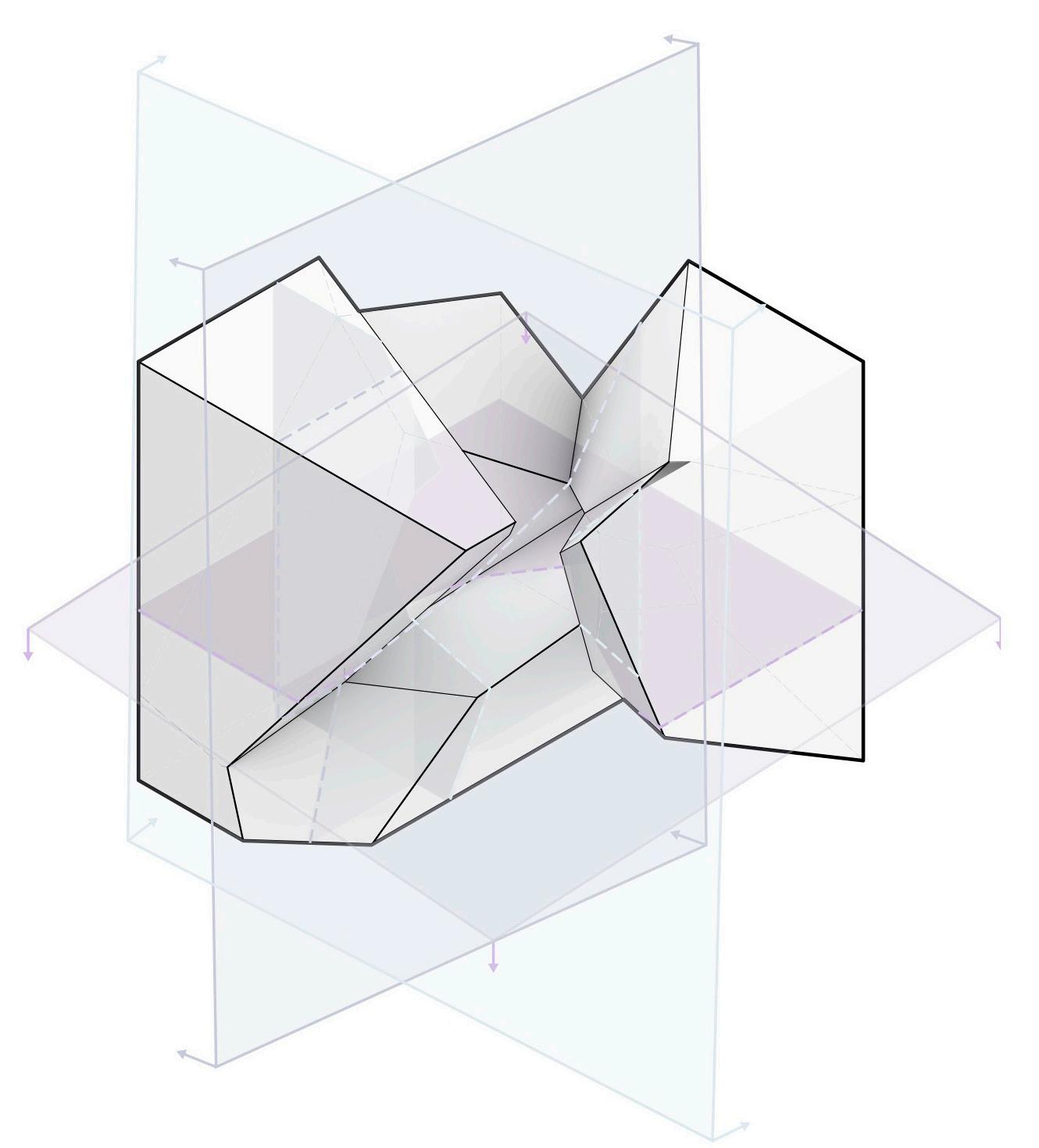

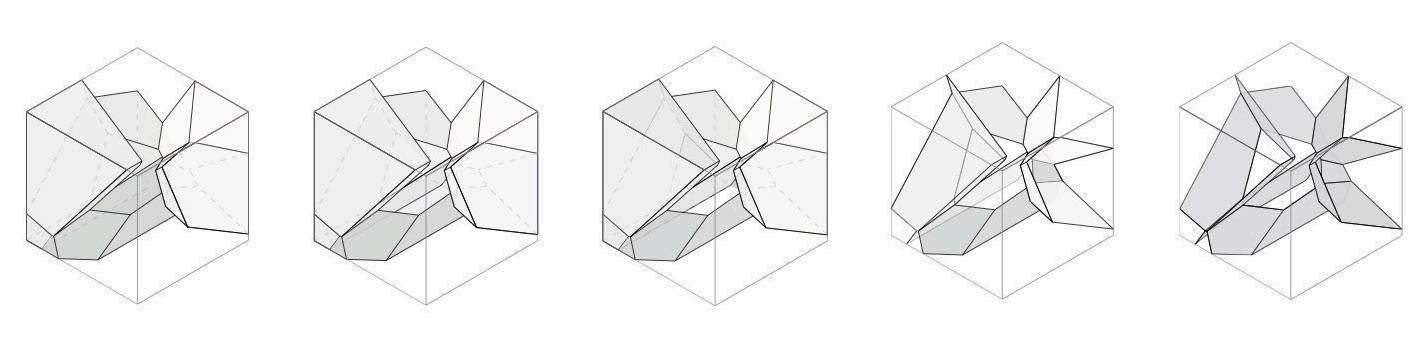

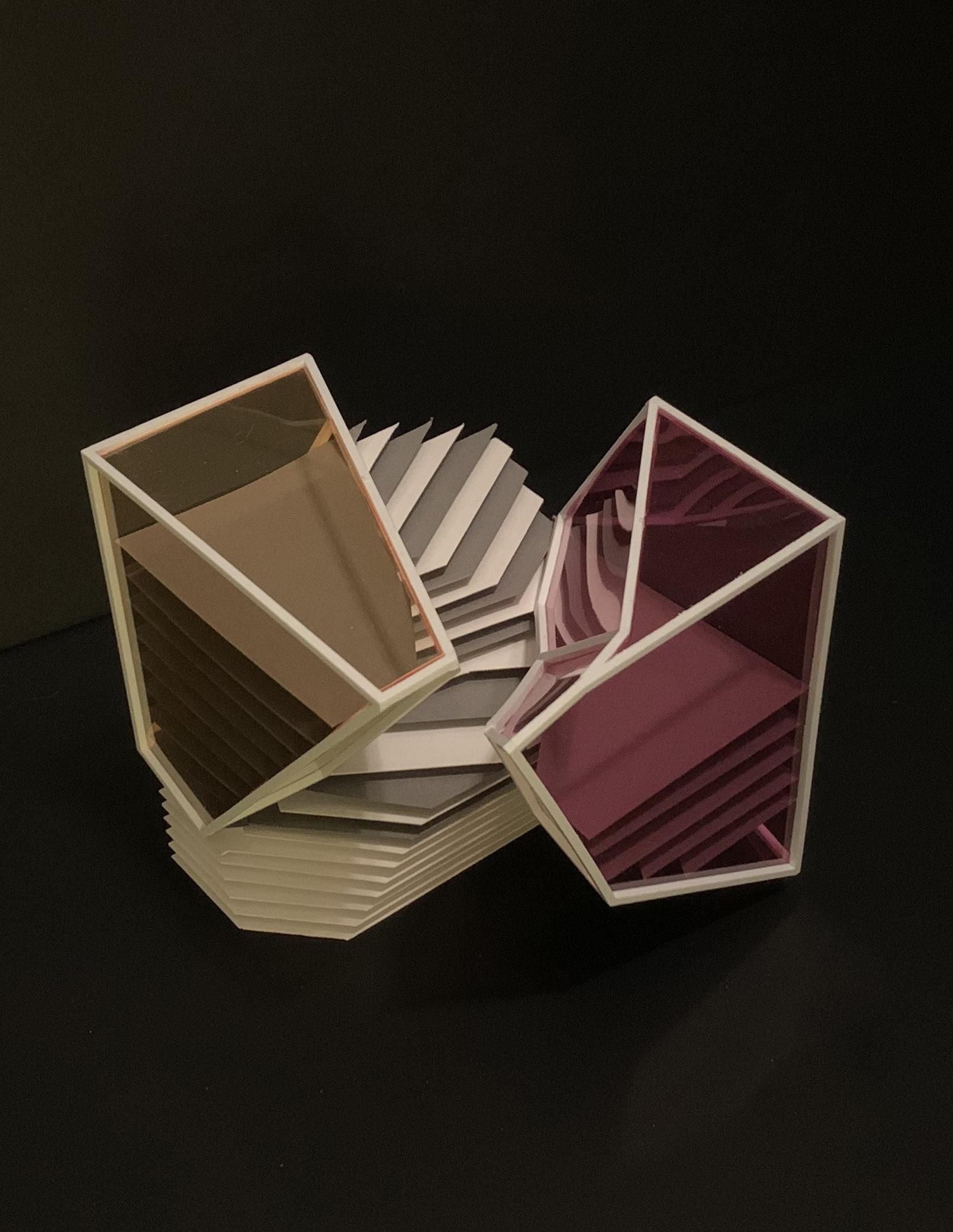

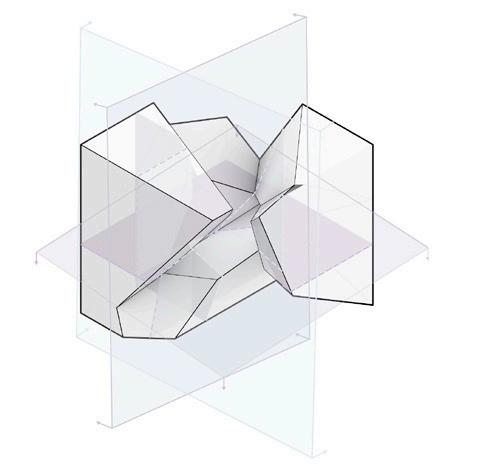

The Form was created from a voronoi mapping in Rhino, and then cells were extracted to create the shape. The Study to the right is the process to get to the final shape
ARCH 1500 Fall 2020
Programs used: Rhino 3D, Adobe Illustrator, V-Ray

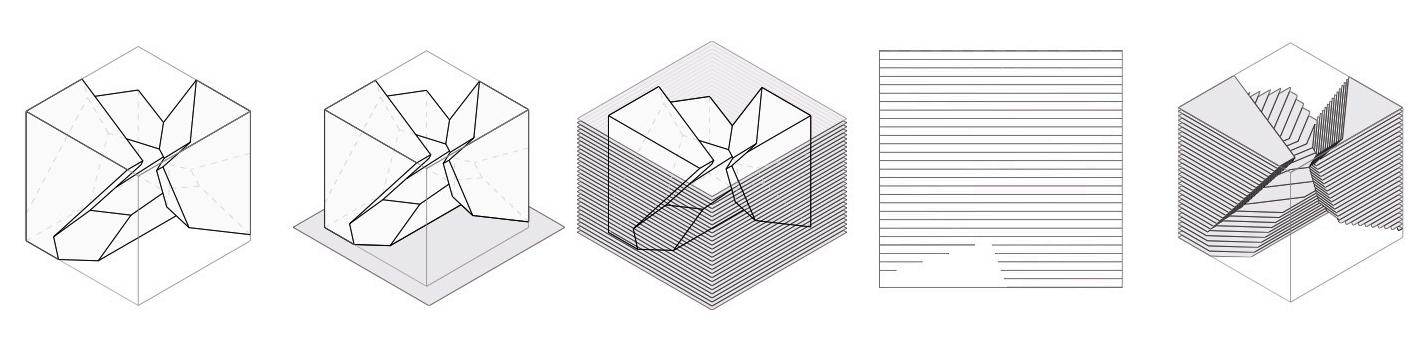

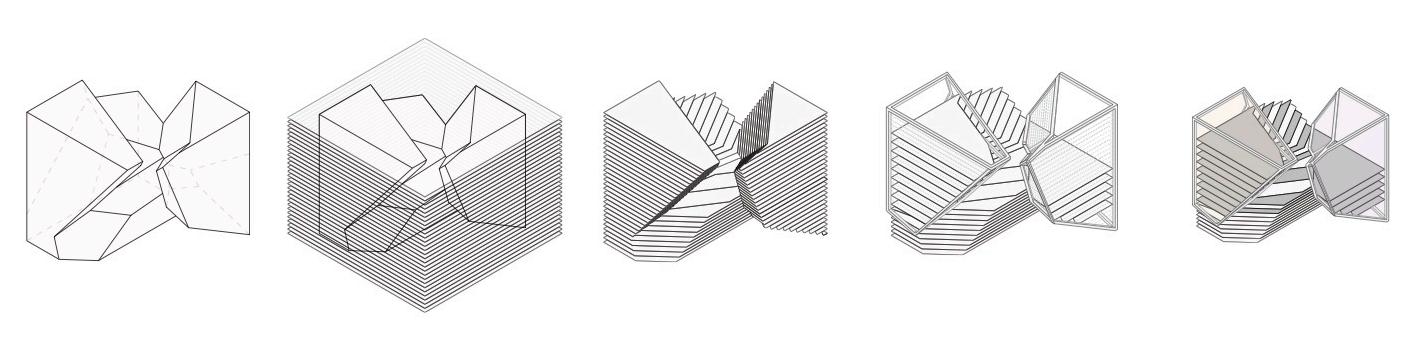

Iteration 1: Layered Planes
Iteration 2: Removed Walls
Iteration 3: Layers + Wireframe

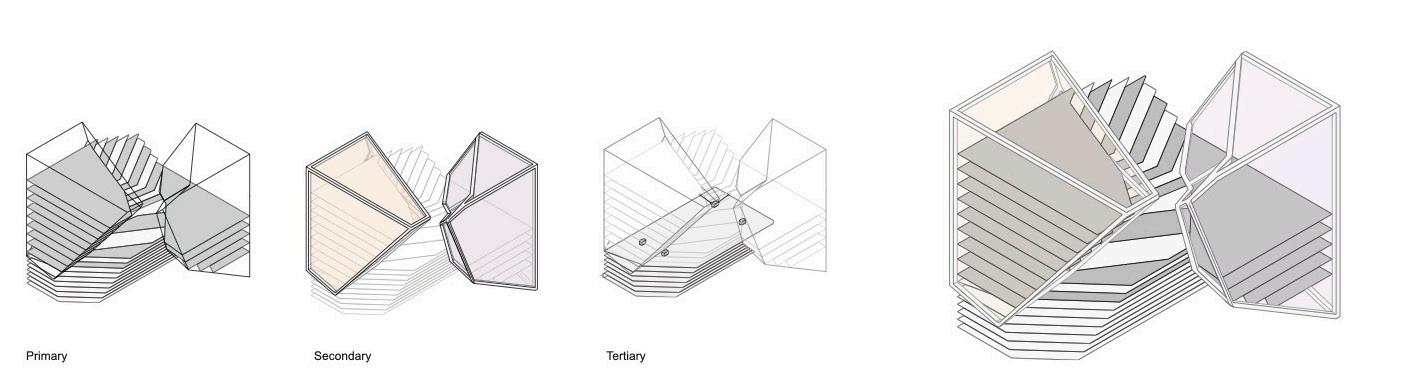

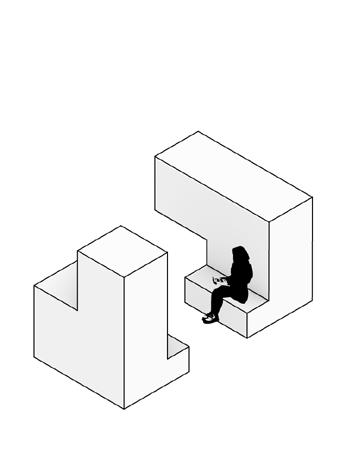

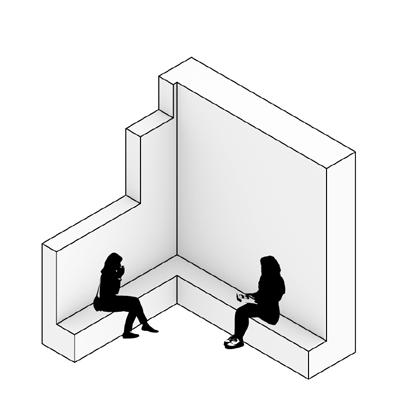

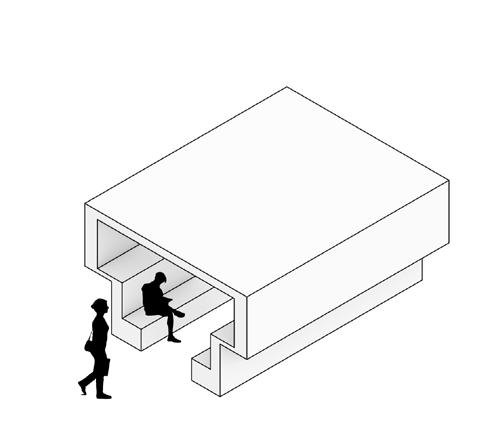

Hierarchy
