ABOUTUS WE ARE THE MANUFACTURING OF THE BEST QUALITY FERMENTERS WHICH ARE ACCESSIBLE AND IN RANGE FOR ALL, WHETHER IT’S A STARTUP OR A UNIVERSITY COLLEGE OR A RENOWNED COMPANY OR RESEARCH INSTITUTE. WE ARE THE FERMENTATION EXPERT. ENGINEERS AT FERMEX HAVE VARIOUS EXPERIENCE IN THE FIELD OF FERMENTATION (FERMENTER DESIGNING, PROCESS OPTIMIZATION, AND INNOVATION IN FERMENTATION SYSTEMS).
OURPRODUCTS Fermenter & Bioreactor Photobioreactor Solid State Fermenter Downstream Processing Equipment Special Purpose Reactor

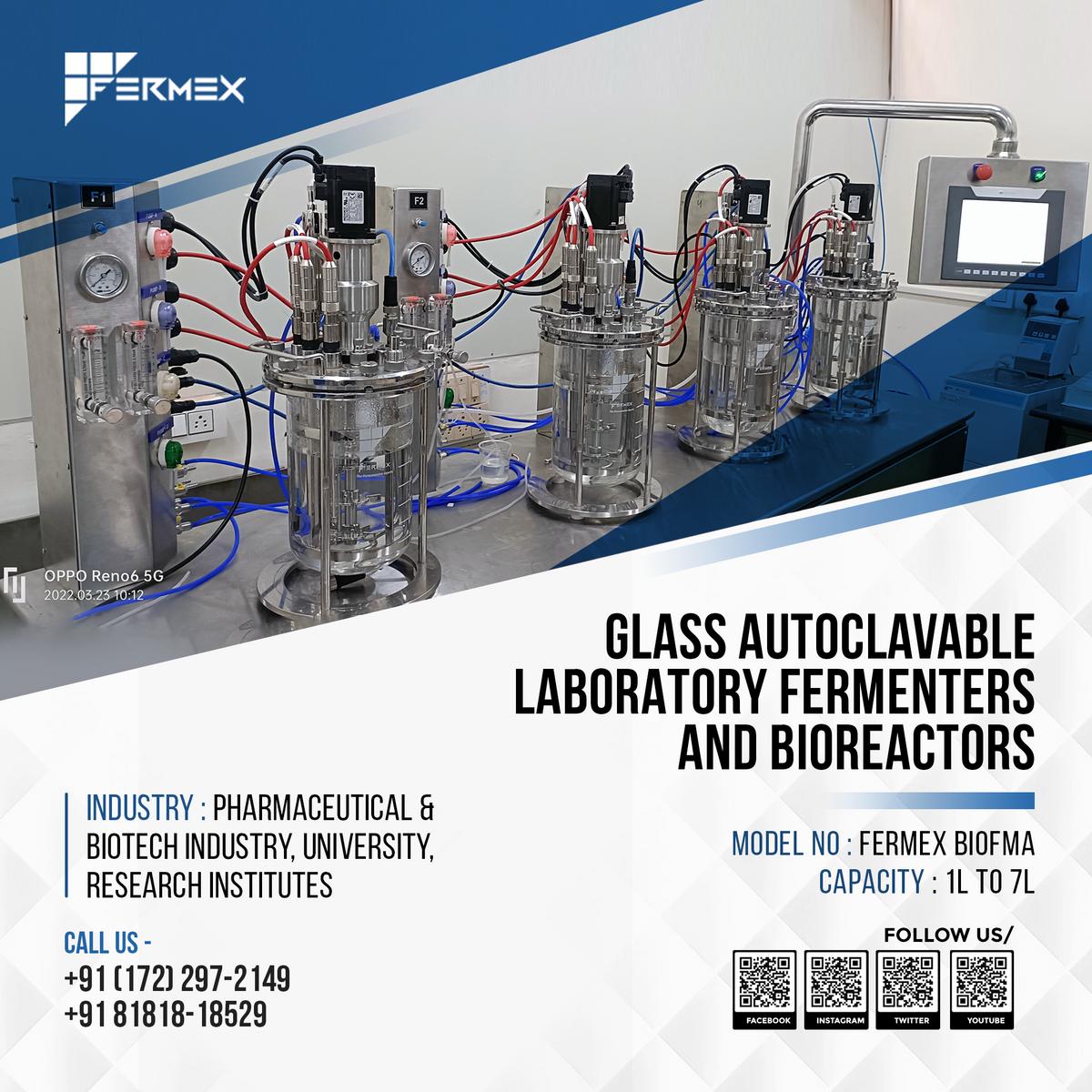

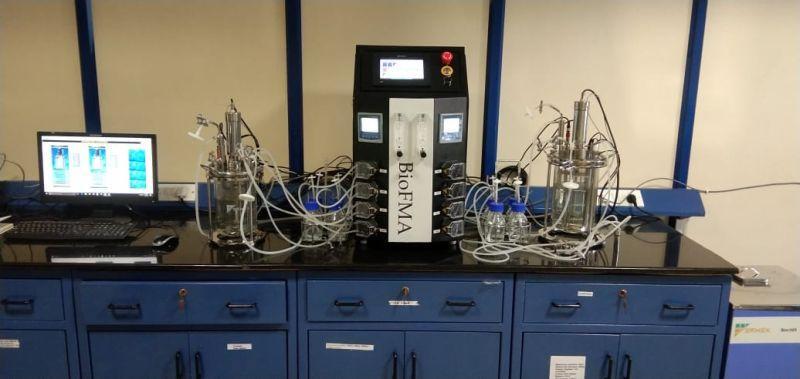

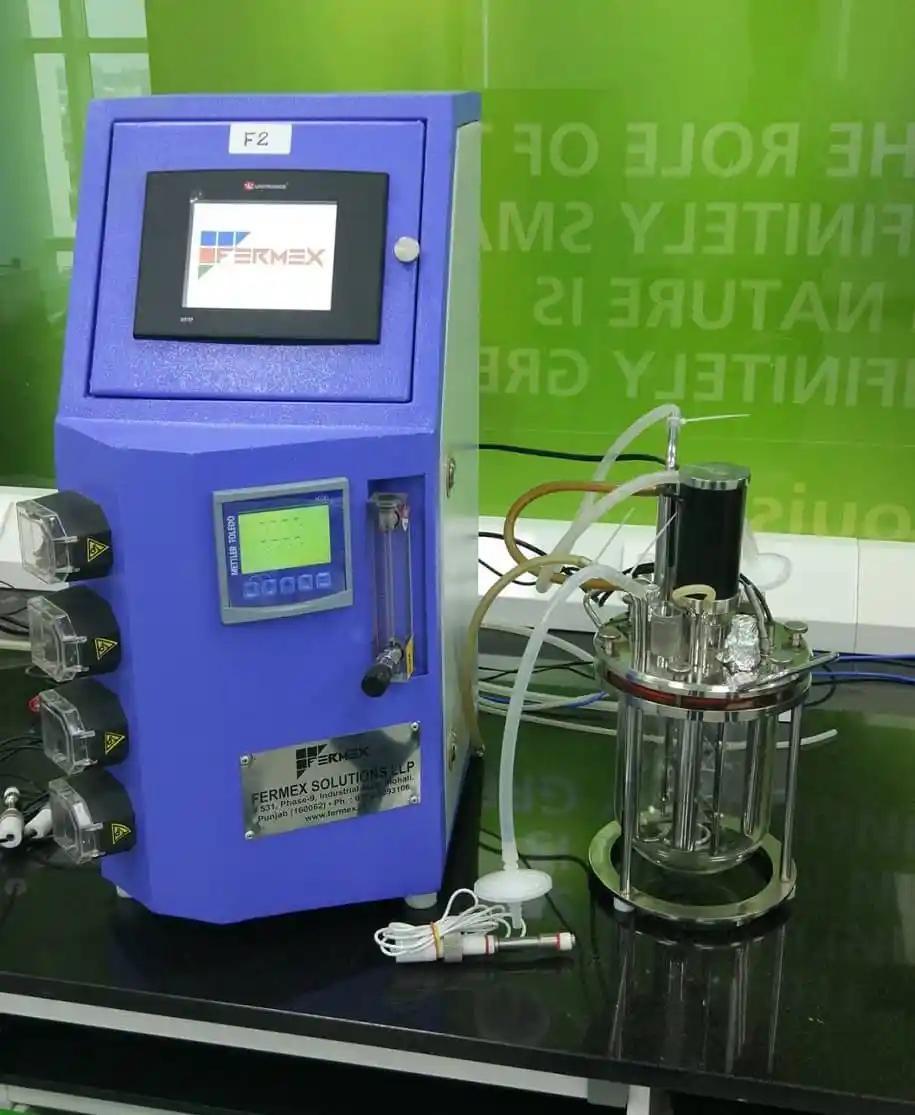

PRODUCT Model No : Fermex BioFMA Capacity : 1L to 7L Industry : Pharmaceutical & Biotech Industry, University, Research Institutes GLASS AUTOCLAVABLE LABORATORY FERMENTERS & BIOREACTORS
TYPE: AUTOCLAVABLE DESIGN CODE: ASME BPE-2019 TEMPERATURE: 0 TO 140 °C PH: 2 TO 14 DO2: 0-100% MOC: BOROSILICATE GLASS & SS 316L AUTOMATION GRADE: MANUAL, SEMI-AUTOMATIC & FULLY AUTOMATIC SURFACE FINISH: INNER SURFACE 420 GRIT MIRROR-FINISHED RA 0.250.5ΜM AND EXTERNAL 180 GRIT MATT FINISH TECHNICALSPECIFICATIONS:
FEATURES: TOP DRIVEN AGITATOR (SINGLE MECHANICAL SEAL OR MAGNETIC DRIVE) WITH RUSHTON TURBINE IMPELLERS. AUTOMATED CONTROL OF PROCESS PARAMETERS LIKE AERATION, TEMPERATURE, FOAMING, PRESSURE, PH, DO, ETC. AUTOMATIC AERATION CONTROL THROUGH MFC FOR MULTIPLE GASES ALSO. FEED ADDITION THROUGH PRECISE FLOW CONTROL WITH PERISTALTIC PUMPS FOR ACCURACY OF FEEDING. PLC-BASED PANELS ARE PROVIDED WITH A COLOR TOUCH SCREEN HMI TO PROVIDE THE OPERATOR WITH MONITORING AND CONTROL OF VARIOUS PARAMETERS. ALL WET PARTS ARE MADE OF SS316 AND BOROSILICATE GLASS AND NON-WET PARTS ARE MADE OF SS304. MOBILE APP/WEB SERVER IS PROVIDED FOR DATA MONITORING PURPOSES. ALARMS SMS ALERT ON MOBILE IS PROVIDED. RESERVE DATA LOGGING WITH SCADA SOFTWARE IS ALSO PROVIDED SO THAT NO IMPORTANT DATA OF THE BATCH IS LOST OUT.
