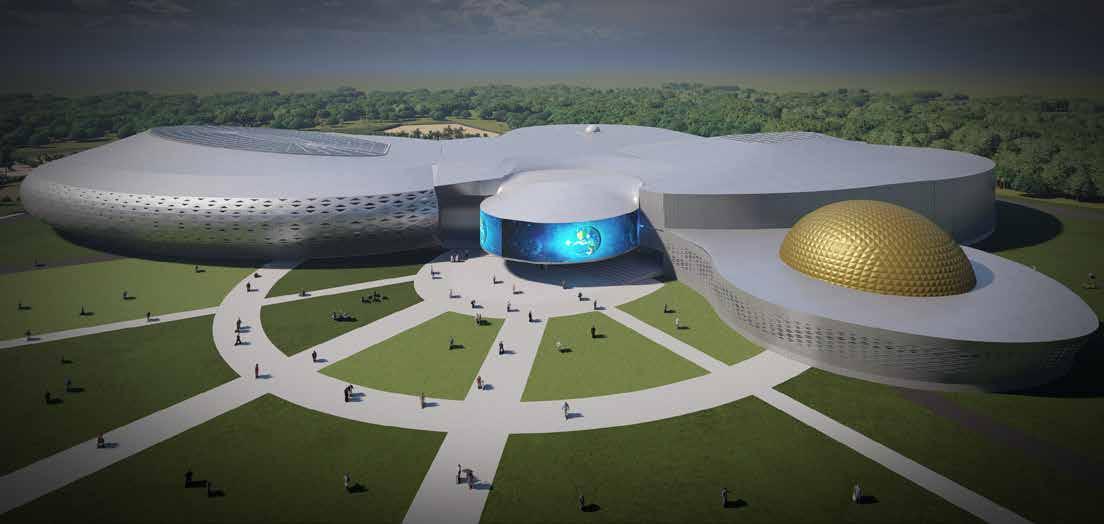

1. NEXUS SCIENCE & TECHNOLOGY CENTER

2. HYBRID MALL

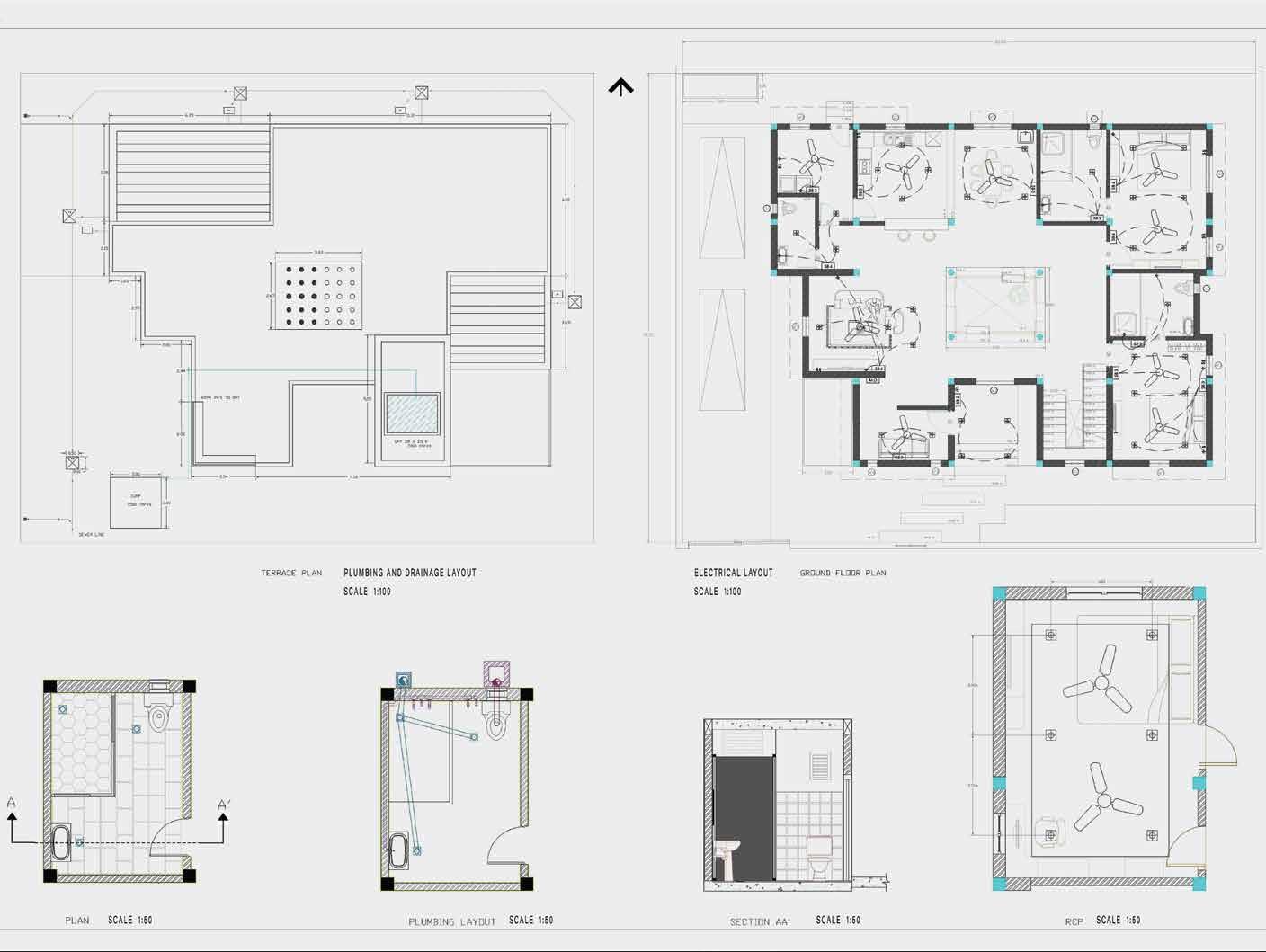

3. RESIDENCE DESIGN

4. SOCIAL HOUSING DESIGN

6. MISCELLENEOUS

PROJECT BRIEF

APPROACH and EVOLUTION

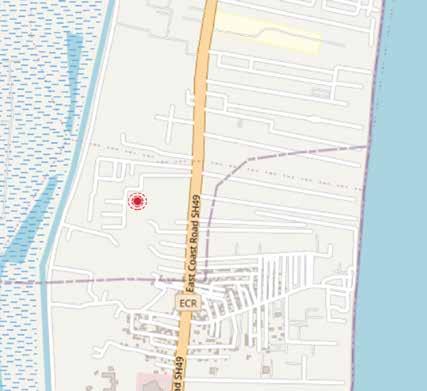

Chennai, India.

Warm and Humid

29 acres / 117359 sq.m

DEFINITION of the program and the spaces that will compose it.

Programs are organised SEQUENTIALLY to guide users through themed spaces, facilitating immersive transitions.

ZONING INTENT

The building masses are of di erent FORMS vary depending on heirarchy of programs.

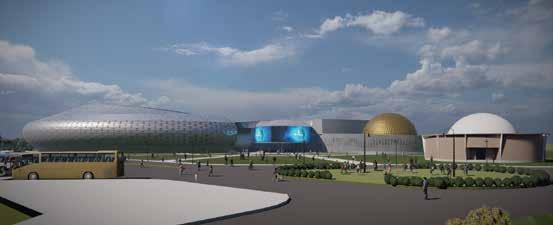

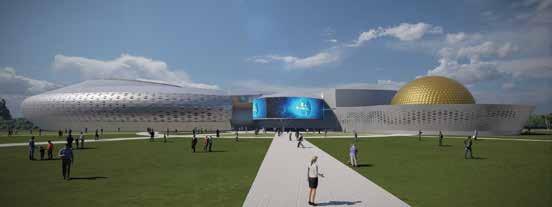

The Nexus Science and Technology Center is a visionary project that seeks to capture the essence of observation, exploration, discovery, and communication. It aims to create an environment where individuals can immerse themselves in the fascinating world of science and technology and experience their own "Eureka" moments.

It acknowledges that the process of unravel ing complex problems and grasping new con cepts can be a sensual and visual experience, lled with mystery, curiosity, and the joy of exploration.

Buildings with large scale and symbolic form captivates, inspiring grandeur, attracting awe as roads traverse.

To minimize vision which will make visitors excited about functions happening inside.

Incorporation of advanced technologies ( AR/VR spaces etc)

Connection of outdoor spaces for learning and exhibiton

AREA STATEMENT

Plot area 117500 sq.m

Typology Public building

Function Edutainment

Setback Min. 6m

O.S.R 11750 sq.m

Ground coverage 22682 sq.m

Total built - up 55,146 sq.m

F.S.I achieved 0.48

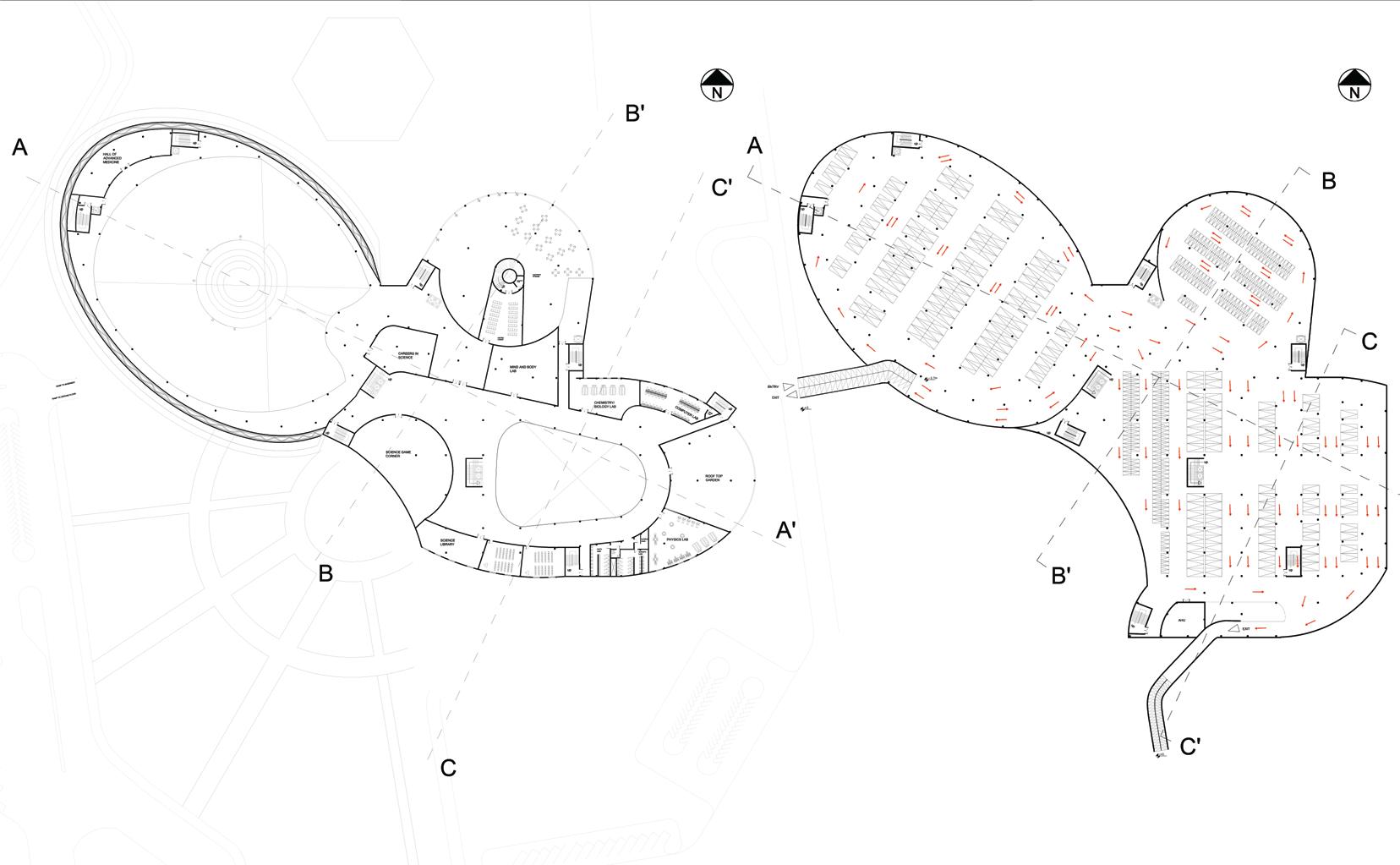

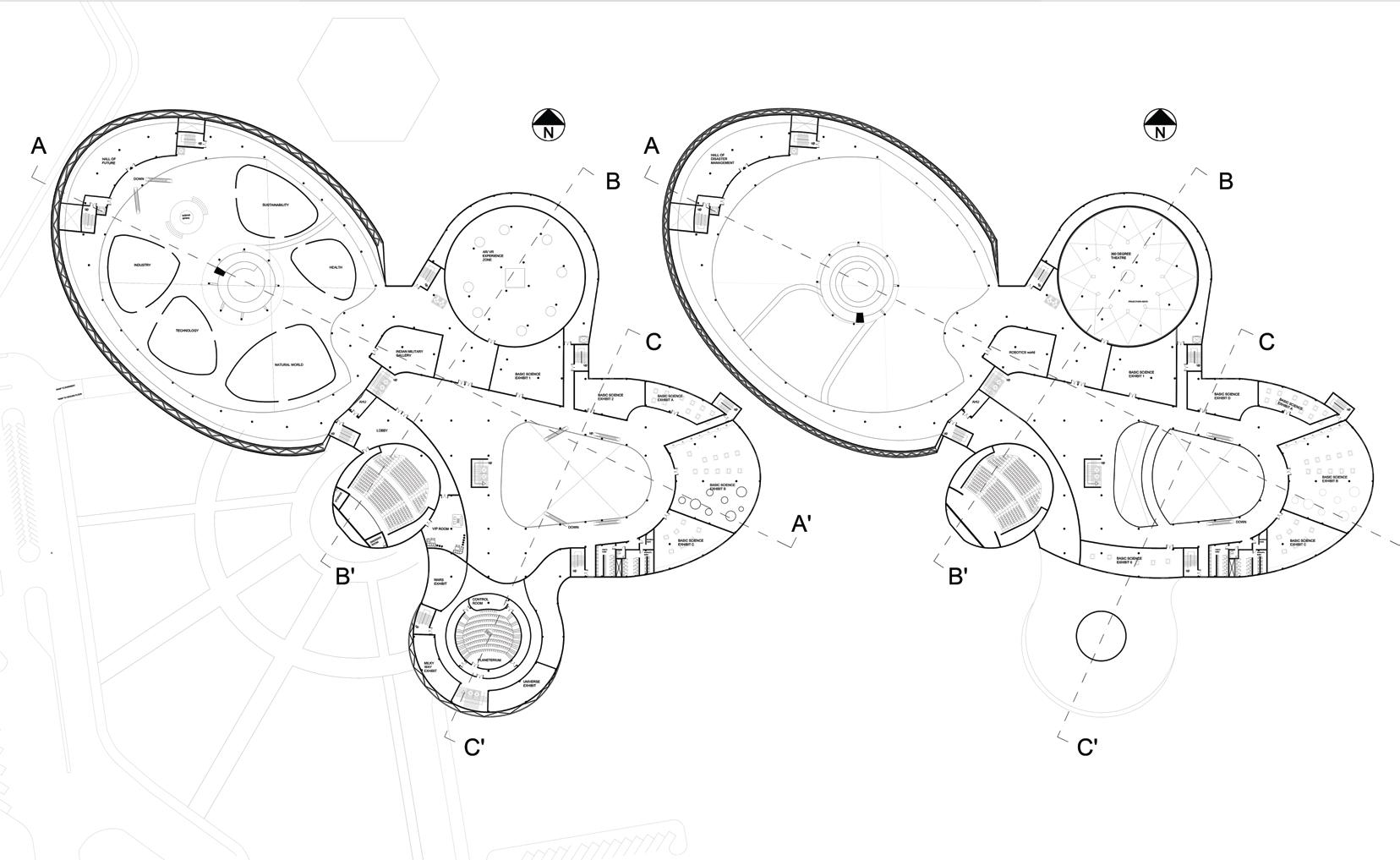

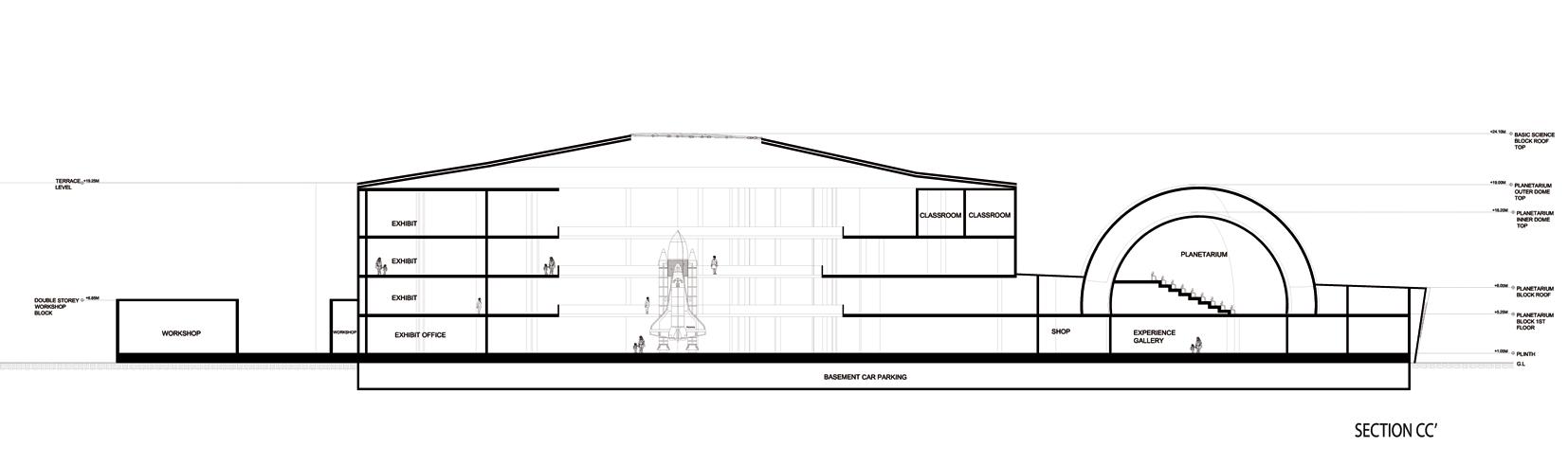

FLOOR PLANS

SYNERGY HALL

EVOLUTION DARK RIDE

5x BASIC SCIENCE EXHIBITS

3x ASTRONOMICAL EXHIBITS

WORKSHOPS

EXHIBIT OFFICE

PLANETARIUM OFFICE

TOILETS

AHU ROOM

GROUND

TECHNOLOGIES INCORPORATED

Access to small and moderate size telescopes, the observing oor height will usually not allow a full size door between the oor and the ring beam that supports the dome. Roll-o -roofs win on exibility, automation, warm rooms and security, domes provide better all-round horizon-level views, provide shielding from wind and can take up less space.

ROOF

Older planetariums were modeled on the "celestial sphere," mimicking the night sky. This meant they were level in relation to the audience in order for there to be a wide enough eld of view, there had to be height between the audience's head and the edge of the dome screen. The audience will feel like they are looking into something, breaking the illusion of total immersion.

ZEISS SKYMASTER ZKP 4 LED (OPTICAL STAR PROJECTOR)

FLOOR PLANS

PROGRAMS

6x BASIC SCIENCE EXHIBITS

AR/VR EXPERIENCE ZONE

AUDITORIUM

PLANETARIUM

5X ASTRONOMICAL EXHIBITS

TOILETS

AHU ROOM

FIRST FLOOR PLAN

PROGRAMS

6x BASIC SCIENCE EXHIBITS

360 DEGREE THEATRE

TOILETS AHU

SECOND FLOOR PLAN

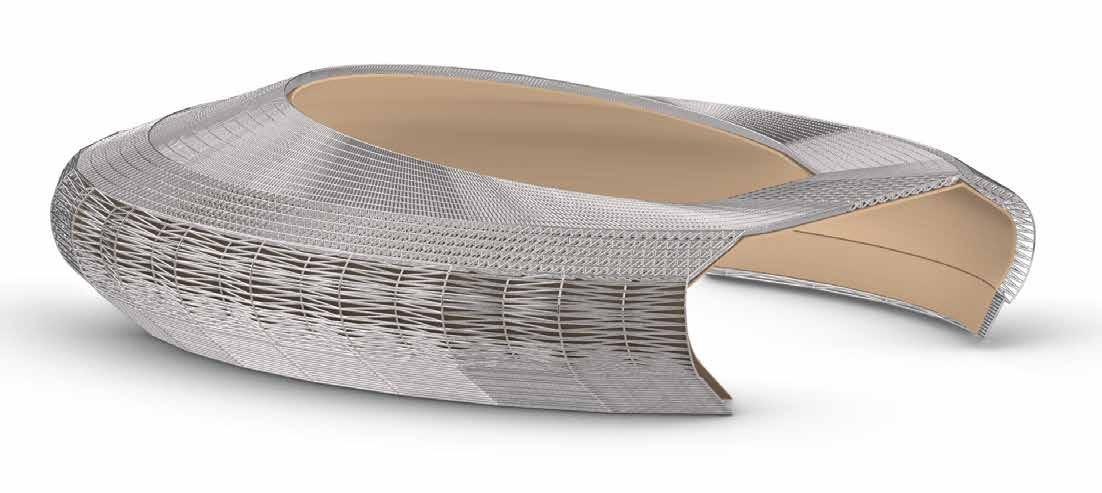

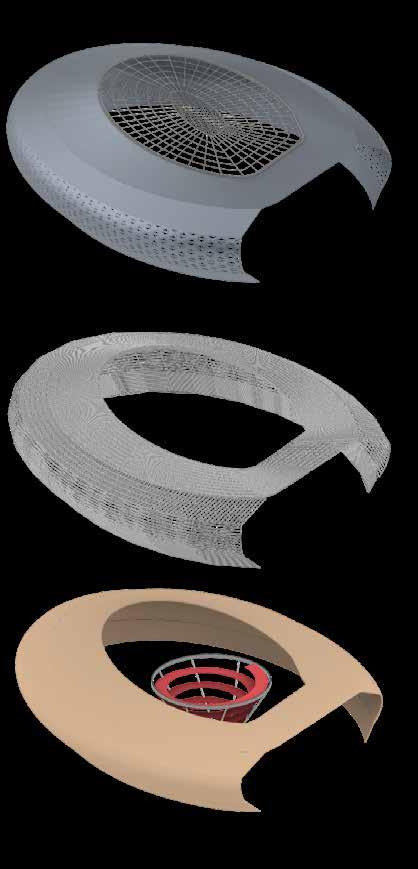

Exterior parametric facade with prefabricated GRC panels

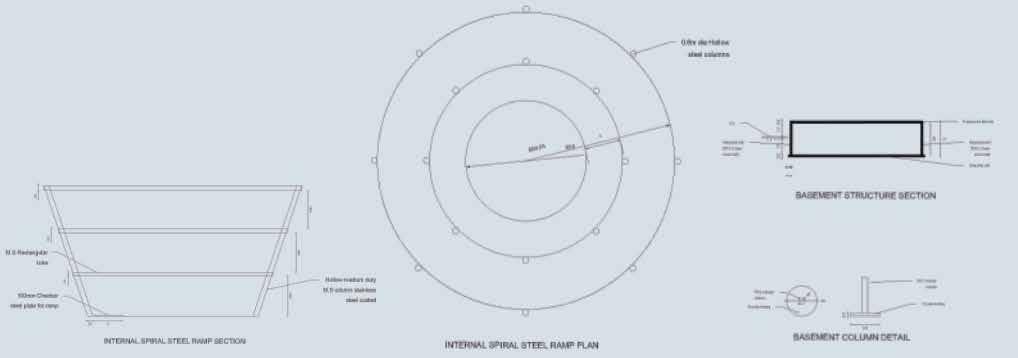

Space frame trusses system

Internal curved wall (acoustic panels )

SPACE FRAME TRUSS

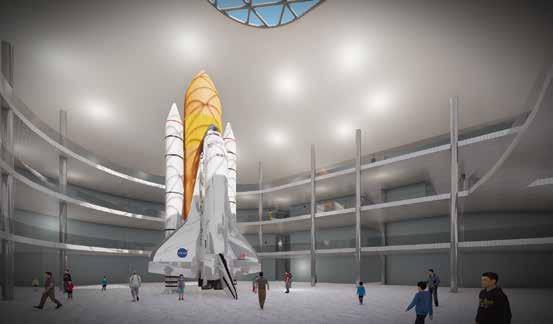

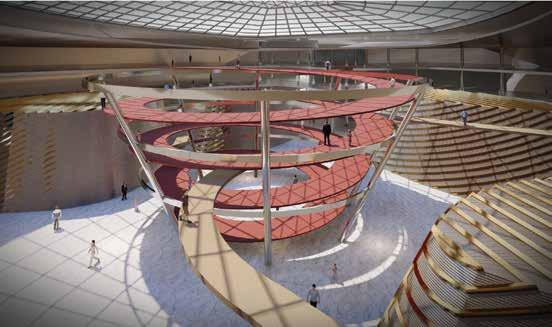

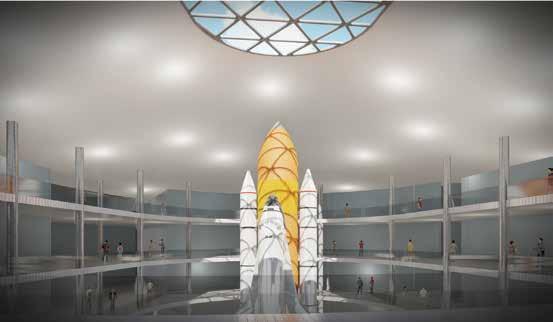

INTERIOR SPACES

PROJECT BRIEF

APPROACH and EVOLUTION

LOOPING the program and then creating openings to bring MYSTERY

Connecting individual ATTRACTION POINTS with hierarchy

MASSING

Chennai, India.

VERTICAL SPACES with corresponding functions are connected visually

5.07 acres / 20517.56 sq.m

AIM

The Mall is designed with purpose of creating a eld of experience which is multidimensional and interdisciplinary for the Urban Dwellers of all classes and groups.

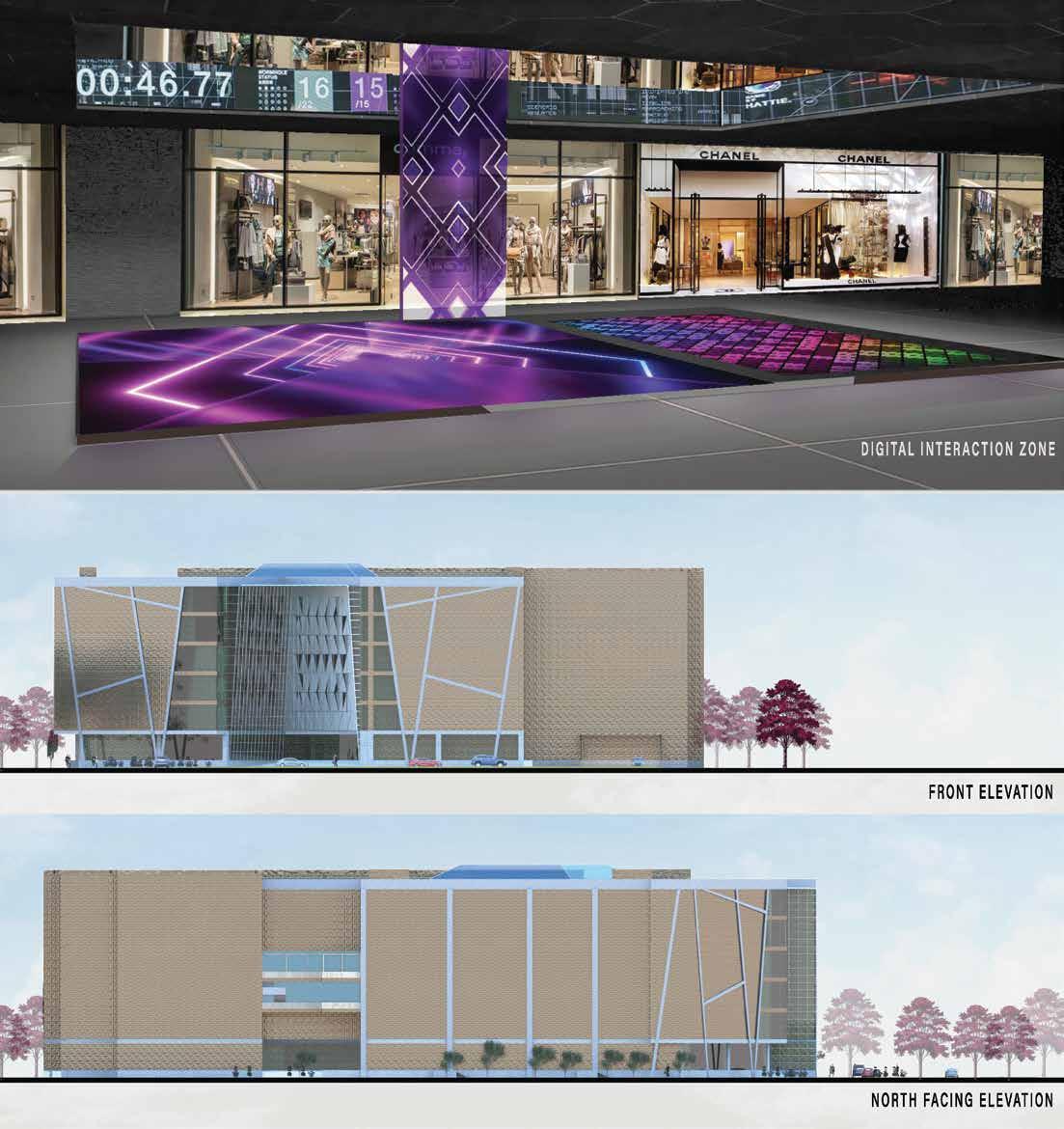

The Mall's design incorporates digital technology to create an enhanced and seamless experience for urban dwellers. From interactive displays to immersive AR/VR experiences, the Mall leverages technology to engage visitors and provide them with a unique experience. It is poised with the idea of public interaction, desire and commerce.

volumes based on the concept

subtraction of solids for various entry/exit

Portion of mass is tilted

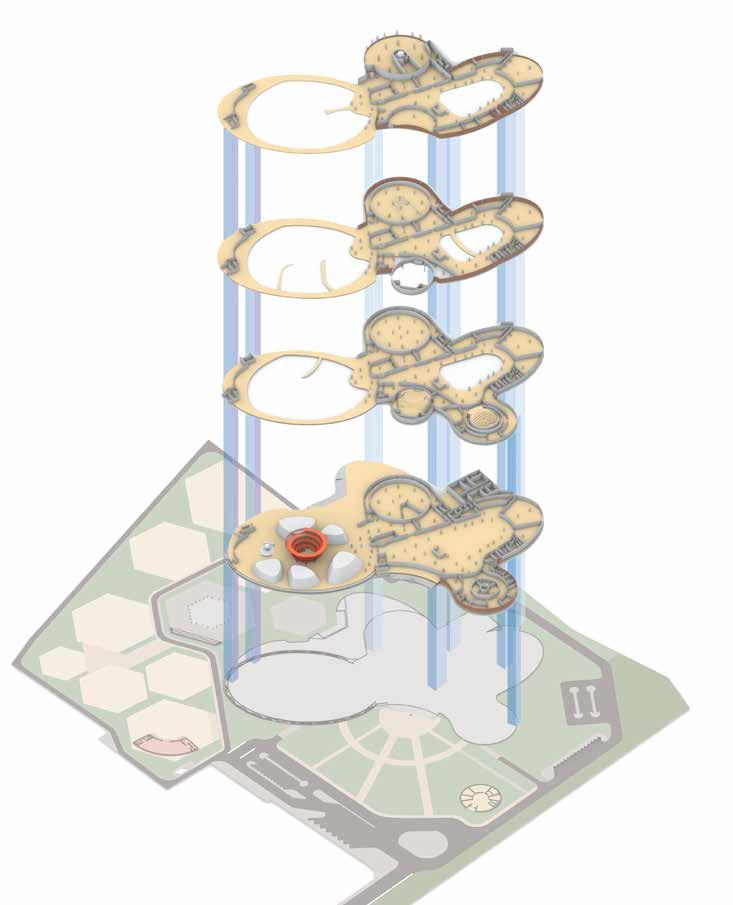

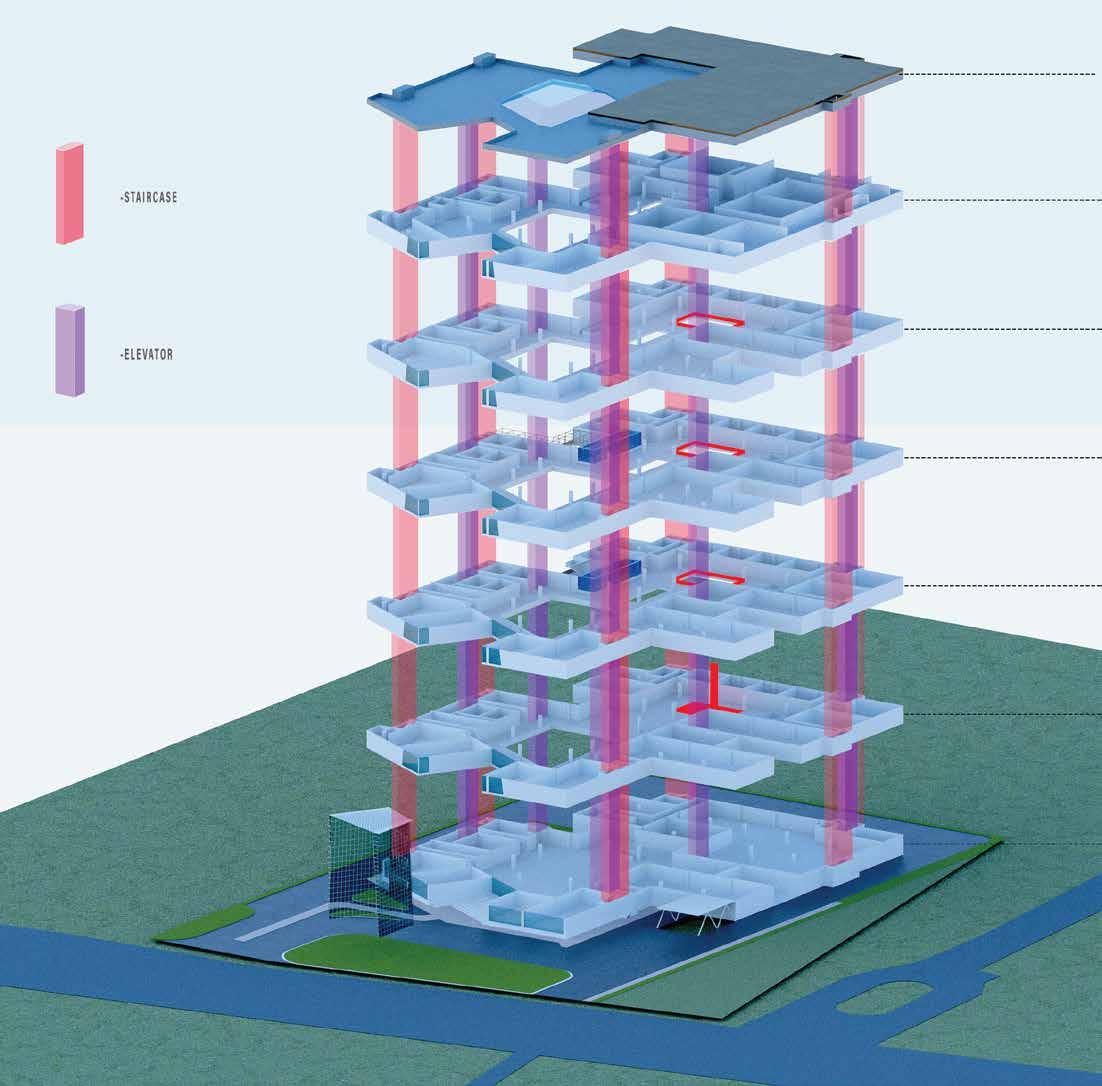

EXPLODED VIEW PROGRAMS

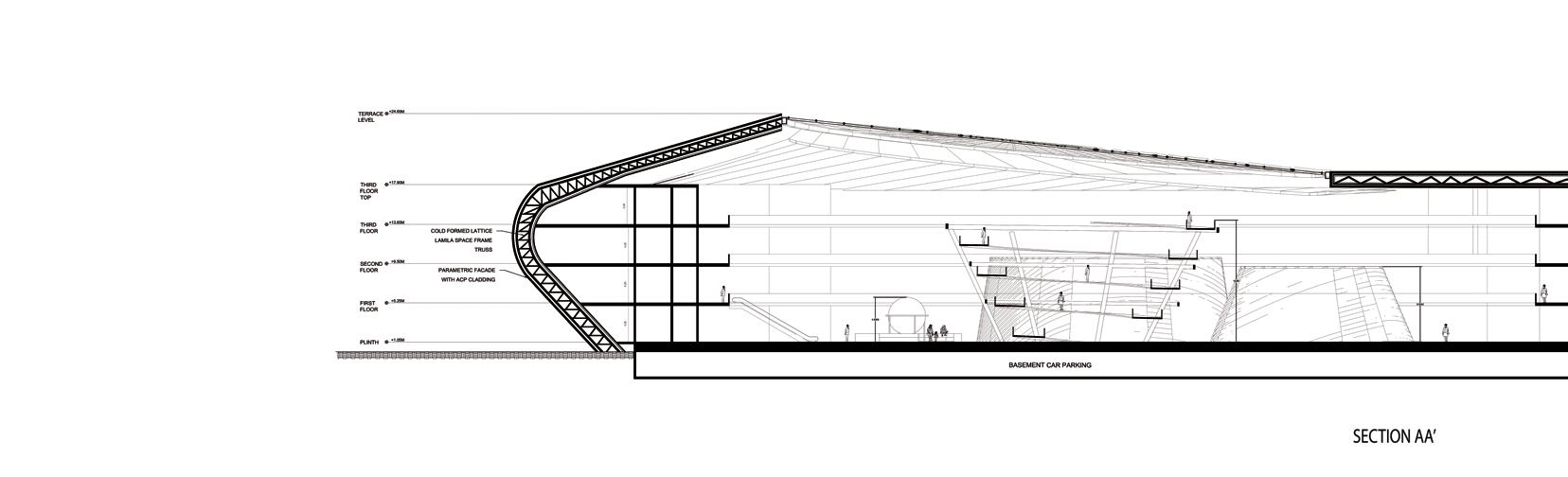

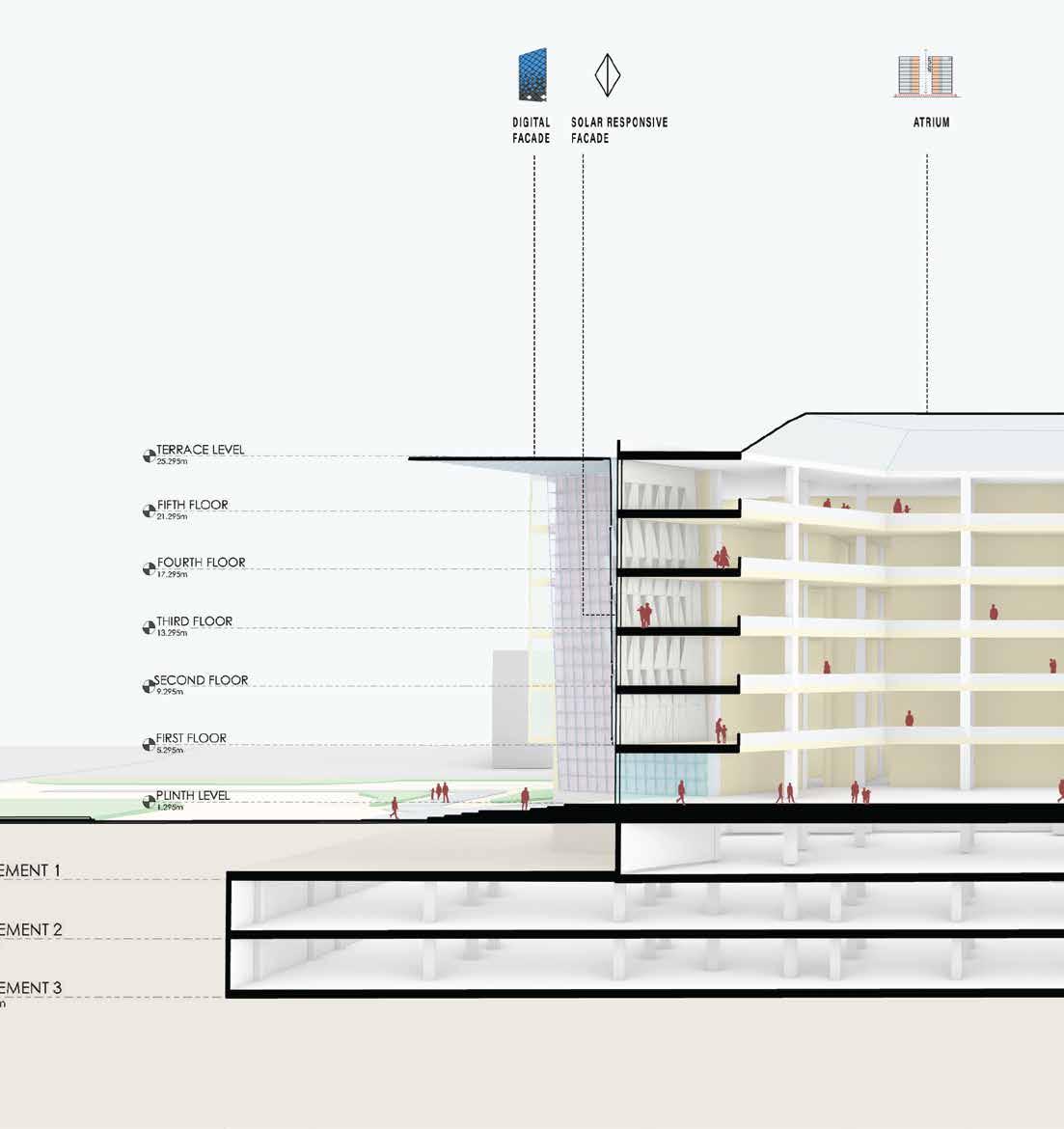

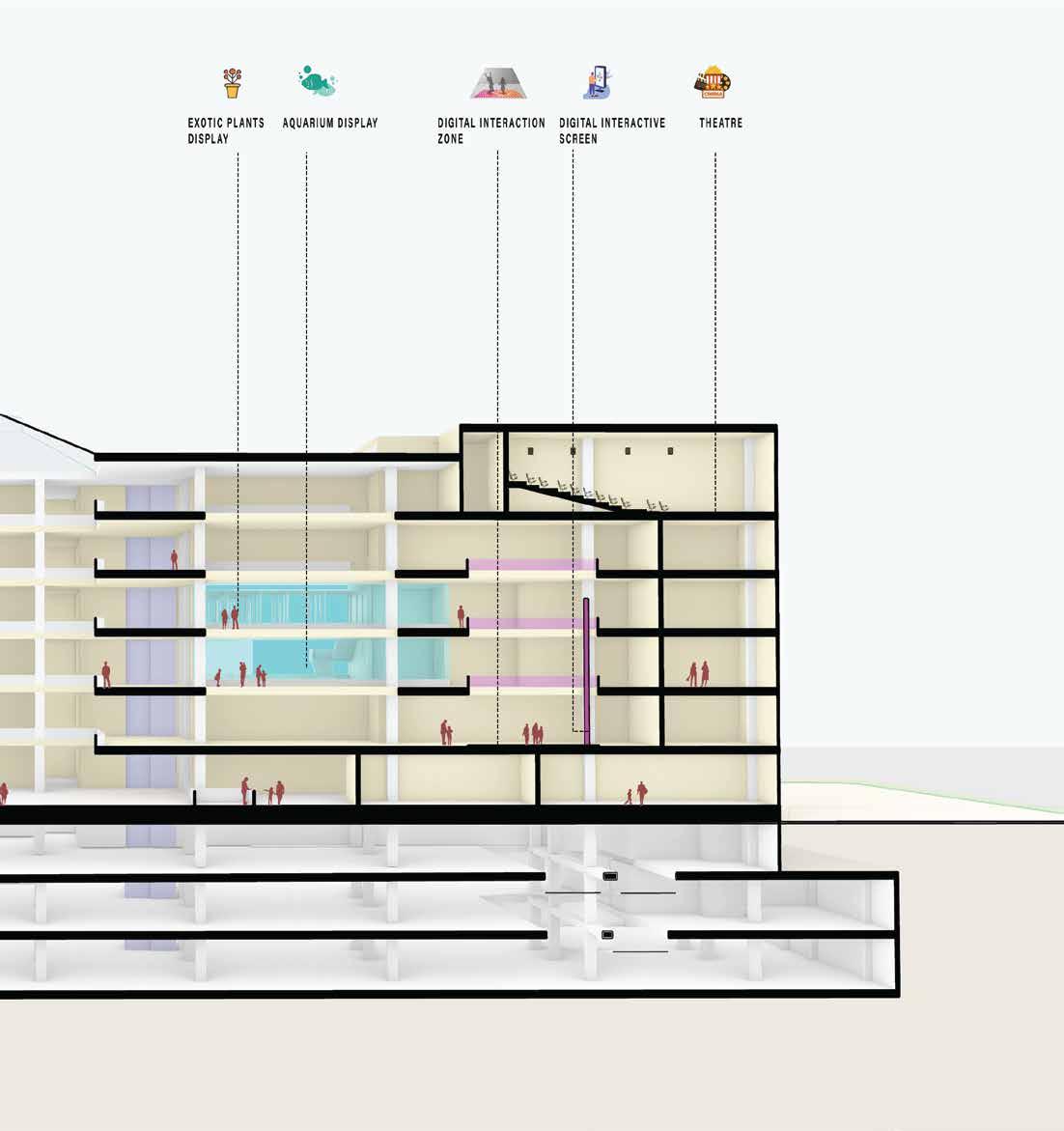

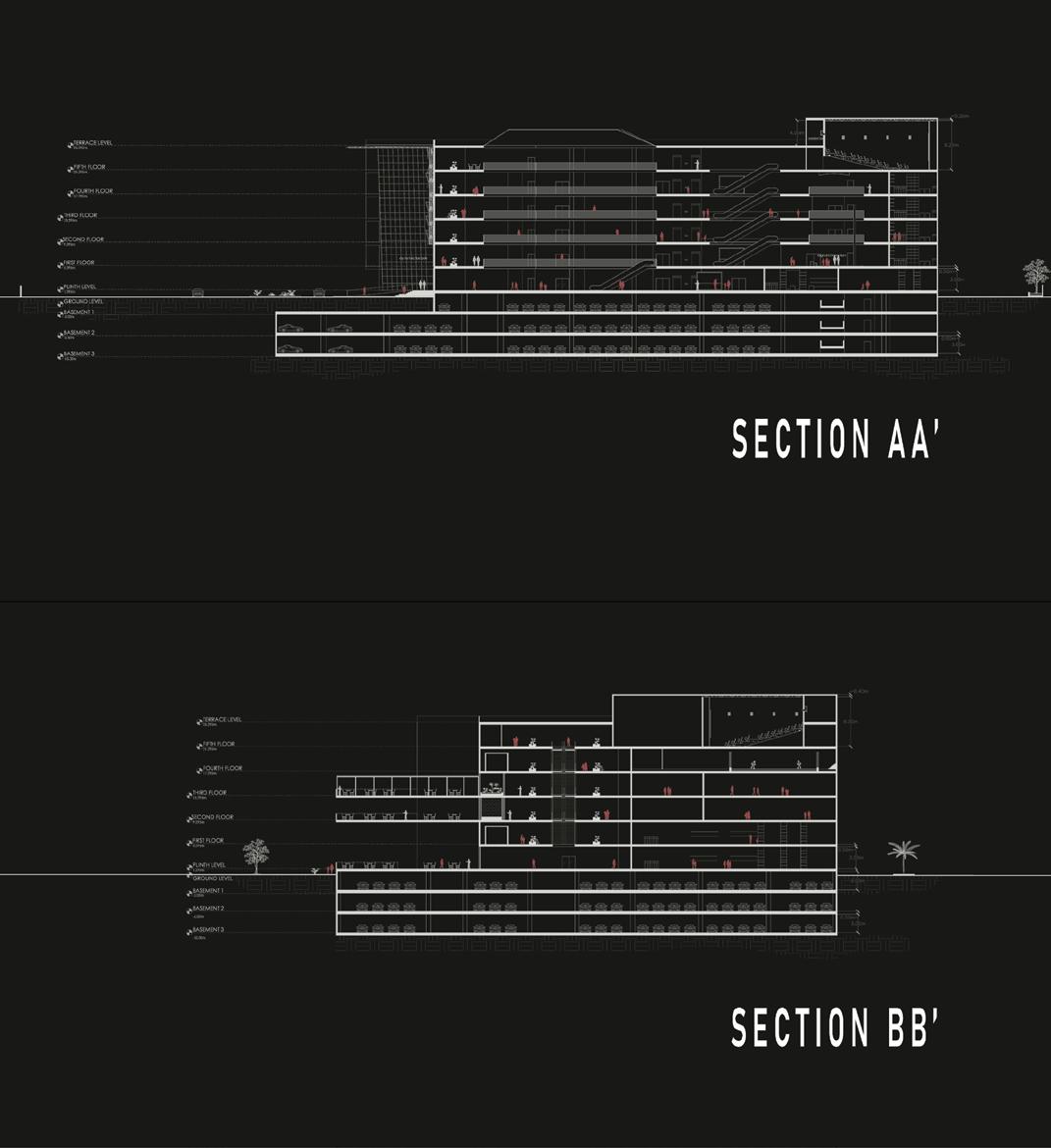

PERSPECTIVE SECTION

GREEN BUILDING

A GREEN BUILDING uses less water, enhances energy e ciency, conserves natural resources, generates less waste and provides healthier spaces for occupants.

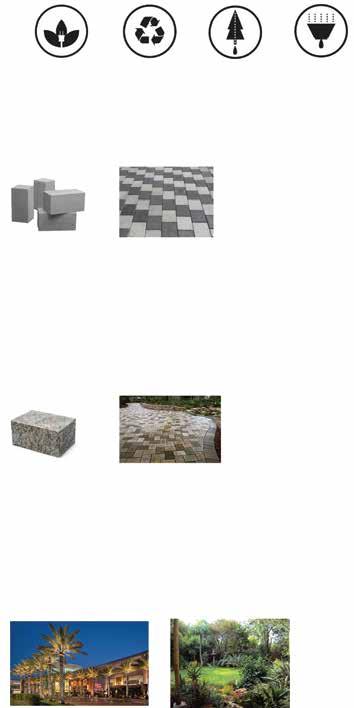

MEASURES TOWARDS SUSTAINABILITY

FLYASH BLOCKS

Recycled industrial waste transformed into pavement blocks is used in vehicular path.

UNPOLISHED HARDSCAPE

Unpolished dark coloured granite is used which absorbs sun radiation & prevents site from heating

GREEN SPACES

Most of the landscapes are covered with plantations or pebbles to reduce soil erosion.

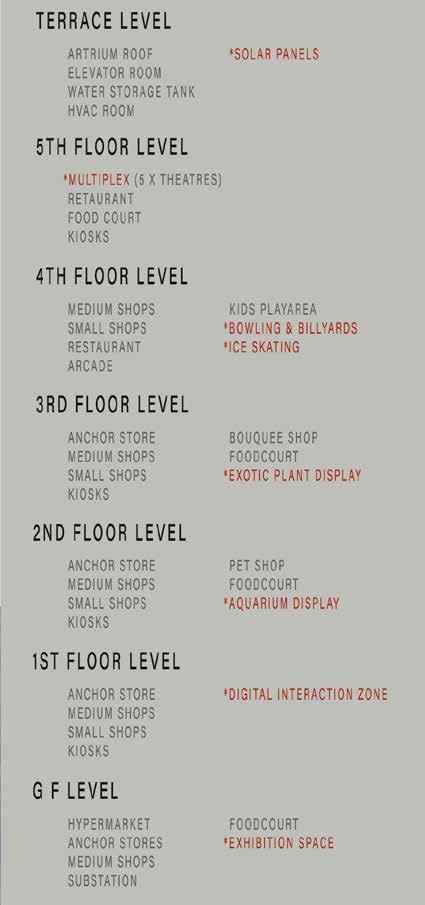

PROGRAMS

MEASURES TO REDUCE WATER USAGE

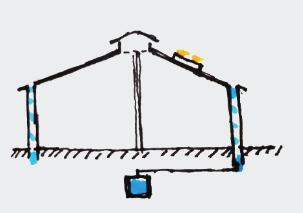

Water e cient landscaping - irrigation system.

Low ow xture & sensors for limited water usage.

Rainwater harvesting for gardening and other usages.

HVAC SYSTEM

The VRV water cooled HVAC system is used. Uses R410 as refridgerant ( lowest green house emitter).

Uses smart softwares and sensors for e cient control of usage.

SEWAGE TREATMENT PLANT

The waste water is sent to STP and is recycled. The recycled water is used in HVAC plant and garden.

DIGITAL CONNECTIVITY

DYNAMIC IMMERSIVE

INTERACTIVE

AQUARIUM DISPLAY

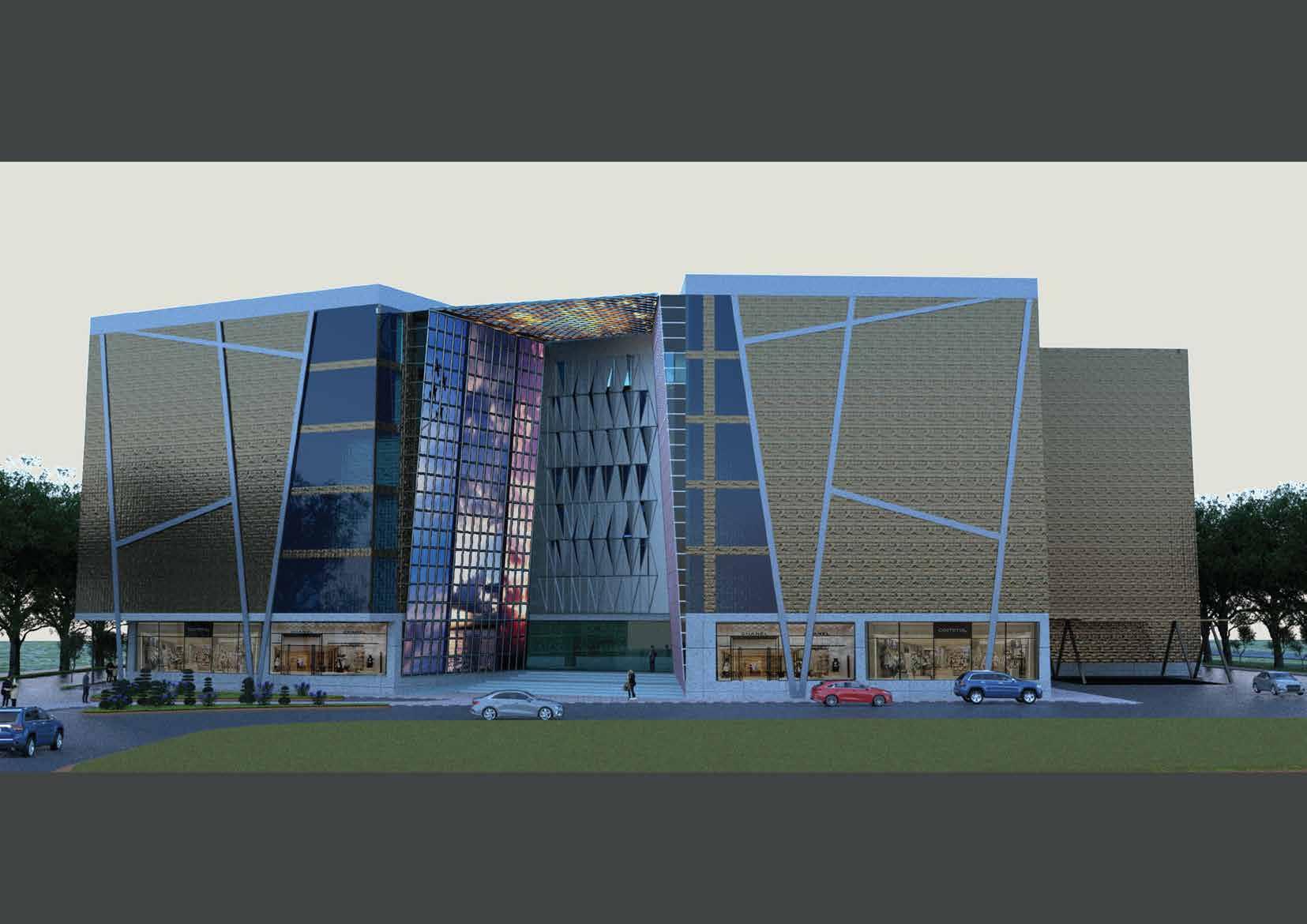

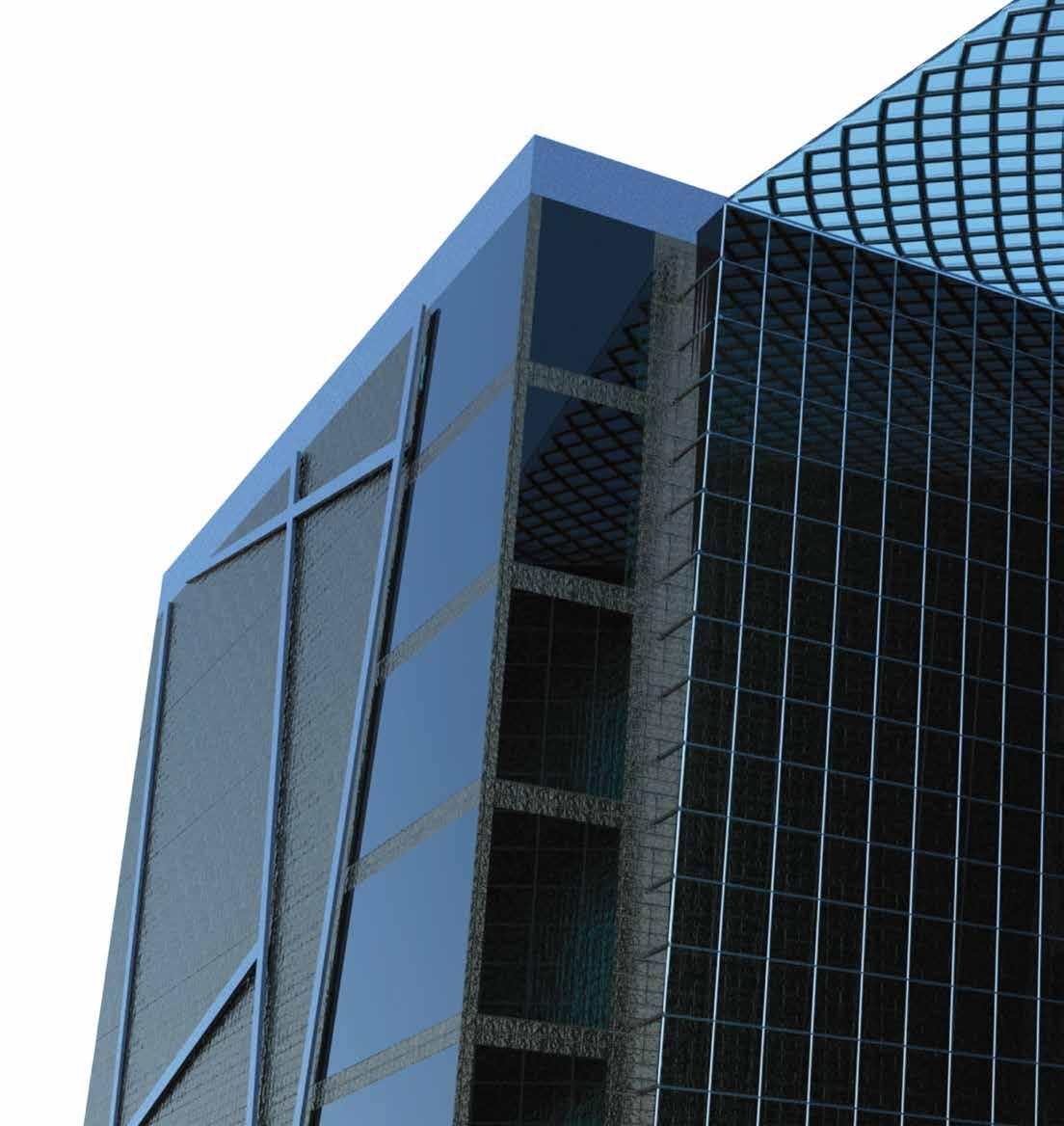

MALL VISUALIZATIONS

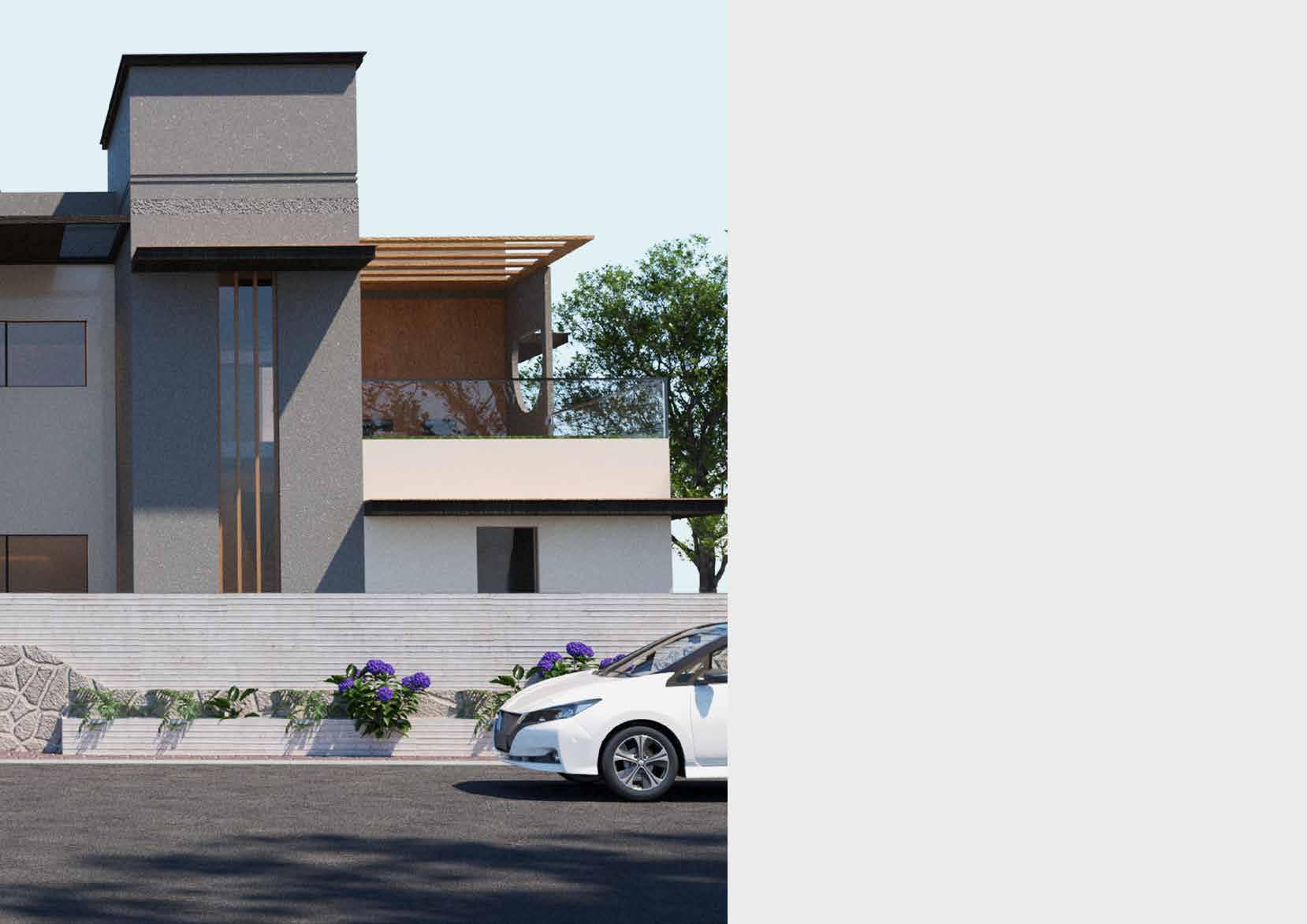

PROJECT BRIEF

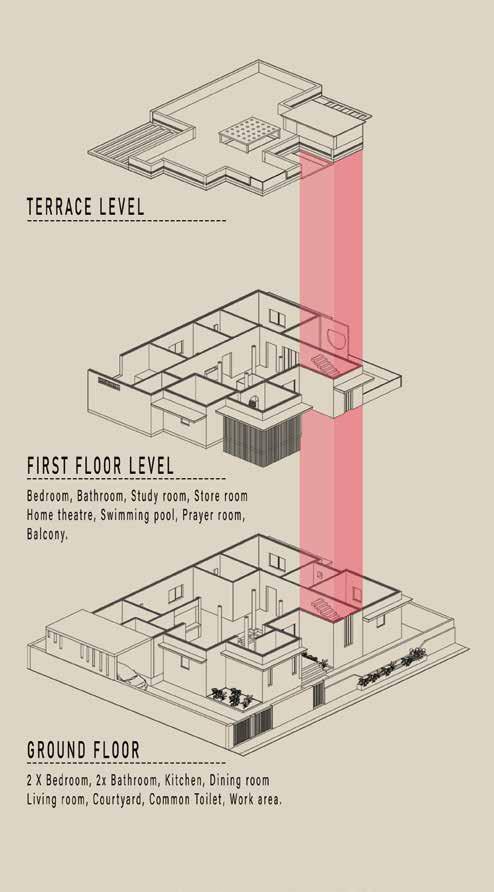

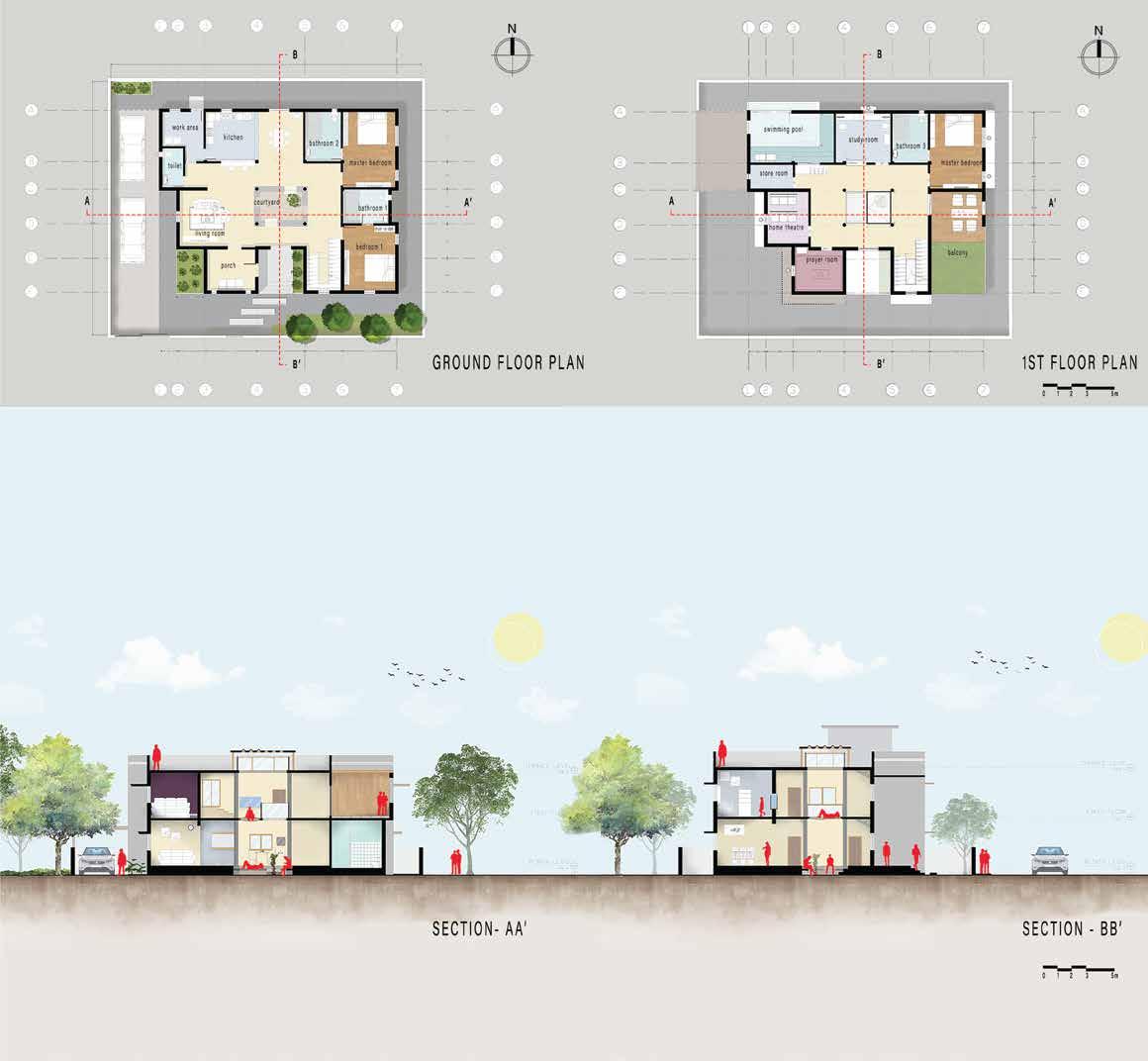

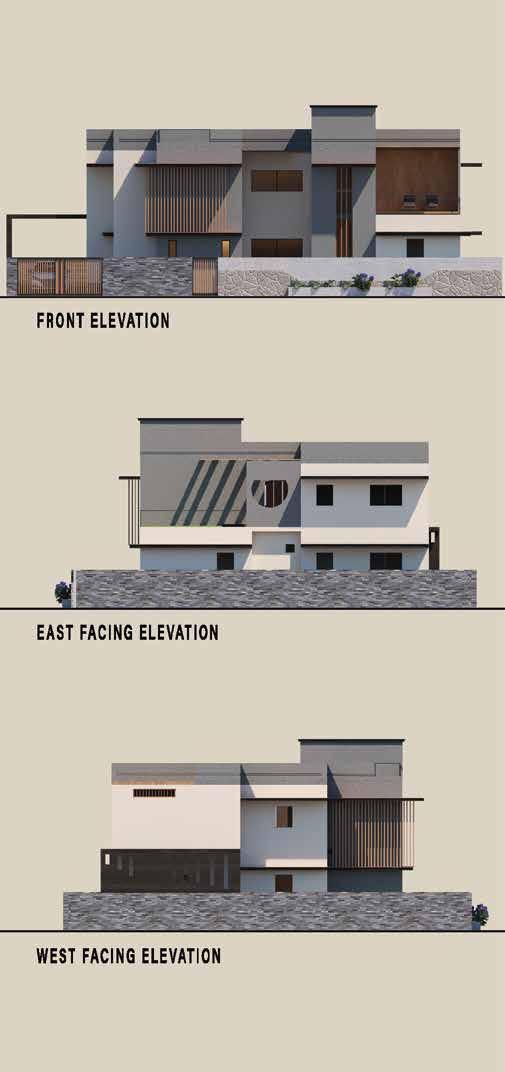

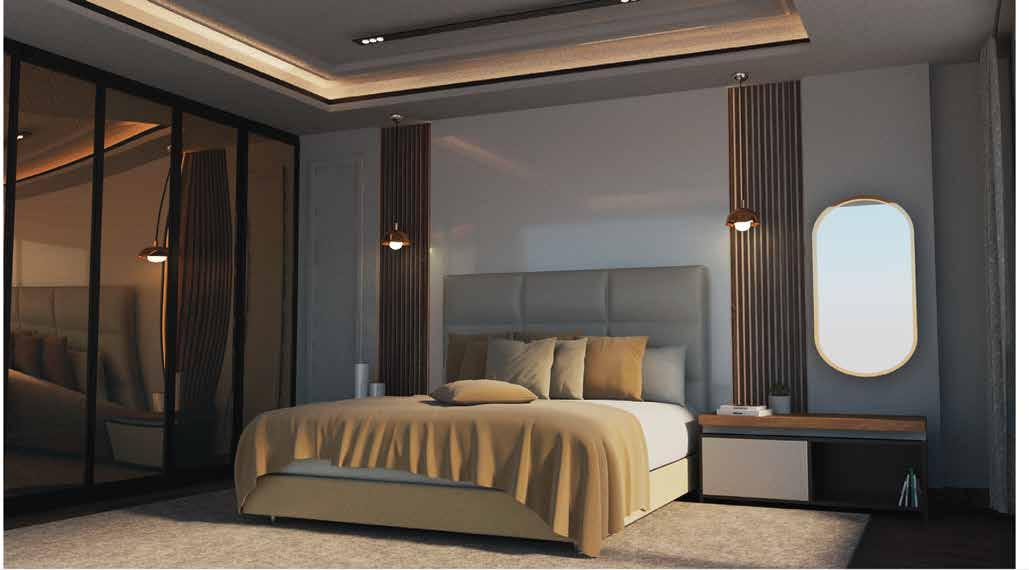

The design primarily envisioned a courtyard house integrated with luxurious modern ame nities.

Users were o ered the privacy they needed by placing the private spaces at the rear and pock ets of informal and green spaces.

APPROACH and EVOLUTION

N-S Orientation

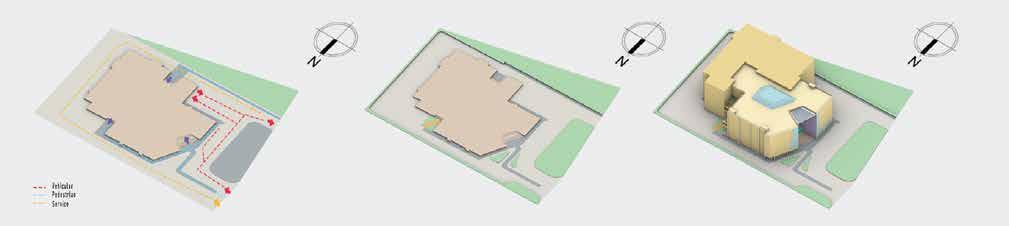

MASSING

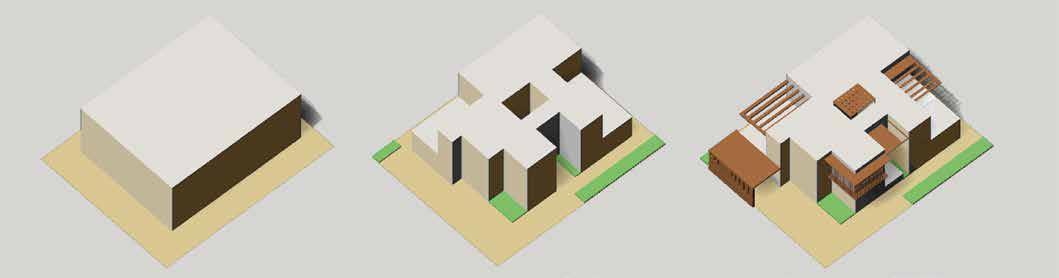

Creating voids for making spaces get more natural light and more cross ventilation

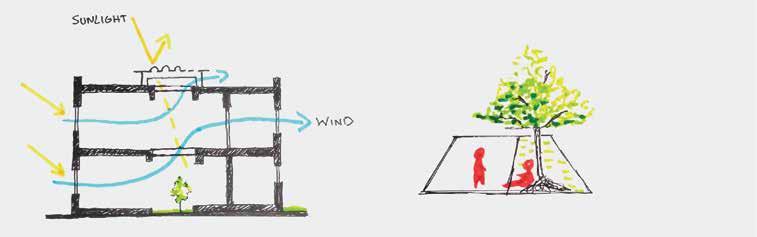

Protruding shades for openings corresponding to sun angles

Spaces that bring family together

Compact study/o ce space

Connection to surrounding Serene

Passive design strategies

Flexible spaces

PROJECT BRIEF APPROACH and EVOLUTION

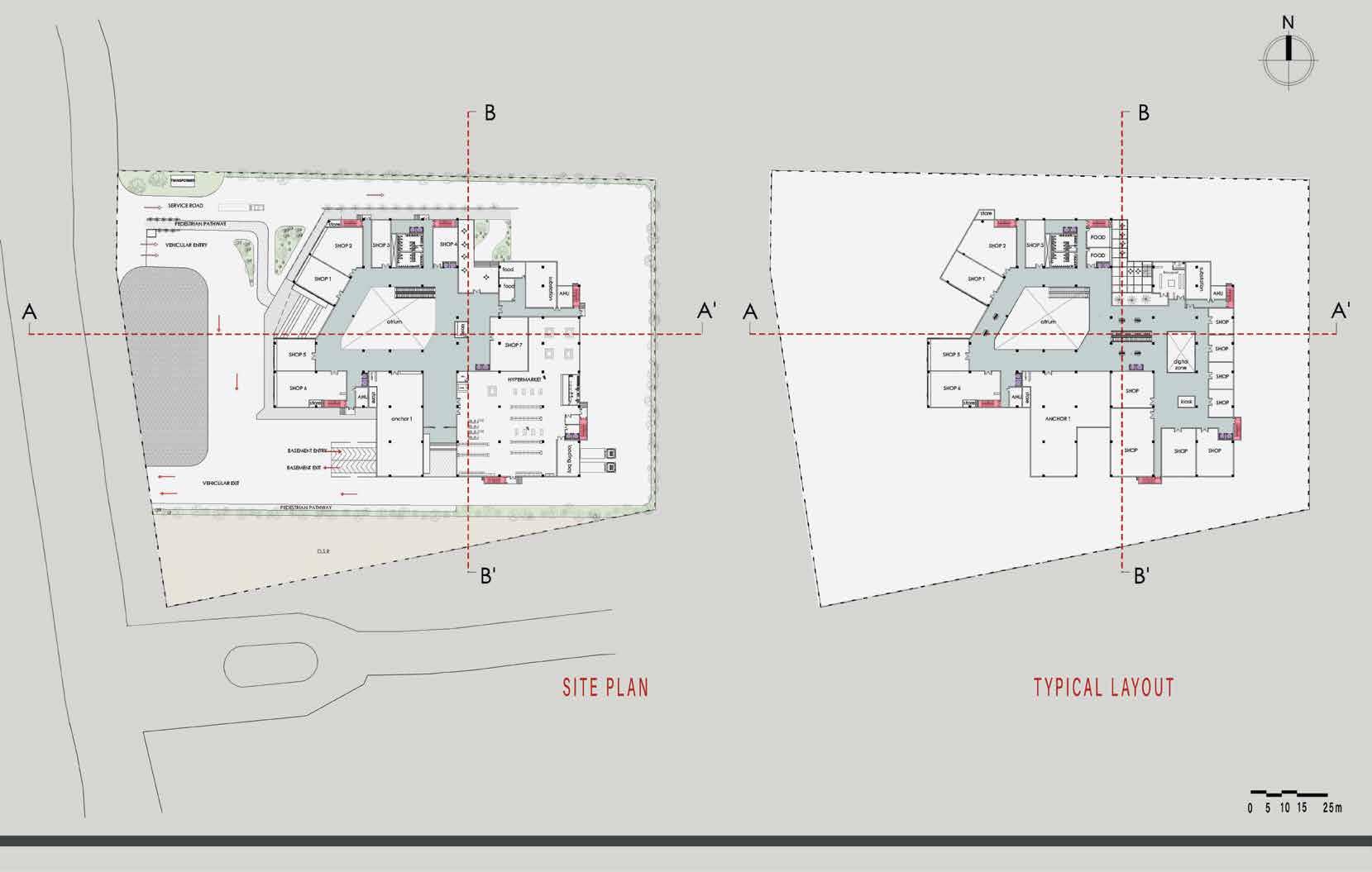

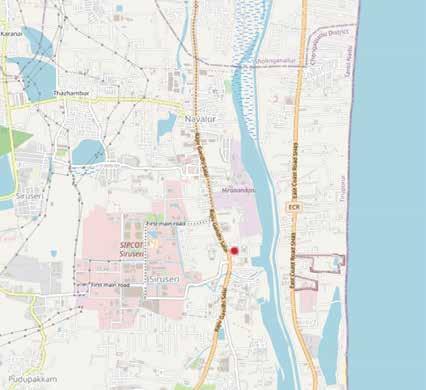

SITE ANALYSIS

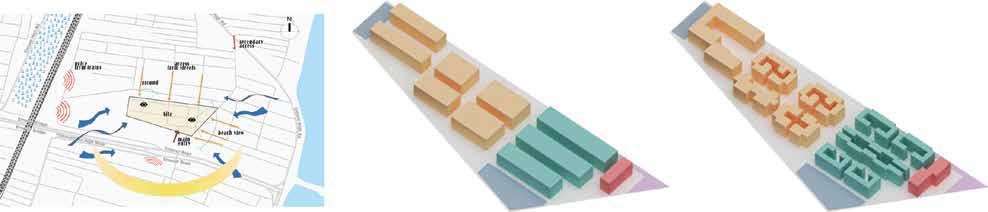

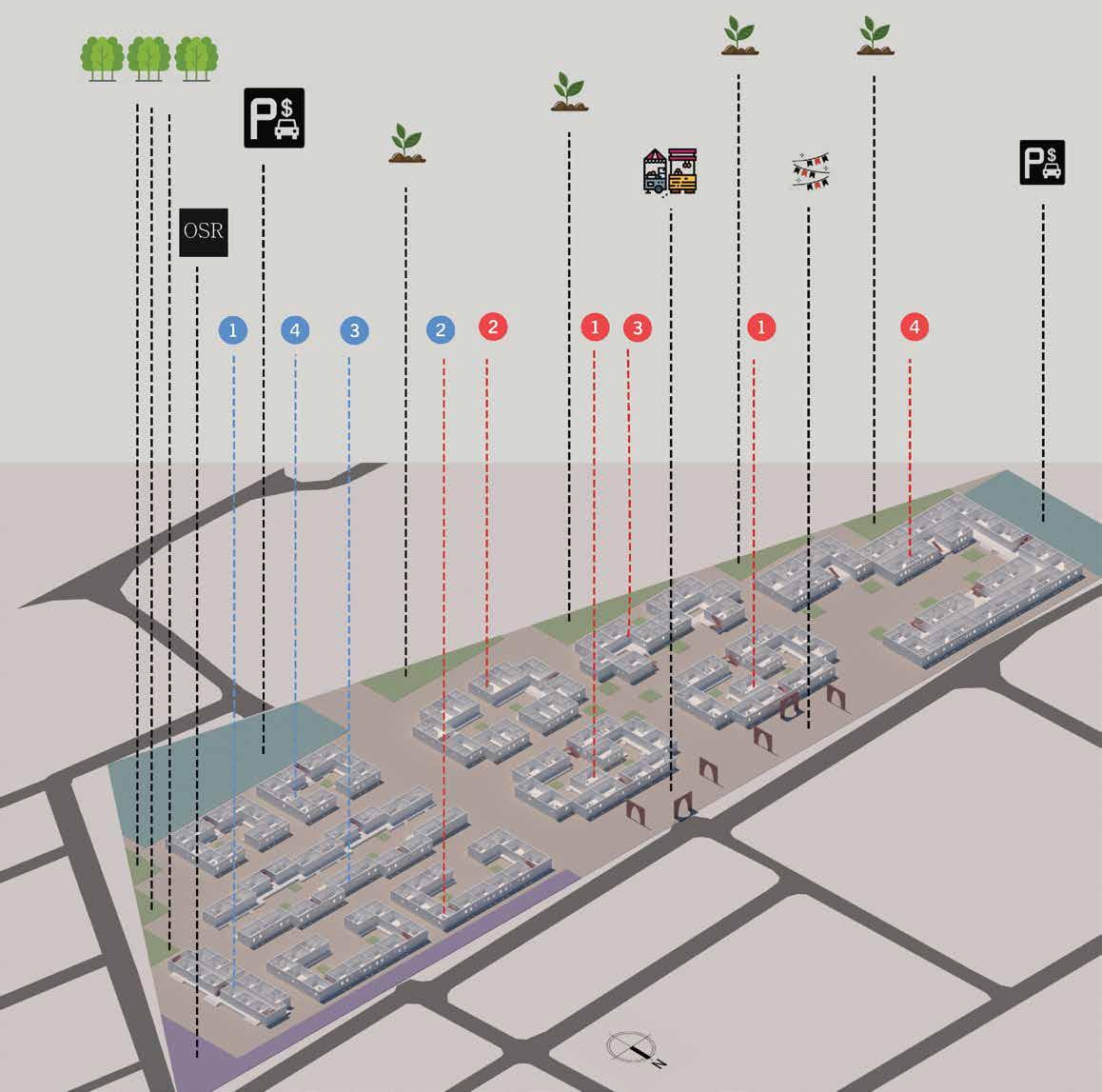

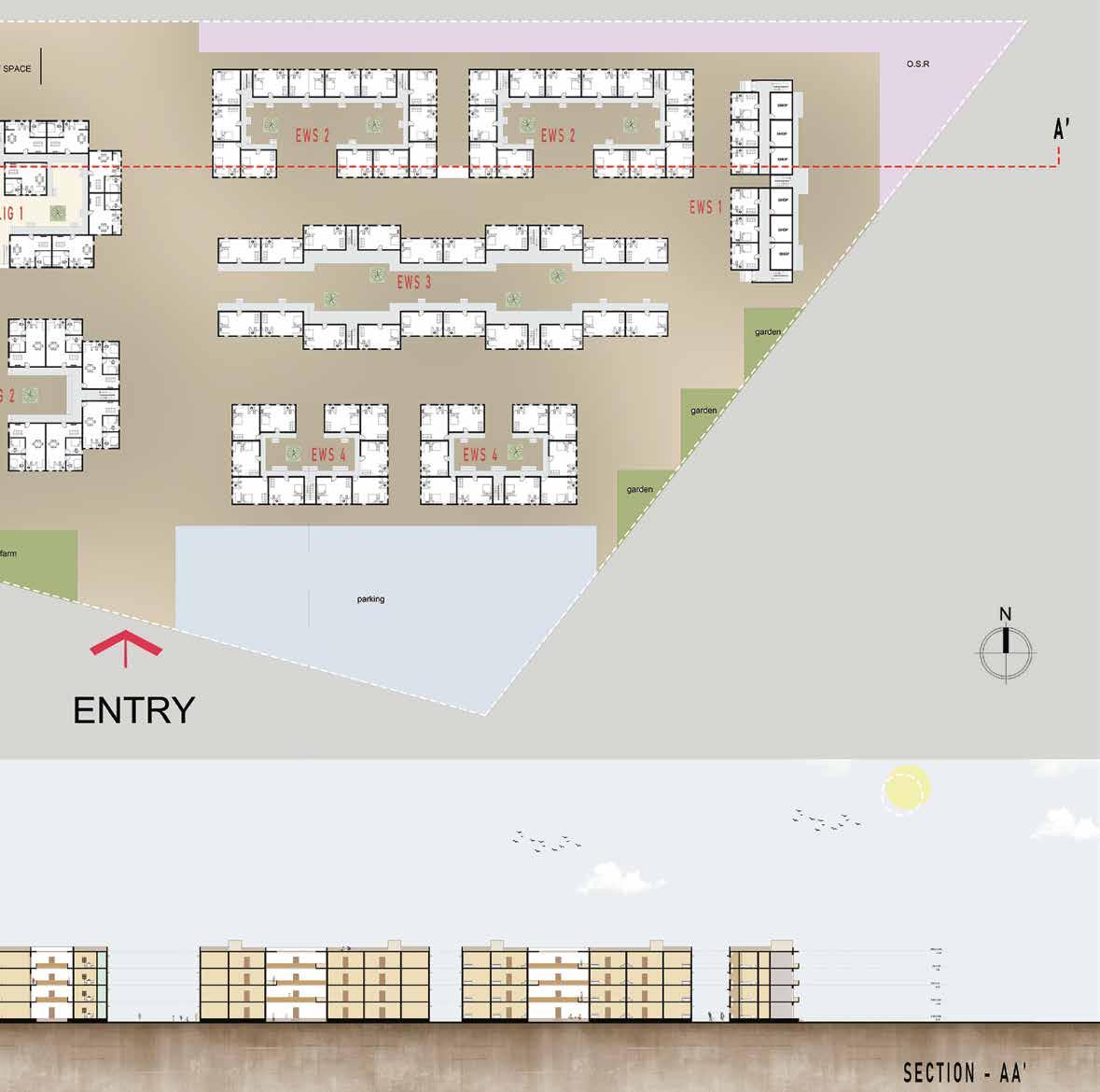

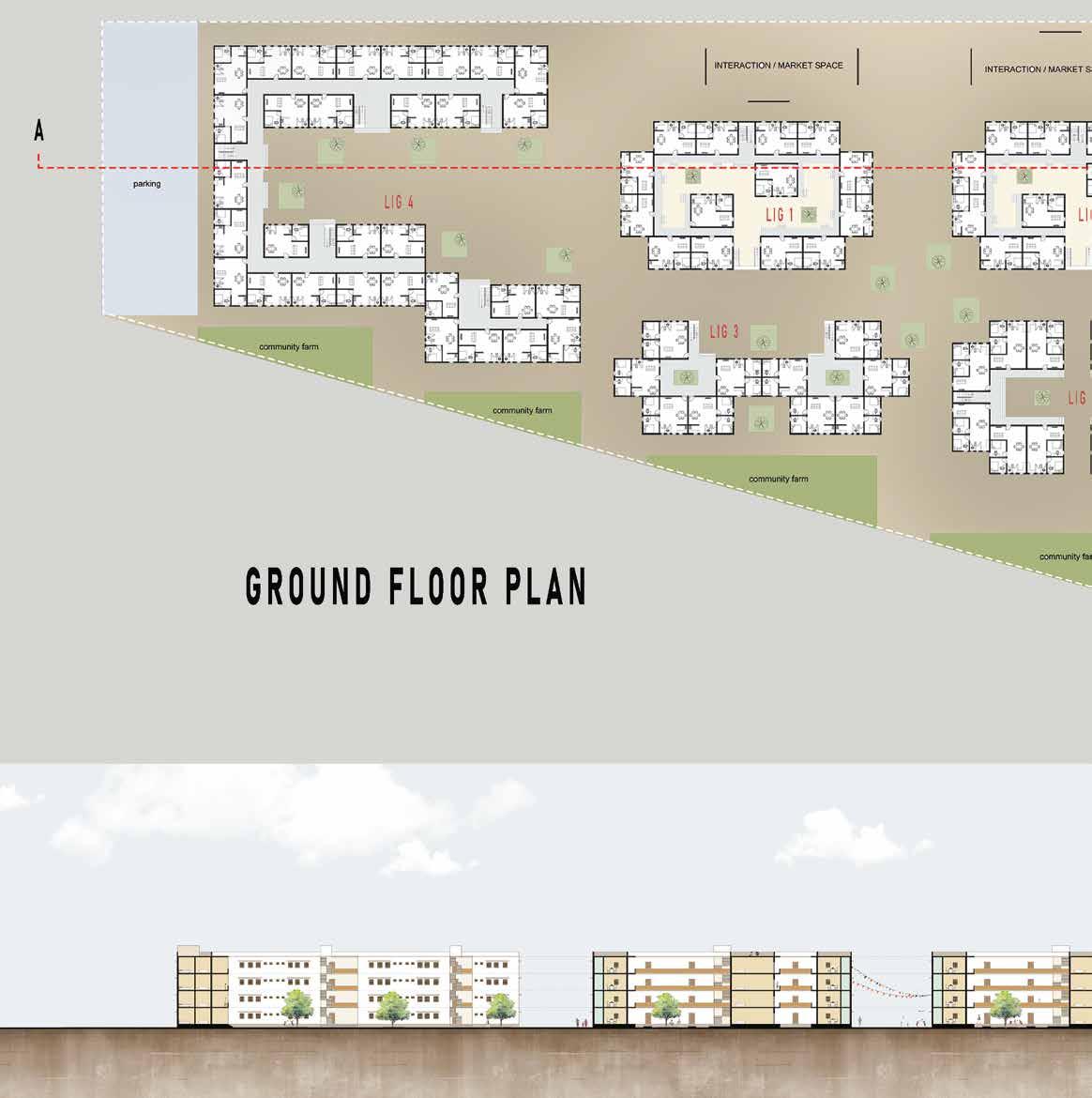

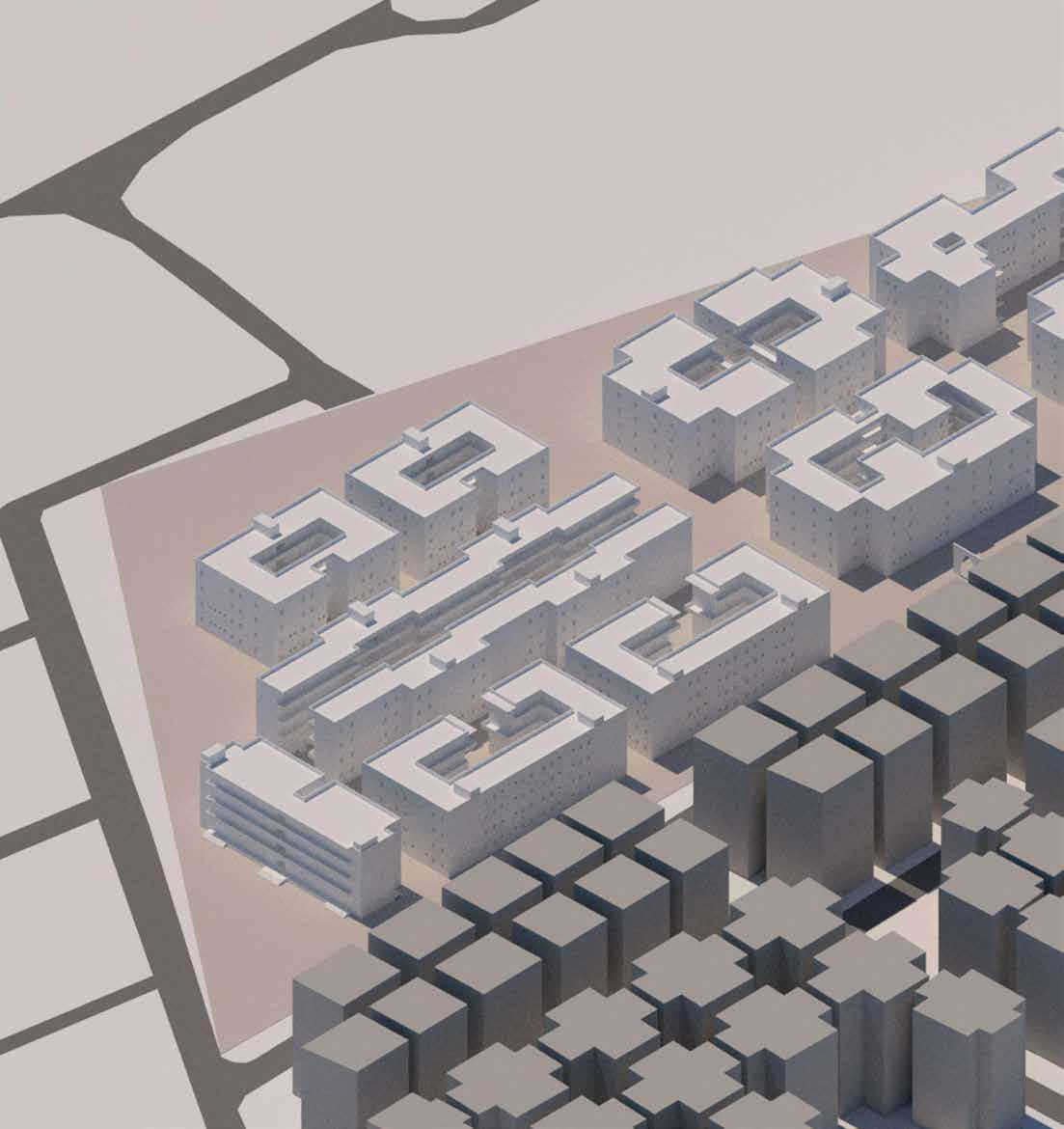

Organisation of programs with major axis facing n-s direction and proper street layout.

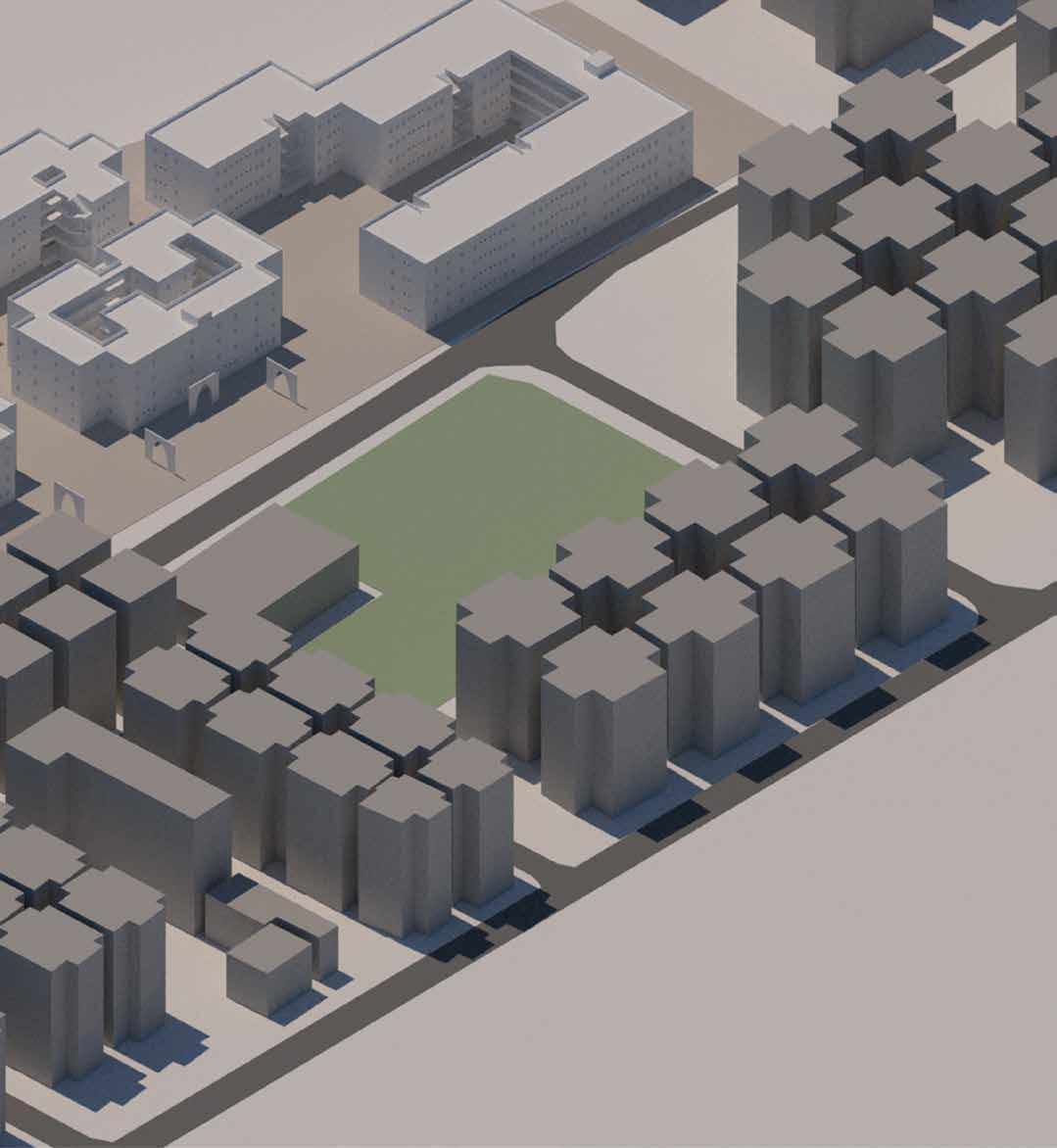

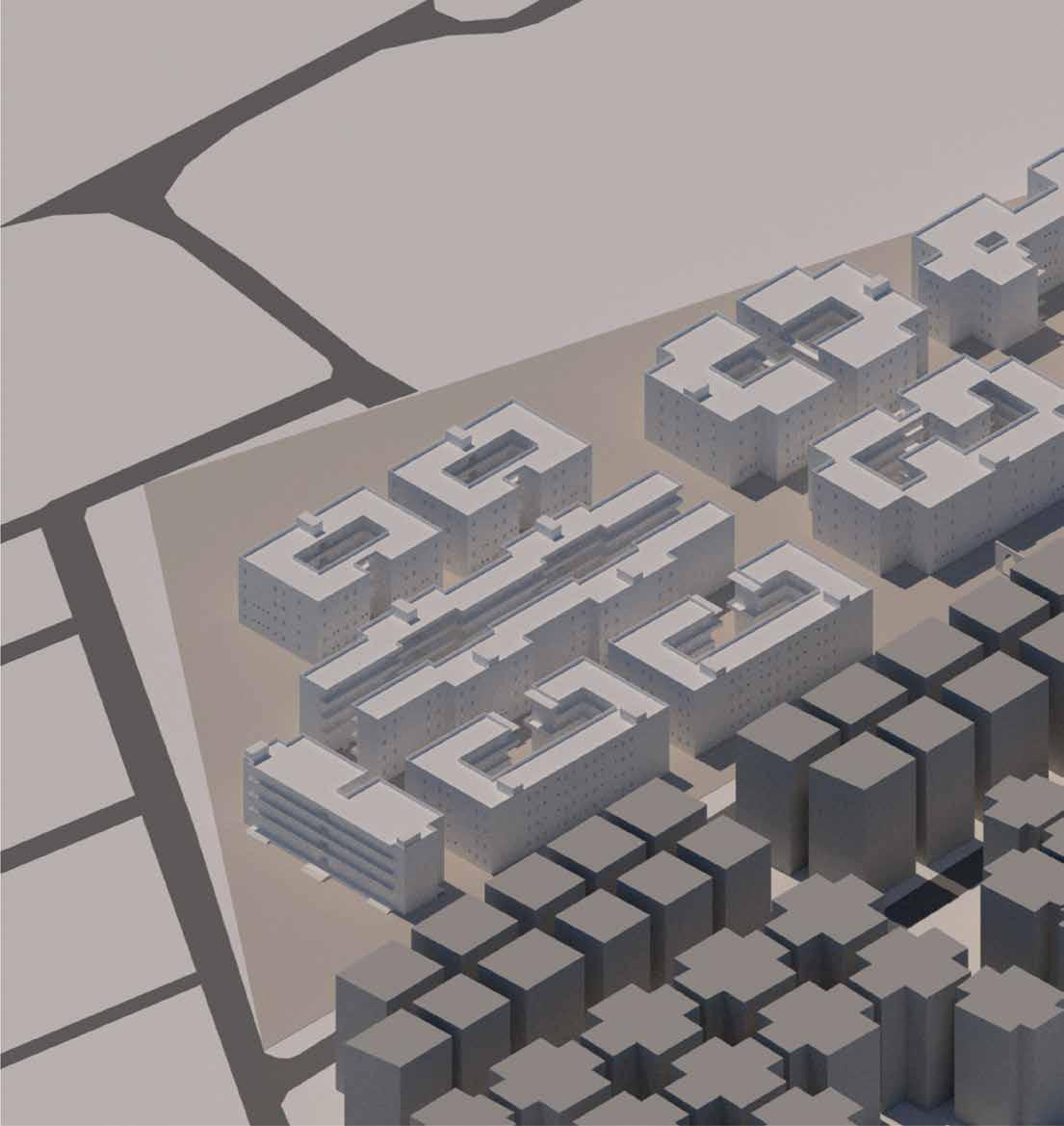

Division of blocks with internal streets and gathering spaces are provided by puncturing the volumes.

LOCATION AIM

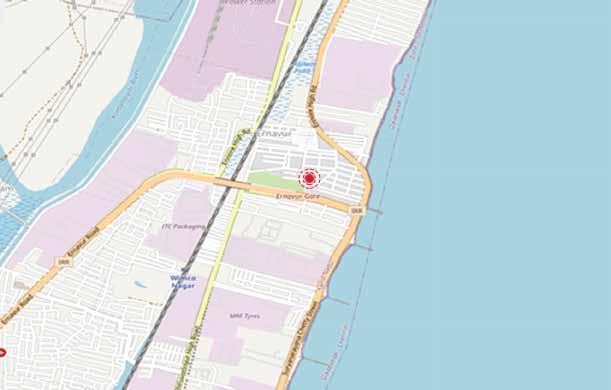

Ernavur, CLIMATE AREA

Chennai, India.

Warm and Humid

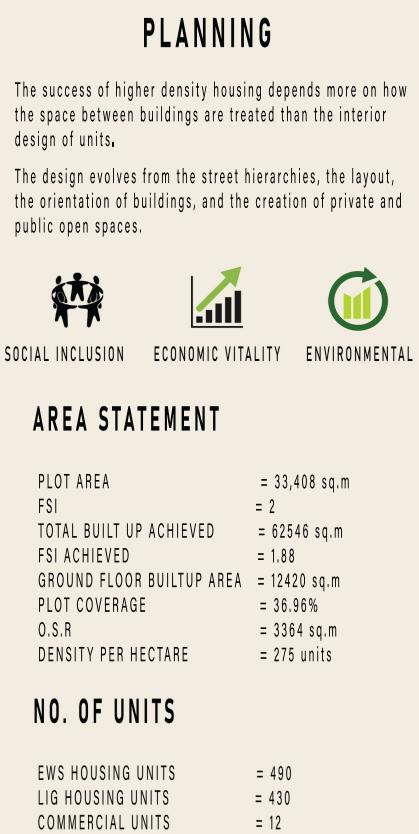

INTENT

Centres attract activities

8.2 acres / 33184.22 sq.m

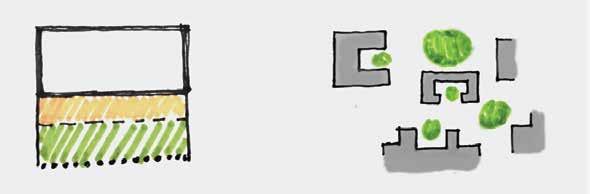

Heirarchy of built and unbuilt spaces

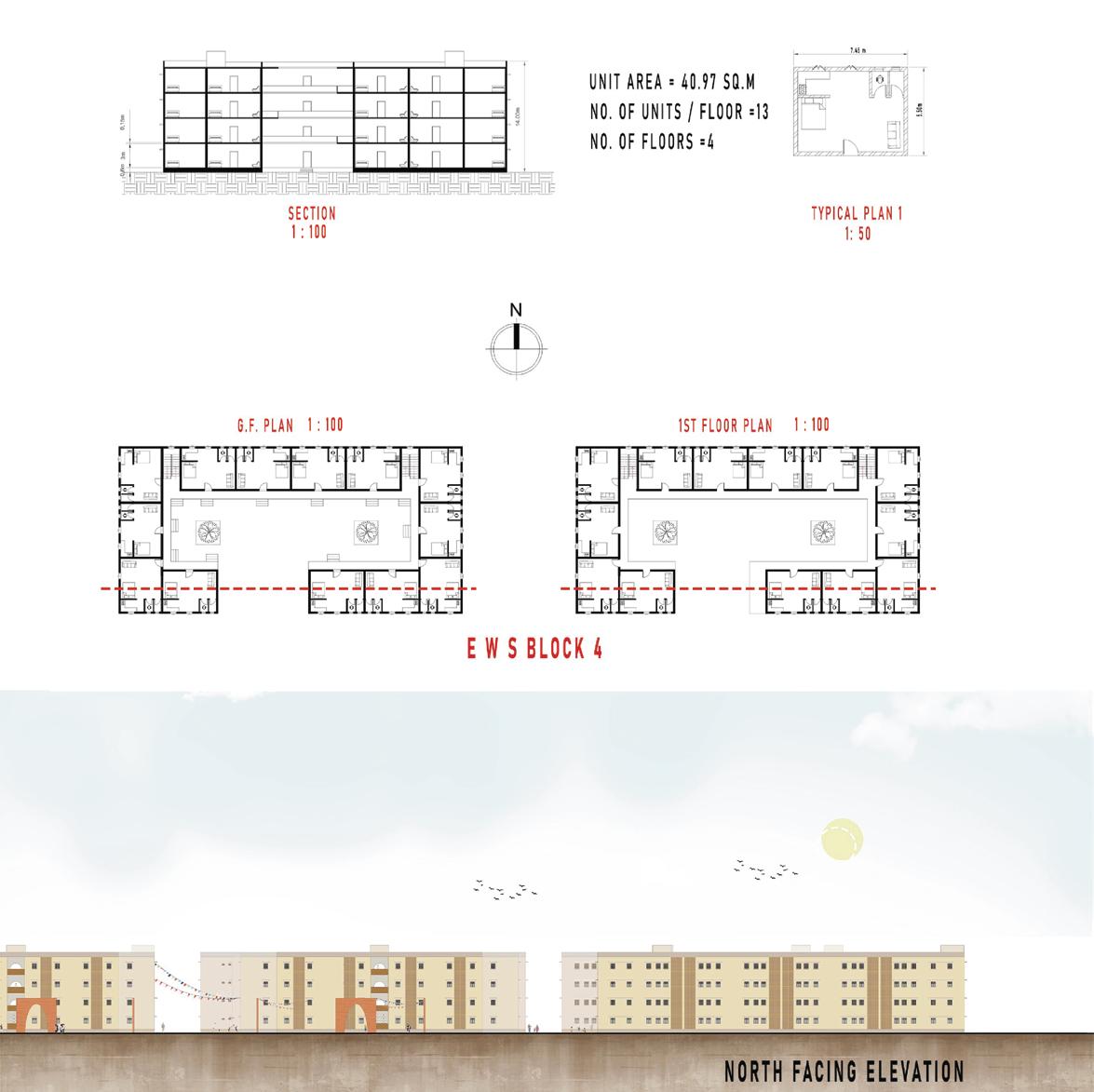

The site is located in extensive industry zone (CRZ II). The housing is designed for LIG and EWS groups.

The main threat of this site is air pollution. Neem plantation along roadside is provided. For exterior paint, a titanium dioxide coat is applied because when UV rays react with the coating, air pollutants get absorbed.

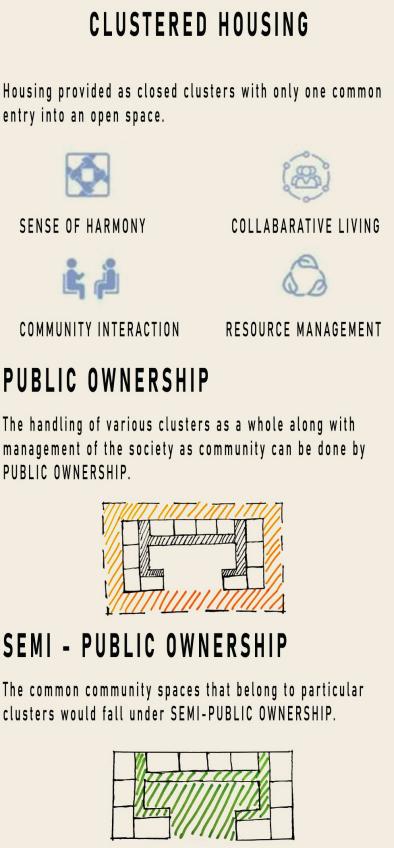

Heirarchy of open spaces

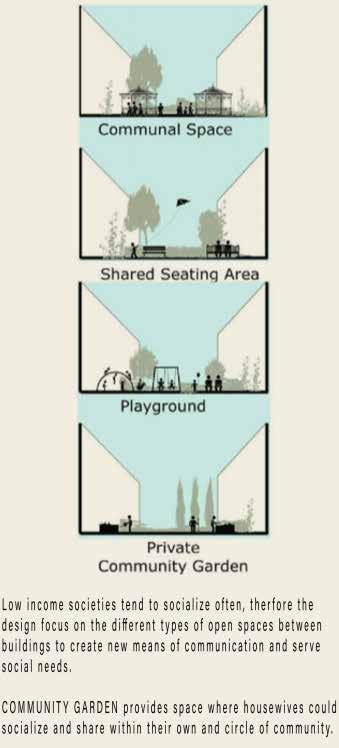

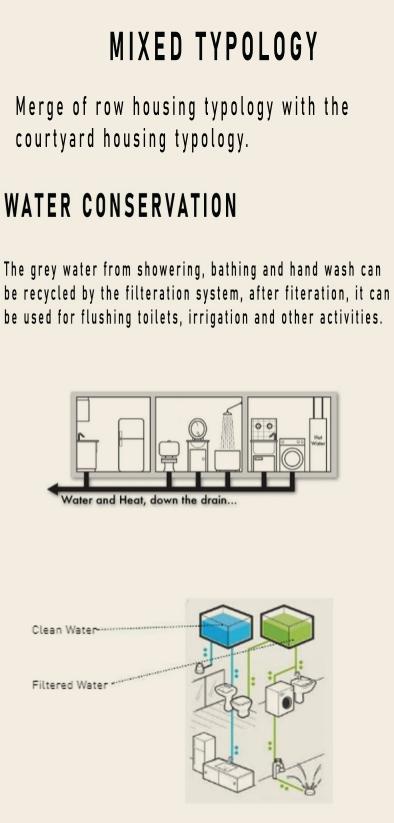

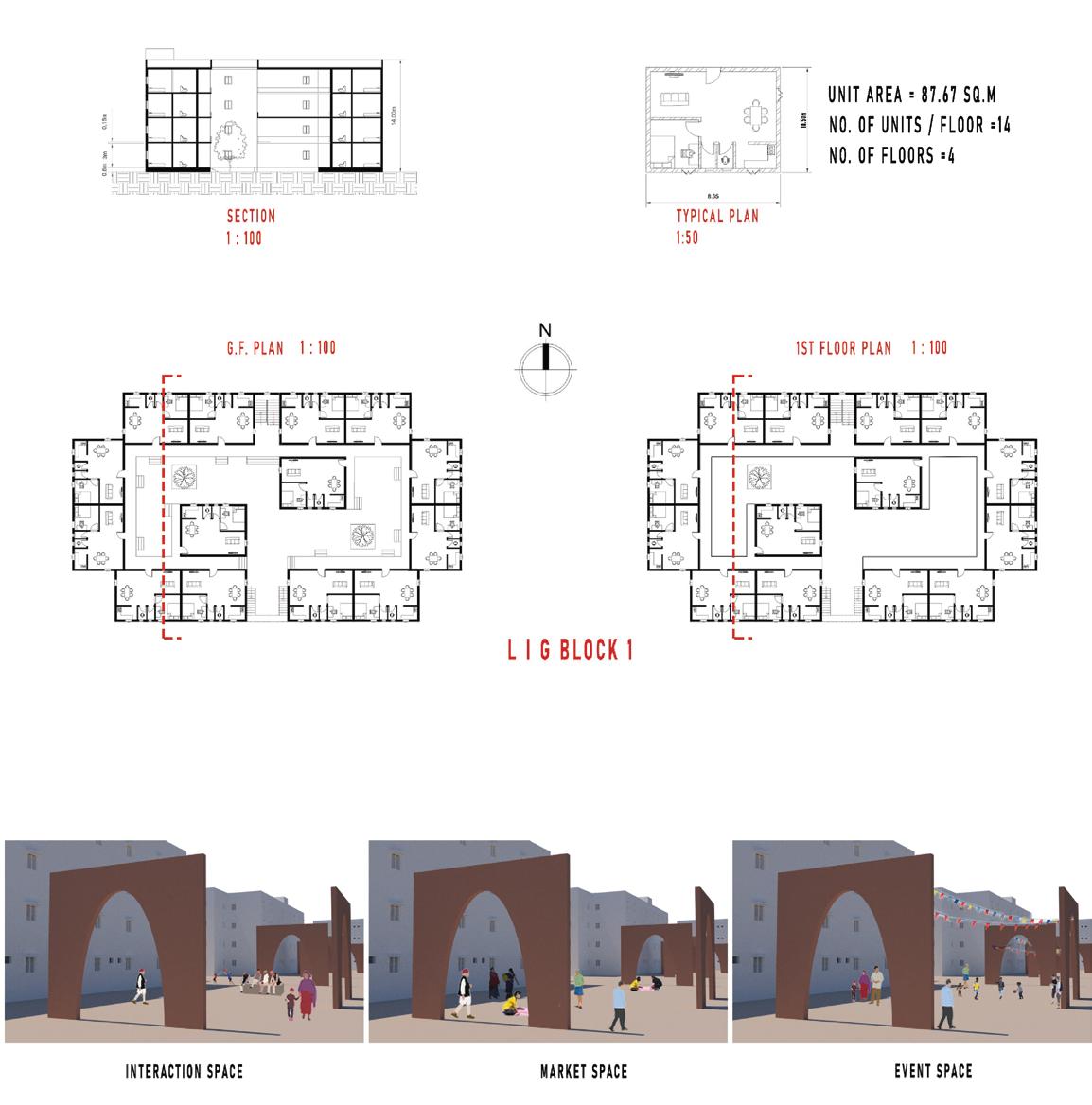

Mixed housing typologies o er choice and diversity.

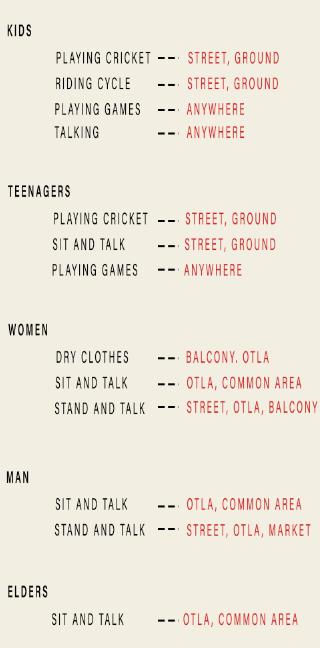

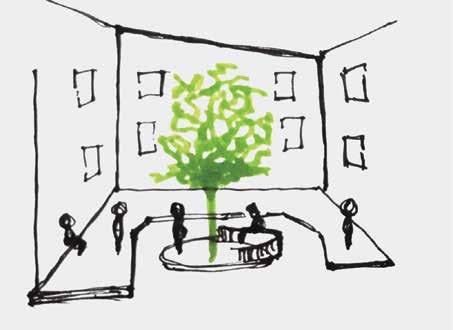

Placement of spaces around courtyard should allow spontaneous ow & interaction between people

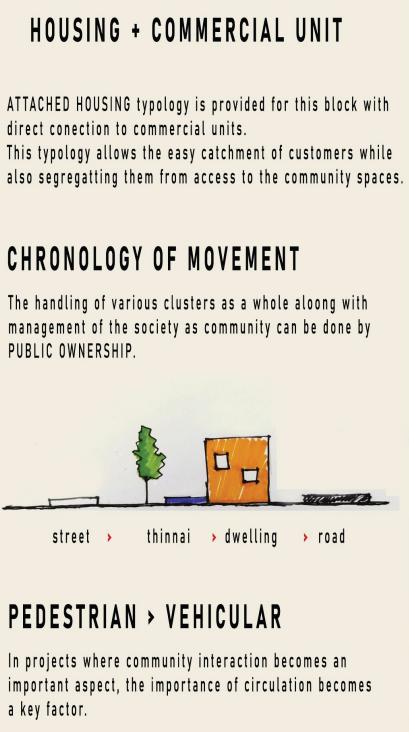

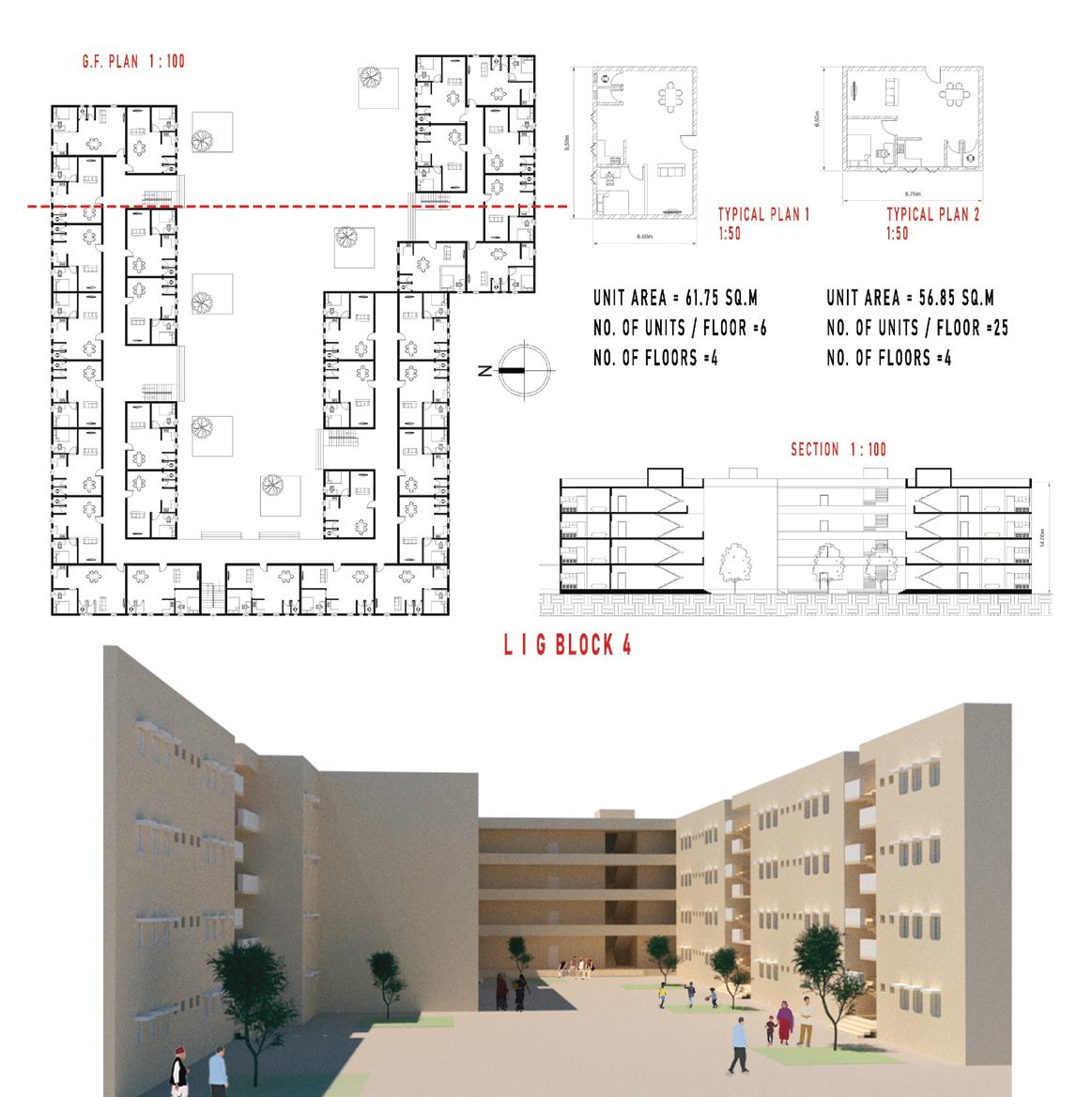

TYPOLOGIES 2

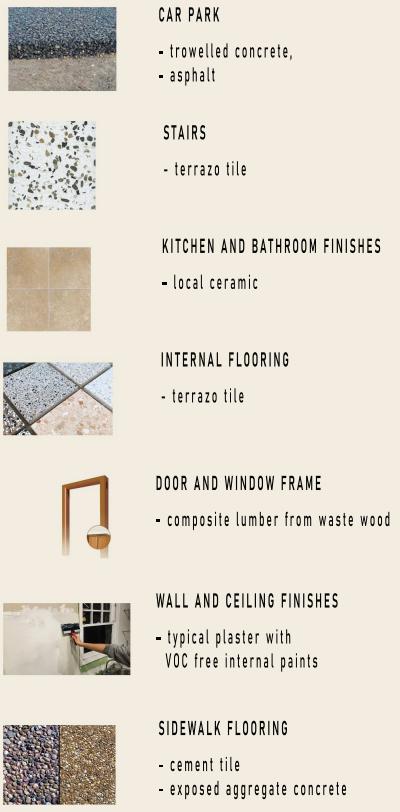

SUSTAINAILITY - MATERIALS

PROJECT BRIEF APPROACH and EVOLUTION

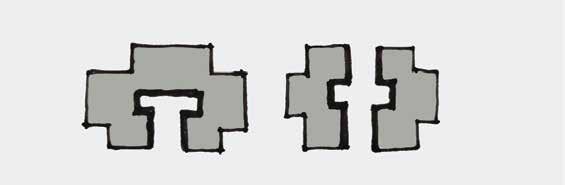

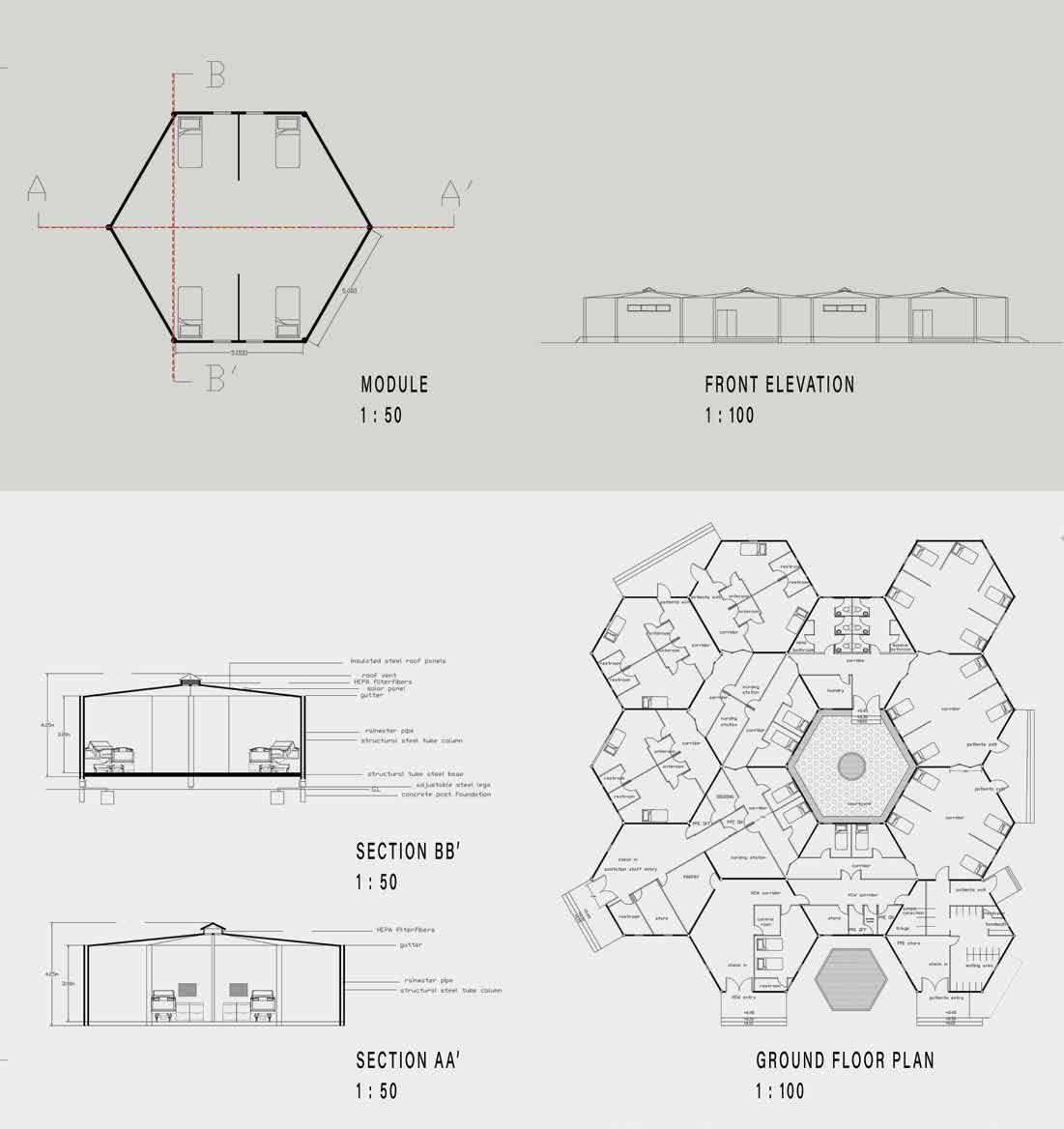

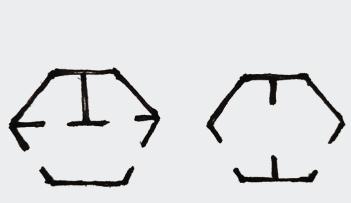

STRUCTURE FORM CLUSTERING PLANNING FLEXIBILITY

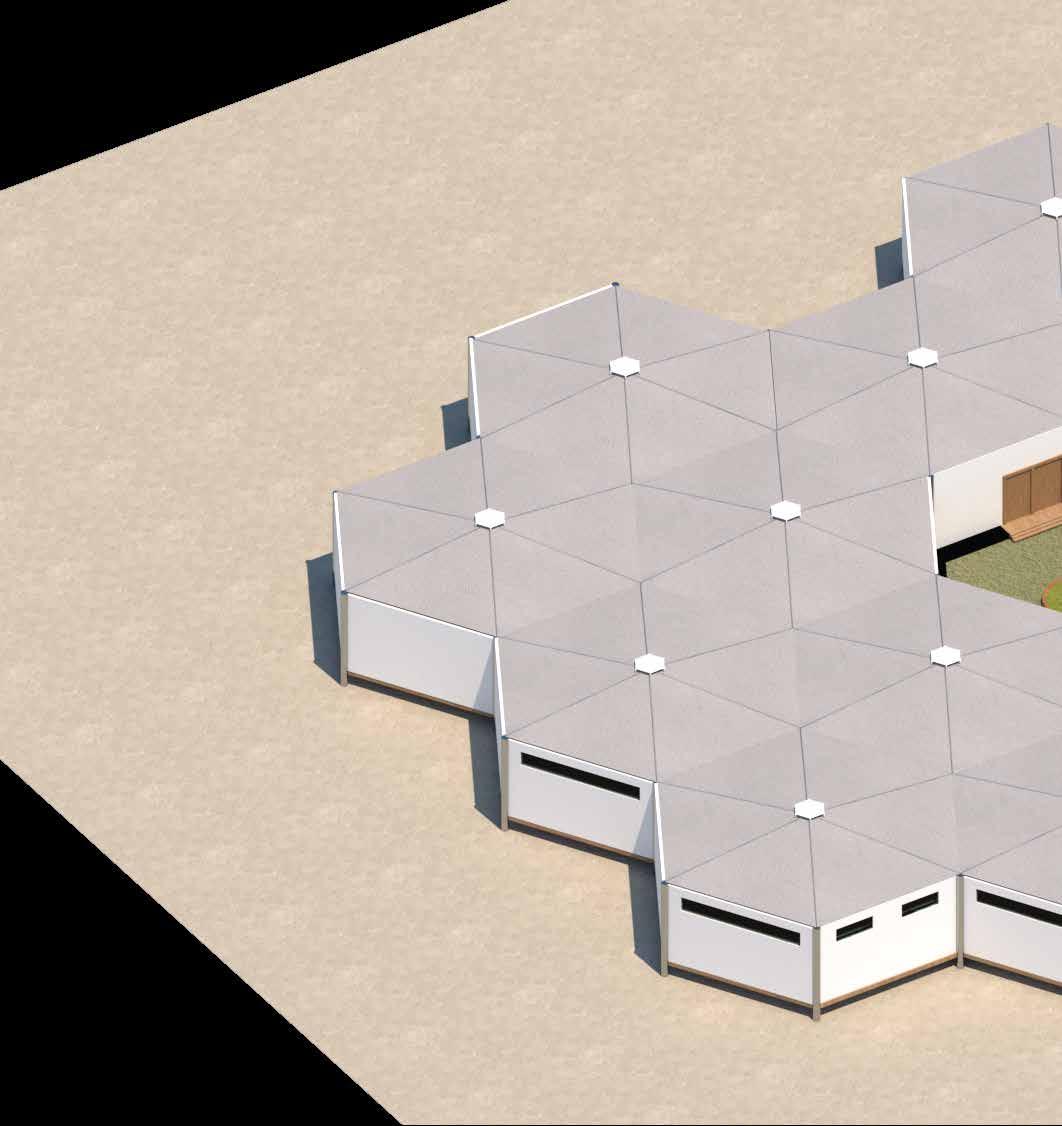

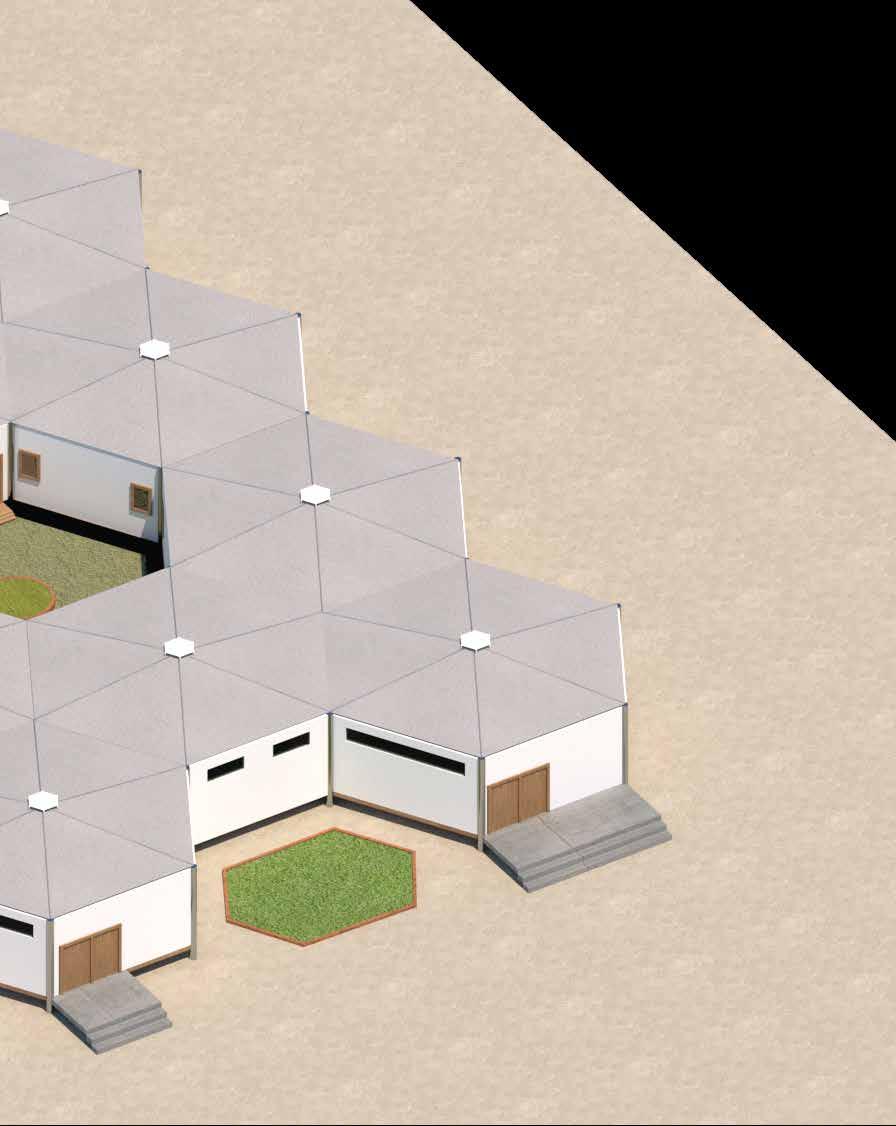

The hexagonal form is more structurally stable without added structure.

The hexagonal plan can be combined with various combination of clusters.

INTENT PLANNING

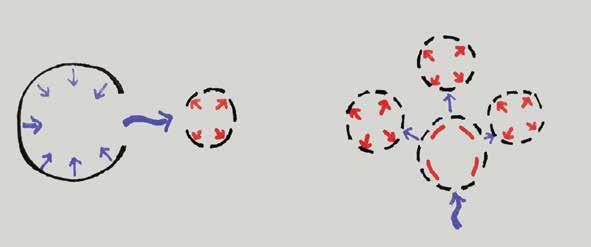

Through linear or radial arrangement clusters can be oriented to allow enclosure of shared green spaces.

AIM

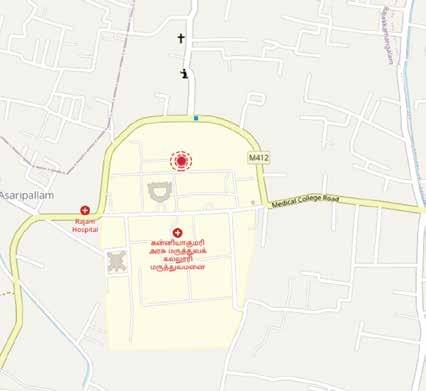

A ected by the epidemic, some areas appear in shortage of wards and hospitals. The site is located in KGMC ground away from crowded population and with access to KGMC hospital for medical assistance. A more sustainable and assembly e cient design was necessary.

MODULAR FLEXIBLE

Separate entry - exit

Controlled movement

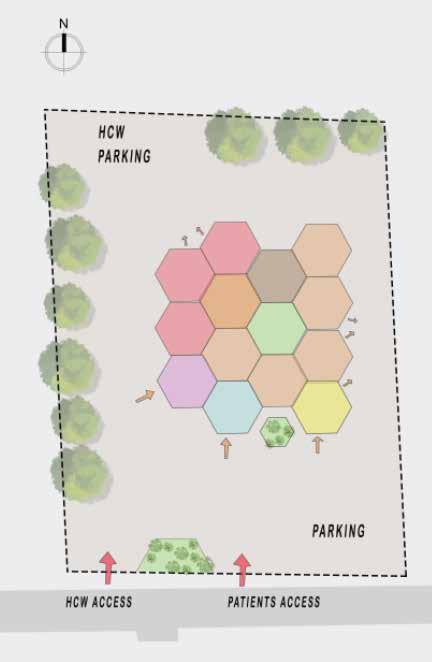

Zoning based on risk factor LEGEND

Observation zone

HCW zone

Sanitation workers zone

Mild risk zone High risk zone

SUSTAINABLE
