Selected Architectural Works
Institut Teknologi Bandung
2021-2024
I am a fresh graduate in architecture who is passionate about architecture, urban design, and sustainability. I am eager to learn and grow in the studies of my interests and contribute through my hard work, critical thinking, and problem solving skills.
PERSONAL INFORMATION
Full Name
Date of Birth
Nationality
Email
Contact
Linkedin
Instagram
: Fatimah Nur Azizah
: December 10th, 2002
: Indonesia
Indonesian (Native), English (A2), Japanese (Beginner)
Top 10 Highest GPA in 2020 Class
Architecture of Institut Teknologi Bandung
Participant of Architecture Competition ARCHIRAY X N0L Residence: Net Zero Living Residence
Table of Contents
05
Children’s Learning Center
Education & Social Facility
Final Project 2024
Kosambi Urban Renewal
Mixed Used Building
Academic Project 2023
Paksya Pavilion
Vector Active System
Academic Project 2022
27
Architectural Lighting
Interior and Exterior Rendering
Work Project 2024
Children’s Learning Center for Wastukencana
Densely Populated Settlement

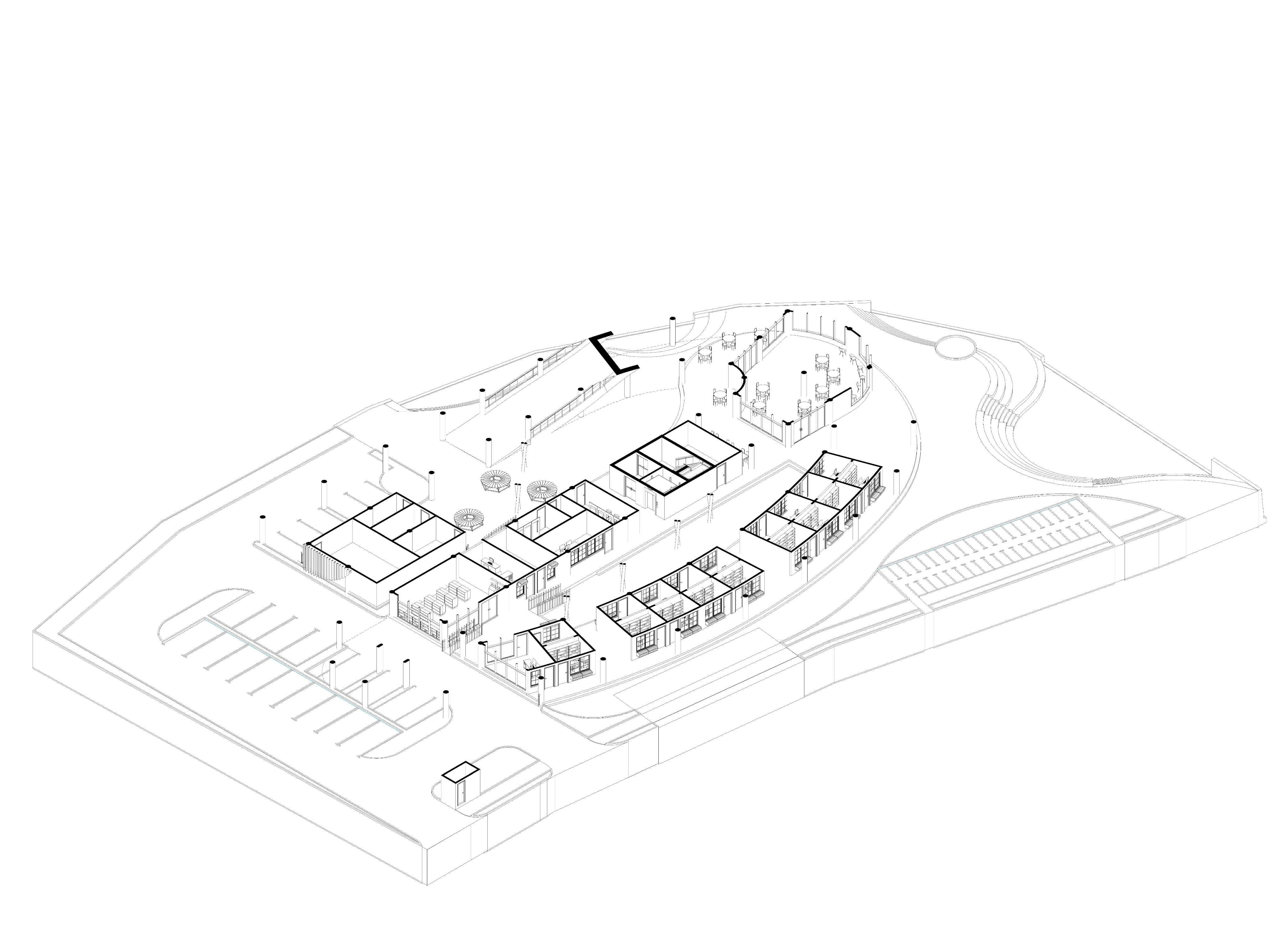

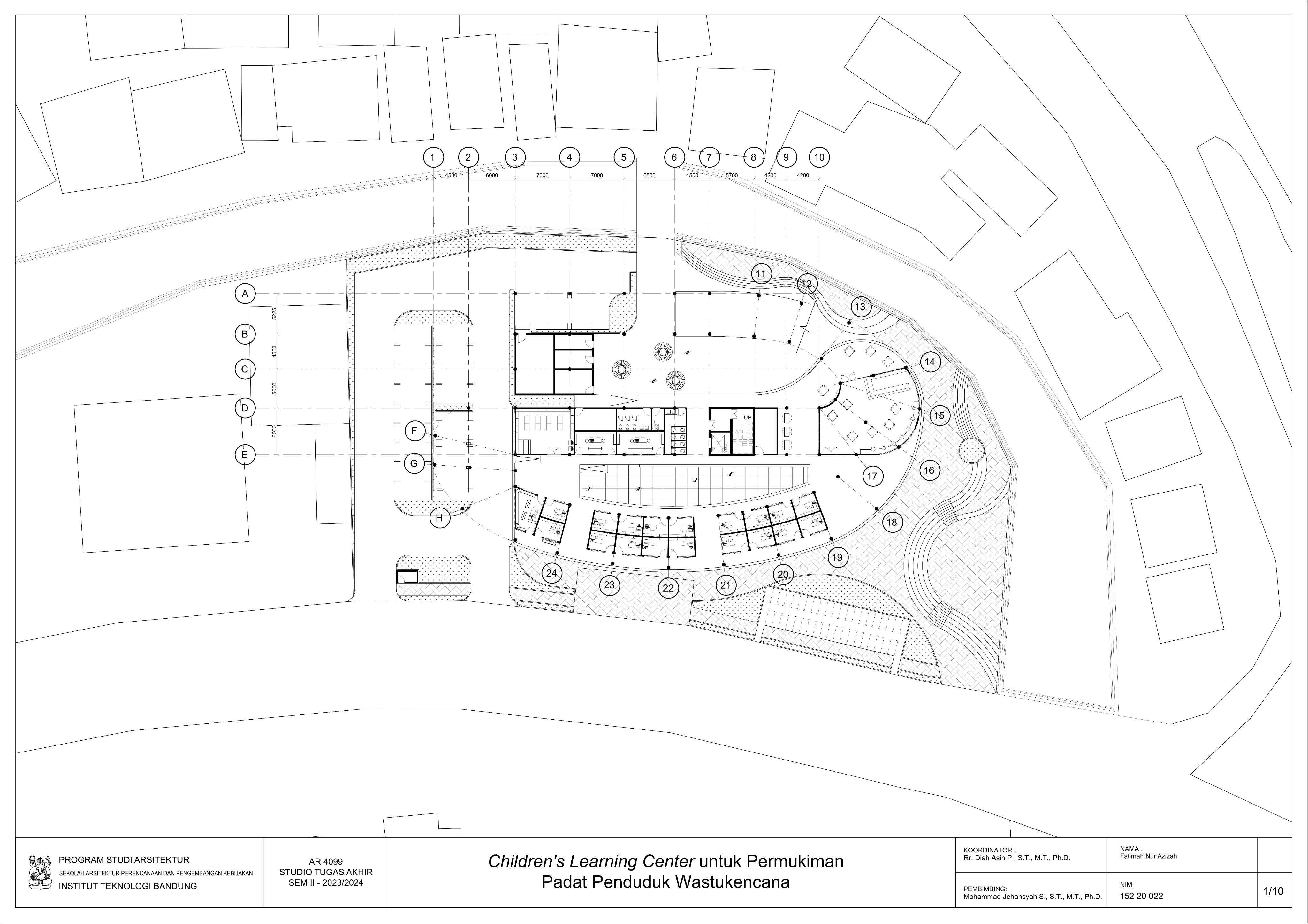

3956 m2 | Final Project | Bandung | Education & Social Facility | 2024
Supervisor: Mohammad Jehansyah Siregar S.T., M. T., Ph. D.
Tools: AutoCAD, Revit, Enscape, Figma
In densely populated residential areas, public open spaces are scarce, leaving children without adequate play facilities. This situation does not align with the guarantee of children's rights to have the opportunity to play. In West Java, children make up 33% of the total population, with 42% of them residing in crowded and slum areas. This issue demands special attention, as play is essential to children's lives, and the lack of play areas contradicts legal standards.
This project seeks to establish a public space for children in the densely populated Tamansari sub-district, providing them with opportunities to engage in positive extracurricular activities that enhance their cognitive and psychological development. The initiative aligns with the site's context and aims to optimize social facilities for the benefit of the densely populated communities.

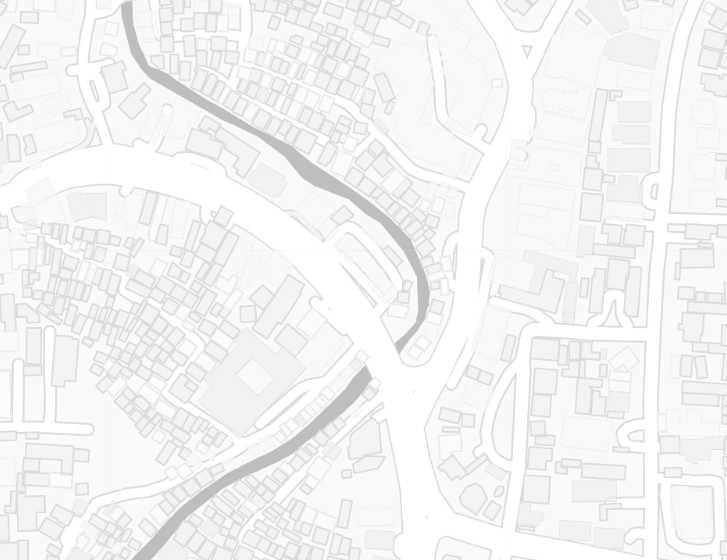

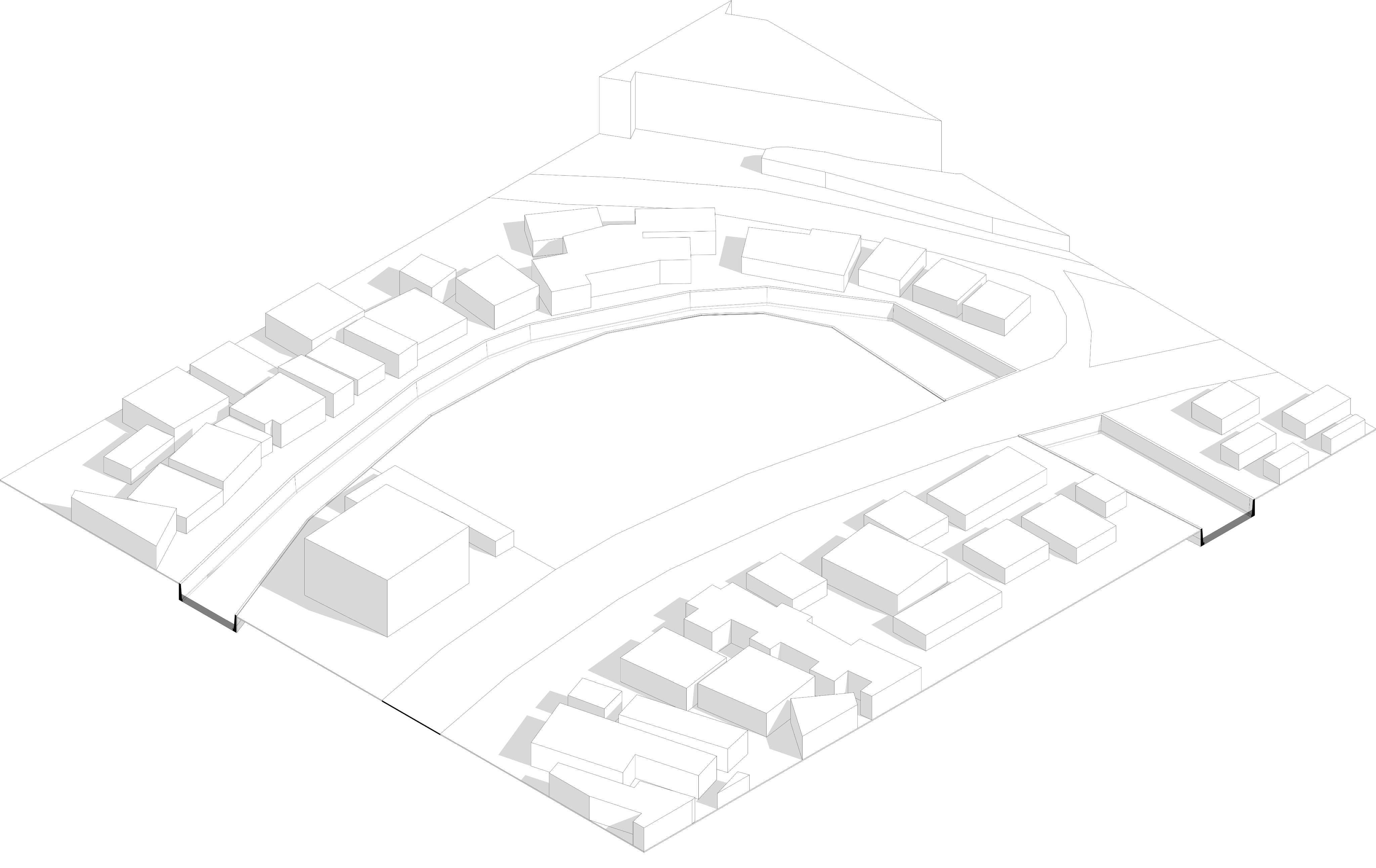

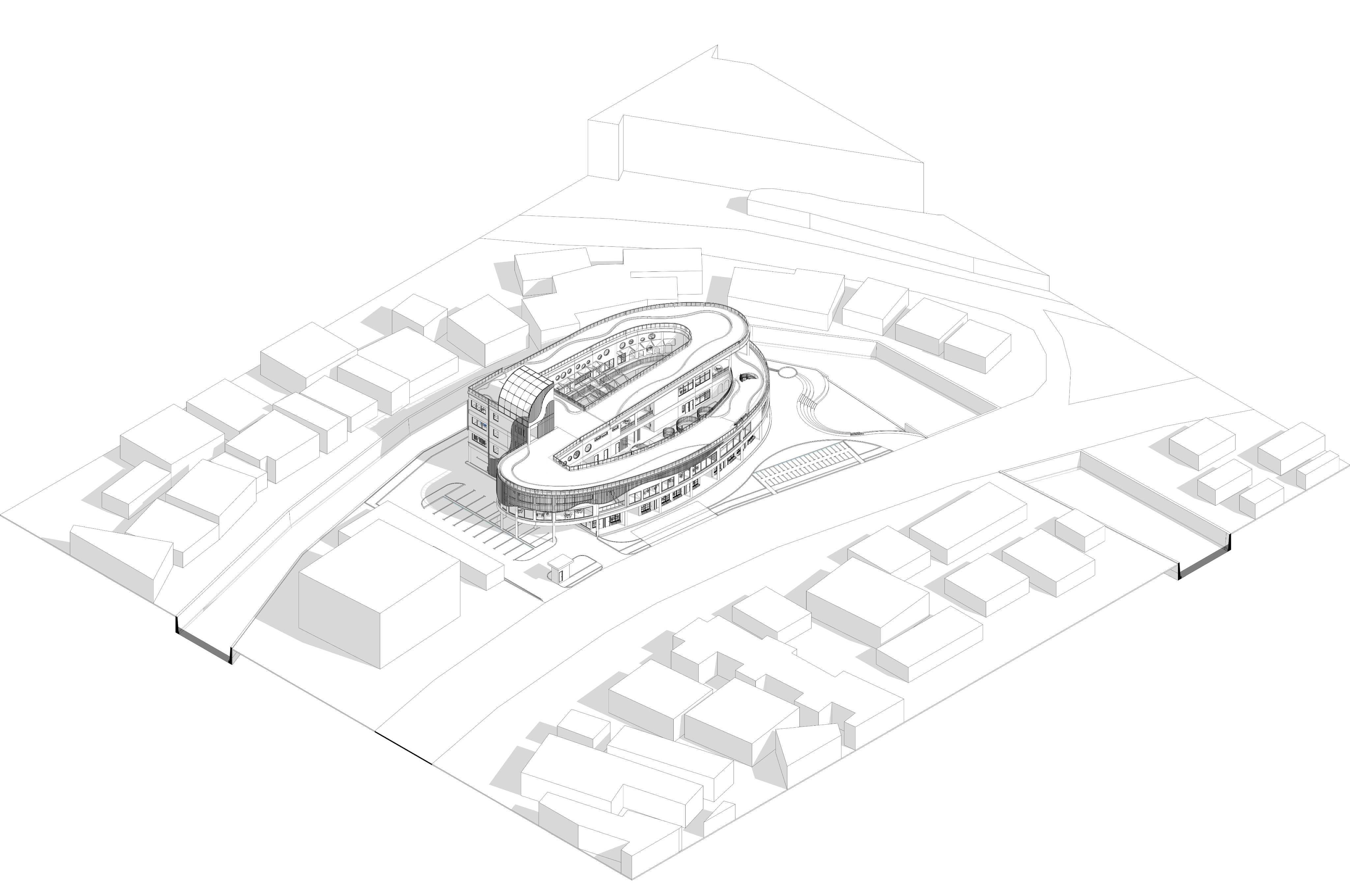

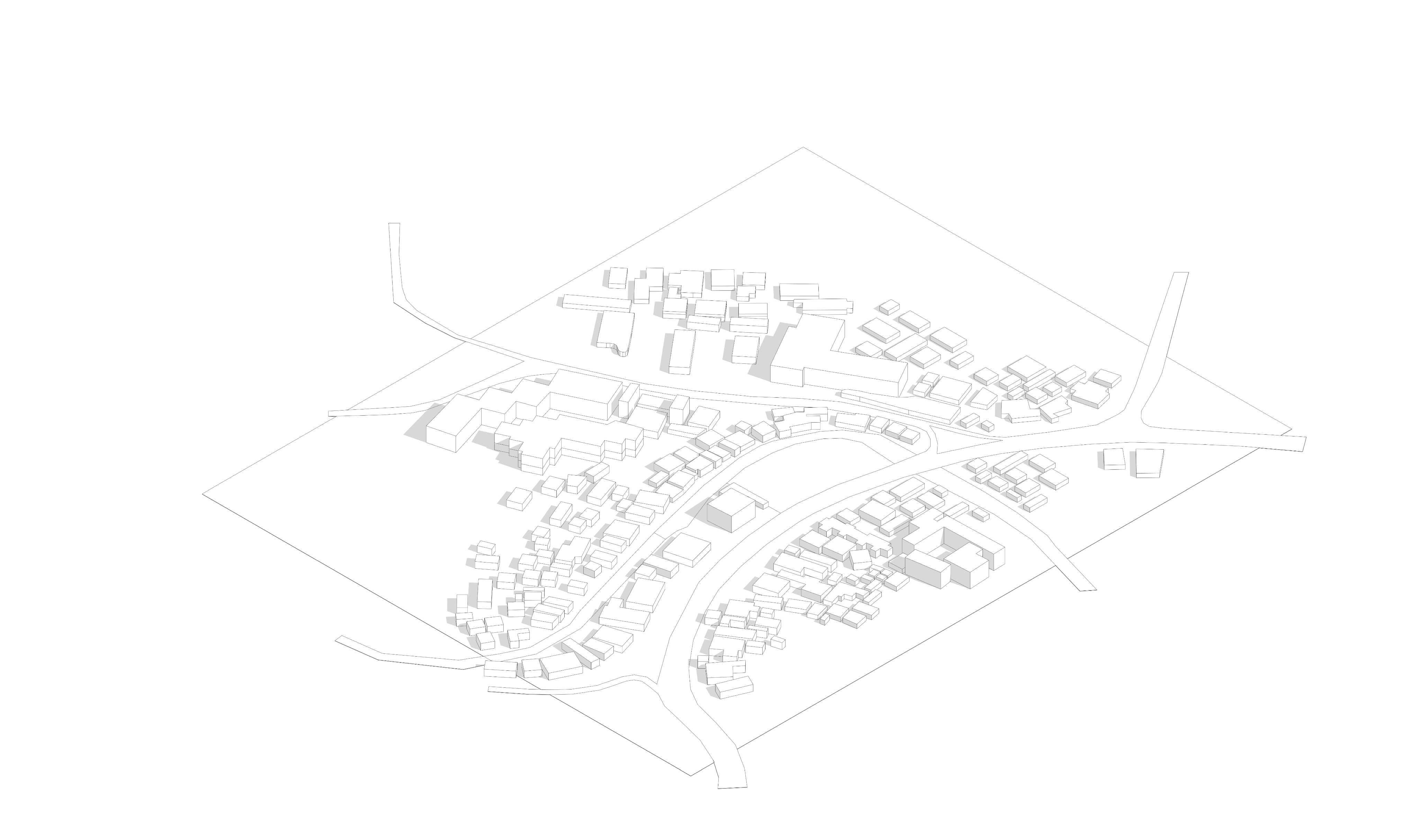

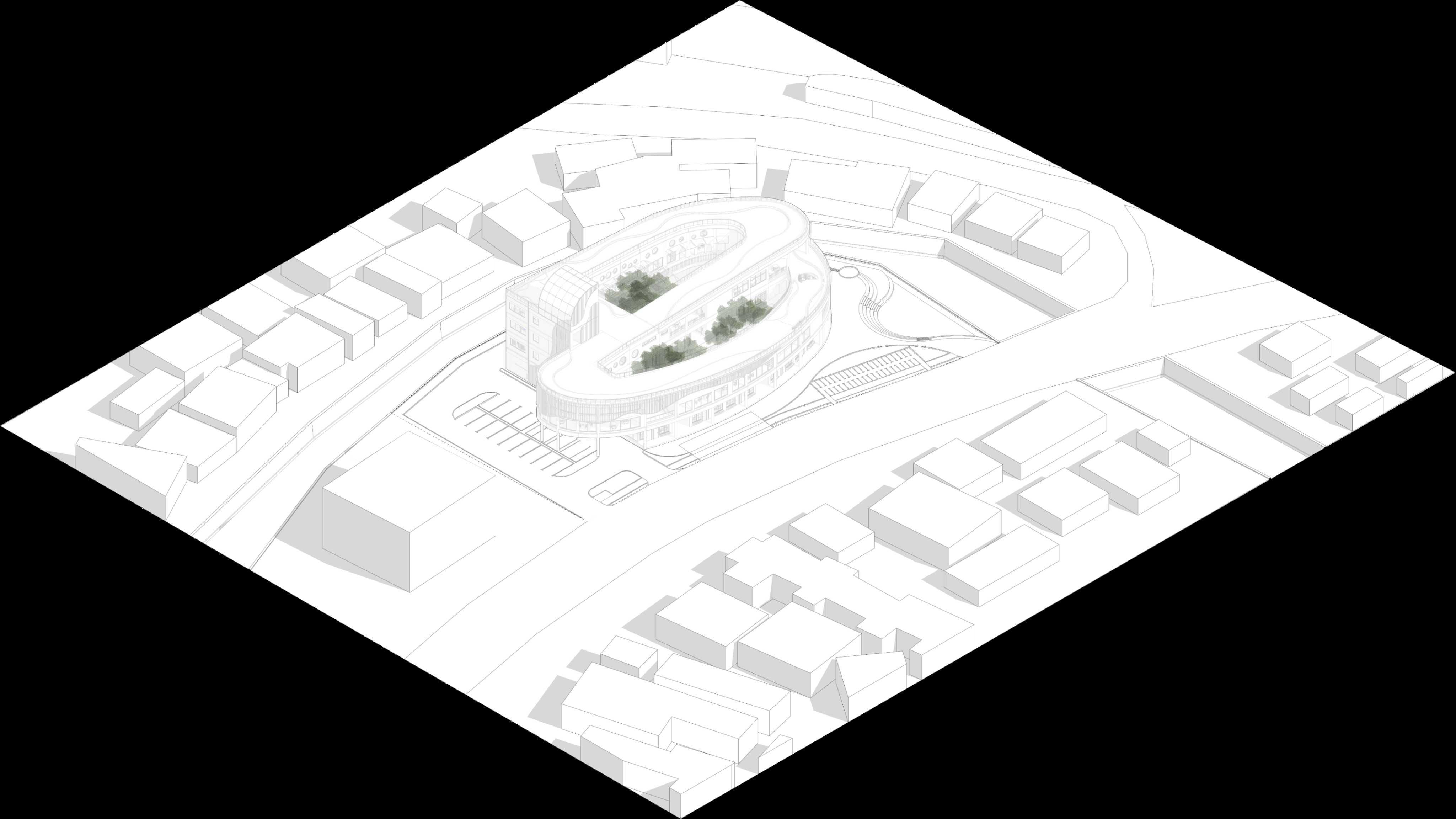

SITE MICR ANALYSIS
vehicle lane
The site is traversed by a one-way vehicle lane and must be designed to prevent Traffic jams.
river has to optimize the adjacent Cikapundung River as a riverfront area.
vegetation
The existing site conditions are quite barren, so additional vegetation is needed
sun path the building has to be oriented southeastnorthwest
wind
The wind flows from southeast to northwest, so ventilation is optimized on the sides of the building perpendicular to the wind direction
noise
Buffer area is needed to mitigate noise

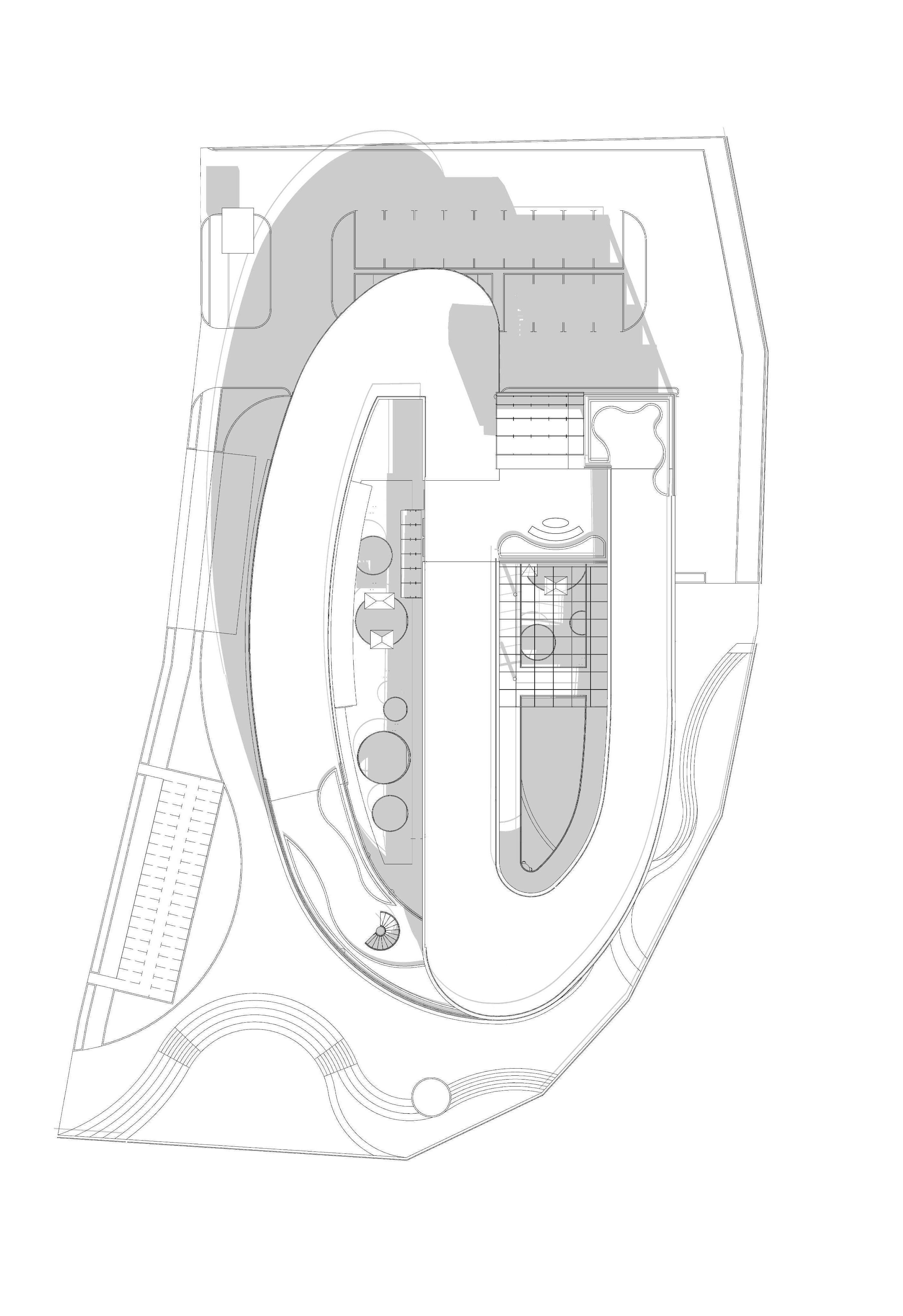

INNER COURTYARDS

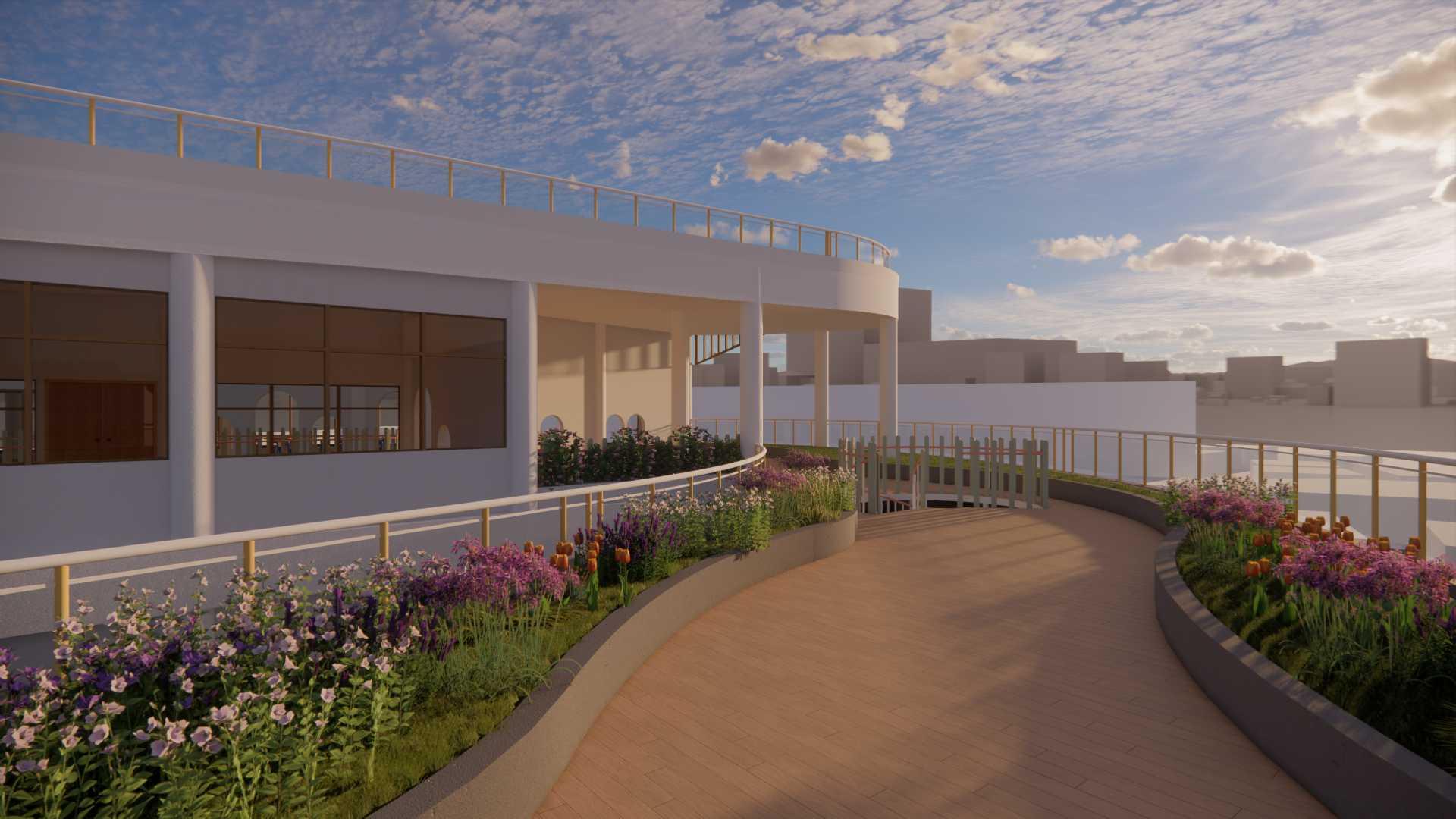

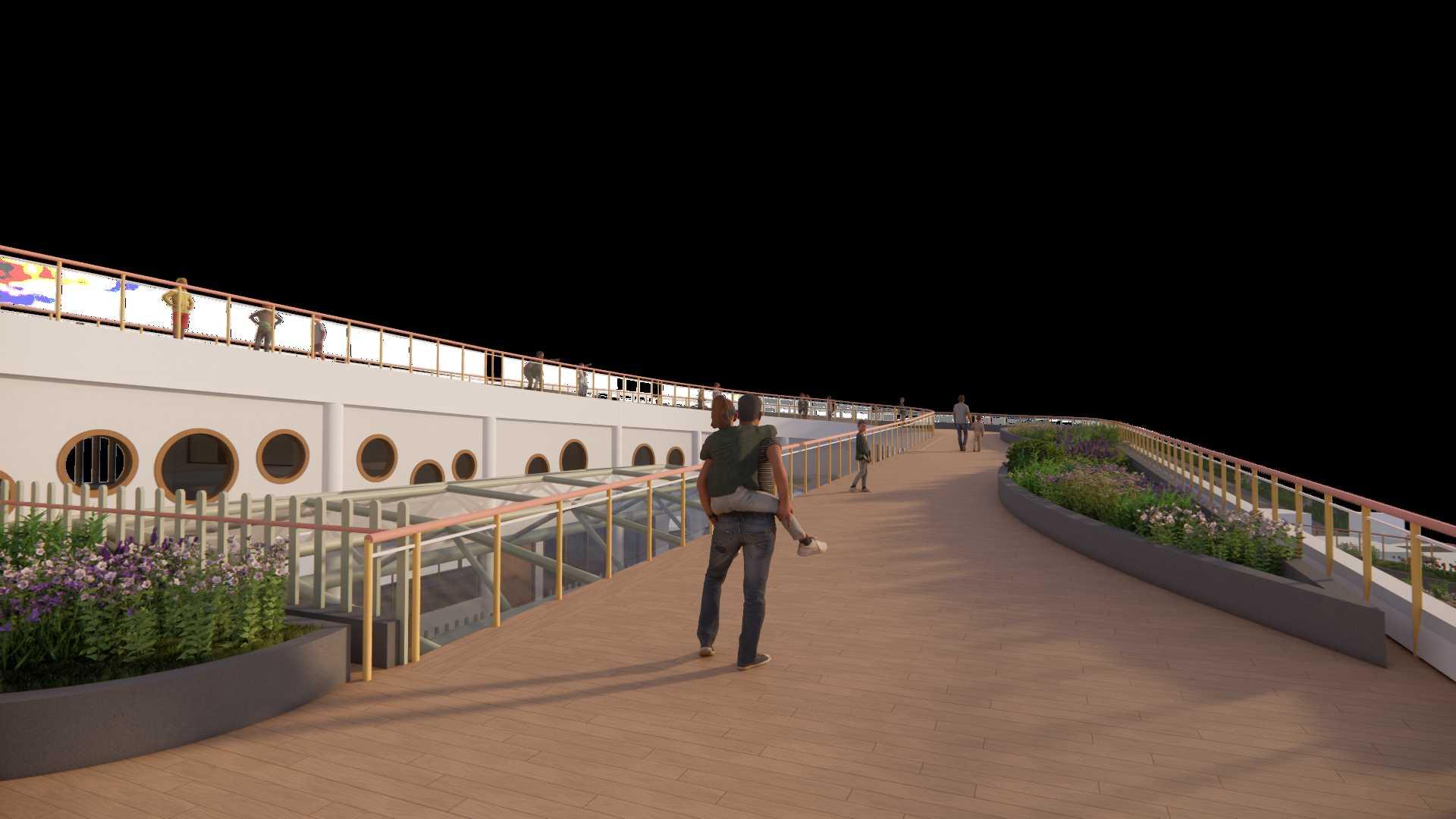

CONTINUOUS RAMP

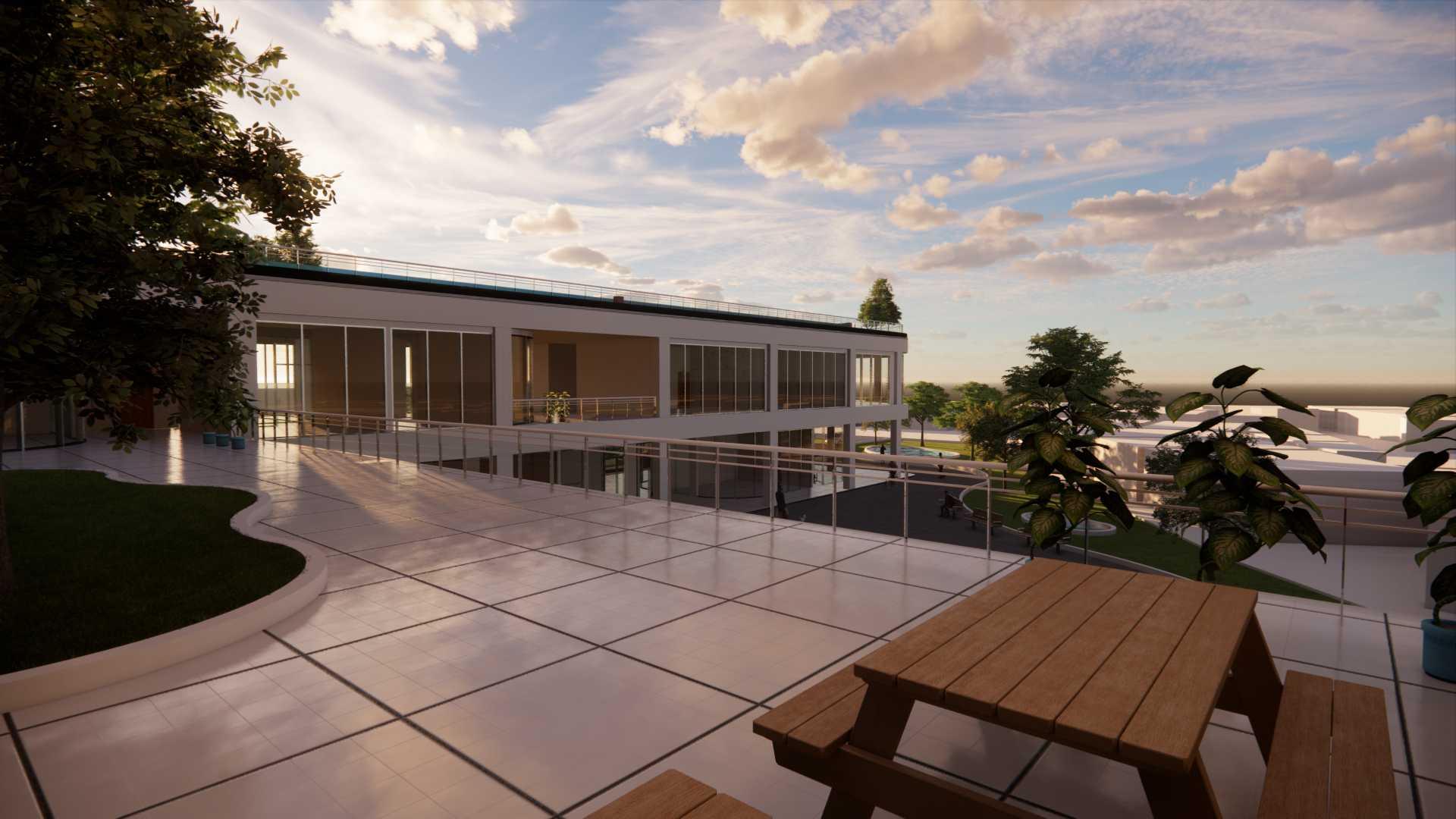

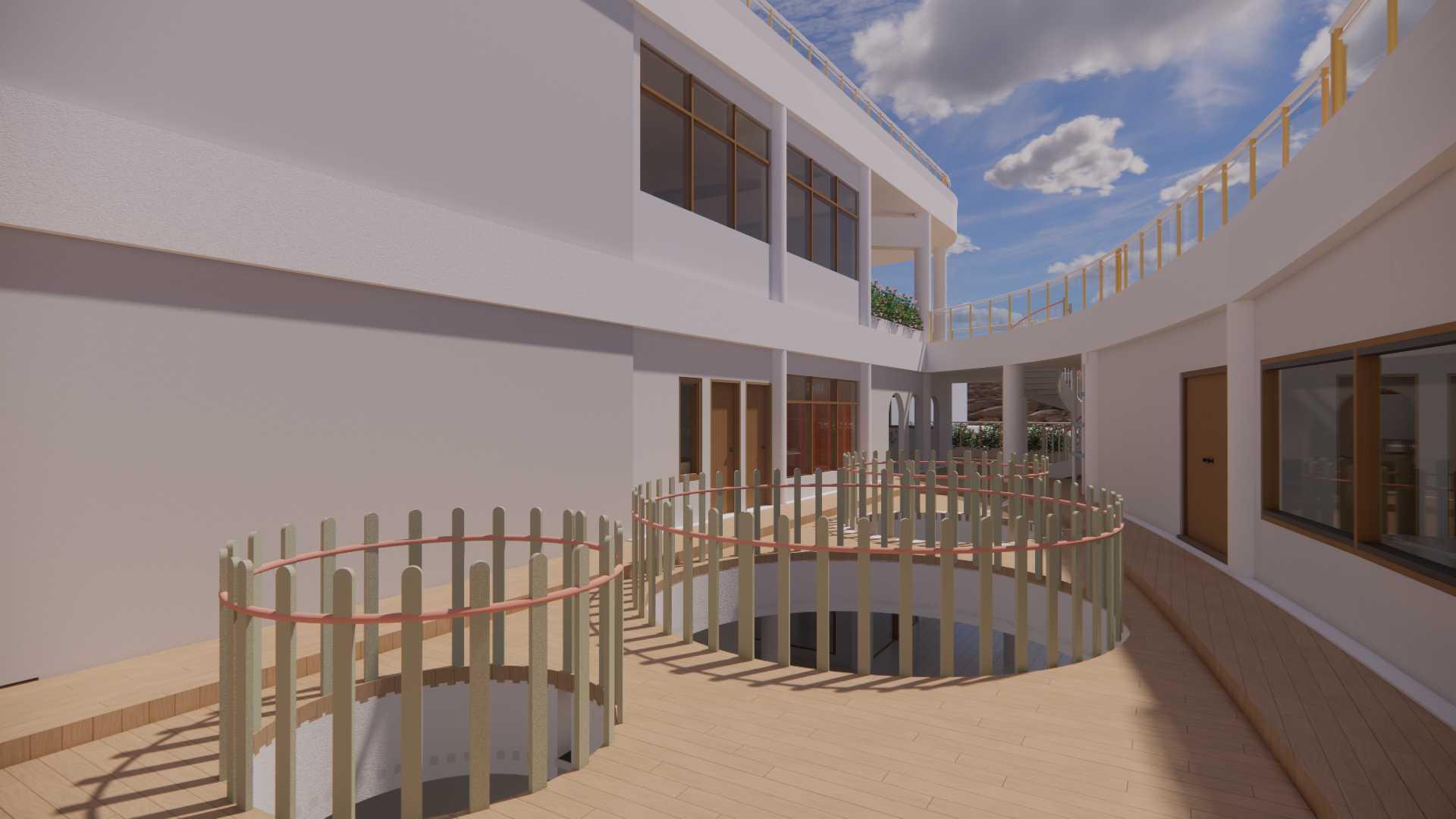

Integrating Landscape Element
The existing site condition currently lacks sufficient vegetation, yet natural elements are crucial for children's development. Therefore, resulting in a building integrated with natural elements through an inner courtyard on the second floor.

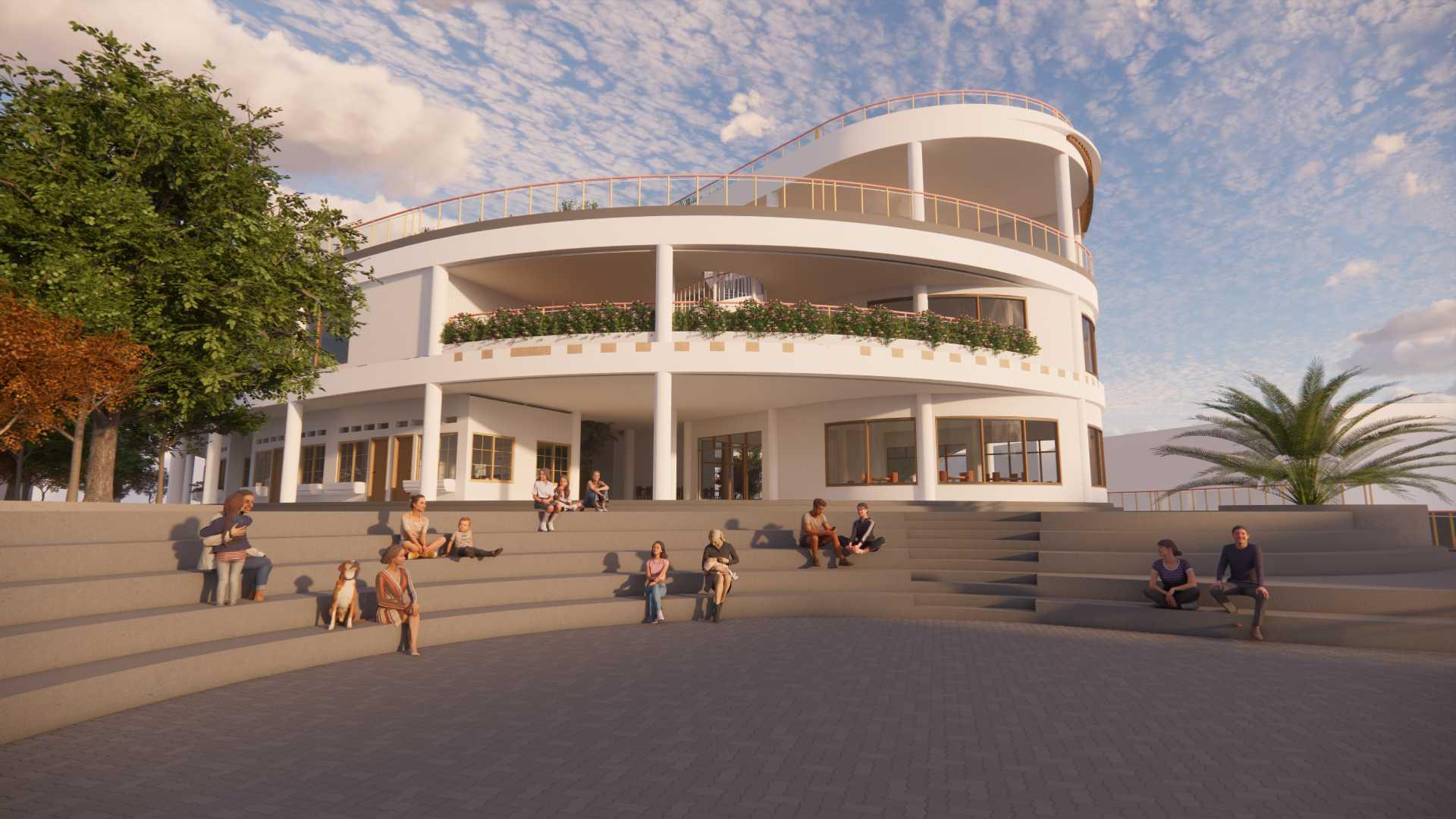

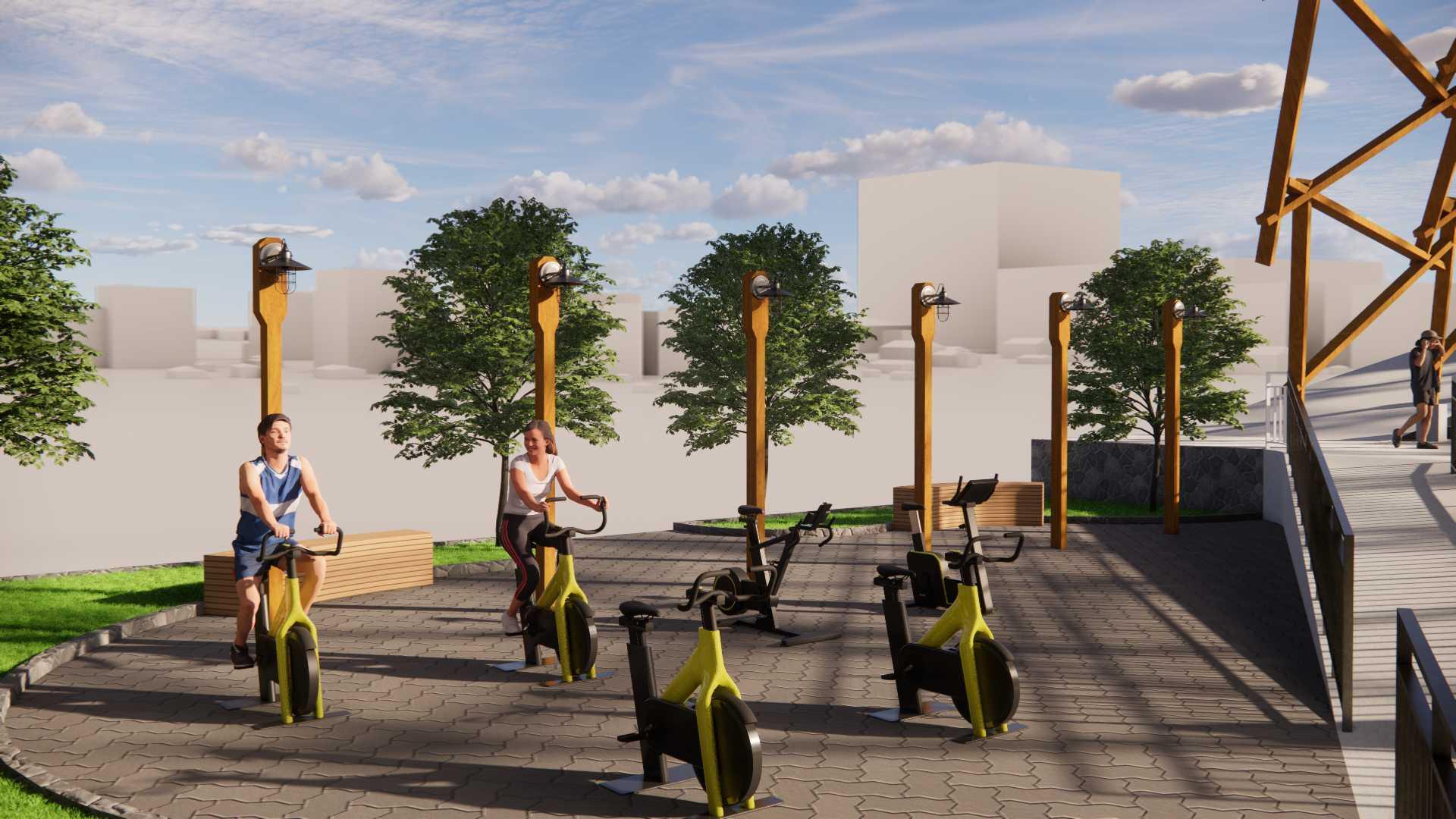

Waterfront Design

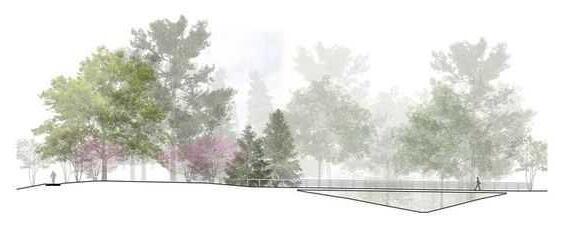

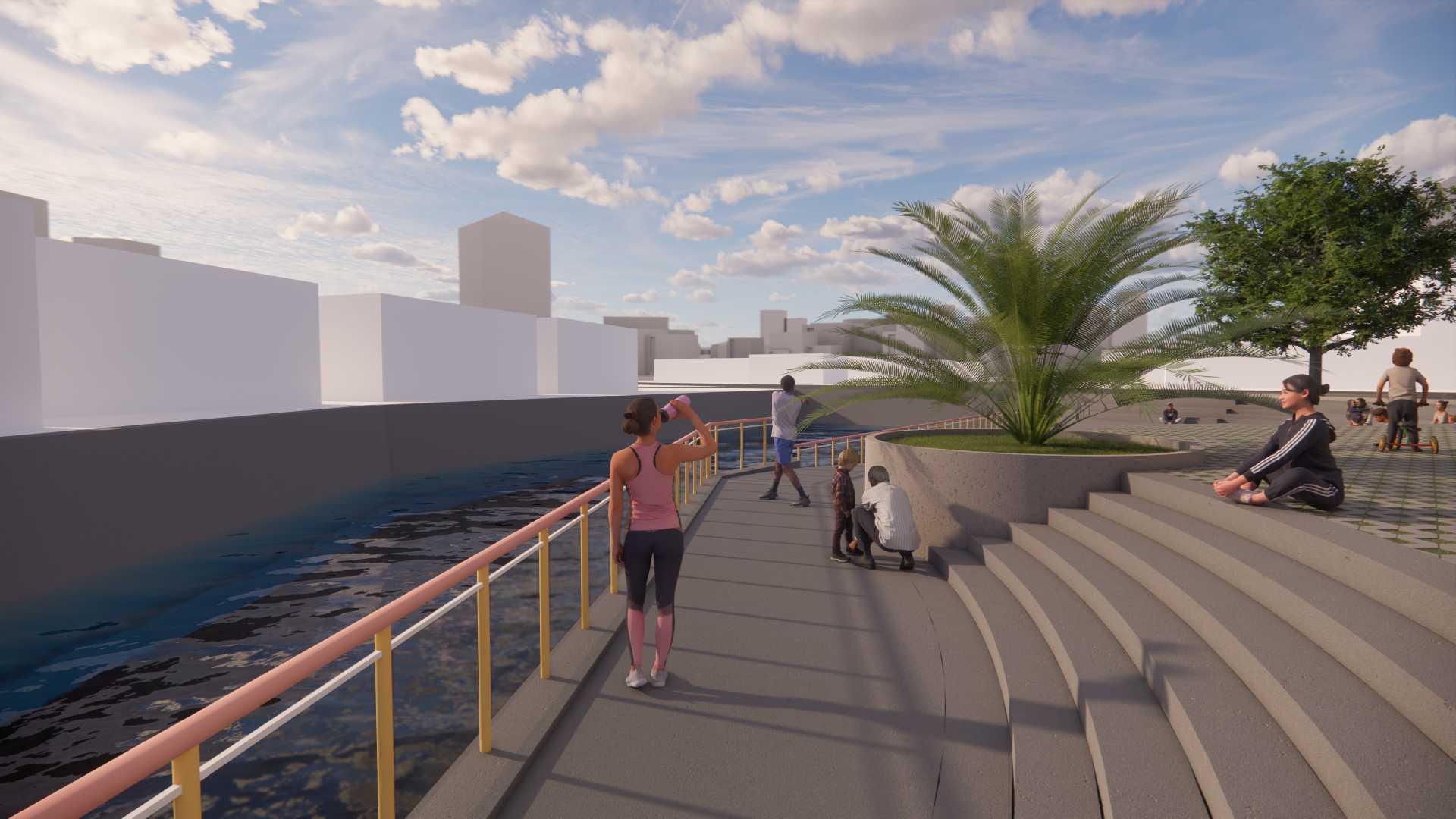

Responding to the site context adjacent to the Cikapundung River by creating facilities that can revitalize the front area of the Cikapundung River.

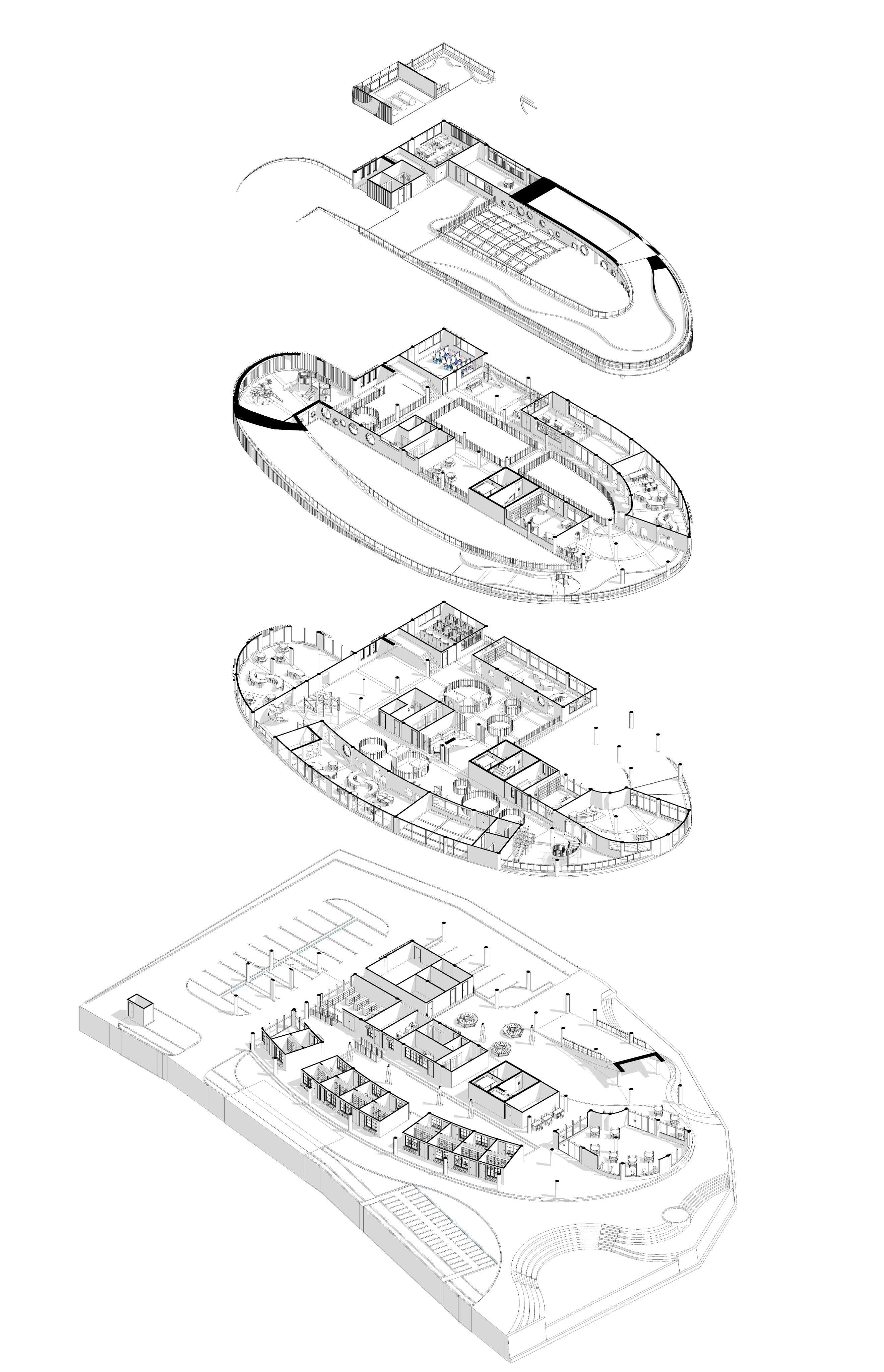

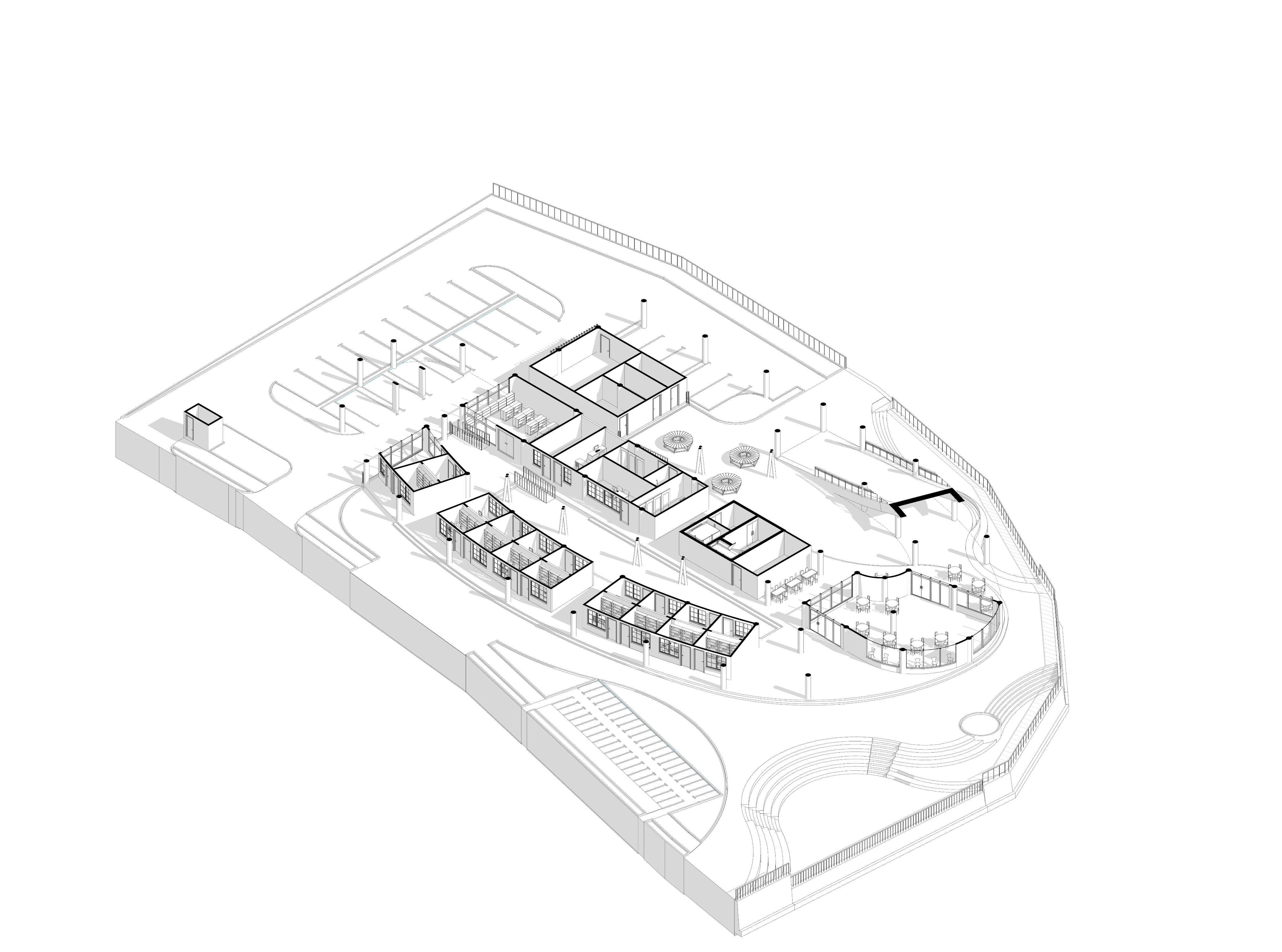

Space Programming
education area
classroom (2-4 years old)
classroom (5-8 years old)
classroom (9-12 years old)
mini library
outdoor study corner
quran room
recreation area
large motor play
imaginative play
constructive play
innercourt
rest area

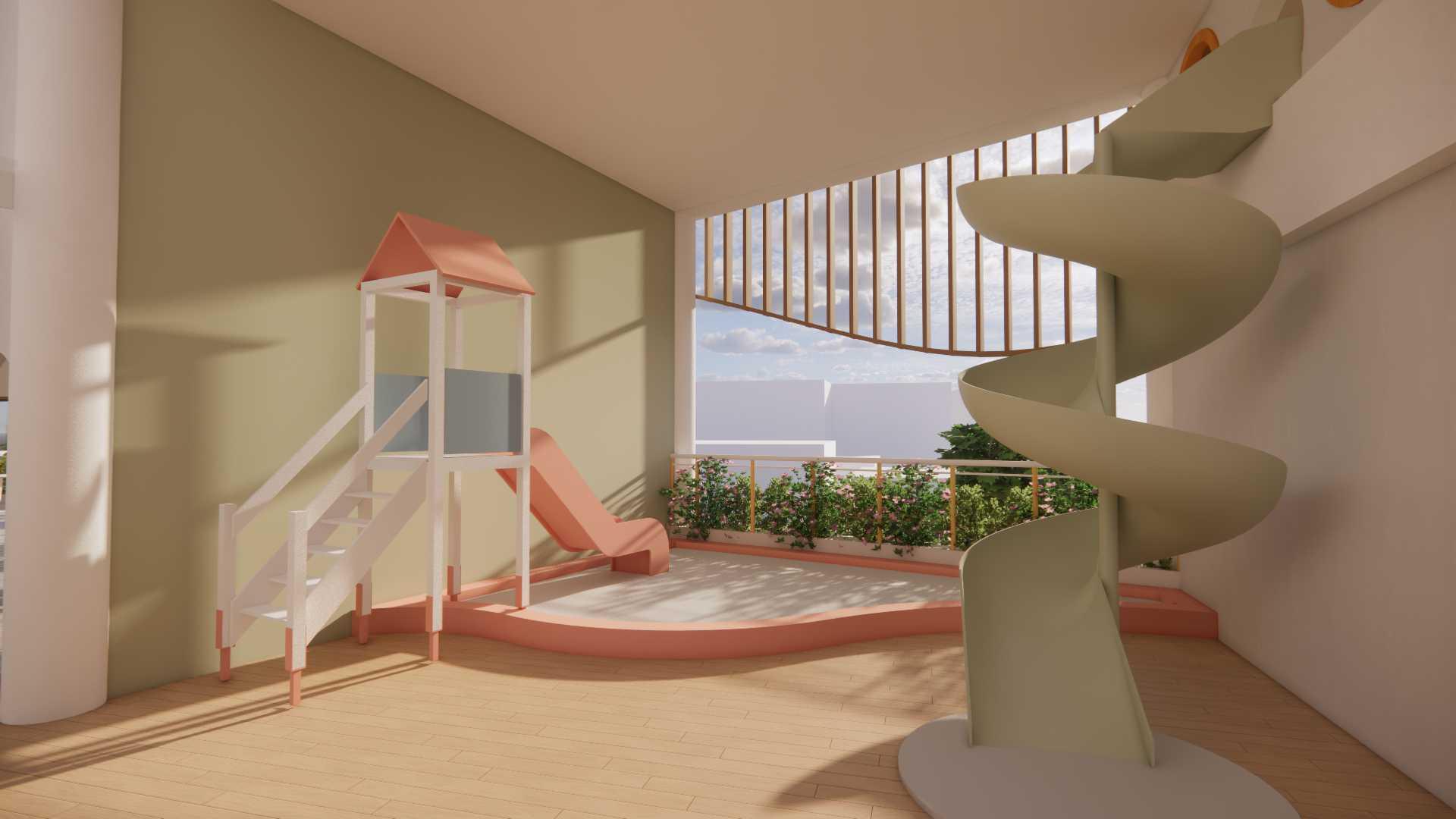

indoor playground
collaboration area music room
art room
green roof
multipurpose room
public area flower shop
flower workshop area
amphitheatre
riverfront area
co-working space
cafe
minimarket
service area guard post
prayer room
lactation room
lobby
lounge
toilet
fire escape stairs
fire command center
sewage treatment plan
generator room
temporary waste storage
management area management office
facade responds to sunlight from the east and west directions
children’s entrance
the children's entrance is adapted to the densely populated residential location
natural light voids and skylights for natural light penetration
passive cooling creating openings in the building to allow for ventilation
riverfront area leveraging the potential of the river on the site
Design Strategies
permeable flow
permeable pathways within the building make it easier for visitors to navigate
multiple penetration provide three entrances for visitors: one for motor vehicles, one for pedestrians, and one for children
passive climate strategy
provision of green rooftop and green terrace for urban heat mitigation
building orientation the building extends southeast-northwest to avoid direct sunlight from the east-west direction.
pilotis an entrance combined with a drop-off area to accommodate limited space
children’s entrance
the main entrance for children is a ramp that leads directly to the second floor
NORTH-EAST
SOUTH-WEST
SOUTH-WEST

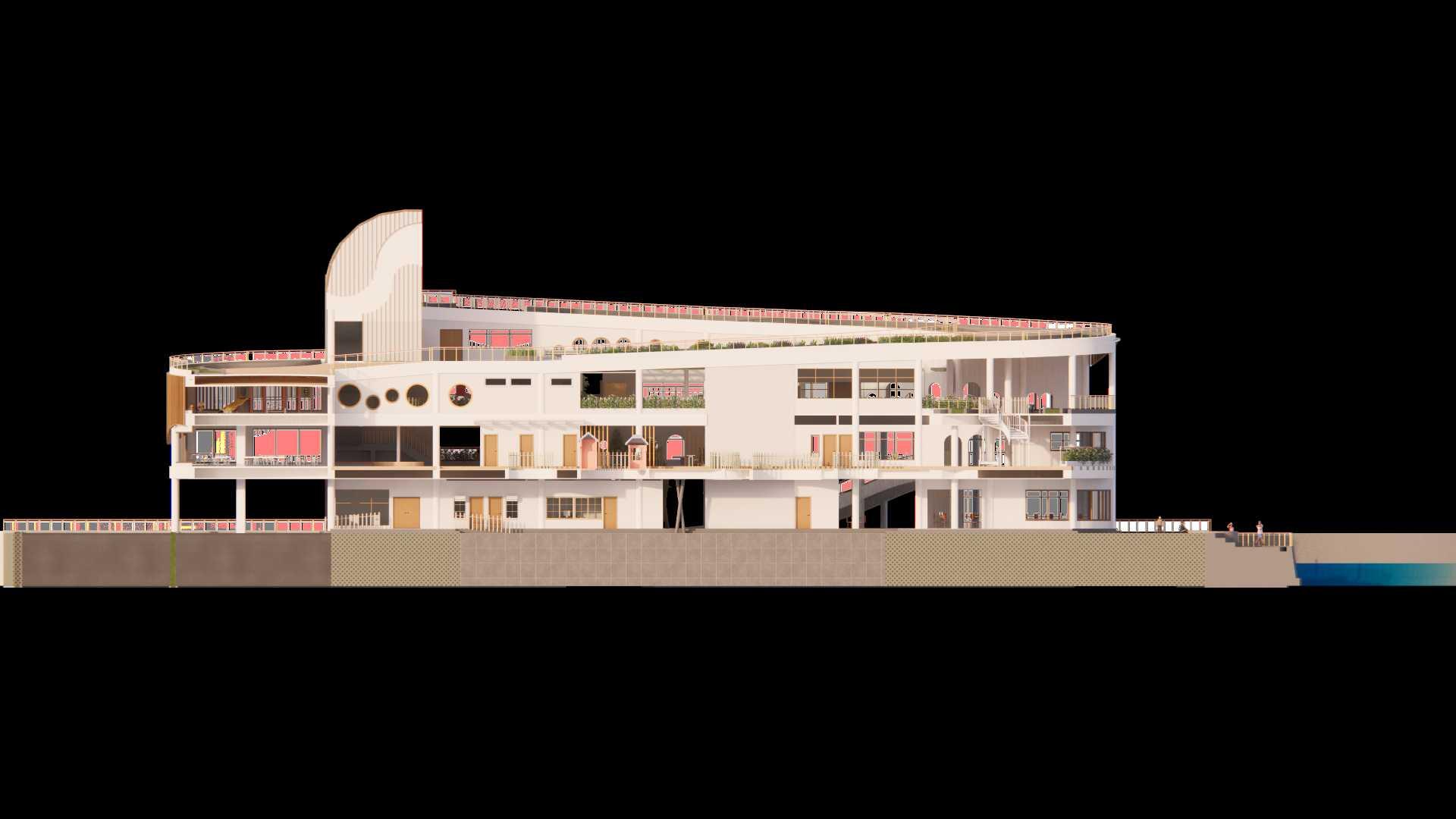

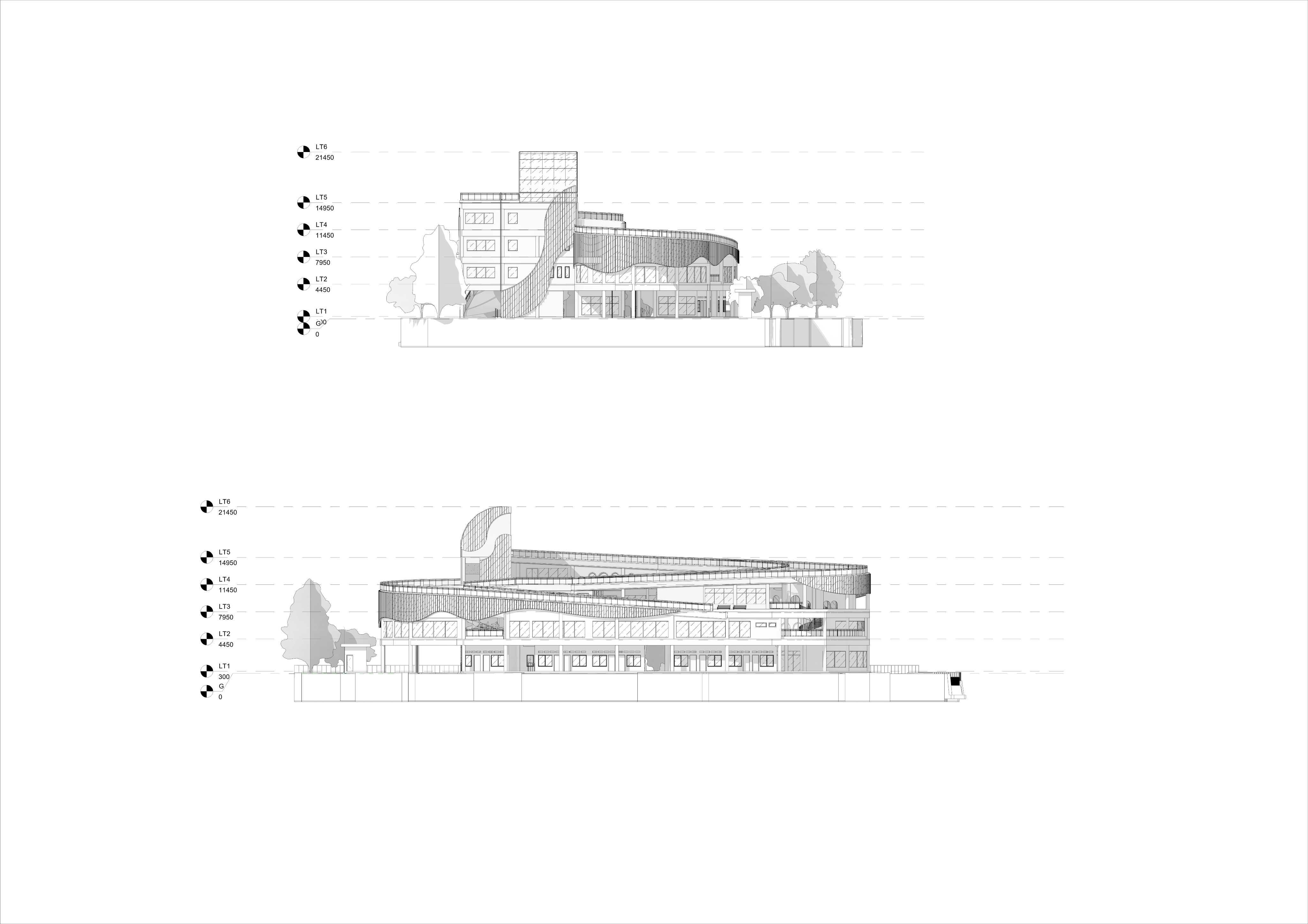

ELEVATION

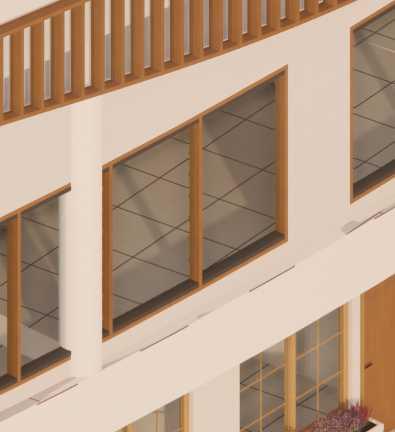

BUILDING MATERIALS

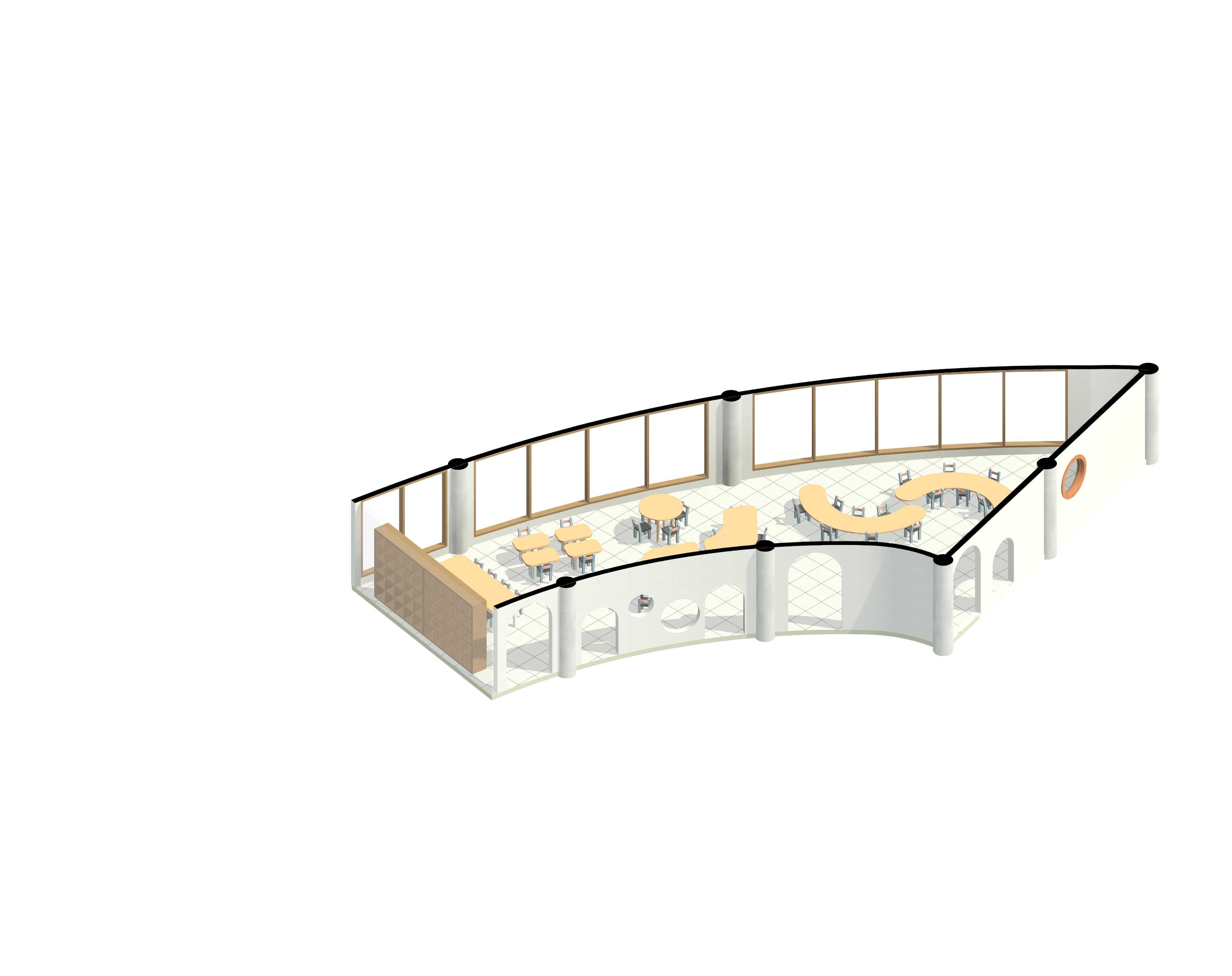

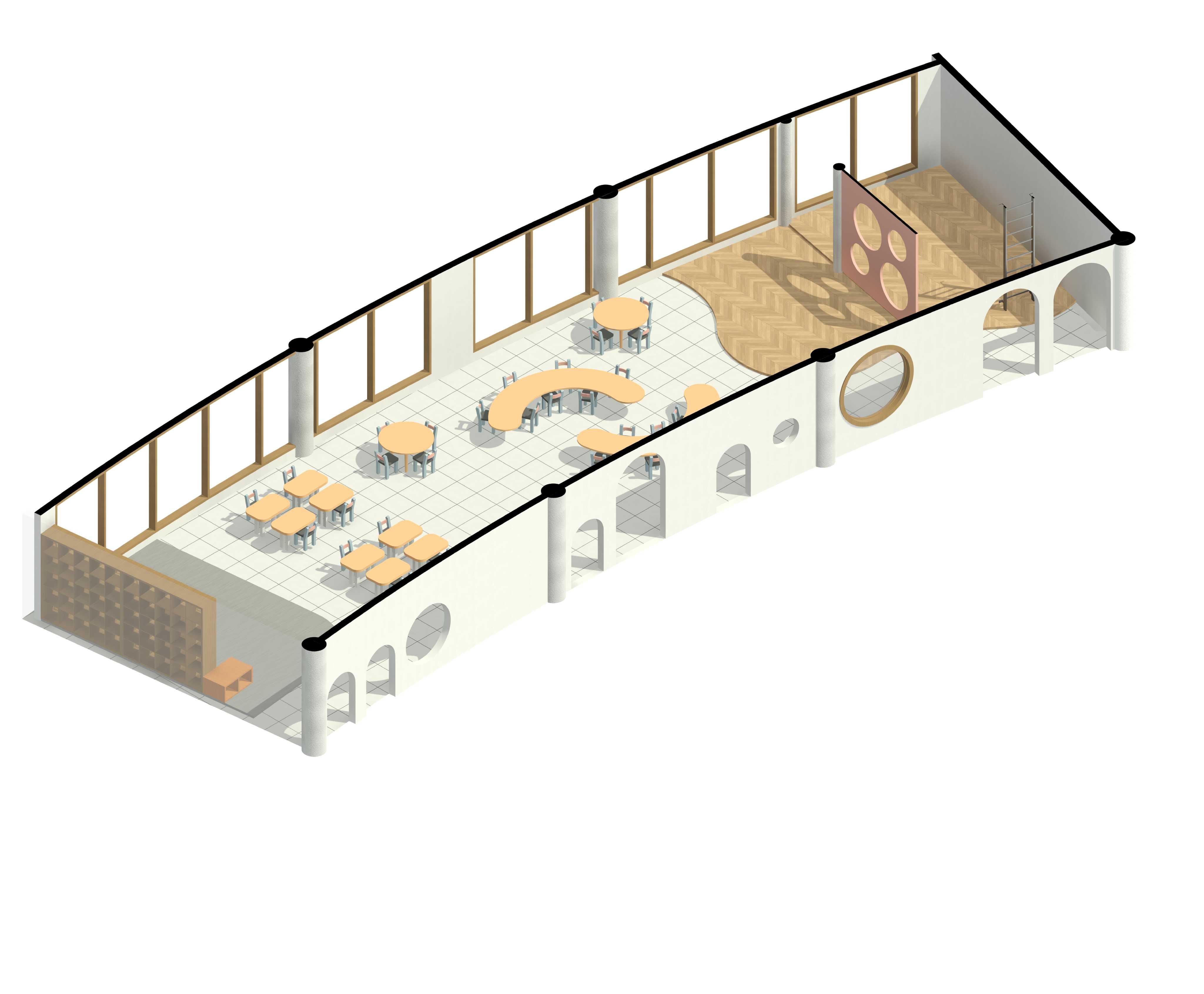

Class Design
2-4 years old
5-8 years old
children with a high level of curiosity who are beginning to communicate with their peers
children who still have egocentric thinking, with easily fatigued bodies who need supervision
9 12 years old
children in the cognitive development stage who have reciprocal relationships in social interactions

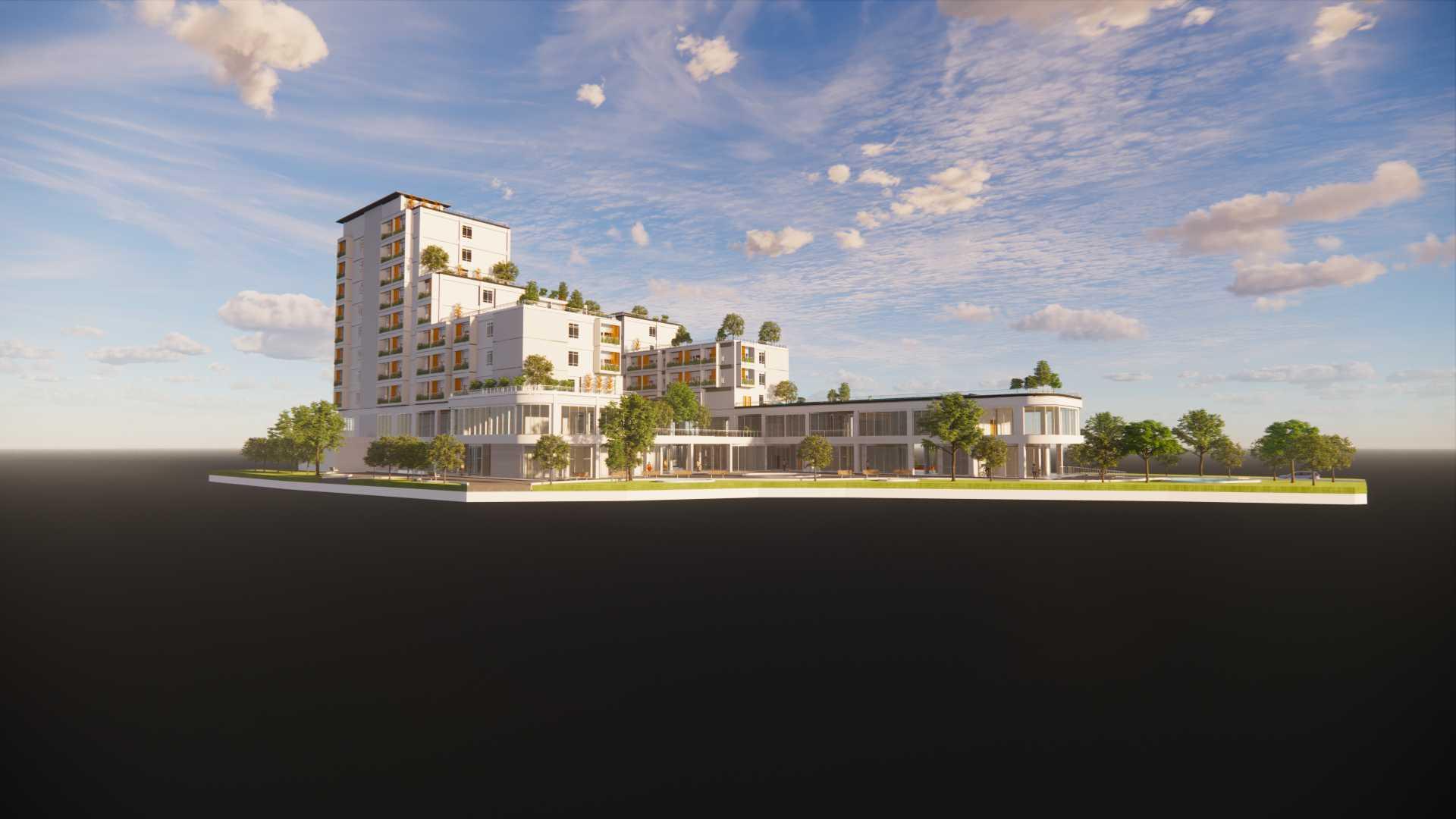

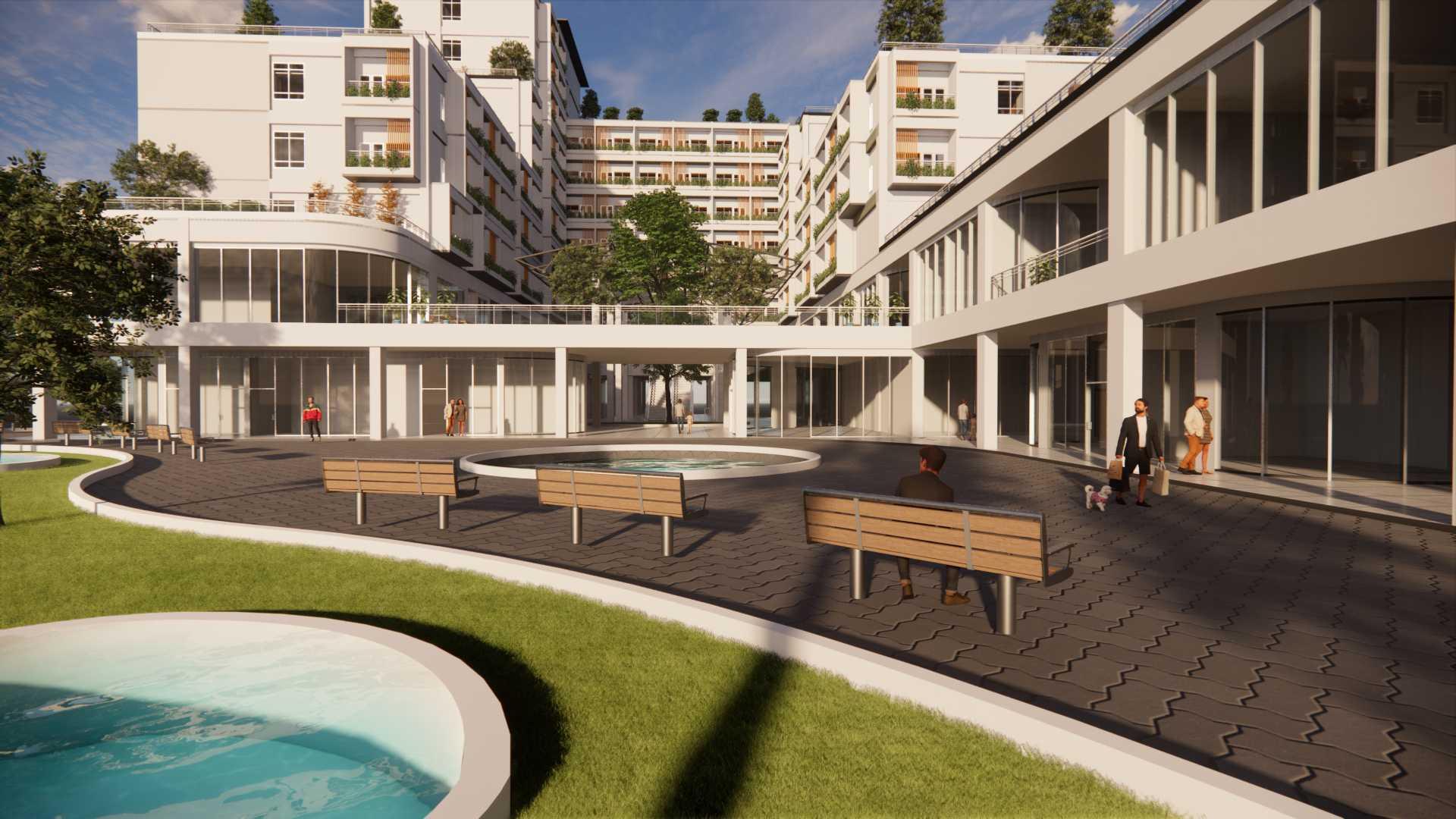

Kosambi Urban Renewal

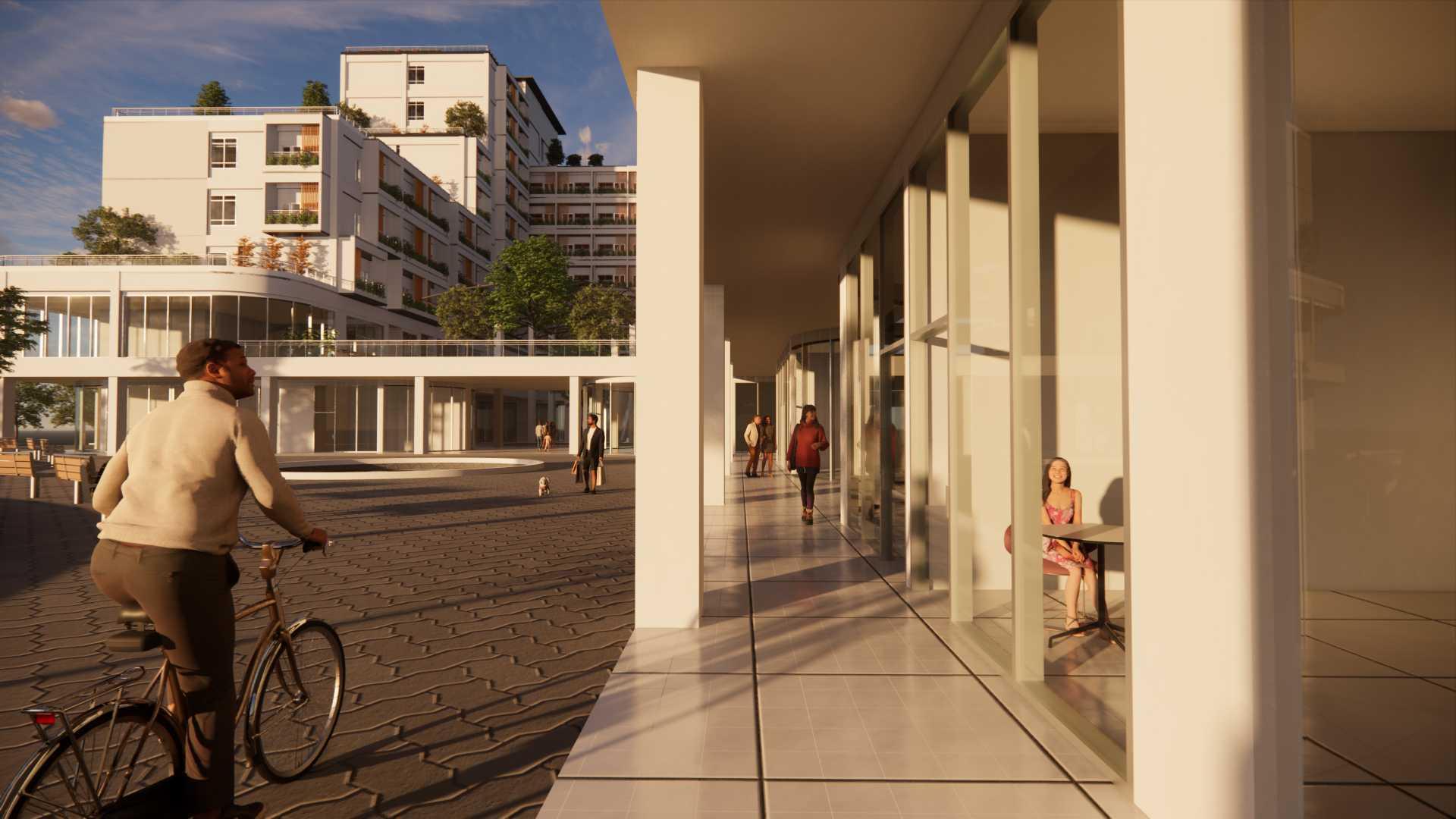

7.941 m2 | fourth-year architectural design studio | Mixed Use Building | 2023
Supervisor: Dr. Eng. Bambang Setia Budi, S.T., M.T.
Tools: Revit, AutoCAD, Enscape, Figma

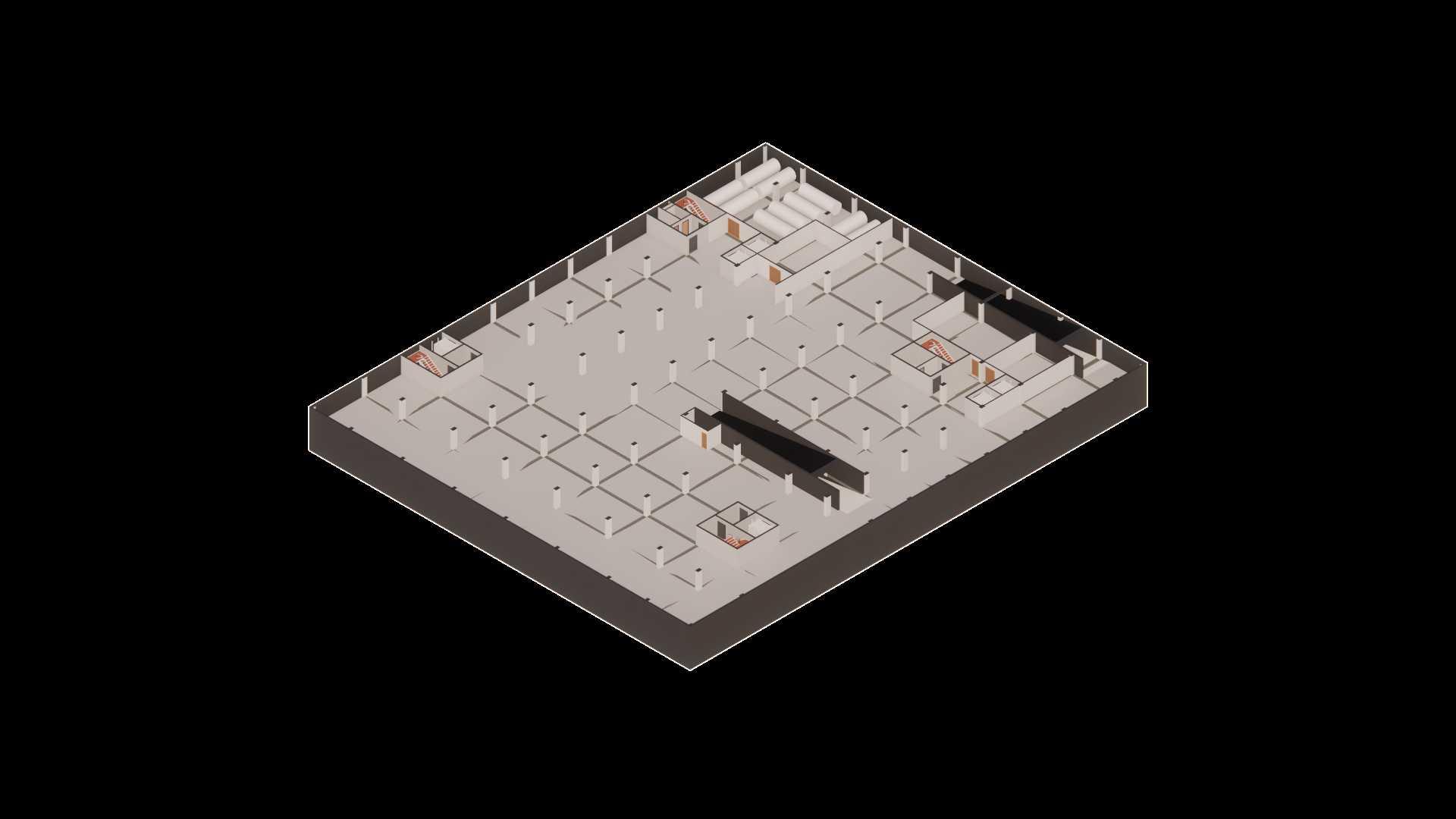

Design Concepts
visitor orientation point and to allow natural sunlight to enter the building.

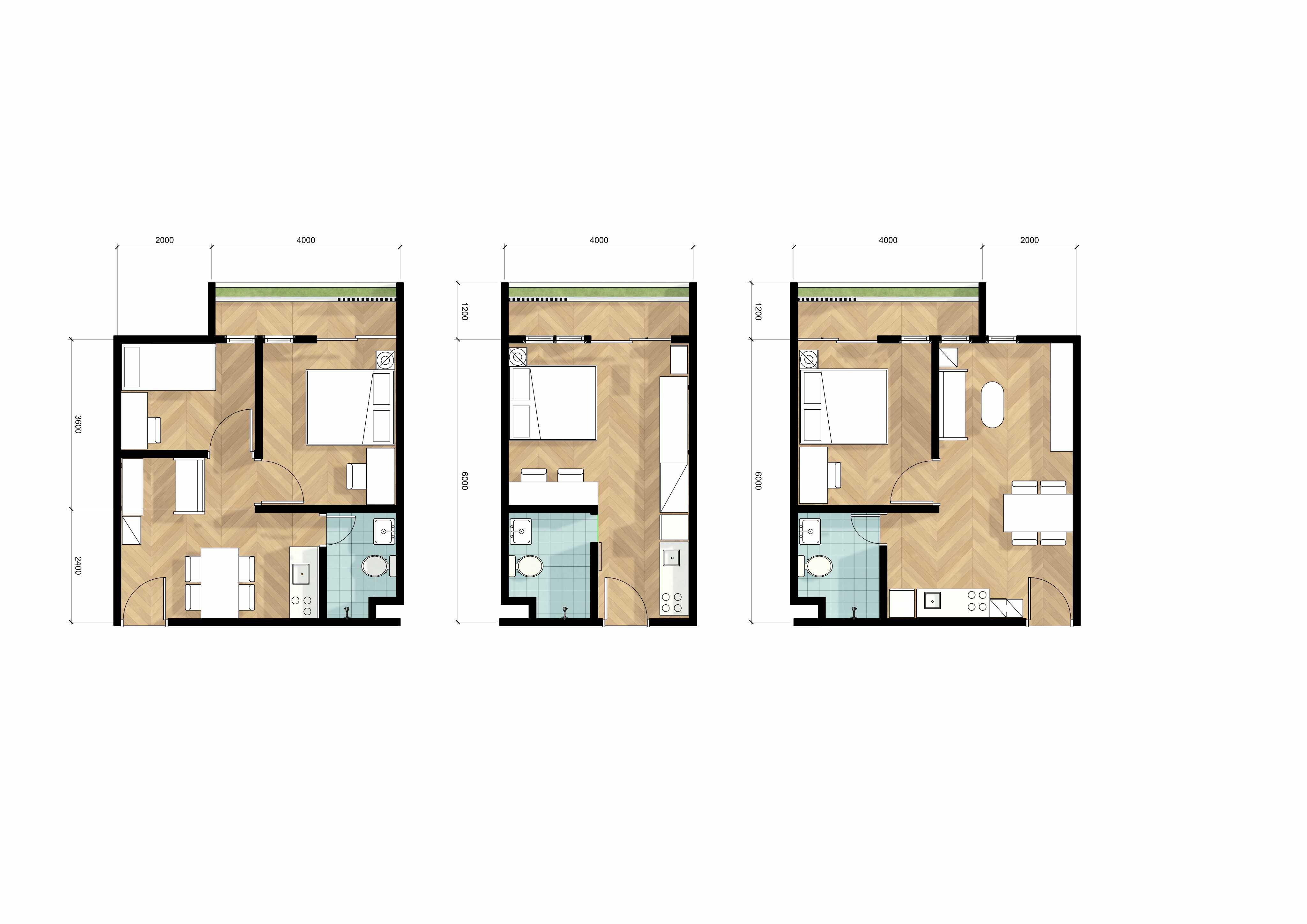

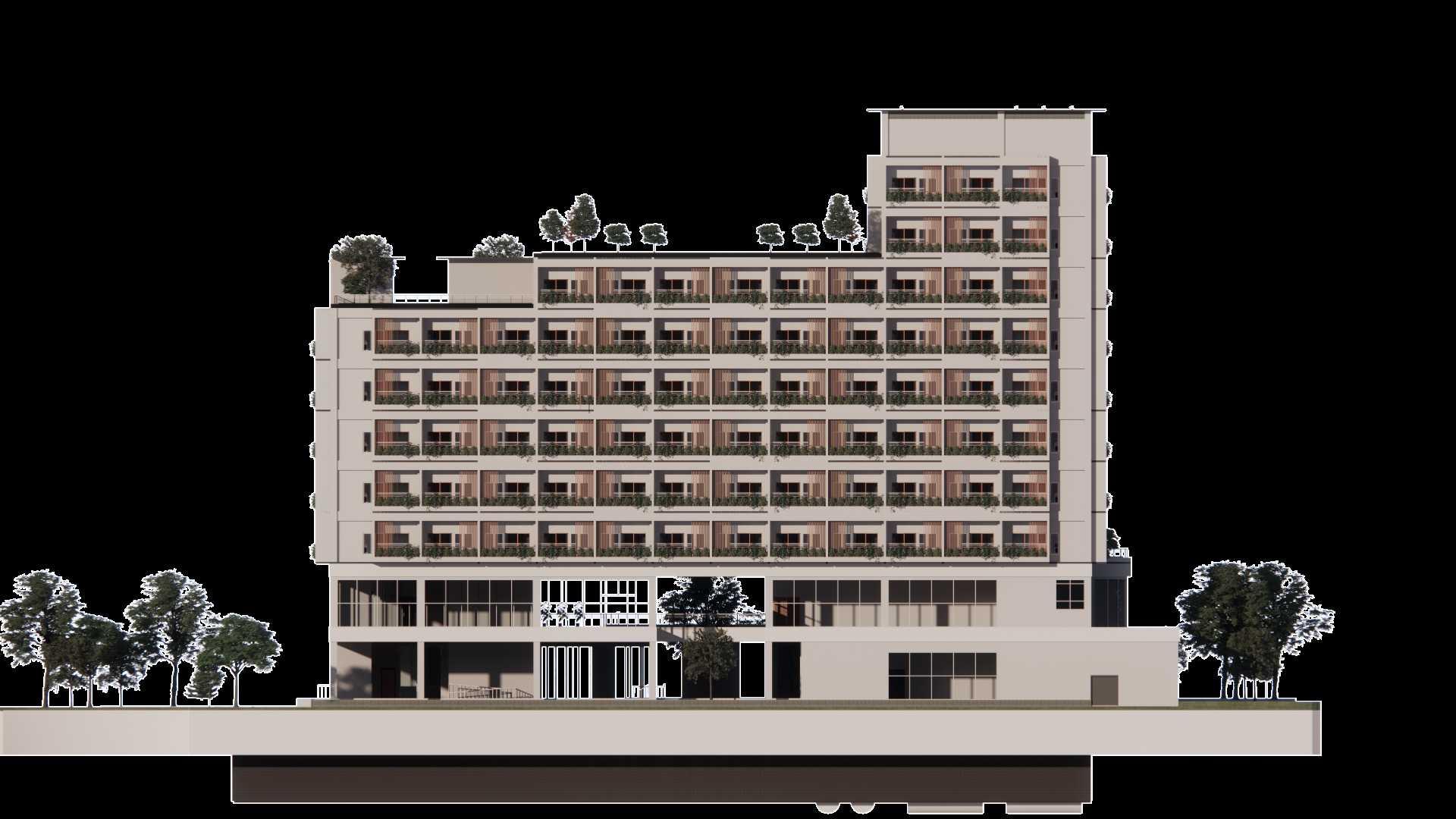

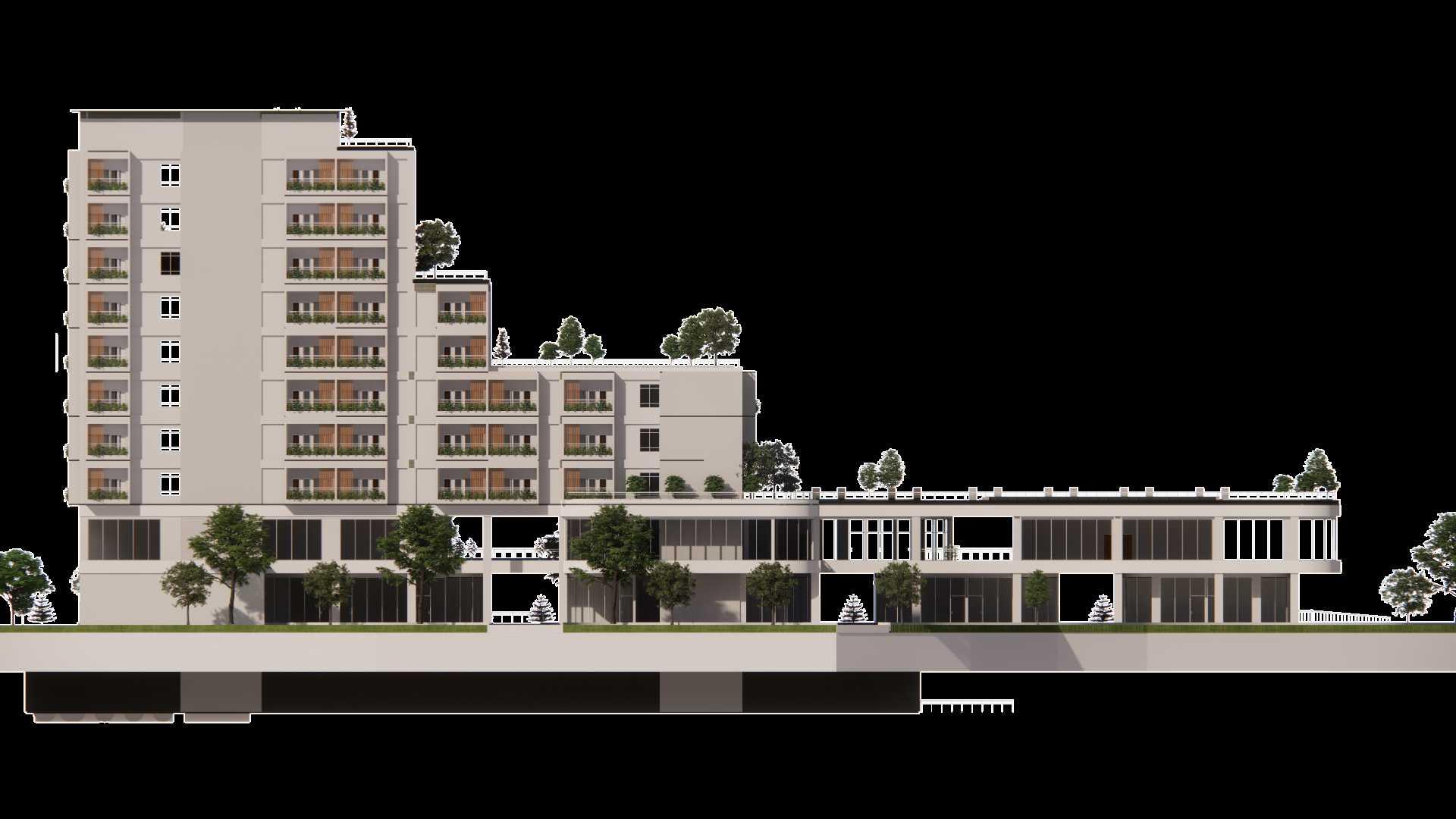

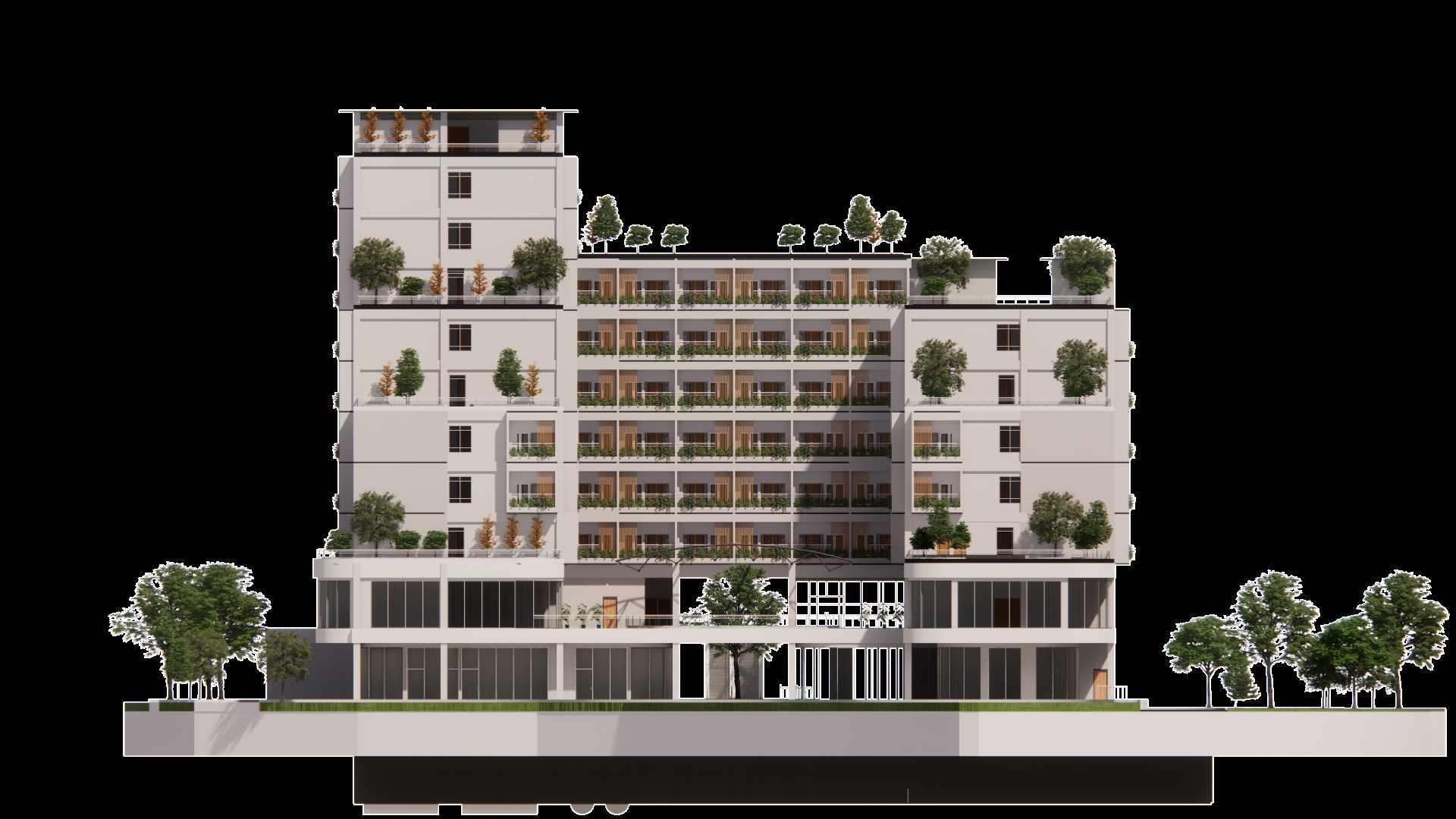

SOUTH ELEVATION
EAST ELEVATION

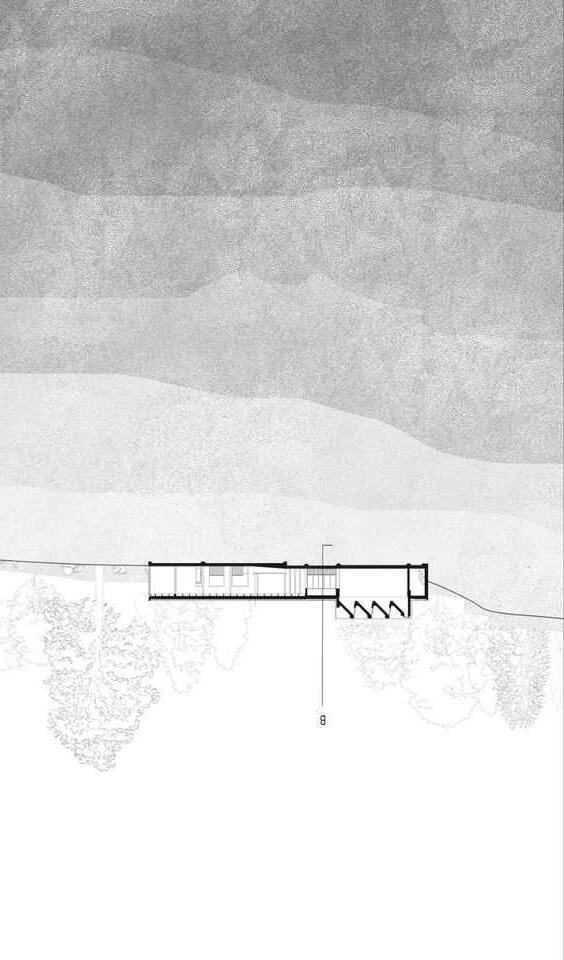

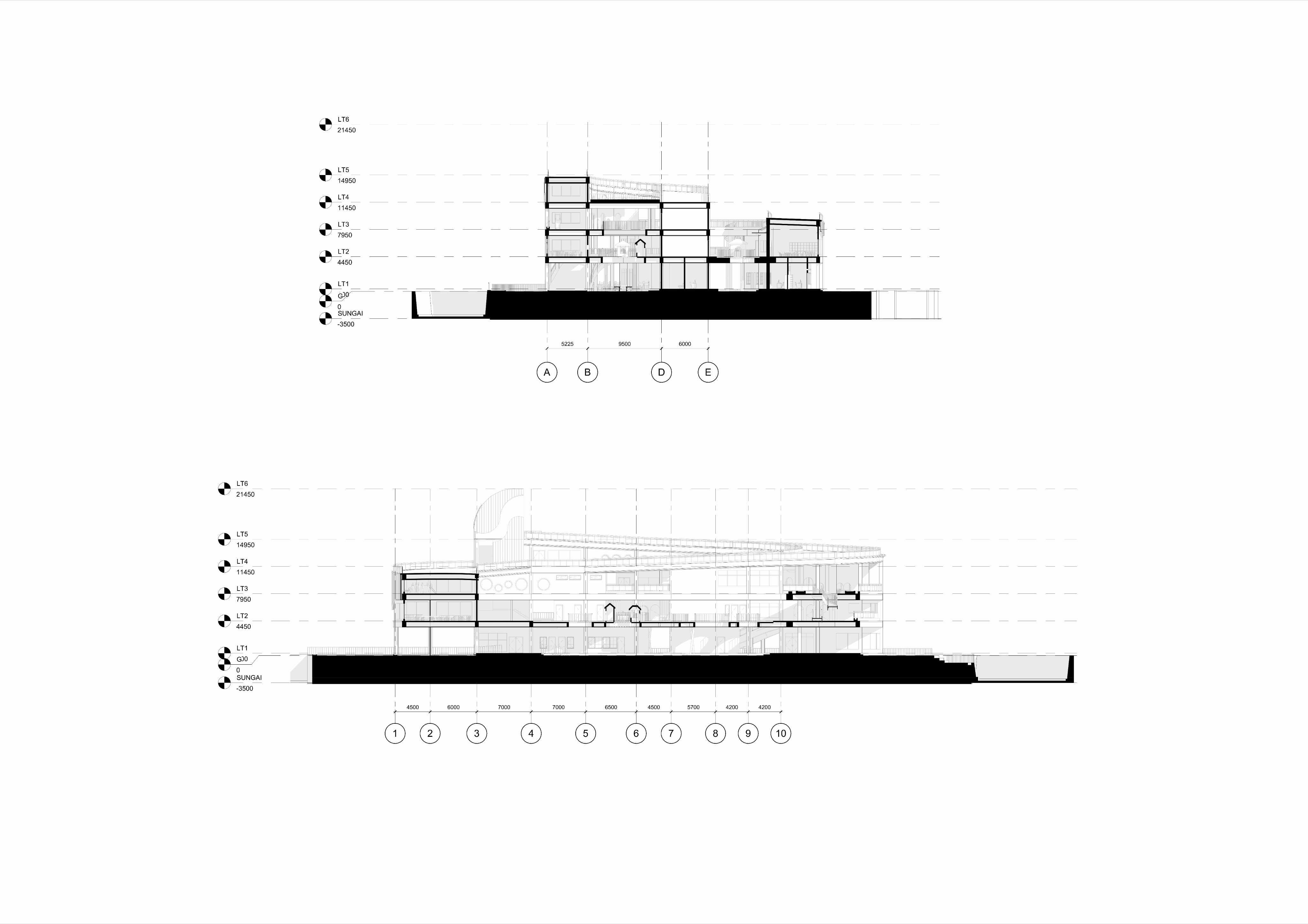

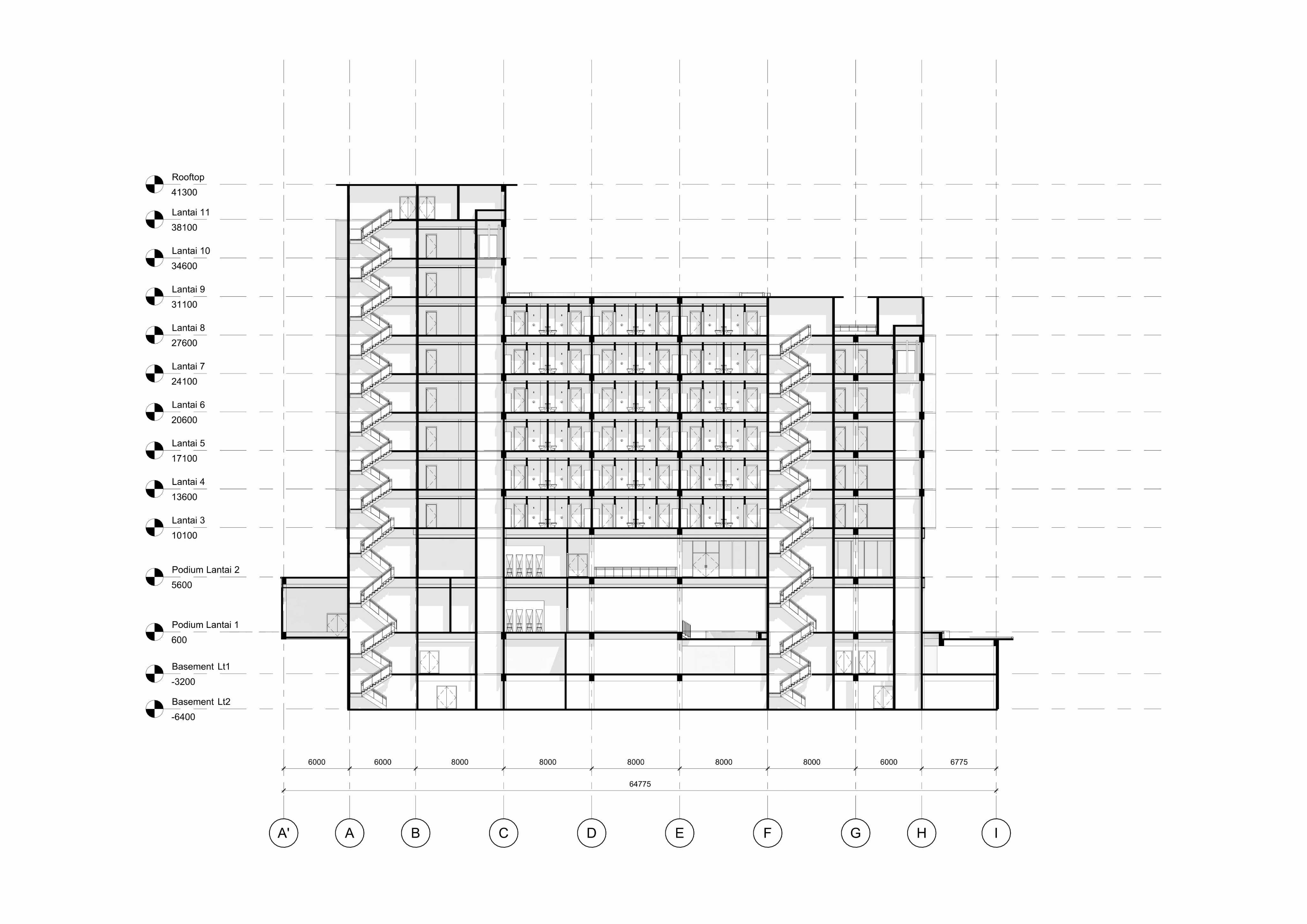

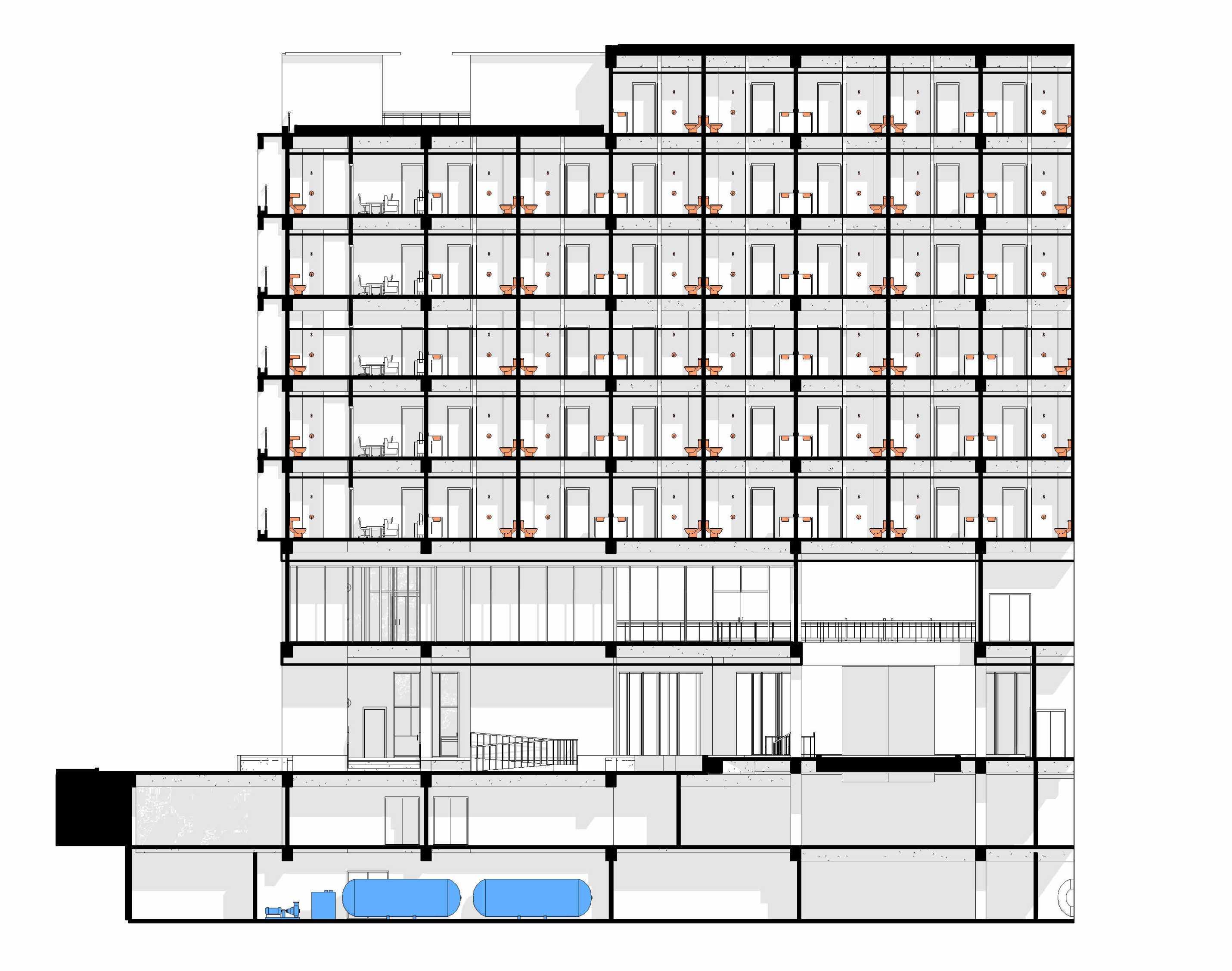

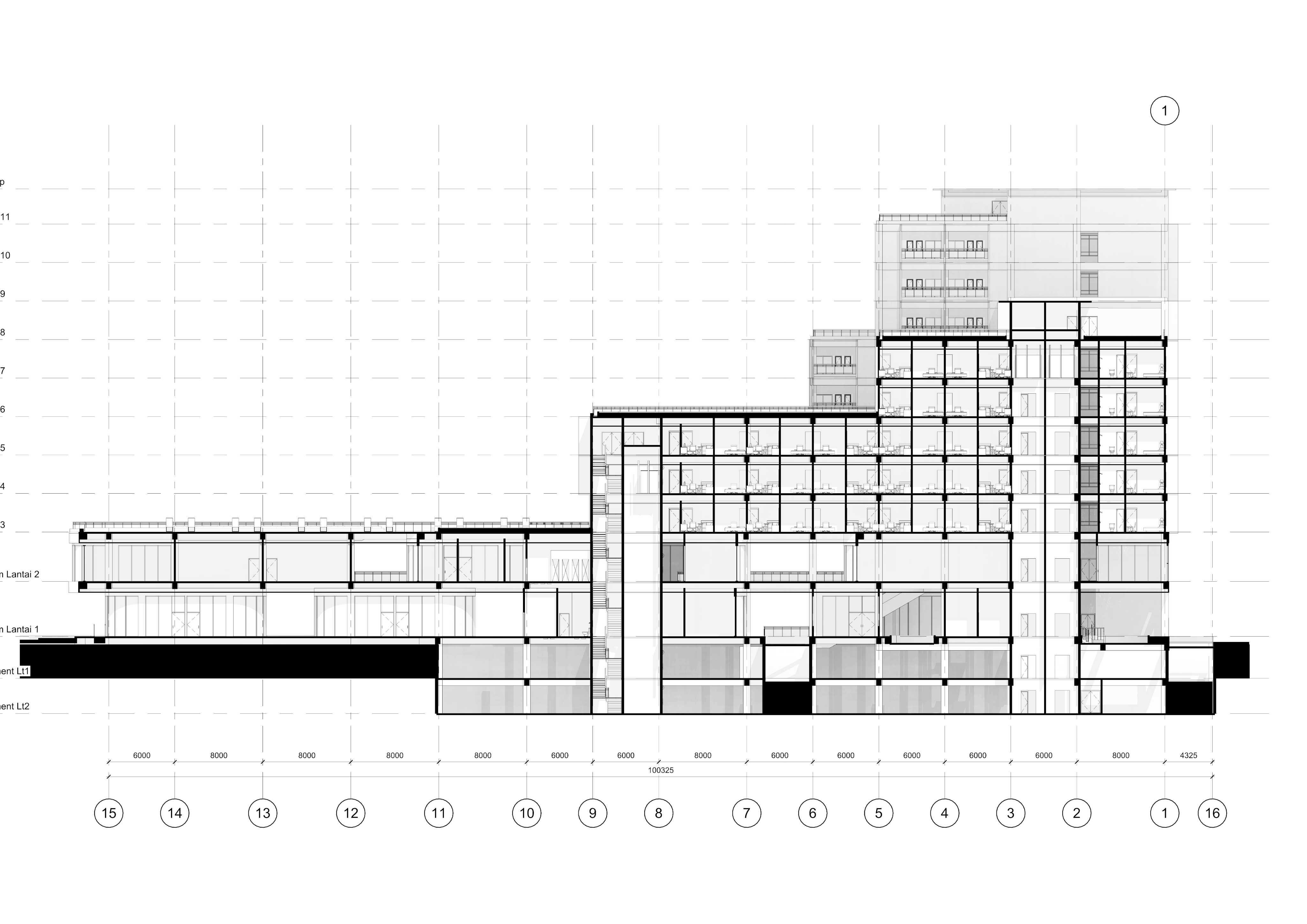

LONGITUDINAL SECTION
Sustainable Concepts Green
Roof
RAINWATER USE
Rainwater that has been purified and filtered will be channelled within the building and utilized for daily needs such as clean water, plant irrigation, and toilet use.
COLLECTION CONTAINER
Rainwater, amounting to 70% of the building's clean water requirement, which totals 94,500 liters, will be stored in 11 tanks, each with a capacity of 9,000 liters.

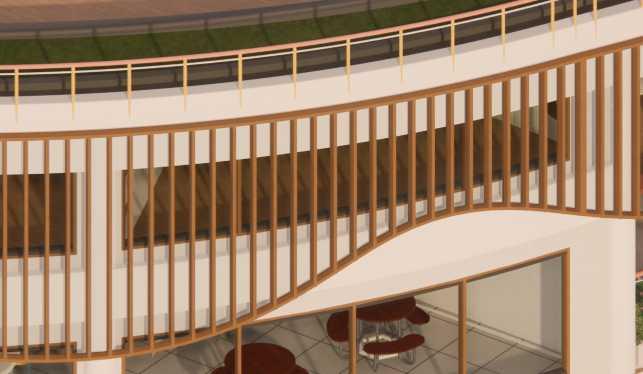

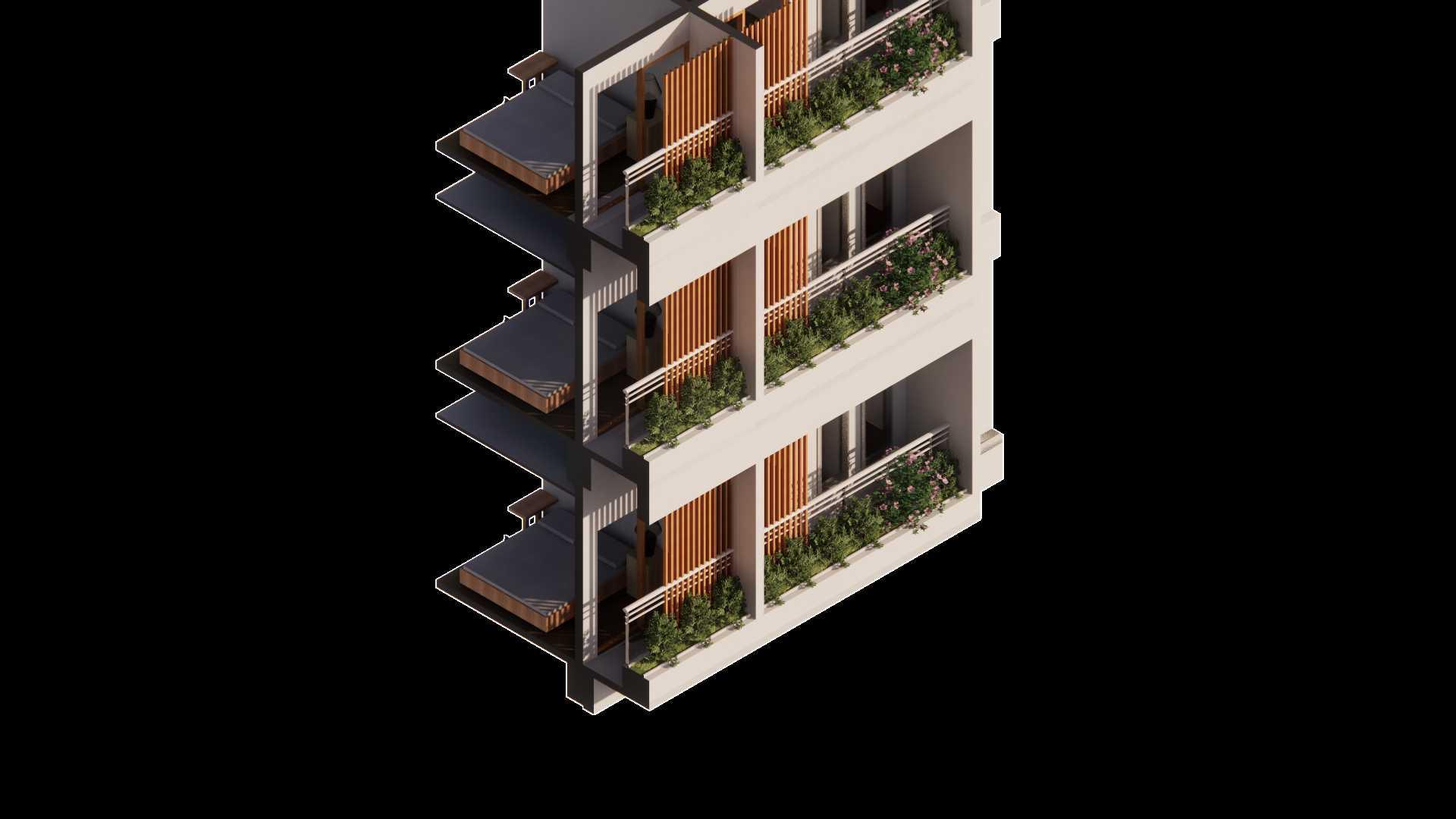

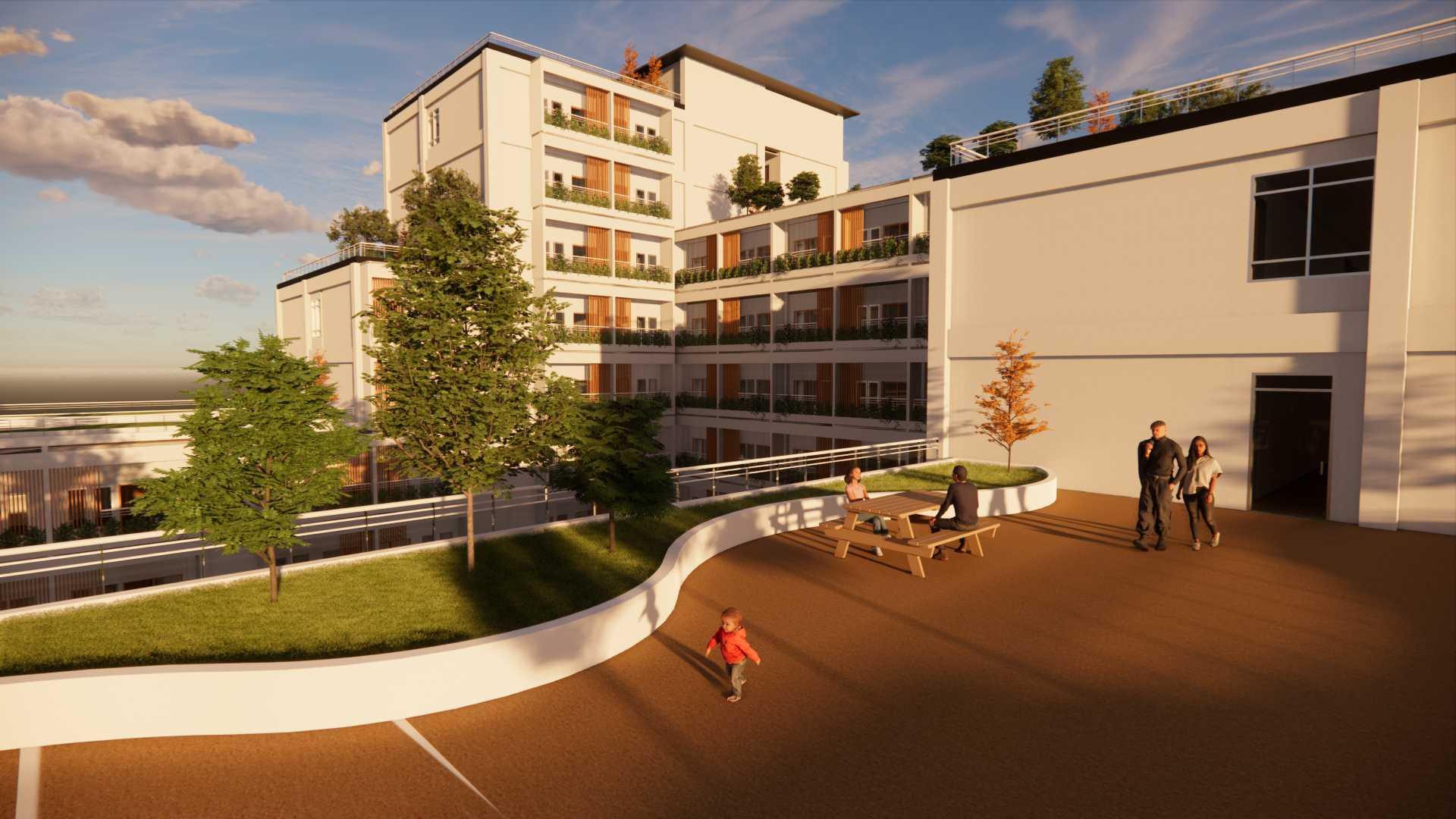

Green Balcony
In response to the east and wooden partitions are used to block sunlight in the morning and afternoon. These green balconies also serve
CATCHMENT AREA
The building mass is designed resembling a terraced levels to function as rainwater retention areas. Rainwater is also collected through balconies in each apartment unit.
CHANNELING SYSTEM
Rainwater from the roof is directed through pipes to the
rainwater tank.

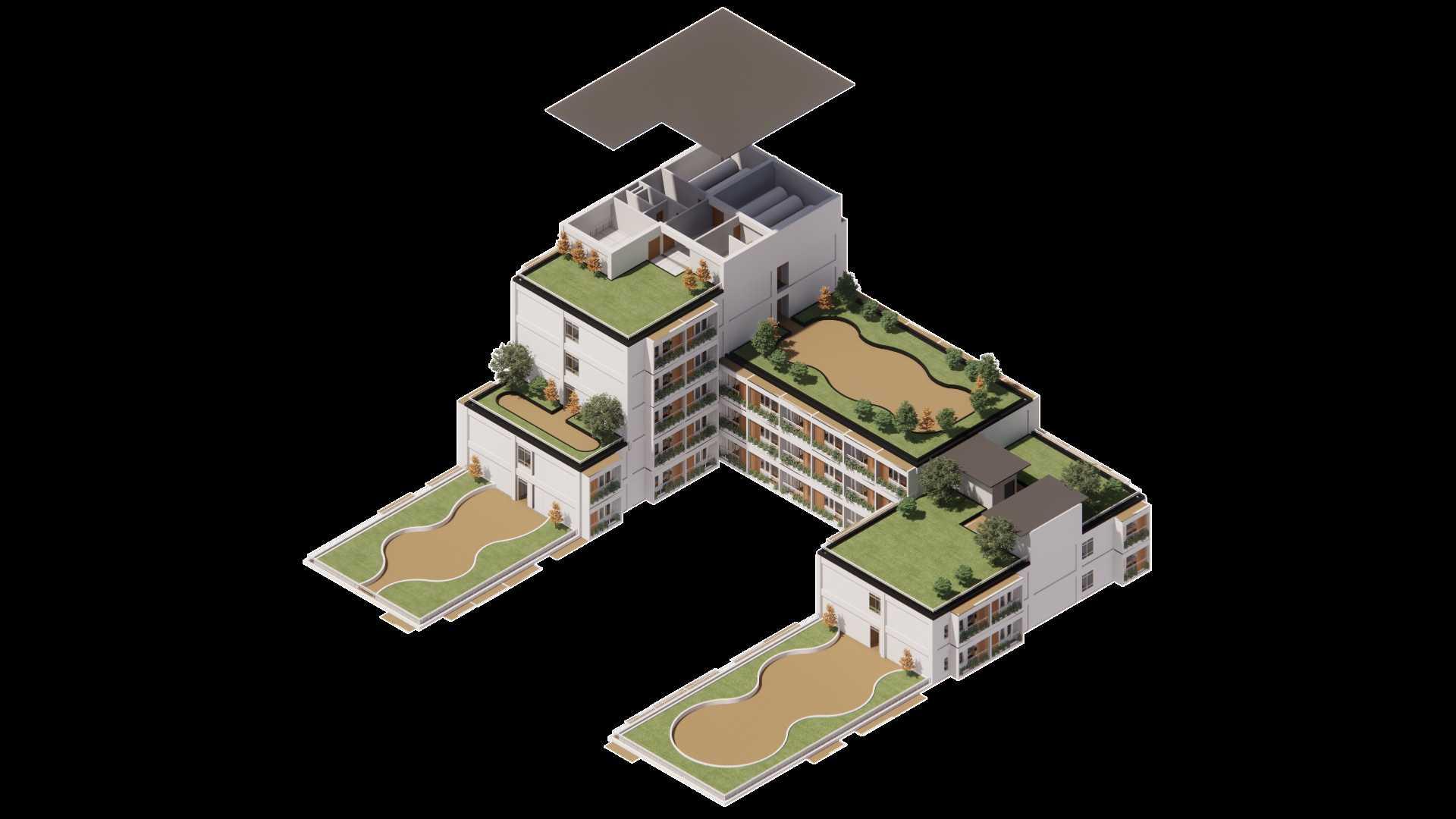

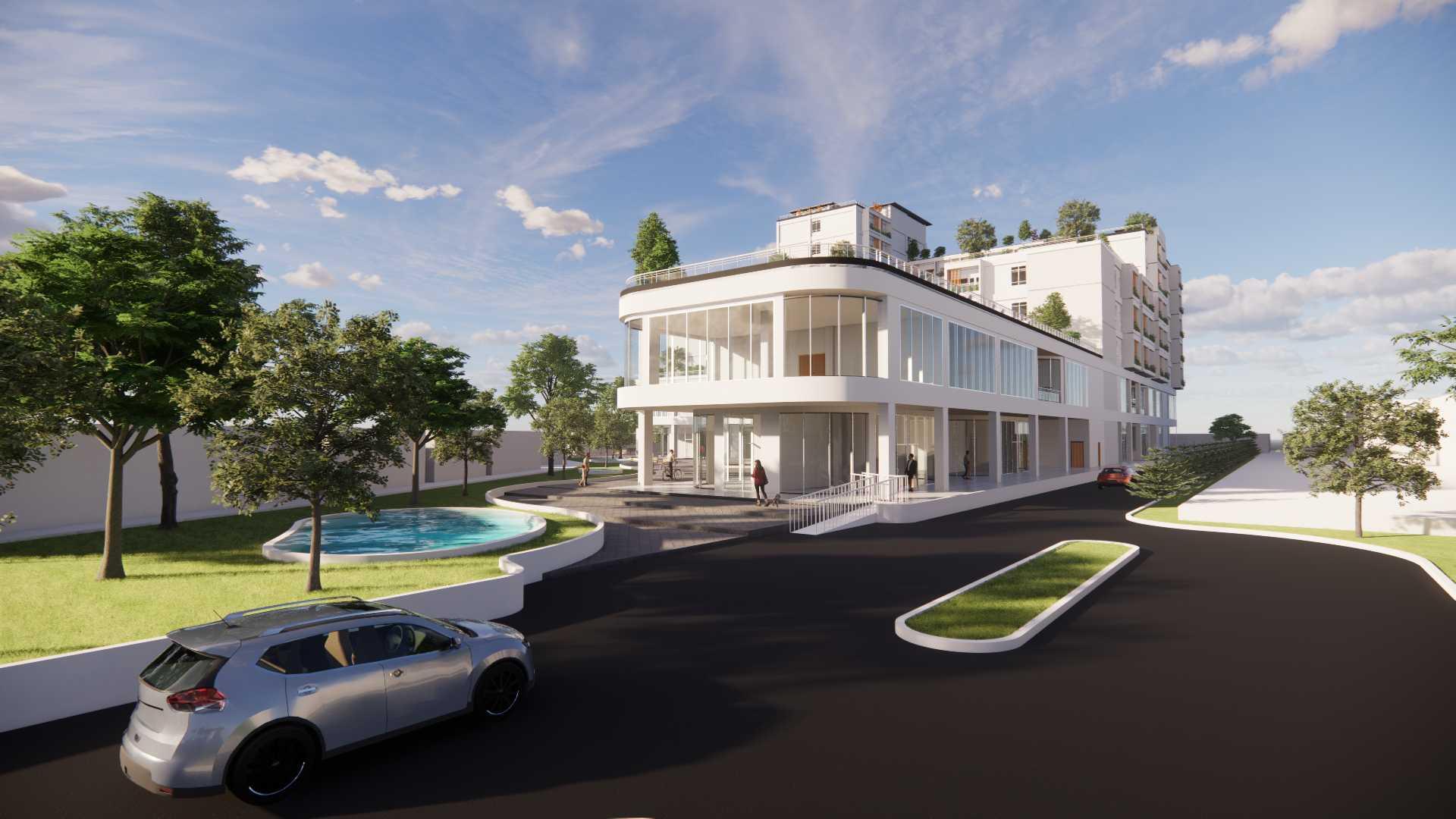

Design Features
ROOF TANK
RAW WATER
POTABLE WATER

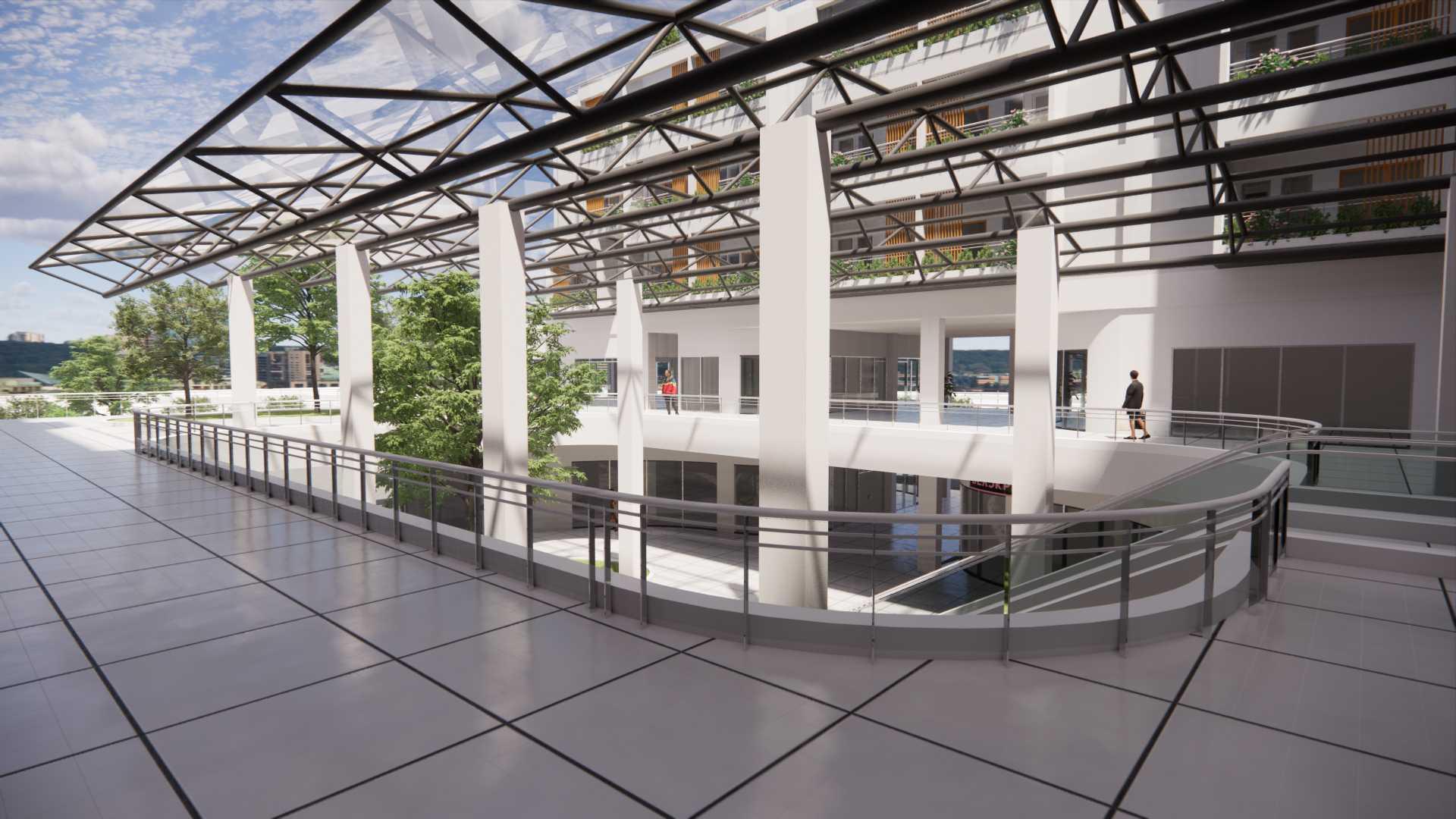

TRANSPARENT CANOPY

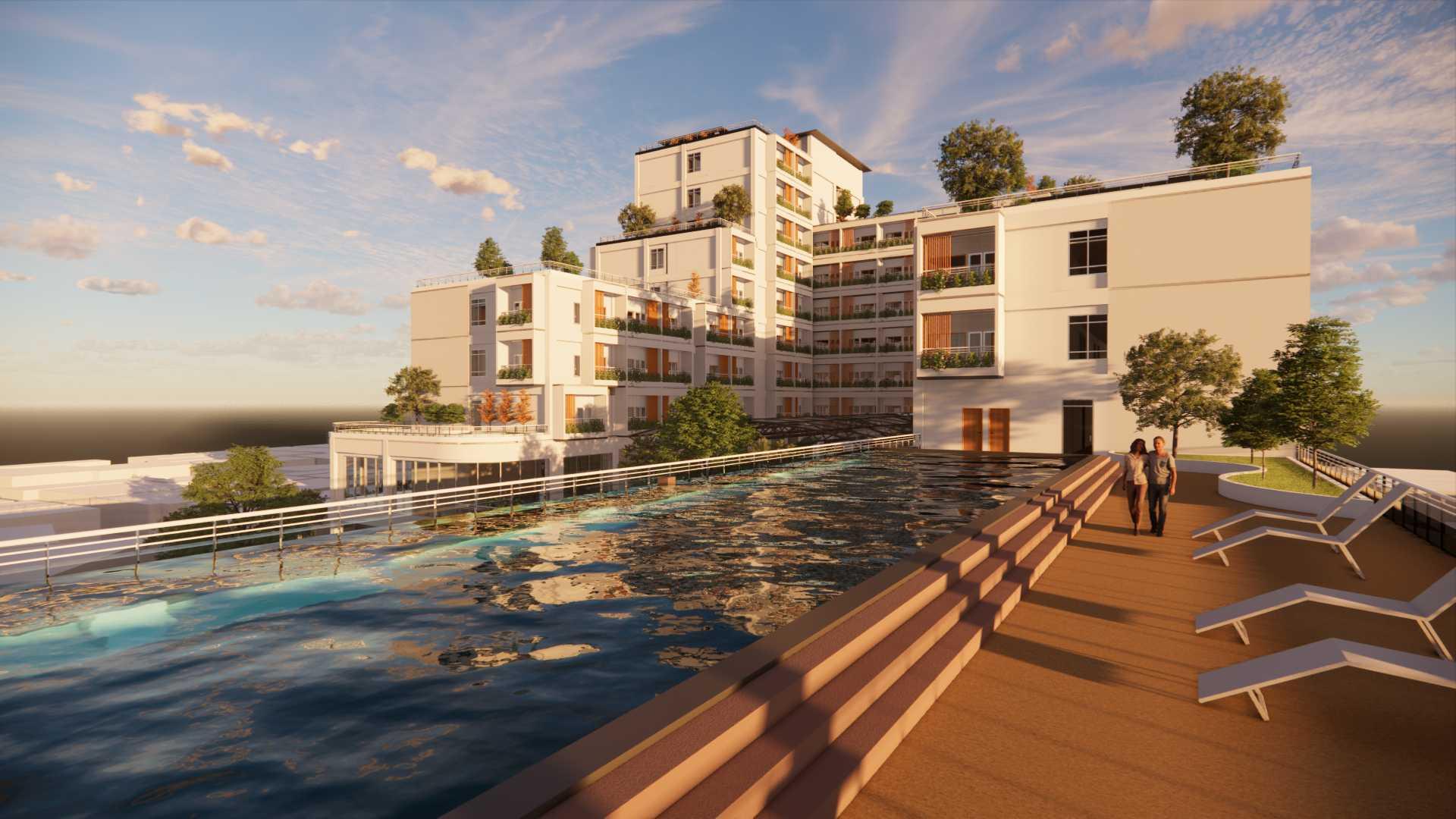

PUBLIC SWIMMING POOL
ARCADE
ABSORPTION POND
GREEN ROOF
COMMUNAL SPACE
RAINWATER HARVESTING

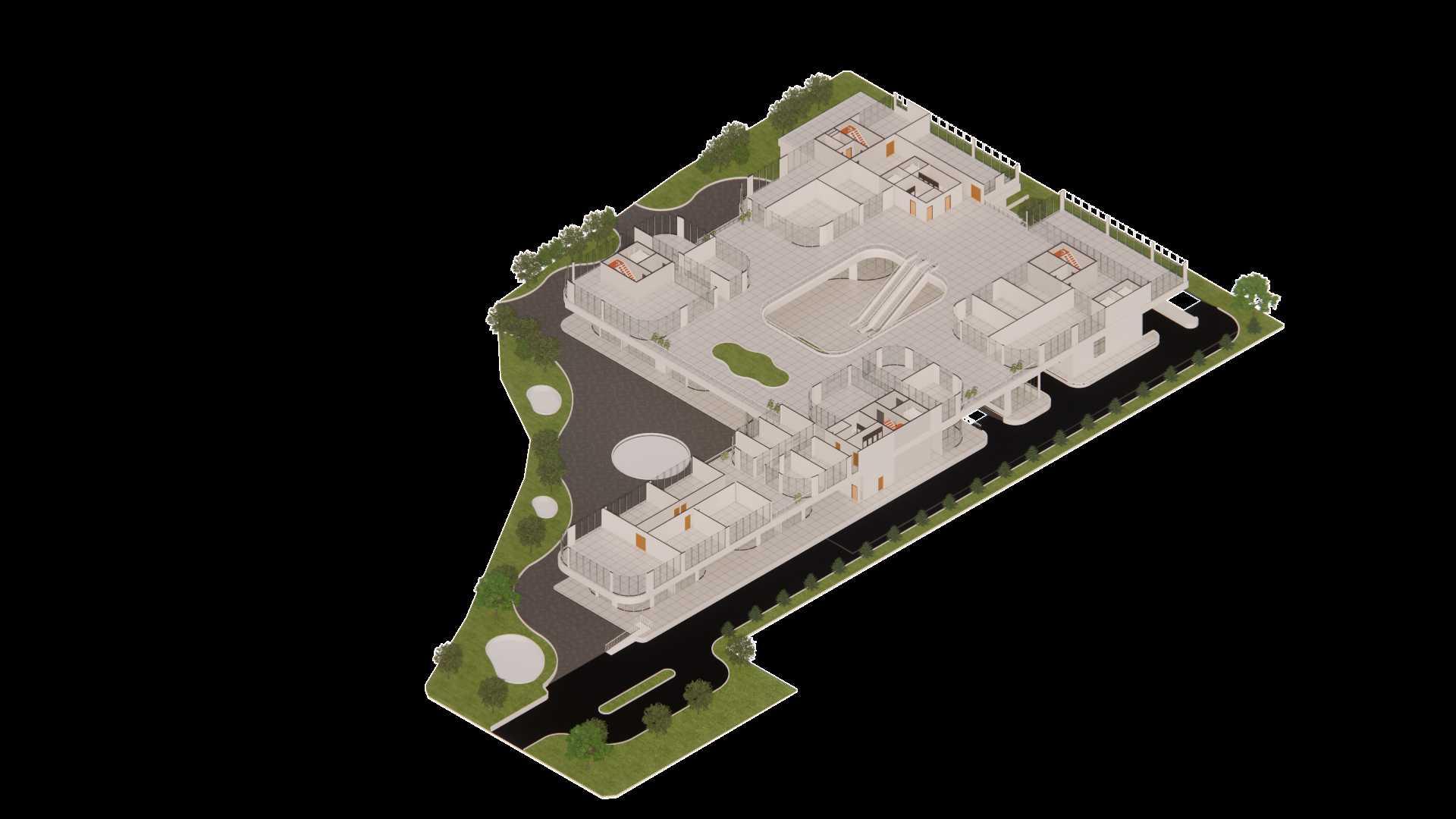

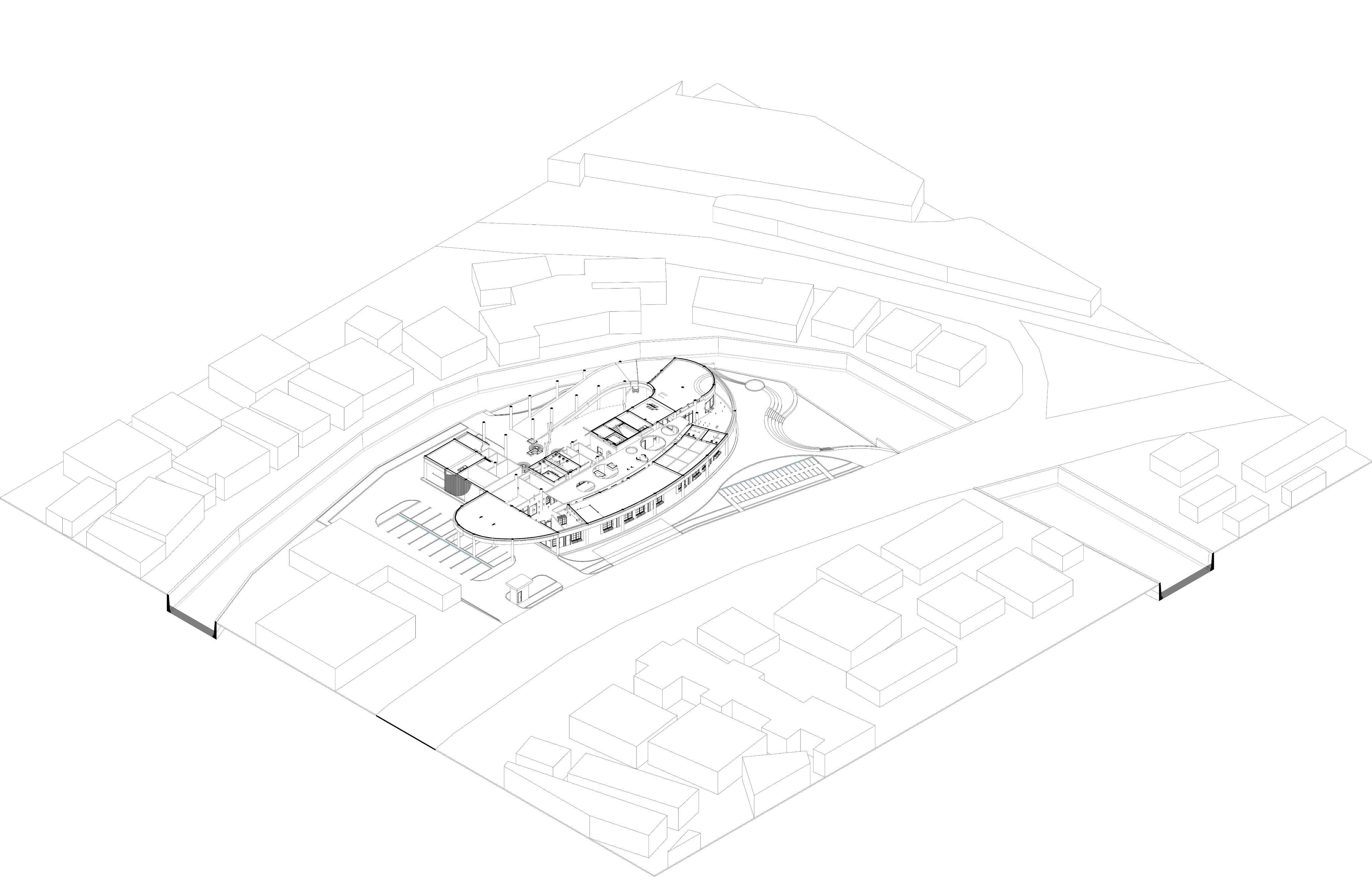

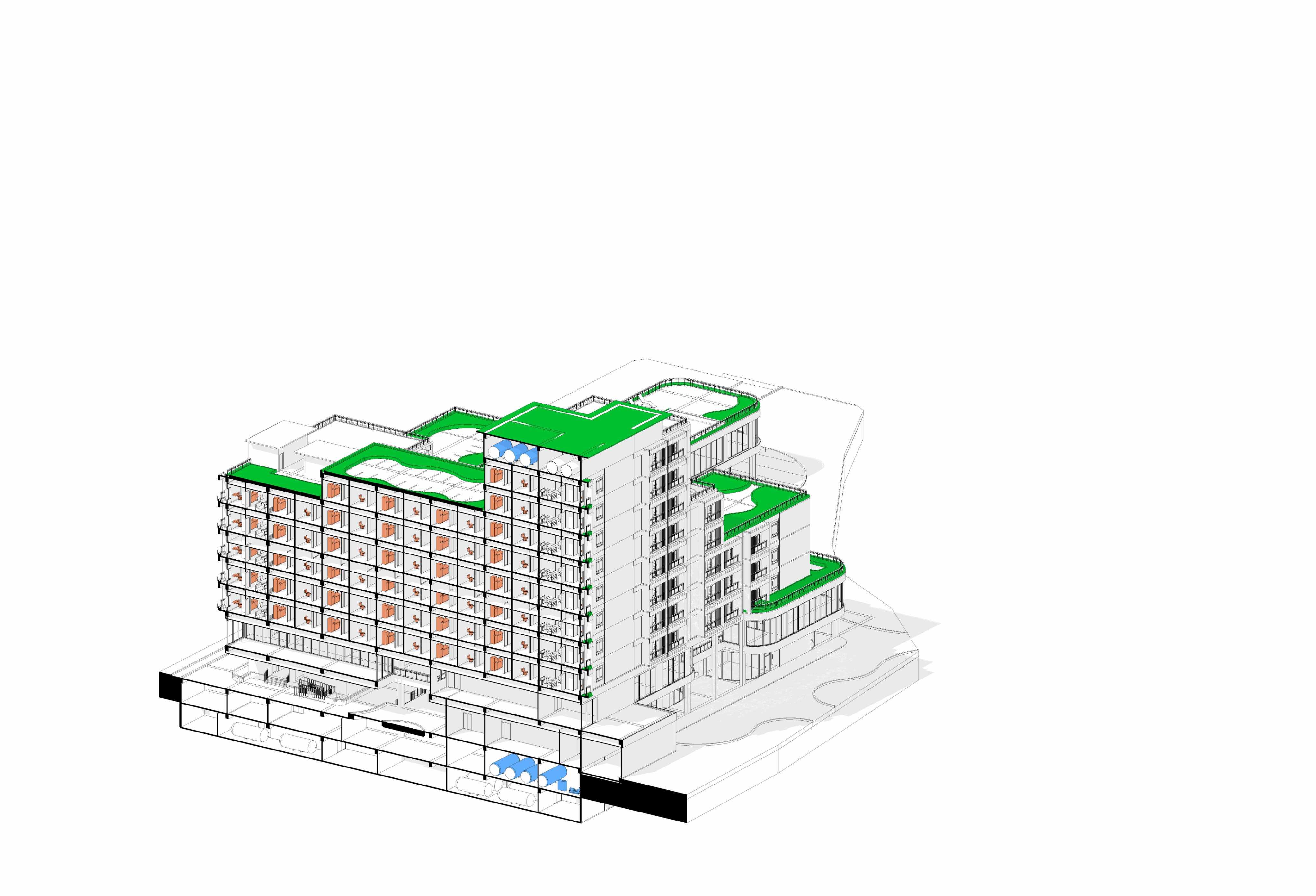

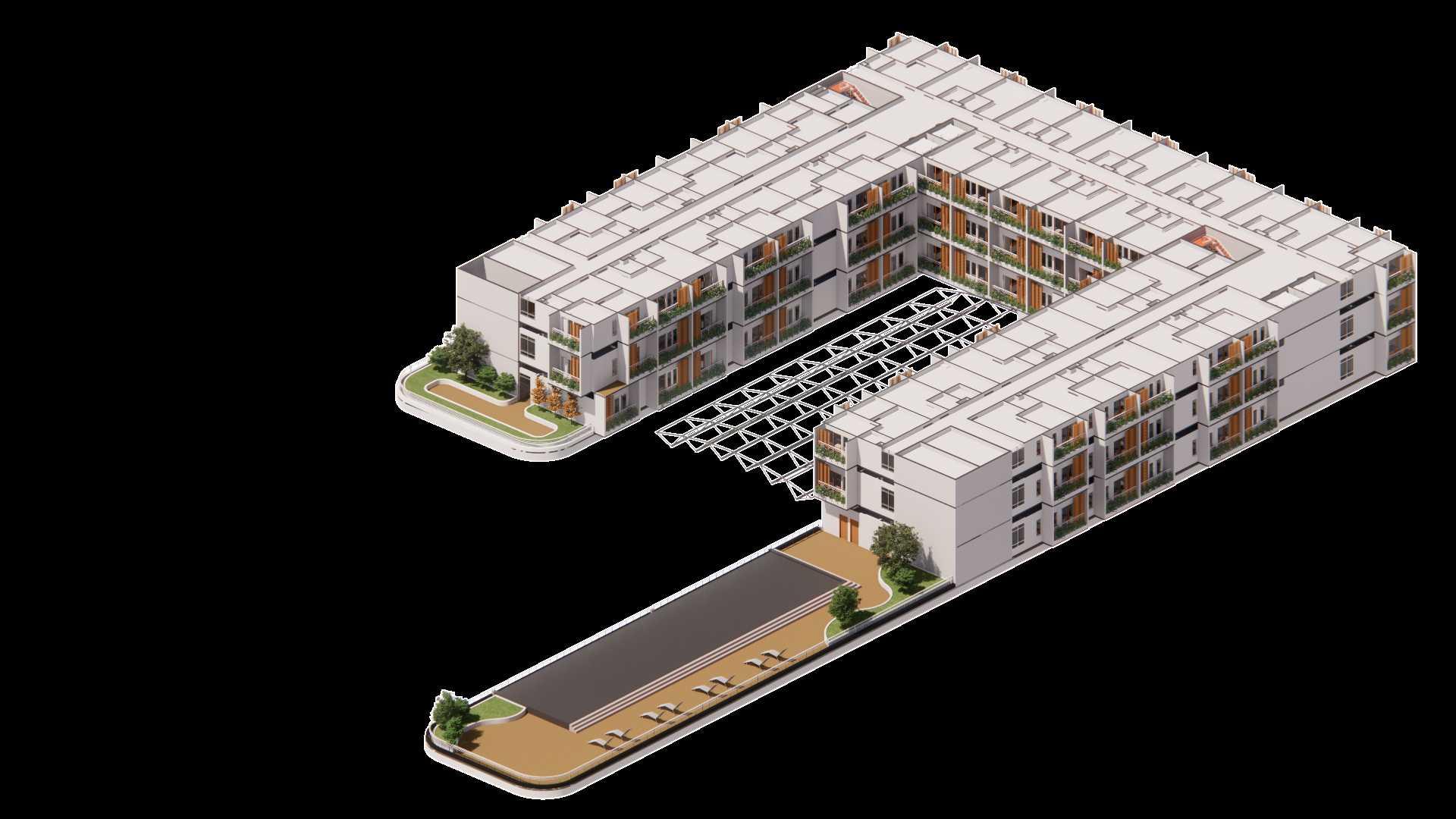

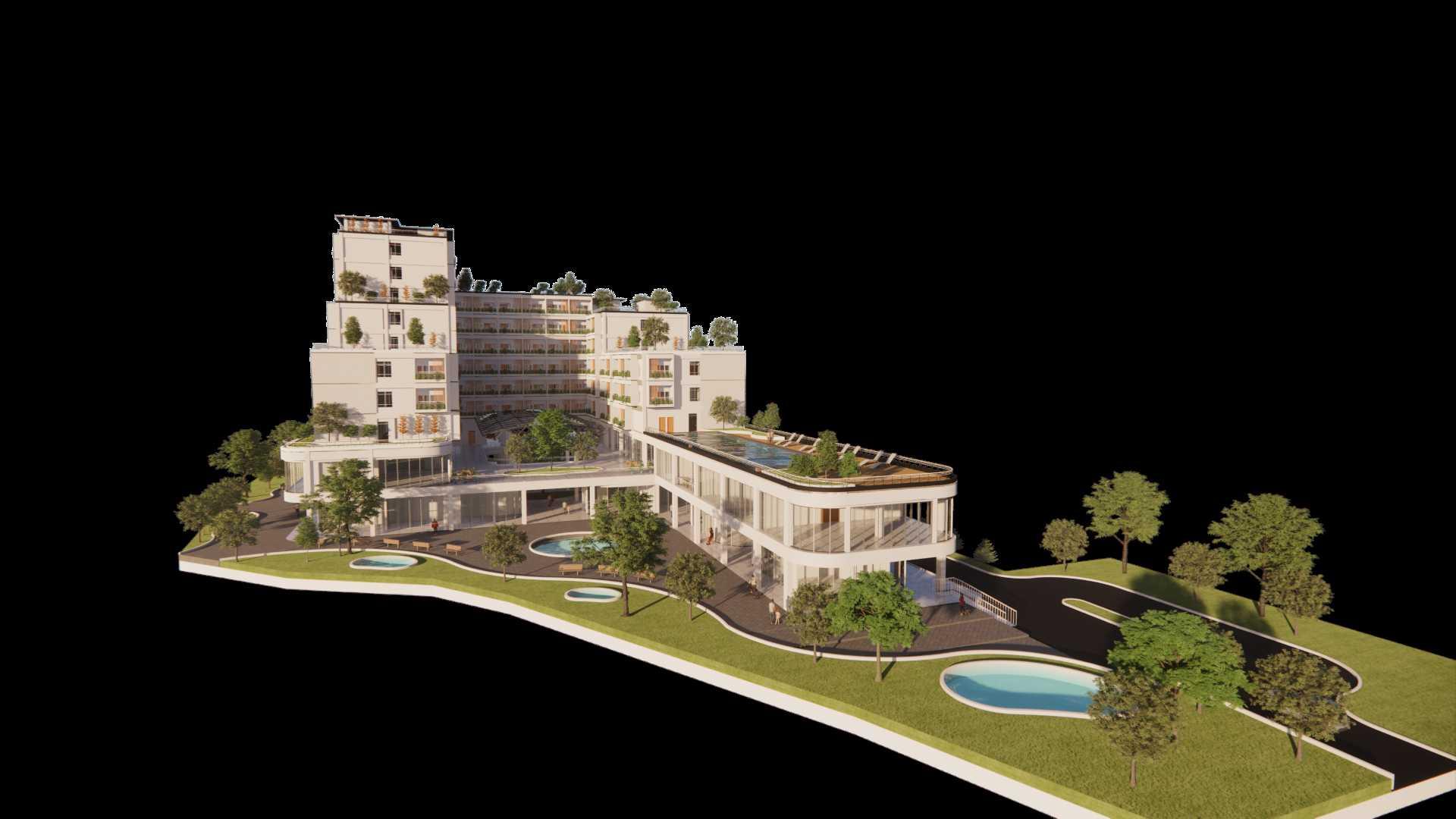

bird eye perspective
SUN SHADING
RAINWATER HARVESTING

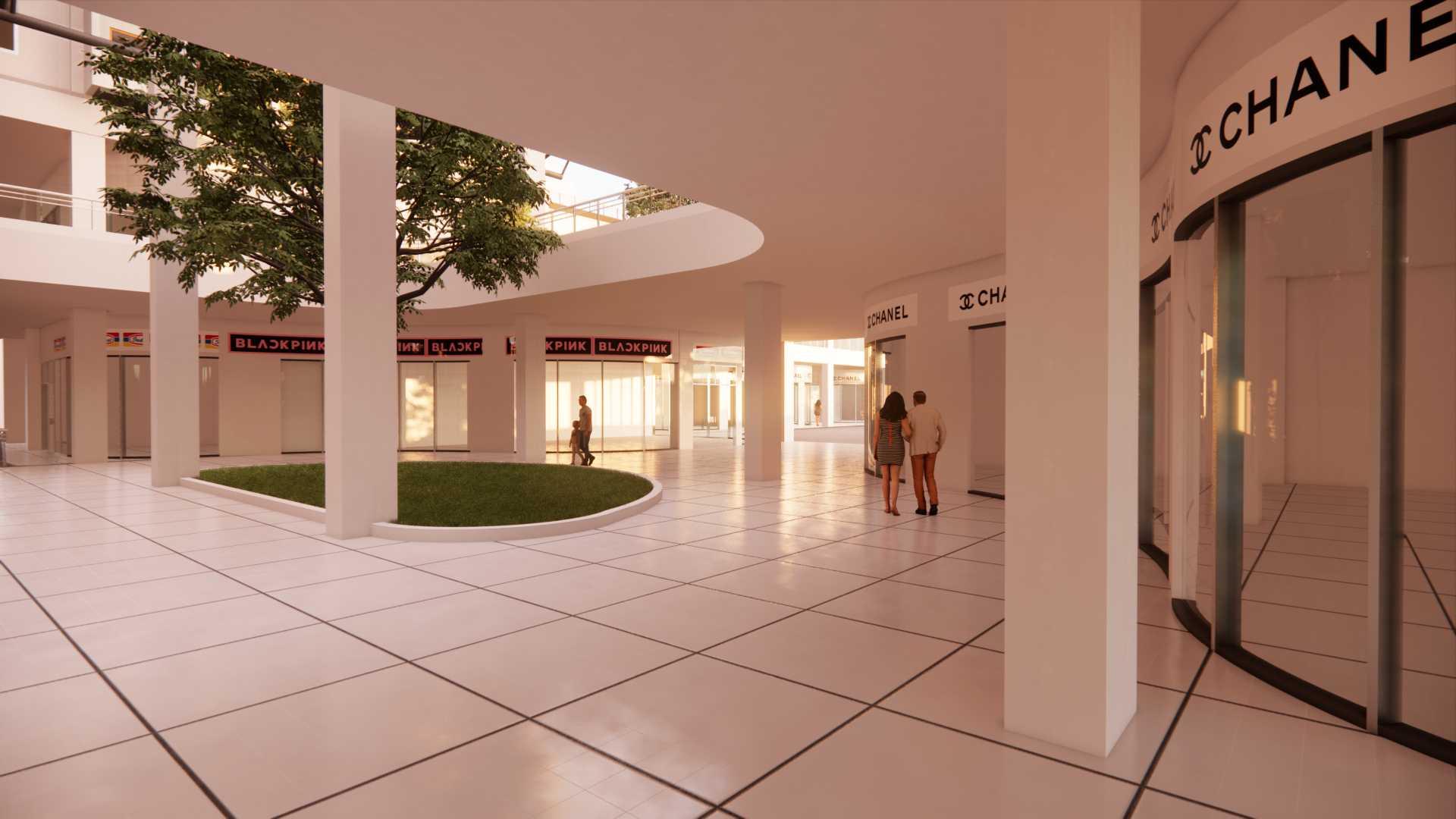

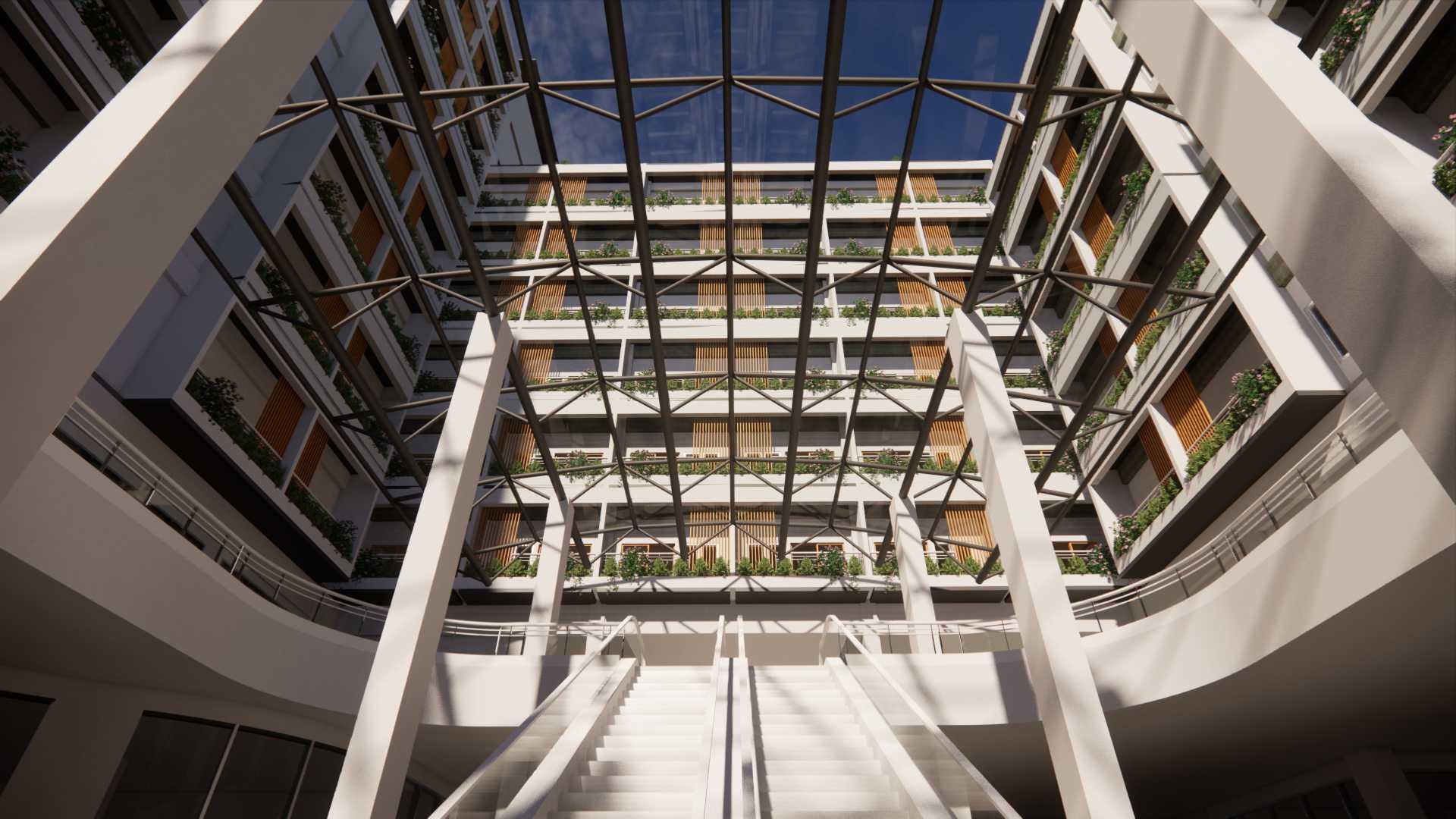

CENTRAL ATRIUM
PERMEABILITY
COMMUNAL SPACE
WATER TANKS
GREEN BALCONY
Paksya Pavilion
a collaboration project of 3 person | third-year form and structure studio |2023
Supervisor: Prof. Dr. Ir. Surjamanto Wonorahardjo, M.T.
Tools: AutoCAD, Rhino, Grasshopper, Enscape, Figma

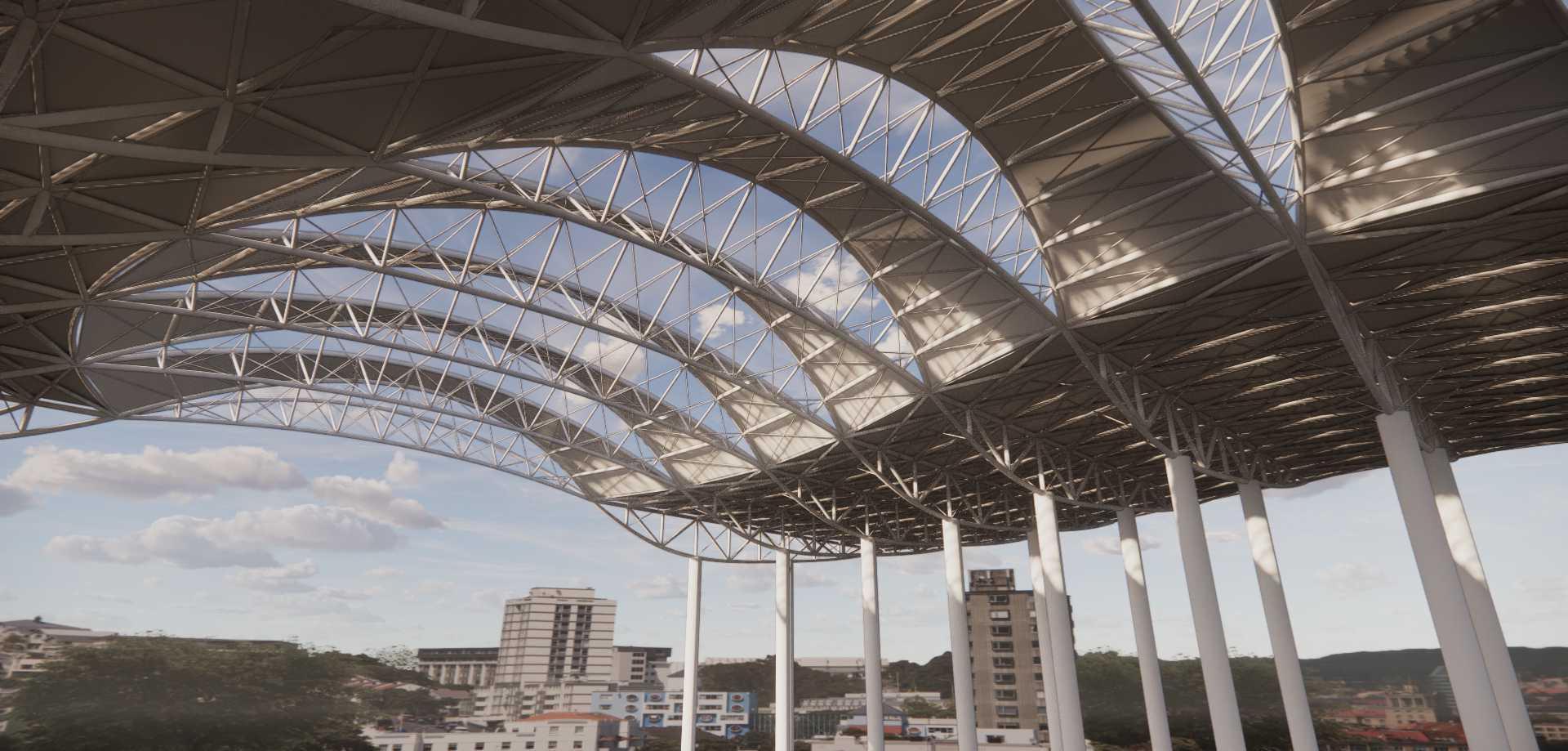

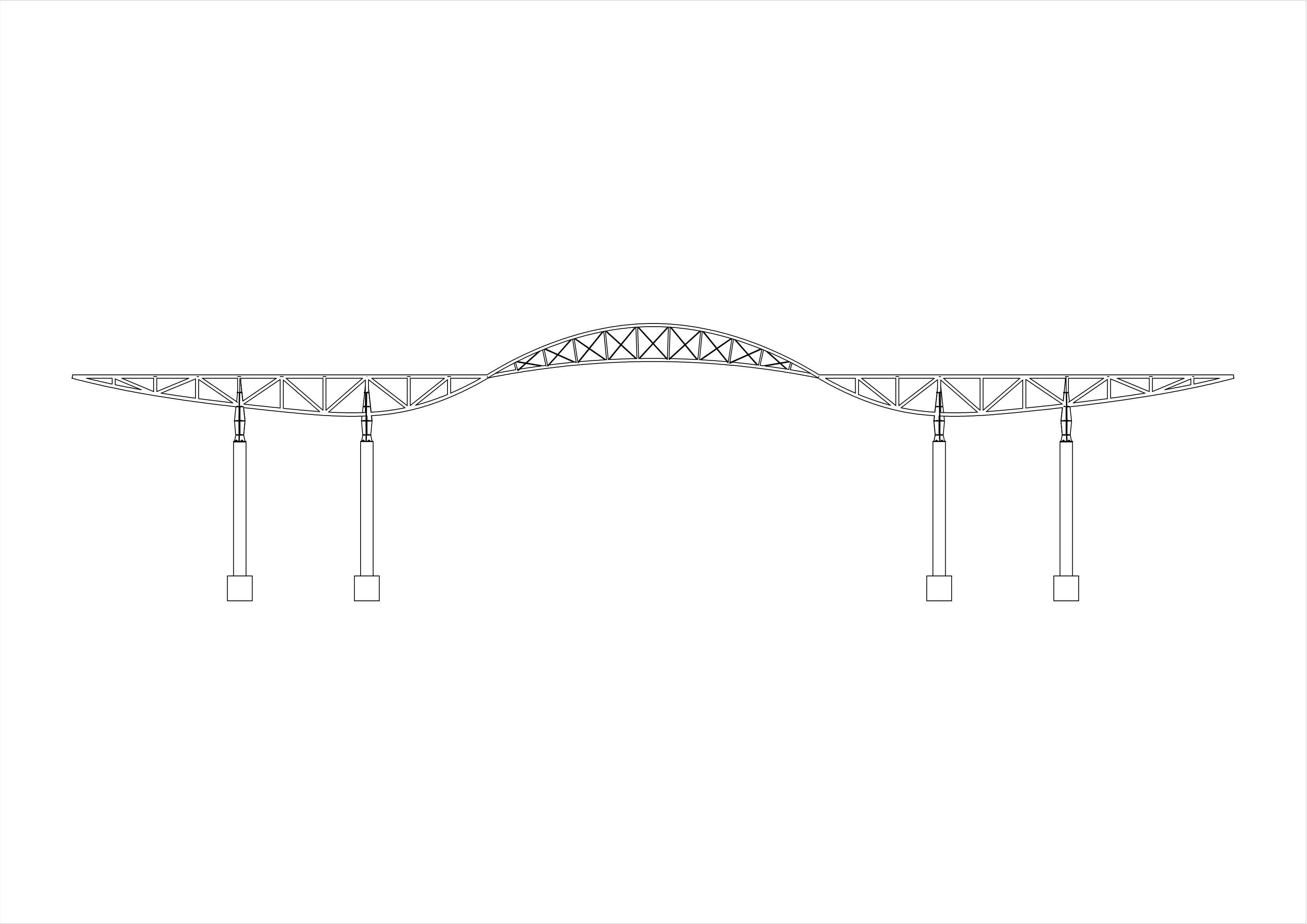

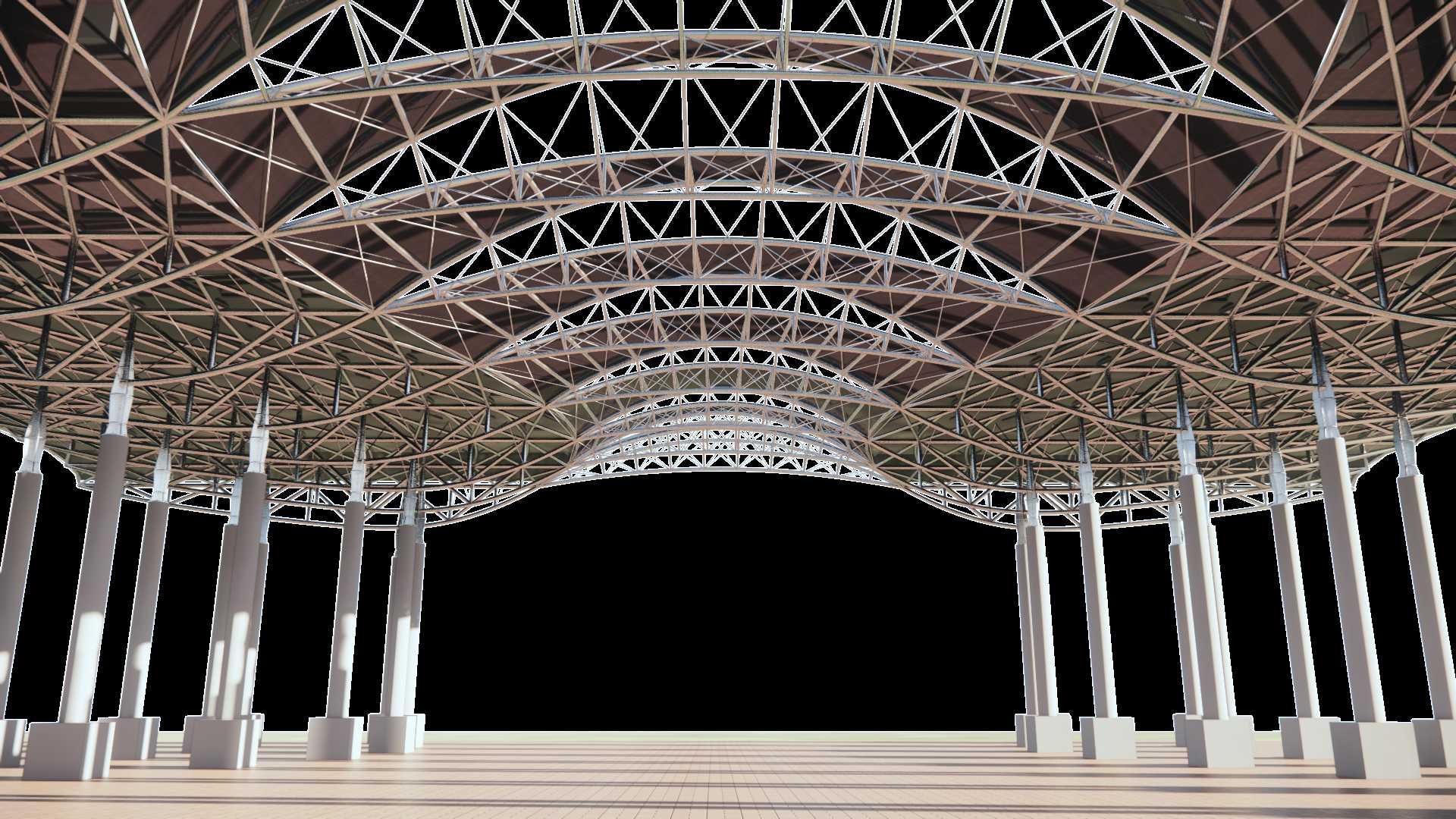

This project was completed within four weeks. In this project, my team elaborated the vector active system. Vector active system works through composition of compression and tension members or structure systems in coactive tension and compression. In this opportunity, along with my two teammates, we used space truss and flat truss system.

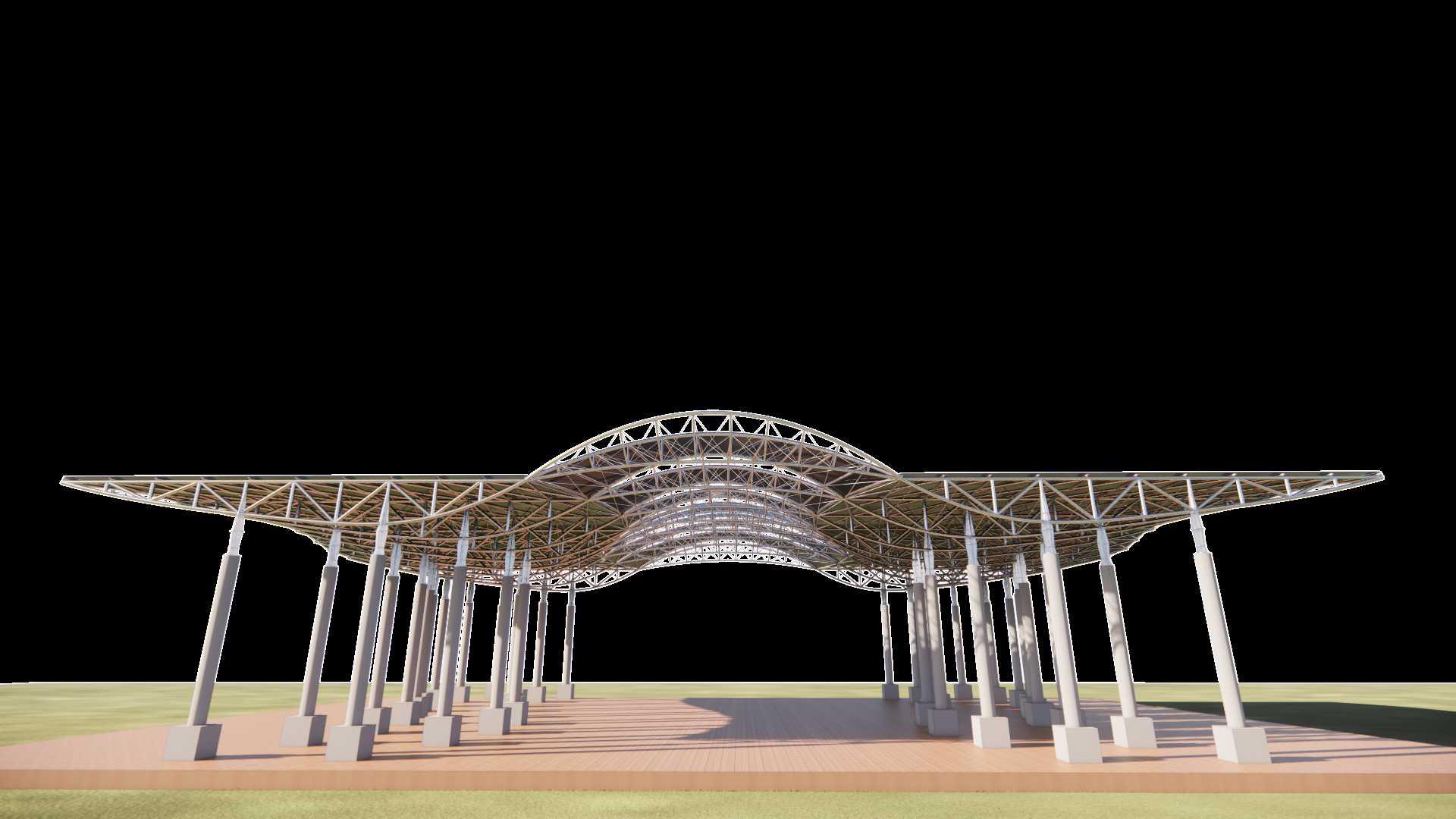

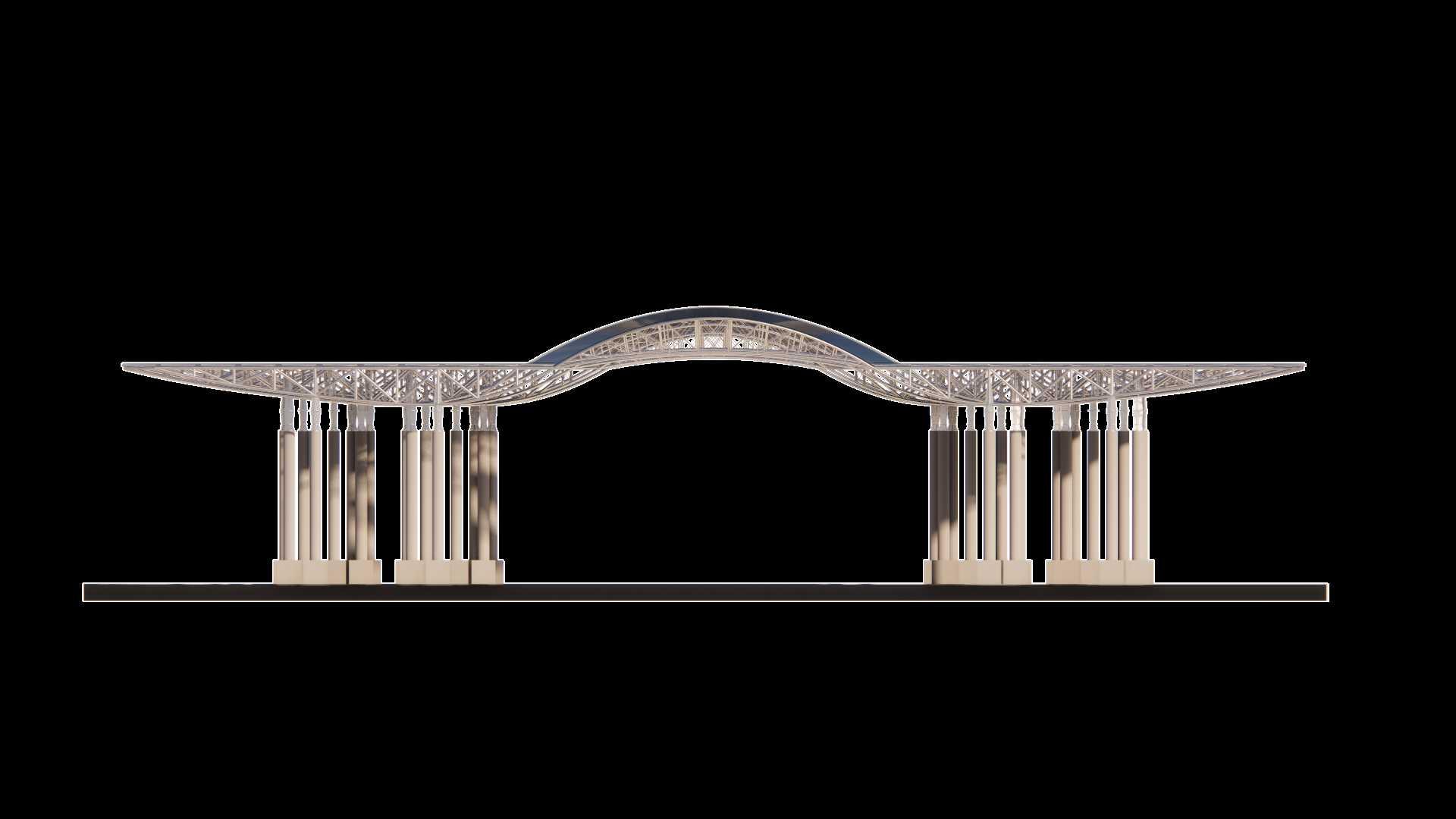

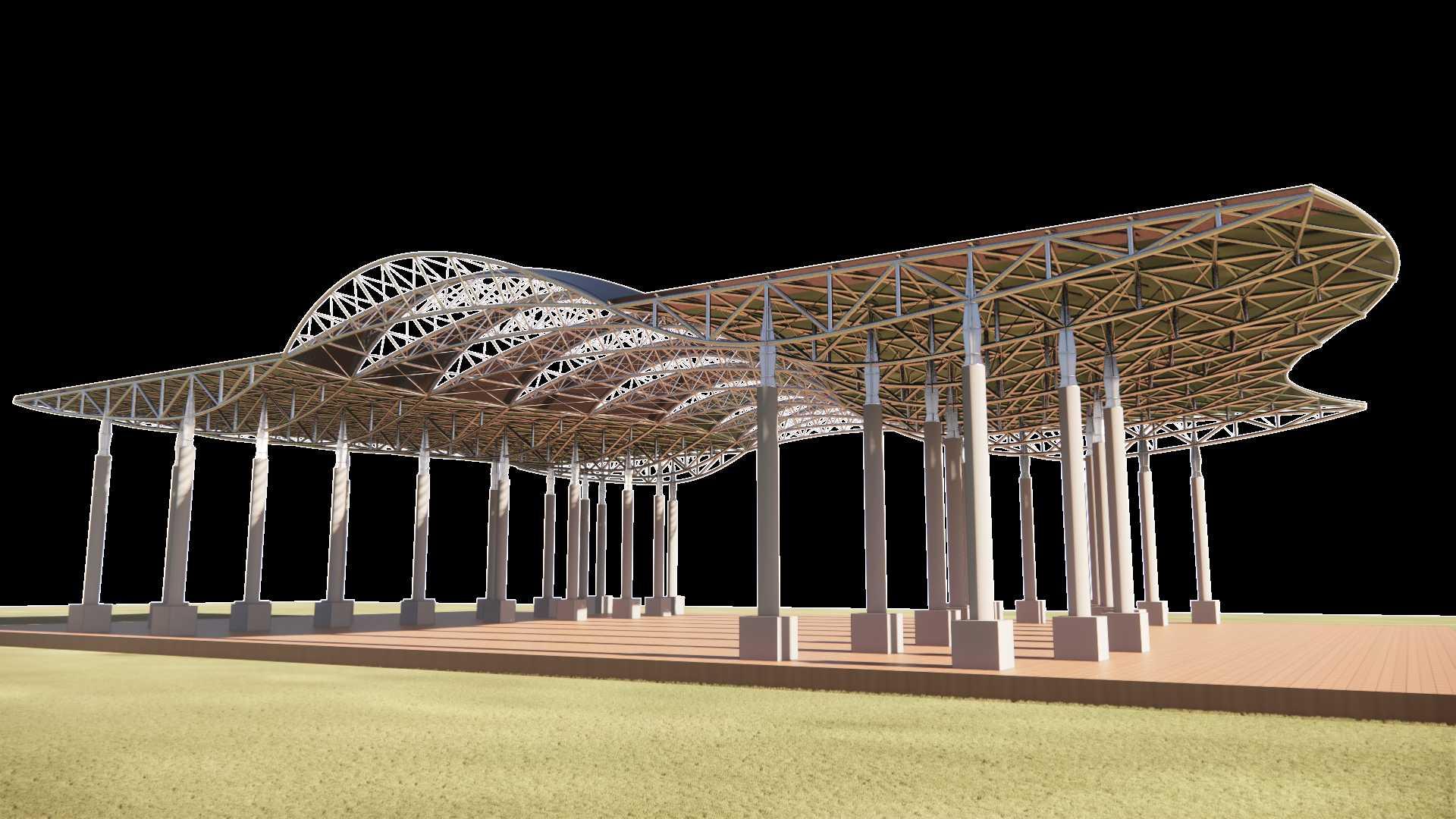

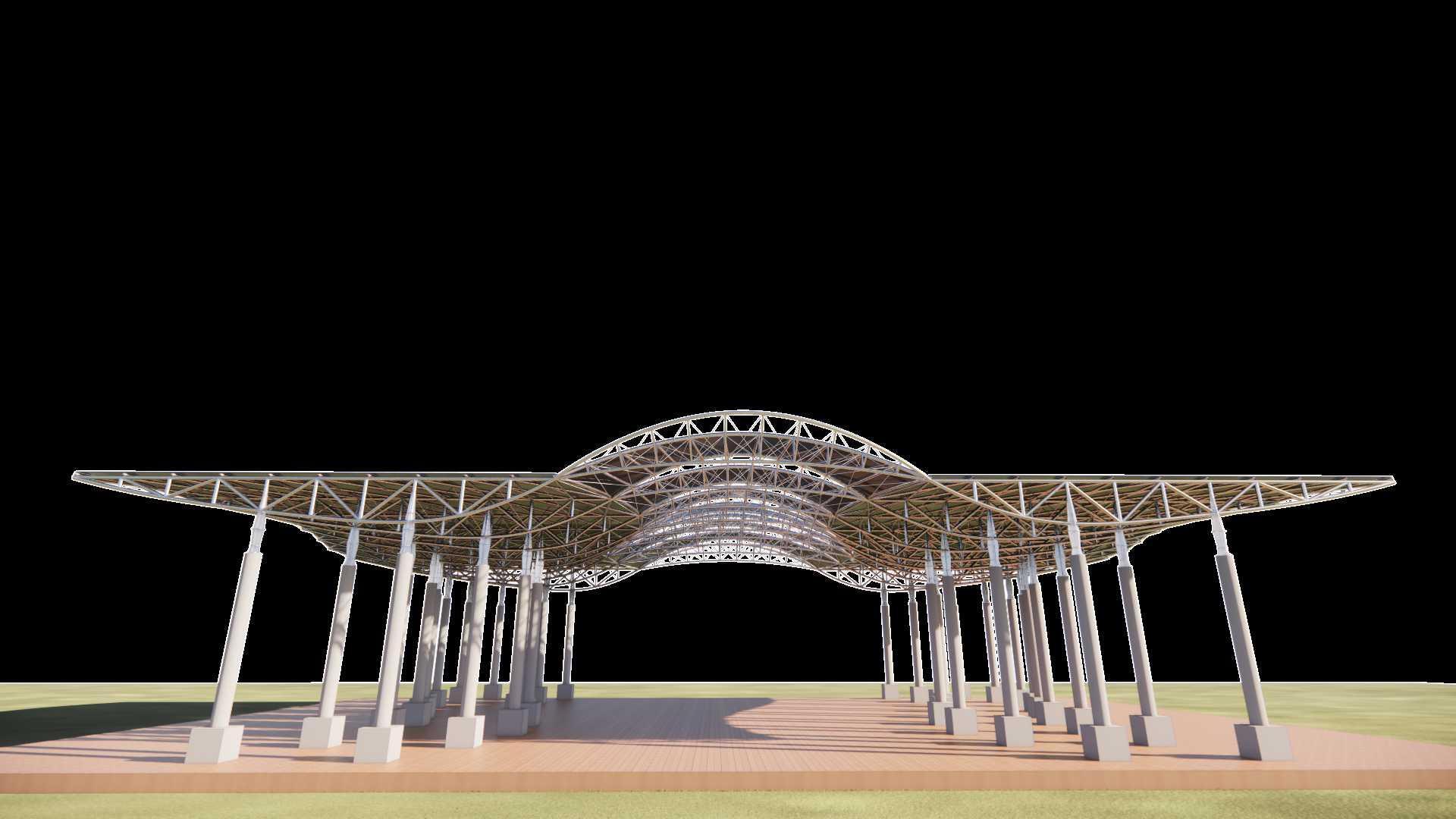

PAKSYA PAVILION
Design Modification
INITIAL DESIGN
The initial design resembles an eye lens that is repeated three times.

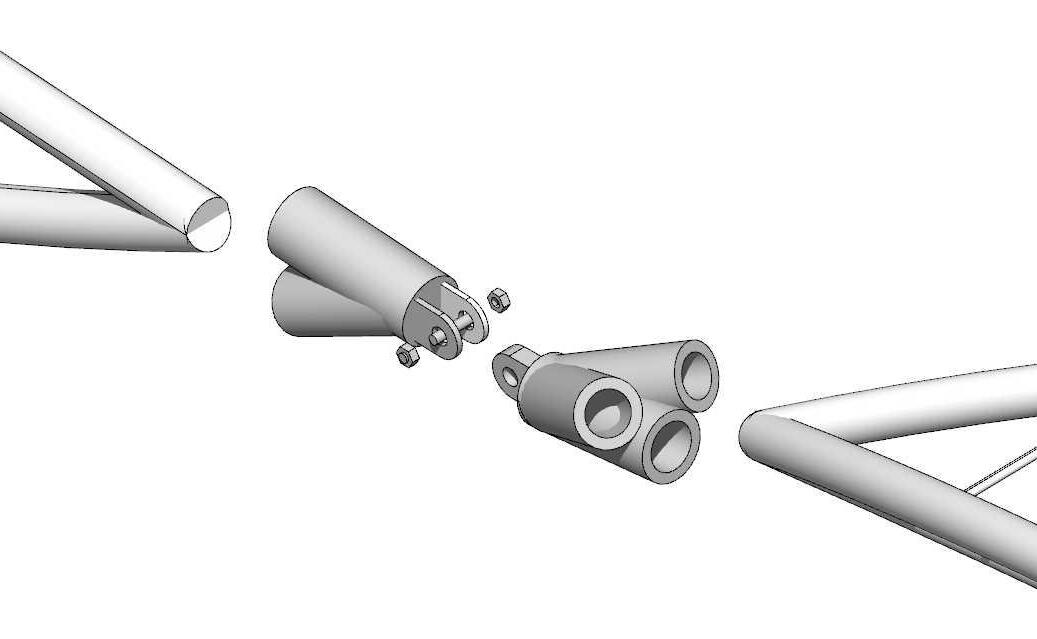

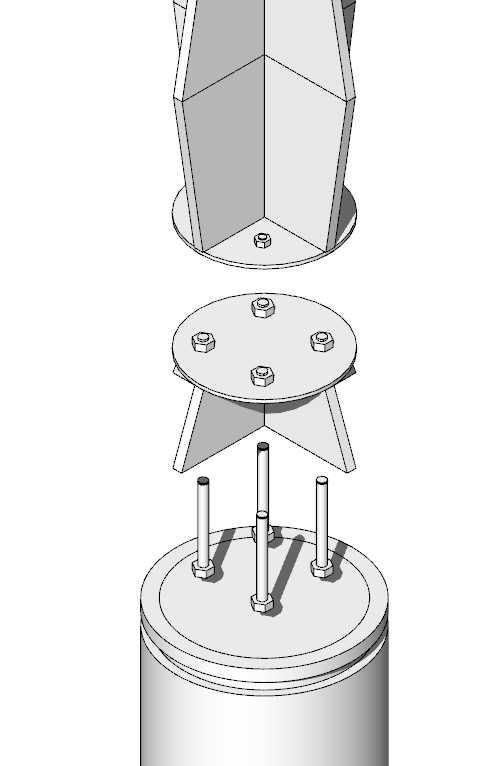

JOINT DETAILS
FRAME PLANE
TRUSS BAJA
PIPA 17 CM
MUR BAUT
Using knowledge of moment diagram, the form changed into resembling a cup. The form follows the highest and lowest value of the moment diagram.
FRAME SPACE
TRUSS BAJA
For further exploration, the truss is made to look like a bird’s wings. The column is shifted to bear the middle load better.
PLAT BAJA
PIPA 15 CM
SAMBUNGAN BAJA
(KOLOM - TRUSS)
MUR BAUT
KAKI SAMBUNGAN
PLAT BAJA
60 CM
Work Projects
work as a lighting designer | mostly residential and retail projects | 2024
Tools: AutoCAD, Enscape, SketchUp

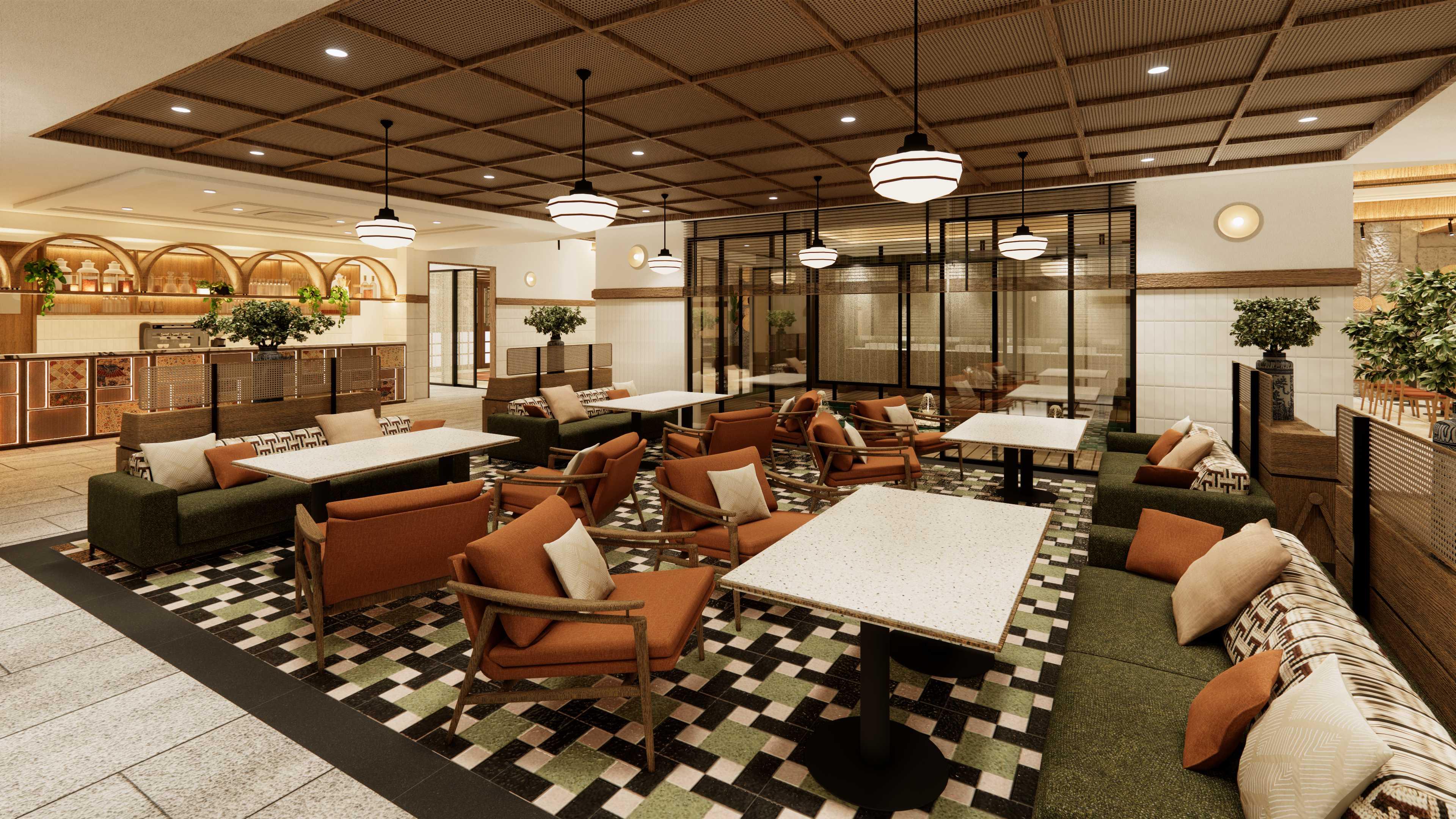

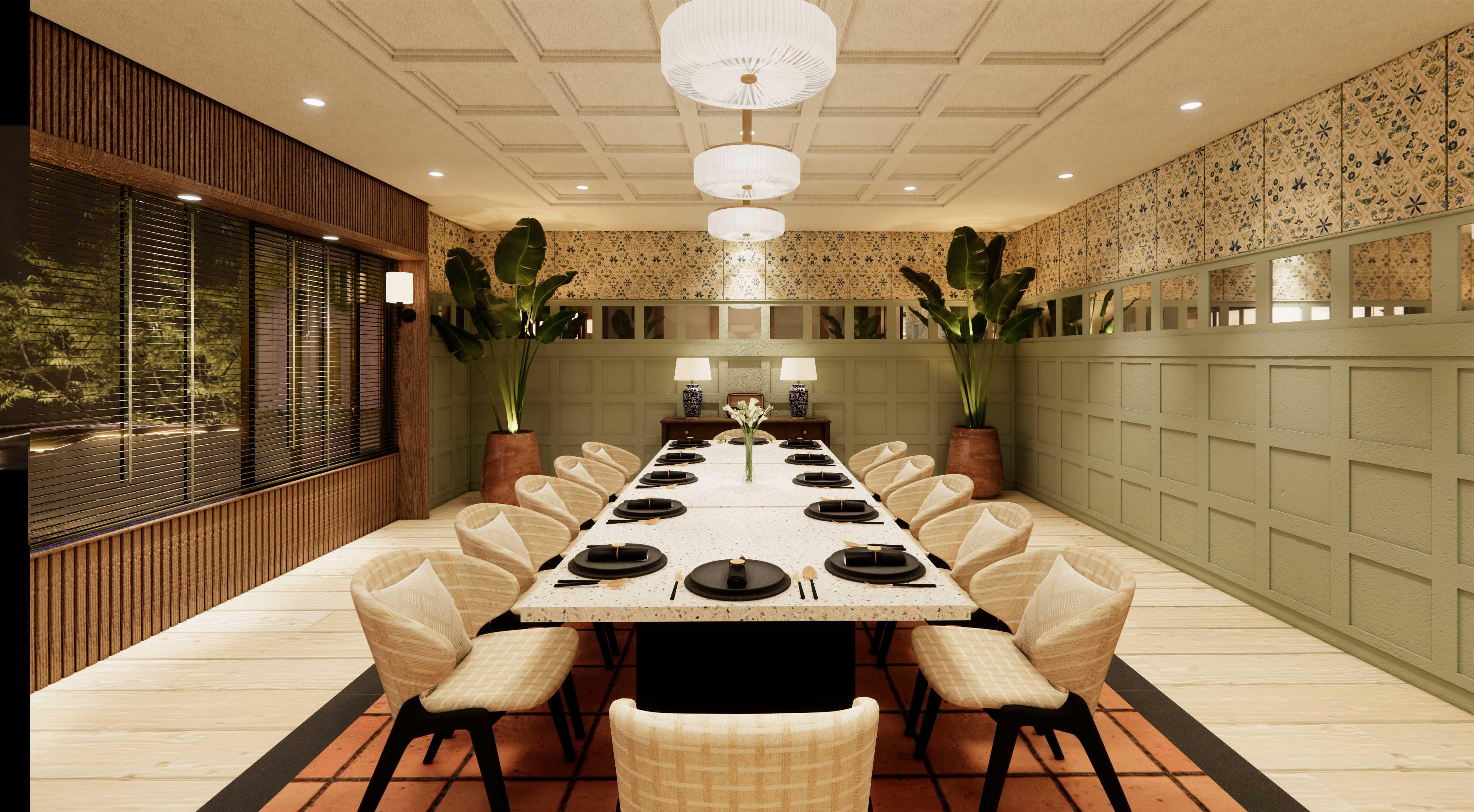

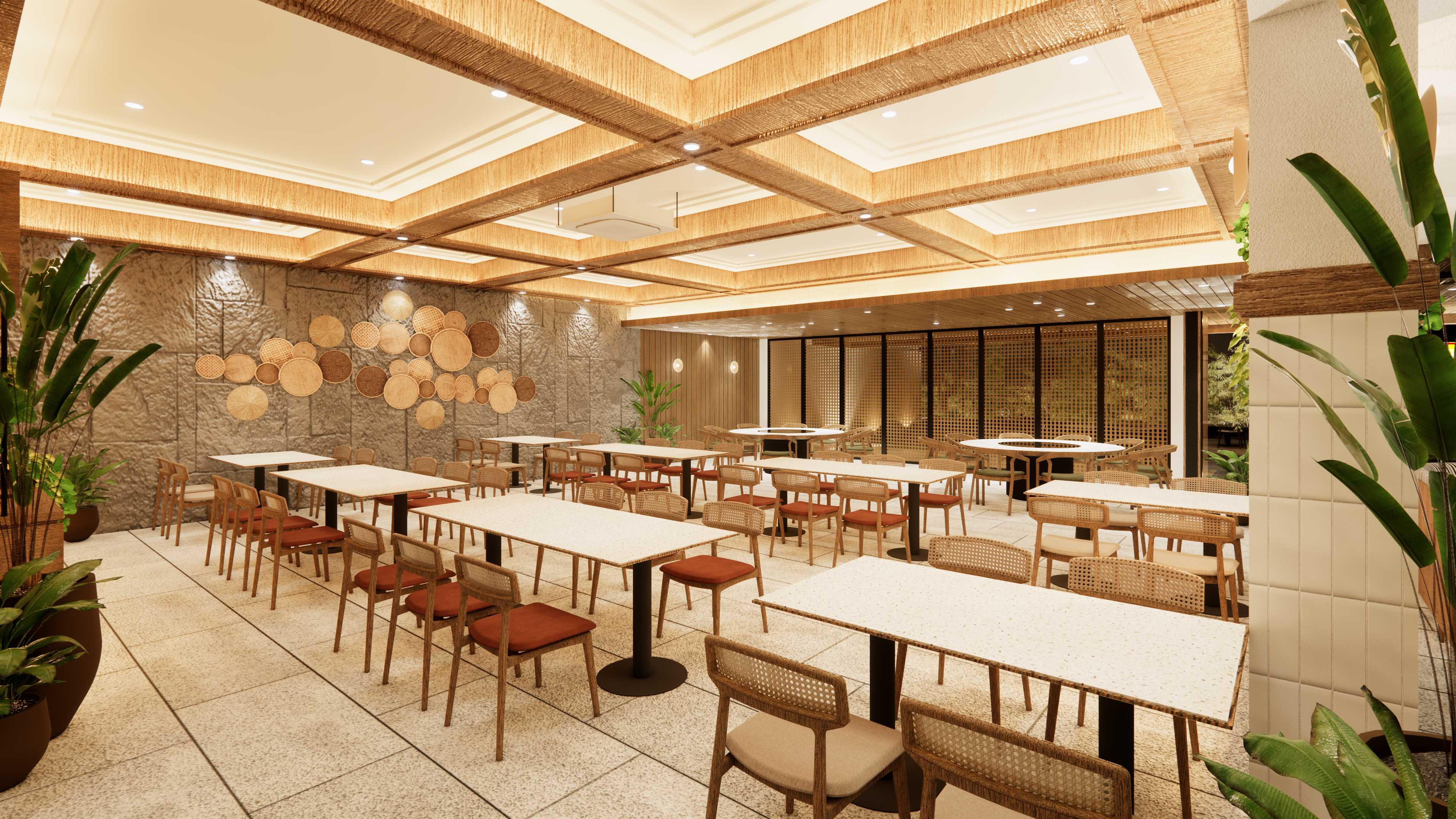

Dago Resto
(status: under construction)
In thi project, I continued and revi ed exi ting working drawing to align with on- ite condition . Additionally, I wa re pon ible for everal ta k , uch

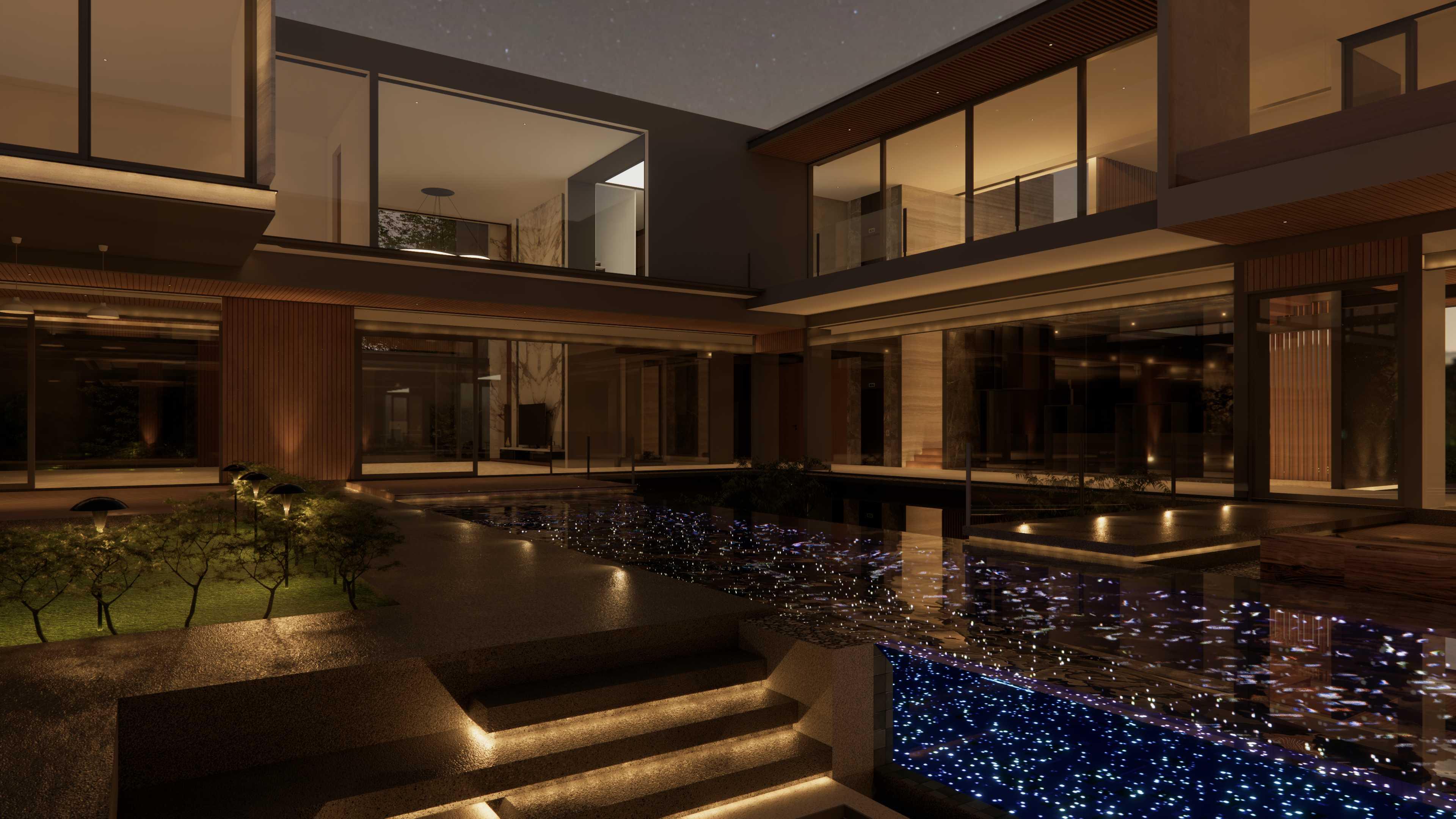

ommunicated with architect regarding de ign change and lighting detail onducted ite vi it and coordinated with on- ite MEP (Mechanical, Electrical, and Plumbing) team De igned detailed lighting in tallation plan for both exterior and interior pace and LED placement plan for interior furniture Produced interior rendering and exterior animation video .

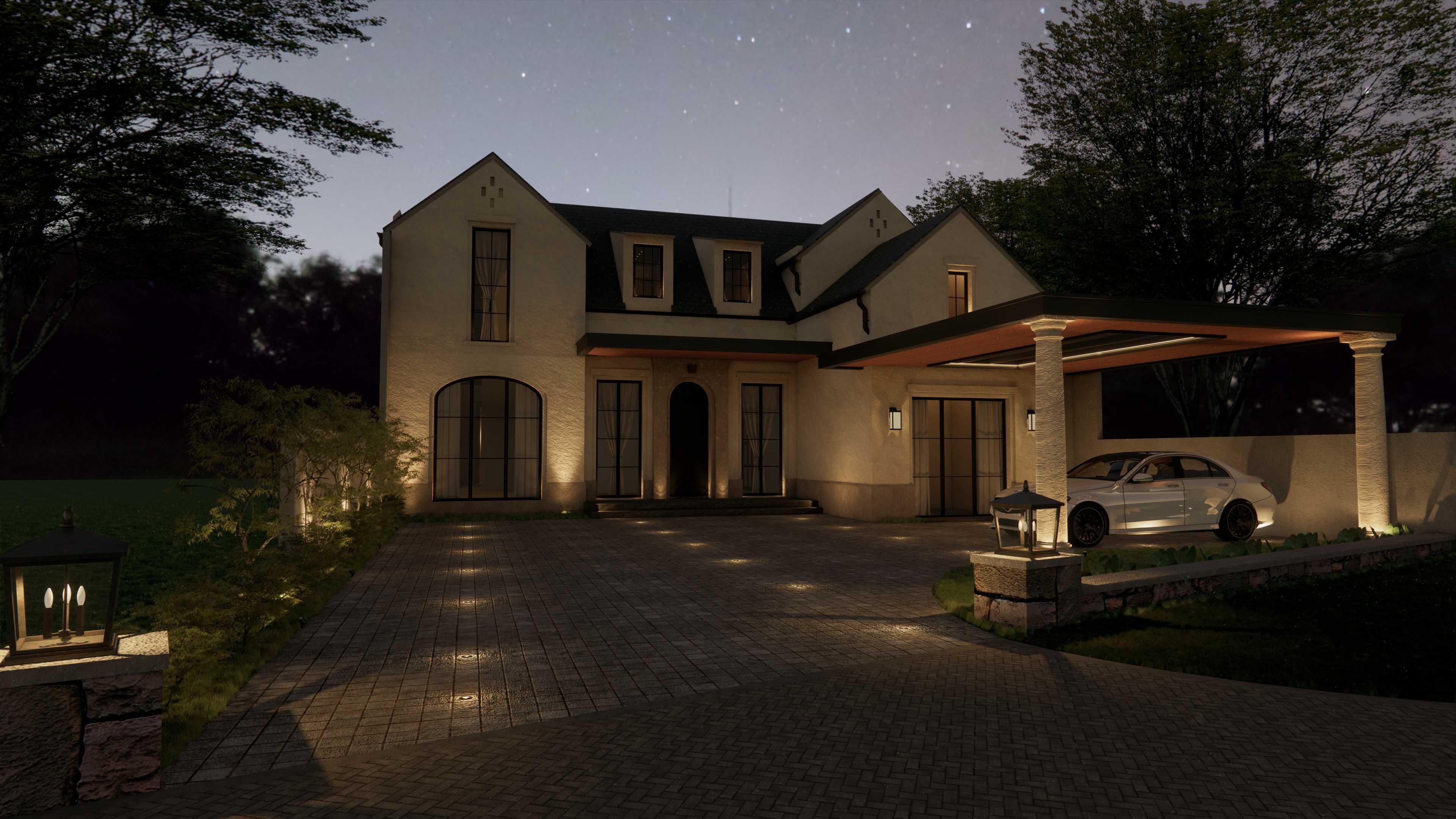

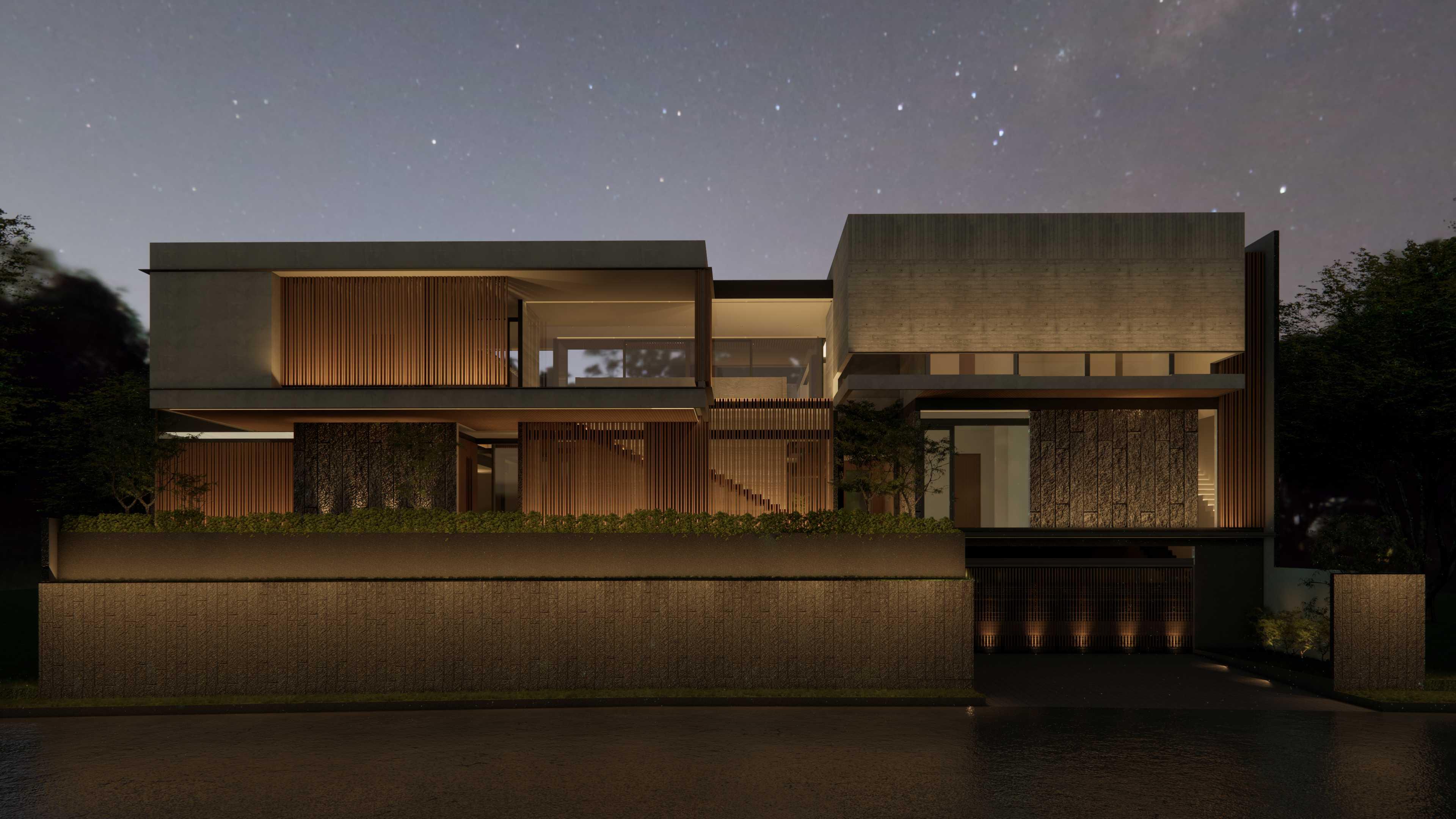

Aurel Residential Project
(status: concept drawing)
In this project, I was responsible for handlin tasks from the be innin under the super ision of the Senior Li htin Desi ner. More specifically, my responsibilities included:
De eloped technical drawin s, includin li htin point layouts, transformer roupin s, and installation construction details
Desi ned detailed li htin installation plans for both exterior and interior spaces Produced interior renderin s and exterior animation ideos.

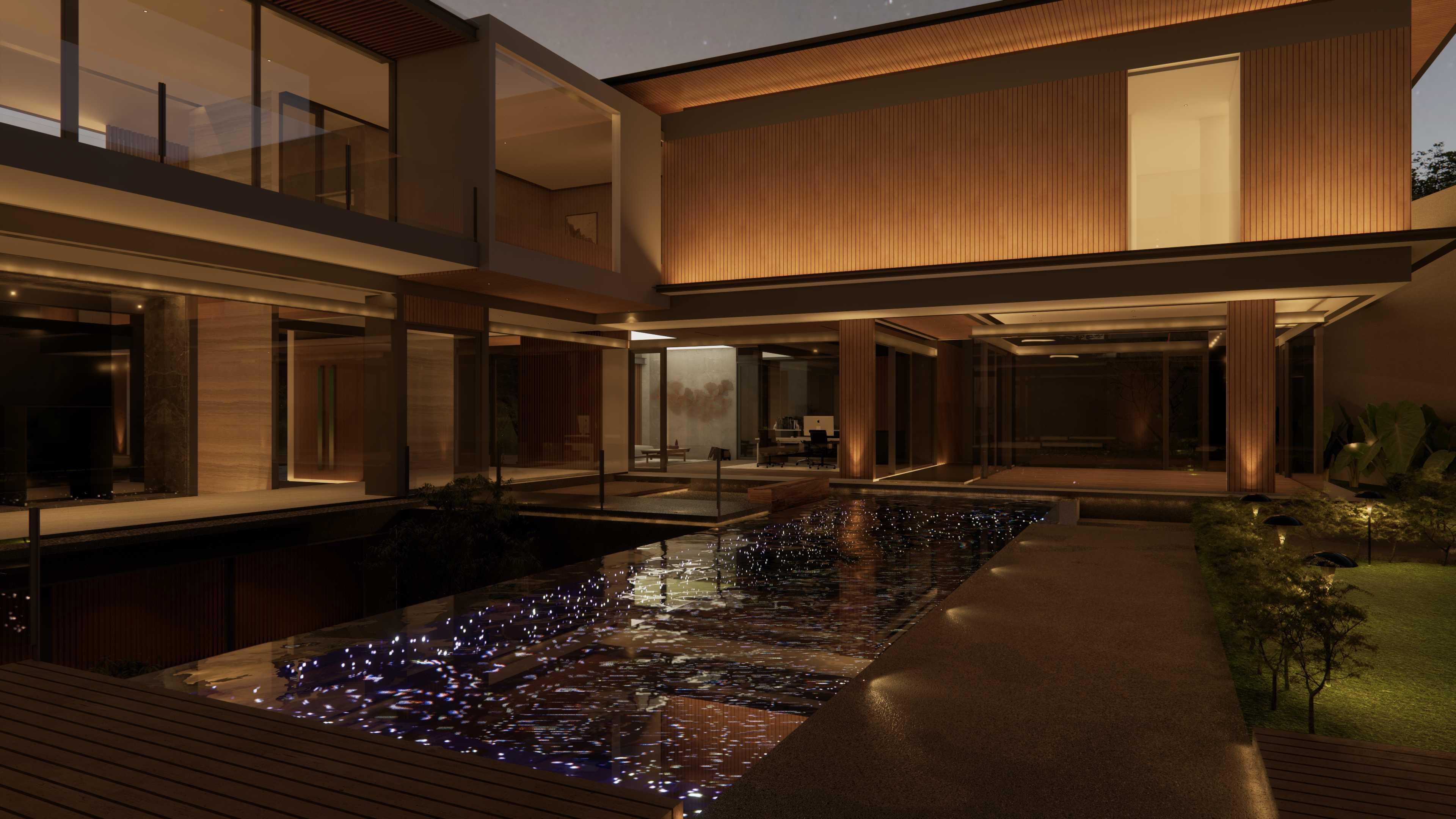

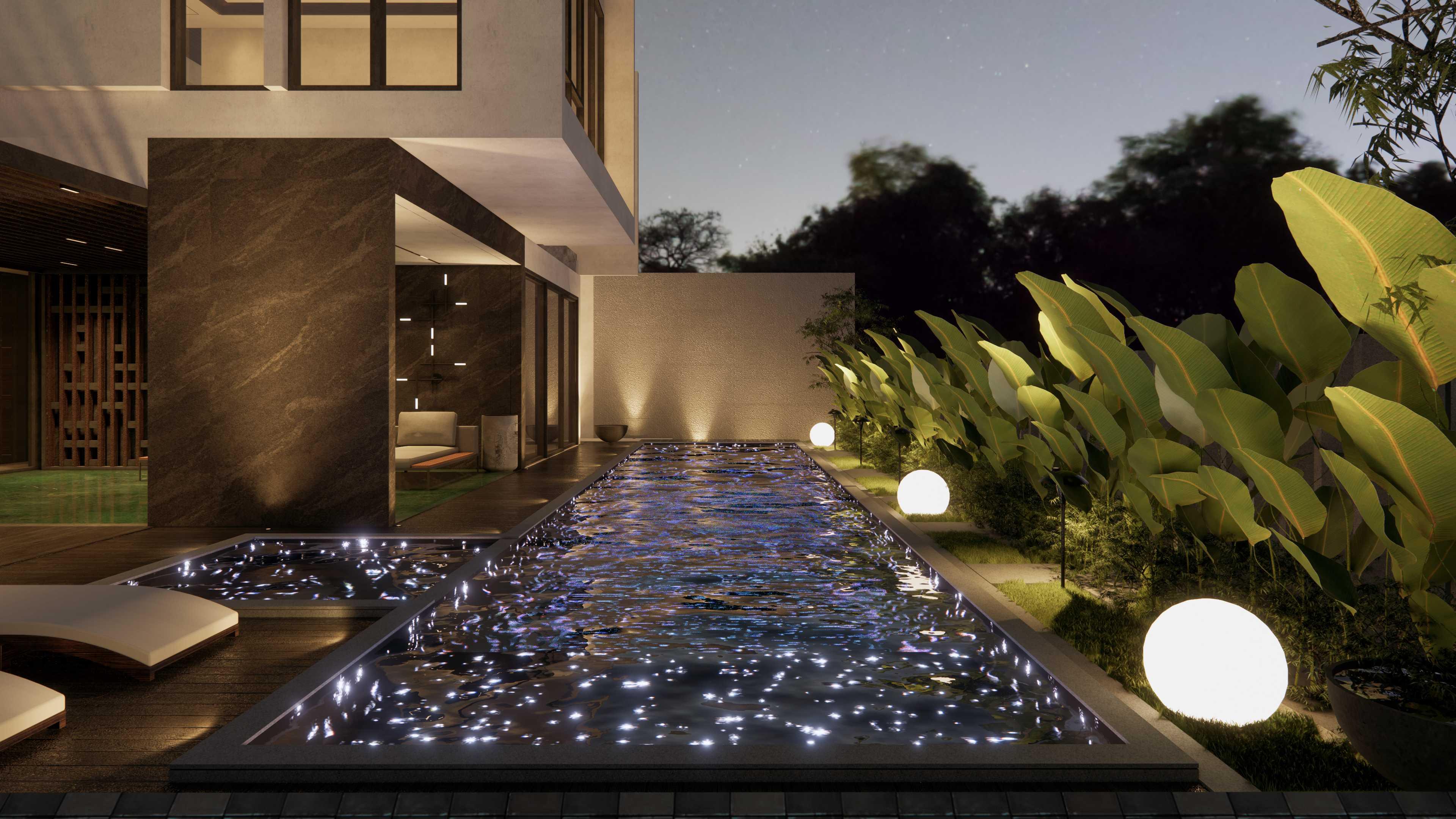

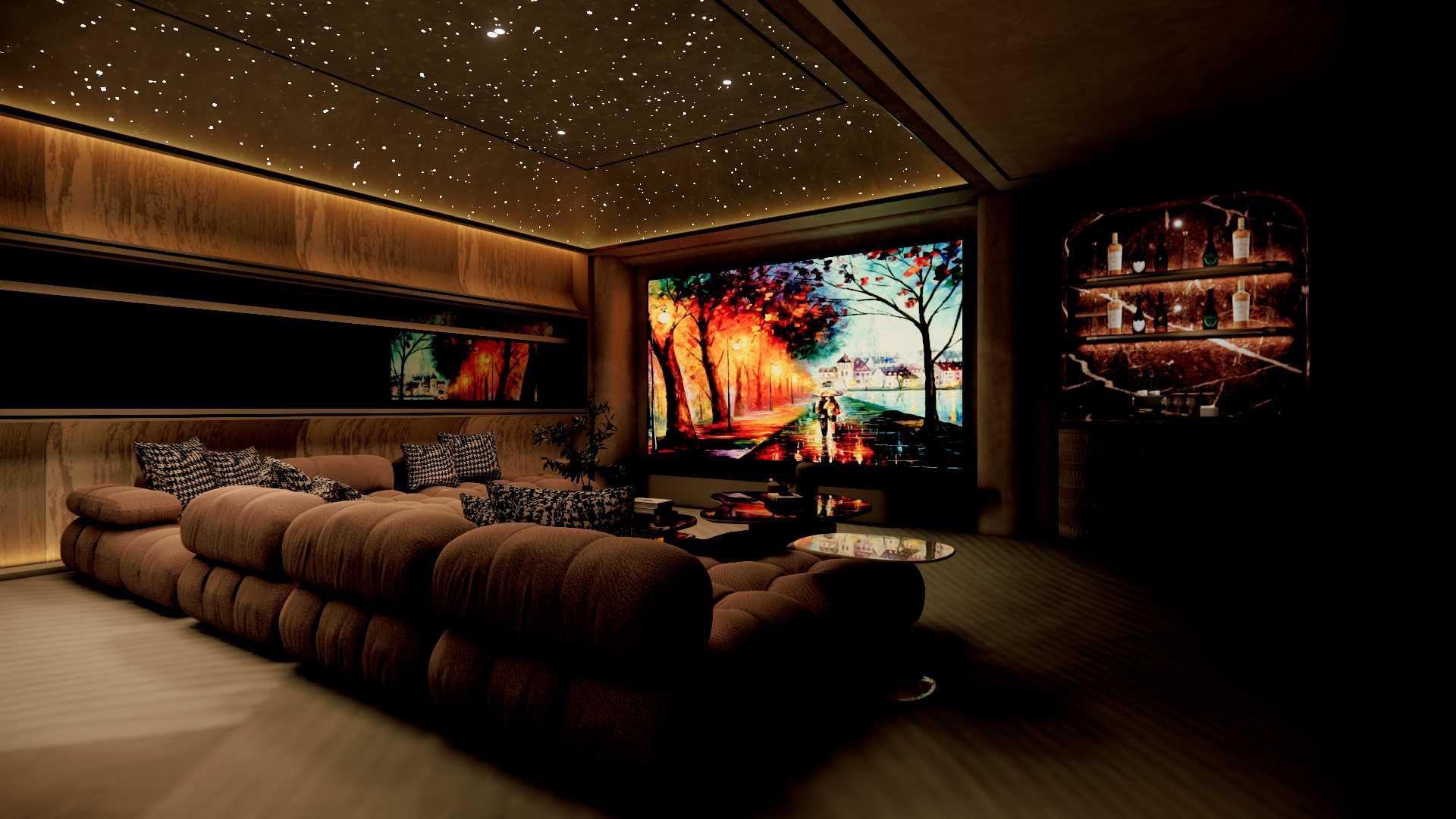

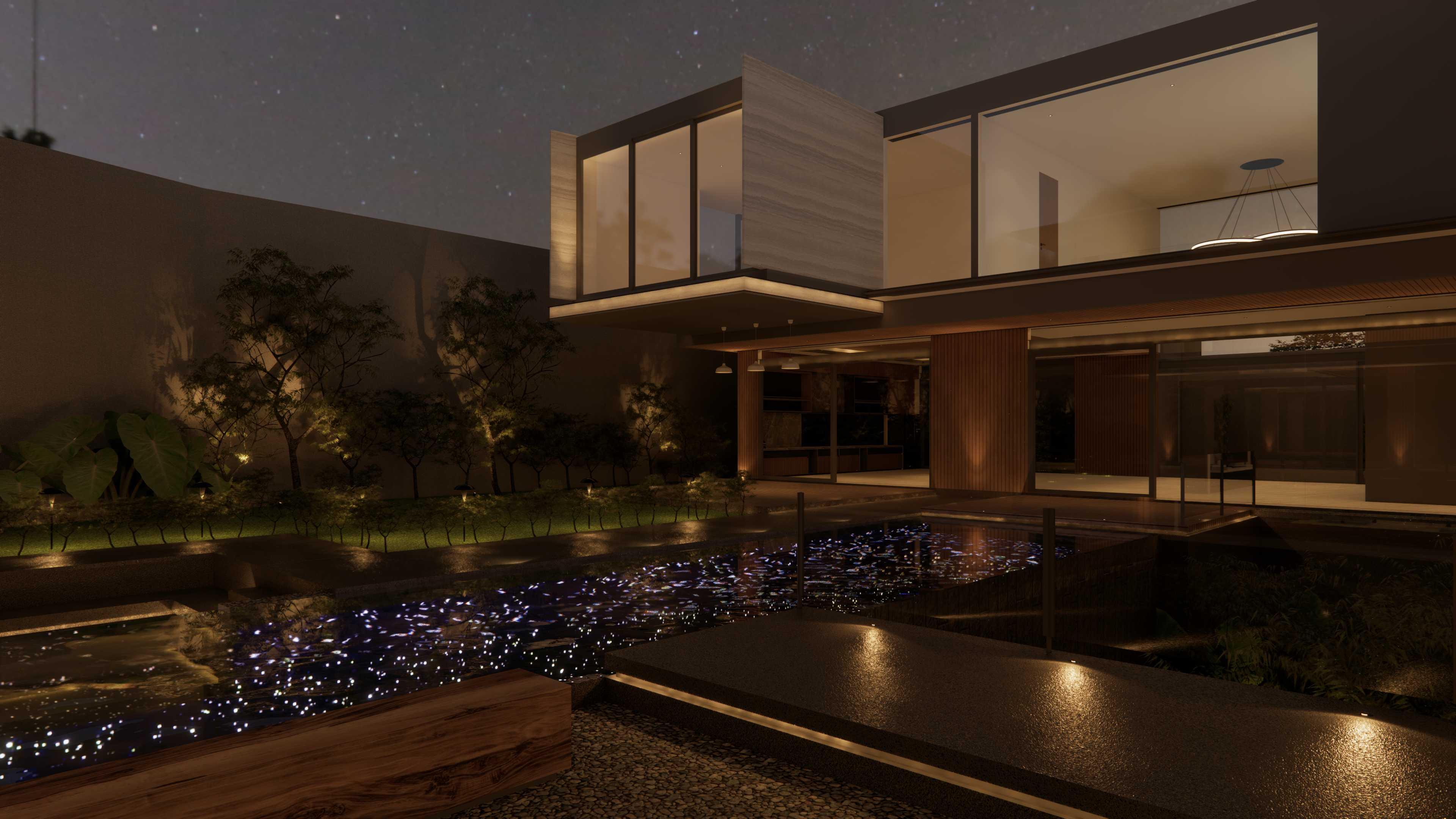

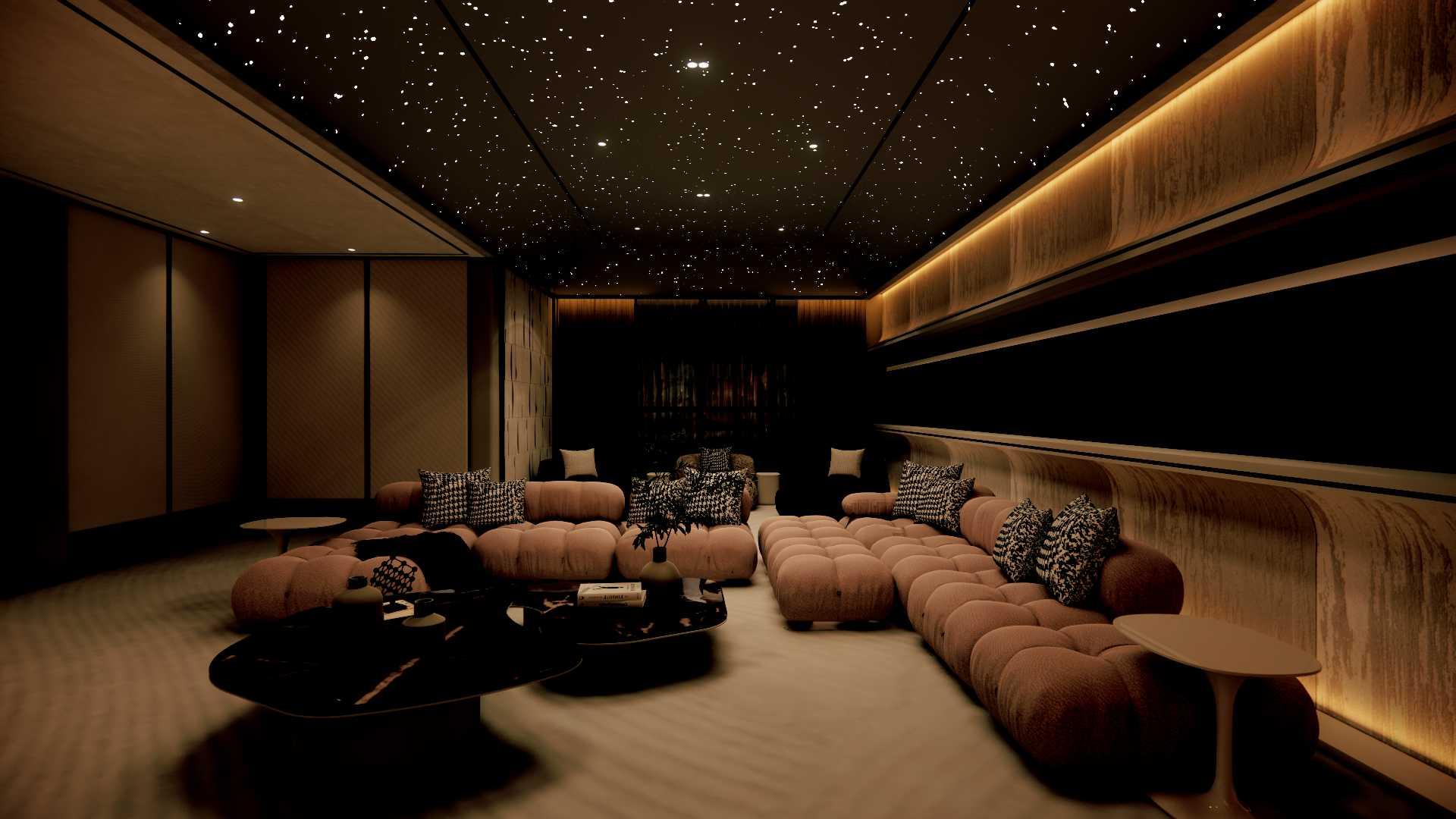

RENDERINGS

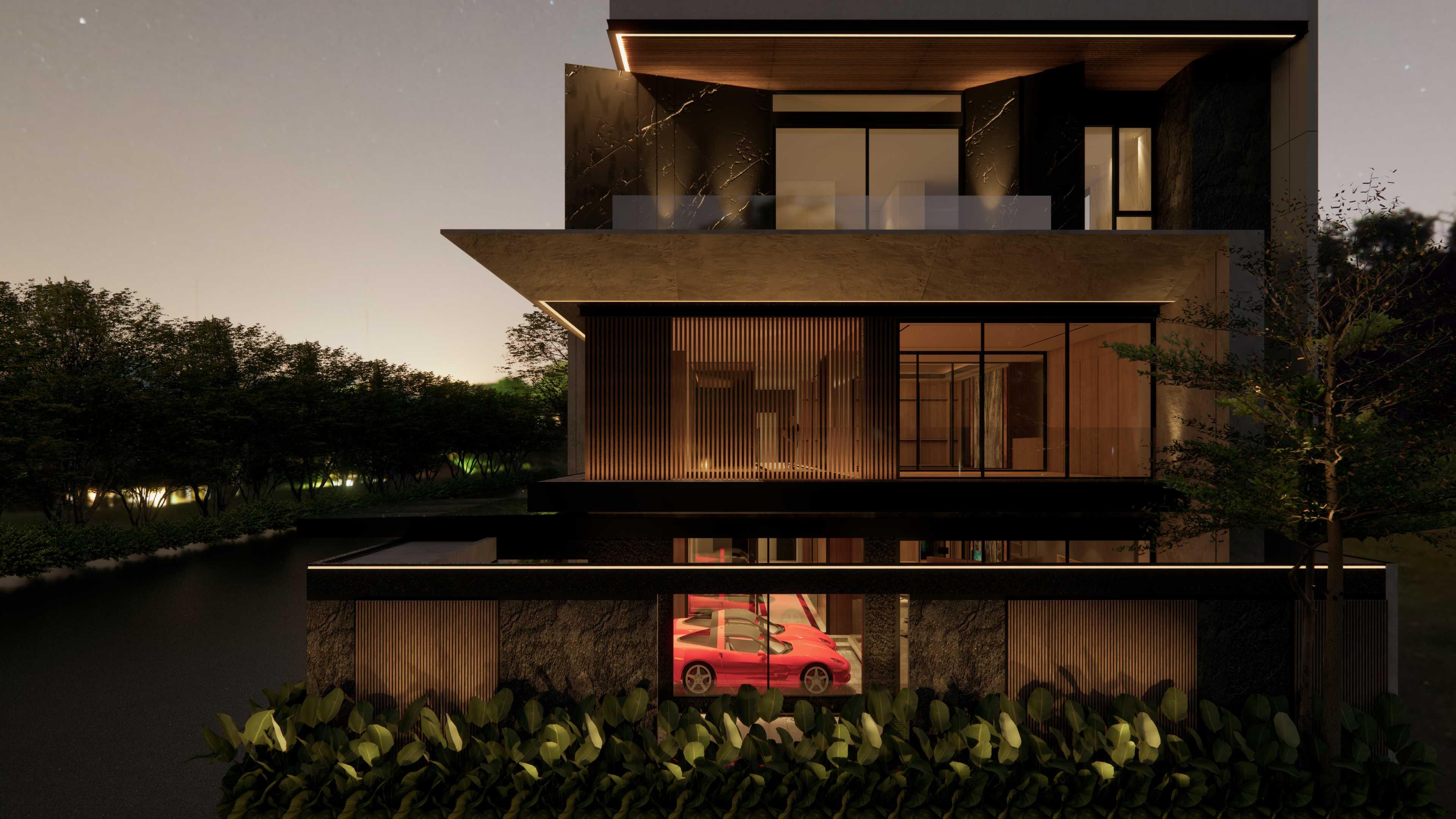

Ivan Residential Project
(status: under construction)
In this project, my main focus was on creatin renderin s and animation ideos of interior spaces. Additionally, I worked on detailin the placement of li htin fixtures for both interior and exterior spaces.
OTHER WORKS

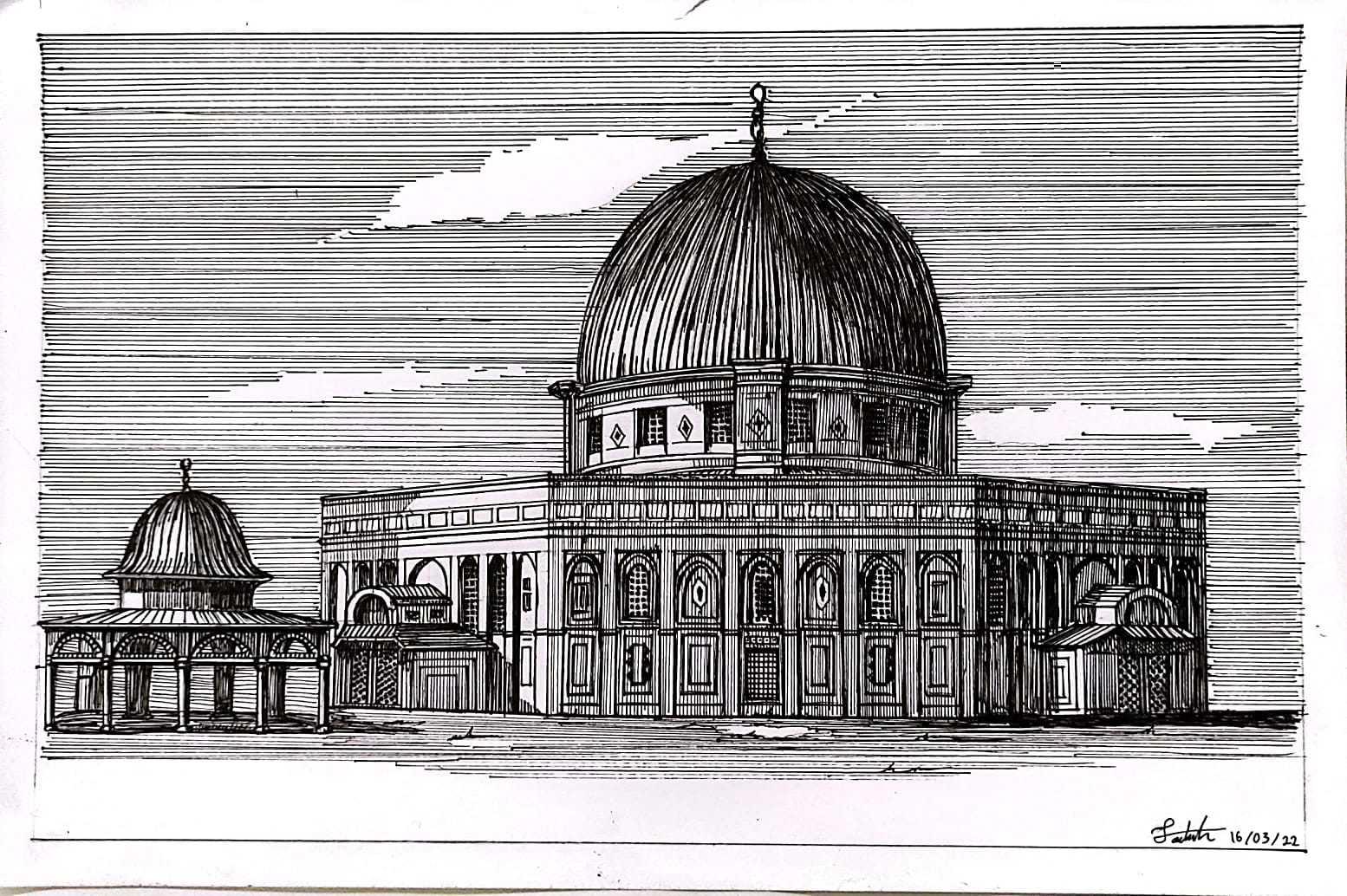

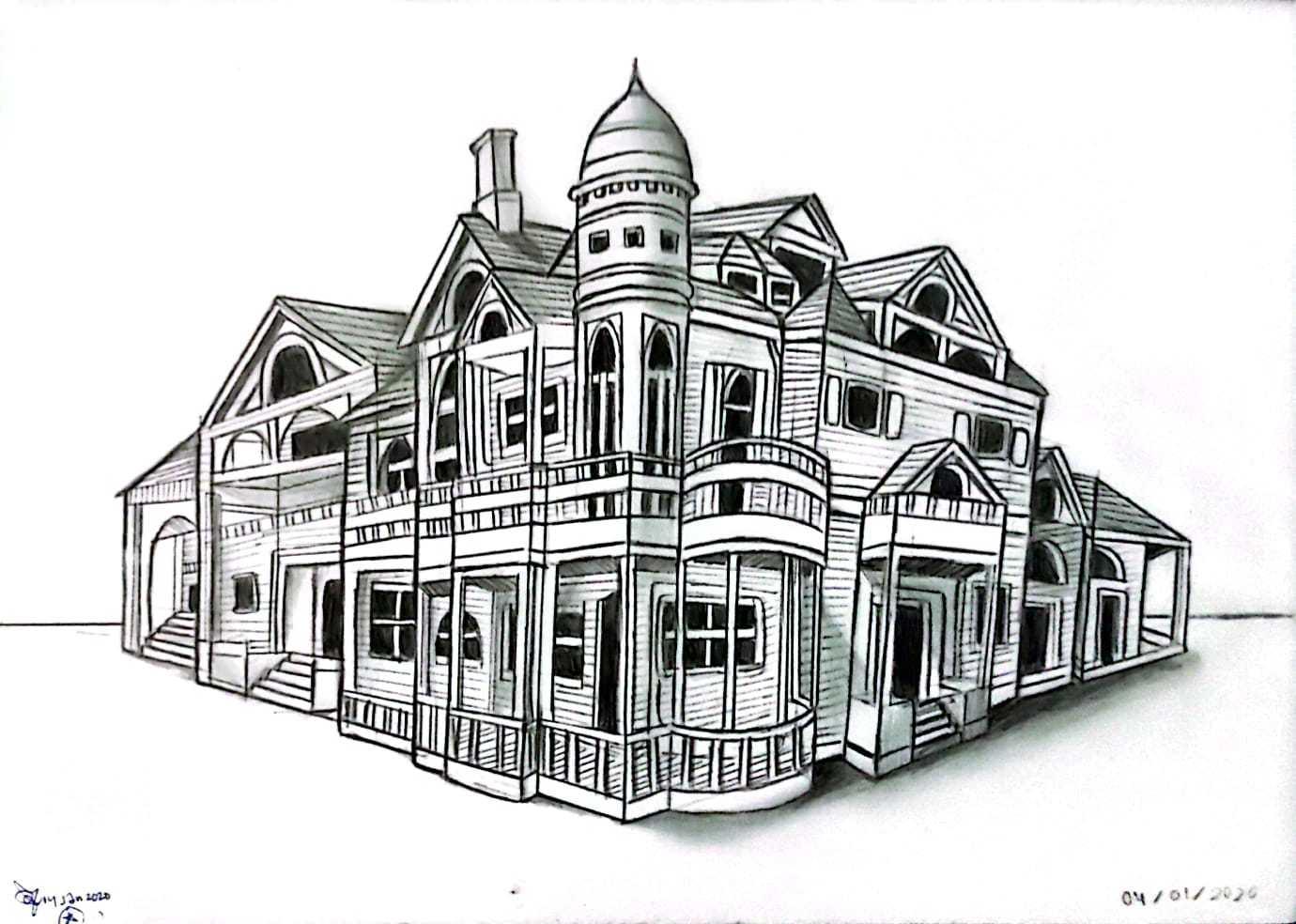

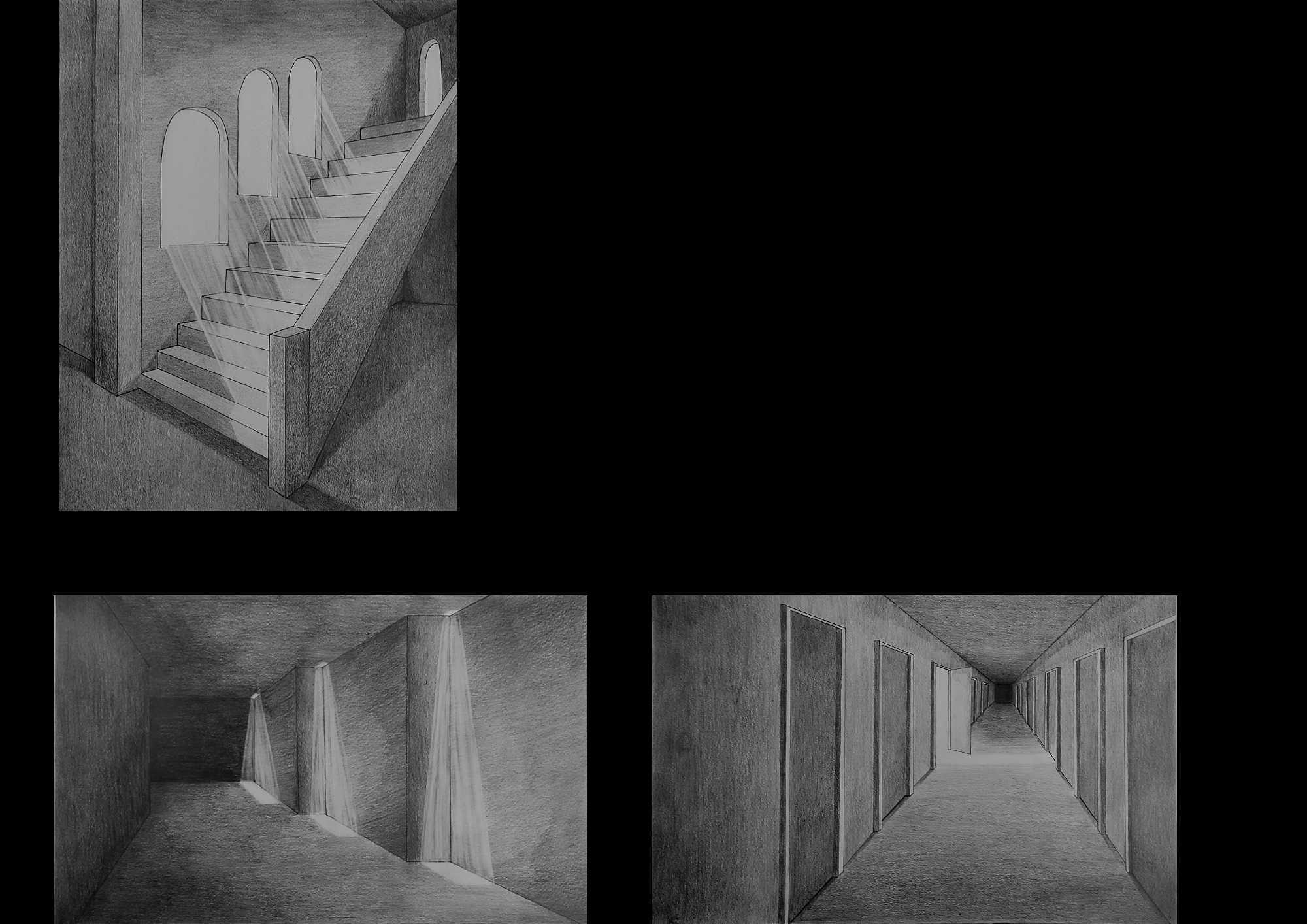

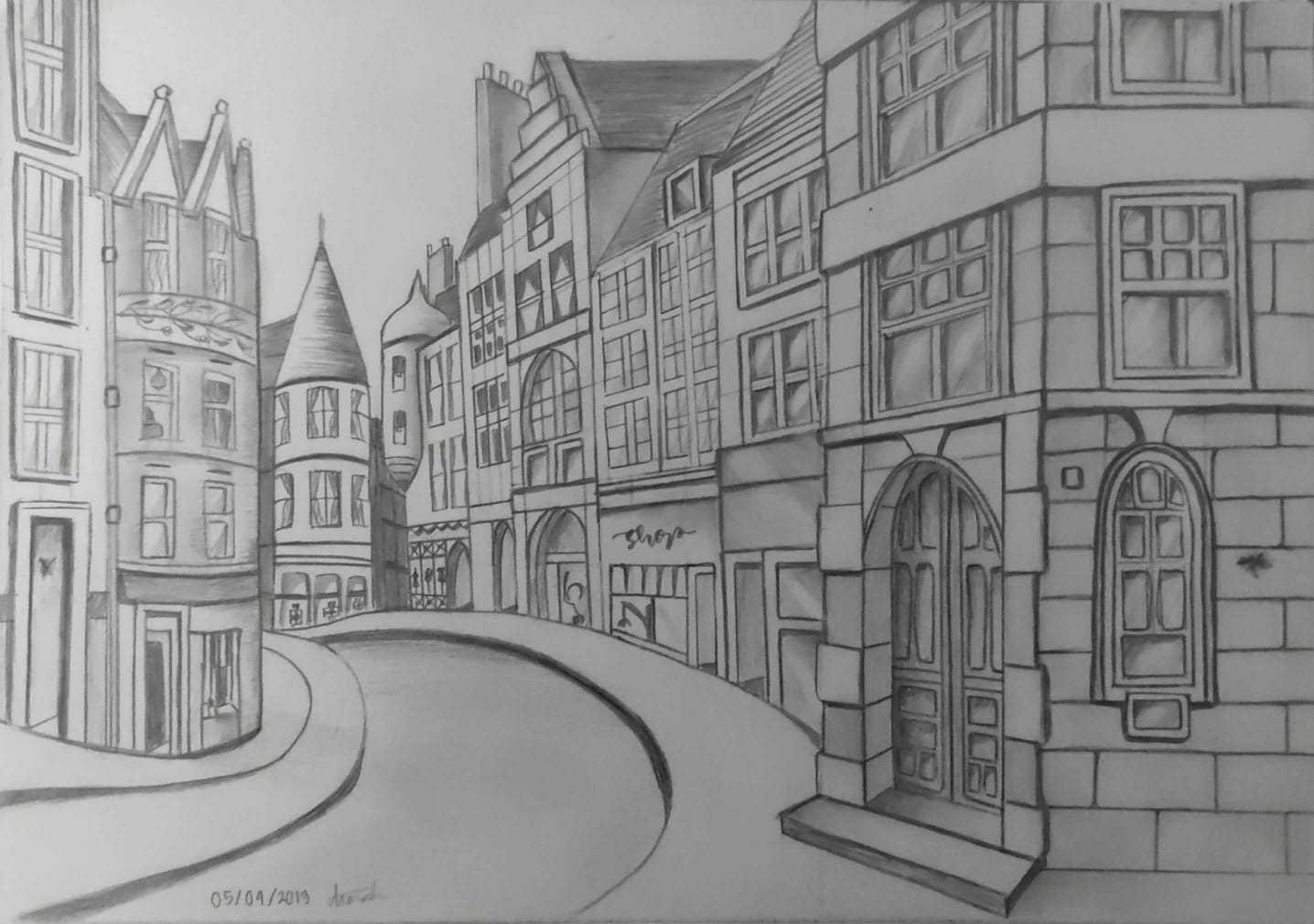

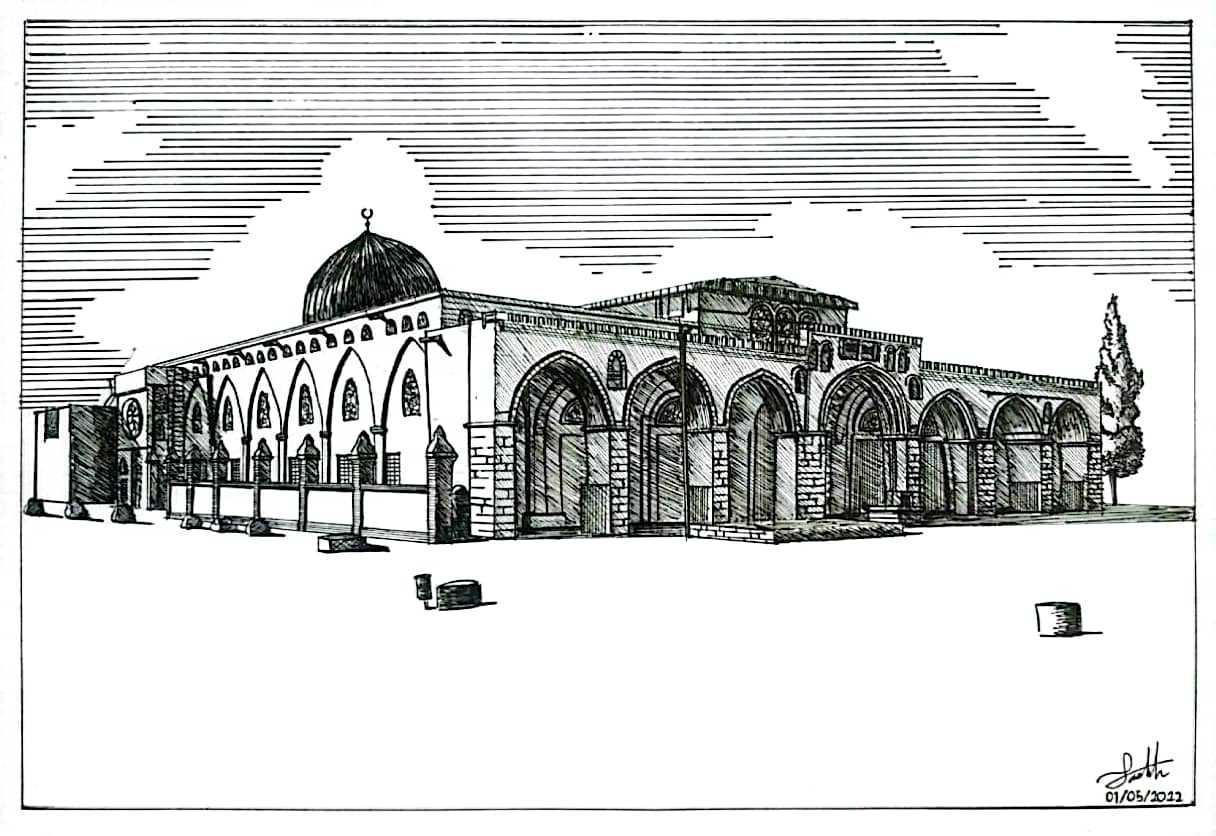

These are a compilation of my other architectural works, from 2021 to 2023 such as architectural designs, maquettes, and hand sketches.
Framed Gallery
Second-year form and space design studio | Gallery | 2022
Supervisor: Tubagus Muhammad Aziz Soelaiman, ST., MA.

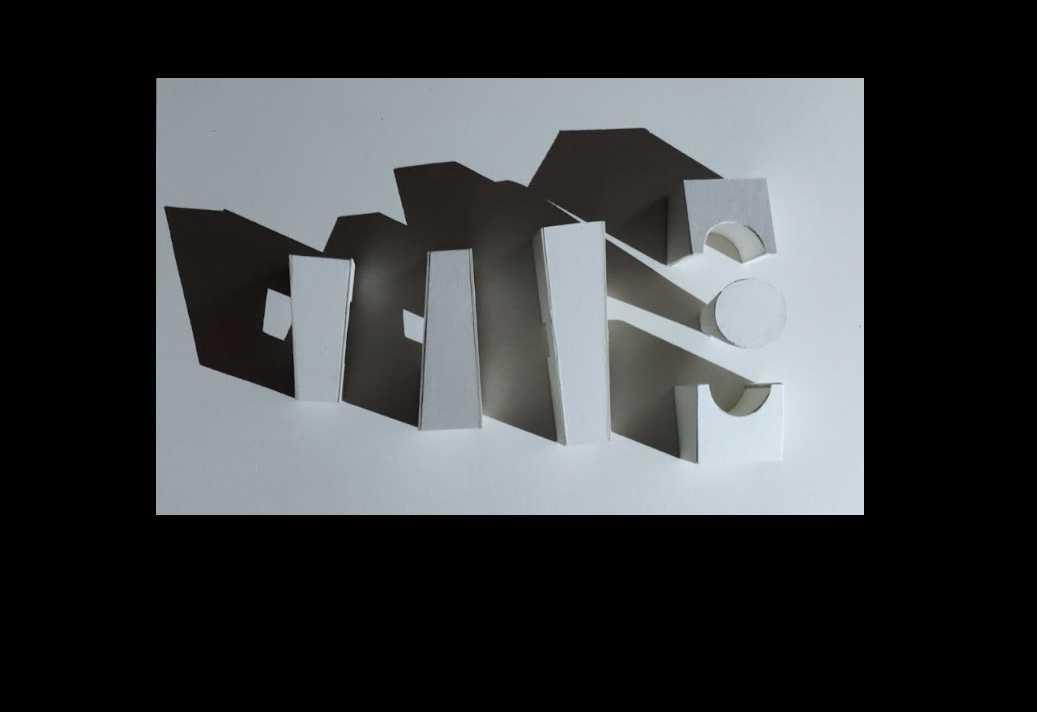

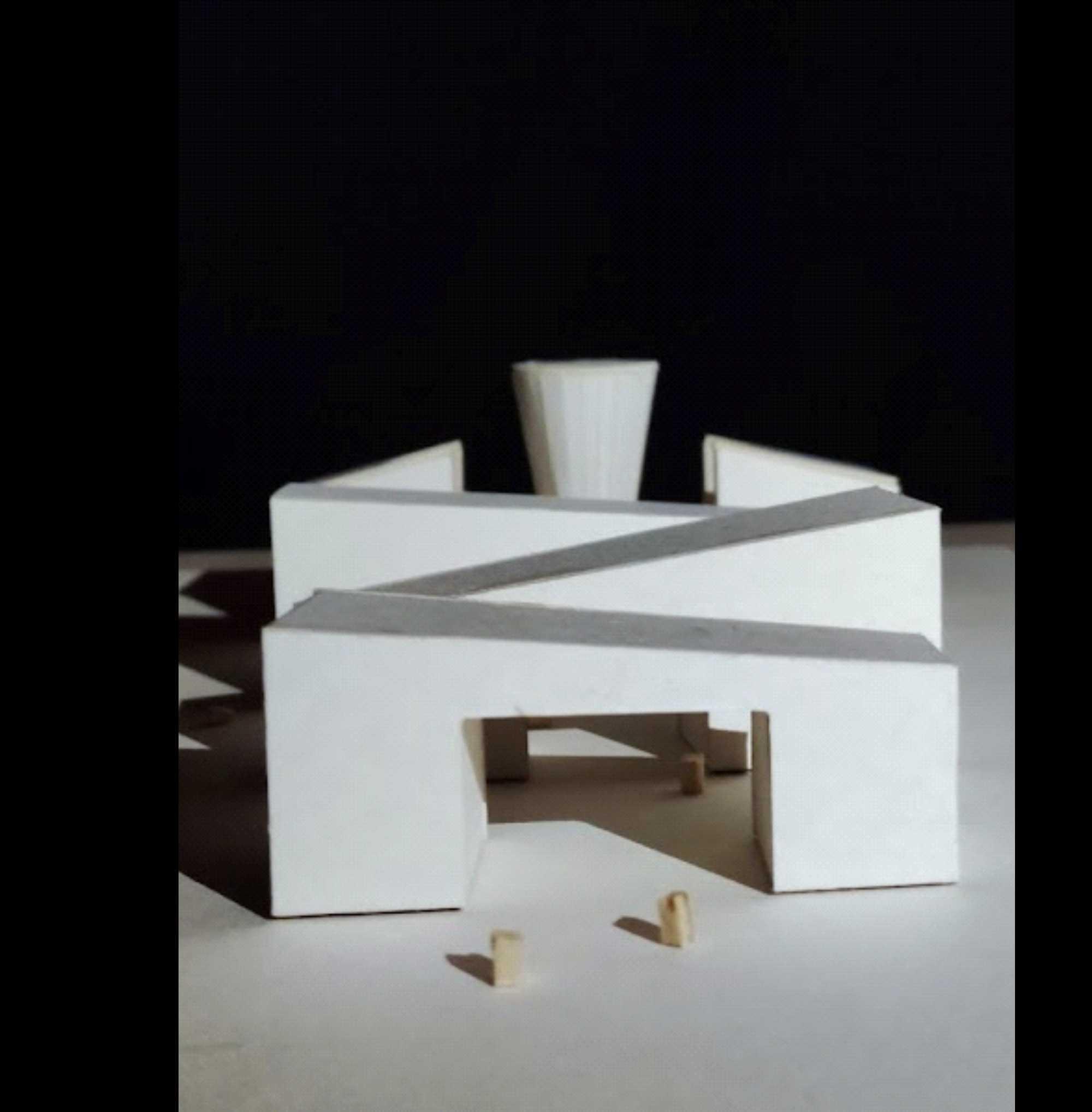

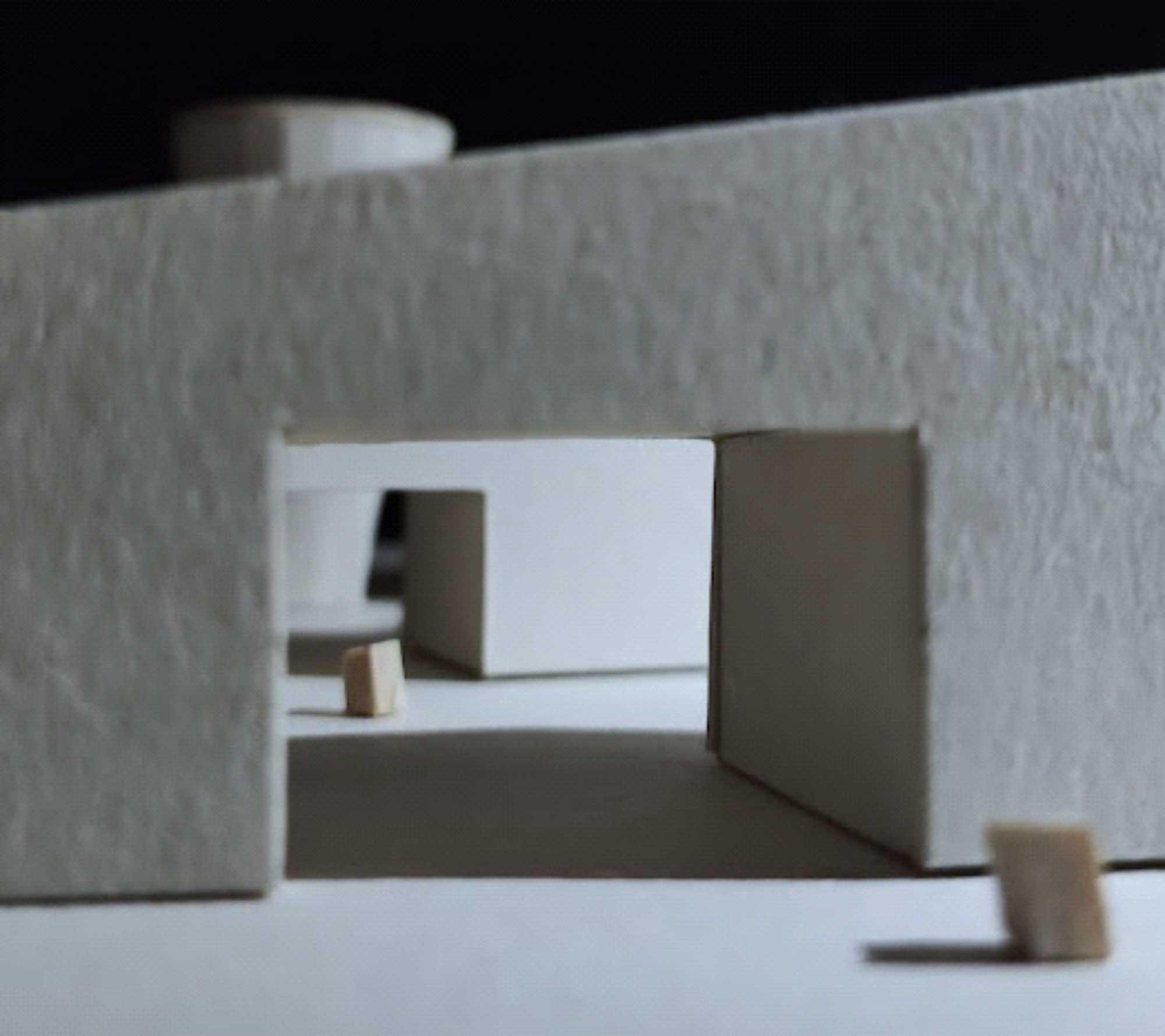

Model Making

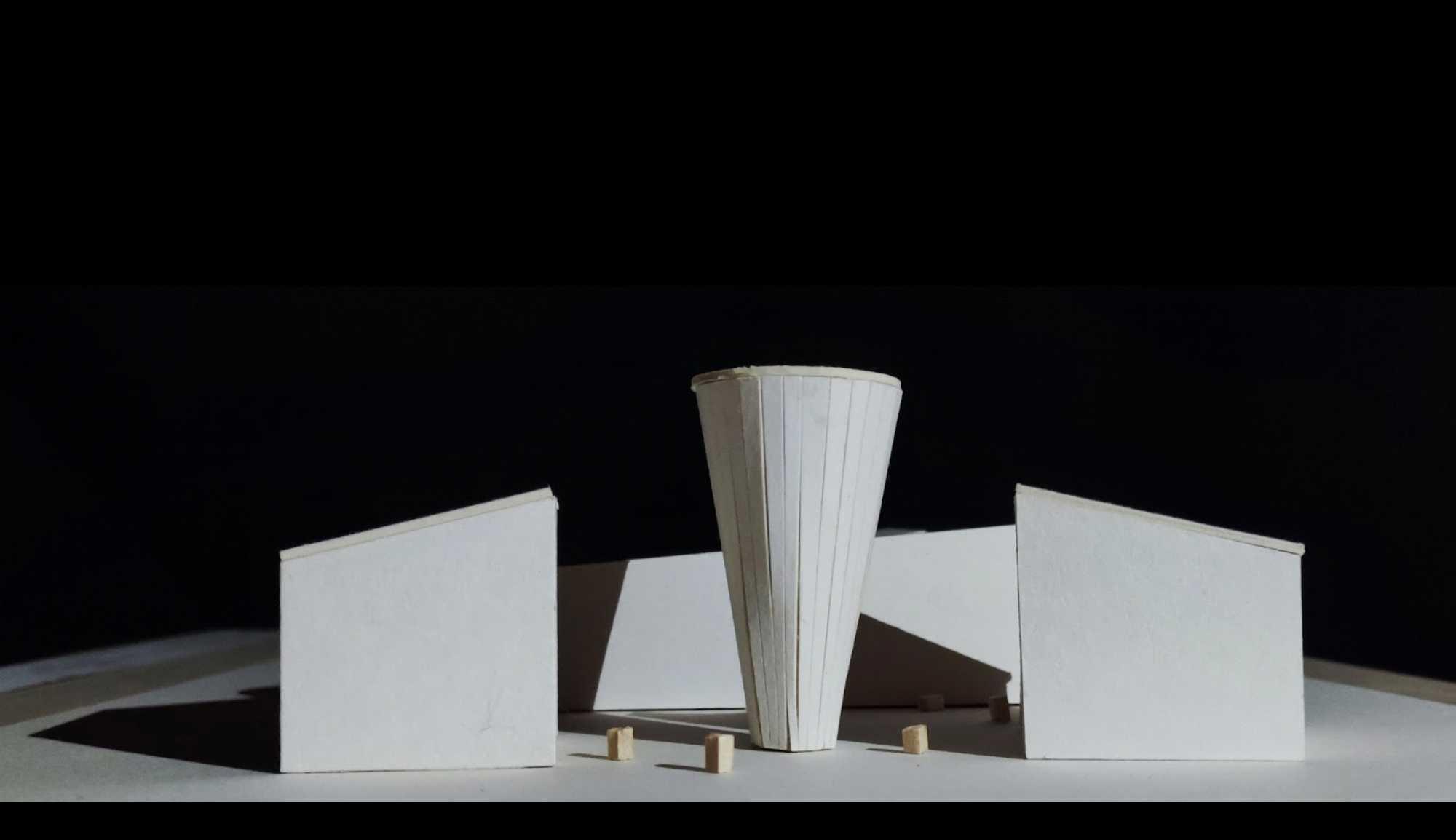

Framed Gallery is an art museum that carries the concept of frames. It is inspired by works of art that are usually protected by frames. This art museum consists of 6 building masses with 1 mass acting as a landmark. The cone is reversed so that visitors can see footage of the landmark from inside the frame and on top of the building, creating a mysterious impression.
Framing

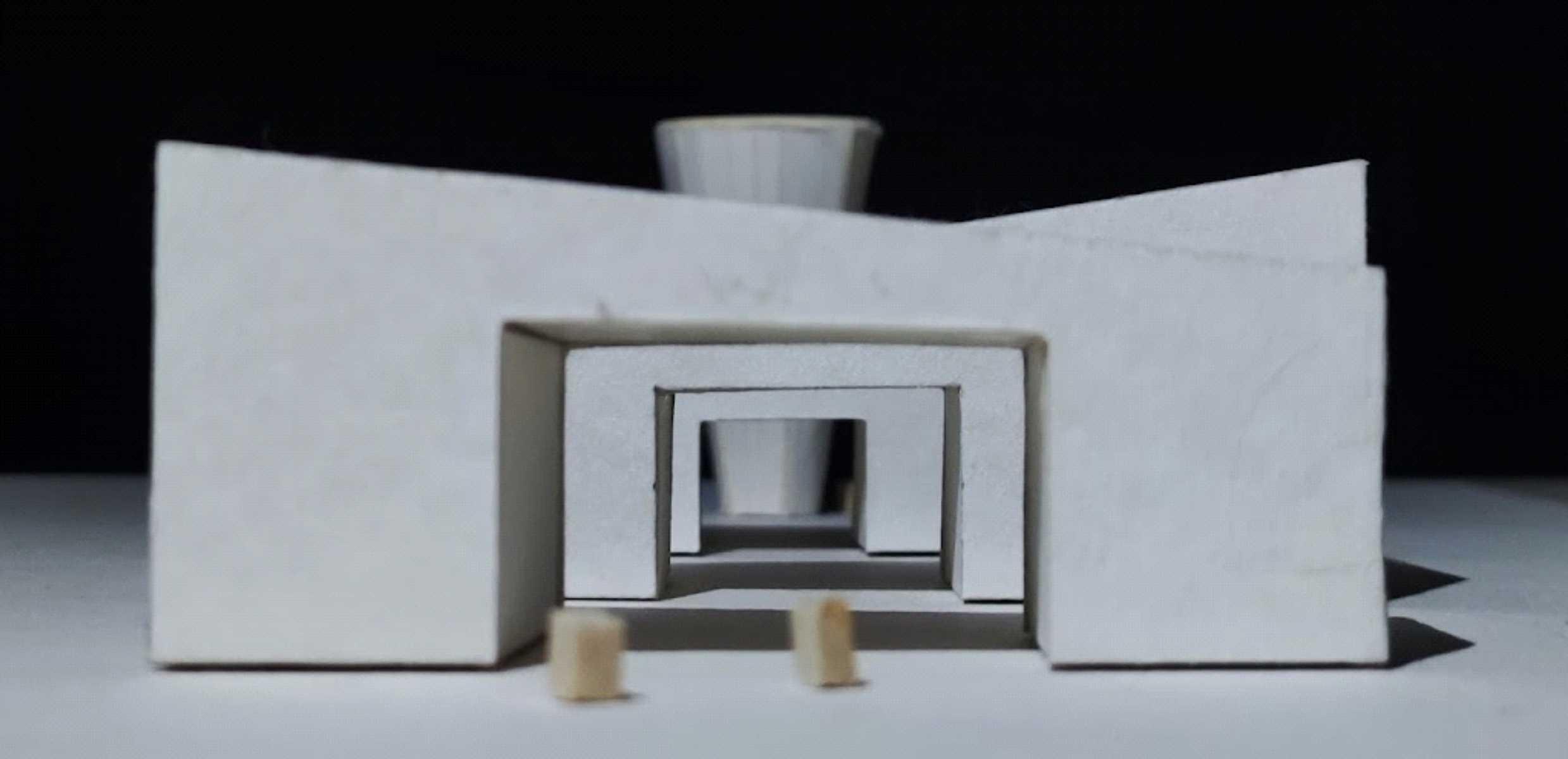

The mass is created by subtraction technique resulting in a height difference. All mass is subtracted to frame the landmarks.
This museum has circulation in a linear direction. Visitors are directed through smaller openings of the
